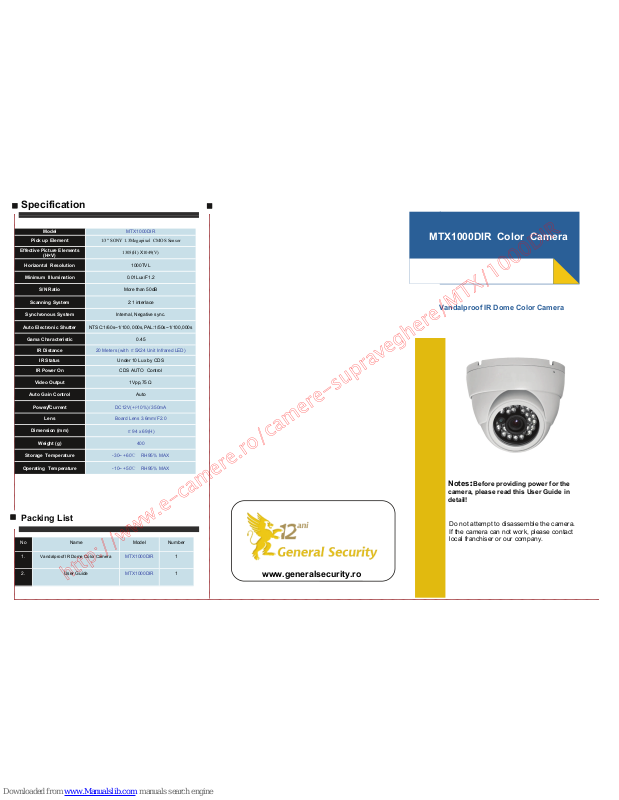

MTX MTX1000DIR User Manual
MTX1000DIR Color Camera
Vandalproof IR Dome Color Camera
Specification
Packing List
No Name Model Number
2. User Guide MTX1000DIR 1
1.
Vandalproof IR Dome Color Camera
MTX1000DIR 1
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model
MTX1000DIR
Pick up Element
1/3" SONY 1.3Megapixel CMOS Sensor
Horizontal Resolution
1000TVL
Minimum lllumination
0.01Lux/F1.2
S/N Ratio
More than 50dB
Scanning System
2:1 interlace
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
NTSC:1/60s~1/100,000s,PAL:1/50s~1/100,000s
Gama Characteristic
0.45
IR Distance
20 Meters (with ￠5X24 Unit Infrared LED)
IR Status Under 10 Lux by CDS
IR Power On CDS AUTO Control
Video Output
1Vpp,75 Ω
Auto Gain Control
Auto
Power/Current
DC12V(+/-10%)/ 350mA
Lens Board Lens 3.6mm/F2.0
Dimension (mm)
￠94 x 69(H)
Weight (g)
400
Storage Temperature
-30~ +60℃ RH95% MAX
Operating Temperature
-10~ +50℃ RH95% MAX
Effective Picture Elements
(H×V)
1305(H) X1049(V)
www.generalsecurity.ro
http://www.e-camere.ro/camere-supraveghere/MTX/1000DIR
INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits MTX1000DIR product. We adopt
the latest CMOS technical of sensor and driver. The most
attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the characters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are convenient too. It is very good for you to apply to yours CCTV
system.
Please read this instruction manual carefully to en-
sure proper use of the product.
CONNECTING
BRIEF OF PRODUCT
DC12V Power Supply
Monitor
MTX1000DIR
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment
requirement. Avoid using the camera at too high
or too low temperatures. The operating temperature is -30~
+60℃. (Recommendatory operating temperature is –10~
+50℃.)
● Never make the camera face the sun or bright object. Other-
wise, it will damage the CMOS.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect corr ectly or have high impedance.
To prevent fire or shock hazarded. Do not expose the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
to rain or moisture.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage ’ within the product’s
enclosure that may be of sufficient Magnitude to constia risk of electric shock to persons.
Video
12V DC
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BANCK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS,DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
● Do
not
mou
* Sensor (CMOS)
Adopt SONY 1/3" CMOS Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
* Support UTC function
With UTC Remote Controller for the convenience of
OSD menu setting.
* OSD SETTING
OSD
SET
3D-NR ON/OFF
AE MODE
GLOBAL/CENTER/CENTERWEIGHT/BLACK
LIGHT/FRONT LIGHT/DISTINGUISH
IMAGE ENHANCE SHARPNESS/CONTRAST/SATURATION
MIRROR ON/OFF
FLIP ON/OFF
BRIGHTNESS 0.10.20......250
ZOOM IN 50. 60. 70. 80. 90. 100
DAY&NI
GHT
AUTO
IR-CUT
WB
AWB-PRO
AWB-TEMPORAL
AWB-AI
AWB-SZ
AWB-GW
AWB-CCT
ZONE
MASK-
ING
COLOR
MOSAIC/WHITE/YELLOW/CYAN/GREEN/
MAGENTA/RED/BLUE/BLACK
AREA NO.0 - AREA
NO.7
DIREC-
TION
AREA NO.0 - AREA
NO.3
ENGLISH
CHINESE
LOAD DEFAULT
SOFT VERION
SAVE&EXIT
LAN-
GUAGE
MENU
UP
DOWN
RIGHT
LEFT
PRESS
KEY BOARD
