MTU 12V2000G, 16V2000G Operating Instructions Manual

Operating Instructions

Diesel engine

12V2000Gx6x
16V2000Gx6x

MS15054/00E

Engine model kW/cyl.

Application group

12V2000G16S 59.7 kW/cyl. 3B, continuous operation, variable load, ICXN

12V2000G26S 67.5 kW/cyl. 3B, continuous operation, variable load, ICXN

3F, mains backup mode, unlimited, ICXN
3G, continuous operation, time-limited, ICXN

12V2000G36S 74.8 kW/cyl. 3B, continuous operation, variable load, ICXN

12V2000G76S 74.2 kW/cyl. 3D, standby power, fuel stop power, IFN

3H, mains backup mode, special qualifications

12V2000G86S 82.3 kW/cyl. 3D, standby power, fuel stop power, IFN

16V2000G26S 62.4 kW/cyl. 3B, continuous operation, variable load, ICXN

3F, mains backup mode, unlimited, ICXN
3G, continuous operation, time-limited, ICXN

16V2000G76S 68.6 kW/cyl. 3D, standby power, fuel stop power, IFN

3H, mains backup mode, special qualifications

16V2000G86S 85.7 kW/cyl. 3D, standby power, fuel stop power, IFN

3H, mains backup mode, special qualifications

Table 1: Applicability

© 2015 Copyright MTU Friedrichshafen GmbH

This publication is protected by copyright and may not be used in any way, whether in whole or in part, without the prior writ­ten consent of MTU Friedrichshafen GmbH. This particularly applies to its reproduction, distribution, editing, translation, micro­filming and storage or processing in electronic systems including databases and online services.

All information in this publication was the latest information available at the time of going to print. MTU Friedrichshafen GmbH
reserves the right to change, delete or supplement the information provided as and when required.

Table of Contents

1 Safety

1.1 Important provisions for all products 5

1.2 Personnel and organizational requirements 7

1.3 Transport 8

1.4 Safety regulations for startup and operation 9

1.5 Safety precautions when working on the
engine 10

1.6 Fire prevention and environmental
protection, fluids and lubricants, auxiliary
materials 13

1.7 Standards for safety notices in the text 15

2 General Information

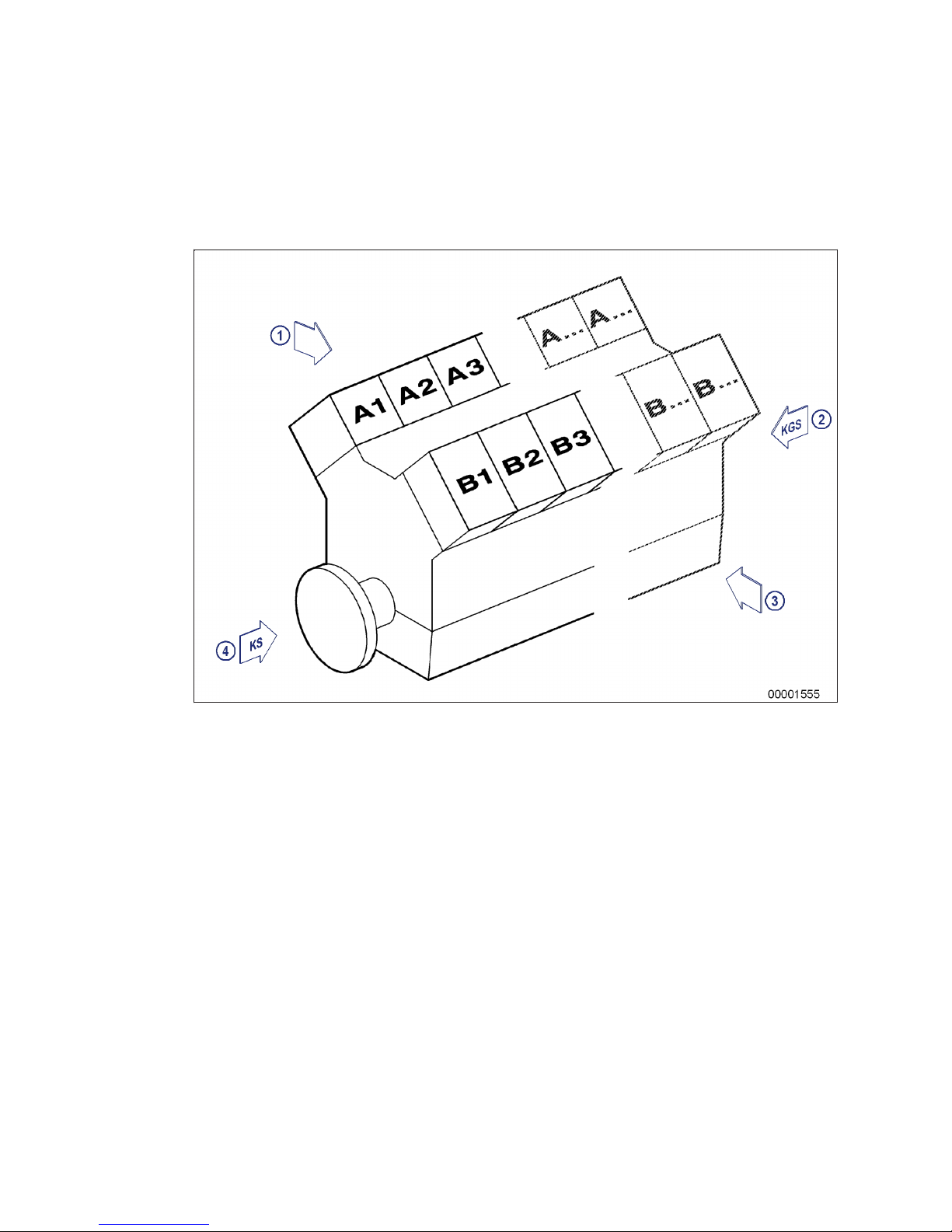

2.1 Engine side and cylinder designations 16

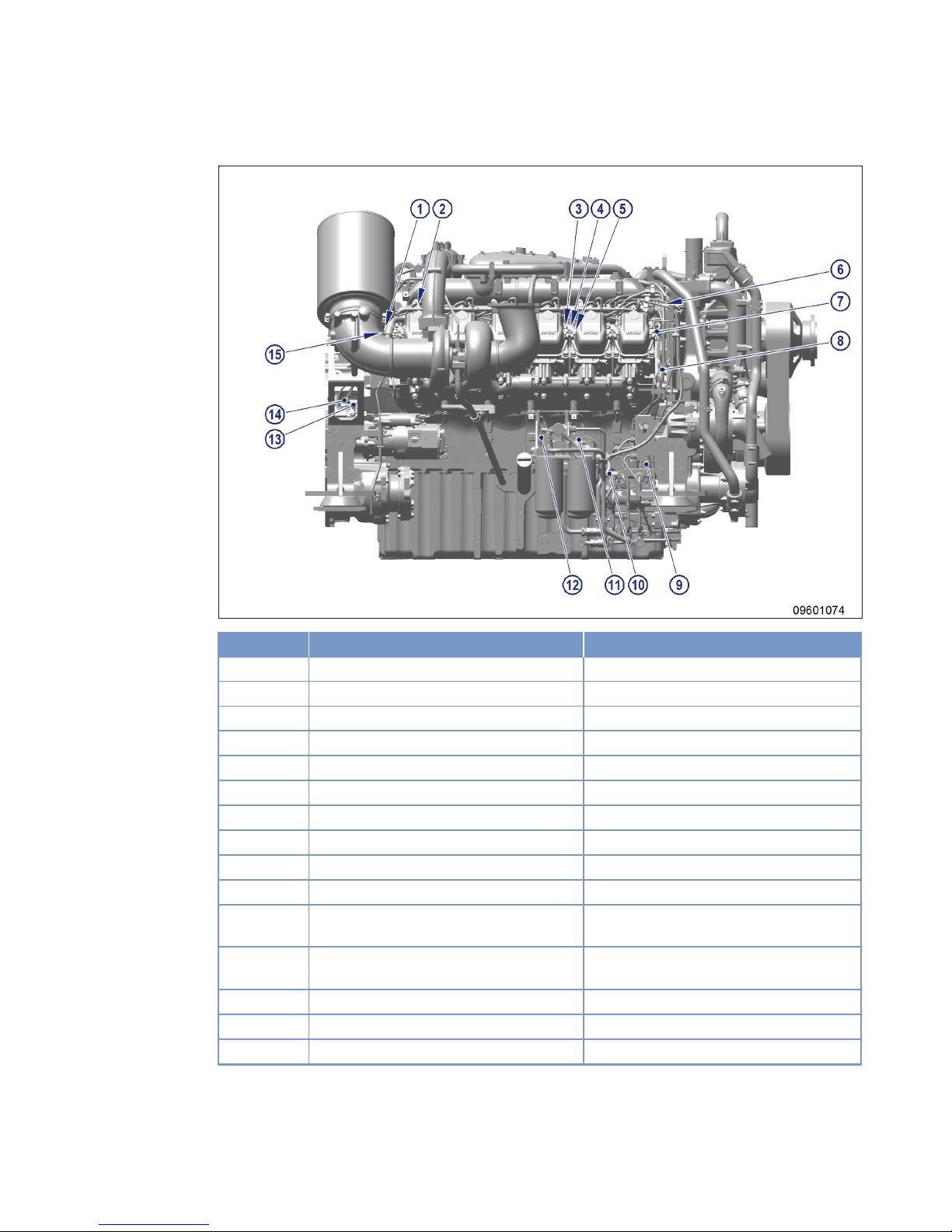

2.2 Engine – Overview 17

2.3 Sensors and actuators – Overview 18

3 Technical Data

3.1 Engine data 12V/16V2000Gx6S, 3B,
continuous operation, variable load, ICXN,
optimized fuel consumption (provisional) 22

3.2 Engine data 12V/16V2000Gx6S, 3D,
standby current, fuel stop power (IFN),
optimized fuel consumption (provisional) 26

3.3 Engine data 12V/16V2000Gx6S, 3F,
standby operation mode, unlimited, ICXN,
optimized fuel consumption (provisional) 30

3.4 Engine data 12V/16V2000Gx6S, 3G,
continuous operation, time-limited, ICXN,
optimized fuel consumption (provisional) 33

3.5 Engine data 12V/16V2000Gx6S, 3H,
standby operation mode, special
qualifications, optimized fuel consumption
(provisional)

36

3.6 Engine data 12V/16V2000Gx6S, 3B,
continuous operation, variable load, ICXN,
EPA Nonroad T2 (40CFR89) (provisional) 40

3.7 Engine data 12V/16V2000Gx6S, 3D,
standby current, fuel stop power (IFN), EPA
Nonroad T2 (40CFR89) (provisional) 44

3.8 Engine data 12V/16V2000Gx6S, 3F,
standby operation mode, unlimited, ICXN,
EPA Nonroad T2 (40CFR89) and EPA
Stationary EMERG T2 (40CFR60)
(provisional)

48

3.9 Engine data 12V/16V2000Gx6S, 3G,
continuous operation, time-limited, ICXN,
EPA Nonroad T2 (40CFR89) (provisional) 52

3.10 Engine data 12V/16V2000Gx6S, 3H,
standby operation mode, special
qualifications, EPA Nonroad T2 (40CFR89)
and EPA Stationary EMERG T2 (40CFR60)
(provisional)

55

3.11 Firing order 59

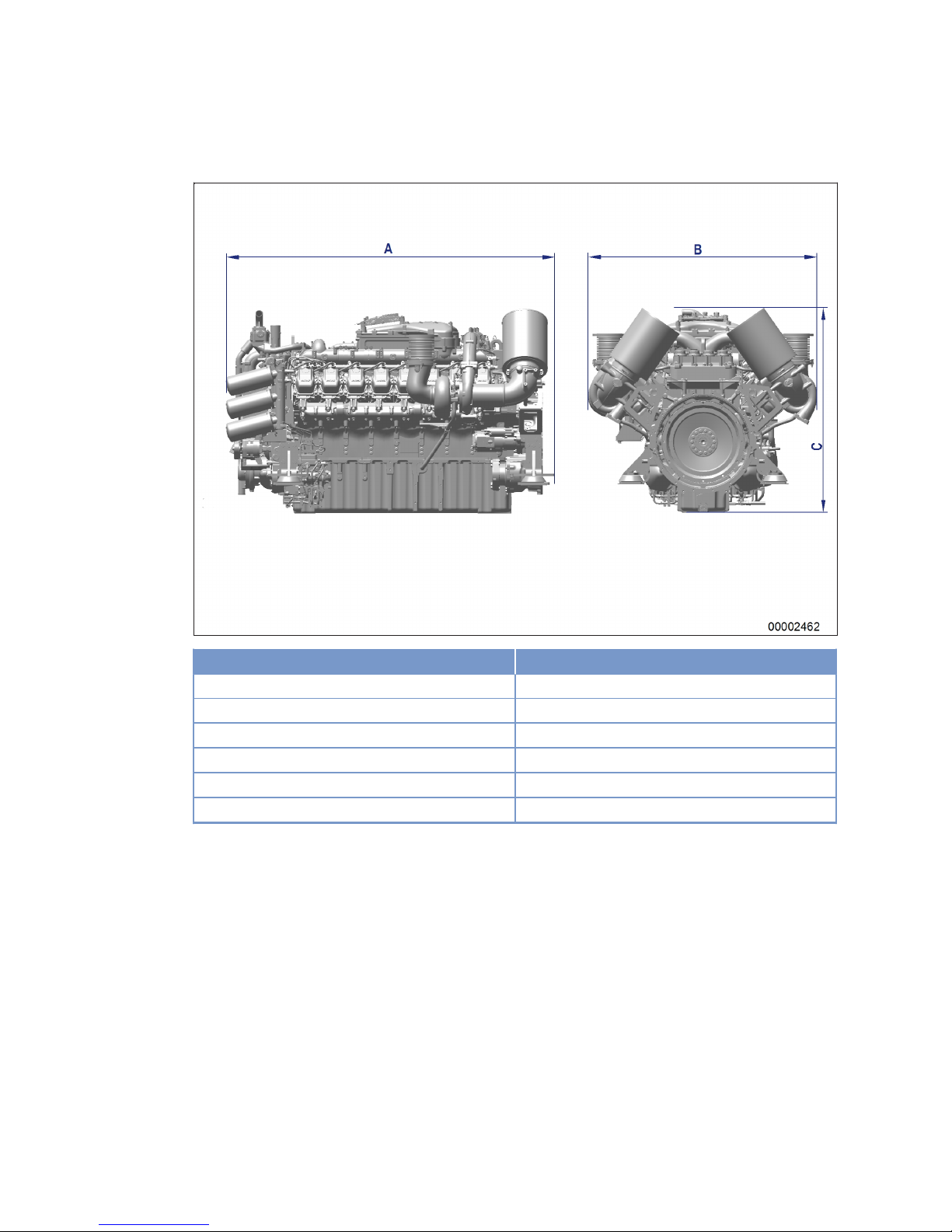

3.12 Engine – Main dimensions 60

4 Operation

4.1 Putting the engine into operation after
extended out-of-service periods (>3 months) 61

4.2 Putting the engine into operation after
scheduled out-of-service-period 62

4.3 Starting the engine 63

4.4 Operational checks 64

4.5 Emission label – Check 65

4.6 Engine shutdown 66

4.7 Emergency engine stop 67

4.8 After stopping the engine 68

4.9 Plant – Cleaning 69

5 Maintenance

5.1 Maintenance task reference table [QL1] 70

6 Troubleshooting

6.1 Troubleshooting 71

6.2 Engine Control Unit – ECU9 fault messages 74

7 Task Description

7.1 Engine 102

7.1.1 Engine – Cranking manually 102

7.1.2 Engine – Barring with starting system 103

7.2 Crankcase Breather 104

7.2.1 Crankcase breather – Oil mist fine separator
replacement 104

7.3 Valve Drive 105

7.3.1 Valve clearance – Check and adjustment 105

7.3.2 Cylinder head cover – Removal and
installation 108

7.4 Injector 109

7.4.1 Injector ‒ Replacement 109

7.4.2 Injector – Removal and installation 110

7.4.3 Injector functions 116

7.5 Fuel System 117

7.5.1 Fuel system – Venting 117

7.5.2 Fuel – Draining 118

MS15054/00E 2015-09 | Table of Contents | 3

DCL-ID: 0000037216 - 002

7.6 Fuel Filter 119

7.6.1 Fuel filter – Replacement 119

7.6.2 Fuel prefilter – Draining 120

7.6.3 Fuel prefilter – Filter element replacement 121

7.6.4 Fuel prefilter – Venting 123

7.7 Air Filter 124

7.7.1 Air filter – Replacement 124

7.7.2 Air filter – Removal and installation 125

7.8 Air Intake 126

7.8.1 Service indicator – Signal ring position check 126

7.9 Starting Equipment 127

7.9.1 Electric starter ‒ Overview 127

7.9.2 Starter – Removal 128

7.9.3 Starter ‒ Installation 129

7.10 Lube Oil System, Lube Oil Circuit 130

7.10.1 Engine oil – Level check 130

7.10.2 Engine oil – Change 131

7.11 Oil Filtration / Cooling 132

7.11.1 Engine oil filter – Replacement 132

7.11.2 Centrifugal oil filter – Cleaning and filter­sleeve replacement 133

7.12 Coolant Circuit, General, High-Temperature
Circuit 135

7.12.1 Engine coolant – Level check 135

7.12.2 Engine coolant – Change 136

7.12.3 Engine coolant – Draining 137

7.12.4 Engine coolant – Filling 138

7.12.5 Engine coolant pump – Relief bore check 140

7.12.6 Engine coolant – Sample extraction and
analysis 141

7.13 Low-Temperature Circuit 142

7.13.1 Charge-air coolant – Filling 142

7.13.2 Charge-air coolant – Draining 144

7.13.3 Charge-air coolant – Change 145

7.13.4 Charge-air coolant – Level check 146

7.13.5 Charge-air coolant pump – Relief bore check 147

7.13.6 Intercooler – Checking condensate drain for
coolant discharge and obstructions 148

7.14 Belt Drive 149

7.14.1 Drive belt – Condition check 149

7.14.2 Drive belt – Tension check 150

7.14.3 Drive belt ‒ Tension adjustment 152

7.14.4 Drive belt – Replacement 153

7.15 Battery-Charging Generator 154

7.15.1 Battery-charger drive – Drive belt replacement 154

7.16 Fuel Supply System 156

7.16.1 Differential pressure gage – Check 156

7.16.2 Coolant level sensor – Check 157

7.16.3 Pump capacity – Check 158

7.17 Engine Governor 159

7.17.1 Engine control system – Overview 159

7.17.2 Engine governor – Removal and installation 160

7.17.3 Engine governor plug connections – Check 161

7.18 Wiring (General) for Engine/Gearbox/Unit 162

7.18.1 Engine cabling – Check 162

7.19 Accessories for (Electronic) Engine
Governor / Control System 163

7.19.1 Engine governor and connector – Cleaning 163

8 Appendix A

8.1 List of abbreviations 164

8.2 MTU contact persons/service partners 166

9 Appendix B

9.1 Special Tools 167

9.2 Index 175

4 | Table of Contents | MS15054/00E 2015-09

DCL-ID: 0000037216 - 002

1 Safety

1.1 Important provisions for all products

Nameplate

The product is identified by nameplate, model designation or serial number and must match with the infor­mation on the title page of this manual.

Nameplate, model designation or serial number can be found on the product.

All EU-certified engines delivered by MTU come with a second nameplate. When operating the machine in the
EU: The second nameplate must be affixed in a prominent position as described in the accompanying specifi­cations.

General information

This product may pose a risk of injury or damage in the following cases:

• Incorrect use

• Operation, maintenance and repair by unqualified personnel

• Modifications or conversions

• Noncompliance with the safety instructions and warning notices

Correct use

The product is intended for use in accordance with its contractually-defined purpose as described in the rele­vant technical documents only.

Intended use entails operation:

• Within the permissible operating parameters in accordance with the (→ Technical data)

• With fluids and lubricants approved by the manufacturer in accordance with the (→ Fluids and Lubricants
Specifications of the manufacturer)

• With spare parts approved by the manufacturer in accordance with the (→ Spare Parts Catalog/MTU con­tact/Service partner)

• In the original as-delivered configuration or in a configuration approved by the manufacturer in writing (in­cluding engine control/parameters)

• In compliance with all safety regulations and in adherence with all warning notices in this manual

• With maintenance work performed in accordance with the (→ Maintenance Schedule) throughout the use­ful life of the product

• In compliance with the maintenance and repair instructions contained in this manual, in particular with
regard to the specified tightening torques

• With the exclusive use of technical personnel trained in commissioning, operation, maintenance and re­pair

• By contracting only workshops authorized by the manufacturer to carry out repair and overhaul

The product may only be operated in explosive atmospheres if it was certified for such operating conditions.

Any other use, in particular malpractice, shall be considered non-intended. Such improper use increases the
risk of injury and damage when working with the product. The manufacturer shall not be held liable for any
damage resulting from improper, non-intended use.

Modifications or conversions

Unauthorized changes to the product represent a contravention of its intended use and compromise safety.

Changes or modifications shall only be considered to comply with the intended use when expressly author­ized by the manufacturer. The manufacturer shall not be held liable for any damage resulting from unauthor­ized changes or modifications.

MS15054/00E 2015-09

| Safety | 5

TIM-ID: 0000040530 - 007

Emission regulations and emission labels

Responsibility for compliance with emission regulations

Modification or removal of any mechanical/electronic components or the installation of additional compo­nents including the execution of calibration processes that might affect the emission characteristics of the
product are prohibited by emission regulations. Emission control units/systems may only be maintained, ex­changed or repaired if the components used for this purpose are approved by the manufacturer.

Noncompliance with these regulations will invalidate the design type approval issued by the emissions regu­lation authorities. The manufacturer does not accept any liability for violations of the emission regulations.
The maintenance schedules of the manufacturer must be observed over the entire life cycle of the product.

Replacing components with emission labels

Emission labels are attached to all MTU engines. These must remain on the engine throughout its operational
life.

Engines used exclusively in land-based, military applications other than by US government agencies are ex­cepted from this proviso.

Please note the following when replacing components with emission labels:

• Appropriate emission labels must be affixed on spare parts.

• Emission labels may not be transferred from old components to new ones.

• Emission labels on old components must be removed and destroyed.

6 | Safety | MS15054/00E 2015-09

TIM-ID: 0000040530 - 007

1.2 Personnel and organizational requirements

Organizational measures of the user/manufacturer

This manual must be issued to all personnel involved in operation, maintenance, repair, or transportation.

Keep this manual handy in the vicinity of the product such that it is accessible to operating, maintenance,
repair, and transport personnel at all times.

Personnel must receive instruction on product handling and maintenance based on this manual with a spe­cial emphasis on safety requirements and warnings.

This is important in the case of personnel who only occasionally perform work on or around the product.
These personnel must be instructed repeatedly.

Personnel requirements

All work on the product shall be carried out by trained and qualified personnel only:

• Training at the Training Center of the manufacturer

• Technical personnel from the areas mechanical engineering, plant construction, and electrical engineering

The operator must define the responsibilities of the personnel involved in operation, maintenance, repair, and
transport.

Personnel must not be under the influence of alcohol, drugs, or strong medication.

Working clothes and personal protective equipment

When working, always wear the necessary personal protective equipment (for example safety shoes, ear pro­tectors, protective gloves, goggles, breathing protection). Observe the information on personal protective
equipment in the respective activity description.

MS15054/00E 2015-09 | Safety | 7

TIM-ID: 0000040531 - 007

1.3 Transport

DANGER

Suspended load

Danger to life

• Never stand under suspended loads!

• Wear appropriate personal protective equipment.

Transport

Install the crankshaft locking device and the locking screws for the engine mounts prior to engine transporta­tion.

Only use the lifting eyes provided to transport the engine.

Use only suitable transport and lifting gear.

Take the engine's center of gravity into account.

Transport the engine only in installation position: max. permissible diagonal pull 10 degrees.

Remove any loose parts from the engine.

Lift/lower the engine slowly. Ensure that lifting cables/chains do not touch the engine or any of its compo­nents. Readjust lifting tackle as necessary.

If the engine is supplied with special aluminum foil packing: Lift the engine at the lifting eyes of the bearing
pedestal or use a means of transportation which is appropriate for the given weight (forklift truck).

Install the crankshaft locking device and the locking screws for the engine mounts prior to engine transporta­tion (if applicable).

Secure the engine against tilting during transport. In particular when going down inclines or ramps, the en­gine must be secured against moving and tilting.

Setting down the engine following transportation

Only set down engine on a firm, level surface.

Make sure that the consistency and load-bearing capacity of the ground or support surface is adequate.

Never set down engines onto the oil pan unless expressly permitted by MTU on an engine-specific base.

8 | Safety | MS15054/00E 2015-09

TIM-ID: 0000056873 - 002

1.4 Safety regulations for startup and operation

Safety regulations for startup

Install the product correctly and carry out acceptance in accordance with the manufacturer's specifications
before putting the product into service. All necessary approvals must be granted by the relevant authorities
and all requirements for initial startup must be fulfilled.

When putting the product into operation, always ensure that:

• All personnel is clear of the danger zone surrounding moving parts of the machine.
Electrically-actuated linkages may be set in motion when the Engine Control Unit (governor) is switched
on.

• All maintenance and repair work has been completed.

• All loose parts have been removed from rotating machine components.

• All safety equipment is in place.

• No persons wearing pacemakers or any other technical body aids are present.

• The service room is adequately ventilated.

• Hazardous gases may occur as a result of the combustion of paints or oils in the first operating hours of
the product. Enter the service room only with a suitable breathing protection.

• The exhaust system is leak-tight and that the gases are vented to atmosphere.

• Protect battery terminals, generator terminals or cables against accidental contact.

• Check that all connections have been correctly allocated (e.g. +/- polarity, direction).

Immediately after putting the product into operation, make sure that all control and display instruments as
well as the monitoring, signaling and alarm systems are working properly.

Smoking is prohibited in the area of the product.

Safety regulations during operation

The operator must be familiar with the control and display elements.

The operator must be familiar with the consequences of any operations performed.

During operation, the display instruments and monitoring units must be permanently observed with regard to
present operating status, violation of limit values and warning or alarm messages.

Malfunctions and emergency stop

Practice the procedures for emergencies, in particular, emergency stop, on a regular basis.

The following steps must be taken if a malfunction of the system is detected or reported by the system:

• Inform supervisor(s) in charge.

• Analyze the message.

• Respond to the emergency appropriately, e.g. execute an emergency stop.

Operation

Do not remain in the operating room when the product is running for any longer than absolutely necessary.

Keep a safe distance away from the product if possible. Do not touch the product unless expressly instructed
to do so following a written procedure.

Do not inhale the exhaust gases of the product.

The following requirements must be fulfilled before the product is started:

• Wear ear protection.

• Mop up any leaked or spilled fluids and lubricants immediately or soak up with a suitable binder agent.

Operation of electrical equipment

During operation of electrical devices, certain elements of these devices are live/under high voltage.

Observe the warning information applicable to the devices.

MS15054/00E 2015-09

| Safety | 9

TIM-ID: 0000040533 - 011

1.5 Safety precautions when working on the engine

Safety regulations prior to maintenance and repair work

Have maintenance or repair work carried out by qualified and authorized personnel only.

Allow the product to cool down to less than 50 °C (risk of explosion for oil vapors, fluids and lubricants, risk
of burning).

Relieve pressure in fluid and lubricant systems and compressed-air lines which are to be opened. Use suita­ble collecting vessels of adequate capacity to catch fluids and lubricants.

When changing the oil or working on the fuel system, ensure that the service room is adequately ventilated.

Never carry out maintenance and repair work with the product in operation, unless:

• It is expressly permitted to do so following a written procedure.

• The product is running in the low load range and only for as long as absolutely necessary.

Lock-out the product to preclude undesired starting, e.g.

• Start interlock

• Key switch

• With hydraulic starting system: shut off supply line.

Attach “Do not operate” sign in the operating area or to control equipment.

Disconnect the battery. Lock out circuit breakers.

Close the main valve on the compressed-air system and vent the compressed-air line when pneumatic start­ers are fitted.

Disconnect the control equipment from the product.

If special tools are specified, these special tools or other suitable tools must be used.

Elastomer components (e.g. engine mounts, damping elements, couplings and V-belts) must not be painted.
They may only be installed after painting the engine or must be covered before painting work is carried out.

The following applies to starters with copper-beryllium alloy pinions:

• Wear a respirator mask (filter class P3). Do not blow out the interior of the flywheel housing or the starter
with compressed air. Clean the flywheel housing inside with a class H dust extraction device.

• Observe the safety data sheet.

Safety regulations during maintenance and repair work

Take special care when removing ventilation or plug screws from the product. Cover the screw or plug with a
rag to prevent fluids escaping under pressure.

Take care when draining hot fluids and lubricants (risk of burning).

Use only proper and calibrated tools. Observe the specified tightening torques during assembly or disassem­bly.

Carry out work only on assemblies or plants which are properly secured.

Make sure components or assemblies are placed on stable surfaces. Adopt suitable measures to avoid that
components/tools fall down . Use the specified lifting equipment for all components.

Never use the product as a climbing aid.

When working high on the equipment, always use suitable ladders and work platforms. Never work on en­gines or components that are held in place by lifting equipment.

Keep fuel injection lines and connections clean.

Carry out appropriate cleaning procedures to clean and inspect components requiring special cleanness (e.g.
components carrying oil, fuel, or air).

Always seal connections with caps or covers if a line is removed or opened.

Fit new seals when re-installing lines.

10 | Safety |

MS15054/00E 2015-09

TIM-ID: 0000040535 - 011

Never bend lines and avoid damaging lines, particularly the fuel lines.

Ensure that all retainers and dampers are installed correctly.

Ensure that O-rings are not installed in a slanted/twisted condition.

Ensure that all fuel injection and pressurized oil lines are installed with enough clearance to prevent contact
with other components. Do not place fuel or oil lines near hot components.

Do not touch elastomeric seals (e.g. Viton sealing rings) with your bare hands if they have a carbonized or
resinous appearance.

Note cooling time for components which are heated for installation or removal (risk of burning).

Pay particular attention to cleanliness at all times.

Remove any condensate from components which were chilled before assembly. If necessary, coat the com­ponents with a suitable corrosion inhibitor.

Safety regulations following maintenance and repair work

Before barring, make sure that nobody is standing in the danger zone of the product.

Check that all access ports/apertures which have been opened to facilitate working are closed again.

Check that all safety equipment has been installed and that all tools and loose parts have been removed
(especially the barring gear).

Ensure that no unattached parts have been left in/on the product (e.g. including rags and cable straps).

Make sure the grounding device is properly connected.

Welding work

Welding operations on the product or mounted units are not permitted. Cover the product when welding in
its vicinity.

Before starting welding work:

• Switch off the power supply master switch.

• Disconnect the battery.

• Separate the electrical ground of electronic equipment from the ground of the unit.

No other maintenance or repair work must be carried out in the vicinity of the product while welding is going
on. Risk of explosion or fire due to oil vapors and highly flammable process materials.

Do not use product as ground terminal.

Never position the welding power supply cable adjacent to, or crossing wiring harnesses of the product. The
welding current may otherwise induce an interference voltage in the wiring harnesses which could conceiva­bly damage the electrical system.

Remove components (e.g. exhaust pipe) from the product before performing necessary welding work .

Hydraulic installation and removal

Check satisfactory function and safe operating condition of tools, jigs and fixtures to be used. Use only the
specified jigs and fixtures for hydraulic removal/installation procedures.

Observe the max. permissible force-on pressure specified for the jig/fixture.

Do not attempt to bend or exert force on H.P. lines.

Before starting work, pay attention to the following:

• Vent the installation/removal device, the pumps and the pipework at the relevant designated points.

• During the installation procedure, screw on device with pushed-in plunger.

• During the removal procedure, screw on device with retracted plunger.

For a hydraulic installation/removal device with central expansion pressure supply, screw spindle into shaft
end until correct sealing is established.

MS15054/00E 2015-09

| Safety | 11

TIM-ID: 0000040535 - 011

During hydraulic installation/removal of components, ensure that no persons are in the direct vicinity of the
component being pressed.

Working with batteries

Observe the safety instructions of the battery manufacturer when working with batteries.

Gases released from the battery are explosive. Avoid sparks and naked flames.

Do not allow battery acids to come into contact with skin or clothing.

Wear protective clothing, goggles and protective gloves.

Do not place tools on the battery.

Before connecting the cable to the battery, check the battery polarity. Battery pole reversal may lead to in­jury through the sudden discharge of acid or bursting of the battery body.

Working on electrical and electronic assemblies

Always obtain the permission of the person in charge before commencing maintenance and repair work or
switching off any part of the electronic system required to do so.

De-energize the appropriate areas prior to working on assemblies.

Do not damage cabling during removal work. When reconnecting, ensure that cabling cannot be damaged
during operation by:

• Contact with sharp edges

• Chafing on components

• Contact with hot surfaces.

Do not secure cables on lines carrying fluids.

Do not use cable straps to secure cables.

Always use connector pliers to tighten union nuts on connectors.

Subject the device as well as the product to a functional testing on completion of all repair work. In particu­lar, check the function of the emergency stop feature.

Store spare parts properly prior to replacement, i.e. protect them against moisture in particular. Package
faulty electronic components or assemblies properly before dispatching for repair:

• Moisture-proof

• Shock-proof

• Wrapped in antistatic foil if necessary.

Work with laser devices

Laser work must only be performed by authorized and trained personnel. When working with laser equip­ment, always observe the safety instructions in the manufacturer's Operating Instructions.

When working with laser equipment, always wear special laser-protection goggles (hazard due to heavily fo­cused radiation).

Laser devices must be equipped, in accordance with their class and usage, with protective devices for ensur­ing safe operation.

Measuring deviations on components

At a reference temperature of 20 °C, workpieces, components and measuring instrument are within the
specified tolerances.

12 | Safety |

MS15054/00E 2015-09

TIM-ID: 0000040535 - 011

1.6 Fire prevention and environmental protection, fluids and
lubricants, auxiliary materials

Fire prevention

Flames, naked light and smoking are prohibited.

When working with combustible indirect materials, e.g. cleaning agent, ensure area is well ventilated. The
resultant steam/air mixture must be sufficiently diluted to prevent a potentially explosive atmosphere.

Rectify any fuel or oil leaks immediately. Oil or fuel on hot components can cause fires – therefore always
keep the product in a clean condition. Do not leave rags saturated with fluids and lubricants on the product.
Do not store combustible materials near the product.

Do not carry out welding work on pipes and components carrying oil or fuel. Before welding, clean with a
nonflammable fluid.

When starting the engine with an external power source, connect the ground cable last and remove it first.
To avoid sparks in the vicinity of the battery, connect the ground cable from the external power source to the
ground cable of the engine or to the ground terminal of the starter.

Always have a suitable extinguishant (fire extinguisher) on hand and familiarize yourself fully with its han­dling.

Noise

Noise can lead to an increased risk of accidents if acoustic signals, warning shouts or sounds indicating dan­ger are drowned.

Wear ear protectors in workplaces with a sound pressure level in excess of 85 dB (A).

Environmental protection and disposal

Dispose of used fluids, lubricants and filters in accordance with local regulations.

Within the EU, batteries can be returned free of charge to the manufacturer where they will be properly recy­cled.

Fluids and lubricants, auxiliary materials

The Fluids and Lubricants Specifications will be amended or supplemented as necessary. Prior to operation,
make sure that the latest version is used. The latest version can be found on the website on the “Technical
Info” or “Parts and Service” tabs at http://www.mtu-online.com.

Process materials may also be hazardous or toxic. When using consumables and auxiliary materials as well
as other chemical substances, observe the information contained in the safety data sheet for the product.
The safety data sheet may be obtained from the relevant manufacturer or from MTU.

Take special care when using hot, chilled or caustic materials.

Used oil

Used oil contains combustion residues that are harmful to health.

Wear protective gloves!

Wash relevant areas after contact with used oil.

MS15054/00E 2015-09

| Safety | 13

TIM-ID: 0000040536 - 009

Lead

• Adopt suitable measures to avoid the formation of lead dust.

• Switch on extraction system.

• When working with lead or pastes containing lead, avoid direct contact to the skin and do not inhale lead
vapors.

• Wash relevant areas after contact with lead or lead-containing substances.

Compressed air

Observe special safety precautions when working with compressed air:

• Unauthorized use of compressed air, e.g. forcing flammable liquids (hazard class AI, AII and B) out of con­tainers, risks causing an explosion.

• Wear goggles when blowing dirt off workpieces or blowing away swarf.

• Blowing compressed air into thin-walled containers (e.g. containers made of sheet metal, plastic or glass)
for drying purposes or to check for leaks risks bursting them.

• Pay special attention to the pressure in the compressed air system or pressure vessel.

• Assemblies or products which are to be connected must be designed to withstand this pressure. Install
pressure-reducing or safety valves set to the admissible pressure if this is not the case.

• Hose couplings and connections must be securely attached.

• Provide the snout of the air nozzle with a protective disk (e.g. rubber disk).

• First shut off compressed air lines before compressed air device is disconnected from the supply line, or
before device or tool is to be replaced.

• Carry out leak test in accordance with the specifications.

Painting

• Observe the relevant safety data sheet for all materials.

• When carrying out painting work outside the spray stands provided with fume extraction systems, ensure
that the area is well ventilated. Make sure that neighboring work areas are not adversely affected.

• There must be no naked flames in the vicinity.

• No smoking.

• Observe fire-prevention regulations.

• Always wear a mask providing protection against paint and solvent vapors.

Liquid nitrogen

• Observe the relevant safety data sheet for all materials.

• Work with liquid nitrogen may be carried out only by qualified personnel.

• Store liquid nitrogen only in small quantities and always in specified containers without fixed covers.

• Avoid body contact (eyes, hands).

• Wear protective clothing, protective gloves, closed shoes and safety goggles.

• Make sure that working area is well ventilated.

• Avoid knocking or jolting the containers, valves and fittings or workpieces in any way.

Acids/alkaline solutions/urea (AdBlue®, DEF)

• Observe the relevant safety data sheet for all materials.

• When working with acids and alkaline solutions, wear goggles or face mask, gloves and protective cloth­ing.

• Do not inhale vapors.

• If urea solution is swallowed, rinse out mouth and drink plenty of water.

• Remove any wet clothing immediately.

• After contact skin, wash body areas with plenty of water.

• Rinse eyes immediately with eyedrops or clean tap water. Seek medical attention as soon as possible.

14 | Safety |

MS15054/00E 2015-09

TIM-ID: 0000040536 - 009

1.7 Standards for safety notices in the text

DANGER

In the event of immediate danger.

Consequences: Death, serious or permanent injury!

• Remedial action.

WARNING

In the event of a situation involving potential danger.

Consequences: Death, serious or permanent injury!

• Remedial action.

CAUTION

In the event of a situation involving potential danger.

Consequences: Minor or moderate injuries!

• Remedial action.

NOTICE

In the event of a situation involving potentially adverse effects on the product.

Consequences: Material damage!

• Remedial action.

• Additional product information.

Safety notices

1. This manual with all safety instructions and safety notices must be issued to all personnel involved in opera­tion, maintenance, repair or transportation.

2. The higher level warning notice is used if several hazards apply at the same time. Warnings related to person­al injury shall be considered to include a warning of potential damage.

MS15054/00E 2015-09 | Safety | 15

TIM-ID: 0000040578 - 004

2 General Information

2.1 Engine side and cylinder designations

1 Left engine side (A-side)
2 Engine free end in accord-

ance with DIN ISO 1204
(KGS = Kupplungsgegen­seite)

3 Right engine side (B-side)
4 Engine driving end in ac-

cordance with
DIN ISO 1204 (KS = Kup­plungsseite)

Engine sides are always designated (in accordance with DIN ISO 1204) as viewed from driving end (4).

For cylinder designation (in accordance with DIN ISO 1204), the letter "Ax" refers to the cylinders on the left­hand side of the engine (1) and letter "Bx" refers to the cylinders on the right-hand side (3). The cylinders of
each bank are numbered consecutively, starting with x=1 at driving end (4).

The numbering of other engine components also starts with 1 at driving end (4).

16 | General Information |

MS15054/00E 2015-09

TIM-ID: 0000002185 - 013

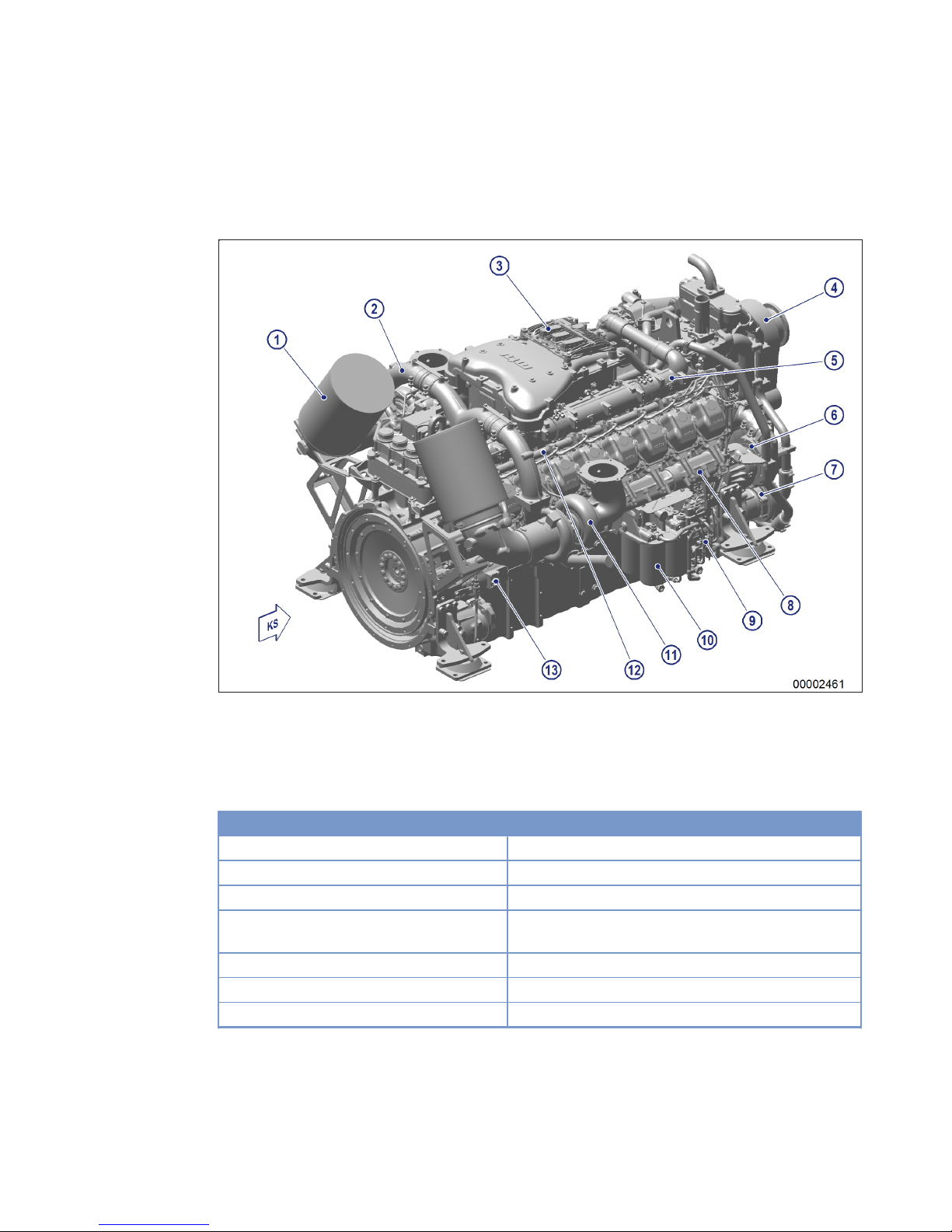

2.2 Engine – Overview

12V2000Gx6S

Also valid for 16V engines

1 Air intake/air supply
2 Charge-air line
3 Monitoring, control and reg-

ulation system
4 Belt drive
5 Charge air manifold

6 Engine coolant pump
7 Charge-air coolant pump
8 Exhaust pipe
9 LP fuel system

10 Fuel filter

11 Exhaust turbocharger
12 Fuel system (high pressure)
13 Starting equipment
KS Driving end

Explanation of engine model designation

12, 16 Number of cylinders

V Cylinder arrangement (Vee engine)

2000 Series

G Application (G = decentralized energy systems engineer-

ing)

x Application segment (0, 1, 2,...,9)

6 Design index (0, 1, 2,...,9)

S Additional feature (S = 60 Hz)

Table 2: Explanation of engine model designation

MS15054/00E 2015-09 | General Information | 17

TIM-ID: 0000060297 - 002

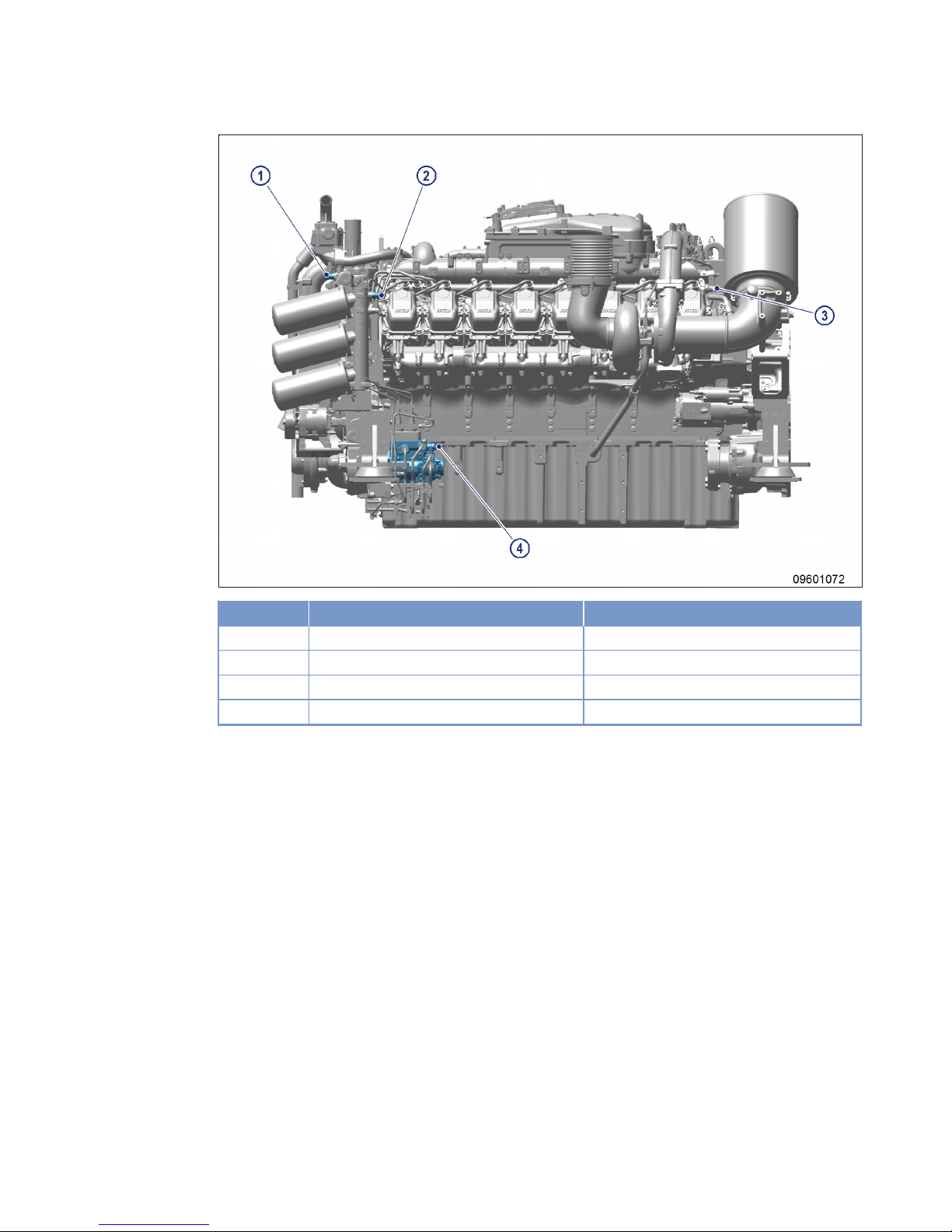

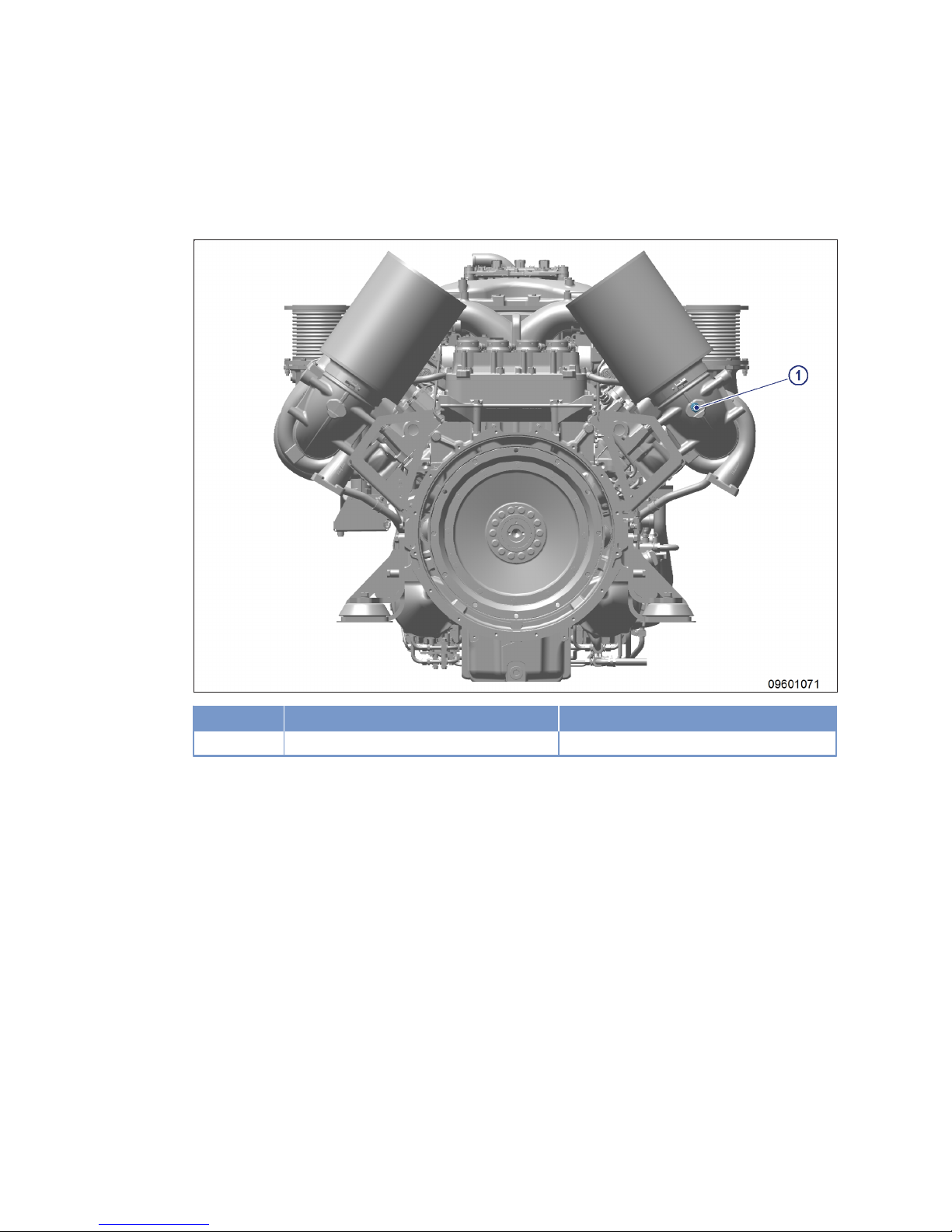

2.3 Sensors and actuators – Overview

Sensors and actuators – Driving end

Overview also applies to 12 V and 16 V engines.

Item Name

Monitoring of

1 B3 Intake air temperature

Table 3: Sensors and actuators – Driving end

Sensors and actuators – A-side

Overview also applies to 12 V and 16 V engines.

18 | General Information | MS15054/00E 2015-09

TIM-ID: 0000060374 - 001

Item Name

Monitoring of

1 B5.1 Oil pressure after oil filter

2 B7 Oil temperature

3 B48.1 HP fuel, A-side

4 M8.1 Fuel pump pressure, A-side

Table 4: Sensors and actuators – A-side

MS15054/00E 2015-09 | General Information | 19

TIM-ID: 0000060374 - 001

Sensors and actuators – Free end

Item Name

Monitoring of

1 B5.3 Oil pressure before oil filter (optional)

Table 5: Sensors and actuators – Free end

20 | General Information | MS15054/00E 2015-09

TIM-ID: 0000060374 - 001

Sensors and actuators – B-side

Item Name

Monitoring of

1 B9 Charge-air coolant temperature

2 B10 Charge-air pressure

3 XF70 Fuel filter level monitor (optional)

4 XF57 Coolant level, low temperature

5 XF33 Coolant level, high temperature

6 B6 Coolant temperature

7 A19 EIL, electronic label

8 B26 Coolant temperature

9 XF46 Leak fuel level (optional)

10 M8.2 Fuel pump pressure, B-side

11 B34.3 Fuel pressure after intermediate filter stage

(optional)

12 B34.2 Fuel pressure before main filter stage (op-

tional)

13 B1 Camshaft speed

14 B13 Crankshaft speed

15 B48.2 HP fuel, B-side

Table 6: Sensors and actuators – B-side

MS15054/00E 2015-09 | General Information | 21

TIM-ID: 0000060374 - 001

3 Technical Data

3.1 Engine data 12V/16V2000Gx6S, 3B, continuous operation,
variable load, ICXN, optimized fuel consumption (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G16S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

716 kW
960 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

2 12V2000G26S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

810 kW
1086 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

3 12V2000G36S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

898 kW
1204 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

4 16V2000G26S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

998 kW
1338 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

Reference condition

ID 1 2 3 4

Intake air temperature °C 25 25 25 25

Charge air coolant temperature °C 55 55 55 55

Barometric pressure mbar 1000 1000 1000 1000

Site altitude above sea level M 100 100 100 100

22 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065006 - 001

Performance data

ID 1 2 3 4

Rated engine speed A rpm 1800 1800 1800 1800

Continuous power ISO 3046 (10% over­load possible) (power range DIN 6280,
ISO 8528)

A kW 716 810 898 998

General conditions (for maximum power)

ID 1 2 3 4

Intake depression (new filter) A mbar 15 15 15 15

Intake depression, max. L mbar 40 40 40 40

Exhaust overpressure A mbar 30 30 30 30

Exhaust gas overpressure, max. L mbar 85 85 85 85

Model-related data (basic design)

ID 1 2 3 4

Engine with exhaust turbocharging (ETC)
and charge-air cooling (CAC)

- X X X X

Combustion method: direct fuel injection - X X X X

Direction of rotation: c.c.w. (facing driv­ing end)

- X X X X

Cylinder arrangement: V-angle Degrees

(°)

90 90 90 90

Bore mm 135 135 135 135

Stroke mm 156 156 156 156

Displacement, cylinder Liters 2.233 2.233 2.233 2.233

Displacement, total Liters 26.8 26.8 26.8 35.7

Compression ratio - 16 16 16 16

Cylinder heads: Individual cylinder heads - X X X X

Cylinder liners: wet, replaceable - X X X X

Number of inlet valves per cylinder - 2 2 2 2

Number of exhaust valves per cylinder - 2 2 2 2

Standard housing connecting flange (en­gine main PTO side)

SAE 0 0 0 0

Flywheel connection (DISC) - 18" 18" 18" 18"

Air / exhaust

ID 1 2 3 4

Charge-air pressure before cylinder - CP R bar abs 2.7 3.0 3.3 2.8

Coolant system (HT circuit)

ID 1 2 3 4

Coolant temperature (at engine connec­tion: outlet to cooling equipment)

A °C 100 100 100 100

Coolant temperature after engine, limit 1 L °C 102 102 102 102

MS15054/00E 2015-09 | Technical Data | 23

TIM-ID: 0000065006 - 001

ID 1 2 3 4

Coolant temperature after engine, limit 2 L °C 105 105 105 105

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1.0 1.0

Coolant system (LT circuit)

ID 1 2 3 4

Coolant temperature before charge-air
cooler (at engine inlet from cooling
equipment)

A °C 55 55 55 55

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1.0 1

Lube oil system

ID 1 2 3 4

Lube oil operating temperature before
engine, from

R °C 75 75 75 75

Lube oil operating temperature before
engine, to

R °C 100 100 100 100

Lube oil temperature before engine, limit1L °C 103 103 103 103

Lube oil temperature before engine, limit2L °C 105 105 105 105

Lube oil operating pressure upstream of
engine, from

R bar 6.5 6.5 6.5 6.5

Lube oil operating pressure before en­gine, to

R bar 9.5 9.5 9.5 9.5

Lube oil operating pressure before en­gine, warning

L bar 5.5 5.5 5.5 5.5

Lube oil operating pressure before en­gine, shutdown

L bar 5.0 5.0 5.0 5.0

General operating data

ID 1 2 3 4

Cold start capability: air temperature
(w/o start aid. w/o preheating) - (case A)

R °C 0 0 0 0

Coolant preheating: preheating tempera­ture (min.)

L °C 32 32 32 32

Firing speed, from R rpm 100 100 100 100

Firing speed, to R rpm 120 120 120 120

24 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065006 - 001

Capacities

ID 1 2 3 4

Engine coolant capacity, engine side
(without cooling equipment)

R Liters 63 63 63 70

Charge-air coolant, engine side R Liters 20 20 20 25

Engine oil capacity, initial filling (standard
oil system) (option: max. operating incli­nations)

R Liters 92 92 92 114

Oil change quantity, max. (standard oil
system) (option: max. operating inclina­tions)

R Liters 80 80 80 102

Weights / main dimensions

ID 1 2 3 4

Engine weight, dry (basic engine configu­ration acc. to scope of delivery specifica­tion)

R kg 2710 2710 2710 3180

Sound

ID 1 2 3 4

Exhaust noise, not attenuated - DL
(sound power level LW, ISO 6798,
+3 dB(A) tolerance)

R dB(A) 128 130 130

Engine surface noise with attenuated in­take noise (filter) - DL (sound power level
LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 125 122 123

MS15054/00E 2015-09 | Technical Data | 25

TIM-ID: 0000065006 - 001

3.2 Engine data 12V/16V2000Gx6S, 3D, standby current, fuel
stop power (IFN), optimized fuel consumption (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G76S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

890 kW
1193 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

2 12V2000G86S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

987 kW
1323 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

3 16V2000G76S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

1097 kW
1471 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption,

4 16V2000G86S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

1371 kW
1837 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption,

Reference condition

ID 1 2 3 4

Intake air temperature °C 25 25 25 25

Charge air coolant temperature °C 55 55 55 55

Barometric pressure mbar 1000 1000 1000 1000

Site altitude above sea level M 100 100 100 100

26 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065009 - 001

Performance data

ID 1 2 3 4

Rated engine speed A rpm 1800 1800 1800 1800

Fuel stop power ISO 3046 A kW 890 987 1097 1371

General conditions (for maximum power)

ID 1 2 3 4

Intake depression (new filter) A mbar 15 15 15 15

Intake depression, max. L mbar 40 40 40 40

Exhaust overpressure A mbar 30 30 30 30

Exhaust gas overpressure, max. L mbar 85 85 85 85

Model-related data (basic design)

ID 1 2 3 4

Engine with exhaust turbocharging (ETC)
and charge-air cooling (CAC)

- X X X X

Uncooled exhaust lines - X X X X

Operating method: Four-stroke cycle,
diesel, single-action

- X X X X

Combustion method: direct fuel injection - X X X X

Cooling method: conditioned water - X X X X

Direction of rotation: c.c.w. (facing driv­ing end)

- X X X X

Cylinder arrangement: V-angle Degrees

(°)

90 90 90 90

Bore mm 135 135 135 135

Stroke mm 156 156 156 156

Displacement, cylinder Liters 2.233 2.233 2.233 2.233

Displacement, total Liters 26.8 26.8 35.7 35.7

Compression ratio - 16 16 16 16

Cylinder heads: Individual cylinder heads - X X X X

Cylinder liners: wet, replaceable - X X X X

Number of inlet valves per cylinder - 2 2 2 2

Number of exhaust valves per cylinder - 2 2 2 2

Standard housing connecting flange (en­gine main PTO side)

SAE 0 0 0 0

Flywheel connection (DISC) - 18" 18" 18" 18"

Air / exhaust

ID 1 2 3 4

Charge-air pressure before cylinder - CP R bar abs - - - -

MS15054/00E 2015-09 | Technical Data | 27

TIM-ID: 0000065009 - 001

Coolant system (HT circuit)

ID 1 2 3 4

Coolant temperature (at engine connec­tion: outlet to cooling equipment)

A °C 100 100 100 100

Coolant temperature after engine, limit 1 L °C 102 102 102 102

Coolant temperature after engine, limit 2 L °C 105 105 105 105

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1.0 1.0

Coolant system (LT circuit)

ID 1 2 3 4

Coolant temperature before charge-air
cooler (at engine inlet from cooling
equipment)

A °C 55 55 55 55

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1 1.0

Lube oil system

ID 1 2 3 4

Lube-oil operating temperature before
engine, from

R °C 75 75 75 75

Lube oil operating temperature before
engine, to

R °C 100 100 100 100

Lube oil temperature before engine, limit1L °C 103 103 103 103

Lube oil temperature before engine, limit2L °C 105 105 105 105

Lube oil operating pressure upstream of
engine, from

R bar 6.5 6.5 6.5 6.5

Lube oil operating pressure before en­gine, to

R bar 9.5 9.5 9.5 9.5

Lube oil operating pressure before en­gine, warning

L bar 5.5 5.5 5.5 5.5

Lube oil operating pressure before en­gine, shutdown

L bar 5.0 5.0 5.0 5.0

Fuel system

ID 1 2 3 4

Fuel pressure at engine inlet connection,
min. (when engine is starting)

L bar -

Fuel pressure at engine inlet connection,
max. (when engine is starting), absolute
pressure

L bar abs 1.5 1.5 1.5 1.5

28 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065009 - 001

General operating data

ID 1 2 3 4

Cold start capability: air temperature
(w/o start aid. w/o preheating) - (case A)

R °C 0 0 0 0

Coolant preheating: preheating tempera­ture (min.)

L °C 32 32 32 32

Firing speed, from R rpm 100 100 100 100

Firing speed, to R rpm 120 120 120 120

Capacities

ID 1 2 3 4

Engine coolant capacity, engine side
(without cooling equipment)

R Liters 63 63 70 70

Charge-air coolant, engine side R Liters 20 20 25 25

Engine oil capacity, initial filling (standard
oil system) (option: max. operating incli­nations)

R Liters 92 92 114 114

Oil change quantity, max. (standard oil
system) (option: max. operating inclina­tions)

R Liters 80 80 102 102

Oil pan capacity at dipstick mark "min."
(standard oil system)

R Liters 65 65 88 88

Oil pan capacity at dipstick mark "max."
(standard oil system)

R Liters 70 70 94 94

Weights / main dimensions

ID 1 2 3 4

Engine weight, dry (basic engine configu­ration acc. to scope of delivery specifica­tion)

R kg 2710 2710 3180 3180

Sound

ID 1 2 3 4

Exhaust noise, not attenuated - DL
(sound power level LW, ISO 6798,
+3 dB(A) tolerance)

R dB(A) 130 130 X

Engine surface noise with attenuated in­take noise (filter) - DL (sound power level
LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 122 121 X

MS15054/00E 2015-09 | Technical Data | 29

TIM-ID: 0000065009 - 001

3.3 Engine data 12V/16V2000Gx6S, 3F, standby operation mode,
unlimited, ICXN, optimized fuel consumption (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G26S Power generation

3F standby operation
mode, unlimited, ICXN

1800 rpm
60 Hz

810 kW
1086 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

2 16V2000G26S Power generation

3F standby operation
mode, unlimited, ICXN

1800 rpm
60 Hz

998 kW
1338 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

Reference condition

ID 1 2

Intake air temperature °C 25 25

Charge air coolant temperature °C 55 55

Barometric pressure mbar 1000 1000

Site altitude above sea level M 100 100

Performance data

ID 1 2

Rated engine speed A rpm 1800 1800

Continuous power ISO 3046 (10% overload possible) (power
range DIN 6280, ISO 8528)

A kW 810 998

General conditions (for maximum power)

ID 1 2

Intake depression (new filter) A mbar 15 15

Intake depression, max. L mbar 40 40

30 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065011 - 001

ID 1 2

Exhaust overpressure A mbar 30 30

Exhaust gas overpressure, max. L mbar 85 85

Model-related data (basic design)

ID 1 2

Engine with exhaust turbocharging (ETC) and charge-air cooling
(CAC)

- X X

Combustion method: direct fuel injection - X X

Direction of rotation: c.c.w. (facing driving end) - X X

Cylinder arrangement: V-angle Degrees

(°)

90 90

Bore mm 135 135

Stroke mm 156 156

Displacement, cylinder Liters 2.233 2.233

Displacement, total Liters 26.8 35.7

Compression ratio - 16 16

Cylinder heads: Individual cylinder heads - X X

Cylinder liners: wet, replaceable - X X

Number of inlet valves per cylinder - 2 2

Number of exhaust valves per cylinder - 2 2

Standard housing connecting flange (engine main PTO side) SAE 0 0

Flywheel connection (DISC) - 18" 18"

Air / exhaust

ID 1 2

Charge-air pressure before cylinder - DL R bar abs 3.0 2.8

Coolant system (HT circuit)

ID 1 2

Coolant temperature (at engine connection: outlet to cooling
equipment)

A °C 100 100

Coolant temperature after engine, limit 1 L °C 102 102

Coolant temperature after engine, limit 2 L °C 105 105

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1.0

Coolant system (LT circuit)

ID 1 2

Coolant temperature before charge-air cooler (at engine inlet
from cooling equipment)

A °C 55 55

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1

MS15054/00E 2015-09 | Technical Data | 31

TIM-ID: 0000065011 - 001

Lube oil system

ID 1 2

Lube oil operating temperature before engine, from R °C 75 75

Lube oil operating temperature before engine, to R °C 100 100

Lube oil temperature before engine, limit 1 L °C 103 103

Lube oil temperature before engine, limit 2 L °C 105 105

Lube oil operating pressure upstream of engine, from R bar 6.5 6.5

Lube oil operating pressure before engine, to R bar 9.5 9.5

Lube oil operating pressure before engine, warning L bar 5.5 5.5

Lube oil operating pressure before engine, shutdown L bar 5.0 5.0

Fuel system

ID 1 2

Fuel pressure at engine inlet connection, min. (when engine is
starting)

L bar -

General operating data

ID 1 2

Cold start capability: air temperature (w/o start aid. w/o preheat­ing) - (case A)

R °C 0 0

Coolant preheating: preheating temperature (min.) L °C 32 32

Firing speed, from R rpm 100 100

Firing speed, to R rpm 120 120

Capacities

ID 1 2

Engine coolant capacity, engine side (without cooling equipment) R Liters 63 70

Charge-air coolant, engine side R Liters 20 25

Engine oil capacity, initial filling (standard oil system) (option:
max. operating inclinations)

R Liters 92 114

Oil change quantity, max. (standard oil system) (option: max. op­erating inclinations)

R Liters 80 102

Weights / main dimensions

ID 1 2

Engine weight, dry (basic engine configuration acc. to scope of
delivery specification)

R kg 2710 3180

Sound

ID 1 2

Exhaust noise, not attenuated - DL (sound power level LW, ISO
6798, +3 dB(A) tolerance)

R dB(A) 130

Engine surface noise with attenuated intake noise (filter) - DL
(sound power level LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 122

32 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065011 - 001

3.4 Engine data 12V/16V2000Gx6S, 3G, continuous operation,
time-limited, ICXN, optimized fuel consumption (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration
L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G26S Power generation

3G continuous opera­tion, time-limited,
ICXN

1800 rpm
60 Hz

810 kW
1086 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

2 16V2000G26S Power generation

3G continuous opera­tion, time-limited,
ICXN

1800 rpm
60 Hz

998 kW
1338 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

Reference condition

ID 1 2

Intake air temperature °C 25 25

Charge air coolant temperature °C 55 55

Barometric pressure mbar 1000 1000

Site altitude above sea level m 100 100

Performance data

ID 1 2

Rated engine speed A rpm 1800 1800

Continuous power ISO 3046 (10% overload possible) (power
range DIN 6280, ISO 8528)

A kW 810 998

General conditions (for maximum power)

ID 1 2

Intake depression (new filter) A mbar 15 15

Intake depression, max. L mbar 40 40

MS15054/00E 2015-09 | Technical Data | 33

TIM-ID: 0000065013 - 001

ID 1 2

Exhaust overpressure A mbar 30 30

Exhaust gas overpressure, max. L mbar 85 85

Model-related data (basic design)

ID 1 2

Engine with exhaust turbocharging (ETC) and charge-air cooling
(CAC)

- X X

Combustion method: direct fuel injection - X X

Direction of rotation: c.c.w. (facing driving end) - X X

Cylinder arrangement: V-angle Degrees

(°)

90 90

Bore mm 135 135

Stroke mm 156 156

Displacement, cylinder Liters 2.233 2.233

Displacement, total Liters 26.8 35.7

Compression ratio - 16 16

Cylinder heads: Individual cylinder heads - X X

Cylinder liners: wet, replaceable - X X

Number of inlet valves per cylinder - 2 2

Number of exhaust valves per cylinder - 2 2

Standard housing connecting flange (engine main PTO side) SAE 0 0

Flywheel connection (DISC) - 18" 18"

Air / exhaust

ID 1 2

Charge-air pressure before cylinder - CP R bar abs 3.0 2.8

Coolant system (HT circuit)

ID 1 2

Coolant temperature (at engine connection: outlet to cooling
equipment)

A °C 100 100

Coolant temperature after engine, limit 1 L °C 102 102

Coolant temperature after engine, limit 2 L °C 105 105

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1.0

Coolant system (LT circuit)

ID 1 2

Coolant temperature before charge-air cooler (at engine inlet
from cooling equipment)

A °C 55 55

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1

34 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065013 - 001

Lube oil system

ID 1 2

Lube oil operating temperature before engine, from R °C 75 75

Lube oil operating temperature before engine, to R °C 100 100

Lube oil temperature before engine, limit 1 L °C 103 103

Lube oil temperature before engine, limit 2 L °C 105 105

Lube oil operating pressure upstream of engine, from R bar 6.5 6.5

Lube oil operating pressure before engine, to R bar 9.5 9.5

Lube oil operating pressure before engine, warning L bar 5.5 5.5

Lube oil operating pressure before engine, shutdown L bar 5.0 5.0

Fuel system

ID 1 2

Fuel pressure at engine inlet connection, min. (when engine is
starting)

L bar -

General operating data

ID 1 2

Cold start capability: air temperature (w/o start aid. w/o preheat­ing) - (case A)

R °C 0 0

Coolant preheating: preheating temperature (min.) L °C 32 32

Firing speed, from R rpm 100 100

Firing speed, to R rpm 120 120

Capacities

ID 1 2

Engine coolant capacity, engine side (without cooling equipment) R Liters 63 70

Charge-air coolant, engine side R Liters 20 25

Engine oil capacity, initial filling (standard oil system) (option:
max. operating inclinations)

R Liters 92 114

Oil change quantity, max. (standard oil system) (option: max. op­erating inclinations)

R Liters 80 102

Weights / main dimensions

ID 1 2

Engine weight, dry (basic engine configuration acc. to scope of
delivery specification)

R kg 2710 3180

Sound

ID 1 2

Exhaust noise, not attenuated - DL (sound power level LW, ISO
6798, +3 dB(A) tolerance)

R dB(A) 130

Engine surface noise with attenuated intake noise (filter) - DL
(sound power level LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 122

MS15054/00E 2015-09 | Technical Data | 35

TIM-ID: 0000065013 - 001

3.5 Engine data 12V/16V2000Gx6S, 3H, standby operation mode,
special qualifications, optimized fuel consumption
(provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G76S Power generation

3H standby operation
mode, special qualifi­cations

1800 rpm
60 Hz

890 kW
1193 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

2 16V2000G76S Power generation

3H standby operation
mode, special qualifi­cations

1800 rpm
60 Hz

1097 kW
1471 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption,

3 16V2000G86S Power generation

3H standby operation
mode, special qualifi­cations

1800 rpm
60 Hz

1371 kW
1837 bhp

Ref. 25 °C/55 °C; Wa­ter charge air cooling
(external)
Optimized fuel con­sumption

Reference condition

ID 1 2 3

Intake air temperature °C 25 25 25

Charge air coolant temperature °C 55 55 55

Barometric pressure mbar 1000 1000 1000

Site altitude above sea level M 100 100 100

Performance data

ID 1 2 3

Rated engine speed A rpm 1800 1800 1800

Fuel stop power ISO 3046 A kW 890 1097 1371

36 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065015 - 001

General conditions (for maximum power)

ID 1 2 3

Intake depression (new filter) A mbar 15 15 15

Intake depression, max. L mbar 40 40 40

Exhaust overpressure A mbar 30 30 30

Exhaust gas overpressure, max. L mbar 85 85 85

Model-related data (basic design)

ID 1 2 3

Engine with exhaust turbocharging (ETC) and charge­air cooling (CAC)

- X X X

Uncooled exhaust lines - X X X

Operating method: Four-stroke cycle, diesel, single­action

- X X X

Combustion method: direct fuel injection - X X X

Cooling method: conditioned water - X X X

Direction of rotation: c.c.w. (facing driving end) - X X X

Cylinder arrangement: V-angle Degrees

(°)

90 90 90

Bore mm 135 135 135

Stroke mm 156 156 156

Displacement, cylinder Liters 2.233 2.233 2.233

Displacement, total Liters 26.8 35.7 35.7

Compression ratio - 16 16 16

Cylinder heads: Individual cylinder heads - X X X

Cylinder liners: wet, replaceable - X X X

Number of inlet valves per cylinder - 2 2 2

Number of exhaust valves per cylinder - 2 2 2

Standard housing connecting flange (engine main
PTO side)

SAE 0 0 0

Flywheel connection (DISC) - 18" 18" 18"

Air / exhaust

ID 1 2 3

Charge-air pressure before cylinder - CP R bar abs - - -

Coolant system (HT circuit)

ID 1 2 3

Coolant temperature (at engine connection: outlet to
cooling equipment)

A °C 100 100 100

Coolant temperature after engine, limit 1 L °C 102 102 102

Coolant temperature after engine, limit 2 L °C 105 105 105

Coolant antifreeze content, max. L % 50 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1.0 1.0

MS15054/00E 2015-09 | Technical Data | 37

TIM-ID: 0000065015 - 001

Coolant system (LT circuit)

ID 1 2 3

Coolant temperature before charge-air cooler (at en­gine inlet from cooling equipment)

A °C 55 55 55

Coolant antifreeze content, max. L % 50 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1 1.0

Lube oil system

ID 1 2 3

Lube-oil operating temperature before engine, from R °C 75 75 75

Lube oil operating temperature before engine, to R °C 100 100 100

Lube oil temperature before engine, limit 1 L °C 103 103 103

Lube oil temperature before engine, limit 2 L °C 105 105 105

Lube oil operating pressure upstream of engine, from R bar 6.5 6.5 6.5

Lube oil operating pressure before engine, to R bar 9.5 9.5 9.5

Lube oil operating pressure before engine, warning L bar 5.5 5.5 5.5

Lube oil operating pressure before engine, shutdown L bar 5.0 5.0 5.0

Fuel system

ID 1 2 3

Fuel pressure at engine inlet connection, min. (when
engine is starting)

L bar -

Fuel pressure at engine inlet connection, max. (when
engine is starting), absolute pressure

L bar abs 1.5 1.5 1.5

General operating data

ID 1 2 3

Cold start capability: air temperature (w/o start aid.
w/o preheating) - (case A)

R °C 0 0 0

Coolant preheating: preheating temperature (min.) L °C 32 32 32

Firing speed, from R rpm 100 100 100

Firing speed, to R rpm 120 120 120

Capacities

ID 1 2 3

Engine coolant capacity, engine side (without cooling
equipment)

R Liters 63 70 70

Charge-air coolant, engine side R Liters 20 25 25

Engine oil capacity, initial filling (standard oil system)
(option: max. operating inclinations)

R Liters 92 114 114

Oil change quantity, max. (standard oil system) (op­tion: max. operating inclinations)

R Liters 80 102 102

Oil pan capacity at dipstick mark "min." (standard oil
system)

R Liters 65 88 88

Oil pan capacity at dipstick mark "max." (standard oil
system)

R Liters 70 94 94

38 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065015 - 001

Weights / main dimensions

ID 1 2 3

Engine weight, dry (basic engine configuration acc. to
scope of delivery specification)

R kg 2710 3180 3180

Sound

ID 1 2 3

Exhaust noise, not attenuated - DL (sound power lev­el LW, ISO 6798, +3 dB(A) tolerance)

R dB(A) 130 X

Engine surface noise with attenuated intake noise (fil­ter) - DL (sound power level LW, ISO 6798, +2 db(A)
tolerance)

R dB(A) 122 X

MS15054/00E 2015-09 | Technical Data | 39

TIM-ID: 0000065015 - 001

3.6 Engine data 12V/16V2000Gx6S, 3B, continuous operation,
variable load, ICXN, EPA Nonroad T2 (40CFR89) (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G16S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

716 kW
960 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

2 12V2000G26S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

810 kW
1086 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

3 12V2000G36S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

898 kW
1204 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

4 16V2000G26S Power generation

3B continuous opera­tion, variable load,
ICXN

1800 rpm
60 Hz

998 kW
1338 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

Reference condition

ID 1 2 3 4

Intake air temperature °C 25 25 25 25

Charge air coolant temperature °C 45 45 45 45

Barometric pressure mbar 1000 1000 1000 1000

Site altitude above sea level M 100 100 100 100

40 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065007 - 001

Performance data

ID 1 2 3 4

Rated engine speed A rpm 1800 1800 1800 1800

Continuous power ISO 3046 (10% over­load possible) (power range DIN 6280,
ISO 8528)

A kW 716 810 898 998

General conditions (for maximum power)

ID 1 2 3 4

Intake depression (new filter) A mbar 15 15 15 15

Intake depression, max. L mbar 40 40 40 40

Exhaust overpressure A mbar 30 30 30 30

Exhaust gas overpressure, max. L mbar 85 85 85 85

Model-related data (basic design)

ID 1 2 3 4

Engine with exhaust turbocharging (ETC)
and charge-air cooling (CAC)

- X X X X

Combustion method: direct fuel injection - X X X X

Direction of rotation: c.c.w. (facing driv­ing end)

- X X X X

Cylinder arrangement: V-angle Degrees

(°)

90 90 90 90

Bore mm 135 135 135 135

Stroke mm 156 156 156 156

Displacement, cylinder Liters 2.233 2.233 2.233 2.233

Displacement, total Liters 26.8 26.8 26.8 35.7

Compression ratio - 16 16 16 16

Cylinder heads: Individual cylinder heads - X X X X

Cylinder liners: wet, replaceable - X X X X

Number of inlet valves per cylinder - 2 2 2 2

Number of exhaust valves per cylinder - 2 2 2 2

Standard housing connecting flange (en­gine main PTO side)

SAE 0 0 0 0

Flywheel connection (DISC) - 18" 18" 18" 18"

Air / exhaust

ID 1 2 3 4

Charge-air pressure before cylinder - CP R bar abs 3.0 3.3 3.5 3.2

Coolant system (HT circuit)

ID 1 2 3 4

Coolant temperature (at engine connec­tion: outlet to cooling equipment)

A °C 100 100 100 100

Coolant temperature after engine, limit 1 L °C 102 102 102 102

MS15054/00E 2015-09 | Technical Data | 41

TIM-ID: 0000065007 - 001

ID 1 2 3 4

Coolant temperature after engine, limit 2 L °C 105 105 105 105

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1.0 1.0

Coolant system (LT circuit)

ID 1 2 3 4

Coolant temperature before charge-air
cooler (at engine inlet from cooling
equipment)

A °C 45 45 45 45

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1.0 1

Lube oil system

ID 1 2 3 4

Lube oil operating temperature before
engine, from

R °C 75 75 75 75

Lube oil operating temperature before
engine, to

R °C 100 100 100 100

Lube oil temperature before engine, limit1L °C 103 103 103 103

Lube oil temperature before engine, limit2L °C 105 105 105 105

Lube oil operating pressure upstream of
engine, from

R bar 6.5 6.5 6.5 6.5

Lube oil operating pressure before en­gine, to

R bar 9.5 9.5 9.5 9.5

Lube oil operating pressure before en­gine, warning

L bar 5.5 5.5 5.5 5.5

Lube oil operating pressure before en­gine, shutdown

L bar 5.0 5.0 5.0 5.0

General operating data

ID 1 2 3 4

Cold start capability: air temperature
(w/o start aid. w/o preheating) - (case A)

R °C 0 0 0 0

Coolant preheating: preheating tempera­ture (min.)

L °C 32 32 32 32

Firing speed, from R rpm 100 100 100 100

Firing speed, to R rpm 120 120 120 120

42 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065007 - 001

Capacities

ID 1 2 3 4

Engine coolant capacity, engine side
(without cooling equipment)

R Liters 63 63 63 70

Charge-air coolant, engine side R Liters 20 20 20 25

Engine oil capacity, initial filling (standard
oil system) (option: max. operating incli­nations)

R Liters 92 92 92 114

Oil change quantity, max. (standard oil
system) (option: max. operating inclina­tions)

R Liters 80 80 80 102

Weights / main dimensions

ID 1 2 3 4

Engine weight, dry (basic engine configu­ration acc. to scope of delivery specifica­tion)

R kg 2710 2710 2710 3180

Sound

ID 1 2 3 4

Exhaust noise, not attenuated - DL
(sound power level LW, ISO 6798,
+3 dB(A) tolerance)

R dB(A) X 129 130 130

Engine surface noise with attenuated in­take noise (filter) - DL (sound power level
LW, ISO 6798, +2 db(A) tolerance)

R dB(A) X 123 123 122

MS15054/00E 2015-09 | Technical Data | 43

TIM-ID: 0000065007 - 001

3.7 Engine data 12V/16V2000Gx6S, 3D, standby current, fuel
stop power (IFN), EPA Nonroad T2 (40CFR89) (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G76S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

890 kW
1193 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2
(40CFR89)
EPA Nonroad T2 Comp
(40CFR89)

2 12V2000G86S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

987 kW
1323 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2
(40CFR89)
EPA Nonroad T2 Comp
(40CFR89)

3 16V2000G76S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

1097 kW
1471 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2
(40CFR89)
EPA Nonroad T2 Comp
(40CFR89)

4 16V2000G86S Power generation

3D standby current,
fuel stop power (IFN)

1800 rpm
60 Hz

1371 kW
1837 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2
(40CFR89)
EPA Nonroad T2 Comp
(40CFR89)

44 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065010 - 001

Reference condition

ID 1 2 3 4

Intake air temperature °C 25 25 25 25

Charge air coolant temperature °C 45 45 45 45

Barometric pressure mbar 1000 1000 1000 1000

Site altitude above sea level M 100 100 100 100

Performance data

ID 1 2 3 4

Rated engine speed A rpm 1800 1800 1800 1800

Fuel stop power ISO 3046 A kW 890 987 1097 1371

General conditions (for maximum power)

ID 1 2 3 4

Intake depression (new filter) A mbar 15 15 15 15

Intake depression, max. L mbar 40 40 40 40

Exhaust overpressure A mbar 30 30 30 30

Exhaust gas overpressure, max. L mbar 85 85 85 85

Model-related data (basic design)

ID 1 2 3 4

Engine with exhaust turbocharging (ETC)
and charge-air cooling (CAC)

- X X X X

Uncooled exhaust lines - X X X X

Operating method: Four-stroke cycle,
diesel, single-action

- X X X X

Combustion method: direct fuel injection - X X X X

Cooling method: conditioned water - X X X X

Direction of rotation: c.c.w. (facing driv­ing end)

- X X X X

Cylinder arrangement: V-angle Degrees

(°)

90 90 90 90

Bore mm 135 135 135 135

Stroke mm 156 156 156 156

Displacement, cylinder Liters 2.233 2.233 2.233 2.233

Displacement, total Liters 26.8 26.8 35.7 35.7

Compression ratio - 16 16 16 16

Cylinder heads: Individual cylinder heads - X X X X

Cylinder liners: wet, replaceable - X X X X

Number of inlet valves per cylinder - 2 2 2 2

Number of exhaust valves per cylinder - 2 2 2 2

Standard housing connecting flange (en­gine main PTO side)

SAE 0 0 0 0

Flywheel connection (DISC) - 18" 18" 18" 18"

MS15054/00E 2015-09 | Technical Data | 45

TIM-ID: 0000065010 - 001

Air / exhaust

ID 1 2 3 4

Charge-air pressure before cylinder - CP R bar abs - - - -

Coolant system (HT circuit)

ID 1 2 3 4

Coolant temperature (at engine connec­tion: outlet to cooling equipment)

A °C 100 100 100 100

Coolant temperature after engine, limit 1 L °C 102 102 102 102

Coolant temperature after engine, limit 2 L °C 105 105 105 105

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1.0 1.0

Coolant system (LT circuit)

ID 1 2 3 4

Coolant temperature before charge-air
cooler (at engine inlet from cooling
equipment)

A °C 45 45 45 45

Coolant antifreeze content, max. L % 50 50 50 50

Pressure loss in engine-external cooling
system, max.

L bar 1.0 1.0 1 1

Lube oil system

ID 1 2 3 4

Lube-oil operating temperature before
engine, from

R °C 75 75 75 75

Lube oil operating temperature before
engine, to

R °C 100 100 100 100

Lube oil temperature before engine, limit1L °C 103 103 103 103

Lube oil temperature before engine, limit2L °C 105 105 105 105

Lube oil operating pressure upstream of
engine, from

R bar 6.5 6.5 6.5 6.5

Lube oil operating pressure before en­gine, to

R bar 9.5 9.5 9.5 9.5

Lube oil operating pressure before en­gine, warning

L bar 5.5 5.5 5.5 5.5

Lube oil operating pressure before en­gine, shutdown

L bar 5.0 5.0 5.0 5.0

Fuel system

ID 1 2 3 4

Fuel pressure at engine inlet connection,
max. (when engine is starting), absolute
pressure

L bar abs 1.5 1.5 1.5 1.5

46 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065010 - 001

General operating data

ID 1 2 3 4

Cold start capability: air temperature
(w/o start aid. w/o preheating) - (case A)

R °C 0 0 0 0

Coolant preheating: preheating tempera­ture (min.)

L °C 32 32 32 32

Firing speed, from R rpm 100 100 100 100

Firing speed, to R rpm 120 120 120 120

Capacities

ID 1 2 3 4

Engine coolant capacity, engine side
(without cooling equipment)

R Liters 63 63 70 70

Charge-air coolant, engine side R Liters 20 20 25 25

Engine oil capacity, initial filling (standard
oil system) (option: max. operating incli­nations)

R Liters 92 92 114 114

Oil change quantity, max. (standard oil
system) (option: max. operating inclina­tions)

R Liters 80 80 102 102

Oil pan capacity at dipstick mark "min."
(standard oil system)

R Liters 65 65 88 88

Oil pan capacity at dipstick mark "max."
(standard oil system)

R Liters 70 70 94 94

Weights / main dimensions

ID 1 2 3 4

Engine weight, dry (basic engine configu­ration acc. to scope of delivery specifica­tion)

R kg 2710 2710 3180 3180

Sound

ID 1 2 3 4

Exhaust noise, not attenuated - DL
(sound power level LW, ISO 6798,
+3 dB(A) tolerance)

R dB(A) 130 130 -

Engine surface noise with attenuated in­take noise (filter) - DL (sound power level
LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 121 121 -

MS15054/00E 2015-09 | Technical Data | 47

TIM-ID: 0000065010 - 001

3.8 Engine data 12V/16V2000Gx6S, 3F, standby operation mode,
unlimited, ICXN, EPA Nonroad T2 (40CFR89) and EPA
Stationary EMERG T2 (40CFR60) (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G26S Power generation

3F standby operation
mode, unlimited, ICXN

1800 rpm
60 Hz

810 kW
1086 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

2 16V2000G26S Power generation

3F standby operation
mode, unlimited, ICXN

1800 rpm
60 Hz

998 kW
1338 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Stationary EMERG
T2 (40CFR60)
EPA Nonroad T2 Comp
(40CFR89)

Reference condition

ID 1 2

Intake air temperature °C 25 25

Charge air coolant temperature °C 45 45

Barometric pressure mbar 1000 1000

Site altitude above sea level M 100 100

Performance data

ID 1 2

Rated engine speed A rpm 1800 1800

Continuous power ISO 3046 (10% overload possible) (power
range DIN 6280, ISO 8528)

A kW 810 998

48 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065012 - 001

General conditions (for maximum power)

ID 1 2

Intake depression (new filter) A mbar 15 15

Intake depression, max. L mbar 40 40

Exhaust overpressure A mbar 30 30

Exhaust gas overpressure, max. L mbar 85 85

Model-related data (basic design)

ID 1 2

Engine with exhaust turbocharging (ETC) and charge-air cooling
(CAC)

- X X

Combustion method: direct fuel injection - X X

Direction of rotation: c.c.w. (facing driving end) - X X

Cylinder arrangement: V-angle Degrees

(°)

90 90

Bore mm 135 135

Stroke mm 156 156

Displacement, cylinder Liters 2.233 2.233

Displacement, total Liters 26.8 35.7

Compression ratio - 16 16

Cylinder heads: Individual cylinder heads - X X

Cylinder liners: wet, replaceable - X X

Number of inlet valves per cylinder - 2 2

Number of exhaust valves per cylinder - 2 2

Standard housing connecting flange (engine main PTO side) SAE 0 0

Flywheel connection (DISC) - 18" 18"

Air / exhaust

ID 1 2

Charge-air pressure before cylinder - CP R bar abs 3.3 3.2

Coolant system (HT circuit)

ID 1 2

Coolant temperature (at engine connection: outlet to cooling
equipment)

A °C 100 100

Coolant temperature after engine, limit 1 L °C 102 102

Coolant temperature after engine, limit 2 L °C 105 105

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1.0

MS15054/00E 2015-09 | Technical Data | 49

TIM-ID: 0000065012 - 001

Coolant system (LT circuit)

ID 1 2

Coolant temperature before charge-air cooler (at engine inlet
from cooling equipment)

A °C 45 45

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1

Lube oil system

ID 1 2

Lube oil operating temperature before engine, from R °C 75 75

Lube oil operating temperature before engine, to R °C 100 100

Lube oil temperature before engine, limit 1 L °C 103 103

Lube oil temperature before engine, limit 2 L °C 105 105

Lube oil operating pressure upstream of engine, from R bar 6.5 6.5

Lube oil operating pressure before engine, to R bar 9.5 9.5

Lube oil operating pressure before engine, warning L bar 5.5 5.5

Lube oil operating pressure before engine, shutdown L bar 5.0 5.0

General operating data

ID 1 2

Cold start capability: air temperature (w/o start aid. w/o preheat­ing) - (case A)

R °C 0 0

Coolant preheating: preheating temperature (min.) L °C 32 32

Firing speed, from R rpm 100 100

Firing speed, to R rpm 120 120

Capacities

ID 1 2

Engine coolant capacity, engine side (without cooling equipment) R Liters 63 70

Charge-air coolant, engine side R Liters 20 25

Engine oil capacity, initial filling (standard oil system) (option:
max. operating inclinations)

R Liters 92 114

Oil change quantity, max. (standard oil system) (option: max. op­erating inclinations)

R Liters 80 102

Weights / main dimensions

ID 1 2

Engine weight, dry (basic engine configuration acc. to scope of
delivery specification)

R kg 2710 3180

50 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065012 - 001

Sound

ID 1 2

Exhaust noise, not attenuated - DL (sound power level LW, ISO
6798, +3 dB(A) tolerance)

R dB(A) 130

Engine surface noise with attenuated intake noise (filter) - DL
(sound power level LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 123

MS15054/00E 2015-09 | Technical Data | 51

TIM-ID: 0000065012 - 001

3.9 Engine data 12V/16V2000Gx6S, 3G, continuous operation,
time-limited, ICXN, EPA Nonroad T2 (40CFR89) (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration

L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G26S Power generation

3G continuous opera­tion, time-limited,
ICXN

1800 rpm
60 Hz

810 kW
1086 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

2 16V2000G26S Power generation

3G continuous opera­tion, time-limited,
ICXN

1800 rpm
60 Hz

998 kW
1338 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

Reference condition

ID 1 2

Intake air temperature °C 25 25

Charge air coolant temperature °C 45 45

Barometric pressure mbar 1000 1000

Site altitude above sea level M 100 100

Performance data

ID 1 2

Rated engine speed A rpm 1800 1800

Continuous power ISO 3046 (10% overload possible) (power
range DIN 6280, ISO 8528)

A kW 810 998

General conditions (for maximum power)

ID 1 2

Intake depression (new filter) A mbar 15 15

Intake depression, max. L mbar 40 40

52 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065014 - 001

ID 1 2

Exhaust overpressure A mbar 30 30

Exhaust gas overpressure, max. L mbar 85 85

Model-related data (basic design)

ID 1 2

Engine with exhaust turbocharging (ETC) and charge-air cooling
(CAC)

- X X

Combustion method: direct fuel injection - X X

Direction of rotation: c.c.w. (facing driving end) - X X

Cylinder arrangement: V-angle Degrees

(°)

90 90

Bore mm 135 135

Stroke mm 156 156

Displacement, cylinder Liters 2.233 2.233

Displacement, total Liters 26.8 35.7

Compression ratio - 16 16

Cylinder heads: Individual cylinder heads - X X

Cylinder liners: wet, replaceable - X X

Number of inlet valves per cylinder - 2 2

Number of exhaust valves per cylinder - 2 2

Standard housing connecting flange (engine main PTO side) SAE 0 0

Flywheel connection (DISC) - 18" 18"

Air / exhaust

ID 1 2

Charge-air pressure before cylinder - CP R bar abs 3.3 3.2

Coolant system (HT circuit)

ID 1 2

Coolant temperature (at engine connection: outlet to cooling
equipment)

A °C 100 100

Coolant temperature after engine, limit 1 L °C 102 102

Coolant temperature after engine, limit 2 L °C 105 105

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1.0

Coolant system (LT circuit)

ID 1 2

Coolant temperature before charge-air cooler (at engine inlet
from cooling equipment)

A °C 45 45

Coolant antifreeze content, max. L % 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1

MS15054/00E 2015-09 | Technical Data | 53

TIM-ID: 0000065014 - 001

Lube oil system

ID 1 2

Lube oil operating temperature before engine, from R °C 75 75

Lube oil operating temperature before engine, to R °C 100 100

Lube oil temperature before engine, limit 1 L °C 103 103

Lube oil temperature before engine, limit 2 L °C 105 105

Lube oil operating pressure upstream of engine, from R bar 6.5 6.5

Lube oil operating pressure before engine, to R bar 9.5 9.5

Lube oil operating pressure before engine, warning L bar 5.5 5.5

Lube oil operating pressure before engine, shutdown L bar 5.0 5.0

General operating data

ID 1 2

Cold start capability: air temperature (w/o start aid. w/o preheat­ing) - (case A)

R °C 0 0

Coolant preheating: preheating temperature (min.) L °C 32 32

Firing speed, from R rpm 100 100

Firing speed, to R rpm 120 120

Capacities

ID 1 2

Engine coolant capacity, engine side (without cooling equipment) R Liters 63 70

Charge-air coolant, engine side R Liters 20 25

Engine oil capacity, initial filling (standard oil system) (option:
max. operating inclinations)

R Liters 92 114

Oil change quantity, max. (standard oil system) (option: max. op­erating inclinations)

R Liters 80 102

Weights / main dimensions

ID 1 2

Engine weight, dry (basic engine configuration acc. to scope of
delivery specification)

R kg 2710 3180

Sound

ID 1 2

Exhaust noise, not attenuated - DL (sound power level LW, ISO
6798, +3 dB(A) tolerance)

R dB(A) 130

Engine surface noise with attenuated intake noise (filter) - DL
(sound power level LW, ISO 6798, +2 db(A) tolerance)

R dB(A) 123

54 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065014 - 001

3.10 Engine data 12V/16V2000Gx6S, 3H, standby operation mode,
special qualifications, EPA Nonroad T2 (40CFR89) and EPA
Stationary EMERG T2 (40CFR60) (provisional)

Legend

CP Ref. value: Continuous power. Continuous driving power under standard conditions

FSP Ref. value: Fuel stop power. Maximum engine power. In some applications, continuous power not pos-

sible (adjustment reserve)
A Design value. Value is required for configuration of an external system (plant)
R Guideline value. Typical average value for information; only conditionally suitable for configuration
L Limit value. Value that must not be undershot (lower limit, min. value) or exceeded (upper limit, max.

value); not suitable for configuration

N Value not yet defined. Value has not yet been, or will not be, named

- Not applicable. Module not relevant to this product type
X Applicable. Module relevant to this product type
> Actual value must be higher than specified value.
< Actual value must be lower than specified value.
* Value not sufficiently guaranteed (tolerance +/- 10%).

** Value not sufficiently guaranteed (tolerance +/- 5%).

ID Product type Application Engine speed Listed per-

formance

1 12V2000G76S Power generation

3H standby operation
mode, special qualifi­cations

1800 rpm
60 Hz

890 kW
1193 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Nonroad T2 Comp
(40CFR89)

2 16V2000G76S Power generation

3H standby operation
mode, special qualifi­cations

1800 rpm
60 Hz

1097 kW
1471 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Stationary EMERG
T2 (40CFR60)
EPA Nonroad T2 Comp
(40CFR89)

3 16V2000G86S Power generation

3H standby operation
mode, special qualifi­cations

1800 rpm
60 Hz

1371 kW
1837 bhp

Ref. 25 °C/45 °C; Wa­ter charge air cooling
(external)
EPA Stationary EMERG
T2 (40CFR60)
EPA Nonroad T2 Comp
(40CFR89)

Reference condition

ID 1 2 3

Intake air temperature °C 25 25 25

Charge air coolant temperature °C 45 45 45

Barometric pressure mbar 1000 1000 1000

Site altitude above sea level m 100 100 100

MS15054/00E 2015-09 | Technical Data | 55

TIM-ID: 0000065016 - 001

Performance data

ID 1 2 3

Rated engine speed A rpm 1800 1800 1800

Fuel stop power ISO 3046 A kW 890 1097 1371

General conditions (for maximum power)

ID 1 2 3

Intake depression (new filter) A mbar 15 15 15

Intake depression, max. L mbar 40 40 40

Exhaust overpressure A mbar 30 30 30

Exhaust gas overpressure, max. L mbar 85 85 85

Model-related data (basic design)

ID 1 2 3

Engine with exhaust turbocharging (ETC) and charge­air cooling (CAC)

- X X X

Uncooled exhaust lines - X X X

Operating method: Four-stroke cycle, diesel, single­action

- X X X

Combustion method: direct fuel injection - X X X

Cooling method: conditioned water - X X X

Direction of rotation: c.c.w. (facing driving end) - X X X

Cylinder arrangement: V-angle Degrees

(°)

90 90 90

Bore mm 135 135 135

Stroke mm 156 156 156

Displacement, cylinder Liters 2.233 2.233 2.233

Displacement, total Liters 26.8 35.7 35.7

Compression ratio - 16 16 16

Cylinder heads: Individual cylinder heads - X X X

Cylinder liners: wet, replaceable - X X X

Number of inlet valves per cylinder - 2 2 2

Number of exhaust valves per cylinder - 2 2 2

Standard housing connecting flange (engine main
PTO side)

SAE 0 0 0

Flywheel connection (DISC) - 18" 18" 18"

Air / exhaust

ID 1 2 3

Charge-air pressure before cylinder - CP R bar abs - - -

56 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065016 - 001

Coolant system (HT circuit)

ID 1 2 3

Coolant temperature (at engine connection: outlet to
cooling equipment)

A °C 100 100 100

Coolant temperature after engine, limit 1 L °C 102 102 102

Coolant temperature after engine, limit 2 L °C 105 105 105

Coolant antifreeze content, max. L % 50 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1.0 1.0

Coolant system (LT circuit)

ID 1 2 3

Coolant temperature before charge-air cooler (at en­gine inlet from cooling equipment)

A °C 45 45 45

Coolant antifreeze content, max. L % 50 50 50

Pressure loss in engine-external cooling system, max. L bar 1.0 1 1

Lube oil system

ID 1 2 3

Lube oil operating temperature before engine, from R °C 75 75 75

Lube oil operating temperature before engine, to R °C 100 100 100

Lube oil temperature before engine, limit 1 L °C 103 103 103

Lube oil temperature before engine, limit 2 L °C 105 105 105

Lube oil operating pressure upstream of engine, from R bar 6.5 6.5 6.5

Lube-oil operating pressure before engine, to R bar 9.5 9.5 9.5

Lube oil operating pressure before engine, warning L bar 5.5 5.5 5.5

Lube oil operating pressure before engine, shutdown L bar 5.0 5.0 5.0

Fuel system

ID 1 2 3

Fuel pressure at engine inlet connection, max. (when
engine is starting), absolute pressure

L bar abs 1.5 1.5 1.5

General operating data

ID 1 2 3

Cold start capability: air temperature (w/o start aid.
w/o preheating) - (case A)

R °C 0 0 0

Coolant preheating: preheating temperature (min.) L °C 32 32 32

Firing speed, from R rpm 100 100 100

Firing speed, to R rpm 120 120 120

Capacities

ID 1 2 3

Engine coolant capacity, engine side (without cooling
equipment)

R Liters 63 70 70

Charge-air coolant, engine side R Liters 20 25 25

MS15054/00E 2015-09 | Technical Data | 57

TIM-ID: 0000065016 - 001

ID 1 2 3

Engine oil capacity, initial filling (standard oil system)
(option: max. operating inclinations)

R Liters 92 114 114

Oil change quantity, max. (standard oil system) (op­tion: max. operating inclinations)

R Liters 80 102 102

Oil pan capacity at dipstick mark "min." (standard oil
system)

R Liters 65 88 88

Oil pan capacity at dipstick mark "max." (standard oil
system)

R Liters 70 94 94

Weights / main dimensions

ID 1 2 3

Engine weight, dry (basic engine configuration acc. to
scope of delivery specification)

R kg 2710 3180 3180

Sound

ID 1 2 3

Exhaust noise, not attenuated - DL (sound power lev­el LW, ISO 6798, +3 dB(A) tolerance)

R dB(A) 130 -

Engine surface noise with attenuated intake noise (fil­ter) - DL (sound power level LW, ISO 6798, +2 db(A)
tolerance)

R dB(A) 121 -

58 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000065016 - 001

3.11 Firing order

Firing order

Number of cylinders

Firing order

12V A1-B5-A5-B3-A3-B6-A6-B2-A2-B4-A4-B1

16V A1-B5-A3-A5-B2-B8-A2-A8-B3-A7-B4-B6-A4-A6-B1-B7

18V A1-B6-A3-B4-A5-B2-A7-B1-A9-B3-A8-B5-A6-B7-A4-B9-A2-B8

MS15054/00E 2015-09 | Technical Data | 59

TIM-ID: 0000053446 - 002

3.12 Engine – Main dimensions

Item

Dimensions

Length (A) for 12V approx. 1885.2 mm

Length (A) for 16V approx. 2235.2 mm

Width (B) for 12V approx. 1588.3 mm

Width (B) for 16V approx. 1568.4 mm

Height (C) for 12V approx. 1420.2 mm

Height (C) for 16V approx. 1420.2 mm

Table 7: Main engine dimensions

60 | Technical Data | MS15054/00E 2015-09

TIM-ID: 0000060300 - 002

4 Operation

4.1 Putting the engine into operation after extended out-of-service
periods (>3 months)

Preconditions

☑ Engine is stopped and starting disabled.

☑ MTU Fluids and Lubricants Specifications (A001061/..) are available.

Putting into operation after long out-of-service periods (>3 months)

Item Action

Engine Depreserve (→ Preservation and Represervation Specifications (A001070/

…)).

Lube oil system Check engine oil level (→ Page 130).

Fuel system Connect appropriate equipment to fuel supply line to fill the system.

Fuel system Vent (→ Page 117).

Coolant circuit If engine is out of service for more than one year, change engine coolant

(→ Page 136). Change charge-air coolant (→ Page 145).

Coolant circuit Check engine coolant level (→ Page 135); Check charge-air coolant level

(→ Page 146).

Coolant circuit Preheat engine coolant with coolant preheating unit (if fitted).

Engine governor Check plug-in connections (→ Page 161).

Engine control sstem Switch on.

MS15054/00E 2015-09 | Operation | 61

TIM-ID: 0000010073 - 004

4.2 Putting the engine into operation after scheduled out-of­service-period

Preconditions

☑ Engine is stopped and starting disabled.

Putting into operation

Item Action

Lube oil system Check engine oil level (→ Page 130).

Coolant circuit Check engine coolant level (→ Page 135), check charge-air coolant level

(→ Page 146).

Coolant circuit Preheat engine coolant with coolant preheating unit, if fitted.

Fuel prefilter (if fitted) Drain water and contaminants, see manufacturer's documentation.

Engine control system Switch on.

62 | Operation | MS15054/00E 2015-09

TIM-ID: 0000010642 - 002

4.3 Starting the engine

Preconditions

☑ Engine with no load.

DANGER

Rotating and moving engine parts.

Risk of crushing, danger of parts of the body being caught or pulled in!

• Before cranking the engine with starter system, make sure that there are no persons in the engine's
danger zone.

WARNING

High level of engine noise when the engine is running.

Risk of damage to hearing!

• Wear ear protectors.

Starting the engine

Item Measure

Engine Start the engine (→ documentation of the vehicle manufacturer/plant manu-

facturer).

MS15054/00E 2015-09 | Operation | 63

TIM-ID: 0000010107 - 006

4.4 Operational checks

DANGER

Rotating and moving engine parts.

Risk of crushing, danger of parts of the body being caught or pulled in!

• Only run the engine at low power. Keep away from the engine's danger zone.

WARNING

High level of engine noise when the engine is running.

Risk of damage to hearing!

• Wear ear protectors.

Operational checks

Item

Measure

Control and display panels Check readings of operational data (speed, temperature, pressures).

Engine operation Visually inspect engine for leaks and general condition;

Check engine for abnormal running noises, exhaust color and vibrations.

Air filter Check signal ring position of maintenance indicator on air filter

(→ Page 126).

Exhaust system Check exhaust color (→ Page 71).

Fuel prefilter (if fitted) Check reading at differential pressure gauge of fuel prefilter, see manufac-

turer's documentation.

Charge-air cooler Check drain for coolant discharge and obstruction (→ Page 148).

Engine coolant pump Check relief bore (→ Page 140).

Charge-air coolant pump Check relief bore (→ Page 147).

64 | Operation | MS15054/00E 2015-09

TIM-ID: 0000057107 - 002

4.5 Emission label – Check

Checking emission label

Note: If there are any irregularities, notify your MTU Service contact person without delay.

1. Check that emission labels are present (several are possible).

2. Does the label on the engine match the label document in the Business Portal/Equipment?

3. Check emission label for intactness.

4. Check content of emission label for complete readability

5. Does the engine number on the emission label match the engine identification plate?

6. Does the Manufacturing Date match the year of manufacture on the identification plate?

MS15054/00E 2015-09 | Operation | 65

TIM-ID: 0000063752 - 001

4.6 Engine shutdown

Preconditions

☑ Engine is not connected to load.

CAUTION

Shutting down from full-load operation may cause hot water to escape from the expansion tank.

Risk of scalding!

• Allow engine to cool down.

• Wear protective clothing, protective gloves, and safety goggles / safety mask.

NOTICE

Stopping the engine when it is running at full load subjects it to extreme thermal and mechanical stress­es.

Overheating of and, therefore, damage to components is possible!

• Before shutting down the engine, allow it to idle until the engine temperatures decrease and constant
levels are indicated.

Preparation

Item Action

Engine Allow the engine to cool down by running it at idle speed for approx. 5 mi-

nutes.

Stopping the engine

Item Action

Engine Stopping (→ Documentation of the vehicle/plant manufacturer).

66 | Operation | MS15054/00E 2015-09

TIM-ID: 0000010138 - 007

4.7 Emergency engine stop

CAUTION

Shutting down from full-load operation may cause hot water to escape from the expansion tank.

Risk of scalding!

• Allow engine to cool down.

• Wear protective clothing, protective gloves, and safety goggles / safety mask.

NOTICE

An emergency stop causes extreme stress to the engine plant.

Risk of overheating, damage to components!

• Initiate emergency stop only in emergency situations.

Emergency engine stop

Item Action

Emergency stop pushbutton Press EMERGENCY STOP pushbutton.

• Engine is stopped by disconnecting the power supply to the ECU;

• Emergency-air shutoff flaps close (if applicable);

• Signalization (e.g. by horn, beacon) is activated.

After emergency engine stop

Item Action

Switch cabinet, operator
station etc. (depending on
manufacturer)

Press pushbutton for alarm acknowledgment.

• Audible and visual signalization stops.

Engine Manually open emergency-air shutoff flaps (if provided).

• Switch on ECU voltage supply

• Engine is ready for starting.

HP system Energize injectors (for pressure release in HP system using the function

„Blank Shot Afterrun“)

• Switch on ECU voltage supply

• Blank Shots are carried out (requires approx. 20 to 30 s.)

MS15054/00E 2015-09 | Operation | 67

TIM-ID: 0000062460 - 001

4.8 After stopping the engine

Preconditions

☑ MTU Preservation and Represervation Instructions (A001070/..) are available.

NOTICE

Engine coolant with inadequate freeze protection. Water remaining in the pressure sensors freezes at
temperatures below 0 °C.

Risk of sensor damage!

• Remove pressure sensors and shake off residual water.

After stopping the engine

Item Action

Coolant circuit Drain engine coolant (→ Page 137) if

• freezing temperatures are expected, the engine is to remain out of service
for an extended period, but engine coolant has no antifreeze additive.

• the engine room is not heated.

• the coolant is not kept at a suitable temperature.

• the antifreeze concentration is insufficient for the engine-room tempera­ture.

• the antifreeze concentration is 50% and the engine-room temperature is
below -40 °C.

Engine control system Switch off (see manufacturer's documentation).

Air intake and exhaust sys­tem

If the engine is to be taken out of service for longer than 1 week, seal the
engine on the air and exhaust side.
If the engine is to be taken out of service for longer than 1 month, it has to
be preserved (→ MTU Preservation and Represervation Instructions
A001070/..).

HP system (injector noise) The pressure is released in the system by means of the function "Blank Shot

Afterrun":

• Injectors are energized.

• A small injection quantity is diverted into the injector return line without
the nozzle needle opening (actuation of the servo valve on the injector
side, which does not result in injection into the combustion chamber).

Explanation: The injectors do not leak permanently, which is why the pres­sure applied in the system during engine stop is maintained. Pressure is only
released through actuation of the injectors. When actuated, the switched
quantity of the servo valve and the injection quantity are discharged. This
procedure results in injector noise.
Depressurizing (pressure <400 bar) is necessary for the following reasons:

• Limitation of load on high-pressure pumps during start

• Safety during assembly activities

68 | Operation | MS15054/00E 2015-09

TIM-ID: 0000054740 - 002

4.9 Plant – Cleaning

Preconditions

☑ Engine is stopped and starting disabled.

☑ No operating voltage is applied.

Special tools, Material, Spare parts

Designation / Use Part No. Qty.

High-pressure cleaning unit

- 1

Cleaner (Hakupur 50/136)

X00056700 1

WARNING

Compressed air gun ejects a jet of pressurized air.

Risk of injury to eyes and damage to hearing, risk of rupturing internal organs!

• Never direct air jet at people.

• Always wear safety goggles/face mask and ear defenders.

WARNING

Water jet from high-pressure cleaning unit.

Risk of eye injury, risk of scalding!

• Do not direct water jet at persons.

• Wear protective clothing, protective gloves, and goggles/safety mask.

NOTICE

Cleaning agents should not be left to take effect for too long.

Damage to components is possible!

• Observe manufacturer's instructions.

NOTICE

Blowing down product with compressed air.

Entry of dirt and damage to components is possible!

• Do not aim compressed air gun directly at seals or electronic components such as connectors or
ECUs.

Plant – Cleaning

1. Carry out plant cleaning only in areas where an appropriate oil separator is provided (environmental protec­tion).

2. Prior to putting the cleaning unit into operation, read the operating instructions of the high-pressure cleaning
units carefully and observe the safety precautions.

3. The following requirements apply for cleaning the plant outside with a high-pressure cleaning unit:

• The pressure of the high-pressure jet (cleaning jet) must not exceed 50 bar.

• A minimum distance between spray nozzle and plant of 1 m must be observed.

• The temperature of the cleaning medium must not exceed 80 °C.

4. For external cleaning with high-pressure jet, use a flat-mouth nozzle only.

Note: Never direct compressed air directly at electronic components.

5. Carry out external cleaning as follows:

a) Seal all openings in a suitable way.

b) Remove coarse dirt.

c) Spray on cleaner sparingly and leave it for 1 to 5 minutes.

d) Use the high-pressure jet to remove the loosened dirt.

e) Dry engine with compressed air.

MS15054/00E 2015-09

| Operation | 69

TIM-ID: 0000010171 - 032

5 Maintenance

5.1 Maintenance task reference table [QL1]

The maintenance tasks and intervals for this product are defined in the Maintenance Schedule. The Mainte­nance Schedule is a stand-alone publication.

The task numbers in this table provide reference to the maintenance tasks specified in the Maintenance
Schedule.

Task

Option

Maintenance tasks

W0500 Check engine oil level. (→ Page 130)

W0501 Visually inspect engine for leaks and general condition. (→ Page 64)

W0503 Check service indicator of air filter. (→ Page 64)

W0505 Check relief bores of water pump(s) (→ Page 64)

W0506 Check engine for abnormal running noises, exhaust color

and vibrations.

(→ Page 64)

W0507 X Drain water and contaminants from fuel prefilter. (→ Page 64)

W0508 X Check reading on vacuum gauge at fuel prefilter. (→ Page 64)

W0800 Check for presence of emission label(s) and check readabili-

ty and content.

(→ Page 65)

W1001 Replace fuel filter or fuel filter element. (→ Page 119)

W1003 X Check belt condition and tension, replace if necessary. (→ Page 149)

W1005 Replace air filter. (→ Page 124)

W1006 Replace fuel injectors. (→ Page 109)

W1008 Replace engine oil filter when changing engine oil, or when

the interval (years) is reached, at the latest.

(→ Page 132)

W1009 X Measure thickness of oil residue layer, clean and replace

sleeve at next engine oil change at the latest.

(→ Page 133)

W1055 Replace oil separator. (→ Page 104)

W1178 Replace pressure pipe neck in cylinder head. (→ Page 110)

W1207 Check valve clearance, adjust if necessary. IMPORTANT!

First adjustment after 1,000 operating hours and after every
overhaul of cylinder heads after 1,000 operating hours.

(→ Page 105)

W1244 X Check function of rod electrode. (→ Page 157)

W1245 X Check alarm function of differential pressure gauge. (→ Page 156)

W1246 X Check pump capacity. (→ Page 158)

W1636 Reset parameters of drift correction (CDC) and enter coding

for injectors (IIG).

(→ Page 116)

W1675 X Replace fuel prefilter or fuel prefilter element. (→ Page 121)

Table 8: Maintenance task reference table [QL1]

70 | Maintenance | MS15054/00E 2015-09

TIM-ID: 0000064575 - 001

6 Troubleshooting

6.1 Troubleshooting

Engine does not turn when starter is actuated

Component Cause Action

Battery Low or faulty Charge or replace (see manufacturer's

documentation).

Cable connections faulty Check if cable connections are properly

secured (see manufacturer's documen­tation).

Starter Engine cabling or starter faulty Check if cable connections are properly

secured, contact Service.

Engine cabling Faulty Check (→ Page 162).

Engine/generator
control system

Assemblies or connectors possibly loose Perform visual inspection (see manufac-

turer's documentation).

Engine governor Plug-in connections possibly loose Check plug connections (→ Page 161).

Engine Running gear blocked (engine cannot be

barred manually)

Contact Service.

Engine turns but does not fire

Component Cause Action

Starter Poor rotation by starter Battery low or

faulty

Charge or replace battery (see manufac­turer's documentation).

Engine cabling Faulty Check (→ Page 162).

Fuel system Air in fuel system Vent fuel system (→ Page 117).

Engine governor Faulty Contact Service.

Engine fires unevenly

Component Cause Action

Fuel injection equip­ment

Injector faulty Replace (→ Page 109).

Injection pump faulty Contact Service.

Engine cabling Faulty Check (→ Page 162).

Fuel system Air in fuel system Vent fuel system (→ Page 117).

Engine governor Faulty Contact Service.

Engine does not reach rated speed

Component Cause Action

Fuel supply Fuel prefilter clogged Replace (→ Page 121).

Easy-change fuel filter clogged Replace (→ Page 119).

Air supply Air filter clogged Check signal ring position of service in-

dicator (→ Page 126).

Fuel injection equip­ment

Injector faulty Replace (→ Page 109).

Injection pump faulty Contact Service.

MS15054/00E 2015-09 | Troubleshooting | 71

TIM-ID: 0000051898 - 002

Component Cause Action

Engine cabling Faulty Check (→ Page 162).

Engine Overloaded Contact Service.

Engine speed not steady

Component Cause Action

Fuel injection equip­ment

Injector faulty Replace (→ Page 109).

Injection pump faulty Contact Service.

Speed sensor Faulty Contact Service.

Fuel system Air in fuel system Vent fuel system (→ Page 117).

Engine governor Faulty Contact Service.

Charge-air temperature too high

Component Cause Action

Engine coolant Engine coolant treatment incorrect Check (MTU test kit).

Intercooler Contaminated Contact Service.

Engine room Air-intake temperature too high Check fans and intake/exhaust lines.

Charge-air pressure too low

Component Cause Action

Air supply Air filter clogged Check signal ring position of service in-

dicator (→ Page 126).

Leaking Replace seals/nuts.

Intercooler Contaminated Contact Service.

Exhaust turbocharger Faulty Contact Service.

Coolant leaks at intercooler

Component Cause Action

Intercooler Leaking, major coolant discharge Contact Service.

Black exhaust gas

Component Probable Cause Action

Air supply Air filter clogged Check signal ring position of service in-

dicator (→ Page 126).

Fuel injection equip­ment

Injector faulty Replace (→ Page 109).

Injection pump faulty Contact Service.

Engine Overloaded Contact Service.

72 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000051898 - 002

Blue exhaust gas

Component Cause Action

Engine oil Too much engine oil in the engine Drain engine oil (→ Page 131).

Oil separator of crankcase breather con­taminated

Replace (→ Page 104).

Exhaust turbocharger,
cylinder head, piston
rings, cylinder liner

Faulty Contact Service.

White exhaust gas

Component Cause Action

Engine Not at operating temperature Run engine to reach operating tempera-

ture.

Fuel system Water in fuel Check fuel system at fuel prefilter

Drain fuel prefilter (→ Page 120).

Intercooler Leaking Contact Service.

MS15054/00E 2015-09 | Troubleshooting | 73

TIM-ID: 0000051898 - 002

6.2 Engine Control Unit – ECU9 fault messages

5 – HI T-Charge Air

Yellow alarm; warning

Cause Corrective action

Charge-air temperature too high
(Level 1).

1. Check coolant cooler and intercooler.

2. Contact Service if no malfunction can be detected.

6 – SS T-Charge Air

Yellow alarm; emergency stop

Cause Corrective action

Charge-air temperature too high
(Level 2).

1. Check coolant cooler and intercooler.

2. Contact Service if no malfunction can be detected.

9 – HI T-Coolant Intercooler

Yellow alarm; warning

Cause Corrective action

Coolant temperature in
intercooler too high (Level 1).

1. Check coolant cooler for leaks, contamination and operation.

2. Contact Service if no malfunction can be detected.

10 – SS T-Coolant Intercooler

Red alarm; emergency stop

Cause Corrective action

Coolant temperature in
intercooler too high (Level 2).

1. Check coolant cooler for leaks, contamination and operation.

2. Contact Service if no malfunction can be detected.

15 – LO P-Lube Oil

Yellow alarm; warning

Cause Corrective action

Lube oil pressure too low (Level

1).

1. Check oil level, top up as necessary (→ Page 130).

2. Contact Service if no malfunction can be detected.

16 – SS P-Lube Oil

Red alarm; emergency stop

Cause Corrective action

Lube oil pressure too low (Level

2).

1. Check oil level, top up as necessary (→ Page 130).

2. Contact Service if no malfunction can be detected.

74 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

23 – LO Coolant Level

Red alarm; emergency stop

Cause Corrective action

Coolant level too low. 1. Check coolant circuit for leaks. Check coolant level in expansion

tank, top up as necessary.

2. Contact Service if no malfunction can be detected.

25 – HI P-Diff. Lube Oil

Yellow alarm; warning

Cause Corrective action

Differential oil pressure at oil filter
too high (Level 1).

u Check oil filter, replace as necessary.

26 – SS P-Diff. Lube Oil

Yellow alarm; warning

Cause Corrective action

Differential oil pressure at oil filter
too high (Level 2).

u Check oil filter, replace as necessary.

27 – HI Leak Fuel Level

Yellow alarm; warning

Cause Corrective action

Leak-fuel level too high. u Contact Service.

30 – SS Engine Overspeed

Red alarm; emergency stop

Cause Corrective action

Engine speed too high. u Restart engine.

33 – HI P-Diff-Fuel

Yellow alarm; warning

Cause Corrective action

Differential pressure at fuel filter
too high (Level 1).

u Check fuel filter, replace as necessary.

34 – SS P-Diff-Fuel

Yellow alarm; warning

Cause Corrective action

Differential pressure at fuel filter
too high (Level 2).

u Check fuel filter, replace as necessary.

MS15054/00E 2015-09 | Troubleshooting | 75

TIM-ID: 0000060724 - 001

44 – LO Coolant Level Intercooler

Red alarm; emergency stop

Cause Corrective action

Intercooler coolant level too low. 1. Check coolant circuit for leaks.

2. Check coolant level in expansion tank, top up as necessary.

3. Contact Service if no malfunction can be detected.

51 – HI T-Lube Oil

Yellow alarm; warning

Cause Corrective action

Lube oil temperature too high
(Level 1).

1. Check cooling system.

2. Contact Service if no malfunction can be detected.

52 – SS T-Lube Oil

Red alarm; emergency stop

Cause Corrective action

Lube oil temperature too high
(Level 2).

1. Check cooling system.

2. Contact Service if no malfunction can be detected.

53 – HI T-Intake Air

Yellow alarm; warning

Cause Corrective action

Intake air temperature too high
(Level 1).

u -

54 – HIHI T-Intake Air

Yellow alarm; warning

Cause Corrective action

Intake air temperature too high
(Level 2).

u -

59 – SS T-Coolant L3

Red alarm; emergency stop

Cause Corrective action

Coolant temperature too high
(Level 3).

1. Check cooling system.

2. Contact Service.

76 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

65 – LO P-Fuel

Yellow alarm; warning

Cause Corrective action

Fuel inlet pressure too low (Level

1).

1. Check fuel lines for leakage.

2. Drain fuel prefilter (→ Page 120).

3. Replace filter element of fuel prefilter (→ Page 121).

4. Replace fuel filter and, if required, intermediate fuel filter
(→ Page 119).

66 – SS P-Fuel

Red alarm; emergency stop

Cause Corrective action

Fuel inlet pressure too low (Level

2).

1. Check fuel lines for leakage.

2. Drain fuel prefilter (→ Page 120).

3. Replace filter element of fuel prefilter (→ Page 121).

4. Replace fuel filter and, if required, intermediate fuel filter
(→ Page 119).

67 – HI T-Coolant

Yellow alarm; warning

Cause Corrective action

Coolant temperature too high
(Level 1).

1. Check cooling system.

2. Contact Service if no malfunction can be detected.

68 – SS T-Coolant

Red alarm; emergency stop (3 min. delay)

Cause Corrective action

Coolant temperature too high
(Level 2).

1. Check cooling system.

2. Contact Service if no malfunction can be detected.

81 – AL Rail Leakage

Yellow alarm; warning

Cause Corrective action

Rail pressure gradient too low for
start or too high for stop => HP
fuel system leaky, air in system

1. On engine stopping: Seal off system, contact Service

2. On engine starting: Check engine for leakage, if none found,
attempt restarting as per operating instructions (air in system).

82 – HI P-Fuel (Common Rail)

Yellow alarm; warning

Cause Corrective action

Rail pressure > Set value => HP
fuel control block jamming or
wiring faulty

1. Check wiring of HP fuel control block.

2. Contact Service if no fault can be detected.

MS15054/00E 2015-09 | Troubleshooting | 77

TIM-ID: 0000060724 - 001

83 – LO P-Fuel (Common Rail)

Yellow alarm; warning

Cause Corrective action

Rail pressure < set value; HP fuel
control block faulty or leakage in
HP fuel system.

1. Check wiring of HP fuel control block.

2. Check high-pressure system for leaks.

3. Contact Service if no fault can be detected.

89 – SS Engine Speed too Low

Yellow alarm; warning

Cause Corrective action

Engine speed too low. 1. Restart engine (→ Page 63).

2. Observe additional messages.

90 – SS Idle Speed Not Reached

Yellow alarm; warning

Cause Corrective action

Idling speed not reached, start
aborted

1. Restart engine (→ Page 63).

2. Observe additional messages.

91 – SS Release Speed Not Reached

Yellow alarm; warning

Cause Corrective action

Run-up speed not reached, start
aborted

1. Restart engine (→ Page 63).

2. Observe additional messages.

92 – SS Starter Speed Mot Reached

Yellow alarm; warning

Cause Corrective action

Starter speed not reached;
termination of starting sequence;
starter does not turn or turns
slowly.

1. Check battery.

2. Check wiring and voltage supply.

3. Check fuel supply.

4. Restart engine (→ Page 63).

5. Observe additional messages.

93 – SS T-Preheat

Red alarm; engine start interlock

Cause Corrective action

Preheating temperature too low
(Level 2); coolant temperature too
low for engine start.

1. Extend preheating period.

2. Check preheater.

78 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

94 – LO T-Preheat

Yellow alarm; warning

Cause Corrective action

Preheating temperature too low
(Level 1); coolant temperature too
low for engine start.

1. Extend preheating period.

2. Check preheater.

95 – AL Prelubrication Fault

Yellow alarm; warning

Cause Corrective action

Oil priming fault u Contact Service.

102 – AL Fuel Cons. Meter Defect

Yellow alarm; warning

Cause Corrective action

Consumption meter faulty. u Replace Engine Control Unit at next opportunity.

104 – AL Eng Hours Counter Defect

Yellow alarm; warning

Cause Corrective action

Hour meter faulty. u Replace Engine Control Unit at next opportunity.

118 – LO ECU Supply Voltage

Yellow alarm; warning

Cause Corrective action

Supply voltage too low (Level 1). u Check batteries, charge as necessary; check alternator.

119 – LOLO ECU Power Supply Voltage

Yellow alarm; warning

Cause Corrective action

Supply voltage too low (Level 2). u Check batteries, charge as necessary; check alternator.

120 – HI ECU Supply Voltage

Yellow alarm; warning

Cause Corrective action

Supply voltage too high (Level 1). u Check batteries, charge as necessary; check alternator.

121 – HIHI ECU Power Supply Voltage

Yellow alarm; warning

Cause Corrective action

Supply voltage too high (Level 2). u Check batteries, charge as necessary; check alternator.

MS15054/00E 2015-09 | Troubleshooting | 79

TIM-ID: 0000060724 - 001

122 – HI T-ECU

Yellow alarm; warning

Cause Corrective action

Temperature of the electronics
too high.

u Check engine room ventilation.

141 – AL Power too high

Yellow alarm; warning

Cause Corrective action

The average power rate over the
last 24 hours of engine operation
has exceeded the set maximum
value.

u -

180 – AL CAN1 Node Lost

Yellow alarm; warning

Cause Corrective action

Connection to a node on CAN bus
1 failed.

1. Check devices connected to CAN.

2. Check wiring (termination resistor installed?).

181 – AL CAN2 Node Lost

Yellow alarm; warning

Cause Corrective action

Connection to a node on CAN bus
2 failed.

1. Check devices connected to CAN.

2. Check wiring (termination resistor installed?).

182 – AL CAN Wrong Parameters

Yellow alarm; warning

Cause Corrective action

Incorrect parameter values
entered in data record.

u Contact Service.

183 – AL CAN No PU Data

Yellow alarm; warning

Cause Corrective action

The selected CAN mode initializes
communication by means of the
PU data module. However, the
required PU data module is not
available or not valid.

1. Check devices connected to CAN.

2. Contact Service.

80 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

184 – AL CAN PU Data Flash Error

Yellow alarm; warning

Cause Corrective action

A programming error occurred
when attempting to copy a
received PU data module into the
Flash module.

u Contact Service.

186 – AL CAN1 Bus Off

Yellow alarm; warning

Cause Corrective action

CAN controller 1 is in "Bus-Off"
status.

1. Check CAN bus for short circuit, rectify short circuit as necessary.

2. Check shielding, improve shielding as necessary.

3. Contact Service.

187 – AL CAN1 Error Passive

Yellow alarm; warning

Cause Corrective action

CAN controller 1 has signaled a
warning.

1. Check CAN bus for short circuit, rectify short circuit as necessary.

2. Check shielding, improve shielding as necessary.

3. Contact Service.

188 – AL CAN2 Bus Off

Yellow alarm; warning

Cause Corrective action

CAN controller 2 is in "Bus-Off"
status.

1. Check CAN bus for short circuit, rectify short circuit as necessary.

2. Check shielding, improve shielding as necessary.

3. Contact Service.

189 – AL CAN2 Error Passive

Yellow alarm; warning

Cause Corrective action

CAN controller 2 has signaled a
warning.

1. Check CAN bus for short circuit, rectify short circuit as necessary.

2. Check shielding, improve shielding as necessary.

3. Contact Service.

201 – SD T-Coolant

Yellow alarm; warning

Cause Corrective action

Coolant temperature sensor
faulty.

u Check sensor B6 and wiring, replace as necessary (→ Page 162).

MS15054/00E 2015-09 | Troubleshooting | 81

TIM-ID: 0000060724 - 001

203 – SD T-Charge Air

Yellow alarm; warning

Cause Corrective action

Charge air temperature sensor
faulty.

u Check sensor B9 and wiring, replace as necessary (→ Page 162).

205 – SD T-Coolant Intercooler

Yellow alarm; warning

Cause Corrective action

Coolant pressure sensor of
intercooler faulty.

u Check sensor B26 and wiring, replace as necessary (→ Page 162).

208 – SD P-Charge Air

Yellow alarm; warning

Cause Corrective action

Charge air pressure sensor faulty. u Check sensor B10 and wiring, replace as necessary (→ Page 162).

211 – SD P-Lube Oil

Yellow alarm; warning

Cause Corrective action

Lube-oil pressure sensor faulty. u Check sensor B5.1 and wiring, replace as necessary (→ Page 162).

215 – SD P-HD

Yellow alarm; warning

Cause Corrective action

Rail pressure sensor faulty; High
pressure regulator emergency
operation mode.

u Check sensor B48.1 and wiring, replace as necessary

(→ Page 162).

216 – SD T-Lube Oil

Yellow alarm; warning

Cause Corrective action

Lube-oil temperature sensor
faulty.

u Check sensor B7 and wiring, replace as necessary (→ Page 162).

219 – SD T-Intake Air

Yellow alarm; warning

Cause Corrective action

Intake air temperature sensor
faulty.

u Check sensor B3 and wiring, replace as necessary (→ Page 162).

82 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

220 – SD Level Coolant Water

Yellow alarm; warning

Cause Corrective action

Coolant level sensor faulty. 1. Check sensor F33 and wiring, replace as necessary (→ Page 162).

2. Fault is rectified when electronics are switched back on.

221 – SD P-Diff Lube Oil

Yellow alarm; warning

Cause Corrective action

Lube oil differential pressure
sensor faulty.

u Check sensor B5.1 and B5.3 and wiring, replace as necessary

(→ Page 162).

222 – SD Leak Fuel Level

Yellow alarm; warning

Cause Corrective action

Leak-off fuel level sensor faulty. u Check sensor F46 and wiring, replace as necessary (→ Page 162).

223 – SD Level Coolant Intercooler

Yellow alarm; warning

Cause Corrective action

Coolant level sensor for
intercooler defective.

1. Check sensor F57 and wiring, replace as necessary (→ Page 162).

2. Fault is rectified when electronics are switched back on.

227 – SD P-Oil before Filter

Yellow alarm; warning

Cause Corrective action

Sensor for lube-oil pressure
before filter faulty.

u Check sensor B5.3 and wiring, replace as necessary (→ Page 162).

228 – SD P-Fuel before Filter

Yellow alarm; warning

Cause Corrective action

Fuel pressure sensor (before main
filter) faulty.

u Check sensor B34.2 and wiring, replace as necessary

(→ Page 162).

229 – AL Stop Camshaft Sensor Defect

Red alarm; emergency stop

Cause Corrective action

Engine stop due to camshaft
sensor fault and a previous
crankshaft sensor fault in the
same operating cycle.

1. Check sensor and wiring to connectors B1 and B13, replace as
necessary (→ Page 162).

2. Acknowledge alarm.

3. Restart engine (→ Page 63).

MS15054/00E 2015-09 | Troubleshooting | 83

TIM-ID: 0000060724 - 001

230 – SD Crankshaft Speed

Yellow alarm; warning

Cause Corrective action

Crankshaft sensor faulty. 1. Check sensor B13 and wiring, replace as necessary (→ Page 162).

2. Fault is rectified when engine is restarted, contact Service if this is
not the case.

231 – SD Camshaft Speed

Yellow alarm; warning

Cause Corrective action

Camshaft sensor faulty. 1. Check sensor B1 and wiring, replace as necessary (→ Page 162).

2. Fault is rectified when engine is restarted, contact Service if this is
not the case.

239 – SD P-Diff Fuel

Yellow alarm; warning

Cause Corrective action

Fuel pressure sensors faulty. u Check sensor B34.2, sensor 34.3 and wiring, replace as necessary

(→ Page 162).

240 – SD P-Fuel

Yellow alarm; warning

Cause Corrective action

Fuel pressure sensor before
intermediate filter faulty.

u Check sensor B34.3 and wiring, replace as necessary

(→ Page 162).

245 – SD ECU Supply Voltage

Yellow alarm; warning

Cause Corrective action

Internal ECU fault. u Replace Engine Control Unit.

266 – SD Speed Setting

Yellow alarm; warning

Cause Corrective action

Analog speed setting faulty. 1. Check speed setting transmitter and wiring, replace as necessary

(→ Page 162).

2. Fault is rectified when engine is restarted.

269 – SD Loadp. Analog fil.

Yellow alarm; warning

Cause Corrective action

The filtered analog signal from the
load pulse is not present.

1. Check wiring, replace as necessary.

2. Fault is rectified when engine is restarted.

84 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

270 – SD Frequency Input

Yellow alarm; warning

Cause Corrective action

Frequency input faulty. 1. Check speed setting transmitter and wiring, replace as necessary

(→ Page 162).

2. Fault is rectified when engine is restarted.

321 – AL Wiring Cylinder A1

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A1
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

322 – AL Wiring Cylinder A2

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A2
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

323 – AL Wiring Cylinder A3

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A3
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

324 – AL Wiring Cylinder A4

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A4
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

MS15054/00E 2015-09 | Troubleshooting | 85

TIM-ID: 0000060724 - 001

325 – AL Wiring Cylinder A5

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A5
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

326 – AL Wiring Cylinder A6

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A6
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

327 – AL Wiring Cylinder A7

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A7
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

328 – AL Wiring Cylinder A8

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A8
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

329 – AL Wiring Cylinder A9

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder A9
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

86 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

331 – AL Wiring Cylinder B1

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B1
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

332 – AL Wiring Cylinder B2

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B2
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

333 – AL Wiring Cylinder B3

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B3
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

334 – AL Wiring Cylinder B4

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B4
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

335 – AL Wiring Cylinder B5

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B5
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

MS15054/00E 2015-09 | Troubleshooting | 87

TIM-ID: 0000060724 - 001

336 – AL Wiring Cylinder B6

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B6
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

337 – AL Wiring Cylinder B7

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B7
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

338 – AL Wiring Cylinder B8

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B8
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

339 – AL Wiring Cylinder B9

Yellow alarm; warning

Cause Corrective action

Short circuit in cylinder B9
injector wiring. Result: Misfiring.

1. Check injector wiring.

2. Rectify injector solenoid valve short circuit (positive to negative)
(e.g. by exchanging injectors).

3. Fault is rectified when engine is restarted.

341 – AL Open Load Cylinder A1

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A1
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

342 – AL Open Load Cylinder A2

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A2
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

88 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

343 – AL Open Load Cylinder A3

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A3
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

344 – AL Open Load Cylinder A4

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A4
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

345 – AL Open Load Cylinder A5

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A5
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

346 – AL Open Load Cylinder A6

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A6
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

347 – AL Open Load Cylinder A7

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A7
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

348 – AL Open Load Cylinder A8

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A8
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

MS15054/00E 2015-09 | Troubleshooting | 89

TIM-ID: 0000060724 - 001

349 – AL Open Load Cylinder A9

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder A9
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

351 – AL Open Load Cylinder B1

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B1
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

352 – AL Open Load Cylinder B2

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B2
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

353 – AL Open Load Cylinder B3

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B3
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

354 – AL Open Load Cylinder B4

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B4
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

355 – AL Open Load Cylinder B5

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B5
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

90 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

356 – AL Open Load Cylinder B6

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B6
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

357 – AL Open Load Cylinder B7

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B7
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

358 – AL Open Load Cylinder B8

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B8
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

359 – AL Open Load Cylinder B9

Yellow alarm; warning

Cause Corrective action

Open circuit in cylinder B9
injector wiring. Result: Misfiring.

1. Check injector wiring, exclude disruption in solenoid valve (e.g. by
injector replacement).

2. Fault is rectified after each working cycle.

361 – AL Injector Power Stage Low

Yellow alarm; warning

Cause Corrective action

Internal electronic fault,
electronics possibly faulty.

1. Start Engine Control Unit self-test.

2. Replace ECU in case of fault; if self-test diagnoses “Electronics OK”
check for additional fault messages (e.g. wiring fault).

362 – AL Injector Power Stage High

Yellow alarm; warning

Cause Corrective action

Internal electronic fault,
electronics possibly faulty.

1. Start Engine Control Unit self-test.

2. Replace ECU in case of fault; if self-test diagnoses “Electronics OK”
check for additional fault messages (e.g. wiring fault).

MS15054/00E 2015-09 | Troubleshooting | 91

TIM-ID: 0000060724 - 001

363 – AL Stop Injector Power Stage

Red alarm; Self-restoring

Cause Corrective action

Internal electronic fault,
electronics possibly faulty.

1. Start Engine Control Unit self-test.

2. Replace ECU in case of fault; if self-test diagnoses “Electronics OK”
check for additional fault messages (e.g. wiring fault).

365 – AL Stop SV-Wiring Ground

Red alarm; Self-restoring

Cause Corrective action

Injector wiring fault. u Check wiring, replace wiring harness as necessary.

381 – AL Wiring TOP 1

Yellow alarm; warning

Cause Corrective action

Short circuit or wire break on
transistor output 1 plant-side
(TOP 1).

u Check wiring (→ Page 162).

382 – AL Wiring TOP 2

Yellow alarm; warning

Cause Corrective action

Short circuit or wire break on
transistor output 2 plant-side
(TOP 2).

u Check wiring (→ Page 162).

383 – AL Wiring TOP 3

Yellow alarm; warning

Cause Corrective action

Short circuit or wire break on
transistor output 3 plant-side
(TOP 3).

u Check wiring (→ Page 162).

384 – AL Wiring TOP 4

Yellow alarm; warning

Cause Corrective action

Short circuit or wire break on
transistor output 4 plant-side
(TOP 4).

u Check wiring (→ Page 162).

92 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

390 – AL MCR exceeded

Yellow alarm; warning

Cause Corrective action

DBR/MCR function: MCR
(continuous maximum rate) was
exceeded.

u -

400 – AL Open Load Digital Input 1

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 1. u Check wiring (→ Page 162).

401 – AL Open Load Digital Input 2

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 2. u Check wiring (→ Page 162).

402 – AL Open Load Digital Input 3

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 3. u Check wiring (→ Page 162).

403 – AL Open Load Digital Input 4

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 4. u Check wiring (→ Page 162).

404 – AL Open Load Digital Input 5

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 5. u Check wiring (→ Page 162).

405 – AL Open Load Digital Input 6

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 6. u Check wiring (→ Page 162).

406 – AL Open Load Digital Input 7

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 7. u Check wiring (→ Page 162).

MS15054/00E 2015-09 | Troubleshooting | 93

TIM-ID: 0000060724 - 001

407 – AL Open Load Digital Input 8

Yellow alarm; warning

Cause Corrective action

Line disruption at digital input 8. u Check wiring (→ Page 162).

408 – AL Open Load Emerg. Stop Input ESI

Yellow alarm; warning

Cause Corrective action

Open circuit at input for
emergency stop.

u Check wiring (→ Page 162).

410 – LO U-PDU

Yellow alarm; warning

Cause Corrective action

Injector voltage too low (Level 1). u Perform Engine Control Unit self-test, replace as necessary.

411 – LOLO U-PDU

Yellow alarm; warning

Cause Corrective action

Injector voltage too low (Level 2). u Perform Engine Control Unit self-test, replace as necessary.

412 – HI U-PDU

Yellow alarm; warning

Cause Corrective action

Injector voltage too high (Level 1). u Perform Engine Control Unit self-test, replace as necessary.

413 – HIHI U-PDU

Yellow alarm; warning

Cause Corrective action

Injector voltage too high (Level 2). u Perform Engine Control Unit self-test, replace as necessary.

414 – HI Level Water Fuel Prefilter

Yellow alarm; warning

Cause Corrective action

Water level in fuel prefilter too
high.

u Empty fuel prefilter.

94 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

415 – LO P-Coolant Intercooler

Yellow alarm; warning

Cause Corrective action

Coolant pressure in intercooler
too low (Level 1).

1. Check coolant level in expansion tank, top up as necessary.

2. Check coolant circuit for leaks.

3. Check coolant pump.

416 – SS P-Coolant Intercooler

Yellow alarm; warning

Cause Corrective action

Coolant pressure in intercooler
too low (Level 2).

1. Check coolant level in expansion tank, top up as necessary.

2. Check coolant circuit for leaks.

3. Check coolant pump.

417 – SD Level Water Fuel Prefilter

Yellow alarm; warning

Cause Corrective action

Water level sensor of fuel prefilter
faulty, short circuit or wire break.

u Check sensor F70 and wiring, replace as necessary .

438 – LO P-Fuel 2 (Common Rail)

Yellow alarm; warning

Cause Corrective action

Rail pressure below specified
value.
HP fuel control block faulty or
leakage in HP fuel system.

u Contact Service.

439 – HI P-Fuel 2 (Common Rail)

Yellow alarm; warning

Cause Corrective action

Rail pressure above specified
value.
HP fuel control block jamming or
wiring faulty.

1. Check wiring of HP fuel control block.

2. Contact Service if no malfunction can be detected.

441 – AL System 2 Leaky

Yellow alarm; warning

Cause Corrective action

Pressure gradient in rail is too low
during starting or too high during
stopping.

1. On engine stopping: Seal off system, contact Service.

2. On engine starting: Check engine for leakage, if none found,
attempt restarting as per operating instructions (air in system).

MS15054/00E 2015-09 | Troubleshooting | 95

TIM-ID: 0000060724 - 001

444 – SD U-PDU

Yellow alarm; warning

Cause Corrective action

Sensor of injector output stage
faulty.

u Replace Engine Control Unit.

445 – SD P-Ambient Air

Yellow alarm; warning

Cause Corrective action

Ambient air pressure sensor
faulty.

u Replace Engine Control Unit (sensor is in the ECU).

446 – SD P-HD2

Yellow alarm; warning

Cause Corrective action

Rail pressure sensor faulty, high­pressure regulator emergency
mode;

u Check sensor B48.2 and wiring, replace as necessary

(→ Page 162).

450 – SD Idle/End-Torque Input [%]

Yellow alarm; warning

Cause Corrective action

Input signal for initial/final torque
faulty.

1. Check signal transmitter and wiring, replace as necessary.

2. Restart engine (→ Page 63).

454 – SS Power Reduction Active

Yellow alarm; warning

Cause Corrective action

Power reduction activated. u Observe any other messages.

470 – SD T-ECU

Yellow alarm; warning

Cause Corrective action

Temperature sensor for Engine
Control Unit faulty.

u Replace Engine Control Unit at next opportunity.

471 – SD HP fuel control block

Yellow alarm; warning

Cause Corrective action

Actuation of HP fuel control block
faulty.

1. Check HP fuel control block and wiring, replace as necessary
(→ Page 162).

2. Fault is rectified when engine is restarted.

96 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

472 – AL Stop SD

Red alarm; emergency stop

Cause Corrective action

Shutdown channels sensor fault. u Contact Service.

474 – AL Wiring FO

Yellow alarm; warning

Cause Corrective action

Wire break or short circuit at FO
channel.

u Contact Service.

476 – AL Crash Rec. Init. Error

Yellow alarm; warning

Cause Corrective action

Initialization error of crash
recorder.

u Contact Service.

478 – AL Comb. Alarm Yel (Plant)

Yellow alarm; warning

Cause Corrective action

Combined alarm initiated by plant
(yellow).

u Observe any other fault messages.

479 – AL Comb. Alarm Red (Plant)

Yellow alarm; warning

Cause Corrective action

Combined alarm initiated by plant
(red).

u Observe any other fault messages.

480 – AL Ext. Engine Protection

Yellow alarm; warning

Cause Corrective action

External engine protection
function active.

u Contact Service.

514 – Write Error Flash

Yellow alarm; warning

Cause Corrective action

Value was not accepted into flash. u Contact Service.

MS15054/00E 2015-09 | Troubleshooting | 97

TIM-ID: 0000060724 - 001

536 – AL Wiring PWM_CM1

Yellow alarm; warning

Cause Corrective action

Wire break or short circuit on
channel PWM_CM1.

u Check wiring to connected device or check connected device

(actuator/sensor), replace as necessary.

549 – AL Power Cut-Off detected

Entered in fault memory only.

Cause Corrective action

The operating voltage of the
Engine Control Unit was switched
of with the engine running. This
may lead to overpressure in the
HP fuel system, which might
cause damage to the engine.

u Instruct the operator only to disconnect the power supply when the

engine has stopped.

551 – SS Engine Overspeed Camshaft

Red alarm, emergency stop

Cause Corrective action

Engine overspeed, camshaft. u Restart engine (→ Page 63).

558 – AL Wiring PWM_CM2

Yellow alarm; warning

Cause Corrective action

Wire break or short circuit on
channel PWM_CM2.

u Check wiring to connected device or check connected device

(actuator/sensor), replace as necessary.

582 – AL Emergency Stop Failure

Entered in fault memory only.

Cause Corrective action

Emergency stop command was
not executed.

u Contact Service.

596 – AL Cons. Parameter Record

Yellow alarm; warning

Cause Corrective action

Standard production data record
available. The data record stored
is for testing.

u Contact Service.

98 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001

602 – AL CAN Engine Start Lock

Yellow alarm; warning

Cause Corrective action

Start interlock initiated by plant. 1. Check plant configuration.

2. Restart engine (→ Page 63).

610 – AL Wiring HP Control Block 1

Yellow alarm; warning

Cause Corrective action

Wire break or short circuit at PWM
channel HP fuel control block.

u Check wiring or HP fuel control block, replace as necessary .

611 – AL Wiring HP Control Block 2

Yellow alarm; warning

Cause Corrective action

Fuel prefilter differential pressure
too high.

u Check wiring or HP fuel control block, replace as necessary.

615 – AL EIL Protection

Yellow alarm; emergency stop (15 min. delay)

Cause Corrective action

Alarm for Protection module as
reaction to faulty or manipulated
EIL.

u Replace EIL.

616 – AL EIL Error

Yellow alarm; warning

Cause Corrective action

Alarm with faulty or manipulated
EIL.

u Replace EIL.

762 – AL Smart Connect Lost

Yellow alarm; warning

Cause Corrective action

Smart Connect device has failed
on CAN bus.

u Check wiring or Smart Connect, replace as necessary.

832 – AL EIL Engine Number Differs

Yellow alarm; warning

Cause Corrective action

Alarm when fault numbers differ
between ECU and EIL.

u Contact Service.

MS15054/00E 2015-09 | Troubleshooting | 99

TIM-ID: 0000060724 - 001

836 – AL Nominal Speed Setting Fail

Yellow alarm; warning

Cause Corrective action

Active analog speed setting faulty. u Check wiring (CAN MD).

851 – AL Extern Start and HD too high

Entered in fault memory only

Cause Corrective action

An external start is pending and
high pressure is too high.

u Contact Service.

852 – AL Max. Blankshot Time Expired

Yellow alarm; warning

Cause Corrective action

High pressure could not be
released in the max. blankshot
time.

u Contact Service.

947 – AL Wrong LSI Channel Config

Yellow alarm; warning

Cause Corrective action

Data fault on allocating LSI
channels.

u Contact Service.

973 – AL Checksum IIG

Yellow alarm; warning

Cause Corrective action

Checksum calculation or word
limit check for one of the injectors
is not correct.

u Contact Service.

1130 – AL Short Circuit Analog Output 1

Yellow alarm; warning

Cause Corrective action

The value output at analog output
1 deviates excessively from the
value read back.

u Check wiring.

100 | Troubleshooting | MS15054/00E 2015-09

TIM-ID: 0000060724 - 001
