Model MR Brief Operation Manual for Safe Use
Table of Contents

Contact information

United States .................................................................................. i

Germany .........................................................................................i

Japan ..............................................................................................i

Safety Instructions

Intended Use ....................................................................................1

Installation, commissioning and operation ......................................1

Special conditions for use in explosion-hazardous areas .................1

Model number identification

Model number configuration ......................................................... 2

Marking .......................................................................................... 3

Entity parameters ........................................................................... 3

Basic wiring

IS Installation ..................................................................................4

Wiring connections ......................................................................... 4

Safety barrier examples ................................................................. 5

Accessories

Table of

Floats ..............................................................................................5

Contents

Agency Information

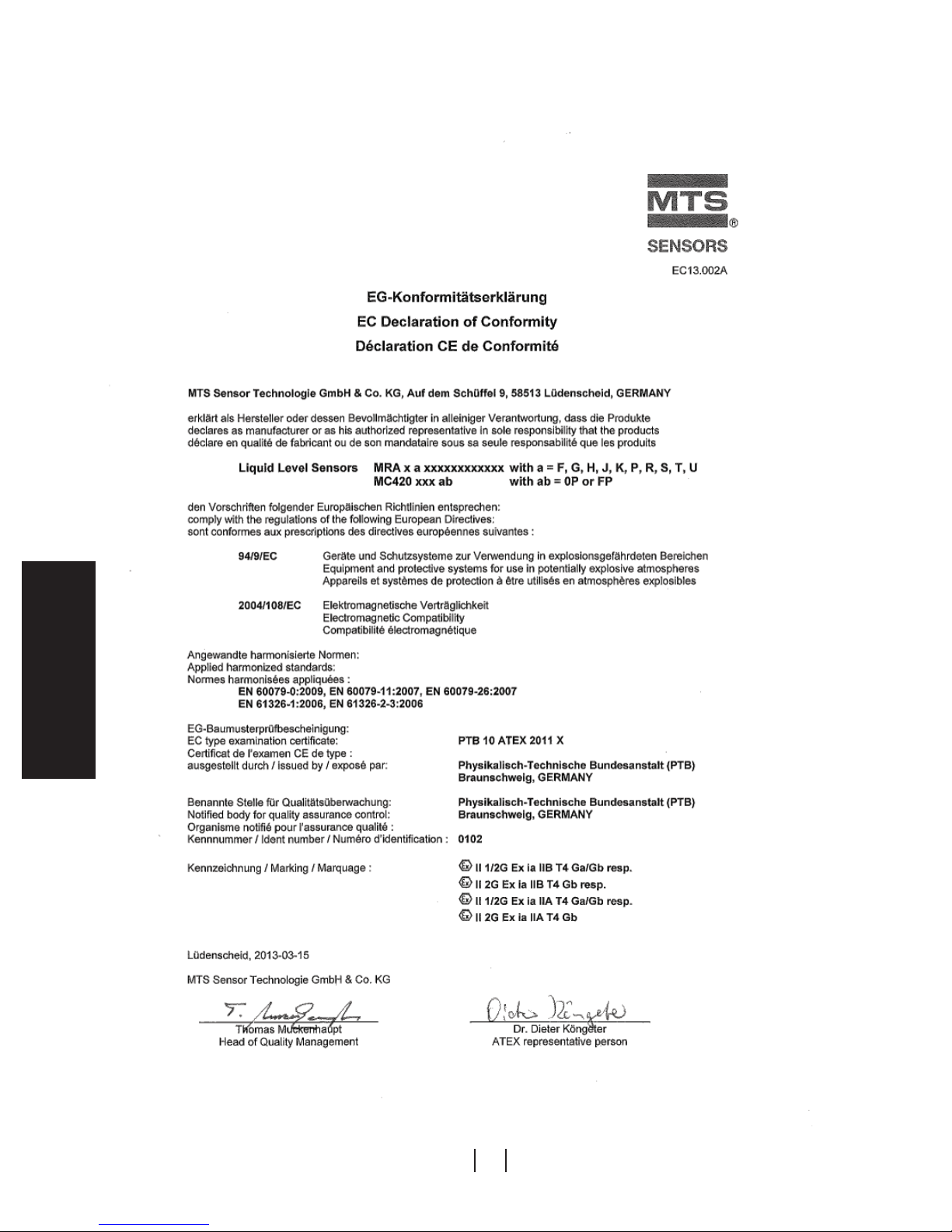

EC declaration of conformity ...........................................................6

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

Level Plus
Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

ii

MTS Sensors

Model MR Brief Operation Manual for Safe Use

Safety Instructions

Safety instructions

The Brief Operation Manual for Safe Use contains safety instructions. For further information do consult the Operation and Installation Manual,

document no.: 550720, available on the Level Product CD, part no.: 550766 supplied with your level transmitter or cost free download at
www.mtssensors.com.

INTENDED USE

The Level Plus® Model MR liquid level transmitter is used for continuous measurement of product level, interface level, and/or temperature
of liquids in containers in hazardous areas.

INSTALLATION, COMMISSIONING AND OPERATION

• The liquid level transmitter may only be installed, connected, operated and maintained by trained technical personnel. The technical
personnel must strictly adhere to the Operating Instructions, prevailing standards, legal regulations and certificates (depending on
application).

• If the Brief Operating Manual for Safe Use does not provide sufficient information, you must read the Operation and Installation
Manual. There, you can find detailed information on the device.

• The operator may only perform direct replacement of like components manufactured by MTS that are explicitly permitted in the
Operating Instructions.

• Do not operate damaged products and secure them against unintentional commissioning. Mark the damaged product as being
defective.

• If faults cannot be rectified, the products must be taken out of service and secured against unintentional commissioning.

• The product is designed to meet state-of-the-art safety requirements, has been tested and left the factory in a condition in which it
is safe to operate. Relevant regulations and European standards have been observed.

• As the user, you are responsible for complying with the following safety conditions:

- Installation instructions

- Local prevailing standards and regulations

• Only use the product according to its specification.

Safety

Instructions

SPECIAL CONDITIONS FOR USE IN EXPLOSION-HAZARDOUS AREAS

• Model MR sensors may only be connected to certified intrinsically safe circuits (Ex ia or Ex ib).

• The electronics housing is to be installed in zone 1 (category 2G, EPL Gb}. The sensor pipe/hose may be installed in zone 0
(category 1, EPL Ga} if not restricted below.

• Equipotential bonding shall be installed inside and outside the hazardous area along the cable for supply and data.

• Float usage:

- Metallic floats may only be used if they have a weight offset (asymmetric weight distribution).

- Metallic floats on non-metallic pipes may not be used.

- Aluminum floats may not be used.

• Plastic floats may only be installed in hazardous areas which require apparatus of category 1G (for zone 0} with explosion group IIA.
Plastic floats may not be used on non-metallic pipes.

• Sensors with flexible measuring hoses:

- The hose has to be mechanically protected from external impacts which may affect its function as separation wall.

- Avoid kinking or bending the flexible hose in less than 16 inch (406 mm) diameter.

MTS Sensors

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

1

Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

Level Plus

Model MR Brief Operation Manual for Safe Use
Model Number Identification

Model number configuration for ATEX approval

TRANSMITTER MODEL =

M = Magnetostrictive transmitter

TYPE =

R = Analog output level transmitter

INPUT POWER =

A = 24 Vdc

OUTPUT =

1 = 4-20 mA Single loop with HART 2 = 4-20 mA Dual loops with HART

HOUSING TYPE =

F = NEMA Type 4X, 316L stainless steel with blue cable

(ATEX IIA)

G =

SIngle cavity (ATEX IIA)

H =

Dual cavity (ATEX IIA)

J =

Single cavity with display (ATEX IIA)

K =

Dual cavity with display (ATEX IIA)

Note: • Maximum length for ATEX IIA is 12192 mm (480 in.) Note: • • Maximum length for ATEX IIB is 7620 mm (300 in.)

ELECTRONICS MOUNTING =

1 = Integral electronics

TRANSMITTER PIPE/HOSE =

Identification

Model Number

B = Industrial end-plug with stop collar, 5/8 in. OD H = Flexible w/bottom fixing hook (stainless steel only)

C = Sanitary, T-bar, TB J = Flexible w/bottom fixing weight (stainless steel only)

D = Sanitary, drain-in-place, DP K = Flexible w/bottom fixing magnet (stainless steel only)

E = Sanitary, clean-in-place, CP R = Industrial endplug 1/2 in. OD

F = Sanitary, drain-in-place, no hole, DN

MATERIALS OF CONSTRUCTION (WETTED PARTS) =

1 = Stainless steel, 1.4404 A = Teflon / FEP

2 = Stainless steel, 1.4404 electropolished (3A approved, Ra 15 finish)

3 = Hastelloy C

PROCESS CONNECTION TYPE =

1 = NPT, Adjustable fitting 7 = 300 lbs. Welded RF flange

4 = Sanitary, welded 8 = 600 lbs. welded RF flange

5 = Sanitary, adjustable fitting 9 = DIN flange welded according to specification

6 = 150 lbs. welded RF flange

PROCESS CONNECTION SIZE =

A = ¾ in. (NPT for 5∕8 in. pipe) F = 3 in.

B = 1 in. (NPT for

C = 1½ in. H = 5 in. (except sanitary)

D = 2 in. J = 6 in.

E = 2½ in.

TEMPERATURE =

0 = None 1 = One RTD, fixed position 76 mm (3 in.) from the end of

2 = One RTD, customer defined position łł

Note: łłIf this RTD option is selected, option ‘18 E ’ must also be selected

UNIT OF MEASUREMENT =

M = Metric (millimeters) Encode length in millimeters if using metric

(XXXXX mm)

P = NEMA Type 4X, 316L stainless steel with blue cable

•

•

•

•

•

7

∕8 in. hose) G = 4 in.

R =

S =

T =

U =

U = US Customary (inches) Encode length in inches if ordering

(ATEX IIB) • •
SIngle cavity (ATEX IIB)

Dual cavity (ATEX IIB)

Single cavity with display (ATEX IIB)

Dual cavity with display (ATEX IIB)

pipe

in US Customary (XXX.XX in.)

• •

• •

M

1

R

2

A

3

4

5

• •

• •

6

7

8

9

10

11

12

Continued on page 3.

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

Level Plus
Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

2

MTS Sensors

Model MR Brief Operation Manual for Safe Use

Model Number Identification, Marking & Entity Parameters

LENGTH (Order length based on unit of measurement) =

= Rigid or Sanitary transmitter: 508 mm (20 in.) to 7620 mm (300 in.) = Teflon: 508 mm (20 in.) to 6096 mm (240 in.)

= Flexible transmitter: 3048 mm (120 in.) to 12,192 mm (480 in.) except ATEX IIB max. length 7620 mm (300 in.)

SPECIAL =

S = Standard product E = Engineering special (not affecting agency controlled parts or features)

Marking

Model Housing Type [5] Material of Construction [8] ATEX marking

MR F, G, H, J K 1, 2, 3

II 1/2 G Ex ia IIA T4 Ga/Gb

A

II 2 G Ex ia IIA T4 Gb

P, R, S T,U 1, 2, 3

II 1/2 G Ex ia IIB T4 Ga/Gb

A

II 2 G Ex ia IIB T4 Gb

Table 1. Approval marking

Entity Parameters

Entity parameters

ATEX Ui = 28 Vdc

∑Ii = 118 mA per loop (circuit)

Ci = Negligibly low

Li = 0.2 mH per loop (circuit)

Table 2. MR entity parameter references

13-17

18

Identification

Model Number

Total power consumption ∑Pi Ambient temperature at the electronics

1.3 W -20 to +40 °C (electronics)

1.2 W -20 to +60 °C (electronics)

1.0 W -20 to +80 °C (electronics, functionality up to 71 °C)

- -40 to +125 °C (sensing element)

- -40 to 105 °C (temperature sensor)

Table 3. Power and ambient temperature ranges

MTS Sensors

3

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

Level Plus

Non Hazardous Area Hazardous Area

Certified

Safety Barriers

24 Vdc
Supply­Voltage

I (A)

4-20

mA

I.S. Ground connection

Transmitter

Model MR Brief Operation Manual for Safe Use
Basic Wiring

IS Installation

Figure 1. Safety barrier connections

Wiring connections

Figure 2. NEMA 4X housing with integrated cable.

Basic Wiring

Loop 1 (+)

Loop 1 (–)

Figure 3. Single-cavity housing

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

Level Plus
Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

Loop 2 (+)

Loop 2 (–)

4

MTS Sensors

Model MR Brief Operation Manual for Safe Use

Basic Wiring, Accessories

Loop 1 (–)

Loop 1 (+)

Earth Ground

Loop 2 (–)

Loop 2 (+)

Figure 4. Dual-cavity housing

Safety barrier examples

Uo

Maximum

Supplier Type

voltage

STAHL 9001/51-280-091-141 28 Vdc 91 mW 637 mW 350Ω 1

Table 4. MR safety barrier parameters

Io

Maximum current

(each channel)

Po

Maximum power

(each channel)

Maximum resistance

(each channel)

Number of

channels

Floats

Model MR transmitters should be used with a float having an offset weight and made of stainless steel or Hastelloy C. This allows the float
to stay in contact with the pipe to prevent the buildup of electrostatic charge. For detailed information about floats, refer to the ‘Accessories
Catalog’, MTS part number 551103.

Non-metalic floats with a projected surface area of less than 5,000 mm² should only be used in Zone 0, Gas group IIA such as float part
numbers 201643-2, 201649-2, 201650-2, 201109, 251115 and 251116. All other non-metallic floats offered by MTS such as, 251939,
251119, 251120 and 252999, should not be used in a hazardous area application.

NITROPHYL FLOATS
Float and dimension reference

C

L

76 mm

(3 in.)

TEFLON FLOATS
Float and dimension reference

9 mm

(0.35 in.)

76 mm

(3 in.)

31 mm

(1.2 in.) dia.

18 mm
(.07 in.) dia.

Magnet

Added weight
for interface floats

18 mm
(0.7 in.) dia.

Centerline
of Magnet

Magnet

Projected surface area Part number

201643-2

2356 mm²

201649-2

201650-2

Projected surface area Part number

201109

4635 mm²

251115

Accessories

Basic Wiring

61 mm

(2.38 in.) dia.

MTS Sensors

251116

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

5

Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

Level Plus

Model MR Brief Operation Manual for Safe Use
EC Declaration of Conformity

Agency

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

Level Plus
Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

6

MTS Sensors

MTS Sensors

®

Liquid-Level Sensors - M-Series Model MR Analog Transmitter

7

Brief Operation Manual for Safe Use, Document Number: 551409 Revision A, 04/13 (US)

Level Plus

Document Part Number: 551409 Revision A, 04/13 (US)

MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation. All other trademarks are the property of their respective owners.

All specifications are subject to change. Contact MTS for specifications and engineering drawings that are critical to your application. Drawings contained in

this document are for reference only. Go to http://www.mtssensors.com for the latest product information.

Printed in USA. Copyright © 2013 MTS Systems Corporation. All Rights Reserved in all media.

MTS Systems Corporation
Sensors Division

®

SENSORS

3001 Sheldon Drive
Cary, North Carolina,
27513, USA
Tel.: [phone]
Fax: [phone]

[phone]
e-mail: [e-mail]
http://www.mtssensors.com

MTS Sensor Technologie
GmbH & Co. KG

Auf dem Schüffel 9
D - 58513 Lüdenscheid, Germany
Tel.: [phone]
Fax: [phone]

e-mail: [e-mail]
http://www.mtssensor.de

MTS Sensors Technology
Corporation

737 Aihara-cho, Machida-shi
Tokyo 194-0211, Japan
Tel.: [phone]
Fax: [phone]

e-mail: [e-mail]
http://www.mtssensor.co.jp
