Page 1
Operation Manual
Level Plus
®
Magnetostrictive Liquid Level Transmitters
with Temposonics® Technology
SoCLEAN
®
Page 2
Table of contents
1. Contact information ........................................................................................................................................... 3
2. Terms and definitions ......................................................................................................................................... 3
3. Introduction ..................................................................................................................................................... 5
3.1 Purpose and use of this manual ................................................................................................................................................................ 5
3.2 Used symbols and warnings ..................................................................................................................................................................... 5
4. Safety instructions ............................................................................................................................................. 5
4.1 Intended use .............................................................................................................................................................................................. 5
4.3 Installation, commissioning and operation ................................................................................................................................................ 6
5. Product overview .............................................................................................................................................. 6
5.1 Components .............................................................................................................................................................................................. 6
4.2 Foreseeable misuse ................................................................................................................................................................................... 6
5.2 Accuracy .................................................................................................................................................................................................... 8
5.3 Warranty .................................................................................................................................................................................................... 8
5.4 Storage ...................................................................................................................................................................................................... 8
5.5 Model number identification ...................................................................................................................................................................... 9
5.6 Technical data .......................................................................................................................................................................................... 11
6. Installation and mounting ...................................................................................................................................12
6.1 Training ...................................................................................................................................................................................................12
6.2 Stilling wells and guide poles .................................................................................................................................................................. 12
6.3 Tools ........................................................................................................................................................................................................12
6.4 Installation steps ..................................................................................................................................................................................... 12
6.5 Mounting ................................................................................................................................................................................................. 12
7. Electrical connections ........................................................................................................................................ 13
7.1 Basic information .................................................................................................................................................................................... 13
7.2 Safety recommendations ......................................................................................................................................................................... 13
7.3 Industrial topologies ................................................................................................................................................................................ 13
7.4 Cable recommendations .......................................................................................................................................................................... 14
7.5 Electrical conduit ..................................................................................................................................................................................... 14
7.6 Grounding ............................................................................................................................................................................................... 15
7.7 Safety barriers ......................................................................................................................................................................................... 16
8. Commissioning................................................................................................................................................16
8.1 Training ...................................................................................................................................................................................................16
8.2 Tools ........................................................................................................................................................................................................16
8.3 Setup software ........................................................................................................................................................................................ 16
8.4 Commissioning steps .............................................................................................................................................................................. 16
9. Maintenance ................................................................................................................................................... 17
9.1 Training ...................................................................................................................................................................................................17
9.2 Tools ........................................................................................................................................................................................................17
9.3 Inspection ................................................................................................................................................................................................ 17
9.4 Preventative maintenance ........................................................................................................................................................................ 17
10. Repair ......................................................................................................................................................... 18
10.1 RMA policy ............................................................................................................................................................................................ 18
10.2 Training .................................................................................................................................................................................................18
10.3 Tools ......................................................................................................................................................................................................18
10.4 Troubleshooting..................................................................................................................................................................................... 19
10.5 Setup software ...................................................................................................................................................................................... 19
11. Spare Parts ................................................................................................................................................... 19
12. Interface ......................................................................................................................................................19
12.1 Modbus ................................................................................................................................................................................................. 19
12.2 DDA ....................................................................................................................................................................................................... 19
12.3 HART
®
.................................................................................................................................................................................................. 19
13. Agency information .........................................................................................................................................20
13.1 Approvals overview ............................................................................................................................................................................... 20
13.2 Certificates ............................................................................................................................................................................................ 22
13.3 FM (NEC) ............................................................................................................................................................................................... 22
13.4 FMC (CEC) ............................................................................................................................................................................................. 32
13.5 ATEX and IECEx ..................................................................................................................................................................................... 46
Page 3
Level Plus® SoClean
®
Operation Manual
I 3 I
1. Contact information
United States
General
Tel: +1-919-677-0100
Fax: +1-919-677-2343
E-mail: [email protected]
http://www.mtssensors.com
Mailing and shipping address
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive
Cary, North Carolina, 27513, USA
Customer service
Tel: +1-800-633-7609
Fax: +1-800-498-4442
E-mail: [email protected]
Technical support and applications
24 Hour Emergency Technical Support
Tel: +1-800-633-7609
E-mail: [email protected]
Germany
General
Tel: +49-2351-9587-0
Fax: +49-2351-56491
E-mail: [email protected]
http://www.mtssensors.com
Mailing and shipping address
MTS Sensor Technologie, GmbH & Co. KG
Auf dem Schüffel 9
58513 Lüdenscheid, Germany
Technical support and applications
Tel: +49-2351-9587-0
E-mail: [email protected]
http://www.mtssensors.com
2. Terms and definitions
6A Heavy Oils
‘Generalized Crude Oils’, Correction of Volume to 60 °F against API
Gravity.
6B Light Oils
‘Generalized Products’, Correction of Volume to 60 °F against API
Gravity.
6C Chemical
‘Volume Correction Factors (VCF)’ for individual and special
applications, volume correction to 60 °F against thermal expansion
coefficients.
6C Mod
An adjustable temperature reference for defining VCF.
A
API gravity
The measure of how heavy or light a petroleum liquid is compared to
water. Allowable values are 0 to 100 degrees API for (6A) and 0 to 85
degrees API for (6B).
D
DDA (Direct Digital Access)
The proprietary digital protocol developed by MTS for use in
intrinsically safe areas.
Density
Mass divided by the volume of an object at a specific temperature. The
density value should be entered as lb / cu. ft..
E
Explosion proof
Type of protection based on enclosure in which the parts which can
ignite an explosive gas atmosphere are placed within, and which
can withstand the pressure developed during an internal explosion
of an explosive mixture, and which prevents the transmission of the
explosion to the explosive gas atmosphere surrounding the enclosure.
F
Flameproof
Type of protection based on enclosure in which the parts which can
ignite an explosive gas atmosphere are placed within and which can
withstand the pressure developed during an internal explosion of
an explosive mixture, and which prevents the transmission of the
explosion to the explosive gas atmosphere surrounding the enclosure.
Page 4
Level Plus® SoClean
®
Operation Manual
I 4 I
G
GOVI (Gross Observed Volume of the Interface)
The total volume of the tank occupied by the interface liquid. The
GOVI is only given when measuring two liquids and is calculated by
subtracting the volume of the product from the total volume of liquid
in the tank (GOVT – GOVP).
GOVP (Gross Observed Volume of the Product)
The total volume of the tank occupied by the product liquid. When
measuring only one liquid, it is also the total volume of liquid
in the tank (GOVT). When measuring two liquids it is the total
volume of liquid in the tank minus the volume of the interface liquid
(GOVT–GOVI).
GOVT (Total Gross Observed Volume)
The total volume of liquid in the tank. When measuring only one liquid
it is equal to the volume of the product (GOVP). When measuring two
liquids it is equal to the volume of the product and interface liquids
(GOVP + GOVI).
GOVU (Gross Observed Volume Ullage)
The difference in volume between the working capacity of a tank and
the total volume in the tank (Working Capacity – GOVT).
H
HART
®
A Bidirectional communication protocol that provides data access
between intelligent field instruments and host systems.
I
Interface
Noun; The measurement of the level of one liquid when that liquid is
below another liquid.
Interface
Adj.; The Software Graphical User Interface (GUI) that allows the user
to access software protocols (HART
®
, DDA, MODBUS).
Intrinsic safety
‘Intrinsically safe’ - Type of protection based on the restriction of
electrical energy within apparatus of interconnecting wiring exposed to
potentially explosive atmosphere to a level below that which can cause
ignition by either sparking or heating effects.
M
Mass
The property of a body that causes it to have weight in a gravitational
field, calculated by density at the reference temperature multiplied by
the volume correction factor (Density × VCF).
MODBUS
A serial communications protocol published by Modicon in 1979 for
use with its programmable logic controllers (PLCs). It has become a
de facto standard communications protocol in industry, and is now the
most commonly available means of connecting industrial electronic
devices.
N
NEMA Type 4X
A product Enclosure intended for indoor or outdoor use primarily to
provide a degree of protection against corrosion, windblown dust and
rain, splashing water, and hose-directed water; and to be undamaged
by the formation of ice on the enclosure. They are not intended to
provide protection against conditions such as internal condensation or
internal icing.
NPT
U.S. standard defining tapered pipe threads used to join pipes and
fittings.
NSVP (Net Standard Volume of the Product)
The temperature corrected volume for the product liquid in the tank,
requires the transmitter to be ordered with temperature measurement
capabilities. The NSVP is calculated by multiplying the volume of the
product liquid by a volume correction factor based on temperature
(GOVP × VCF).
R
Reference Temperature
The temperature at which the density measurement is given, the
allowable values are 32 °F to 150 °F (0 °C to 66 °C).
S
Specific Gravity
The density ratio of a liquid to the density of water at the same
conditions.
Sphere Radius
The internal radius of the sphere that contains the liquid, the value is
used to calculate the volume along with the Sphere Offset.
Sphere Offset
An offset value that accounts for additional volume in a sphere from
non-uniform sphere geometry, the value is used to calculate the
volume along with the Sphere Radius.
Page 5
Level Plus® SoClean
®
Operation Manual
I 5 I
Strap Table
A table of measurement correlating the height of a vessel to the
volume that is contained at that height. The transmitter can contain up
to 100 points.
T
TEC
‘Thermal Expansion Coefficient’ - a value correlating the change in
temperature for an object with the change in its volume. Allowable
values are 270.0 to 930.0. TEC units are in 10 E-6/Deg F.
Temperature Correction Method
One of five product correction methods used to correct the product
volume in the tank due to changes in temperature from 60 °F including
(6A, 6B, 6C, 6C Mod, and Custom Table.
V
Volume Calculation Mode
One of two methods use to calculate volume measurements from level
measurements, including Sphere and Strap Table.
VCF (Volume Correction Factor)
A table of measurements correlating temperature points with
correction factors for the liquids expansion/contraction. The
transmitter can contain up to 50 points.
W
Working Capacity
The maximum volume of liquid that the user desires for their vessel to
hold, typically 80% of the vessels maximum volume before overfill.
3. Introduction
3.1 Purpose and use of this manual
Important:
Before starting the operation of the equipment read this
documentation thoroughly and follow the safety information.
The content of this technical documentation and of its various annexes
is intended to provide information on mounting, installation and
commissioning by qualified service personnel according to IEC 60079-14
and local regulations or MTS trained service technicians.
3.2 Used symbols and warnings
Warnings are intended for your personal safety and for avoidance
of damage to the described product or connected devices. In this
documentation, safety information and warnings to avoid dangers that
might affect the life and health of personnel or cause material damage
are highlighted by the preceding pictogram, which is defined below.
Symbol Meaning
NOTICE
This symbol is used to point to situations
that may lead to material damage and/or
personal injury.
4. Safety instructions
4.1 Intended use
The liquid level transmitter is intended to be used to measure the level
of liquid(s) contained by a structure as well as the temperature of
the liquid. The product may only be used for the applications defined
under item 1 to item 4 and only in conjunction with third-party devices
and components recommended or approved by MTS Sensors. As a
prerequisite of proper and safe operation, the product requires correct
transport, storage, mounting and commissioning and must be operated with utmost care.
1. Application does not exceed product’s performance specification in
chapter 5.6.
2. Product may only be installed in hazardous areas as specified by
approval certifications in chapter 13 following special conditions of
use outlined in chapter 13 or in safe areas.
3. The liquid(s) being measured are compatible with the selected
wetted parts of the product.
4. MTS floats should be used for proper functionality and safety
approval.
Page 6
Level Plus® SoClean
®
Operation Manual
I 6 I
Forseeable misuse Consequence
Wrong sensor connection Possible damage to electronics
See chapter 7 for Electrical
Connections
Improper Installation Physical damage to packaging
See chapter 6 for installation
Installation in unapproved
Hazardous Area
Potential Spark
See chapter 13 for Agency
Information
Process Temperature out of range Signal degradation, possible
damage to sensor
See chapter 5.6 for specications
Power Supply out of range No communication, possible
damage to sensor
See chapter 5.6 for specications
Process Pressure out of range Possible damage to sensor,
See chapter 5.6 for specications
Improper Chemical Compatibility Possible damage to sensor,
customer must select wetted
material that is compatible with
liquid(s) in tank
Modifying Sensor Warranty void, hazardous approv-
al void customer should contact
factory for custom unit
Improper Grounding Possible damage to sensor, full
protection compromised,
See chapter 7.6 for grounding
Table 1: Foreseeable misuse
4.3 Installation, commissioning and operation
1. Wear proper personal protection equipment such as hard hat,
safety shoes, flame resistant clothing, safety glasses, gloves, and
hearing protection.
2. Follow the specifications given in the technical documentation.
3. Two (2) individuals are recommended to conduct proper
installation, commissioning, and repair of the level transmitter.
4. Ensure the equipment used in a hazardous environment is
selected and installed in compliance with regulations governing
the geographical installation and facility. Only install equipment
that complies with the types of protection relevant to the
applicable classes, division, zones, category, gas group, and
temperature code.
5. Protect the sensor against mechanical damage during installation
and operation.
6. Do not use damaged products and secure them against
unintentional use. Mark damaged products as being defective.
7. Connect the sensor very carefully and pay attention to the polarity
of connections. MTS recommends to not make connections while
power is live.
8. Before turning on power, ensure that nobody’s safety is
jeopardized by starting level transmitter and/or process.
9. Regularly follow preventative maintenance to prevent safety risks
4.2 Foreseeable misuse 10. Make sure that no wire strands are loose or sticking out of
the terminal block connection which could short and cause a
problem.
11. Make sure that no wire strands, including shield, are in contact
with the electronic module enclosure.
5. Product overview
The Level Plus® Tank Slayer® Liquid-Level transmitter is a continuous
multi-functional magnetostrictive transmitter that provides product
level, interface level, and temperature to the user via Modbus, DDA,
Analog (4…20 mA), or HART
®
. Magnetostrictive technology is one of
the most accurate and repeatable level technologies available to date.
MTS is the inventor and purveyor of magnetostrictive technology and
has been serving the level industry for over 35 years.
Industries
• Pharmaceutical
• Food & Beverage
• Cosmetics
Applications
• Bioreactor
• Day Tanks
• Storage Tanks
Features
• 4-in-1 Measurement
• Product Level
• Interface Level
• Temperature
• Volume
• No scheduled maintenance or recalibration
• Field Repairable
• Inherent Accuracy ±1mm
• 200 Point Strap Table
• API Temperature Corrected Volumes
5.1 Components
The Level Plus
®
Tank Slayer® liquid level transmitter consists of
four main components; a housing, outer pipe, float, and electronics.
Varying the components of the transmitter allows the transmitter to be
customized to almost any application.
Housings
Level Plus
®
Tank Slayer® transmitters are available in three housing
configurations; NEMA Type 4X 316L stainless steel, single and dualcavity housings as shown below:
Page 7
Level Plus® SoClean
®
Operation Manual
I 7 I
Fig. 1: NEMA Type 4X 316L stainless steel housing
Fig. 2: Single cavity housing
1
2
3
REV
ECO #
DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
BY
DATE
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
FIRST
ANGLE
C
LL drawing
DRAWN BY:
114 mm
(4.5 in.)
127 mm
(5 in.)
124 mm
(4.9 in.)
132 mm
(5.2 in.)
87 mm
(3.4 in.)
109 mm
(4.3 in.)
75 mm
(3 in.)
206 mm
(8.1 in.)
127 mm
(5 in.)
117 mm
(4.6 in.)
145 mm
(5.7 in.)
1
2
3
4
114 mm
(4.5 in.)
127 mm
(5 in.)
109 mm
(4.3 in.)
75 mm
(3 in.)
206 mm
(8.1 in.)
127 mm
(5 in.)
117 mm
(4.6 in.)
145 mm
(5.7 in.)
Fig. 3: Dual cavity housing
1
2
75 mm
(3 in.)
206 mm
(8.1 in.)
127 mm
(5 in.)
117 mm
(4.6 in.)
Fig. 4: Stainless steel single cavity housing
Fig. 5: Outer pipe configuration
1
2
3
178 mm
(7 in.)
135 mm
(5.30 in.)
135 mm
(5.3 in.)
152 mm
(6 in.)
1
2
152 mm
(6 in.)
Outer pipe configurations
The outer pipe is constructed of a variety of configurations. The
SoClean
®
is available in a sanitary pipe. For other pipe options please
consult other MTS options such as RefineMe
®
, Tank Slayer®, and/or
USTDII.
1
127mm [5 in ]
Order Length
Pipe diameter (0.625 in. dia)
constructed of 316l stainless steel
Sanitary process connection
(sanitary cap)
Page 8
Level Plus® SoClean
®
Operation Manual
I 8 I
Floats
SoClean
®
transmitters offer numerous floats for different applications
such as stainless steel, 3-A sanitary, Hastelloy
®
, Teflon, and Nitrophyl
for both product level and interface level. To be able to accurately
detect the interface level there needs to be a difference of at least
0.05in specific gravities between the product and interface liquids.
For detailed information about floats, refer to the ‘Accessories
Catalog’ (MTS Part#551103).
For assistance with selecting a specific float for your application,
please contact technical support with the following information:
• Specific gravity of liquid(s) being measured
• Process temperature
• Process opening size
• Vessel pressure
SoClean
®
transmitters should be used with a float having an offset
weight and made of stainless steel or Hastelloy
®
C. This allows the
float to stay in contact with the pipe to prevent the buildup of an
electrostatic charge. Non-metalic floats with a projected surface area
of less than 5,000 mm² should only be used in Zone 0, Gas group
IIA such as float part numbers 201643-2, 201649-2, 201650-2,
201109, 251115 and 251116. All other non-metallic floats offered by
MTS such as, 251939, 251119 and 251120 should not be used in a
hazardous area application.
Internal electronics
All transmitters come with two electronic components of a sensing
element and a board set. Rigid sensing elements are standard on
SoClean
®
. Flexible sensing elements are available upon request. The
board set consists of up to three electronic boards and a display.
A temperature sensing function is optional with the SoClean®
transmitter. The temperature sensing device is a Digital Thermometer
mounted inside the transmitter’s outer pipe assembly. The SoClean
®
can be ordered with 1, 5, 12, or 16 temperature points.
Display
All LP-Series liquid level transmitters are shipped with a stylus (MTS
Part # 404108) to be used for manipulating the display. For single and
dual cavity housings, the stylus is designed to allow for programming
of the unit without removing the housing. When using the stylus make
sure to align the stylus with the shape outline around the buttons in
the same orientation. Failure to correctly align the stylus can cause the
display to not function properly. Password for entering the menu is
27513. For additional details consult the protocol specific Modbus
Interface Manual (MTS Part #551700), DDA Interface Manual (MTS
Part #551701), and HART
®
Interface Manual (MTS Part #551702).
Accessories
MTS also offers a series of displays, housings, converters, and
other accessories, please refer to the ‘Accessories Catalog’ (MTS
Part#551103).
5.2 Accuracy
For magnetostrictive transmitters inherent accuracy is measured
in terms of non-linearity. Non-linearity is a measurement of any
imperfections in the waveguide that are reflected in the linearity of
the transmitter’s output. MTS tolerances reflect a maximum nonlinearity of ±1mm. MTS is able to achieve such strict tolerances by
manufacturing all of its own waveguide from a proprietary alloy and
testing 100% of all transmitters before shipping.
5.3 Warranty
Important:
Contact Technical Support or Customer Service for assistance if
you suspect that the transmitter is not working correctly. Technical
support can assist you with troubleshooting, part replacement, and
Returned Material Authorization (RMA) information if required.
All Level Plus® transmitters come with a two year limited warranty
from the factory shipment date. An additional extended warranty can
be purchased. A Return Materials Authorization (RMA) number is
required and must accompany any transmitter returns. Any unit that
was used in a process must be properly cleaned in accordance with
OSHA standards, before it is returned to the factory. A Material Safety
Data Sheet (MSDS) must also accompany the transmitter that was
used in any process.
5.4 Storage
If storage is required prior to installation, store indoors in a dry
environment at ambient temperature range not to exceed −40…+71°C
(−40…+160°F).
Fig. 6: Stylus (MTS Part # 404108)
Fig. 7: Display
Page 9
Level Plus® SoClean
®
Operation Manual
I 9 I
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
L P S
a b c d e f g h i j k l m n o p
a Sensor model
L P S
SoClean
®
Level Transmitter
b Output
M Modbus
D DDA
1 1 Loop with HART
®
2 2 Loop with HART
®
5 1 Loop with HART® and SIL 2
7 2 Loop with HART® and SIL 2 (loop 1 only)
d Electronics mounting
1 Standard
f Materials of construction (Wetted parts)*
1 316L stainless steel
2 Electropolished 316L stainless steel
e Sensor pipe
C
Sanitary T-bar, TB
D
Sanitary drain-in-place DP
E
Sanitary clean-in-place CP
F
Sanitary drain-in-place no hole, DN
c Housing type
A
NEMA housing w/cable
B
NEMA housing w/terminal
C
NEMA housing w/connector
D
Single cavity with display
E
Dual cavity with display
L
SS single cavity w/display
g Process connection type
1
NPT adjustable (¾ in. only)
2
BSPP adjustable (¾ in. only)
4
Sanitary Tri-Clamp, Welded
5
Sanitary Tri-Clamp, Adjustable
h Process connection size
A
¾ in. - NPT or BSPP only
C
1.5 in. (DN40) (* Only for for Pipe option C or F)
D
2 in. (DN50)
E
2 ½ in. (DN65)
F
3 in. (DN80)
G
4 in. (DN100)
J
6 in. (DN150)
X
None
i Number of DT‘s (Digital Thermometers)
0
None
1
One DT
5
5 DTs (Modbus or DDA)
K
Twelve DTs (Modbus only)
M
Sixteen DTs (Modbus only)
j DT‘s placement
F
Evenly spaced per API
C
Custom
X
None
*/ Contact factory for other materials
5.5 Model number identification
k Notied body
C
CEC (FMC)
E
ATEX
F
NEC (FM)
I
IEC
X
None
B
INMETRO
N
NEPSI
P
CCOE
T
TIIS
l Protection method
F Explosionproof / Flame proof (only for housing type D, E, or L)
I Intrinsically safe
X No approval
Continued on next page…
Page 10
Level Plus® SoClean
®
Operation Manual
I 10 I
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
L P S
a b c d e f g h i j k l m n o p
m Gas group
A
Group A (not available with “C = CEC (FMC)” notied body and
“F = Flameproof/Explosion“ proof protection method)
B
Group B
C
Group C
D
Group D
3
IIC (Instrinsically Safe only)
4
IIB + H2 (Explosion Proof / Flameproof only)
X
None
n Unit of measure
M Millimeters (Metric)
U Inches (US customary)
p Special
S Standard product
o Length (no decimal spaces)
X X X X X
Rigid pipe: 305…7620 mm
(code as 00305 to 07620)
X X X X X
Rigid pipe: 12…300 in.
(code as 01200 to 30000)
NOTICE
Accessories such as floats, cables, and remote displays have to be
ordered separately. All accessories are shown in the Accessories
Catalog (551103).
Page 11
Level Plus® SoClean
®
Operation Manual
I 11 I
5.6 Technical data
Level Output
Measured Variable Product level and interface level
Output Signal /Protocol Modbus RTU, DDA, Analog (4…20 mA), HART
®
Order Length
305 mm (12 in.) to 7620 mm (300 in.) (order length equals the measurement range plus the inactive
zone / contact factory for longer lengths)
Inherent Accuracy ±1 mm (0.039 in.)
Repeatability 0.001% F.S. or 0.381 mm (0.015 in.) whichever is greater (any direction)
Temperature Output
Measured Variable
Average and multipoint temperatures (Modbus, DDA)
Single point temperature (Analog, HART
®
)
Temperature Accuracy (Modbus, DDA)
±0.2 °C (0.4 °F) range −40…−20 °C (−40…−4 °F),
±0.1 °C (0.2 °F) range −20…+70 °C (−4…+158 °F),
±0.15 °C (0.3 °F) range +70…+100 °C (+158…+212 °F),
±0.5 °C (0.9 °F) range +100…+105 °C (+ 212 …221 °F)
Temperature Accuracy (Analog, HART
®
) ±0.28 °C (0.5 °F) range −40…+105 °C (−40…+221 °F)
Electronics
Input Voltage 10.5…28 VDC
Fail Safe
High, Full scale (Modbus, DDA)
Low, 3.5 mA default or High, 22.8 mA (Analog, HART
®
)
Reverse Polarity Protection Series diode
EMC
EN 61326-1, EN 61326-2-3, EN 61326-3-2, EN 61000-6-2, EN 61000-6-3, EN 61000-4-2, EN 61000-
4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Environmental
Enclosure Rating NEMA Type 4X, IP65
Humidity 0…100% relative humidity, non-condensing
Operating Temperatures
Electronics: −40…+71 °C (−40…+160 ºF)
Sensing element: −40…+125 °C (−40…+257 °F) (contact factory for specific temperature ranges)
Temperature element: −40…+105 °C (−40…+221 °F)
Vessel Pressure Rigid pipe: 69 bar (1000 psi)
Materials
Wetted parts: 316L stainless steel (contact factory for alternative materials)
Non-wetted parts: 316L stainless steel, Epoxy coated aluminum
Field Installation
Housing Dimensions Single cavity: 145 mm (5.7 in.) W × by 127 mm (5 in.) D × 109 mm (4.3 in.) H
Dual cavity: 117 mm (4.6 in.) W × by 127 mm (5 in.) D × 206 mm (8.1 in.) H
Stainless steel single cavity: 178 mm (7.1 in.) W × by 135 mm (5.3 in.) D × 153 mm (6 in.) H
NEMA Type 4X: 87 mm (3.4 in.) W × by 124 mm (4.9 in.) D × 132 mm (5.2 in.) H
Mounting
Rigid pipe Tri-Clamp, 3/4 in. Adjustable MNPT or BSPP tting
Wiring
Connections
4 wire shielded cable or twisted pair,
4570 mm (180 in.) integral cable with pigtail
Daniel Woodhead 6 pin male connector
Electrical connections
Single and dual cavity ¾ in. FNPT conduit opening, M20 for ATEX/IECEx version
NEMA Type 4X ½ in. FNPT conduit opening
Display
Measured variables Product level, interface level and temperature
Page 12
Level Plus® SoClean
®
Operation Manual
I 12 I
6. Installation and mounting
6.1 Training
Warning:
When the pipe/hose of the LP-Series level transmitter is installed or
removed from the tank the release of flammable vapors will occur.
Take all necessary precaution when installing or removing the level
transmitter due to the release of flammable vapors.
Installation should only be conducted by qualified service personnel
according to IEC 60079-14 and local regulations or MTS trained
service technicians. MTS offers web based and in person training
for installation, commissioning, maintenance, and repair. MTS also
offers factory direct services for these same functions. Contact MTS to
discuss training or factory direct services before starting.
6.2 Stilling wells and guide poles
Level Plus
®
transmitters can be mounted in slotted or unslotted stilling
wells but a slotted stilling well is always preferred. Using a unslotted
stilling well will negatively affect performance of any level device as
the level in the stilling well can differ from the level in the tank. The
Level Plus
®
transmitter can also be installed to one side of the stilling
well to also allow for sampling and manual gauging from the same
opening as the automatic tank gauging. Contact technical support for
details.
Level Plus
®
transmitters do not require a stilling well for installation.
Our transmitters are installed in numerous tanks without stilling wells
with no loss in performance due to our patented flexible waveguide
and hose. A stilling well is highly recommended for agitated, turbulent,
and/or fast filling tanks.
6.3 Tools
• Channel Lock pliers
• Common head screwdriver, slotted screwdriver
• 3/4" Open End wrench
• Phillips head screwdriver, plus screwdriver
6.4 Installation steps
Caution:
It is recommended that assembly and mounting of this transmitter
should not be done alone. To ensure proper and safe assembly of
the SoClean
®
transmitter, a minimum of two (2) individuals are
recommended. Gloves are also recommended. PPE may be required
for work areas such as safety shoes, safety glasses, hard hat, and
fire resistant clothing.
1. Consult chapter 4.3 before starting.
2. Perform steps 1-10 in chapter 8.4.1 for Modbus or DDA. Perform
steps 1-9 in chapter 8.4.2 for Analog.
3. For CP end plug, remove hitch pin and install float. For DN end
plug, install float but be careful as float is not retained and will fall
off. For TB and DP end plugs, the float is already installed. Secure
the Tri-Clamp onto the mating connection on tank.
4. Tighten the Tri-Clamp to hold the transmitter in place.
5. Terminate the field wire cables noting proper wire orientation.
6.5 Mounting
The method of mounting the transmitter is dependent on the vessel
or tank in which it is being used, and what type of transmitter is being
mounted. There are two typical methods for mounting; threaded flange
mounting and welded flange mounting.
Threaded flange mounting
In some applications, the SoClean
®
transmitter can be mounted
directly to the tank or flange via a NPT or BSPP threaded fitting,
assuming there is a proper threaded connection available. If the float
will not fit through the flange opening when the flange is removed,
there must be some alternative means to mount the float on the
transmitter from inside the vessel; this may require an access port
nearby the entry point of the transmitter as shown in Fig. 8.
Fig. 8: Threaded flange mounting for flexible pipe
Riser
NPT or BSPP fitting
Tank flange
(customer supplied
or ordered separately)
Float access
port
Page 13
Level Plus® SoClean
®
Operation Manual
I 13 I
Tri-Clamp mounting
The SoClean
®
transmitter can also be mounted to a Tri-Clamp as
shown in Fig. 10. First, install float(s) onto the transmitter. Second,
install the float retaining hardware on the tip of the transmitter. To
complete the installation, mount the transmitter, Tri-clamp and float(s)
as a unit in to the tank.
Fig. 10: Tri-Clamp mounting for pipe
Tri-Clamp® Cap size
Inactive Zone
(See important note below)
Sanitary
Tri-Clamp
®
Cap
Sanitary
Tri-Clamp
®
Fitting
124 mm
(4.9 in.)
87mm
(3.4 in.)
132 mm
(5.2 in.)
127 mm
(5.0 in.)
305 mm (12 in.) to
7620 mm (300 in.)
7. Electrical connections
7.1 Basic information

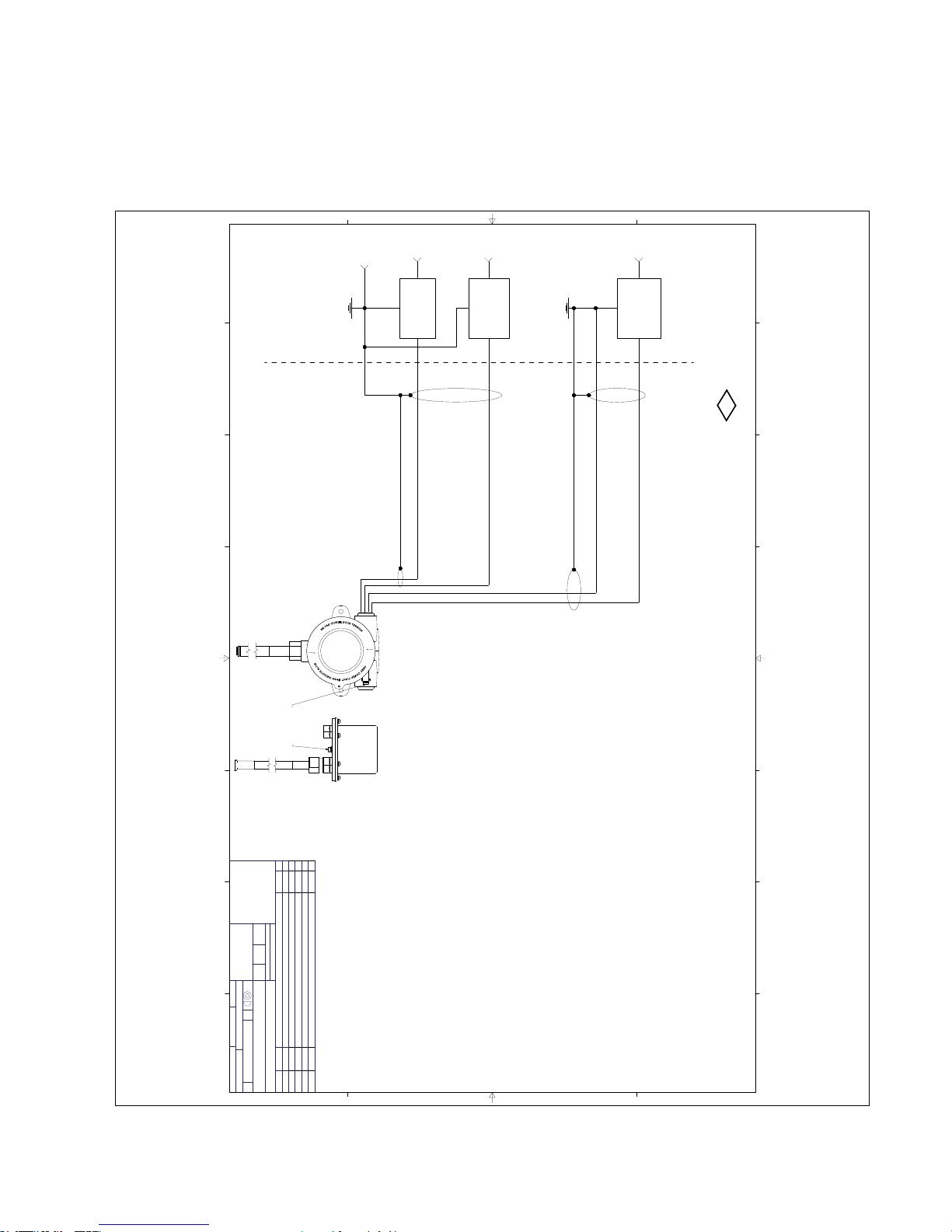

A typical intrinsically safe connection for the Level Plus
®
SoClean®
transmitter includes protective safety barriers, a power supply and a
reading or monitoring device. Refer to Agency information in chapter
13.
A typical Explosionproof/flame proof connection for the Level Plus
®
SoClean
®
transmitter includes a power supply and a reading or
monitoring device. All cabling is in approved conduit with sealoffs
as specified by local electrical code. Refer to agency information in
chapter 13.
7.2 Safety recommendations
Be sure to:
1. Always follow applicable local and national electrical codes and
observe polarity when making electrical connections.
2. Never make electrical connections to the Tank Slayer
®
transmitter
with power turned on.
3. Make sure that no wire strands are loose or sticking out of
the terminal block connection which could short and cause a
problem.
4. Make sure that no wire strands, including shield, are in contact
with the electronic module enclosure.
5. The electronics module enclosure is grounded through internal
circuitry and is electrically isolated from the explosionproof
housing.
7.3 Industrial topologies
There are four topologies described and illustrated below. However,
the daisy chain topology is not recommended by MTS.
Point-to-point
The point-to-point topology consists of having only one device on the
loop as shown in Fig. 9. This topology is not usually used with a bus
network since it does not take advantage of placing multiple devices
on a loop.
PLC
Fig. 9: Point-to-point topology
Page 14
Level Plus® SoClean
®
Operation Manual
I 14 I
Fig. 11: Bus with spurs topology
PLC
Fig. 12: Tree topology
Fig. 13: Daisy-chain topology
Tree alignment
The tree topology is very similar to the bus with spurs topology with
the main difference of having a common junction box for all of the
transmitters as shown in Fig. 12. Bus with spurs and tree topologies
can also be used together to form a hybrid topology.
Daisy chain
The daisy-chain topology utilizes a single cable that is connected to
all of the transmitters with the cable being interconnected at each field
device. When using this topology make sure that the wiring practice
allows for one transmitter to be disconnected without disconnecting
the entire loop as shown in Fig. 13. MTS does not suggest using the
daisy-chain topology.
PLC
PLC
Table 2: Cable specification and parameters
7.4 Cable recommendations
Refer to ‘Table 2’ below for general requirements of cable types for the
Level Plus® SoClean® analog transmitter.
Cable specifications
7.5 Electrical conduit
Parameter Specifitcation
Minimum cable size Ø 0.51…1.6 mm (24…14 AWG)
Cable type
Single pair shielded or multiple pair with
overall shield; minimum 0.25 mm (0.010 in.)
insulation thickness
Capacitance Less than 98 pF/m (30 pF/ft)
NOTICE
1. Tighten housing cover (both front and back covers if dual cavity)
to full stop against the O-ring.
2. Do not over-tighten compression fittings.
3. Use side conduit entry only.
4. In high humidity areas, use a breather drain type conduit sealing
fitting to minimize moisture intrusion.
5. For Division Installations, an approved conduit seal is required
within 457 mm (18 in.) of the enclosure.
6. For Zone Installations, an approved conduit seal is required within
50 mm (2 in.) of the enclosure.
Bus with spurs
The bus with spurs topology has a main trunk cable that has each
device connected via its own spur at a junction box as shown in Fig.
11. The bus with spurs and tree topologies can also be used together
to form a hybrid topology.
Page 15
Level Plus® SoClean
®
Operation Manual
I 15 I
Fig. 14: Electrical conduit installation
Conduit sealing fitting
NPT or BSPP Fitting
Do not over-tighten
compression fitting!
Interface float
(ordered
separately)
Product float
(ordered
separately)
View shown with
cover removed
Plugged entry
Do not use
(see notes)
3/4 NPT or M20 conduit access
Use NPT conduit fitting only!
Conduit
(flexible or rigid)
Conduit fro
m
control room
Level Plus
®
Do not remove cover with circuit energized in
hazardous locations!
Follow safe work procedures.
7.6 Grounding
7.6.1 Safety grounding
Warning:
Grounding the transmitter through a threaded conduit connection
does not meet the requirements as a grounding of the sensor for
safety.
There are two methods to provide an earth ground connection to
the earth ground of the electronics. Either method must result in a
resistance of less than 1 Ω.
• Run an earth ground through the conduit and connect directly to the
earth ground lug inside the housing.
• Run an earth ground directly to the ground lug on the outside of the
housing.
7.6.2 Shield grounding
Warning:
The shield ground does not meet the requirements as grounding of
the sensor for safety.
Immunity performance of the sensor from external sources of
surge, burst, RF, radiated emissions and other noise is dependent
on a proper ground for the shield of the communications cable.
The communications cable shield should be of a braided type and
connected to the internal ground lug of the sensor housing.
Runs in a continuous metallic conduit
When installed inside a dedicated continuous metallic conduit,
the conduit provides a level of shielding protection from external
interference and a level of ground to the sensor housing. In this case
a foil type shielded cable with a drain wire connected to the internal
ground lug may be sufficient. Sharing of the metallic conduit with
other cables will result in loss of effective shielding performance of
the communication cable and possible degradation in performance
of the sensor. In this case a braided type shielded cable connected to
the sensor internal ground lug would be recommended. In all cases
paralleling the communications cable with any noise generating cable
inside of a conduit or with noise generating cables in close proximity
to the conduit may degrade the performance of the sensor.
Runs without a conduit
In some rare applications, or where safety may not be required, a
metallic conduit may not exist. The communications cable shield
should be of a braided type and connected to the internal ground
lug of the sensor housing. Alternatively a safety approved EMC
Cable Gland can be used for grounding the shield. Contact MTS for
information before using one of these cable glands.
NEC
Undesirable currents (ground loops) is a violation of the NEC and is a
safety hazard.
Page 16
Level Plus® SoClean
®
Operation Manual
I 16 I

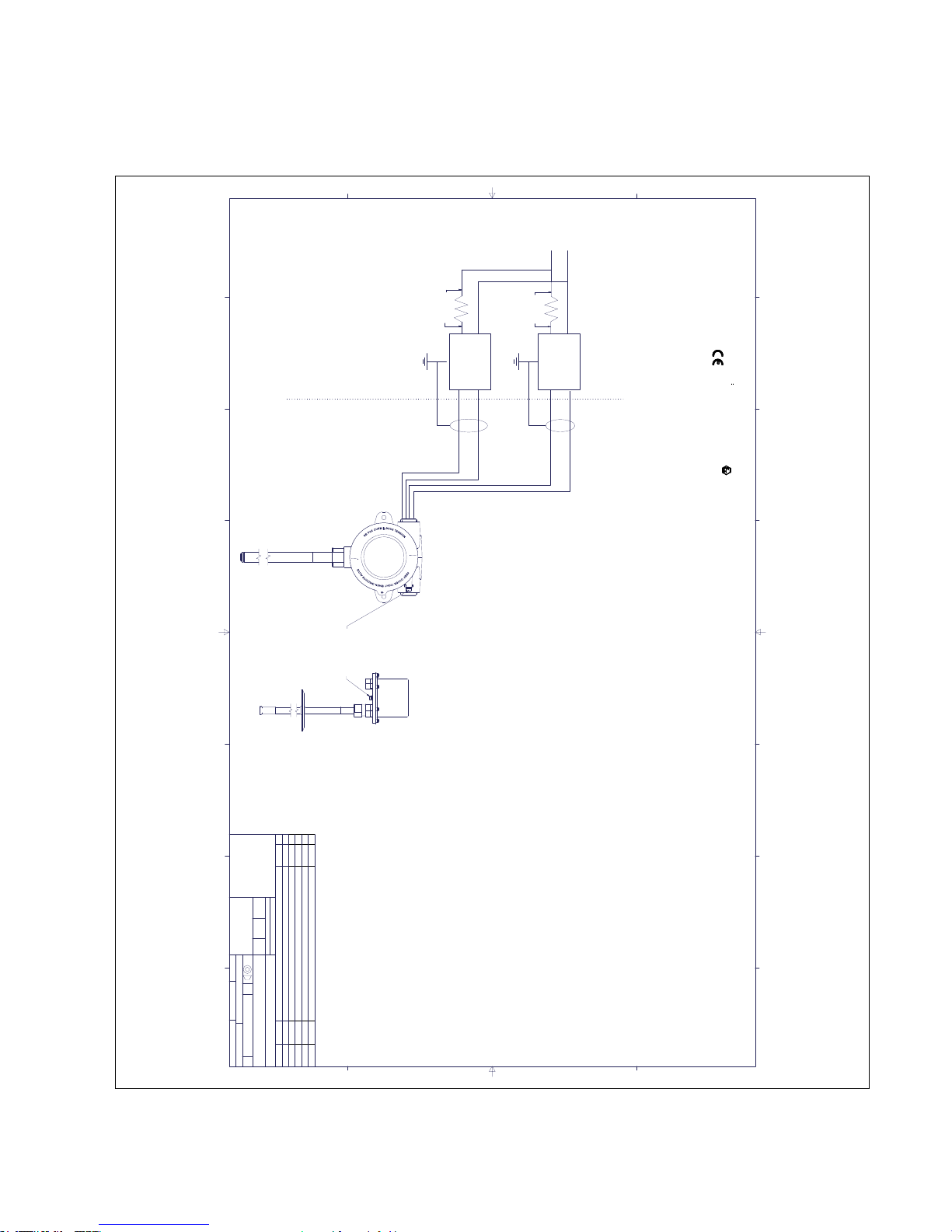

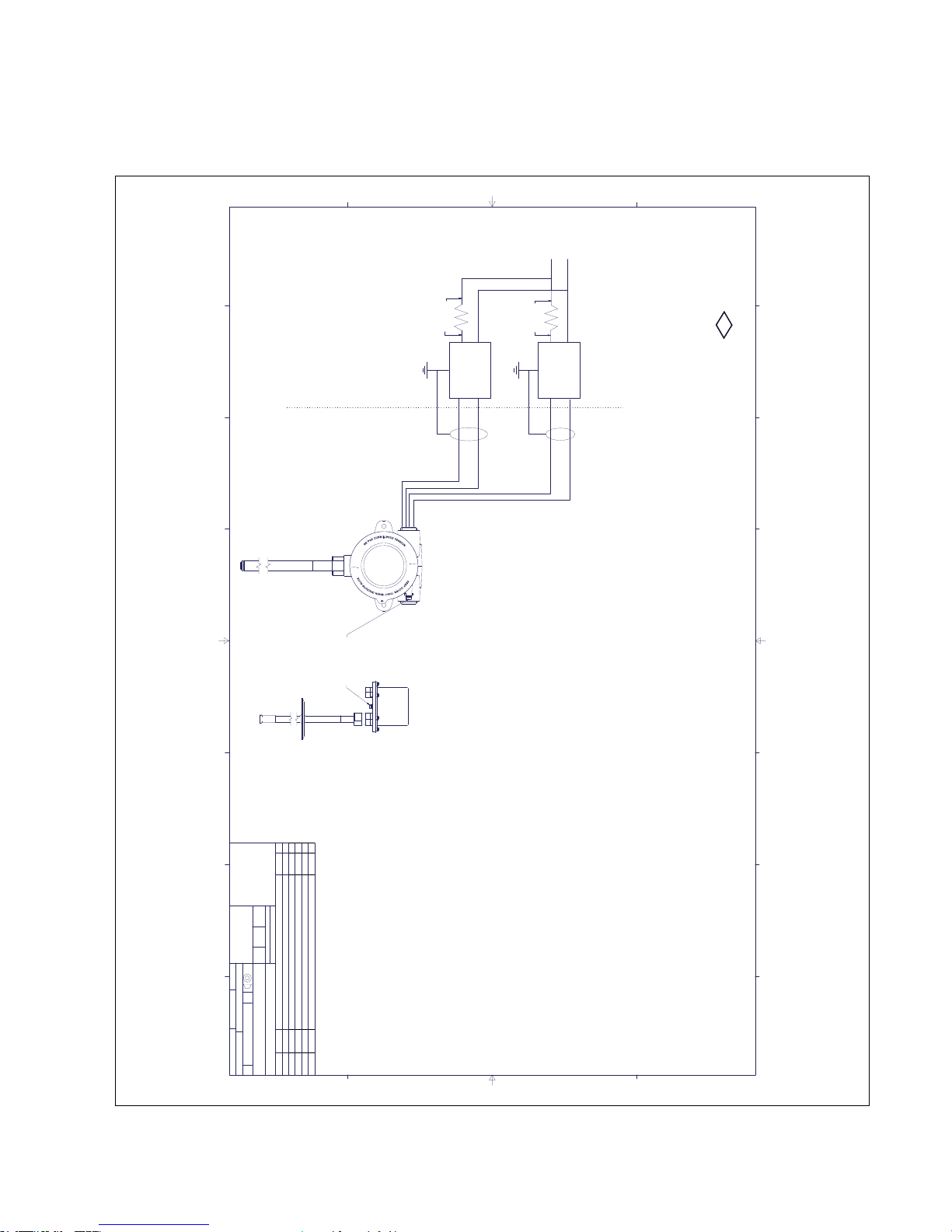

7.7 Safety barriers
Refer to Table 3 for entity parameters and Table 4 for example safety
barriers
Entity parameters
Digital supply
(1 per LT)
Ui = 28 VDC
Ii = 100 mA
Ci = 0.0 µF
Li = O mH
Pi = 700 mW
Digital communication
(2 per LT)
Ui = 8.6 VDC
Ii = 10 mA
Ci = 0.0 µF
Li = 0.0 mH
Pi = 21.5 mW
Analog
(1 per loop)
Ui = 28 VDC
Ii = 120 mA
Ci = 0 µF
Li = 5 µH
Pi = 840 mW
Table 3: Safety barrier entity parameter references
Table 4: Safety barrier entity parameter references
Supplier STAHL STAHL STAHL
Type
9001/01-280100-101
9001/51-280110-141
9001/01-086010-101
Maximum
voltage
28 VDC 28 VDC 8.6 VDC
Maximum
current
(each channel)
100 mA 110 mA 10 mA
Maximum
power
(each channel)
700 mW 770 mW 21.5 mW
Number of
channels
1 1 1
Interface Modbus/DDA HART
®
Modbus/DDA
8. Commissioning
8.1 Training
Commissioning should only be conducted by qualified service
personnel according to IEC 60079-14 or MTS trained service
technicians and local regulations. MTS offers web based and in person
training for installation, commissioning, maintenance, and repair. MTS
also offers factory direct services for these same functions. Contact
MTS to discuss training or factory direct services before starting.
8.2 Tools
• Channel Lock pliers
• RS485 to USB Converter (MTS Part # 380114)[Modbus and DDA]
• Windows Based PC
• Linear Regulated Power Supply
• MTS Setup Software
• HART
®
to USB Converter (MTS Part # 380068)
8.3 Setup software
MTS offers Setup Software that is shipped with the level transmitter
and is also available for download from www.mtssensors.com. The
Setup Software is to be used for installation, commissioning, and
troubleshooting. For further details on how to use the setup software
consult the Modbus Interface Manual (MTS Part# 551700), the DDA
Interface Manual (MTS Part# 551701), and HART
®
Interface Manual
(MTS Part#: 551702).
8.4 Commissioning steps
NOTICE
For Additional details consult the protocol specific Modbus Interface
Manual (MTS Part #551700), DDA Interface Manual (MTS Part
#551701), and HART
®
Interface Manual (MTS Part #551702).
Page 17
Level Plus® SoClean
®
Operation Manual
I 17 I
8.4.1 Modbus or DDA
1. Consult chapter 4.3 before starting.
2. Remove level transmitter from shipping container.
3. Insert pipe into float(s) making sure float(s) are in the active
range. Install product float first.
4. Connect power, RS485 to USB converter, and PC.
5. Open MTS Setup Software.
6. Establish Communication.
7. For DDA Interface – Set Address.
8. For Modbus Interface – Set Address, Enter Strap Table, Setup
Volume Correction Method.
9. Disconnect Power and Communication. Remove floats. Prepare
level transmitter for transport to the top of the tank.
10. Complete Installation in chapter 6.4.
11. Have qualified technician perform hand measurement. Enter hand
measurement into MTS Setup Software and calibrate.
12. Store all settings as backup file according to site name and tank
number.
8.4.2 HART
®
1. Consult chapter 4.3 before starting
2. Remove level transmitter from shipping container.
3. Insert pipe into float(s) making sure float(s) are in the active
range. Install product float first.
4. Connect power, HART
®
to USB converter, and PC
5. Open MTS Setup Software.
6. Establish Communication.
7. Set/Update 4 and 20 mA setpoints
8. Disconnect Power and Communication. Remove floats. Prepare
flexible level transmitter for transport to the top of the tank.
9. Complete Installation in chapter 6.4.
10. Have qualified technician perform hand measurement. Enter hand
measurement into MTS Setup Software and calibrate.
11. Store all settings as backup file according to site name and tank
number.
9. Maintenance
9.1 Training
Maintenance should only be conducted by qualified service personnel
according to IEC 60079-14 and local regulations or MTS trained
service technicians. MTS offers web based and in person training
for installation, commissioning, maintenance, and repair. MTS also
offers factory direct services for these same functions. Contact MTS to
discuss training or factory direct services before starting.
9.2 Tools
• Channel Lock pliers
• Phillips screwdriver, plus screwdriver
• Common head screwdriver, slotted screwdriver
9.3 Inspection
Below are some standard items that should be inspected on a
regular basis to make sure that the level transmitter and surrounding
environment are in operating condition.
• Hazardous Area Label is present and legible
• Hazardous Area approval is correct for installation
• There are no visible unauthorized modifications
• Electrical connections are tight
• Condition of enclosure gasket is satisfactory
• No water ingress (white powder)
• No obvious damage to cable
• Sealing of conduit or cable gland is satisfactory
• Earth ground is satisfactory
• Single or Dual Cavity Enclosure threads are not damaged
• Housing and O-ring are not damaged or cracked
• No corrosion on visible parts
• Printed circuit boards are clean and undamaged
9.4 Preventative maintenance
Level Plus
®
level transmitters do not typically require preventative
maintenance but may require preventative maintenance dependent
on the application. For general purpose applications where there is
no potential for buildup on the pipe and/or float there is no need for
preventative maintenance but routine inspection is still suggested. For
severe service applications where there is potential for buildup on the
pipe and/or float then preventative maintenance is required.
Page 18
Level Plus® SoClean
®
Operation Manual
I 18 I
9.4.1 General purpose applications
9.4.1.1
Perform Inspection suggested in chapter 9.3.
9.4.1.2
No additional preventative maintenance is necessary. Preventative
maintenance suggested for Severe Service Applications may be
performed.
9.4.2 Severe Service Applications
9.4.2.1
Perform Inspection suggested in chapter 9.3.
9.4.2.2
Disconnect Power.
9.4.2.3
Disconnect process connection from tank. Remove pipe from
tank.
NOTE
It is best to clean the pipe as it is removed from the tank to minimize
the amount of product that is removed from the tank. The user
should take caution and abide by all regulations so that product is
not spilled and the environment is not contaminated.
9.4.2.4
When the bottom of the pipe is reached inspect the floats.
9.4.2.4.1
If the floats are highly contaminated then remove the assembly from
the tank and remove the floats from the pipe. This is not possible with
TB and DP end plugs.
9.4.2.4.2
If the floats are slightly contaminated then clean the floats without
removing the floats from the pipe.
9.4.2.5
Replace pipe and floats in tank.
9.4.2.6
Connect process connection to tank.
9.4.2.7
Connect Power.
9.4.2.8
The process should be carried out regularly until a consistent pattern
has been established as to how long the intervals between cleanings
should be.
10. Repair
10.1 RMA policy
Important:
Contact Technical Support or Customer Service for assistance if
you suspect that the transmitter is not working correctly. Technical
support can assist you with troubleshooting, part replacement, and
Returned Material Authorization (RMA) information if required.
All Level Plus® transmitters come with a two year limited warranty
from the factory shipment date. A Return Materials Authorization
(RMA) number is required and must accompany any transmitter
returns. Any unit that was used in a process must be properly cleaned
in accordance with OSHA standards, before it is returned to the
factory. A Material Safety Data Sheet (MSDS) must also accompany
the transmitter that was used in any process.
10.2 Training
Repair should only be conducted by qualified service personnel
according to IEC 60079-14 and local regulations or MTS trained
service technicians. MTS offers web based and in person training
for installation, commissioning, maintenance, and repair. MTS also
offers factory direct services for these same functions. Contact MTS to
discuss training or factory direct services before starting.
10.3 Tools
• Channel Lock pliers
• Phillips head screwdriver, plus screwdriver
• Common head screwdriver, slotted screwdriver
• RS485 to USB Conververter (MTS Part # 380114)
[Modbus and DDA]
• Windows Based PC
• Linear Regulated Power Supply
• HART
®
to USB Converter (MTS Part # 380068)[HART®]
Page 19
Level Plus® SoClean
®
Operation Manual
I 19 I
10.4 Troubleshooting
10.5 Setup software
MTS offers Setup Software that is shipped with the level transmitter
and is also available for download from www.mtssensors.com. The
Setup Software is to be used for installation, commissioning, and
troubleshooting. or further details on how to use the setup software
consult the Modbus Interface Manual (MTS Part# 551700), the DDA
Interface Manual (MTS Part# 551701), and HART
®
Interface Manual
(MTS Part# 551702).
Symptom Possible cause Action
No
communication
with transmitter
No power Check voltage at
transmitter
Wiring incorrect Reference installation
drawing chapter 13
Wrong address DDA factory default is
‘192 ’ Modbus factory
default is ‘247 ’
Wrong software Confirm correct
software
Wrong protocol Conrm software and
transmitter are same
protocol
Missing
magnet error
or Alarm output
Float not recognized Confirm that the float
is attached
Float is in the dead
zone
Raise float to see if the
error stops
Wrong number of
floats selected
Confirm that the
number of floats on
the transmitter and
the number of floats
the transmitter is
attempting to verify are
the same.
Trigger level error Gain needs to be
adjusted
Consult Factory
SE is damaged Consult Factory
Min. trigger level too
high
Consult Factory
Volume
calculation error
No strap table entered Enter strap table
Level outside range of
strap table
Enter additional points
in strap table
Strap table incorrect Check value entries
VCF error No VCF table entered Enter VCF table
VCF table incorrect Check VCF value
entries
Table 5: Troubleshooting reference
11. Spare Parts
Below are the spare parts list for the LP-Series show as the display,
electronic module, sensing element, and flexible hose. Please contact
MTS Technical Support with any questions.
Sensing Element
Change third digit in Model Number from T to E.
For example, the sensing element for model number
LPTME1N11B5FFIAU50000S is LPEME1N11B5FFIAU50000S.
Flexible Hose
Change third digit in Model Number from T to P.
For example, the replacement flexible hose for model number
LPTME1N11B5FFIAU50000S is LPPME1N11B5FFIAU50000S.
Spare part Part number
Display 254732
Output Housing Part number
HART
®
Single Loop A, B, C, D, E 254731-1
HART
®
Dual Loop A, B, C, D, E 254731-2
Modbus A, B, C, D, E 254731-3
DDA A, B, C, D, E 254731-4
HART
®
Single Loop L 254731-5
HART
®
Dual Loop L 254731-6
Modbus L 254731-7
DDA L 254731-8
12. Interface
SoClean® is available with multiple outputs including Modbus, DDA,
and HART
®
. This Operation and Installation Manual includes all of
these outputs. Each output has its own specialized Interface Manual
that should be consulted for additional information on the specific
output. For SIL consult the SIL Safety Manual, MTS Part #551851.
12.1 Modbus
MTS offers Modbus RTU over a RS485 half-duplex network. For
additional information consult Modbus Interface Manual (MTS Part
#551700).
12.2 DDA
MTS offers DDA (Direct Digital Access) over a RS485 half-duplex
network. For additional information consult DDA Interface Manual
(MTS Part #551701).
12.3 HART
®
MTS offers HART
®
over a 4 to 20 mA signal. For additional information
consult HART
®
Interface Manual (MTS Part #551702).
Page 20
Level Plus® SoClean
®
Operation Manual
I 20 I
13. Agency information
13.1 Approvals overview
The Notified Body is designated in the 13
th
digit of the model number and the Protection Method is designated in the 14th digit of the model
number. These two digits of the model number specify the hazardous area approval that is provided with the selected level transmitter.
Shown below are the detailed approval information for the NEC, CEC, IEC, and ATEX approvals. MTS additionally has approvals under INMETRO,
NEPSI, KC, CCoE, and CML (Japan). Please contact MTS with any questions about the hazardous approval needed.
Table 6: Agency approvals, part 1
Notified body Protection method Classification Standard
C = CEC I = Instrinsic Safety Class I, Division 1, Groups ABCD T4
Class I, Zone 0/1, Ex ia IIC T4
Ta = -50°C to 71°C IP65
CAN C22.2 No. 157-92:2012
CSA C22.2 No. 1010.1:2004
CAN/CSA C22.2 No. 60079-0:2011
CAN/CSA C22.2 No. 60079-11:2014
CAN/CSA C22.2 No. 60529:2005
F = Explosionproof /
Flame proof
Class I, Division 1, Groups BCD T6...T3
Ex db IIB+H2 T6…T3 Ga/Gb
Ta = -40°C to 71°C IP65
CSA C22.2 No. 0.4-04:R2013
CSA C22.2 No. 0.5:R2012
CSA C22.2 No. 0-10:R2015
CSA C22.2 No. 30:R2012
CAN/CSA C22.2 No. 60079-0:2015
CAN/CSA C22.2 No. 60079-1:2016
CAN/CSA 622.2 No. 60079-26:2016
CAN/CSA C22.2 No. 61010.1:2012
CSA C22.2 No. 60529:R2010
E = ATEX I = Instrinsic Safety
II 1/2 G Ex ia IIC T4
Ta = -50°C to 71°C IP65
EN 60079-0:2012
EN 60079-11:2012
EN 60529:1991 + A1:2000
F = Flame proof
II 1/2 G Ex db IIB+H2 T6…T3 Ga/Gb
Ta = -40°C to 71°C IP65
EN 60079-0:2012+A11:2013
EN 60079-1:2014
EN 60079-26:2015
EN 60529:1991 + A2:2013
F = NEC I = Instrinsic Safety Class I, Division 1, Groups ABCD T4
Class I, Zone 0/1, AEx ia IIC T4
Ta = -50°C to 71°C IP65
FM 3600:2011
FM 3610:2010
FM 3810:2005
ANSI/ISA 60079-0:2013
ANSI/ISA 60079-11:2014
ANSI/IEC 60529:2004
F = Explosionproof /
Flame proof
Class I, Division 1, Groups ABCD T6…T3
Class I, Division 1, Groups BCD T6…T3
Class I, Zone 0/1, AEx db IIB+H2 T6…T3 Ga/Gb
Ta = -40°C to 71°C IP65
FM 3600:2011
FM 3615:2006
FM 3810:2005
ANSI/ISA 60079-0:2013
ANSI/UL 60079-1:2015
ANSI/UL 60079-26:2017
ANSI/IEC 60529:2004
I = IEC I = Instrinsic Safety Ex ia IIC T4 Ga/Gb
Ta = -50°C to 71°C IP65
IEC 60079-0:2011
IEC 60079-11:2011
F = Flame proof Ex db IIB+H2 T6…T3 Ga/Gb
Ta = -40°C to 71°C IP65
IEC 60079-0:2007-10
IEC 60079-1:2007-04
IEC 60079-26:2014-10
IEC 60529:2013
B = INMETRO I = Instrinsic Safety Ex ia IIC T4 Ga/Gb
Ta = -50°C to 71°C IP65
ABNT NBR IEC 60079-0
ABNT NBR IEC 60079-11
ABNT NBR IEC 60529
F = Flameproof Ex db IIB+H2 T6...t3 Ga/Gb
Ta = -40°C to 71°C IP65
ABNT NBR IEC 60079-0
ABNT NBR IEC 60079-1
ABNT NBR IEC 60079-26
ABNT NBR IEC 60529
Continued on next page...
Page 21
Level Plus® SoClean
®
Operation Manual
I 21 I
Table 7: Agency approvals, part 2
Notified body Protection method Classification Standard
N = NEPSI I = Instrinsic Safety Ex ia IIC T4 Ga/Gb
Ta = -50°C to 71°C IP65
GB 3836.1-2010
GB 3836.4-2010
GB 3836.20-2010
F = Flameproof Ex db IIB+H2 T6...t3 Ga/Gb
Ta = -40°C to 71°C IP65
GB 3836.1-2010
GB 3836.2-2010
C = CCoE/
PESO
I = Instrinsic Safety Ex ia IIC T4 Ga/Gb
Ta = -50°C to 71°C IP65
IEC 60079-0:2011
IEC 60079-11:2011
Petroleum Rules 2002
F = Flameproof Ex db IIB+H2 T6...t3 Ga/Gb
Ta = -40°C to 71°C IP65
IEC 60079-0:2007-10
IEC 60079-1:2007-04
IEC 60079-26:2014-10
IEC 60529:2013
Petroleum Rules 2002
T = CML/TIIS I = Instrinsic Safety Ex ia IIC T4 Ga/Gb
Ta = -50°C to 71°C IP65
IEC 60079-0:2011
IEC 60079-11:2011
F = Flameproof Ex db IIB+H2 T6...t3 Ga/Gb
Ta = -40°C to 71°C IP65
IEC 60079-0:2007-10
IEC 60079-1:2007-04
IEC 60079-26:2014-10
IEC 60529:2013
K = KC I = Instrinsic Safety
PENDING PENDING
F = Flameproof
PENDING PENDING
Page 22
Level Plus® SoClean
®
Operation Manual
I 22 I
13.2 Certificates
Downloadable copies of all certificates are located at
www.mtssensors.com and can be downloaded on the product specific
landing page. If there is any difficulty in obtaining the certificates
from the web contact MTS Technical Support and they will be sent
electronically.
13.3 FM (NEC)
13.3.1 Intrinsically Safe
13.3.1.1 Specific Conditions of Safe Use
1. The apparatus enclosure contains aluminum and is considered to
constitute a potential risk of ignition by impact or friction. Care
must be taken into account during installation and use to prevent
impact or friction. ( When installed in a Ga Approval)
2. The maximum permitted ambient temperature of the Level Plus
Digital/Analog Level Transmitter is 71 °C. To avoid the effects of
process temperature and other thermal effects care shall be taken
to ensure the surrounding ambient and the ambient inside the
transmitter housing does not exceed 71°C
3. Some models contain non-metallic enclosure parts, to prevent the
risk of electrostatic sparking the nonmetallic surface should only
be cleaned with a damp cloth.
13.3.1.2 Labels
1
INTRINSICALLY SAFE
CL. I, Div. 1, GR. ABCD
CL. I, Zone 0/1, AEx ia IIC T4
Ta = -50°C to +71°C
; IP65
when connected in accordance
with FM approved
installa
on
drawing # 651543-1
WARNING: REFER TO INSTALLATION DRAWING
FOR CAUTION/WARNINGS
Model No:
Serial No:
Date :
MTS Systems Corporation
Sensors Division
3001 Sheldon Dr.
Cary, NC 27513
Level Plus
Transmitter
8 POINT TEXT
SIZE
FM
APPROVED
US
NOTES:
1. STANDARD LETTERING UNIVERS 55
P/N 551629-1 Rev B
86.30 [3.40]
1.78 [.07]
34.69 [1.37]
1.78 [.07]
R3.30 [.13]
28.70 [1.13]
15.80 [.62]
®
Fig. 15: Intrinsically Safe FM label, Modbus, or DDA, NEMA Housing
1
INTRINSICALLY SAFE
CL. I, Div. 1, GR. ABCD
CL. I, Zone 0/1, AEx ia IIC T4
Ta = -50°C to +71°C
; IP65
when connected in accordance
with FM approved
installa
on
drawing # 651543-1
WARNING: REFER TO INSTALLATION DRAWING
FOR CAUTION/WARNINGS
Model No:
Serial No:
Date :
MTS Systems Corporation
Sensors Division
3001 Sheldon Dr.
Cary, NC 27513
Level Plus
Transmitter
8 POINT TEXT
SIZE
FM
APPROVED
US
NOTES:
1. STANDARD LETTERING UNIVERS 55
P/N 551629-1 Rev B
86.30 [3.40]
1.78 [.07]
34.69 [1.37]
1.78 [.07]
R3.30 [.13]
28.70 [1.13]
15.80 [.62]
®
Fig. 16: Intrinsically Safe FM label, HART®, NEMA Housing
Fig. 17: Intrinsically Safe FM label, Modbus or DDA, Single or Dual Cavity Housing
Fig. 18: Intrinsically Safe FM label, HART
®
, Single or Dual Cavity Housing
1
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive, Cary, N.C. 27513
INTRINSICALLY SAFE
CL. I, Div. 1, GR. ABCD
CL. I, Zone 0/1, AEx ia IIC T4
Ta = -50°C TO +71°C ; IP65
WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
REFER TO INSTALLATION DRAWING FOR CAUTION/WARNINGS
INSTALL PER DRAWING # 651544-1
SUPPLY VOLTAGE: 28 VDC
Level Plus Transmitter
35.05 [1.38]
"L1"
∆ "L2"
17.53 [.69]
7.5 POINT SIZE
"D1"
FM LOGO ARTWORK
4.5 POINT TEXT SIZE
R
FM
USE MTS LOGO ARTWORK
14.0 POINT SIZE
APPROVED
P/N 551642-X Rev C
TABLE 1
DASH
#
HOUSING
"L1" "L2" "D1"
-1 ADALET
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHE
RM
65 [2.56]
58
[2.28]
Ø 3.05 [.12]
x2
1
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive, Cary, N.C. 27513
INTRINSICALLY SAFE
CL. I, Div. 1, GR. ABCD
CL. I, Zone 0/1, AEx ia IIC T4
Ta = -50°C TO +71°C ; IP65
WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
REFER TO INSTALLATION DRAWING FOR CAUTION/WARNINGS
INSTALL PER DRAWING # 651543-1
SUPPLY VOLTAGE: 28 VDC
Level Plus Transmitter
35.05 [1.38]
"L1"
∆ "L2"
17.53 [.69]
7.5 POINT SIZE
"D1"
FM LOGO ARTWORK
4.5 POINT TEXT SIZE
R
FM
USE MTS LOGO ARTWORK
14.0 POINT SIZE
APPROVED
P/N 551634-X Rev C
TABLE 1
DASH
#
HOUSING
"L1" "L2" "D1"
-1
ADALET
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
65
[2.56]
58
[2.28]
Ø 3.05 [.12] x2
Page 23
Level Plus® SoClean
®
Operation Manual
I 23 I
13.3.1.3 Installation drawing

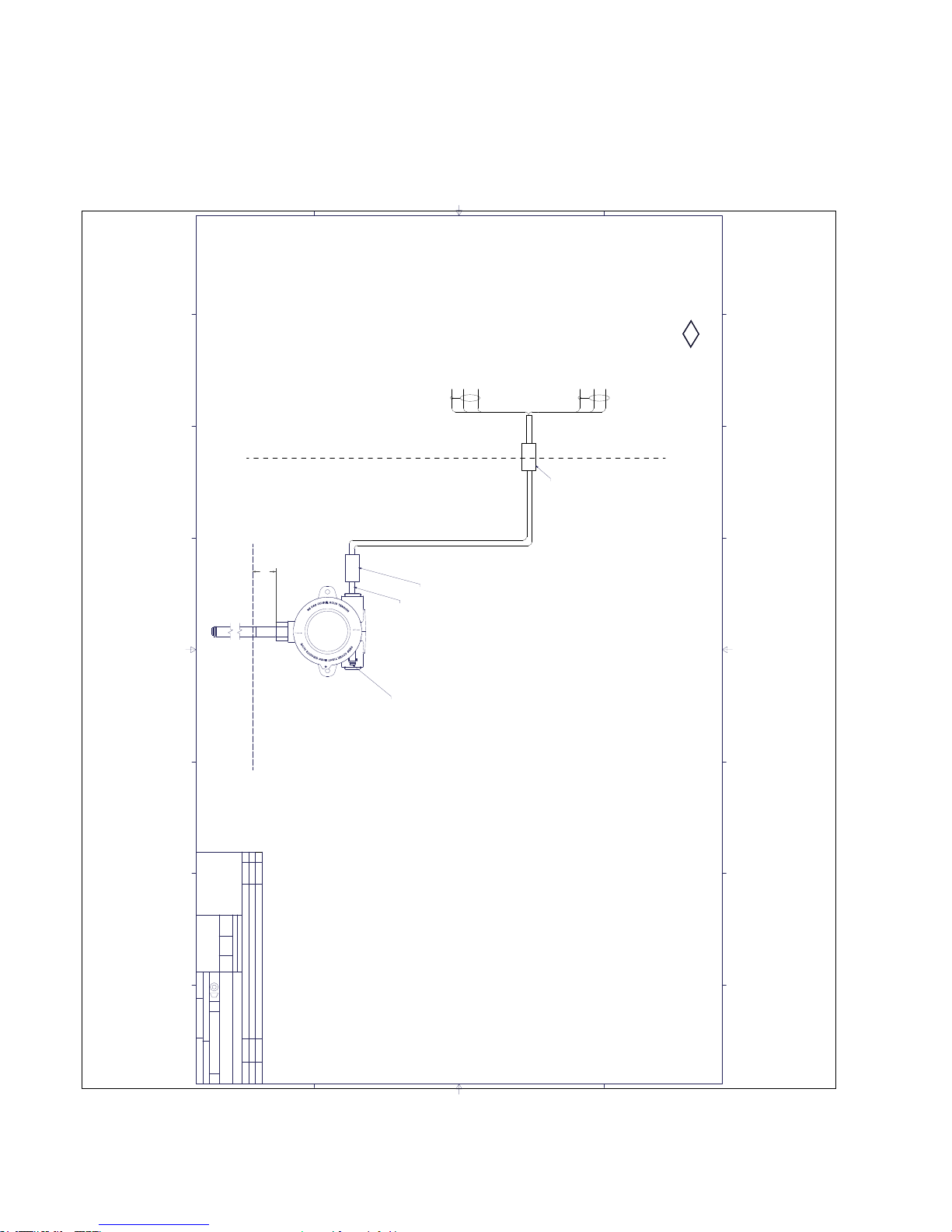

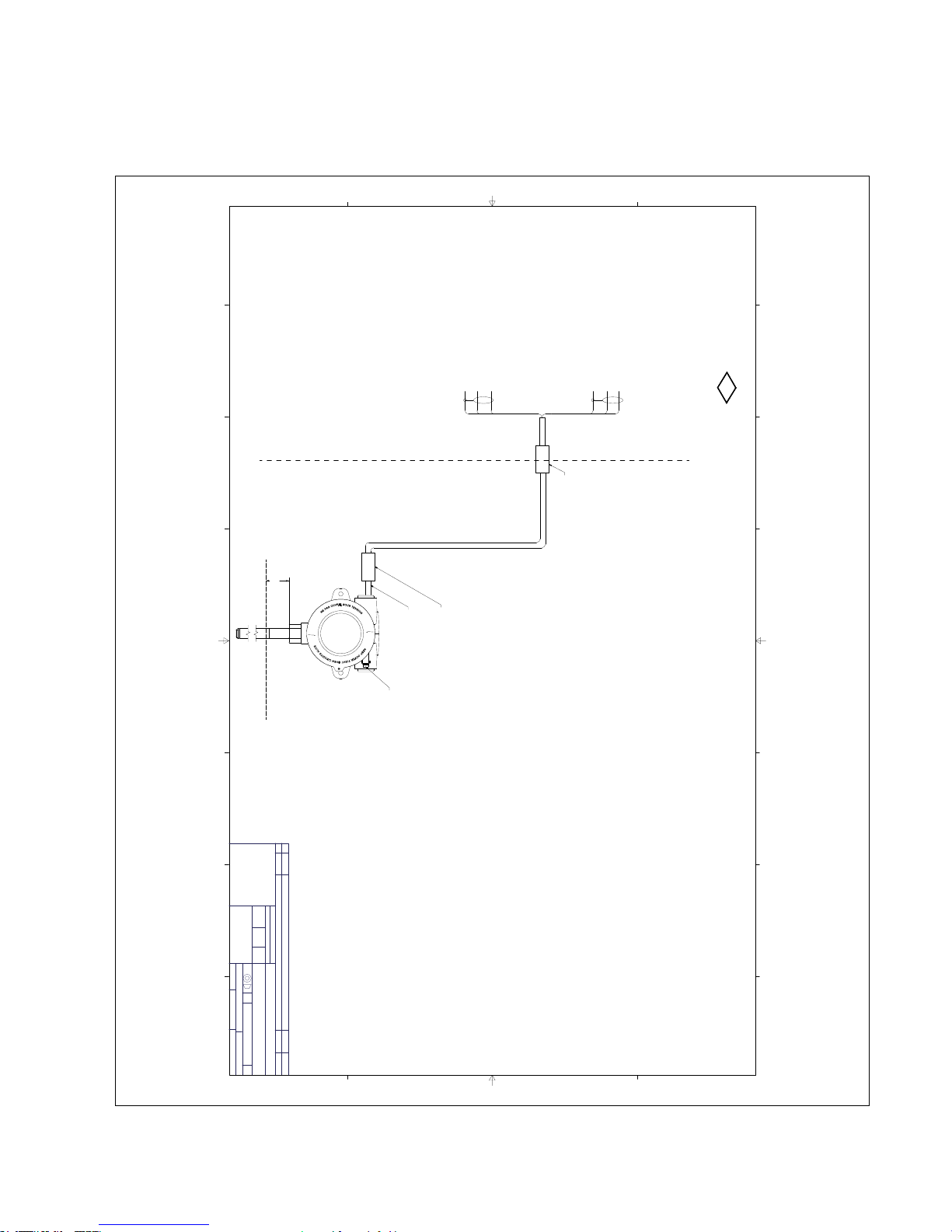

Fig. 19: Intrinsically Safe FM installation drawing, Modbus and DDA, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-1
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
24 VDC
COMMON- >
Rx /Tx+
Rx /Tx-
GROUND
EARTH GROUND
(SEE NOTE 4)
EARTH GROUND
(SEE NOTE 4)
Rx/Tx-
Rx/Tx+
GND
+24V
SAFETY BARRIER
SAFETY BARRIER
SAFETY BARRIER
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 457 MM(18").
2.LOOP CABLE MUST BE 24 AWG TO 14 AWG (.511MM² to 1.6MM²)
SHIELDED TWI
STED PAIR CABLE WITH SHIELD. CABLE CAPACITANCE MUST
BE LESS THAN 30 pF PER FOOT (98 pF PER M). CABLE SHIELD IS CONNECTED
TO SYSTEM GROUND IN NON-HAZARDOUS AREA. SEE INSTALLATION MANUAL FOR
ADDITIONAL CABLE INFORMATION.
3.THE RESISTANCE BETWEEN EARTH GROUND AND THE INTRINSICALLY SAFE GROUND
MUST BE LESS THAN 1 OHM.
4.THE TRANSDUCER FRAME SHALL BE GROUNDED TO EARTH GROUND DIRECTLY OR THROU
GH
THE EQUIPMENT ON WHICH IT IS MOUNTED.
5. CONTROL EQUIPMENT CONNECTED TO ASSOCIATED APPARATUS MUST
NOT USE OR GENERATE MORE THAN 250 VRMS OR VDC
6.ASSOCIATED APPARATUS MANUFACTURER'S INSTALLATION DRAWING MUST
BE FOLLOWED WHEN INSTALLING THIS EQUIPMENT.
7.ONLY USE NEC (e.g FM) APPROVED BARRIERS.
8.ENTITY PARAMETERS:
SUPPLY: Rx/Tx-:
Rx/Tx+:
Ui = 28VDC Ui= 8.6V Ui= 8.6V
Ii = 100mA Ii = 10mA Ii = 10mA
Ci = 0 µF Ci = 0 µF Ci = 0 µF
Li = 0 µH
Li = 0 µH Li = 0 µH
Pi = 0.7 W Pi= 0.0215 W P i= 0.0215 W
9.THE ENTITY CONCEPT ALLOWS INTERCONNECTION OF INTRINSICALLY SAFE APPARATUS
WITH ASSOCIATED APPARATUS WHEN THE FOLLOWING IS TRUE:
Vmax or Ui ≥ Voc, Vt or Uo;
Imax or Ii ≥ Isc, It or Io;
Pmax or Pi ≥ Po;
Ca ≥ Ci + Ccable;
La ≥ Li + Lcable. 10.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD).
11.INSTALLATION SHOULD BE IN ACCORDANCE WITH ANSI/ISA RP12.06.01 "INSTALLATION OF
INTRINSICALLY SAFE SYSTEMS FOR HAZARDOUS (CLASSIFIED) LOCATIONS"
AND THE NATIONAL ELECTRICAL CODE (
ANSI/NFPA 70).
12.THE MAXIMUM PERMITTED AMBIENT TEMPERATURE OF THE LEVEL PLUS DIGITAL/ANALOG
LEVEL TRANSMITTER IS 71 °C. TO AVOID THE EFFECTS OF PROCESS TEMPERATURE AND
OTHER THERMAL EFFECTS CARE SHALL BE TAKEN TO ENSURE THE SURROUNDING AMBIENT
AND THE AMBIENT INSIDE THE TRANSMITTER HOUSING DOES NOT EXCEED 71°C
13.CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381MM(15")
14.WARNING: THE APPARATUS ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
CONSTITUTE A POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION. CARE MUST BE TAKEN
INTO ACCOUNT DURING INSTALLATION AND USE TO PREVENT IMPACT OR FRICTION
15.WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
16.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BE
FORE SERVICING
17.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
AGENCY CONTROLLED DRAWING (US). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
EARTH TERMINAL
(ACP) INSTALLATIN DWG LP DIGITAL
INTRINSICALLY SAFE FOR US
LEVEL
FM
APPROVED
US
N/A
INTRINSICALLY SAFE
CL. I, DIV. 1, GR. ABCD
CL. I Zone 0/1 AEx ia IIC T4
Ta = -50 to 71°C ; IP65
Page 24
Level Plus® SoClean
®
Operation Manual
I 24 I
Fig. 20: Intrinsically Safe FM installation drawing, Modbus and DDA, Page 2
DETAIL A
SCALE 1.60 : 1
DETAIL C
SCALE 3 : 1
DETAIL D
SCALE 1.2
DETAIL E
SCALE 1 : 1
A
C
D
E
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-1
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
+24V
GND
EARTH
TX/RX+
TX/RX-
GND
+24V
TX/RX-
TX/RX+
EARTH
GND
+24V
TX/RX-
TX/RX+
EARTH
FIGURE 1
SINGLE CAVITY & NEMA HOUSING
FIGURE 2
DUAL CAVITY HOUSING
NOTES: 1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
CONDUIT SEALS REQUIRED WITHIN 457 MM (18") OF HOUSING.
(ACP) INSTALLATIN DWG LP DIGITAL
INTRINSICALLY SAFE FOR US
+
2
4
V
G
N
D
E
A
R
T
H
T
x
/
R
x
+
T
x
/
R
x
-
WIRE COLOR SIGNAL
RED 24 V PWR
BLACK 0 V PWR
BLUE
N/A
WHITE RX TX +
GREEN RX TX -
DRAIN WIRE EARTH GROUND
WIRING CHART (FOR NEMA GAUGE)
PIN #
SIGNAL
PIN 1 24 V PWR
PIN 2
0 V PWR
PIN 3
N/A
PIN 4 RX TX+
PIN 5
RX TX-
PIN 6
EARTH GROUND
PIN WIRING CHART (FOR NEMA GAUGE)
LEVEL
Page 25
Level Plus® SoClean
®
Operation Manual
I 25 I
Fig. 21: Intrinsically Safe FM installation drawing, HART®, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-1
LEVEL
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
NOTES:
1. ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE MTS LP SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 457 MM (18").
2. LOOP CABLE MUST BE 24 AWG TO 14 AWG (.511MM² to 1.6MM²)
SHIELDED TWISTED PAIR CABLE WITH SHIELD. CABLE CAPACITANCE MUST
BE LESS THAN 30 pF PER FOOT (98 pF PER m). CA
BLE SHIELD IS CONNECTED
TO SYSTEM GROUND IN NON-HAZARDOUS AREA. SEE INSTALLATION MANUAL FOR
ADDITIONAL CABLE INFORMATION.
3. THE RESISTANCE BETWEEN EARTH GROUND AND THE INTRINSICALLY SAFE GROUND
MUST BE LESS THAN 1 OHM.
4. THE TRANSDUCER FRAME SHALL BE GROUNDED TO EARTH GROUND
DIRECTLY OR THROUGH THE EQUIPMENT ON WHICH IT IS MOUNTED.
5. CONTROL EQUIPMENT CONNECTED TO ASSOCIATED APPARATUS MUST
NOT USE OR GENERATE MORE THAN 250 VRMS OR VDC
.
6. ASSOCIATED APPARATUS MANUFACTURER'S INSTALLATION DRAWING MUST
BE FOLLOWED WHEN INSTALLING THIS EQUIPMENT
7. ONLY USE NEC (e.g FM) APPROVED BARRIERS.
8. APPROVED LOOP SEPARATION METHODS:
*RUN LOOPS IN SEPARATE CABLES
*RUN LOOPS IN SEPARATE GROUNDED SHIELDS
9. ENTITY PARAMETERS EACH LOOP:
Ui = 28 VDC
Ii = 120 mA
Ci = 0 µF
Li = 5 µH
Pi = 840 mW
10. DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD)
11 INSTALLATION SHOULD BE IN ACCORDANCE WITH ANSI/ISA RP12.06.01 "INSTALLATION OF
INTRINSICALLY SAFE SYSTEMS FOR HAZARDOUS (CLASSIFIE
D) LOCATIONS"
AND THE NATIONAL ELECTRICAL CODE (ANSI/NFPA 70).
12.THE MAXIMUM PERMITTED AMBIENT TEMPERATURE OF THE LEVEL PLUS DIGITAL/ANALOG
LEVEL TRANSMITTER IS 71 °C. TO AVOID THE EFFECTS OF PROCESS TEMPERATURE AND
OTHER THERMAL EFFECTS CARE SHALL BE TAKEN TO ENSURE THE SURROUNDING AMBIENT
AND THE AMBIENT INSIDE THE TRANSMITTER HOUSING DOES NOT EXCEED 71°C
13.CAUTION: FLEXI
BLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381MM (15")
14. WARNING: THE APPARATUS ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
CONSTITUTE A POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION. CARE MUST BE TAKEN
INTO ACCOUNT DURING INSTALLATION AND USE TO PREVENT IMPACT OR FRICTION
15.WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
16.WARNING: TO PREVENT IGNITION OF FLAMMA
BLE OR COMBUSTIBLE ATMOSPHERES.
DISCONNECT POWER BEFORE SERVICING.
17.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
EARTH GROUND LUG
NOTE 3
AGENCY CONTROLLED DRAWING (US). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
24 VDC
CONTROL
INPUT 1
CONTROL
INPUT 2
APPROVED SAFETY
BARRIER
APPROVED SAFETY
BARRIER
LOOP VOLTAGE
SHIELD
SHIELD
LOOP 1+
LOOP 1-
LOOP 2+
LOOP 2-
FM
APPROVED
US
(ACP) INSTALLATIN DWG LP ANALOG
INTRINSICALLY SAFE FOR US
SINGLE OR DUAL CAVITY
NEMA HOUSING
F
INTRINSICALLY SAFE
CL. I, DIV. 1, GR. ABCD
CL. I Zone 0/1 AEx ia IIC T4
Ta = -50 to 71°C ; IP65
EARTH GROUND
(SEE NOTE 4)
EARTH GROUND
(SEE NOTE 4)
Page 26
Level Plus® SoClean
®
Operation Manual
I 26 I

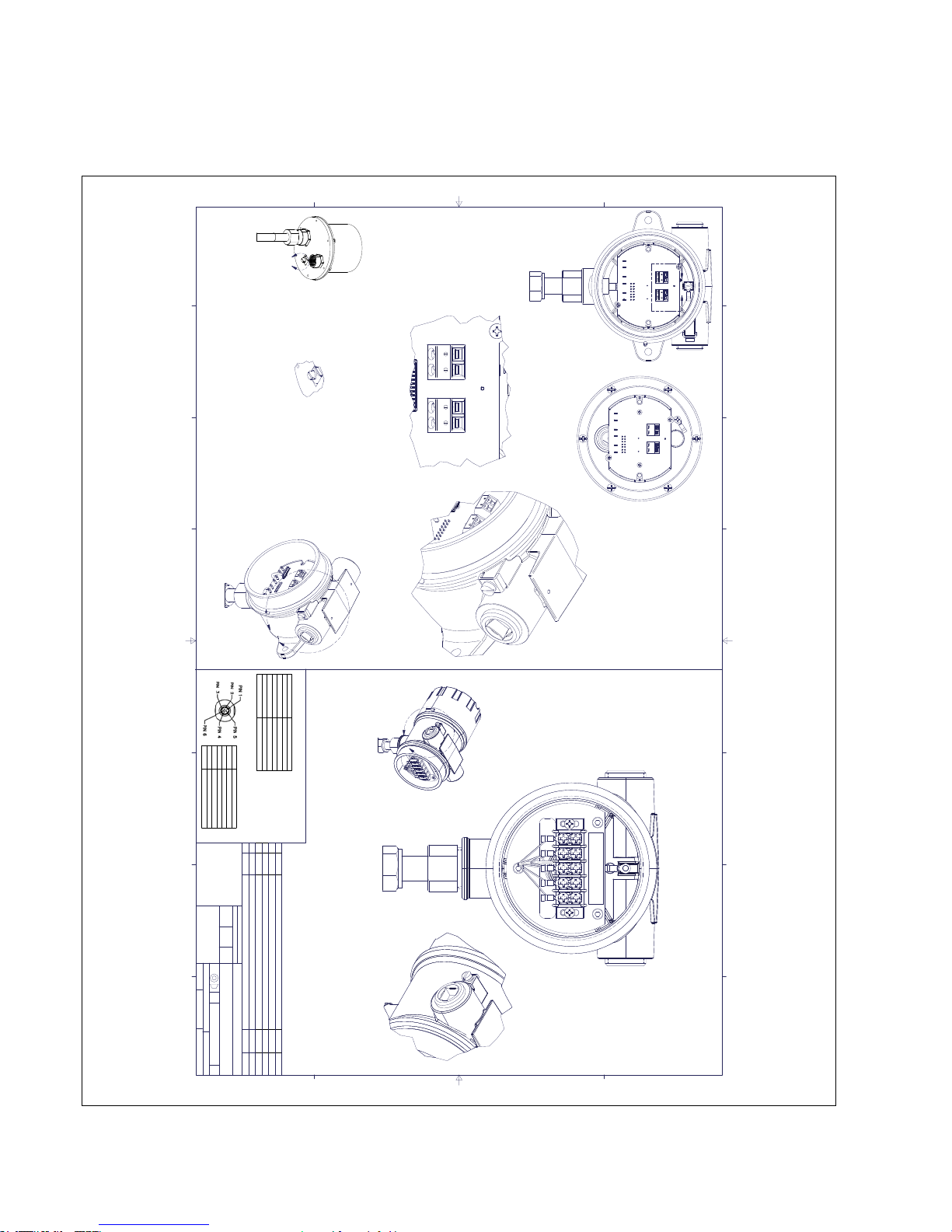

Fig. 22: Intrinsically Safe FM installation drawing, HART®, Page 2
DETAIL D
SCALE 3
DETAIL E
SCALE 1.60
DETAIL F
SCALE 1.2
DETAIL H
SCALE 1 : 1
D
E
F
H
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-1
LEVEL
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
LOOP 2-
LOOP 2+
EARTH
LOOP 1-
LOOP 1+
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM WARNING:
CONDUIT SEALS REQUIRED WITHIN 457 MM (18") OF HOUSING.
FIGURE 2
DUAL CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
FIGURE 1
SINGLE CAVITY & NEMA HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
(ACP) INSTALLATION DWG LP ANALGO
INTRINSICALLY SAFE ATEX/IECE
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
F
PIN #
SIGNAL
PIN 1 LOOP 1-
PIN 2 LOOP 1+
PIN 3 LOOP 2-
PIN 4 LOOP 2+
PIN 5
N/A
PIN 6
EARTH GROUND
WIRE COLOR SIGNAL
RED LOOP 1+
BLACK LOOP 1-
BLUE
LOOP 2-
WHITE LOOP 2+
GREEN
N/A
DRAIN WIRE EARTH GROUND
PIN WIRING CHART (FOR NEMA GAUGE)
WIRING CHART(FOR NEMA GAUGE)
Page 27
Level Plus® SoClean
®
Operation Manual
I 27 I
13.3.2 Explosionproof / Flame Proof
13.3.2.1 Specific Conditions of Safe Use
1. Warning: The equipment contains non-metallic enclosure and
process parts, to prevent the risk of electrostatic sparking, the
non-metallic surface should only be cleaned with a damp cloth.
Painted surface of the equipment may store electrostatic charge
and become a source of ignition in applications with a low relative
humidity <~30% relative humidity where the painted surface is
relatively free of surface contamination such as dirt, dust or oil.
Cleaning of the painted surface should only be done with a damp
cloth.
2. Cables shall be rated > 5°C above maximum ambient
temperature.
3. To maintain the ingress protection rating of IP65, Teflon™
tape (3 wraps) or pipe dope shall be used. Refer to Installation
Instructions.
4. The equipment can be installed in the boundary wall between
a Zone 0 area and the less hazardous area, Zone 1. In this
configuration, the process connection is installed in Zone 0, while
the transmitter housing is installed in Zone 1. Refer to installation
instructions.
5. Flexible gauges have a minimum bend radius of 381 mm (15in.).
6. Flamepaths not for repair.
7. The applicable temperature class, ambient temperature range and
process temperature range of the equipment is as follows:
• T3 with Process Temperature range −40°C to +150°C
• T4 with Process Temperature range −40°C to +135°C
• T5 with Process Temperature range −40°C to +100°C
• T6 with Process Temperature range −40°C to +85°C
Ambient Temperature Range is −40°C≤Ta≤71°C
8. When mounting on a MLG (magnetic level gauge) make sure the
electronic head and pressure barrier have a minimum spacing of
5 in.. See Installation Manual for detail.
1
Level Plus Transmitter
MTS Systems Corporation
Sensors Divi sion
3001 Sheldo n Drive, Cary, N.C. 27513
FM16US0 242X
EXPLOSION PRO OF FOR CL . I, DIV. 1, GR BCD T6...T3.
CL. I, ZONE 0/ 1, AEx db IIB+ H2 T6...T3 G a/Gb
Ta = -40°C TO +71°C ; IP 65
INPUT: 28V (120mA) max
OUTPUT: RS485
WARNIN G: DO NOT OPEN W HEN AN EX PLOSIVE ATM OSPHERE I S
P RESENT. FOR ZONE INST ALLATIONS, A SEAL SHA LL BE INSTA LLED WITHI N 50mm O F
THE ENC LOSURE. FOR DIVISION I NSTALLATIO NS A SEAL SHALL BE IN STALLED WI THIN 18 IN CHES
OF THE ENCLOSURE
INSTALL PER # 651552-1
MAX. PRESSU RE 1000 PSI
(RIGID SENS OR)
MAX. PRESSURE 435 PSI (FL EX SENSOR)
FM
APPROVED
P/N 551474 -1 Rev A
R
!
Fig. 23: Explosionproof, FM label, Modbus or DDA Housing Option G, H, or L
Fig. 24: Explosionproof, FM label, Modbus or DDA, Housing Option D, E
Fig. 25: Explosionproof, FM label, HART
®
, Housing Option G, H, or L
Fig. 26: Explosionproof, FM label, HART
®
, Housing Option D, E
1
Level Plus Transmitter
MTS Systems Corporation
Sensors Divi sion
3001 Sheldo n Drive, Cary, N.C. 27513
FM16US0 242X
EXPLOSION PRO OF FOR CL . I, DIV. 1, GR.
CL. I, ZONE 0/ 1, AEx db IIB+ H2 T6...T3 G a/Gb
Ta = -40
ABCD T6...T3
°C TO +71° C ; IP 65
INPUT: 28V (120mA) max
OUTPUT: RS485
WARNIN G: DO NOT OPEN W HEN AN EX PLOSIVE ATM OSPHERE I S
P RESENT. FOR ZONE INST ALLATIONS, A SEAL SHA LL BE INSTA LLED WITHI N 50mm O F
THE ENC LOSURE. FOR DIVISION I NSTALLATIO NS A SEAL SHALL BE IN STALLED WI THIN 18 IN CHES
OF THE ENCLOSURE
INSTALL PER # 651552-1
MAX. PRESSU RE 1000 PSI (R IGID SENSOR)
MAX. PRESSURE 435 PSI (FL EX SENSOR)
FM
APPROVED
P/N 551474 -2 Rev A
R
!
1
Level Plus Transmitter
FM16US0242 X
MTS Systems Corporation
Sensors Divi sion
3001 Sheldo n Drive, Cary, N.C. 27513
EXPLOSION PROOF FOR CL. I, DIV. 1, GR.
BCD T6...T3
CL. I, ZONE 0/1, AEx db II B+H2 T6...T3 Ga/Gb
Ta = -40° C TO +71°C ; IP 65
INPUT: 28 V (120mA) ma x
OUTPUT: 4 -20mA
WARN ING: DO NOT OPEN WHEN AN EX PLOSIVE AT MOSPHERE IS
P RESENT. FO R ZONE INST ALLATION S, A SEAL SHA LL BE INST ALLED WITH IN 50mm OF
THE EN CLOSURE. F OR DIVISION INSTALLATI ONS A SEAL SHALL BE INSTALLED W ITHIN 18 IN CHES
OF THE ENCLOSUR E
INSTALL PER # 651553-1
MAX. PRESSURE 1000 PSI (R IGID SENSOR)
MAX. PRESSU RE 435 PSI (FL EX SENSOR)
FM
APPROVED
P/N 551495-1 Rev A
R
!
1
Level Plus Transmitter
FM16US0242 X
MTS Systems Corporation
Sensors Divi sion
3001 Sheldo n Drive, Cary, N.C. 27513
EXPLOSION PROOF FOR CL. I, DIV. 1, GR.
BCD T6...T3
CL. I, ZONE 0/1, AEx db II B+H2 T6...T3 Ga/Gb
Ta = -40° C TO +71°C ; IP 65
INPUT: 28 V (120mA) ma x
OUTPUT: 4 -20mA
WARN ING: DO NOT OPEN WHEN AN EX PLOSIVE AT MOSPHERE IS
P RESENT. FO R ZONE INST ALLATION S, A SEAL SHA LL BE INST ALLED WITH IN 50mm OF
THE EN CLOSURE. F OR DIVISION INSTALLATI ONS A SEAL SHALL BE INSTALLED W ITHIN 18 IN CHES
OF THE ENCLOSUR E
INSTALL PER # 651553-1
MAX. PRESSURE 1000 PSI (R IGID SENSOR)
MAX. PRESSU RE 435 PSI (FL EX SENSOR)
FM
APPROVED
P/N 551495-1 Rev A
R
!
13.3.2.2 Labels
Page 28
Level Plus® SoClean
®
Operation Manual
I 28 I
13.3.2.3 Installation Drawing
Fig. 27: Explosionproof, FM Installation Drawing, Modbus and DDA, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-1
B
LEVEL
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
10/22/15
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
EARTH GROUND
LOOP 2-
LOOP 2+
EARTH GROUND
LOOP 1-
LOOP 1+
ZONE 1
ZONE 0
SEE NOTE 8
EARTH GROUND LUG
NOTE 3
AGENCY CONTROLLED DRAWING (US). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
FM
APPROVED
(ACP) INSTALLATIN DWG LP ANALOG
EXPLOSION PROOF US
SINGLE OR DUAL CAVITY
FM US- FM16US0242X
EXPLOSION PROOF
CL. I, DIV. 1, GR. ABCD T6...T3
CL. I, DIV. 1, GR. BCD T6...T3
CL. 1, ZN. 0/1, AEx db IIB+H2 T6...T3 Ga/Gb
Ta = -40°C to +71°C ; IP65
HAZARDOUS LOCATION
NON HAZARDOUS LOCATION
CONDUIT SEAL
CONDUIT
SEE NOTE 1
CONDUIT SEAL
5" [127mm] Minimum
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
2.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER
SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD). SEE FIGURE 2 ON PAGE 2
3. CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381mm(15")
4.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
5.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE AND PROCESS PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE N
ON-METALLIC SURFACE AND PROCESS PARTS SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH. PAINTED SURFACE OF THE EQUIPMENT MAY STORE ELECTROSTATIC CHARGE
AND BECOME A SOURCE OF IGNITION IN APPLICATIONS WITH A LOW RELATIVE HUMIDITY <~30% RELATIVE
HUMIDITY WHERE THE PAINTED SURFACE IS RELATIVELY FREE OF SURFACE CONTAMINATION
SUCH AS DIRT, DUST OR OIL. CLEANING OF THE PAINTED SURFACE SHOULD ONLY
BE DONE
WITH A DAMP CLOTH.
6. CABLES SHALL BE RATED > 5C ABOVE MAXIMUM AMBIENT TEMPERATURE.
7. TO MAINTAIN THE INGRESS PROTECTION RATING OF IP65, TEFLON TAPE (3 WRAPS) OR PIPE DOPE SHALL
BE USED. REFER TO INSTALLATION INSTRUCTIONS.
8. THE EQUIPMENT CAN BE INSTALLED IN THE BOUNDARY WALL BETWEEN A ZONE 0 AREA AND THE
LESS HAZARDOUS AREA, ZONE 1. IN THIS CONFIGURATION, THE PROCESS CONNE
CTION IS INSTALLED
IN A ZONE 0 AREA, WHILE THE TRANSMITTER HOUSING IS INSTALLED IN A ZONE 1 AREA.
9. THE APPLICABLE TEMPERATURE CLASS OF THE EQUIPMENT, AMBIENT TEMPERATURE RANGE,
AND MAXIMUM PROCESS TEMPERATURE OF THE EQUIPMENT IS AS FOLLOWS;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERAT
URE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°C
Ta+71°C
10. WHEN MOUNTING ON A MAGNETIC LEVEL GAUGE MAKE SURE THE ELECTRONIC HEAD AND PRESSURE
BARRIER HAVE A MINIMUM SPACING OF 5 INCHES. SEE INSTALLATION MANUAL FOR DETAIL
11. FLAMEPATHS ARE NOT FOR REPAIR
Page 29
Level Plus® SoClean
®
Operation Manual
I 29 I
Fig. 28: Explosionproof, FM Installation Drawing, Modbus and DDA, Page 2
DETAIL D
SCALE 3
DETAIL E
SCALE 1.60
DETAIL F
SCALE 1.2
D
E
F
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-1
B
LEVEL
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
5/17/18
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
LOOP 2-
LOOP 2+
EARTH
LOOP 1-
LOOP 1+
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
FIGURE 2
DUAL CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
FIGURE 1
SINGLE CAVITY HOUSING
(ACP) INSTALLATION DWG LP ANALOG
INTRINSICALLY SAFE US
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
Page 30
Level Plus® SoClean
®
Operation Manual
I 30 I

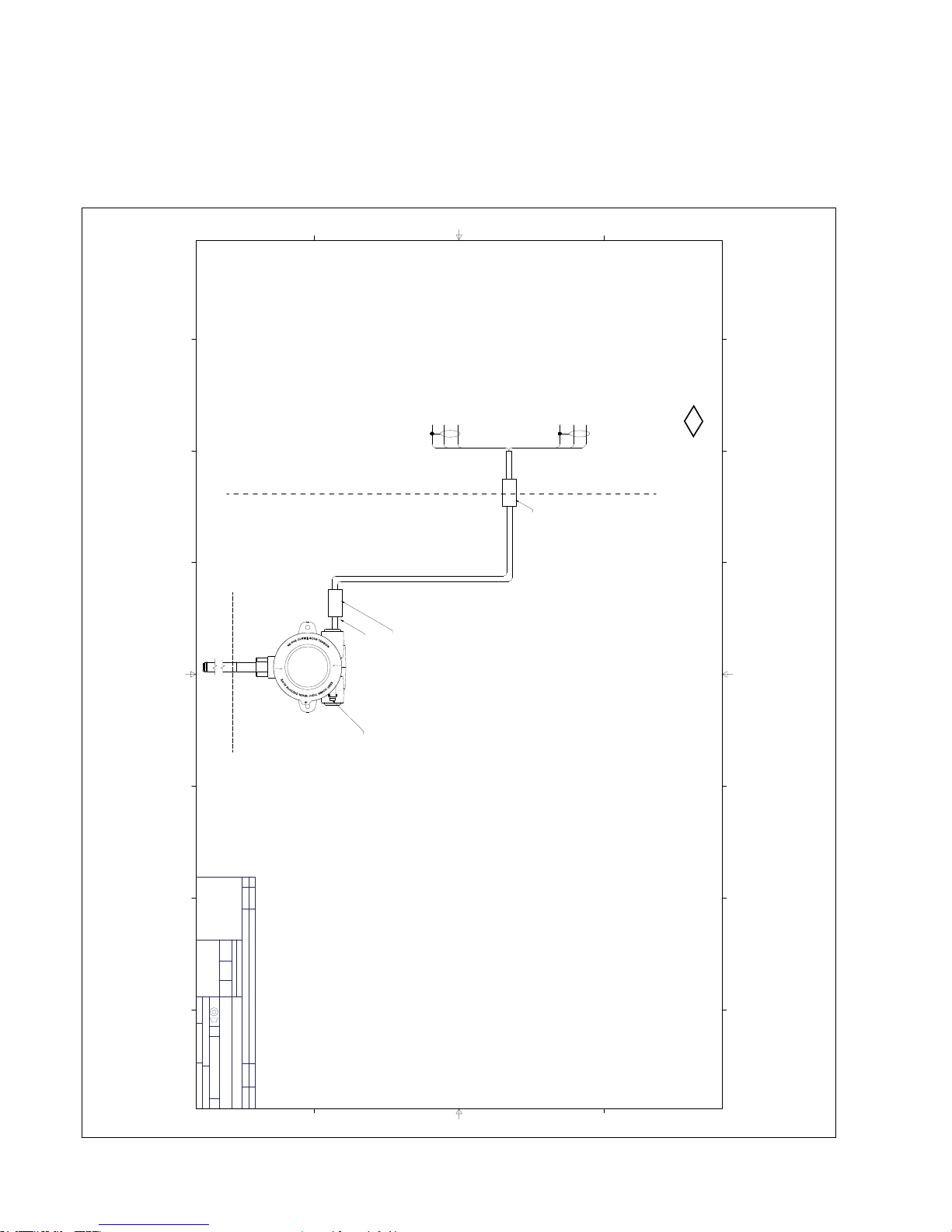

Fig. 29: Explosionproof, FM Installation Drawing, HART®, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-1
A
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
MS
6/22/16
RELEASE TO PRODUCTION
24 VDC
COMMON-
Rx /Tx+
Rx /Tx-
EARTH GROUND
EARTH GROUND
ZONE 1
ZONE 0
SEE NOTE 8
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
AGENCY CONTROLLED DRAWING (US). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
EARTH TERMINAL
(ACP) INSTALLATION DWG LP DIGITAL
EXPLOSION PROOF US
7957
LEVEL
FM
APPROVED
N/A
EXPLOSION PROOF
CL. I, DIV. 1, GR. ABCD T6...T3
CL. I, DIV. 1, GR. BCD T6...T3
CL. 1, ZN. 0/1, AEx db IIB+H2 T6...T3 Ga/Gb
Ta = -40°C to +71°C ; IP65
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLA
TIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
2.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD). SEE FIGURE 2 ON PAGE 2
3. CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381mm(15")
4.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCON
NECT POWER BEFORE SERVICING
5.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE AND PROCESS PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE AND PROCESS PARTS SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH. PAINTED SURFACE OF THE EQUIPMENT MAY STORE ELECTROSTATIC CHARGE
AND BECOME A SOURCE OF IGNITION IN APPLICATIONS WITH A LOW RELATIVE HUMIDITY <~30% RELA
TIVE
HUMIDITY WHERE THE PAINTED SURFACE IS RELATIVELY FREE OF SURFACE CONTAMINATION
SUCH AS DIRT, DUST OR OIL. CLEANING OF THE PAINTED SURFACE SHOULD ONLY BE DONE
WITH A DAMP CLOTH.
6. CABLES SHALL BE RATED > 5C ABOVE MAXIMUM AMBIENT TEMPERATURE.
7. TO MAINTAIN THE INGRESS PROTECTION RATING OF IP65, TEFLON TAPE (3 WRAPS) OR PIPE DOPE SHALL
BE USED. REFER TO INSTALLATION INSTRUCTIONS
.
8. THE EQUIPMENT CAN BE INSTALLED IN THE BOUNDARY WALL BETWEEN A ZONE 0 AREA AND THE
LESS HAZARDOUS AREA, ZONE 1. IN THIS CONFIGURATION, THE PROCESS CONNECTION IS INSTALLED
IN A ZONE 0 AREA, WHILE THE TRANSMITTER HOUSING IS INSTALLED IN A ZONE 1 AREA.
9. THE APPLICABLE TEMPERATURE CLASS OF THE EQUIPMENT, AMBIENT TEMPERATURE RANGE,
AND MAXIMUM PROCESS TEMPERATURE OF THE EQUIPMENT
IS AS FOLLOWS;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°C
Ta+71°C
10. WHEN MOUNTING ON A MAGNETIC LEVEL GAUGE MAKE SURE THE ELECTRONIC HEAD AND PRESSURE
BARRIER HAVE A M
INIMUM SPACING OF 5 INCHES. SEE INSTALLATION MANUAL FOR DETAIL
11. FLAMEPATHS ARE NOT FOR REPAIR
FM US- FM16US0242X
CONDUIT SEAL
CONDUIT
SEE NOTE 1
CONDUIT SEAL
Page 31
Level Plus® SoClean
®
Operation Manual
I 31 I

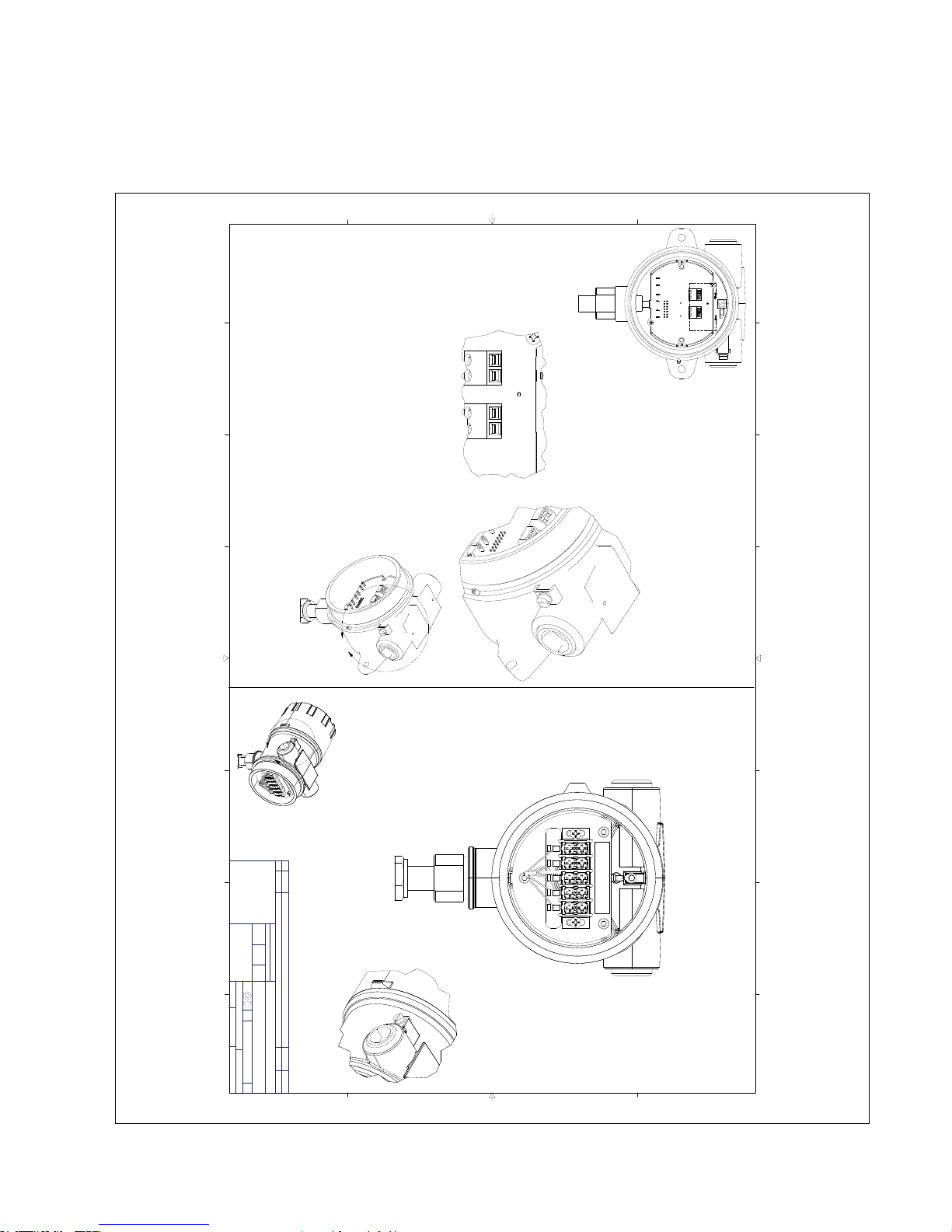

Fig. 30: Explosionproof, FM Installation Drawing, HART®, Page 2
DETAIL F
SCALE 1.60 : 1
DETAIL G
SCALE 3 : 1
DETAIL H
SCALE 1.2
F
G
H
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO #
DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-1
A
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
MS
10/24/14
RELEASE TO PRODUCTION
+24V
GND
EARTH
TX/RX+
TX/RX-
GND
+24V
TX/RX-
TX/RX+
EARTH
FIGURE 1
SINGLE CAVITY
FIGURE 2
DUAL CAVITY HOUSING
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
(ACP) INSTALLATION DWG LP DIGITAL
EXPLOSION PROOF U.S.A
+
2
4
V
G
N
D
E
A
R
T
H
T
x
/
R
x
+
T
x
/
R
x
-
7957
Page 32
Level Plus® SoClean
®
Operation Manual
I 32 I
13.4 FMC (CEC)
13.4.1 Intrinsically Safe
13.4.1.1 Specific conditions of safe use
1. The apparatus enclosure contains aluminum and is considered to
constitute a potential risk of ignition by impact or friction. Care
must be taken into account during installation and use to prevent
impact or friction. (When installed in a Ga Approval)
2. The maximum permitted ambient temperature of the Level Plus
®
Digital/Analog Level Transmitter is 71 °C. To avoid the effects of
process temperature and other thermal effects care shall be taken
to ensure the surrounding ambient and the ambient inside the
transmitter housing does not exceed 71°C.
3. Some models contain non-metallic enclosure parts, to prevent the
risk of electrostatic sparking the nonmetallic surface should only
be cleaned with a damp cloth.
13.4.1.2 Labels
Fig. 31: Intrinsically Safe FMC label, Modbus and DDA, NEMA Housing
Fig. 32: Intrinsically Safe FMC label, HART
®
, NEMA Housing
Fig. 33: Intrinsically Safe FMC label, Modbus and DDA, Single and Dual Cavity Housing
Fig. 34: Intrinsically Safe FMC label, HART
®
, Single and Dual Cavity Housing
1
INTRINSICALLY SAFE
CL. I, Div. 1, GR. ABCD
CL.I, ZONE 0/1, Ex ia IIC T4
Ta = -50°C to +71°C
;
IP66
when connected in accordance with FM approved
installation drawing # 651543-2
lorsqu'il est connecté en conformité avec FM approuvé
le plan d'installation # 651543-2
WARNING: REFER TO INSTALLATION DRAWING FOR CAUTION/WARNINGS
AVERTISSEMENT : se référer au schéma d'installaon à la prudence /
AVERTISSEMENTS
MTS Systems Corporation
Sensors Division
3001 Sheldon Dr.
Cary, NC 27513
Model No:
Modèle No:
Serial No:
Numéro de série:
Date:
R
8 POINT TEXT
SIZE
FM
APPROVED
C
Level Plus Transmitter
NOTES:
1. STANDARD LETTERING UNIVERS 55
OR ITC GARAMOND BOOK.
2. DIMENSIONS IN BRACKETS [ ] ARE
IN INCHES.
3. MATERIAL: 3M 7883 METALLIZED
POLYESTER FOIL W/GAS RESISTANT
P/N: 551629-2 Rev D
®
1
WARNING: REFER TO INSTALLATION D RAWING FOR CAUTION/WARNINGS
AVERTISSEMENT : se réf érer au schéma d'installation à la pruden ce /
AVERTISSEMENTS
INTRINSICALLY SAFE
CL. I, Div. 1, GR. ABCD
CL.I Zone 0/1 Ex ia IIC T4
Ta = -50°C to +71°C ; IP65
when connected in accordance with FM a
pproved
installation drawing
# 651544-2
lorsqu'il est connecté en conformité avec FM approuvée
dessin d'installation # 651544-2
MTS Systems Corporation
Sensors Division
3001 Sheldon Dr.
Cary, NC 27513
Model No:
Modèle No:
Serial No:
Numéro de série:
Date:
R
8 POINT TEXT
SIZE
FM
APPROVED
C
Level Plus Transmitter
P/N: 551641-2 Rev D
NOTES:
1. STANDARD LETTERING UNIVERS 55
OR ITC GARAMOND BOOK.
2. DIMENSIONS IN BRACKETS [ ] ARE
IN INCHES.
3. MATERIAL: 3M 7883 METALLIZED
POLYESTER FOIL W/GAS RESISTANT
INK.
1.78 [.07]
1.78 [.07]
28.70 [1.13]
15.80 [.62]
34.69 [1.37]
86.30 [3.40]
R3.30 [.13]
®
1
MTS Systems Corp. Sensors Division
3001 Sheldon Drive, Cary, N.C. 27513
INTRINSICALLY SAFE: CL. I, Div. 1, GR. ABCD, CL.I Zone 0/1 Ex ia IIC T4
Ta = -50°C TO +71°C ; IP65
REFER TO INSTALLATION DWG #651544-2 FOR CAUTION/WARN INGS
WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
Avertissement : Se référer au document DWG # 651544-2 précautions d'installations
ATTENTION : La substitution de composants peut com promettre la sécurité intrinsèque
LPXXXXXXXXXXXXXXXXXXXX
XXXXXXXXX XX-XX
35.05 [1.38]
"L1"
∆ "L2"
17.53 [.69]
R
FM
C
APPROVED
Level Plus Transmitter
P/N 551704-X Rev E
FM LOGO ARTWORK
4.5 POINT TEXT SIZE
7.5 POINT SIZE
USE MTS LOGO ARTWORK
14.0 POINT SIZE
"D1"
TABLE 1
DASH # HOUSING
"L1" "L2" "D1"
-1
ADALET
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
65 [2.56] 58 [2.28] Ø 3.05 [.12] x2
1
MTS Systems Corp. Sensors Division
3001 Sheldon Drive, Cary, N.C. 27513
INTRINSICALLY SAFE: CL. I, Div. 1, GR. ABCD, CL. I Zone 0/1 Ex ia IIC T4
Ta = -50°C TO +71°C ; IP65
REFER TO INSTALLATION DWG #651543-2 FOR CAUTION/WARNINGS
WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
Avertissement : Se référer au document DWG # 651543-2 pr écautions d'installations
ATTENTION : La substitution de composants peut compromettre la sécurité
intrinsèque
LPXXXXXXXXXXXXXXXXXXXX
XXXXXXXXX XX-XX
35.05 [1.38]
"L1"
∆ "L2"
17.53 [.69]
R
FM
C
APPROVED
Level Plus Transmitter
P/N 551702-X Rev E
FM LOGO ARTWORK
4.5 POINT TEXT SIZE
7.5 POINT SIZE
USE MTS LOGO ARTWORK
14.0 POINT SIZE
"D1"
TABLE 1
DASH # HOUSING
"L1" "L2" "D1"
-1
ADALET
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
65 [2.56] 58 [2.28] Ø 3.05 [.12] x2
Page 33
Level Plus® SoClean
®
Operation Manual
I 33 I
13.4.1.3 Installation Drawing
Fig. 35: Intrinsically Safe FMC installation drawing, Modbus and DDA, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-2
1
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
24 VDC
COMMON- >
Rx/Tx+
Rx /Tx-
GROUND
EARTH GROUND
(SEE NOTE 4) TERRE
( Voir note 4 )
EARTH GROUND
(SEE NOTE 4) TERRE
( Voir note 4 )
Rx/Tx-
Rx/Tx+
GND
+24V
SAFETY BARRIER
Barrière de sécurité
SAFETY BARRIER
Barrière de sécurité
SAFETY BARRIER
Barrière de sécurité
NOTES: (FOR NOTES IN FRENCH SEE PAGE 3, NOTES POUR VOIR EN FRANÇAIS PAGE 3)
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN
INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 457 MM(18").
2.LOOP CABLE MUST BE 24 AWG TO 14 AWG (.511MM² to 1.6MM²)
SHIELDED TWISTED PAIR CABLE WITH SHIELD. CABLE CAPACITANCE MUST
BE LESS THAN 30 pF PER FOOT (98 pF PER M). CABLE SHIELD IS CONNECTED
TO SYSTEM GROUND IN NON-HAZARDOUS AREA. SEE INSTALLATION MANUAL FOR
ADDITIONAL CABLE INFORMATION.
3.T
HE RESISTANCE BETWEEN EARTH GROUND AND THE INTRINSICALLY SAFE GROUND
MUST BE LESS THAN 1 OHM. 4.THE TRANSDUCER FRAME SHALL BE GROUNDED TO EARTH GROUND DIRECTLY OR THROUGH
THE EQUIPMENT ON WHICH IT IS MOUNTED.
5. CONTROL EQUIPMENT CONNECTED TO ASSOCIATED APPARATUS MUST
NOT USE OR GENERATE MORE THAN 250 VRMS OR VDC
6.ASSOCIATED APPARATUS MANUFACTURER'S INSTALLATION DRAWING MUST
BE FOLLOWE
D WHEN INSTALLING THIS EQUIPMENT.
7.ONLY USE CEC APPROVED BARRIERS.
8.ENTITY PARAMETERS:
SUPPLY: Rx/Tx- : Rx/Tx+ :
Ui = 28VDC Ui= 8.6V Ui= 8.6V
Ii = 100mA Ii = 10mA Ii = 10mA
Ci = 0 µF Ci = 0 µF Ci = 0 µF
Li = 0 µH Li = 0 µH Li = 0 µH
Pi = 0.7 W Pi= 0.0215 W P i= 0.0215 W
9.THE ENTITY CONCEPT ALLOWS INTERCONNECTION OF INTRINSICALLY SAFE APPARA
TUS
WITH ASSOCIATED APPARATUS WHEN THE FOLLOWING IS TRUE:
Vmax or Ui ≥ Voc, Vt or Uo;
Imax or Ii ≥ Isc, It or Io;
Pmax or Pi ≥ Po;
Ca ≥ Ci + Ccable;
La ≥ Li + Lcable.
10.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD).
11.FOR INSTALLATION WITHI
N CANADA SEE, CANADIAN ELECTRICAL CODE,
CSA No. C22.1.
12.THE MAXIMUM PERMITTED AMBIENT TEMPERATURE OF THE LEVEL PLUS DIGITAL/ANALOG
LEVEL TRANSMITTER IS 71 °C. TO AVOID THE EFFECTS OF PROCESS TEMPERATURE AND
OTHER THERMAL EFFECTS CARE SHALL BE TAKEN TO ENSURE THE SURROUNDING AMBIENT
AND THE AMBIENT INSIDE THE TRANSMITTER HOUSING DOES NOT EXCEED 71°C
13.CAUTION: FLEXIBLE GAUG
ES HAVE A MINIMUM BEND RADIUS OF 381MM(15")
14.WARNING: THE APPARATUS ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
CONSTITUTE A POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION. CARE MUST BE TAKEN
INTO ACCOUNT DURING INSTALLATION AND USE TO PREVENT IMPACT OR FRICTION
15.WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
16.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COM
BUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
17.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
NON HAZARDOUS LOCATION
NON ZONE DANGEREUSE
HAZARDOUS LOCATION ZONE DANGEREUSE
AGENCY CONTROLLED DRAWING (CANADA). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
AGENCE DESSIN contrôlée ( CANADA ) . AUCUN CHANGEMENT sans l'accord préalable AGENCE APPROBATION
EARTH TERMINAL
BORNE DE TERRE
(ACP) INSTALLATIN DWG LP DIGITAL
INTRINSICALLY SAFE FOR CANADA
LEVEL
FM
APPROVED
C
N/A
INTRINSICALLY SAFE (INTRINSÈQUEMENT SÛR)
CL. I, DIV. 1, GR. ABCD
CL. I Zone 0/1 Ex ia IIC T4
Ta = -50 to 71°C ; IP65
Page 34
Level Plus® SoClean
®
Operation Manual
I 34 I

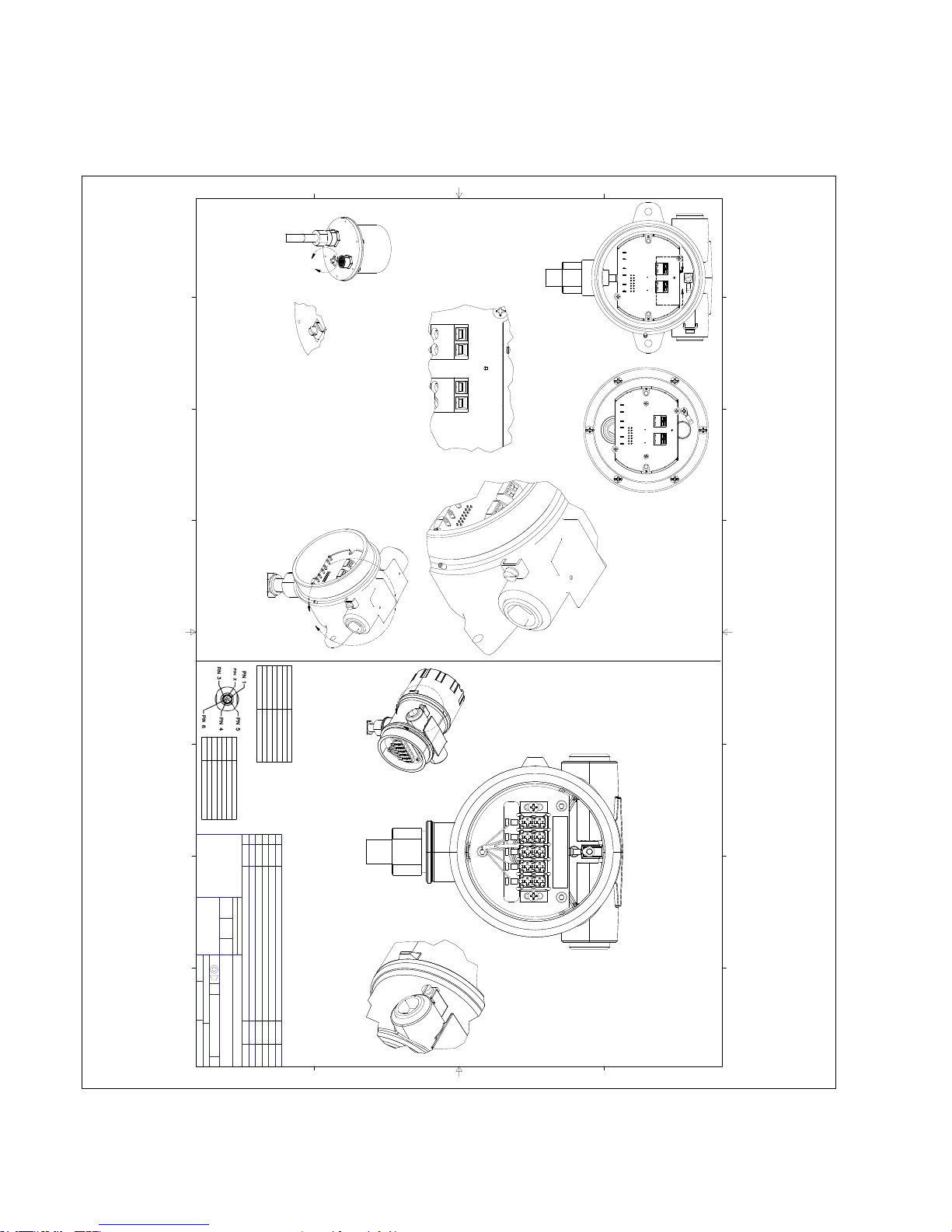

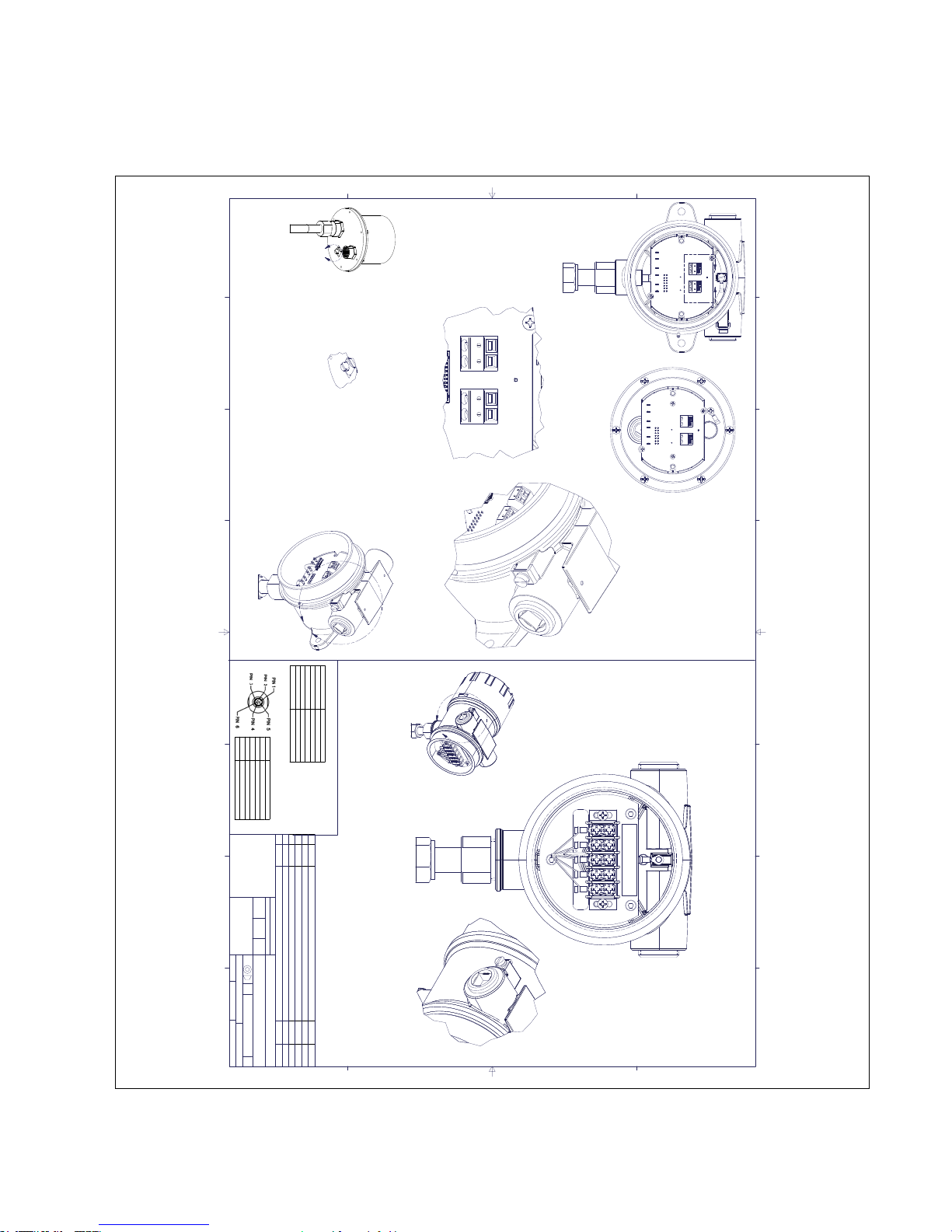

Fig. 36: Intrinsically Safe FMC installation drawing, Modbus and DDA, Page 2
DETAIL A
SCALE 1.60 : 1
DETAIL C
SCALE 3 : 1
DETAIL D
SCALE 1.2
DETAIL E
SCALE 1 : 1
A
C
D
E
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-2
2
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
+24V
GND
EARTH
TX/RX+
TX/RX-
GND
+24V
TX/RX-
TX/RX+
EARTH
GND
+24V
TX/RX-
TX/RX+
EARTH
FIGURE 1
SINGLE CAVITY & NEMA HOUSING
(Seule cavité & NEMA LOGEMENT)
FIGURE 2
DUAL CAVITY HOUSING
(Cavité double LOGEMENT)
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
Le client doit relier la masse LUG à l'extérieur pour le système au sol SÉCURITÉ DE TERRE
WARNING:
CONDUIT SEALS REQUIRED WITHIN 457 MM (18") OF HOUSING.
Étanchéité des conduits requis dans les 457 mm ( 18 " ) DU LOGEMENT
(ACP) INSTALLATIN DWG LP DIGITAL
INTRINSICALLY SAFE FOR CANADA
+
2
4
V
G
N
D
E
A
R
T
H
T
x
/
R
x
+
T
x
/
R
x
-
PIN WIRING CHART (FOR NEMA GAGUE)
WIRING CHART (FOR NEMA GAUGE)
LEVEL
WIRE COLOR SIGNAL
RED 24 V PWR
BLACK 0 V PWR
BLUE
N/A
WHITE RX TX +
GREEN RX TX -
DRAIN WIRE EARTH GROUND
PIN #
SIGNAL
PIN 1 24 V PWR
PIN 2
0 V PWR
PIN 3
N/A
PIN 4 RX TX+
PIN 5
RX TX-
PIN 6
EARTH GROUND
Page 35
Level Plus® SoClean
®
Operation Manual
I 35 I
Fig. 37: Intrinsically Safe FMC installation drawing, Modbus and DDA, Page 3
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-2
3
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
NOTES:
1. La réglementation doit être respectée suivant les codes locaux et nati
onaux
LORS D'INSTALLATION DU CAPTEUR DE NIVEAU DANS DES ENVIRONNEMENTS DANGEREUX.
Sceller tous les conduits à moins de 457 mm (18 " ).
2. Boucle de câble doit être de 24 AWG à 14 AWG (.511MM2 à 1.6MM2)
Paire Torsadée Blindée avec le bouclier. La capacité du câble devra
Être inférieure à 30 pF PAR PIED (98 pF PAR M). Le blindage du câble est raccordé
À la terre EN ZONE NON DANGEREUSE. VOIR manuel d'ins
tallation
INFORMATIONS de câble supplémentaire. 3. La résistance entre la TERRE ET la zone INTRINSEQUE
Doit être inférieure à 1 ohm.
4. Le boîtier du capteur doit être relié à la TERRE directement ou par
L'équipement sur lequel il est monté.
5. Equipement de commande relié à l'appareil associé ne doit pas utiliser ou générer plus de 250 VRMS OU VDC
6 Le plan d'installation associé du fabricant de l'a
ppareil doit être suivi lors de l'installation de cet équipement
7. UTILISER UNIQUEMENT DES BARRIERES APPROUVÉES CEC.
8. PARAMÈTRES :
SUPPLY: Rx/Tx- : Rx/Tx+ :
Ui = 28VDC Ui= 8.6V Ui= 8.6V
Ii = 100mA Ii = 10mA Ii = 10mA
Ci = 0 µF Ci = 0 µF Ci = 0 µF
Li = 0 µH Li = 0 µH Li = 0 µH
Pi = 0.7 W Pi= 0.0215 W Pi= 0.0215 W
9. Le concept de l'entité permet l'interconnexion de l'appareil de sécurité i
ntrinsèque avec un appareil associé lorsque la suivante est vraie :
Vmax or Ui > Voc, Vt or Uo;
Imax or Ii > Isc, It or Io;
Pmax or Pi > Po;
Ca > Ci + Ccable;
La > Li + Lcable.
10. ENCEINTES à cavité double : Les raccordements clients, seront effectués au bornier d'alimentation sur le côté du LOGEMENT boîtier (pas au bornier
carte d'interconnexion)
11. Pour une INSTALLATION AU CANADA, suivre LE CODE CA
NADIEN DE L'ÉLECTRICITÉ,
CSA No C22.1.
12. La TEMPÉRATURE AMBIANTE maximum autorisé pour le capteur LEVEL PLUS version DIGITAL ou ANALOGIQUE est de 71 C°. Pour éviter les effets
de la température sur le processus des protections thermiques doivent être prises pour assurer la température ambiante environnante et ainsi qu'à l'intérieur
du boîtier du capteur la température ne doit pas dépasser 71 C°
13. ATTENTION : Le flexible du capteur a un rayon minimum de courbure de 381 mm (15 ")
14. ATTENTION : Le boîtier de l'appareil contient de l'aluminium et est considéré
CONSTITUER UN RISQUE potentiel de générer des étincelles en cas de choc ou de frottement. VEUILLEZ EN TENIR COMPTE LORS DE
L'INSTALLATION ET UTILISATION POUR ÉVITER choc ou frottement
15. ATTENTION : La substitution de composants p
eut compromettre la sécurité intrinsèque.
16. ATTENTION: Pour éviter l'inflammation d'atmosphères inflammables ou combustibles,
DÉBRANCHEZ L'ALIMENTATION AVANT D'INTERVENIR 17. ATTENTION : l'équipement contient DES PIECES NON METALLIQUE, POUR EVITER
LE RISQUE ÉLECTROSTATIQUE, étincelles. La surface non métallique doit SEULEMENT Être nettoyée avec un chiffon humid
(ACP) INSTALLATIN DWG LP DIGITAL
INT
RINSICALLY SAFE FOR CANADA
LEVEL
Page 36
Level Plus® SoClean
®
Operation Manual
I 36 I

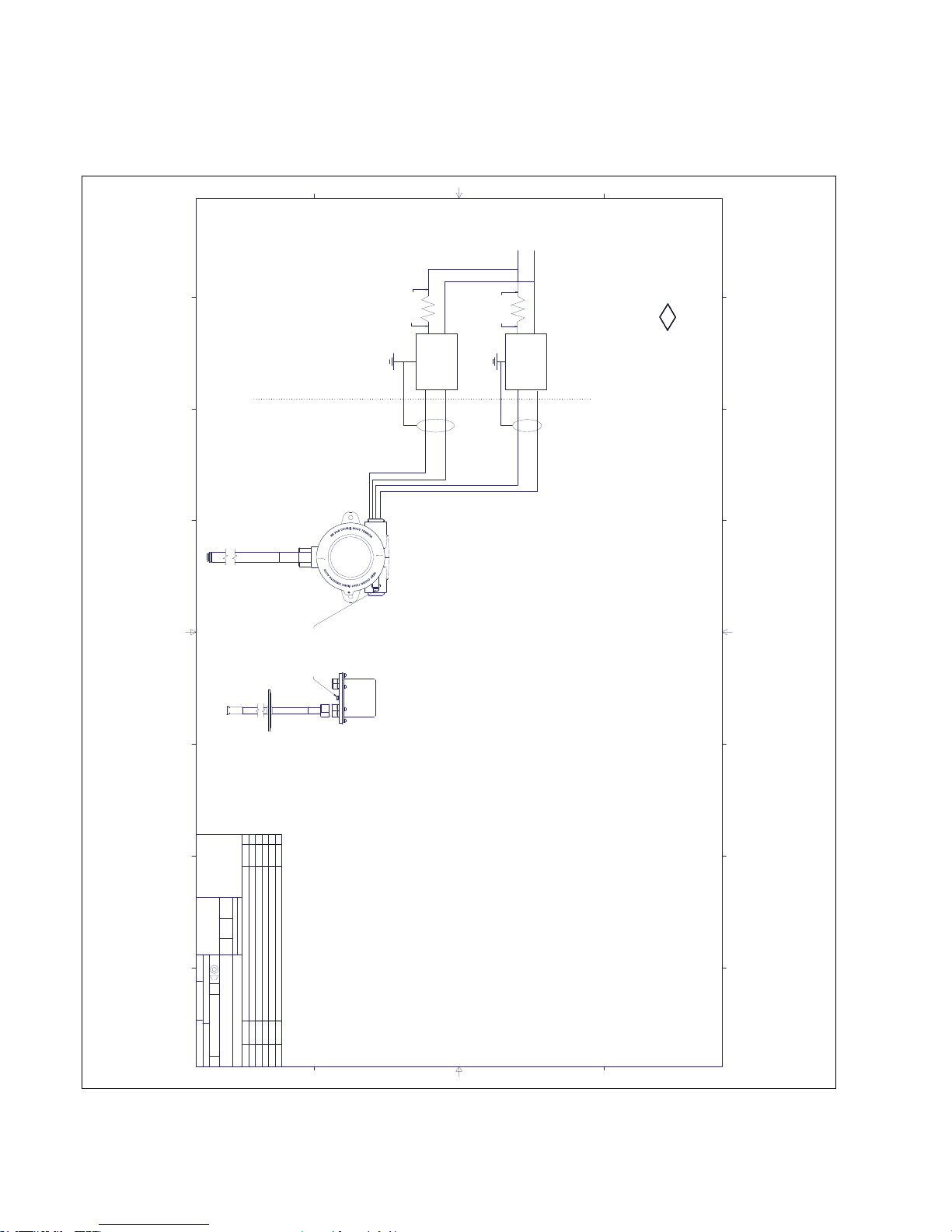

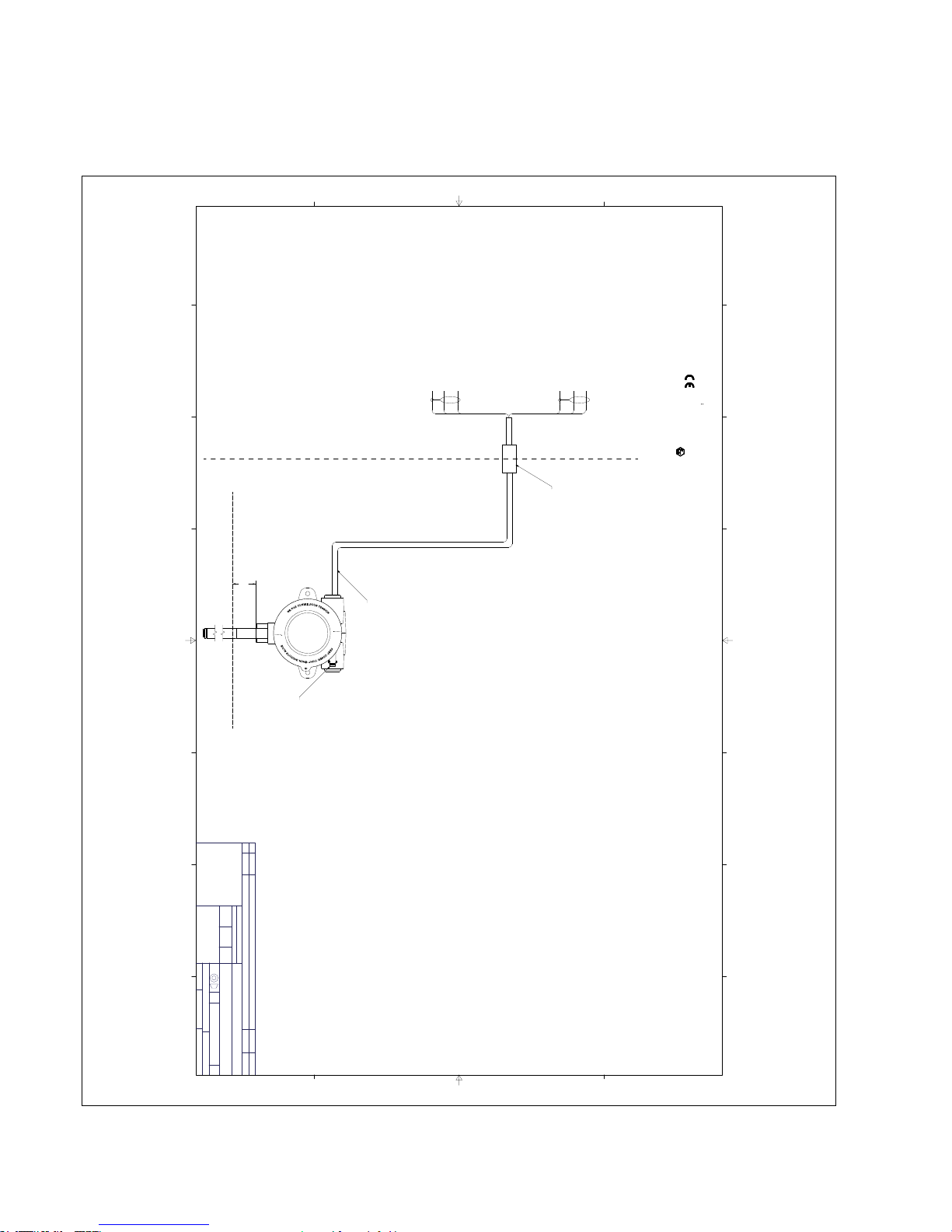

Fig. 38: Intrinsically Safe FMC installation drawing, HART®, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-2
LEVEL
1
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
NON HAZARDOUS LOCATION
NON ZONE DANGEREUSE
HAZARDOUS LOCATION
ZONE DANGEREUSE
NOTES: (FOR NOTES IN FRENCH SEE PAGE 3, NOTES POUR VOIR EN FRAN��AIS PAGE 3) 1. ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE MTS LP SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 457 MM (18").
2. LOOP CABLE MUST BE 24 AWG TO 14 AWG (.511MM² to 1.6MM²)
SHIELDED
TWISTED PAIR CABLE WITH SHIELD. CABLE CAPACITANCE MUST
BE LESS THAN 30 pF PER FOOT (98 pF PER m). CABLE SHIELD IS CONNECTED
TO SYSTEM GROUND IN NON-HAZARDOUS AREA. SEE INSTALLATION MANUAL FOR
ADDITIONAL CABLE INFORMATION.
3. THE RESISTANCE BETWEEN EARTH GROUND AND THE INTRINSICALLY SAFE GROUND
MUST BE LESS THAN 1 OHM.
4. THE TRANSDUCER FRAME SHALL BE GROUNDED TO EARTH GROUND
D
IRECTLY OR THROUGH THE EQUIPMENT ON WHICH IT IS MOUNTED.
5. CONTROL EQUIPMENT CONNECTED TO ASSOCIATED APPARATUS MUST
NOT USE OR GENERATE MORE THAN 250 VRMS OR VDC
.
6. ASSOCIATED APPARATUS MANUFACTURER'S INSTALLATION DRAWING MUST
BE FOLLOWED WHEN INSTALLING THIS EQUIPMENT
7. ONLY USE CEC APPROVED BARRIERS.
8. APPROVED LOOP SEPARATION METHODS:
*RUN LOOPS IN SEPARATE CABLES
*R
UN LOOPS IN SEPARATE GROUNDED SHIELDS
9. ENTITY PARAMETERS EACH LOOP:
Ui = 28 VDC
Ii = 120 mA
Ci = 0 µF
Li = 5 µH
Pi = 840 mW
10. DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD)
11 FOR INSTALLATION WITHIN CANADA, SEE CA
NADIAN ELECTRICAL CODE, CSA No C22.1.
12.THE MAXIMUM PERMITTED AMBIENT TEMPERATURE OF THE LEVEL PLUS DIGITAL/ANALOG
LEVEL TRANSMITTER IS 71 °C. TO AVOID THE EFFECTS OF PROCESS TEMPERATURE AND
OTHER THERMAL EFFECTS CARE SHALL BE TAKEN TO ENSURE THE SURROUNDING AMBIENT
AND THE AMBIENT INSIDE THE TRANSMITTER HOUSING DOES NOT EXCEED 71°C
13.CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEN
D RADIUS OF 381MM(15")
14. WARNING: THE APPARATUS ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
CONSTITUTE A POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION. CARE MUST BE TAKEN
INTO ACCOUNT DURING INSTALLATION AND USE TO PREVENT IMPACT OR FRICTION
15.WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
16.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES
.
DISCONNECT POWER BEFORE SERVICING.
17.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
EARTH GROUND LUG
NOTE 3
AGENCY CONTROLLED DRAWING (Canada). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
AGENCE DESSIN contrôlée ( CANADA ) . AUCUN CHANGEMENT sans l'accord préalable AGENCE APPROBATION
24 VDC
CONTROL
INPUT 1
CONTROL
INPUT 2
APPROVED SAFETY
BARRIER sécurité approuvé
BARRIÈRE
LOOP VOLTAGE
SHIELD
SHIELD
LOOP 1+
LOOP 1-
LOOP 2+
LOOP 2-
FM
APPROVED
C
(ACP) INSTALLATIN DWG LP ANALOG
INTRINSICALLY SAFE FOR CANADA
SINGLE OR DUAL CAVITY
NEMA HOUSING
F
INTRINSICALLY SAFE
CL. I, DIV. 1, GR. ABCD
CL.I Zone 0/1 Ex ia IIC T4
Ta = -50 to 71°C ; IP65
APPROVED SAFETY
BARRIER
sécurité approuvé
BARRIÈRE
EARTH GROUND
(SEE NOTE 4)
TERRE
( Voir note 4 )
EARTH GROUND
(SEE NOTE 4)
TERRE
( Voir note 4 )
Page 37
Level Plus® SoClean
®
Operation Manual
I 37 I

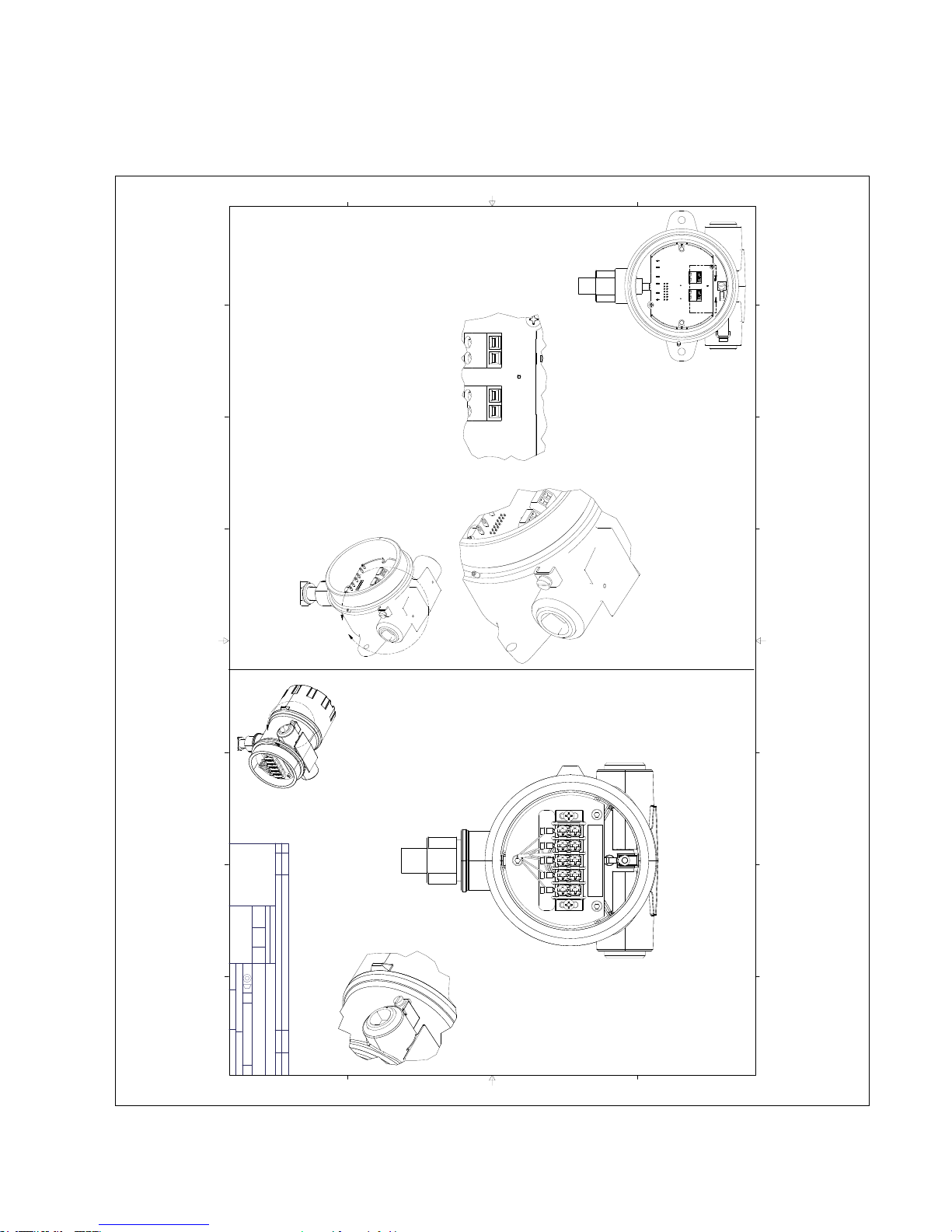

Fig. 39: Intrinsically Safe FMC installation drawing, HART®, Page 2
DETAIL D
SCALE 3
DETAIL E
SCALE 1.60
DETAIL F
SCALE 1.2
DETAIL H
SCALE 1 : 1
D
E
F
H
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-2
LEVEL
2
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
LOOP 2-
LOOP 2+
EARTH
LOOP 1-
LOOP 1+
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
Le client doit relier la masse LUG à l'extérieur pour le système au sol SÉCURITÉ DE TERRE
WARNING:
CONDUIT SEALS REQUIRED WITHIN 457 MM (18") OF HOUSING.
Étanchéité des conduits requis dans les 457 mm ( 18 " ) DU LOGEMENT.
FIGURE 2
DUAL CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
FIGURE 1
SINGLE CAVITY & NEMA HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
F
PIN WIRING CHART (FOR NEMA GAUGE)
WIRING CHART(FOR NEMA GAUGE)
(ACP) INSTALLATIN DWG LP ANALOG
INTRINSICALLY SAFE FOR CANADA
WIRE COLOR SIGNAL
RED LOOP 1+
BLACK LOOP 1-
BLUE
LOOP 2-
WHITE LOOP 2+
GREEN
N/A
DRAIN WIRE EARTH GROUND
PIN #
SIGNAL
PIN 1 LOOP 1-
PIN 2 LOOP 1+
PIN 3 LOOP 2-
PIN 4 LOOP 2+
PIN 5
N/A
PIN 6
EARTH GROUND
Page 38
Level Plus® SoClean
®
Operation Manual
I 38 I
Fig. 40: Intrinsically Safe FMC installation drawing, HART®, Page 3
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-2
LEVEL
3
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
NOTES:
1. La réglementation doit être respectée suivant les codes locaux et
nationaux
LORS D'INSTALLATION DU CAPTEUR DE NIVEAU DANS DES ENVIRONNEMENTS DANGEREUX.
Sceller tous les conduits à moins de 457 mm (18 " ).
2. Boucle de câble doit être de 24 AWG à 14 AWG (.511MM2 à 1.6MM2)
Paire Torsadée Blindée avec le bouclier. La capacité du câble devra
Être inférieure à 30 pF PAR PIED (98 pF PAR M). Le blindage du câble est raccordé
À la terre EN ZONE NON DANGEREUSE. VOIR manuel d
'installation
INFORMATIONS de câble supplémentaire.
3. La résistance entre la TERRE ET la zone INTRINSEQUE
Doit être inférieure à 1 ohm.
4. Le boîtier du capteur doit être relié à la TERRE directement ou par
L'équipement sur lequel il est monté.
5. Equipement de commande relié à l'appareil associé ne doit pas utiliser ou générer plus de 250 VRMS OU VDC
6 Le plan d'installation associé du fabricant de
l'appareil doit être suivi lors de l'installation de cet équipement
7. UTILISER UNIQUEMENT DES BARRIERES APPROUVÉES CEC
8. approuvent les méthodes de séparation Loop:
* BOUCLES RUN dans des câbles séparés
* BOUCLES RUN Shields terre séparés
9. Paramètres d'entité chaque boucle:
Ui = 28 VDC
Ii = 120 mA
Ci = 0 µF
Li = 5 µH
Pi = 840 mW
10. ENCEINTES à cavité double : Les raccordements clients, seront effectués au bornier d'alimentation sur le côté du
LOGEMENT boîtier (pas au bornier carte d'interconnexion)
11. Pour une INSTALLATION AU CANADA, suivre LE CODE CANADIEN DE L'ÉLECTRICITÉ,
CSA No C22.1.
12. La TEMPÉRATURE AMBIANTE maximum autorisé pour le capteur LEVEL PLUS version DIGITAL ou
ANALOGIQUE est de 71 C°.
Pour éviter les effets de la température sur le processus des protections thermiques
doivent être prises pour assurer la température ambiante environnante et ainsi qu'à l'intérieur du boîtier du capteur la
température ne doit pas dépasser 71 C°
13. ATTENTION : Le flexible du capteur a un rayon minimum de courbure de 381mm (15 ")
14. ATTENTION : Le boîtier de l'appareil contient de l'aluminium et
est considéré
CONSTITUER UN RISQUE potentiel de générer des étincelles en cas de choc ou de frottement. VEUILLEZ EN TENIR
COMPTE LORS DE L'INSTALLATION ET UTILISATION POUR ÉVITER choc ou frottement
15. ATTENTION : La substitution de composants peut compromettre la sécurité intrinsèque.
16. ATTENTION: Pour éviter l'inflammation d'atmosphères inflammables ou combustibles,
DÉBRANCHEZ L'ALIMENTATION AV
ANT D'INTERVENIR
17. ATTENTION : l'équipement contient DES PIECES NON METALLIQUE, POUR EVITER
LE RISQUE ÉLECTROSTATIQUE, étincelles. La surface non métallique doit SEULEMENT Être nettoyée avec un
chiffon humid
F
(ACP) INSTALLATIN DWG LP ANALOG
INTRINSICALLY SAFE FOR CANADA
Page 39
Level Plus® SoClean
®
Operation Manual
I 39 I
13.4.2 Explosionproof / Flame Proof
13.4.2.1 Specific Conditions of Safe Use
1. Warning: The equipment contains non-metallic enclosure and
process parts, to prevent the risk of electrostatic sparking. The
non-metallic surface should only be cleaned with a damp cloth.
Painted surface of the equipment may store electrostatic charge
and become a source of ignition in applications with a low relative
humidity <~30 % relative humidity where the painted surface is
relatively free of surface contamination such as dirt, dust or oil.
Cleaning of the painted surface should only be done with a damp
cloth.
2. Cables shall be rated > 5 °C above maximum ambient
temperature.
3. To maintain the ingress protection rating of IP65, Teflon™
tape (3 wraps) or pipe dope shall be used. Refer to Installation
Instructions.
4. The equipment can be installed in the boundary wall between
an EPL Ga area and the less hazardous area, EPL Gb. In this
configuration, the process connection is installed in EPL Ga, while
the transmitter housing is installed in EPL Gb. Refer to installation
instructions.
5. Flexible gauges have a minimum bend radius of 381 mm (15in.).
6. Flamepaths not for repair.
7. The applicable temperature class, ambient temperature range and
process temperature range of the equipment is as follows:
• T3 with Process Temperature range −40 °C to +150 °C
• T4 with Process Temperature range −40 °C to +135 °C
• T5 with Process Temperature range −40 °C to +100 °C
• T6 with Process Temperature range −40 °C to +85 °C
• Ambient Temperature Range is −40 °C ≤ Ta ≤ 71 °C
8. When mounting on a MLG (magnetic level gauge) make sure the
electronic head and pressure barrier have a minimum spacing of
5 in.. See Installation Manual for detail.
Fig. 41: Explosionproof, FMC label, Modbus or DDA Housing Option G, H, or L
Fig. 42: Explosionproof, FMC label, Modbus or DDA, Housing Option D, E
Fig. 43: Explosionproof, FMC label, HART
®
, Housing Option G, H, or L
Fig. 44: Explosionproof, FMC label, HART
®
, Housing Option D, E
1
MTS Systems Corpo ration
Sensors Division
3001 Sheldon Driv e, Cary, N.C. 27513
Level Plus Transmitter
FM16CA0130X
INSTALL PER # 65 1552-2
MAX. PRESSURE 10 00 PSI (RIGID SENSO R)
MAX. PRESSURE 43 5 PSI (FLEX SENSOR)
INPUT: 28V (120 mA)max
OUTPUT: RS485
WARNING: DO NOT OPEN WHEN AN EXPLOSIVE ATM OSPHERE IS
PRESE NT. FOR ZONE INST ALLATIONS, A SEAL SHALL BE INSTALLE D WITHIN 50mm OF
THE ENCLOS URE. FOR DIVISION INSTALLATIONS A SEAL SHALL BE INST ALLED WITHIN 18 I NCHES
OF THE ENCL OSURE
ATTENTION : NE PAS O UVRIR UNE ATMOSP HÈRE EXPLOSIVE PR ESENT.
POUR INSTA LLATIONS DE ZONE, UN SORTIE EST INST ALLÉ DANS LES 50 mm DE L'ENCEINTE .
POUR INSTA LLATIONS DE DIVISI ON ALE SORTIE EST INSTALLÉ DANS LES 18 POUCES DE L'EN CEINTE
EXPLOSIONPROOF CL. I, DIV. 1, GR BCD T6...T3.
Ex db IIB+H2 T6... T3 Ga/Gb
Ta = -40°C to +7
1°C ; IP 65
R
FM
APPROVED
P/N 551706-1 REV A
!
C
1
MTS Systems Corpo ration
Sensors Division
3001 Sheldon Driv e, Cary, N.C. 27513
Level Plus Transmitter
FM16CA0130X
INSTALL PER # 65 1552-2
MAX. PRESSURE 10 00 PSI (RIGID SENSO R)
MAX. PRESSURE 43 5 PSI (FLEX SENSOR)
INPUT: 28V (120 mA)max
OUTPUT: RS485
WARNING: DO NOT OPEN WHEN AN EXPLOSIVE ATM OSPHERE IS
PRESE NT. FOR ZONE INST ALLATIONS, A SEAL SHALL BE INSTALLE D WITHIN 50mm OF
THE ENCLOS
URE. FOR DI VISION INSTALLATIO NS A SEAL SHALL B E INSTALLED WITHI N 18 INCHES
OF THE ENCL OSURE
ATTENTION : NE PAS O UVRIR UNE ATMOSP HÈRE EXPLOSIVE PR ESENT.
POUR INSTA LLATIONS DE ZONE, UN SORTIE EST INST ALLÉ DANS LES 50 mm DE L'ENCEINTE .
POUR INSTA LLATIONS DE DIVISI ON ALE SORTIE EST INSTALLÉ DANS LES 18 POUCES DE L'EN CEINTE
EXPLOSIONPROOF CL. I, DIV. 1, GR. BCD T6...T3
Ex db IIB+H2 T6... T3 Ga/Gb
Ta = -40°C to +7
1°C ; IP 65
R
FM
APPROVED
P/N 551706-2 REV A
!
C
1
Level Plus Transmitter
FM16CA0130X
MTS Systems Corp oration
Sensors Division
3001 Sheldon Driv e, Cary, N.C. 27513
WARNING: DO NOT OPEN WHEN AN EXPLOSIVE ATM OSPHERE IS
PRESE NT. FOR ZONE INST ALLATIONS, A SEAL SHALL BE INSTALLE D WITHIN 50mm OF
THE ENCLOS URE. FOR DIVISION INSTALLATIONS A S EAL SHALL BE INSTA LLED WITHIN 18 IN CHES
OF THE ENC LOSURE.
ATTENTION : NE PAS O UVRIR UNE ATMOSP HÈRE EXPLOSIVE PR ESENT
POUR INSTA LLATIONS DE ZONE , UN SORTIE EST INS TALLÉ DANS LES 50 mm DE L'ENCEINTE.
POUR INSTA LLATIONS DE DIVIS ION ALE SORTIE EST INSTALLÉ DANS LES 18 POUCES DE L'EN CEINTE
EXPLOSIONPROOF CL. I, DIV. 1, GR.
Ex db IIB+H2 T6.. .T3 Ga/Gb
Ta = -40°C to +7 1°C ; IP 65
INSTALL PER # 651 553-2
MAX. PRESSURE 10 00 PSI (RIGID SENSO R)
MAX. PRESSURE 43 5 PSI (FLEX SENSOR)
INPUT: 28V (120 mA)max
OUT
PUT: 4-20mA
BCD T6...T3
FM
APPROVED
P/N 551708-1 Rev
A
R
!
C
1
Level Plus Transmitter
FM16CA0130X
MTS Systems Corp oration
Sensors Division
3001 Sheldon Driv e, Cary, N.C. 27513
WARNING: DO NOT OPEN WHEN AN EXPLOSIVE ATM OSPHERE IS
PRESE NT. FOR ZONE INST ALLATIONS, A SEAL SHALL BE INSTALLE D WITHIN 50mm OF
THE ENCLOS URE. FOR DIVISION INSTALLATIONS A S EAL SHALL BE INSTA LLED WITHIN 18 IN CHES
OF THE ENC LOSURE.
ATTENTION : NE PAS O UVRIR UNE ATMOSP HÈRE EXPLOSIVE PR ESENT
POUR INSTA LLATIONS DE ZONE , UN SORTIE EST INS TALLÉ DANS LES 50 mm DE L'ENCEINTE.
POUR INSTA LLATIONS DE DIVIS ION ALE SORTIE EST INSTALLÉ DANS LES 18 POUCES DE L'EN CEINTE
EXPLOSIONPROOF CL. I, DIV. 1, GR. BCD T6...T3
Ex db IIB+H2 T6.. .T3 Ga/Gb
Ta = -40°C to +7 1°C ; IP 65
INSTALL PER # 651 553-2
MAX. PRESSURE 10 00 PSI (RIGID SENSO R)
MAX. PRESSURE 43 5 PSI (FLEX SENSOR)
INPUT: 28V (120 mA)max
OUT
PUT: 4-20mA
FM
APPROVED
P/N 551708-2 Rev A
R
!
C
13.4.2.2 Labels
Page 40
Level Plus® SoClean
®
Operation Manual
I 40 I
13.4.2.3 Installation drawing

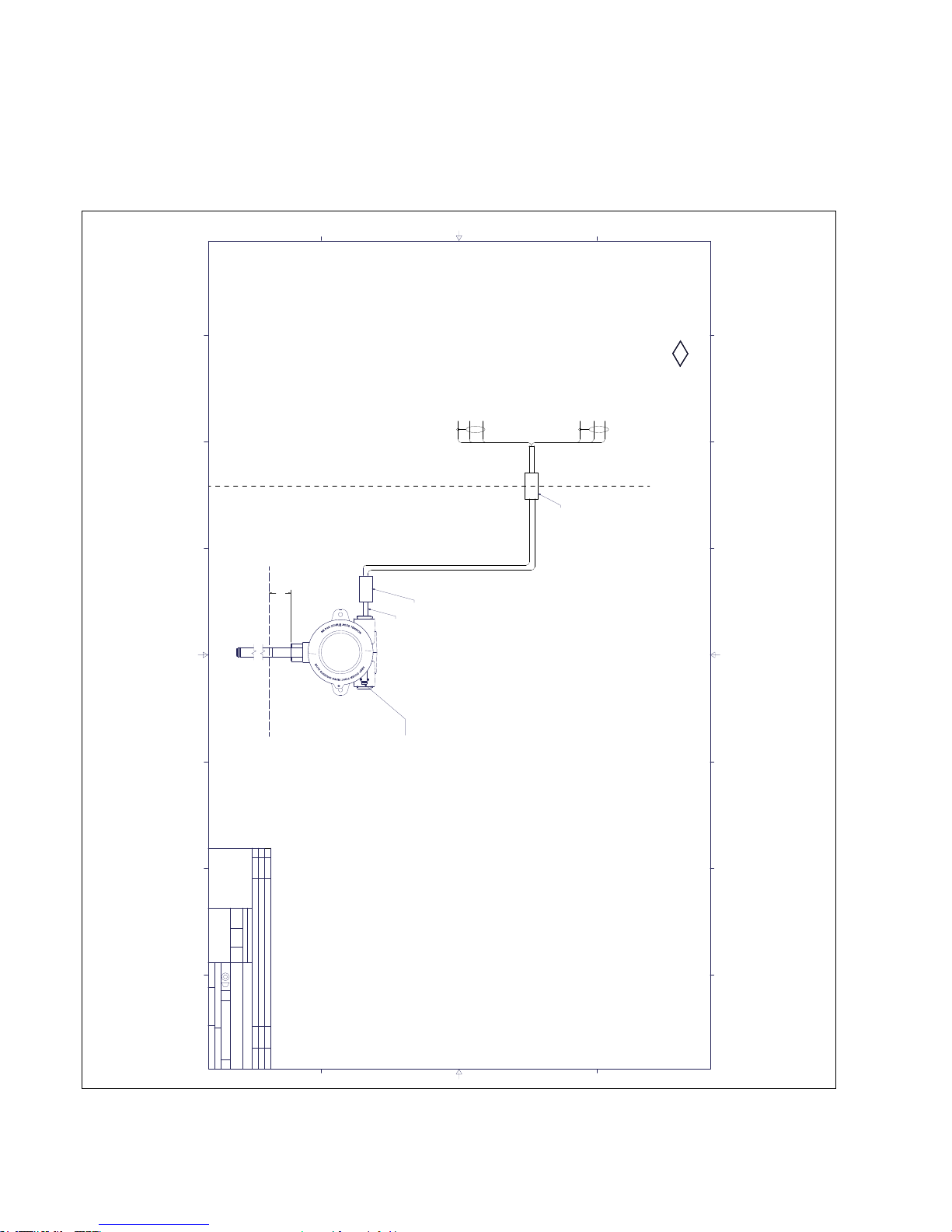

Fig. 45: Explosionproof, FMC Installation Drawing, Modbus and DDA, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-2
B
LEVEL
1
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
10/22/15
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
LOOP 2+
LOOP 2-
EARTH GROUND
LOOP 1+
LOOP 1-
EARTH GROUND
SEE NOTE 8
EPL Ga
EPL Gb
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
EARTH GROUND LUG
NOTE 3
AGENCY CONTROLLED DRAWING (Canada). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
FM
APPROVED
C
(ACP) INSTALLATION DWG LP ANALOG
EXPLOSION PROOF CANADA
SINGLE OR DUAL CAVITY
FM Canada - FM16CA0130X
EXPLOSION PROOF
CL. I, DIV. 1, GR. BCD T6...T3
Ex db IIB+H2 T6...T3 Ga/Gb
Ta = -40°C to +71°C ; IP65
CONDUIT SEAL
CONDUIT
CONDUIT SEAL
SEE NOTE 1
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
2.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK
ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD). SEE FIGURE 2 ON PAGE 2
3. CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381mm(15")
4.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
5.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE AND PROCESS PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARK
ING. THE NON-METALLIC SURFACE AND PROCESS PARTS SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH. PAINTED SURFACE OF THE EQUIPMENT MAY STORE ELECTROSTATIC CHARGE
AND BECOME A SOURCE OF IGNITION IN APPLICATIONS WITH A LOW RELATIVE HUMIDITY <~30% RELATIVE
HUMIDITY WHERE THE PAINTED SURFACE IS RELATIVELY FREE OF SURFACE CONTAMINATION
SUCH AS DIRT, DUST OR OIL. CLEANING OF THE PAINTED SURFACE S
HOULD ONLY BE DONE
WITH A DAMP CLOTH.
6. CABLES SHALL BE RATED > 5C ABOVE MAXIMUM AMBIENT TEMPERATURE.
7. TO MAINTAIN THE INGRESS PROTECTION RATING OF IP65, TEFLON TAPE (3 WRAPS) OR PIPE DOPE SHALL
BE USED. REFER TO INSTALLATION INSTRUCTIONS.
8. THE EQUIPMENT CAN BE INSTALLED IN THE BOUNDARY WALL BETWEEN A ZONE 0 AREA AND THE
LESS HAZARDOUS AREA, ZONE 1. IN THIS CONFIGURATION, THE PRO
CESS CONNECTION IS INSTALLED
IN A ZONE 0 AREA, WHILE THE TRANSMITTER HOUSING IS INSTALLED IN A ZONE 1 AREA.
9. THE APPLICABLE TEMPERATURE CLASS OF THE EQUIPMENT, AMBIENT TEMPERATURE RANGE,
AND MAXIMUM PROCESS TEMPERATURE OF THE EQUIPMENT IS AS FOLLOWS;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCES
S TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°C
Ta+71°C
10. WHEN MOUNTING ON A MAGNETIC LEVEL GAUGE MAKE SURE THE ELECTRONIC HEAD AND PRESSURE
BARRIER HAVE A MINIMUM SPACING OF 5 INCHES. SEE INSTALLATION MANUAL FOR DETAIL
11. FLAMEPATHS ARE NOT FOR REPAIR
5"[127mm] Minimum
Page 41
Level Plus® SoClean
®
Operation Manual
I 41 I

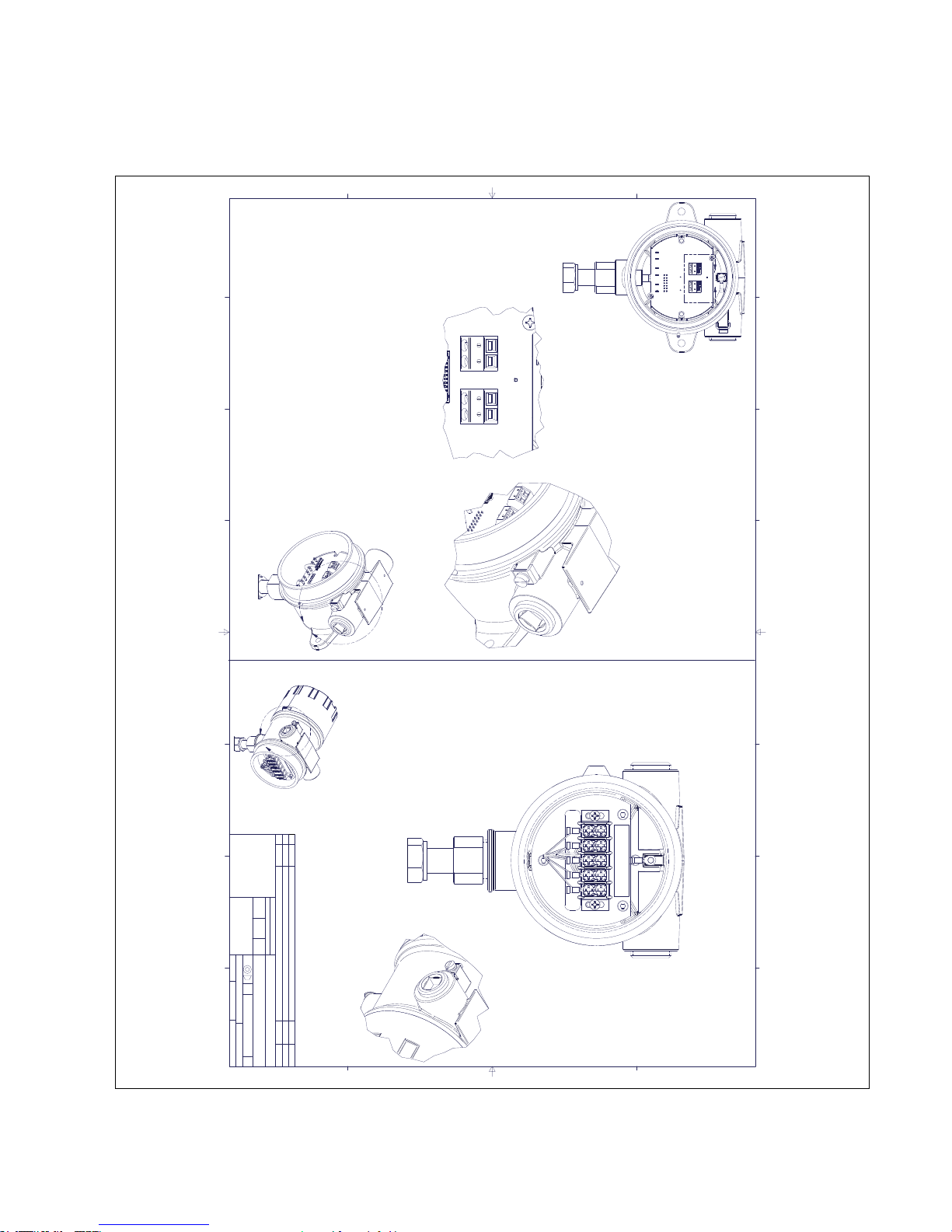

Fig. 46: Explosionproof, FMC Installation Drawing, Modbus and DDA, Page 2
DETAIL D
SCALE 3
DETAIL E
SCALE 1.60
DETAIL F
SCALE 1.2
D
E
F
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-2
B
LEVEL
2
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
10/22/15
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
LOOP 2-
LOOP 2+
EARTH
LOOP 1-
LOOP 1+
NOTES: 1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
FIGURE 2
DUAL CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
FIGURE 1
SINGLE CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
(ACP) INSTALLATION DWG LP ANALOG
EXPLOSION PROOF CANADA
Page 42
Level Plus® SoClean
®
Operation Manual
I 42 I
Fig. 47: Explosionproof, FMC Installation Drawing, Modbus and DDA, Page 3
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-2
B
LEVEL
3
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
10/22/15
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
NOTES:
1. La réglementation doit être respectée suivant les codes locaux et nationaux
LORS D'INSTALLATION DU CAPTEUR DE NIVEAU DANS DES ENVIRONNEMENTS DANGEREUX.
POUR INSTALLATIONS DE ZONE, UN SORTIE EST INSTALLÉ DANS LES 50 mm DE L'ENCEINTE.
POUR INSTALLATIONS DE D
IVISION ALE SORTIE EST INSTALLÉ DANS LES 18 POUCES DE L'ENCEINTE
2. ENCEINTES à cavité double : Les raccordements clients, seront effectués au bornier d'alimentation sur le côté du LOGEMENT boîtier (pas au bornier carte d'interconnexion)
3. ATTENTION: LES INSTRUMENTS FLEXIBLES AVEC UN RADIODE MINIMUM DE 381mm (15 ")
4. ATTENTION: Pour éviter l'inflammation d'atmosphères inflammables ou combustibles
,
DÉBRANCHEZ L'ALIMENTATION AVANT D'INTERVENIR
5. AVERTISSEMENT: L'ÉQUIPEMENT CONTENUE DES PIÈCES ET PROCÉDÉS NON-METALLIQUES POUR PRÉVENIR
LE RISQUE D'ÉCLAIRAGE ÉLECTROSTATIQUE. LA SURFACE ET LES PIÈCES DE PROCÉDURE NON MÉTALLIQUES DOIVENT SEULEMENT
EFFECTEZ UN PANNEAU DE PLAISIR. LA SURFACE PEINTÉE DE L'ÉQUIPEMENT PEUT CONSERVER LE CHARGE ÉLECTROSTATIQUE
ET DEVENIR UNE SOURCE D'A
LLUMAGE DANS DES APPLICATIONS AVEC UNE HUMIDITÉ BASSE RELATIVE <~ 30% RELATIVE
HUMIDITE OÙ LA SURFACE PEINTURE EST RELATIVEMENT LIBRE DE CONTAMINATION DE SURFACE
TELS QUE LA VIANDE, LA POUSSIÈRE OU L'HUILE. LE NETTOYAGE DE LA SURFACE PEINTURE DOIT ÊTRE FAIT
AVEC UN PANNEAU DE PLAISIR.
6. CABLES doit être évalué> 5C DESSUS MAXIMUM TEMPERATURE AMBIANTE.
7. POUR MAINTENIR LA NOTATION DE PRO
TECTION DE INGRESS IP65, du ruban téflon (3 BANDES) ou PIPE DOPE DEVRA ÊTRE UTILISÉ. CONSULTER LES INSTRUCTIONS D'INSTALLATION.
8. L'ÉQUIPEMENT PEUT ÊTRE INSTALLÉ DANS LE MUR DE LIMITE ENTRE UNE ZONE 0 ET LA
ZONE MOINS DANGEREUSE, ZONE 1. DANS CETTE CONFIGURATION, LA CONNEXION DU PROCESSUS EST INSTALLEE
DANS UNE ZONE 0, LORSQUE LE BOITIER DE L'EMETTEUR EST INSTALLE DANS UNE ZONE DE LA ZO
NE 1.
9. LA TEMPERATURE CLASSE APPLICABLE DE L'ÉQUIPEMENT , TEMPERATURE AMBIANTE RANGE,
ET MAXIMUM PROCESSUS TEMPERATURE DE L'APPAREIL EST CE QUI SUIT ;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIE
NT TEMPERATURE RANGE -40°CTa+71°C
10.LORS DU MONTAGE SUR UNE JAUGE DE NIVEAU MAGNÉTIQUE, ASSUREZ-VOUS QUE LA TÊTE ÉLECTRONIQUE ET LA PRESSION
BARRIÈRE A UN ESPACEMENT MINIMUM DE 5 POUCES. VOIR LE MANUEL D'INSTALLATION POUR DETAIL
11.CHEMIN DE FLAMME NE SONT PAS À RÉPARER
(ACP) INSTALLATION DWG LP ANALOG
EXPLOSION PROOF CANADA
Page 43
Level Plus® SoClean
®
Operation Manual
I 43 I
Fig. 48: Explosionproof, FMC Installation Drawing, HART®, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORATION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-2
A
1
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
MS
10/24/14
RELEASE TO PRODUCTION
EARTH GROUND
Rx /Tx-
Rx /Tx+
EARTH GROUND
COMMON-
24 VDC
EPL Ga
EPL Gb
SEE NOTE 8
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
AGENCY CONTROLLED DRAWING (CANADA). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
EARTH TERMINAL
(ACP) INSTALLATION DWG LP DIGITAL
EXPLOSION PROOF CANADA
7957
LEVEL
FM
APPROVED
C
N/A
EXPLOSION PROOF
CL. I, DIV. 1, GR. BCD T6...T3
Ex db IIB+H2 T6...T3 Ga/Gb
Ta = -40°C to +71°C ; IP65
FM CANADA- FM16CA0130X
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
2.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD). SEE FIGURE 2 ON PAGE 2
3. CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381mm(15")
4.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
5.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE AND PROCESS PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE AND PROCESS PARTS SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH. PAINTED SURFACE OF THE EQUIPMENT MAY STORE ELECTROSTATIC CHARGE
AND BECOME A SOURCE OF IGNITION IN APPLICATIONS WITH A LOW RELATIVE HUMIDITY <~30% RELATIVE
HUMIDITY WHERE THE PAINTED SURFACE IS RELATIVELY FREE OF SURFACE CONTAMINATION
SUCH AS DIRT, DUST OR OIL. CLEANING OF THE PAINTED SURFACE SHOULD ONLY BE DONE
WITH A DAMP CLOTH.
6. CABLES SHALL BE RATED > 5C ABOVE MAXIMUM AMBIENT TEMPERATURE.
7. TO MAINTAIN THE INGRESS PROTECTION RATING OF IP65, TEFLON TAPE (3 WRAPS) OR PIPE DOPE SHALL
BE USED. REFER TO INSTALLATION INSTRUCTIONS.
8. THE EQUIPMENT CAN BE INSTALLED IN THE BOUNDARY WALL BETWEEN A ZONE 0 AREA AND THE
LESS HAZARDOUS AREA, ZONE 1. IN THIS CONFIGURATION, THE PROCESS CONNECTION IS INSTALLED
IN A ZONE 0 AREA, WHILE THE TRANSMITTER HOUSING IS INSTALLED IN A ZONE 1 AREA.
9. THE APPLICABLE TEMPERATURE CLASS OF THE EQUIPMENT, AMBIENT TEMPERATURE RANGE,
AND MAXIMUM PROCESS TEMPERATURE OF THE EQUIPMENT IS AS FOLLOWS;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°C
Ta+71°C
10. WHEN MOUNTING ON A MAGNETIC LEVEL GAUGE MAKE SURE THE ELECTRONIC HEAD AND PRESSURE
BARRIER HAVE A MINIMUM SPACING OF 5 INCHES. SEE INSTALLATION MANUAL FOR DETAIL
11. FLAMEPATHS ARE NOT FOR REPAIR
CONDUIT
CONDUIT SEAL
SEE NOTE 1
CONDUIT SEAL
5" [127mm] Minimum
Page 44
Level Plus® SoClean
®
Operation Manual
I 44 I

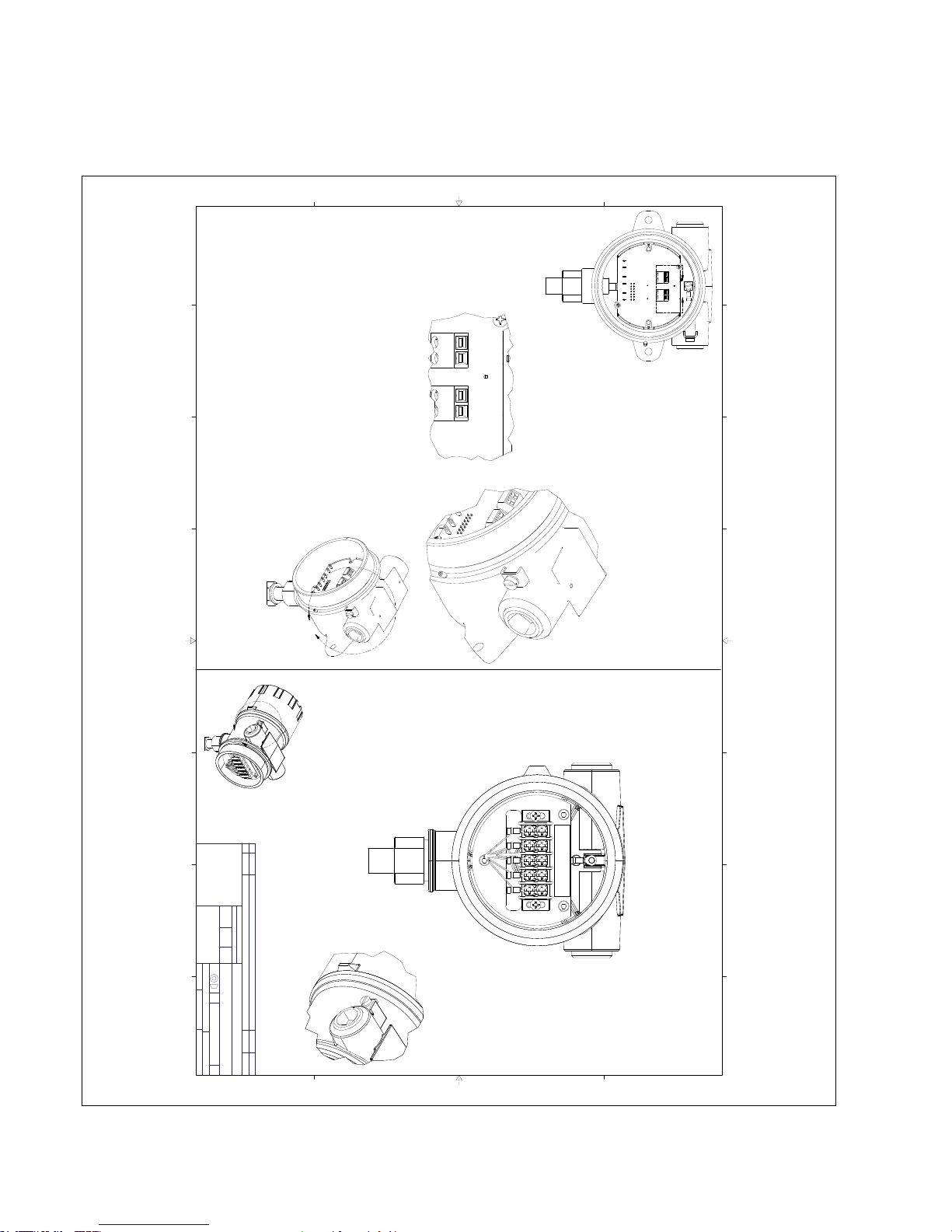

Fig. 49: Explosionproof, FMC Installation Drawing, HART®, Page 2
DETAIL F
SCALE 1.60 : 1
DETAIL G
SCALE 3 : 1
DETAIL H
SCALE 1.2
F
G
H
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO #
DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-2
A
2
3
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
MS
10/24/14
RELEASE TO PRODUCTION
+24V
GND
EARTH
TX/RX+
TX/RX-
GND
+24V
TX/RX-
TX/RX+
EARTH
FIGURE 1
SINGLE CAVITY
FIGURE 2
DUAL CAVITY HOUSING
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
FOR ZONE INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN 50mm OF THE
ENCLOSURE. FOR DIVISION INSTALLATIONS, A SEAL SHALL BE INSTALLED WITHIN
18 INCHES OF THE ENCLOSURE.
(ACP) INSTALLATION DWG LP DIGITAL
EXPLOSION PROOF CANADA
+
2
4
V
G
N
D
E
A
R
T
H
T
x
/
R
x
+
T
x
/
R
x
-
7957
Page 45
Level Plus® SoClean
®
Operation Manual
I 45 I
Fig. 50: Explosionproof, FMC Installation Drawing, HART®, Page 3
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORATION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-2
A
3
3
DRAWN BY:
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
NOTES:
1. La réglementation doit être respectée suivant les codes locaux et nationaux
LORS D'INSTALLATION DU CAPTEUR DE NIVEAU DANS DES ENVIRONNEMENTS DANGEREUX.
POUR INSTALLATIONS DE ZONE, UN SORTIE EST INSTALLÉ DANS LES 50 mm DE L'ENCEINTE.
POUR INSTALLATIONS DE DIVISION ALE SORTIE EST INSTALLÉ DANS LES 18 POUCES DE L'ENCEINTE
2. ENCEINTES à cavité double : Les raccordements clients, seront effectués au bornier d'alimentation sur le côté du LOGEMENT boîtier (pas au bornier carte d'interconnexi on)
3. ATTENTION: LES INSTRUMENTS FLEXIBLES AVEC UN RADIODE MINIMUM DE 381mm (15 ")
4. ATTENTION: Pour éviter l'inflammation d'atmosphères inflammables ou combustibles,
DÉBRANCHEZ L'ALIMENTATION AVANT D'INTERVENIR
5. AVERTISSEMENT: L'ÉQUIPEMENT CONTENUE DES PIÈCES ET PROCÉDÉS NON-METALLIQUES POUR PRÉVENIR
LE RISQUE D'ÉCLAIRAGE ÉLECTROSTATIQUE. LA SURFACE ET LES PIÈCES DE PROCÉDURE NON MÉTALLIQUES DOIVENT SEULEMENT
EFFECTEZ UN PANNEAU DE PLAISIR. LA SURFACE PEINTÉE DE L'ÉQUIPEMENT PEUT CONSERVER LE CHARGE ÉLECTROSTATIQUE
ET DEVENIR UNE SOURCE D'ALLUMAGE DANS DES APPLICATIONS AVEC UNE HUMIDITÉ BASSE RELATIVE <~ 30% RELATIVE
HUMIDITE OÙ LA SURFACE PEINTURE EST RELATIVEMENT LIBRE DE CONTAMINATION DE SURFACE
TELS QUE LA VIANDE, LA POUSSIÈRE OU L'HUILE. LE NETTOYAGE DE LA SURFACE PEINTURE DOIT ÊTRE FAIT
AVEC UN PANNEAU DE PLAISIR.
6. CABLES doit être évalué> 5C DESSUS MAXIMUM TEMPERATURE AMBIANTE.
7. POUR MAINTENIR LA NOTATION DE PROTECTION DE INGRESS IP65, du ruban téflon (3 BANDES) ou PIPE DOPE DEVRA ÊTRE UTILISÉ. CONSULTER LES INSTRUCTIONS D'INSTALLATION. 8. L'ÉQUIPEMENT PEUT ÊTRE INSTALLÉ DANS LE MUR DE LIMITE ENTRE UNE ZONE 0 ET LA
ZONE MOINS DANGEREUSE, ZONE 1. DANS CETTE CONFIGURATION, LA CONNEXION DU PROCESSUS EST INSTALLEE
DANS UNE ZONE 0, LORSQUE LE BOITIER DE L'EMETTEUR EST INSTALLE DANS UNE ZONE DE LA ZONE 1 9. LA TEMPERATURE CLASSE APPLICABLE DE L'ÉQUIPEMENT , TEMPERATURE AMBIANTE RANGE,
ET MAXIMUM PROCESSUS TEMPERATURE DE L'APPAREIL EST CE QUI SUIT ;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°C
Ta+71°C
10.LORS DU MONTAGE SUR UNE JAUGE DE NIVEAU MAGNÉTIQUE, ASSUREZ-VOUS QUE LA TÊTE ÉLECTRONIQUE ET LA PRESSION
BARRIÈRE A UN ESPACEMENT MINIMUM DE 5 POUCES. VOIR LE MANUEL D'INSTALLATION POUR DETAIL
11.CHEMIN DE FLAMME NE SONT PAS À RÉPARER
7957
RELEASE FOR PRODUCTION
(ACP) INSTALLATION DWG LP DIGITAL
EXPLOSION PROOF CANADA
Page 46
Level Plus® SoClean
®
Operation Manual
I 46 I
13.5 ATEX and IECEx
13.5.1 Intrinsically Safe
13.5.1.1 Specific conditions of safe use
1. The apparatus enclosure contains aluminum and is considered to
constitute a potential risk of ignition by impact or friction. Care
must be taken into account during installation and use to prevent
impact or friction. (When installed in a Ga Approval)
2. The maximum permitted ambient temperature of the Level Plus
®
Digital/Analog Level Transmitter is 71 °C. To avoid the effects of
process temperature and other thermal effects care shall be taken
to ensure the surrounding ambient and the ambient inside the
transmitter housing does not exceed 71°C.
3. Some models contain non-metallic enclosure parts, to prevent the
risk of electrostatic sparking the nonmetallic surface should only
be cleaned with a damp cloth.
13.5.1.2 Labels
1
WARNING: REFER TO INSTALLATION DRAWING FOR CAUTION/WARNINGS
FM14ATEX0068X
IECEx FMG 14.0032X
II 1/2 G Ex ia IIC T4 Ga/Gb
Ta = -50°C to +71°C ; IP65
when connected in accordance
with FM approved installation
d
rawing # 651543-3
MTS Systems Corporation
Sensors Division
3001 Sheldon Dr.
Cary, NC 27513
Model No:
Serial No:
Date :
8 POINT TEXT
SIZE
1725
Level Plus
Transmitter
P/N 551629-3 Rev B
NOTES:
1. STANDARD LETTERING UNIVERS 55
OR ITC GARAMOND BOOK.
R3.30 [.13]
1.78 [.07]
1.78 [.07]
28.70 [1.13]
15.80 [.62]
34.69 [1.37]
86.30 [3.40]
®
1
WARNING: REFER TO INSTALLATION DRAWING FOR CAUTION/WARNINGS
FM14ATEX0068X
IECEx FMG 14.0032X
II 1/2 G Ex ia IIC T4 Ga/Gb
Ta = -50°C to +71°C ; IP65
when connected in accordance
with FM approved installation
d
rawing # 651543-3
MTS Systems Corporation
Sensors Division
3001 Sheldon Dr.
Cary, NC 27513
Model No:
Serial No:
Date :
8 POINT TEXT
SIZE
1725
Level Plus
Transmitter
P/N 551629-3 Rev B
NOTES:
1. STANDARD LETTERING UNIVERS 55
OR ITC GARAMOND BOOK.
R3.30 [.13]
1.78 [.07]
1.78 [.07]
28.70 [1.13]
15.80 [.62]
34.69 [1.37]
86.30 [3.40]
®
1
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive, Cary, N.C. 27513
II 1/2 G Ex ia IIC T4 Ga/Gb
Ta = -50°C TO +71°C ; IP65
WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
REFER TO INSTALLATION DRAWING FOR CAUTION/WARNING.
INSTALL PER DRAWING # 651544-3
SUPPLY VOLTAGE: 28 VDC
FM14ATEX0068X
IECEx FMG 14.0032X
35.05 [1.38]
"L1"
∆
"L2"
17.53 [.69]
7.5 POINT SIZE
USE MTS LOGO ARTWORK
14.0 POINT SIZE
"D1"
R
1725
Level Plus Transmitter
P/N 551705-X Rev C
TABLE 1
DASH # HOUSING
"L1" "L2" "D1"
-1
ADALET
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
65 [2.56] 58 [2.28
] Ø 3.05 [.12] x2
1
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive, Cary, N.C. 27513
II 1/2 G Ex ia IIC T4 Ga/Gb
Ta = -50°C TO +71°C ; IP65
WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
REFER TO INSTALLATION DRAWING FOR CAUTION/WARNINGS
INSTALL PER DRAWING # 651543-3
SUPPLY VOLTAGE: 28 VDC
FM14ATEX0068X
IECEx FMG 14.0032X
35.05 [1.38]
"L1"
∆ "L2"
17.53 [.69]
7.5 POINT SIZE
USE MTS LOGO ARTWORK
14.0 POINT SIZE
"D1"
R
1725
Level Plus Transmitter
P/N 551703-X Rev C
TABLE 1
DASH # HOUSING
"L1" "L2" "D1"
-1
ADALET
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
65 [2.56] 58 [2.28] Ø 3.05 [.12] x2
Fig. 51: Intrinsically Safe FMC label, Modbus and DDA, NEMA Housing
Fig. 52: Intrinsically Safe ATEX/IECEx label, Modbus and DDA, NEMA Housing
Fig. 53: Intrinsically Safe ATEX/IECEx label, Modbus and DDA, Single and Dual Cavity Housing
Fig. 54: Intrinsically Safe ATEX/IECEx label, Modbus and DDA, Single and Dual Cavity Housing
Page 47
Level Plus® SoClean
®
Operation Manual
I 47 I
13.5.1.3 Installation drawing

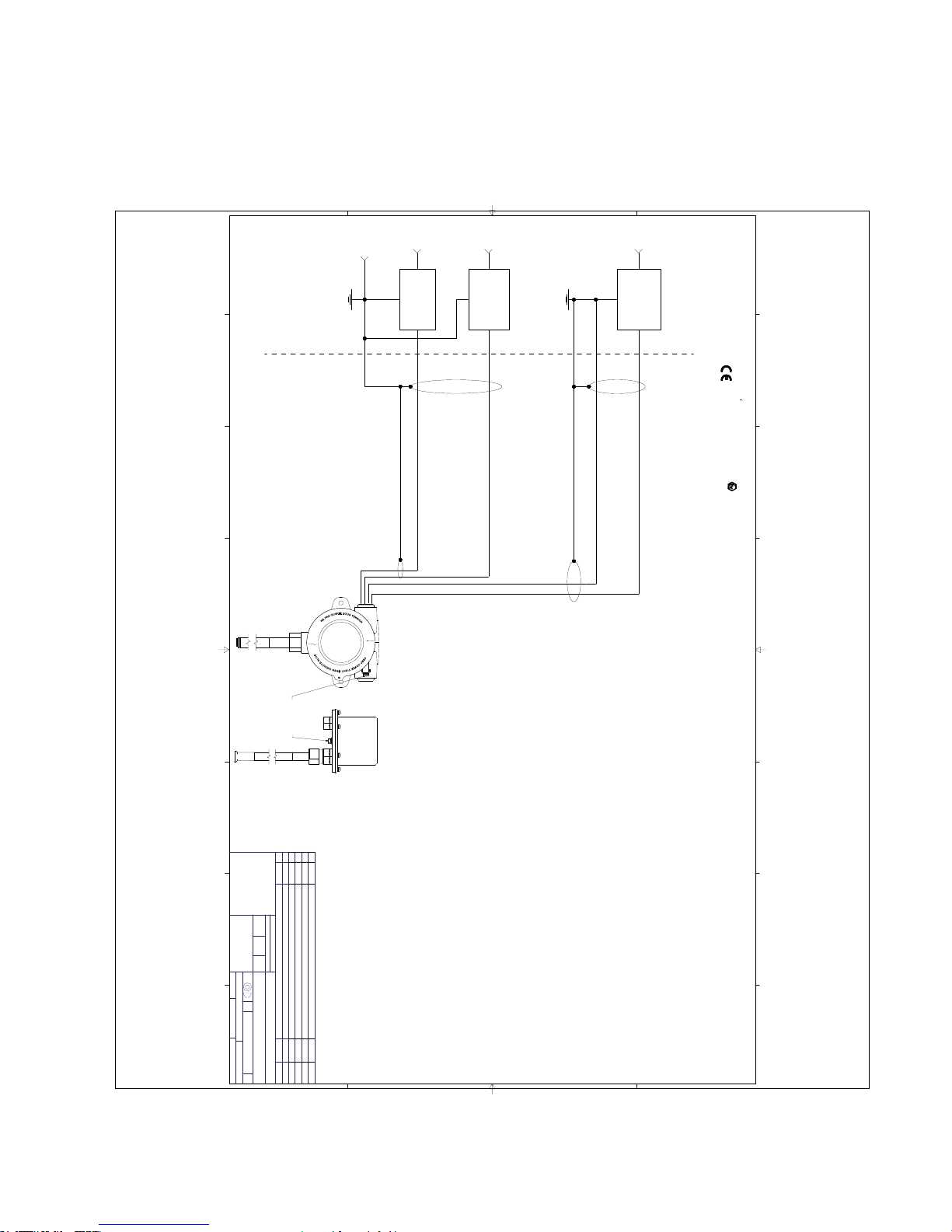

Fig. 55: Intrinsically Safe ATEX / IECEx installation drawing, Modbus and DDA, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-3
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
24 VDC
COMMON- >
Rx/Tx+
Rx/Tx -
GROUND
EARTH GROUND
(SEE NOTE 4)
EARTH GROUND
(SEE NOTE 4)
Rx/Tx-
Rx/Tx+
GND
+24V
SAFETY BARRIER
SAFETY BARRIER
SAFETY BARRIER
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 457 MM(18").
2.LOOP CABLE MUST BE 24 AWG TO 14 AWG (.511MM² to 1.6MM²)
SHIELDED TWIS
TED PAIR CABLE WITH SHIELD. CABLE CAPACITANCE MUST
BE LESS THAN 30 pF PER FOOT (98 pF PER M). CABLE SHIELD IS CONNECTED
TO SYSTEM GROUND IN NON-HAZARDOUS AREA. SEE INSTALLATION MANUAL FOR
ADDITIONAL CABLE INFORMATION.
3.THE RESISTANCE BETWEEN EARTH GROUND AND THE INTRINSICALLY SAFE GROUND
MUST BE LESS THAN 1 OHM.
4.THE TRANSDUCER FRAME SHALL BE GROUNDED TO EARTH GROUND DIRECTLY OR THROUG
H
THE EQUIPMENT ON WHICH IT IS MOUNTED.
5. CONTROL EQUIPMENT CONNECTED TO ASSOCIATED APPARATUS MUST
NOT USE OR GENERATE MORE THAN 250 VRMS OR VDC
6.ASSOCIATED APPARATUS MANUFACTURER'S INSTALLATION DRAWING MUST
BE FOLLOWED WHEN INSTALLING THIS EQUIPMENT.
7.ONLY USE ATEX/IEC APPROVED BARRIERS.
8.ENTITY PARAMETERS:
SUPPLY: Rx/Tx-:
Rx/Tx+:
Ui = 28VDC Ui= 8.6V Ui= 8.6V
Ii = 100mA Ii = 10mA Ii = 10mA
Ci = 0 µF Ci = 0 µF Ci = 0 µF
Li = 0 µH
Li = 0 µH Li = 0 µH
Pi = 0.7 W Pi= 0.0215 W P i= 0.0215 W
9.THE ENTITY CONCEPT ALLOWS INTERCONNECTION OF INTRINSICALLY SAFE APPARATUS
WITH ASSOCIATED APPARATUS WHEN THE FOLLOWING IS TRUE:
Vmax or Ui ≥ Voc, Vt or Uo;
Imax or Ii ≥ Isc, It or Io;
Pmax or Pi ≥ Po;
Ca ≥ Ci + Ccable;
La ≥ Li + Lcable. 10.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD).
11.
FOR INSTALLATION WITHIN THE EUROPEAN UNION, SEE EN 60079-14.
12.THE MAXIMUM PERMITTED AMBIENT TEMPERATURE OF THE LEVEL PLUS DIGITAL/ANALOG
LEVEL TRANSMITTER IS 71 °C. TO AVOID THE EFFECT
S OF PROCESS TEMPERATURE AND
OTHER THERMAL EFFECTS CARE SHALL BE TAKEN TO ENSURE THE SURROUNDING AMBIENT
AND THE AMBIENT INSIDE THE TRANSMITTER HOUSING DOES NOT EXCEED 71°C
13.CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381MM(15")
14.WARNING: THE APPARATUS ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
CONSTITUTE A POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION. CARE
MUST BE TAKEN
INTO ACCOUNT DURING INSTALLATION AND USE TO PREVENT IMPACT OR FRICTION
15.WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
16.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
17.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-META
LLIC SURFACE SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
INTRINSICALLY SAFE
FM14ATEX0068X
IECEx FMG 14.0032X
AGENCY CONTROLLED DRAWING (ATEX/IEC). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
EARTH TERMINAL
(ACP) INSTALLATIN DWG LP DIGITAL
INTRINSICALLY SAFE FOR ATEX/IEC
7570
LEVEL
N/A
1725
II 1/2 G Ex ia T4 Ga/Gb
Ta = -50 TO 71°C; IP65
Page 48
Level Plus® SoClean
®
Operation Manual
I 48 I
Fig. 56: Intrinsically Safe ATEX / IECEx installation drawing, Modbus and DDA, Page 2
DETAIL A
SCALE 1.60 : 1
DETAIL C
SCALE 3 : 1
DETAIL D
SCALE 1.2
DETAIL E
SCALE 1 : 1
A
C
D
E
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651543-3
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
+24V
GND
EARTH
TX/RX+
TX/RX-
GND
+24V
TX/RX-
TX/RX+
EARTH
GND
+24V
TX/RX-
TX/RX+
EARTH
FIGURE 1
SINGLE CAVITY & NEMA HOUSING
FIGURE 2
DUAL CAVITY HOUSING
NOTES: 1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
CONDUIT SEALS REQUIRED WITHIN 457 MM (18") OF HOUSING.
(ACP) INSTALLATIN DWG LP DIGITAL
INTRINSICALLY SAFE FOR ATEX/IEC
+
2
4
V
G
N
D
E
A
R
T
H
T
x
/
R
x
+
T
x
/
R
x
-
7570
WIRING CHART (FOR NEMA GAUGE)
PIN WIRING CHART (FOR NEMA GAUGE)
WIRE COLOR SIGNAL
RED 24 V PWR
BLACK 0 V PWR
BLUE
N/A
WHITE RX TX +
GREEN RX TX -
DRAIN WIRE EARTH GROUND
PIN #
SIGNAL
PIN 1 24 V PWR
PIN 2
0 V PWR
PIN 3
N/A
PIN 4 RX TX+
PIN 5
RX TX-
PIN 6
EARTH GROUND
Page 49
Level Plus® SoClean
®
Operation Manual
I 49 I
Fig. 57: Intrinsically Safe ATEX / IECEx installation drawing, HART®, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-3
LEVEL
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
NOTES:
1. ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE MTS LP SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 457 MM (18").
2. LOOP CABLE MUST BE 24 AWG TO 14 AWG (.511MM² to 1.6MM²)
SHIELDED TWISTED PAIR CABLE WITH SHIELD. CABLE CAPACITANCE MUST
BE LESS THAN 30 pF PER FOOT (98 pF PER m). CA
BLE SHIELD IS CONNECTED
TO SYSTEM GROUND IN NON-HAZARDOUS AREA. SEE INSTALLATION MANUAL FOR
ADDITIONAL CABLE INFORMATION.
3. THE RESISTANCE BETWEEN EARTH GROUND AND THE INTRINSICALLY SAFE GROUND
MUST BE LESS THAN 1 OHM.
4. THE TRANSDUCER FRAME SHALL BE GROUNDED TO EARTH GROUND
DIRECTLY OR THROUGH THE EQUIPMENT ON WHICH IT IS MOUNTED.
5. CONTROL EQUIPMENT CONNECTED TO ASSOCIATED APPARATUS MUST
NOT USE OR GENERATE MORE THAN 250 VRMS OR VDC
.
6. ASSOCIATED APPARATUS MANUFACTURER'S INSTALLATION DRAWING MUST
BE FOLLOWED WHEN INSTALLING THIS EQUIPMENT
7. ONLY USE ATEX/IEC APPROVED BARRIERS.
8. APPROVED LOOP SEPARATION METHODS:
*RUN LOOPS IN SEPARATE CABLES
*RUN LOOPS IN SEPARATE GROUNDED SHIELDS
9. ENTITY PARAMETERS EACH LOOP:
Ui = 28 VDC
Ii = 120 mA
Ci = 0 µF
Li = 5 µH
Pi = 840 mW
10. DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD)
11 FOR INSTALLATION WITHIN THE EUROPEAN UNION, SEE EN 60079-14.
12.THE MAXIMUM PERMITTED AMBIENT TEMPERATURE OF THE LEVEL PLUS DIGITAL/ANALOG
LEVEL TRANSMITTER IS 71 °C. TO AVOID THE EFFECTS OF PROCESS TEMPERATURE AND
OTHER THERMAL EFFECTS CARE SHALL BE TAKEN TO ENSURE THE SURROUNDING AMBIENT
AND THE AMBIENT INSIDE THE TRANSMITTER HOUSING DOES NOT EXCEED 71°C
13.CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381MM(15")
14. WARNING: THE APPARATUS ENCLOSURE CONTAINS ALUMINUM AND IS CONSIDERED TO
CONSTITUTE A
POTENTIAL RISK OF IGNITION BY IMPACT OR FRICTION. CARE MUST BE TAKEN
INTO ACCOUNT DURING INSTALLATION AND USE TO PREVENT IMPACT OR FRICTION
15.WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
16.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES.
DISCONNECT POWER BEFORE SERVICING.
17.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
EARTH GROUND LUG
NOTE 3
AGENCY CONTROLLED DRAWING (ATEX/IEC). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
24 VDC
CONTROL
INPUT 1
CONTROL
INPUT 2
APPROVED SAFETY
BARRIER
APPROVED SAFETY
BARRIER
LOOP VOLTAGE
SHIELD
SHIELD
LOOP 1+
LOOP 1-
LOOP 2+
LOOP 2-
(ACP) INSTALLATIN DWG LP ANALOG
INTRINSICALLY SAFE FOR ATEX/IEC
SINGLE OR DUAL CAVITY
NEMA HOUSING
E
II 1/2 G Ex ia T4 Ga/Gb
Ta = -50 TO 71°C; IP65
INTRINSICALLY SAFE
FM14ATEX0068X
IECEx FMG 14.0032X
1725
EARTH GROUND
(SEE NOTE 4)
EARTH GROUND
(SEE NOTE 4)
Page 50
Level Plus® SoClean
®
Operation Manual
I 50 I

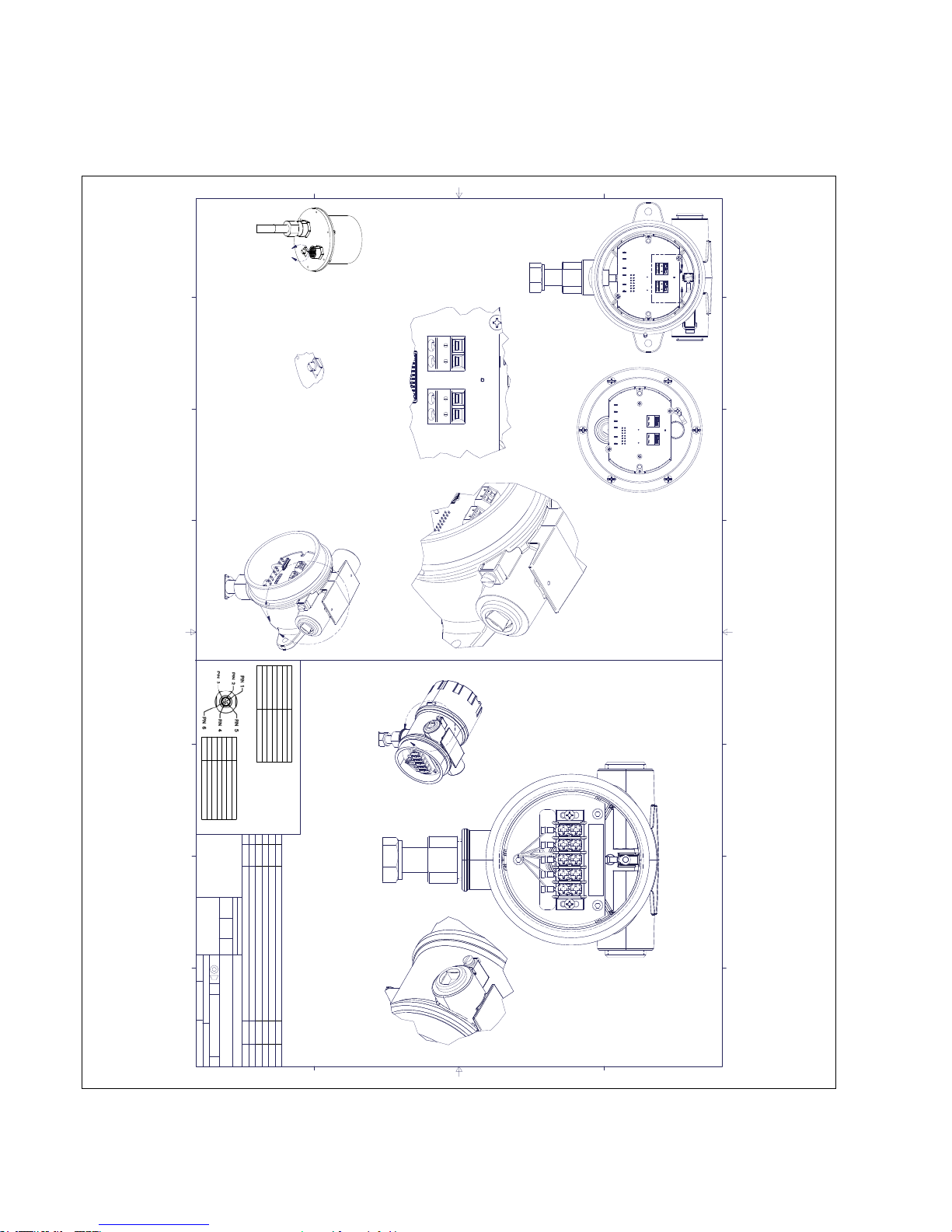

Fig. 58: Intrinsically Safe ATEX / IECEx installation drawing, HART®, Page 2
DETAIL D
SCALE 3
DETAIL E
SCALE 1.60
DETAIL F
SCALE 1.2
DETAIL H
SCALE 1 : 1
D
E
F
H
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651544-3
LEVEL
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).**
G
C 7898 UPDATED TEMPERATURE ON NOTE 12 TO 71
C MS 2/23/15
D 8037 ADDED WIRING CHART MS 11/3/15
E 8183 ADDED CL I Zone 0/1
MS 8/18/16
F 8256 UPDATED WIRING CHART ON SHEET 2 MS 1/30/17
G 8482 UPDATED BEND RADIUS TO 15" MS 5/17/18
LOOP 2-
LOOP 2+
EARTH
LOOP 1-
LOOP 1+
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM WARNING:
CONDUIT SEALS REQUIRED WITHIN 457 MM (18") OF HOUSING.
FIGURE 2
DUAL CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
FIGURE 1
SINGLE CAVITY & NEMA HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
(ACP) INSTALLATION DWG LP ANALGO
INTRINSICALLY SAFE ATEX/IECE
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
E
WIRING CHART( FOR NEMA GAUGE)
PIN WIRING CHART (FOR NEMA GAUGE)
WIRE COLOR SIGNAL
RED LOOP 1+
BLACK LOOP 1-
BLUE
LOOP 2-
WHITE LOOP 2+
GREEN
N/A
DRAIN WIRE EARTH GROUND
PIN #
SIGNAL
PIN 1 LOOP 1-
PIN 2 LOOP 1+
PIN 3 LOOP 2-
PIN 4 LOOP 2+
PIN 5
N/A
PIN 6
EARTH GROUND
Page 51
Level Plus® SoClean
®
Operation Manual
I 51 I
13.5.2 Explosionproof / Flame Proof
13.5.2.1 Specific Conditions of Safe Use
1. Warning: The equipment contains non-metallic enclosure and
process parts, to prevent the risk of electrostatic sparking. The
non-metallic surface should only be cleaned with a damp cloth.
Painted surface of the equipment may store electrostatic charge
and become a source of ignition in applications with a low relative
humidity <~30% relative humidity where the painted surface is
relatively free of surface contamination such as dirt, dust or oil.
Cleaning of the painted surface should only be done with a damp
cloth.
2. Cables shall be rated > 5 °C above maximum ambient
temperature.
3. To maintain the ingress protection rating of IP65, Teflon™
tape (3 wraps) or pipe dope shall be used. Refer to Installation
Instructions.
4. Equipment can be installed in a boundary wall configuration
where the process connection is installed as Category 1G
equipment while the transmitter housing is installed as Category
2G equipment. Refer to installation instructions.
5. Flexible gauges have a minimum bend radius of 381 mm (15in.).
6. Flamepaths not for repair.
7. The applicable temperature class, ambient temperature range and
process temperature range of the equipment is as follows:
• T3 with Process Temperature range −40 °C to +150 °C
• T4 with Process Temperature range −40 °C to +135 °C
• T5 with Process Temperature range −40 °C to +100 °C
• T6 with Process Temperature range −40 °C to +85 °C
• Ambient Temperature Range is −40 °C ≤ Ta ≤ 71 °C
8. When mounting on a MLG (magnetic level gauge) make sure the
electronic head and pressure barrier have a minimum spacing of
5 in.. See Installation Manual for detail.
Fig. 59: Flame Proof, ATEX and IECEx label, Modbus or DDA Housing Option D, E, G, H, or L
Fig. 60: Flame Proof, ATEX and IECEx label, HART
®
, Housing Option D, E, G, H, or L
1
FM16ATEX006 8X
IECEx FMG 1 6.0033X
Level Plus Transmitter
MTS Systems Corporation
Sensors Divi sion
3001 Sheldo n Drive, Cary, N.C. 27513
U.S.A
W ARNING : DO NOT OPE N WHEN AN EXPLOSIVE A TMOSPHERE IS
PR ESENT. POTE NTIAL ELEC TROSTATIC CHARGING H AZARD - SE E INSTRUCT IONS
MAX. PRES SURE 1000 PSI (RIGID SENSO R)
MAX. PRESSUR E 435 PSI (FLEX SENSOR)
INSTALL PER DRAWING # 651552-3
II 1/2 G
E x db IIB+ H2 T6...T3 G a/Gb
T a = -40°C to +71°C ; IP65
INPUT : 28V (120 mA) max
OUTPU T: RS485
38.00 [1.50]
"L1"
∆ "L2"
19.00 [.75]
4.2 POINT SIZE
"D1"
1725
P/N 551707- X Rev A
CE LOGO TO BE 5mm MINIMUM
TABLE 1
DASH
#
HOUSING GROUPS "L1" "L2" "D1"
-1
ADALET [403892,
403890,403889]
B,C,D
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
[403812, 403813]
A,B,C,D
65
[2.56]
58 [2.28]
Ø 3.05
[.12] x2
!
R
1
FM16ATEX006 8X
IECEx FMG 1 6.0033X
Level Plus Transmitter
MTS Systems Corporation
Sensors Divi sion
3001 Sheldo n Drive, Cary, N.C. 27513
U.S.A
II 1/2 G
Ex db IIB+H2 T6...T3 Ga /Gb
Ta = -40°C to +71°C ; IP65
INPUT: 28V (120m A) max
OUTPUT : 4-20mA
MAX. PRESSUR E 1000 PSI (R IGID SENSOR)
MAX. PRESSU RE 435 PSI (F LEX SENSOR)
INSTALL PER DRAWING # 651553-3
WA RNING: DO NO T OPEN WH EN AN EXPL OSIVE ATMO SPHERE IS
PRE SENT. POTEN TIAL ELECT ROSTATIC CH ARGING HA ZARD - SEE INSTRUCTION S
38.00 [1.50]
"L1"
∆ "L2"
19.00 [.75]
4.2 POINT SIZE
"D1"
1725
P/N 551 709- Rev A
CE LOGO TO BE 5mm MINIMUM
TABLE 1
DASH
#
HOUSING GROUPS "L1" "L2" "D1"
-1
ADALET [403892,
403890,403889]
B,C,D
85.85
[3.38]
69.85
[2.75]
Ø2.35 [.09]
x2
-2
LIMATHERM
[403812, 403813]
A,B,C,D
65
[2.56]
58 [2.28]
Ø 3.05
[.12] x2
!
R
13.5.2.2 Labels
Page 52
Level Plus® SoClean
®
Operation Manual
I 52 I
13.5.2.3 Installation drawing

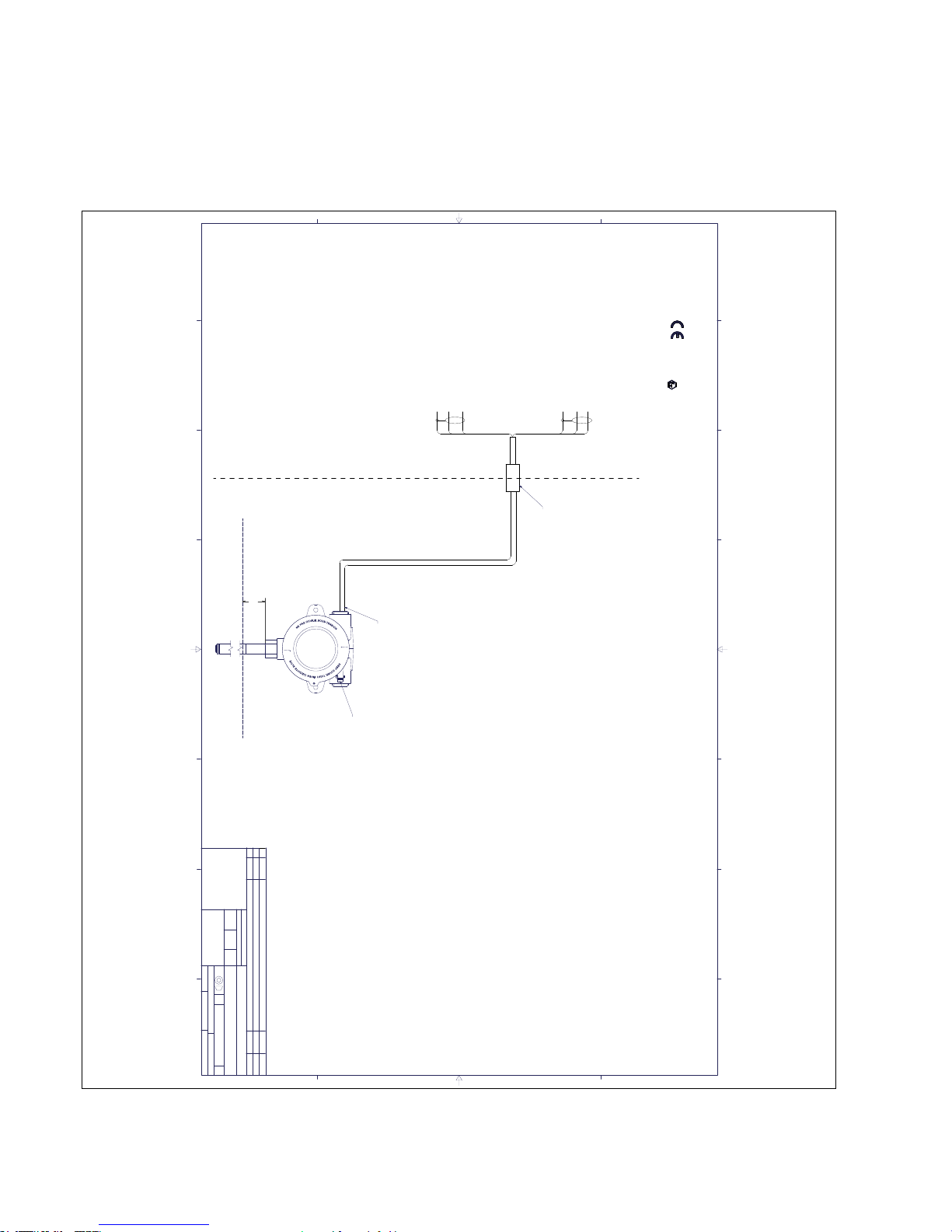

Fig. 61: Flame Proof, ATEX and IECEx Installation Drawing, Modbus and DDA, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-3
B
LEVEL
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
10/22/15
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
EARTH GROUND
LOOP 2-
LOOP 2+
EARTH GROUND
LOOP 1-
LOOP 1+
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
EARTH GROUND LUG
NOTE 3
AGENCY CONTROLLED DRAWING (ATEX/IEC). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
(ACP) INSTALLATION DWG LP ANALOG
EXPLOSION PROOF ATEX/IEC
SINGLE OR DUAL CAVITY
1725
For ATEX - FM16ATEX0068X
For IECEx - IECEx FMG 16.0033X
AREA REQUIRING
EPL Gb
AREA REQUIRING
EPL Ga
CONDUIT JUNCTION
CONDUIT
SEE NOTE 1
SEE NOTE 8
II 1/2 G
Ex db IIB+H2 T6...T3 Ga/Gb
Ta = -40°C to +71°C; IP65
CATEGORY 1
CATEGORY 2
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 50mm OF ENCLOSURE.
2.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MADE AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO T
ERMINAL BLOCK ON INTERCONNECT BOARD). SEE FIGURE 2 ON PAGE 2
3. CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381mm(15")
4.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
5.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE AND PROCESS PARTS, TO PREVENT
THE RISK OF ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE AND PROC
ESS PARTS SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
PAINTED SURFACE OF THE EQUIPMENT MAY STORE ELECTROSTATIC CHARGE
AND BECOME A SOURCE OF IGNITION IN APPLICATIONS WITH A LOW RELATIVE HUMIDITY <~30% RELATIVE
HUMIDITY WHERE THE PAINTED SURFACE IS RELATIVELY FREE OF SURFACE CONTAMINATION
SUCH AS DIRT, DUST OR OIL. CLEANING OF THE PAINTED SURFACE SHOULD ONLY BE DONE
WITH A DAMP CLOT
H.
6. CABLES SHALL BE RATED > 5C ABOVE MAXIMUM AMBIENT TEMPERATURE.
7. TO MAINTAIN THE INGRESS PROTECTION RATING OF IP65, TEFLON TAPE (3 WRAPS) OR PIPE DOPE SHALL
BE USED. REFER TO INSTALLATION INSTRUCTIONS.
8. THE EQUIPMENT CAN BE INSTALLED IN THE BOUNDARY WALL BETWEEN AN EPL Ga AREA AND THE
LESS HAZARDOUS AREA, EPL Gb. IN THIS CONFIGURATION, THE PROCESS CONNECTION IS INSTALLED
IN EPL Ga, WHILE THE TRANSMITTER HOUSING IS INSTALLED IN EPL Gb. REFER TO INSTALLATION
INSTRUCTIONS.
EQUIPMENT CAN BE INSTALLED IN A BOUNDARY WALL CONFIGURATION WHERE THE PROCESS CONNECTION
IS INSTALLED AS CATEGORY 1G EQUIPMENT WHILE THE TRANSMITTER HOUSING IS INSTALLED AS
CATEGORY 2G EQUIPMENT. REFER TO INSTALLATION INSTRUCTIONS
9. THE APPLICABLE TEMPERATURE CLASS OF THE EQ
UIPMENT, AMBIENT TEMPERATURE RANGE,
AND MAXIMUM PROCESS TEMPERATURE OF THE EQUIPMENT IS AS FOLLOWS;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°C
Ta+71°C
10. WHEN MOUNTING
ON A MAGNETIC LEVEL GAUGE MAKE SURE THE ELECTRONIC HEAD AND PRESSURE
BARRIER HAVE A MINIMUM SPACING OF 5 INCHES. SEE INSTALLATION MANUAL FOR DETAIL
11. FLAMEPATHS ARE NOT FOR REPAIR
5" [127mm] Minimum
Page 53
Level Plus® SoClean
®
Operation Manual
I 53 I
Fig. 62: Flame Proof, FM Installation Drawing, Modbus and DDA
DETAIL D
SCALE 3
DETAIL E
SCALE 1.60
DETAIL F
SCALE 1.2
D
E
F
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651553-3
B
LEVEL
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
B
MS
10/22/15
RELEASE TO PRODUCTION
8482
UPDATED WIRING DWG TO ANALOG
MS
5/17/18
A
7957
LOOP 2-
LOOP 2+
EARTH
LOOP 1-
LOOP 1+
NOTES:
1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM WARNING:
CONDUIT SEALS REQUIRED WITHIN 50mm OF HOUSING.
FIGURE 2
DUAL CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
FIGURE 1
SINGLE CAVITY HOUSING
L
O
O
P
1
+
L
O
O
P
1
-
E
A
R
T
H
L
O
O
P
2
+
L
O
O
P
2
-
(ACP) INSTALLATION DWG LP ANALOG
EXPLOSION PROOF ATEX/IEC
Page 54
Level Plus® SoClean
®
Operation Manual
I 54 I
Fig. 63: Flame Proof, ATEX and IECEx Installation Drawing, HART®, Page 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO # DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-3
A
1
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
MS
10/24/14
RELEASE TO PRODUCTION
EARTH GROUND
24 VDC
COMMON-
Rx /Tx+
Rx /Tx-
EARTH GROUND
CATEGORY 1
CATEGORY 2
NON HAZARDOUS LOCATION
HAZARDOUS LOCATION
AGENCY CONTROLLED DRAWING (ATEX/IEC). NO CHANGES WITHOUT PRIOR AGENCY APPROVAL
EARTH TERMINAL
(ACP) INSTALLATIN DWG LP DIGITAL
EXPLOSION PROOF ATEX/IEC
7957
LEVEL
N/A
1725
II 1/2 G
Ex db IIB+H2 T6...T3 Ga/Gb
Ta = -40°C to +71°C; IP65
For ATEX - FM16ATEX0068X
For IECEx - IECEx FMG 16.0033X
AREA REQUIRING
EPL Gb
AREA REQUIRING
EPL Ga
NOTES:
1.ALL NATIONAL AND LOCAL CODES AND REGULATIONS MUST BE ADHERED TO
WHEN INSTALLING THE LEVEL SENSOR IN HAZARDOUS ENVIRONMENTS.
SEAL ALL CONDUITS WITHIN 50mm OF ENCLOSURE.
2.DUAL-CAVITY ENCLOSURES:
CUSTOMER CONNECTIONS WILL BE MAD
E AT TERMINAL BLOCK ON POWER SIDE
OF HOUSING (NOT TO TERMINAL BLOCK ON INTERCONNECT BOARD). SEE FIGURE 2 ON PAGE 2
3. CAUTION: FLEXIBLE GAUGES HAVE A MINIMUM BEND RADIUS OF 381mm(15")
4.WARNING: TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTIBLE ATMOSPHERES,
DISCONNECT POWER BEFORE SERVICING
5.WARNING: THE EQUIPMENT CONTAINS NON-METALLIC ENCLOSURE AND PROCESS PARTS, TO PREVENT
THE RISK OF
ELECTROSTATIC SPARKING. THE NON-METALLIC SURFACE AND PROCESS PARTS SHOULD ONLY
BE CLEANED WITH A DAMP CLOTH.
PAINTED SURFACE OF THE EQUIPMENT MAY STORE ELECTROSTATIC CHARGE
AND BECOME A SOURCE OF IGNITION IN APPLICATIONS WITH A LOW RELATIVE HUMIDITY <~30% RELATIVE
HUMIDITY WHERE THE PAINTED SURFACE IS RELATIVELY FREE OF SURFACE CONTAMINATION
SUCH AS DIRT, DUST OR OIL. CLEANING OF T
HE PAINTED SURFACE SHOULD ONLY BE DONE
WITH A DAMP CLOTH.
6. CABLES SHALL BE RATED > 5C ABOVE MAXIMUM AMBIENT TEMPERATURE.
7. TO MAINTAIN THE INGRESS PROTECTION RATING OF IP65, TEFLON TAPE (3 WRAPS) OR PIPE DOPE SHALL
BE USED. REFER TO INSTALLATION INSTRUCTIONS.
8. THE EQUIPMENT CAN BE INSTALLED IN THE BOUNDARY WALL BETWEEN AN EPL Ga AREA AND THE
LESS HAZARDOUS AREA, EPL Gb. IN THIS
CONFIGURATION, THE PROCESS CONNECTION IS INSTALLED
IN EPL Ga, WHILE THE TRANSMITTER HOUSING IS INSTALLED IN EPL Gb. REFER TO INSTALLATION
INSTRUCTIONS.
EQUIPMENT CAN BE INSTALLED IN A BOUNDARY WALL CONFIGURATION WHERE THE PROCESS CONNECTION
IS INSTALLED AS CATEGORY 1G EQUIPMENT WHILE THE TRANSMITTER HOUSING IS INSTALLED AS
CATEGORY 2G EQUIPMENT. REFER TO INSTALLATION
INSTRUCTIONS.
9. THE APPLICABLE TEMPERATURE CLASS OF THE EQUIPMENT, AMBIENT TEMPERATURE RANGE,
AND MAXIMUM PROCESS TEMPERATURE OF THE EQUIPMENT IS AS FOLLOWS;
T3 WITH PROCESS TEMPERATURE RANGE OF -40°C to +150°C
T4 WITH PROCESS TEMPERATURE RANGE OF -40°C to +135°C
T5 WITH PROCESS TEMPERATURE RANGE OF -40°C to +100°C
T6 WITH PROCESS TEMPERATURE RANGE OF -40°C to +85°C
AMBIENT TEMPERATURE RANGE -40°CTa+71°C
10. WHEN MOUNTING ON A MAGNETIC LEVEL GAUGE MAKE SURE THE ELECTRONIC HEAD AND PRESSURE
BARRIER HAVE A MINIMUM SPACING OF 5 INCHES. SEE INSTALLATION MANUAL FOR DETAIL
11. FLAMEPATHS ARE NOT FOR REPAIR
SEE NOTE 8
CONDUIT SEAL
CONDUIT
SEE NOTE 1
5" [127mm] Minimum
Page 55
Level Plus® SoClean
®
Operation Manual
I 55 I
Fig. 64: Flame Proof, ATEX and IECEx Installation Drawing, HART®, Page 2
DETAIL A
SCALE 1.60 : 1
DETAIL C
SCALE 3 : 1
DETAIL D
SCALE 1.2
A
C
D
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REV
ECO #
DESCRIPTION
TITLE
SIZE
DWG NO.
REV
PRODUCT LINE
SCALE:
BY
DATE
SHEET
OF
UNLESS OTHERWISE SPECIFIED
TOLERANCES
0 PLACES
MM
1 PLACE
MM
ANGLES
0.5 0.1
- THREAD DEPTHS ARE TO MIN. FULL THDS
- DRILL DEPTHS ARE TO FULL DIA.
- REMOVE BURRS AND SHARP EDGES
- DO NOT SCALE PRINT
- MACHINED SURFACE FINISH 3.2uM [125 uIn]
PROPRIETARY DATA
THE INFORMATION AND DESIGN(S) DISCLOSED
HEREIN ARE THE PROPERTY OF MTS SYSTEMS
CORPORA
TION AND MAY NOT BE USED,
REPRODUCED OR DISCLOSED IN ANY FORM
EXCEPT AS GRANTED IN WRITING BY MTS
SYSTEMS CORPORATION. THIS RESTRICTION
EXCLUDES INFORMATION THAT IS IN THE
PUBLIC DOMAIN OR WAS LEGITIMATELY IN THE
PRIOR POSSESSION OF THE RECIPIENT.
m
MTS SYSTEMS CORPORATION
SENSORS DIVISION
3001 SHELDON DRIVE, CARY, NC 27513
METRIC
FIRST
ANGLE
D
651552-3
A
2
2
DRAWN BY:
MS
***NO REVISIONS SHALL BE MADE WITHOUT THE NOTIFICATION TO APPROVAL AGENCY(S).***
A
MS
10/24/14
RELEASE TO PRODUCTION
+24V
GND
EARTH
TX/RX+
TX/RX-
GND
+24V
TX/RX-
TX/RX+
EARTH
FIGURE 1
SINGLE CAVITY HOUSING
FIGURE 2
DUAL CAVITY HOUSING
NOTES: 1. THE CUSTOMER SHOULD CONNECT THE OUTSIDE GROUND LUG TO THE SAFETY EARTHING GROUND SYSTEM
WARNING:
CONDUIT SEALS REQUIRED WITHIN 50mm OF HOUSING.
+
2
4
V
G
N
D
E
A
R
T
H
T
x
/
R
x
+
T
x
/
R
x
-
7957
(ACP) INSTALLATION DWG LP DIGITAL
EXPLOSION PROOF ATEX/IEC
Page 56
Level Plus® SoClean
®
Operation Manual
I 56 I

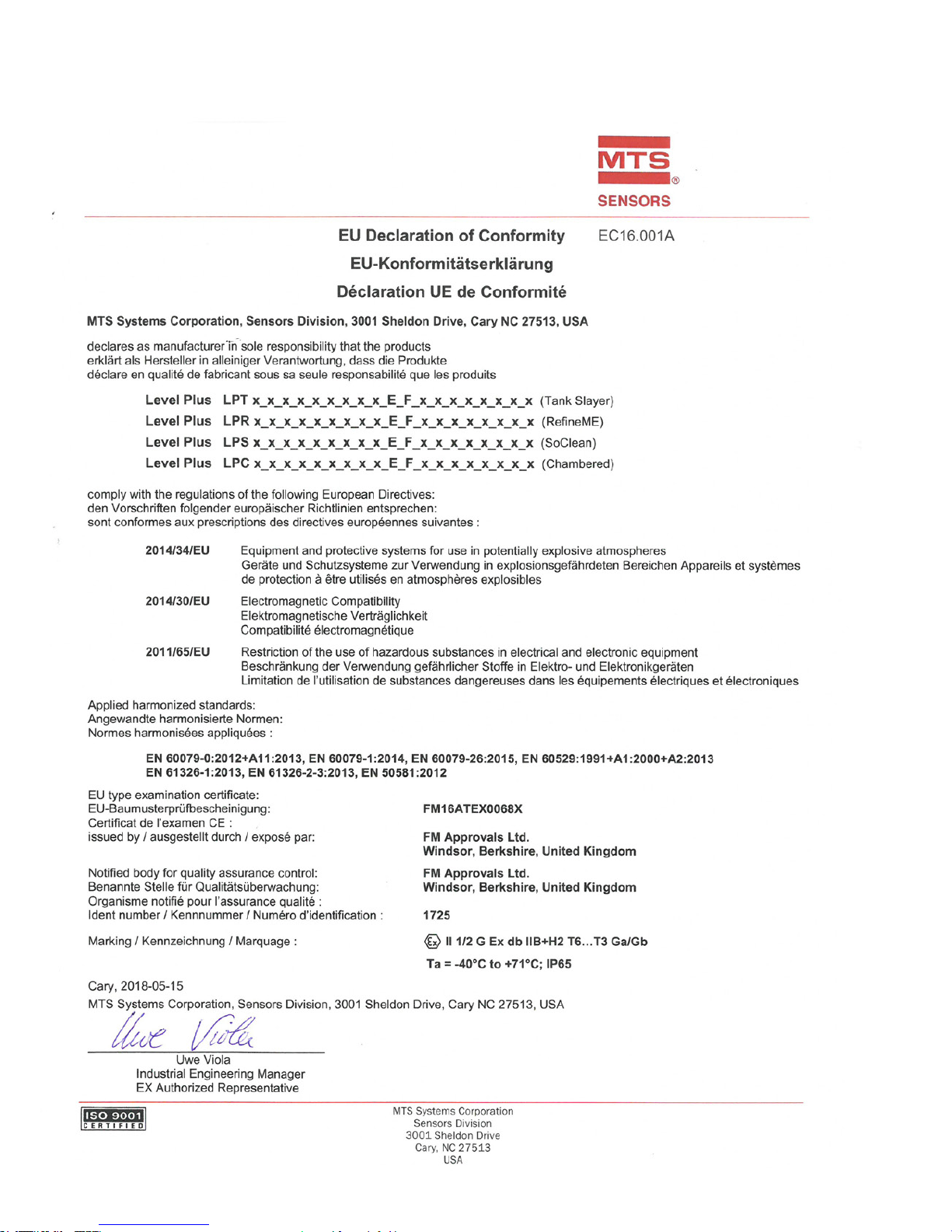

13.5.3 EC Declaration of conformity
Page 57
Level Plus® SoClean
®
Operation Manual
I 57 I
Page 58
UNITED STATES
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive
Cary, N.C. 27513
Phone: +1 919 677-0100
E-mail: [email protected]
GERMANY
MTS Sensor Technologie
GmbH & Co. KG
Auf dem Schüffel 9
58513 Lüdenscheid
Phone: +49 2351 9587-0
E-mail: [email protected]
ITALY
Branch Offi ce
Phone: +39 030 988 3819
E-mail: [email protected]
FRANCE
Branch Offi ce
Phone: +33 1 58 4390-28
E-mail: [email protected]
GREAT BRITAIN
Branch Offi ce
Phone: +44 79 44 15 03 00
E-mail: [email protected]
CHINA
Branch Offi ce
Phone: +86 21 6485 5800
E-mail: [email protected]
JAPAN
Branch Offi ce
Phone: +81 3 6416 1063
E-mail: [email protected]
www.mtssensors.com
MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation in the United States; MTS SENSORS and the MTS SENSORS logo are trademarks of MTS Systems Corporation within the
United States. These trademarks may be protected in other countries. All other trademarks are the property of their respective owners. Copyright © 2018 MTS Systems Corporation. No license of any intellectual
property rights is granted. MTS reserves the right to change the information within this document, change product designs, or withdraw products from availability for purchase without notice. Typographic and
graphics errors or omissions are unintentional and subject to correction. Visit www.mtssensors.com for the latest product information.
Document Part Number:
551693 Revision D (EN) 08/2018
Safety Integrity Level
IEC 61508
Loading...
