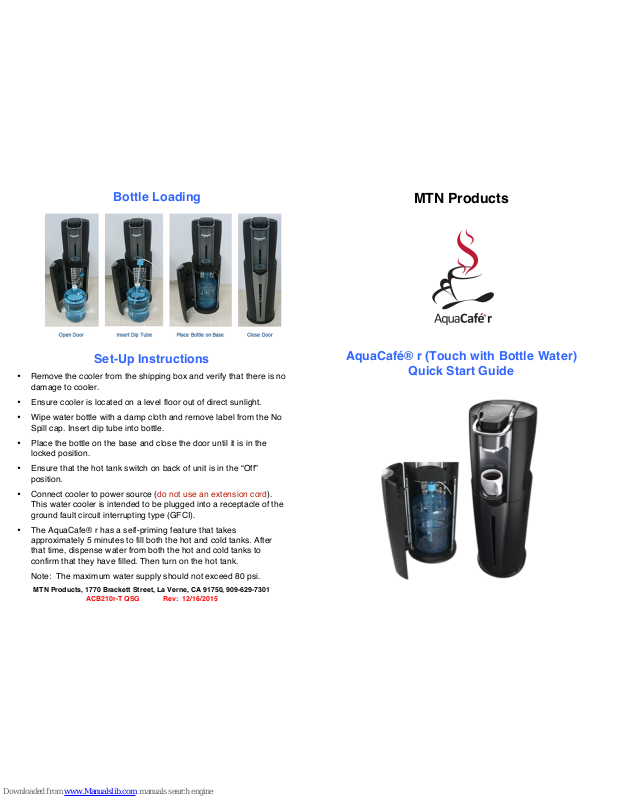

MTN Products Aquacafe R Quick Start Manual
!
Bottle Loading
!
!
Set-Up Instructions
• Remove the cooler from the shipping box and verify that there is no
damage to cooler.
• Ensure cooler is located on a level floor out of direct sunlight.
• Wipe water bottle with a damp cloth and remove label from the No
Spill cap. Insert dip tube into bottle.
• Place the bottle on the base and close the door until it is in the
locked position.
• Ensure that the hot tank switch on back of unit is in the “Off”
position.
• Connect cooler to power source (do not use an extension cord).
This water cooler is intended to be plugged into a receptacle of the
ground fault circuit interrupting type (GFCI).
• The AquaCafe® r has a self-priming feature that takes
approximately 5 minutes to fill both the hot and cold tanks. After
that time, dispense water from both the hot and cold tanks to
confirm that they have filled. Then turn on the hot tank.
Note: The maximum water supply should not exceed 80 psi.
MTN Products, 1770 Brackett Street, La Verne, CA 91750, 909-629-7301
ACB210r-T QSG Rev: 12/16/2015
MTN Products
AquaCafé® r (Touch with Bottle Water)
Quick Start Guide
!
Button Descriptions
!
• Hot Water - Press the Hot button and hold for 1 second (the
unlock indicator ring will light-up red.) Then press the Water
Dispense button to dispense hot water.
• Extra Hot Water for Cooking Instant Noodles and Soups -
Press the T-cup button to select the water volume. When the
water temperature is low, the Water Dispense light will flash
until temperature is reached. When it stops flashing, press
and hold the Hot Water button for one second, then press the
Dispense button. (Only available on coffee models.)
• Cold Water - Cold water is the default setting and the unlock
indicator ring will always be blue unless hot is selected (then it
will be red). If the unlock indicator ring is red, press the cold
water button, then press the Water Dispense button.
Otherwise, just press the Water Dispense button.
• Coffee - Press the T-cup button (#6 example on the right) to
select coffee volume. Open the lid with the handle, put aTouch capsule into the holder, and close the lid with the
handle. When the water temperature is low, the Water
Dispense light (#2) will flash red until the ideal temperature
is reached to brew coffee. When it stops flashing, press the
Dispense button (#2) to brew coffee or tea.
• When the water bottle is empty, the No Water indicator light
will flash (#1 below). Load a new bottle of water and push the
dispense button (#2) to continue operation. The no water
indicator light will turn off and stop flashing.
• If the Cold Water light (#4) is flashing, this means the
compressor has shut down due to a low water/no water
situation for more than 10 minutes.
!
!
• Load a new bottle of water and push the dispense button (#2)
to resume normal operation. The no water indicator light (#1)
will turn off. The cold water light will stop flashing when the
normal cold water operating temperature is reached.
