PAYMENT:

Standard terms are 50% of the sales order is due upon receipt of the goods. Net 30 days on the remaining balance. A second invoice will be sent out detailing this. A service charge of 1.5 % per month may be assessed on invoices over 30 days.

SHIPPING:

Freight will be pre-paid by MTM Hydro for all purchase orders of two machines or more. In the case of shipping one machine, MTM Hydro will pre-pay and add to the total of the invoice.

PRICING:

MTM HYDRO, Inc. reserves the right to change discounts and/or prices without notice. Trade discounts are based upon unit and dollar volume and are inclusive of warranty allowance. A surcharge may be added to individual orders in response to foreign currency exchange rate ﬂuctuations.

- Price list effective April 1st, 2015

- Subject to change without notice

- All prices F.O.B. Eden Prairie, Minnesota

- The price in effect at time of shipment will apply.

- Pricing discrepancies must be ﬁled within 30 days of invoice

RETURNS:

- Return for credit must be requested within 30 days of shipment & pre-approved by MTM Hydro Inc.

- All returns must be sent freight paid.

- A return authorization number and invoice copy must accompany all returns.

- Please note that a 20% restocking charge will be assessed.

SHIPPING DISCREPANCIES:

Discrepancies must be submitted within 48 hours of receipt of goods.

Possession of this Catalog or any other MTM Hydro, Inc. material should not be construed as an offer to sell.

STATEMENT OF WARRANTY

LIMITED WARRANTY ON MTM HEAT PRODUCTS

MTM Hydro, Inc. warrants that its products will be free from defects in material and workmanship under normal use for the period of one (1) year. Proof of Purchase must be provided at the time warranty service is requested. Therefore, you should keep your sales slip or invoice from the original purchase.

Exclusions:

This warranty does not cover freight damage, freezing damage, normal wear and tear from ordinary use, or damage caused by misapplication, fault, negligence, alterations, improper installation or improper maintenance and service by you or any third party that affects the performance or reliability of the product. Failure to perform normal and routine maintenance on the heater, damage related to insects, birds, or animals of any kind and damage due to weather conditions will not be not covered. This warranty does not include wear items, such as, ﬁlters, vanes, nozzles and rotors.

In addition, the Limited Warranty does not cover damage to the ﬁnish, such as, scratches, dents, discoloration, rust or other weather damage after purchase.

“Normal use” does not include use in excess of recommended maximum speeds, ﬂows, pressures, vacuums and temperatures, or use requiring handling of ﬂuids not compatible with components and materials noted in MTM Hydro products catalog, technical literature, and instructions.

All Transportation costs for the return of the damaged equipment or components will be the responsibility of the purchaser. If defective MTM Hydro, Inc. will repair or replace the defective part or equipment and return the item freight pre-paid. If the item is not defective or operating normally, the item will be returned freight collect.

This limited warranty is the exclusive warranty MTM Hydro Inc. makes no other warranty, express or implied, included but not limited to any warranty of merchantability or ﬁtness for a particular purpose.

MTM Hydro’s obligations under this warranty is, at MTM Hydro’s option during the limited warranty period, to either repair the defective part or equipment or replace with a new part or equipment upon return of the entire product to the MTM Hydro, Inc. This is the exclusive remedy for any breach of warranty. In no event shall MTM Hydro Inc. be liable for any special, indirect, incidental, punitive or consequential damages of any kind, whether for breach of any warranty, for negligence on the basis of strict liability, or otherwise.

Some states do not allow the exclusion or limitation on how long a warranty lasts, so the above exclusion and limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state

For Service or Warranty, contact Customer Service MTM Hydro, Inc., 7430 Washington Ave. So., Eden Prairie, MN 55344

866.686.4020 / 952.746.4825 / Fax 866.686.4021 Monday - Friday 8:00 a.m. - 5:00 p.m. CST

Page 3

Notes

Page 4

Page 5

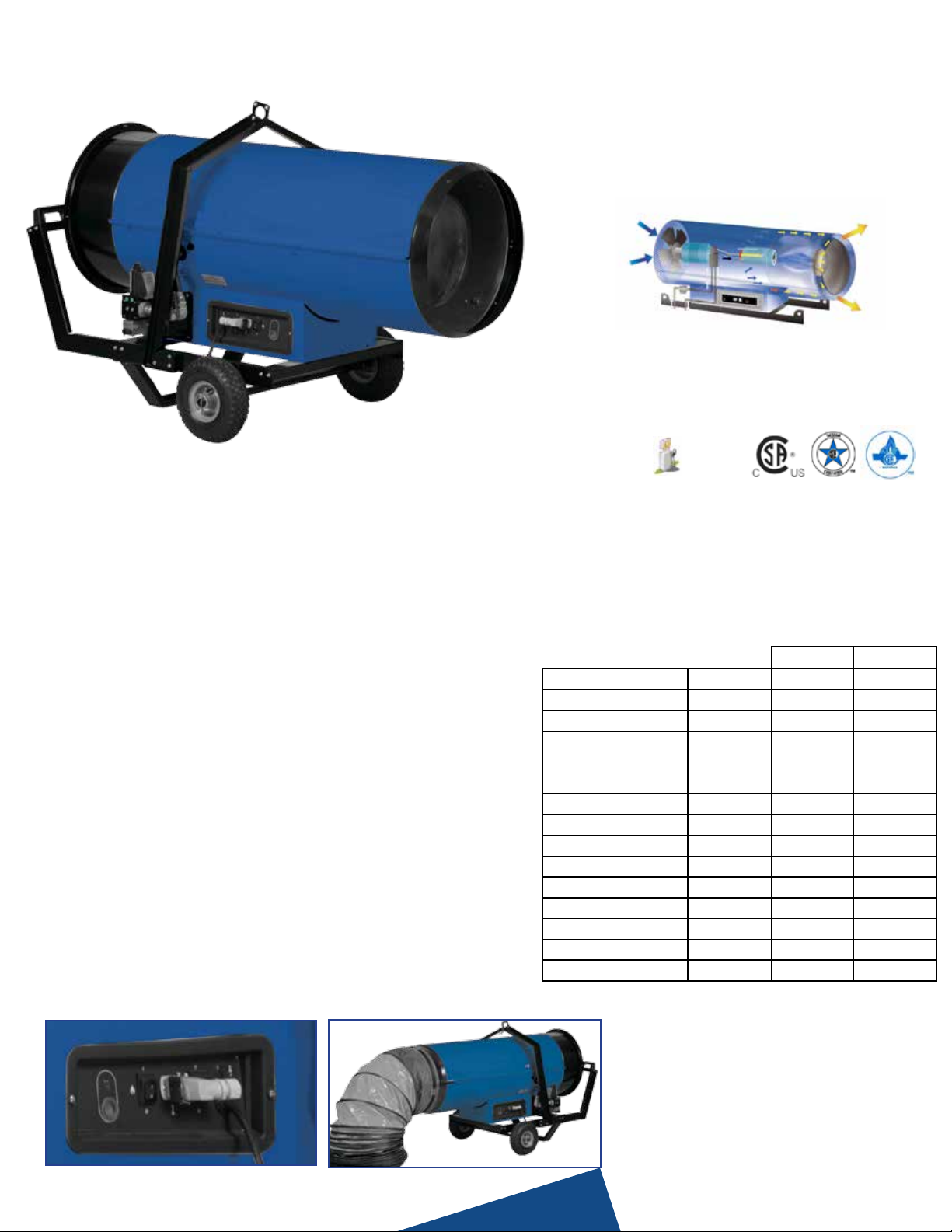

FLAME 115 HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

• Approved for construction

• Approved for agriculture

• CSA approved

• 115,000 BTU’s

• Low noise level

• Built-in oil burner with Suntec gear pump

• Electronic ﬂame control unit with metal casing

• Only 92 lbs.

• Screw-on fuel cap

• AISI 309 L stainless steel cone

• Shockproof polythene fuel tank

• Automatic post-ventilation cycle to cool down the combustion chamber

• Fuel tank drain plug

• Possibility of directing the cone up and down with locking mechanism

• Fuel lines in hydrocarbon-resistant rubber wire-mesh protected

• Extendable sliding ﬂoor shield

• Poly fuel tank for durability

• Made in Italy

• Remote thermostat plug

• Patented cone design

• 8” reinforced plastic wheels

FLAME 115

Part Number 48.7019

Max Power BTU\H 115,160

Fuel Consumption US GAL\H 0.85

Power Supply V, PH, HZ 120,1,60

Fan Motor Power HP (RPM) 1/4 (3,300)

Current Rating AMPS 2.15

Tank Capacity US GAL 11.35

Run Time HOUR 13.4

Pallet QTY 1

Container 20’ QTY 84

Container 40’ and 40’ HC QTY 180

Page 6

Page 7

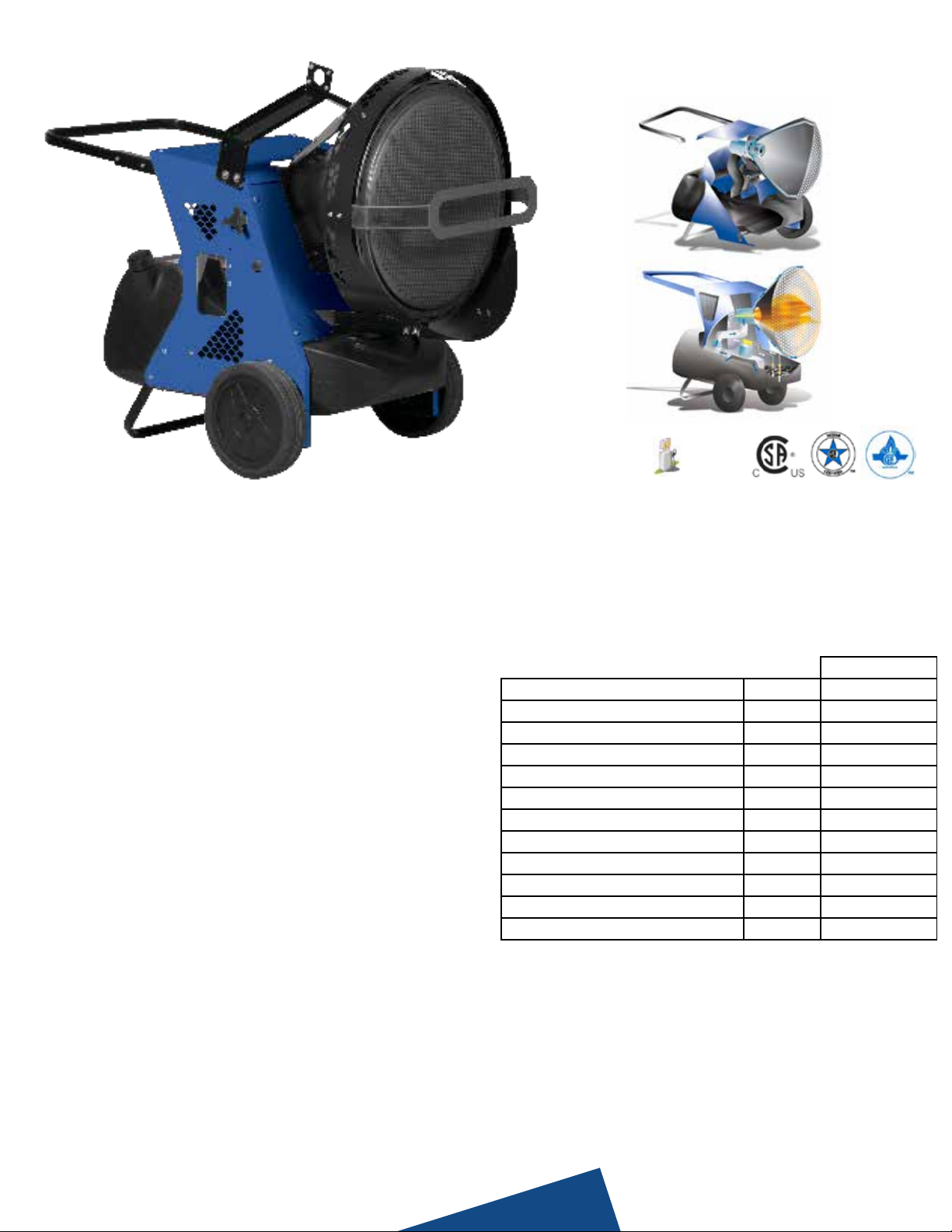

FIRE 155 HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

Fire155 Infrared diesel heater (direct-ﬁred) with embedded burner with dedicated fan for combustion air. The Fire155 models are characterized by the absence of moving air, the ﬂame generated by the burner heats the front plate that reaches high temperature. This helps to burn and stop all combustion residues, guaranteeing a clean combustion and 100% efﬁciency. They are used for heating very large spaces (warehouses, industrial sheds, yards, open spaces, ect.) or where suspended dust particles must be avoided.

• Approved for construction

• Direct heat ﬂow by radiation with no air movement

• Low noise level

• Built-in oil burner with Danfoss gear pump

• Electronic ﬂame control unit with metal casing

• No supervision required: can be controlled by thermostat, humidistat or timer

• 1ft power cord

• AISI 430 stainless steel combustion chamber

• Metallic forced air insulation pocket between the combustion chamber and the external protection cone

• Automatic post-ventilation cycle to cool down the combustion chamber

• Fuel lines in hydrocarbon-resistant rubber wire-mesh protected

• Shockproof polythene fuel tank

• Screw-on fuel cap

• Fuel tank drain plug

• Possibility of directing the cone up and down with locking mechanism

• Single point lift bail

• Oil ﬁlter included (optional pre-heated oil ﬁlter)

• Combustion air pressure switch (safety device turns off unit and requires manual reset)

• 12” reinforced plastic wheels

• Floor protection sliding shield

• Single Fuel Line Kit: This accessory allows the unit to recirculate hot oil from the return line back into the ﬁlter. The hot oil in the ﬁlter eases restarts and increases the performance of the unit in extreme cold temperature

The innovation of the FIRE 155 infrared heater lies in the elimination of the refractory material cone that surrounds the conical combustion chamber that’s typical of other competitor’s units. Our heater features a metalic forced air insulation pocket between the combustion chamber and the external protection cone. The cooling air is blown through the pocket by the burner fan. This innovative technology over comes the well known problem of the fragility and brittleness of the ceramic cone. Moreover, there is a relevant improvement in the cooling of the cone.

FIRE 155

Part Number 48.7001

Max Power 2nd Stage BTU\H 154,237

Max Power 1st Stage BTU\H - -

Fuel Consumption 2nd Stage - 1st Stage US GAL\H 1.11

Power Supply V, PH, HZ 120, 1, 60

Fan Motor Power HP (RPM) 1/4 (3,300)

Current Rating AMPS 4.1

Tank Capacity US GAL 17.2

Run Time 2nd Stage - 1st Stage HOUR 16

Pallet QTY 1

Container 20’ QTY 26

Container 40’ and 40’ HC QTY 56

Page 8

Page 9

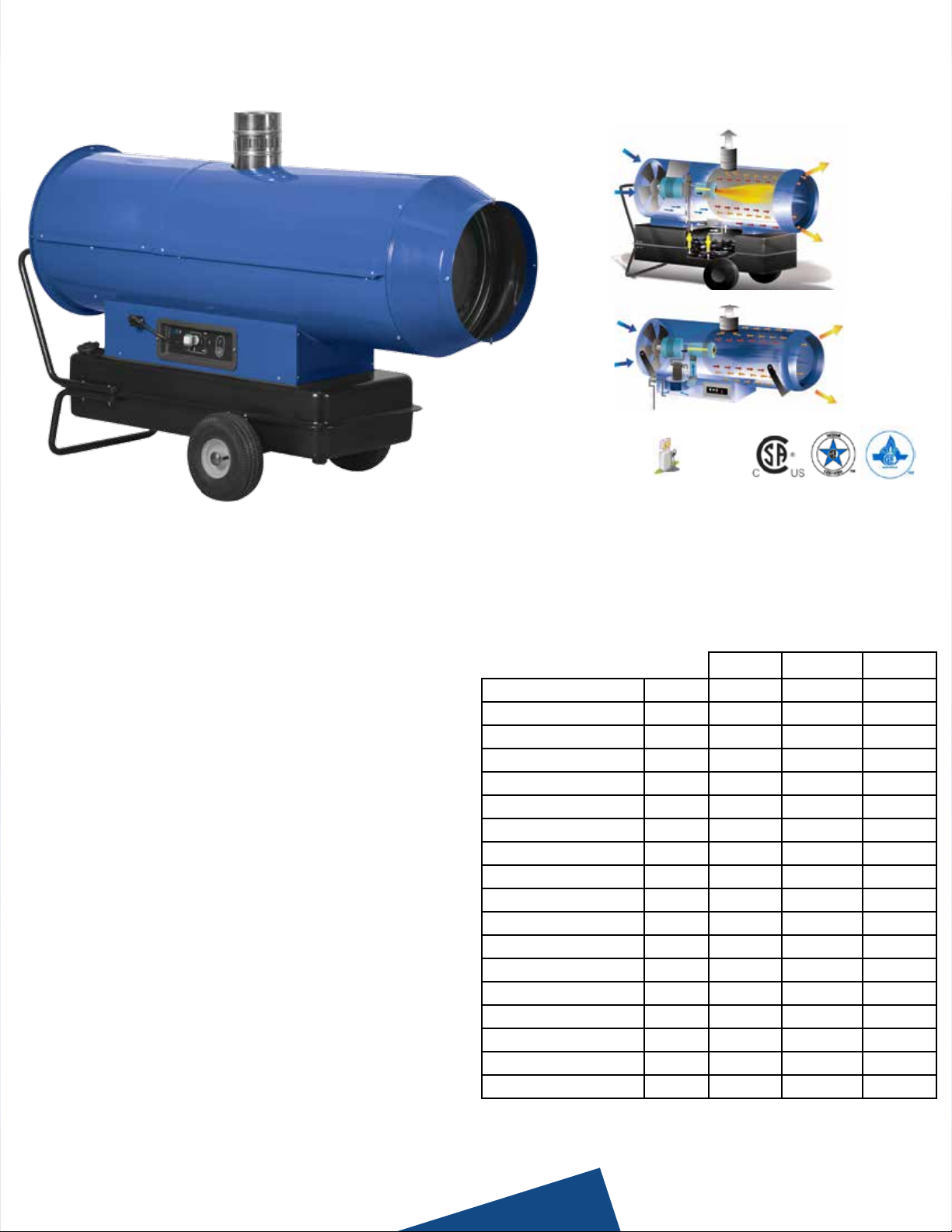

BLAZE HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

Blaze Diesel indirect-red portable heaters with embedded burner with combustion air obtained from the main ventilation fan. The Blaze heaters feature a heat exchanger that contains the ame and expels fumes throughout a chimney connected to the outside. Being indired-red, they can be operated indoor and can also be ducted. On the other hand, they have higher upfront costs and about 90% efciency due to the heat lost through the chimney.

• Approved for construction

• No supervision required can be controlled by thermostat, humidistat or timer

• 1ft power cord

• AISI 430 stainless steel combustion chamber with four-pass heat exchanger technology (BLAZE200-BLAZE300)

• Automatic post ventilation cycle to cool down the combustion chamber

• Electronic ﬂame control unit

• Overheating thermostat (safety device turns off unit and requires a manual reset)

• Fuel lines in hydrocarbon-resistent rubber wire-mesh protected

• Screw on fuel tank cap

• Fuel tank drain plug

• Electric control panel

• Oil ﬁlter; pre-heated oil ﬁlter (BLAZE200-BLAZE300)

• Combustion air pressure switch (safety device turns off unit and requires a manual reset)

• 10” pneumatic wheels

FOUR PASS HEAT EXCHANGER TECHNOLOGY Combustion chambers are manufactured using AISI 430 stainless steel with aluminized steel heat exchanger to increase performance. The new fourpass heat exchanger technology allows exhaust gases to increase heat

exchange with the cooling air and obtain maximum thermal efciency. Our heaters are the most efcient in the industry. Available in BLAZE200, BLAZE300 and

all PHOEN heaters.

BLAZE100 BLAZE200 BLAZE300

Part Number 48.7002 48.7003 48.7004

Heat Input BTU/H 112,141 204,873 293,982

Heat Output BTU/H 94,759 183,362 258,704

Fuel Consumption US GAL/H 0.81 1.48 2.17

Heated Airﬂow CFM 1,020 1,530 2,530

Temperature Rise (@64°F) °F 95 136 126

Power Supply V, PH, HZ 120,1, 60 120, 1, 60 120, 1, 60

Fan Motor Power HP (RPM) 1/4 (3,300) 5/8 (3,300) 1 (1,700)

Current Rating AMPS 4.05 7.65 11.80

Max Length Flex. Duct (1-Way) FT 25 50 75

Max Length Flex. Duct (2-Way) FT - - 25 35

Flue Size IN 6 6 6

Tank Capacity US GAL 11 17.2 27.7

Run Time HOUR 14 14 13

Pallet QTY 6 1 1

Container 20’ QTY 54 38 24

Container 40’ QTY 132 82 52

Container 40’ HC QTY 132 82 52

Page 10

Page 11

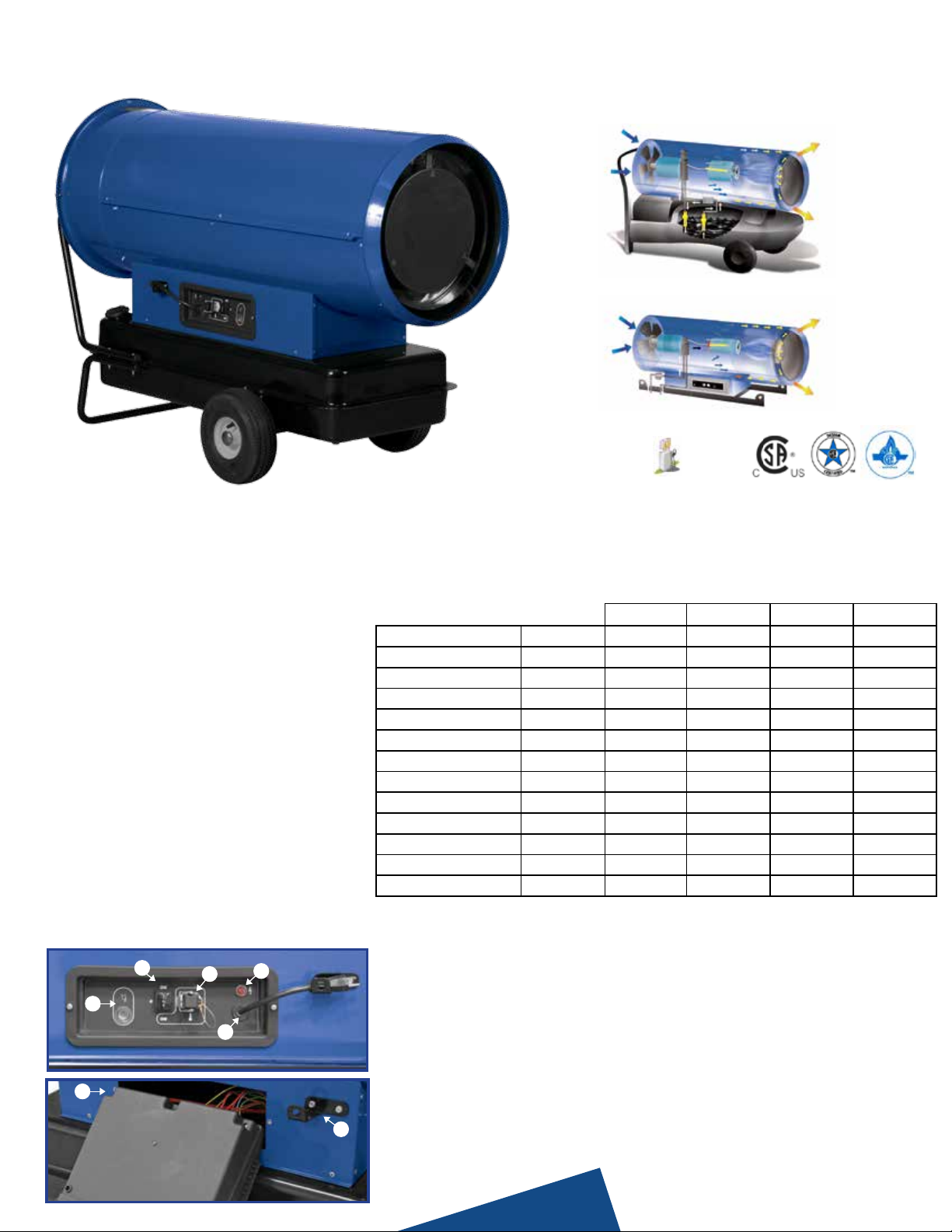

BLAST HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

Blast Diesel direct-red portable heaters with embedded burner with combustion air obtained from the main air fan. The Blast heaters generate hot air and

the combustion residues produced by the burner are expelled with the hot air and contribute to its heating. They transform all of the nominal input power

(from the fuel) into heat, 100% efciency. They are the most economical models available in terms for upfront cost and consumption. On the other hand, they can be used only in well ventilated rooms and where indirect-red heaters are not required by law.

• Approved for construction

• Built-in oil burner with Danfoss gear pump

• Electronic ﬂame control unit

• Combustion air pressure switch (safety device turns off unit and requires a manual reset)

• No supervision required; can be controlled by thermostat, humidistat or timer

• 1ft power cord

• AISI 430 stainless steel combustion chamber

• Automatic post ventilation cycle to cool down the combustion chamber

• Fuel lines in hydrocarbon-resistant rubber wire-mesh protected

• Screw on fuel tank cap

• Fuel tank drain plug

• 10” pneumatic wheels

BLAST250 BLAST360 BLAST400 BLAST600

Part Number 48.7005 48.7006 48.7022 48.7007

Max Power BTU/H 238,947 361,439 361,439 599,524

Fuel Consumption US GAL/H 1.72 2.6 2.6 4.32

Heated Airﬂow CFM 1,460 1,795 1,795 2,800

Power Supply V, PH, HZ 120,1, 60 120, 1, 60 120,1,60 120,1,60

Fan Motor Power HP (RPM) 5/8 (3,300) 5/8 (3,300) 1 (1,700) 1 (1,700)

Current Rating AMPS 5.1 6 7.5 11.1

Tank Capacity US GAL 17.2 27.7 27.7 35.6

Run Time HOUR 10 11 10 8

Pallet QTY 1 1 1 1

Container 20’ QTY 38 28 24 24

Container 40’ QTY 82 58 52 52

Container 40’ HC QTY 82 58 52 52

DUST AND WATER PROOF ELECTRIC PANEL 1 Reset button with lock out (red), working (green) and stand-by

(orange) indicator light 2 Three-way control switch

• position 0 for stop

• position 1 for “continuous” burning

• position 2 for ON with remote thermostat, humidostat, timer

3 Socket for remote thermostat, humidostat, timer 4 Voltage warning light (connected to the mains)

5 Power cord 6 Plastic cover 7 Power cord bracket

Page 12

Page 13

BLAST/N HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

Blast/N Gas (propane or natural gas) direct-ﬁred portable heaters with embedded burner with a combustion air obtained from the main ventilation fan. The Blast/N heaters generate hot air and the combustion residues produced by the burner are expelled with the hot air and contribute to its heating. They transform all of nominal input power (from the fuel) into heat, 100% efﬁciency. They are the most economical models available in terms of upfront cost and consumption. On the other hand, they can be used only in well-ventilated rooms and where indrect-ﬁred heaters are not required by law.

• Approved for construction

• Built-in oil burner with Danfoss gear pump

• Electronic ﬂame control unit

• Combustion air pressure switch (safety device turns off unit and requires a manual reset)

• No supervision required; can be controlled by thermostat, humidistat or timer

• 1ft power cord

• AISI 430 stainless steel combustion chamber

• Automatic post ventilation cycle to cool down the combustion chamber

• Fuel lines in hydrocarbon-resistant rubber wire-mesh protected

• Bayonet-type fuel tank cap

• Fuel tank drain plug

• 10” pneumatic wheels

BLAST/N250 BLAST/N400

Part Number 48.7023 48.7008

Max Power NG/LP BTU/H 254,683 402,767

Feul Consumption NG CFH 242 381

Fuel Consumption LP CFH 89 145

Heated Airﬂow CFM 2,766 4,120

Temperature Rise (@64 F) F 86 103

Max Length Flex. Duct Ft 50 50

Max Air Static Press. Avail. PA 150 140

Power Supply V, PH, HZ 120,1,60 120,1,60

Fan Motor Power HP (RPM) 5/8 (3,300) 1 (1,700)

Current Rating AMPS 5 8.5

Pallet QTY 1 1

Container 20’ QTY 60 26

Container 40’ QTY 129 54

Container 40’ HC QTY 129 81

Page 14

Page 15

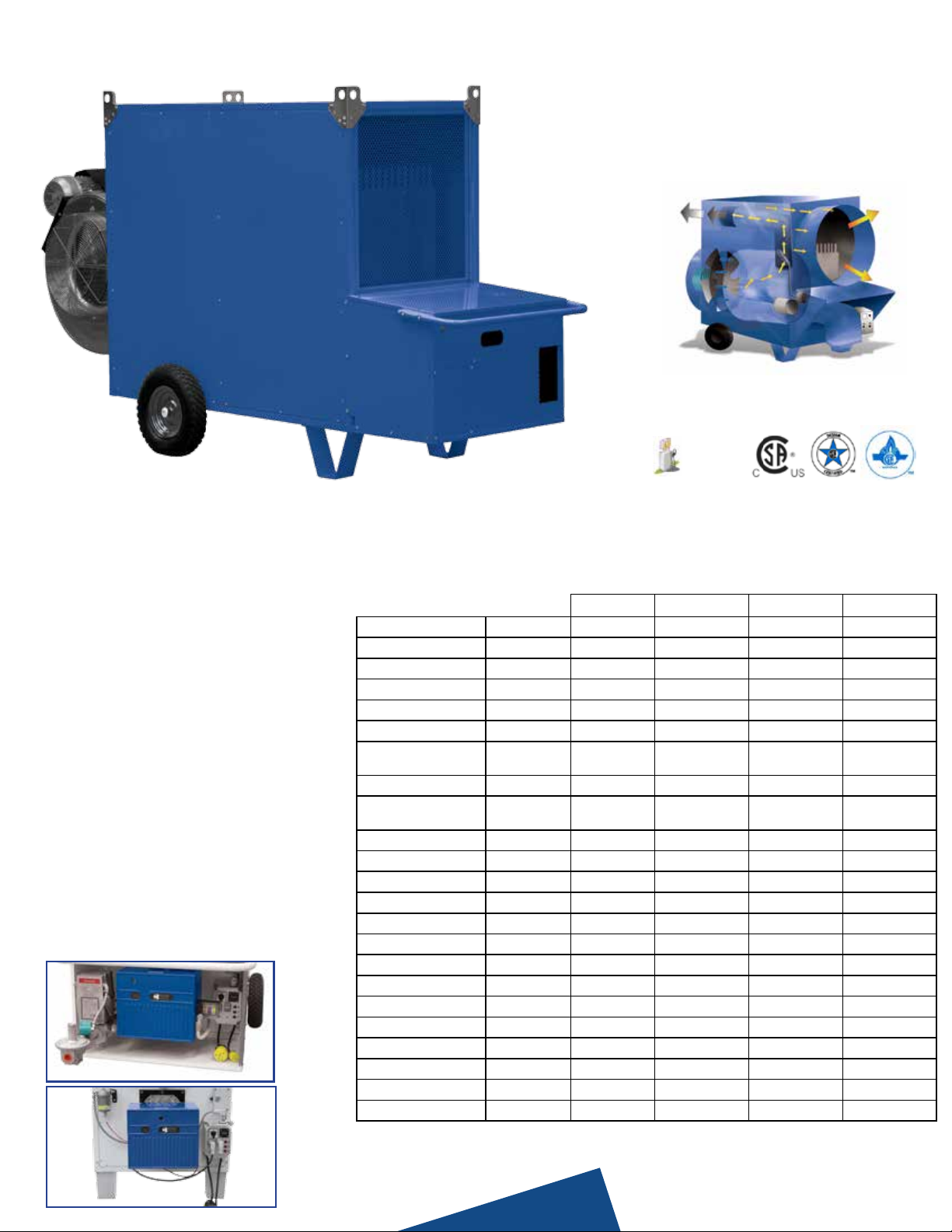

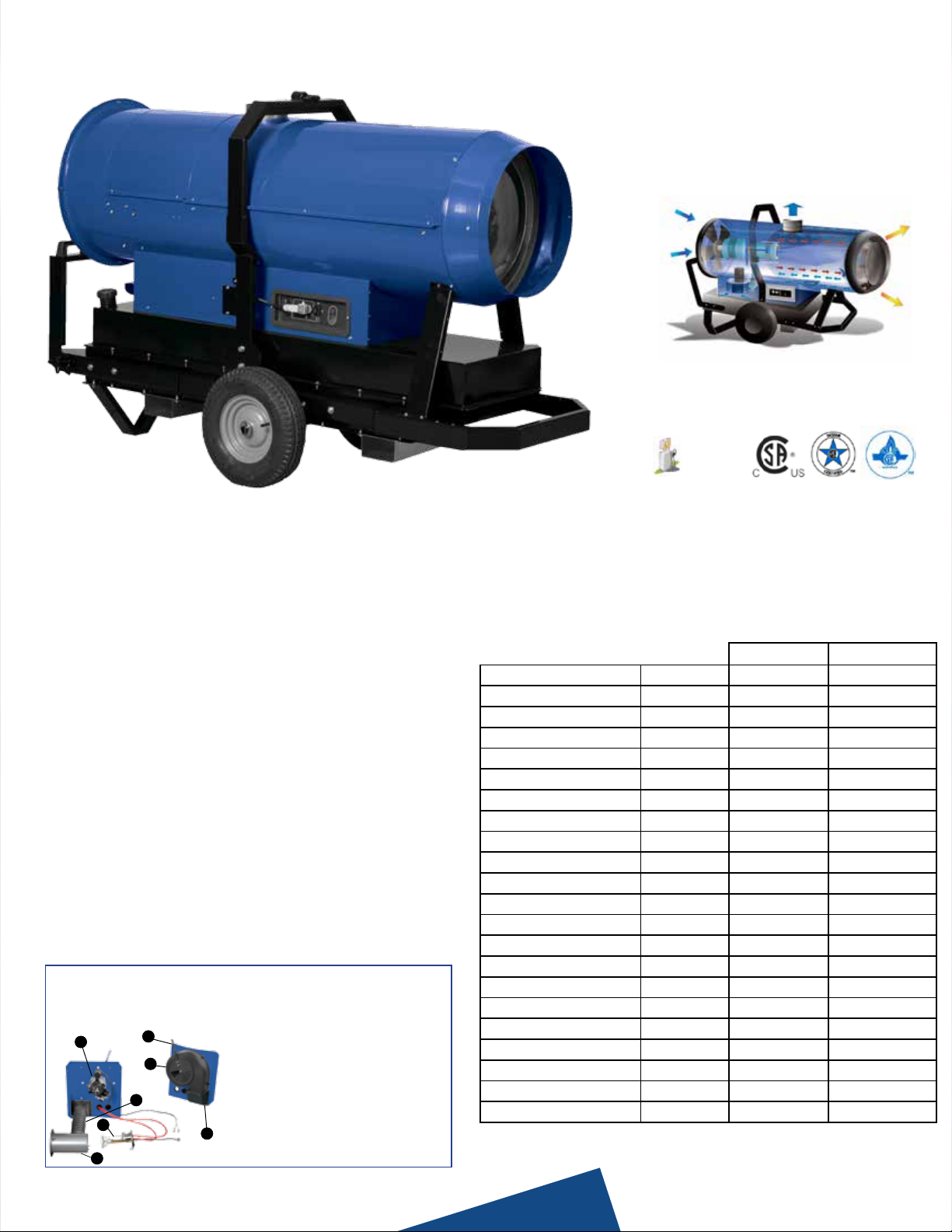

FIRESTORM HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

Firestorm Heavy duty diesel indirect-ﬁred portable heaters with embedded burner with dedicated fan for combustion air. The Firestorm heaters feature a heat exchanger that contains the ﬂame and expells fumes throughout a chimney connected to the outside. Being indriect-ﬁred, they can be operated indoors and can also be ducted. On the other hand, they have higher upfront costs and about 90% efﬁciency due to the heat lost through the chimney.

• Approved for construction

• Separated burner blower

• Two-stage dedicated burner (low and high ﬁre selector)

• 1ft power cord

• Combustion chamber pre-heating cycle

• Electronic ﬂame control unit

• Fuel lines in hydrocarbon-resistant rubber wire-mesh protected

• Screw on fuel tank cap

• Fuel tank drain plug

• Ventilation only mode (fan can be operated when burner is off)

• Pre-heated oil ﬁlter (not included with FIRESTORM/S)

• Anti-shock frame with foldable handle (FIRESTORM400 HC)

• Single point lift bail and forklift pockets

• 12” pneumatic wheels (16” for HC version)

• Optional return air adapter for inside warm air recirculation

• Heater is shipped fully assembled

• No supervision required: can be controlled by thermostat, humidistat or timer

• Combustion air pressure switch (safety device: turns off unit and require manual reset)

• Convection fan is controlled by thermostat that measure combustion chamber temperature

• AISI 430 stainless steel combustion chamber with four-pass heat exchanger technology

• Single fuel line kit: allows to recirculate hot oil from the return line back into the pre-heated ﬁlter to maintain oil warmer in the ﬁlter and favorite cold starts and better burning perfomance in extreme cold temperature

DEDICATED TWO-STAGE OIL BURNER

The Phoen line of heaters features a built-in burner speciﬁcally designed and optimized for cylindrical combustion chambers typical of our cannon-type heaters. The burner features a two-stage oil pump and a separated combustion air blower. Combined to the four-pass heat exchanger, enables to run the unit at 85% efﬁciency, one of the highest in the industry

Legend

1 Combustion head 2 Blower motor 3 Combustion air blower 4 Double stage diesel pump (Suntec) 5 Combustion air regulation valve 6 Electrodes – Nozzle 7 Flexible hose connecting blower to combustion head

Firestorm 400 Firestorm 400HC

Part Number 48.7016 48.7009

Heat Input 2nd Stage BTU/H 411,905 411,905

Heat Input 1st Stage BTU/H 272,189 272,189

Heat Output 2nd Stage BTU/H 354,239 354,239

Heat Output 1st Stage BTU/H 231,360 231,360

Fuel Consumption 2nd Stage US Gal/H 2.97 2.97

Fuel Consumption 1st Stage US Gal/H 1.96 1.96

Airﬂow CFM 3,250 3,250

Temp. Rise (@64 F) 2nd Stage F 132 132

Temp. Rise (@64 F) 1st Stage F 108 108

Power Supply V,PH,Hz 120,1,60 120,1,60

Fan Motor Power HP (RPM) 1 (1,700) 1 (1,700)

Burner Motor Power HP (RPM) 1/4 (3,300) 1/4 (3,300)

Current Rating AMPS 13 13

Max Length Duct 1-Way/2-Way Ft 100/60 100/60

Max Length Air Inlet Duct Ft 30 30

Max Length Fresh Air Intake Ft 15 15

Flue Size In 6 6

Tank Capacity US Gal 35.6 57

Run Time 2nd Stage - 1st Stage Hr 18 - 12 29 - 19

Pallet Qty 1 1

Container 20’/40’/40’HC Qty 8/18/36 7/16/31

Page 16

Page 17

INFERNO HEATER

Jet Fuel Kerosene Diesel #1 Diesel #2

Inferno

Large indirect-ﬁred portable heaters with external burner (gas or diesel). The Inferno heaters are suitable for high volume spaces and can run on diesel or gas (LPG or natural gas), depending on the burner and can be equipped with an axial or a centrifugal fan. Centrifugal fans are very quiet, ensures greater pressure and is particularly recommended for installations with ducts.

• Approved for construction

• Available with oil or gas (NG or LP) burner

• Riello burner

• Electronic ﬂame control unit

• Thermostats: FAN, TEMP LIMIT with automatic reset, overheating with manual reset

• Convection fan is controlled by thermostat that measure combustion chamber temperature

• No supervision required: can be controlled by thermostat, humidistat or timer

• Casing with double steel protection for better thermal and acoustic insulation

• AISI 430 stainless steel combustion chamber with aerodynamic shape

• Ventilation only mode (fan can be operated when burner is off)

• Available with both axial or centrifugal fan (axial fan for a more compact unit and centrifugal fan “C” when higher static pressure is needed)

• Lifting brackets

• 16” pneumatic wheels for easy mobility

• Hour meter

• Forklift pockets

• Pre-heated oil ﬁlter (oil version only)

Inferno 700 Inferno 700C Inferno 900 Inferno 900C

Part Number 48.7013 48.7024 48.7018 48.7025

Heat Input BTU/H 700,000 700,000 900,000 900,000

Heat Output BTU/H 595,000 595,000 765,000 765,000

Heated Airﬂow CFM 7,420 7,420 8,830 8,830

Fuel Consumption US GAL/H 5.04 5.04 6.48 6.48

Fuel Consumption NG CFH 685 685 881 881

Min. Supply Pressure NG

Fuel Consumption LP CFH 275 275 353 353

Min. Supply Pressure LP In.

Max Air Temperature F 250 250 250 250

Power Supply V, PH, HZ 220,1,60 220,1,60 220,1,60 220,1,60

Fan Motor Power HP (RPM) 2 (1,700) 3 (1,700) 3 (1,700) 4 (1,700)

Burner Motor Power HP (RPM) 1/4 (3,300) 1/4 (3,300) 1/4 (3,300) 1/4 (3,300)

Current Rating AMPS 7.8 13.5 10.3 15

Max Length Duct 1-Way Ft. 200’ 300’ 200’ 300’

Max Length Duct 2-Way Ft. 100’ 150’ 100’ 150’

Max Length Duct 3-Way Ft. 50’ 75’ 50’ 75’

Max Length Duct 4-Way Ft. 30’ 40’ 30’ 40’

Flue Pipe In. 8 8 8 8

Pallet QTY 1 1 1 1

Container 20’ QTY 8 8 7 7

Container 40’ QTY 16 16 15 15

Container 40’ HC QTY 32 28 15 15

In.

Min. 7in W.C. -

Max. 14in W.C.

Min. 8in W.C. -

Max 14in W.C.

Min. 7in W.C. Max. 14in W.C.

Min. 8in W.C. Max 14in W.C.

Min. 7in W.C. Max. 14in W.C.

Min. 8in W.C. Max 14in W.C.

Min. 7in W.C. Max. 14in W.C.

Min. 8in W.C. -

Max 14in W.C.

Page 18

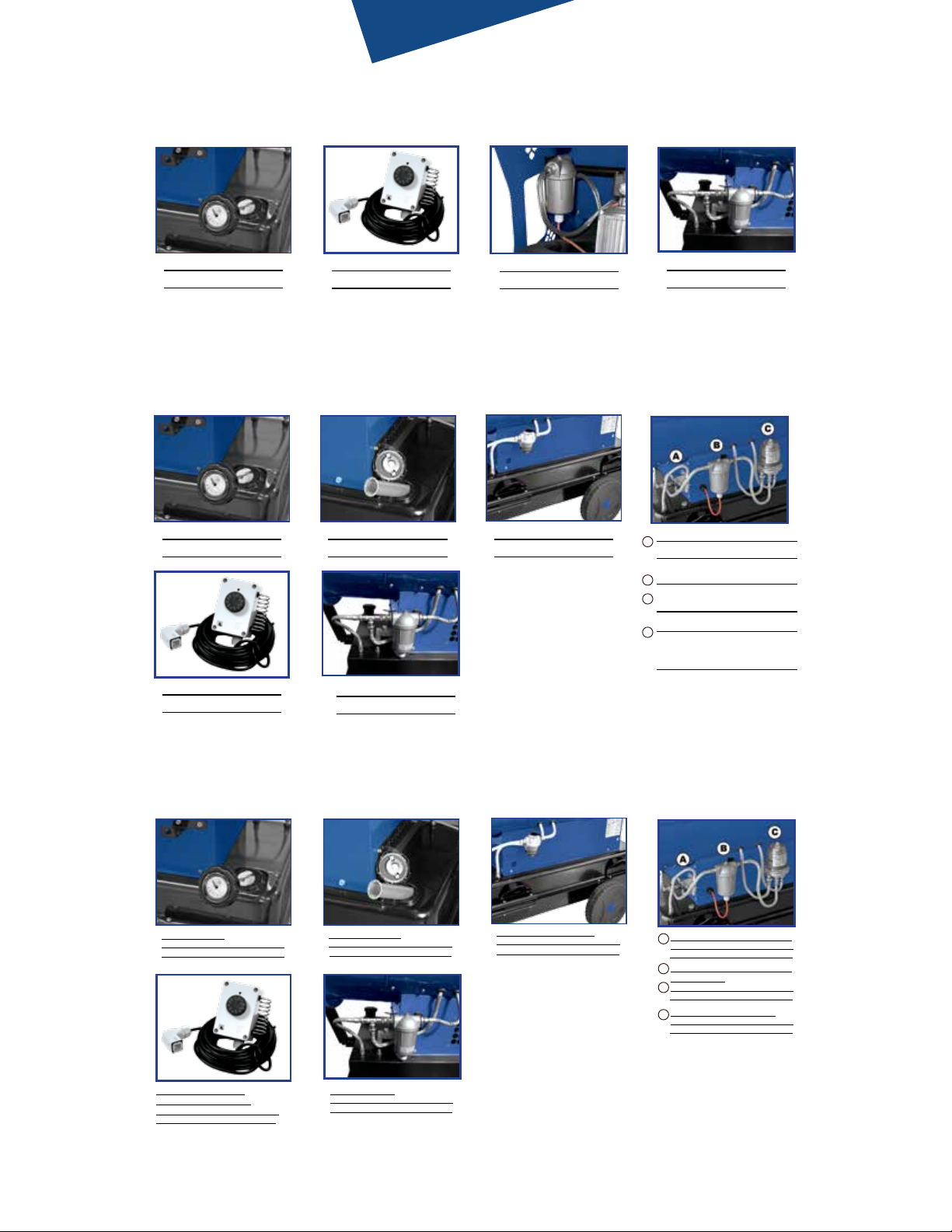

ACCESSORIES

FIRE 155 ACCESSORIES

Part Number 48.7102

Fuel Level Gauge

Part Number 48.7121

Fuel Level Gauge

Part Number 48.7127

Heavy Duty Thermostat

Part Number 48.7101

Heavy Duty Thermostat

Part Number 48.7103

Pre-heated Oil Filter (200W)

BLAST ACCESSORIES

Part Number 48.7122

Fuel Tank Filler Filter

Part Number 48.7128

Single Fuel Line Kit

Part Number 48.7123

Lifting Brackets (4 Pieces)

Part Number 48.7104

Single Fuel Line Kit

Part Number 48.7124

External Fuel Tank Connection Kit

Part Number 48.7125

A +

External Fuel Tank Connection Kit

With Deaerator

Part Number 48.7126

Pre-heated Oil Filter (200W) (Standard For Blast200 & Blast300

Fuel level gauge

Part Number

48 .7 12 1

Heavy duty thermostat (20÷140°F)with 30’ cable

Part Number

48.7127

FIRESTORM ACCESSORIES

Fuel tank ller lter

Part Number

48. 712 2

Single fuel line kit

Part Number

48.7 128

Lifting brackets (4 pieces)

Part Number

48. 712 3

External fuel tank connection kit

Part Number

48. 712 4

External fuel tank connection kit

A +

with deaerator

Part Number

48. 712 5

Pre-heated oil lter (200W)

Part Number

48. 712 6

Page 19

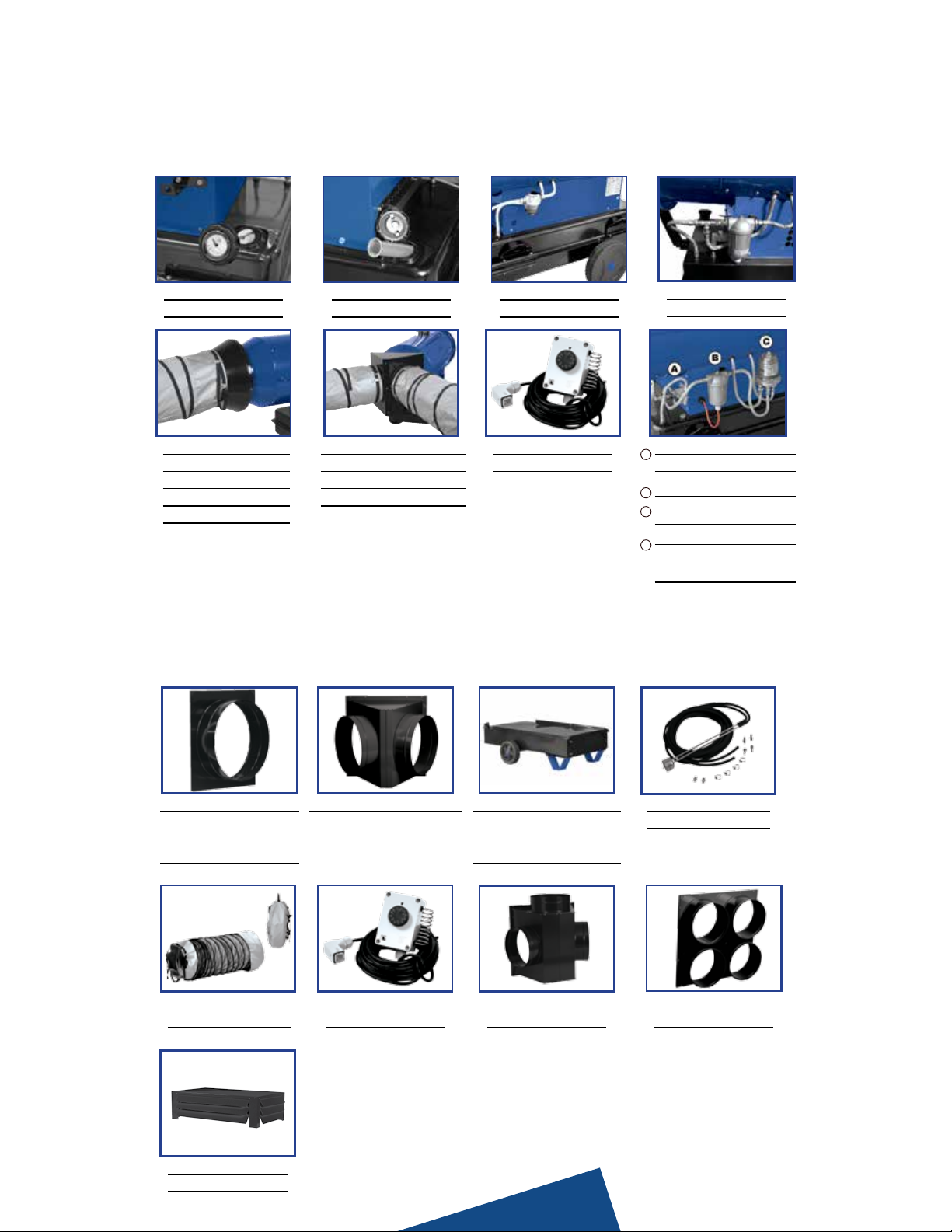

ACCESSORIES

BLAZE ACCESSORIES

Part Number 48.7105

Fuel Level Gauge

Part Number Model

48.7109 Blaze100 - 12”

48.7110 Blaze200 - 14”

48.7111 Blaze300 - 16”

One-way Duct Adapter

Part Number 48.7106

Fuel Tank Filler Filter

Part Number Model

48.7112 Blaze200 - 12” + 12”

48.7110 Blaze300 - 12” + 12”

Two-way Duct Adapter

Part Number 48.7107

Lifting Brackets (4 Pieces)

Part Number 48.7114

Heavy Duty Thermostat

INFERNO ACCESSORIES

Part Number 48.7104

Single Fuel Line Kit

Part Number 48.7124

External Fuel Tank Connection Kit

Part Number 48.7125

A +

External Fuel Tank Connection Kit

With Deaerator

Part Number 48.7126

Pre-heated Oil Filter (200W) (Standard For Blaze200 & Blaze300

Part Number Model

48.7181 Inferno700 - 24”

48.7203 Inferno900 - 24”

One-way Duct Adapter

Part Number 48.7200

Inferno Fuel Tank Kit

Part Number TBD

Air Outlet

Part Number Model

48.7182 Inferno700 - 20”+20”

Two-way Duct Adapter

Part Number 48.7114

Heavy Duty Thermostat

Part Number Model

48.7178 Inferno700 (42 Gal)

48.7199 Inferno900 (55 Gal)

Fuel Tank

Part Number TBD

Three-Way Duct Adapter

Part Number 48.7200

Inferno Fuel Tank Kit

Part Number TBD

Four-Way Duct Adapter

Page 20

2015

MTM Hydro Inc.

Phone: 952.746.4825 - 866.686.4020

Fax: 952.746.4829 - 866.686.4021

[email protected]
