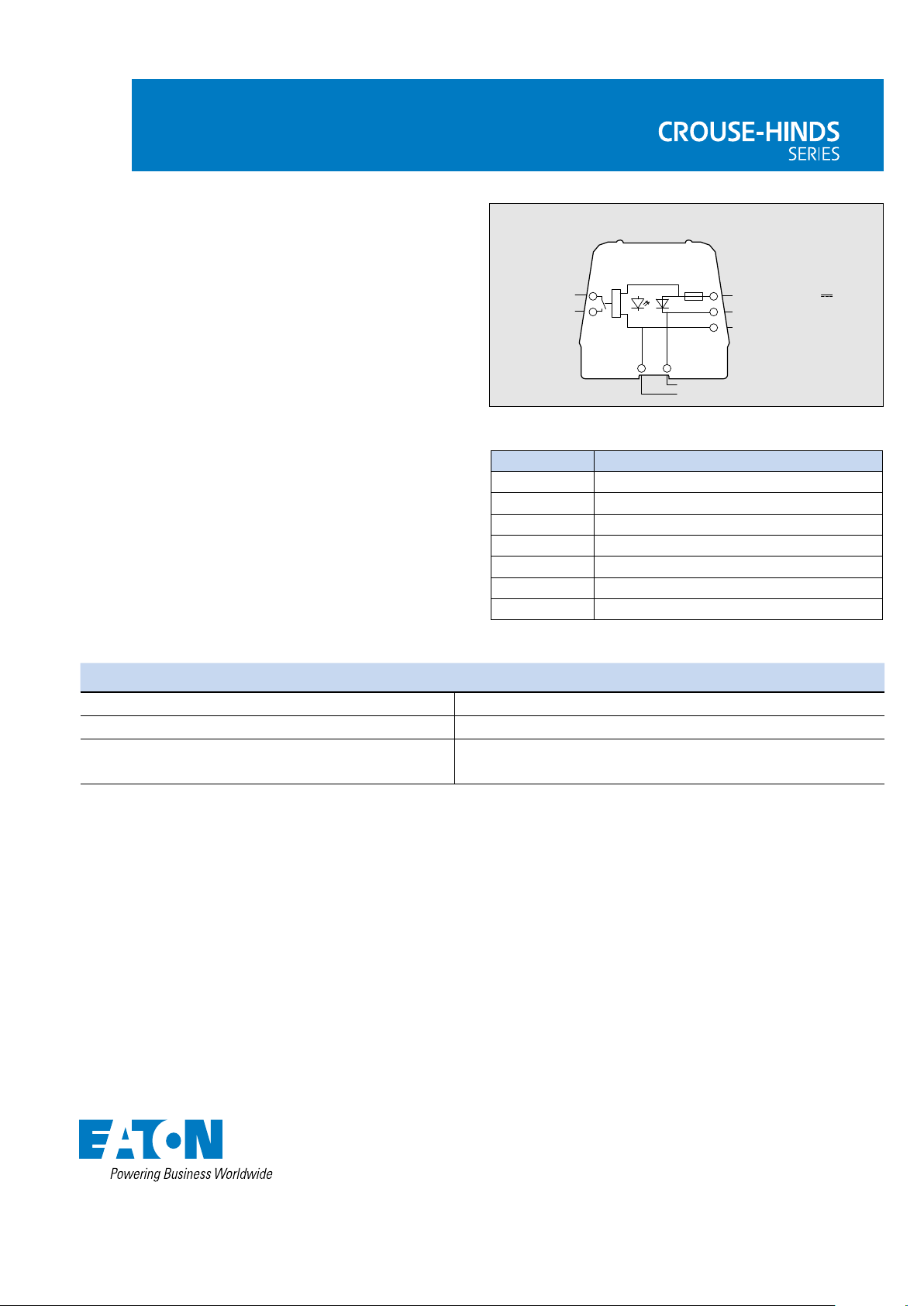

MTL Instruments MTL1991 Data sheet

DRAFT - 28 June 2017
Technical data
MTL signal conditioners
MTL1991 Power Feed and Alarm Module
MTL1000 power bus module
The MTL1991 provides the power supply feed to the power bus for the MTL1000 series isolators. A relay alarm contact and LED indicate power supply status. 2 modules may be used to provide a redundant power feed to the power bus when feeding power via terminal 5 with a maximum load of 1A. For single power feed use terminal 6, the maximum recommended load is 2A.
June 2017 EPS 1991 rev 3
1
ALARM
2
D E
Vs+ Vs-
Terminals Function
1 Alarm
2 Alarm
5 Power supply input +ve
6 Power bus repeat +ve
7 Power supply input -ve
D Power bus -ve
E Power bus +ve
5
V+ supply input 19-32V dc 1A
672A
Direct V+ supply input (max 2A)
V- supply input
Bus supply output
SPECIFICATION see also common specification
Power supply voltage
Relay contact rating
Maximum power dissipation
Eaton Electric Limited, Great Marlings, Butterfield, Luton Beds, LU2 8DL, UK. Tel: + 44 (0)1582 723633 Fax: + 44 (0)1582 422283 E-mail: mtlenquiry@eaton.com www.mtl-inst.com
© 2017 Eaton All Rights Reserved Publication No. EPS 1991 rev 3 280617 June 2017
19V to 32V DC
40V 0.5A max resistive
<1W (power via terminal 5)
<0.3W (power via terminal 6)
