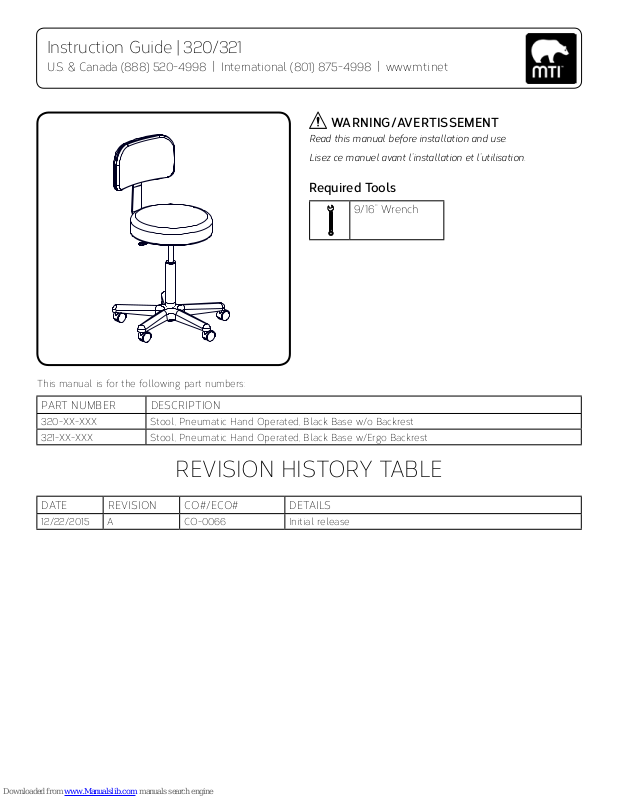

Instruction Guide | 320/321
U.S. & Canada (888) 520-4998 | International (801) 875-4998 | www.mti.net
WARNING/AVERTISSEMENT
Read this manual before installation and use.
Lisez ce manuel avant l’installation et l’utilisation.
Required Tools
9/16” Wrench
This manual is for the following part numbers:
PART NUMBER DESCRIPTION
320-XX-XXX Stool, Pneumatic Hand Operated, Black Base w/o Backrest
321-XX-XXX Stool, Pneumatic Hand Operated, Black Base w/Ergo Backrest
REVISION HISTORY TABLE
DAT E REVISION CO#/ECO# DETAILS
12/22/2015 A CO-0066 Initial release
Page 2
2 Instruction Guide | 320/321
Lock washer
OR

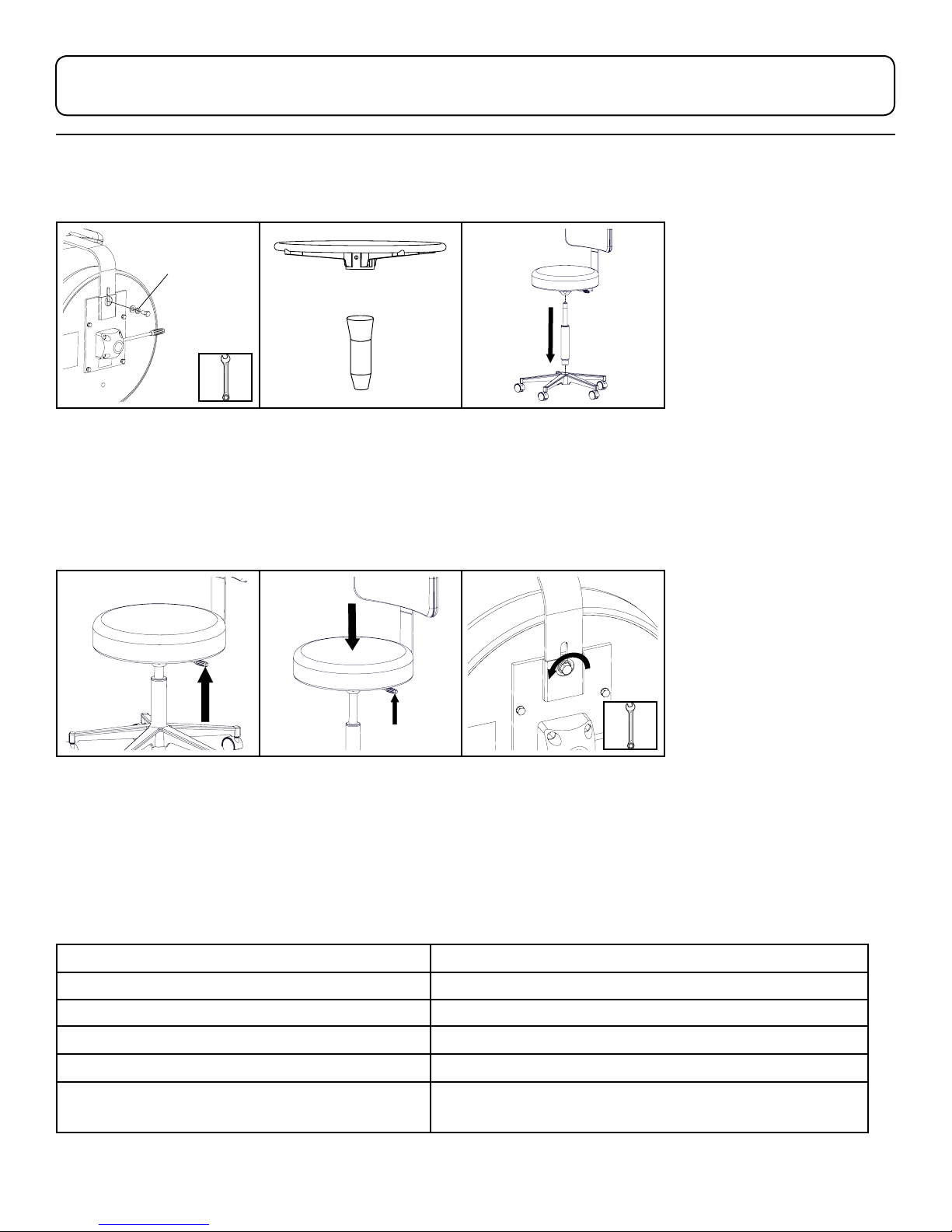

INSTALLATION
Backrest Installation Accessories Gas spring Installation
1. Insert the backrest into the
bracket on the underside
of the seat. Tighten in
place with the bolt and two
washers..
OPERATION
1. To raise the height of the
stool, lift up on the lever
below the seat with no
weight on the seat.
If applicable, see accessory
instructions for foot ring and
foot extension accessories
before completing step 2.
2. To lower the height of
the stool, lift up on the
lever below the seat while
placing weight on the seat.
2. Install the larger end of
the gas spring into the base
of the stool. Place the seat
of the stool on top of the
gas spring. Sit on the stool
to secure the pieces.
3. To adjust the position of
the back, loosen the bolt
under the seat, slide the
back in or out, and tighten
the bolt.
DESCRIPTION SPECIFICATION
Load Capacity 300 lbs (136.1 kg)
Height of Stool 18.25” to 24.5” (463.6 mm to 622.3 mm )
Weight of Stool 320: 15 lbs (6.8 kg) • 321: 20 lbs (9.1 kg)
Shipping Weight of Stool 320: 18 lbs (8.2 kg) • 321: 23 lbs (10.4 kg)
Shipping Size of Stool 320: 23” x 23” x 11” (585 mm x 585 mm x 280 mm)
SPECIFICATIONS
321: 23” x 23” x 13” (585 mm x 585 mm x 331 mm)
Page 3
Instruction Guide | 320/321 3
CONTACT MTI FOR SPECIFIC COLOR AND CONSTRUCTION CODES.

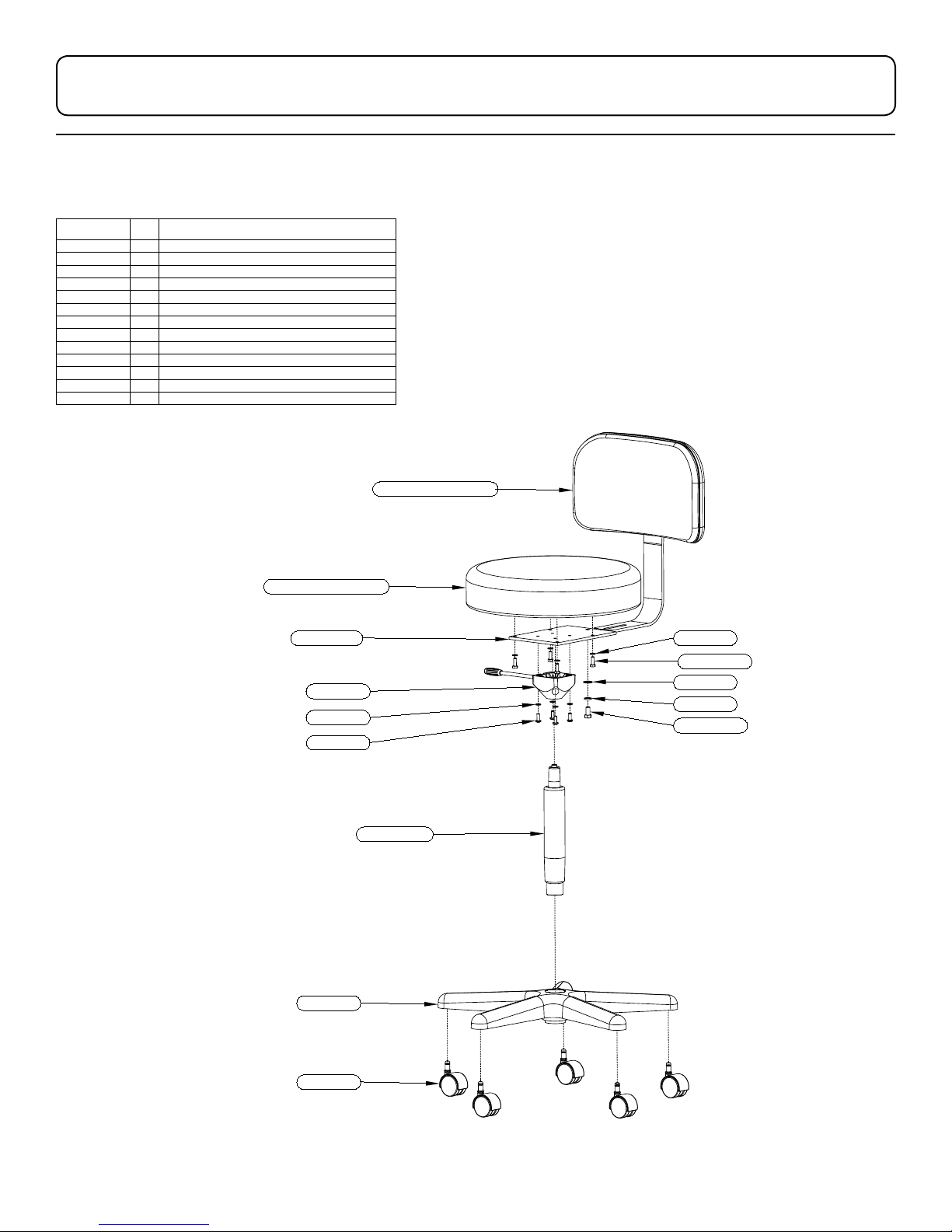

EXPLODED VIEWS
/ STOOLS
PART
NUMBER
032099 4 PHP SCREW, 1/4-20 x 5/8 ZINC
033001A 4HEX HEAD BOLT, 1/4-20 x 3/4 ZINC
033071B
045032
045148 8 LOCK WASHER, 1/4, ZINC
045150
056001
063007
063014
1009004
1009009-XX-XXX1ROUND SEAT ASSY, 16.5" DIA
1009191-XX-XXX1ERGO BACK ASSY
130-0336
QTY DESCRIPTION
1
HEX HEAD BOLT, 3/8-16 x 3/4 ZINC
1
SAE WASHER, 3/8 ZINC
1
LOCK WASHER, 3/8, ZINC
5
CASTER, 2" HARD PLASTIC DUAL WHEEL BLACK
1
RELEASE MECHANISM KIT, HAND OPERATED
1
BASE, 5 CASTER BLACK PLASTIC 50mm
1
MTG PLATE WLD, STOOL SEAT, SG/EG
1
GAS SPRING, HAND OPERATED STOOL CYLINDER, 6.38"
ONLY IN 321MODEL
1009191-XX-XXX
1009009-XX-XXX
1009004 045148 4X
033001A 4X
063007
045032
045150
0451484X
033071B
0320994X
130-0336
063014
5X
056001
THE XX OF DRAWING/PART NUMBER REFERS TO CONSTRUCTION CODE.
THE XXX OF DRAWING/PART NUMBER REFERS TO COLOR CODE.
Page 4
4 Instruction Guide | 320/321
WARNING/AVERTISSEMENT
No modification of this equipment is allowed.
Aucune modification de cet équipement est autorisé.
WARNING/AVERTISSEMENT
Assure equipment, patient, and other objects are in safe
condition before operating the equipment.
Assurer l’appareil, patient, et d’autre objets sont dans un état
sûr avant d’utiliser l’appareil.
WARNING/AVERTISSEMENT
This product contains chemicals known to the State of
California to cause cancer and/or birth defects or other
reproductive harm. See http://www.mti.net/FAQs.aspx for
details on California Proposition 65.
Ce produit contient des produits chimiques reconnus
par l’État de Californie pour causer le cancer et / ou
des anomalies congénitales ou d’autres problèmes de
reproduction. Voir http://www.mti.net/FAQs.aspx pour plus de
détails sur la California Proposition 65.
Cleaning and Disinfection
See “MTI Cleaning Solution Recommendation Letter” for
more details on disinfecting solutions which have been
tested on MTI’s products. It is available for download at
http://www.mti.net/downloads.aspx in the Product Support
Bulletins folder, found under the Resources tab on our
website. In the U.S. & Canada, call (888) 520-4998, or
International, call (801) 875-4998 to request a copy.
Painted and Plastic Surfaces
All painted metal parts have been electrostatically painted
and the paint is baked on for durability. Weekly, those
surfaces should be wiped down with a quality grade
cleaner and a soft cloth or a damp cloth with mild soap.
Upholstery
Upholstery should be cleaned weekly with a mild liquid
soap and water mixture. Afterwards, wipe upholstery with a
clean damp cloth.
Calls for Service
(888) 520-4998 | International (801) 875-4998
[email protected] | www.mti.net
