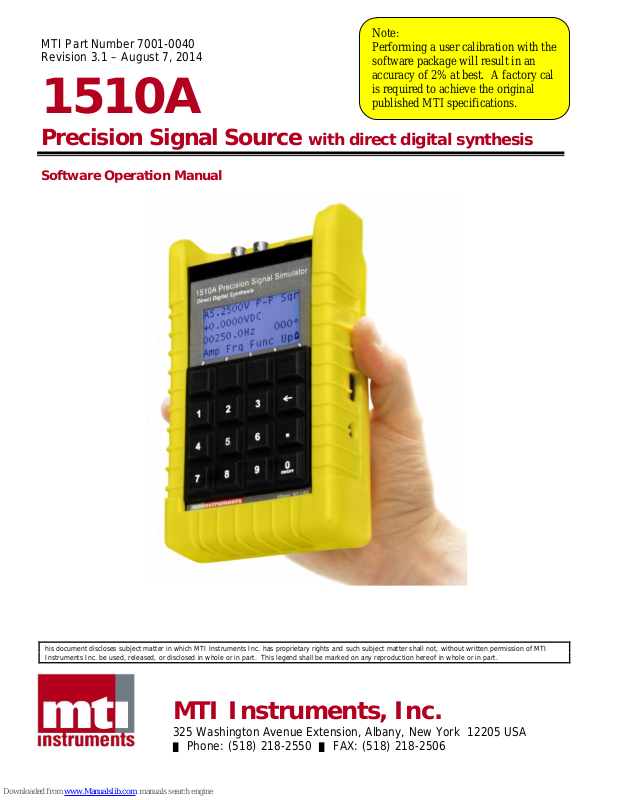

MTI 1510A Software Operation Manual

MTI Part Number 7001-0040
Revision 3.1 – August 7, 2014

1510A

Precision Signal Source with direct digital synthesis

Software Operation Manual

his document discloses subject matter in which MTI Instruments Inc. has proprietary rights and such subject matter shall not, without written permission of MTI
Instruments Inc. be used, released, or disclosed in whole or in part. This legend shall be marked on any reproduction hereof in whole or in part.

MTI Instruments, Inc.

325 Washington Avenue Extension, Albany, New York 12205 USA

█ Phone: [phone] █ FAX: [phone]

Note:
Performing a user calibration with the
software package will result in an
accuracy of 2% at best. A factory cal
is required to achieve the original
published MTI specifications.

Page i MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

Thank you for purchasing your copy of the
1500 Series Precision Signal Source Software Package

The 1500 Series Precision Signal Source Software Package has
been designed to help you realize the full power of your 1500CS
Precision Calibrator or 1510A Precision Signal Source. Once the
software has been loaded on a standard PC computer and the
communications link installed and connected to the 1500CS
Calibrator, the software package will enable you to perform
many useful maintenance and calibration tasks including:

 Setup of the 40 Memory Locations
 Manage the configuration of your 1500CS or 1510A
 Control of the 1500CS or 1510A output signals from

your computer

Page ii MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TABLE OF CONTENTS

OVERVIEW

Overview of the 1500 Series Software Package.............................1

Installing the Software ................................................................2

Installing the 1510A USB Driver ...................................................3

Before you start the Software ......................................................5

Connecting to your Calibrator ......................................................6

Starting the Software ..................................................................7

TAB FUNCTIONS

Setup.........................................................................................8

Calibration Factors ......................................................................9

Memories .................................................................................10

Memory Labels .........................................................................12

DROP-DOWN MENU FUNCTIONS

Device......................................................................................15

Configuration............................................................................16

Setup.......................................................................................18

Factors.....................................................................................19

Memory....................................................................................20

Tools........................................................................................22

Remote Control Panel...........................................................23

Calibration Wizard................................................................26

Help.........................................................................................41

OPTIONAL ACCESSORIES

Useful System Accessories.........................................................42

Page 1 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

OVERVIEW OF THE 1500 SERIES SOFTWARE PACKAGE

The 1500 Series Precision Signal Source Software Package is a
perfect companion to your 1500CS Precision Calibrator or 1510A
Precision Signal Source. The package features an easy-to-use
user interface, and offers a number of useful utilities for the
control and maintenance of your 1500 Series Unit. With the
Software Package, you will be able to:

Pre-Program Memory Locations – The 1500CS and 1510A
have 40 memory locations that can hold pre-programmed signal
settings. Each location can be pre-programmed and
downloaded in the unit using this Software Package.

Review Memory Location Programs – The 1500CS and
1510A have 40 memory locations that can hold pre­programmed signal settings. Each or all of the 40 memory
location settings can be up-loaded from the unit for review and
editing. Changes can then be downloaded back into the unit.

Check Calibrator Configuration – The 1500CS and 1510A
have several internal parameters such as software revision
level, most recent calibration date, and unit serial numbers
stored in its memory. All of these parameters may be viewed
using this Software Package.

Remote Control Of signals – The 1500 Series Precision
Signal Source Software Package also provides an easy to use
interface for controlling the signals generated by the 1500CS via
its RS-232 interface and the 1510A via its USB interface.

Page 2 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

INSTALLING THE SOFTWARE

The 1500 Series Precision Signal Source Software Package is
supplied on CD-ROM. This software must be installed

before connecting the 1510A Precision Signal Source to
your computer for the first time. Open a Windows Explorer

window to view the contents of the CD.

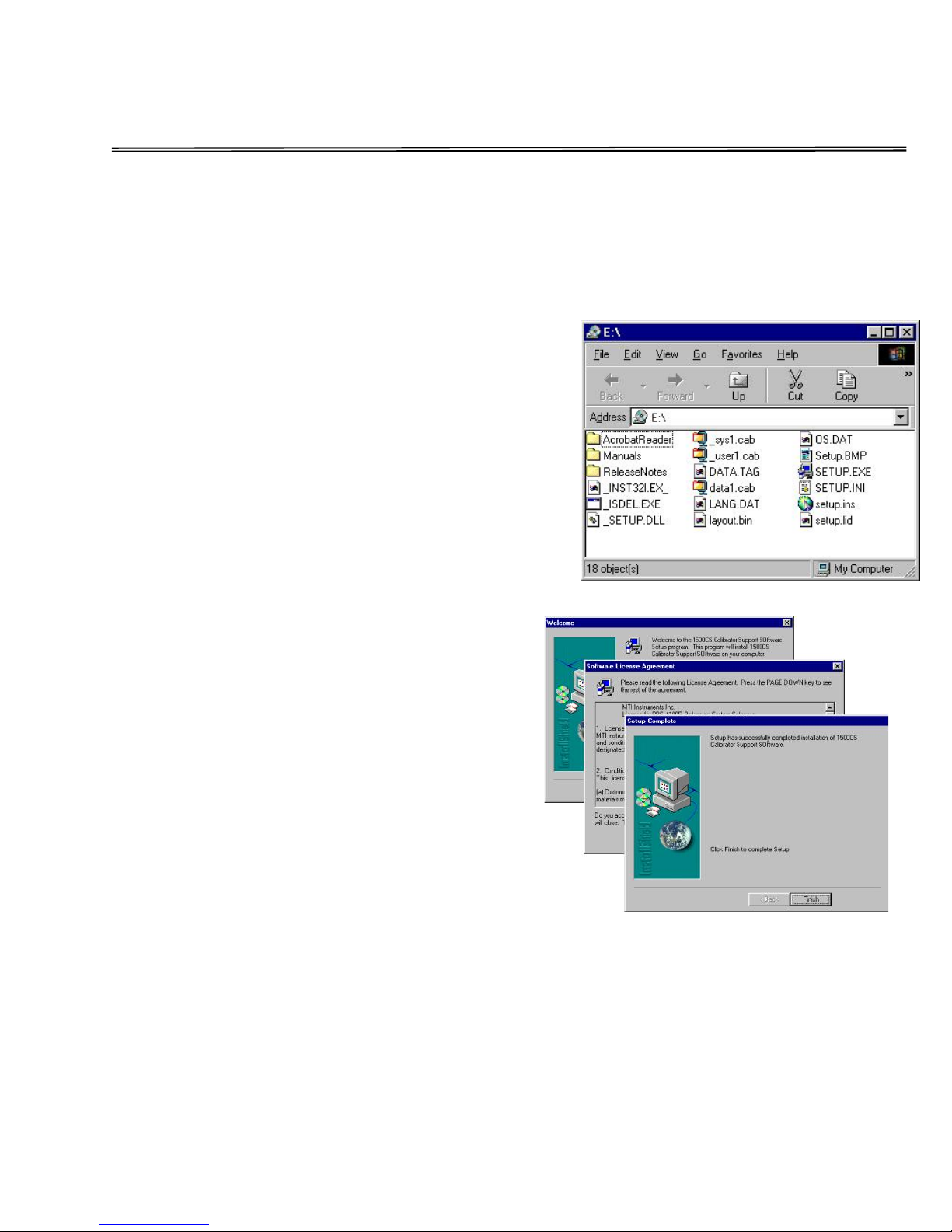

Double Click on the SETUP.EXE

program to begin the installation
process as illustrated:

As the program installation continues,
a welcome display will be produced,
followed by the License acceptance
display. At the conclusion of the
installation process, the software
loading completion display will appear
as illustrated below.

Click on the FINISH button to
complete the process.

At this time you may also wish to
install a copy of the Acrobat Reader
which is also included on the CD.

Note that the CD also includes a
folder, which contains PDF versions of
both the 1500 Series Users Manual
and a copy of this manual.

If necessary, open the Adobe folder
and install the Adobe Reader
application.

When all software has been installed,
remove the CD from the drive.

Page 3 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

INSTALLING THE 1510A USB DRIVER

During Setup, the file mti1510A.INF was copied to the
Windows\INF folder on your computer. This file contains

instructions for loading the required USB drivers for the 1510A
Precision Signal Source.

Verify that this file exists. If it does not, manually copy the file from
the USB folder on the CDROM and placed it in your Windows\INF
folder.

After verifying that the INF file exists, connect the USB cable to the
1510A and connect it to a free USB port on your computer.

The Windows Found New Hardware Wizard screen will display.

Select No, not this time
and press Next.

Select Install the

software automatically
(Recommended) and

press Next.

If warned that the driver
has not passed Windows
Logo Testing, press
Continue Anyway.

Page 4 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

INSTALLING THE 1510A USB DRIVER

continued

When driver installation completes, press
Finish.

Your 1510A is ready for use.

Click Start-Settings-Control Panel and
double click the System icon. When the
System Properties dialog displays, click the
Hardware tab.

Then click the Device Manger button.

In Device Manager, scroll down to the Ports
category and open it. Locate the 1510A
Charge Calibrator entry and note the assigned
COM port. In the next step, the COM port
value must be entered into the program INI
file.

Close the Device Manager.

Page 5 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

BEFORE YOU START THE SOFTWARE

After installation of the software you will need to check a few items to ensure
efficient operation of all program features.

First, open the file: C:PBS\PbsCalibrator\Program\PbsCalibrator.INI

Verify that the path to the Adobe reader is correct for your system. If not,
replace the correct path within the quotation marks in the INI file and SAVE. If
you do not have Adobe reader installed, the 1500 Series Precision Signal Source
Software Package CDROM contains a copy of the Adobe reader installation
package.

Also verify that the Serial Port number listed in the INI file is correct for your
system. 1=COM1, 2=COM2, etc.

For the 1500CS, set PORT1 to the appropriate serial port number.
For the 1510A, set PORT2 to the port number previously determined from Device

Manager.
Make the necessary changes, SAVE and close the INI file viewer. All other

entries and setting in the file should be left unchanged.
Finally, you may wish to place a shortcut to the program on your

computer desktop. The 1500 Series Precision Signal Source Software
Package program is located in:

C:\PBS\PbsCalibrator\Program\PbsCalibrator.exe

Page 6 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

CONNECTING TO YOUR CALIBRATOR

Your 1500CS accessory kit includes a communications cable that
connects between the 1500CS Calibrator and your computer via
an RS232 port. MTI Cable 7500-7503 has been designed
specifically to connect between the 1500CS and your computer.

Your 1510A accessory kit includes a communications cable that
connects between the 1510A Precision Signal Source and your
computer via a USB port. MTI Cable 6000-2001 has been
designed specifically to connect between the 1510A and your
computer.

For successful communications ensure that your computer port is
connected as illustrated above.

1500CS

DB9 to RJ12 Cable

MTI P/N 7500-7503

USB Cable

MTI P/N 6000-2001

1510A

Page 7 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

STARTING THE SOFTWARE

Double clicking on the program icon will launch the 1500 Series
Precision Signal Source Software Program.

An introductory display will first be visible:

Followed by the user interface display:

The following sections of this manual will explain the various
features and functions of the software package.

Page 8 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

SETUP Tab

The SETUP tab displays information
concerning the internal software version
number, unit serial number, and the
calibration date of your 1500 Series unit.
When the 1500 Series Precision Signal
Source Software Package is first run, the
data windows on this display will be blank
as illustrated:

To refresh the data displayed in the
windows, use the CONFIGURATION drop­down menu, and select the Upload From
Unit option as illustrated.

After acknowledging the Upload success
message, the display will be updated with
the current 1500CS internal settings.

Although the serial number and
software version numbers cannot be
changed, it is useful information when
talking to your MTI Instruments support
representative.

The “Last Calibration Date” information
may be changed by the user of the
calibrator.

Page 9 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

CALIBRATION FACTORS Tab

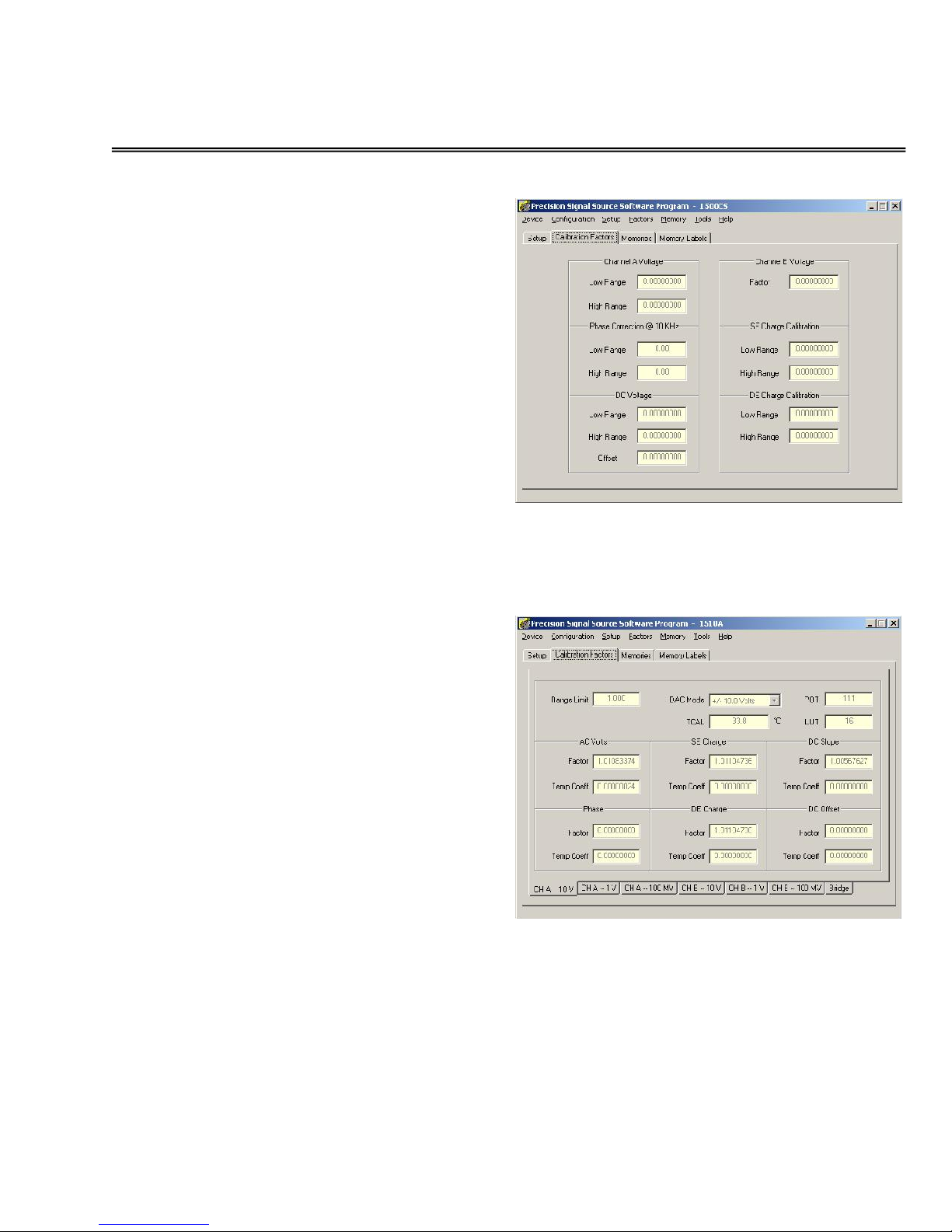

The CALIBRATION FACTORS tab at
right reveals the internal calibration
constants display for the 1500CS
calibrator.

Note that there are several different
calibration constants maintained for the
different ranges of the 1500CS.

The CALIBRATION FACTORS tab at
right reveals the internal calibration
constants of the 1510A Precision Signal
Source.

Note that there are several different
tabs along the bottom of the display
that are used to select the calibration
constants maintained for the different
ranges of the 1510A.

These calibration factors cannot be changed.

Page 10 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

MEMORIES Tab

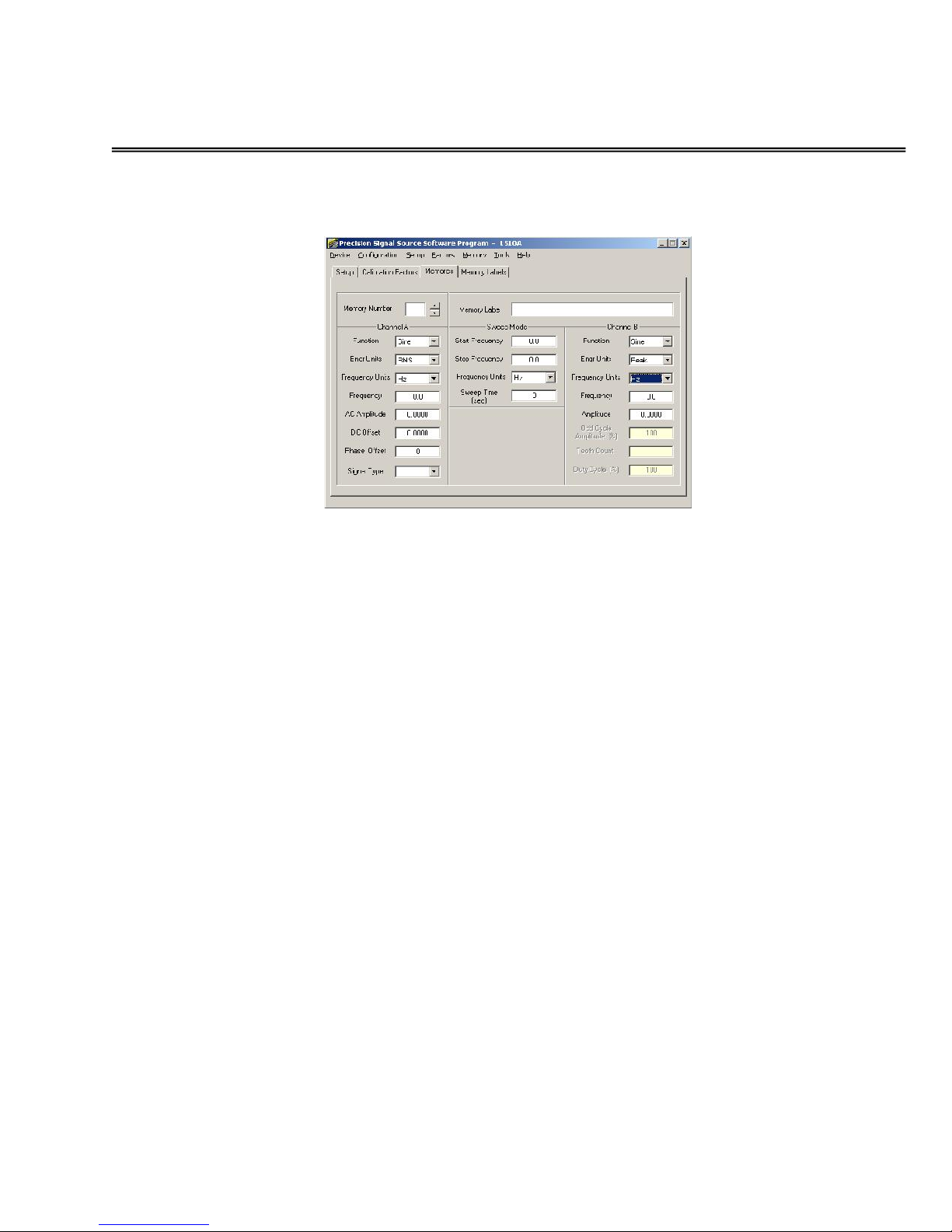

The MEMORIES Tab allows users to view and edit the settings saved in
each of the 40 individual memory locations of the 1500CS and 1510A.

MEMORY NUMBER – Indicates the specific Memory Location and
contents being displayed. Use the up and down pointers to index thru
all of the 40 locations.

MEMORY LABEL – Use this area to enter a unique name for the
signal being defined. The first 8 characters will be displayed on the
1500 Series unit display when the memory is selected. You may also
name memory locations using the Memory Label tab.

CHANNEL A SETTINGS:

FUNCTION – This may be set to SINE, TRIANGLE,

SAWTOOTH, or SQUARE wave signals using the drop down
menu selector.

ENGINEERING UNITS – The amplitude units of the signal
may be set to PEAK, PEAK to PEAK, or RMS using the drop
down menu selector.

FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second) or RPM (Revolutions per
Minute).

FREQUENCY – Enter the desired frequency setting for the
signal.

AC AMPLITUDE – Enter the desired amplitude value (see
ENGINEERING UNITS Above) of the signal.

Page 11 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

DC OFFSET – Enter the desired amount of DC voltage offset of
the signal.

PHASE OFFSET – Enter the desired phase offset in degrees
(relative to Channel B signal).

SIGNAL TYPE – Use the drop-down feature to select between
VOLTS and Single Ended (SE) or Differential (DE) CHARGE type
of signal.

Page 12 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

MEMORIES Tab Continued

SWEEP MODE SETTINGS - The 1500CS can generate a signal on

channel B whose frequency constantly varies over a specified period of
time. This feature is useful for simulating acceleration or deceleration
runs of machinery.

START FREQUENCY – This value defines the frequency at
which the SWEEP will begin.

STOP FREQUENCY – This value defines the frequency at
which the SWEEP will stop.

FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second) or RPM (Revolutions per
Minute).

SWEEP TIME – Enter the period of time (in seconds) in which
the sweep will be performed.

CHANNEL B SETTINGS

FUNCTION – This may be set to SINE, TRIANGLE,

SAWTOOTH, SQUARE, PULSE, TACH or TTL signals using the
drop down menu selector.

PULSE MODE – The 1500CS and 1510A produce a single
pulse occurring at the same frequency or at a ratio of the
Channel A frequency. The pulse duty cycle can be
programmed from 3% to 100% of the period.

TACH MODE – The 1500CS and 1510A can produce a
series of pulses simulating a multi-tooth gear speed signal.

Page 13 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

ENGINEERING UNITS – The amplitude units of the signal
may be set to PEAK, PEAK to PEAK, or RMS using the drop
down menu selector.

FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second), RPM (Revolutions per Minute),
or RATIO.

FREQUENCY – Enter the desired frequency setting for the
signal. The frequency may be in Hertz (Hz) or a ratio of the
Channel A frequency. When RATIO is selected, this window is
used to designate the ratio value. A value greater than 1.000
will produce a signal frequency greater than Channel A, while a
value of less than 1.0000 will produce a lower frequency.

AMPLITUDE – Enter the desired amplitude value (see
ENGINEERING UNITS Above) of the signal.

ODD CYCLE AMPLITUDE – When in TACH mode, the
amplitude of the “odd” signal is expressed as a percentage
of the other signals. Less than 100% for a “short” tooth
and greater than 100% for “long” tooth signals.
TOOTH COUNT – When operating in TACH mode, multi­tooth speed signals may be simulated. This value
represents the total number of teeth in the speed signal
including the odd tooth.

Page 14 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

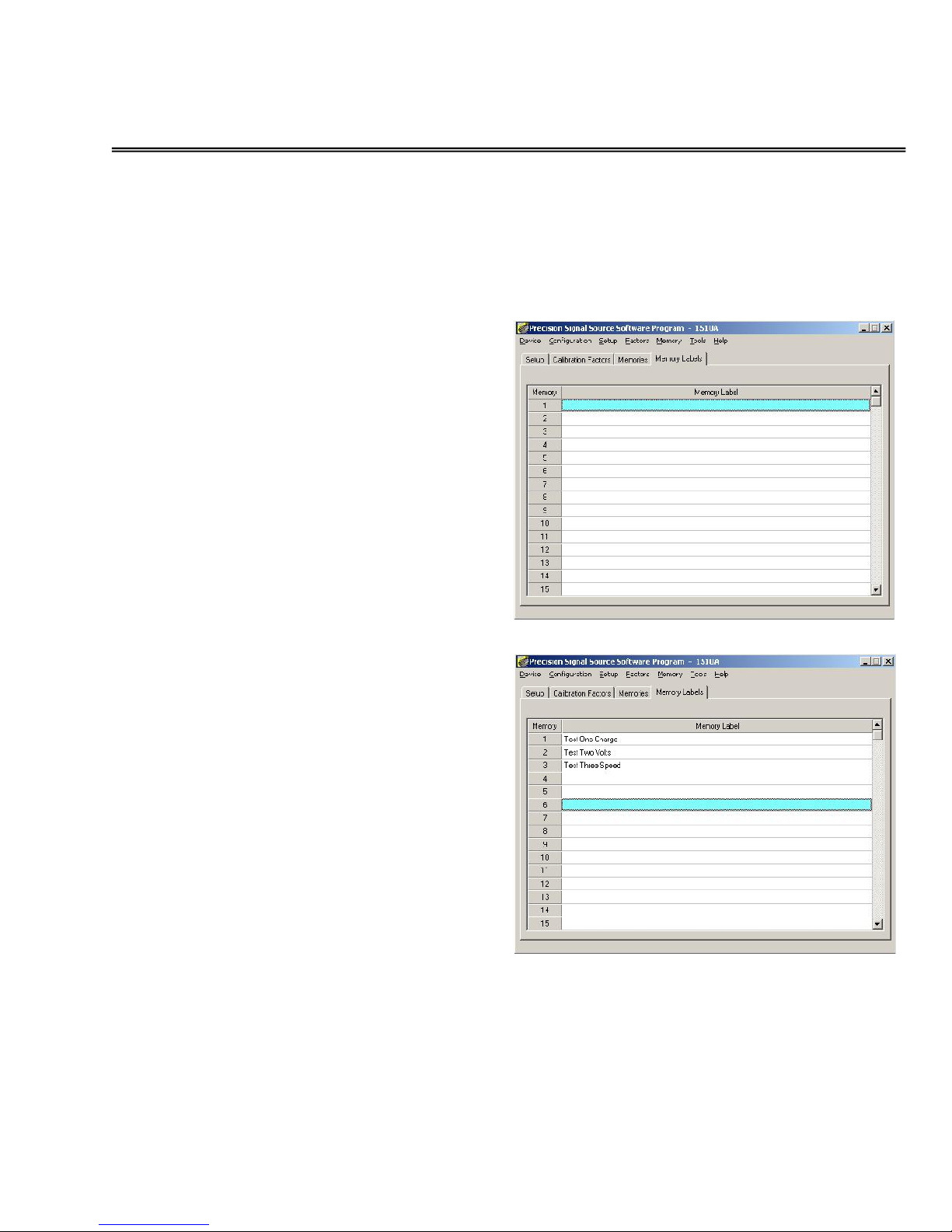

MEMORIES LABELS Tab

MEMORY LABELS – Each of the 40 memory locations of the 1500CS

and 1510A can be assigned a unique name or label, which will be
shown on the 1500 Series unit display whenever the memory location
is selected. Naming each of the memory locations can avoid confusion
and eliminate mistakes.

Initially, the unit will not have any
memory locations predefined, and
consequently, the list of names will
be empty as illustrated to the right.

To enter names into each of the
locations, click into the line of
the desired location and type in
the name. As illustrated, a few
of the memory locations have
been given unique names.
These names will appear on the
1500 Series display when
selected.

Page 15 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

DEVICE OPTIONS Menu

1500CS / 1510A – This function is

used to select the type of 1500 Series
unit. A check mark appears in front of
the current selected type of unit.

Setup Communications –
Selecting this option enables the

user to select the communications
port that connects the computer the
1500CS or 1510A. After changing
the communications port, exit the
program and then restart it.

Verify Communications – Selecting this
option causes the software to establish a
communications link to the 1500 Series unit
and to test communications.

Page 16 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

CONFIGURATION OPTIONS Menu

CLEAR CONFIGURATION – This

function clears all the information and
settings on all of the “Tab-Displays.”
This command does not alter any
settings within the 1500CS or 1510A.

LOAD from DISK – Selecting this
option enables the user to select a
configuration set-up from a file resident
on the user’s computer. As illustrated to
the right, a file identification dialog is
opened to allow selection of the desired
file name and location.

SAVE to DISK – Selecting this option
enables the user to save the current
1500 configuration to a file on the user’s
computer. As illustrated to the right, a
file identification dialog is opened to
allow definition of the desired file name
and location.

UPLOAD from UNIT –
Selecting this option
establishes communications
with the 1500 and updates
the values displayed on all
tab displays with those
currently in the 1500.

At the conclusion of the
“Upload,” a success
message will be displayed.

Page 17 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

DOWNLOAD to UNIT –
Selecting this option
establishes communications
with the 1500 and
downloads the values
displayed on all tab into the
appropriate memories in
the 1500.

At the conclusion of the
“Download” a success
message will be displayed.

Page 18 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

SETUP OPTIONS Menu

CLEAR SETUP INFORMATION– This

function clears all the calibration date
information on the Setup Tab display.
This command does not alter any
settings within the 1500 Series unit.

Page 19 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

FACTORS Menu

There are no active functions
for the FACTORS menu in this
version of the software.

Page 20 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

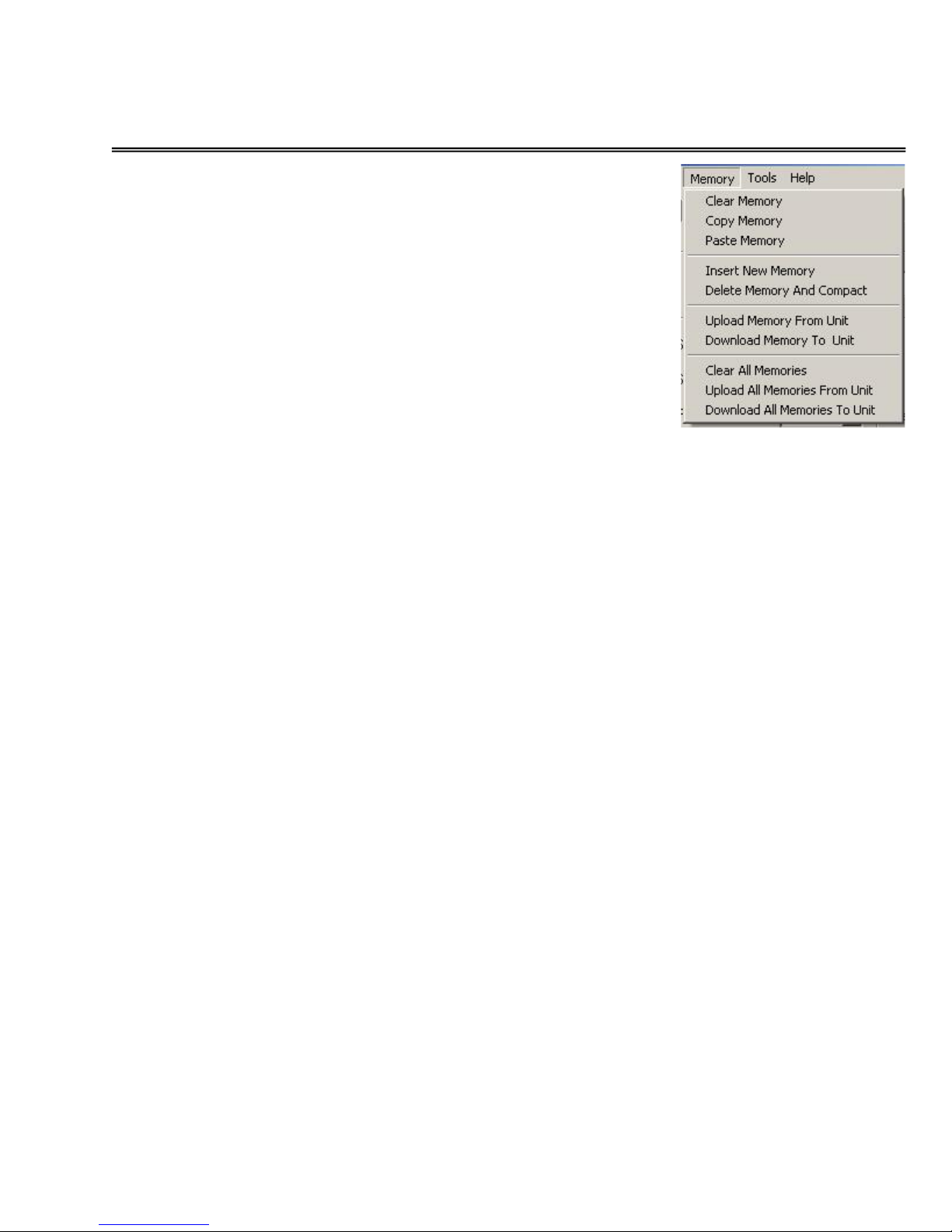

MEMORY Menu

The MEMORY menu provides a
comprehensive set of utilities for
managing the 40 memory locations
in the 1500CS when used with the
MEMORY Tab.

CLEAR MEMORY – Clears out all
of the entry fields in the currently
selected MEMORY editor page. All
other locations remain unchanged.

COPY MEMORY – Copies the
currently displayed set of memory
settings to the clipboard.

PASTE MEMORY – Pastes the memory settings from the clipboard to
the currently selected memory location.

INSERT NEW MEMORY – This command inserts a new memory
AFTER the currently selected memory location. All subsequent
locations are incremented by one (1) and the 40thlocation is lost.

DELETE MEMORY and COMPACT – This command deletes the
currently displayed memory. All subsequent locations are decremented
by one (1) and a new (and blank) 40thlocation is created.

UPLOAD MEMORY FROM UNIT – This command establishes
communications with the 1500 and uploads a single memory location
from the 1500 to the currently displayed location of the memory editing
display.

DOWNLOAD MEMORY TO UNIT – Selecting this option establishes
communications with the 1500 and downloads the values of the
currently displayed memory to the 1500.

CLEAR ALL MEMORIES – This command clears out all of the entry
fields in all of the 40 MEMORIES of the editor.

UPLOAD ALL MEMORIES FROM UNIT – Selecting this option
establishes communications with the 1500 and uploads the stored
values from all 40 memory locations into the 40 memory editor pages.

Page 21 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

DOWNLOAD ALL MEMORIES TO UNIT – Selecting this option
establishes communications with the 1500 and downloads the stored
values from all 40 memory locations of the editor to the 1500 memory.

Page 22 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu

The TOOLS
menu provides
utilities for
remotely
operating the
1500CS or
1510A.

REMOTE CONTROL
PANEL – This selection

permits complete control of
the outputs of the 1500CS
or 1510A from the
computer. Users may
select any controllable
parameter of the 1500
from the user interface,
and when the set-up has
been completed, a click of
the DOWNLOAD to 1500
button will command the
1500 to generate the
selected signal(s).

CALIBRATION WIZARD – This
selection begins a fully sequenced set
of measurements to re-calibrate the
1500CS or 1510A unit. The
procedure results in the creation of a
calibration factors table which is
downloaded in to the unit.

Page 23 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Remote Control Panel

The REMOTE CONTROL
PANEL facilitates

complete control of the
outputs of the 1500CS and
1510A. Users may select
any controllable parameter
of the unit from the user
interface, and when the
set-up has been
completed, a click of the

DOWNLOAD to 1500

button will command the
1500 to generate the
selected signal(s).

Clicking on the UPLOAD from 1500 button will establish
communications with the unit and refresh all of the setting windows
with the current settings from the unit.

NOTE that even under this mode of operation, the 1500 keyboard
is active and keyboard entries can change settings.

CHANNEL A SETTINGS:

FUNCTION – This may be set to SINE, TRIANGLE,

SAWTOOTH, or SQUARE wave signals using the drop down
menu selector.

ENGINEERING UNITS – The amplitude units of the signal
may be set to PEAK, PEAK to PEAK, or RMS using the drop
down menu selector.

FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second) or RPM (Revolutions per
Minute).

FREQUENCY – Enter the desired frequency setting for the
signal.

AC AMPLITUDE – Enter the desired amplitude value (see
ENGINEERING UNITS Above) of the signal.

Page 24 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Remote Control Panel Continued

DC OFFSET – Enter the desired amount of DC voltage offset of the signal.

PHASE OFFSET – Enter the desired phase offset in degrees

(relative to Channel B signal).
SIGNAL TYPE – Use the drop-down feature to select between

VOLTS and Single Ended (SE) or Differential (DE) CHARGE type
of signal.

SWEEP MODE SETTINGS - The 1500 can generate a signal on channel B whose
frequency constantly varies over a specified period of time. This feature is useful
for simulating acceleration or deceleration runs of machinery.

START FREQUENCY – This value defines the frequency at

which the SWEEP will begin.
STOP FREQUENCY – This value defines the frequency at which

the SWEEP will stop.
FREQUENCY UNITS – Use the drop down tool to select either

Hz (hertz or cycles per second) or RPM (Revolutions per Minute).

SWEEP TIME – Enter the period of time (in seconds) in which the
sweep will be performed.

CHANNEL B SETTINGS

FUNCTION – This may be set to SINE, TRIANGLE,

SAWTOOTH, SQUARE, PULSE, TACH or TTL signals using the
drop down menu selector.

PULSE MODE – The 1500 produces a single pulse
occurring at the same frequency or at a ratio of the
Channel A frequency. The pulse duty cycle can be
programmed from 3% to 100% of the period.

TACH MODE – The 1500 can produce a series of pulses
simulating a multi-tooth gear speed signal.

Page 25 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

ENGINEERING UNITS – The amplitude units of the signal
may be set to PEAK, PEAK to PEAK, or RMS using the drop
down menu selector.

FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second), RPM (Revolutions per Minute)
or RATIO.

FREQUENCY – Enter the desired frequency setting for the
signal. The frequency may be in Hertz (Hz) or a ratio of the
Channel A frequency. When RATIO is selected, this window is
used to designate the ratio value. A value greater than 1.000
will produce a signal frequency greater than Channel A, while a
value of less than 1.0000 will produce a lower frequency.

AMPLITUDE – Enter the desired amplitude value (see
ENGINEERING UNITS Above) of the signal.

ODD CYCLE AMPLITUDE – When in TACH mode, the
amplitude of the “odd” signal is expressed as a percentage
of the other signals. Less than 100% for a “short” tooth
and greater than 100% for “long” tooth signals.

TOOTH COUNT – When operating in TACH mode, multi-tooth
speed signals may be simulated. This value represents the total
number of teeth in the speed signal including the odd tooth.

Page 26 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard

The

Calibration
Wizard is a

semi­automated
procedure for
recalibration
the 1500CS and
1510A. The
Wizard guides
users thru the
process of
measuring
different
outputs from
the unit.
Results of the
measurements
are used to

recalibrate
the 1500
Series device.

Users simply need to
follow the instructions
displayed on each page,
and when completed,
click the NEXT button.

To calibrate a 1500
Series unit you will
need a high accuracy
voltmeter and the
cables listed.

Page 27 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

Connection to the 1500
Series unit

Before continuing,
ensure that the
communications cable
has been connected
between the
1500CS/1510A and the
computer that is
running the Calibration
Wizard.

Page 28 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

The next step in the Calibration Wizard
uploads the units’ serial number and
software version information. Verify these
numbers with those found on the label
affixed to the back of the unit.

Connect to Channel A –
Connect a BNC cable between the
1500CS/1510A Channel A output connector
and the input to the voltmeter.

Set the voltmeter for AC RMS readings.

Channel A Low range AC calibration

Click in the Voltage Reading window and
enter the reading of the voltmeter. Verify
that the correct units (Pk, Pk-Pk, or RMS)
are selected for the type of voltmeter you
are using.

This screen is repeated for the three low
range voltages (14 mv, 35 mv, and 56 mv)
used.

Page 29 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Channel A mid range AC calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct
units (Pk, Pk-Pk, or RMS) are selected
for the type of voltmeter you are
using.

This screen is repeated for the three
low range voltages (140 mv, 350 mv,
and 560 mv) used.

Channel A high range AC calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct
units (Pk, Pk-Pk, or RMS) are
selected for the type of voltmeter
you are using.

This screen is repeated for the three
low range voltages (1.4 v, 3.5 v, and

5.6 mv) used.

Channel A DC offset calibration

Next, click in the
Voltage Reading
window and enter the
reading of the
voltmeter.

Set the voltmeter for DC volts
readings.

Page 30 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Channel A DC low range calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter.

Set the voltmeter for DC readings.
This screen is repeated for the three

low range voltages (20, 50, and 80
mvdc) used.

Channel A mid range DC calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct
units (Pk, Pk-Pk, or RMS) are
selected for the type of voltmeter
you are using.

Set the voltmeter for DC readings.
This screen is repeated for the three

low range voltages (200, 500, and
800 mvdc) used.

Channel A high range DC calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter.

Set the voltmeter for DC readings.
This screen is repeated for the three

low range voltages (2, 5, and 8 vdc)
used.

Page 31 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Bridge Mode offset calibration

Next, click in the
Voltage Reading
window and enter the
reading of the
voltmeter.

Set the voltmeter for DC volts
readings.

Be sure to wait for the bridge output
voltage to stabilize.

Bridge Mode span calibration

Next, click in the
Voltage Reading
window and enter the
reading of the
voltmeter.

Set the voltmeter for DC volts
readings.

Be sure to wait for the bridge output
voltage to stabilize.

This screen is repeated for the three
bridge mode voltages (20, 50, and 80 mvdc) used.

Page 32 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Channel B calibration

Next, connect the BNC cable to the
1500CS/1510A Channel B output
connector and the input to the
voltmeter.

Set the voltmeter for AC RMS
readings.

Channel B Low range AC calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct
units (Pk, Pk-Pk, or RMS) are selected
for the type of voltmeter you are
using.

This screen is repeated for the three
low range voltages (14 mv, 35 mv,
and 56 mv) used.

Channel B Mid range AC calibration

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct
units (Pk, Pk-Pk, or RMS) are selected
for the type of voltmeter you are
using.

This screen is repeated
for the three mid range
voltages (140 mv, 350
mv, and 560 mv) used.

Page 33 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Channel B High range AC calibration

Next, click in the
Voltage Reading
window and enter the
reading of the
voltmeter. Verify that
the correct units (Pk,
Pk-Pk, or RMS) are
selected for the type of
voltmeter you are
using.

This screen is repeated
for the three mid range
voltages (1.4 v, 3.5 v,
and 5.6 v) used.

Page 34 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

1500CS Phase calibration

Next, disconnect the voltmeter, and
connect the 1500CS to the Phase
meter using two (2) BNC cables as
illustrated.

NOTE
The 1510A does not require phase
calibration. Skip this step for a
1510A.

Next, click in the Phase Reading
window and enter the reading of the
phase meter.

NOTE
If you do not have access to a
phase meter, verify that the value
–3.57 degrees is in the reading
window, and click the NEXT
button.

Next, click in the Phase Reading window
and enter the reading of the phase
meter.

NOTE
If you do not have access to a
phase meter, verify that the value
–4.65 degrees is in the reading
window, and click the NEXT
button.

Page 35 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Single Ended charge calibration –

Next, connect the 1500CS/1510A to the
voltmeter as illustrated using the
special SE charge calibration cable.

Set the voltmeter for AC RMS readings.
Be sure to note the cable ID number.

NOTE
To ensure accuracy, do not allow
the cable to move during this
series of tests. Even small motion
of the cable can induce
measurement errors.

Low Range Single Ended charge
calibration

Next, click in the SE Charge Adapter ID
window and enter the ID number of
the cable. Use caution to enter the ID
number in the correct format.

If the ID is entered incorrectly, the
following message will be displayed.

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct units
(Pk, Pk-Pk, or RMS) are selected for the
type of voltmeter you are using.

This screen is repeated for the three low
range charge outputs (50, 60, 70 pC
rms) used.

Page 36 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Mid Range Single Ended charge
calibration

Click in the SE Charge Adapter ID
window and enter the ID number of
the cable. Use caution to enter the ID
number in the correct format.

Now, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct units
(Pk, Pk-Pk, or RMS) are selected for the
type of voltmeter you are using.

This screen is repeated for the three
low range charge outputs (80, 350, 700
pC rms) used.

High Range Single Ended charge
calibration

Next, click in the SE Charge Adapter ID
window and enter the ID number of
the cable. Use caution to enter the ID
number in the correct format.

Now, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct units
(Pk, Pk-Pk, or RMS) are selected for
the type of voltmeter you are using.

This screen is repeated for the three
low range charge outputs (800, 35000,
7000 pC rms) used.

Page 37 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Differential charge calibration –

Connect the 1500CS/1510A to the
voltmeter as illustrated using the DE
Charge calibration cable.

Be sure to note the cable ID number.
Set the voltmeter for AC RMS readings.

NOTE
To ensure accuracy, do not allow
the cable to move during this
series of tests. Even small motion
of the cable can induce
measurement errors.

Low Range Differential charge
calibration

Next, click in the DE Charge Adapter ID
window and enter the ID number of
the cable. Use caution to enter the ID
number in the correct format.

If the ID is entered incorrectly, the
following message will be displayed.

Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct units
(Pk, Pk-Pk, or RMS) are selected for the
type of voltmeter you are using.

This screen is repeated for the three low
range charge outputs (50, 60, 70 pC
rms) used.

7500-7507

Page 38 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Mid Range Differential charge
calibration

Click in the DE Charge Adapter ID
window and enter the ID number of
the cable. Use caution to enter the ID
number in the correct format.

Now, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct units
(Pk, Pk-Pk, or RMS) are selected for
the type of voltmeter you are using.

This screen is repeated for the three low
range charge outputs (80, 350, 700 pC
rms) used.

High Range Differential charge
calibration

Next, click in the DE Charge Adapter ID
window and enter the ID number of
the cable. Use caution to enter the ID
number in the correct format.

Now, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct units
(Pk, Pk-Pk, or RMS) are selected for
the type of voltmeter you are using.

This screen is repeated for the three low
range charge outputs (800, 35000, 7000
pC rms) used.

Click the NEXT button.

Page 39 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Downloading calibration factors

The calibration procedure is nearly
complete. Review each of the
calibration constants to ensure that the
Low range, Mid range and High range
numbers are near 1.000 and that the
offset factors are near 0.0000. For the
1500CS, verify that the Phase
constants are approximately 3 or 4
degrees. For the 1510A, the phase
constants should be zero.

If all factors are “reasonable” click the
DOWNLOAD FACTORS button to
update the 1500 Series unit memory.
Otherwise, click CANCEL.

If factors were downloaded, verify that the
Download button has grayed-out.

Click the NEXT button.
Calibration has been

completed
Click the FINISH

button.

Page 40 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

TOOLS Menu – Calibration Wizard Continued

Verify Calibration Factors

Upload the current factors by selecting
the Configuration-UploadFromUnit
menu function.

After the upload completes, the
following message will be displayed.

Select the Calibration Factors tab
and examine the current factors for
each voltage range.

To verify that the calibration date has
been updated in the 1500CS, click on
the Setup tab.

It is also recommended that at the
conclusion of calibration, the
configuration be saved on the
computer. To do this, use the
Configuration – Upload from Unit
function, and then the Configuration

- Save to Disk function.

Page 41 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

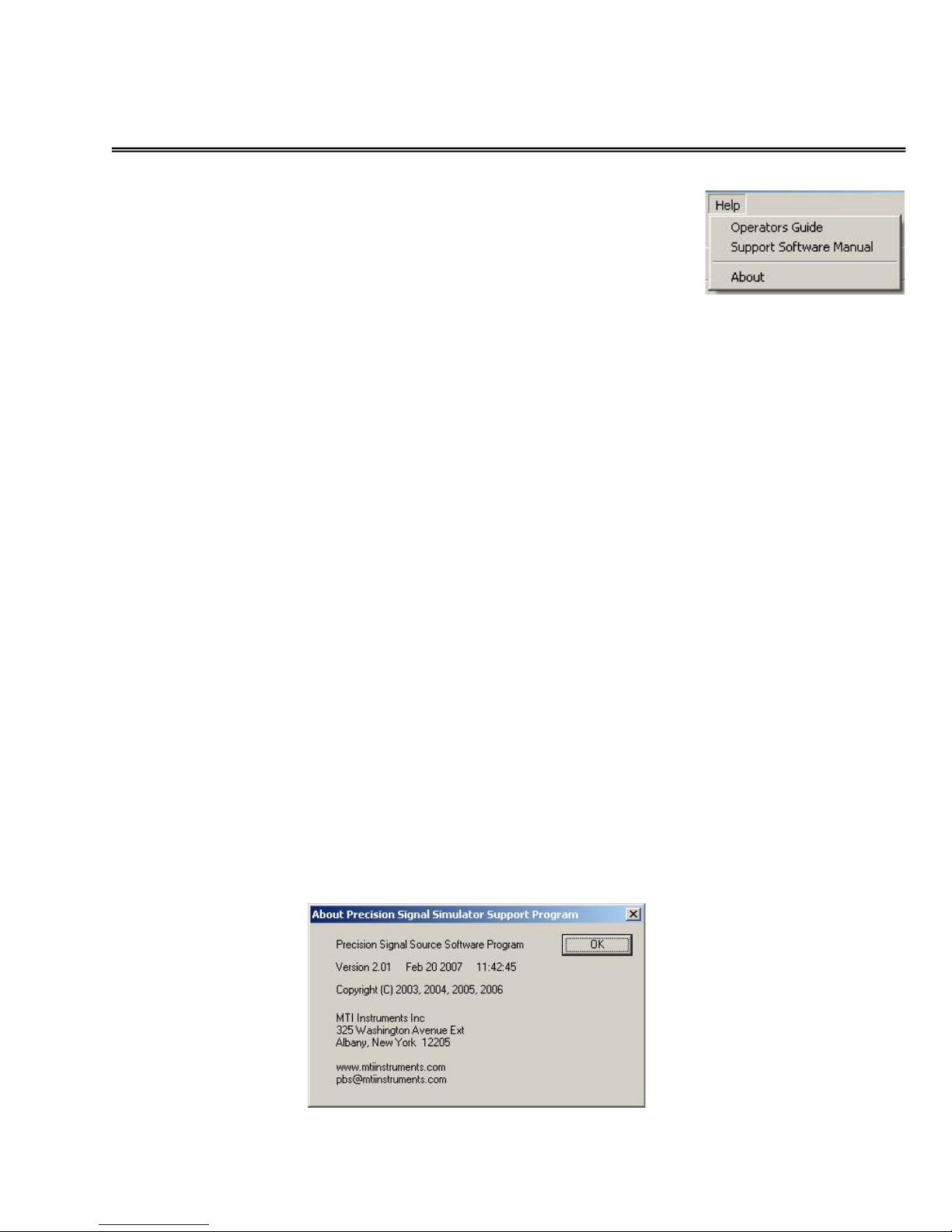

HELP Menu

The Help
menu

provides
general
information
concerning
the 1500
Support
Software
package.
The drop
down menu
provides links
to the
following
services:

1500CS Operators Guide – This provides a link to the complete 1500
Users Manual in PDF format. This link will only work if the instructions
found on page 4 (Before you start the Software) have been performed.

Software Guide – This provides a link to the complete 1500 Calibrator
Software Support Manual in PDF format. This link will only work if the
instructions found on page 4 (Before you start the Software) have been
performed.

About produces a summary display of the current software revision level
as illustrated:

Page 42 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

OPTIONAL ACCESSORIES

There are a number of accessories available to compliment your
1500CS or 1510A, and to ease the challenges associated with
connecting your calibrator to different cables and connectors. Contact
your MTI Instruments representative for more information.

1500CS Replacement AC Power Adapter – 4000-0013
Replacement NiMH batteries – 4000-0012
Differential Charge Output Adapter cable – 7500-7509
PBS-4100 4 Channel Charge Amplifier Adapter Cable Set – 8103-6589
Single Ended Charge Output Adapter Cable Set – 7500-7508
RS232 Control Cable and Software Set – 7000-7503
Replacement USB Control Cable – 6000-2001
Replacement Protective Booty for 1500CS – 7000-7002
Differential Charge Output Calibration Cable – 7500-7507
Single Ended Charge Output Calibration Cable – 7500-7508

Page 43 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

NOTES

Page 44 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

NOTES

Page 45 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

NOTES

Page 46 MTI Part Number 7001-0040

Revision 3.1 August 7, 2014

OTHER FINE PRODUCTS FROM MTI INSTRUMENTS

Test Cell Vibration and Balancing Systems –

The PBS-4100R+is a vibration analysis system designed
for vibration analysis of gas turbine engines in a test cell
environment. High-speed digital data interfaces allow
computer control and data exchange. Accessories are
available for all civilian and military engines.

Tachometer Signal Conditioner –

The TSC-4800A is a complete speed signal conditioning unit
capable of working with all types of engine speed signals.
Whether testing engines with a long tooth or short tooth
embedded N1 signal, engines with older high-voltage
tachometer generators, or if testing involves the new offset
tooth design, the TSC-4800A will condition all of these types
of signals, up to 3 channels (N1, N2, N3).

Portable Vibration and Balancing System –

The PBS-4100+is a powerful and full function vibration
analysis system designed for flightline analysis of gas
turbine engines. Trim balancing is fast and easy with the
Balancing Wizard. Accessories are available for civilian
and military engines and aircraft

Vibration Analysis for APUs –

The PBS-4100R+LTE is a vibration analysis system
designed specifically testing Auxiliary Power Units and gas
turbine engines that cannot be balanced. Windows based
software allows easy control and analysis of the data.
Cable sets and accessories are available to service a wide
selection of engine applications.

Charge Amplifiers–

Available in rack mount or rugged NEMA configurations,
these units are ideal for amplifying the signals from up to 8
accelerometers

325 Washington Avenue Ext.

Albany, NY 12205 USA
