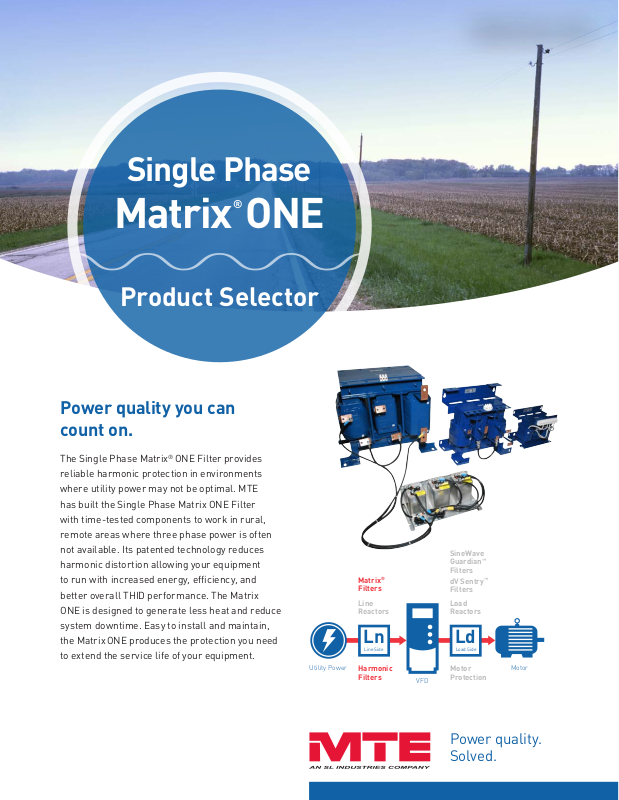

MTE Single Phase Matrix ONE Catalog

Single Phase

Matrix®ONE

Product Selector

Power quality you can
count on.

The Single Phase Matrix® ONE Filter provides
reliable harmonic protection in environments
where utility power may not be optimal. MTE
has built the Single Phase Matrix ONE Filter
with time-tested components to work in rural,
remote areas where three phase power is often
not available. Its patented technology reduces
harmonic distortion allowing your equipment
to run with increased energy, efficiency, and
better overall THID performance. The Matrix
ONE is designed to generate less heat and reduce
system downtime. Easy to install and maintain,
the Matrix ONE produces the protection you need
to extend the service life of your equipment.

SineWave
Guardian

®

Matrix
Filters

Line
Reactors

Ln

Line Side

Utility Power Motor

Harmonic
Filters

VFD

Filters
dV Sentry

Filters

Load
Reactors

Motor
Protection

Ld

Load Side

™

™

Power quality.
Solved.

Improve power quality and reduce downtime with

Matrix® ONE THID Reduction (%)

our optimized single phase harmonic filters.

The Single Phase Matrix® ONE Filter is proven to
reduce harmonic distortion for your VFD or other
single phase power applications, and it enables your
system to be more efficient.

Patented design with reliable components provides

harmonic mitigation and reduced THID (Total

Harmonic Distortion) where you need it most.

Low cost solution that is easy to install

and maintain.

Performance that is able to withstand harsh and

remote conditions.

Extends service life of equipment by reducing heat,

and improving system efficiency.

Alleviates system downtime by preventing blown

fuses and tripped circuit breakers.

®

Matrix
Filters

Line
Reactors

SineWave
Guardian
Filters

dV Sentry
Filters

Load
Reactors

™

™

We know

power quality, because

power quality

is all we do.

Ln

Line Side

Utility Power Motor

Harmonic
Filters

VFD

Ld

Load Side

Motor
Protection

Matrix® ONE THID Performance (%)

18

16

14

12

10

8

6

Percent THID (%)

4

2

0

0 20 40 60 80 100

Percentage of Full Load (%)

Performance Specifications:

Single Phase Matrix® ONE

Input Voltages

Current Range

Available Form Factors

Power Type Single Phase

Total Harmonic
Current Distortion

Insertion Load

Ambient Temperature

Overload Rating 150% for 60 seconds

Altitude Without Derating 3,300 ft above sea level

Agency Approvals

Efficiency >98%

240V 60Hz
480V 60Hz

240V: 17A - 620A (3hp - 150hp)
480V: 8A - 310A (3hp - 150hp)

Open
NEMA 1/2
NEMA 3R

12% Max at Full Load

+10% at no load

-10% at full load

-40 to +50 Cº Open Panel Filters

-40 to +40 Cº Enclosed Filters

-40 to +90 Cº Storage

UL and cUL listed to UL508
Type MX and CSA-C22.2 No 14-95
File E180243 (1-999 Ampere,
120VAC through 690VAC 50/60Hz
1 or 3 phase.

Warranty 3 years

Matrix® ONE Harmonic Spectrum Chart

70

60

50

40

30

20

Harmonic Current (%)

10

0

Harmonic Number (n)

Drive 100% Load Matrix ONE 100% Load

SELECTION TABLES:

The Matrix ONE is available in Open Panel, NEMA 1/2 and NEMA 3R
Note: MSxxxxxA is 240V, 60Hz and MSxxxxxD is 480V, 60Hz.
Note: To ensure single phase compatibility, consult drive manual for proper filter sizing.

240V Open Panel

Motor

HP

3 17 MSP0017A 47 8.7 x 10.5 x 7.2 8 181 6.9 x 14.0 x 6.0 2

5 26 MSP0026A 52 8.7 x 10.5 x 7.7 8 228 6.9 x 14.0 x 6.0 2

7.5 38 MSP0038A 69 10.5 x 12.0 x 9.6 10 258 6.9 x 18.4 x 7.0 3

10 49 MSP0049A 79 10.5 x 12.0 x 10.2 10 430 6.9 x 18.4 x 7.0 3

15 73 MSP0073A 114 10.6 x12.0 x 12.0 10 473 10.7 x 18.4 x 7.0 3

20 94 MSP0094A 150 15.2 x 15.3 x 10.9 12 636 10.7 x 16.3 x 7.6 4

25 115 MSP0115A 167 15.2 x 15.3 x 11.6 12 631 6.9 x 16.3 x 7.6 4

30 140 MSP0140A 202 15.2 x 15.3 x 12.3 12 805 10.7 x 16.3 x 7.6 4

40 180 MSP0180A 249 15.3 x 15.3 x 15.0 12 1055 10.7 x 16.3 x 7.6 4

50 225 MSP0225A 296 18.3 x 15.3 x 13.8 12 967 10.7 x 16.3 x 7.6 4

60 265 MSP0265A 318 18.3 x 15.3 x 14.9 12 1115

75 330 MSP0330A 376 18.4 x 15.3 x 16.7 12 1359

100 430 MSP0430A 611 20.5 x 24.0 x 17.4 13 1647

125 540 MSP0540A 718 20.6x 24.0 x 18.4 13 1872

150 620 MSP0620A 827 20.6 x 24.0 x 19.7 13 2094

3 8 MSP0008D 41 8.6 x 10.5 x 7.2 8 184 5.5 x 3.9 1

5 13 MSP0013D 51 8.7 x 10.5 x 7.7 8 219 5.5 x 4.6 1

7.5 19 MSP0019D 67 10.5 x 12.0 x 8.0 9 292 5.5 x 4.6 1

10 24 MSP0024D 75 10.5 x 12.0 x 8.5 9 350 7.2 x 4.6 1

15 37 MSP0037D 112 10.6 x 12.0 x 11.8 10 509 6.8 x 18.4 x 7.0 3

20 47 MSP0047D 145 15.2 x 15.3 x 10.9 11 667 10.8 x 16.4 x 7.6 5

25 59 MSP0059D 159 15.2 x 15.3 x 11.7 11 648 7.9 x 16.3 x 7.6 4

30 69 MSP0069D 166 15.1 x 15.3 x 11.8 11 629 6.9 x 16.3 x 7.6 4

40 90 MSP0090D 217 15.2 x 15.3 x 13.0 12 818 6.9 x 16.3 x 7.6 4

50 110 MSP0110D 256 18.3 x 15.3 x 13.0 12 1010 7.9 x 16.3 x 7.6 4

60 135 MSP0135D 299 18.3 x 15.3 x 14.3 12 1287 8.9 x 16.3 x 7.6 4

75 165 MSP0165D 349 18.3 x 15.3 x 15.4 12 1503 10.7 x 16.3 x 7.6 4

100 215 MSP0215D 587 20.4 x 24.0 x 15.8 13 1409

125 270 MSP0270D 690 20.3 x 24.0 x 18.7 13 1641

150 310 MSP0310D 785 20.3 x 24.0 x 20.2 13 1797

Amps

Rating

Catalog PN.

Weight

(lbs.)

480V Open Panel

Open Magnetics
(in.) (H X W X D)

Ref.
Fig.

Watts

Loss

Capacitor/Capacitor

Assemblies Size

(included) (in.)

(H X W X D)

10.7 x 16.3 x 7.6

10.7 x 16.3 x 7.6

10.7 x 16.3 x 7.6

10.7 x 16.3 x 7.6

10.7 x 16.3 x 7.6

8.9 x 16.3 x 7.6

10.7 x 16.3 x 7.6

11.5 x 16.3 x 7.6

11.5 x 16.3 x 7.6

11.5 x 16.3 x 7.6

6.9 x 16.3 x 7.6

6.9 x 16.3 x 7.6

6.9 x 16.3 x 7.6

7.9 x 16.3 x 7.6

6.9 x 16.3 x 7.6

6.9 x 16.3 x 7.6

Ln

Line Side

Capacitor

Ref.

Figure

4

4

4

4

4

4

4

4

Single Phase Matrix® ONE

The Matrix ONE is available in Open Panel, NEMA 1/2 and NEMA 3R
Note: MSxxxxxA is 240V, 60Hz and MSxxxxxD is 480V, 60Hz.
Note: To ensure single phase compatibility, consult drive manual for proper filter sizing.

Ln

Line Side

Amps

Rating

115 MSG0115A 338 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0115A 351 CAB-26AP3 7 51.3 x 27.7 x 30.0

140 MSG0140A 372 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0140A 385 CAB-26AP3 7 51.3 x 27.7 x 30.0

180 MSG0180A 420 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0180A 433 CAB-26AP3 7 51.3 x 27.7 x 30.0

225 MSG0225A 467 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0225A 480 CAB-26AP3 7 51.3 x 27.7 x 30.0

265 MSG0265A 742 CAB-42AP2 7 87.6 x 43.7 x 31.1 MSW0265A 779 CAB-42AP3 7 87.6 x 43.7 x 40.1

330 MSG0330A 800 CAB-42AP2 7 87.6 x 43.7 x 31.1 MSW0330A 836 CAB-42AP3 7 87.6 x 43.7 x 40.1

430 MSG0430A 1042 CAB-42AP2 7 87.6 x 43.7 x 31.1 MSW0430A 1079 CAB-42AP3 7 87.6 x 43.7 x 40.1

540 MSG0540A 1146 CAB-42AP2 7 87.6 x 43.7 x 31.1 MSW0540A 1186 CAB-42AP3 7 87.6 x 43.7 x 40.1

Catalog PN.

17 MSG0017A 95 CAB-12AP2 6 24.0 x 12.5 x 17.9 MSW0017A 103 CAB-12AP3 6 24.0 x 12.5 x 23.0

26 MSG0026A 100 CAB-12AP2 6 24.0 x 12.5 x 17.9 MSW0026A 108 CAB-12AP3 6 24.0 x 12.5 x 23.0

38 MSG0038A 145 CAB-17AP2 6 33.9 x 18.3 x 20.9 MSW0038A 152 CAB-17AP3 6 33.9 x 18.3 x 26.0

49 MSG0049A 155 CAB-17AP2 6 33.9 x 18.3 x 20.9 MSW0049A 165 CAB-17AP3 6 33.9 x 18.3 x 26.0

73 MSG0073A 190 CAB-17AP2 6 33.9 x 18.3 x 20.9 MSW0073A 198 CAB-17AP3 6 33.9 x 18.3 x 26.0

94 MSG0094A 320 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0094A 333 CAB-26AP3 7 51.3 x 27.7 x 30.0

Wt.

(lbs.)

240V NEMA 1/2 240V NEMA 3R

Enclosure

Ref.
Fig.

Size (in.)

(H X W X D)

Catalog PN.

Wt.

(lbs.)

Enclosure

Ref.
Fig.

Size (in.)

(H X W X D)

620 MSG0620A 1455 CAB-48AP2 7 84.0 x 52.0 x 36.5 MSW0620A 1495 CAB-48AP3 7 84.0 x 52.0 x 45.5

480V NEMA 1/2 480V NEMA 3R

8 MSG0008D 89 CAB-12AP2 6 24.0 x 12.5 x 17.9 MSW0008D 97 CAB-12AP3 6 24.0 x 12.5 x 23.0

13 MSG0013D 98 CAB-12AP2 6 24.0 x 12.5 x 17.9 MSW0013D 106 CAB-12AP3 6 24.0 x 12.5 x 23.0

19 MSG0019D 142 CAB-17AP2 6 33.9 x 18.3 x 20.9 MSW0019D 149 CAB-17AP3 6 33.9 x 18.3 x 26.0

24 MSG0024D 159 CAB-17AP2 6 33.9 x 18.3 x 20.9 MSW0024D 157 CAB-17AP3 6 33.9 x 18.3 x 26.0

37 MSG0037D 188 CAB-17AP2 6 33.9 x 18.3 x 20.9 MSW0037D 195 CAB-17AP3 6 33.9 x 18.3 x 26.0

47 MSG0047D 311 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0047D 324 CAB-26AP3 7 51.3 x 27.7 x 30.0

59 MSG0059D 325 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0059D 338 CAB-26AP3 7 51.3 x 27.7 x 30.0

69 MSG0069D

90 MSG0090D 387 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0090D 400 CAB-26AP3 7 51.3 x 27.7 x 30.0

110 MSG0110D 499 CAB-26APD2 7 76.0 x 27.7 x 24.9 MSW0110D 525 CAB-26APD3 7 76.0 x 27.7 x 34.0

135 MSG0135D 542 CAB-26APD2 7 76.0 x 27.7 x 24.9 MSW0135D 567 CAB-26APD3 7 76.0 x 27.7 x 34.0

165 MSG0165D 592 CAB-26APD2 7 76.0 x 27.7 x 24.9 MSW0165D 618 CAB-26APD3 7 76.0 x 27.7 x 34.0

215 MSG0215D 1010 CAB-42AP2 7 87.6 x 43.7 x 31.1 MSW0215D 1047 CAB-42AP3 7 87.6 x 43.7 x 40.1

270 MSG0270D 1113 CAB-42AP2 7 87.6 x 43.7 x 31.1 MSW0270D 1147 CAB-42AP3 7 87.6 x 43.7 x 40.1

310 MSG0310D 1405 CAB-48AP2 7 84.0 x 52.0 x 36.5 MSW0310D 1446 CAB-48AP3 7 84.0 x 52.0 x 45.5

333 CAB-26AP2 7 51.3 x 27.7 x 24.9 MSW0069D 346 CAB-26AP3 7 51.3 x 27.7 x 30.0

mtecorp.com

6.98

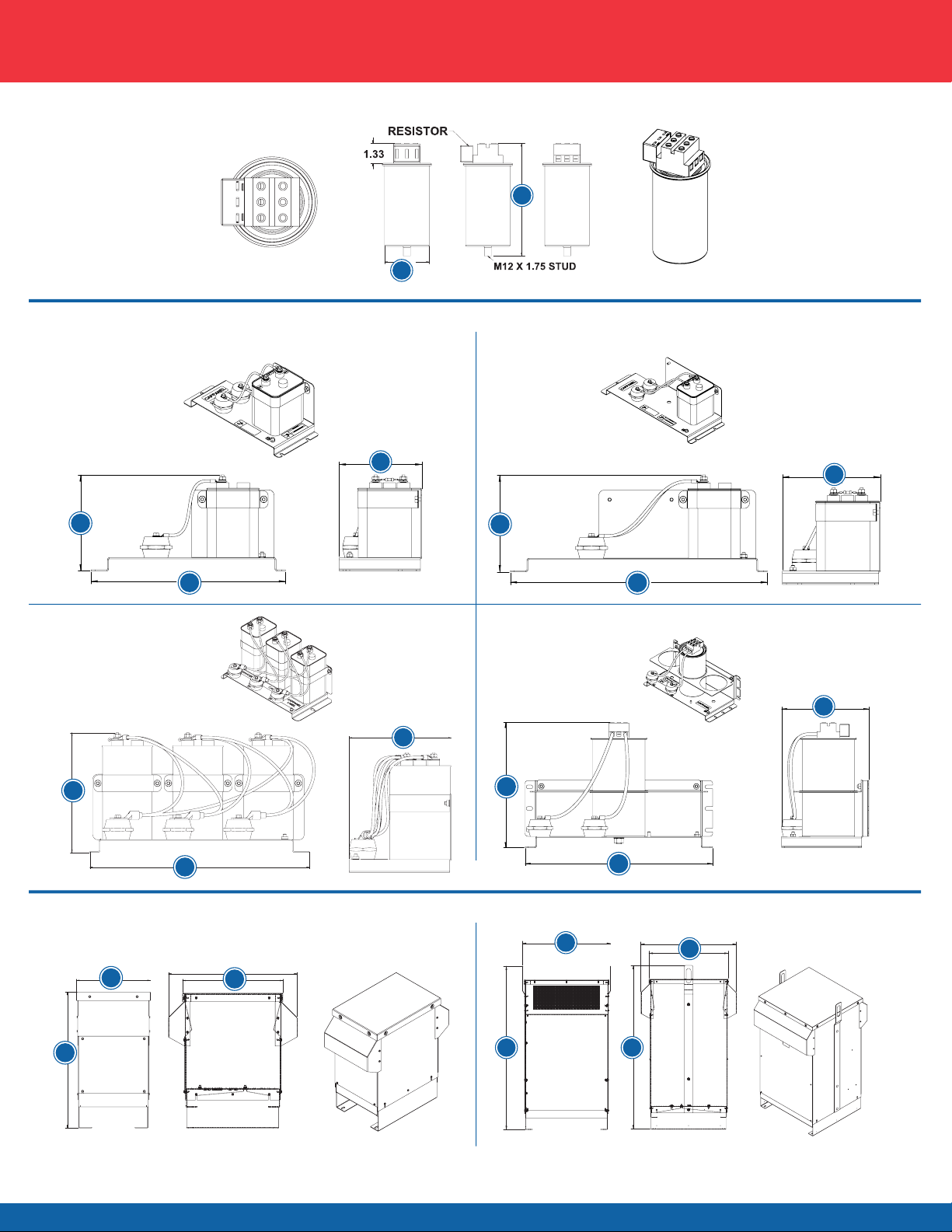

CAPACITOR

FIGURE 1

H

D

CAPACITOR PANEL

H

H

14.00

W

H

FIGURE 2

5.95

D

FIGURE 4

D

FIGURE 3

D

6.98

H

H

18.36

W

FIGURE 5

7.60

D

H

H

W

ENCLOSURES

W

H

NOTE: HOODS ONLY ON NEMA 3R ENCLOSURES NOTE: HOODS ONLY ON NEMA 3R ENCLOSURES

Note: Figure illustrations are for reference only. Actual hardware may differ.

D

FIGURE 6

W

H

16.35

W

H

D

FIGURE 7

Single Phase Matrix® ONE

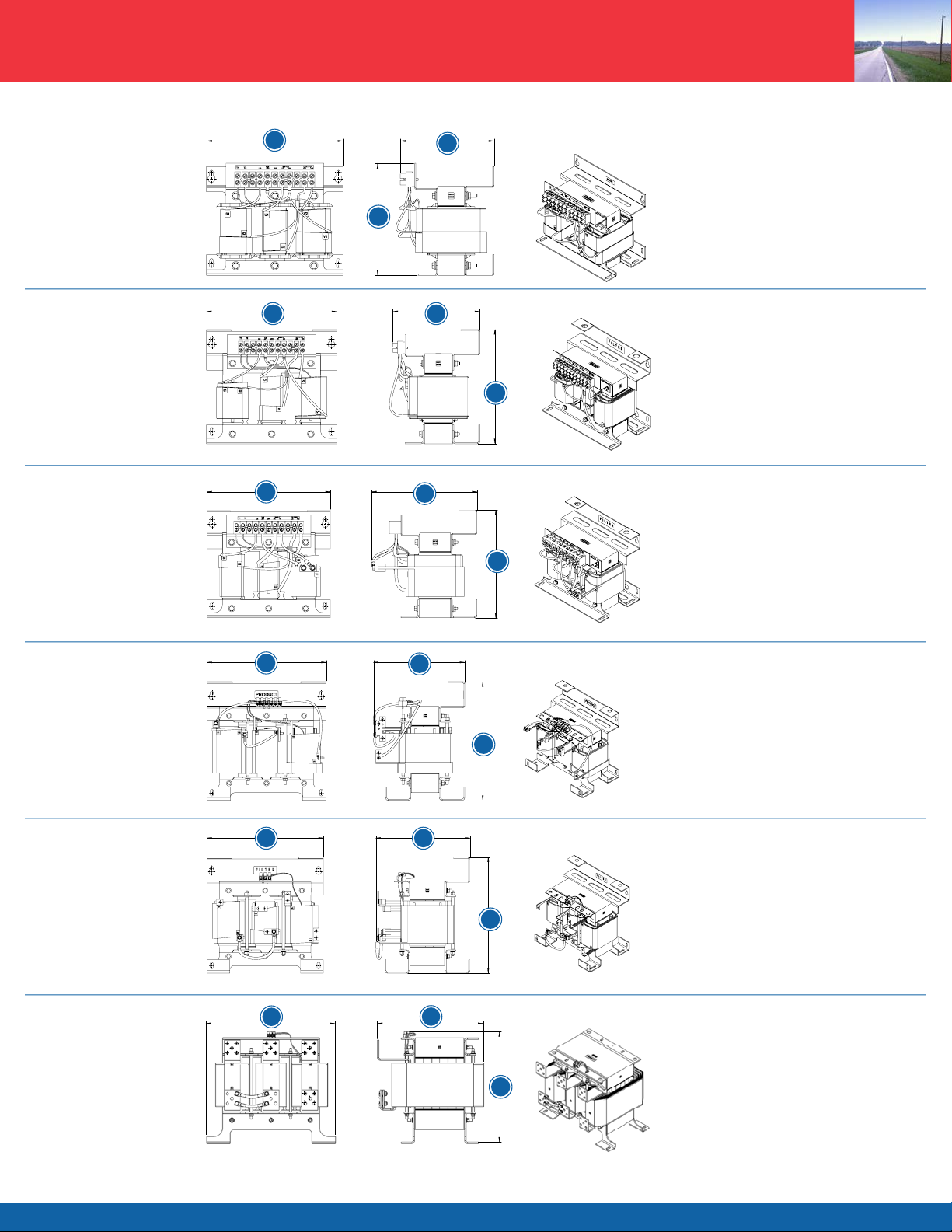

OPEN MAGNETICS

W

W

W D

W

D

FIGURE 8

H

D

H

H

D

H

FIGURE 9

FIGURE 10

W

W D

W

D

FIGURE 11

H

H

D

H

FIGURE 12

FIGURE 13

Note: Figure illustrations are for reference only. Actual hardware may differ.

Simple, robust power quality solutions that are never
over engineered.

Power quality management requirements vary significantly. By utility. By industry. By application.
By country. By site. That is why we offer a variety of power quality and filter products, for both input
(line-side) and output (load-side) of Variable Frequency Drives (VFDs) and power conversion equipment.
These components represent strategic parameters of power quality. We can provide you
with a complete power quality solution.

Ld

Line SideLnLoad Side

RL and RLW line/load Reactors help
keep your equipment running longer
by absorbing many of the power
line disturbances which otherwise
damage or shut down your inver ters,
variable speed controllers, or other
sensitive equipment.

Ln

Line Side

Matrix® AP Harmonic Filters can help
ensure that your system meets the
IEEE-519 requirements for harmonic
current.

Ld

Load Side

The dV Sentry™ redefines innovation
with its unique all-in-one design
and its patented Triple Defense
Core. It is the only filter on the
market proven to provide common
mode and rise time reduction, as
well as peak voltage protection.

Ld

Load Side

™

SineWave Guardian
transform the output of your VFD to a
near perfect sinusoidal waveform for
the best level of motor protection.

Filters

Power quality.
Solved.

Specifications subject to change without notice.

MS-PSL-E-1115

© 2015 MTE Corporation Printed in U.S.A.
