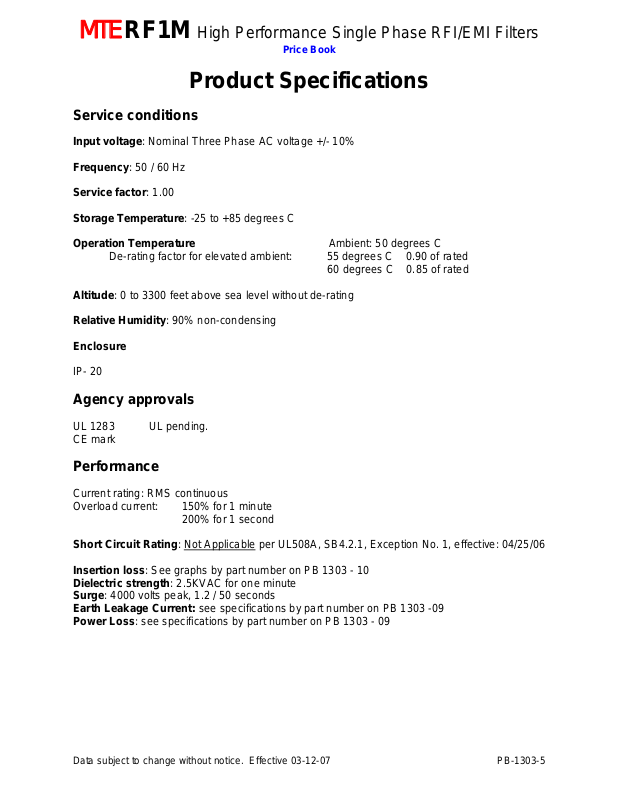

MTE RF1M Product Specification

MTE RF1M High Performance Single Phase RFI/EMI Filters

Price Book

Product Specifications

Service conditions

Input voltage: Nominal Three Phase AC voltage +/- 10%
Frequency: 50 / 60 Hz
Service factor: 1.00
Storage Temperature: -25 to +85 degrees C
Operation Temperature Ambient: 50 degrees C

De-rating factor for elevated ambient: 55 degrees C 0.90 of rated
60 degrees C 0.85 of rated

Altitude: 0 to 3300 feet above sea level without de-rating
Relative Humidity: 90% non-condensing
Enclosure

IP- 20

Agency approvals

UL 1283 UL pending.
CE mark

Performance

Current rating: RMS continuous
Overload current: 150% for 1 minute
200% for 1 second

Short Circuit Rating: Not Applicable
Insertion loss: See graphs by part number on PB 1303 - 10

Dielectric strength: 2.5KVAC for one minute
Surge: 4000 volts peak, 1.2 / 50 seconds
Earth Leakage Current: see specifications by part number on PB 1303 -09
Power Loss: see specifications by part number on PB 1303 - 09

per UL508A, SB4.2.1, Exception No. 1, effective: 04/25/06

Data subject to change without notice. Effective 03-12-07 PB-1303-5
