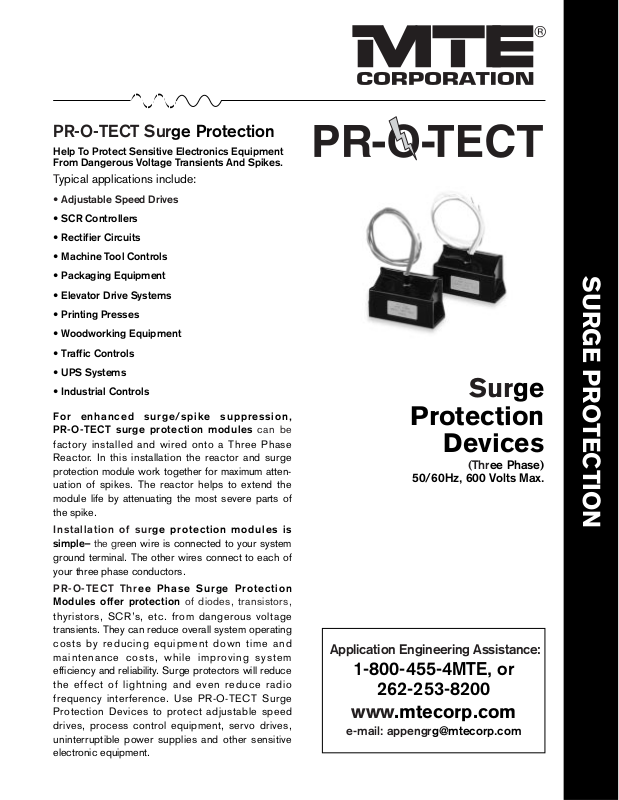

MTE PR-O-TECT brochure

SURGE PROTECTION

PR-O-TECT Surge Protection

Help To Protect Sensitive Electronics Equipment
From Dangerous Voltage Transients And Spikes.

Typical applications include:

• Adjustable Speed Drives

• SCR Controllers

• Rectifier Circuits

• Machine Tool Controls

• Packaging Equipment

• Elevator Drive Systems

• Printing Presses

• Woodworking Equipment

• Traffic Controls

• UPS Systems

• Industrial Controls

For enhanced surge/spike suppression,
PR-O-TECT surge protection modules

can be

factory installed and wired onto a Three Phase
Reactor. In this installation the reactor and surge
protection module work together for maximum atten­uation of spikes. The reactor helps to extend the
module life by attenuating the most severe parts of
the spike.

Installation of surge protection modules is

simple–

the green wire is connected to your system

ground terminal. The other wires connect to each of
your three phase conductors.

PR-O-TECT Three Phase Surge Protection

Modules offer protection

of diodes, transistors,

thyristors, SCR’s, etc. from dangerous voltage
transients. They can reduce overall system operating
costs by reducing equipment down time and
maintenance costs, while improving system
efficiency and reliability. Surge protectors will reduce
the effect of lightning and even reduce radio
frequency interference. Use PR-O-TECT Surge
Protection Devices to protect adjustable speed
drives, process control equipment, servo drives,
uninterruptible power supplies and other sensitive
electronic equipment.

Application Engineering Assistance:

1-800-455-4MTE, or

262-253-8200

www.mtecorp.com

e-mail: [e-mail]

Surge

Protection

Devices

(Three Phase)

50/60Hz, 600 Volts Max.
