MTE MAPG0165D Technical Reference Manual
8
7
6
5
4
3
2
1
APPROX. WEIGHT
(LBS)
437
DDD
27.69
703.44
26.55
674.47
ECO No
24.90
632.46
1.50 38.10
X 4.50 [114.30]
M9814
REPLACED CAPPANEL-557 WITH
DESCRIPTION
CAPPANEL-557C
REV BY
KV
DATE
09/14/16
SLOT, 2 PLACES
1.50
38.10
.75
.53 13.46
THRU
19.05
2.00
C
DETAIL A
(6 PLACES)
1.25
31.75
50.80
SEE NOTES 1 & 2
51.30
1302.89
47.00
1193.80
CUSTOMER CONNECTION
DETAIL VIEW (THERMAL)
C
26.28
667.50
3 PLACES
3 PLACES
21.41
543.85
FRONT VIEW
(WITH PANELS REMOVED)
SIDE VIEW
(WITH PANELS REMOVED)
B
23.10
.91
1.31
33.22
23.31
592.07
B
.41 10.41
X .88 [22.35]
1/4-20 GROUND STUD
SLOT, 4 PLACES
CUSTOMER CONNECTION
DETAIL VIEW
NOTES:
A
21.75
552.53
TERMINAL SCREW TIGHTENING TORQUE: 16 IN/LBS
1.
WIRE RANGE: 4 - 14 AWG
2.
BOTTOM VIEW
TOP VIEW
(TOP PANEL AND CAPPANEL REMOVED)
THE COMPONENT, PART OR ASSEMBLY DESCRIBED IN THIS DOCUMENT
MUST COMPLY WITH THE EU(EUROPEAN UNION) DIRECTIVE RoHS2
CONTAINS <0.1% OF ANY SVHC BY WEIGHT PER REACH REGULATION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES [MM]
ANGLES:
1 PLACE .X:
2 PLACE .XX:
3 PLACE .XXX:
TOLERANCES ARE:
1
.1 [2.5]
.03 [0.76]
.010 [0.254]
POWER QUALITY. SOLVED.
N83 W13330 Leon Road
Menomonee Falls, WI 53051 USA
800.455-4683
262.253.8200
MATERIAL
DRAWN
SG
CHECKED
JM
APPROVED
JM
DATE
09/14/11
DATE
09/19/16
DATE
09/19/16
THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF MTE
CORPORATION AND MAY NOT BE USED, COPIED OR DISCLOSED TO OTHERS EXCEPT
DESCRIPTION
SIZE
D
SCALE
CONFIDENTIAL AND PROPRIETARY INFORMATION
WITH THE AUTHORIZED WRITTEN PERMISSION OF MTE CORPORATION

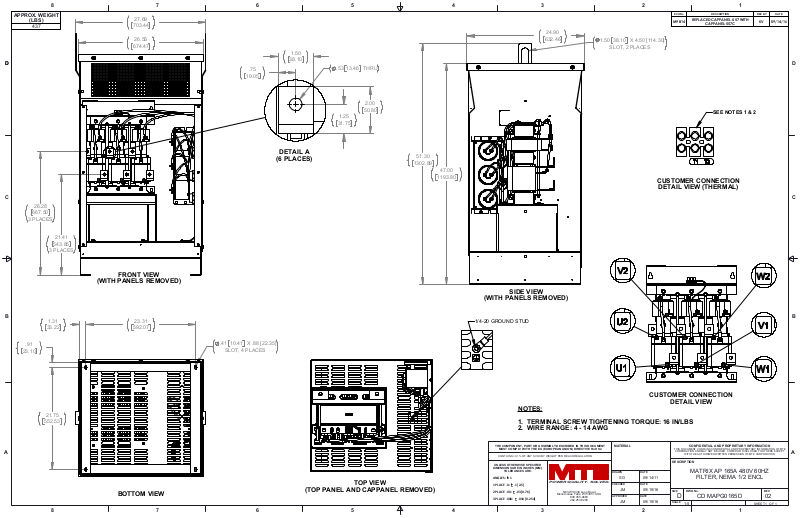

MATRIX AP 165A 480V 60HZ
FILTER, NEMA 1/2 ENCL
DWG No.
1:5
CD MAPG0165D
SHEET 1 OF 1
REV
02
A
