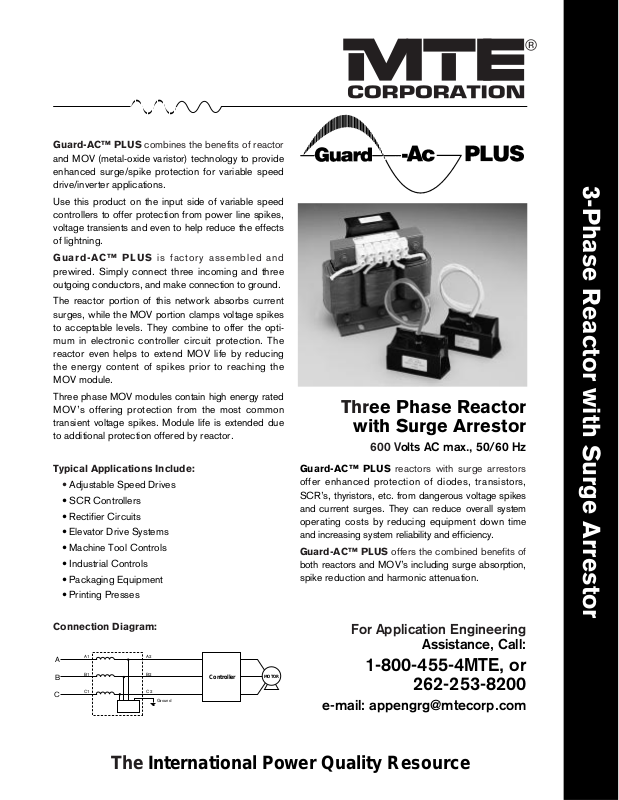

3-Phase Reactor with Surge Arrestor
For Application Engineering
Assistance, Call:
1-800-455-4MTE, or
262-253-8200
e-mail: appengrg@mtecorp.com
Three Phase Reactor
with Surge Arrestor
600 Volts AC max., 50/60 Hz
Guard-AC™ PLUS combines the benefits of reactor
and MOV (metal-oxide varistor) technology to provide
enhanced surge/spike protection for variable speed
drive/inverter applications.
Use this product on the input side of variable speed
controllers to offer protection from power line spikes,
voltage transients and even to help reduce the effects
of lightning.
Guard-AC™ PLUS is factory assembled and
prewired. Simply connect three incoming and three
outgoing conductors, and make connection to ground.
The reactor portion of this network absorbs current
surges, while the MOV portion clamps voltage spikes
to acceptable levels. They combine to offer the optimum in electronic controller circuit protection. The
reactor even helps to extend MOV life by reducing
the energy content of spikes prior to reaching the
MOV module.
Three phase MOV modules contain high energy rated
MOV’s offering protection from the most common
transient voltage spikes. Module life is extended due
to additional protection offered by reactor.
Typical Applications Include:
• Adjustable Speed Drives
• SCR Controllers
• Rectifier Circuits
•Elevator Drive Systems
• Machine Tool Controls
•Industrial Controls
• Packaging Equipment
•Printing Presses
Connection Diagram:
Guard-AC™ PLUS reactors with surge arrestors
offer enhanced protection of diodes, transistors,
SCR’s, thyristors, etc. from dangerous voltage spikes
and current surges. They can reduce overall system
operating costs by reducing equipment down time
and increasing system reliability and efficiency.
Guard-AC™ PLUS offers the combined benefits of
both reactors and MOV’s including surge absorption,
spike reduction and harmonic attenuation.
MOTOR
A2A1
B2B1
C2C1
Controller
A
B
C
Ground
Selection Table:
600 volts max., 50/60 Hz.
*4 % is the standard impedance for European installations.
• For NEMA 1 enclosed units, change second-to-last digit from “0” to “1” (ie:RLA–01802 to RLA–01812).
• For other ratings, consult the factory.
HP
PERCENT
208 Volts 240 Volts 380 Volts 415 Volts 480 Volts 600 Volts
IMPEDANCE
1
3% RLA-00401 RLC-00401
4% IMPEDANCE* RLG-00201 RLJ-00202
5% RLA-00402 RLC-00402 RLE-00201 RLE-00202 RLG-00202 RLJ-00203
1 1/2
3% RLA-00801 RLC-00801
RLE-00403 RLE-00404
RLG-00201 RLJ-00202
5% RLA-00802 RLC-00802 RLG-00202 RLJ-00203
2
3% RLA-00801 RLC-00801
RLE-00403 RLE-00403
RLG-00402 RLJ-00403
5% RLA-00802 RLC-00802 RLG-00403 RLJ-00404
3
3% RLA-01201 RLC-01201
RLE-00803 RLE-00804
RLG-00402 RLJ-00403
5% RLA-01202 RLC-01202 RLG-00403 RLJ-00404
5
3% RLA-01801 RLC-01801
RLE-01203 RLE-00802
RLG-00802 RLJ-00803
5% RLA-01802 RLC-01802 RLG-00803 RLJ-00804
7 1/2
3% RLA-02501 RLC-02501
RLE-01803 RLE-01202
RLG-01202 RLJ-00802
5% RLA-02502 RLC-02502 RLG-01203 RLJ-00803
10
3% RLA-03501 RLC-03501
RLE-01802 RLE-01803
RLG-01802 RLJ-01202
5% RLA-03502 RLC-03502 RLG-01803 RLJ-01203
15
3% RLA-04501 RLC-04501
RLE-02502 RLE-02502
RLG-02502 RLJ-01802
5% RLA-04502 RLC-04502 RLG-02503 RLJ-01803
20
3% RLA-05501 RLC-05501
RLE-03503 RLE-03503
RLG-03502 RLJ-02502
5% RLA-05502 RLC-05502 RLG-03503 RLJ-02503
25
3% RLA-08001 RLC-08001
RLE-04502 RLE-03502
RLG-03502 RLJ-02502
5% RLA-08002 RLC-08002 RLG-03503 RLJ-02503
30
3% RLA-10001 RLC-08001
RLE-04502 RLE-04502
RLG-04502 RLJ-03502
5% RLA-10002 RLC-08002 RLG-04503 RLJ-03503
40
3% RLA-13001 RLC-10001
RLE-08002 RLE-05502
RLG-05502 RLJ-04502
5% RLA-13002 RLC-10002 RLG-05503 RLJ-04503
50
3% RLA-16001 RLC-13001
RLE-08002 RLE-08002
RLG-08002 RLJ-05502
5% RLA-16002 RLC-13002 RLG-08003 RLJ-05502
60
3% RLA-20001 RLC-16001
RLE-10002 RLE-08002
RLG-08002 RLJ-08002
5% RLA-20002 RLC-16002 RLG-08003 RLJ-08003
75
3% RLA-25001 RLC-20001
RLE-13003 RLE-10002
RLG-10002 RLJ-08002
5% RLA-25002 RLC-20002 RLG-10003 RLJ-08003
100
3% RLA-32001 RLC-25001
RLE-16003 RLE-13002
RLG-13002 RLJ-10002
5% RLA-32002 RLC-25002 RLG-13003 RLJ-10003
125
3% RLA-40001 RLC-32001
RLE-20003 RLE-16002
RLG-16002 RLJ-13002
5% RLA-40002 RLC-32002 RLG-16003 RLJ-13003
150
3% RLA-50001 RLC-40001
RLE-25003 RLE-20003
RLG-20002 RLJ-16002
5% RLA-50002 RLC-40002 RLG-20003 RLJ-16003
200
3% RLA-60001 RLC-50001
RLE-32003 RLE-25002
RLG-25002 RLJ-20002
5% RLA-60002 RLC-50002 RLG-25003 RLJ-20003
250
3% RLA-75001 RLC-60001
RLE-40003 RLE-40003
RLG-32002 RLJ-25002
5% RLA-75002 RLC-60002 RLG-32003 RLJ-25003
300
3% RLA-85001 RLC-75001
RLE-50003 RLE-40002
RLG-40002 RLJ-32002
5% RLA-85002 RLC-75002 RLG-40003 RLJ-32003
350
3 % RLA-100001 RLC-85001
RLE-50002 RLE-50002
RLG-50002 RLJ-40002
5 % RLA-100002 RLC-85002 RLG-50003 RLJ-40003
400
3 % RLA-110001 RLC-100001
RLE-60003 RLE-60003
RLG-50002 RLJ-50002
5 % RLA-110002 RLC-100002 RLG-50003 RLJ-50003
500
3 % RLA-140001 RLC-125001
RLE-75003 RLE-75003
RLG-60002 RLJ-50002
5 % RLA-140002 RLC-125002 RLG-60003 RLJ-50003
600
3 % RLA-180001 RLC-150001
RLE-125003 RLE-110003
RLG-75002 RLJ-60002
5 % RLA-180002 RLC-150002 RLG-75003 RLJ-60003
750
3 % RLA-210001 RLC-180001
RLE-140003 RLE-140003
RLG-90002 RLJ-75002
5 % RLA-210002 RLC-180002 RLG-90003 RLJ-75003
