Page 1
MTD PRODUCTS AUSTRALIA PTY LTD,P.O. BOX 4314 DANDENONG SOUTH VICTORIA 3164
Printed In China
Safe Operation PracticeTtSet-UQtOperatioOtServicFtTroubleshootinHtWarranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
O

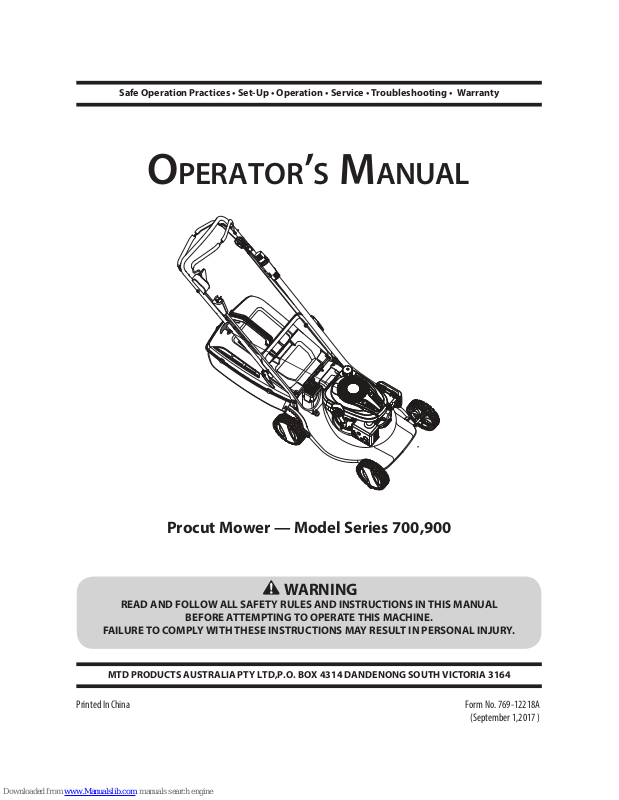

PERATOR’S MANUAL
Form No. 769-12218A
(September 1,2017 )
Procut Mower — Model Series 700,900
Page 2
Customer Support
If you have di culty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.rover.com.au◊
Email Address: customerserviceaus@mtdproducts.com◊
Call Customer Service : 1300 951 594◊
Write to us at : P.O. Box 4314 Dandenong South Victoria 3164 Australia◊
Thank you for purchasing a Lawn Mower manufactured by MTD
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product speci
cations for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product speci
cations, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local authorized MTD service dealer or contact us
directly. MTD’s Customer Support telephone numbers, website
address and mailing address can be found on this page. We want
to ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, speci
cations,
warranty and service. Please refer to the engine manufacturer’s
Owner’s/Operator’s Manual, packed separately with your
machine, for more information.
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator’s position and looking
down at the rear of the deck. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.
MODEL NUMBER
SERIAL NUMBER
To The Owner
1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 7
Controls & Features ................................................. 9
Operation ................................................................10
Service .....................................................................11
Troubleshooting .....................................................14
Warranty ................................................................ 16
Table of Contents
products. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Page 3
Important Safe Operation Practices
2
3
WARNING! This symbol points
out important safety instructions
which, if not followed, could
endanger the personal safety
and/or property of yourself and
others. Read and follow all instructions in this
manual before attempting to operate this
machine. Failure to comply with these
instructions may result in personal injury. When
you see this symbol.
HEED ITS WARNING!
DANGER: This machine was
built to be operated according to
the safe operation practices in
this manual. As with any type of
power equipment, carelessness or
error on the part of the operator can result in
serious injury. This machine is capable of
amputating ngers, hands, toes and feet and
throwing foreign objects. Failure to observe the
following safety instructions could result in
serious injury or death.
GENERAL OPERATION
1. Read this operator’s manual carefully
in its entirety before attempting
to assemble this machine. Read,
understand, and follow all instructions on
the machine and in the manual(s) before
operation. Keep this manual in a safe
place for future and regular reference.
2. Be completely familiar with the controls
and the proper use of this machine
before operating it.
3. This machine is a precision piece of
power equipment, not a plaything.
Therefore, exercise extreme caution at all
times. This machine has been designed
to perform one job: to mow grass. Do not
use it for any other purpose.
4. Never allow children under 14 years of
age to operate this machine. Children 14
and over should read and understand the
instructions and safe operation practices
in this manual and on the machine and
should be trained and supervised by an
adult.
5. Only responsible individuals who are
familiar with these rules of safe operation
should be allowed to use this machine.
6. Thoroughly inspect the area where the
equipment is to be used. Remo
ve all
stones, stick s, wire, bones, toys and other
foreign objec ts, which could be tripped
over or picked up and thrown by the
blade. Thrown objects can cause serious
personal injur y.
7. Plan your mowing pattern to avoid
discharge of material toward roads,
sidewalks, bystanders and the like. Also,
avoid discharging material against a
wall or obstruction, which may cause
discharged material to ricochet back
toward the operator.
8. To help avoid blade contact or a thrown
object injur y, stay in operator zon
e
behind handles and keep children,
bystanders, helpers and pets at least 75
feet from mower while it is in operation.
Stop machine if anyone enters area.
9. Always wear safety glasses or safety
goggles during operation and while
performing an adjustment or repair to
protect your eyes. Thrown objects which
ricochet can cause serious injury to the
eyes.
10. Wear sturdy, rough-soled work shoes
and close- tting slacks and shirts. Shirts
and pants that cover the arms and legs
and steel-toed shoes are recom
mended.
Never operate this machine in bare feet,
sandals, slippery or light-weight (e.g.
canvas) shoes.
11. Do not put hands or feet near rotating
parts or under the cutting deck. Contact
with blade can amputate ngers, hands,
toes and feet.
12. A missing or damaged discharge cover
can cause blade contact or thrown object
injuries.
13. Many injuries occur as a result of the
mower being pulled over the foot during
a fall caused by slipping or tripping.
Do not hold on to the mower if you are
falling; release the handle immediately.
14. Never pull the mower back toward
you while you are walking. If you must
back the mower away from a wall or
obstruction rst look down and behind
to avoid tripping and then follow these
steps:
a. Step back from mower to fully
extend your arms.
b. Be sure you are well balanced with
sure footing.
c. Pull the mower back slowly, no
more than half way toward you.
d. Repeat these steps as needed.
15. Do not operate the mower while under
the inuence of alcohol or drugs.
16. Do not engage the self-pr
opelled
mechanism on machines so equipped
while starting engine.
17. The blade control is a safety device. Never
attempt to bypass its operation. Doing
so makes the safet y device inoperative
and may result in personal injury through
contact with the rotating blade. The
blade control must operate easily in both
directions and automatically return to the
disengaged position when released.
18. Never operate the mower in wet grass.
Always be sure of your footing. A slip
and fall can cause serious personal
in
jury. If you feel you are losing your
footing, release the blade control handle
immediately and the blade will stop
rotating within three seconds.
19. Mow only in daylight or good articial
light. Walk, never run.
20. Stop the engine when crossing gravel
drives, walks or roads.
21. If the equipment should start to vibrate
abnormally, stop the engine,disconnect
the spark plug and check immediately for
the cause. Vibration is generally a warning
of trouble.
22. Shut the engine o and wait until the
blade comes to a complete stop before
removin
g the grass catcher or unclogging
the chute. The cutting blade continues to
rotate for a few seconds after the blade
control is released. Never place any part
of the body in the blade area until you are
sure the blade has stopped rotating.
23. Never operate mower without proper
trail shield, discharge cover, grass catcher,
blade control or other safety protective
devices in place and working. Never
operate mower with damaged safety
devices. Failure to do so can result in
personal injur y.
24. Muer and engine become hot and can
cause a burn. Do not touch.
25. Never attempt to make a wheel or cutting
height adjustment while the engine is
running.
26. Only use parts and accessories made for
this machine by the manufacturer. Failure
to do so can result in personal injury.
27. When starting engine, pull cord slowly
until resistance is felt, then pull rapidly.
Rapid retraction of starter cord (kickback)
will pull hand and arm toward engine
faster than you can let go. Broken bones,
fractures, bruises or sprains could result
.
28. If situations occur which are not covered
29. Do not smoke while fuelling engine.
30. Start the engine carefully with feet well
in this manual, use care and good
judgement. Contact Customer Support
for assistance or the name of the nearest
service dealer.
31. Stop the engine whenever you leave
the mower, even for a moment.
32.
33. Never cut grass while walking backwards.
34. Replace worn or faulty silencers.
35. Never pick up or carry a mower when it
is operating.
Store fuel in a cool place in a container
specically designed for the purpose. In
general, plastics containers are
unsuitable.
36. DAMAGED BLADES AND WORN BOLTS
ARE MAJOR HAZARDS.
away from the blades.
Page 4
4 SECTION 2 — IMPORTANT SAFE OPERATION PRACTICES
38. Turn the fuel o at the conclusion of
mowing and reduce the throttle setting
during engine run-out.
Slope Operation
Slopes are a major factor related to slip and
fall accidents, which can result in severe injury.
Operation on slopes requires extra caution. The
machine is heavy and can speed up when going
downhill. Be prepared to maintain control of
the machine. If you feel uneasy on a slope, do

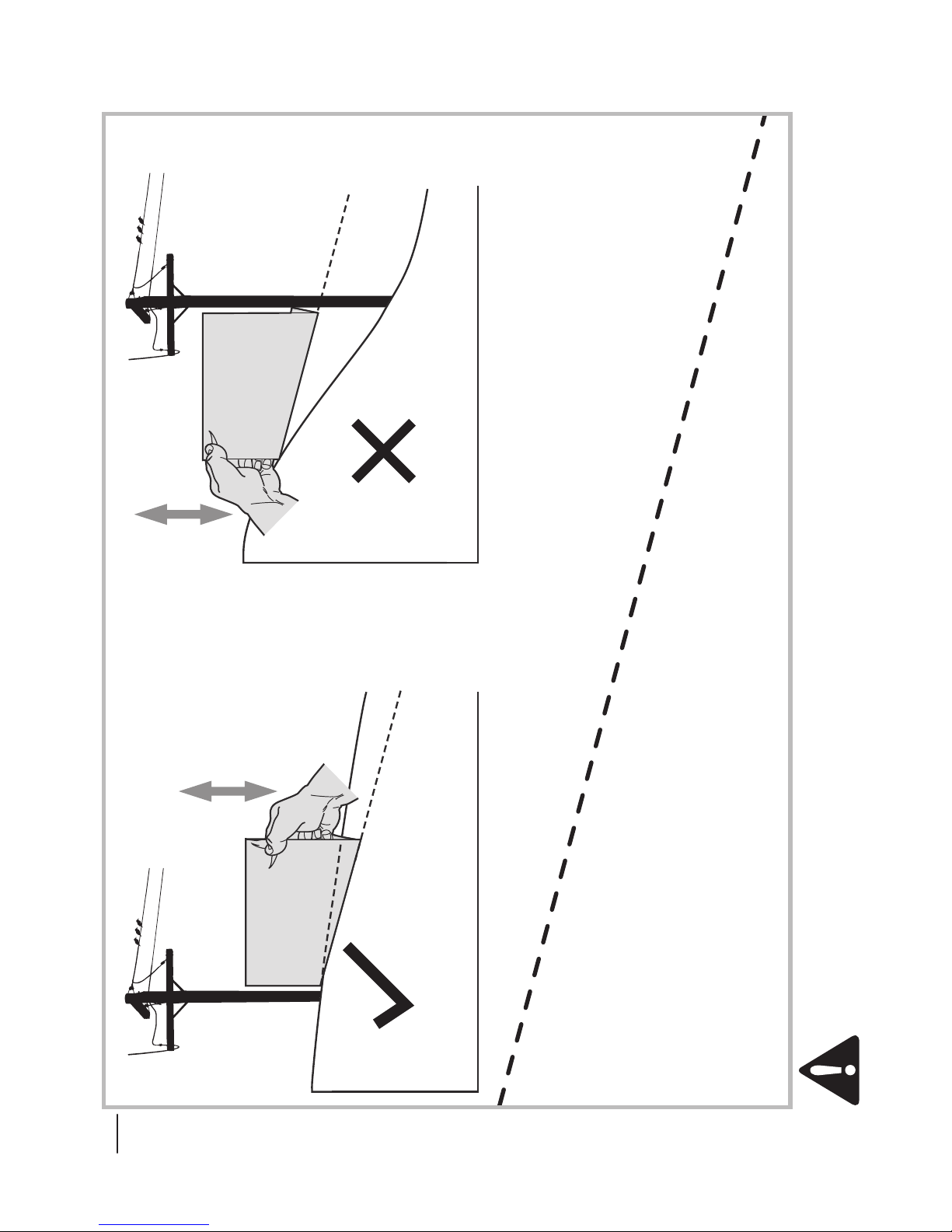

not mow it. For your safety, use the slope gauge
included as part of this manual to measure
slopes before operating this machine on a
sloped or hilly area. If the slope is greater than
15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up
and down to avoid loss of control.
2. Exercise extreme caution when changing
direction on slopes; turn uphill not down.
3. Watch for holes, ruts, rocks, hidden
objects, or bumps which can cause you to
slip or trip. Tall grass can hide obstacles.
4. Always be sure of your footing. A slip
and fall can cause serious personal
injury. If you feel you are losing your
balance, release the blade control handle
immediately and the blade will stop
rotating within three (3) seconds.
Do Not:
1. Do not mow near drop -os, ditches
or embankments, you could lose your
footing or balance.
2. Do not mow slopes greater than 15
degrees as shown on the slope gauge.
3. Do not mow on wet grass. Unstable
footing could cause slipping.
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
often attracted to the mower and the mowing
activity. They do not understand the dangers.
Never assume that children will remain where
you last saw them.
1. Keep children out of the mowing area
and under watchful care of a responsible
adult other than the operator.
2. Be alert and turn mower o if a child
enters the area.
3. Before and while moving backwards, look
behind and down for small children.
4. Use extreme care when approaching
blind corners, doorways, shrubs, trees,
or other objects that may obscure your
vision of a child who may run into the
mower.
5. Keep children away from hot or running
engines. They can suer burns from a ho
t
muer.
6. Never allow children under 14 years of
age to operate this machine. Children 14
and over should read and understand the
instructions and safe operation practices
in this manual and on the machine and
be trained and supervised by an adult.
7. After stopping engine, remove Electric
Start Push Key (if equipped) and keep it in
a safe place out of the reach of children.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property
damage use extreme care in handling
gasoline. Gasoline is extremely
ammable and the vapors are explosive.
Serious personal injury can occur when
gasoline is spilled on yourself or your
clothes, which can ignite. Wash your skin
and change clothes immediately.
2. Use only an approved gasoline container.
3. Never ll containers inside a vehicle or on
a truck or trailer bed with a plastic liner.
Always place containers on the ground
away from your vehicle before lling.
4. Remove gas-powered equipment from
the truck or trailer and refuel it on the
ground. If this is not possible, then
refuel such equipment on a trailer with
a portable container, rather than from a
gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim
of the fuel tank or container opening at
all times until fueling is complete. Do not
use a nozzle lock-open device.
6. Extinguish all cigarettes, cigars, pipes and
other sources
of ignition.
7. Never fuel machine indoors because
ammable vapors will accumulate in the
area.
8. Never remove gas cap or add fuel while
engine is hot or running. Allow engine
to cool at least two minutes before
refueling.
9. Never over ll fuel tank. Fill tank to no
more than 1 inch below bottom of ller
neck to provide for fuel expansion.
10. Replace gasoline cap and tighten
securely.
11. If petrol is spilled, do not attempt to start
the engine but move machine away from
the area of the spill and avoid creating
any source of ignition until petrol vapours
have dissipated.
12. Never store the machine or fuel container
near an open ame, spark or pilot light as
on a water heater, space heater, furnace,
clothes dryer or other gas appliances.
13. To reduce re hazard, keep machine free
of grass, leaves, or other debris build-up.
Clean up oil or fuel spillage and remove
any fuel soaked debris.
14. Allow machine to cool at least 5 minutes
before storing.
General Service:
1. Never run an engine indoors or in a
poorly ventilated area. Engine exhaust
contains carbon monoxide, an odorless
and deadly gas.
2. Before cleaning, repairing, or inspecting,
make certain the blade and all moving
parts have stopped. Disconnect the
spark plug wire and ground against the
engine and remove Electric Star t Push
Key (if equipped) to prevent unintend
ed
starting.
3. Check the blade and engine mounting
bolts at frequent intervals for proper
tightness. Also, visually inspect blade
for damage (e.g., bent, cracked,
worn). Replace blade with the original
equipment manufacture’s (O.E.M.)
blade only, listed in this manual. “Use
of parts which do not meet the original
equipment specications may lead to
improper performance and compromise
safety!”
4. Mower blades are sharp and can cut.
Wrap the blade or wear gloves, and use
extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
6. Never tamper with safety devices. Check
their proper operation regularly.
7. After striking a foreign object, stop
the engine, disconnect the spark plug
wire and ground against the engine.
Thoroughly inspect the mower for any
damage. Repair the damage before
starting and operating the mower.
8. Never attempt to make a wheel or cutting
height adjustment while the engine is
running.
9. Grass catcher components, discharge
cover, and trail shield are subject to wear
and damage which could expose moving
parts or allow objects to be thrown.
For safety protection, frequently check
components and replace immediately
with original equipment manufacturer’s
(O.E.M.) par ts only, listed in this manual.
“Use of parts which do not meet the
original equipment specications may
lead to improper performance and
compromise safety!”
10. Do not change the engine’s governor
setting or over-speed the engine. The
governor controls the maximum safe
operating speed of the engine.
11. Check fuel line, tank, cap, and ttings
frequently for cracks or leaks. Replace if
necessary.
12. Do not crank engine with spark plug
removed.
13. Maintain or replace safety and instruction
labels, as necessary.
14. Observe proper disposal laws and
regulations. Improper disposal of uids
and materials can harm the environment.
37. Before using, always visually inspect to
see that blades, blade bolts and cutter
assembly are not worn or damaged.
Replace worn or damaged blades and
bolts in sets to preserve balance.
Page 5
5SECTION 2 — IMPORTANT SAFE OPERATION PRACTICES
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and follow the warnings
and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
Safety Symbols
This page depicts and describes safet y symbols that may appear on this product. Read, understand, and follow all instructions on the machine before
attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate.
DANGER — ROTATING BLADES
To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover or grass catcher is in its
proper place. If damaged, replace immediately.
DANGER — BYSTANDERS
Do not mow when children or others are around.
DANGER — HAND/ FOOT CUT
Keep hands and feet away from rotating parts.
DANGER — THROWN DEBRIS
Remove objects that can be thrown by the blade in any direction. Wear safety glasses.
DANGER — SLOPES
Use extra caution on slopes. The machine is heavy and can speed up when going downhill. Be prepared to maintain
control of the machine. To avoid loss of control, operate across slopes, not up and down. When turning, turn uphill,
not down. Do not operate on slopes greater than 15°.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
WARNING— HOT SURFACE
Engine parts, especially the muer, become extremely hot during operation. Allow engine and muer to cool before
touching.
Do not modify engine
To avoid serious injury or death, do not modif y
engine in any way. Tampering with the governor
setting can lead to a runaway engine and cause
it to operate at unsafe speeds. Never tamper
with factor y setting of engine governor.
Page 6
6 SECTION 2 — IMPORTANT SAFE OPERATION PRACTICES
(OK) (TOO STEEP)
USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!
To check the slope, proceed as follows:
1. Remove this page and fold along the dashed line.
2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.)
3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ).
4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).
5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).
15° dashed line
Slope Gauge
Figure 2Figure 1
15° Slope
15° Slope
WARNIN G! Slopes are a major factor related to slip and fall accidents which can result in severe injury or death.
The machine is heav y and can speed up when going downhill. Be prepared to maintain control of the machine. To avoid loss of control, operate across slopes, not up and down. When turning,
turn uphill, not down. Do not operate machine on slopes in excess of 15 degrees.
Page 7
Assembly & Set-Up
3
Contents of Carton
One Lawn Mower One Lawn Mower Operator’s Manual
One Grass Catcher One Engine Operator’s Manual
Handle
Turn the cam lever to release the handle
from the folding position for storge. See
Figure 3-1.
Pivot the upper handle into the operating
position. Turn the cam lever to lock the
upper handle. See Figure 3-1.
1.
2.
Figure 3-1
Starter Rope
1. Disconnect the spark plug boot from the
spark plug (refer to the Engine Operator’s
Manual).
2. Pivot the control handle against the upper
handle and pull the rope out of the engine.
3. Loop the rope through the eye bolt. See
Figure 3-2.
4. Tighten the eye bolt to the handle using
the lock nut. DO NOT overtighten.
Figure 3-2
Grass Catcher
Follow steps below to assemble the grass
catcher.
1.
To remove grass catcher, lift rear discharge
door on the mower. Lift grass catcher up
discharge door to allow it to close rear
opening of mower.
3.
a. Push the handle into top channel
of upper catcher.
b. Install bottom catcher into upper
clips.
c. Tighten the screws. See Fig 3-3.
Figure 3-3
7
6pcs screwsOne Mulch Plug
One Battery Charger †
Electric Start Push Key †
† If Equipped
NOTE: This Operator’s Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the
NOTE: This unit is shipped without gasoline or
oil in the engine. Fill up with gasoline and oil
as instructed in the Engine Operator’s Manual
BEFORE operating your mower.
Follow steps below to attach the grass 2.
Refer to Fig. 3-5 to check grass catcher.4 .
NOTE: Your mower may be shipped as a
mulcher. Remove the mulch plug before
attaching the grass catcher.
Figure 3-4
Figure 3-5
FULL
EMPTY
B
A
B
B
b. Place grass catcher hooks onto the
slots to ensure they sit in place as
shown in Figure 3-4. Let go of
discharge door so that it rests on
the grass catcher.
a. Lift rear discharge door.
catcher.
Figure 3-7
Figure 3-6
Installing the Mulch Plug
1. With the engine stopped, lift rear discharge
door.
2. Insert the long right hand side of the mulch
See Fig. 3-6.
Removing the Mulch Plug
1. With the engine stopped, lift rear discharge
door.
2. Grasp the handle and lift the mulch plug
over the rear ramp.
3. Guide the mulch plug out by rotating and
pulling until clear of the mower.
3. Guide the mulch plug in and seat down on
the rear ramp. See Figure 3-7.
Assembly
mulch plug
rear dischagre door
rear ramp
rear ramp
mulch plug

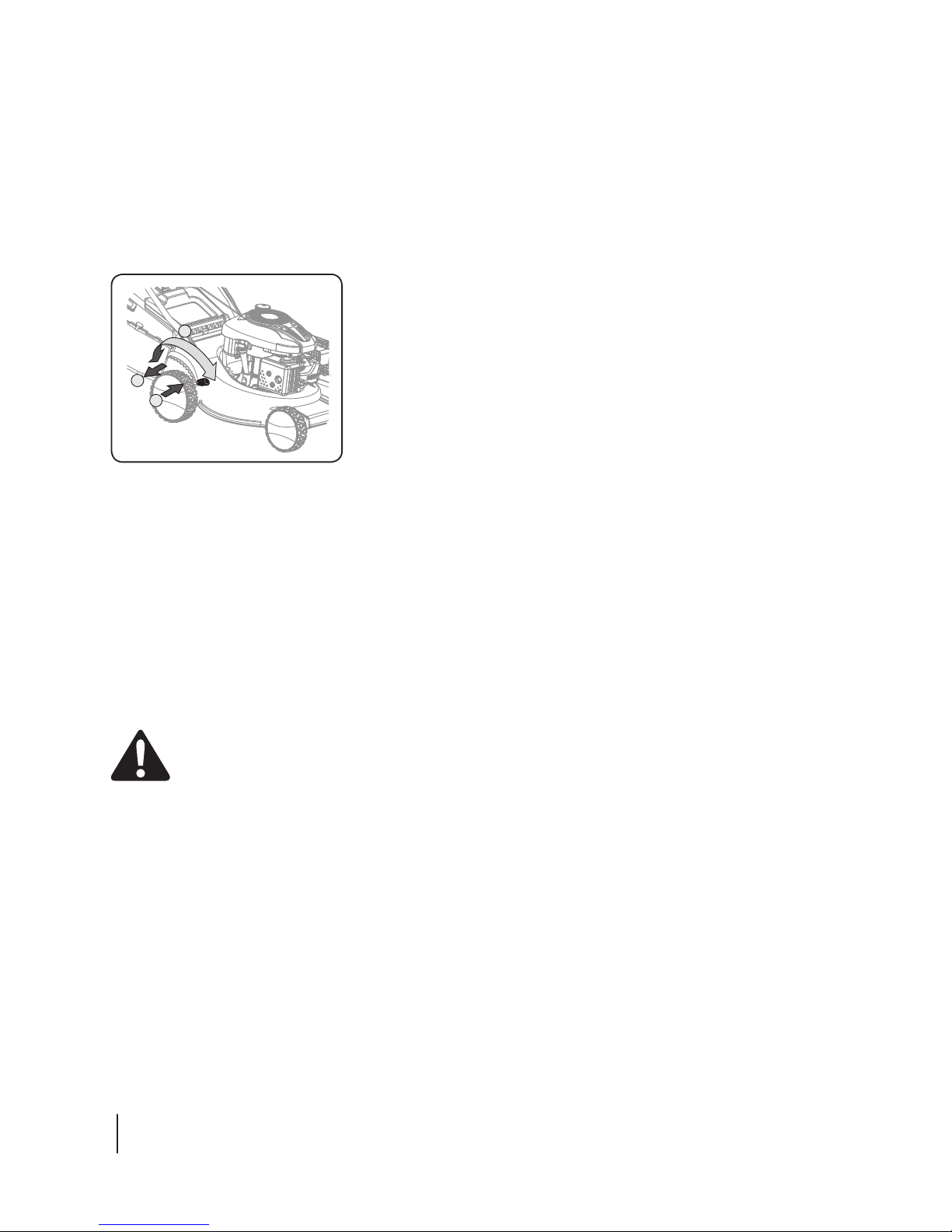

Page 8
SECTION 3 — ASSEMBLY & SET-UP
8
Set-Up
Gas and Oil Fill-Up
Refer to the separate engine owner’s manual for
additional engine information.
Add oil provided before starting unit for
the rst time out of the box.
1.
Service the engine with gasoline as 2.
instructed in the separate engine owner’s
manual.
WARNING: Use extreme care
Adjustments
Cutting Height
There is a cutting height adjustment lever
located above the rear right wheel.
Push the height adjustment lever
towards wheel.
1.
Move lever to desired position for a
change in cutting height. See Figure
3-8.
2.
Release lever towards deck.3.
IMPORTANT: For rough or uneven lawns, move
Figure 3-8
the height adjustment levers to a higher position.
This will stop scalping or grass.
Lower
Higher
3
2
1
when handling gasoline. Gasoline
is extremely ammable and the
vapors are explosive. Never fuel
the machine indoors or while the
engine is hot or running.Extinguish
cigarettes, cigars, pipes and other
sources of ignition.
Page 9
9

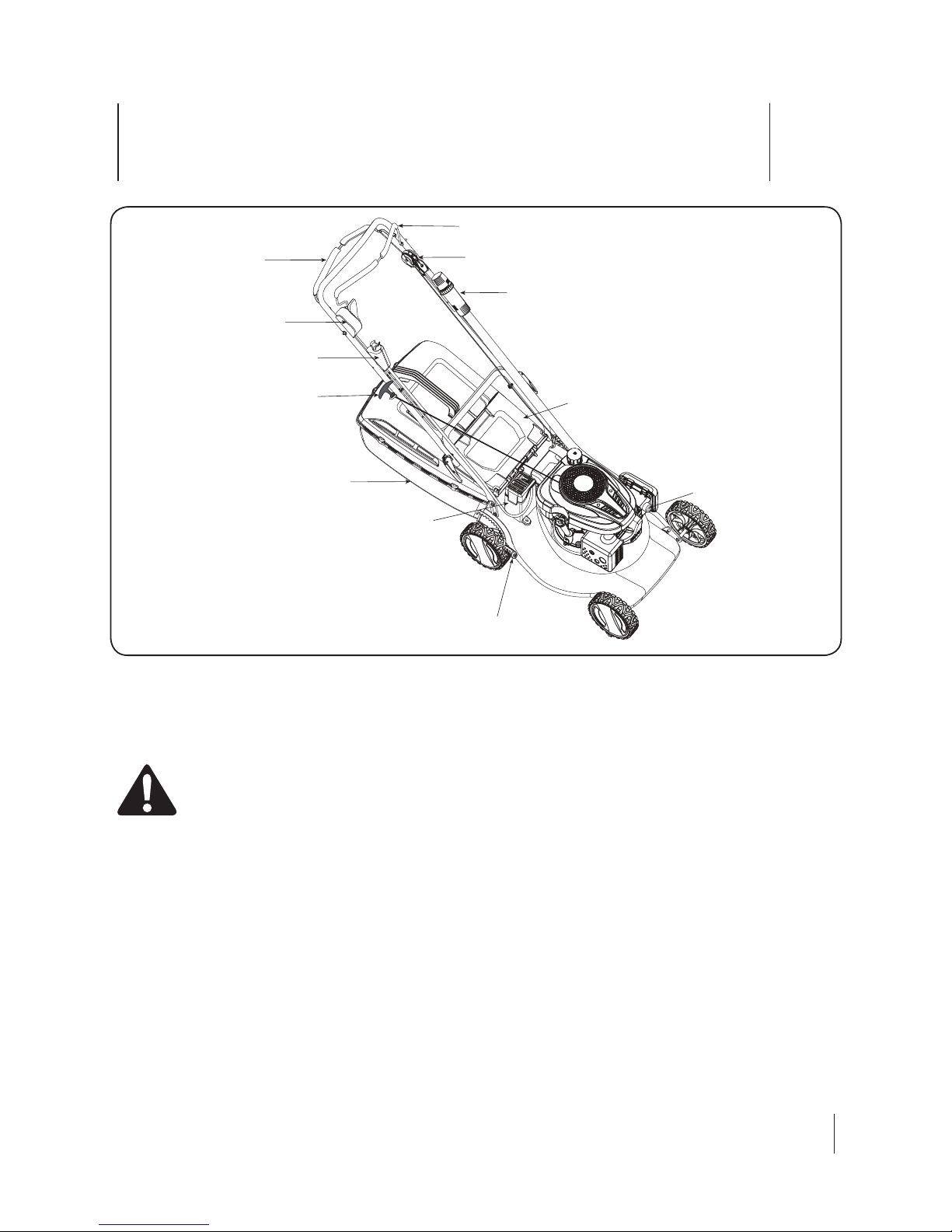

Controls and Features
4
Figure 4-1
Bail Blade Control
The bail blade control is attached to the upper
handle of the mower. Depress and squeeze it
against the upper handle to operate the unit.
WARNING: This bail blade control
Blade Brake Clutch lever (If Equipped)
Cutting Height Adjustment Lever
The adjustment lever is located on the right rear
wheel. To adjust the cutting height, refer to the
“Assembly & Set up” section.
Grass Catcher
Recoil Starter
Throttle Control
Throttle Control is located on the left upper
handle. Throttle control maked for “Stop”,”Start”
and “Run” positions.
Recoil Starter
Bail Drive Control †
Grass Catcher
Blade Bail Control
Throttle Control
Cutting Height
Adjustment Lever
Bail Drive Control (If Equipped)
The bail drive control is located on the
underside of the upper handle and is used to
engage the drive. Squeeze it against the upper
handle to engage the drive; release it to stop
† If Equipped
Blade Brake
Clutch Lever
†
Electric Starter Push Key †
Remote Air Cleaner
Rear Discharge Door
Electric Starter Push Key (If Equipped)
The electric starter push key is located on the
right side of the upper handle. It is both a
removable key and push button and is only
provided on electric start models.
NOTE: On select units, the electric start is
activated by a removable turn key.
The blade brake clutch (BBC)lever is located on
the right side of the upper handle and is used to
engage the blade brake clutch. Squeeze bail
blade control against the upper handle, push
BBC lever to the end until heard a sound then
release it to start blade.
Battery †
Primer †
The primer is located on the front of the air
cleaner. Pressing the primer forces fuel directly
into the engine’s carburetor to aid in starting the
engine.
Primer (If Equipped)
Release it to stop engine and blade.
is a safety device. Never attempt
to bypass its operations.
mower from propelling.
The grass catcher,located at the rear of the
mower, is used to bag the grass clippings for
disposal at another site. Once the bag is full,
remove it using the handle provided and empty
it before any further mowing.
The recoil starter is attached to the right upper
handle. Stand behind the unit and pull the recoil
starter rope to start the unit.
Page 10
10

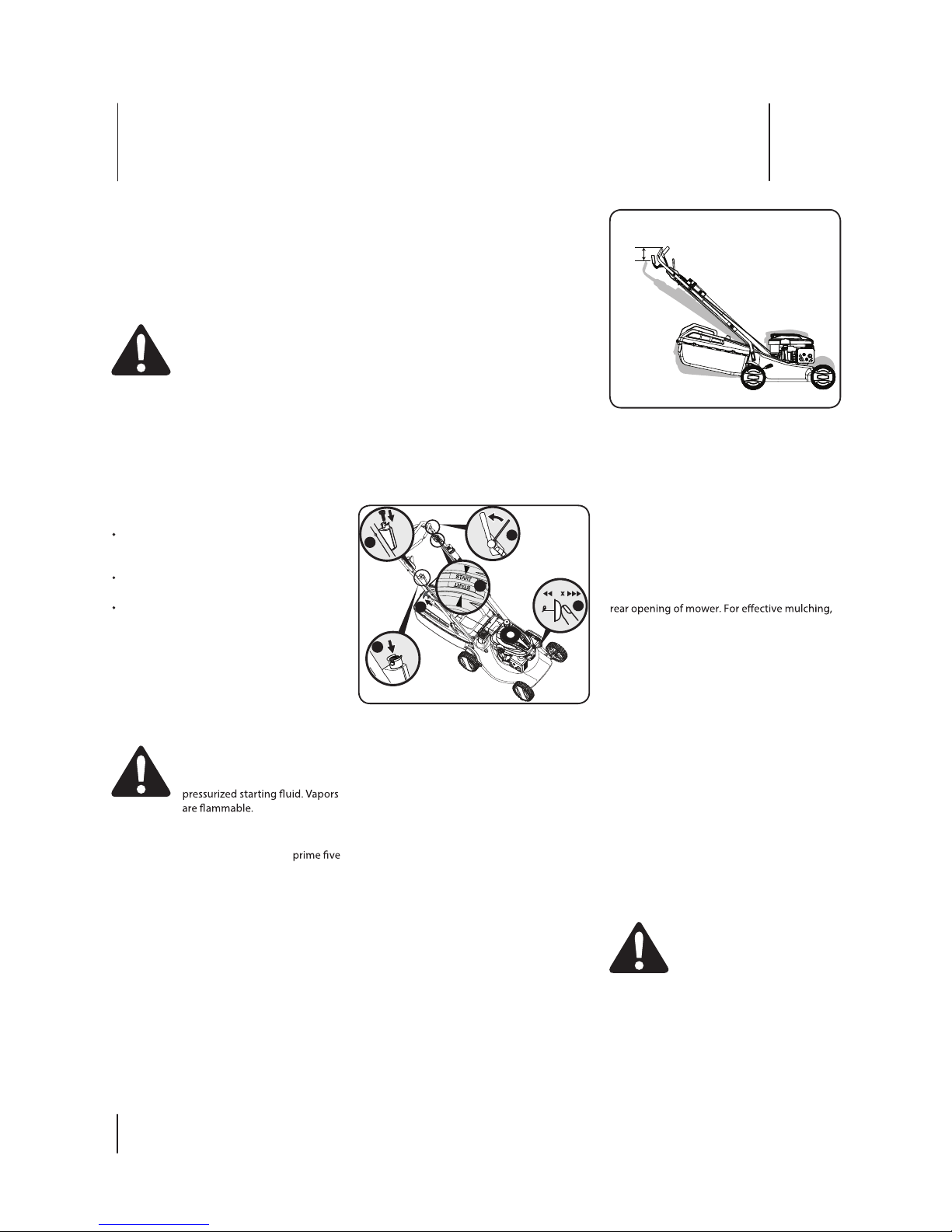

Operation
5
Determine The Starting System
Using Your Lawn Mower
Be sure lawn is clear of stones, sticks, wire, or
other objects which could damage lawn mower
or engine. Such objects could be accidently
thrown by the mower in any direction and cause
serious injury to the operator, others, or the
equipment.
WARNING: The operation of any
Add fuel before starting the engine, you must
determine the type of starting system that is on
your engine. Your engine will have one of the
following types:
Auto-Choke System: This features an
automatic choke that does not have a
manual choke or primer.
Primer System : This features a primer on
the engine.
Electric Start System : This features an
electric start switch on the handle.
To start your engine, follow the instructions for
your type of starting system.
NOTE:
Equipment may have remote controls.
See the equipment
manual for location and
operation of remote controls.
NOTE: Only BBC equipped units can be
startedor stopped blade seperately after
starting the engine.
Starting the Engine
Starting the Blade(BBC Equipped)
Stopping the Blade(BBC Equipped)
WARNING: Always keep hands
and feet clear of equipment
moving parts. Do not use a
2. Move the throttle control lever to start
position.
3. Standing behind the mower, squeeze and
hold the blade control against upper
handle. (If equipped BBC or electric start
system, skip to step 4. )
Figure 5-1
4.
Pull the recoil starter lightly until
resistance is felt, then pull rapidly to
overcome compression, prevent kickback,
and start the engine. Repeat if necessary.
See Figure 5-1.
5.
Insert plastic Electric Starter Push Key into
starter housing located on the right side of
upper handle until it snaps in place.
6.
Push the electric starter push key to start
the engine.
IMPORTANT:
Do not allow the recoil starter
to snap back against the rope guide.
1. Push primer three times. Wait about two
seconds between each push. See Figure
5-1. In temperature below 50°F,
times. After the engine is warmed up, one
prime
may be needed for all temperatures.
If engine does not start, it may be
necessary to re-prime the engine. (Only
for primer equipped engine. If no
primer, skip ahead to step2.)
Below two steps only for the electric
start units.
NOTE:
Electric starter is equipped with an
internal circuit breaker. If unit fails to start
when starter button is depressed, wait one
minute for breaker to reset, then attempt
to start again.
Stopping Engine
1. Rlease blade control.
Move the throttle control lever to stop
position(BBC equipped unit only).
1. After starting the engine,push the upper
handle downward around 10cm to incline
the deck up toward to make sure the
blades are away from grass. See
Figure 5-2.
2. Squeeze and hold the blade control
against upper handle, push BBC lever to
the end until heard a sound then release
it.
1. Release blade control level.
3.2.Remove Electric Starter Push Key if mower
is to be left unattended, stored, or serviced
(Electric Start units only).
To remove key, grasp the key’s top push
button and pull it straight up and out.
Keep key in a safe place out of the reach
of children.
Using Grass Catcher
Attach grass catcher following instructions
in the “Assembly & Set-Up” section. Grass
clippings will automatically collect in grass
catcher as you run mower. Operate mower
till grass catcher is full.
1.
Stop the engine. Make sure that the unit
has come to a complete stop.
2.
Lift discharge door and pull grass catcher
up and away from the mower to remove
the grass catcher. Dispose of the grass
clippings and reinstall the grass catcher
when complete.
3.
WARNING: If you strike a foreign
object, stop the engine. Remove
wire from the spark plug,
thoroughly inspect mower for any
damage, and repair damage before
restarting and operating. Extensive
vibration of mower during
operation is an indication of
damage. The unit should be
promptly inspected and repaired.
Using as Mulcher
For mulching grass, remove the grass catcher
and allow the rear discharge door to close the
do not cut wet grass. If the grass has been
allowed to grow in excess of four inches,
mulching is not recommended. Use the grass
catcher to bag clippings instead.
3
1
6
3
4
5
lawn mower can result in foreign
objects being thrown into the
eyes, which can damage your
eyes severely. Always wear safety
glasses while operating the
mower, or while perfoming any
adjustments or repairs on it.
You can use the grass catcher to collect clippings
while you are operating the mower.
Figure 5-2
10cm
2
Page 11
11

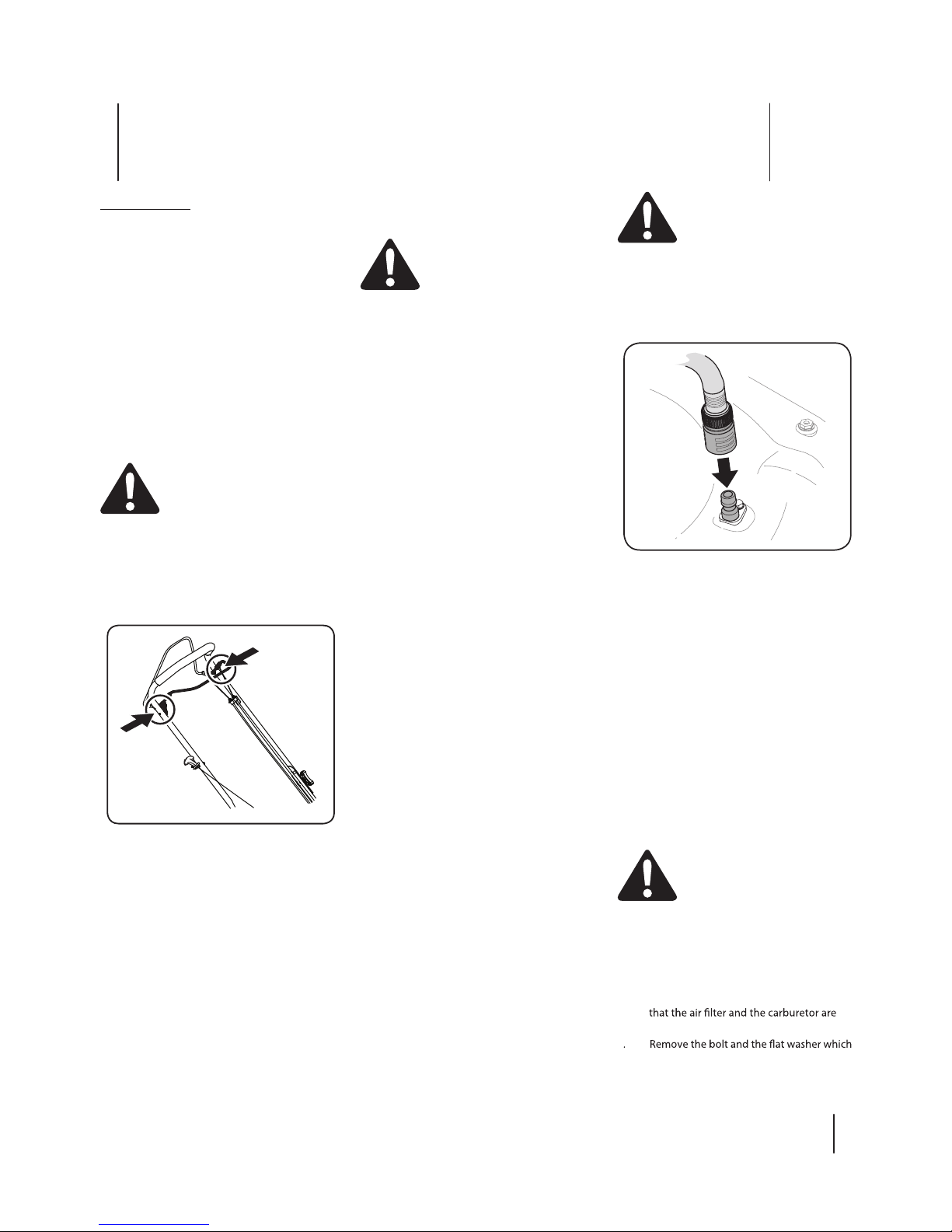

Service
6
Maintenance
General Recommendations
t Always observe safety rules when
performing any maintenance.
t The warranty on this lawn mower
does not cover items that have been
subjected to operator abuse or
negligence. To receive full value from
warranty, operator must maintain the
lawn mower as instructed here.
t Changing of engine -governed speed
will void engine warranty.
t All adjustments should be checked at
least once each season.
t Periodically check all fasteners and make
sure these are tight.
WARNING: Always stop engine,
allow engine to cool, disconnect
spark plug, and ground against
engine before performing any
type of maintenance on your
machine.
Lubrication
1. Lubricate pivot points on the blade and
drive controls at least once a season with
light oil. These controls must operate
freely in both directions. See Figure 6-1.
Figure 6-1
2. The transmission is pre-lubricated and
sealed at the fac tory and does not
require lubrication.
3. Follow the Engine Operator’s Manual for
lubrication
schedule and instruction for
engine lubrication.
Deck Care
Clean underside of the mower deck af ter each
use to prevent build-up of grass clippings or
other debris. Follow steps below for proper
cleaning.
1. Allow the engine to run until it is out of
fuel. Do not attempt to pour fuel from
the engine. Disconnect spark plug wire.
Refer to Engine Operator’s Manual.
2. Tip mower so that it rests on the
housing. Keep the side with the air
cleaner facing up. Hold mower rmly.
WARNING: Never tip the mower
more than 90º in any direction
and do not leave the mower
tipped for any length of time. Oil
can drain into the upper part of
the engine causing a starting
problem.
3. Scrape and clean the underside of the
deck with a suitable tool.
4. Put the mower back on its wheels on the
ground.
Engine Care
A list of key engine maintenance jobs required
for good per formance by the mower are listed
below. Follow the Engine Operator’s Manual
for a detailed list and instruc tions.
t Maintain oil level
as instructed in Engine
Operator’s Manual.
t Service air cleaner every 25 hours of
use under normal conditions. Clean
every few hours under extremely dusty
conditions. Poor engine performance
and ooding usually indicates that the
air cleaner should be serviced. To service
the air cleaner, refer to the Engine
Operator’s Manual.
t Clean spark plug and reset the gap
once a season. Spark plug replacement
is recommended at the start of
each mowing season. Check Engine
Operator’s Manual for correct plug t
ype
and gap specications.
t Clean engine regularly with a cloth or
brush. Keep the top of the engine clean
to permit proper air circulation. Remove
all grass, dirt, and combustible debris
from muer area.
t Engines stored between 30 and 90
days need to be treated with a gasoline
stabilizer to prevent deterioration and
gum from forming in fuel system or on
essential carburetor parts.
Deck Wash (If Equipped)
Your mower’s deck may be equipped with a
water port on its surface as part of its deck
wash system.
Use the deck wash to rinse grass clippings from
the deck’s underside and prevent the buildup
of corrosive chemicals. Complete the following
steps AFTER EACH MOWING:
1. Push the mower to a level, clear location
on your lawn. Ensure your garden hose
can reach your mower.
CAUTION : Make certain the
mower’s discharge chute is
directed AWAY from your house,
garage, parked cars, etc.
2. Remove the fast attach deck wash
nozzle from the mower deck and thread
it onto the end of your garden hose.
3. Attach garden hose with the deck wash
nozzle to the water port on your deck’s
surface. See Figure 6-2.
Figure 6-2
4. Turn the water ON.
5. Start the engine as described in the
Engine Operator’s Manual.
6. Run the engine for a minimum of two
minutes, allowing the underside of the
cutting deck to thoroughly rinse.
7. Release blade control to stop the engine
and blade.
8. Turn the water OFF and detach the deck
wash nozzle from the water por t on your
deck’s surface.
After cleaning your deck, restart the mower.
Keep the engine and blade running for a
minimum of two minutes, allowing the
underside of the cutting deck to thoroughly
dry.

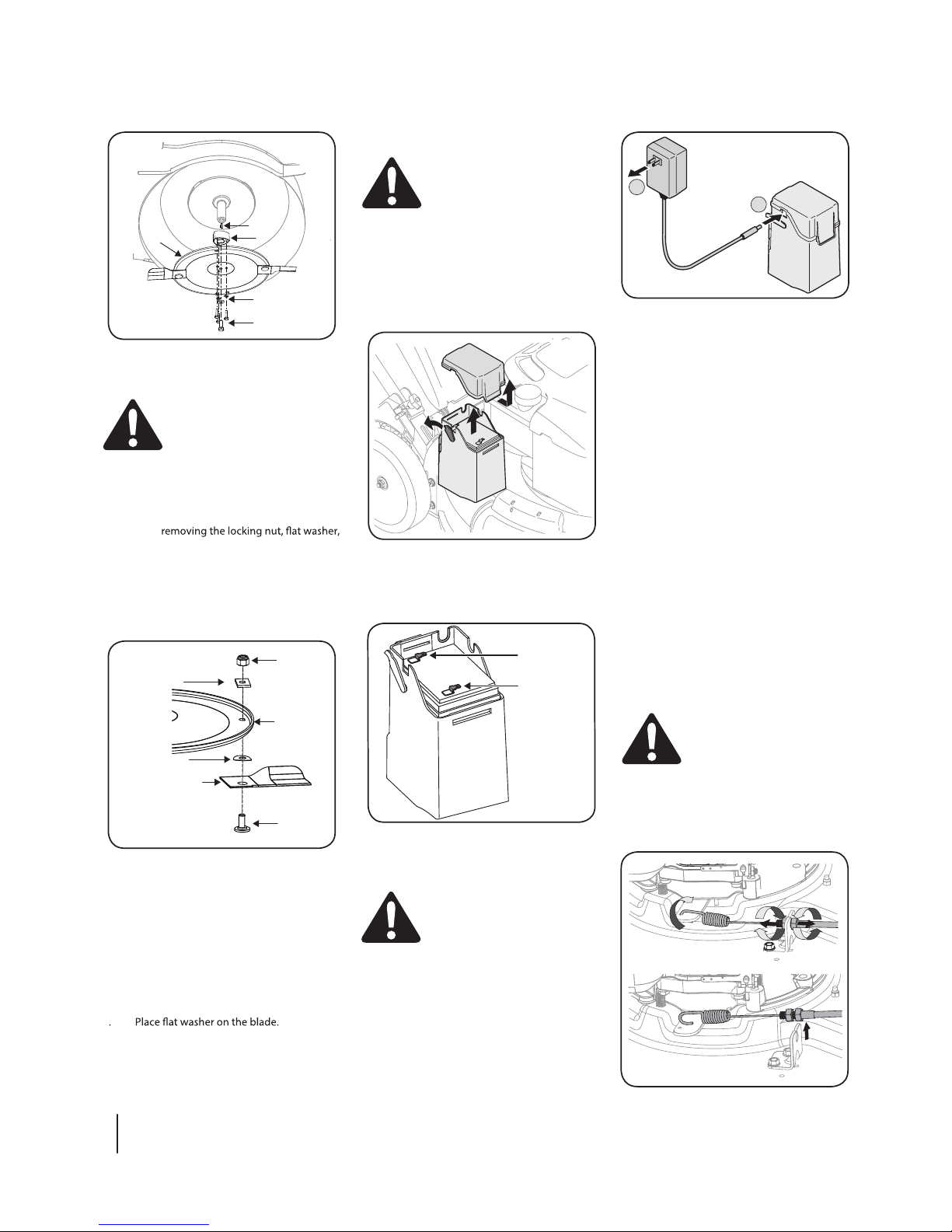

Blade Care
WARNING: When removing the
cutting blade for sharpening or
replacement, protect your hands
with a pair of heavy gloves or use
a heavy rag to hold the blade.
Periodically inspect the blade adapter for
cracks, especially if you strike a foreign object.
Replace when necessary. Follow the steps
below for blade service.
1. Disconnect spark plug boot from spark
plug. Turn mower on its side making sure
facing up.
2
hold the balde assembly and the blade
adapter to the engine crankshaft. See Fig.
6-3.
Page 12
12
To ensure safe operation of your mower,
periodically check the blade bolt for correct torque.
3. Remove blade assembly and adapter from
the crankshaft. See Fig. 6-3.
4. It is recommended that the blades are
replaced in pairs as per the following steps.
a. Remove each swing back blade by
wave washer and hex bolt (hardware
kit) which attach it onto the blade disc.
b. Discard the worn blades.
c. Attach the new swing back blades
with a new hardware kit for each,
following the assembly instructions
shown in Fig. 6-4.
Figure 6-3
WARNING: An unbalanced
blade will cause excessive
vibration when rotating at high
speeds. It may cause damage to
mower and could break causing
personal injur y.
Bolts
Washers
Adapter
Key
Blade Assembly
Figure 6-4
Flat Washer
Blade Disc
Wave Washer
Swing Back Blade
Nut
Bolt
Figure
6-8
6
7. Replace hex bolt and tighten with a torque
of 38 ft/lb (52 Nm).
Minimum to 50 ft/lb (68 Nm) Maximum.
5. Lubricate the engine crankshaft and the
inner surface of the
blade adapter with
light oil. Slide the blade adapter onto the
engine crankshaft. Place the blade
assembly on the adapter such that the
side of the blade without a wing faces the
ground when the mower is in the
operating position. Make sure that the
blade assembly is aligned and seated on
the blade adapter anges. See Fig. 6-3 inset.
SECTION 6 — SERVICE
Replacing Battery (If Equipped)
WARNING: Batteries contain
sulfuric acid which may cause
burns. Do not short circuit or
damage batteries in any way. Do
not put batteries in re as these
may burst or release toxic
materials.
1. Unhinge cover seal and remove battery
cover.
2. Remove positive and negative leads from
battery, and pull up on battery to remove.
See Figure 6-5.
Figure 6-5
3. Replace with new battery. Connect the
positive lead (red) to the positive side of the
battery pack, then connect the negative
(black) to the negative side. See Figure 6-6.
(+) Positive
Terminal
(-) Negative
Terminal
Figure 6-6
4. Reattach bat tery cover and cover seal.
Charging Battery (If Equipped)
WARNING: The battery contains
corrosive uid and toxic material;
handle with care and keep away
from children. Do not puncture,
disassemble, damage or
incinerate the battery. Explosive
gases could be vented during
charging or discharging. Use in a
well ventilated area, away from
sources of ignition.
NOTE: The special designed plug on the charger
will only t into the plug on the battery box.
1. Unhinge the cover seal and plug the
battery charger into the port on the side
of the battery housing. See Figure 6
-7.
1
2
Figure 6-7
2. Insert the battery charger plug into a
standard 240V household outlet. Charge
battery for 8 to 10 hours before initial use.
Do not charge longer than 12 hours. The
battery should only need to be charged
upon initial setup, at the end of the
season, after any other extended periods
of non-use, and as needed.
NOTE: If you frequently stop and restart
the mower during each cut throughout
the season (for instance when bagging),
more frequent charging may be
necessary.
3. After charging, disconnect charger plug
from outle
t rst, then disconnect charger
lead from battery and reat tach cover seal.
IMPORTANT: Do not remove the battery
pack from the electric starter housing for
any reason other than replacement.
IMPORTANT: Always plug charger lead
into battery pack lead rst, and then
insert battery charger plug into 240V
standard household outlet. Follow this
order of action every time you charge the
battery.
When removing or
replacing the BBC, protect your
hands with a pair of gloves.
BBC Care (If Equipped)
WARNING:
Periodically inspect the BBC for cracks, abrasion.
Replace when necessary.
1. Loosen the two nuts and pull the cable
from the slot. Remove the spring. See
Figure 6-8.
before
after
742-05426 (19”)
742-05296 (21”)
Page 13
SECTION 6 — SERVICE
O -Season Storage
The following steps should be taken to prepare
your lawn mower for storage.
t Clean and lubricate mower thoroughly
as described in Lubrication instructions.
t Coat mower’s cutting blade with chassis
grease to prevent rusting.
tRefer to engine manual for correct engine
storage instructions.
tDo not use a pressure washer or garden
hose to clean your unit.
tStore mower in a dry, clean area. Do not
store next to corrosive materials, such as
fertilizer.
When storing any type of power equipment in
a poorly ventilated or metal storage shed, care
should be taken to rust-proof the equipment.
Using a
light oil or silicone, coat the equipment,
especially cables and all moving parts of your
lawn mower before storage.
Battery (If Equipped)
t The batter y must be stored with a full
charge. Extended storage of a discharged
battery will reduce life and capacity of the
battery. For optimal battery life, charge the
battery once per month while in storage.
t Remove Electric Starter Push Key (if
equipped) and keep in a safe place out
of the reach of children.
13

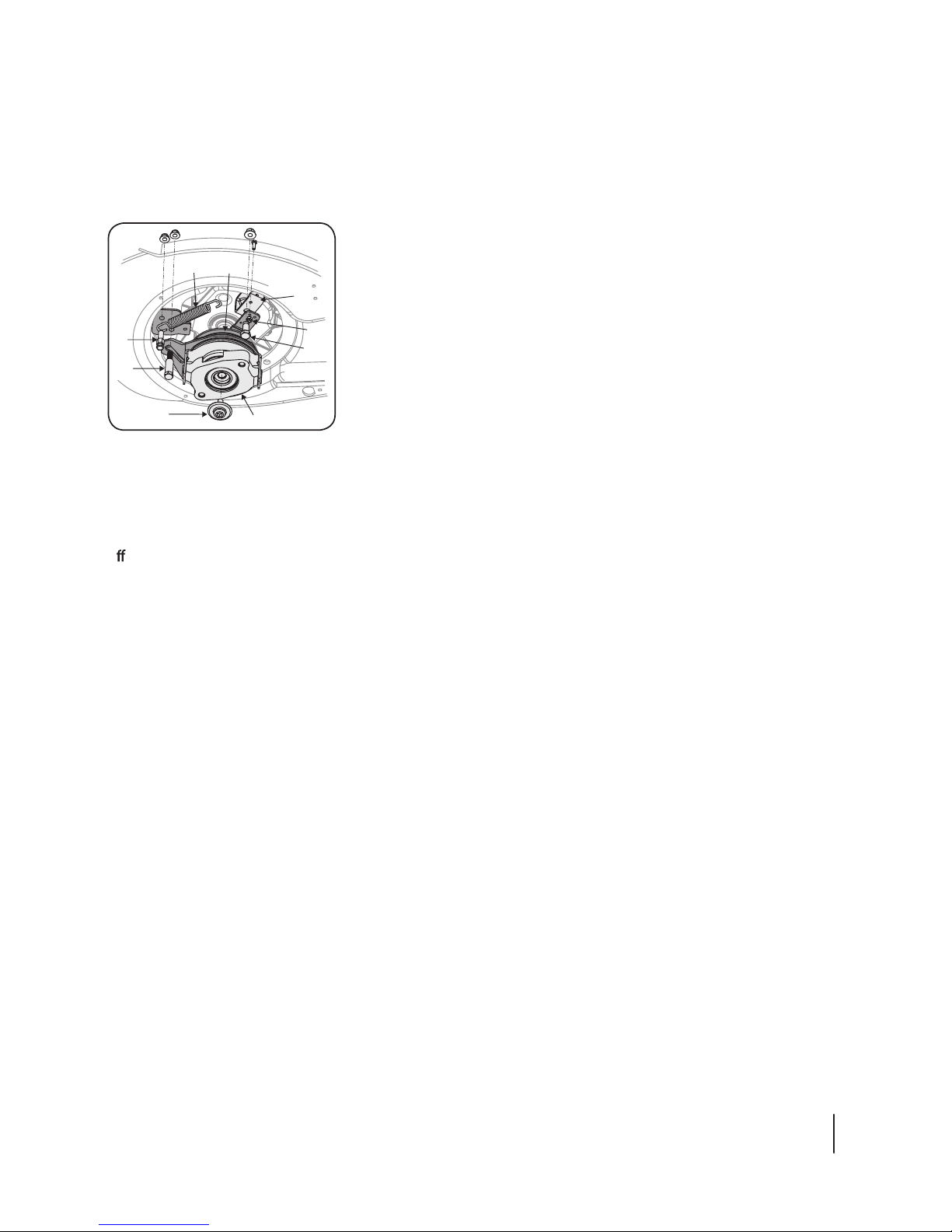

4. Fix the engine shaft,make it can't be
rotated.
5. Attach the new BBC assembly, assemble
each part in decreasing order of gures,
mount the inner hexagonal head bolt (a)
with a torque of 60Nm±5Nm.
d
c
f
g
a
b
h
Figure 6-9
2. Disconnect spark plug boot from spark
plug. Turn mower on its side making sure
that the air lter and the carburetor are
facing up.
3. Remove each part in alphabetic order of
gures.See Figure 6-9.
e
i
Page 14
Troubleshooting
7
14
Engine fails to start 1. Blade control disengaged.
2. Spark plug boot disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed (if equipped with primer).
5. Faulty spark plug.
6. Blocked fuel line.
7. Engine ooded.
1. Engage blade control.
2. Connect wire to spark boot.
3. Fill tank with clean, fresh gasoline.
4. Prime engine as instructed in the Engine
Operator’s Manual.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Wait a few minutes to restart; do not
prime.
Engine fails to start with
electric starter
(Electric Start Units Only)
1. Electric Starter Push Key not fully inserted.
2. Battery not charged.
3. Circuit breaker tripped.
1. Insert Electric Starter Push Key into starter
housing until it snaps into place.
2. Charge battery.
3. Debris may be blocking blade operation.
Stop engine, remove Electric Starter Push
Key, and disconnect spark plug boot. Verify
grass or other debris are not obstructing
the blade. Carefully clean out debris if
n
ecessary. Reattach spark plug boot and
reinsert Electric Starter Push Key. Wait one
minute after tripping for circuit breaker to
automatically self-reset then reattempt start.
Engine runs erratic 1. Spark plug boot loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Unit running with CHOKE (if equipped)
applied.
1. Connect and tighten spark plug boot.
2. Clean fuel line; ll tank with clean, fresh
gasoli
ne.
3. Clear vent.
4. Drain fuel tank. Rell with fresh fuel.
5. Refer to Engine Operator’s Manual.
6. Push CHOKE knob in.
Engine overheats 1. Engine oil level low.
2. Air ow restricted.
1. Fill crankcase with proper oil.
2. Clean area around and on top of engine.
Occasional skips
at
(hesitates)
high speed
1. Spark plug gap too close. 1. Adjust spark plug gap. Refer to Engine
Operator’s Manual.
Problem Cause Remedy
Idles poorly 1. Spark plug fouled, faulty, or gap too wide.
2. Dirty air cleaner.
1. Reset gap or replace spark plug.
2. Refer to Engine Operator’s Manual.
Excessive vibration/noise 1. Cutting blade loose or unbalanced.
2. Bent/damaged blade or blade adapter.
1. Tighten blade and adapter. Balance blade.
2. See an authorized service dealer.
Mower will not
mulch grass (if equipped)
1. Wet grass.
2. Excessively high grass.
3. Dull blade.
1. Do not mow when grass is wet; wait until
dry to cut.
2. Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting path.
3. Sharpen or replace blade.
Page 15
SECTION 7 — TROUBLESHOOTING
Problem Cause Remedy
Uneven cut 1. Wheels not positioned correctly.
2. Dull blade.
1. Place front and rear wheels in same height
position. (Dual lever height adjusters only)
2. Sharpen or replace blade.
Mower will not self propel 1. Belt not installed properly.
2. Debris clogging drive operation.
3. Damaged or worn belt.
4. Drive control out of adjustment.
1. Check belt for proper pulley installation and
movement.
2. Stop engine, disconnect spark plug boot,
and clean out deb
ris.
3. Inspect and replace belt.
4. Adjust drive control. Refer to page 8 in
Assembly and Set-Up.
High pullback eort 1. Pulling mower backwards before
transmission disengages.
2. Drive control adjusted too tight.
1. Allow the unit to roll forward slightly without
the drive lever(s) engaged before pulling
backwards.
2. Readjust drive control. Refer to page 8 in
the Assembly & Set-Up section.
15
Page 16
MTD
Products Australia Pty Ltd.
Postal Address: P.O. Box 4314 Dandenong South, Victoria 3164
Business Address: 6 Zenith Road, Dandenong. Vic. 3175 and Unit 3B, 301 Orchard Road, Richlands, Qld 4077.
Email Address: customerserviceaus@mtdproducts.com
Customer Service Phone: 1300 951 594
Loading...
