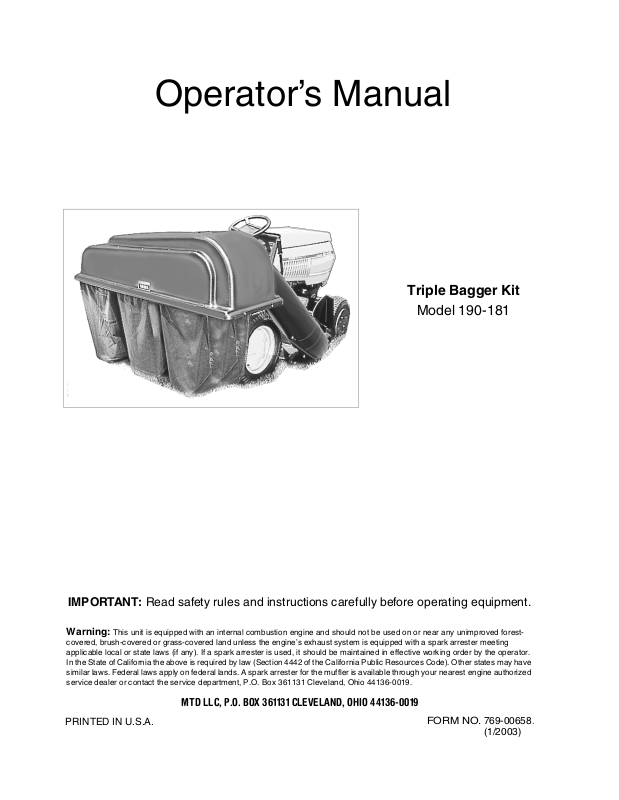

Operator’s Manual

Triple Bagger Kit

Model 190-181

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Warning:

covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

PRINTED IN U.S.A.

This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

FORM NO.

769-00658.fm (1/2003)

Page 2

TABLE OF CONTENTS

Content Page

Important Safe Operation Practices................................................................... 3

Loose Parts ....................................................................................................... 6

Assembly........................................................................................................... 7

Operation .......................................................................................................... 10

Parts List............................................................................................................ 11

Warranty............................................................................................................ 12

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new lawn tractor. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on the model plate is very important if you need help from our Customer Support Department or an authorized dealer.

• You can locate the model number in the front, left portion of the plastic grass catcher cover. A sample model plate is explained below. For future reference, please copy model number and serial number of the tractor accessoryin the space below.

Copy the model number here:

Copy the serial number here:

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.

Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative. Please have your unit’s model number and serial number ready when you call. See previous section to locate this information. You will be asked to enter the serial number in order to process your call.

For more details about your unit, visit our website at www.mtdproducts.com

Page 3

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

WARNING:

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol—heed its warning.

WARNING:

The Battery and Engine Exhaust contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. The battery and posts contain lead; wash hands after handling

WARNING:

manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

This machine was built to be operated according to the rules for safe operation in this

General Operation

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.

3. Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent. Never allow adults to operate this machine without proper instruction.

4. To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.

5. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Thrown objects can cause serious personal injury.

6. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.

7. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

8. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Loose fitting clothes and jewelry can be caught in movable parts. Never operate this machine in bare feet or sandals.

9. Be aware of the mower and attachment discharge direction and do not point it at anyone. Do not operate the mower without the discharge cover or entire grass catcher in its proper place.

10. Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.

11. A missing or damaged discharge cover can cause blade contact or thrown object injuries.

12. Stop the blade(s) when crossing gravel drives, walks, or roads and while not cutting grass.

13. Watch for traffic when operating near or crossing roadways. This machine is not intended for use on any public roadway.

14. Do not operate the machine while under the influence of alcohol or drugs.

15. Mow only in daylight or good artificial light.

16. Never carry passengers.

17. Disengage blade(s) before shifting into reverse. Back up slowly. Always look down and behind before and while backing to avoid a back-over accident.

18. Slow down before turning. Operate the machine smoothly. Avoid erratic operation and excessive speed.

19. Disengage blade(s), set parking brake, stop engine and wait until the blade(s) come to a complete stop before removing grass catcher, emptying grass, unclogging chute, removing any grass or debris, or making any adjustments.

20. Never leave a running machine unattended. Always turn off blade(s), place transmission in neutral, set parking brake, stop engine and remove key before dismounting.

21. Use extra care when loading or unloading the machine into a trailer or truck. This unit should not be driven up or down ramp(s), because the unit could tip over, causing serious personal injury. The unit must be pushed manually on ramp(s) to load or unload properly.

22. Muffler and engine become hot and can cause a burn. Do not touch.

23. Check overhead clearances carefully before driving under low tree branches, wires, door openings etc., where the operator may be struck or pulled from the unit, which could result in serious injury.

24. Disengage all attachment clutches, depress the brake pedal completely and shift into neutral before attempting to start engine.

25. Your machine is designed to cut normal residential grass of a height no more than 10”. Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the mower deck presenting a potential fire hazard.

Page 4

26. Use only accessories and attachments approved for this machine by the machine manufacturer. Read, understand and follow all instructions provided with the accessory or attachment.

27. Data indicates that operators, age 60 years and above, are involved in a large percentage of tractor-related injuries. These operators should evaluate their ability to operate the tractor safely enough to protect themselves and others from serious injury.

28. If situations occur which are not covered in this manual, use care and good judgment. Contact your Yard-Man dealer for assistance.

Slope Operation

Slopes are a major factor related to loss of control and tipover accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy, do not mow it.

For your safety, use the slope gauge included as part of this manual to measure slopes before operating this unit on a sloped or hilly area. If the slope is greater than 15 degrees as shown on the slope gauge, do not operate this unit on that area.

Do:

1. Mow up and down slopes, not across. Exercise extreme caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

3. Use slow speed. Choose a low enough speed setting so that you will not have to stop or shift while on the slope. Tires may lose traction on slopes even though the brakes are functioning properly. Always keep machine in gear when going down slopes to take advantage of engine braking action.

4. Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability of the machine. Use extra care with grass catchers or other attachments. These can change stability of the machine.

5. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid engagement or braking could cause the front of the machine to lift and rapidly flip over backwards which could cause serious injury.

6. Avoid starting or stopping on a slope. If tires lose traction, disengage the blade(s) and proceed slowly straight down the slope.

Do Not:

1. Do not turn on slopes unless necessary; then, turn slowly and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.

3. Do not try to stabilize the machine by putting your foot on the ground.

4. Do not use a grass catcher on steep slopes.

5. Do not mow on wet grass. Reduced traction could cause sliding.

6. Do not shift to neutral and coast downhill. Over-speeding may cause the operator to lose control of the machine resulting in serious injury or death.

7. Do not tow heavy pull behind attachments (e.g. loaded

dump cart, lawn roller, etc.) on slopes greater than 5 degrees. When going down hill, the extra weight tends to push the tractor and may cause you to loose control. (e.g. tractor may speed up, braking and steering ability are reduced, attachment may jack-knife and cause tractor to overturn).

Children

1. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

a. Keep children out of the mowing area and in

watchful care of a responsible adult other than the operator.

b. Be alert and turn machine off if a child enters the

area.

c. Before and while backing, look behind and down

for small children.

d. Never carry children, even with the blade(s) shut

off. They may fall off and be seriously injured or interfere with safe machine operation.

e. Use extreme care when approaching blind

corners, doorways, shrubs, trees or other objects that may block your vision of a child who may run into the machine.

f. Disengage the cutting blade(s) before shifting in

reverse. The “No-Cut-In Reverse” feature emphasises not to cut in reverse and to avoid back-over accidents; do not defeat it.

g. Keep children away from hot or running engines.

They can suffer burns from a hot muffler.

h. Remove key when machine is unattended to

prevent unauthorized operation.

9. Never allow children under 14 years old to operate the machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.

Towing

1. Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.

2. Follow the manufacturers recommendation for weight limits for towed equipment and towing on slopes.

3. Never allow children or others in or on towed equipment.

4. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.

5. Travel slowly and allow extra distance to stop.

6. Do not shift to neutral and coast downhill.

Service

Safe Handling Of Gasoline

1. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

a. Use only an approved gasoline container. b. Never fill containers inside a vehicle or on a truck

Page 5

or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

c. When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

d. Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

e. Extinguish all cigarettes, cigars, pipes and other

sources of ignition. f. Never fuel machine indoors. g. Never remove gas cap or add fuel while the

engine is hot or running. Allow engine to cool at

least two minutes before refueling. h. Never over fill fuel tank. Fill tank to no more than

½ inch below bottom of filler neck to allow space

for fuel expansion. i. Replace gasoline cap and tighten securely. j. If gasoline is spilled, wipe it off the engine and

equipment. Move unit to another area. Wait 5

minutes before starting the engine. k. To reduce fire hazards, keep machine free of

grass, leaves, or other debris build-up. Clean up

oil or fuel spillage and remove any fuel soaked

debris. l. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

as on a water heater, space heater, furnace,

clothes dryer or other gas appliances. m. Allow a machine to cool at least 5 minutes before

storing.

General Service

1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless, and deadly gas.

2. Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

3. Periodically check to make sure the blades come to

complete stop within approximately (5) five seconds after operating the blade disengagement control. If the blades do not stop within the this time frame, your unit should be serviced professionally by an authorized dealer.

4. Check brake operation frequently as it is subjected to wear during normal operation. Adjust and service as required.

5. Check the blade(s) and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer’s (O.E.M.) blade(s) only, listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

6. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

7. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

8. Never tamper with the safety interlock system or other safety devices. Check their proper operation regularly.

9. After striking a foreign object, stop the engine, disconnect the spark plug wire(s) and ground against the engine. Thoroughly inspect the machine for any damage. Repair the damage before starting and operating.

10. Never attempt to make adjustments or repairs to the machine while the engine is running.

11. Grass catcher components and the discharge cover are subject to wear and damage which could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer’s (O.E.M.) parts only, listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

12. Do not change the engine governor settings or overspeed the engine. The governor controls the maximum safe operating speed of the engine.

13. Maintain or replace safety and instruction labels, as necessary.

14. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

Your Responsibility

Restrict the use of this accessory and the tractor to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

NOTE: Model 181 Triple Bagger Kit is designed for use on 800 Series Garden Tractors equipped with 46-inch cutting deck only.This will NOT mount, nor operate safely or properly on any other tractor regardless of the tractor’s compatibility with similar accessories.

Page 6

SECTION 2: LOOSE PARTS

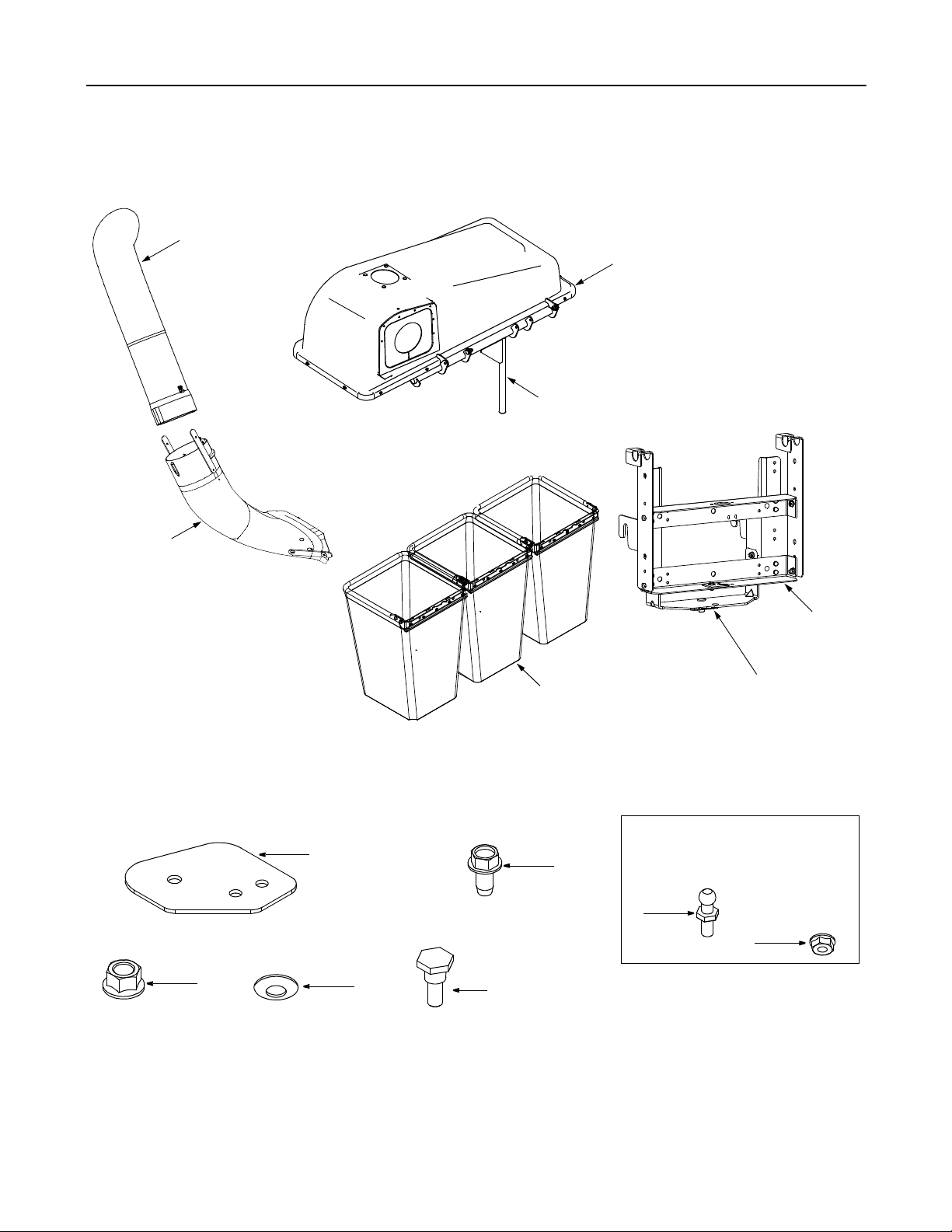

The grass catcher kit is shipped with following loose parts in the carton. Please remove all loose parts, including the hardware pack, from the carton before discarding it. Compare with Figure 1 to check that all parts were included. Note that the kit and the hardware pack contain extra items which are not used on your unit.

Discharge Chute

Assembly

Chute Tube

Grasscatcher Cover Assembly

Support Tube

(attached to cover)

Grass Bag

Assemblies

Mounting Bracket

Hitch Plate

Figure 1

Contents of Hardware Pack

For decks with grasscatcher

NOTE: Each item has been identified in Figure 2 for ease of assembly, and the letter code assigned here is maintained in assembly instructions. However, the hardware pack contains more than one of some items.

Figure 2

pin not pre-installed

Page 7

SECTION 3: ASSEMBLY

NOTE: References to LEFT, RIGHT , FRONT and REAR of the tractor are from the operator’s position.

• Before assembly, place the tractor on a firm, level surface, disengage the PTO, stop the tractor engine and set the parking brake.

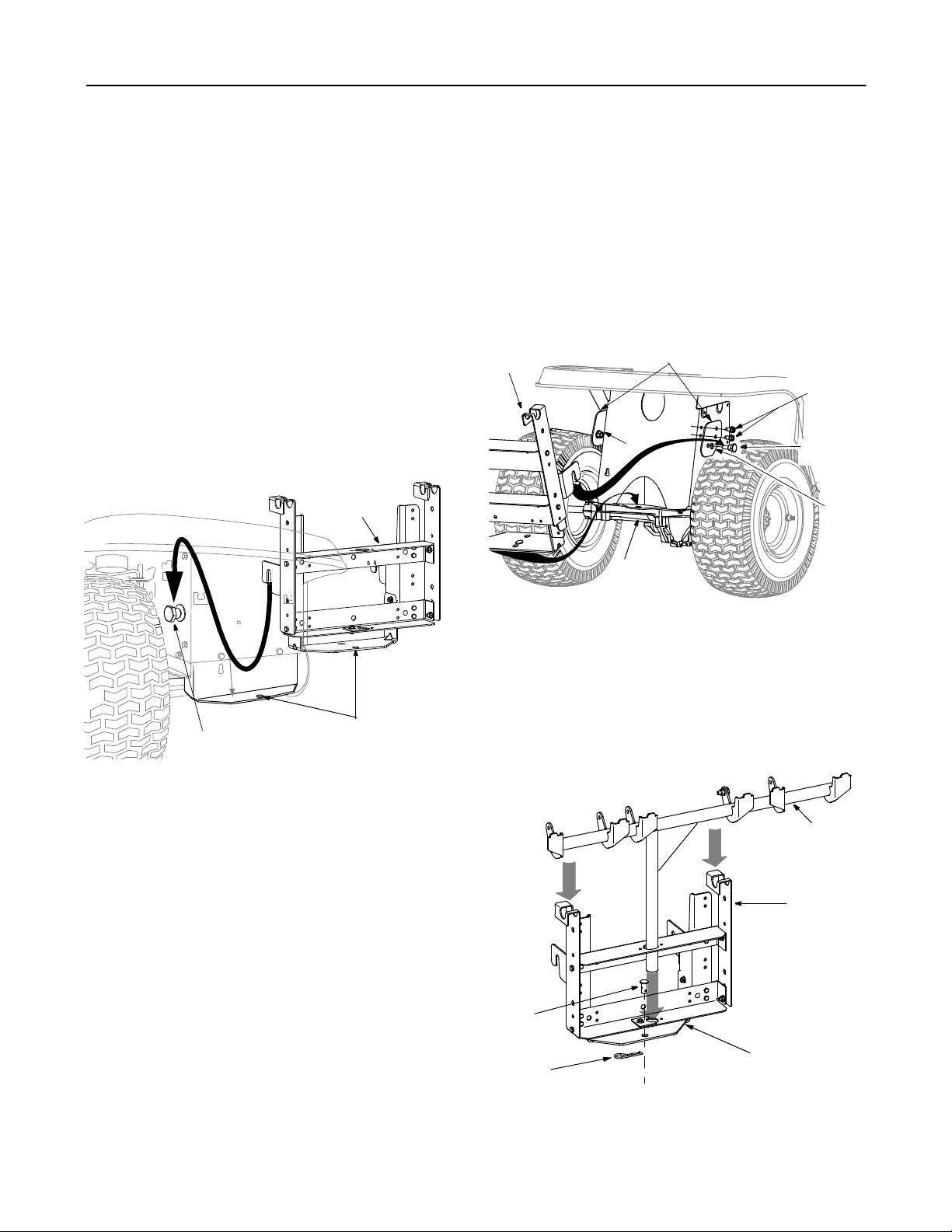

Mounting Bracket Assembly

Tractors equipped with Shoulder Bolt A

NOTE: For convenience, pivot the seat forward and leave it in that position until the grass collector is fully mounted and assembled.

• Remove the hairpin clip and clevis pin from the rear of the mounting bracket assembly.

• Position the hooked ends of the bracket assembly to the outside of the hitch plate and over the shoulder bolts. See Figure 3.

(refer to Figure 3)

Mounting Bracket

• Position the hooked ends of the mounting bracket assembly to the outside of the hitch plate and over the shoulder bolts just installed on both sides of the tractor frame. Follow arrows in Figure 4.

• Align the hole at the rear of the mounting bracket assembly to the hole on the hitch plate and re-insert the clevis pin through these two holes. Secure with the hairpin clip removed earlier.

IMPORTANT:

Be sure to insert the hairpin clip in the

upper hole of the clevis pin.

Mounting

Bracket

Support Bracket

Nut

Hitch Plate

Self-Tapping

Screw

Shoulder

Bolt

Bell

Washer

Shoulder Bolt A

Figure 3

• Reinsert the clevis pin through the aligned holes (Figure 3) in both the bracket assembly and the hitch plate and secure with the hairpin clip. Refer to Figure 5.

IMPORTANT:

There are two holes in the clevis pin. Be sure to insert the hairpin clip in the upper hole to properly secure the bracket assembly to the hitch plate.

Tractors without Shoulder Bolt A

• Insert shoulder bolt (C in Figure 2) through a bell

washer (B in Figure 2) and insert the bolt through the support bracket (F in Figure 2). Secure with nut (A in Figure 2). See Figure 4.

• Place one support bracket on each side of the

tractor frame aligning the two smaller holes on the bracket with corresponding holes on the tractor frame. See Figure 4. Secure with self-tapping screw (E in Figure 2).

• Remove the hairpin clip and clevis pin from the rear

of the mounting bracket assembly.

Figure 4

Attaching Grasscatcher Cover and Bags

• Place the grasscatcher cover assembly’s support tube in position on the rear of unit by sliding the support tube down through the center hole in the mounting bracket assembly. See Figure 5.

Support

Tube

Mounting Bracket

Clevis Pin

Hairpin Clip

NOTE:

Grasscatcher cover not shown here for clarity

Figure 5

Hitch Plate

Page 8

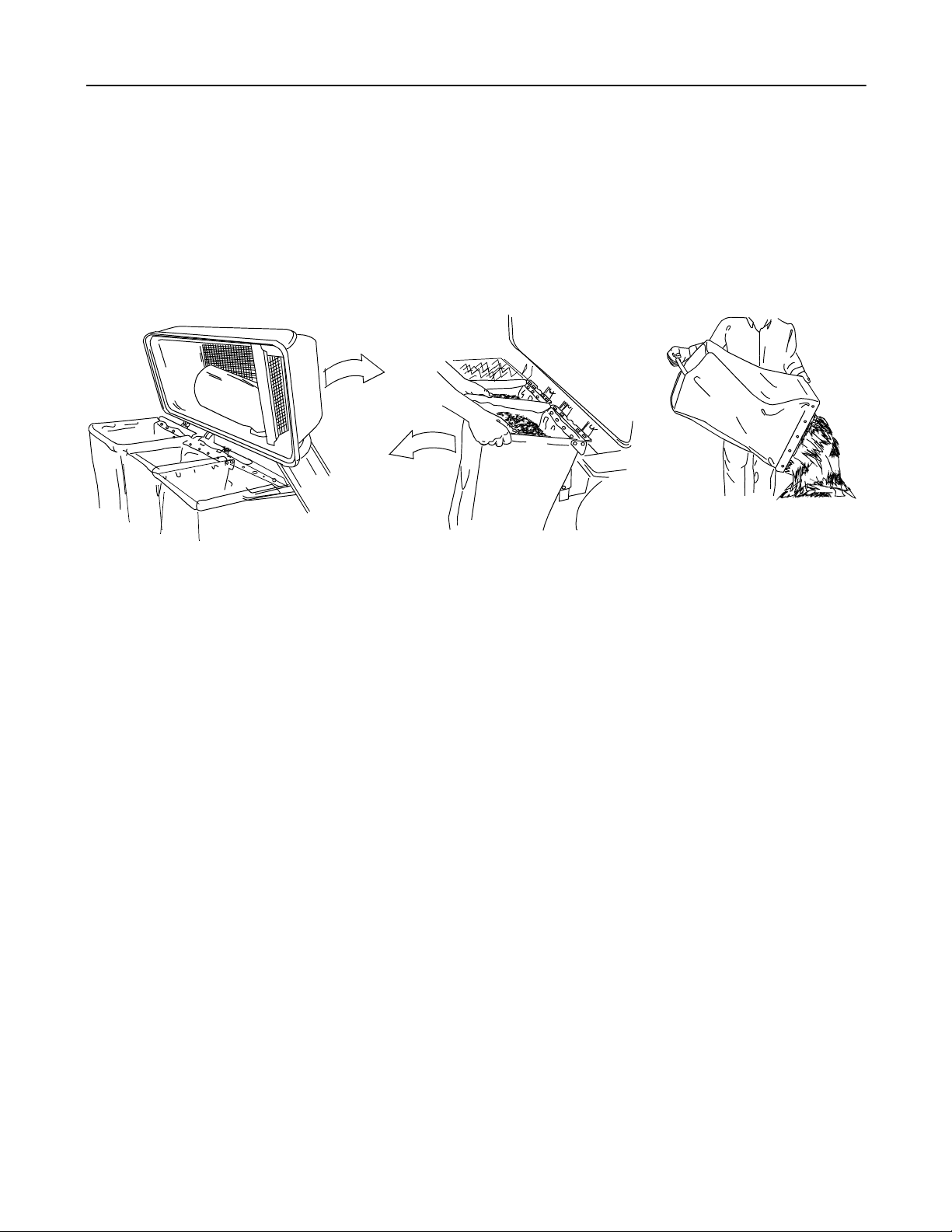

• Attach the grass bags using the slots shown in Figure 6. Close the grasscatcher cover.

Slots

Grass Bag Cover

NOTE: The hex flange nut has a right-handed thread

pattern. Do NOT attempt to force the nut in an incorrect direction. Doing so may damage the nut and create a safety hazard.

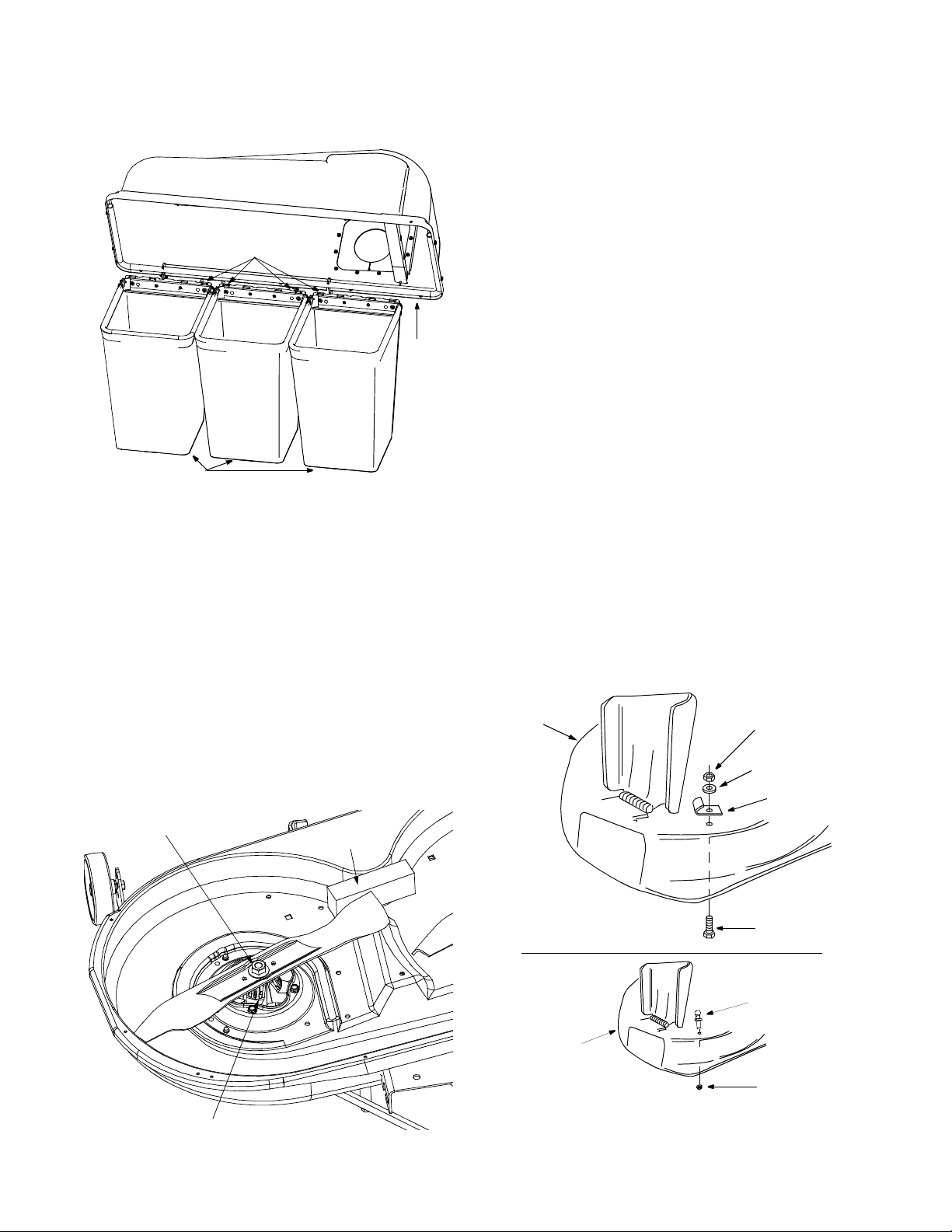

Attach the new blades, included in the bagger kit, to your tractor’s deck as follows:

• Install the new blades packed with the bagger. Be sure to install the blade with the side of the blade marked ‘‘Bottom’’ (or with a part number stamped in it) facing the ground when the mower is in the operating position.

• Mount the SMALLER of the three blades to the CENTER spindle. The remaining two blades are interchangeable.

IMPORTANT:

Use a torque wrench to tighten the blade spindle hex flange nut to between 70 foot-pounds and 90 foot-pounds.

• Remount the cutting deck.

Grass Bag

Figure 6

Attaching Blades

Remove the blades from your tractor’s deck as follows.

• Remove the cutting deck from beneath the tractor, (refer to Deck Removal in the MAINTENANCE section of your tractor’s operator’s manual for detailed instructions) then gently flip the deck over to expose its underside.

• Place a block of wood between the center deck housing baffle and the cutting blade to act as a stabilizer. See Figure 7.

• Use a 15/16" wrench to remove the hex flange nut that secures the blade to the spindle assembly. See Figure 7.

Hex Flange Nut

Wood Block

Attaching Discharge Chute

• Raise the deck to its highest position.

• On older models: Remove the clip, if already installed on the deck next to the discharge chute opening, by removing the lock nut, spring washer and hex bolt that secure it. See Figure 8A.

• On older models: A grasscatcher pin (G in Figure

2) and nut (H in Figure 2) have been supplied among the loose parts. Attach these to the deck in place of the clip just removed. Follow Figure 8B for order of assembly. Secure the pin tightly.

Cutting Deck

Hex Lock Nut

Spring

Washer

Clip

Spindle Assembly

Figure 7

Deck

Hex Bolt

Grasscatcher

Nut

Figure 8

Page 9

• Raise the chute deflector on the deck and hold it while you position the discharge chute over the chute opening.

• Place the top rear edge of the discharge chute over the top rear edge of the chute opening.

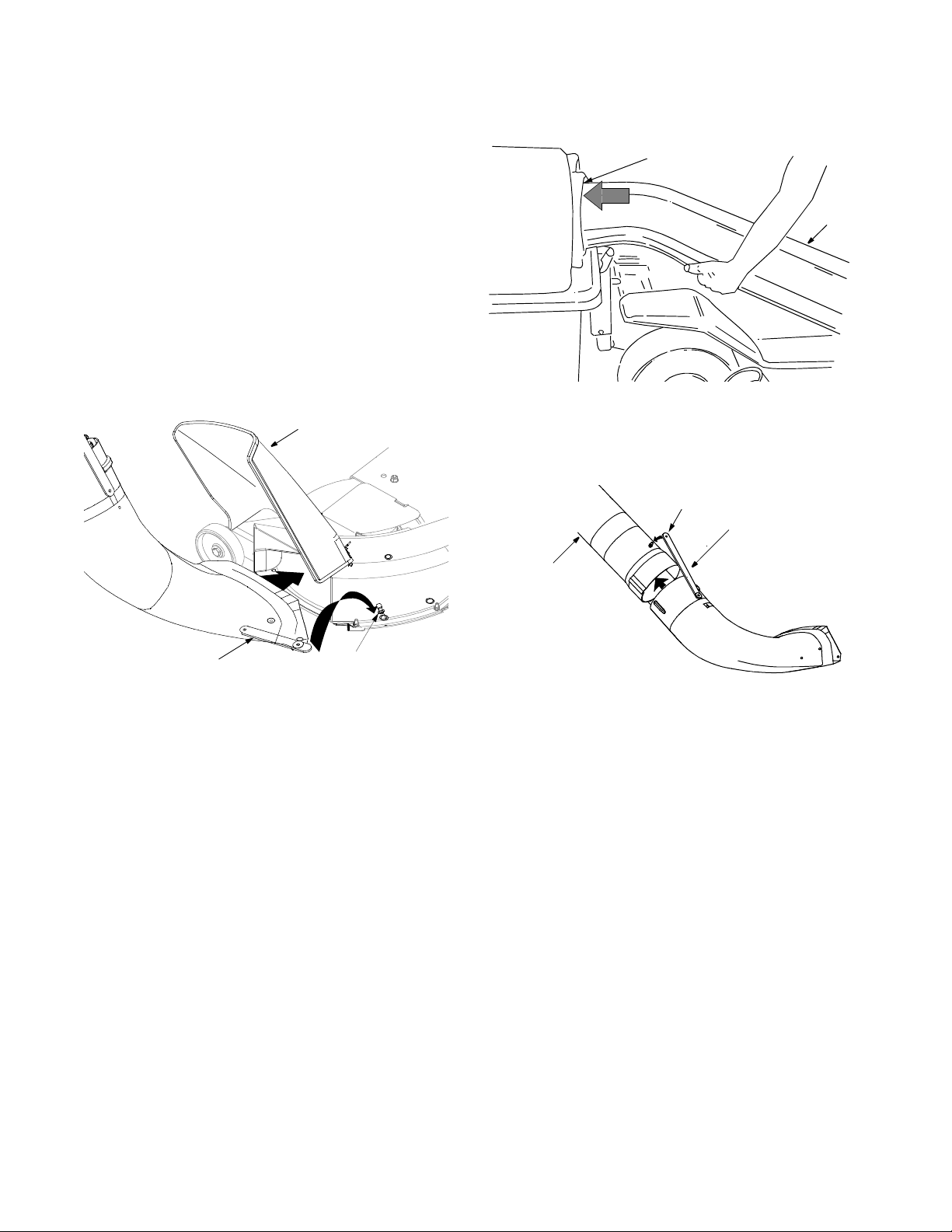

• Push down on the discharge chute so that its front bottom edge rolls over the bottom of the deck, then slide the chute forward to the stop on the deck. See Figure 9.

NOTE: The retainer strap is fitted at position B on the discharge chute. However, on older models of tractors, you will have to change the position of the strap depending on the location of the grasscatcher pin on the deck. Remove the retainer strap from position B on the discharge chute to position A or C corresponding to the position of the grasscatcher pin at A, B or C on the deck. See Figure 9.

Chute Deflector

Retainer Strap

• Raise the deck back to its highest position.

• Insert the curved end of chute tube into the hole in the grass bag cover following Figure 10.

Insert chute tube here

Chute Tube

Figure 10

• Place the lower end of the chute tube over the discharge chute so that the two notches on the chute tube fit into the two corresponding notches on the discharge chute. See Figure 11.

Notch

Chute Tube

Retainer Strap

Figure 9

• Lower the deck to its lowest position.

• Lock the discharge chute in position by hooking the retainer strap over the grasscatcher pin on the deck. See Figure 9 for the pin position.

Figure 11

• Secure by clipping the two retainer straps of the discharge chute to the pins on the chute tube. See Figure 11.

Page 10

SECTION 4: OPERATION

Your triple bagger kit is a valuable accessory to your tractor. Optimize its performance by operating correctly. Do not try to fit it to tractors other than those specified on page 5.

• Open the grass bag cover by lifting the cover up. Do not remove the chute tube assembly from the tractor. See Figure 12A.

• Remove the grass bags by lifting up and moving

A. Open cover

Figure 12

the bags away from the support tube assembly. See Figure 12B.

• To empty the grass clippings at a proper disposal sight, use the handle at the bottom of each grass bag. Holding the bag firmly, empty the contents. See Figure 12C.

B. Remove bag

C. Empty bag

Page 11

SECTION 4: PARTS LIST

Ref. No.

10.

11.

12.

13.

14.

15.

16.

Part No. Description

17200A Support Bracket 17247 Adapter Bracket: Support Tube 664-04018 Grasscatcher Cover Assembly 689-00002 Support Assembly: Grasscatcher 710-0623 TT Screw 3/8-16 x 0.75 710-0751 Hex Screw 1/4-20 x 0.620 710-3008 Hex Screw 5/16-18 x 0.75 710-3015 Hex Screw 1/4-20 x 0.75 711-0309A Clevis Pin 711-04069 Grasscatcher Pin 712-0431 Flange Lock Nut 3/8-16 712-0459 Lock Nut 7/16-20 712-3004A Lock Nut 5/16-18 712-3027 Lock Nut 1/4-20 714-0117 Hairpin Clip 723-04008 Chute Strap

Ref. No.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

Part No. Description

731-04159 Discharge Chute Elbow 731-0926B Catcher Tube 736-0253 Beleville Washer 736-0270 Beleville Washer 736-0407 Bell Washer 736-3092 Flat Washer 738-0380 Shoulder Screw 738-1020 Shoulder Screw 742-0644 Blade 16.28” 742-0645 Blade 14.88” 783-04138 Catcher Support Bracket 783-0601 Catcher Support Bracket 783-0673 Catcher Support Bracket RH 783-0764 Catcher Support Bracket LH 783-0765 Cross Bracket: Support 864-0251 Bag Assembly: Triple Bagger

10 14

Page 12

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the United States, its possessions and territories.

MTD LLC warrants this product against defects for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by MTD LLC for use with the product(s) covered by this manual will void your warranty as to any resulting damage.

Normal wear parts or components thereof are subject to separate terms as follows: All normal wear parts or component failures will be covered on the product for a period of 90 days regardless of cause. After 90 days, but within the two year period, normal wear part failures will be covered ONLY IF caused by defects in materials or workmanship of OTHER component parts. Normal wear parts and components include, but are not limited to: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, shave plates, auger spiral rubber, and tires.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in your area, check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1330-220-4683 or log on to our Web site at www.mtdproducts.com.

This limited warranty does not provide coverage in the following cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and condition.

b. Log splitter pumps, valves, and cylinders have a sepa

rate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.

d. MTD LLC does not extend any warranty for products

sold or exported outside of the United States, its possessions and territories, except those sold through MTD LLC’s authorized channels of export distribution.

e. Parts that are not genuine MTD parts are not covered

by this warranty.

f. Service completed by someone other than an

authorized service dealer is not covered by this warranty.

g. Transportation charges and service calls are not

covered.

No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD LLC. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.

The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD LLC shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683
