MTD E6C3H Operator's Manual

Page 1

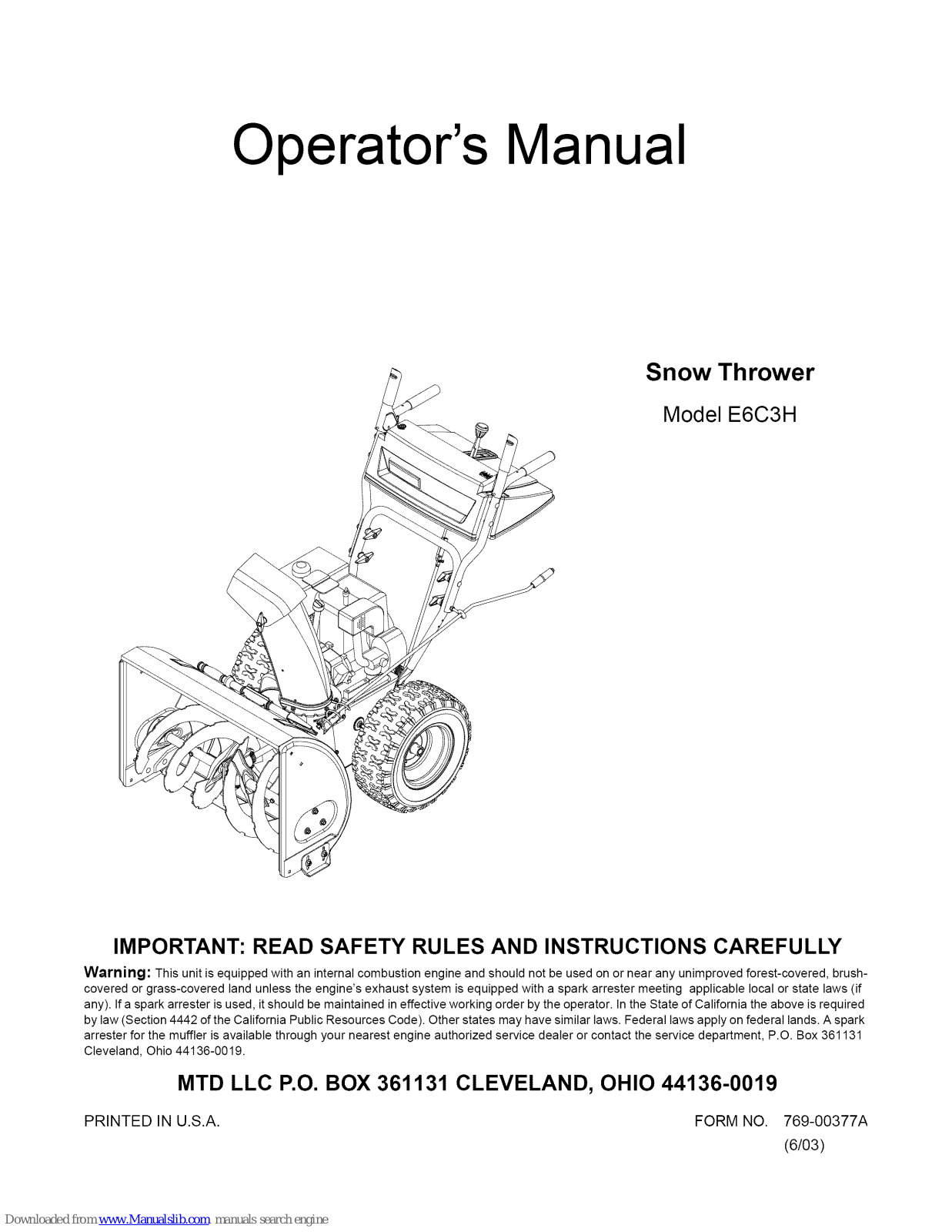

Operator's Manual

Snow Thrower

Model E6C3H

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-

covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131

Cleveland, Ohio 44136-0019.

MTD LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A. FORM NO. 769-00377A

(6/03)

Page 2

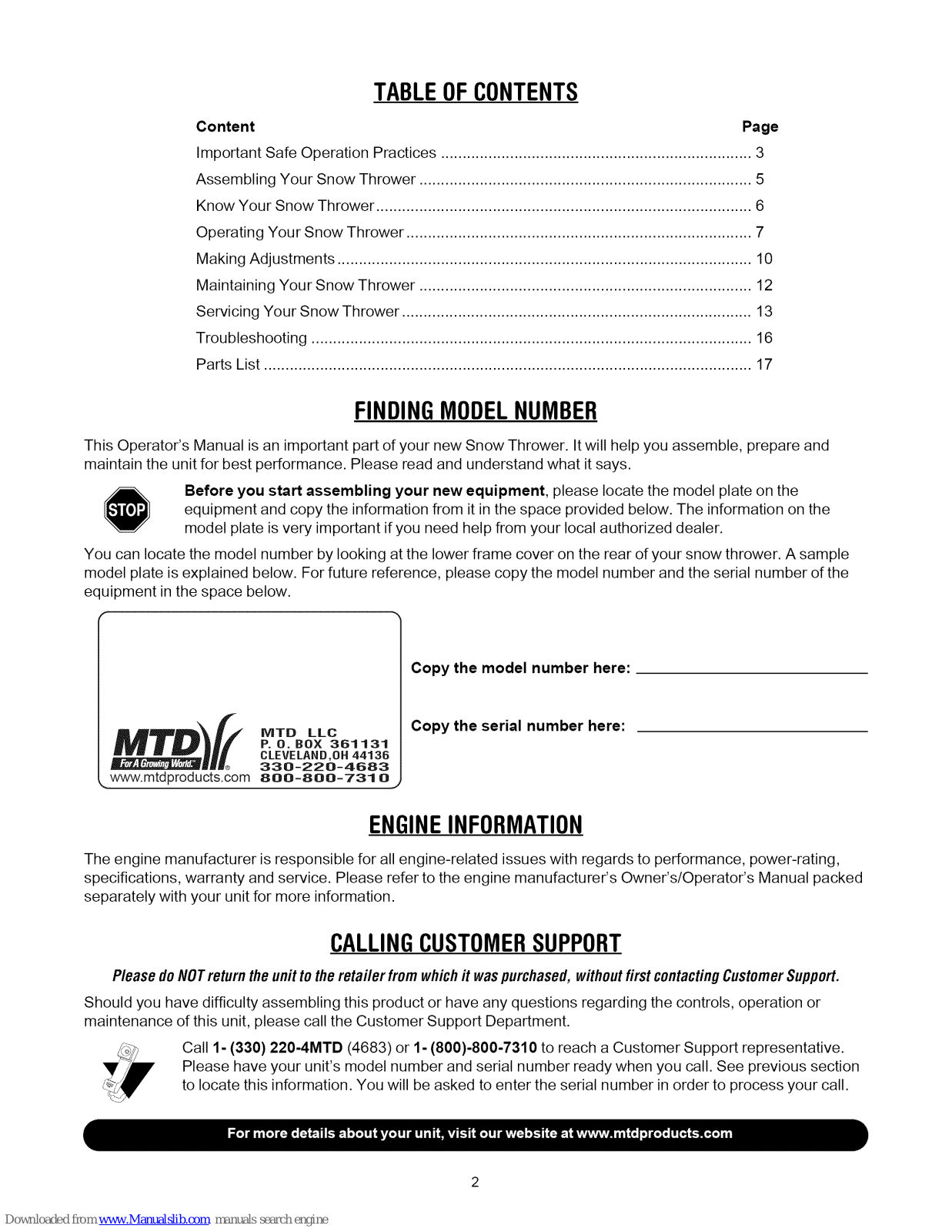

TABLEOFCONTENTS

Content Page

Important Safe Operation Practices ........................................................................ 3

Assembling Your Snow Thrower ............................................................................. 5

Know Your Snow Thrower ....................................................................................... 6

Operating Your Snow Thrower ................................................................................ 7

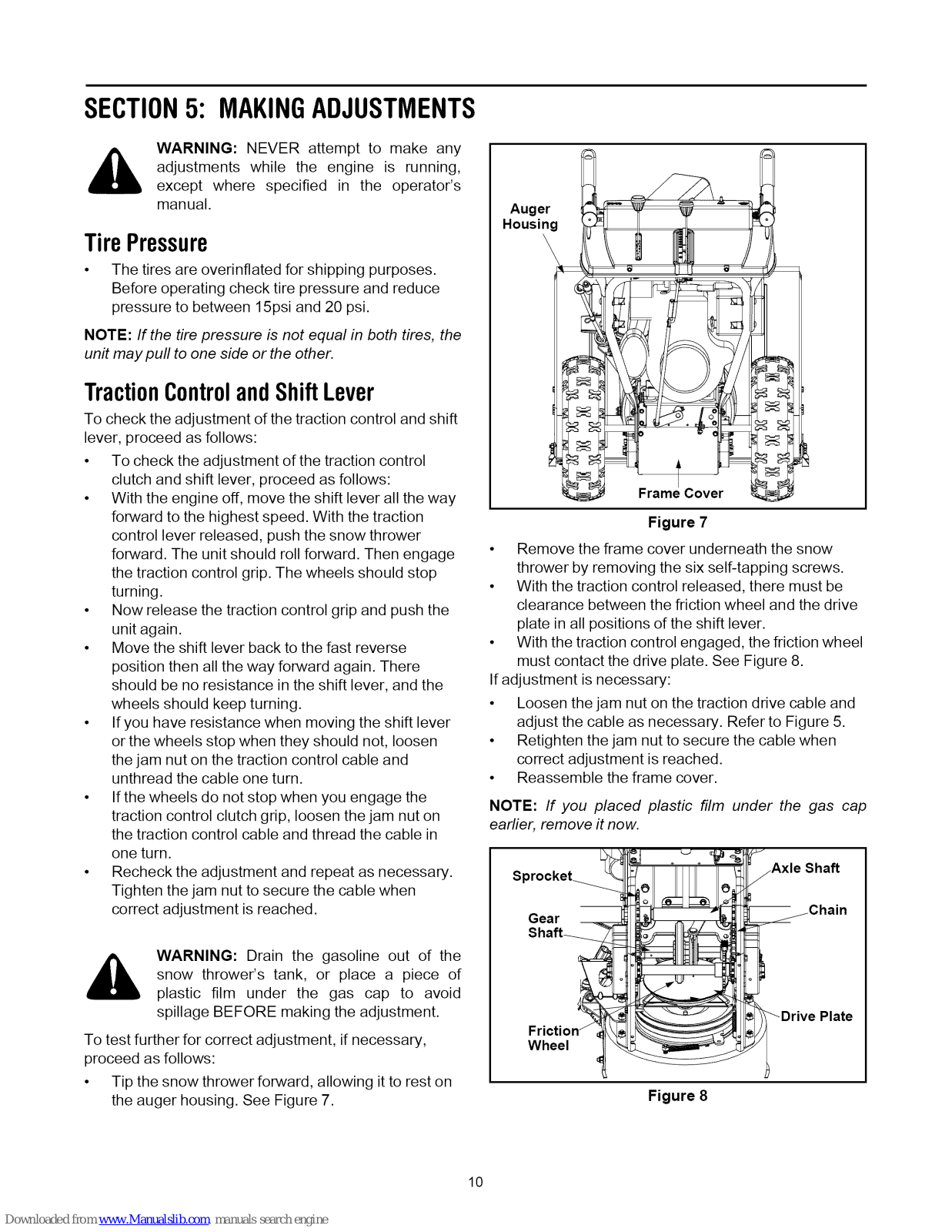

Making Adjustments ................................................................................................ 10

Maintaining Your Snow Thrower ............................................................................. 12

Servicing Your Snow Thrower ................................................................................. 13

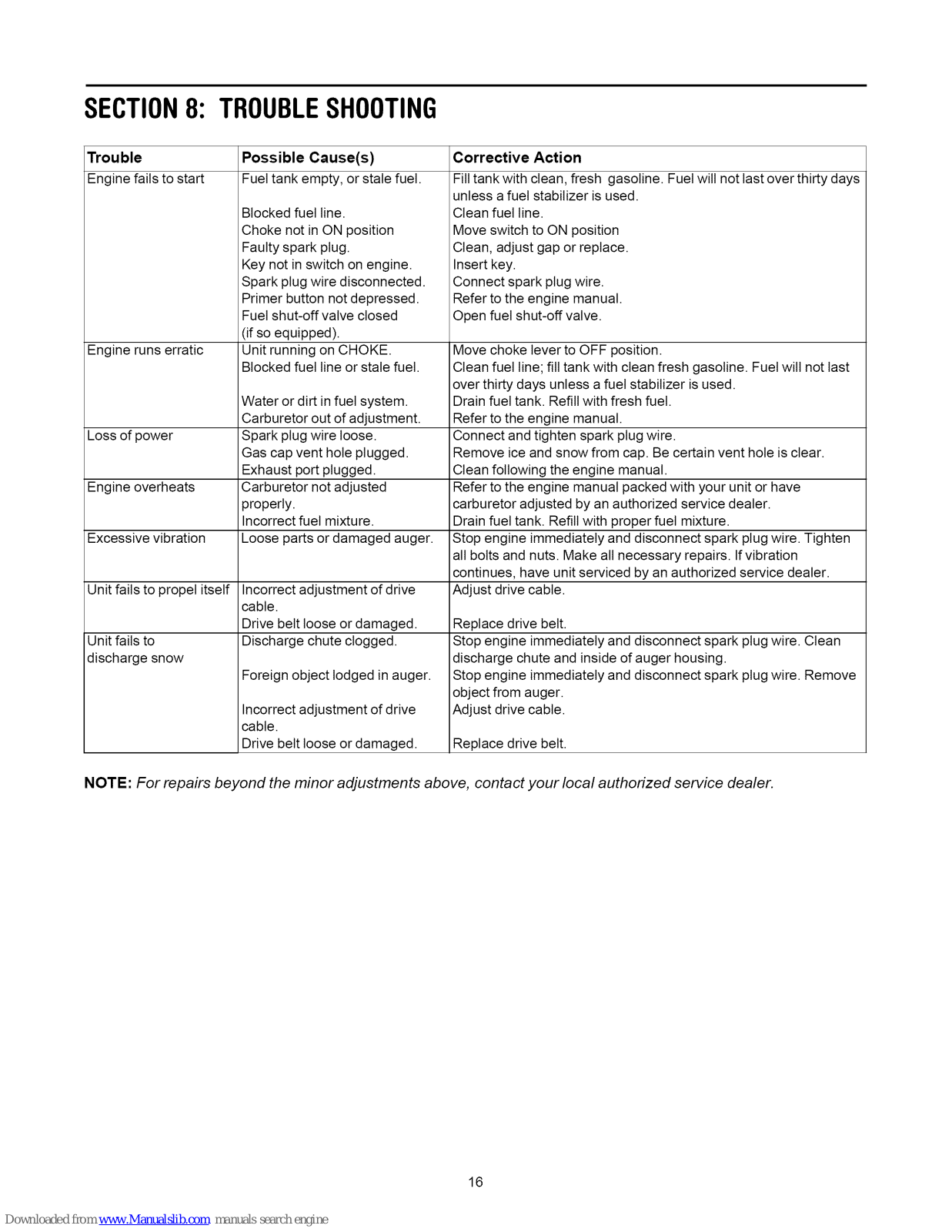

Troubleshooting ...................................................................................................... 16

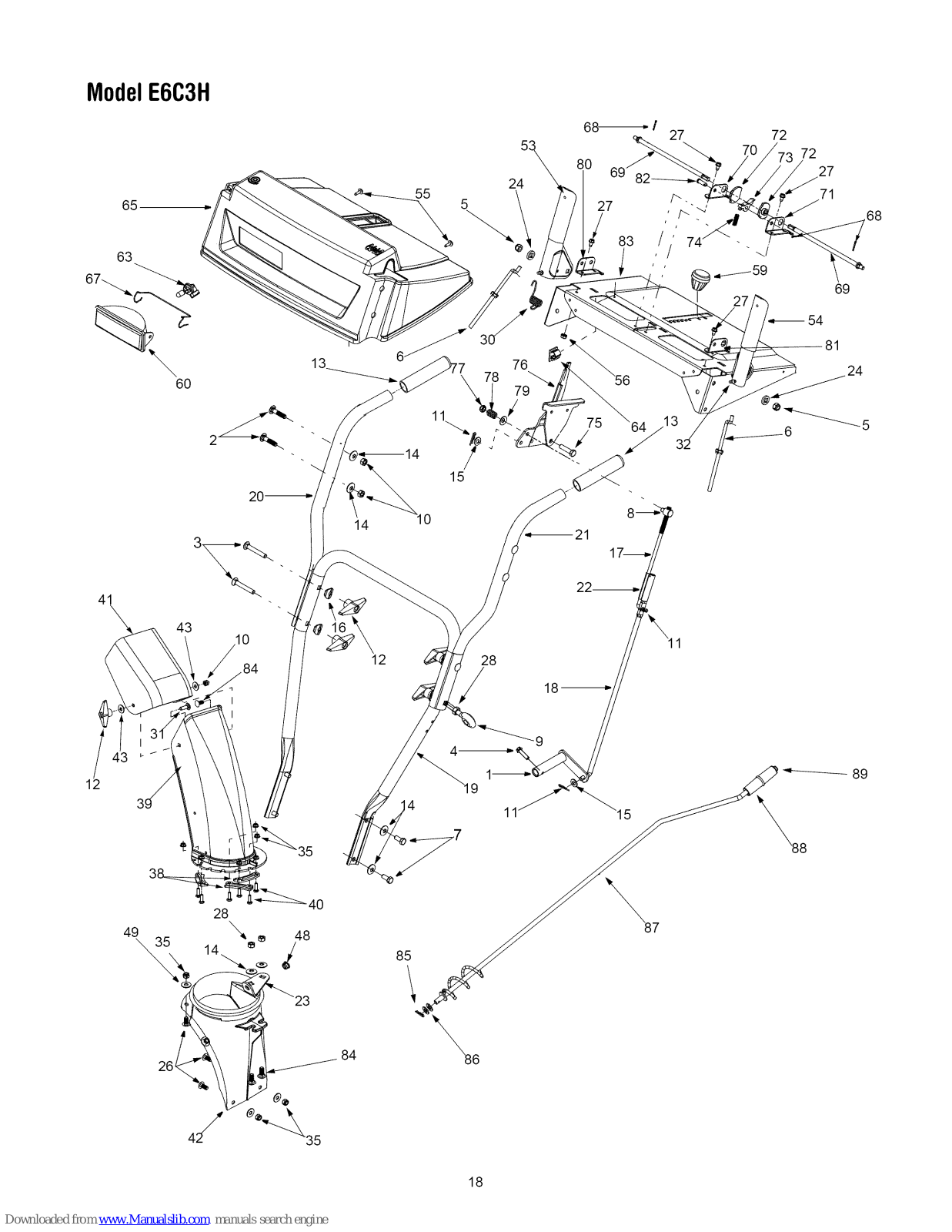

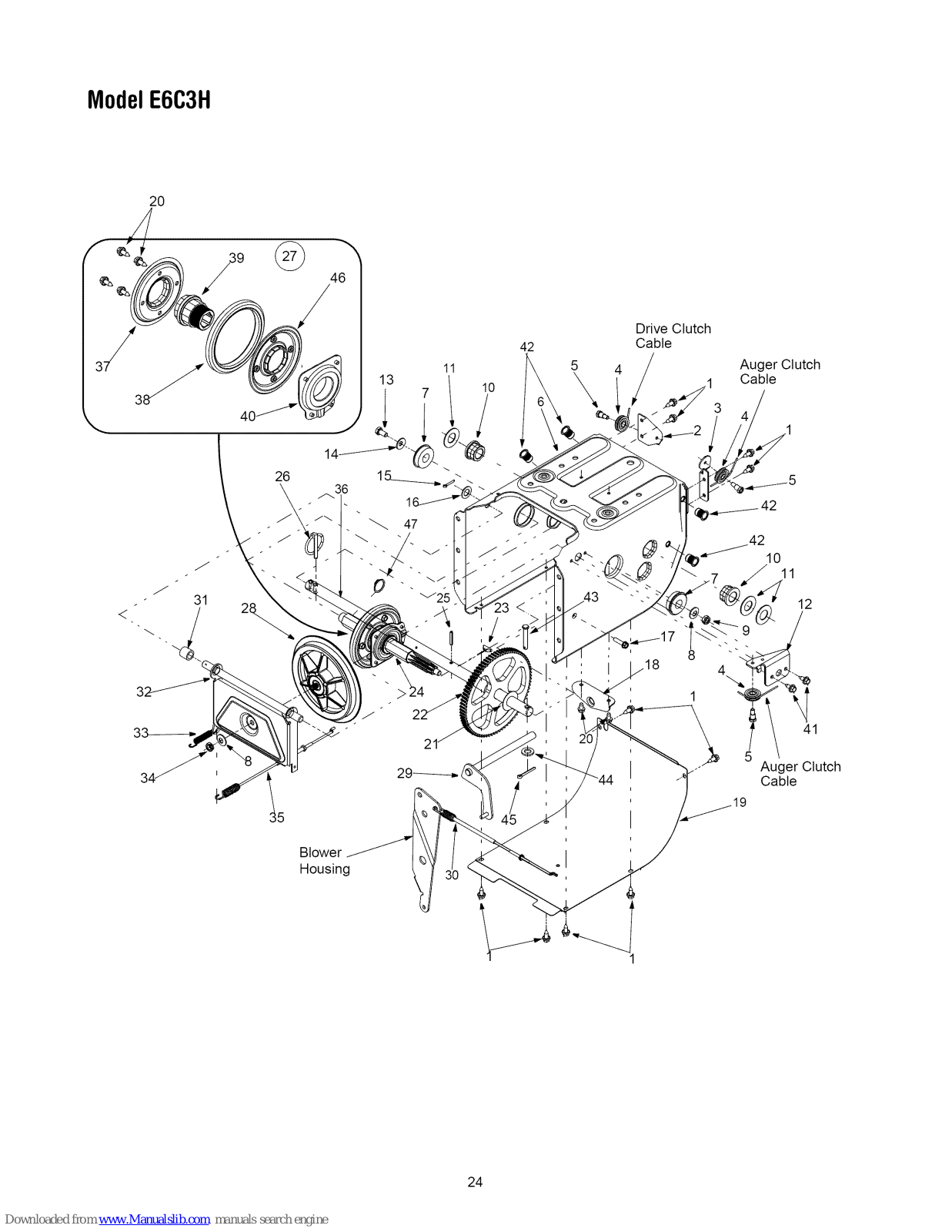

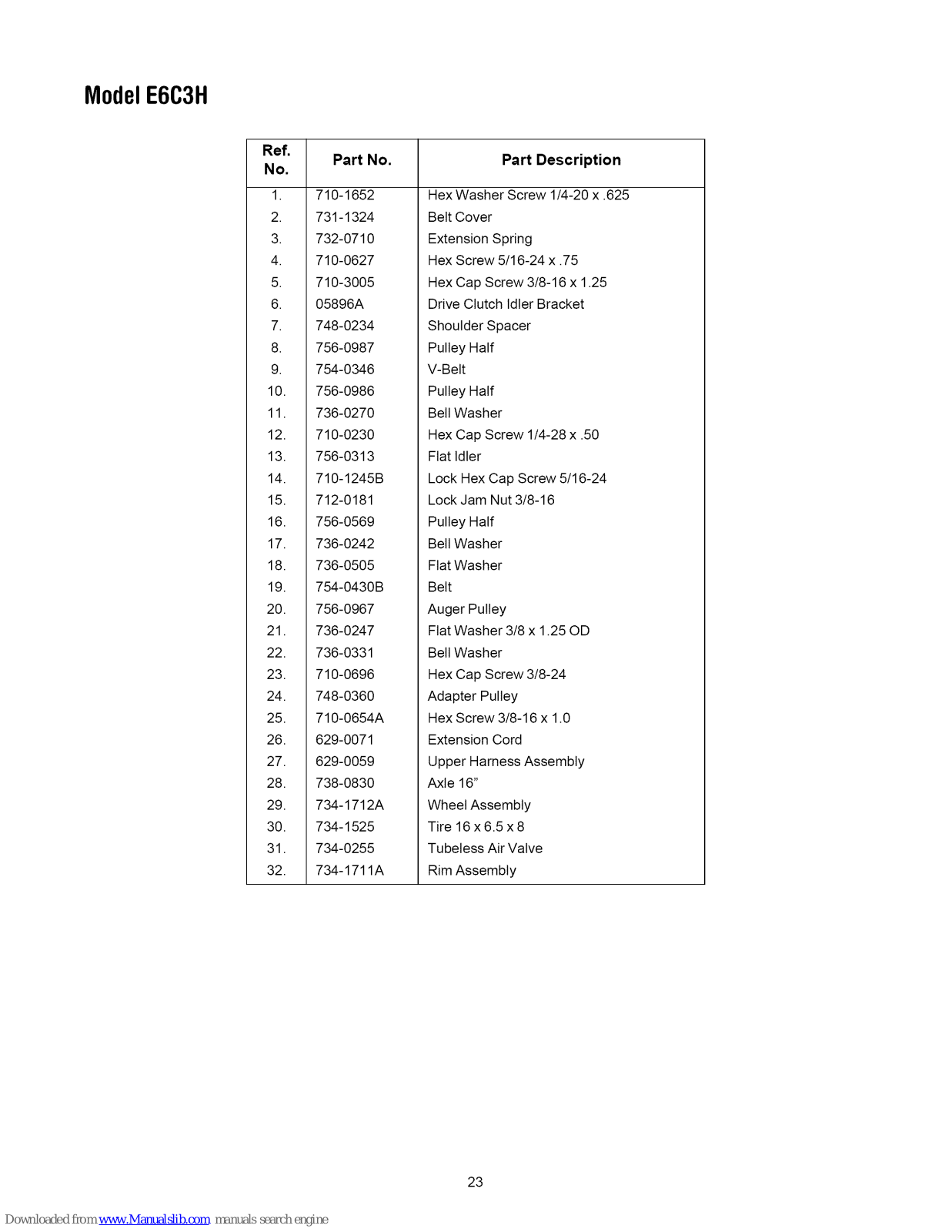

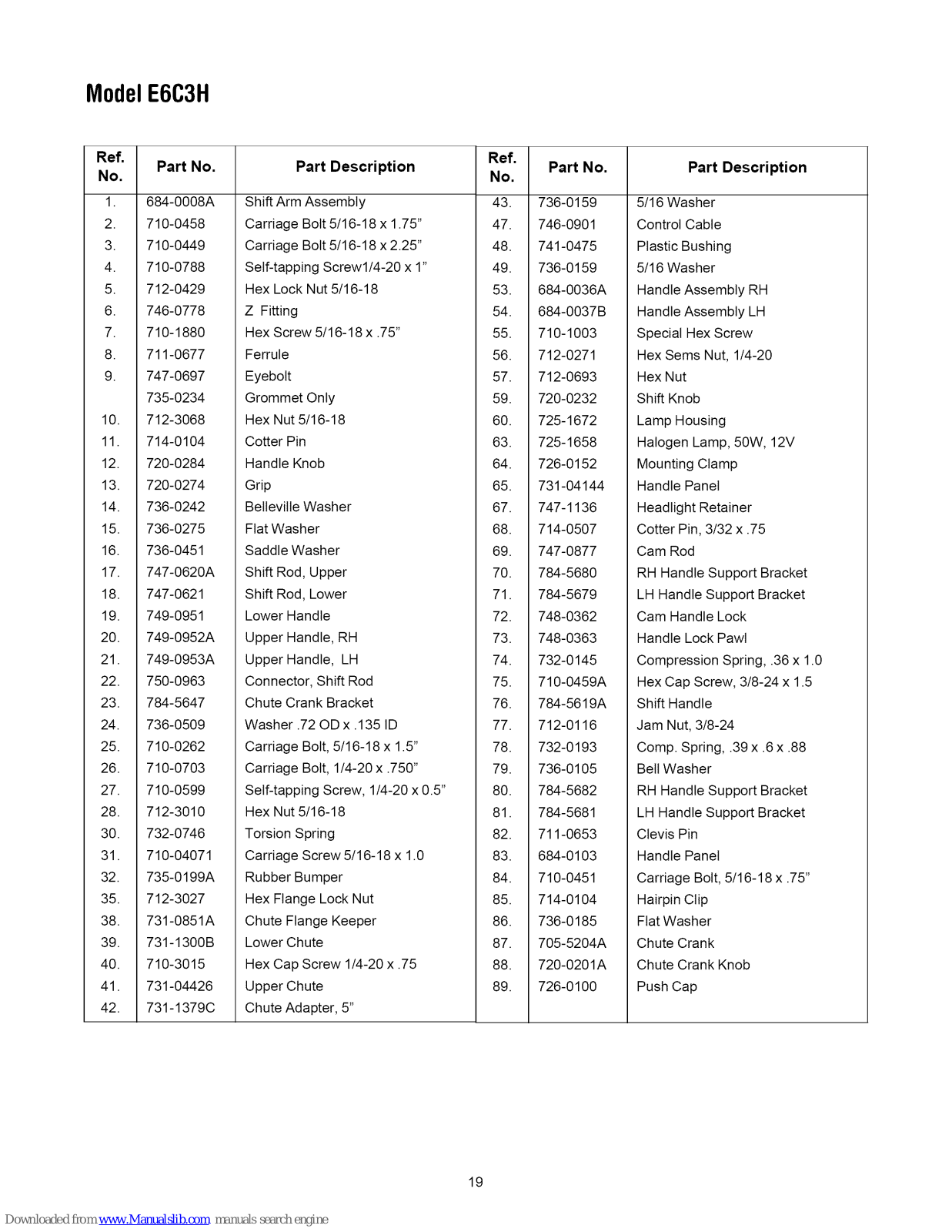

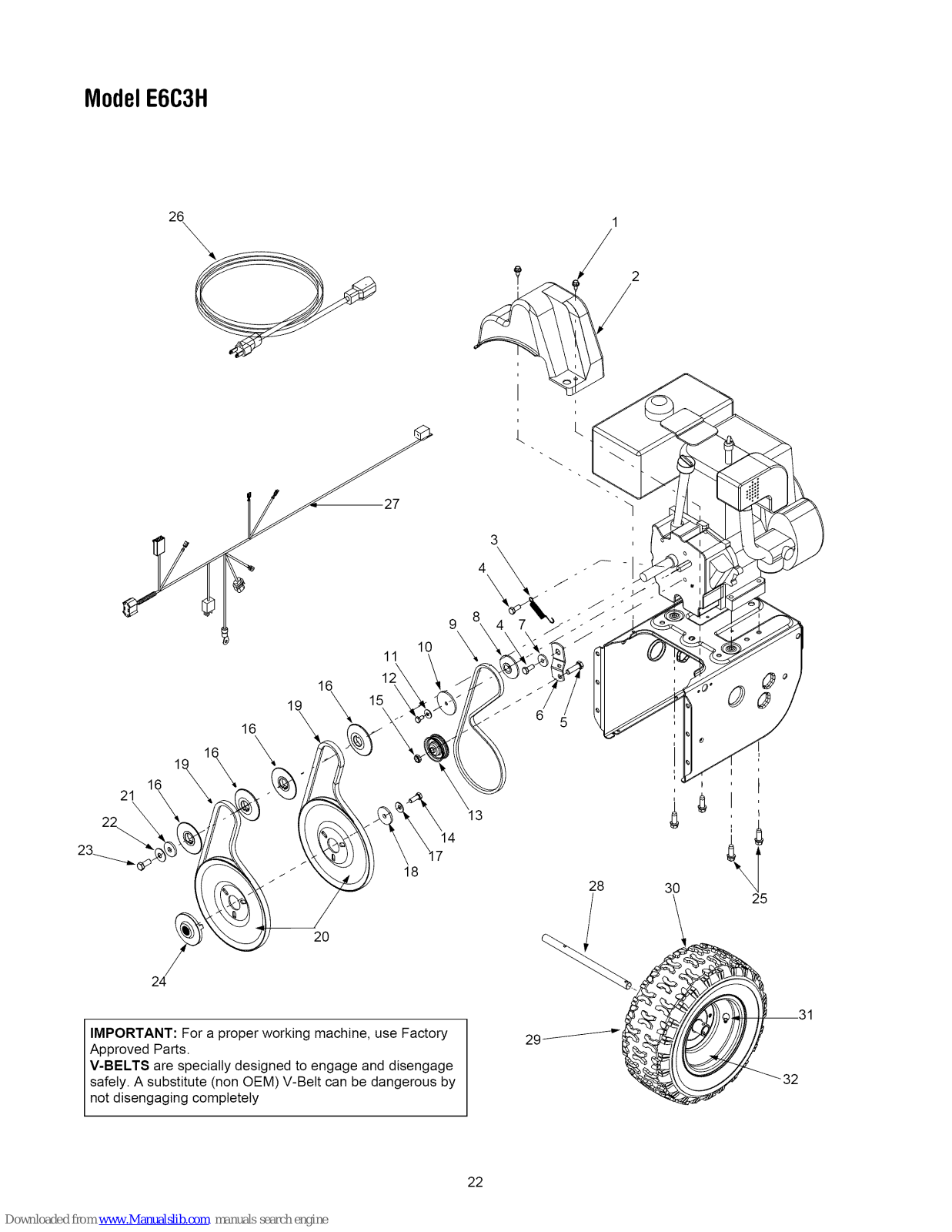

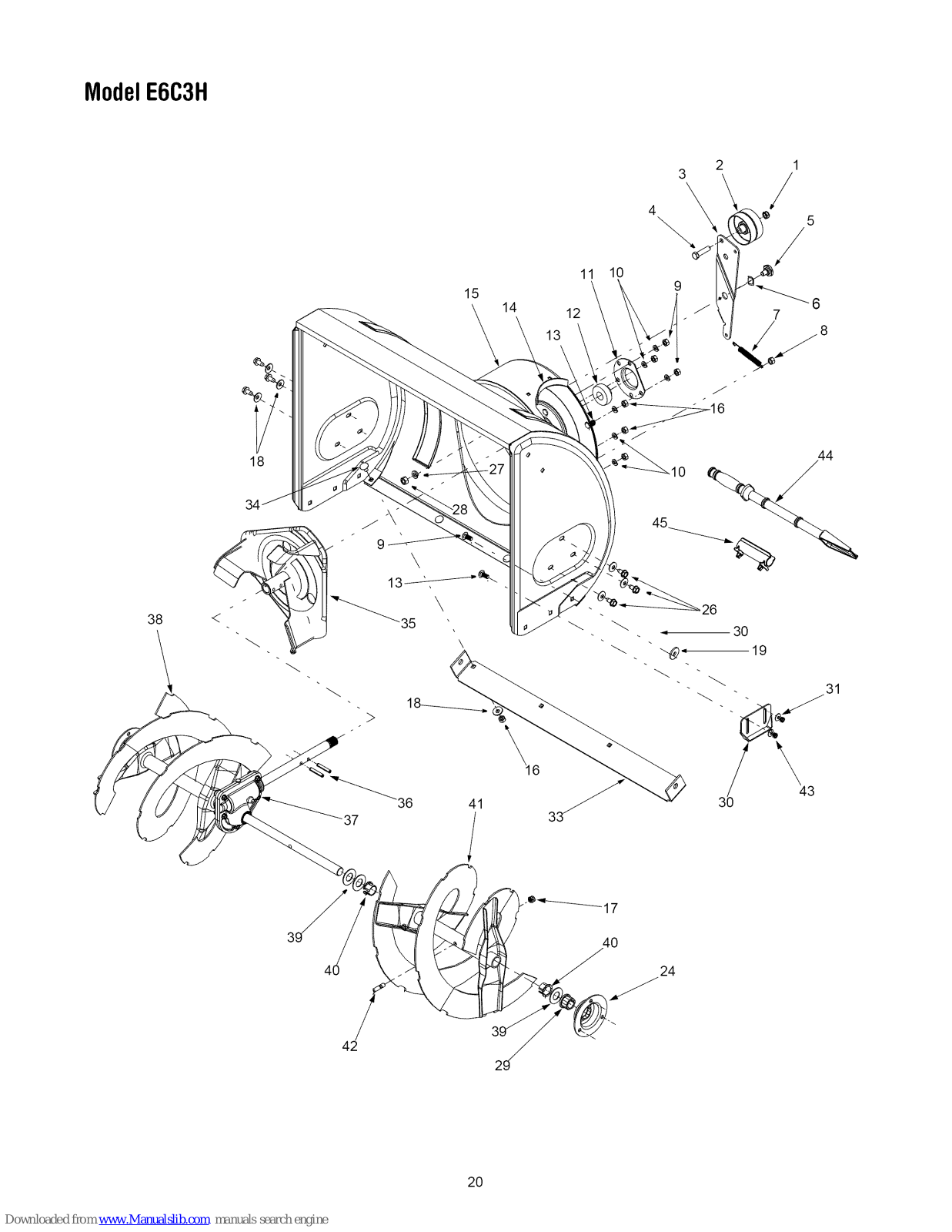

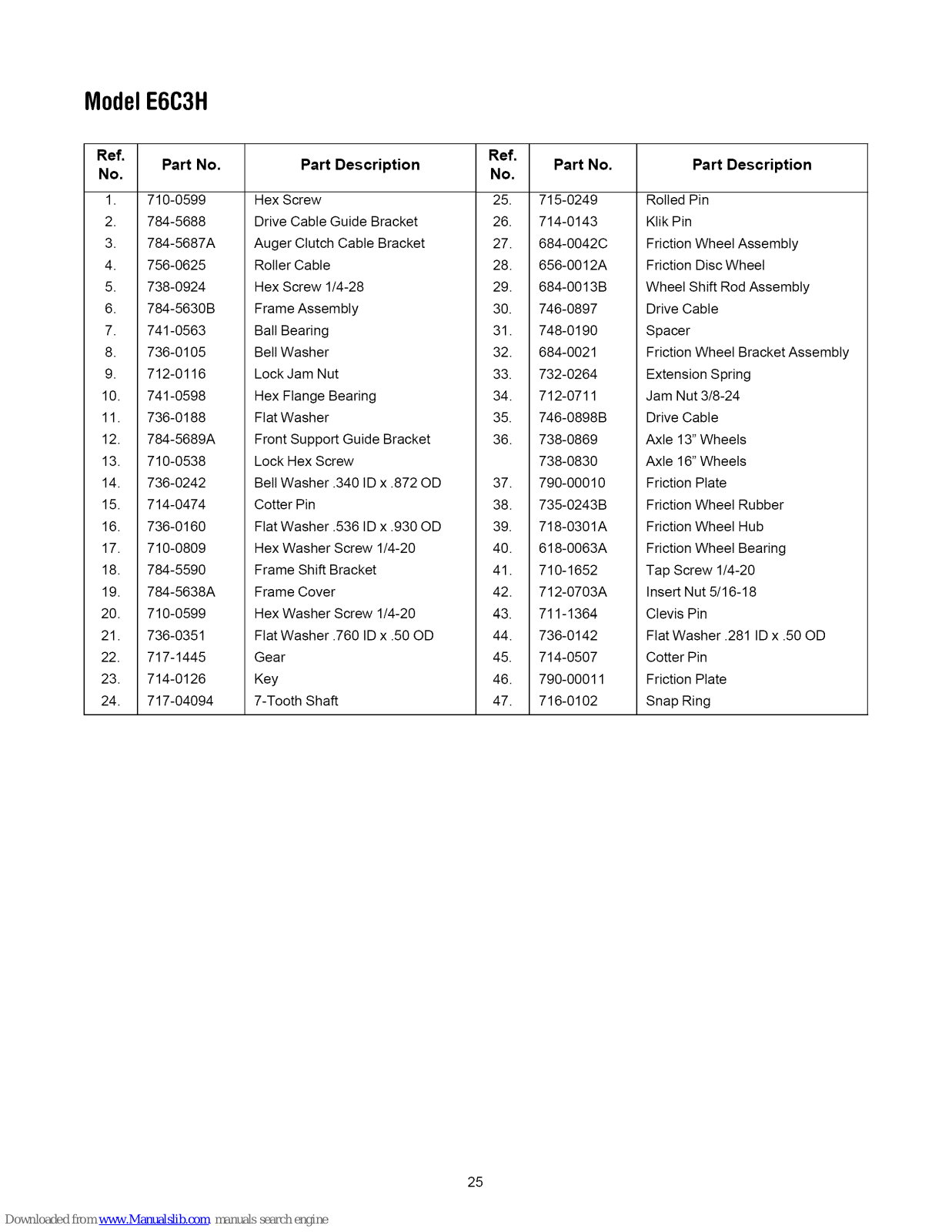

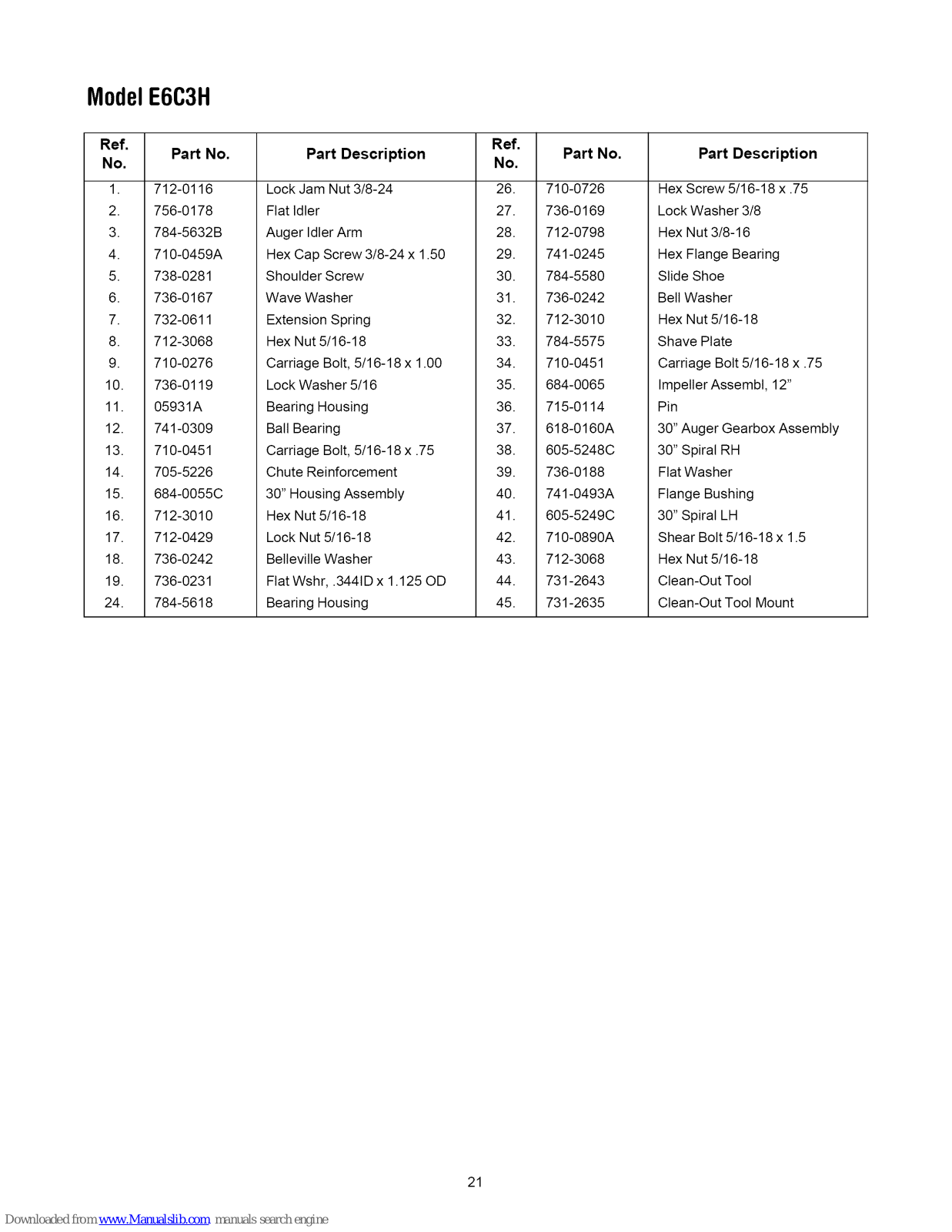

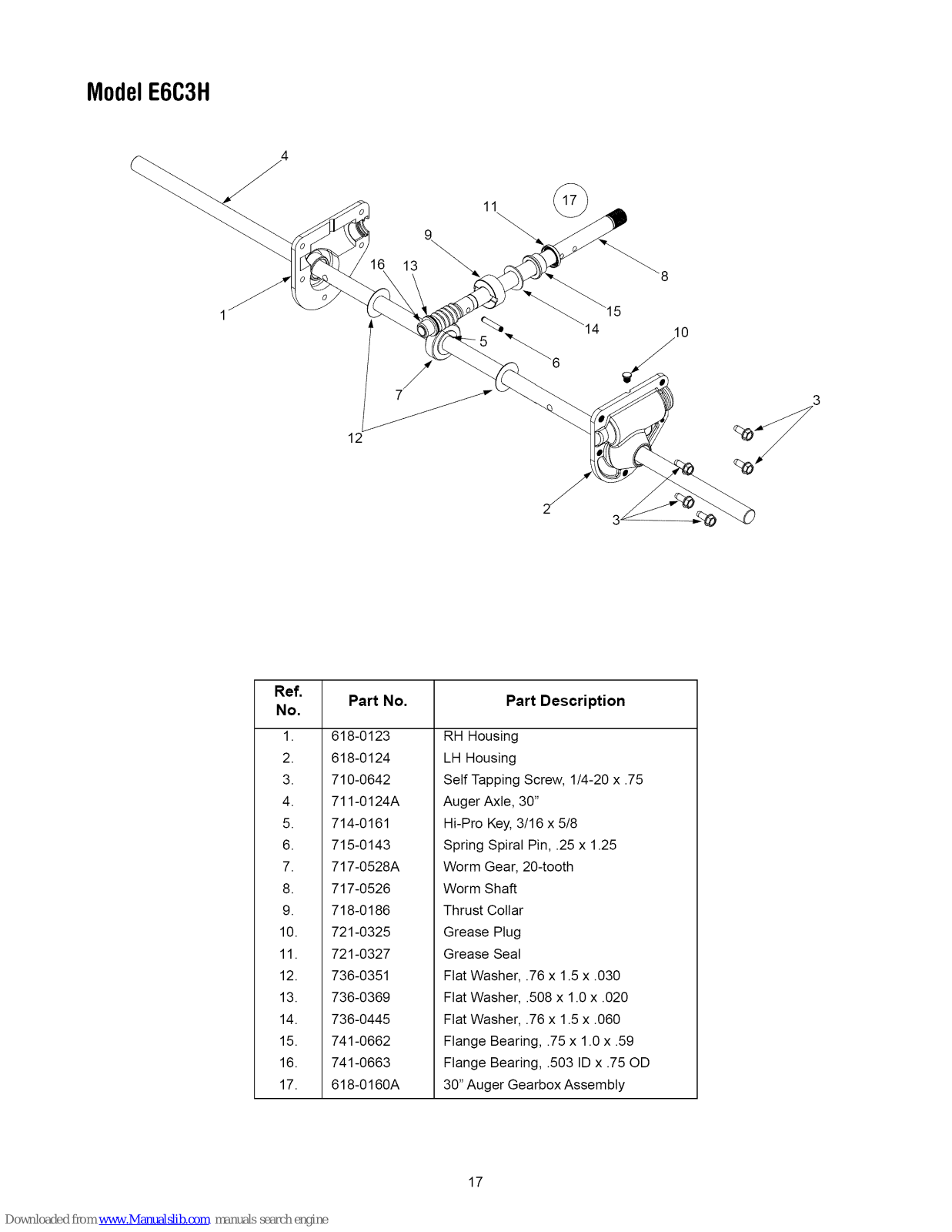

Parts List ................................................................................................................. 17

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new Snow Thrower. Itwill help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on the model plate is very important if you need help from your local authorized dealer.

You can locate the model number by looking at the lower frame cover on the rear of your snow thrower. A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below.

Copy the model number here:

Copy the serial number here:

P. O. BOX 361131

CLEVELAND,OH 44136

330-220-4683

"r _N.mLuprouuuLs.com"_-_ -" 800-800-731 0 j

ENGINEINFORMATION

The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's Manual packed separately with your unit for more information.

CALLINGCUSTOMERSUPPORT

Please doNOTreturnthe unittotheretailer from whichit waspurchased,withoutfirstcontactingCustomerSupport.

Should you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.

Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative. Please have your unit's model number and serial number ready when you call. See previous section to locate this information. You will be asked to enter the serial number in order to process your call.

Page 3

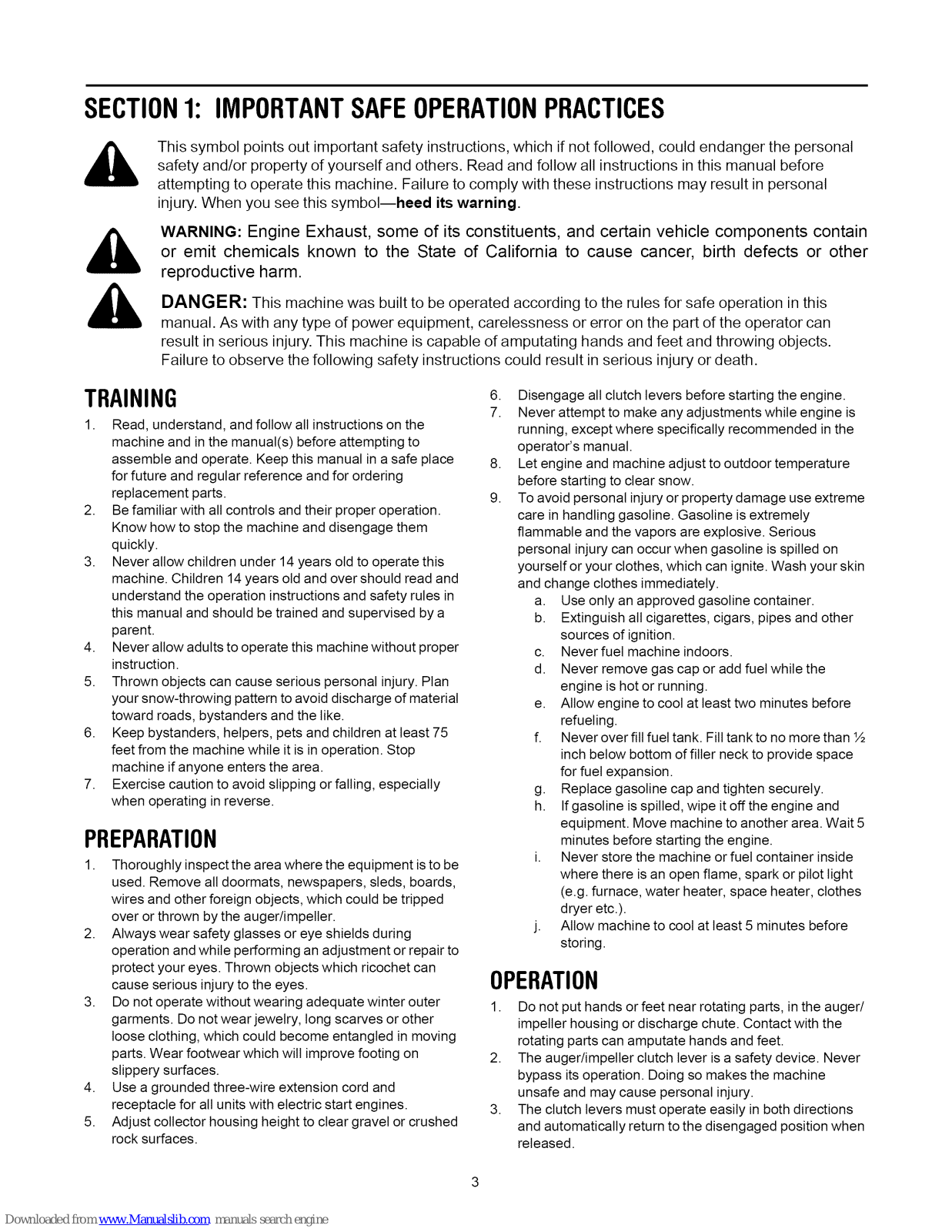

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal

injury. When you see this symbol--heed its warning.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer, birth defects or other

reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

TRAINING

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in asafe place

for future and regular reference and for ordering

replacement parts.

2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.

3. Never allow children under 14 years old to operate this machine. Children 14years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.

4. Never allow adults to operate this machine without proper instruction.

5. Thrown objects can cause serious personal injury. Plan your snow-throwing pattern to avoid discharge of material toward roads, bystanders and the like.

6. Keep bystanders, helpers, pets and children at least 75

feet from the machine while it is in operation. Stop

machine ifanyone enters the area.

7. Exercise caution to avoid slipping or falling, especially

when operating in reverse.

PREPARATION

1. Thoroughly inspect the area where the equipment is to be used. Remove all doormats, newspapers, sleds, boards,

wires and other foreign objects, which could be tripped

over or thrown by the auger/impeller.

2. Always wear safety glasses or eye shields during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

3. Do not operate without wearing adequate winter outer garments. Do not wear jewelry, long scarves or other loose clothing, which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.

4. Use a grounded three-wire extension cord and receptacle for all units with electric start engines.

5. Adjust collector housing height to clear gravel or crushed rock surfaces.

Disengage all clutch levers before starting the engine.

Never attempt to make any adjustments while engine is running, except where specifically recommended inthe operator's manual.

Let engine and machine adjust to outdoor temperature before starting to clear snow.

To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely

flammable and the vapors are explosive. Serious

personal injury can occur when gasoline is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately.

a. Use only an approved gasoline container. b. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

c. Neverfuel machine indoors.

d. Never remove gas cap or add fuel while the

engine is hot or running.

e. Allow engine to cool at least two minutes before

refueling.

f. Never over fill fuel tank. Fill tank to no more than ½

inch below bottom of filler neck to provide space

for fuel expansion.

g. Replace gasoline cap and tighten securely.

h. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine.

i. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light (e.g. furnace, water heater, space heater, clothes dryer etc.).

j. Allow machine to cool at least 5 minutes before

storing.

OPERATION

1. Do not put hands or feet near rotating parts, in the auger/ impeller housing or discharge chute. Contact with the rotating parts can amputate hands and feet.

2. The auger/impeller clutch lever is a safety device. Never bypass its operation. Doing so makes the machine unsafe and may cause personal injury.

3. The clutch levers must operate easily in both directions and automatically return to the disengaged position when

released.

Page 4

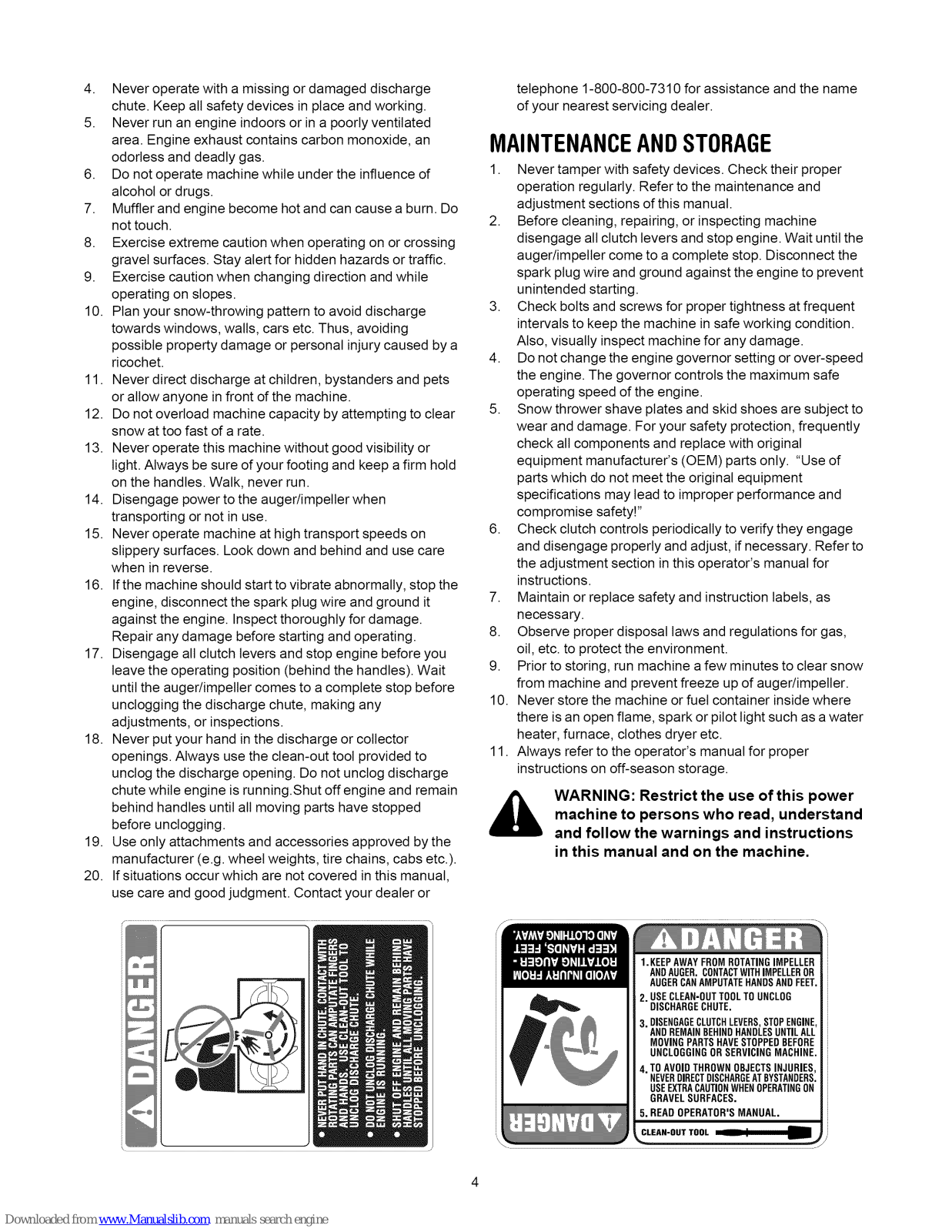

4. Neveroperatewithamissingordamageddischarge chute.Keepallsafetydevicesinplaceandworking.

5. Neverrunanengineindoorsorinapoorlyventilated area.Engineexhaustcontainscarbonmonoxide,an odorlessanddeadlygas.

6. Donotoperatemachinewhileundertheinfluenceof alcoholordrugs.

7. Mufflerandenginebecomehotandcancauseaburn.Do nottouch.

8. Exerciseextremecautionwhenoperatingonorcrossing gravelsurfaces.Stayalertforhiddenhazardsortraffic.

9. Exercisecautionwhenchangingdirectionandwhile operatingonslopes.

10.Planyoursnow-throwingpatterntoavoiddischarge towardswindows,walls,carsetc.Thus,avoiding possiblepropertydamageorpersonalinjurycausedbya

ricochet.

11.Neverdirectdischargeatchildren,bystandersandpets orallowanyoneinfrontofthemachine.

12.Donotoverloadmachinecapacitybyattemptingtoclear snowattoofastofarate.

13.Neveroperatethismachinewithoutgoodvisibilityor light.Alwaysbesureofyourfootingandkeepafirmhold onthehandles.Walk,neverrun.

14.Disengagepowertotheauger/impellerwhen transportingornotinuse.

15.Neveroperatemachineathightransportspeedson slipperysurfaces.Lookdownandbehindandusecare

wheninreverse.

16.Ifthemachineshouldstarttovibrateabnormally,stopthe engine,disconnectthesparkplugwireandgroundit againsttheengine.Inspectthoroughlyfordamage. Repairanydamagebeforestartingandoperating.

17.Disengageallclutchleversandstopenginebeforeyou leavetheoperatingposition(behindthehandles).Wait untiltheauger/impellercomestoacompletestopbefore uncloggingthedischargechute,makingany adjustments,orinspections.

18.Neverputyourhandinthedischargeorcollector openings.Alwaysusetheclean-outtoolprovidedto unclogthedischargeopening.Donotunclogdischarge chutewhileengineisrunning.Shutoffengineandremain behindhandlesuntilallmovingpartshavestopped beforeunclogging.

19.Useonlyattachmentsandaccessoriesapprovedbythe manufacturer(e.g.wheelweights,tirechains,cabsetc.).

20.Ifsituationsoccurwhicharenotcoveredinthismanual, usecareandgoodjudgment.Contactyourdealeror

telephone1-800-800-7310forassistanceandthename ofyournearestservicingdealer.

MAINTENANCEANDSTORAGE

1. Never tamper with safety devices. Check their proper operation regularly. Refer to the maintenance and adjustment sections of this manual.

2. Before cleaning, repairing, or inspecting machine disengage all clutch levers and stop engine. Wait until the auger/impeller come to a complete stop. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

3. Check bolts and screws for proper tightness at frequent intervals to keep the machine in safe working condition.

Also, visually inspect machine for any damage.

4. Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

5. Snow thrower shave plates and skid shoes are subject to wear and damage. For your safety protection, frequently check all components and replace with original equipment manufacturer's (OEM) parts only. "Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!"

6. Check clutch controls periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator's manual for

instructions.

7. Maintain or replace safety and instruction labels, as necessary.

8. Observe proper disposal taws and regulations for gas, oil, etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear snow from machine and prevent freeze up of auger/impeller.

10. Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water

heater, furnace, clothes dryer etc.

11. Always refer to the operator's manual for proper

instructions on off-season storage.

WARNING: Restrict the use of this power

machine to persons who read, understand and follow the warnings and instructions

in this manual and on the machine.

1.KEEPAWAYFROMROTATINGIMPELLER

ANDAUGER.CONTACTWITHIMPELLEROR AUGERCANAMPUTATEHANDSANDFEET.

2. USECLEAN-OUTTOOLTOUNCLOG DISCHARGECHUTE.

3. DISENGAGECLUTCHLEVERS,STOPENGINE, ANDREMAINBEHINDHANDLESUNTILALL

MOVINGPARTSHAVESTOPPEDBEFORE UNCLOGGINGOR SERVICINGMACHINE.

4. TOAVOIDTHROWNOBJECTSINJURIES, NEVERDIRECTDISCHARGEATBYSTANDERS. USEEXTRACAUTIONWHENOPERATINGON

GRAVELSURFACES.

5. READ OPERATOR'SMANUAL.

CLEAN-OUT TOOL

Page 5

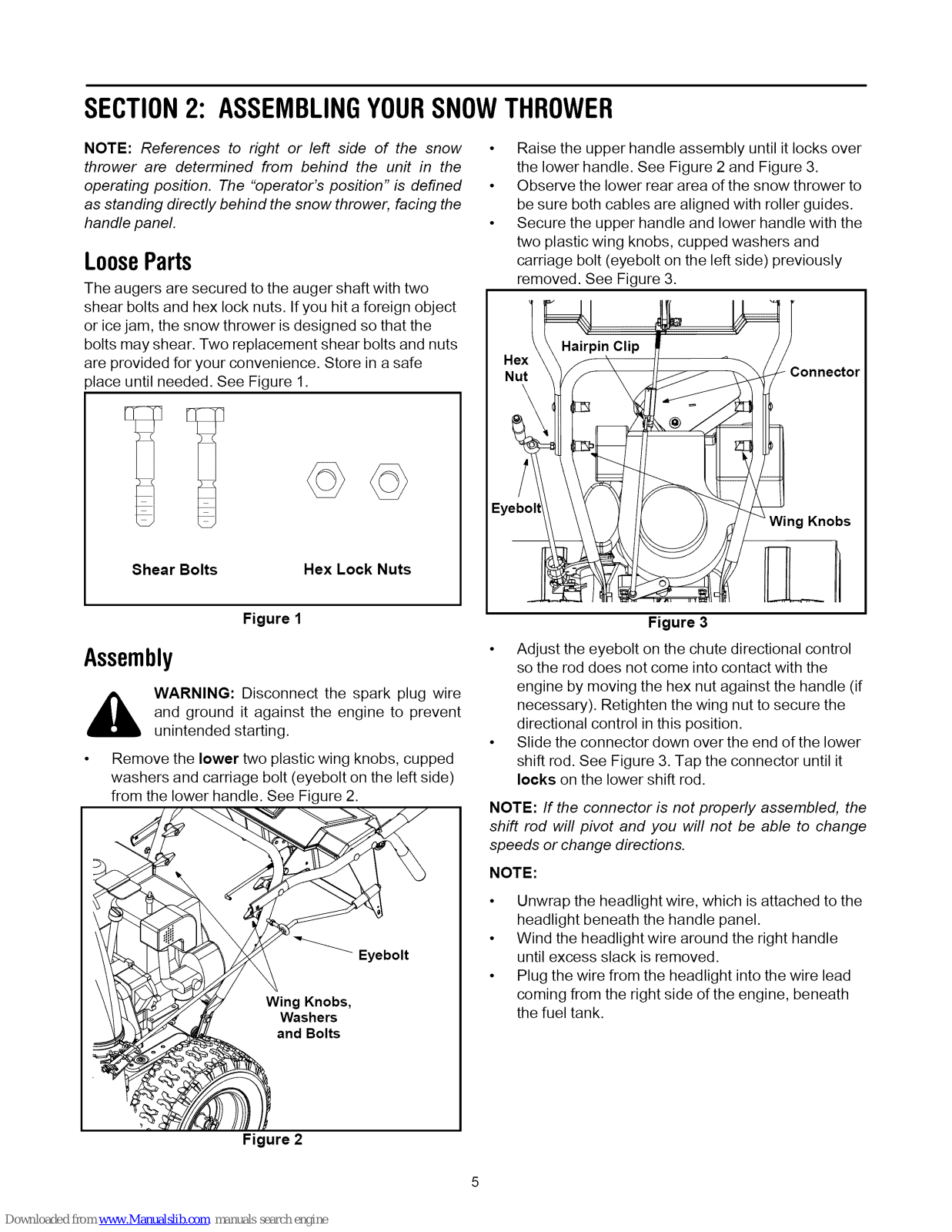

SECTION2: ASSEMBLINGYOURSNOWTHROWER

NOTE: References to right or left side of the snow

thrower are determined from behind the unit in the operating position. The "operator's position" is defined

as standing directly behind the snow thrower, facing the handle panel.

LooseParts

The augers are secured to the auger shaft with two shear bolts and hex lock nuts. If you hit a foreign object or icejam, the snow thrower is designed so that the bolts may shear. Two replacement shear bolts and nuts are provided for your convenience. Store in a safe

31aceuntil needed. See Figure 1.

Shear Bolts Hex Lock Nuts

• Raise the upper handle assembly until it locks over the lower handle. See Figure 2 and Figure 3.

• Observe the lower rear area of the snow thrower to

be sure both cables are aligned with roller guides.

• Secure the upper handle and lower handle with the two plastic wing knobs, cupped washers and carriage bolt (eyebolt on the left side) previously

removed. See Figure 3.

Hex

Nut

Ey,

Connector

Knobs

Figure 1

Assembly

,_ WARNING: Disconnect the spark plug wire

• Remove the lower two plastic wing knobs, cupped

and ground it against the engine to prevent unintended starting.

washers and carriage bolt (eyebolt on the left side) from the lower handle. See Figure 2.

Wing Knobs,

Washers

and Bolts

Figure 3

• Adjust the eyebolt on the chute directional control so the rod does not come into contact with the

engine by moving the hex nut against the handle (if

necessary). Retighten the wing nut to secure the

directional control in this position.

• Slide the connector down over the end of the lower shift rod. See Figure 3. Tap the connector until it

locks on the lower shift rod.

NOTE: If the connector is not properly assembled, the

shift rod will pivot and you will not be able to change speeds or change directions.

NOTE:

• Unwrap the headlight wire, which is attached to the

headlight beneath the handle panel.

• Wind the headlight wire around the right handle

until excess slack is removed.

• Plug the wire from the headlight into the wire lead coming from the right side of the engine, beneath

the fuel tank.

Figure 2

Page 6

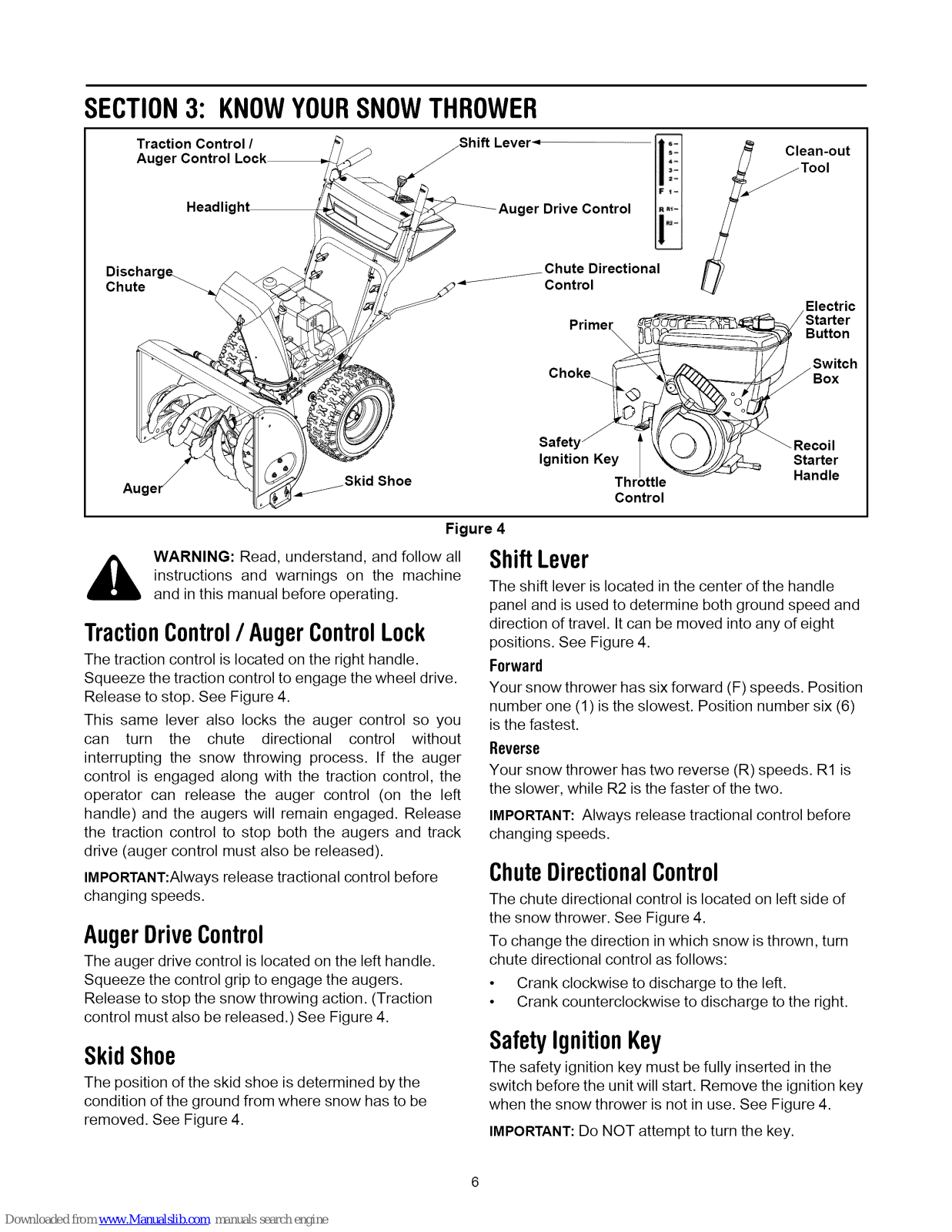

SECTION3: KNOWYOURSNOWTHROWER

Traction Control/ Lever- Auger Control

_-"=_ ;anio ut

Headlight

Discharge_ /

Chute

WARNING: Read, understand, and follow all

instructions and warnings on the machine and in this manual before operating.

TractionControl/AugerControlLock

The traction control is located on the right handle. Squeeze the traction control to engage the wheel drive. Release to stop. See Figure 4.

This same lever also locks the auger control so you can turn the chute directional control without

interrupting the snow throwing process. If the auger control is engaged along with the traction control, the operator can release the auger control (on the left handle) and the augers will remain engaged. Release the traction control to stop both the augers and track drive (auger control must also be released).

IMPORTANT:Always release tractional control before changing speeds.

AugerDriveControl

The auger drive control is located on the left handle. Squeeze the control grip to engage the augers. Release to stop the snow throwing action. (Traction control must also be released.) See Figure 4.

SkidShoe

The position of the skid shoe is determined by the condition of the ground from where snow has to be removed. See Figure 4.

Shoe

Figure 4

ger Drive Control

Directional

Control

Electric

Button

Box

Starter

Primer

Choke_

_:__ _1_%_._/ Starter

,_ /!/ J Switch

_\\ _ ) })))7./ _Recoil

Thr,)ttle Handle

Control

ShiftLever

The shift lever is located in the center of the handle

panel and is used to determine both ground speed and direction of travel. It can be moved into any of eight positions. See Figure 4.

Forward

Your snow thrower has six forward (F) speeds. Position

number one (1) is the slowest. Position number six (6) is the fastest.

Reverse

Your snow thrower has two reverse (R) speeds. R1 is the slower, while R2 is the faster of the two.

IMPORTANT: Always release tractional control before changing speeds.

ChuteDirectionalControl

The chute directional control is located on left side of the snow thrower. See Figure 4. To change the direction in which snow is thrown, turn

chute directional control as follows:

• Crank clockwise to discharge to the left.

• Crank counterclockwise to discharge to the right.

SafetyIgnitionKey

The safety ignition key must be fully inserted in the

switch before the unit will start. Remove the ignition key

when the snow thrower is not in use. See Figure 4.

IMPORTANT:Do NOT attempt to turn the key.

Page 7

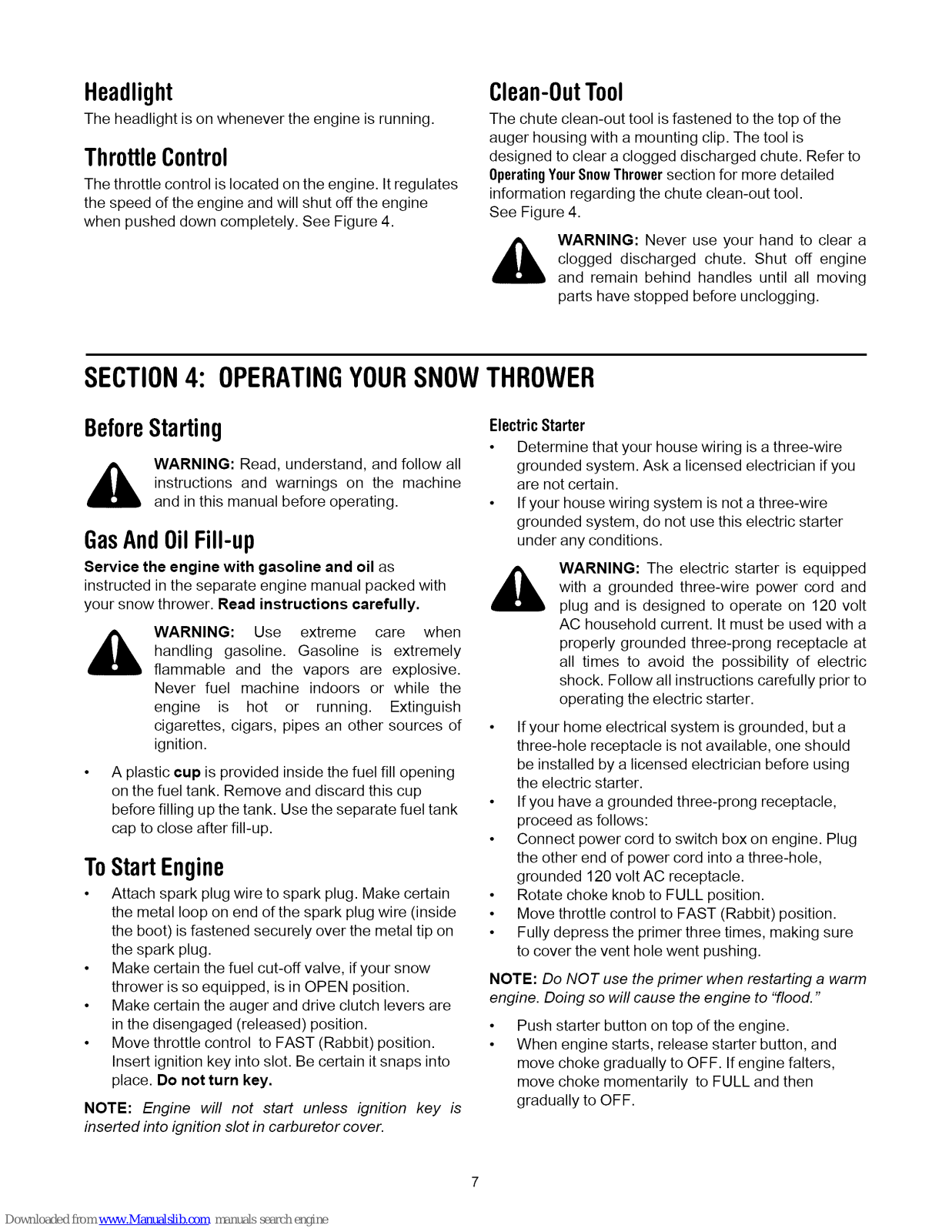

Headlight

The headlight is on whenever the engine is running.

ThrottleControl

The throttle control is located on the engine. It regulates the speed of the engine and will shut off the engine when pushed down completely. See Figure 4.

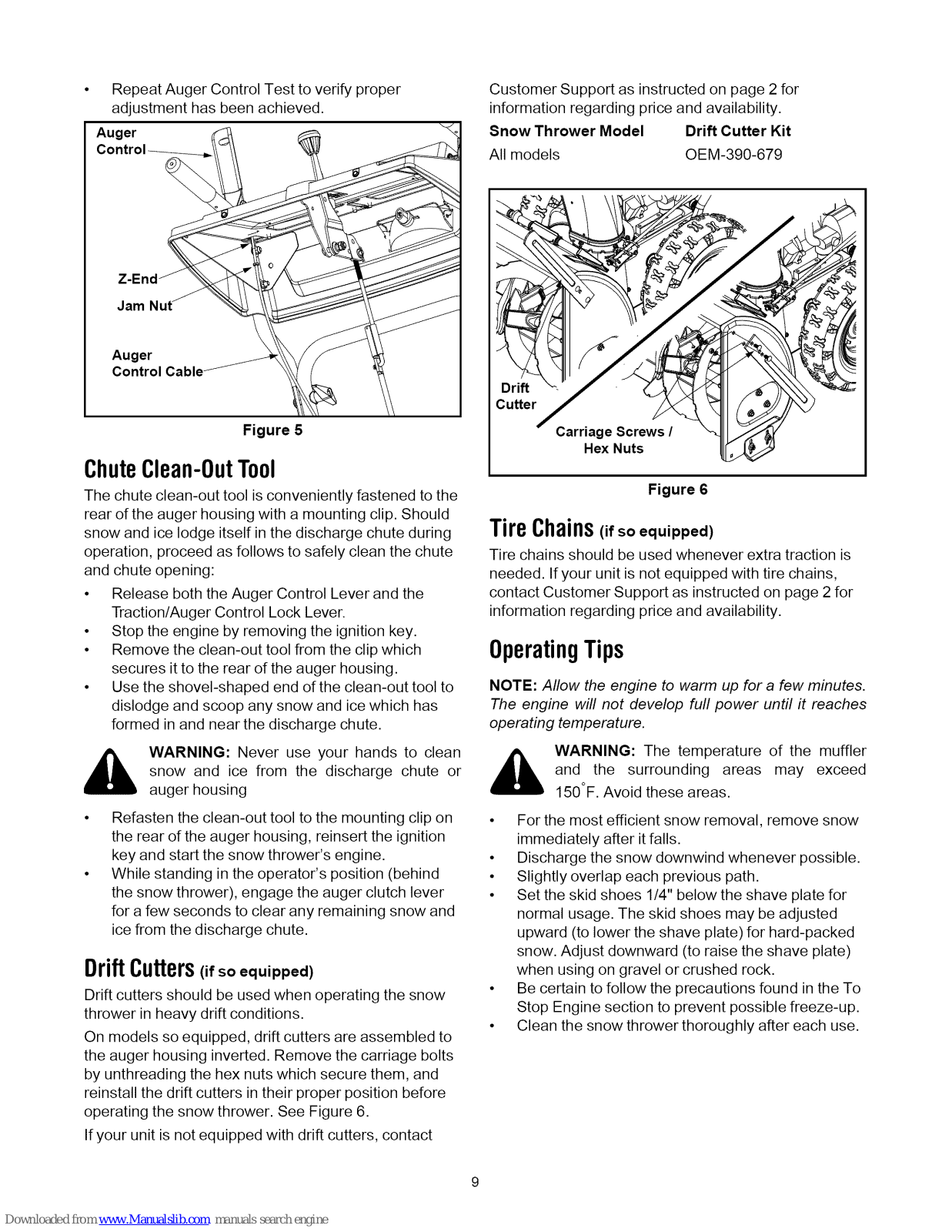

Clean-OutTool

The chute clean-out tool is fastened to the top of the

auger housing with a mounting clip. The tool is designed to clear a clogged discharged chute. Refer to

OperatingYourSnowThrowersection for more detailed informationregarding the chute clean-out tool.

See Figure 4.

WARNING: Never use your hand to clear a

clogged discharged chute. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.

SECTION4: OPERATINGYOURSNOWTHROWER

BeforeStarting

instructions and warnings on the machine

WARNING: Read, understand, and follow all and in this manual before operating.

GasAndOilFill-up

Service the engine with gasoline and oil as

instructed inthe separate engine manual packed with your snow thrower. Read instructions carefully.

WARNING: Use extreme care when handling gasoline. Gasoline is extremely

flammable and the vapors are explosive. Never fuel machine indoors or while the

engine is hot or running. Extinguish cigarettes, cigars, pipes an other sources of ignition.

A plastic cup is provided inside the fuel fill opening on the fuel tank. Remove and discard this cup before filling up the tank. Use the separate fuel tank cap to close after fill-up.

ToStartEngine

• Attach spark plug wire to spark plug. Make certain the metal loop on end of the spark plug wire (inside the boot) is fastened securely over the metal tip on the spark plug.

• Make certain the fuel cut-off valve, ifyour snow thrower is so equipped, is in OPEN position.

• Make certain the auger and drive clutch levers are in the disengaged (released) position.

• Move throttle control to FAST (Rabbit) position. Insert ignition key into slot. Be certain it snaps into place. Do not turn key.

NOTE: Engine will not start unless ignition key is inserted into ignition slot in carburetor cover.

ElectricStarter

• Determine that your house wiring is a three-wire grounded system. Ask a licensed electrician if you

are not certain.

• If your house wiring system is not a three-wire grounded system, do not use this electric starter

under any conditions.

WARNING: The electric starter is equipped with a grounded three-wire power cord and

plug and is designed to operate on 120 volt AC household current. Itmust be used with a

properly grounded three-prong receptacle at all times to avoid the possibility of electric shock. Follow all instructions carefully prior to operating the electric starter.

• If your home electrical system is grounded, but a three-hole receptacle is not available, one should

be installed by a licensed electrician before using

the electric starter.

• If you have a grounded three-prong receptacle,

proceed as follows:

• Connect power cord to switch box on engine. Plug the other end of power cord into a three-hole, grounded 120 volt AC receptacle.

• Rotate choke knob to FULL position.

• Move throttle control to FAST (Rabbit) position.

• Fully depress the primer three times, making sure to cover the vent hole went pushing.

NOTE: Do NOT use the primer when restarting a warm engine. Doing so will cause the engine to "flood."

Push starter button on top of the engine.

When engine starts, release starter button, and

move choke gradually to OFF. If engine falters, move choke momentarily to FULL and then

gradually to OFF.

Page 8

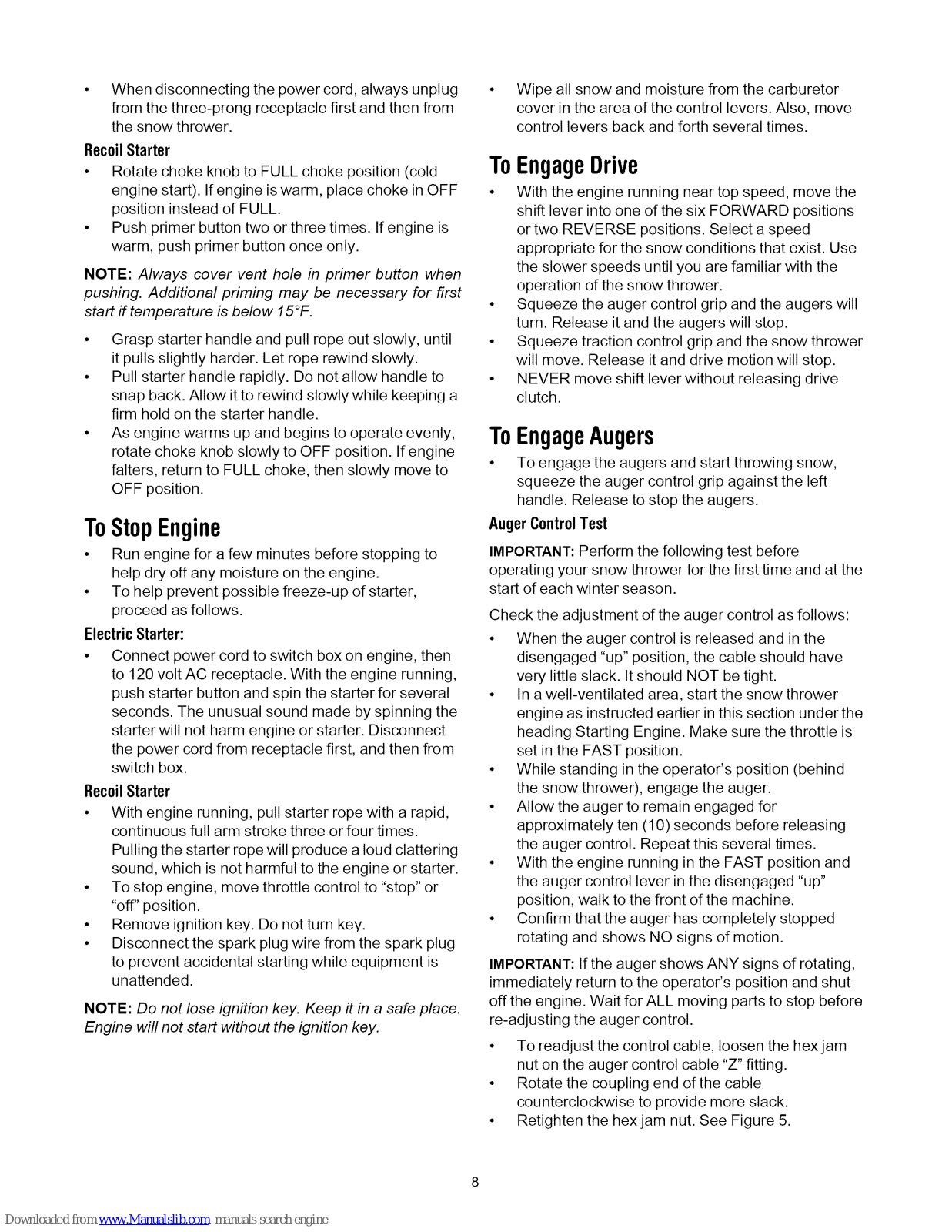

• Whendisconnectingthepowercord,alwaysunplug fromthethree-prongreceptaclefirstandthenfrom

thesnowthrower.

RecoilStarter

• Rotate choke knob to FULL choke position (cold

engine start). If engine is warm, place choke in OFF position instead of FULL.

• Push primer button two or three times. If engine is warm, push primer button once only.

NOTE: Always cover vent hole in primer button when

pushing. Additional priming may be necessary for first start if temperature is below 15°F.

• Grasp starter handle and pull rope out slowly, until

it pulls slightly harder. Let rope rewind slowly.

• Pull starter handle rapidly. Do not allow handle to

snap back. Allow it to rewind slowly while keeping a

firm hold on the starter handle.

• As engine warms up and begins to operate evenly,

rotate choke knob slowly to OFF position. If engine

falters, return to FULL choke, then slowly move to

OFF position.

ToStopEngine

• Run engine for a few minutes before stopping to

help dry off any moisture on the engine.

• To help prevent possible freeze-up of starter,

proceed as follows.

ElectricStarter:

• Connect power cord to switch box on engine, then

to 120 volt AC receptacle. With the engine running, push starter button and spin the starter for several seconds. The unusual sound made by spinning the starter will not harm engine or starter. Disconnect the power cord from receptacle first, and then from

switch box.

RecoilStarter

• With engine running, pull starter rope with a rapid,

continuous full arm stroke three or four times. Pulling the starter rope will produce a loud clattering

sound, which is not harmful to the engine or starter.

• To stop engine, move throttle control to "stop" or

"off" position.

• Remove ignition key. Do not turn key.

• Disconnect the spark plug wire from the spark plug

to prevent accidental starting while equipment is unattended.

NOTE: Do not lose ignition key. Keep it in a safe place.

Engine will not start without the ignition key.

• Wipe all snow and moisture from the carburetor cover in the area of the control levers. Also, move

control levers back and forth several times.

ToEngageDrive

• With the engine running near top speed, move the shift lever into one of the six FORWARD positions or two REVERSE positions. Select a speed appropriate for the snow conditions that exist. Use the slower speeds until you are familiar with the operation of the snow thrower.

• Squeeze the auger control grip and the augers will turn. Release it and the augers will stop.

• Squeeze traction control grip and the snow thrower will move. Release it and drive motion will stop.

• NEVER move shift lever without releasing drive clutch.

ToEngageAugers

• To engage the augers and start throwing snow, squeeze the auger control grip against the left

handle. Release to stop the augers.

AugerControlTest

IMPORTANT:Perform the following test before

operating your snow thrower for the first time and at the

start of each winter season. Check the adjustment of the auger control as follows:

• When the auger control is released and in the disengaged "up" position, the cable should have very little slack. It should NOT be tight.

• In a well-ventilated area, start the snow thrower engine as instructed earlier in this section under the

heading Starting Engine. Make sure the throttle is

set in the FAST position.

• While standing in the operator's position (behind the snow thrower), engage the auger.

• Allow the auger to remain engaged for approximately ten (10) seconds before releasing the auger control. Repeat this several times.

• With the engine running in the FAST position and the auger control lever in the disengaged "up"

position, walk to the front of the machine.

• Confirm that the auger has completely stopped

rotating and shows NO signs of motion.

IMPORTANT:If the auger shows ANY signs of rotating, immediately return to the operator's position and shut

off the engine. Wait for ALL moving parts to stop before

re-adjusting the auger control.

• To readjust the control cable, loosen the hex jam

nut on the auger control cable "Z" fitting.

• Rotate the coupling end of the cable counterclockwise to provide more slack.

• Retighten the hex jam nut. See Figure 5.

Page 9

RepeatAugerControlTesttoverifyproper adjustmenthasbeenachieved.

Auger

Jam

Auger Control

Customer Support as instructed on page 2 for information regarding price and availability.

Snow Thrower Model Drift Cutter Kit

All models OEM-390-679

Cutter

Figure 5

ChuteClean-OutTool

The chute clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip. Should snow and ice lodge itself in the discharge chute during operation, proceed as follows to safely clean the chute and chute opening:

• Release both the Auger Control Lever and the Traction/Auger Control Lock Lever.

• Stop the engine by removing the ignition key.

• Remove the clean-out tool from the clip which secures it to the rear of the auger housing.

• Use the shovel-shaped end of the clean-out tool to dislodge and scoop any snow and ice which has

formed in and near the discharge chute.

_, WARNING: Never use your hands to clean

snow and ice from the discharge chute or auger housing

Refasten the clean-out tool to the mounting clip on the rear of the auger housing, reinsert the ignition key and start the snow thrower's engine. While standing in the operator's position (behind the snow thrower), engage the auger clutch lever

for a few seconds to clear any remaining snow and

ice from the discharge chute.

DriftCutters(if so equipped)

Drift cutters should be used when operating the snow thrower in heavy drift conditions.

On models so equipped, drift cutters are assembled to the auger housing inverted. Remove the carriage bolts by unthreading the hex nuts which secure them, and reinstall the drift cutters in their proper position before operating the snow thrower. See Figure 6.

If your unit is not equipped with drift cutters, contact

Carriage Screws /

Hex Nuts

Figure 6

TireChains(if so equipped)

Tire chains should be used whenever extra traction is

needed. If your unit is not equipped with tire chains, contact Customer Support as instructed on page 2 for information regarding price and availability.

OperatingTips

NOTE: Allow the engine to warm up for a few minutes. The engine will not develop full power until it reaches operating temperature.

_, ARNING: The temperature of the muffler

• For the most efficient snow removal, remove snow

• Discharge the snow downwind whenever possible.

• Slightly overlap each previous path.

• Set the skid shoes 1/4" below the shave plate for

• Be certain to follow the precautions found in the To

• Clean the snow thrower thoroughly after each use.

and the surrounding areas may exceed

150°F. Avoid these areas.

immediately after itfalls.

normal usage. The skid shoes may be adjusted

upward (to lower the shave plate) for hard-packed snow. Adjust downward (to raise the shave plate) when using on gravel or crushed rock.

Stop Engine section to prevent possible freeze-up.

Page 10

SECTION5: MAKINGADJUSTMENTS

,_ WARNING: NEVER attempt to make any

adjustments while the engine is running, except where specified in the operator's

manual.

TirePressure

• The tires are overinflated for shipping purposes. Before operating check tire pressure and reduce pressure to between 15psi and 20 psi.

NOTE: If the tire pressure is not equal in both tires, the unit may pull to one side or the other.

TractionControlandShiftLever

To check the adjustment of the traction control and shift lever, proceed as follows:

• To check the adjustment of the traction control clutch and shift lever, proceed as follows:

• With the engine off, move the shift lever all the way

forward to the highest speed. With the traction

control lever released, push the snow thrower

forward. The unit should roll forward. Then engage

the traction control grip. The wheels should stop turning.

• Now release the traction control grip and push the unit again.

• Move the shift lever back to the fast reverse position then all the way forward again. There

should be no resistance inthe shift lever, and the

wheels should keep turning.

• If you have resistance when moving the shift lever or the wheels stop when they should not, loosen the jam nut on the traction control cable and

unthread the cable one turn.

• If the wheels do not stop when you engage the traction control clutch grip, loosen the jam nut on

the traction control cable and thread the cable in one turn.

• Recheck the adjustment and repeat as necessary. Tighten the jam nut to secure the cable when correct adjustment is reached.

Auger

Housing

Frame Cover

Figure 7

• Remove the frame cover underneath the snow thrower by removing the six self-tapping screws.

• With the traction control released, there must be clearance between the friction wheel and the drive

plate in all positions of the shift lever.

• With the traction control engaged, the friction wheel

must contact the drive plate. See Figure 8.

If adjustment is necessary:

• Loosen the jam nut on the traction drive cable and adjust the cable as necessary. Refer to Figure 5.

• Retighten the jam nut to secure the cable when correct adjustment is reached.

• Reassemble the frame cover.

NOTE: If you placed plastic film under the gas cap earlier, remove it now.

Gear

_Chain

,_ WARNING: Drain the gasoline out of the

To test further for correct adjustment, if necessary, proceed as follows:

• Tip the snow thrower forward, allowing it to rest on

snow thrower's tank, or place a piece of plastic film under the gas cap to avoid spillage BEFORE making the adjustment.

the auger housing. See Figure 7.

Wheel

'_Drive Plate

Figure 8

Page 11

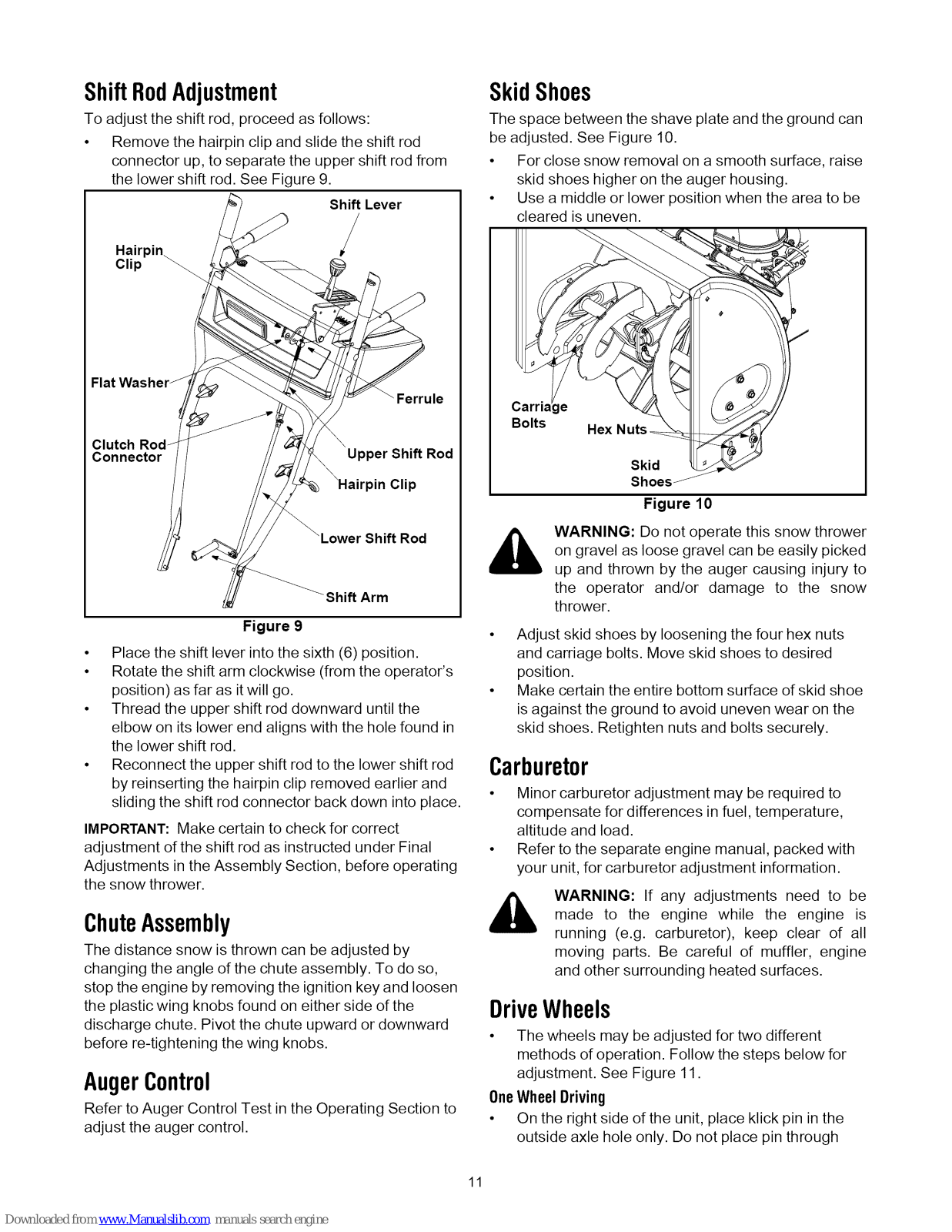

ShiftRodAdjustment

To adjust the shift rod, proceed as follows:

• Remove the hairpin clip and slide the shift rod connector up, to separate the upper shift rod from the lower shift rod. See Figure 9.

Shift Lever

Hairpin\ Clip

Ferrule

SkidShoes

The space between the shave plate and the ground can

be adjusted. See Figure 10.

• For close snow removal on a smooth surface, raise skid shoes higher on the auger housing.

• Use a middle or lower position when the area to be cleared is uneven.

Clutch Connector

Figure 9

• Place the shift lever into the sixth (6) position.

• Rotate the shift arm clockwise (from the operator's position) as far as itwill go.

• Thread the upper shift rod downward until the elbow on its lower end aligns with the hole found in

the lower shift rod.

• Reconnect the upper shift rod to the lower shift rod by reinserting the hairpin clip removed earlier and sliding the shift rod connector back down into place.

IMPORTANT: Make certain to check for correct adjustment of the shift rod as instructed under Final

Adjustments in the Assembly Section, before operating the snow thrower.

Upper Shift Rod

Clip

Shift Rod

Shift Arm

Skid

Figure 10

,_ WARNING: Do not operate this snow thrower

• Adjust skid shoes by loosening the four hex nuts

• Make certain the entire bottom surface of skid shoe

on gravel as loose gravel can be easily picked

up and thrown by the auger causing injury to

the operator and/or damage to the snow thrower.

and carriage bolts. Move skid shoes to desired

position.

is against the ground to avoid uneven wear on the

skid shoes. Retighten nuts and bolts securely.

Carburetor

• Minor carburetor adjustment may be required to compensate for differences infuel, temperature,

altitude and load.

• Refer to the separate engine manual, packed with your unit, for carburetor adjustment information.

ChuteAssembly

The distance snow is thrown can be adjusted by changing the angle of the chute assembly. To do so, stop the engine by removing the ignition key and loosen the plastic wing knobs found on either side of the discharge chute. Pivot the chute upward or downward before re-tightening the wing knobs.

AugerControl

Refer to Auger Control Test in the Operating Section to adjust the auger control.

,_ WARNING: If any adjustments need to be

made to the engine while the engine is running (e.g. carburetor), keep clear of all moving parts. Be careful of muffler, engine and other surrounding heated surfaces.

DriveWheels

• The wheels may be adjusted for two different

methods of operation. Follow the steps below for

adjustment. See Figure 11.

OneWheelDriving

• On the right side of the unit, place klick pin in the outside axle hole only. Do not place pin through

Page 12

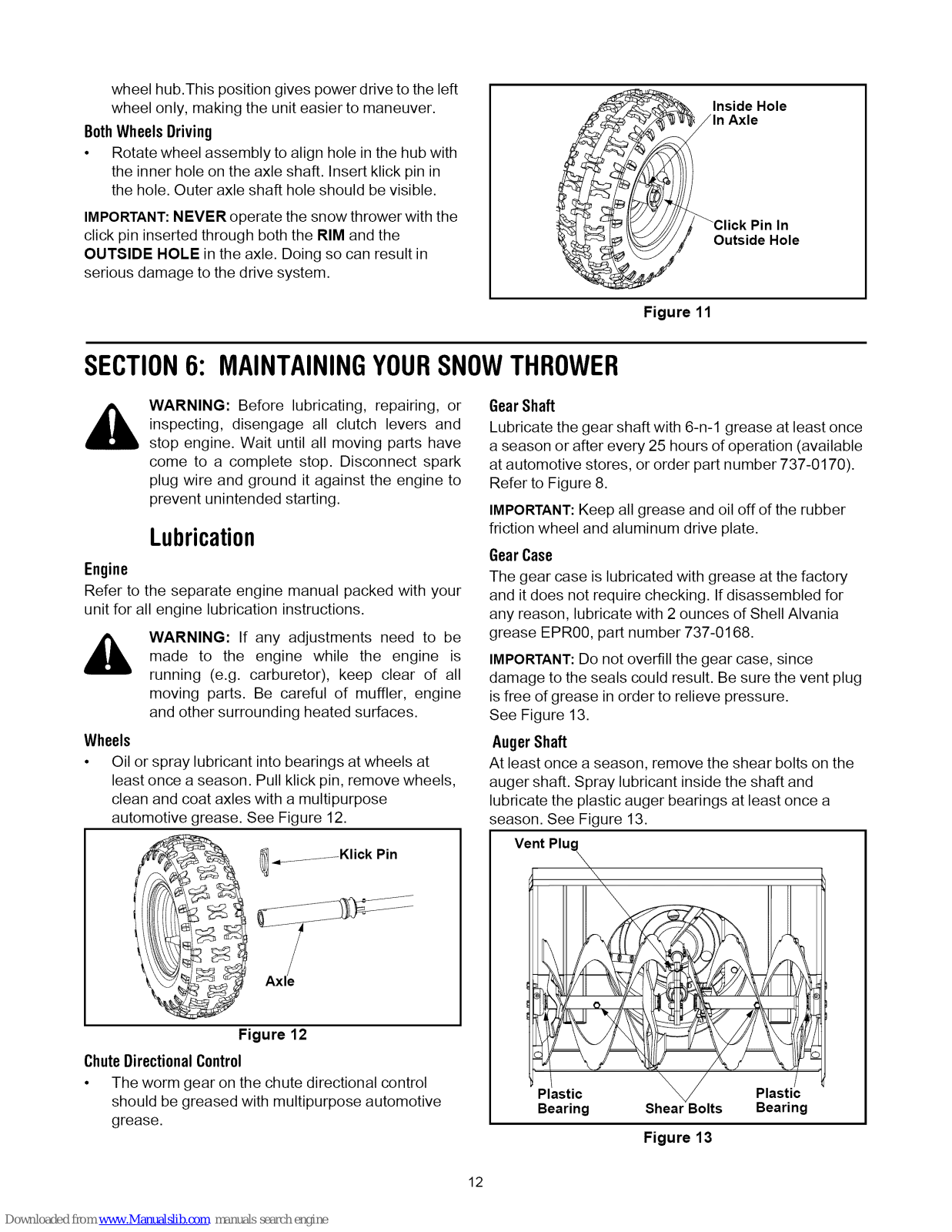

wheel hub.This position gives power drive to the left wheel only, making the unit easier to maneuver.

BothWheelsDriving

• Rotate wheel assembly to align hole in the hub with the inner hole on the axle shaft. Insert klick pin in

the hole. Outer axle shaft hole should be visible.

Inside Hole

Axle

IMPORTANT:NEVER operate the snow thrower with the click pin inserted through both the RIM and the OUTSIDE HOLE in the axle. Doing so can result in

serious damage to the drive system.

SECTION6: MAINTAININGYOURSNOWTHROWER

WARNING: Before lubricating, repairing, or inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting.

Lubrication

Engine

Refer to the separate engine manual packed with your unit for all engine lubrication instructions.

,_ WARNING: If any adjustments need to be

Wheels

made to the engine while the engine is running (e.g. carburetor), keep clear of all moving parts. Be careful of muffler, engine and other surrounding heated surfaces.

Oil or spray lubricant into bearings at wheels at least once a season. Pull klick pin, remove wheels, clean and coat axles with a multipurpose automotive grease. See Figure 12.

(_ ............ Klick Pin

GearShaft

Lubricate the gear shaft with 6-n-1 grease at least once a season or after every 25 hours of operation (available at automotive stores, or order part number 737-0170). Refer to Figure 8.

IMPORTANT:Keep all grease and oil off of the rubber

friction wheel and aluminum drive plate.

GearCase

The gear case is lubricated with grease at the factory

and it does not require checking. If disassembled for any reason, lubricate with 2 ounces of Shell Alvania

grease EPR00, part number 737-0168.

IMPORTANT:Do not overfill the gear case, since damage to the seals could result. Be sure the vent plug is free of grease inorder to relieve pressure. See Figure 13.

AugerShaft

At least once a season, remove the shear bolts on the

auger shaft. Spray lubricant inside the shaft and lubricate the plastic auger bearings at least once a season. See Figure 13.

Vent Plug

Pin In

Outside Hole

Figure 11

Figure 12

ChuteDirectionalControl

• The worm gear on the chute directional control should be greased with multipurpose automotive grease.

Plastic Plastic Bearing Shear Bolts Bearing

Figure 13

Page 13

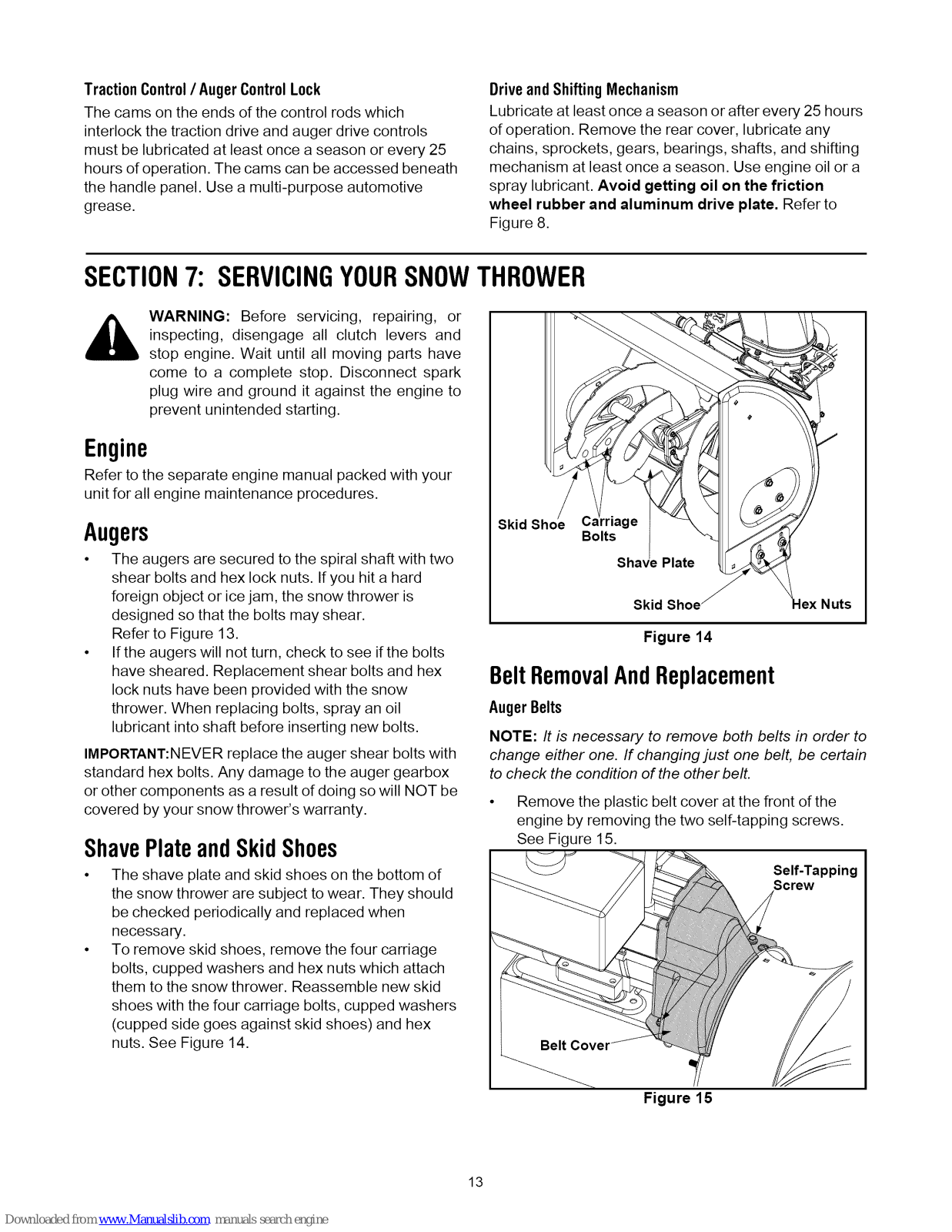

TractionControl / AugerControl Lock The cams on the ends of the control rods which

interlock the traction drive and auger drive controls must be lubricated at least once a season or every 25 hours of operation. The cams can be accessed beneath the handle panel. Use a multi-purpose automotive grease.

Driveand Shifting Mechanism Lubricate at least once a season or after every 25 hours

of operation. Remove the rear cover, lubricate any

chains, sprockets, gears, bearings, shafts, and shifting mechanism at least once a season. Use engine oil or a spray lubricant. Avoid getting oil on the friction

wheel rubber and aluminum drive plate, Refer to

Figure 8.

SECTION7: SERVICINGYOURSNOWTHROWER

WARNING: Before servicing, repairing, or inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting.

Engine

Refer to the separate engine manual packed with your unit for all engine maintenance procedures.

Augers

• The augers are secured to the spiral shaft with two shear bolts and hex lock nuts. If you hit a hard

foreign object or ice jam, the snow thrower is

designed so that the bolts may shear. Refer to Figure 13.

• If the augers will not turn, check to see ifthe bolts have sheared. Replacement shear bolts and hex lock nuts have been provided with the snow thrower. When replacing bolts, spray an oil lubricant into shaft before inserting new bolts.

IMPORTANT:NEVER replace the auger shear bolts with standard hex bolts. Any damage to the auger gearbox or other components as a result of doing so will NOT be covered by your snow thrower's warranty.

ShavePlateandSkidShoes

The shave plate and skid shoes on the bottom of the snow thrower are subject to wear. They should be checked periodically and replaced when necessary. To remove skid shoes, remove the four carriage bolts, cupped washers and hex nuts which attach

them to the snow thrower. Reassemble new skid shoes with the four carriage bolts, cupped washers

(cupped side goes against skid shoes) and hex nuts. See Figure 14.

Skid S

_ex Nuts

Figure 14

BeltRemovalAndReplacement

AugerBelts

NOTE: It is necessary to remove both belts in order to

change either one. If changing just one belt, be certain to check the condition of the other belt.

• Remove the plastic belt cover at the front of the engine by removing the two self-tapping screws. See Figure 15.

Self-Tapping Screw

Figure 15

Page 14

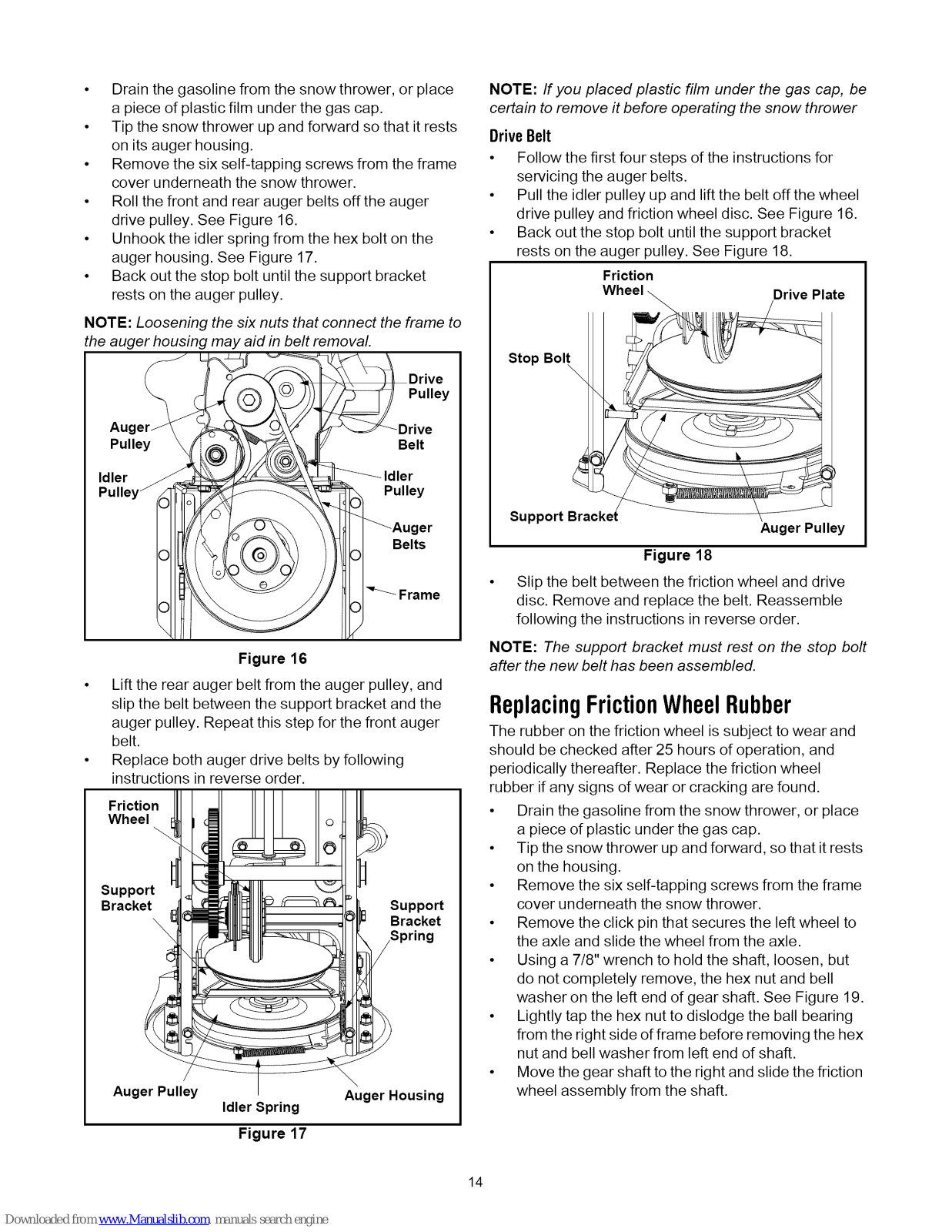

• Drain the gasoline from the snow thrower, or place a piece of plastic film under the gas cap.

• Tip the snow thrower up and forward so that it rests on its auger housing.

• Remove the six self-tapping screws from the frame cover underneath the snow thrower.

• Roll the front and rear auger belts off the auger drive pulley. See Figure 16.

• Unhook the idler spring from the hex bolt on the auger housing. See Figure 17.

• Back out the stop bolt until the support bracket rests on the auger pulley.

NOTE: Loosening the six nuts that connect the frame to the auger housing may aid in belt removal.

Pulley

Drive

Pulley

Idler

Belt

Pulley

Belts

NOTE: If you placed plastic film under the gas cap, be

certain to remove it before operating the snow thrower

DriveBelt

• Follow the first four steps of the instructions for servicing the auger belts.

• Pull the idler pulley up and lift the belt off the wheel drive pulley and friction wheel disc. See Figure 16.

• Back out the stop bolt until the support bracket rests on the auger pulley. See Figure 18.

Friction

Wheel _ Drive Plate

Stop Bol_

Support Bracket

Auger Pulley

Figure 18

Frame

Figure 16

• Lift the rear auger belt from the auger pulley, and slip the belt between the support bracket and the auger pulley. Repeat this step for the front auger

belt.

• Replace both auger drive belts by following instructions in reverse order.

Friction

Wheel

Support Bracket Support

Bracket

Auger Pulley

Idler Spring

Auger Housing

Figure 17

• Slip the belt between the friction wheel and drive disc. Remove and replace the belt. Reassemble following the instructions in reverse order.

NOTE: The support bracket must rest on the stop bolt after the new belt has been assembled.

ReplacingFrictionWheelRubber

The rubber on the friction wheel is subject to wear and

should be checked after 25 hours of operation, and periodically thereafter. Replace the friction wheel rubber if any signs of wear or cracking are found.

• Drain the gasoline from the snow thrower, or place a piece of plastic under the gas cap.

• Tip the snow thrower up and forward, so that it rests on the housing.

• Remove the six self-tapping screws from the frame cover underneath the snow thrower.

• Remove the click pin that secures the left wheel to the axle and slide the wheel from the axle.

• Using a 7/8" wrench to hold the shaft, loosen, but do not completely remove, the hex nut and bell washer on the left end of gear shaft. See Figure 19.

• Lightly tap the hex nut to dislodge the ball bearing from the right side of frame before removing the hex

nut and bell washer from left end of shaft.

• Move the gear shaft to the right and slide the friction wheel assembly from the shaft.

Page 15

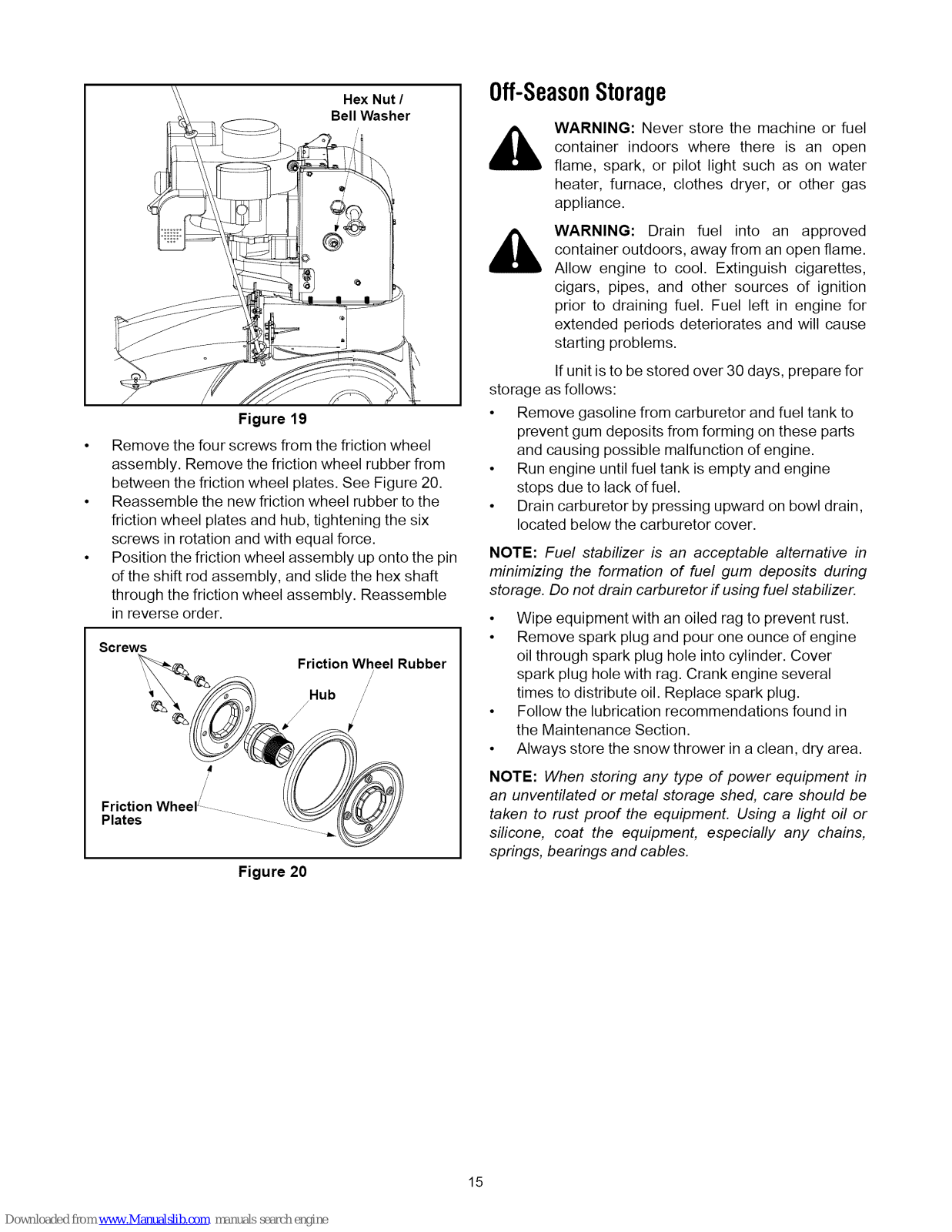

Hex Nut /

Bell Washer

Figure 19

• Remove the four screws from the friction wheel

assembly. Remove the friction wheel rubber from between the friction wheel plates. See Figure 20.

• Reassemble the new friction wheel rubber to the friction wheel plates and hub, tightening the six

screws in rotation and with equal force.

• Position the friction wheel assembly up onto the pin

of the shift rod assembly, and slide the hex shaft through the friction wheel assembly. Reassemble

in reverse order.

Screws

FrictionWheel Rubber

Hub //

0ff-SeasonStorage

WARNING: Never store the machine or fuel

container indoors where there is an open

flame, spark, or pilot light such as on water

heater, furnace, clothes dryer, or other gas appliance.

WARNING: Drain fuel into an approved

container outdoors, away from an open flame.

Allow engine to cool. Extinguish cigarettes,

cigars, pipes, and other sources of ignition prior to draining fuel. Fuel left in engine for extended periods deteriorates and will cause starting problems.

If unit is to be stored over 30 days, prepare for

storage as follows:

• Remove gasoline from carburetor and fuel tank to prevent gum deposits from forming on these parts

and causing possible malfunction of engine.

• Run engine until fuel tank is empty and engine

stops due to lack of fuel.

• Drain carburetor by pressing upward on bowl drain, located below the carburetor cover.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Do not drain carburetor if using fuel stabilizer.

• Wipe equipment with an oiled rag to prevent rust.

• Remove spark plug and pour one ounce of engine

oil through spark plug hole into cylinder. Cover spark plug hole with rag. Crank engine several times to distribute oil. Replace spark plug.

• Follow the lubrication recommendations found in

the Maintenance Section.

• Always store the snow thrower in a clean, dry area.

Friction Wheel L Plates

Figure 20

NOTE: When storing any type of power equipment in an unventilated or metal storage shed, care should be taken to rust proof the equipment. Using a light oil or silicone, coat the equipment, especially any chains, springs, bearings and cables.

Page 16

SECTION8: TROUBLESHOOTING

Trouble Possible Cause(s)

Engine fails to start Fuel tank empty, or stale fuel.

Blocked fuel line.

Choke not in ON position

Faulty spark plug. Key not in switch on engine.

Spark plug wire disconnected.

Primer button not depressed. Fuel shut-off valve closed

(if so equipped).

Engine runs erratic

Loss of power Spark plug wire loose.

Engine overheats Carburetor not adjusted

Excessive vibration Loose parts or damaged auger.

Unit fails to propel itself Incorrect adjustment of drive

Unit fails to Discharge chute clogged. discharge snow

Unit running on CHOKE. Blocked fuel line or stale fuel.

Water or dirt in fuel system. Carburetor out of adjustment.

Gas cap vent hole plugged.

Exhaust port plugged.

properly.

Incorrect fuel mixture.

cable.

Drive belt loose or damaged.

Foreign object lodged in auger.

Incorrect adjustment of drive

cable.

Drive belt loose or damaged.

Corrective Action

Fill tank with clean, fresh gasoline. Fuel will not last over thirty days unless a fuel stabilizer is used.

Clean fuel line. Move switch to ON position

Clean, adjust gap or replace.

Insert key. Connect spark plug wire. Refer to the engine manual. Open fuel shut-off valve.

Move choke lever to OFF position. Clean fuel line; fill tank with clean fresh gasoline. Fuel will not last over thirty days unless a fuel stabilizer is used.

Drain fuel tank. Refill with fresh fuel. Refer to the engine manual.

Connect and tighten spark plug wire. Remove ice and snow from cap. Be certain vent hole is clear. Clean following the engine manual. Refer to the engine manual packed with your unit or have carburetor adjusted by an authorized service dealer. Drain fuel tank. Refill with proper fuel mixture. Stop engine immediately and disconnect spark plug wire. Tighten all bolts and nuts. Make all necessary repairs. If vibration continues, have unit serviced by an authorized service dealer. Adjust drive cable.

Replace drive belt. Stop engine immediately and disconnect spark plug wire. Clean discharge chute and inside of auger housing. Stop engine immediately and disconnect spark plug wire. Remove object from auger. Adjust drive cable.

Replace drive belt.

NOTE: For repairs beyond the minor adjustments above, contact your local authorized service dealer.

Page 17

ModelE6C3H

Ref,

No,

10.

11.

12.

13.

14.

15.

16.

17.

Part No. Part Description

618-0123 618-0124 710-0642 711-0124A 714-0161 715-0143 717-0528A 717-0526 718-0186 721-0325 721-0327 736-0351 736-0369 736-0445 741-0662 741-0663 618-0160A

RH Housing LH Housing

Self Tapping Screw, 1/4-20 x .75 Auger Axle, 30"

Hi-Pro Key, 3/16 x 5/8 Spring Spiral Pin, .25 x 1.25

Worm Gear, 20-tooth Worm Shaft

Thrust Collar Grease Plug

Grease Seal Flat Washer, .76 x 1.5 x .030

Flat Washer, .508 x 1.0 x .020 Flat Washer, .76 x 1.5 x .060 Flange Bearing, .75 x 1.0 x .59 Flange Bearing, .503 ID x .75 OD

30" Auger Gearbox Assembly

Page 18

ModelE6C3H

67__

68-_" /

27 72

Page 19

ModelE6C3H

Ref,

No,

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

30.

31.

32.

35.

38.

39.

40.

41.

42.

Part No.

684-0008A 710-0458 710-0449 710-0788 712-0429 746-0778 710-1880 711-0677 747-0697 735-0234 712-3068 714-0104 720-0284 720-0274 736-0242 736-0275 736-0451 747-0620A 747-0621 749-0951 749-0952A 749-0953A 750-0963 784-5647 736-0509 710-0262 710-0703 710-0599 712-3010 732-0746 710-04071 735-0199A 712-3027 731-0851A 731-1300B 710-3015 731-04426 731-1379C

Part Description

Shift Arm Assembly Carriage Bolt 5/16-18 x 1.75" Carriage Bolt 5/16-18 x 2.25" Self-tapping Screw1/4-20 x 1"

Hex Lock Nut 5/16-18

Z Fitting

Hex Screw 5/16-18 x .75" Ferrule

Eyebolt

Grommet Only

Hex Nut 5/16-18

Cotter Pin

Handle Knob

Grip

Beltevitte Washer Flat Washer

Saddle Washer Shift Rod, Upper

Shift Rod, Lower

Lower Handle Upper Handle, RH

Upper Handle, LH

Connector, Shift Rod Chute Crank Bracket

Washer .72 OD x .135 ID Carriage Bolt, 5/16-18 x 1.5"

Carriage Bolt, 1/4-20 x .750" Self-tapping Screw, 1/4-20 x 0.5"

Hex Nut 5/16-18

Torsion Spring Carriage Screw 5/16-18 x 1.0

Rubber Bumper Hex Flange Lock Nut

Chute Flange Keeper

Lower Chute Hex Cap Screw 1/4-20 x .75

Upper Chute

Chute Adapter, 5"

Ref.

No,

43.

47.

48.

49.

53.

54.

55.

56.

57.

59.

60.

63.

64.

65.

67.

68.

69.

70.

71.

72.

73.

74.

75.

76.

77.

78.

79.

80.

81.

82.

83.

84.

85.

86.

87.

88.

89.

Part No.

736-0159 746-0901 741-0475 736-0159 684-0036A 684-0037B 710-1003 712-0271 712-0693 720-0232 725-1672 725-1658 726-0152 731-04144 747-1136 714-0507 747-0877 784-5680 784-5679 748-0362 748-0363 732-0145 710-0459A 784-5619A 712-0116 732-0193 736-0105 784-5682 784-5681 711-0653 684-0103 710-0451 714-0104 736-0185 705-5204A 720-0201A 726-0100

Part Description

5/16 Washer Control Cable

Plastic Bushing

5/16 Washer

Handle Assembly RH Handle Assembly LH

Special Hex Screw

Hex Sems Nut, 1/4-20 Hex Nut

Shift Knob

Lamp Housing Halogen Lamp, 50W, 12V

Mounting Clamp Handle Panel

Headlight Retainer Cotter Pin, 3/32 x .75 Cam Rod

RH Handle Support Bracket

LH Handle Support Bracket Cam Handle Lock

Handle Lock Pawt Compression Spring, .36 x 1.0

Hex Cap Screw, 3/8-24 x 1.5 Shift Handle

Jam Nut, 3/8-24 Comp. Spring, .39 x .6 x .88

Belt Washer

RH Handle Support Bracket

LH Handle Support Bracket Clevis Pin

Handle Panel Carriage Bolt, 5/16-18 x .75"

Hairpin Clip

Flat Washer Chute Crank Chute Crank Knob

Push Cap

Page 20

ModelE6C3H

2 1

4 3 _ "/5

11 10

3/ 43

36 41

37 l

Page 21

ModelE6C3H

Ref,

No.

1. 712-0116

2. 756-0178

3. 784-5632B

4. 710-0459A

5. 738-0281

6. 736-0167

7. 732-0611

8. 712-3068

9. 710-0276

10. 736-0119

11. 05931A

12. 741-0309

13. 710-0451

14. 705-5226

15. 684-0055C

16. 712-3010

17. 712-0429

18. 736-0242

19. 736-0231

24. 784-5618

Pa_ No.

Part Description

Lock Jam Nut 3/8-24 Flat Idler

Auger Idler Arm Hex Cap Screw 3/8-24 x 1.50

Shoulder Screw Wave Washer

Extension Spring Hex Nut 5/16-18

Carriage Bolt, 5/16-18 x 1.00 Lock Washer 5/16

Bearing Housing Ball Bearing Carriage Bolt, 5/16-18 x .75

Chute Reinforcement 30" Housing Assembly

Hex Nut 5/16-18 Lock Nut 5/16-18

Bellevitte Washer Flat Wshr, .3441D x 1.125 OD

Bearing Housing

Ref.

NO.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

Part No.

710-0726 736-0169

712-0798 741-0245

784-5580 736-0242

712-3010 784-5575

710-0451 684-0065

715-0114 618-0160A

605-5248C 736-0188

741-0493A 605-5249C

710-0890A 712-3068

731-2643 731-2635

Part Description

Hex Screw 5/16-18 x .75 Lock Washer 3/8

Hex Nut 3/8-16 Hex Flange Bearing

Slide Shoe Bell Washer

Hex Nut 5/16-18 Shave Plate Carriage Bolt 5/16-18 x .75

Impeller Assembl, 12"

Pin 30" Auger Gearbox Assembly

30" Spiral RH Flat Washer

Flange Bushing 30" Spiral LH

Shear Bolt 5/16-18 x 1.5 Hex Nut 5/16-18

Clean-Out Toot Clean-Out Tool Mount

Page 22

ModelE6C3H

L L

10 \

IMPORTANT: For a proper working machine, use Factory

Approved Parts. V-BELTS are specially designed to engage and disengage

safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely

15 \

L 31

Page 23

ModelE6C3H

Ref,

No,

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

Part No. Part Description

710-1652 731-1324

732-0710 710-0627

710-3005 05896A

748-0234 756-0987

754-0346 756-0986

736-0270 710-0230

756-0313 710-1245B

712-0181 756-0569

736-0242 736-0505

754-0430B 756-0967

736-0247 736-0331 710-0696 748-0360 710-0654A 629-0071 629-0059

738-0830 734-1712A

734-1525 734-0255

734-1711A

Hex Washer Screw 1/4-20 x .625 Belt Cover Extension Spring

Hex Screw 5/16-24 x .75 Hex Cap Screw 3/8-16 x 1.25

Drive Clutch Idler Bracket Shoulder Spacer

Pulley Half V-Belt

Pulley Half Bell Washer

Hex Cap Screw 1/4-28 x .50 Flat Idler

Lock Hex Cap Screw 5/16-24 Lock Jam Nut 3/8-16

Pulley Half Belt Washer

Flat Washer Belt

Auger Pulley Flat Washer 3/8 x 1.25 OD

Bell Washer Hex Cap Screw 3/8-24

Adapter Pulley Hex Screw 3/8-16 x 1.0

Extension Cord Upper Harness Assembly

Axle 16" Wheel Assembly

Tire 16x6.5x8 Tubeless Air Valve

Rim Assembly

Page 24

ModelE6C3H

26 A 36

Drive Clutch

Cable

Auger Clutch

Cable

l 41

Auger Clutch Cable

Blower Housing

Page 25

ModelE6C3H

Ref,

No.

1. 710-0599

2. 784-5688

3. 784-5687A

4. 756-0625

5. 738-0924

6. 784-5630B

7. 741-0563

8. 736-0105

9. 712-0116

10. 741-0598

11. 736-0188

12. 784-5689A

13. 710-0538

14. 736-0242

15. 714-0474

16. 736-0160

17. 710-0809

18. 784-5590

19. 784-5638A

20. 710-0599

21. 736-0351

22. 717-1445

23. 714-0126

24. 717-04094

Part No.

Part Description

Hex Screw Drive Cable Guide Bracket

Auger Clutch Cable Bracket

Roller Cable Hex Screw 1/4-28

Frame Assembly Ball Bearing

Bell Washer Lock Jam Nut

Hex Flange Bearing Flat Washer

Front Support Guide Bracket Lock Hex Screw Belt Washer .340 ID x .872 OD

Cotter Pin

Flat Washer .536 ID x .930 OD Hex Washer Screw 1/4-20

Frame Shift Bracket Frame Cover

Hex Washer Screw 1/4-20 Flat Washer .760 ID x .50 OD

Gear

Key

7-Tooth Shaft

Ref.

No,

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

Part No.

715-0249 714-0143

684-0042C 656-0012A

684-0013B

746-0897 748-0190

684-0021

732-0264 712-0711

746-0898B 738-0869

738-0830 790-00010

735-0243B 718-0301A

618-0063A

710-1652 712-0703A

711-1364 736-0142

714-0507 790-00011 716-0102

Part Description

Rolled Pin Klik Pin

Friction Wheel Assembly Friction Disc Wheel

Wheel Shift Rod Assembly

Drive Cable

Spacer

Friction Wheel Bracket Assembly Extension Spring

Jam Nut 3/8-24

Drive Cable

Axle 13" Wheels Axle 16" Wheels

Friction Plate Friction Wheel Rubber

Friction Wheel Hub Friction Wheel Bearing

Tap Screw 1/4-20

Insert Nut 5/16-18

Clevis Pin

Flat Washer .281 ID x .50 OD

Cotter Pin

Friction Plate

Snap Ring

Page 26

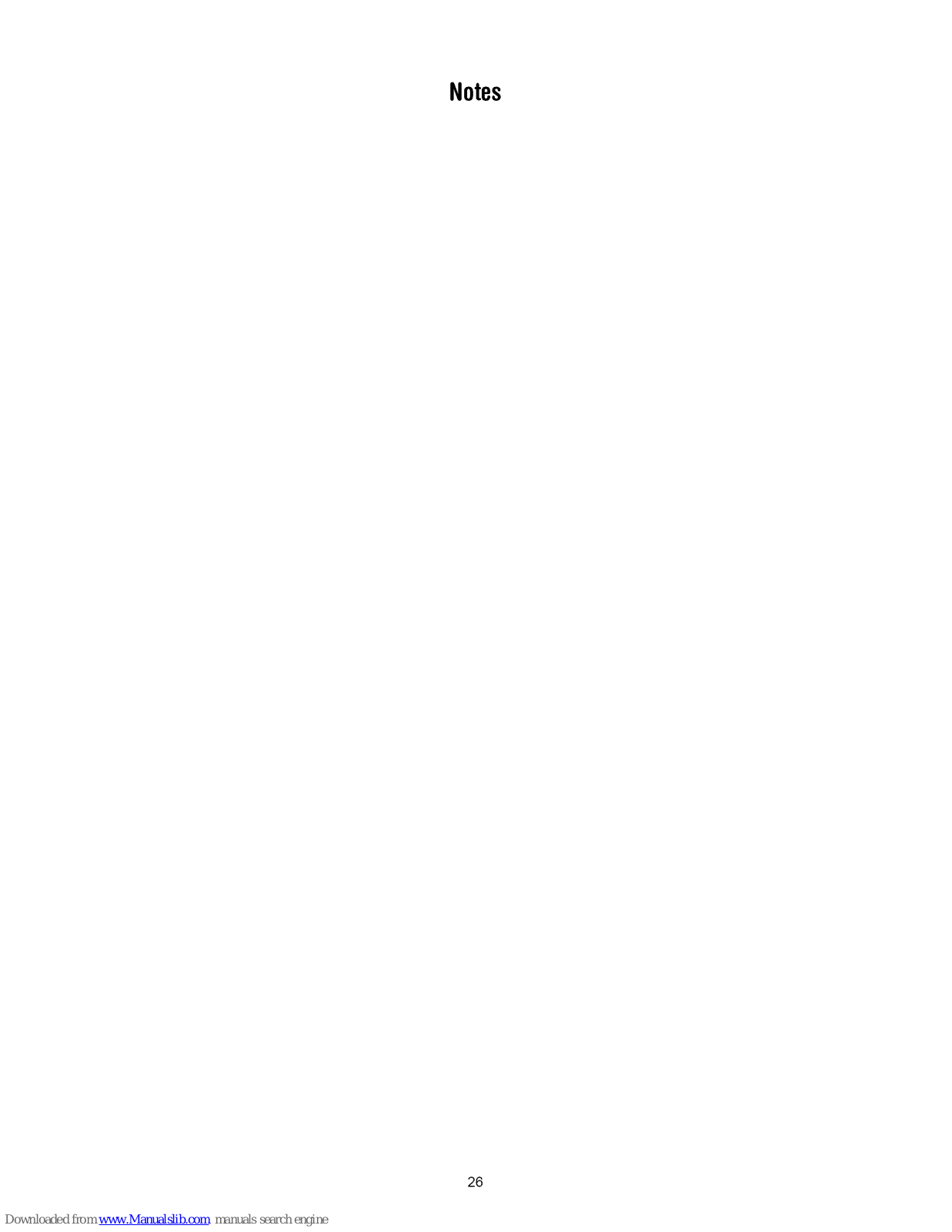

Notes

Page 27

Page 28

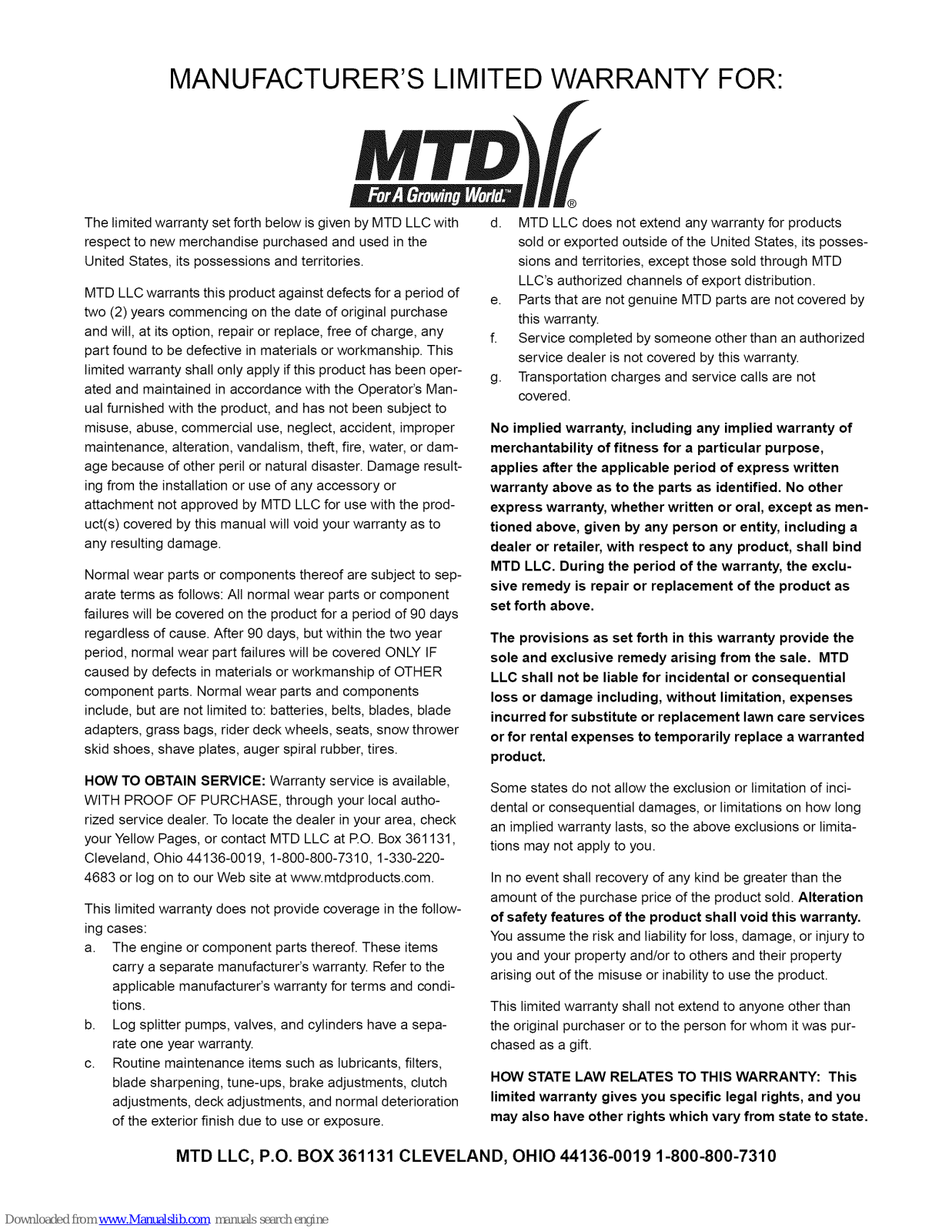

MANUFACTURER'S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the

United States, its possessions and territories.

MTD LLC warrants this product against defects for a period of two (2) years commencing on the date of original purchase and wilt, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This

limited warranty shall only apply if this product has been oper- ated and maintained in accordance with the Operator's Man-

ual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or dam-

age because of other peril or natural disaster. Damage result- ing from the installation or use of any accessory or

attachment not approved by MTD LLC for use with the prod- uct(s) covered by this manual will void your warranty as to

any resulting damage.

Normal wear parts or components thereof are subject to sep- arate terms as follows: All normal wear parts or component

failures will be covered on the product for a period of 90 days regardless of cause. After 90 days, but within the two year

period, normal wear part failures wilt be covered ONLY IF caused by defects in materials or workmanship of OTHER

component parts. Normal wear parts and components include, but are not limited to: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower

skid shoes, shave plates, auger spiral rubber, tires.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local autho-

rized service dealer. To locate the dealer in your area, check your Yellow Pages, or contact MTD LLC at RO. Box 361131,

Cleveland, Ohio 44136-0019, 1-800-800-7310, 1-330-220- 4683 or log on to our Web site at www.mtdproducts.com.

This limited warranty does not provide coverage in the follow- ing cases: a. The engine or component parts thereof. These items

carry a separate manufacturer's warranty. Refer to the applicable manufacturer's warranty for terms and condi-

tions.

b. Log splitter pumps, valves, and cylinders have a sepa-

rate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration

of the exterior finish due to use or exposure.

d. MTD LLC does not extend any warranty for products

sold or exported outside of the United States, its posses- sions and territories, except those sold through MTD

LLC's authorized channels of export distribution.

e. Parts that are not genuine MTD parts are not covered by

this warranty.

f. Service completed by someone other than an authorized

service dealer is not covered by this warranty.

g. Transportation charges and service calls are not

covered.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as men- tioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind

MTD LLC. During the period of the warranty, the exclu-

sive remedy is repair or replacement of the product as set forth above.

The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD

LLC shall not be liable for incidental or consequential loss or damage including, without limitation, expenses

incurred for substitute or replacement lawn care services

or for rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of inci- dental or consequential damages, or limitations on how tong an implied warranty lasts, so the above exclusions or limita-

tions may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for toss, damage, or injury to you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was pur-

chased as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you

may also have other rights which vary from state to state.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 1-800-800-7310
