OPERATOR’S MANUAL

21-inch Rotary Mower — Model Series 830

IMPORTANT

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-

covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

PRINTED IN U.S.A

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

www.mymowerparts.com

FORM NO. 769-03031

12/22/2006

For Parts Call 606-678-9623 or 606-561-4983

This Operator’s Manual is an important part of your new lawn mower. It will help you assemble,

prepare, and maintain the unit for best performance. Please read and understand what it says.

Table of Contents

Slope Gauge........................................................ 3

Safe Operation Practices ................................... 4

Setup and Adjustment ....................................... 6

Operating Your Lawn Mower .............................. 8

MTD LLC reserves the right to change product specifications, designs, and equipment without notice and without incurring obligation.

Finding and Recording Model Number

BEFORE ASSEMBLING YOUR NEW EQUIPMENT, please locate the model plate on the equipment and copy the information to the sample model plate provided to the right. You can locate the model plate by standing at the operating position and looking down at the rear of the deck. This information will be necessary to use the manufacturer’s web site, to obtain assistance from the Customer Support Department, or when contacting an authorized service dealer.

Maintaining Your Lawn Mower ......................... 10

Troubleshooting ................................................ 14

Off-Season Storage and Safety Labels .......... 15

Parts List ........................................................... 16

Model Number Serial Number

Customer Support

Please do NOT return the unit to the retailer from which it was purchased, without ﬁrst

contacting Customer Support.

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this unit, you can seek help from the experts. Choose from the options below:

• Visit www.mtdproducts.com

• Call a Customer Support Representative at 1-800-800-7310.

• The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for more information.

www.mymowerparts.com

3IGHTANDHOLDTHISLEVELWITHAVERTICALTREE

ORACORNEROFABUILDING

ORAFENCEPOST

&OLDALONGDOTTEDLINEREPRESENTSASLOPE



For Parts Call 606-678-9623 or 606-561-4983

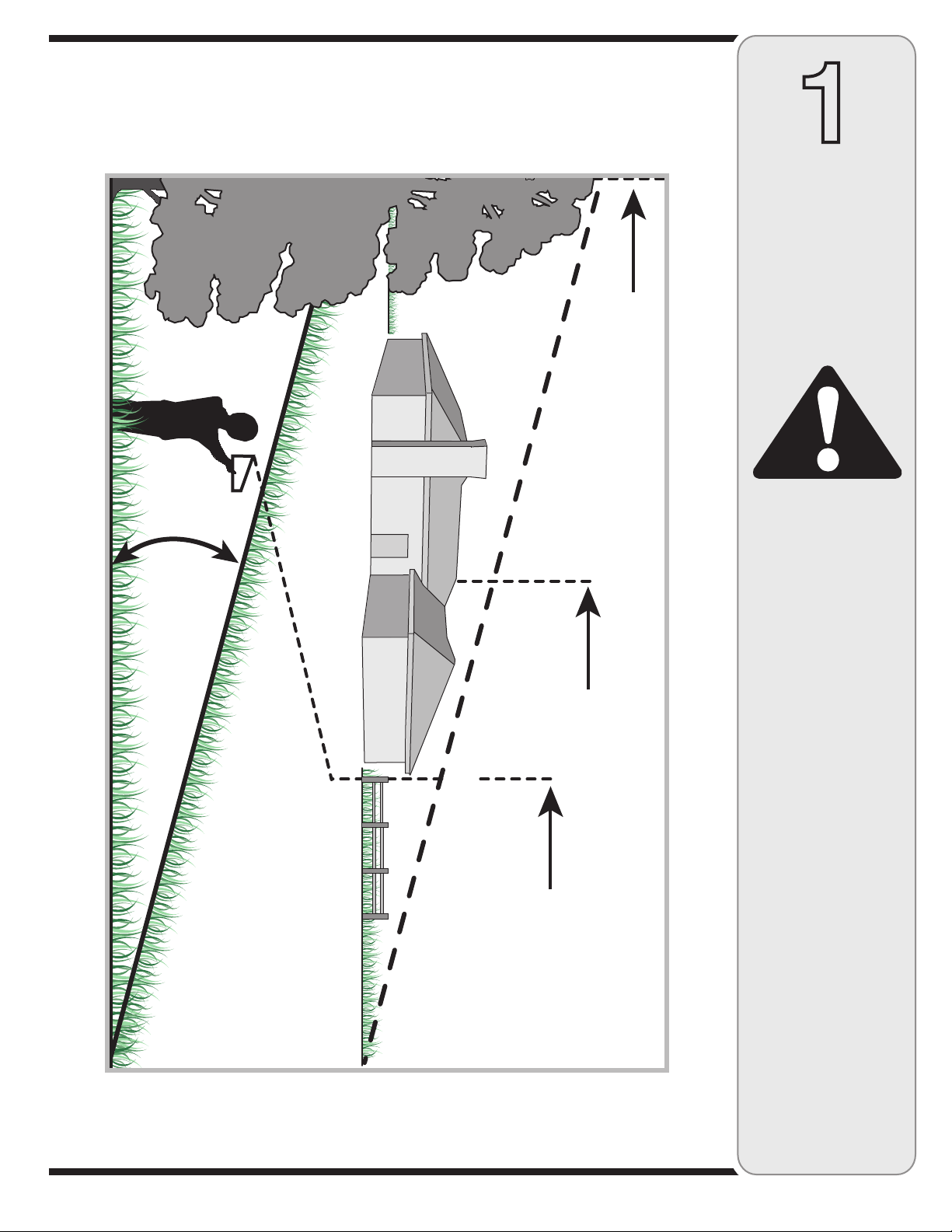

Use this page as a guide to determine slopes where you may not operate safely.

Do not operate your lawn mower on such slopes.

Slope

Gauge

WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet).

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

Safe

Operation

Practices

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol.

HEED ITS WARNING!

Your Responsibility

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Children

Tragic accidents can occur if operator is not alert to presence of children. Children are often attracted to mower and mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

1. Keep children out of the mowing area and under watchful care of a responsible adult other than the operator.

2. Be alert and turn mower off if a child enters the area.

3. Before and while moving backwards, look behind and down for small children.

4. Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your vision of a child who may run into the mower.

5. Keep children away from hot or running engines. They can suffer burns from a hot muffler.

6. Never allow children under 14 years old to operate a power

mower. Children 14 years old and over should read and

understand operation instructions and safety rules in this

manual and should be trained and supervised by a parent.

General Operation

1. Read this operator’s manual carefully in its entiret y before

attempting to assemble this machine. Read, understand,

and follow all instructions on the machine and in the

manual(s) before operation. Be completely familiar with

the controls and the proper use of this machine before

operating it. Keep this manual in a safe place for future

and regular reference and for ordering replacement parts.

2. This machine is a precision piece of power equipment,

not a plaything. Therefore, exercise extreme caution at all

times. Your unit has been designed to perform one job: to

mow grass. Do not use it for any other purpose.

3. Never allow children under 14 years old to operate this

machine. Children 14 years old and over should read and

understand the instructions in this manual and should

be trained and supervised by a parent. Only responsible

individuals who are familiar with these rules of safe

operation should be allowed to use this machine.

4. Thoroughly inspect the area where the equipment is to

be used. Remove all stones, sticks, wire, bones, toys

and other foreign objects, which could be tripped over or

picked up and thrown by the blade. Thrown objects can

cause serious personal injury. Plan your mowing pattern

to avoid discharge of material toward roads, sidewalks,

bystanders and the like. Also, avoid discharging material

against a wall or obstruction, which may cause discharged

material to ricochet back toward the operator.

5. To help avoid blade contact or a thrown object injury,

stay in operator zone behind handles and keep children,

bystanders, helpers and pets at least 75 feet from mower

while it is in operation. Stop machine if anyone enters

area.

6. Always wear safety glasses or safety goggles during opera

tion and while performing an adjustment or repair to protect

your eyes. Thrown objects which ricochet can cause serious

injury to the eyes.

7. Wear sturdy, rough-soled work shoes and close-fitting

slacks and shirts. Shir ts and pants that cover the arms and

legs and steel-toed shoes are recommended. Never operate

this machine in bare feet, sandals, slippery or light-weight

(e.g. canvas) shoes.

8. Do not put hands or feet near rotating parts or under cutting

deck. Contact with blade can amputate hands and feet.

9. A missing or damaged discharge cover can cause blade

contact or thrown object injuries.

10. Many injuries occur as a result of the mower being pulled

over the foot during a fall caused by slipping or tripping.

Do not hold on to the mower if you are falling; release the

handle immediately.

11. Never pull the mower back toward you while you are

walking. If you must back the mower away from a wall or

obstruction first look down and behind to avoid tripping and

then follow these steps:

a. Step back from mower to fully extend your arms.

b. Be sure you are well balanced with sure footing.

c. Pull the mower back slowly, no more than half way

toward you.

d. Repeat these steps as needed.

12. Do not operate the mower while under the influence of

alcohol or drugs.

13. Do not engage the self-propelled mechanism on units so

equipped while starting engine.

14. The blade control handle is a safety device. Never attempt

to bypass its operation. Doing so makes the safety device

inoperative and may result in personal injury through

contact with the rotating blade. The blade control handle

must operate easily in both directions and automatically

return to the disengaged position when released.

15. Never operate the mower in wet grass. Always be sure of

your footing. A slip and fall can cause serious personal

injury. If you feel you are losing your footing, release the

blade control handle immediately and the blade will stop

rotating within three seconds.

16. Mow only in daylight or good artificial light. Walk, never run.

17. Stop the blade when crossing gravel drives, walks or roads.

18. If the equipment should start to vibrate abnormally, stop the

engine and check immediately for the cause. Vibration is

generally a warning of trouble.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

19. Shut the engine off and wait until the blade comes to a

complete stop before removing the grass catcher or unclog-

ging the chute.

The cutting blade continues to rotate for a few seconds after

the engine is shut off. Never place any part of the body in

the blade area until you are sure the blade has stopped

rotating.

20. Never operate mower without proper trail shield, discharge

cover, grass catcher, blade control handle or other safety

protective devices in place and working. Never operate

mower with damaged safety devices. Failure to do so can

result in personal injury.

21. Muffler and engine become hot and can cause a burn. Do

not touch.

22. Only use parts and accessories made for this machine by

manufacturer. Failure to do so can result in personal injury.

23. If situations occur which are not covered in this manual,

use care and good judgment. Contact your dealer for

assistance.

Slope Operation

Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, use the slope gauge included as part of this manual to measure slopes before operating this unit on a sloped or hilly area. If the slope is greater than 15 degrees, do not mow it.

Do:

1. Mow across the face of slopes; never up and down. Exercise

extreme caution when changing direction on slopes.

2. Watch for holes, ruts, rocks, hidden objects, or bumps

which can cause you to slip or trip. Tall grass can hide

obstacles.

3. Always be sure of your footing. A slip and fall can cause

serious personal injury. If you feel you are losing your

balance, release the blade control handle immediately, and

the blade will stop rotating within 3 seconds.

Do Not:

1. Do not mow near drop-offs, ditches or embankments, you

could lose your footing or balance.

2. Do not mow slopes greater than 15 degrees as shown on

the slope gauge.

3. Do not mow on wet grass. Unstable footing could cause

slipping.

Service

Safe Handling Of Gasoline:

1. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately.

2. Use only an approved gasoline container.

3. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

4. Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

5. Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete. Do

not use a nozzle lock-open device.

6. Extinguish all cigarettes, cigars, pipes and other sources

of ignition.

7. Never fuel machine indoor because flammable vapors will

accumulate in the area.

8. Never remove gas cap or add fuel while engine is hot or

running. Allow engine to cool at least two minutes before

refueling.

9. Never over fill fuel tank. Fill tank to no more than ½ inch

below bottom of filler neck to provide for fuel expansion.

10. Replace gasoline cap and tighten securely.

11. If gasoline is spilled, wipe it off the engine and equipment.

Move unit to another area. Wait 5 minutes before starting

engine.

12. Never store the machine or fuel container near an open

flame, spark or pilot light as on a water heater, space

heater, furnace, clothes dryer or other gas appliances.

13. To reduce fire hazard, keep mower free of grass, leaves,

or other debris build-up. Clean up oil or fuel spillage and

remove any fuel soaked debris.

14. Allow a mower to cool at least 5 minutes before storing.

General Service:

1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

2. Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

3. Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade for damage (e.g., bent, cracked, worn) Replace blade with the original equipment manufacture’s (O.E.M.) blade only, listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

4. Mower blades are sharp and can cut. Wrap the blade or wear gloves, and use extra caution when servicing them.

5. Keep all nuts, bolts, and screws tight to be sure the equip ment is in safe working condition.

6. Never tamper with safety devices. Check their proper operation regularly.

7. After striking a foreign object, stop the engine, discon nect the spark plug wire and ground against the engine. Thoroughly inspect the mower for any damage. Repair the damage before starting and operating the mower.

8. Never attempt to make a wheel or cutting height adjust

ment while the engine is running.

9. Grass catcher components, discharge cover, and trail

shield are subject to wear and damage which could

expose moving par ts or allow objects to be thrown. For

safety protection, frequently check components and re-

place immediately with original equipment manufacturer’s

(O.E.M.) par ts only, listed in this manual. “Use of parts

which do not meet the original equipment specifications

may lead to improper performance and compromise

safety!”

10. Do not change the engine gover nor setting or over-rev the engine. The governor controls the maximum safe operating speed of the engine.

11. Maintain or replace safety labels, as necessar y.

12. Observe proper disposal laws and regulations. Improper

disposal of fluids and materials can harm the environment.

Safe

Operation

Practices

WARNING

This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all

instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol.

HEED IT’S WARNING!

Your Responsibility

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

www.mymowerparts.com

Setup and

Adjustment

NOTE: This Operator’s Manual covers several models. Lawn Mower features vary by model. Not all features discussed (or engines pictured) in this manual are applicable to all Lawn Mower models.

NOTE: Stand behind the mower as if you were going to operate it. Your right hand corresponds to the right side of the mower; your left hand corresponds to the left side of the mower.

NOTE: For shipping purposes your mower is set with the wheels in a low cutting height position. For best results raise the cutting position until it is determined which height is best for your lawn, refer to Adjustment section for instructions.

For Parts Call 606-678-9623 or 606-561-4983

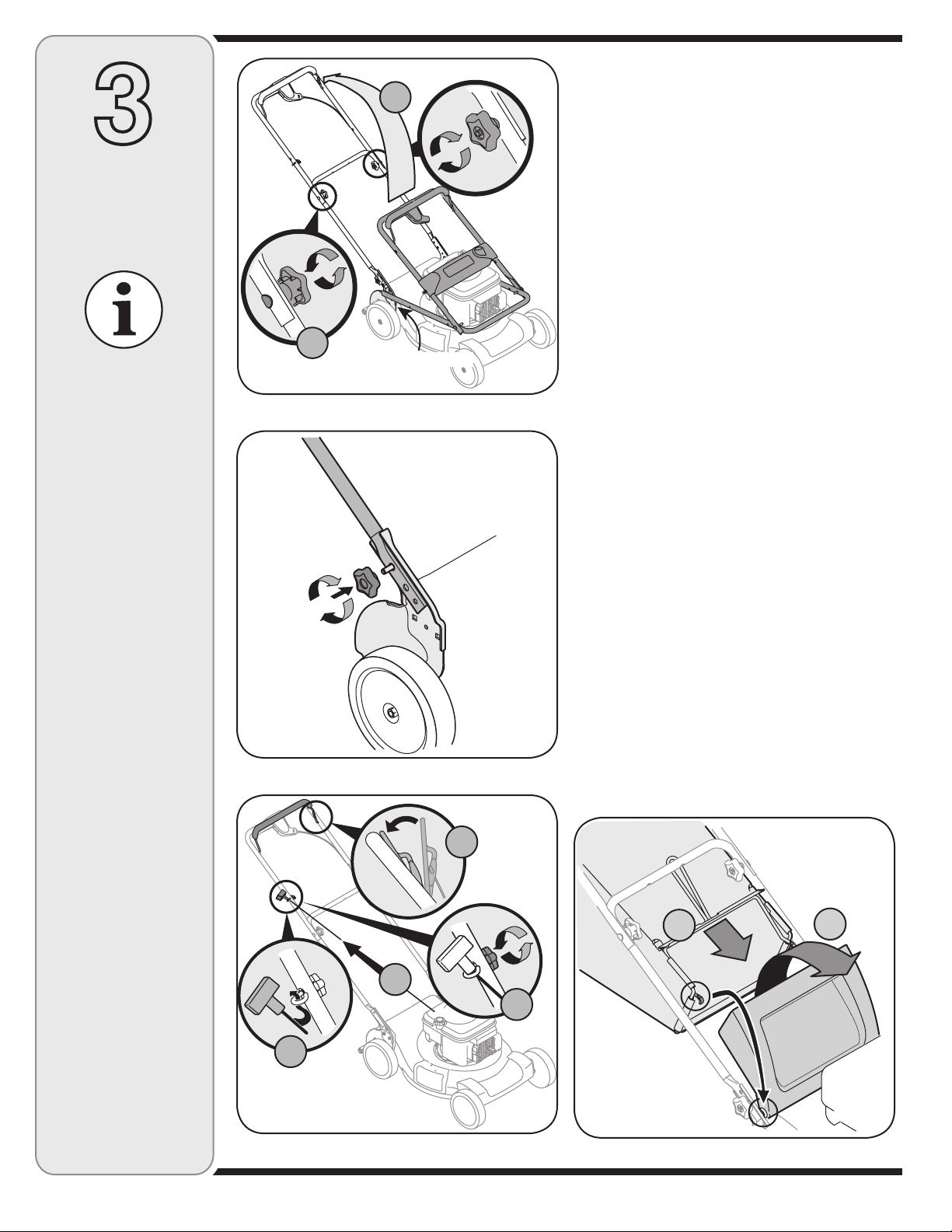

1. Remove grass catcher and any packing material which may be between upper and lower handles.

Handle Mounting Bracket

Figure 3-1: Unfold handle and tighten hardware.

Figure 3-2: Secure handle to handle mounting brackets.

a. Remove hand knobs from handle mounting

brackets and pull up and back on upper handle as shown in Figure 3-1. Make certain the lower handle is seated securely into the handle mounting brackets.

b. Tighten hand knobs securing upper handle to

lower handle. Make sure that each carriage bolt is seated properly in the handle.

2. Replace and tighten hand knobs removed earlier securing lower handle to handle brackets, Figure 3-2.

3. The rope guide is attached to the right side of the upper handle. Loosen the wing nut which secures the rope guide. See Figure 3-3.

a. Hold the blade control against upper handle.

b. Pull starter rope out of the engine. Release the

blade control.

c. Slip starter rope into rope guide.

d. Tighten wing nut.

4. Secure cables to the lower handle using the cable tie. Pull cable tie tight and cut off excess.

5. To assemble the grass catcher (if needed), place bag over frame with the black plastic side at the bottom. Slip plastic channel over hooks on frame. All channels except for center top of bag attach from the outside. The center of bag attaches from the inside.

6. Before attaching the grass catcher, the mulching baffle must be removed. Refer to Figure 3-5.

a. Lift rear discharge door.

b. Remove mulching baffle.

7. To attach grass catcher, refer to Figure 3-4.

a. Lift rear discharge door.

b. Place grass catcher on the pivot rod. Let go

of discharge door so that it rests on the grass catcher.

IMPORTANT

DO NOT crimp the cables when lifting the handle up.

Figure 3-3: Pull recoil starter through rope guide and tighten.

www.mymowerparts.com

Figure 3-4: Lift discharge door and place grass catcher on rod.

For Parts Call 606-678-9623 or 606-561-4983

WARNING: Never operate mower unless the hooks on the grass catcher are firmly

seated on the pivot rod and the rear discharge door rests firmly against top of the grass catcher.

8. The battery pack within the Electric Starter must be

charged 8 to 10 hours before use. Refer to “Charging Battery” in the Maintenance section for instructions.

9. Follow the steps below to install the mulching baffle:

a. Lift the rear discharge door and lift the grass

catcher up and off of the pivot rod, if installed.

b. Insert the mulching baffle as shown in Figure 3-5

and release the rear discharge door.

Figure 3-5: The mulching bafﬂe

Adjustments

10. To convert to side discharge, make sure grass catcher is off of the unit and rear discharge door is closed.

a. On the side of the mower, lift the mulching plug.

b. Slide two hooks on side discharge chute under

hinge pin on mulching plug assembly. See Figure 3-6. Lower the mulching plug. Do not remove side mulching plug at any time even when you are not mulching.

Figure 3-6: Installing the side discharge chute.

Setup and

Adjustment

WARNING

Never operate mower

unless the hooks on

the grass catcher are

firmly seated on the

pivot rod and the rear

discharge door rests

firmly against top of

the grass catcher.

Cutting Height

The cutting height adjustment lever is located above the rear left wheel. See Figure 3-7.

a. Pull the lever out and away from the mower.

b. Move the lever forward or back for desired cutting

height.

c. Release lever towards mower deck.

Figure 3-7: The cutting height adjustment lever.

Drive Control

The adjustment wheel is located in the drive control handle housing and is used to tighten or loosen the drive belt. You will need to adjust the drive control if the mower does not propel itself with the drive control engaged or if the mower’s wheels hesitate with the drive control engaged. If either of these conditions occur, rotate the adjustment wheel clockwise to tighten the cable or counterclockwise to loosen the cable. See Figure 3-8.

Figure 3-8: The adjustment wheel on the drive control.

CUTTING HEIGHT

For rough or uneven lawns, move the height adjustment lever to a higher position. This will help prevent scalping of the grass.

DRIVE CONTROL

For some people the drive control may not be in a comfortable position. You can adjust the handle by tightening the adjustment wheel.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Know Your Lawn Mower

Operating

Your Lawn

Mower

WARNING

The blade control

mechanism is a

safety device. Never

attempt to bypass its

operations.

Use extreme care

when handling gasoline. Gasoline is extremely flammable

and the vapors are

explosive. Never fuel

the machine indoors

or while the engine

is hot or running.

Extinguish cigarettes,

cigars, pipes and

other sources of

ignition.

IMPORTANT

This unit is shipped without gasoline or oil in the engine. Fill up gasoline and oil as instructed in the accompanying engine manual BEFORE operating your mower.

Drive Contro

Recoil Starter

Now that you have setup your lawn mower for operation, it’s important to become aquainted with its controls and features.

Blade Control

The blade control is attached to the upper handle of the mower. Depress and squeeze it against the upper handle to operate unit. Release it to stop engine and blade.

WARNING: The blade control is a safety device. Do not bypass its operation.

Drive Control

The drive control is located on the upper handle. Squeeze the drive control lever to engage the drive system. Release it to disengage the drive system. To slow down when approaching an obstacle, making a turn, or stopping, release the lever.

Cutting Height Adjustment Lever

The cutting height adjustment lever is located above the left rear wheel. To adjust the cutting height, refer to the Adjustment Section.

Recoil Starter

The recoil starter is attached to the right upper handle. Stand behind the unit and pull the recoil starter rope to start the unit.

Blade Control

Figure 4-1: The major components on the mower.

Height Adjustment Lever

Mulching

Plug

Mulching Plug

The mulching plug is used for mulching purpose. Instead of collecting the grass clippings in the grass catcher, your mower has the option of recirculating the clippings back to the lawn. Make sure that the rear discharge door is closed and the grass catcher is removed from unit while mulching.

Electric Starter (If Equipped)

The ignition switch is located on the left side of the electric starter handle panel. It is necessary to charge the battery for 8 to 10 hours before initial use. Refer to the Maintenance section for more information.

Gas and Oil Fill-Up

1. Check oil level and add oil if necessary. Follow engine manual for this.

2. Service the engine with gasoline as instructed in the engine manual. See Engine manual for location of gas and oil fill.

WARNING: Use extreme care when handling gasoline. Gasoline is extremely

flammable and the vapors are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other sources of ignition.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

WARNING: The operation of any lawn mower can result in foreign objects being

thrown into the eyes, which can damage your eyes severely. Always wear safety glasses while operating the mower or while performing any adjustments or repairs on it.

Starting Engine

WARNING: Be sure no one other than the

operator is standing near the lawn mower

while starting engine or operating mower. Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless and deadly gas. Keep hands, feet, hair and loose clothing away from any moving parts on engine and lawn mower.

1. Push primer (if equipped) three times. Wait about

two seconds between each push. See Figure 4-2. In temperature around 55°F or below, prime five times. Do not prime to restart a warm engine.

2. Standing behind the mower, squeeze the blade control

against upper handle. See Figure 4-2.

Recoil Start: Grasp recoil starter handle and pull

rope out with a rapid, continuous, full arm stroke. See Figure 4-2. Keeping a firm grip on the starter handle, let the rope rewind slowly. Repeat until engine cranks. Let the rope rewind each time slowly.

Electric Start (If Equipped): Turn ignition key to the

right to start the engine. See Figure 4-2. Release the key after the engine starts.

Honda Engine (If Equipped):

1. Place the fuel valve lever found on the left side of the

engine into the ON (OPEN) position.

2. Move the choke lever (If equipped) all the way

backward into the choke position. See Figure 4-2 inset.

3. Standing behind the mower, squeeze the blade control

against upper handle as shown in Figure 4-2. The choke will now begin to slowly return to the off choke position after activating the blade control. Therefore, quickly move onto step four below.

4. Holding these two handles together firmly, grasp recoil

starter handle and pull rope out with a rapid, continuous, full arm stroke. Keeping a firm grip on the starter handle let the rope rewind slowly. Repeat until engine cranks. Let the rope rewind each time slowly.

WARNING: Wait for the blade to stop

completely before performing any work

on the mower or to remove the grass

catcher.

Stopping Engine

1. Release blade control to stop the engine and blade.

2. Disconnect spark plug wire from spark plug and

ground against the engine.

Figure 4-2: Starting the mower.

Using Your Lawn Mower

WARNING: Never operate your mower without either the rear door or the entire grass catcher assembly firmly secured.

Be sure lawn is clear of stones, sticks, wire, or other objects which could damage lawn mower or engine. Such objects could be accidently thrown by the mower in any direction and cause serious personal injury to the operator and others.

WARNING: If you strike a foreign object, stop the engine. Remove wire from the

spark plug, thoroughly inspect mower for any damage, and repair damage before restarting and operating. Extensive vibration of mower during operation is an indication of damage. The unit should be promptly inspected and repaired.

Using as Mulcher

For mulching grass, remove the grass catcher and side discharge chute from the mower. For effective mulching, do not cut wet grass. If the grass has been allowed to grow in excess of four inches, mulching is not recommended. Use the grass catcher to bag clippings instead.

Using Grass Catcher

You can use the grass catcher to collect clippings while you are operating the mower. Refer to setup section for instructions on attaching the grass catcher.

Operating

Your Lawn

Mower

WARNING

The operation of any

lawn mower can result

in foreign objects being thrown into

the eyes, which can

damage your eyes

severely. Always wear

safety glasses while

operating the mower,

or while performing

any adjustments or

repairs on it.

Be sure no one other

than the operator is

standing near the lawn mower while starting engine or

operating mower.

Never run engine in-

doors or in enclosed,

poorly ventilated

areas. Engine exhaust

contains carbon

monoxide, an odor-

less and deadly gas.

Keep hands, feet, hair

and loose clothing

away from any moving

parts on engine and

lawn mower.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Maintaining

Your Lawn

Mower

Lubrication

1. Lubricate pivot points on the blade control at least once a season with light oil. The blade control must operate freely in both directions. See Figure 5-1.

2. Lubricate the wheels at least once a season with light oil (or motor oil). If wheels are removed for any reason, lubricate surface of the axle and inner surface of the wheel with light oil.

3. Lubricate the torsion spring and pivot point on the rear discharge door and side mulch plug periodically with light oil to prevent rust. See Figure 5-1.

4. The transmission is pre-lubricated and sealed at the factory and does not require lubrication.

5. Follow the accompanying engine manual for lubrication schedule and instruction for engine lubrication.

WARNING

Always stop engine,

disconnect spark plug,

and ground against

engine before clean-

ing, lubricating, or

performing any kind of

maintenance on your

machine.

IMPORTANT: The use

of a pressure washer or garden hose to clean your unit is not recommended. These may cause damage to electric components, spindles, pulleys, bearings, or the engine. The use of water will result in shortened life and reduce serviceability.

Figure 5-1: Lubrication areas on the mower.

Figure 5-2: Replacing the rear ﬂap.

General Recommendations

• Always observe safety rules when performing any maintenance.

• The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence. To receive full value from warranty, operator must maintain the lawn mower as instructed here.

• Changing of engine-governed speed will void engine warranty.

• All adjustments should be checked at least once each season.

• Periodically check all fasteners and make sure these are tight.

WARNING: Always stop engine, disconnect spark plug, and ground against engine before cleaning, lubricating or

doing any kind of maintenance on your machine.

Deck Care

1. Disconnect spark plug wire. Drain gasoline from lawn mower or place a piece of plastic under the gas cap.

2. Tip mower so that it rests on the housing. Keep the side with the air cleaner facing up. Hold mower firmly.

WARNING: Never tip the mower more than 90 degrees in any directions and do

not leave the mower tipped for any length of time. Oil can drain into the upper part of the engine causing a starting problem.

3. Scrape and clean the underside of the deck with a

suitable tool. Do not spray with water.

4. Put the mower back on its wheels on the ground. If

you had put plastic under the gas cap earlier, make sure to remove it now.

Engine Care

• Maintain oil level as instructed in engine manual.

• Service air cleaner every 25 hours under normal

conditions. Clean every few hours under extremely dusty conditions. Refer to engine manual.

• Clean spark plug and reset the gap once a season.

Check engine manual for correct plug type and gap specifications.

• Clean engine regularly with a cloth or brush. Keep the

cooling system (blower housing area) clean to permit proper air circulation. Remove all grass, dirt and combustible debris from muffler area.

Replacing Rear Flap

1. Lift up rear door.

2. Bend (bow) the rear flap inward on each side to

release tabs from the holes in the handle mounting brackets. See Figure 5-2.

3. Replace with new flap by bending the rear flap and

sliding into place.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Blade Care

WARNING: When removing cutting blade for sharpening or replacement, protect your hands with a pair of heavy gloves or

use a heavy rag to hold blade.

1. Disconnect spark plug wire from spark plug. Turn mower on its side making sure that the air filter and the carburetor are up.

2. Remove bolt, blade bell support, blade, and adapter from the engine crankshaft. See Figure 5-3.

NOTE: When removing the blade, adapter, etc., be careful not to remove or misplace parts above it associated with the engine pulley.

3. The blade can be sharpened with a file or on a grind ing wheel. Do not attempt to sharpen the blade while it is still on the mower. When sharpening blade, follow original angle of grind. Grind cutting edges equally to keep blade balanced.

4. Remove blade from the adapter for testing balance. Balance the blade on a round shaft screwdriver to check. Remove metal from the heavy side until it balances evenly.

WARNING: An unbalanced blade will cause excessive vibration when rotating at high speeds. It may cause damage to

mower, and could break causing personal injury.

5. Lubricate the engine crankshaft and the inner surface of the blade adapter with light oil. Slide the blade adapter onto the engine crankshaft. Place the blade on the adapter such that the side of the blade marked “Bottom” (or with part number) faces the ground when the mower is in the operating position. Make sure that blade is aligned and seated on blade adapter flanges.

6. Place blade bell support on the blade. Align notches on the blade bell support with small holes in blade. Replace hex bolt and tighten hex bolt to torque: 450 in. lbs. min., 600 in. lbs. max.

To ensure safe operation of your mower, periodically check the blade bolt for correct torque.

Belt Care

1. Disconnect the spark plug wire and ground it against the engine.

2. Drain the fuel tank or place a piece of plastic beneath the cap to prevent gasoline leakage.

3. Tip mower on its side (air cleaner side of engine up).

4. Remove blade, adapter, and related hardware as instructed under “Blade Care” above. See Figure 5-3.

5. a. Remove the self-tapping screws that secures the

engine baffle to the deck . See Figure 5-4. Remove engine baffle.

b. Loosen self-tapping screw that secures deck baffle

to the deck. See Figure 5-4.

Figure 5-3: Remove the bolt, suppor t, blade, and adapter to access the blade and underside components.

Figure 5-4: A. Remove the screws that hold the engine bafﬂe onto the deck. B. Loosen the screw that holds deck bafﬂe onto deck.

Figure 5-5: Remove belt from transmission and engine pulley.

6. a. Working from the rear of the mower, carefully remove belt from transmission pulley.

b. Once belt is off transmission pulley, push down on

deck baffle to access engine pulley and slide belt off this pulley and out from under the deck. See Figure 5-5.

Maintaining

Your Lawn

Mower

WARNING

When removing

the cutting blade

for sharpening or

replacement or

when sliding the belt

around it, protect

your hands with a

pair of heavy gloves

or use a heavy rag to

hold the blade.

An unbalanced

blade will cause

excessive vibration

when rotating at high

speeds. It may cause

damage to mower and

could break causing

personal injury.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

7. Replace with new belt, working it between the deck and baffle, first around the transmission pulley and then the engine pulley.

Maintaining

Your Lawn

Mower

WARNING

Batteries contain

sulfuric acid which

may cause burns.

Do not short circuit

or mutilate batteries

in any way. Do not

put batteries in fire

as these may burst

or release toxic

materials.

Do not remove the

battery pack from

the electric starter

housing for any

reason other than

replacement.

NOTE: Make certain that belt is seated correctly and that it is riding smoothly on the engine pulley and is not pinched between the lower and upper pulley halves.

8. Tighten self-tapping screw securing deck baffle loosened earlier.

9. Replace engine baffle and secure with self tapping screws.

10. Replace blade, blade adapter, and associated hardware. Follow instructions in Blade Care section for proper assembly.

11. Tip mower back onto its wheels and remove piece of plastic from under gas cap (if applicable).

Replacing Battery (If Equipped)

WARNING: Batteries contain sulfuric acid which may cause burns. Do not

short circuit or mutilate batteries in any way. Do not put batteries in fire as these may burst or release toxic materials.

1. Loosen round handle knobs securing upper and

lower handles and carefully fold the upper handle down toward the lower handle as shown in Figure 5-6.

2. Remove the two screws securing battery cover to

battery housing and place them to the side. See Figure 5-6.

3. Open battery cover, remove positive and negative

leads from battery, remove and replace with new battery. See Figure 5-7. Connect the positive lead to the positive side of the battery pack, then connect the negative side.

NOTE: The battery you have may differ slightly from the one shown in Figure 5-7. Refer to the Parts List.

IMPORTANT: When replacing battery pack in handle panel, battery pack must be positioned with the positive terminal to the left side and the negative terminal to the right side of panel (Positive terminal is closest to the key switch), Figure 5-7. Replacing battery pack incorrectly will cause serious damage.

4. Reattach battery cover to battery housing by secur

ing with the two screws removed earlier, making sure to snap the wire conduit on the left into place on the housing.

5. Fold handles back up and tighten handle knobs.

WARNING: Do not remove the battery

pack from the electric starter housing

for any reason other than replacement.

Figure 5-6: Fold down upper handle and remove two screws from back of housing.

Figure 5-7: Open cover to view battery and wires.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Charging Battery (If Equipped)

WARNING: The battery contains corrosive fluid and toxic material ; handle

with care and keep away from children. Do not puncture, disassemble, mutilate or incinerate the battery. Explosive gases could be vented during charging or discharging. Use in a well ventilated area, away from sources of ignition.

NOTE: The special designed plug on the charger will only

fit into the plug on the battery box.

WARNING: Use only the battery charger

supplied with this mower.

1. Plug the battery charger into the port on the underside

of the battery housing, Figure 5-8.

2. Insert the battery charger plug into a standard 120

volt household outlet. See Figure 5-8. Charge battery for 8 to 10 hours before initial use. Do not charge longer than 12 hours. The battery should only need to be charged upon initial setup and after any other extended periods of non-use.

IMPORTANT: Always plug charger lead into battery pack lead first, and then insert battery charger plug into 120 volt standard household outlet. Follow this order of action every time you charge the battery.

3. After charging, disconnect charger plug from outlet

first, then disconnect charger lead from battery.

Replacing Fuse (If Equipped)

The electric starter circuit and battery are protected by a 40 ampere fuse. If the fuse burns out, the electric starter will not operate. If the unit fails to start with the electric starter, perform the following steps to check the fuse inside the battery housing:

1. Open the battery cover as described in Replacing

Battery. Refer to Figure 5-6.

2. Remove fuse from socket and inspect as shown in

Figure 5-9. If it is burned out, replace with standard automotive 40 ampere fuse.

3. Carefully place wiring back into housing, close battery

cover, and fold upper handle back into place.

NOTE: The engine can be started manually if the fuse burns out.

Off-Season Storage

The following steps should be taken to prepare your lawn mower for storage.

• Clean and lubricate mower thoroughly as described in

the lubrication instructions.

• We do not recommend the use of a pressure washer

or garden hose to clean your unit.

Figure 5-8: Plug charger into battery lead (1) and then plug charger pack into 120 volt standard household outlet (2).

Figure 5-9: When replacing fuse, use a standard automotive 40 Amp fuse.

• Refer to engine manual for correct engine storage instructions.

• Coat mower’s cutting blade with chassis grease to prevent rusting.

• Store mower in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.

When storing any type of power equipment in a poorly ventilated or metal storage shed, care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts of your lawn mower before storage.

Battery (If Equipped)

The battery must be stored with a full charge. Extended storage of a discharged battery will reduce life and capacity of the battery.

Maintaining

Your Lawn

Mower

WARNING

The battery contains

corrosive fluid and

toxic material; handle

with care and keep

away from children.

Do not puncture,

disassemble, mutilate

or incinerate the

battery. Explosive

gases could be

vented during charg-

ing or discharging.

Use in a well venti-

lated area, away from

sources of ignition.

Use only the battery

charger supplied

with this mower.

NOTE: The engine can be started manually if the fuse burns out.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Trouble

Shooting

For repairs beyond

the minor adjust-

ments listed here,

contact an authorized

service dealer.

Problem

Engine fails to start

Engine runs erratic

Engine overheats

Cause

1. Blade control disengaged.

2. Spark plug wire disconnected.

3. Fuel tank empty or stale fuel.

4. Engine not primed (if equipped).

5. Faulty spark plug.

6. Blocked fuel line.

7. Engine flooded.

8. Burnt fuse. (Electric Start Only)

1. Spark plug wire loose.

2. Blocked fuel line or stale fuel.

3. Vent in gas cap plugged.

4. Water or dirt in fuel system.

5. Dirty air cleaner.

6. Carburetor out of adjustment.

1. Engine oil level low.

2. Air flow restricted.

3. Carburetor not adjusted properly.

Remedy

1. Engage blade control.

2. Connect wire to spark plug.

3. Fill tank with clean, fresh gasoline.

4. Prime engine as instructed in “Operating Your Lawn Mower”.

5. Clean, adjust gap, or replace.

6. Clean fuel line.

7. Wait a few minutes to restart, but do not prime.

8. Replace fuse (see Maintenance section)

1. Connect and tighten spark plug wire.

2. Clean fuel line; fill tank with clean, fresh gasoline.

3. Clear vent.

4. Drain fuel tank. Refill with fresh fuel.

5. Refer to engine manual.

6. Refer to engine manual.

1. Fill crankcase with proper oil.

2. Remove blower housing and clean.

3. Refer to engine manual.

Occasional skips

(hesitates) at

high speed

Idles poorly

Excessive

Vibration

Mower will not

mulch grass

Uneven cut

Mower will not

self propel

1. Spark plug gap too close.

2. Carburetor idle mixture adjustment improperly set.

1. Spark plug fouled, faulty or gap too wide.

2. Carburetor improperly adjusted.

3. Dirty air cleaner.

1. Cutting blade loose or unbalanced.

2. Bent cutting blade.

1. Wet grass.

2. Excessively high grass.

3. Dull blade.

1. Belt not installed properly

2. Debris clogging drive operation.

3. Damaged or worn belt.

1. Adjust gap to .030”.

2. Refer to engine manual.

1. Reset gap to .030” or replace spark plug.

2. Refer to engine manual.

3. Refer to engine manual.

1. Tighten blade and adapter. Balance blade.

2. See an authorized service dealer.

1. Do not mow when grass is wet; wait until later to cut.

2. Mow once at a high cutting height, then mow again at desired height or make a narrower cutting path.

3. Sharpen or replace blade.

1. Sharpen or replace blade.1. Dull blade.

1. Check belt for proper pulley installation and movement.

2. Stop engine, disconnect spark plug wire, and clean out debris.

3. Inspect and replace belt.

www.mymowerparts.com

4/./$925*.)&/+3)2%(4%#5$%2/4



33%,.5%4!2%0/ 2/2%6/#%'2!(#3)$

!#33!2' %#!,02%0/2034).)3)2%(#4

9,%4!)$%

--)%

#!,0%2$%'

!$&)

9!7!4%%

&

A

3$.!(0%



0%%+s

2&9!7!4%%&



$.!

342!0'.

)4!4

/2

.7/2(4

%".!#4!(4



34#%*

"/%6

/-%2s

./)4#%2)

$9

.!



%$!,



(

9"

3%33!,'94%&

!3

2!%7

32%(4/2/.%2$,

)

(

#.%(7

/-

4/./$s

$.5/2

!%

2!

4/./$3%0/

,3

././)45!#!248%%35s

.!(42

4!%2'

3%0/,37/-



2%6%..7/

$$.!0

52%6%.33/2#!



+//,4%%&25/9/4%3/,#2%7/-,,50



%,)(7$.

%2/&

$.)(%

"$.!.7/$



3$2!7+#!"'.)6/-



(4!%$2/925*.)35/)2%3

$)/6

$,%)(



)

)!24,/24.

%





)

$

30%%



$!%

9,%4!)$%

)





$

)







%#!,0

.

)



4%2

%6/#%

8!-

$#3

For Parts Call 606-678-9623 or 606-561-4983

Safety Labels Found On Your Lawn Mower

Safety

Labels

WARNING

DO NOT remove safety (or any) labels from mower for any reason.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Model Series 830

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Ref.

No.

10 710-0599 TT Screw, 1/4-20 x .500

11 787-01341A 21-inch Deck

12 710-0654A TT Screw, 3/8-16 x 1.00

13 787-01346 Front Deck Baffle

14 756-04157B†† Upper Engine Pulley

15 756-04156B†† Lower Engine Pulley

16 736-0514†† Flat Wash., .885 x 1.850 x .060

17 748-0376C†† Blade Adapter

18 710-1044 Screw, 3/8-24 x 1.50

19 736-0524B Blade Bell Support

20 742-0741 21” Mulching Blade

21 736-0513†† Sprg Washer, .890 x 1.70 x .048

22 750-1071†† Sleeve Spacer, .88 x 1.13 x .12

23 731-05903 Engine Baffle

24 731-05463A Deck Baffle

25 710-0260A Carriage Bolt, 5/16-18 x .62

26 712-04063 Flange Lock Nut, 5/16-18

27 731-05462A Trailshield

Part No. Description

1 746-04265A Drive Cable

2 735-04059 Rubber Grommet

3 753-05096A Drive Control Assembly

4 731-04859* Bail Cover

5 747-1161A Blade Control

6 746-04213 Control Cable

7 749-04037 Lower Handle

8 725-0157 Cable Tie

9 732-04265 Torsion Spring, LH

756-04273‡ Upper Engine Pulley

756-04272‡ Lower Engine Pulley

748-04096‡ Blade Adapter

750-04818‡ Slv. Spcr., 25mm x 1.375 x .375

Ref.

No.

28 731-05157 Mulch Plug

29 731-05017A Rear Door

30 710-1241 Screw, 1/4-15 x 1.00

31 720-04072 Star Knob

32 732-04264 Torsion Spring, RH

33 711-04374 Door Pivot Rod

34 647-04051 Grass Catcher Frame

35 664-04052A Grass Catcher - Gray

36 710-1174 Carriage Bolt, 5/16-18 x 2.00

37 720-0279 Wing Nut

38 710-1205 Eye Bolt

39 749-04209† Upper Handle

40 736-0270 Bell Washer, .265 x .75 x .062

41 732-1014 Torsion Spring

42 17032A Chute Deflector Adapter

43 747-0710 Hinge Pin

44 687-02055 Mulch Plug Assembly

45 731-04177 Side Discharge Chute

46 725-04323† 12 Volt Battery

47 725-04329† Battery Charger

48 726-0240† Cable Tie

49 728-0199† Rivet

50 725-04347† Key Switch

51 725-0201† Key

52 625-04029† Electric Starter Harness Ass’y.

53 710-1667A† Screw, #10-16 x .750

54 750-04825‡ Sleeve Spacer

55 736-0447‡ Washer, Wave, 1.5 x 1.0 x .029

† Equipped with Electric Start Units

†† Equipped on Units with Briggs & Stratton Engine

‡ Equipped on Units with Honda Engine

* If Equipped

Part No. Description

664-04046A Grass Catcher - Black

749-04206 Upper Handle

Parts List

To order replacement

parts, contact

1-800-800-7310

or visit

www.mtdproducts.com

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Model Series 830

shown for

reference

shown for

reference

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

Ref.

Part No. Description

No.

1 754-04093 V-Belt

2 732-04338 Spring Lever

3 720-0230 Foam Grip

4 717-04184A Spur Gear, 14T - LH

5 710-0599 TT Screw, 1/4-20 x 0.50

6 750-04305A Spacer

7 749-04267A Cross Bracket

8 687-02204 Front Bracket Assembly

9 731-05470 Clip Spacer

10 741-04136B Split Hex Flange Bearing

11 734-04033 Front Wheel

12 712-04065 Flange Lock Nut, 3 /8-16

13 634-04207D Rear Wheel

14 710-04531 Screw, 1/4-20 x .39

15 717-04192A Spur Gear, 14T - RH

16 736-3084 Flat Washer

17 782-7551A Wheel Dust Cover

18 748-04159 Transmission Bearing Support

19 750-04317 Clip Spacer

20 716-0198 Retaining Ring .875

21 687-02314 Rear Bracket Assembly

22 732-0320 Extension Spring

23 756-04151A Pulley, 3.36 OD

24 736-0105 Bell Washer, .375 x .870 x .063

25 712-0411 Hex Lock Nut, 5/16-24

26 687-02205 Handle Bracket Assembly LH

27 715-0221 Dowel Pin

28 618-04378 Transmission Assembly

29 687-02206 Handle Bracket Assembly RH

30 748-0390 Bearing Support Spacer

31 736-0504 Washer, Wave, .510 x .750 x .017

Parts List

To order replacement

parts, contact

1-800-800-7310

or visit

www.mtdproducts.com

IMPORTANT

For a proper working machine, use Factory Approved Parts. V-BELTS are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely.

www.mymowerparts.com

For Parts Call 606-678-9623 or 606-561-4983

MANUFACTURER’S LIMITED WARRANTY FOR

The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the United States, its possessions and territories. “MTD” warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any resulting damage. Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, shave plates, auger spiral rubber and tires. HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in your area, check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 441360019, or call 1-800-800-7310 or 1-330-220-4683 or log on to our Web site at www.mtdproducts.com. This limited warranty does not provide coverage in the following cases: a. The engine or component parts thereof. These items may carry a

separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and conditions.

b. Log splitter pumps, valves, and cylinders have a separate one year

warranty.

c. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.

d. Service completed by someone other than an authorized service

dealer.

e. MTD does not extend any warranty for products sold or exported

outside of the United States, its possessions and territories, except those sold through MTD’s authorized channels of export distribution.

f. Replacement parts that are not genuine MTD parts.

g. Transportation charges and service calls.

No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above. The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product. This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift. HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683

www.mymowerparts.com

MTD 769-03031-830series-SP Parts Manuals

Specifications and Main Features

Frequently Asked Questions

User Manual
