Parts Manual
S
ERIES
7000
COMPACT TRACTOR
MODEL 7252
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]
PRINTED IN U.S.A. FORM NO. 769-00090A
ECO 11781
(10/02)
-2-
TABLE OF CONTENTS
DESCRIPTION PAGE
Frame ............................................................... 3
Pedestal ............................................................ 4
Axle, Front ........................................................ 5
Hydraulics ......................................................... 6
Lift Valve and Position Control ......................... 7
Dash Panel and Steering Wheel ...................... 8
Controls ............................................................ 10
Battery and Electrical ....................................... 12
Transmission Connections................................ 13
Transmission
2WD Transmission ........................................
Differential and Final Drive ............................
Traction Drive ................................................
PTO Drive ......................................................
Engine and Drive Shaft ..................................... 22
14
16
18
20
Engine
Cylinder Heads and Crankcase .....................
Pistons and Crankshaft .................................
Valves and Camshaft ....................................
Lubrication .....................................................
Electrical ........................................................
Cooling ..........................................................
Control Linkage and Governor ......................
Carburetor .....................................................
Air Filter .........................................................
Starter ............................................................
Hood, Grill and Side Panels ............................. 36
Fender and Running Board .............................. 38
Seat Assembly .............................................. .... 4 0
Fuel Tank .......................................................... 41
Foldable ROPS ................................................. 42
Three Point Hitch .............................................. 43
Auxiliary Hydraulic Loader Valve (If Equipped) 44
Wheels 46
24
26
27
28
29
30
32
33
34
35
-3-
FRAME
5
9
1
8
3
4
7
10
9
9
6
2
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0666 Frame ............................................. 1
2 703-3503A Lever, Hood Latch .......................... 1
3 703-3497A Bracket, Running Board Mtg. LH .... 1
4 703-3379A Bracket, Running Board Mtg. RH ... 1
5 703-05137 Bracket, Hood Latch Mtg. ............... 1
6 710-3083 Screw, Hex Cap, .............................
7 710-0451 Screw, Carriage, .............................
8 710-1260A Screw, Hex Wash. Hd. ...................
9 712-3004A Nut, Hex Flange Lock, 5/16-18 ....... 5
10 726-0455 Latch, Hood .................................... 1
5/16-18 x 1.375 GR5
5/16-18 x .75
5/16-18 x .75
8
3
2
6
-4-
PEDESTAL
11
16
23
1
3
12
13
9
9
4
22
14
6
7
17
21
8
16
5
20
15
2
13
7
9
16
19
16
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 703-3383A Pedestal .................................... 1
2 703-3717 Bracket, Dash Mtg. RH ............. 1
3 703-3721 Bracket, Dash Mtg. LH .............. 1
4 703-3725 Bracket, Steering Column ......... 1
5 703-3895 Bracket, Brake Lever ................. 1
6 703-4064 Bracket, Pump Mtg. ................... 1
7 710-0623 Screw, Hex Wash, Hd Tapp ......
8 710-0642 Screw, Hex Wash, Hd Tapp ......
9 710-0653 Screw, Hex Wash, Hd Tapp ......
10 710-1260A Screw, Hex Wash, Hd Tapp ......
3/8-16 x .75
1/4-20 x .75
1/4-20 x .375
5/16-18 x .75
10
18
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
11 710-3008 Screw, Hex Cap ........................
12 711-1361 Shaft, Steering ........................... 1
13 712-0292 Nut, Speed, 1/4-20 .................... 2
14 712-0411 Nut, Hex Nylon Insert Lock, ......
15 712-3004A Nut, Hex Flange Lock, 5/16-18 2
4
16 714-0104 Pin, Internal Cotter .................... 4
17 716-0101 Ring, Snap, .75 ID ..................... 1
4
18 718-3129 Pump, Hydraulic Steering .......... 1
19 731-3359 Lever, Parking Brake ................. 1
4
20 736-0343 Washer, Flat, .33 x 1.25 x .12 ... 2
21 741-0245 Bearing, Hex Flange, .75 ID ...... 1
3
22 747-3454 Pin, Parking Brake Pivot ............ 1
23 747-3543A Rod, Parking Brake ................... 1
5/16-18 x .75 GR5
5/16-24 GR8
2
4
-5-
FRONT AXLE
8
28
27
28
29
21
13
8
6
13
10
30
15
22
4
14
27
5
24
12
19
17
26
28
28
25
10
13
29
25
21
5
8
6
3
12
24
8
19
13
10
9
1
12
11
27
13
27
14
18
12
10
31
20
25
2
27
7
23
16
13
10
31
17
26
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0721 Pin, Pivot Axle ........................... 1
2 603-0735 0637 Plate, Steering Cylinder Mtg. .... 1
3 603-0908 0637 Spindle Assembly, Steering LH 1
4 603-0909 0637 Spindle Assembly, Steering RH 1
5 619-3078
741-3116
6 703-3506 Plate, Pivot Axle Mtg. ................ 2
7 710-1843 Screw, Hex Cap, .......................
8 710-3067 Screw, Hex Cap, .......................
9 710-3118 Screw, Hex Cap ........................
10 710-3181 Screw, Hex Cap ........................
11 712-3005 Nut, Hex Flange Lock, ...............
12 712-3016 Nut, Hex Insert Lock 5/8-11 GR5 4
13 712-3083 Nut, Hex Insert Lock, 1/2-13 GR8 12
Hub Assembly ...........................
Bearing, Ball ...........................24
M12-1.75 x 25 GR8
1/2-13 x 1.75 GR5
3/8-16 x 1.0 GR5
1/2-13 x 1.5 GR5
3/8-16 GR5
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
14 712-3103 Nut, Hex Flange Lock, M12 x1.75 2
15 712-3104 N ut, Hex, M12 x 1.75 RH Thrd .. 1
16 712-3105 N ut, Hex, M12 x 1.75 LH Thrd ... 1
17 716-0116 Ring, Snap, 1.25 Dia Shaft ........ 2
18 717-3502 Cylinder, Steering ...................... 1
19 719-3158 Bracket, Axle Mtg. ..................... 2
20 719-3163 Axle, Pivot ................................. 1
4
21 721-0526 O-Ring, 1.374 x .139 ................. 2
22 723-0462 Ball Joint, RH Thrd .................... 1
8
23 723-0463 Ball Joint, LH Thrd ..................... 1
24 736-0746 Washer, Flat, .66 x 1.94 x .25 ... 2
1
25 736-0748 Washer, Flat, 1.25 x 1.94 x .063 4
26 736-0869 Washer, Flat, 1.25 x 2.25 x .040 2
6
27 737-3000 Fitting, Lube, 3/6 Drive .............. 5
28 741-3110 Bearing, Sleeve, 1.25x1.5x1.25 4
1
29 741-3115 Bearing, Thrust, 1.25 x 1.94 x .78 2
30 747-3421 Rod, Tie ..................................... 1
31 750-0499 Spacer, .501 x .75 x .78 ............ 2
-6-

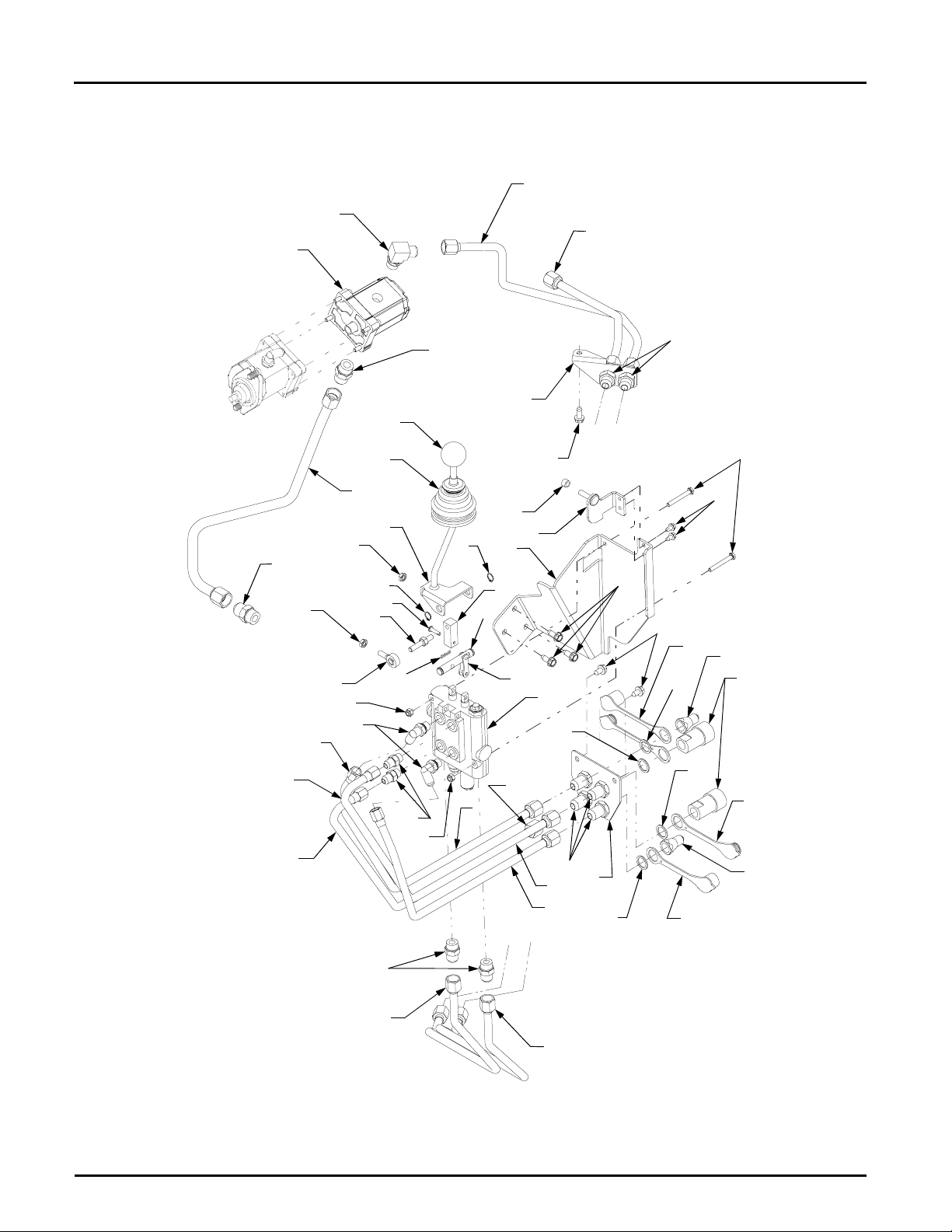

HYDRAULICS
11
9
4
16
6
10
6
17
15
5
12
4
13
4
7
5
4
2
4
727-3168
CYLINDER
PISTON END
727-3188A
727-3185A
5
1
14
727-3168
CYLINDER
BASE END
727-3187A
5
8
9
5
3
6
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 710-0607 Screw, Hex Wash Hd. Tapp ......
2 712-3004A Nut, Hex Flange Lock, ...............
3 726-0132 Clamp, Adjustable Hose 2
4 726-04004 Clamp, Hose ............................. 5
5 726-0475 Clamp, Hose ............................. 5
6 727-3012 Fitting, 90 Degree ...................... 3
7 727-3168 Hose, Steering .......................... 2
8 727-3177 Tube, Oil Cooler Return ............ 1
5/16-18 x .5
5/161-18 GR5
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
9
9 727-3178 Hose, Oil Return ........................ 1
10 727-3182 Tube, Lift Return Line ................ 1
2
11 727-3184 Hose, Lift Cylinder ..................... 1
12 727-3185A Hose, Lift Inlet ........................... 1
13 727-3187A Hose, Steering Pressure ........... 1
14 727-3188A Hose, Steering Tank .................. 1
15 727-3199 Manifold, Return ........................ 1
16 727-3209 Tube, Cylinder Return ............... 1
17 737-3127 Fitting, 90 Degree ...................... 1
-7-
LIFT VALVE AND POSITION CONTROL
22
16
17
13
24
23
14
19
9
11
22
2
20
16
15
16
21
12
18
28
8
12
25
26
3
28
7
11
27
5
10
29
11
17
6
11
1
16
4
13
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0663 Link Assembly, Feedback ......... 1
2 603-0664 Link Assembly, Input ................. 1
3 603-0776 Hub Assembly, HI-LO Shifter .... 1
4 703-3360 Link, Feedback .......................... 1
5 703-3610 Bracket, Lift Brace ..................... 1
6 703-3697 Bracket, Valve Mtg. ................... 1
7 703-3698 Handle, HI-LO Shifter ................ 1
8 703-3762 Bracket, Lift Mtg. ....................... 1
9 703-3763A Handle, Lift ................................ 1
10 710-0564 Screw, Hex Cap, .......................
11 710-0607 Screw, Hex Wash Hd. Tapp ......
12 710-3008 Screw, Hex Cap, .......................
13 711-1316 Ferrule, Feedback Adjustment .. 2
14 711-1612 Pin, .25 x 1.0 ............................. 1
15 711-1614 Link, Valve ................................. 1
1/4-20 x 2.75 GR5
5/16-18 x .5
5/16-18 x .75 GR5
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
16 712-0324 Nut, Hex Nylon Insert Lock ........
17 712-3004A Nut, Hex Flange Lock, ...............
18 712-3029 Nut, Hex Jam, 1/2-20 GR5 ........ 2
19 715-0120 Pin, Spirol, 3/16 x 1.0 ................ 1
20 718-3130 Valve, Hydaulic Lift .................... 1
21 723-3013 Washer, Friction, .515 x 1.5 x .12 1
22 731-3321 Grip, Handle .............................. 2
23 732-0330 Spring, Compression ................. 1
3
24 732-0499 Spring, Compression ................. 1
25 736-0185 Washer, Flat, .375 x .738 x .063 1
7
26 736-3022 Washer, Belleville, .....................
2
27 738-0145 Screw, Shoulder, .......................
28 741-0491 Bearing, Nylon Flange .5 ID ...... 2
29 747-3394 Rod, Feedback .......................... 1
14-20 GR8
5/16-18 GR5
.53 x 1.375 x .06
.5 x .835:3/8-16
7
2
2
1
20
9
23
-8-
DASH PANEL AND STEERING WHEEL
THROTTLE ASSEMBLY
HARDWARE POSITIONS
12
19
26
3
1
5
25
11
18
15
10
13
16
21
7
4
7
28
17
2
8
14
8
1
27
24
12
6
7
22
5
24
8
24
26
8
25
11
-9-
DASH PANEL AND STEERING WHEEL
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0711 Tab Assembly, Throttle .................. 1
2 629-3061 Wire Harness, Dash ....................... 1
3 631-0076 Boot, Steering Shaft ....................... 1
4 631-04007A Dash .............................................. 1
5 703-05132 Plate, Throttle Mtg. ........................ 1
6 710-0604A Screw, Hex Wash. Hd. Tapp .........
7 710-0924 Screw, Pan Hd., 1/4-20 x .75 ......... 4
8 710-3013 Screw, Hex Cap, 1/4-20 x .5 GR5 . 6
9 712-0237 Nut, Hex Lock, 5/16-24 .................. 1
10 712-0292 Nut, Speed, 1/4-20 ......................... 2
11 712-0116 Nut, Hex Insert Jam Lock, 3/8-24 1
12 723-3013 Washer, Friction, .515 x 1.5 x .12 .. 1
13 725-2017 Plug ................................................ 1
14 725-3265
725-3285
735-0688
15 725-3274 Switch, Headlight ........................... 1
16 725-3276 Switch, PTO ................................... 1
17 725-3277 Switch, Ignition ............................... 1
18 725-3279 Switch, Hazard ............................... 1
19 731-3209 Steering Wheel, Soft Grip .............. 1
20 731-3210 Cover, Steering Wheel ................... 1
21 731-3298 Handle, Throttle ............................. 1
22 731-3344 Panel, Dash Insert ......................... 1
23 736-0242 Washer, Belleville, .34 x .872 x .06 1
24 736-0329 Washer, Lock, 1/4 .......................... 3
25 7 36-0112 Washer, Bel leville, .531 x 1.62 x .045 2
26 736-3052 Washer, Flat, .406 x 1.0 x .105 ...... 1
27 746-3086A Cable, Throttle ............................... 1
28 759-3950 Key Set, Ingition ............................. 1
5/16-18 x .625
Panel, Instrument ...........................
Bulb ............................................
Plug ............................................
2
1
12
12
42
49
30
43
33
24
-10-
CONTROLS
A
22
39
63
B
20
40
3
52
26
29
54
19
22
51
19
53
33
57
32
13
57
65
52
26
24
12
6
55
49
30
2
31
25
46
62
38
31
54
51
41
33
50
9
59
19
59
50
56
19
8
60
35
33
66
14
15
33
36
29
53
48
33
57
5
33
34
37
47
58
1
17
61
58
17
23
50
33
67
10
44
28
21
45
18
16
50
28
A
33
19
11
18
34
33
19
61
4
22
7
B
52
26
27
30
33
49
64
24
43
CONTROLS
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0671 Shaft Assembly, Brake .............. 1
2 603-0672 Shaft Assembly, Forward .......... 1
3 603-0673A Link Assembly, Pedal ................ 1
4 603-0674A Plate, Bearing ............................ 1
5 603-0678 Link Assembly, Brake LH .......... 1
6 603-0679A Link Assembly, Parking Brake .. 1
7 603-0680 Link Assembly, Brake RH ......... 1
8 603-0749 Shaft Assembly, Differential ...... 1
9 603-0770 Link, PTO Select ....................... 1
10 603-0774 Link, HI-LO Shift ........................ 1
11 703-3152 Bracket, Reverse Switch ........... 1
12 703-3541 Bracket, Differential Pivot .......... 1
13 703-3571 Handle, PTO ............................. 1
14 703-3575 Link, Differential Pivot ............... 1
15 703-3582 Bracket, Diff. Actuator Mtg. ....... 1
16 703-4099 Bracket, Reverse Switch ........... 1
17 710-0599 Screw, Hex Wash Hd Tapp .......
18 710-0642 Screw, Hex Wash Hd Tapp .......
19 710-1260A Screw, Hex Wash Hd Tapp .......
20 710-0654A Screw, Hex Wash Hd Tapp .......
21 711-0415 Pin, Clevis, 3/8 x 1.75 ............... 1
22 711-0723A Ferrule, 3/8-24 x .375 Dia. Hdn 3
23 711-0832 Ferrule, 3/8-24 x .375 Dia. Hdn 1
24 711-1362 Ferrule, Brake ........................... 3
25 711-3397 Ferrule, 3/8-24 x .37 .................. 1
26 712-0239 Nut, Hex Lock, 1/2-20 ............... 3
27 712-0379 Nut, Hex Flange Lock, 3/8-24 ... 1
28 712-0431 Nut, Hex Flange Lock, 3/8-16 ... 2
29 712-0711 Nut, Hex Jam, 3/8-24 ................ 2
30 712-3027 Nut, Hex Flange Lock, 1/4-20 ... 3
31 712-3077 Nut, Hex, M8 x 1.25 GR8.8 ....... 2
32 713-3000 Link, Chain ................................ 1
33 714-0104 Pin, Internal Cotter .................... 13
1/4-20 x .5
1/4-20 x .75
5/16-18 x .75
3/8-16 x 1.0
-11-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
34 714-0147 Pin, Internal Cotter .................... 2
35 714-3020 Pin, Internal Cotter .................... 1
36 725-3164A Switch, Plunger ......................... 1
37 725-3191A Switch, Plunger ......................... 1
38 727-04033 Cylinder, Damper ...................... 1
39 731-3296 Pedal, Brake .............................. 1
40 731-3299A Pedal, Forward/Reverse ........... 1
41 731-3320 Pedal, Differential ...................... 1
42 731-3321 Grip, Handle .............................. 1
43 732-0324 Spring, Compression ................. 2
44 732-0756A Spring, Torsion .......................... 1
45 732-0859 Spring, Rev/No Cut ................... 1
46 732-3065 Spring, Compression ................. 1
47 732-3117 Spring, Switch Actuator ............. 1
48 732-3118 Spring, Extension ...................... 1
49 736-0173 Washer, Flat, .28 x .74 x .063 ... 3
50 736- 0185 Washer, Flat, .375 x .738 x .063 4
2
51 736- 0232 Washer, Wave, .53 x .78 x .013 2
4
52 736- 3019 Washer, F lat, .53 x .1.06 x .134 3
53 736-3069 Washer, Flat, .53 x .875 x .15 ... 2
12
54 738-0509 Screw, Shoulder, .50 x 1.825 .... 2
55 738-0533 Screw, Shoulder, .498 x 1.635 1
2
56 738-0689 Screw, Shoulder ........................
57 741-0491 Bearing, Nylon. .50 ID x .341 .... 4
58 741-0598 Bearing, Hex Flange, .752 ID .... 2
59 741-3073 Bearing, Flange, .375 x .58 x .25 2
60 741-3074 Bearing, Flange..........................
61 741-3084 Bearing, Flange..........................
62 747-3396 Rod, Hydro Control ................... 1
63 747-3399 Rod, Brake, LH .......................... 1
64 747-3400 Rod, Brake, RH ......................... 1
65 747-3414 Rod, PTO Control ...................... 1
66 747-3428 Rod, Diff. Lock Control .............. 1
67 747-3429 Rod, HI-LO Control ................... 1
1/2 x .180: 3/8-24
.626 x .938 x .344
.751 x 1.125 x .375
1
2
2
-12-
BATTERY AND ELECTRICAL
3
7
2
8
5
6
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
† 629-3060 Harness, Main Wire ....................... 1
2 703-4104 0637 Strap, Battery Holddown ................ 1
3 703-4131 Bracket, Fuse Center ..................... 1
4 710-0206 Screw, Hex Cap, 1/4-10 x .875 GR5 2
5 710-0599 Screw, Hex Wash Hd. Tapp ..........
6 712-0324 Nut, Hex Nylon Insert Lock, 1/4-20 2
7 712-0421 Nut, Wing w/Bell Washer, 5/16-18 2
8 725-3174 Battery, 500 cca Dry ...................... 1
9 725-3273 Switch, PTO Reverse Override ...... 1
10 747-3433 Rod, Battery Holddown .................. 2
1/4-20 x .5
10
4
9
2
† Not Shown
-13-
TRANSMISSION CONNECTIONS
21
14
8
15
6
12
15
9
16
2
5
19
20
22
3
18
1
10
17
10
4
11
15
13
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0748 0637 Bracket, Lower Hitch RH ........... 1
2 603-0751 0637 Bracket, Lower Hitch LH ........... 1
3 603-0753 0637 Bracket, Top Link ...................... 1
4 603-0754A 0637 Bracket, Cylinder ....................... 1
5 603-0758 0637 Bracket, Drawbar ...................... 1
6 703-3542A
777S30634
7 703-3548A Bracket, Chain LH ..................... 1
8 703-3549A Bracket, Chain RH .................... 1
9 710-0505 Screw, Hex Cap ........................
10 710-0964A Screw, Hex Cap ........................
11 710-1515 Screw, Hex Cap ........................
Shield, PTO ...............................
Graphic, Warning ...................11
7/16-14 x 1/0 GR5
5/8-18 x 1.31 GR5
5/8-11 x 1.5 GR5
14
7
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
12 710-3039 Sc rew, Hex Cap ........................
13 710-3067 Sc rew, Hex Cap ........................
14 710-3119 Sc rew, Hex Cap ........................
15 710-3131 Sc rew, Hex Cap ........................
16 711-1503 Pin, Lift, .75 x 2.125 .................. 1
17 712-3063 Nut, Hex Lock, 5/8-18 ............... 8
4
18 716-0101 Ring, Snap, 75 Dia .................... 1
19 717-3504 Cylinder, Lift .............................. 1
8
20 736- 0192 Washer, F lat, .531 x .93 x .09 2
21 703-05133 Bracket, Hitch Clip .................... 1
1
22 747-04109 Rod, Top Link Retainer ............ 1
5/16-18 x .5 GR5
1/2-13 x 1.75 GR5
3/8-16 x .75 GR5
1/2-13 x 1.0 GR5
4
2
6
10
-14-
2WD TRANSMISSION
26
22
48
16
19
14
36
51
28
49
39
6
25
15
34
24
15
32
49
28
33
51
44
17
50
5
33
4
10
30
18
23
11
20
47
7
37
42
31
9
3
16
52
48
40
43
27
45
35
12
45
16
41
13
46
38
1
21
8
29
2
38
20
16
48
48
2WD TRANSMISSION
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
TBD
737-3025
737-3062
737-3035
759-3958
1 603-0688A Arm, Hydro Control ................... 1
2 603-0712A Bracket, Transmission Mtg. RH 1
3 603-0713A Bracket, Transmission Mtg. RH 1
4 619-3059 Cover, Transmission Housing .. 1
5 703-3577 Plate, Feedback ....................... 1
6 703-3715 Baffle, Oil .................................. 1
7 703-05041 Arm, Neutral RH ....................... 1
8 703-05042 Arm, Neutral LH ........................ 1
9 710-0294 Screw, Hex Cap, .................. ....
10 710-0591 Screw, Hex Cap Lock, ..............
11 710-0833 Screw, Hex Cap, ......................
12 710-1633 Screw, Plug, M14 x 1.5 x .827 .. 1
13 710-1853 Screw, Hex Special Set, ...........
14 710-3005 Screw, Hex Cap, ......................
15 710-3013 Screw, Hex Cap, ......................
16 710-3032 Screw, Hex Cap, ......................
17 710-3120 Screw, Hex Cap Lock , .............
18 710-3262 Screw, Low Hd. Cap, ................
19 711-1355 Shaft, Rock ............................... 1
20 712-0431 Nut, Hex Flange Lock, 3/8-16 ... 2
Transmission Ass’y., Includes
Ref. Nos.
Transmission Oil, 1 Qt.
Transmission Oil, 1 Gal.
Transmission Oil, 5 Gal.
Sealant, Loctite
1/4-20 x .375 GR5
3.8-24 x 1.0 GR5
5/16-18 x 5.25 GR5
5/16-18 x .625
3/8-16 x 1.25 GR5
1/4-20 x .5 GR5
1/2-13 x 1.25 GR5
3/8-16 x 1.5 GR5
3/8-16 x .75
®
Black, 5.3 oz.
-15-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1
21 716-0111 Ring, Retaining ......................... 1
22 716-0195 Ring, Retaining ......................... 1
6.5 gl.
23 717-3507 Pump, Hydrostatic Transmission 1
24 718-3131 Pump, Auxiliary Hydraulic ......... 1
25 719-3166 Arm, Upper Hitch RH ................ 1
AR
26 719-3167 Arm, Upper Hitch LH ................ 1
27 721-0501 O-Ring, 2.987 ID x .103 Dia ..... 1
28 721-0510 Seal, Oil, 1.5 x 2.0 x .25 ........... 2
29 723- 0405 Filter, Oil - Hydraulic System .... 1
30 723-3014 Filter, Oil - Hydro Pump ............ 1
31 723-3021 Breather, Transmission ............ 1
32 725-3272 Sensor, RPM ............................ 1
33 727-3012 Fitting, 90° ................................ 2
34 727-3176 Tube, Auxiliary Pump Suction .. 1
4
35 727-3181 Tube, Hydro Suction ................. 1
36 731-04018 Grommet ................................... 1
1
37 732-1162 Spring, Extension ..................... 1
38 736-3052 Washer, Flat, .406 x 1.0 x .105 . 2
4
39 737-0146 Fitting, Grease .......................... 1
40 737-0349 Plug, Fitting .............................. . 2
41 737-3105 Fitting, Filter Nipple ................... 1
1
42 737-3108 Fitting, 90° ................................ 1
43 737-3111 Fitting, 90° ................................ 1
4
44 737-3112 Fitting, Straight ......................... 1
45 737-3113 Fitting, Straight ......................... 2
2
46 738-0108 Screw, Shoulder, .498 Dia x 1.45 1
47 738- 0430 Screw, Shoulder, .50 D ia x .685 1
6
48 738-04001 Screw, Shoulder, ......................
9
49 741-1110 Bearing, Sleeve, .......................
2
50 750-1208 Spacer, .40 x 1.0 x 3.9 .............. 4
51 750-1239 Spacer, 1.52 x 2.25 x .188 ........ 2
52 737-04018 Dipstick ..................................... 1
.625 x .18: 1/2-13
1.52 x 1.75 x 1.0
4
2
10
27
14
-16-
DIFFERENTIAL AND FINAL DRIVE
9
37
41
37
35
36
19
33
37
41
37
14
26
4
24
39
22
17
42
7
38
25
17
20
17
40
21
23
15
25
32
22
17
30
28
39
29
43
6
13
34
44
16
12
3
18
31
5
2
11
20
11
1
8
-17-
DIFFERENTIAL AND FINAL DRIVE
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 619-3060 Housing, Axle ....................................... 2
2 661-3014 Brake Assembly, Drum ........................ 2
3 710-0538 Screw, Hex Cap Lock, .........................
4 710-1695 Screw, Socket Hd. Cap, 3/8-16 x 1.0 ... 4
5 710-3119 Screw, Hex Cap Lock, 3/8-16 x .75 GR5 4
6 710-3238 Screw, Hex Cap Lock, .........................
7 711-1326 Shaft, Axle Stub RH ............................. 1
8 711-1327 Shaft, Axle ............................................ 2
9 711-1358 Shaft, Axle Stub LH .............................. 1
10 711-1389A Shaft, Differential Lock Actuator .......... 1
11 71 5-02 26 Pin, Dowel, .3752 x .75 ........................ 8
12 715-3010 Pin, Dowel, .25 x .75 ............................ 4
13 716-0180 Ring, Retaining .................................... 2
14 716-0195 Rjng, Retaining .................................... 2
15 716-0196 Ring, Retaining .................................... 2
16 716-0390 Ring, Retaining .................................... 2
17 716-0391 Ring, Retaining .................................... 4
18 716-0396 Clip, Rotor ............................................ 1
19 716-0397 Ring, Retaining .................................... 1
20 717-1120 Gear, Differential, 10T .......................... 4
21 717-1173 Shaft, Cross ......................................... 1
22 717-1178 Shaft, Cross ......................................... 2
23 71 7-11 80 Block, Differential Pinion ...................... 1
24 717-3316 Gear, Bevel, 65T .................................. 1
25 717-3317 Gear, Miter, 14T ................................... 2
26 717-3471 Gear, Drop Axle, 42T RH ..................... 1
27 717-3478 Gear, Drop Axle, 42T LH ..................... 1
28 718-0666 Carrier, Differential ............................... 1
29 718-3104 Collar, Differential Lock ........................ 1
30 718-3105 Yoke, Differential Lock ......................... 1
31 718-3112 Cover, Bearing ..................................... 1
32 721-0495 Seal, Oil, 50mm x 75 mm x 10mm ....... 2
33 721-0496 Seal, Oil ............................................... 1
34 721-3020A Seal, Oil, 1.181 x 2.453 x .276 ............. 2
35 732-0187 Spring, Compression ........................... 1
36 736-0355 Washer, Flat, .56 x 1.0 x .04 ................ 1
37 736-0715 Washer, Thrust, 1.12 x 1.75 x .03 ........ 4
38 74 1-07 21 Bearing, Ball .............................. ...... ..... 2
39 74 1-11 04 Bearing, Ball .............................. ...... ..... 2
40 74 1-11 07 Bearing, Ball .............................. ...... ..... 2
41 74 1-11 12 Bearing, Thrust .................................... 2
42 74 1-30 33A Bearing, Ball ........................ ...... ...... ..... 2
43 74 1-30 80 Bearing, Needle ................................... 1
44 761-3071 Drum, Brake ......................................... 2
5/16-18 x .625 GR5
7/16-14 x 1.75 GR5
10
24
23
-18-
TRACTION DRIVE
2
13
22
8
9
21
14
5
25
16
4
25
10
12
24
11
15
26
18
19
7
17
1
20
3
6
-19-
TRACTION DRIVE
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0906 Pin Assembly, 2 Speed .................. 1
2 710-0573 Screw, Hex Cap Lock, ....................
3 710-3006 Screw, Cup Set, 5/16-18 x 3/8 ....... 1
4 711-1339 Shaft, Motor ................................... . 1
5 711-1344 Shaft, Pinion, 16T ........................... 1
6 711-1397 Shaft, 2 Speed Actuator ................. 1
7 715-0159 Pin, Spirol, 3/16 x .875 ................... 1
8 716-0185 Ring, Retaining ............................... 1
9 716-0387 Ring, Retaining ............................... 1
10 716-0396 Clip, Rotor ...................................... 1
11 717-3472 Gear, Drive Pinion, LO 24T:17T .... 1
12 717-3473 Gear, Drive Pinion, HI 33T: 17T ..... 1
13 717-3480 Gear, Drive, LO:59T; HI 50T .......... 1
14 718-3141 Cover, Front ................................... 1
15 718-0678 Spacer, Drive .................................. 1
16 718-3116 Collar, 2 Speed ............................... 1
17 721-0496 Seal, Oil .......................................... 1
18 721-0501 O-Ring ............................................ 1
19 732-0863 Spring, Detent ................................ 1
20 741-0862 Ball, Detent ..................................... 1
21 741-1106 Bearing, Ball ................................... 1
22 741-1107 Bearing, Ball ................................... 1
23 741-1109 Bearing, Angular Contact Ball ........ 1
24 741-3037 Bearing, Ball ................................... 1
25 741-3118 Bearing, Sleeve .............................. 2
26 748-3096 Yoke, 2 Speed ................................ 1
5/16-18 x 1.25 GR5
4
-20-
PTO DRIVE
51
14
16
24
22
15
36
53
20
37
4
39
14
32
45
50
1
8
54
6
44
A
55
42
3
40
51
43
10
25
19
34
17
7
58
13
27
53
59
56
48
29
26
31
33
46
41
28
30
38
52
47
52
5
53
12
18
14
51
11
A
57
51
14
23
9
49
35
2
21
PTO DRIVE
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 618-3189 Clutch Assembly, PTO .............. 1
2 619-3076A Housing, Rear ........................... 1
3 710-0538 Screw, Hex Cap Lock, ...............
4 710-1238 Screw, Hex Wash Hd, ...............
5 710-3006 Screw, Cup Set, 5/16-18 x 3/8 .. 1
6 710-3013 Screw, Hex Cap, 1/4-2 0 x .5 GR5 1
7 710-3118 Screw, Hex Cap Lock, ...............
8 710-04003 Screw, Round Hd, 6mm x 40mm 6
9 711-1325 Shaft, 540 PTO ......................... 1
10 711-1337 Shaft, Input ................................ 1
11 711-1345 Shaft, 2000 PTO ....................... 1
12 711-1371 Shaft, PTO Back ....................... 1
13 711-1373 Shaft, PTO Actuator .................. 1
14 716-0180 Ring, Retaining .......................... 4
15 716-0200 Ring, Retaining .......................... 1
16 716-0201 Ring, Retaining .......................... 1
17 716-0384 Ring, Retaining .......................... 1
18 716-0393 Ring, Retaining .......................... 1
19 716-0397 Ring, Retaining .......................... 1
20 716-3001 Ring, Retaining .......................... 1
21 717-3469 Gear, 540 PTO: 81T .................. 1
22 717-3479 Gear, Auxiliary Drive Idler: 28T . 1
23 717-3487 Gear, 2000 PTO: 61T ................ 1
24 717-3490 Gear, Auxiliary Drive Pinion: 28T 1
25 717-3491 Gear, Auxiliary Drive: 32T ......... 1
26 717-3492 Gear, 540 PTO Pinion: 14T ....... 1
27 717-3494B Gear, 2000 PTO Pinion: 54T ..... 1
28 717-3500 Gear, 2000 PTO Pinion: 34T ..... 1
29 718-0668 Gear, Spline Coupling ............... 1
30 718-0681 Cover, 2000 PTO ...................... 1
5/16-18 x .625 GR5
5/16-18 x .875 GR5
3/8-16 x 1.0 GR5
-21-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
31 718-3116 Collar, 2 Speed ......................... 1
32 718-3134 Coupling, PTO ........................... 1
6
33 719-0551A Actuator, PTO ........................... 1
34 721-0496 Seal, Oil ..................................... 1
2
35 721- 0497 Seal, Oil ..................................... 1
36 721-0500 O-Ring ....................................... 1
37 721-0504 Plug, Oil ..................................... 1
38 721-0509 Seal, Oil ..................................... 1
9
39 721-3020A Seal, Oil ..................................... 1
40 732-0187 Spring, Compression ................. 1
41 732-0863 Spring, Detent ........................... 1
42 732-0980 Spring, Compression ................. 1
43 736-0355 Washer, Flat, .56 x 1.0 x .040 ... 1
44 736-0463 Washer, Flat, .............................
45 736-0615 Washer, Thrust, .........................
46 741-0724 Bearing, Sleeve, ........................
47 741-0862 Ball, Detent ................................ 1
48 741-0991 Bearing, Sleeve, ........................
49 741-1100 Bearing, Ball .............................. 1
50 741-1118 Bearing, Needle ........................ 1
51 741-3033A Bearing, Ball .............................. 5
52 741-3037 Bearing, Ball .............................. 2
53 741-3057 Bearing, Ball .............................. 3
54 741-3083 Bearing, Needle Thrust ............. 1
55 748-3094 Arm, PTO Select ....................... 1
56 750- 1223 Spacer, 13mm x 20mm x 14mm 1
57 750-1228 Spacer, .80 x 1.85 x .855 .......... 1
58 736-0570 Washer, Flat, .865 x 1.145 x .03 1
59 750-0532 Spacer, .980 x 1.25 x .420 ........ 1
.25 x .630 x .0515
1.007 x 1.542 x .03
20mm x 23mm x 20mm
13mm x 15mm x 10mm
1
2
1
2
54
55
19
43
44
32
-22-
ENGINE AND DRIVE SHAFT
15
4
15
45
2
32
30
7
17
21
32
40
15
5
36
17
25
16
19
17
13
46
9
24
41
6
19
25
19
3
15
17
8
14
10
30
30
38
52
51
49
19
39
48
11
30
50
23
20
30
21
32
37
53
38
35
21
30
31
18
20
22
12
25
36
1
47
21
21
42
32
33
34
36
16
28
15
27
33
26
29
ENGINE AND DRIVE SHAFT
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
† 629-3063 Harness, Engine ................ 1
1 703-3521A Plate, Engine Mtg. ............. 1
2 703-3684 Bracket, Filler Neck ........... 1
3 703-3688
777S30632
4 703-3689
777S30632
5 703-3691
777S30631
777S30633
6 703-3692 Bracket, Radiator Mtg. ....... 1
7 703-3722 Bracket, Ovrflw Bottle Mtg. 1
8 703-05140 Plate, Baffle RH ................. 1
9 703-05141 Plate, Baffle LH .................. 1
10 703-4063 Shield, Heat ....................... 1
11 710-0357 Screw, Square Hd. Set, .....
12 710-0514 Screw, Hex Cap, ................
13 710-0597 Screw, Hex Cap, ................
14 710-0599 Screw, Hex Wash Hd Tapp
15 710-0607 Screw, Hex Wash Hd Tapp
16 710-0623 Screw, Hex Wash Hd Tapp
17 710-1260A Screw, Hex Wash Hd Tapp
18 710-1376 Screw, Hex Cap, M8-20 x 16 1
19 710-3015 Screw, Hex Cap, ................
20 710-3208 Screw, Hex Cap, ................
21 712-0324 Nut, Hex Nylon Insert Lock
22 712-0431 Nut, Hx Flnge Lock, 3/8-16 4
Bracket, Radiator Mtg. RH .
Graphic, Warning ...........11
Bracket, Radiator Mtg. LH .
Graphic, Warning ...........11
Plate, Radiator Baffle .........
Graphic, Fan Warning ....
Graphic, Warning ...........
3/8-16
3/8-16 x 1.0 GR5
1/4-20 x 1.0 GR5
1/4-20 x .5
5/16-18 x .5
3/8-16 x .75
5/16-18 x .75
1/4-20 x .75 GR 5
M10 x 1.5 x 25
1/4-20 GR8
-23-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
23 717-3498 Shaft, Drive ........................ 1
24 718-3132 Cooler, Oil .......................... 1
25 722-3022 Tape, Foam, .625 wide ...... 42in.
26 723-3061 Seal, Heat Baffle ................ 96in.
27 725-3282 Wire, Battery Neg. ............. 1
28 725-3289 Wire, Battery Pos. .............. 1
29 726-0154 Tie, Cable - Push Mount .... 4
1
30 726-0205 Clamp, Hose ...................... 7
1
31 726-0476 Clamp, Hose - Adjustable .. 1
1
32 726-0480 Clamp, Hose ......................‘ 6
33 731-04018 Grommet ............................ 2
34 731-3364 Shroud, Fan ....................... 1
35 735-0226 Grommet ............................ 2
36 736-0173 Washer, Flat, .....................
2
37 746-04015 Cable, Choke Control ........ 1
38 751-3130 Fuel Line 5/16 ID ............... 94in.
4
39 751-3166 Muffler ................................ 1
2
40 751-3177 Hose, Filler to Radiator ...... 1
41 751-3185 Radiator ............................. 1
4
42 751-3187 Hose, Lower Radiator ........ 1
43 751-3189 Hose, Engine to Filler Neck 1
12
44 751-3190 Filler Neck, Remote Radiator 1
45 751-3192 Cap, Remote Filler ............. 1
4
46 751-3193 Screen, Radiator ................ 1
47 751-3203 Hose, Intake Air ................. 1
8
48 KM-49040-2065 Pump, Fuel ........................ 1
49 KM-49019-1055 Filter, Fuel .......................... 1
9
50 KM-11060-2467 Gasket, Exhaust ................ 2
51 KM-461F0800 Washer, Spring .................. 4
6
52 KM-317R0800 Nut, Hex ............................. 4
53 KM-92038-2101 Key, Crankshaft ................. 1
11
54 KM-43078-2055 Bottle, Over Flow ............... 1
55 KM-39062-2086 Tube ................................... 1
.28 x .74 x .063
7
† Not Shown
-24-
CYLINDER HEADS AND CRANKCASE
25
22
3
22
25
4
7
29
1
2
9
7
21
26
5
23
A
18
6
24
23
14
8
19
10
15
1
21
29
15
17
27
11
20
28
30
13
30
15
16
A
12
-25-
CYLINDER HEADS AND CRANKCASE
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11004-2142 Gasket, Head .................................. 2
2 KM-11008-2145 Head, Cyl ind er ................................ 1
3 KM-11008-2146 Head, Cyl ind er ................................ 1
4 KM-11022-2072 Cover, Rocker ................................. 1
5 KM-11022-2073 Cover, Rocker ................................. 1
6 KM-11060-2466 Gasket, Breather ............................ 1
7 KM-11060-2470 Gasket, Rocker Cover .................... 2
8 KM-13271-2105 Plate, Breather ................................ 2
9 KM-14091-2064 Cover, Breather .............................. 1
10 KM-16126-2225 Valve, Breather ............................... 2
11 KM-49015-6239 Cover, Crankcase ........................... 1
12 KM-49120-6127 Crankcase, .....................................
13 KM-59071-2079 Joint ................................................ 1
14 KM-92009-2308 Screw .............................................. 2
15 KM-92043-1037 Pin .................................................. 6
16 KM-92049-2242 Seal, Oil .......................................... 1
17 KM-92049-2243 Seal, Oil .......................................... 1
18 KM-92093-2086 Seal ................................................ 1
19 KM-92 141 -21 18 Bearing, Plane ................................ 1
20 KM-92 141 -21 19 Bearing, Plane ................................ 1
21 KM-92 151 -21 58 Bolt, M8 x 55 ........................... ...... .. 4
22 KM-92 151 -21 59 Bolt, M8 x 80 ........................... ...... .. 8
23 KM-92170-2002 Clamp ............................................. 2
24 KM-92191-2105 Tube ............................................... 1
25 KM-13 0G 0630 Bolt, Flange .................................... 8
26 KM-13 0G 0830 Bolt, Flange .................................... 4
27 KM-13 0G 0845 Bolt, Flange .................................... 6
28 KM-13 0G 0860 Bolt, Flange .................................... 4
29 KM-17 2G 0822 Bolt, Stud ........................................ 4
30 KM-670B2011 O-Ring ............................................ 3
(Includes Ref. Nos. 13 and 19)
1
-26-
PISTONS AND CRANKSHAFT
3
7
1
4
3
7
2
5
9
6
8
8
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-13001-2125 Piston .............................................. 2
2 KM-13002-2069 Pin, Piston ...................................... 2
3 KM-13008-6007 Ring Set, Pist on .............................. 2
4 KM-13251-2058 Rod, Connecting .............................
5 KM-49119-2198 Crankshaft Assembly ......................
6 KM-59051-2358 Gear, Spur, 33T .............................. 1
7 KM-92036-008 Ring, Snap ...................................... 4
8 KM-92151-2150 Bolt, 7 x 36 ...................................... 4
9 KM-510A5100 Key, Woodruff ................................. 1
(Includes Ref No. 8 [Qty. 2])
(Includes Ref Nos. 6 and 9)
4
1
2
1
-27-
VALVES AND CAMSHAFT
16
14
14
16
1
18
14
15
6
5
15
6
4
8
10
5
4
10
12
9
17
8
16
12
3
18
8
17
7
9
3
7
7
2
9
7
1
18
14
6
15
16
6
8
5
4
10
12
5
4
10
12
9
2
13
15
11
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11051-2092 Bracket ..................................... 2
2 KM-12004-2113 Valve, Intake ............................ 2
3 KM-12005-2100 Valve, Exhaust ......................... 2
4 KM-12009-2060 Retainer, Valve Spring ............. 4
5 KM-12011-2052 Collet ........................................ 8
6 KM-12016-2063 Arm, Rocker ............................. 4
7 KM-12032-2060 Tappet ...................................... 4
8 KM-13116-2074 Rod, Push ................................ 4
9 KM-16007-2052 Seat, Spring ............................. 4
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
10 KM-49078-2060 Spring, Valve ............................ 4
11 KM-49118-2138 Camshaft .................................. 1
12 KM-92049-2100 Seal, Oil .................................... 4
13 KM-92145-2085 Spring .......................................‘ 1
14 KM-92151-2165 Bolt, M6 .................................... 4
15 KM-92152-2077 Collar ........................................‘ 4
16 KM-92200-2128 Washer, 8.1 x 18 x .5 ............... 4
17 KM-130G0814 Bolt, Flanged ............................ 4
18 KM-311B0600 Nut, Hex ................................... 4
-28-
LUBRICATION
5
9
14
16
19
7
6
17
17
12
3
11
21
18
2
13
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11009-2566 Gasket, Drain Plug ................... 2
2 KM-13107-2281 Shaft, Oil Pump ........................ 1
3 KM-13280-2061 Holder, Oil Pump ..................... 1
4 KM-14091-2065 Cover, Oil Pump ...................... 1
5 KM-16115-2126 Cap, Oil Filler ........................... 1
6 KM-16154-1075 Rotor, Pump Outer ................... 1
7 KM-16154-1076 Rotor, Pump Inner ................... 1
8 KM-32153-20769H Pipe, Oil Gauge ....................... 1
9 KM-49065-2078 Filter, Oil .................................. 1
10 KM-49065-2082 Filter, Oil Suction ..................... 1
11 KM-52005-2132 Gauge, Oil ................................ 1
4
1
15
8
10
20
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
12 KM-59051-2354 Gear, Spur, 33T ....................... 1
13 KM-99969-1395 Drain, Oil .................................. 1
14 KM-92042-014 Pin ............................................ 2
15 KM-92066-2099 Plug, Drain ............................... 2
16 KM-92144-2053 Spring ....................................... 1
17 KM-130G0616 Bolt, Flanged ............................ 3
18 KM-130G0625 Bolt, Flanged ............................ 2
19 KM-600A1300 Ball, Steel ................................. 1
20 KM-670B2010 O-Ring ...................................... 1
21 KM-670B3025 O-Ring ...................................... 1
-29-
ELECTRICAL
25
10
17
12
11
13
1
29
18
8
27
15
27
15
24
16
17
25
20
6
19
30
22
28
21
23
4
26
7
2
20
14
3
20
23
5
9
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11009-2766 Gasket ..................................... 1
2 KM-11052-2068 Bracket ..................................... 1
3 KM-14083-2055 Cover, Flywheel ....................... 1
4 KM-21066-2079 Regulator, Voltage ................... 1
5 KM-21121-2090 Coil, Ignition, No. 1 .................. 1
6 KM-21121-2091 Coil, Ignition, No. 2 .................. 1
7 KM-21193-2177 Flywheel Assembly .................. 1
8 KM-26004-1093 Fuse ......................................... 1
9 KM-26030-2326 Harness (Includ es Ref. No. 8) . 1
10 KM-27010-2170 Switch ...................................... 1
11 KM-27010-2182 Switch ...................................... 1
12 KM-590331-2127 Coil, Charging .......................... 1
13 KM-92009-2273 Screw ....................................... 4
14 KM-92022-2104 Washer .................................... 2
15 KM-92027-1568 Collar, 8.3 x 11.5 x 9 ................ 4
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
16 KM-92037-2101 Clamp ...................................... 1
17 KM-BPR2ES Plug, Spark .............................. 2
18 KM-92072-1195 Band ........................................ 1
19 KM-92151-2097 Bolt, 12 x 30 ............................. 1
20 KM-92170-2060 Clamp ...................................... 4
21 KM-92171-2060 Clamp ...................................... 1
22 KM-92200-2119 Washer, 12.2 x 40 x 3.0 ........... 1
23 KM-130G0520 Bolt, Flanged ........................... . 4
24 KM-130G0630 Bolt, Flanged ........................... . 2
25 KM-130G0812 Bolt, Flanged ........................... . 2
26 KM-130G0816 Bolt, Flanged ........................... . 2
27 KM-130G0820 Bolt, Flanged ........................... . 4
28 KM-214B0510 Screw, Pan ............................. . 1
29 KM-241B0406 Screw, Pan ............................. . 1
30 KM-510A5100 Key, Woodruff ......................... . 1
20
-30-
COOLING
17
35
12
27
35
42
33
5
25
43
45
28
7
14
4
25
29,30
23
38
9
11
1
2
33
34
27
16
6
19
47
21
15
46
39
44
36
24
26
3
37
13
22
31
18
32
40
1
8
28
10
28
41
-31-
COOLING
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11009-3028 Gasket ............................................ 2
2 KM-11060-2475 Gasket, Thermostat ........................ 1
3 KM-13107-2097 Shaft, Impeller ................................ 1
4 KM-13107-2246 Shaft, Pulley ................................... 1
5 KM-13304-6010 Housing Assembly ..........................
6 KM-16142-2077 Cover, Pump ................................... 1
7 KM-16160-2127 Body, Uppe r .................................... 1
8 KM-16160-6001 Body, Valv e .................................... 1
9 KM-39062-2084 Hose, Cooling ................................. 1
10 KM-39062-2088 Hose, Cooling ................................. 1
11 KM-39062-2089 Hose, Cooling ................................. 1
12 KM-41077-2064 Adapter ........................................... 1
13 KM-49044-2063 Pump Assembly, Water .................. 1
14 KM-49054-2058 Thermostat ..................................... 1
15 KM-49063-1054 Seal, Mechanical ............................ 1
16 KM-59011-2058 Belt ................................................. 1
17 KM-59041-2092 Fan ................................................. 1
18 KM-59051-2355 Gear, Spur, 25T .............................. 1
19 KM-59091-2054 Pulley .............................................. 1
20 KM-59091-20559H Pulley .............................................. 1
21 KM-59256-2069 Impeller ........................................... 1
22 KM-59336-2078 Case, Pump .................................... 1
23 KM-92026-2311 Spacer, 12 x 18 x 1.4 ...................... 1
24 KM-92043-2237 Pin .................................................. 1
25 KM-92 045 -21 91 Bearing, Ball ................................... 2
26 KM-92049-2111 Seal, Oil .......................................... 1
27 KM-92170-1284 Clamp ............................................. 2
28 KM-92171-2056 Clamp ............................................. 4
29 KM-92180-2013 Shim, T=0.6 .................................... AR
30 KM-92180-2014 Shim, T=1.2 .................................... AR
31 KM-92200-2134 Washer ........................................... 1
32 KM-92200-2135 Washer 10.2 x 19 x 0.8 ................... 1
33 KM-13 0C08 12 Bolt, Flanged .................... ...... ...... .. 2
34 KM-13 0G 06 25 Bolt, Flanged .................................. 3
35 KM-13 0G 06 35 Bolt, Flanged .................................. 6
36 KM-13 0G 08 20 Bolt, Flanged .................................. 3
37 KM-13 0G 08 30 Bolt, Flanged .................................. 2
38 KM-13 0G 08 35 Bolt, Flanged .................................. 4
39 KM-13 0G 08 45 Bolt, Flanged .................................. 1
40 KM-13 0G 08 60 Bolt, Flanged .................................. 2
41 KM-13 0G 08 80 Bolt, Flanged .................................. 4
42 KM-315B1000 Nut, Hex Fine .................................. 1
43 KM-41 0B1 000 Washer, Plain ................................. 1
44 KM-46 1F0 800 Washer, Spring ............................... 3
45 KM-481J2800 Circlip .............................................. 1
46 KM-551A0314 Pin, Dowel ...................................... 1
47 KM-670B1507 O-Ring ............................................ 1
Includes Ref. Nos. 23, 25 & 45
1
-32-
CONTROL LINKAGE AND GOVERNOR
28
12
25
13
8
31
33
9
10
6
20
22
1
34
27
30
7
21
29
14
32
2
19
15
5
26
3
16
29
19
15
26
18
32
4
17
11
24
24
14
23
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11051-2113 Bracket ..................................... 1
2 KM-13168-2466 Lever, Throttle .......................... 1
3 KM-13168-2467 Lever, Choke ............................ 1
4 KM-16169-2142 Link, Choke .............................. 1
5 KM-16171-2091 Link .......................................... 1
6 KM-21187-2073 Arm Assembly .......................... 1
7 KM-39003-2091 Arm, Governor Pivot ................ 1
8 KM-39129-2099 Spring, Governor ...................... 1
9 KM-42036-2060 Sleeve ...................................... 1
10 KM-49110-2094 Gear Assembly, Governor ....... 1
11 KM-49113-2170 Panel, Control Complete .......... 1
12 KM-92002-1902 Bolt ........................................... 1
13 KM-92002-2269 Bolt ........................................... 1
14 KM-92009-2381 Screw, 5 x 30 ........................... 2
15 KM-92015-1339 Nut ........................................... 2
16 KM-92022-2372 Washer, 6 x 19 x 1.2 ................ 1
17 KM-92027-1461 Collar ........................................ 1
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
18 KM-92037-2209 Clamp ....................................... 2
19 KM-92143-2135 Collar, 6 x 13 x 2.3 ................... 2
20 KM-92143-2148 Collar ........................................ 1
21 KM-92144-2052 Spring ....................................... 1
22 KM-92145-2058 Spring ....................................... 1
23 KM-92145-2095 Spring ....................................... 1
24 KM-92150-2182 Bolt, 5 x 18 ............................... 2
25 KM-92200-2035 Washer ..................................... 1
26 KM-92200-2108 Washer, 6.5 x 22 x 1.2 ............. 2
27 KM-92200-2120 Washer, 8.3 x 16 x 2.3 ............. 1
28 KM-92200-2122 Washer, 6.2 x 30 x 0.5 ............. 1
29 KM-130B0630 Bolt, Flanged ............................ 2
30 KM-130G0614 Bolt, Flanged ............................ 2
31 KM-311B0600 Nut, Hex ................................... 1
32 KM-312B0500 Nut, Hex ................................... 2
33 KM-411B0600 Washer, Plain ........................... 1
34 KM-482J7000 Circlip, E-Ring .......................... 1
-33-
CARBURETOR
3
20
2
7
3
1
15
17
4
6
19
22
16
10
11
12
8
5
14
13
9
18
21
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11060-2468 Gasket, Intake Manifold ........... 1
2 KM-11060-2469 Gasket, Intake Manifold ........... 1
3 KM-11060-2471 Gasket, Intake Pipe ................. 2
4 KM-11061-2075 Gasket ..................................... 1
5 KM-15003-2786 Carburetor Assembly ............... 1
6 KM-16060-2194 Pipe, Intake .............................. 1
7 KM-16073-2206 Insulator ................................... 1
8 KM-16146-2227 Cover Assembly ....................... 1
9 KM-16183-2006 Float Assembly ........................ 1
10 KM-16184-2007 Chamber, Float ........................ 1
11 KM-16185-2041 Valve Assembly, Throt tle ......... 1
12 KM-16186-2036 Valve Assembly, Choke ........... 1
13 KM-23013-2059 Screw Assembly ...................... 1
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
14 KM-23013-2063 Screw Assembly ...................... 1
15 KM-59076-2065 Manifold, Intake ....................... 1
16 KM-92037-1610 Clamp ...................................... 1
17 KM-92063-2353
KM-92063-2410
KM-92063-2420
18 KM-92063-2370
KM-92063-2380
KM-92063-2421
19 KM-92064-2106 Jet, Pilot, #45 ........................... 2
20 KM-130G0825 Bolt, Flanged ............................ 8
21 KM-130T06110 Bolt, Flanged ............................ 4
22 KM-701Q061000 Tube, PVC ............................... 1
Jet, Main, #110 ........................
Jet, Main, #105 .....................
Jet, Main, #107.5 ..................
Jet, Main, #111.3 .....................
Jet, Main, #106.3 ..................
Jet, Main, #108.8 ..................
1
AR
AR
1
AR
AR
12
-34-
AIR FILTER
10
2
13
5
9
11
14
4
6
17
16
7
14
1
15
3
8
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 KM-11011-2314 Case, Air Filter Body ....................... 1
2 KM-11011-2315 Case, Air Filter Upper ..................... 1
3 KM-11011-2316 Case, Air Filter Lower ..................... 1
4 KM-11013-2195 Element, Air Filter ........................... 1
5 KM-11013-2194 Preclean er, Foa m ......................... .. 1
6 KM-11051-2088 Bracket ........................................... 1
7 KM-11051-2089 Bracket, Air Filter ............................ 1
8 KM-11061-2085 Gasket, Air Filter ............................. 1
9 KM-92004-2152 Stud, 6 x 30 .................................... 1
10 KM-92015-2138 Nut .................................................. 1
11 KM-92093-2113 Seal ................................................ 1
12 KM-92200-2136 Washer ........................................... 1
13 KM-92210-2079 Nut .................................................. 1
14 KM-13 0G 06 14 Bolt, Flanged .................................. 3
15 KM-13 0G 06 30 Bolt, Flanged .................................. 3
16 KM-317R0800 Nut, Hex .......................................... 1
17 KM-46 1F0 800 Washer, Spring ............................... 1
-35-
STARTER
19
20
11
13
21
21
5
20
2
17
10
18
14
3
6
8
4
16
12
9
15
REF.
NO.
1 KM-11012-2226 Cap ................................................. 1
2 KM-13081-2108 Clutch Assembly ............................. 1
3 KM-13091-2068 Holder, Brush .................................. 1
4 KM-13168-2131 Lever, Shift ..................................... 1
5 KM-14024-2205 Cover .............................................. 1
6 KM-16073-2098 Insulator .......................................... 1
7 KM-16146-2187 Cap, Starter End ............................. 1
8 KM-16146-2225 Cone, Starte r Nose ......................... 1
9 KM-21039-2059 Brush .............................................. 4
10 KM-21040-2052 Spring, Brush .................................. 4
11 KM-21080-2054 Armature ......................................... 1
12 KM-21163-2120 Starter, Electric ............................... 1
13 KM-27010-2122 Solenoid, Starter ............................. 1
14 KM-32085-2097 Stopper ........................................... 1
15 KM-92002-2277 Bolt ................................................. 2
16 KM-92015-2146 Nut .................................................. 2
17 KM-92015-2147 Nut .................................................. 1
18 KM-92033-2081 Ring, Snap ...................................... 1
19 KM-13 0G 08 35 Bolt, Flanged .................................. 2
20 KM-317B0800 Nut, Hex .......................................... 2
21 KM-46 1F0 800 Washer, Spring ............................... 2
7
PART
NUMBER DESCRIPTION QTY.
1
-36-
HOOD, GRILL AND SIDE PANELS
6
27
10
12
13
11
7
15
28
24
25
2
19
21
23
3
5
12
26
27
12
20
14
18
19
12
9
18
25
14
17
18
24
14
16
1
8
26
20
14
19
12
9
12
22
4
12
-37-
HOOD, GRILL AND SIDE PANELS
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0719 0637 Hinge Assembly, Hood .................. 1
2 603-0784 0637 Bracket, Side Panel Mtg. RH ......... 1
3 603-0785 0637 Bracket, Side Panel Mtg. LH .......... 1
4 603-0924 0637 Bracket, Side Panel Mtg. RH Rear 1
5 603-0925 0637 Bracket, Side Panel Mtg. LH Rear 1
6 625-0052
725-3161A
7 703-3394 Screen, Intake ................................ 1
8 703-3712 Shield, Upper Heat ........................ 1
9 703-3764 Bracket, Panel Mtg. ....................... 1
10 703-3765 Shield, Lower Heat ........................ 1
11 710-0473 Screw, Truss Hd, 10-24 x .5 .......... 6
12 710-0599 Screw, Hex Wash Hd Tapp ...........
13 710-0751 Screw, Hex Cap, 1/4-20 x .62 GR5 4
14 710-3170 Stud, Cylinder, 5/16-18 Thrd .......... 4
15 712-0272 Nut, Hex Sems, 10-24 ................... 6
16 712-0324 Nut, Hex Nylon Insert Lock, 1/4-20 4
17 712-0431 Nut, Hex Flange Lock, 3/8-16 ........ 2
18 712-3004A Nut, Hex Flange Lock, 5/16-18 ...... 4
19 726-3056 Latch, 1/4 Turn Panel .................... 4
20 727-3194 Cylinder, Gas Spring ...................... 2
21 731-3277
777D05419
777D05420
777D05390
22 731-3278 Panel, Side RH .............................. 1
23 731-3279 Panel, Side LH ............................... 1
24 732-0936 Clip, Spring .................................... 4
25 732-0937 Spring, Compression ..................... 4
26 736-0272 Washer, Flat, .510 x .1.0 x .060 ..... 2
27 738-0380 Screw, Shoulder, .5 x .27 Lg 3/8-16 2
28 726-04010 Clip, Retaining ............................... 1
Headlight Assembly .......................
Bulb, Headlight ...........................14
1/4-20 x .5
Hood ..............................................
Graphic, Hood RH ......................
Graphic, Hood LH .......................
Graphic, Model 7252 ..................
14
1
1
1
2
-38-
FENDER AND RUNNING BOARD
6
7
24
6
15
15
22
6
21
16
13
20
17
19
7
8
14
2
24
24
7
6
16
26
16
25
23
10
12
11
23
25
3
10
5
16
25
23
16
25
23
11
4
26
14
18
8
9
8
14
26
1
11
-39-
FENDER AND RUNNING BOARD
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 625-0023B
725-3262
725-3263
629-3059
2 625-0024B
725-3262
725-3263
629-3059
3 703-3451 Bracket, Seat Mtg. LH .................... 1
4 703-3572 Bracket, Seat Mtg. RH ................... 1
5 703-3754 Bracket, Rear Seat Support ........... 1
6 710-0604A Screw, Hex Wash Hd. Tapp ..........
7 710-3038 Screw, Hex Cap .............................
8 710-0206 Screw, Hex Cap .............................
9 710-3021 Screw, Hex Wash Hd. Tapp ..........
10 710-3008 Screw, Hex Cap .............................
11 710-1242 Screw, Truss Phillips Hd. ...............
12 710-1260A Screw, Hex Wash Hd. Tapp ..........
13 710-0971 Screw, Pan Hd. 5/16-18 x 1.0 ........ 2
Light Assembly, Rear RH ..............
Bulb Only, Tail Light ...................
Bulb Only, Reverse Indicator Light
Harness, Tail Light ......................
Light Assembly, Rear RH ..............
Bulb Only, Tail Light ...................
Bulb Only, Reverse Indicator Light
Harness, Tail Light ......................
5/16-18 x .625
5/16-18 x .875 GR5
1/4-20 x .875 GR5
5/16-18 x .625
5/16-18 x .75 GR5
5/16-14 x .75
5/16-18 x .75
1
1
1
1
1
1
1
1
8
4
4
3
2
8
3
14 726-3057 Clip, Tail Light ................................ 4
15 726-3046 Clip, Ratchet Fastener ................... 12
16 726-0211 Speed Nut, ‘U’ Type, 5/16-18 ........ 6
17 731-3324
777S30630
18 731-3289
777S30635
777D06181
19 631 -04 005 Cover, Fender, RH ......................... 1
20 631 -04 006 Cover, Fender, LH ......................... 1
21 735-0669 Pad, Floor, RH ............................... 1
22 735-0670 Pad, Floor, LH ................................‘ 1
23 735-0690 Grommet, .4375 ID x .75 ............... 4
24 736-3089 Washer, Flat, .345 x 1.0 x .100 ...... 4
25 750-3310 Spacer, Flange, .3125 x .4375 x . 625 4
26 750-04143 Spacer, .258 x .5 x .5 ..................... 4
Cover, Fender ........................ ...... ..
Graphic, Warning ........................11
Fender ...........................................
Graphic, Warning ........................
Graphic, Series 7000 ..................
1
1
1
-40-

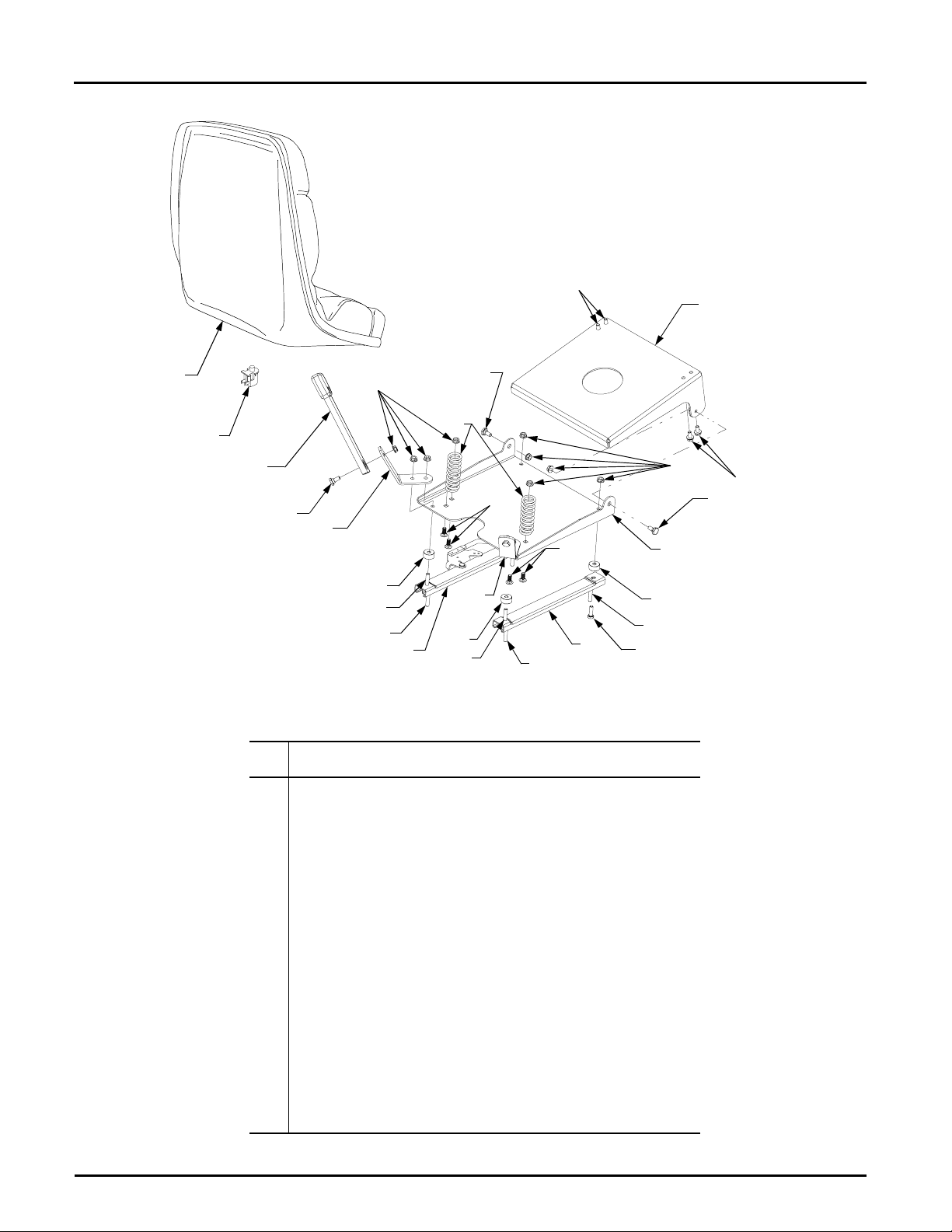

SEAT ASSEMBLY
9
1
16
12
11
17
14
5
15
8
10
2
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0860 0637 Support, Seat - Upper ..................... 1
2 603-0866 Track Ass’y., Seat w/Latch .............. 1
3 703-3208 Track Ass’y., Seat w/o Latch ........... 1
4 703-3681A Tray, Lower Seat ............................. 1
5 703-3711 Bracket, Seat Belt ........................... 2
6 710-0376 Screw, Hex Cap, 5/16-18 x 1.0 GR5 2
7 710-0451 Screw, Carriage, 5/16-18 x .75 4
8 710-0528 Screw, Hex Cap, 5/16-18 x 1.25 GR5 2
9 710-0759 Screw, Hex Flange, .........................
10 710-3250 Screw, Socket Hd Cap, 5/16-18 x 1.5 4
11 712-3004A Nut, Hex Flange Lock, 5/16-18 ........ 12
12 725-3167 Switch, Snap Mount (N.O.) .............. 1
13 732-3080A Spring, Compression, 1.28 x 3.5 ..... 2
14 7 38-0 140 Screw, Shoulder, .435 x .178-5/16-18 4
15 750-0258 Spacer, .315 x .750 x .375 .............. 4
16 757-04006
777D04541
777D01782
17 757-3013 Belt Assembly, Seat ........................ 1
Seat, High Back ..............................
14
13
7
7
5
15
8
5/16-18 x .625 GR5
Graphic, Cub Cadet .....................
Graphic, USA ....................... ...... ..
10
3
6
10
11
9
14
4
15
4
1
1
1
-41-
FUEL TANK
2
2
4
4
5
6
7
1
3
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 703-3563 Bracket, Front Tank Mtg. ............... 1
2 710-0817 Screw, Hex Wash Hd Tapp ...........
3 710-1260A Screw, Hex Wash Hd Tapp ...........
4 736-0231 Washer, Flat, .344 x 1.125 x .12 .... 4
5 751-3124B Cap, Fuel ....................................... 1
6 751-3175 Sensor, Fuel Level ......................... 1
7 751-3200A Tank, Fuel ...................................... 1
5/16-18 x 1.25
5/16-18 x .75
4
3
16
-42-
FOLDABLE ROPS
9
13
14
4
5
6
10
11
15
12
6
7
7
7
8
8
2
3
10
5
13
9
16
11
14
1
8
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0716 ROPS Assembly, Lower ................. 1
2 603-0717 ROPS Assembly, Upper ................. 1
3 603-0858 Mounting Assembly, ROPS RH ..... 1
4 603-0861 Mounting Assembly, ROPS LH ...... 1
5 710-0376 Screw, Hex Cap, 5/16-18 x 1.0 GR5 2
6 710-0515 Screw, Hex Cap, 1/2-20 x 3.5 GR5 2
7 710-3032 Screw, Hex Cap, 1/2-13 x 1.25 GR5 8
8 710-3131 Screw, Hex Cap, 1/2-13 x 1.0 GR5 8
9 711-1610 Pin, Clevis, .5 x 3.5 ........................ 2
10 712-3046 Nut, Hex Jam, 5/16-18 ................... 2
11 712-3058 Nut, Hex Nylon Insert Lock, 1/2-20 2
12 712-3066 Nut, Hex, 1/2-20 GR5 ..................... 2
13 714-3003 Pin, Internal Cotter ......................... 2
14 725-3280
725-3286
15 736-0921 Washer, Lock, 1/2 .......................... 2
16 731-0757-16 Conduit ........................................... 16in.
Light Assembly, Hazard .................
Bulb, Light ...................................22
-43-
THREE POINT HITCH
7
4
11
2
1
11
10
19
18
8
6
12
10
13
7
3
16
14
15
20
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0750 Link, Lower Hitch ............ ..... ..... 2
2 603-0756 Link, Lift - Fixed ......................... 1
3 603-0757 Link, Lift - Adjustable ................. 1
4 603-0765 Link, Upper Center .................... 1
5 603-0933 Chain Assembly, Check ............ 2
6 711-0174 Pin, Clevis, .624 Dia. ................. 2
7 711-1105 Pin, Klik, 1.75 Lg. ...................... 2
8 711-1432 Pin, Upper Lift Arm .................... 2
9 711-1622 ‘U’ Clevis, Check Chain ............ 2
10 711-1648 Pin, Clevis, .75 x 2.75 ............... 2
13
1
5
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
11 712-0301 Nut, Hex, 3/4-10 GR5 ............... 2
12 712-3058 Nut, Hex Insert Lock, 1/2-20 ..... 2
13 714-0117 Pin, Internal Cotter, .148 x 3.0 .. 2
14 714-0147 Pin, Internal Cotter, .125 x 1.75 2
15 714-0149B Pin, Internal Cotter .................... 4
16 736-0156 Washer, Flat, .635 x 1.12 x .09 2
17 736-0262 Washer, Flat, .385 x .87 x .09 2
18 736-0364 Washer, Lock, 3/4 ..................... 2
19 703-3553 Bar, Draw .................................. 1
20 747-04014 Pin, Double Clevis ..................... 2
17
15
9
Primary Pump on
Transmission
(For Reference Only)
-44-
AUXILIARY HYDRAULIC LOADER VALVE
(IF EQUIPPE D)
30
42
33
19
47
41
36
44
5
B
A
9
6
44
26
25
14
24
21
15
14
22
23
12
18
13
35
35
7
28
29
39
34
28
10
24
11
48
3
25
A
16
1
9
8
37
20
38
46
4
26
27
B
40
2
18
17
45
15
43
32
31
-45-
AUXILIARY HYDRAULIC LOADER VALVE
(IF EQUIPPED)
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 603-0813 Pivot Bracket Assembly ............... 1
2 603-0862 Valve Handle Assembly .............. 1
3 703-3598-0637 Loader Valve Mount Bracket ....... 1
4 703-3972-0637 Fitting Mount Plate ...................... 1
5 703-3973-0637 Rear Fitting Mount Plate ............. 1
6 710-0501 Hex Screw, 1/4-20, 2.00, Gr5 ..... 2
7 710-0599 Hex Wash. Hd. Tapp Screw ........
8 710-0604A Hex Wash. Hd. Tapp Screw ........
9 710-1260A Hex Wash. Hd. Tapp Screw ........
10 711-1611 Valve Pivot Shaft ........................ 1
11 711-1624 Valve Spool Link ......................... 1
12 711-1637 Ball Joint Pivot Stud .................... 1
13 711-1642 Clevis Pin, .199 x .8125 .............. 1
14 712-0256 Jam Nut, 5/16-24, Gr2 ................ 2
15 712-0324 Hex Lock Nut, 1/4-20, Gr8, Nylon 2
16 713-3000 Chain Link ................................... 1
17 714-0104 Internal Cotter Pin ....................... 1
18 716-0865 Snap Ring, .5 .............................. 2
19 718-3138
759-3964
759-3965
759-3966
20 718-3140 Loader Control Valve .................. 1
21 723-0488 Ball Joint, .3125 Id x 5/16-24 ...... 1
22 727-3012 Fitting, 90° 6-6 Orb ..................... 2
23 727-3206 Tube, Tandum Pump Suction ..... 1
24 727-3210 Tube, Hydraulic - Bucket Rollback 1
25 727-3211 Tube, Hydraulic - Bucket Dump .. 1
26 727-3212 Tube, Hydraulic - Boom Lift ........ 1
27 727-3213 Tube, Hydraulic - Boom Lower ... 1
28 727-3224 Coupling, Male Hydraulic, 3/8-18 2
29 727-3225 Coupling, Female Hydr. 3/8-18 ... 2
30 727-3226 Tube, Auxiliary Pump Pressure .. 1
31 727-3227 Tube, Valve Pressure ................. 1
32 727-3228 Tube, Valve Return ..................... 1
33 727-3229 Tube, Valve Return ..................... 1
34 727-3261 Plug, Hydraulic Coupler - Male ... 2
35 727-3262 Plug, Hydraulic Coupler - Female 2
36 731-3353 Knob, 1.625 Dia x 3/8-16 Thd 1
37 731-3374 Washer, Indicator - Red .............. 1
38 731-3375 Washer, Indicator - Yellow .......... 1
39 731-3376 Washer, Indicator - Green ........... 1
40 731-3377 Washer, Indicator - Blue ............. 1
41 735-0696 Joystick Boot ............................... 1
42 737-3111 Fitting, 90° -8 Orb ...................... 1
43 737-3112 Fitting, Straight -8 Orb ................. 2
44 737-3113 Fitting, Straight ............................ 2
45 737-3125 Fitting, Straight - 6 Orb ................ 2
46 737-3129 Fitting, Bulkhead 3/4-16 x 3/8-18 4
47 737-3130 Fitting, Bulkhead 3/4-16 x 3/4-16 2
48 750-0845 Spacer, .34 ID x .5 OD x .31 ....... 1
1/4-20 x .50
5/16-18 x .625
5/16-18 x .75
Auxiliary Hydraulic Pump ............
Pin, Dowel ................................
Bolt, Mounting ..........................
Coupler, Splined ......................
2
2
4
1
2
4
1
-46-
WHEELS
5
6
2
1
1
4
3
3
5
4
6
2
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 734-3123 Tire, Turf, 27 x 12.0 x 15 ............... 2
2 634-3046
734-0255
3 734-3189 Tire, Tuft, 20 x 9 x 8 ....................... 2
4 634-3187
734-0255
5 710-1808 Screw, Lug, M12 ............................ 8
6 710-3294 Bolt, Lug, M14 x 1.5 x 20 ............... 12
Rim Assembly ................................
Valve Stem .................................22
Rim Assembly ................................
Valve Stem .................................22
-47-
NOTES
Loading...
