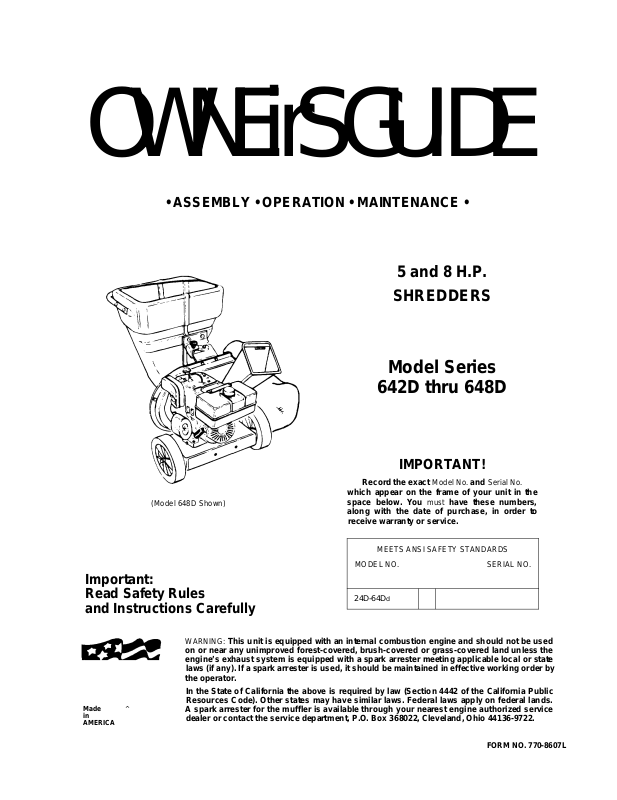

MTD 642D, 648D User Manual
OWNEirS GUIDE
• ASSEMBLY • OPERATION • MAINTENANCE •
5 and 8 H.P.
SHREDDERS
Model Series
642D thru 648D
(Model 648D Shown)
Important:
Read Safety Rules
and Instructions Carefully
WARNING: This unit is equipped with an internal combustion engine and should not be used
on or near any unimproved forest-covered, brush-covered or grass-covered land unless the
engine’s exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by
the operator.
In the State of California the above is required by law (Section 4442 of the California Public
Made ^
in
AMERICA
Resources Code). Other states may have similar laws. Federal laws apply on federal lands.
A spark arrester for the muffler is available through your nearest engine authorized service
dealer or contact the service department, P.O. Box 368022, Cleveland, Ohio 44136-9722.
IMPORTANT!
Record the exact Model No. and Serial No.
which appear on the frame of your unit in the
space below. You must have these numbers,
along with the date of purchase, in order to
receive warranty or service.
MEETS ANSI SAFETY STANDARDS
MODEL NO. SERIAL NO.
24D-64Dd
FORM NO. 770-8607L
IMPORTANT
THIS SYMBOL POINTS OUT IMPORTANT SA iTY INSTRUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSON
AL SAFETY AND/OR PROPERTY OF YOUR 5ELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
A
BEFORE ATTEMPTING TO OPERATE YOUR CHIPPER-SHREDDER. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY
RESULT IN PERSONAL INJURY. WHEN YOU 5EE THIS SYMBOL: ^ HEED ITS WARNING.
Your chipper-shredder w 3S built to be operated according to the rules for safe operation in this manual.
nAMPPD- power equipment, carelessness or error on the part of the operator can result in
UANubK; serious injury. This chip )er-shredder is capable of amputating lingers and hands and throwing objects.
Failure to observe the fol owing safety instructions could result in serious injury or death.
A
SAFE OPERATION PRACTICES
I. GENERAL OPERATION
1.
Read this owner's guide carefully in its entirety befc re attempt
ing to assemble this machine. Read, understand, ar d follow all
instructions on the machine and in the manual(s) be fore opera
tion. Be completely familiar with the controls and the proper
use of the machine before operating it. Keep this i lanual in a
safe place for future and regular reference and f( r ordering
replacement parts.
Your chipper-shredder is a powerful tool, not a plaything.
Therefore, exercise extreme caution at all times. Yc or unit has
been designed to perform two jobs; to chip and sh ed vegeta
tion found in a normal yard. Do not use it for any other pur
pose.
3.
Never allow children under age 16 to operate the uni. Children
16 years and older should only operate the unit nder close
parental supervision. Only responsible individuas who are
familiar with these rules of safe operation should be allowed to
use your unit.
4.
Keep the area of operation clear of all persons, f articularly
small children and pets. Stop the engine when the; are in the
vicinity of the unit. Keep work area clean and clear c f branches
or obstacles which could cause you to stumble or fa i.
5.
When feeding material into this equipment, be extre mely care
ful that pieces of metal, rocks, bottles, cans or oti er foreign
objects are not included. Personal injury or damrge to the
machine could result.
6.
Always wear safety glasses or safety goggles, durint operation
and while performing an adjustment or repair, to piotect eyes
from foreign objects that may be thrown from the mi chine.
Wear sturdy, rough-soled work shoes and close fit ing slacks
and shirt. Shirt and slacks that cover the arms an I legs and
steel-toed shoes are recommended. Do not wear к ose fitting
clothes or jewelry and secure hair so it is abovf shoulder
length. They can be caught in moving parts. Nevei operate a
unit in bare feet, sandals or sneakers. Wear gloves' yhen feed
ing material in the chipper chute or shredder hopper.
Never place your hands, feet, or any part of your bo iy into the
8.
shredder hopper, chipper chute, discharge openinj, or near
any moving part while the engine is running. Keep t lear of the
discharge opening at all times. If it becomes net essary to
push material into the chipper chute or shredder ho| per, use a
small diameter stick, NOT YOUR HANDS.
If it is necessary for any reason to unclog the feer intake or
discharge openings or to inspect or repair any fart of the
machine where a moving part can come in contact with your
body or clothing, stop the machine, allow it to cool, i lisconnect
the spark plug wire from the spark plug and move it iway from
the spark plug before attempting to unclog, inspect о' repair.
Do not operate unit while under the influence of ilcohol or
10.
drugs.
11.
The machine should only be operated on a level surff ce. Never
operate your unit on a slippery, wet, muddy or ic/ surface.
Keep your work area clean and clear of branches or obstacles
which could cause you to stumble and fall. Do not iverreach.
Maintaining proper footing and balance is essential t) prevent
ing accidents.
12.
Do not allow an accumulation of processed material to build
up in the discharge area as this will prevent proper discharge
and can result in kick-back from the chipper chute.
13.
Keep your face and body back from chipper chute to avoid
accidental bounce back of any material.
14.
Do not transport machine while engine is running.
15.
If the cutting mechanism strikes a foreign object or if your
machine should start making an unusual noise or vibration,
immediately stop the engine and allow the machine to come to
a complete stop. Disconnect the spark plug wire and move it
away from the spark plug. Take the following steps.
• Inspect tor damage.
• Repair or replace any damaged parts.
• Check for any loose parts and tighten to assure continued
safe operation.
16.
Never attempt to attach or remove catcher bag when engine is
running. Shut the engine off and wait for the impeller to come
to a complete stop. The impeller continues to rotate for a few
seconds after the engine is shut off. Never place any part of
the body in the impeller area until you are sure the impeller has
stopped rotating.
17.
Muffler and engine become hot and can cause a burn. Do not
touch.
18.
Do not allow leaves or other debris to build-up on engine’s
muffler. The debris could ignite and cause a fire.
19.
Do not attempt to shred or chip material larger than specified
in this manual. Personal injury or damage to the machine
could result.
20.
Do not operate engine if air cleaner or cover over carburetor
air-intake is removed, except for adjustment. Removal of such
parts could create a fire hazard.
21.
Only use accessories approved for this machine by the manu
facturer. Read, understand, and follow all instructions provid
ed with the approved accessory.
22.
If situations occur which are not covered by this manual, use
care and good judgment. Contact your dealer for assistance.
Keep discharge chute deflector, chipper chute door, and all
23.
other guards and safety devices in place and operating proper
ly-
24.
Only operate unit in good daylight. Do not operate unit at night
or in dark areas where your vision may be impaired.
II. CHILDREN
‘Tragic accidents can occur if the operator is not alert to the pres
ence of small children. Children are often attracted to the chippershredder and the chipping and shredding activity. Never assume
that children will remain where you last saw them.
1. Keep children out of the work area and under the watchful eye
of a responsible adult other than the operator.
2. Be alert and turn the unit off if a child enters the area.
3. Never allow children under the age of 16 to operate the chip
per-shredder.
III. SERVICE
M. Use extreme care in handling gasoline and other fueis. They
are extremely flammable and the vapors are explosive.
a. Store fuel and oil in approved containers, away from heat
and open flame, and out of the reach of children. Check
and add fuel before starting the engine. Never remove gas
cap or add fuel while the engine is running. Allow engine
to cool at least two minutes before refueling.
b. Replace gasoline cap securely and wipe off any spilled
gasoline before starting the engine as it may cause a fire
or explosion.
c. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
d. Never refuel unit indoors because flammable vapors will
accumulate in the area.
e. Never store the machine or fuel container inside where
there is an open flame or spark such as a gas hot water
heater, space heater, clothes dryer or furnace.
2. Never run your machine in an enclosed area as the exhaust
from the engine contains carbon monoxide, which is an odor
less, tasteless and deadly poisonous gas.
3. To reduce fire hazard, keep engine and muffler free of leaves,
grass, and other debris build-up. Clean up fuel and oil spillage.
Allow unit to cool at least 5 minutes before storing.
4. Before cleaning, repairing, or inspecting, make certain the
impeller and all moving parts have stopped. Disconnect the
spark plug wire and keep wire away from spark plug to prevent
accidental starting. Do not use flammable solutions to clean
air filter.
5. Check the blade and engine mounting screws at frequent inter
vals for proper tightness. Also visually inspect blades for wear
and/or damage (e.g., bent, cracked). Replace with biades
which meet original equipment specifications.
6. Keep all nuts, bolts, and screws tight to be sure the equipment
is in safe working condition.
7. Never tamper with safety devices. Check their proper opera
tion regularly.
8. After striking a foreign object, immediately stop the engine,
disconnect the spark plug wire from the spark plug, and thor
oughly inspect the unit for any damage. Repair damage before
starting and operating unit.
9. Do not alter or tamper with the engine’s governor setting. The
governor controls the maximum safe operating speed of the
engine. Over-speeding the engine is dangerous and will cause
damage to the engine and to other moving parts of the
machine.
OWNER’S
MANUAL
SAFETY LABEL
A
Restrict the use of this power machine to persons who read,
understand and follow the warnings and instructions in this
manual and on the machine.
WARNING — YOUB RESPONSIBILITY
ASSEMEiLY INSTRUCTIONS
IMPORTANT: This unit is shipped WITHOUT
GASOLINE or OIL. After assembly, see separate
engine manuai for proper fuei and engine oii rec
ommendations.
NOTE: To determine right and left hand sides of your
chipper-shredder, stand behind and face the hopper
(engine is at the front of the unit).
Your chipper-shredder has been completely assem
bled at the factory, except for the chute defle ;tor and
the catcher bag. A pair of safety glasses s re also
included in the carton.
Spacers
(inside.
Hinge)'
Hex Boit
Cl lute
Def ector
TO REMOVE CHIPPER-SHREODER FROM
CARTON
1. Remove staples, break glue on top flaps, or cut
tape at carton end and peel along top flap to
open carton.
2. Remove loose parts if included with unit (i.e.,
owner's manual, etc.).
3. Cut along dotted lines and lay carton down flat.
4. Remove packing material.
5. Roll or slide unit out of carton. Check carton
thoroughly for loose parts.
TOOLS REQUIREO FOR ASSEMBLY
(2) 7/16" or Adjustable Wrenches
HOW TO SET-UP YOUR CHIPPER-SHREDDER
WARNING: Make certain the spark piug
wire is disconnected and moved away
A
from the spark piug before assembiing
the chipper-shredder.
FIGURE 1.
FIGURE 2.
ATTACHING THE CHUTE DEFLECTOR
1. Remove the hand knobs and cupped washers
from each side of the discharge opening on the
left side of the shredder.
2. Remove the hex lock nut, two spacers and hex
bolt from inside the hinge on top of the discharge
opening. Do not remove one spacer from the hex
bolt.
3. Place the chute deflector in position on the dis
charge opening. Insert bolt through hinge on chute
deflector and housing (spacer fits inside hinge).
4. Place second spacer over the hex bolt, inside the
other part of hinge. Secure with hex lock nut.
Tighten securely.
5. Secure both sides of the chute deflector to the
housing using hand knobs and cupped washers
(cupped side of washers go against chute deflec
tor).
ATTACHING THE CATCHER BAG
Your chipper-shredder is equipped with a catcher bag
to catch the shredded material.
To attach bag, place bag opening over the chute
deflector so it completely covers chute opening.
Depress plunger on drawstring, pull on drawstring
until bag is tight around chute opening. Release
plunger to lock it into position. See figure 2.
Loading...
