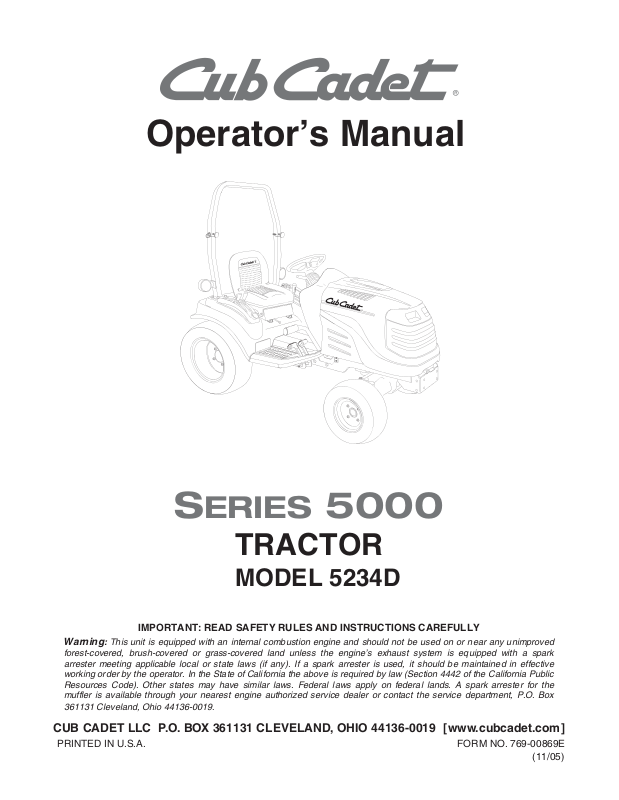

Operator’s Manual
SERIES 5000
TRACTOR
MODEL 5234D
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning
forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the
muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box
361131 Cleveland, Ohio 44136-0019.
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]
PRINTED IN U.S.A. FORM NO. 769-00869E
: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
(11/05)
TABLE OF CONTENTS
TO THE OWNER .................................................................................................................... 2
CALLING SERVICE INFORMATION ...................................................................................... 2
RECORDING MODEL AND SERIAL NUMBER INFORMATION ........................................... 3
IMPORTANT SAFE OPERATION PRACTICES ..................................................................... 4
SAFETY LABELS ................................................................................................................... 8
SECTION 1: CONTROLS AND FEATURES .......................................................................... 9
SECTION 2: OPERATION .................................................................................................... 14
SECTION 3: ADJUSTMENTS .............................................................................................. 22
SECTION 4: TRACTOR MAINTENANCE ............................................................................ 25
SECTION 5: ENGINE INFORMATION AND MAINTENANCE ............................................. 38
SECTION 6: SPECIFICATIONS ........................................................................................... 45
SECTION 7: OPTIONAL EQUIPMENT AND ACCESSORIES ............................................. 47
WARRANTY ......................................................................................................................... 48
TO THE OWNER
This Operator’s Manual is an important part of your new tractor. The information contained in this
manual has been prepared in detail to help you better understand the features, correct operation,
adjustments, and maintenance of your tractor. The performance and dependability of this tractor rely
greatly on the manner in which it is operated and maintained. Therefore, it is recommended that all
operators of the tractor carefully read this manual and fully understand its operation. Also keep the
manual available for reference to ensure proper operation, and that maintenance procedures are
performed as scheduled to assure the tractor’s optimal mechanical condition.
NOTE: All references to LEFT, RIGHT, FRONT, and REAR, unless specifically stated otherwise,
indicate that relative position on the tractor when facing forward while seated in the operator’s seat.
Your authorized Cub Cadet dealer is interested in the performance you receive from your tractor, and
with the maintenance needed to ensure the satisfactory operation of your tractor. The dealer has
trained service personnel familiar with the latest servicing information, is equipped with the latest
tools, and has a complete line of genuine Cub Cadet service parts which assure proper fit and high
quality.
CALLING SERVICE INFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance,
power-rating, and specifications.
If you have difficulties with the tractor and/or equipment; have any questions regarding the operation
or maintenance of this equipment; or desire additional information not found in this manual, contact
your dealer. If you need assistance in locating a dealer in your area, contact the Customer Dealer
Referral Line by calling:
1-877-282-8684
Or you may contact Cub Cadet via the internet by logging on to our Wed Site at:
www.cubcadet.com
Before contacting your dealer or Cub Cadet, make sure that you have your model number(s) and
manufacturing date(s) available.
2
RECORDING MODEL AND SERIAL NUMBER INFORMATION
Product identification plates are provided for major components of your tractor. The numbers on these
plates are important if your tractor should require dealer service, or if you need additional information
on your tractor. Prior to using your tractor for the first time, record the numbers from the identification
plates in the appropriate spaces provided below.
• The tractor model plate is located on the right frame rail behind the right front tire.
• The engine model, type, and code information is located on a plate affixed to the top of the valve
cover, beneath the air cleaner/muffler mounting bracket.
• The transmission serial plate is located on the rear of the transmission, below the PTO shaft.
• The ROPS information plate is located on a vertical leg of the ROPS.
Tractor Model Plate:
Model Number Mfg. Date (Serial No.)
Engine Information:
Engine Model Type Date Code
Transmission Serial Plate:
Serial Number
ROPS Information Plate:
ROPS Serial No.
TRACTOR MODEL PLATE
XXXXXXXXXXX XXXXXXXXXX
Model Number Mfg. Date
CUB CADET LLC
P. O. BOX
www.cubcadet.com
DEALER LOCATOR PHONE NUMBER:
361131
CLEVELAND, OH 44136
877-282-8684
TRANSMISSION SERIAL PLATE
ROPS INFORMATION PLATE
3
IMPORTANT SAFE OPERATION PRACTICES
WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF
NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF
YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE YOUR UNIT. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. WHEN YOU SEE THIS SYMBOL,
HEED ITS WARNING.
WARNING: The engine exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm.
DANGER: Your tractor was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. To help prevent accidents, read and take the following precautions before
operating this tractor. Failure to observe the following safety instructions could result in serious
injury or death.
1. GENERAL OPERATION
• Read, understand, and follow all instructions in
the operator’s manual and on the machine
before starting. Keep this manual in a safe
place for future and regular reference.
• Only allow responsible individuals familiar with
the instructions to operate the machine. All
operators should evaluate their ability to operate the tractor safely enough to protect
themselves and others from serious injury.
Know controls and how to stop the machine
quickly.
• Do not put hands or feet under the cutting deck
or near rotating parts.
• Clear the area of objects such as rocks, toys,
wire, etc. which could be picked up and thrown
by the blades. A small object may have been
overlooked and could be accidentally thrown by
the mower in any direction and cause injury to
you or a bystander. To help avoid a thrown
objects injury, keep children, animals,
bystanders and helpers at least 75 feet from
the mower while it is in operation. Always wear
safety glasses with side shields or safety
goggles during operation or while performing
an adjustment or repair, to protect eyes from
foreign objects. Stop the blades when crossing
gravel drives, walks or roads.
• Be sure the area is clear of other people before
mowing. Stop machine if anyone enters the
area.
• Never carry passengers.
• Use extreme caution when shifting into reverse
and backing up. Always look down and behind
before and while backing.
• Be aware of the mower and attachment
discharge direction and do not point it at
anyone. Do not operate the mower without
either the entire grass catcher or the chute
guard in place.
• Slow down before turning. Operate the
machine smoothly. Avoid erratic operation and
excessive speed.
• Never leave a running machine unattended.
Always turn off the blades, place the
transmission in neutral, set the parking brake,
stop the engine and remove key before
dismounting.
• Turn off blades when not mowing.
• Stop the engine and wait until the blades come
to a complete stop before (a) removing the
grass catcher or unclogging chute, or (b)
making any repairs, adjusting or removing any
grass or debris.
• Mow only in daylight or good artificial light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• Use extra care when loading or unloading the
machine into a trailer or truck because the unit
could tip over causing serious personal injury.
• Never make a cutting height adjustment while
the engine is running if the operator must
dismount to do so.
• Wear sturdy, rough-soled work shoes and
close-fitting slacks and shirts. Do not wear
loose fitting clothes or jewelry. They can be
caught in moving parts. Never operate a unit in
bare feet, sandals or sneakers.
4
• Disengage all attachment clutches, thoroughly
depress the brake pedal and shift into neutral
before attempting to start the engine.
• Your mower is designed to cut normal
residential grass of a height no more than 10”.
Do not attempt to mow through unusually tall,
dry grass (e.g. pasture) or piles of dry leaves.
Debris may build up on the mower deck or
contact the engine exhaust presenting a
potential fire hazard.
• Use only accessories approved for this
machine by Cub Cadet. Read, understand and
follow all instructions provided with the
approved accessory.
• Use the roll bar and seat belt for safe operation.
Overturning the tractor without a roll bar, or with
a roll bar and the seat belt unfastened, can
result in death or injury.
• Always use the seat belt, except if the roll bar
has been removed or, if applicable, the roll bar
is in the folded position.
• Use the handholds and running boards when
getting on and off the tractor to help prevent
accidental falls. Keep the running boards clear
of mud and debris.
• Keep all safety decals clean and readable.
Replace any missing, illegible, or damaged
safety decals.
• Always sit in the tractor seat when starting the
engine or operating controls. Do not start the
engine or operate controls while standing
beside the tractor.
• Never tamper with safety devices. Check their
proper operation regularly. Contact your Cub
Cadet dealer if safety devices malfunction.
• Avoid accidental contact with control pedals
while the engine is running, as this can cause
unexpected movement of the tractor.
• Pull only from a drawbar or the lower hitch links
in the down position. Make certain the drawbar
pin is locked in place. Pulling from the rear axle
of the tractor or any point above the axle could
cause the tractor to overturn.
• Maintain the weight balance of the tractor.
Install front end weights to counterbalance
heavy implements attached to the three point
hitch. Do not operate the tractor with a light
front end.
• Do not leave equipment in the raised position.
• Watch for traffic when operating near or
crossing roadways. If local laws permit road
travel, use the flashing hazard lights and SMV
signs when traveling on public roadways.
• Make certain all tractor lights are illuminated
when operating at night.
• Check overhead clearance carefully before
driving under power lines, wires, bridges or low
hanging tree branches, before entering or
leaving buildings, or in any other situation
where the operator and/or roll bar may be
struck, which could result in serious injury.
• If the tractor becomes stuck, use reverse to
free the tractor to prevent tractor upset.
2. SLOPE OPERATION
Slopes are a major factor related to loss of control
and tip-over accidents which can result in severe
injury or death. All slopes require extra caution. If
you cannot back up the slope or if you feel uneasy
on it, do not operate this unit on that area or serious
injury could result.
Do not operate on inclines with a slope in excess of
15 degrees (a rise of approximately 2-1/2 feet every
10 feet). The tractor could overturn and cause
serious injury
DO:
• Operate up and down slopes, not across.
• Remove obstacles such as rocks, limbs, etc.
• Watch for holes, ruts or bumps. Uneven terrain
could overturn the machine. Tall grass can hide
such obstacles.
• Place the transmission in the low range. when
climbing or descending slopes. Always keep
machine in gear when going down slopes to
take advantage of engine braking action.
• Follow the manufacturers recommendations for
counterweights to improve stability.
• Keep all movement on the slopes slow and
gradual. Do not make sudden changes in
speed or direction. Rapid engagement or
braking could cause the front of the machine to
lift and rapidly flip over backwards which could
cause serious injury.
• Avoid starting or stopping on a slope. If tires
lose traction, disengage the PTO and proceed
slowly straight down the slope.
DO NOT:
• Do not turn on slopes unless necessary; then,
turn slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches or
embankments. The mower could suddenly turn
over if a wheel goes over the edge of a cliff or
ditch, or if an edge caves in.
• Do not mow on wet grass. Reduced traction
could cause sliding.
• Do not try to stabilize the machine by putting
your foot on the ground.
5
3. CHILDREN
• Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
often attracted to the machine. Never assume
children will remain where you last saw them.
• Keep children out of the mowing area and in
watchful care of an adult other than the
operator.
• To avoid back-over accidents, always disengage the cutting blades before shifting in
reverse. The "PTO Reverse Overide Switch"
should not be used when children or others
are around.
• Be alert and turn machine off if children enter
the area.
• Before and when backing, look behind and
down for small children.
• Never carry children, even with the blades off.
They may fall off and be seriously injured or
interfere with safe machine operation.
• Never allow children under 14 years old to
operate the machine. Children 14 years and
over should only operate machine under close
parental supervision and proper instruction.
• Use extra care when approaching blind
corners, shrubs, trees or other objects that may
obscure your vision of a child or other hazard.
• Remove key when machine is unattended to
prevent unauthorized operation.
4. OPERATING THE PTO
• When operating PTO driven equipment,
disengage the PTO, stop the engine, and wait
until the PTO stops before dismounting the
tractor and disconnecting the equipment.
• Do not wear loose fitting clothing when
operating the PTO or when near rotating
equipment.
• To prevent injury, do not adjust, unclog, clean,
or service PTO driven equipment while the
tractor engine is running.
• Make certain all PTO shields are always installed.
5. SAFETY FRAME (ROPS)
Your tractor is equipped with a rollover protective
structure (ROPS) which must be maintained in a
fully functional condition. Use care when driving
through doorways or spaces with a low overhead.
• Never modify the ROPS in any way.
• Never attempt to straighten or reweld any part
of the main frame or retaining brackets that
have been damaged. Doing so may weaken
the structure and endanger your safety.
• Never secure any parts on the main frame or
attach the safety frame with anything other than
the special fasteners specified.
• Never attach ropes, chains, or cables to the
ROPS for pulling purposes.
• Although the ROPS provides you the maximum
protection possible, never take unnecessary risks.
6. SERVICE
• Use extreme care in handling gasoline and
other fuels. They are extremely flammable and
the vapors are explosive. Use only an approved
container.
a. Use only an approved container.
b. Never remove fuel cap or add fuel with the
engine running. Allow the engine to cool at
least two minutes before refueling.
c. Replace the fuel cap securely and wipe off
any spilled fuel before starting the engine as
it may cause a fire or explosion.
d. Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
e. Never refuel the machine indoors because
fuel vapors will accumulate in the area.
f. Never store the fuel container or machine in-
side where there is an open flame or spark,
such as a gas hot water heater, space heater or furnace.
• Escaping hydraulic fluid under pressure can
penetrate the skin. If fluid is injected into the
skin, seek immediate medical attention. Do not
use your hand to check for leaks. Use a piece
of cardboard or paper.
• Never run a machine inside a closed area.
• To reduce fire hazard, keep the tractor free of
any debris build-up. Clean up oil or fuel spillage.
• Before cleaning, repairing or inspecting, make
certain the blades and all moving parts have
stopped.
• Check the blade fasteners at frequent intervals
for proper tightness. Also visually inspect
blades for damage (e.g., excessive wear, bent,
cracked). Replace with blades which meet
original equipment specifications.
6
• Keep all nuts, bolts and screws tight to be sure
the equipment is in safe working condition.
• Never tamper with safety devices. Check their
proper operation regularly.
• After striking a foreign object, stop the engine,
and thoroughly inspect the mower for any
damage. Repair the damage before restarting
and operating the mower.
• Mower blades are sharp and can cut. Wrap the
blades or wear gloves, and use extra caution
when servicing blades.
• Check brake operation frequently. Adjust and
service as required.
• Engine components become hot during
operation and can cause a burn. Allow to cool
down before touching.
• Do not change the engine governor settings or
overspeed the engine. Excessive engine
speeds are dangerous.
• Observe proper disposal laws and regulations.
Improper disposal of fluids and materials can
harm the environment and the ecology.
• Prior to disposal, determine the proper method
to dispose of waste from your local
Environmental Protection Agency. Recycling
centers are established to properly dispose of
materials in an environmentally safe fashion.
• Use proper containers when draining fluids. Do
not use food or beverage containers that may
mislead someone into drinking from them.
Properly dispose of the containers immediately
following the draining of fluids.
• DO NOT pour oil or other fluids into the ground,
down a drain or into a stream, pond, lake or
other body of water. Observe Environmental
Protection Agency regulations when disposing
of oil, fuel, coolant, brake fluid, filters, batteries,
tires and other harmful waste.
• We do not recommend the use of a pressure
washer or garden hose to clean your unit. They
may cause damage to electrical components;
spindles; pulleys; bearings; or the engine. The
use of water will result in shortened life and
reduce serviceability.
WARNING:
read, understand and follow the warnings and instructions in this manual and on the machine.
- YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who
7
SAFETY LABELS
WARNING
AVOID SERIOUS
INJURY OR DEATH
GO UP AND DOWN SLOPES,
1.
NOT ACROSS.
AVOID SUDDEN TURNS.
2.
DO NOT OPERATE UNIT WHERE
3.
IT COULD SLIP OR TIP.
IF MACHINE STOPS GOING
4.
UPHILL, STOP PTO AND BACK
DOWN HILL SLOWLY.
DO NOT MOW WHEN CHILDREN
5.
OR OTHERS ARE AROUND.
DO NOT ALLOW PASSENGERS
6.
ON THE TRACTOR AT ANY TIME.
LOOK DOWN AND BEHIND
7.
BEFORE AND WHILE BACKING.
KEEP SAFETY DEVICES
8.
[GUARDS, SHIELDS, AND
SWITCHES] IN PLACE AND
WORKING.
REMOVE OBJECTS THAT
9.
COULD BE THROWN BY
THE BLADES.
KNOW LOCATION AND
10.
FUNCTION OF ALL CONTROLS.
BE SURE THE BLADES AND THE
11.
ENGINE ARE STOPPED BEFORE
PLACING HANDS OR FEET NEAR
BLADES.
BEFORE LEAVING OPERATOR'S
12.
POSITION, DISENGAGE PTO,
ENGAGE BRAKE LOCK, SHUT
OFF ENGINE AND REMOVE KEY.
SLOW DOWN FOR TURNS,
13.
ROUGH GROUND AND SLOPES
TO AVOID UPSET.
14. ON PUBLIC ROADS USE SMV
EMBLEM AND HAZARD LIGHTS.
READ OPERATOR'S
MANUAL
FAN WARNING LABEL
INSTRUCTION / WARNING LABEL
ON LEFT RUNNING BOARD
WARNING
KEEP HANDS
AND CLOTHING
AWAY FROM
ROTATING FAN
AND BELTS TO
PREVENT
SERIOUS INJURY
LOCATED ON EACH
SIDE OF RADIATOR
DIE OUTLINE DOES NOT PRINT
WHEN ADDING FRONT AND / OR REAR
MOUNTED ATTACHMENTS, COUNTER
WEIGHT MAY NEED TO BE ADDE D TO THE
TRACTOR. REFER TO TRACTOR OPERATOR’S
MANUAL FOR DETAILS
.
INSTRUCTION LABEL
ON RIGHT RUNNING BOARD
WARNING
BATTERIES CON TAIN ACID AND EXPLOSIVE GAS .
EXPLOSION CAN RESULT FROM SPARKS, FLAM ES,
OR W R ONG CABLE CONNECTION S. TO CONN ECT
JUM PER CABLES OR CH ARGER SEE M AN UAL FOR
CORRECT PR OCEDURE. FAILURE TO FOLLOW THE
ABOVE INSTRUCTIONS CAN CAUSE SERIOUS
PERSONAL INJURY OR DEATH.
BATTERY WARNING LABEL
LOCATED UNDER HOOD
WARNING
EXPLOSI ON AND INJURY CAN
RESULT FROM THE USE OF
STARTING AIDS WI TH HOT GLOW
PLUGS, DO NOT INJECT GASOLI NE
OR ETHER IN AIR I NTAKE
STARTING AID
WARNING LABEL
LOCATED UNDER HOOD
WARNING
To avoid personal injury, keep PTO shield in place.
Pull only from draw bar. pulling from any other point can cause rear overturn.
Disengage PTO and stop engine before servicing tractor, or implements,
or attaching or detaching implements.
FAILURE TO FOLLOW ANY OF THE INSTRUCTIONS ABOVE CAN CAUSE
SERIOUS INJURY TO THE OPERATOR, OR OTHER PERSONS.
PTO WARNING LABEL
LOCATED ON REAR PTO SHIELD
WARNING
When improperly operated this tractor can
roll over or upset. Use of the ROPS and
seat belt minimize the possibility of injury
or death if roll over or upset occurs.
ROLL OVER WARNING LABEL
LOCATED ON RIGHT/REAR FENDER
8
SECTION 1: CONTROLS AND FEATURES
X
V
W
A
U
B
C
D
HOURS 1/10
FUEL
T
EF
RPM
x10000
4
E
F
S
H
G
H
R
J
Q
K
P
L
M
O
Figure 1
J.Steering Wheel
A.
B.
Throttle Handle
C.
PTO Switch
D.
Ignition Switch
E.
Brake Pedal
F.
Reverse Pedal
G. Forward Pedal
H. Hand Holds
Trans. 4WD Shift Lever
Hydraulic Lift Lever
K.
Cup Holder
L.
Amber Hazzard Light
M.
Seat Adjustment Lever
N.
Seat Belt
O.
P. Fuel Fill Cap Instrument Panel
Trans. Hi/Lo Shift Lever
Q.
* Steering Wheel, Seat, and ROPS Transparent for Clarity
9
N
PTO Reverse Override Switch
R.
Parking Brake Lever
S.
Differential Lock Pedal
T.
Hazzard Light Switch
U.
Headlight Switch
V.
Foldable ROPS
W.
X.
M
NOTE: References to LEFT and RIGHT indicate
that side of the tractor when facing forward while
seated in the drivers seat. Reference to FRONT
indicates the grille end of the tractor; to REAR, the
tow plate end.
A. Steering Wheel
The steering wheel is centered on the dash panel,
and used to change the direction (left or right) of
the tractor while driving.
NOTE: This tractor is equipped with hydraulic
power steering. With this feature, the cap and
spokes of the steering wheel may change position.
OFF - Engine and electrical system is turned off.
ON - The tractor electrical system is energized.
START- The starter motor will turn over the engine.
Release the key immediately when the
engine starts
E. Brake Pedal
Brake Pedal
Symbol
B. Throttle Handle
This symbol indicates the
fast position.
This symbol indicates the
slow position.
The throttle handle is located to the right of the
steering wheel on the dash panel. When set in a
given position, a uniform engine speed will be
maintained. Rotate the handle rearward to increase
the engine speed.
C. PTO Switch
PTO
Switch
Symbol
Figure 2
The PTO switch is a rocker type switch located to
the right of the steering wheel on the dash panel.
Push the top of the PTO switch downward to
engage the PTO. Push the bottom of the switch
downward to disengage.
D. Ignition Switch
NOTE: To prevent accidental starting and/or battery
discharge, remove the key from the ignition switch
when the tractor is not in use.
The ignition switch has three positions as follow:
Figure 4
The brake pedal is located at the front of the right
running board above the forward and reverse
pedals. Depress to engage the tractor brakes and
neutralize the hydrostatic transmission. Fully
depress the brake pedal to activate the safety
interlock switch when starting the tractor.
F. Reverse Pedal
Reverse
Pedal
Symbol
Figure 5
The reverse control pedal is located on the right
running board below the brake pedal. Press the
pedal down to move in reverse.
WARNING: Check behind the tractor to
be sure the area is clear of people, pets
or obstacles and use a slower speed to
maintain control of the tractor when
traveling in reverse.
G. Forward Pedal
Forward
Pedal
Symbol
STOP
OFF
ON
Figure 3
START
Figure 6
The forward control pedal is located on the right
running board below the brake pedal. Slowly press
down on the pedal to start moving forward. The
forward ground speed of the tractor is directly
affected by the distance the pedal is depressed.
10
H. Hand Holds
Hand holds are built into both the left and right hand
fender covers. The handles can be used to assist in
mounting and dismounting the tractor.
J. Transmission 4WD Shift Lever
The 4WD shift lever is located on the right fender.
This lever is used to engage the transmission drive
that powers the front transaxle. Push the lever
forward to engage the 4WD, and pull the lever
rearward to disengage.
K. Hydraulic Lift Lever
The hydraulic lift lever is located on the right fender.
This lever is used to raise and lower the three point
hitch lift arms.
• Move the lift lever fully rearward to raise the lift
arms.
• Move the lift lever forward to lower the lift arms.
• Move the lift lever fully forward and inward to
lock in the float position.
L. Cup Holder
The cup holder is located on the right fender.
M. Amber Hazard Lights
The hazard lights are located on each side of the
ROPS. The lights illuminate in a flashing mode
when the hazard light switch is turned on. Always
use the hazard lights when it is necessary to warn
others that the tractor is being operated in the area.
N. Seat Adjustment Lever
The seat adjustment lever is located at the right/
front of the seat. This lever is used to adjust the
seat forward or backward.
O. Seat Belt
The seat belt, when properly adjusted and used in
conjunction with the Rollover Protective Structure
(ROPS), can greatly reduce the risk of serious
injury or death to the operator if an accidental
tractor overturn occurs.
WARNING: DO NOT use the seat belt if
the ROPS structure has been removed
from the tractor.
P. Fuel Fill Cap
The fuel fill cap is located on the left fender beside
the operator’s seat.
Q. Transmission Hi/Lo Range Shift Lever
The Hi/Lo range shift lever is located on the left
fender. The lever has two speed range settings and
a neutral position. The lever must be shifted into
either the high or low range prior to depressing the
forward or reverse pedal to drive the tractor.
• Push the lever forward to shift into the high
range.
• Pull the lever rearward to shift into the low
range.
• Move the lever to the center position to shift
into the neutral position.
WARNING: Never attempt to shift the
Hi/Lo range lever when the tractor is in
motion.
R. PTO Reverse Override Switch
The PTO reverse override switch is located on the
left fender. Depress the front of the switch to
engage the override which allows the PTO to
operate while the tractor is traveling in the reverse
direction. Once activated, this function remains
activated until the ignition switch is turned to
the OFF position for a duration of at least 20
seconds, regardless of the number of times the
PTO is turned off using the PTO switch.
WARNING: Use EXTREME caution
when operating PTO driven attachments while traveling in the reverse
direction.
S. Parking Brake Lever
Parking
Brake
Symbol
Figure 7
The parking brake lever is located below the
steering wheel in the dash panel. With the brake
pedal fully depressed, push the parking brake lever
downward and release the brake pedal to lock the
parking brake.
11
T. Differential Lock Pedal
Diff. Lock
Pedal
Symbol
Figure 9
Figure 8
Located at the front of the left running board, the
differential lock pedal engages the transmission
differential lock.
The differential lock is used to gain additional traction when operating the tractor on wet or loose soil.
When the pedal is depressed the rear wheels of the
tractor are prevented from rotating independently of
one another.
WARNING: When operating with the
differential lock engaged, the tractor
will be difficult to steer. Do not drive
the tractor on roadways or at high
speeds with the differential lock
engaged.
NOTE: Disengagement of the differential lock is
recommended prior to turning the tractor on grass
or other maintained surfaces — tire damage to the
turf could occur.
U. Hazard Light Switch
The hazard light switch is a rocker type switch
located to the left of the steering wheel on the dash
panel. Push the top of the hazard light switch
downward to activate the flashing amber lights.
WARNING: Always activate the flashing hazard lights when operating the
tractor on, or near, roadways.
V. Headlight Switch
Headlight
Switch
Symbol
Figure 10
The headlight switch is a rocker type switch located
to the left of the steering wheel on the dash panel.
Push the top of the headlight switch downward to
turn on the headlights and instrument panel gauge
lights.
W. Foldable ROPS (Rollover Protective Structure)
The ROPS is installed to prevent or reduce injuries
to the operator should the tractor accidentally
overturn. The foldable feature allows the ROPS to
be lowered when operating in areas with low
overhead clearance. The protection provided by the
ROPS is minimized if the seat belt is not used, and
is eliminated when in the folded position.
12
X. Instrument Panel
9
3
7
4
Green
8
Range
1
FUEL
EF
5
Figure 11
1. Fuel Gauge
The fuel gauge monitors the fuel level in the fuel
tank. The needle pointing to the right indicates a full
tank. The ignition switch must be in the ON position
to activate the fuel gauge.
2. Tachometer
The tachometer shows the engine speed in revolutions per minute (RPM). Optimal engine operating
speed is approximately 3000-3500 RPM. When
operating PTO driven attachments the RPM indicator needle should be within the green range on the
tachometer dial.
3. Battery Indicator Light
• Bulb illuminates and battery voltage is displayed
briefly when the ignition switch it turned to the
"ON" position.
• Illuminates to indicate the battery voltage has
dropped below 11.5 (+0.5/-1.0) DC volts. The
battery voltage is also displayed on the hour
meter. If this indicator and display come on
during operation, check the battery and charging
system for possible causes and/or contact your
Cub Cadet dealer.
4. Oil Pressure Indicator
This warning lamp indicates low engine oil pressure.
If this indicator illuminates, stop the tractor
immediately and check the engine oil level. If the oil
level is within the operating range, but the light
remains on, contact your Cub Cadet dealer. NOTE:
The oil pressure indicator may illuminate when the
key switch is turned to the on position, but should
turn off when the engine is started.
5. PTO Engaged Indicator
This indicator illuminates whenever the PTO switch
is pulled upward in the "ENGAGED" position while
the key switch is turned to the "ON" position. Check
this indicator if the engine will not crank with the key
switch in the "START" position—the indicator should
not be illuminated. If necessary, move the PTO
switch to the "DISENGAGED" position.
2
HOURS 1/10
6
RPM
04
x1000
6. Brake Engaged Indicator
This indicator illuminates whenever the brake pedal
is fully depressed or the parking brake is engaged
and the key switch is turned to the "ON" position.
Check this indicator if the engine will not crank when
the key switch is turned to the "START" position—
the indicator should be illuminated. If necessary,
fully depress the brake pedal.
7. Hour Meter/Battery Display
The hour meter records the hours and tenths of an
hour (right most digit) that the tractor has been
operated.
• The hour meter is activated when the key switch
is turned to the “ON” switch position. Because
the key switch may be accidentally left in the
"ON" position, a record of the actual hours of
operation should be kept to assure maintenance procedures are completed according to
the schedule in this manual.
• When the key switch is turned to the "ON"
position, the battery indicator light briefly
illuminates and the battery voltage is briefly
displayed. The display then changes to the
accumulated hours.
8. Engine Coolant Temperature Light
Illumination of this warning lamp indicates the engine
coolant temperature has risen above the prescribed
operating range. If the light comes on while operating the tractor, eliminate all loads and try cooling the
engine by running at mid throttle for a few minutes.
Stop the engine and allow to cool; then check for
possible causes (e.g. low coolant level, plugged radiator screen).
9. Glow Plug Indicator Light
Illuminates when the ignition switch is turned to the
ON position. The light remains lit for a preset time
while the glow plugs heat the precombustion
chambers of the diesel engine.
13
SECTION 2: OPERATION
ROLLOVER PROTECTIVE STRUCTURE (ROPS)
This tractor is equipped with a foldable Rollover
Protection Structure (ROPS) and seat belts. When
used together they are effective in reducing injuries
to the operator in the event of an accidental tractor
rollover. The safety provided by the ROPS is
minimized if the seat belt is not properly adjusted
AND buckled. Refer to ADJUSTMENTS for seat
belt adjustment.
ROPS
SEAT
BELT
WARNING: A folded ROPS does not
provide rollover protection. When the
ROPS is in the folded position, the seat
belt must NOT be used.
Reposition the ROPS as follows:
• Loosen the two clamp knobs on the front of the
ROPS to relieve their pressure on the ROPS.
See Figure 13.
• Remove the two internal cotter pins, and, while
supporting the ROPS, withdraw the hitch pins.
See Figure 13. Carefully lower the ROPS.
• Reinstall the hitch pins and internal cotter pins
for storage.
HITCH
PIN
INTERNAL
COTTER PIN
CLAMP
KNOB
HITCH
PIN
Figure 12
WARNING: Always wear the seat belt
when operating the tractor equipped
with a ROPS. However, if the ROPS has
been removed, the seat belt must not be
used.
Use the following guidelines when using a tractor
equipped with a ROPS:
• Be aware of overhead clearances in area of
operation. Check for clearance of door openings and other overhead objects such as utility
lines and tree branches. Overhead objects
could catch the ROPS and upset the tractor.
• Do not modify the ROPS by drilling holes for, or
welding accessories to the structure.
• Do not use the ROPS to pull objects with the
tractor. Use ONLY the tractor rear tow plate for
pulling.
• In the event of an accident, have the ROPS
carefully inspected and, if necessary, replaced
by your Cub Cadet dealer. Do not attempt to
repair the ROPS.
FOLDING THE ROPS
The foldable ROPS feature allows the operator to
quickly lower the ROPS to operate in areas where
there is low overhead clearance. However, the
ROPS should be used in the lowered position only
when absolutely necessary. Operate with the
ROPS in the ‘up’ position whenever possible.
Figure 13
To raise the ROPS:
• Remove internal cotter pins and hitch pins and
lift the ROPS into position.
• Insert the hitch pins and secure with the
internal cotter pins.
• Tighten the clamp knobs against the ROPS.
SAFETY INTERLOCK SYSTEM
This tractor is equipped with a safety interlock
system for the protection of the operator. If the
interlock system should ever malfunction, do not
operate the tractor. Contact your authorized Cub
Cadet Dealer. The safety interlock system prevents
the engine from cranking or starting unless the brake
pedal is fully depressed, and the PTO is “OFF”.
• The safety interlock system will shut off the
engine if the operator leaves the seat before
engaging the parking brake.
• The safety interlock system will shut off the
engine if the operator leaves the seat with the
PTO “ON”, regardless of whether the brake
14
lock is engaged. NOTE: The PTO switch must
be moved to the “OFF” position to restart the
engine.
• The safety interlock system will shut off the
PTO if the reverse control pedal is depressed,
unless the reverse override function is
activated. NOTE: If the reverse override
function has been activated, it will remain
activated until the ignition switch is turned to
the "OFF" position for a 20 second duration.
FUELING THE TRACTOR
Fill the fuel tank with only clean, fresh, diesel fuel
with a minimum cetane number of 40. To ensure
the freshness of the fuel, purchase fuel in a quantity
that can be used within 30 days.
NOTE: DO NOT USE KEROSENE OR GASOLINE
in your diesel engine. Damage to the engine will
occur.
Generally a good grade Number Two Diesel Fuel
should be used in your diesel engine. In extremely
cold temperatures a quality Number One Diesel
Fuel, or a blend of the two, should be used. In most
areas, diesel fuel is properly blended for seasonal
use as ambient temperatures change. Therefore, it
is important to monitor fuel purchases so that
seasonal grade fuels are not carried over after the
average ambient temperature has changed.
NEW TRACTOR BREAK-IN PROCEDURES
Proper care in the first hours of operation will help
to assure optimal performance of your new tractor.
• Never operate a new engine immediately under
full load. Allow the engine to warm up.
• Avoid operating the engine for prolonged periods
at either high or low speed with no load.
• Use the transmission’s low speed range for
heavy loads to avoid lugging, or stalling, of the
engine due to overload.
• Closely monitor the engine oil and keep filled to
the recommended level.
• After the first ten hours of operation, check the
front and rear wheel lug nuts. If necessary, retorque the lug nuts to 60-70 ft. lbs.
• Perform all break-in maintenance procedures
found in the MAINTENANCE section.
STARTING THE ENGINE
WARNING: Always sit in the operator’s
seat when starting the tractor, Never
attempt to start the engine while
standing beside the tractor.
WARNING: Never use starting fluids,
such as ether, as a starting aid. Severe
engine damage or fire could result.
WARNING: Never fill the fuel tank to
the top of the filler neck. Expansion
could result in overflow through the
vents in the cap, allowing fuel to come
in contact with the operator.
• Do not smoke while refueling the tractor.
• Do not fill the fuel tank when the engine is
running or while the engine is hot.
• The fuel fill cap is located on the fender to the
left of the seat. Unscrew the fuel cap and fill
tank from an approved container. Do not fill the
fuel tank to capacity. Allow room for expansion.
• Tighten the fuel cap securely, and immediately
wipe up any spilled fuel.
• To minimize condensation, keep the fuel tank
as full as possible without filling to capacity. It is
a good practice to fill the fuel tank at the end of
the day to reduce overnight condensation.
• Do not allow the fuel tank to run dry. Running
out of fuel requires bleeding air and repriming
the fuel system.
WARNING: Fuel in the engine injection
system is under high pressure. If not a
qualified mechanic, do not attempt to
service the fuel injection system. Do
not use your hand to check for leaks.
• Operator must be sitting in the tractor seat.
• Move the throttle handle to approximately the
“SLOW” throttle position. Refer to Figure 14.
• Make sure the PTO switch is in the “OFF”
position. Note: The PTO light on instrument
panel will flash if switch is in ON position.
THROTTLE
HANDLE
SLOW
FAST
PTO SWITCH
IN ‘OFF’
POSITION
Figure 14
• Either fully depress and hold the brake pedal or
engage the parking brake. NOTE: The parking
brake indicator on instrument panel will
illuminate if pedal is not depressed.
15
Loading...
