Page 1
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
L
Reel Mower m Moclels 3000 & 3100
MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019
FormNo.769-06424A
(October21,2010)
Page 2
ToTheOwner
ThankYou
1
Thank you for purchasing an MTD Reel Mower. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator's
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product specifications, designs and
equipment without notice and without incurring obligation.
1"able of Contents
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. S
Operation ................................................................. 7
Maintenance &Adjustment. .................................. 8
If you have any problems or questions concerning the machine,
phone your local authorized MTD service dealer or contact us
directly. MTD's Customer Support telephone numbers, website
address and mailing address can be found on this page. We want
to ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Illustrated Parts List ............................................... 10

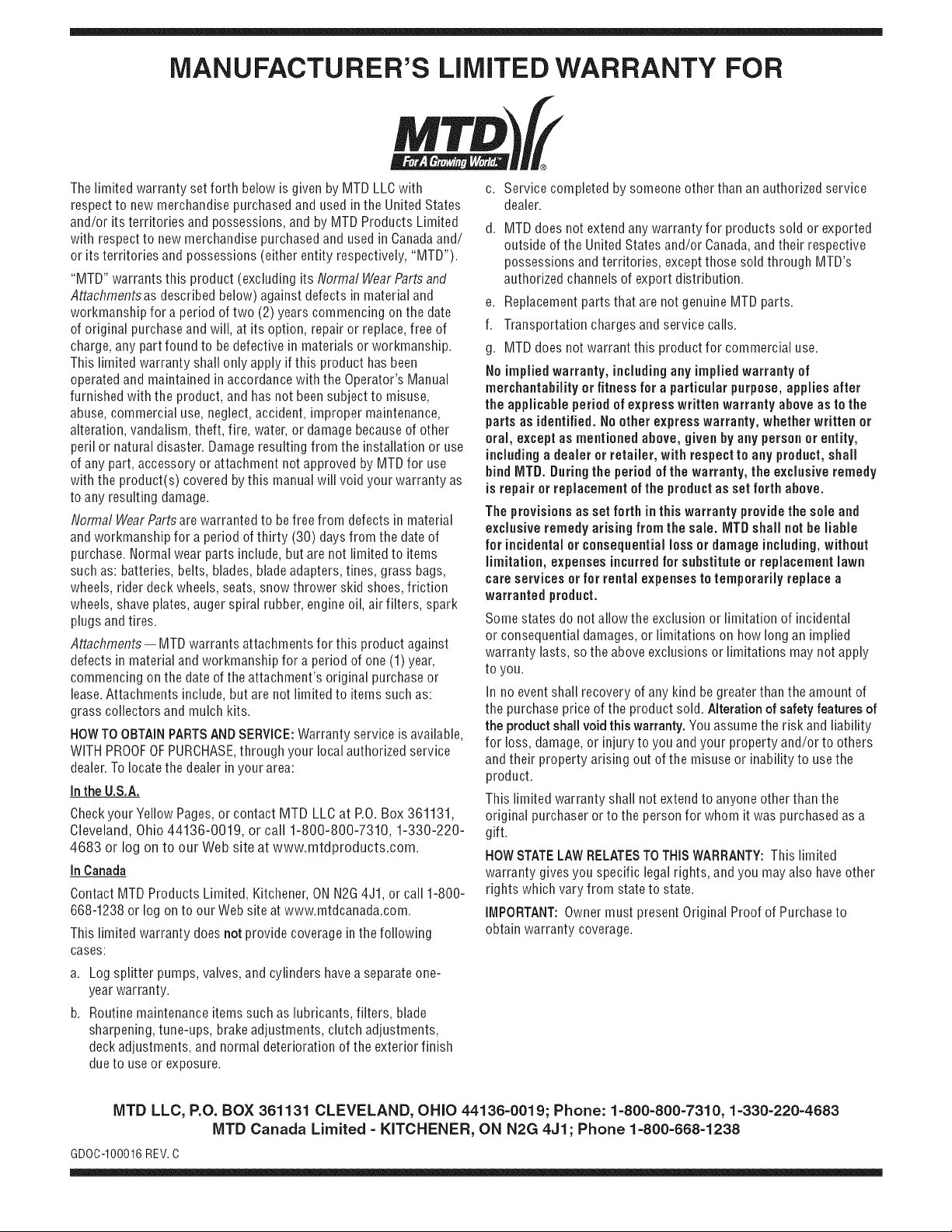

Warranty .................................................. Back Cover
RecordProductinformation
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by looking near the wheels of the machine. This
information will be necessary, should you seek technical support
via our web site, Customer Support Department, or with a local
authorized service dealer.
MODEL NUMBER
DDDDDDDDDDD
SERIAL NUMBER
[3N[3N[3N[3N[3ND
CustomerSupport
Please do NOTreturn the machine to the retailer or dealer without first contacting the Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
0 Visit us on the web at www.mtdproducts.com
0 Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683
0 Write to MTD LLC • RO. Box 361131 • Cleveland, OH • 44136-0019
Page 3
ImportantSafeOperationPractices
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. Carelessness or error on the part of the operator can result in serious injury. This
machine is capable of amputating fingers and toes and throwing objects. Failure to observe
the following safety instructions could result in serious injury.
2
GeneralOperation
1. Read this operator's manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Keep this manual in a safe
place for future and regular reference and for ordering
replacement parts.
2. Be completely familiar with the proper use of this machine
before operating it.
3. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. This machine has been designed to perform one job:
to mow grass. Do not use it for any other purpose.
4. Never allow children under 10 years of age to operate this
machine. Children 10 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
5. Only responsible individuals who are familiar with these
rules of safe operation should be allowed to use this
machine.
6. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys and other 18.
foreign objects.
7. To help avoid blade contact, stay in operator zone behind
handles and keep children, bystanders, helpers and pets
away from mower while it is in operation. Stop machine if
anyone enters area.
8. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or light- Do:
weight (e.g. canvas) shoes.
9. Do not put hands or feet near rotating blades. Contact with
blades can amputate fingers and toes.
10. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
11. Be careful when pulling the machine backward. Look down
and behind to avoid tripping. Be sure you are well balanced
with sure footing.
12. Do not operate the mower while under the influence of
alcohol or drugs.
13. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury.
14.
Mow only in daylight or good artificial light. Walk, never
run.
15.
The cutting blade may continue to rotate for a few seconds
after the mower has stopped moving. Never place any part
of the body in the blade area until you are sure the blade
has stopped rotating.
16.
Use safe lifting practices when moving mower.
17.
Only use parts and accessories made for this machine by
the manufacturer. Failure to do so can result in personal
injury.
If situations occur which are not covered in this manual, use
care and good judgement. Contact Customer Support for
assistance or the name of the nearest service dealer.
SlopeOperation
Slopes are a major factor related to slip and fall accidents, which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it. If the slope
is greater than 15 degrees, do not mow it.
1.
Mow across the face of slopes; never up and down. Exercise
caution when changing direction on slopes.
2.
Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
3.
Always be sure of your footing. A slip and fall can cause
serious personal injury.
Page 4
DoNot:
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Children
Tragic accidents can occur if the operator is not alert to the
presence of small children. Children are often attracted to the
mower and the mowing activity. Children younger than 10 years-
old do not understand the dangers. Never assume that children
will remain where you last saw them.
1. Keep children younger than 10 years-old out ofthe
mowing area and under watchful care of a responsible
adult other than the operator.
2. Be alert and stop mowing if a child or others enter the area.
3. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
4. Never allow children under 10 years of age to operate this
machine. Children 10 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
Service
1. Mower blades are sharp and can cut. Wear gloves, and use
extra caution when servicing them.
2. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
3. Never tamper with safety devices. Check their proper
operation regularly.
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
READ THE OPERATOR'S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
DANGER -- ROTATING BLADES
To reduce the risk of injury, keep hands and feet away.
• ®
I!1
DANGER -- BYSTANDERS
Do not mow when children or others are around.
4 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES
Page 5
Assembly& Set-Up
Contents of Crate
3
One Upper Handle
Six Carriage Bolts
One Grass Catcher (Model 3100)
Two Mid Handles
Six Wing Knobs
One Operator's Manual
MowerSet-Up
Attaching the Handle
1. Secure the upper handle to the mid handles with two
carriage bolts, two saddle washers and two wing knobs.
See Fig. 3-1.
One Lower Handle
Six Saddle Washers
One Product Registration Card
Figure 3-2
Figure 3=1
2. Securethe handleassembledin step 1 tothelowerhandlewith
four carriage bolts, four saddle washers and four wing
knobs. See Fig. 3-2.
3. Position the complete handle assembly over the studs on
the rear of the mower frame. See Fig. 3-3.
Figure 3=3
Page 6

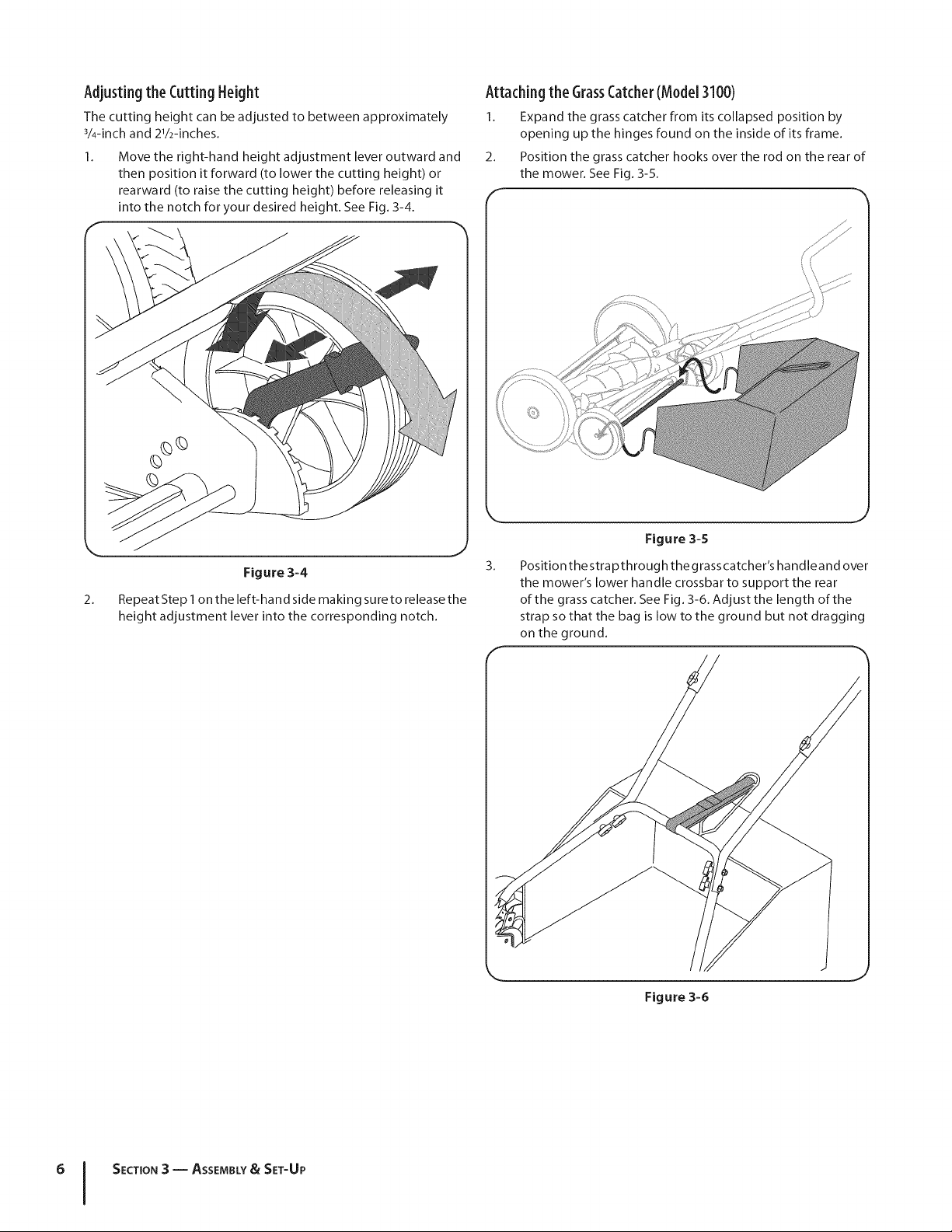

Adjusting the Cutting Height
The cutting height can be adjusted to between approximately
3/4-inch and 21/2-inches.
Move the right-hand height adjustment lever outward and
then position it forward (to lower the cutting height) or
rearward (to raise the cutting height) before releasing it
into the notch for your desired height. See Fig. 3-4.
\
Figure 3-4
2. RepeatStep I on the left-hand side making sureto release the
height adjustment lever into the corresponding notch.
Attaching the GrassCatcher(Model3100)
I. Expand the grass catcher from its collapsed position by
opening up the hinges found on the inside of its frame.
2. Position the grass catcher hooks over the rod on the rear of
the mower. See Fig. 3-5.
f
Figure 3-5
3.
Position the strapthrough the grass catcher's handleand over
the mower's lower handle crossbar to support the rear
of the grass catcher. See Fig. 3-6. Adjust the length of the
strap so that the bag is low to the ground but not dragging
on the ground.
6 I SECTION3 -- ASSEMBLY& SET-UP
Figure 3-6
Page 7
Operation
UsingYourLawnMower
Please observe the following when operating your reel mower.
Be sure lawn is clear of stones, sticks, wire, or other objects
which could damage lawn mower or engine.
result in foreign objects being thrown into the eyes,
_ WARNING: The operation of any lawn mower can
UsingGrassCatcher(Model3100)
You can use the grass catcher to collect clippings while you are
operating the mower.
1. Attach grass catcher following instructions in the Assembly
2. Remove the grass catcher's strap from the lower handle's
which can damage your eyes severely. Always wear
safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
Mow the lawn when the grass is relatively dry. Attempting
to mow wet grass can result in an uneven cut.
Maintain a consistent walking pace while pushing the
mower in straight passes.
Slightly overlap each pass to even the cut and avoid leaving
uncut strips.
Mow the lawn regularly, at least once a week during the
growing season. Mow more frequently than you would
with a conventional rotary lawn mower.
Always mow with the blade height adjusted to cut no more
than 1/3the total height of grass.
If the height of your lawn's grass exceeds four inches,
adjust the blade height to its highest position before
mowing. After mowing, readjust the blade to your
preferred cutting height and mow the lawn a second time
within the next one or two days.
& Set-Up section. Grass clippings will automatically collect
in catcher as you operate the mower. The faster you push
the mower, the more effectively it will collect clippings.
Operate the mower till grass catcher is full.
crossbar and lift the grass catcher up and away from the
mower to remove the bag. Dispose of the grass clippings
and reinstall the bag when complete.
WARNING: If you strike a foreign object,
thoroughly inspect mower for any damage. Repair
any damage before operating.
4
Transportingthe Mower
During normal operation, the blade reel will turn anytime the
mower's front wheels are turning. To safely move the mower
from one location to another without the blade reel turning,
simply pivot the handle over the reel and push the mower
F
\
Figure 44
from the opposite side. See Fig. 4-1. Pushing the mower in this
manner (transport mode) prohibits the blade reel from turning.
Page 8
Maintenance&Adjustments
Maintenance
GeneralRecommendations
Always observe safety rules when performing any
maintenance.
The warranty on this lawn mower does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from warranty, operator must maintain
the lawn mower as instructed here.
All adjustments should be checked at least once each
season.
Periodically check all fasteners and make sure these are
tight.
Regularly apply lubricant to mower's cutting surfaces,
cutting reel axle shaft and wheels.
Cleaningthe Mower
To prevent the build-up of grass clippings or other debris, clean
the mower by wiping it down with a damp cloth after each use.
Scrape and clean the mower with a suitable tool (e.g. a
plastic scraper or brush).
Do not use a pressure washer or garden hose to clean the
mower.
Remove deposits from the wheel tread.
BladeCare
Adjustments
_ ARNING: Mower blades are sharp and can cut.
BladeClearanceAdjustment
The blade reel is adjusted for proper clearance from the cutting
bar at the factory. However, after extended periods of mowing or
as part of annual maintenance, it is recommended that the blade
clearance be readjusted.
To adjust blade clearance, proceed as follows:
1. Locate the adjustment bolts found on the underside of the
2. Using a 13ram wrench, tighten the adjustment bolts (one
Wear gloves, and use extra caution when servicing
them. Any wheel rotation can cause the blade reel
to rotate.
If blade clearance is too wide, the cutting pattern will be
rough and uneven.
If blade clearance is too narrow, the machine will be noisy
and difficult to push while operating.
cutting bar on the rear of the mower.
on each end) 1/4-turn. See Fig. 5-1.
screws, as this could damage the cutter bar. Tighten
CAUTION: Do not overtighten the adjusting
both screws during final adjustment.
Wear gloves, and use extra caution when servicing
i_ WARNING: Mower blades are sharp and can cut.
Periodically sharpen the blades as follows:
1. Spread a thin layer of lapping compound (100 - 240 grit) on
2. Adjust the cutter barso that the blade has light but firm
3. Operate the mower on a paved surface until the front edge
4. Clean any grinding compound or debris from the cutter bar
them.
the front edge of the reel blades.
contact across the full width of the cutter bar. Refer to
Blade Clearance Adjustment later in this section.
of the cutter bar blade is polished.
blade, reel blade, pinions, and pawls.
,J
Figure 5-1
Page 9
3.
To test for proper adjustment:
a. Lean the mower all the way back so that it's resting
on the handle.
b.
Use one hand to slowly rotate the wheel of the
mower, causing the blade reel to slowly turn. If the
wheel is too difficult to turn, slightly loosen each
adjustment screw.
While the blade reel is turning, insert a sheet of
paper between the blade reel and the cutting bar.
See Fig. 5-2. The paper should shear evenly along
the entire length of the cutter bar, as if being cut by
scissors. If the paper doesn't shear, slightly tighten
each adjustment screw and repeat the test.
Figure 5-2
SECTION S -- MAINTENANCE & ADJUSTMENTS 9
Page 10
Models15A-3000&15A3100
@
@
©
Page 11
Models15A-3000&15A-3100
Ref, I
1
2
3
4
5
5
6
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
Part Number
720-04167
749-04811
749-04812
720-04169
749-04813
749-04814
710-05321
711-05531
711-05533
712-04292
736-04563
711-05534
711-05535
710-05322
787-01986
787-01961
734-04605
736-04564
736-04565
736-04566
710-05323
787-01965
787-01967
712-04293
732-04854
710-05324
736-04567
Description
Grip, Handle, 26 x 16x 630
Handle, Upper
Handle, Middle
Knob, Orange
Handle, Lower (Model 3000)
Handle, Lower (Model 3100)
Bolt, M6 x 35gb/T12
Shaft, Rear,Black(Model 3000)
Shaft, Rear,Black(Model 3100)
Nut, M8, Gb/T6172.2
Washer, 17x 8.2 x 1.2
Pin, (Model 3000)
Pin, (Model 3100)
Screw,M8-16gbt70.2
Bracket, Rear,LH, Black
Handle, Adjustment, Orange
Wheel, Rear
Washer, 17x 8.2 x 1.2
Washer,Gb/T955
Washer,20 x 13x 1
Bolt, M8 x 24
Bracket, Lower Blade, Black
(Model 3000)
Bracket, Lower Blade, Black
(Model 3100)
Nut, M8 x 1
Spacer,65mm, 17x4 x 48
Bolt, M8 x 1x65
Washer,25 x 6.5 x 1.5
Ref, [
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
Part Number
710-05325
731-08254
734-04607
787-01969
736-04568
787-01973
736-04569
712-04294
717-04917
787-01976
736-04570
741-04514
742-04362
742-04363
787-01978
787-01980
787-01982
711-05536
712-04295
710-05326
787-01985
787-01994
787-01988
710-05327
764-04133
727-04374
736-04573
Description
Bolt, M6x20, Gb/T5780
Hub Cap
Wheel, Complete
Bracket, Black
Washer, Spacer, Gb/T7244
Bracket, Support, LH, Black
Washer, 20x10.2x1.4
Nut, MIO, Gb/T6172.2
Gear, 41ram, Pa66
Support, 19x 10x 5
Washer, 34 x 15.5x 1
Bearing, 6002z
Blade, Roller (Model 3000)
Blade, Roller (Model 3100)
Shield, Deflector (Model 3000)
Shield, Deflector (Model 3100)
Bracket, Support, RH, Black
Axle, Wheel, 19x65.5
Nut, M8, Gb/T6170
Bolt, M8x16gb/T5781
Bracket, Adjustment, 9 Tooth RH
Bracket, Adjustment, 9 Tooth LH
Bracket, Rear, RH, Black
Bolt, M6xlO Gb/T5780
Grass Bag (Model 3100)
Strap, Grass Bag (Model 3100)
Saddle Washer
11
Page 12
MANUFACTURER'S LiMiTED WARRANTY FOR
The limited warranty set forth below is given by MTD LLCwith
respect to new merchandise purchased andused in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canadaand/
or its territories and possessions (either entity respectively, "MTD").
"MTD" warrants this product (excluding its Normal WearParts and
Attachments as described below) against defects in material and
workmanship for a period of two (2) years commencing onthe date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's Manual
furnished with the product, and has not beensubject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage becauseof other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal WearParts arewarranted to be free from defects in material
andworkmanship for a period of thirty (30) days from the dateof
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes,friction
wheels, shaveplates, auger spiral rubber, engine oil, air filters, spark
plugs andtires.
Attachments-- MTD warrants attachments for this product against
defects in material and workmanship for a period of one(1) year,
commencing on the date of the attachment's original purchase or
lease.Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOWTO OBTAINPARTSANDSERVICE:Warranty service is available,
WITH PROOFOFPURCHASE,through your local authorized service
dealer.Tolocate the dealer in your area:
In theU.S.A.
Checkyour Yellow Pages, or contact MTD LLC at RO. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G4J1, or call 1-800-
668-1238 or log on to our Web site atwww.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a.
Log splitter pumps, valves, and cylinders havea separate one-
yearwarranty.
b.
Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
dueto use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD's
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, includingany implied warranty of
merchantability or fitness for a particular purpose,applies after
the applicable periodofexpress written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
includinga dealer or retailer, with respect to any product,shall
bind MTD. Duringthe period of the warranty, the exclusive remedy
is repair or replacement of the productas set forth above.
The provisionsas set forth inthis warranty providethe sole and
exclusive remedy arising from the sale. MTDshall not be liable
for incidental orconsequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
careservices or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind begreater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
andtheir property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOWSTATELAW RELATESTOTHISWARRANTY:This limited
warranty givesyou specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT:Owner must present Original Proof of Purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1=800=800=7310, 1=330=220-4683
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
GDOC-100016REV. C
Loading...
