MTD 2B5, 295, E2B5, E295 User Manual

Operator’s Manual

Single Stage

Snow Thrower

Models: 2B5 & 295

E2B5 & E295

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

MTD Products Ltd., P. O. BOX 1386, KITCHENER, ONTARIO N2G 4J1

PRINTED IN U.S.A.

FORM NO

772C0706A

.

(4/2005)

TABLE OF CONTENTS

Content Page

Customer Support 2
Important Safe Operation Practices 3

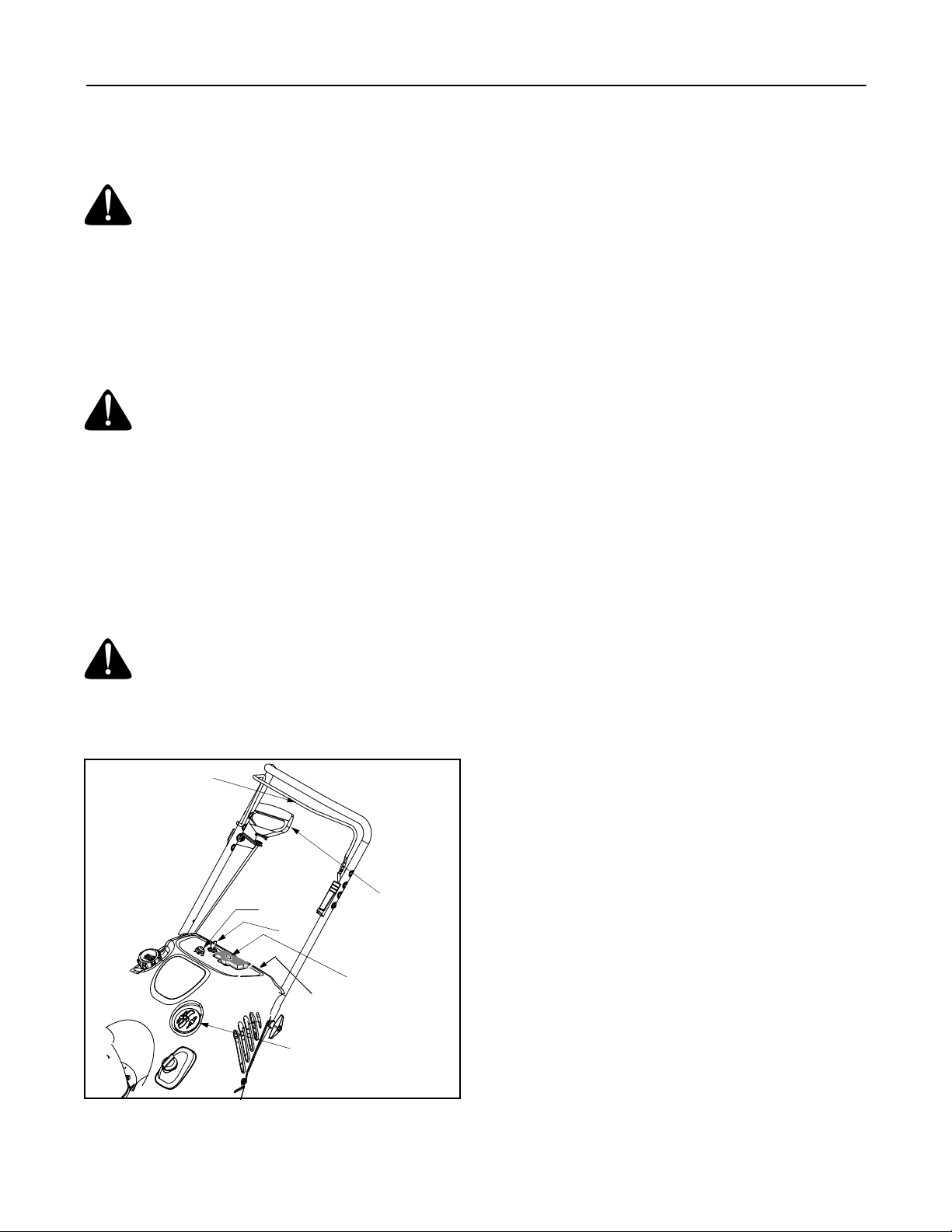

Assembly 5

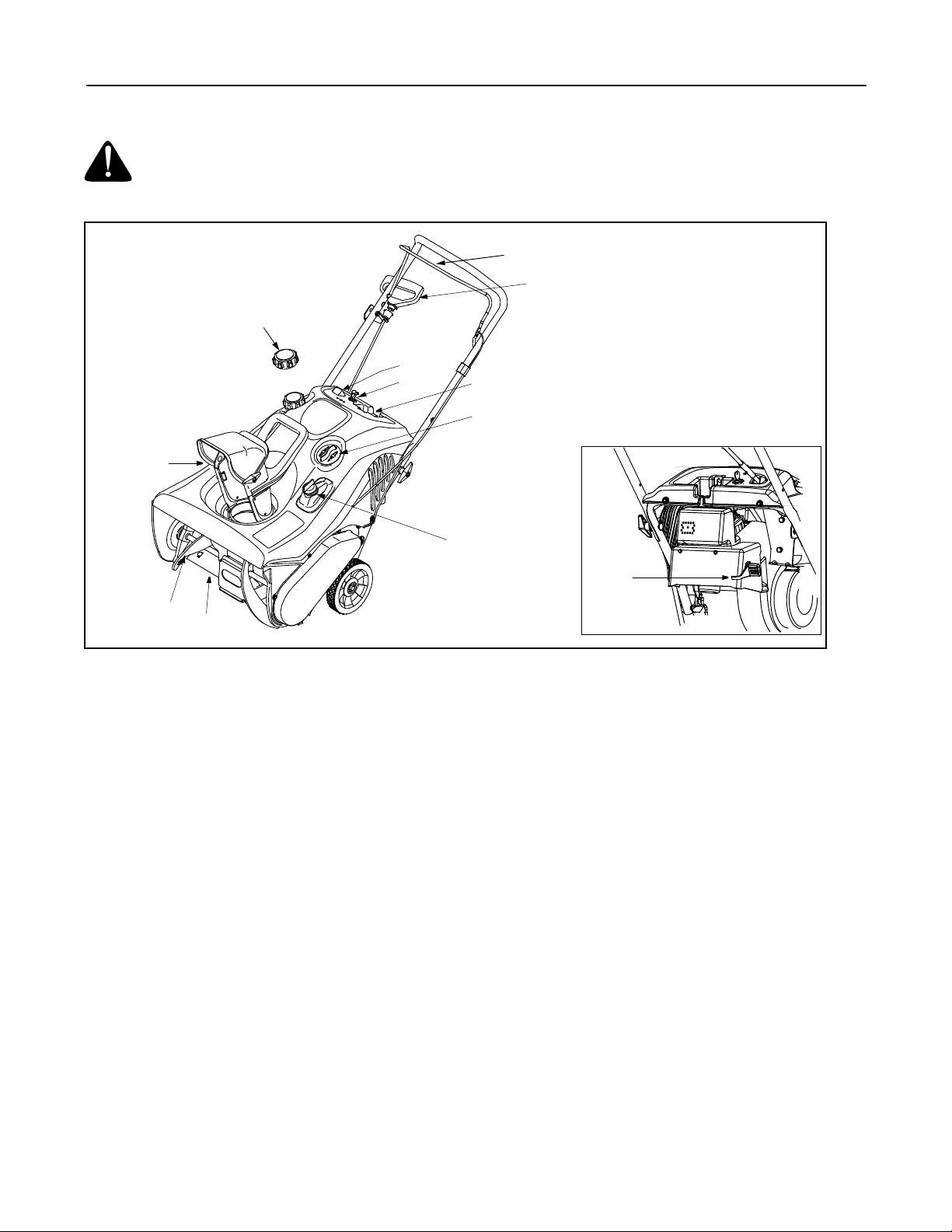

Know Your Snowthrower 6
Operation 7
Adjustments 9

Content Page

Maintenance 10
Off-Season Storage 10
Troubleshooting 11
Illustrated Parts List 12
Warranty 16

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new snow thrower. It will help you to assemble, prepare and
maintain the unit for best performance . Please read and understand wh at it says.

Before you start assembling your new equipment, please locate the model plat e on the
equipment and copy the information from it in the space provided below. A sample model plate is
also given below. You can locate the model number by standing behind t he unit in the operating
position and looking at the rear of the snow thrower. The information will be necessary to use the
manufacturer’s web site and/or help the Customer Support Depart ment or an authorized service
dealer.

.

Model Number
Numéro de modèle

Serial Number
Numéro de série

Copy the model number here:

XXX-XXXXXX

XXXXXXXXXXX

Copy the serial number here:

TROYBILT - CANADA
KITCHENER, ON N2G 4J1

ENGINE INFORMATION

The engine manufacturer is responsible for all engine-rel ated issues with regards to perf ormance, power-rat ing,
specifications, warranty and service. Please refer to th e engine manufacturer’s Owner’s/Op erator’s Manual packed
separately with your unit for more information.

CALLING CUSTOMER SUPPORT

Please do NOT return the unit to the retailer from which it was purchased, without first contacting Customer Support.

If you have difficulty assembling this prod uct or have any questions regar ding the controls, operation or
maintenance of this unit, please call a Customer Support Repre sentative.

1-800-668-1238

Please have your unit’s model number and serial number ready when you call. See previou s section to
locate this information. You will be asked to enter the serial number in order to process your call.

2

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could endanger the

personal safety and/or property of yourself and others. Read and follow all instructions in this manual before
attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you
see this symbol—heed its warning.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals

known to State of California to cause cancer and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with

any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.

Tra in ing

1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.

2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.

3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.

4. Never allow adults to operate this machine without
proper instruction.

5. Thrown objects can cause serious personal injury. Plan
your snow throwing pattern to avoid discharge of material
toward roads, bystanders and the like.

6. Keep bystanders, helpers, pets and children at least 75
feet from the machine while it is in operation. Stop
machine if anyone enters the area.

7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to
be used. Remove all door mats, newspapers, sleds,
boards, wires and other objects which could be tripped
over or thrown by the auger.

2. Always wear safety glasses or eye shields during
operation and while performing an adjustment or repair to
protect your eyes. Throw n objects which ricochet can
cause serious injury to the eyes.

3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other
loose clothing which could become entangled in moving
parts. Wear footwear which will improve footing on
slippery surfaces.

4. Use a grounded extension cord and receptacle for all
units with electric start engines.

5. Adjust collector housing height to clear gravel or crushed
rock surfaces.

6. Disengage the auger control bail before starting the
engine.

7. Never attempt to make any adjustments while engine is

running, except where specifically recommended in the
operator’s manual.

8. Let engine and machine adjust to outdoor temperature
before starting to clear snow.

9. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.

a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the

engine is hot or running.
e. Allow engine to cool at least two minutes before

refueling.
f. Never over fill fuel tank. Fill tank to no more than

½ inch below bottom of filler neck to provide space

for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine.
i. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

(e.g. furnace, water heater, space heater, clothes

dryer etc.).
j. Allow machine to cool at least 5 minutes before

storing.

Operation

1. Do not put hands or feet near rotating parts, in the auger
housing or discharge chute. Contact with rotating parts
can amputate hands and feet.

2. The auger control bail is a safety device. Never bypass
its operation. Doing so, makes the machine unsafe and
may cause personal injury.

3. The auger control bail must operate easily in both
directions and automatically return to the disengaged
position when released.

4. Never operate with a missing or damaged discharge
chute. Keep all safety devices in place and working.

5. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an

3

odorless and deadly gas.

6. Do not operate machine while under the influence of
alcohol or drugs.

7. Muffler and engine become hot and can cause a burn. Do
not touch.

8. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic.

9. Exercise caution when changing direction and while
operating on slopes.

10. Plan your snow throwing pattern to avoid discharge
towards windows, walls, cars etc. To avoid property
damage or personal injury caused by a ricochet.

11. Never direct discharge at children, bystanders and pets
or allow anyone in front of the machine.

12. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.

13. Never operate this machine without good visibility or
light. Always be sure of your footing and keep a firm hold
on the handles. Walk, never run.

14. Disengage power to the auger when transporting or not
in use.

15. Never operate machine at high transport speeds on
slippery surfaces. Look down and behind and use care
when in reverse.

16. If the machine should start to vibrate abnormally, stop the
engine, disconnect the spark plug and ground it against
the engine. Inspect thoroughly for damage. Repair any
damage before starting and operating.

17. Disengage the auger control bail and stop engine before
you leave the operating position (behind the handles).
Wait until the auger comes to a complete stop before
unclogging the discharge chute, making any
adjustments, or inspections.

18. Never put your hand in the discharge or collector
openings. Always use a clearing tool to unclog the
discharge opening.

19. Use only attachments and accessories approved by the
manufacturer.

20. If situations occur which are not covered in this manual,
use care and good judgment. Call customer assistance
for the name of your nearest servicing dealer.

Maintenance & Storage

1. Never tamper with safety devices. Check their proper

operation regularly.

2. Disengage the auger control bail and stop engine. Wait
until the auger comes to a complete stop. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting before cleaning, repairing, or
inspecting.

3. Check bolts, and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.

4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.

5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original
equipment manufacturer’s (O.E.M.) parts only. “Use of
parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”

6. Check the auger control bail periodically to verify they
engage and disengage properly and adjust, if necessary.
Refer to the adjustment section in this operator’s manual
for instructions.

7. Maintain or replace safety and instruction labels, as
necessary.

8. Observe proper disposal laws and regulations for gas,
oil, etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger.

10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace ,clothes dryer etc.

11. Always refer to the operator’s manual for proper
instructions on off-season storage.

Your Responsibility:

• Restrict the use of this power machine to persons
who read, understand and follow the warnings and
instructions in this manual and on the machine.

FOR TURNING,

NOT LIFTING

POUR TOURNER,

PAS POUR LE LEVAGE

DANGER

NEVER PUT HAND IN CHUTE. CAN

HANDS AND FINGERS.

AMPUTATE
STOP ENGINE AND AUGER BEFORE USING
CLEAN-OUT TOOL OR STICK.

NE PLACEZ JAMAIS VOS MAINS DANS LA
GOULOTTE. LES PIÈCES EN MOUVEMENT
PEUVENT AMPUTER MAINS ET DOIGTS.

ARRÊTEZ LE MOTEUR ET LA TARIÈRE AVANT
D'UTILISER L'OUTIL DE DÉGAGEMENT
DE LA GOULOTTE OU UN BÂTON.

4
