OPERATOR'S MANUAL
Single-Stage
Snow Thrower
Models 140
150
160
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest.covered,
brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above
is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal
lands. A spark arrester for the muffler is available through your nearest engine authodzed service dealer or contact the service department,
P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC,P.O.BOX361131CLEVELAND,OHIO44136-0019
PRINTED IN U.S.A. FORM NO. 769-00805
(6/2003)
Page 2
TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ......................................................................................... 3
Assembling Your Snow Thrower .............................................................................................. 5
Know Your Snow Thrower ........................................................................................................ 6
Operating Your Snow Thrower ................................................................................................. 7
Making Adjustments ................................................................................................................. 8
Maintaining Your Snow Thrower .............................................................................................. 8
Off-Season Storage ................................................................................................................. 9
Troubleshooting ....................................................................................................................... 10
Accessories & Kits ................................................................................................................... 11
Parts List .................................................................................................................................. 12
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new snow thrower. It will help you to assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new snow thrower, please locate the model plate on the
equipment and copy the informationfrom it inthe space provided below. The information on the
model plate is very important if you need help from our Customer Support Department or an
authorized dealer.
You can locate the model number by standing behind the unit in the operating position and looking down at
the dash panel. A sample model plate is explained below. For future reference, please copy the model
number and the serial number of the equipment in the space below.
Copy the model number here:
MTo f(°'°..c
_,l,J,J __ L _Jmmm® 330-220-4663
• www.mtdproducts.com 600-600-7310
P. O. BOX 361131
CLEVELAND,OH 44136
Copy the serial number here:
ENGINEINFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating,
specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's Manual packed
separately with your unit for more information.
CALLINGCUSTOMERSUPPORT
Pleasedo NOTreturntheunitto theretailer fromwhichit waspurchased,withoutfirstcontactingCustomerSupport.
Should you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (33O) 220-4MTD (4683) or 1- (80O) 8OO-7310 to reach a Customer Support representative.
Please have your unit's model number and serial number ready when you call. See previous section
to locate this information. You will be asked to enter the serial number in order to process your call.
Page 3
SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
WARNING: This symbol points out important safety instructions which, if not followed, could endanger the
personal safety and/or property of yourself and others. Read and follow all instructions in this manual before
attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you
see this symbol--heed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals
known to State of California to cause cancer and birth defects or other reproductive harm.
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with
any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.
Training
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without
proper instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75
feet from the machine while it is inoperation. Stop
machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
Preparation
1. Thoroughly inspect the area where the equipment is to
be used. Remove all door mats, newspapers, sleds,
boards, wires and other foreign objects which could be
tripped over or thrown by the auger/impeller.
2. Always wear safety glasses or eye shields during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other
loose clothing which could become entangled in moving
parts. Wear footwear which will improve footing on
slippery surfaces.
4. Use agrounded three wire extension cord and receptacle
for all units with electric start engines.
5. Adjust collector housing height to clear gravel or crushed
rock surfaces.
6. Disengage the control handle before starting the engine.
7. Never attempt to make any adjustments while engine is
running, except where specifically recommended inthe
operator's manual.
8. Let engine and machine adjust to outdoor temperature
before starting to clear snow.
9. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than
½ inch below bottom of filler neck to provide space
for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
L Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
Operation
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller control handle is a safety device.
Never bypass its operation. Doing so, makes the
machine unsafe and may cause personal injury.
3. The control handle must operate easily in both directions
and automatically return to the disengaged position when
released.
4. Never operate with a missing or damaged discharge
chute. Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
6. Do not operate machine while under the influence of
alcohol or drugs.
Page 4
7. Mufflerandenginebecomehotandcancauseaburn.Do
nottouch.
8. Exerciseextremecautionwhenoperatingonorcrossing
gravelsurfaces.Stayalertforhiddenhazardsortraffic.
9. Exercisecautionwhenchangingdirectionandwhile
operatingonslopes.
10.Planyoursnowthrowingpatterntoavoiddischarge
towardswindows,walls,carsetc.Toavoidproperty
damageorpersonalinjurycausedbyaricochet.
11.Neverdirectdischargeatchildren,bystandersandpets
orallowanyoneinfrontofthemachine.
12.Donotoverloadmachinecapacitybyattemptingtoclear
snowattoofastofarate.
13.Neveroperatethismachinewithoutgoodvisibilityor
light.Alwaysbesureofyourfootingandkeepafirmhold
onthehandles.Walk,neverrun.
14.Disengagepowertotheauger/impellerwhen
transportingornotinuse.
15.Neveroperatemachineathightransportspeedson
slipperysurfaces.Lookdownandbehindandusecare
wheninreverse.
16.Ifthemachineshouldstarttovibrateabnormally,stopthe
engine,disconnectthesparkplugandgrounditagainst
theengine.Inspectthoroughlyfordamage.Repairany
damagebeforestartingandoperating.
17.Disengagethecontrolhandleandstopenginebeforeyou
leavetheoperatingposition(behindthehandles).Wait
untiltheaugedimpellercomestoacompletestopbefore
uncloggingthedischargechute,makingany
adjustments,orinspections.
18.Neverputyourhandinthedischargeorcollector
openings.Alwaysuseaclearingtooltounclogthe
dischargeopening.
19.Useonlyattachmentsandaccessoriesapprovedbythe
manufacturer(e.g.wheelweights,tirechains,cabsetc.).
20.Ifsituationsoccurwhicharenotcoveredinthismanual,
usecareand good judgment. Contact your dealer or
telephone 1-800-800-7310 for assistance and the name
of your nearest servicing dealer.
MaintenanceAndStorage
1. Never tamper with safety devices. Check their proper
operation regularly.
2. Disengage the control handle and stop engine. Wait until
the auger/impeller come to a complete stop. Disconnect
the spark plug wire and ground against the engine to
prevent unintended starting before cleaning, repairing, or
inspecting.
3. Check bolts, and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original
equipment manufacturer's (O.EM.) parts only. "Use of
parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!"
6. Check clutch controls periodically to verify they engage
and disengage properly and adjust, if necessary. Refer to
the adjustment section in this operator's manual for
instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas,
oil, etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator's manual for proper
instructions on off-season storage.
YourResponsibility:
Restrict the use of this power machine to persons who
read, understand and follow the warnings and
instructions in this manual and on the machine.
Page 5
SECTION2: ASSEMBLINGYOURSNOWTHROWER
NOTE: This Operator's Manual covers several models.
Snow thrower features vary by model. Not all
features discussed in this manual are applicable to all
snow thrower models.
ContentsofCarton
Carton contents are listed below with part numbers in
parentheses.
Two Ignition Keys (725-0201)
Bottle of 2 cycle oil
Extension Cord (if so equipped)
NOTE: All references to left or right side of the snow
thrower is from the operating position only.
_, WARNING: Disconnect the spark plug wire
and ground it against the engine to prevent
unintended starting.
PositioningtheUpperHandle
Remove packing material, if present, and loosen
the wing knobs found on each side of the handle.
Making sure not to pinch or crimp the cable in the
process, pivot the upper handle intothe operating
position as illustrated in Figure 1 until it clicks into
place.
Tighten the wing knobs to secure the handle in
place.
AssemblingtheDischargeChute
For shipping reasons, the snow thrower has been
packaged with the upper chute pivoted all the way
down. To pivot it upward, proceed as follows:
Turn the chute until the chute opening is facing
straight ahead.
Remove the wing knob, flat washer and carriage
bolt from the lower chute. See Figure 2.
Pivot the upper chute upward over the lip on the
lower chute so that there is NO gap between the
upper chute and the lower chute. See Figure 2.
Resecure with the hardware just removed.
Handle to lift the machine.
CAUTION:Do not use the Chute
Carriage Bolt
and Flat Washer
Knob
Figure 1
Figure 2
Wing Knob
Page 6
SECTION3: KNOWYOURSNOWTHROWER
Spark
Choke Lever
Chute
Primer
Ignition Key
Upper Handle
_late
Auger
IMPORTANT:This unit runs on a mixture of gasoline
and oil. Do NOT operate the snow thrower without first
reading the Tecumseh Engines operator's manual for
instructions regarding proper fuel and engine oil.
ChokeLever
I OFF 1111CHOKE III1 ONI
Activating the choke control closes the choke plate on
the carburetor and aids in starting the engine. Refer to
the engine manual packed with the snow thrower for
more detailed instructions regarding the choke.
Primer PRIME_
Depressing the primer forces fuel
directly into the engine's carburetor to
aid in cold-weather starting. Refer to
the engine manual packed with the
snow thrower for more detailed
instructions regarding the primer. =ou_=.=,.=
Ignition Key
The ignition key must be present '(_)f"_'_"__,_
and placed in the "ON" position for
the engine to start. _ mmTmN
StarterHandle
The starter handle is used to manually start the engine.
@
pUllN leon A
StoppingEngine
Turn ignition key to OFF position and remove it
from the snow thrower.
f
Auger Control
Handle
Figure 3
ElectricStarter Button(If so equipped)
Pressing the electric starter button engages the
engine's electric starter when plugged into a 120V
power source
ElectricStarter Plug(If so equipped)
Requires use of a two-prong outdoor extension cord
(packed with the snow thrower) and a 120V power
source/wall outlet.
SparkPlugCover
Remove the spark plug cover to access the engine's
spark plug located beneath it.
Auger
When engaged, the augers rotation picks up snow that
enters the auger housing and throws it out the
discharge chute. The rubber paddles on the augers
also aid in propelling the snow thrower as they come in
contact with the pavement.
AugerControlHandle
Located on the upper handle, the auger control handle
is used to engage and disengage drive to the auger.
Squeeze the control handle against the upper handle to
engage the auger; release it to disengage.
DischargeChute
The pitch of the discharge chute controls the angle at
which the snow is thrown. Loosen the wing knob on the
side of the discharge chute before pivoting the
discharge chute upward or downward. Retighten the
knob once the desired position has been achieved.
ShavePlate
The shave plate scrapes along the pavement as the
snow thrower is propelled, allowing the snow close to
the pavement's surface to be discharged.
(if So Equipped)
Starter
Button
(if SO Equipped)
Page 7
SECTION4: OPERATINGYOURSNOWTHROWER
WARNING: Before starting the engine,
read, understand, and follow all instructions
and warnings on the machine and in this
manual before operating.
FuelAndOilMixture
WARNING: Use extreme care when
handling gasoline. Gasoline is extremely
flammable and the vapors are explosive.
Never fuel machine indoors or while the
engine is hot or running. Extinguish cigarettes,
cigars, pipes and other sources of ignition.
Your snow thrower is equipped with a two-cycle
engine that requires a mixture of gasoline and two
cycle engine oil at a ratio of 50:1. Refer to the
Tecumseh Engines operator's manual for detailed
instructions regarding oil and gasoline for your snow
thrower's engine.
A plastic cup is placed inside the fuel fill opening on
the fuel tank (beneath the fuel cap) to keep debris
out during product assembly. Remove and discard
this cup before filling up the tank.
IMPORTANT:Do NOT operate the snow thrower without
the fuel cap securely in place on the fuel tank.
Startingthe Engine
Refer to the Tecumseh Engines manual packed
with the snow thrower for detailed instructions
regarding starting the engine.
OperatingtheSnowThrower
Loosen the wing knob found on the left side of the
discharge chute and pivot the upper chute upward
or downward to the desired pitch. Retighten the
wing knob before operating the snow thrower.
Position the discharge chute opening by using the
Chute Handle to throw the snow in the desired
direction. See Figure 4.
Wing
.=Handle
Figure 4
NOTE: For more efficient snow clearing, discharge
snow downwind whenever possible.
_lb ARNING: Never operate the snow thrower
IMPORTANT:Excessive upward pressure on the handle
will result in premature wear on the rubber auger
paddles. Resulting wear would not be covered by
warranty.
StoppingtheEngine
_ WARNING: Muffler, engine and surroundingareas become hot and can cause a bum. Do
IMPORTANT:Keep the ignitionkey in a safe place. The
engine can not be started without it.
Control Han(
with bystanders in front of or near the
discharge chute opening.
Engage the auger by squeezing the control handle
against the upper handle. See Figure 5.
Lift up slightly on the handle to allow the rubber
paddles on the auger to contact the pavement and
propel the snow thrower forward.
As the snow thrower starts to move, maintain a firm
hold on the handle, and guide the snow thrower
along the path to be cleared.
Release the auger control handle to stop the snow
throwing action and the forward motion.
not touch.
After clearing snow, allow the engine to run for an
extra few minutes before storing to help dry any
moisture on the engine.
To stop the engine: Turn the ignition key
counterclockwise to the OFF position. Refer to
Ignition Keyon page 6. Remove the key form the
snow thrower's ignition switch before storing.
Wipe all the snow and any moisture which has
formed, from the unit.
Move the choke lever back and forth several times.
Figure 5
Page 8
SECTION5: MAKINGADJUSTMENTS
_ WARNING: NEVER attempt to make any
ControlCable& BeltTension
As a result of both the control cable and the drive belt
stretching due to wear, periodic adjustments may be
necessary.
If the auger seems to hesitate when rotating while the
engine maintains a constant speed, an adjustment is
necessary. Proceed as follows:
The upper hole in the control handle providesfor an
adjustment in cable tension. To adjust, disconnect the
end of control cable from the bottom hole in the control
handle and reinsert it inthe upper hole. Test the snow
thrower to see if there is a noticeable difference.
ShavePlate
adjustments while the engine is running,except
where specified in the operator's manual.
To check the adjustment of the shave plate, place
the unit on a level surface. The wheels, shave plate
and augers should all contact the level surface.
Note that if the shave plate is adjusted too high,
snow may blow under the housing. If the shave
plate wears out excessively, or the unit will not self-
propel, the shave plate may be adjusted too low.
NOTE: On new units or units with a new shave plate
installed, the augers may be slightly off the ground.
To adjust, tip the snow thrower back so that it rests
on the handle. Loosen the lock nuts from the
carriage bolts which secure the shave plate to the
housing. See Figure 6.
Move the shave plate to desired position and
retighten the nuts and bolts. Make certain all four
nuts are securely tightened.
Carriage Bolts Shave Plate
SECTION6: MAINTAININGYOURSNOWTHROWER
WARNING: Before servicing, repairing, or
inspecting, disengage the control handle and
stop engine. Wait until all moving parts have
come to a complete stop. Disconnect spark
plug wire and ground it against the engine to
prevent unintended starting.
Engine
Refer to the Tecumseh Engines manual packed with
the snow thrower for detailed instructions regarding all
engine-related maintenance.
Lubrication
Lubricate pivotpoints on the control handle and the
extension spring at the end of the clutch cable with
a light oil once every season and before storage of
the snow thrower at the end of the season.
Hardware
Check the engine and snow thrower frequently for
loose or missing hardware, and tighten or replace as
necessary.
Replacingthe DriveBelt
The snow thrower's drive belt is subject to wear and
should be replaced if any signs of cracking, shredding
or rotting is present. To change the drive belt, proceed
as follows:
Remove the belt cover from the left side of the
snow thrower's auger housing by unthreading the
five hex screws which secure it in place.
Figure 6
Page 9

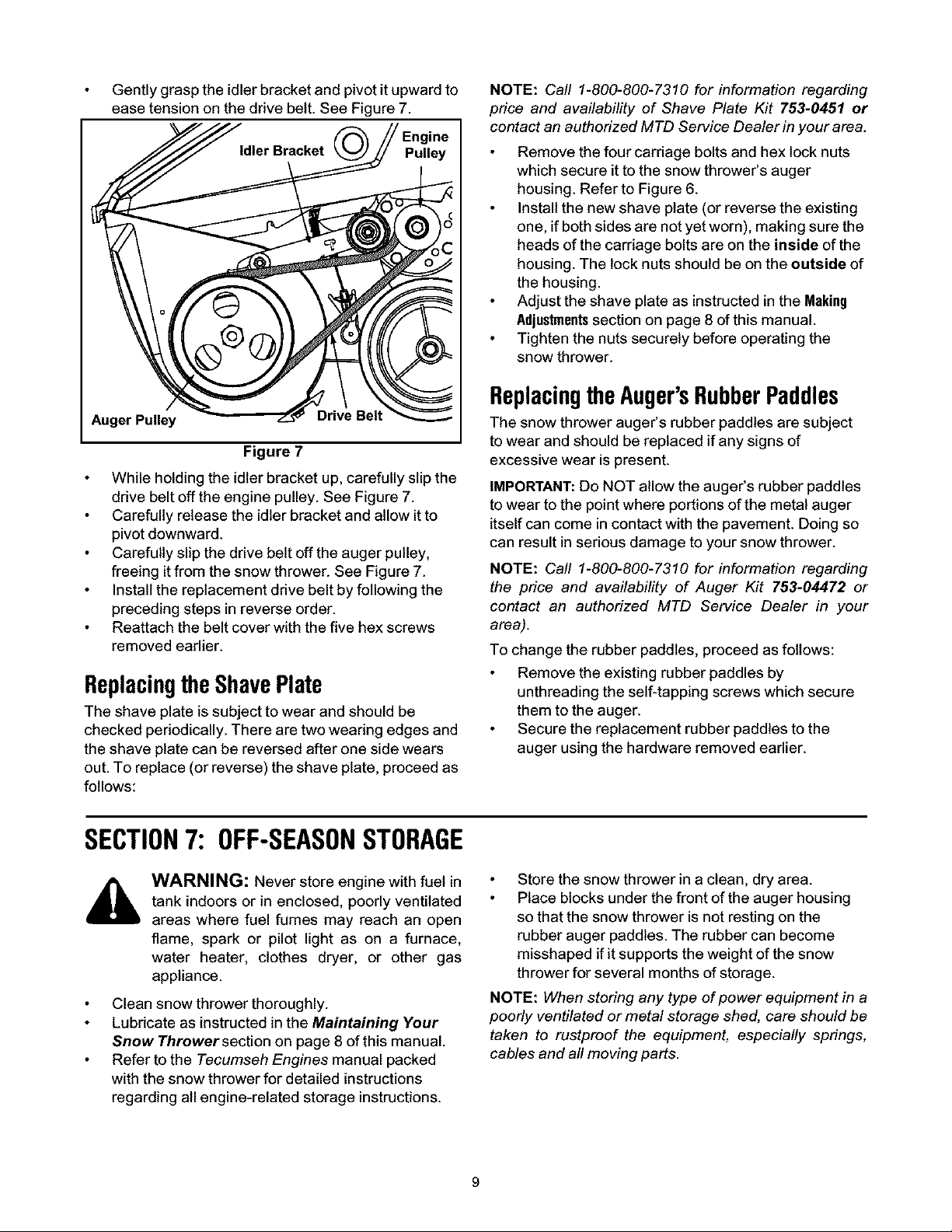

Gentlygrasptheidlerbracketandpivotitupwardto
easetensiononthedrivebelt.SeeFigure7.
Pulley
NOTE: Call 1-800-800-7310 for information regarding
price and availability of Shave Plate Kit 753-0451 or
contact an authorized MTD Service Dealer in your area.
Remove the four carriage bolts and hex lock nuts
which secure itto the snow thrower's auger
housing. Refer to Figure 6.
Install the new shave plate (or reverse the existing
one, if both sides are not yet worn), making sure the
heads of the carriage bolts are on the inside of the
housing. The lock nuts should be on the outside of
the housing.
Adjust the shave plate as instructed in the Making
Adjustmentssection on page 8 of this manual.
Tighten the nuts securely before operating the
snow thrower.
Auger Pulley
Figure 7
While holding the idler bracket up, carefully slip the
drive belt off the engine pulley. See Figure 7.
Carefully release the idler bracket and allow itto
pivot downward.
Carefully slip the drive belt off the auger pulley,
freeing itfrom the snow thrower. See Figure 7.
Install the replacement drive belt by following the
preceding steps in reverse order.
Reattach the belt cover with the five hex screws
removed earlier.
Drive Belt
ReplacingtheShavePlate
The shave plate is subject to wear and should be
checked periodically. There are two wearing edges and
the shave plate can be reversed after one side wears
out. To replace (or reverse) the shave plate, proceed as
follows:
SECTION7: OFF-SEASONSTORAGE
ReplacingtheAuger'sRubberPaddles
The snow thrower auger's rubber paddles are subject
to wear and should be replaced if any signs of
excessive wear is present.
IMPORTANT:Do NOT allow the auger's rubber paddles
to wear to the point where portions of the metal auger
itself can come in contact with the pavement. Doing so
can result in serious damage to your snow thrower.
NOTE: Call 1-800-800-7310 for information regarding
the price and availability of Auger Kit 753-04472 or
contact an authorized MTD Service Dealer in your
area).
To change the rubber paddles, proceed as follows:
Remove the existing rubber paddles by
unthreading the self-tapping screws which secure
them to the auger.
Secure the replacement rubber paddles to the
auger using the hardware removed earlier.
WARNING: Never store engine with fuel in
tank indoors or in enclosed, poorly ventilated
areas where fuel fumes may reach an open
flame, spark or pilot light as on a furnace,
water heater, clothes dryer, or other gas
appliance.
Clean snow thrower thoroughly.
Lubricate as instructed in the Maintaining Your
Snow Thrower section on page 8 of this manual.
Refer to the Tecumseh Engines manual packed
with the snow thrower for detailed instructions
regarding all engine-related storage instructions.
Store the snow thrower in a clean, dry area.
Place blocks under the front of the auger housing
so that the snow thrower is not resting on the
rubber auger paddles. The rubber can become
misshaped if it supports the weight of the snow
thrower for several months of storage.
NOTE: When storing any type of power equipment in a
poorly ventilated or metal storage shed, care should be
taken to rustproof the equipment, especially springs,
cables and all moving parts.
Page 10
SECTION8: TROUBLESHOOTINGGUIDE
Problem Cause
Engine fails to start 1. Key not in ignition switch or not in ON position. 1.
2. Fuel tank empty, or stale fuel 2.
3. Blocked fuel line 3.
4. Spark plug wire disconnected 4.
5. Faulty spark plug 5.
Engine runs erratic 1. Unit running on choke 1.
2. Fuel line blocked, or stale fuel 2.
3.
Water or dirt in fuel system 3.
4.
Carburetor out of adjustment 4.
Loss of power 1.
Excessive vibration 1.
Unit fails to self-propel 1.
Unit fails to discharge 1.
snow
Spark plug wire loose 1.
2.
Vent in fuel cap plugged 2.
3.
Engine exhaust pipe plugged. 3.
Loose parts or damaged auger 1.
Drive belt damaged 1.
Discharge chute clogged 1.
2.
Foreign object lodged in auger
3.
Drive cable out of adjustment
4.
Drive belt or damaged
4.
Remedy
Insert key and turn to ON position
Fill tank with clean fresh gasoline/oil
mixture as specified in the engine manual.
Clean fuel line
Connect wire to spark plug.
Clean spark plug, readjust gap, or replace.
Move choke lever to off position.
Clean fuel line and fill tank with fresh, clean
gasoline/oiL
Refer to engine manual on remedy.
Refer to engine manual.
Connect and tighten spark plug wire.
Clear vent.
Remove obstruction from exhaust pipe.
Stop engine immediately and disconnect
spark plug wire. Check for possible
damage. Tighten all bolts and nuts. Repair
as needed. If the problem persists, take unit
to an authorized MTD service dealer.
Inspect the drive belt for damage and
replace if necessary as instructed on page
8 of this manual.
Stop engine immediately and disconnect
spark plug wire. Clean discharge chute and
the auger housing.
2,
Stop engine immediately and disconnect
spark plug wire. Remove object.
3.
Adjust the control cable as instructed on
page 8 of this manual.
Inspect the drive belt for damage and
replace if necessary as instructed on page
8 of this manual.
10
Page 11
SECTION9: ACCESSORIES& KITS
The following accessories and kits are available for single-stage, two-stroke snow throwers. See the retailer
from which you purchased your snow thrower, an authorized MTD Service Dealer or phone (800) 800-7310 for
information regarding price and availability.
MODEL
OEM-390-697
OEM-390-996
OEM-737-0325
753-0451
753-04472
DESCRIPTION
Electric Start Kit
fits models with a two-cycle Tecumseh 3 HP or 3.5 HP engine)
ElectricStart Kit
fits models with a two-cycle Tecumseh 4.5 HP - 5 HP engine)
t4TDtwo-cycle snow thrower oil (contains six 2.6 oz. bottles)
Shave Plate (includes replacement shave plate and hardware)
Auger Kit, Snow Thrower Single Stage
11
Page 12
SECTION10: PARTSLIST
Models140,150,&160
o
58
12
Page 13
Models140,150,&160
REE PART
NO. NO.
1 684-04027
2 684-04025
3 710-0896
4 735-04032
5 735-04033
6 684-04028
7 710-0134
8 710-0167
9 710-0323
10 710-0352
11 710-0597
12 710-1005
13 710-0642
14 712-3027
15 736-0463
16 726-0299
17 731-1033
18 732-0357A
19 736-0176
20 736-0326
22 741-0919
23 741-0600
24 746-04091
25 7468-0234
26 749-04114
27 750-04230
28 790-00062
29 784-5174
30 790-00039
31 790-00045
32 710-0487
33 720-0284
34 725-0157
35 736-0451
36 747-04165
37 749-1092A
38 734-04070
39 684-04043
** 684-04044
*Model 140 onl
**Model 150 & "160
v
DESCRIPTION
Auger Ass'y 21" complete w/Solid Shaft
Auger Ass'y 21" w/Solid Shaft
Hex Screw AB: 1/4-14 x 0.625"
Rubber Spiral
Rubber Paddle
Auger Housing Ass'y 21"
Carriage Bolt 1/4-20 x .62" LG
Carriage Bolt 1/2-20 x .50 LG
Truss Mach Scr 5/16-18 x .75
Hex "B" Tap Scr. 1/4-14 x .375" LG
Hex Screw 1/4-20 x 1.00 Gr. 5
Hex Tap Scr. 1/4-14 x .50" LG.
Hex Tap Scr. 1/4-20 x .75"
Hex Flange Nut, 1/4-20
Flat Washer .281 ID x .62 OD x .051
Push Cap x 1/2" Rod
Shave Plate 2.66 x 19.88 Double
Extension Spring .33 OD x 1.12 Lg.
Flat Washer .265 ID x .938 OD x .120
Flat Washer .510 ID x 1.00 OD x .125
Ball Bearing
Ball Bearing 17 x40 x 12
Clutch Cable
Shoulder Spacer .25 THK
Lower Handle
Flange Spacer
Belt Keeper
Bearing Cup
Idler Bracket w/Brake
Belt Cover
Carriage Bolt 5/16-18 x 2.0 Gr. 1
Handle Knob Assembly 5/16-18
Cable Tie
Saddle Washer .320 ID x .93 OD
Bail
Upper Handle
Wheel-3 spoke, 7 x 1.61
Shroud Ass'y 3.5 HP
Shroud Ass'y 4.5 HP
REE PART
NO. NO.
40 710-1882
41 710-1003
42 712-0252
43 712-3010
44 725-0201
45 725-2018
46 731-1133C
47 736-0119
48 736-0225
49 7512B1476
50 710-0157
51" 710-0805
** 710-3025
52 726-0205
53 736-0242
54 747-04169
55* 750-0589
56* 750-0716
57 751-0535-17
58 751-0603
59 751-10023
60 754-0101A
61 756-04060
62 756-0475
63 790-00048
64 7519630
65 712-3004A
66 731-2113B
67 7511824110
68* 710-04187
** 710-1268
69 736-0362
70 736-0400
71"* 629-0236
72* 736-0337
73 790-00059
74 790-00047
75 710-0654A
DESCRIPTION
Hex Flange Screw 5/16-18 x 1.50 Gr. 5
Hex Wash B-Tapp Scr #10-16 x .625" Lg.
Hex Nut 5/8-32 x .12 Special
Hex Nut 5/16-18 hd. Gr. 5
Ignition Key
Key Switch-Electric Start
Plastic Cap 1.75 Dia x .72
L-Wash 5/16 ID
L-Washer Internal .625 ID x 1.058 OD
Primer Button
Hex Screw 5/16-24 x .75 Gr. 5
Hex Bolt 5/16-18 x 1,50" Lg. Gr. 5
Hex Screw 5/16-18 x .625 Gr. 5
Hose Clamp
Cupped Washer .340 ID x .872 OD x .060
Gas Tank Wire Support
Spacer .325 ID x .625 OD x .88 Lg.
Spacer
Fuel Line 17" Lg.
Cap-Fuel
Fuel Tank 2 Quart
V-Belt 1/2 x 35" Lg.
Pulley Half .625 ID x 2.35 OD
Pulley1/2 V x 1/2-20 x 6.0
Mounting Bracket Support
Recoil Handle
Hex Flange L-Nut 5/16-18 Gr. 5
Fuel Plug 1.745 Dia x .75 w/Symbol
Choke Lever Knob
Hex Scr. 1/4-15 x .50
Hex B-Tapp Wash Scr.#10-16 x .375
Flat Washer .320 ID x 1.25 OD
Flat Washer .194" ID x .62" OD x .063
Cord-Extension 110V 3M 2 Prong
Flat Washer, 5/8 ID x 1.00D
Bracket, Support Gas Tank
Bracket, Engine
Screw 3/8-16 x 1.00
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Snow thrower features/components vary by model, NO T all parts listed above and pictured on the previous page are standard equipment,
13
Page 14
Models140,150,&160
REE
NO.
1
2
3
4
5
6
7
8
9
10
11
12
PART
NO.
710-04071
710-0451
712-3068
720-0284
731-04127
731-04353
731-04373
731-04388
731-04429
732-04111
736-0159
684-04049
DESCRIPTION
Carriage Screw, 5/16-18 x 1.0
Carriage Bolt, 5/16-18 x.075 GR 1
Hex Patch I-Nut 5/16-18'
Handle Knob Assembly 5/16-18
Lower Chute 5" Dia
Ring-Lower Chute
Chute, Adapter 5" Dia
Handle-Chute 5" Dia
Upper Chute w/Export Label
Chute Adjustment Spring
Flat Washer,.349 ID x .879 OD x .063
Lower Chute Ass'y (IncL #54 and 10)
14
Page 15
g.Ef.E8
15
Page 16
MANUFACTURER'S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the
United States, its possessions and territories.
"MTD"warrants this product against defects in material and
workmanship for a period of two (2) years commencing on the
date of original purchase and will, at its option, repair or
replace, free of charge, any part found to be defective in
materials or workmanship. This limited warranty shall only
apply if this product has been operated and maintained in
accordance with the Operator's Manual furnished with the
product, and has not been subject to misuse, abuse,
commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of
other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not
approved by MTD for use with the product(s) covered by this
manual will void your warranty as to any resulting damage.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for a period
of 90 days regardless of cause. After 90 days, but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in materials or workmanship of
OTHER component parts. Normal wear parts and
components include, but are not limited to: batteries, belts,
blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, shave plates, auger spiral rubber,
and tires.
HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer in your area, check your
Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-
330-220-4683 or log on to our Web site at
www.mtdproducts.com.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component parts thereof. These items
may carry a separate manufacturer's warranty. Refer
to applicable manufacturer's warranty for terms and
conditions.
b. Log splitter pumps, valves, and cylinders have a
separate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
exposure.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
d. MTD does not extend any warranty for products sold or
exported outside of the United States, its possessions
and territories, except those sold through MTD's
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Service completed by someone other than an
authorized service dealer.
g. Transportation charges and service calls.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind MTD. During the period of the warranty, the
exclusive remedy is repair or replacement of the product
as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale. MTD
shall not be liable for incidental or consequential loss or
damage including, without limitation, expenses incurred
for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
MTD LLC,P.O.BOX361131CLEVELAND,OHIO44136-0019;Phone:1-800-800-7310,1-330-220-4683
Loading...
