Page 1
OPERATOR'S MANUAL
Transmatic
Garden Tractor
Models
820 Thru 828
840 Thru 848
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning: This unit isequipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark attester for the muffler isavailable through your nearest engine authorized
service dealer or contact the service department, P.O. 8ox 361131 Cleveland, Ohio 44136-0019.
MTD LLC,P.O.BOX361131CLEVELAND,OHIO44136-0019
PRINTED IN U.S.A.
FORM NO. 770-10119C
(12/2001 )
Page 2
TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ............................................................................ 3
Slope Gauge ............................................................................................................... 6
Hardware Pack ............................................................................................................ 7
Unpacking ................................................................................................................... 8
Assembling Your Garden Tractor ................................................................................ 8

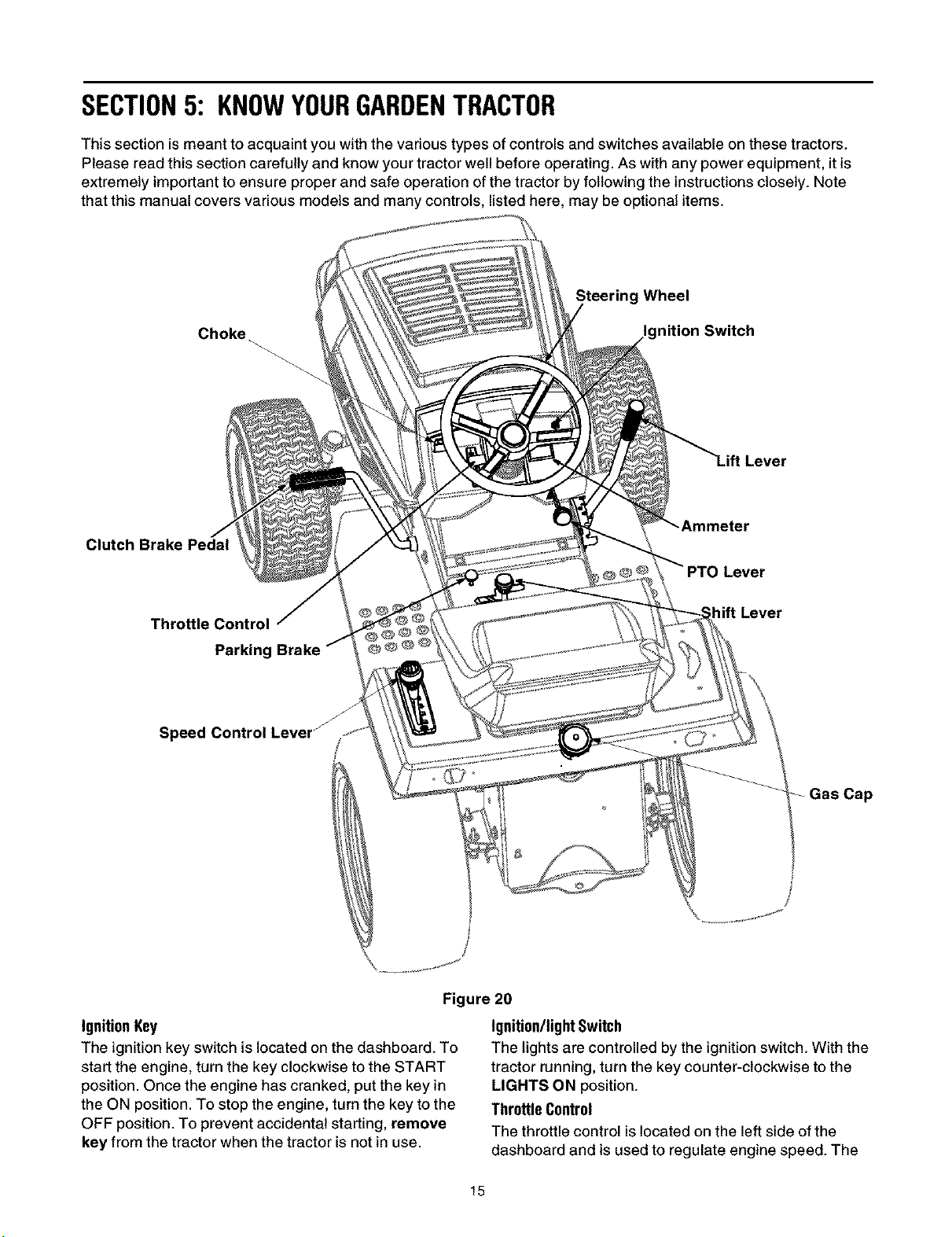

Know Your Garden Tractor .......................................................................................... 15

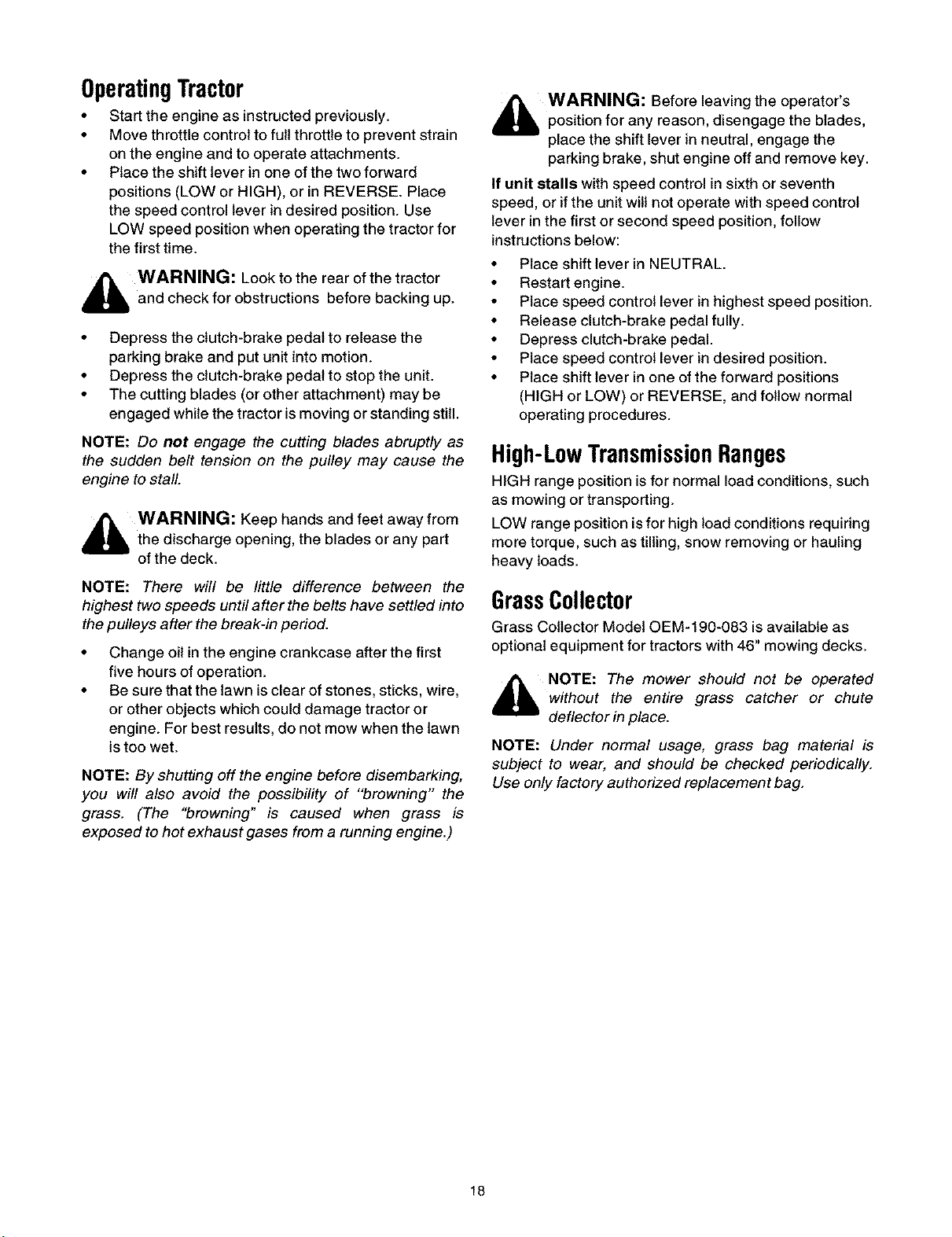

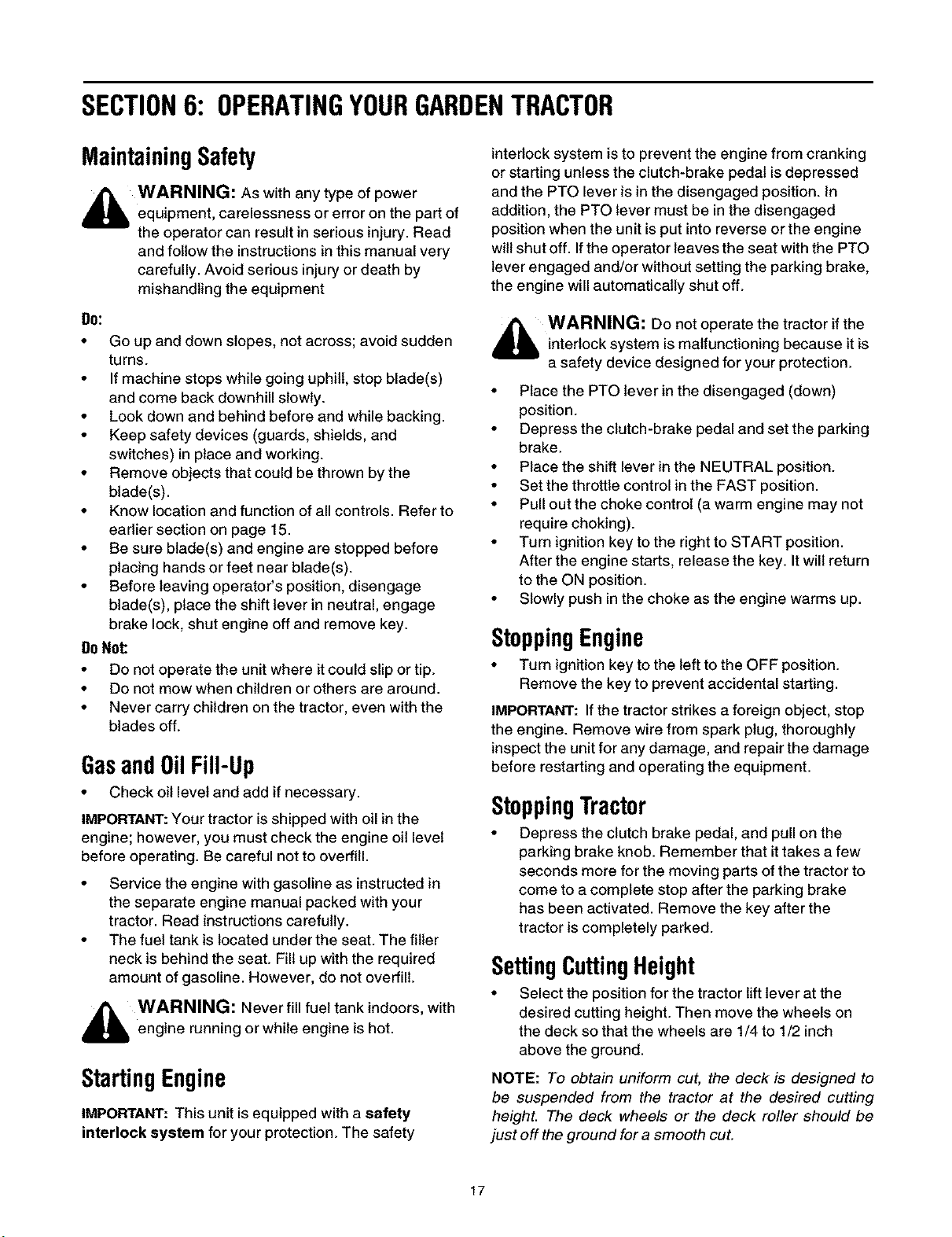

Operating Your Garden Tractor ................................................................................... 17

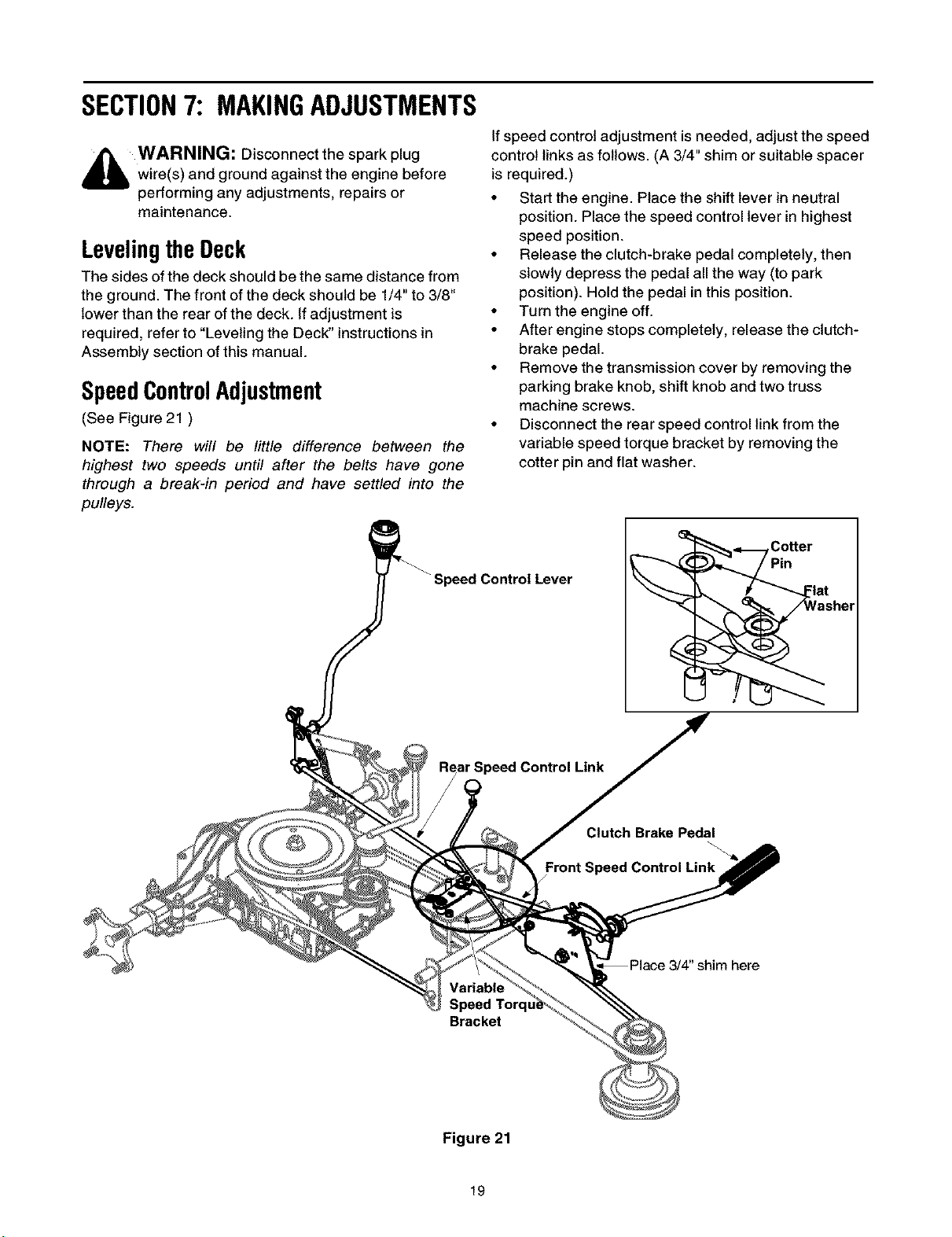

Making Adjustments .................................................................................................... 19

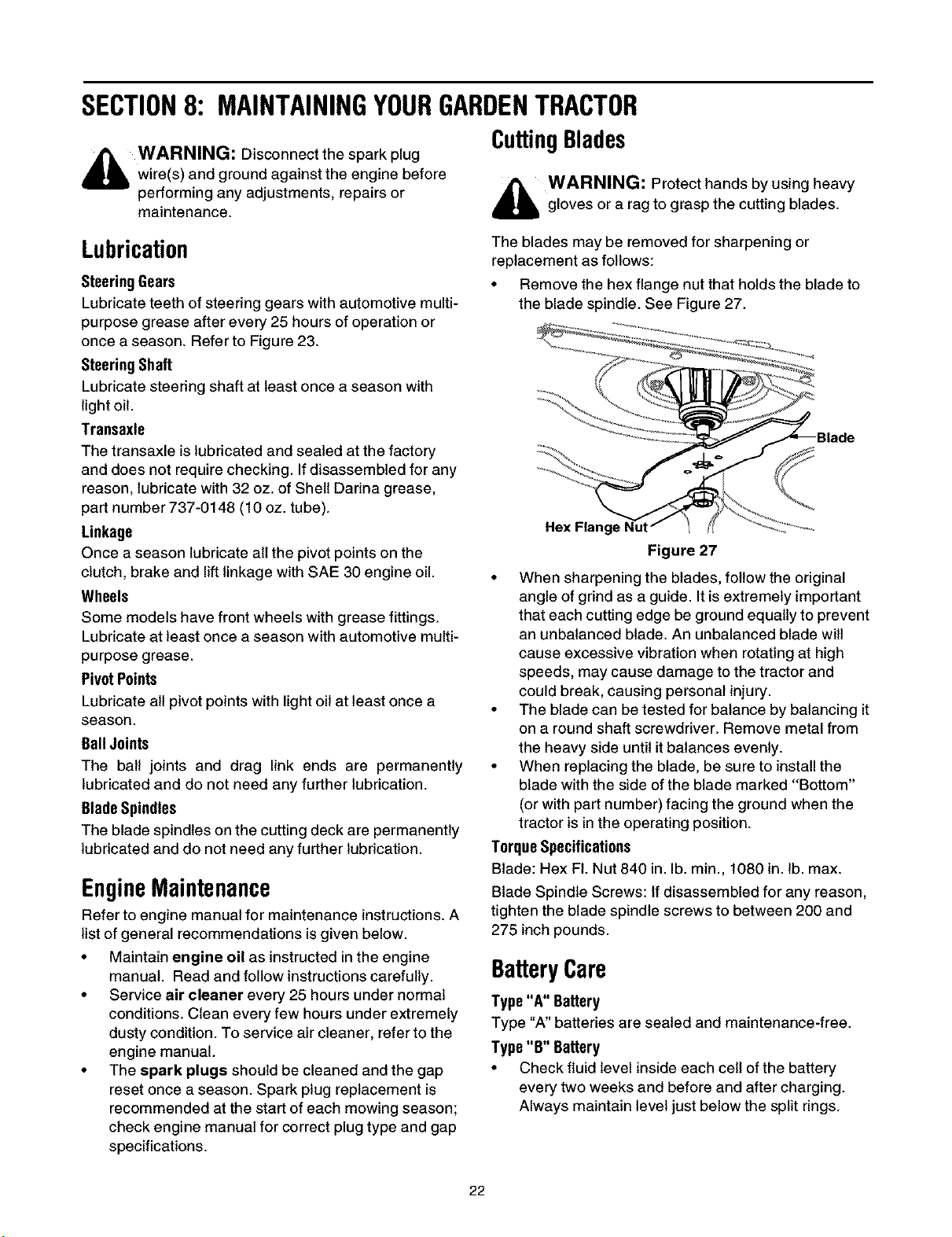

Maintaining Your Garden Tractor ................................................................................ 22
Off-Season Storage .................................................................................................... 24

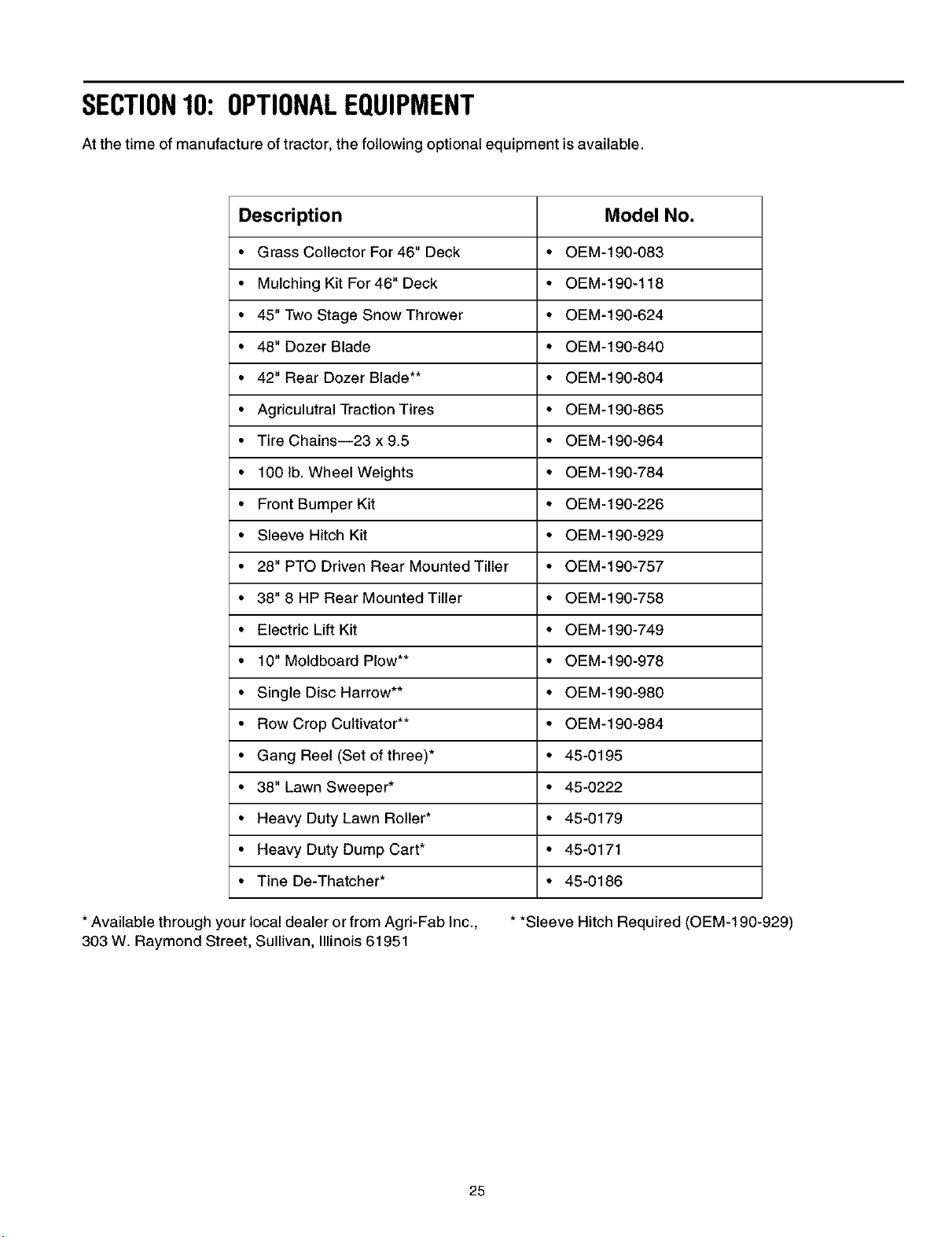

Optional Equipment ..................................................................................................... 25
Troubleshooting .......................................................................................................... 26
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new Garden Tractor. Itwill help you assemble, prepare
and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the information from it in the space provided below. The information on
the model plate is very important if you need help from our Customer Support Department or
an authorized dealer.
You can locate the model number by pivoting the seat forward and looking under the seat at the seat
pivot bracket. A sample model plate is explained below. For future reference, please copy the model
number and the serial number of the equipment in the space below.
(Model Number) (Serial Number)
www.mtdproducts.com 800-800-7310
Copy the model number here:
Copy the serial number here:
ENGINEINFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-
rating, specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's
Manual packed separately with your unit for more information.
CALLINGCUSTOMERSUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support
representative. Please have your unit's model number and serial number ready when you
call. See previous section to locate this information. You will be asked to enter the serial
number in order to process your call.
Page 3
SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
,_ WARNING: This symbol points out important safety instructions which, if not followed, could endanger
the personal safety and/or property of yourself and others, read and follow all instructions in this manual
before attempting to operate your lawn mower, failure to comply with these instructions may result in
personal injury. When you see this symbol, heed its warning.
_ WARNING: The Engine Exhaust from this product contains chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
DANGER: Your lawn mower was built to be operated according to the rules for safe operation in this manual. As
with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
lawn mower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.
GeneralOperation
• Read, understand, and follow all instructions in the
operator's manual and on the machine before
starting. Keep this manual in a safe place for future
and regular reference and for ordering replacement
parts.
• Only allow responsible individuals familiar with the
instructions to operate the machine. Know controls
and how to stop the machine quickly.
• Do not put hands or feet under cutting deck or near
rotating parts.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade. A small object may have been overlooked
and could be accidentally thrown by the mower in
any direction and cause injury to you or a
bystander. To help avoid a thrown objects injury,
keep children, bystanders and helpers at least 75
feet from the mower while it is in operation. Always
wear safety glasses or safety goggles during
operation or while performing an adjustment or
repair, to protect eyes from foreign objects. Stop
the blade(s) when crossing gravel drives, walks or
roads.
• Be sure the area is clear of other people before
mowing. Stop machine if anyone enters the area.
• Never carry passengers.
• Disengage blade(s) before shifting into reverse and
backing up. Always look down and behind before
and while backing.
• Be aware of the mower and attachment discharge
direction and do not point it at anyone. Do not
operate the mower without either the entire grass
catcher or the chute guard in place.
• Slow down before turning. Operate the machine
smoothly. Avoid erratic operation and excessive
speed.
• Never leave a running machine unattended.
Always turn off blade(s), place transmission in
neutral, set park brake, stop engine and remove
key before dismounting.
• Turn off blade(s) when not mowing.
• Stop engine and wait until blade(s) comes to a
complete stop before (a) removing grass catcher or
unclogging chute, or (b) making any repairs,
adjusting or removing any grass or debris.
• Mow only in daylight or good artificial light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• Watch for traffic when operating near or crossing
roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck. This unit should not
be driven up or down a ramp onto a trailer or truck
under power, because the unit could tip over,
causing serious personal injury. The unit must be
pushed manually on a ramp to load or unload
properly.
• Never make a cutting height adjustment while
engine is running if operator must dismount to do
so.
• Wear sturdy, rough-soled work shoes and close-
fitting slacks and shirts. Do not wear loose fitting
clothes or jewelry. They can be caught in moving
parts. Never operate a unit in bare feet, sandals, or
sneakers.
• Check overhead clearance carefully before driving
under power lines, wires, bridges or low hanging
tree branches, before entering or leaving buildings,
or in any other situation where the operator may be
struck or pulled from the unit, which could result in
serious injury.
• Disengage all attachment clutches, thoroughly
depress the brake pedal, and shift into neutral
before attempting to start engine.
• Your mower is designed to cut normal residential
grass of a height no more than 10". Do not attempt
to mow through unusually tall, dry grass (e.g.,
pasture) or piles of dry leaves. Debris may build up
Page 4
onthemowerdeckorcontacttheengineexhaust
presentingapotentialfirehazard.
SlopeOperation
Slopes are a major factor related to loss of control and
tip-over accidents which can result in severe injury or
death. All slopes require extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not mow
it.
For your safety, use the slope gauge included as part of
this manual to measure slopes before operating this
unit on a sloped or hilly area. If the slope is greater than
15° as shown on the slope gauge, do not operate this
unit on that area or serious injury could result.
Do:
• Mow up and down slopes, not across.
• Remove obstacles such as rocks, limbs, etc.
• Watch for holes, ruts or bumps. Uneven terrain
could overturn the machine. Tall grass can hide
obstacles.
• Use slow speed. Choose a low enough gear so that
you will not have to stop or shift while on the slope.
Always keep machine in gear when going down
slopes to take advantage of engine braking action.
• Follow the manufacturer's recommendations for
wheel weights or counterweights to improve
stability.
• Use extra care with grass catchers or other
attachments. These can change the stability of the
machine.
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction.
Rapid engagement or braking could cause the front
of the machine to lift and rapidly flip over backwards
which could cause serious injury.
• Avoid starting or stopping on a slope. If tires lose
traction, disengage the blade(s) and proceed slowly
straight down the slope.
DoNot
• Do not turn on slopes unless necessary; then, turn
slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches or
embankments. The mower could suddenly turn
over if a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
• Do not try to stabilize the machine by putting your
foot on the ground.
• Do not use grass catcher on steep slopes.
Children
Tragic accidents can occur ifthe operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume
that children will remain where you last saw them.
• Keep children out of the mowing area and in
watchful care of an adult other than the operator.
• Be alert and turn machine off if children enter the
area.
• Before and when backing, look behind and down
for small children.
• Never carry children, even with the blades off. They
may fall off and be seriously injured or interfere with
the safe machine operation.
• Never allow children under 14 years old to operate
the machine. Children 14 years and over should
only operate machine under close parental
supervision and proper instruction.
• Use extra care when approaching blind corners,
shrubs, trees or other objects that may obscure
your vision of a child or other hazard.
• Remove key when machine is unattended to
prevent unauthorized operation.
Service
• Use extreme care in handling gasoline and other
fuels. They are extremely flammable and the
vapors are explosive.
• Use only an approved container.
• Never remove fuel cap or add fuel with the engine
running. Allow engine to cool at least two minutes
before refueling.
• Replace fuel cap securely and wipe off any spilled
fuel before starting the engine as it may cause a fire
or explosion.
• Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
• Never refuel the machine indoors because fuel
vapors will accumulate in the area.
• Never store the fuel container or machine inside
where there is an open flame or spark, such as a
gas hot water heater, space heater or furnace.
• Never run a machine inside a closed area.
• To reduce fire hazard, keep the machine free of
grass, leaves or other debris build-up. Clean up oil
or fuel spillage. Allow machine to cool at least 5
minutes before storing.
• Before cleaning, repairing or inspecting, make
certain the blade and all moving parts have
stopped. Disconnect the spark plug wire, and keep
the wire away from the spark plug to prevent
accidental starting.
• We do not recommend the use of pressure
washers or garden hose to clean your unit. They
may cause damage to electric components,
spindles, pulleys, bearings or the engine. The use
of water will result in shortened life and reduce
serviceability.
• Check the blade and engine mounting bolts at
frequent intervals for proper tightness. Also,
Page 5
visuallyinspectbladefordamage(e.g.,excessive
wear,bent,cracked).Replacewithbladewhich
meetsoriginalequipmentspecifications.
• Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
• Nevertamperwithsafetydevices.Checktheir
properoperationregularly.Useallguardsas
instructedinthismanual.
• Afterstrikingaforeignobject,stoptheengine,
removethewirefromthesparkplugandthoroughly
inspectthemowerforanydamage.Repairthe
damagebeforerestartingandoperatingthemower.
• Grasscatchercomponentsaresubjecttowear,
damageanddeterioration,whichcouldexpose
movingpartsorallowobjectstobethrown.Foryour
safetyprotection,frequentlycheckcomponents
andreplacewithmanufacturer'srecommended
partswhennecessary.
• Mowerbladesaresharpandcancut.Wrapthe
blade(s)orwearglovesanduseextracautionwhen
servicingblade(s).
• Checkbrakeoperationfrequently.Adjustand
serviceasrequired.
• Muffler,engineandbeltguardsbecomehotduring
operationandcancauseaburn.Allowtocooldown
beforetouching.
• Donotchangetheenginegovernorsettingsor
overspeedtheengine.Excessiveenginespeeds
aredangerous.
• Observeproperdisposallawsandregulations.
Improperdisposaloffluidsandmaterialscanharm
theenvironmentandtheecology.
• Priortodisposal,determinethepropermethodto
disposeofwastefromyourlocalEnvironmental
ProtectionAgency.Recyclingcentersare
establishedtoproperlydisposeofmaterialsinan
environmentallysafefashion.
• Usepropercontainerswhendrainingfluids.Donot
usefoodorbeveragecontainersthatmaymislead
someoneintodrinkingfromthem.Properlydispose
ofthecontainersimmediatelyfollowingthedraining
offluids.
• DONOTpouroilorotherfluidsintotheground,
downadrainorintoastream,pond,lakeorother
bodyofwater.ObserveEnvironmentalProtection
Agencyregulationswhendisposingofoil,fuel,
coolant,brakefluid,filters,batteries,tiresandother
harmfulwaste.
YourResponsibility
• Restrict the use of this power machine to persons
who read, understand and follow the warnings and
instructions in this manual and on the machine.
DANGER
Page 6
USE THIS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.
i
| 4 SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
i u4 A POWER POLE
i ! "ql A CORNER OF A BUILDING
==_ n I ! q OR A FENCE POST
L
!Jv
' ""
_O
Z
n
W
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremel'y difficult to maintain
your footing and you could slip. resulting in serious injury,
Operate RIDING mowers up and down slopes, never across the face of slopes.
Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.
Page 7
SECTION3: HARDWAREPACK
NOTE: Hardware pack may contain extra items which are not used on your unit. Part numbers are shown in
)arentheses.
A_ATTACHING THE DECK LINKS
C_ATTACHING THE DECK WHEELS
(if not already attached)
(46" Deck
Only)
Deck
Wheels are
Not Shown
a_ ATTACHING THE CUTTING DECK
I
Spacers
(750-0932A)
//
Hairpin Clips
(714-0101)
NOTE: This
hardware may
be assembled
Front
Axle Bolts
3-1/4"
"'_Long
(738-3056)
•=_ Rear
Axle Bolts
2-1/4" Long
(738-0533)
Washers
-_©©©©
3/8" LD.
(736-0169)
3/8-16 --
..s ©© 3Q
Thread
(712-0798)
Page 8
SECTION4: ASSEMBLINGYOURGARDENTRACTOR
Unpacking
• Remove all screws and staples from top of crate
using a 1/4" hex head socket or a screw driver.
• To remove ends, grasp top board on the end, and
pull towards you in a downward motion. (A hammer
may help). Set panel aside to avoid tire punctures.
• Repeat procedure for each side of the crate.
• Remove and discard plastic bag which covers unit.
• Loose parts (operator's manual, steering wheel,
battery fluid, chute deflector, etc.)are on the seat or
in a box and wrapped in plastic. Carefully cut and
remove the plastic wrap. Remove loose parts from
the seat and save.
• Remove deck from beneath the tractor. Make sure
that parking brake is released and unit is in neutral.
NOTE: See the controls section of this manual for
location of the parking brake release and the shift lever.
• Push unit off the skid.
• Lay out the contents of the hardware pack on the
illustration on page 7 for identification.
IMPORTANT: After assembly, service engine with
gasoline, and check oil level as instructed in the engine
manual packed seperately with your unit.
NOTE: Reference to right or left hand side of the unit is
observed from the driver's seat, facing forward.
ToolsRequired
1. 1/4" socket wrench or flat blade screwdriver
2. 1/2" wrench or socket wrench for models with
square steering wheel cap
3. 9/16" wrench or socket wrench
4. Two 7/16" wrenches or socket wrenches
or milk. Follow with milk of magnesia, beaten eggs
or vegetable oil. If discomfort persists,call physi-
cian immediately.
EYES: Flush with cool water for at least 15 min-
utes, then get prompt medical attention.
c.
If acid spills on clothing, first dilute it with
clean water, then neutralize with a solution of
ammonia/water or baking soda/water.
d. Since battery acid is corrosive, do not pour it
into any sink or drain. Before discarding
empty electrolyte containers, rinse them with
a neutralizing solution.
e. NEVER connect or disconnect charger clips
to battery while the charger is turned on as it
can cause sparks.
f. Keep alllighted materials (cigarettes,
matches, lighters) away from the battery as
the hydrogen gas generated during charging
can be combustible.
g. As a further precaution, only charge the
battery in a well-ventilated area.
_b WARNING: Keep battery away from
children. Do not activate battery (fill with battery
acid) until battery is actually placed in service.
Be certain to read previous battery warnings
before activating the battery.
Identifying BatteryType
• Compare the battery in your lawn tractor (located
under the seat) with Figure 1 . Type "A" batteries
are activated and are ready to use. Type "B"
batteries must be filled with battery fluid (acid) and
charged before they are put into service. Follow
pertinent instructions.
SettinguptheBattery
eyes,
WARNING: Always shield protect skin
and clothing when working near batteries.
Handle battery acid with great care as contact
with itcan burn and blister the skin. Follow the
steps below to ensure safe handling.
a. Wear protective clothing (goggles, rubber
gloves and apron) to work with battery.
b. Should battery acid accidentally splatter into
the eyes or onto the face, rinse the affected
area immediately with clean cold water. A list
of antidotes are given below. If there is any
further discomfort, seek medical attention.
Antidote: EXTERNAL--Flush with water.
INTERNAL--Drink large quantities of water
Type A Type B Type B
Figure 1
ChargingtheBattery
TypeABattery
NOTE: ff the battery on your tractor is of the A type, it is
already activated and is ready to use. Skip the following
section of assembly and proceed to Attaching Steering
Wheel You will, however, need to install the battery on
the tractorlater on in the assembly.
Page 9
Type BBattery
• Lift the hood of the tractor and locate the battery.
See Figure 2. Remove the wing nuts from the hold-
down rods on two sides of the battery. Disconnect
the positive cable from the positive terminal. Save
the hardware for reassembly.
Hold-Dow'n
Rod &
Wing
Nut
Figure 2
Remove the battery from the tractor, paying
attention to how the battery is placed on the unit,
and how the drain tube is routed.
Activate the battery as instructed in the "Quick
Start" brochure included with the battery fluid. Read
instructions carefully.
NOTE: You can continue assembling the tractor while
battery is standing for 30 minutes (after filling with acid),
and later while the battery is being charged.
Remove the steering bellow from the lift lever on
the right hand side of tractor. Place steering bellow
over the steering shaft extending through the dash.
See Figure 3.
Hex
Bolt
Washer
Shaft
t.,
Wheel Cap
Steering
Bellow
Figure 3
NOTE: If the openings on each end of the steering
bellow are of two sizes, the smaller end goes down
against the dash of the tractor.
Keeping the wheels of the tractor pointing straight
forward, place the steering wheel over the steering
shaft. Place the washer with the cupped side down
over the steering shaft. Secure with hex lock bolt.
See Figure 3.
NOTE: If the steering wheel cap is square, you must
use a socket wrench.
• Place the steering wheel cap over the center of the
steering wheel and adjust to secure.
IMPORTANT: To obtain maximum life from the battery, it
must be charged prior to initial use.
• Charge battery after the 30-minute standing period
following the chart below.

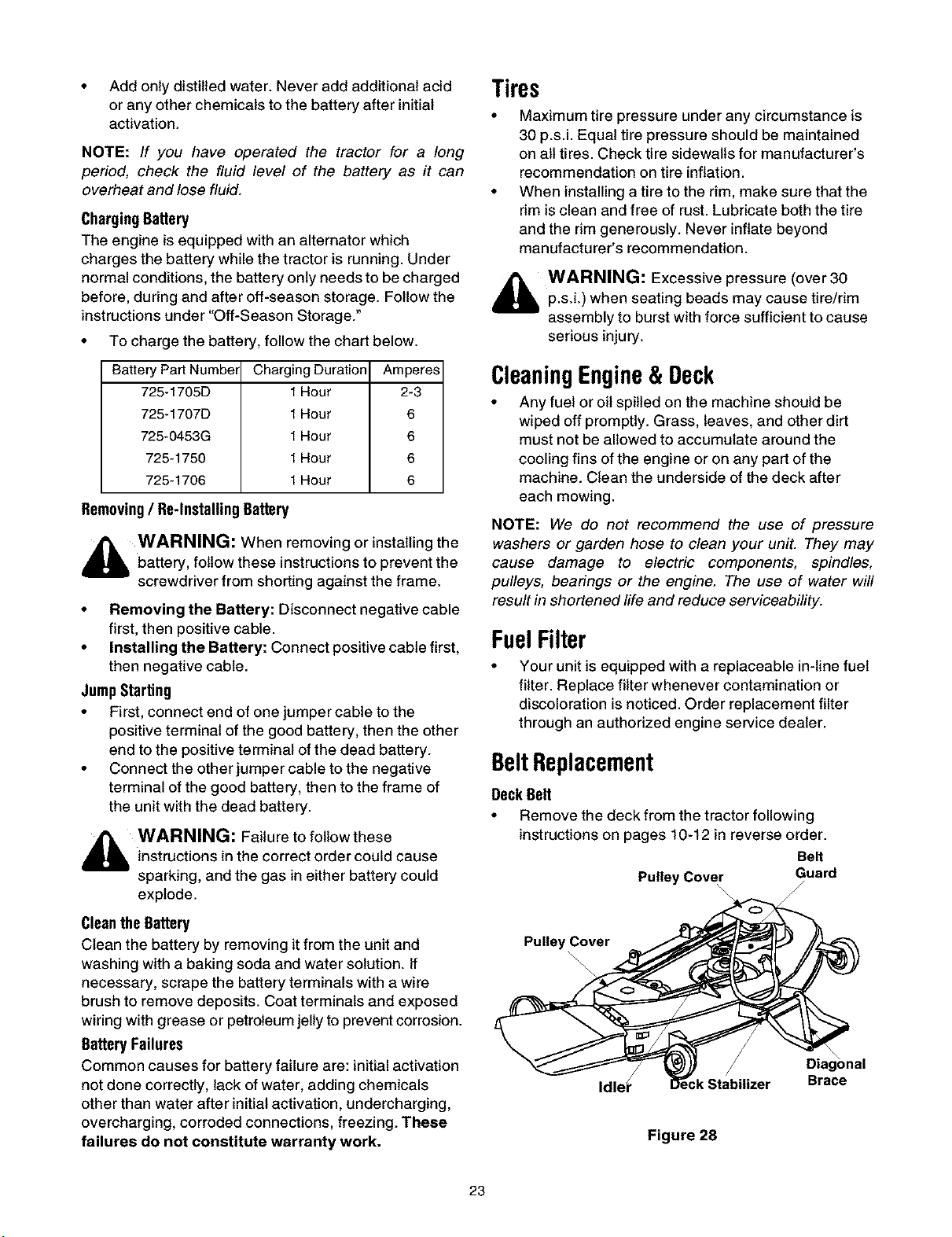

Battery Part Number Charging Duration Amperes
725-1705D 1 Hour 2-3
725-1707D 1 Hour 6
725-0453G 1 Hour 6
725-1750 1 Hour 6
725-1706 1 Hour 6
NOTE: If you charge the battery at a lower AMP rate,
use a hydrometer to make sure the battery is
completely charged. The hydrometer should read 1.260
minimum at an electrolyte temperature of60-110°F. Do
not charge at more than 6 amps.
AttachingSteeringWheel
• The hardware for attaching the steering wheel has
been packed inside the steering wheel. Carefully
pry off the steering wheel cap and remove
hardware for assembly.
AttachingtheSeat
One of two types of seats are used on these garden
tractor models: a manual adjustment seat and a quick
adjustment seat. See Figure 4 and Figure 5 to identify
which seat is on your unit. Follow instructions pertaining
to your garden tractor model only.
ManualAdjustmentSeat
Seat
Pivot
Figure 4
Page 10
• Remove the four screws which secure the seat to
the seat pivot bracket.
NOTE: If the seat was shipped in a box, remove four
screws from the bottom of the seat and place the seat in
position against the seat pivot bracket.
Turn the seat around and place in position against
the seat pivot bracket, lining up the slotted holes in
the pivot bracket with the holes in the seat. Select
desired position for the seat, and secure with the
four screws. See Figure 4.
QuickAdjustmentSeat
Seat Pivot
Bracket_)
,_ WARNING: Quick adjustment seat only:Before operating tractor, stand behind the seat
and pull back on it to make sure the seat is
engaged in the seat stop.
AttachingDeckLinks
(Hardware A)
The three adjustable deck links have been shipped
unassembled. Attach as follows.
• Start 1/2" hex nuts on eyebolts until nuts are
flushed with ends of eyebolts. See Figure 7.
• Insert eyebolts and hex nuts intothe adjustable lift
links located under the tractor. See Figure 7.
• Thread eyebolts into the lift links and hex nuts. The
left rear link should be adjusted so the eyebolt
hangs about 3-1/2 inches below the lift link. The two
front links should be adjusted so the eyebolts hang
about 2-1/8 inches below the lift links. See Figure 7.
Settingfor
Left Rear Link
\
\
\
Figure 5
• Pull out tab on seat stop and hold open while sliding
seat out of seat pivot bracket. See Figure 5.
• Turn the seat around and line up plastic seat
spacers with the slots in seat pivot bracket.
• Slide seat in until front seat spacer engages the
seat stop. See Figure 6. To adjust the seat refer to
the adjustment section in this manual.
Seat
Spacers
Figure 6
Eyebolt
Front Unks
Figure 7
AttachingtheDeck
(Hardware B)
NOTE: An assistant may be helpful for this job.
Working beneath the tractor, remove the hairpin
clip securing the round belt guard to the idler. See
Figure 8. Remove the two hex bolts which act as
belt keepers by the engine pulley.
Bolt
I Belt
NOTE: If the seat was shipped in a box, fine up plastic
seat spacers with the slots in seat pivot bracket and
slide seat in until front seat spacer engages seat stop.
@@@
Figure 8
10

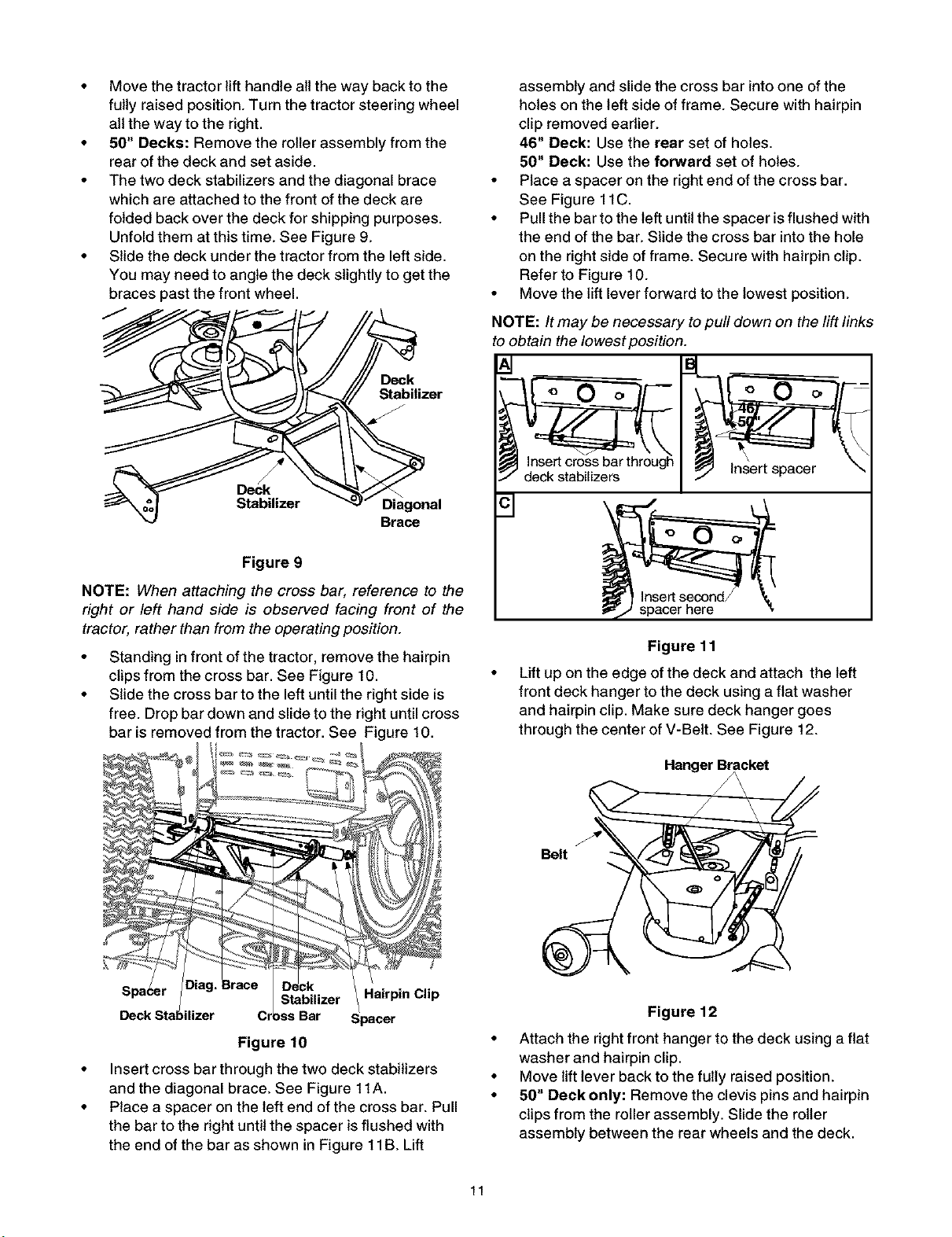

Page 11
• Move the tractor lift handle all the way back to the
fully raised position. Turn the tractor steering wheel
all the way to the right.
• 50" Decks: Remove the roller assembly from the
rear of the deck and set aside.
• The two deck stabilizers and the diagonal brace
which are attached to the front of the deck are
folded back over the deck for shipping purposes.
Unfold them at this time. See Figure 9.
• Slide the deck under the tractor from the left side.
You may need to angle the deck slightly to get the
braces past the front wheel.
assembly and slide the cross bar into one of the
holes on the left side of frame. Secure with hairpin
clip removed earlier.
46" Deck: Use the rear set of holes.
50" Deck: Use the forward set of holes.
• Place a spacer on the right end of the cross bar.
See Figure 11C.
• Pull the bar to the left until the spacer isflushed with
the end of the bar. Slide the cross bar into the hole
on the right side of frame. Secure with hairpin clip.
Refer to Figure 10.
• Move the lift lever forward to the lowest position.
NOTE: It may be necessary to pull down on the lift links
to obtain the Iowest position.
rough
Figure 9
NOTE: When attaching the cross bar, reference to the
right or left hand side is observed facing front of the
tractor, rather than from the operating position.
Standing in front of the tractor, remove the hairpin
clips from the cross bar. See Figure 10.
Slide the cross bar to the left until the right side is
free. Drop bar down and slide to the right until cross
bar is removed from the tractor. See Figure 10.
Sr er
Stabilizer
Deck Stal bilizer Cr )ss Bar
Figure 10
Insert cross bar through the two deck stabilizers
and the diagonal brace. See Figure 11A.
Place a spacer on the left end of the cross bar. Pull
the bar to the right until the spacer is flushed with
the end of the bar as shown in Figure 11B. Lift
Hairpin Clip
Spacer
--Insert second/
/ spacer here _,
Figure 11
Liftup on the edge of the deck and attach the left
front deck hanger tothe deck using aflat washer
and hairpin clip.Make sure deck hanger goes
through the center of V-Belt. See Figure 12.
Hanger Bracket
Belt
Figure 12
Attach the right front hanger to the deck using a flat
washer and hairpin clip.
Move lift lever back to the fully raised position.
50" Deck only: Remove the clevis pins and hairpin
clips from the roller assembly. Slide the roller
assembly between the rear wheels and the deck.
11
Page 12
Insert the deck roller brackets up through the
brackets provided on the rear of the deck. It may be
necessary to rotate the deck roller brackets 360 ° to
clear the roll pin stop. Attach with clevis pins and
hairpin clips just removed, using the lowest hole
location on each side of the deck. See Figure 13.
Move the lift lever forward to the lowest position.
Attach the two rear lift links with flat washers and
hairpin clips.
Place deck belt around the engine pulley. Make
certain the deck belt is seated in the deck pulley.
Deck Roller
Hairpinj
Clip
Pin
Figure 13
• Push the idler bracket tothe left and slip the belt
around the idler pulley. Replace the roundbelt
guard by the idler pulley (hex side down). Secure
with hairpinclip.
• Replace the hex bolts (belt keepers) by the engine
pulley. Refer to Figure 8.
• Check all belt guards for clearance. The belt guards
must be between 1/16" and 1/8" away from the belt
when the PTO lever isin the engaged position (be
sure to disengage the PTO lever after checking).
• Secure the brake release cable to the tractor idler
bracket with clevispin and small hairpin clip, using
the hole in the idler bracket as shown in Figure 14.
50" Deck only: Remove the bolts, nuts and
cupped washers which are attached to the deck
next to the chute opening. Place the chute deflector
in position as shown in Figure 15. (For 46" decks,
please refer to Figure 16.) Secure with hardware
removed earlier.
Nut
Carriag_
(Under Deck)
Figure 15
AttachingDeckWheels
(Hardware C)
46" Deck
If the deck wheels are not already attached, attach the
wheels to the deck as follows. All wheels must be
placed in the same relative position.
Chute Hex Nut
Deflector
'\
Cupped
Washer
_-------- Clevis Pin
__cket
Hairpin Clip -_(_i
Figure 14
AttachingChuteDeflector
,_ WARNING: Do not operate the tractor
unless the chute deflector has been properly
installed.
\ _Rat /
Rear_Lxle Wast_
Bolt Front Hex Nut
Axle B_t
Washer
Figure 16
Front Wheels: Front axle bolts are the longer bolts.
Front deck wheels have a rounded surface.
Rear Wheels: Rear axle bolts are the shorter bolts.
Rear deck wheels are flatter.
• Place flat washer on the axle bolt, then the deck
wheel and cupped washer (crowned side of washer
goes against the wheel). See Figure 16.
• Secure to deck with hex nut. Tighten securely.
Assemble remaining wheels in same manner.
12
Page 13
Tire Pressure
The tires on your tractor may be over-inflated for
shipping purposes. Reduce the tire pressure before
operating the unit. Check the sidewall of the tires for
proper inflationpressure.
A WARNING: Maximum tire pressure under
any circumstances is 30 p.s.i. Equal tire
pressure should be maintained on all tires.
LevelingtheDeck
After attaching the deck to the tractor, make sure it is
adjusted properly.
• Check tire pressure of all four tires. See sidewall of
tire for recommended inflation pressure.
• Make certain all deck wheels or both ends of the
deck roller are mounted in same relative hole
locations.Place the tractor on a level surface.
• 46" Deck: Lower the deck until it reaches the
ground. All four deck wheels should reach the
ground at the same time.
• Place the deck approximately 1" above the ground.
The distance from the bottom edge of the deck to
the ground must be same on both sides of the deck.
AdjustingDeckLinks
If adjustment is necessary, adjust the deck links on the
left side of the deck as follows.
Remove hairpin clip,
washer and thread bolt
InstallingtheBattery
TypeABattery
NOTE: If battery is put into service after date shown on
top of battery, charge for minimum I hour at 6 amps.
Wing
Nut Wing Nut
(Black)
Negative
Terminal
Positive
Terminal
Positive
Figure 18
• Lift the hood of the tractor. Remove wing nuts from
the hold-down rods securing battery cover to the
battery.
• Remove plastic cover from the negative terminal.
• Remove the hex bolt and nut from the negative
(black) cable. Attach negative cable to the negative
terminal with this bolt and nut. See Figure 18.
• Place battery cover over battery and secure with
wing nuts removed earlier.
Figure 17
• Make certain the PTO is disengaged. Remove
hairpin clip and washer from the weld bolt. see
Figure 17. Thread eyebott up or down the link as
necessary, and reassemble.
• Make sure that the front of the deck is 1/4" to 3/8"
lower than the rear of the deck. If it is not, adjust the
two front links to obtain this distance.
NOTE: It may be necessary to pull up on the hold-down
rods in order to start the wing nuts
TypeBBattery
NOTE: The positive battery terminal is marked Pos. (+).
The negative battery terminal is marked Neg. (-).
• Place the battery on the battery plate with the
terminals toward the front of the tractor.
• Attach the positive cable (heavy red wire) to the
positive battery terminal (+) with hex bolt and hex
nut. See Figure 18. Slide the rubber boot over the
positive terminal.
• Remove hex bolt and nut from the negative cable.
Attach the negative cable (heavy black wire) to the
negative battery terminal (-) with the bolt and nut.
• Place the battery cover in position over the hold-
down rods. Secure with wing nuts. See Figure 18.
NOTE: It may be necessary to pull up on the hold-down
rods in order to start the wing nuts.
• Route the battery drain tube (if equipped) over to
the left side of the tractor. Loosen the self-tapping
13
Page 14
screw which secures the mounting clamp. See
Figure 19. Slip the end of the drain tube into the
mounting clamp. Tighten the self-tapping screw to
secure the clamp. Do not overtighten which could
collapse the drain tube.
NOTE: The vented battery allows any gases or liquid
from the battery to be drained onto the ground.
• Trim end of drain tube if more than 1inch extends
below the frame.
FinalAssembly
• Make certain all nuts and bolts are tightened
securely.
--Drain
Tube
0
0
0
Self-Tap_ping
Screw
Figure 19
Mounting
Clamp
14
Page 15
SECTION5: KNOWYOURGARDENTRACTOR
This section is meant to acquaint you with the various types of controls and switches available on these tractors.
Please read this section carefully and know your tractor well before operating. As with any power equipment, it is
extremely important to ensure proper and safe operation of the tractor by following the instructions closely. Note
that this manual covers various models and many controls, listed here, may be optional items.
Steering Wheel
Choke
Clutch Brake Pedal
Throttle Control
Ignition Switch
:Lever
Parking Brake
Figure 20
IgnitionKey
The ignition key switch is located on the dashboard. To
start the engine, turn the key clockwise to the START
position. Once the engine has cranked, put the key in
the ON position. To stop the engine, turn the key tothe
OFF position.To prevent accidental starting, remove
key from the tractor when the tractor is not in use.
Cap
Igniti0n/lightSwitch
The lights are controlled by the ignition switch. With the
tractor running, turn the key counter-clockwise to the
LIGHTS ON position.
ThrottleControl
The throttle control islocated on the leftside of the
dashboard and is used to regulate engine speed. The

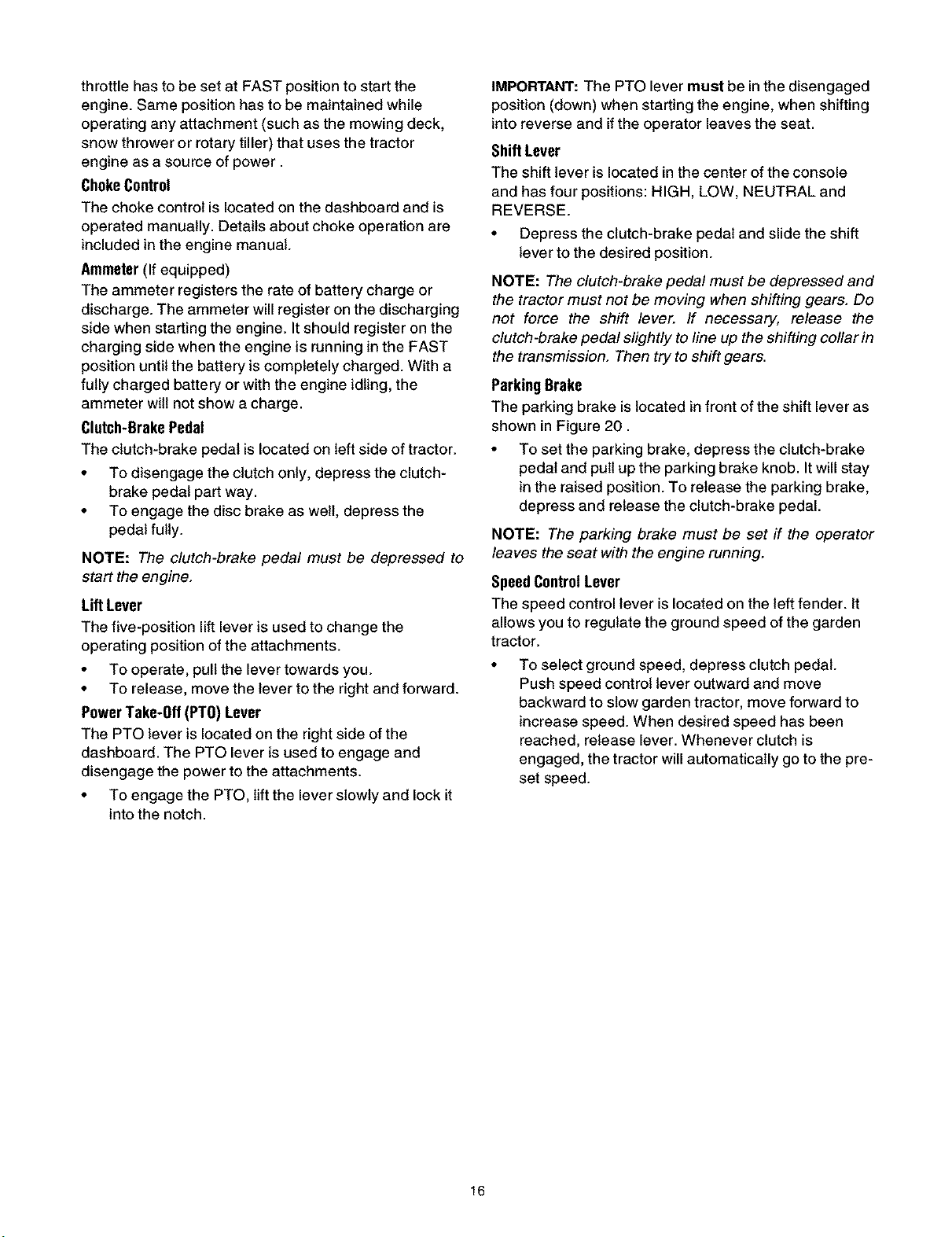

15
Page 16
throttle has to be set at FAST position to start the
engine. Same position has to be maintained while
operating any attachment (such as the mowing deck,
snow thrower or rotary tiller) that uses the tractor
engine as a source of power.
ChokeControl
The choke control is located on the dashboard and is
operated manually. Details about choke operation are
included in the engine manual.
Ammeter(Ifequipped)
The ammeter registers the rate of battery charge or
discharge. The ammeter will register on the discharging
side when starting the engine. It should register on the
charging side when the engine is running in the FAST
position until the battery is completely charged. With a
fully charged battery or with the engine idling, the
ammeter will not show a charge.
Clutch-BrakePedal
The clutch-brake pedal is located on left side of tractor.
• To disengage the clutch only, depress the clutch-
brake pedal part way.
• To engage the disc brake as welt, depress the
pedal fully.
NOTE: The clutch-brake pedal must be depressed to
start the engine.
Lift Lever
The five-position lift lever is used to change the
operating position of the attachments.
• To operate, pull the lever towards you.
• To release, move the lever to the right and forward.
PowerTake-Off(PTO)Lever
The PTO lever is located on the right side of the
dashboard. The PTO lever is used to engage and
disengage the power to the attachments.
• To engage the PTO, lift the lever slowly and lock it
into the notch.
IMPORTANT: The PTO lever must be in the disengaged
position (down) when starting the engine, when shifting
into reverse and if the operator leaves the seat.
ShiftLever
The shift lever is located in the center of the console
and has four positions: HIGH, LOW, NEUTRAL and
REVERSE.
• Depress the clutch-brake pedal and slide the shift
lever to the desired position.
NOTE: The clutch-brake pedal must be depressed and
the tractor must not be moving when shifting gears. Do
not force the shift lever, ff necessary, release the
clutch-brake pedal slightly to line up the shifting collar in
the transmission. Then try to shift gears.
ParkingBrake
The parking brake is located in front of the shift lever as
shown in Figure 20.
• To set the parking brake, depress the clutch-brake
pedal and pull up the parking brake knob. It will stay
in the raised position. To release the parking brake,
depress and release the clutch-brake pedal.
NOTE: The parking brake must be set if the operator
leaves the seat with the engine running.
SpeedControlLever
The speed control lever islocated on the left fender. It
allows you to regulate the ground speed of the garden
tractor.
• To select ground speed, depress clutch pedal.
Push speed control lever outward and move
backward to slow garden tractor, move forward to
increase speed. When desired speed has been
reached, release lever. Whenever clutch is
engaged, the tractor will automatically go to the pre-
set speed.
16
Page 17
SECTION6: OPERATINGYOURGARDENTRACTOR
MaintainingSafety
any power
A WARNING: AS with type of
Do:
• Go up and down slopes, not across; avoid sudden
• Ifmachine stops while going uphill, stop blade(s)
• Look down and behind before and while backing.
• Keep safety devices (guards, shields, and
• Remove objects that could be thrown by the
• Know location and function of all controls. Refer to
• Be sure blade(s) and engine are stopped before
• Before leaving operator's position, disengage
DoNot:
• Do not operate the unit where it could slip or tip.
• Do not mow when children or others are around.
• Never carry children on the tractor, even with the
equipment, carelessness or error on the part of
the operator can result in serious injury. Read
and follow the instructionsin this manual very
carefully. Avoid serious injury or death by
mishandling the equipment
turns.
and come back downhill slowly.
switches) in place and working.
blade(s).
earlier section on page 15.
placing hands or feet near blade(s).
blade(s), place the shift lever in neutral, engage
brake lock, shut engine off and remove key.
blades off.
GasandOilFill-Up
• Check oil level and add if necessary.
IMPORTANT:Your tractor is shipped with oil in the
engine; however, you must check the engine oil level
before operating. Be careful not to overfill.
• Service the engine with gasoline as instructed in
the separate engine manual packed with your
tractor. Read instructions carefully.
• The fuel tank is located under the seat. The filler
neck is behind the seat. Fill up with the required
amount of gasoline. However, do not overfill.
A WARNING: Never fill fuel tank indoors, with
engine running or while engine is hot.
interlock system is to prevent the engine from cranking
or starting unless the clutch-brake pedal is depressed
and the PTO lever is in the disengaged position. In
addition, the PTO lever must be in the disengaged
position when the unit is put into reverse or the engine
will shut off. Ifthe operator leaves the seat with the PTO
lever engaged and/or without setting the parking brake,
the engine will automatically shut off.
_b WARNING: Do not operate the tractor if the
interlock system is malfunctioning because it is
a safety device designed for your protection.
• Place the PTO lever in the disengaged (down)
position.
• Depress the clutch-brake pedal and set the parking
brake.
• Place the shift lever in the NEUTRAL position.
• Set the throttle control in the FAST position.
• Pull out the choke control (a warm engine may not
require choking).
• Turn ignition key to the right to START position.
After the engine starts, release the key. It will return
to the ON position.
• Slowly push in the choke as the engine warms up.
StoppingEngine
• Turn ignition key to the left to the OFF position.
Remove the key to prevent accidental starting.
IMPORTANT: Ifthe tractor strikes a foreign object, stop
the engine. Remove wire from spark plug, thoroughly
inspect the unit for any damage, and repair the damage
before restarting and operating the equipment.
StoppingTractor
• Depress the clutch brake pedal, and pull on the
parking brake knob. Remember that it takes a few
seconds more for the moving parts of the tractor to
come to a complete stop after the parking brake
has been activated. Remove the key after the
tractor is completely parked.
SettingCuttingHeight
• Select the position for the tractor lift lever at the
desired cutting height. Then move the wheels on
the deck so that the wheels are 1/4 to 1/2 inch
above the ground.
StartingEngine
IMPORTANT: This unit isequipped with a safety
interlock system for your protection. The safety
NOTE: To obtain uniform cut, the deck is designed to
be suspended from the tractor at the desired cutting
height. The deck wheels or the deck roller should be
just off the ground for a smooth cut.
17
Page 18
OperatingTractor
• Start the engine as instructed previously.
• Move throttle control to full throttle to prevent strain
on the engine and to operate attachments.
• Place the shift lever in one of the two forward
positions (LOW or HIGH), or in REVERSE. Place
the speed control lever in desired position. Use
LOW speed position when operating the tractor for
the first time.
WARNING: Look to the rear of the tractor
and check for obstructions before backing up.
• Depress the clutch-brake pedal to release the
parking brake and put unit into motion.
• Depress the clutch-brake pedal to stop the unit.
• The cutting blades (or other attachment) may be
engaged while the tractor is moving or standing still.
NOTE: Do not engage the cutting blades abruptly as
the sudden belt tension on the pulley may cause the
engine to stall.
WARNING: Keep hands and feet away from
the discharge opening, the blades or any part
of the deck.
NOTE: There will be little difference between the
highest two speeds until after the belts have settled into
the pulleys after the break-in period.
Change oil in the engine crankcase after the first
five hours of operation.
Be sure that the lawn is clear of stones, sticks, wire,
or other objects which could damage tractor or
engine. For best results, do not mow when the lawn
is too wet.
NOTE: By shutting off the engine before disembarking,
you will also avoid the possibility of "browning" the
grass. (The "browning" is caused when grass is
exposed to hot exhaust gases from a running engine.)
WARNING: Before leaving the operator'sposition for any reason, disengage the blades,
place the shift lever in neutral, engage the
parking brake, shut engine off and remove key.
If unit stalls with speed control in sixth or seventh
speed, or if the unit will not operate with speed control
lever in the first or second speed position, follow
instructions below:
• Place shift lever in NEUTRAL.
• Restart engine.
• Place speed control lever in highest speed position.
• Release clutch-brake pedal fully.
• Depress clutch-brake pedal.
• Place speed control lever in desired position.
• Place shift lever in one of the forward positions
(HIGH or LOW) or REVERSE, and follow normal
operating procedures.
High-LowTransmissionRanges
HIGH range position is for normal load conditions, such
as mowing or transporting.
LOW range position is for high load conditions requiring
more torque, such as tilling, snow removing or hauling
heavy loads.
GrassCollector
Grass Collector Model OEM-190-083 is available as
optional equipment for tractors with 46" mowing decks.
_b OTE: The mower should not be operated
NOTE: Under normal usage, grass bag material is
subject to wear, and should be checked periodically.
Use only factory authorized replacement bag.
without the entire grass catcher or chute
deflector in place.
18
Page 19
SECTION7: MAKINGADJUSTMENTS
,_ WARNING: Disconnect the spark plug
wire(s) and ground against the engine before
performing any adjustments, repairs or
maintenance.
Levelingthe Deck
The sides of the deck should be the same distance from
the ground. The front of the deck should be 1/4" to 3/8"
lower than the rear of the deck. If adjustment is
required, refer to "Leveling the Deck" instructions in
Assembly section of this manual.
SpeedControlAdjustment
(See Figure 21 )
NOTE: There will be little difference between the
highest two speeds until after the belts have gone
through a break-in period and have settled into the
pulleys.
If speed control adjustment is needed, adjust the speed
control links as follows. (A 3/4" shim or suitable spacer
is required.)
• Start the engine. Place the shift lever in neutral
position. Place the speed control lever in highest
speed position.
• Release the clutch-brake pedal completely, then
slowly depress the pedal all the way (to park
position). Hold the pedal in this position.
• Turn the engine off.
• After engine stops completely, release the clutch-
brake pedal.
• Remove the transmission cover by removing the
parking brake knob, shift knob and two truss
machine screws.
• Disconnect the rear speed control link from the
variable speed torque bracket by removing the
cotter pin and flat washer.
Co_er
Control Lever
Vadable
Speed Torq
Bracket
a_her
Link
Clutch Brake Pedal
Figure 21
19
Page 20

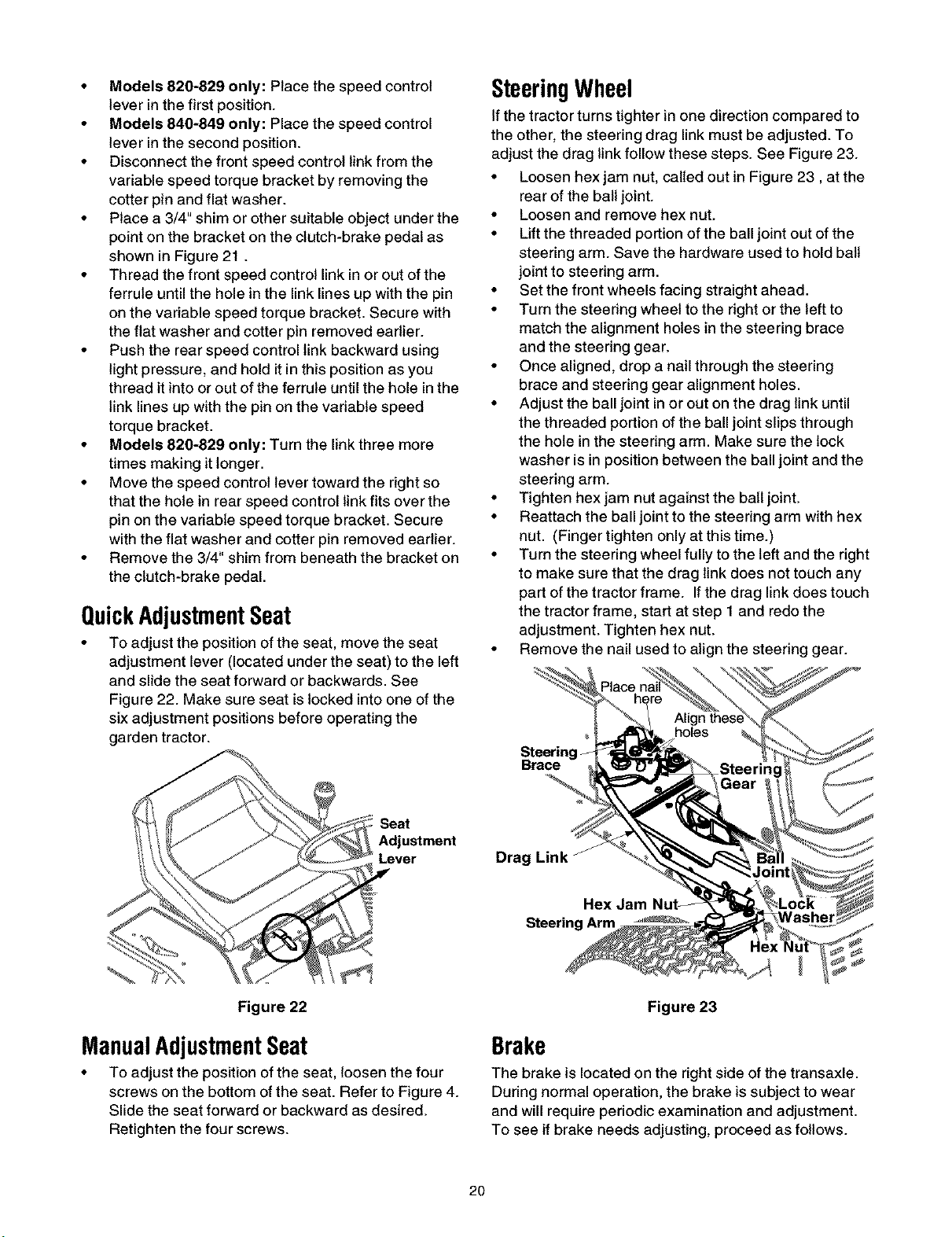

• Models 820-829 only: Place the speed control
lever inthe first position.
• Models 840-849 only: Place the speed control
lever inthe second position.
• Disconnect the front speed control link from the
variable speed torque bracket by removing the
cotter pin and flat washer.
• Place a 3/4" shim or other suitable object under the
point on the bracket on the clutch-brake pedal as
shown in Figure 21.
• Thread the front speed control link in or out of the
ferrule until the hole in the link lines up with the pin
on the variable speed torque bracket. Secure with
the flat washer and cotter pin removed earlier.
• Push the rear speed control link backward using
light pressure, and hold itin this position as you
thread it into or out of the ferrule until the hole in the
link lines up with the pin on the variable speed
torque bracket.
• Models 820-829 only: Turn the link three more
times making it longer.
• Move the speed control lever toward the right so
that the hole in rear speed control link fits over the
pin on the variable speed torque bracket. Secure
with the flat washer and cotter pin removed earlier.
• Remove the 3/4" shim from beneath the bracket on
the clutch-brake pedal.
QuickAdjustmentSeat
• To adjust the position of the seat, move the seat
adjustment lever (located under the seat) to the left
and slide the seat forward or backwards. See
Figure 22. Make sure seat is locked into one of the
six adjustment positions before operating the
garden tractor.
SteeringWheel
If the tractor turns tighter in one direction compared to
the other, the steering drag link must be adjusted. To
adjust the drag link follow these steps. See Figure 23.
• Loosen hex jam nut, called out in Figure 23, at the
rear of the ball joint.
• Loosen and remove hex nut.
• Lift the threaded portion of the balljoint out of the
steering arm. Save the hardware used to hold ball
joint to steering arm.
• Set the front wheels facing straight ahead.
• Turn the steering wheel to the right or the left to
match the alignment holes in the steering brace
and the steering gear.
• Once aligned, drop a nail through the steering
brace and steering gear alignment holes.
• Adjust the ball joint in or out on the drag link until
the threaded portion of the ball joint slips through
the hole in the steering arm. Make sure the lock
washer is in position between the ball joint and the
steering arm.
• Tighten hex jam nut against the ball joint.
• Reattach the ball joint to the steering arm with hex
nut. (Finger tighten only at thistime.)
• Turn the steering wheel fully to the left and the right
to make sure that the drag link does not touch any
part of the tractor frame. Ifthe drag link does touch
the tractor frame, start at step 1 and redo the
adjustment. Tighten hex nut.
• Remove the nail used to align the steering gear.
Steering
Brace
!!;Seat
Adjustment
Lever Drag Link
Figure 22
ManualAdjustmentSeat
• To adjust the position of the seat, loosen the four
screws on the bottom of the seat. Refer to Figure 4.
Slide the seat forward or backward as desired.
Retighten the four screws.
Hex Jam
Figure 23
Brake
The brake is located on the right side of the transaxle.
During normal operation, the brake is subject to wear
and will require periodic examination and adjustment.
To see if brake needs adjusting, proceed as follows.
2O

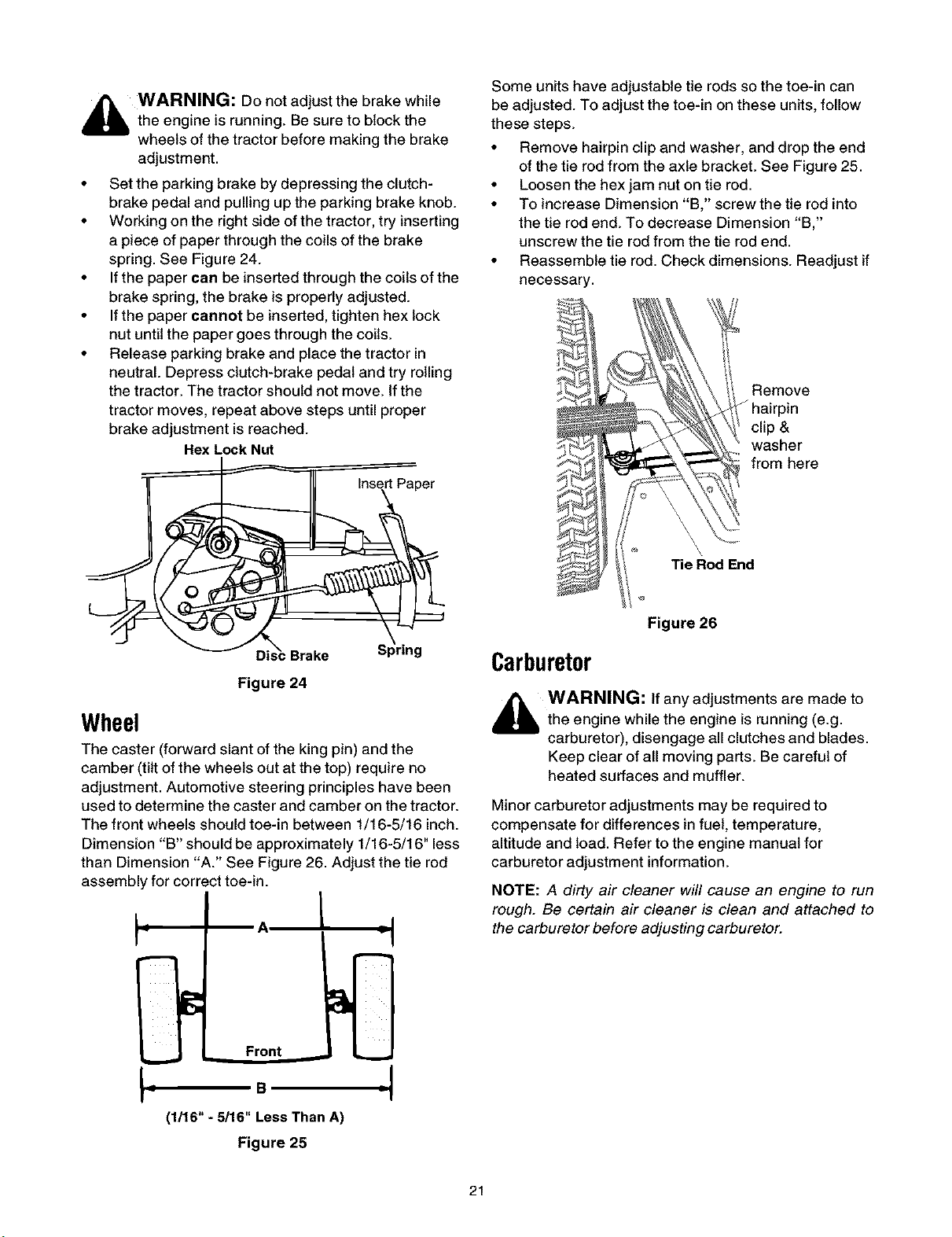

Page 21
_b WARNING: Do not adjust the brake while
the engine is running. Be sure to block the
wheels of the tractor before making the brake
adjustment.
• Set the parking brake by depressing the clutch-
brake pedal and pulling up the parking brake knob.
• Working on the right side of the tractor, try inserting
a piece of paper through the coils of the brake
spring. See Figure 24.
• Ifthe paper can be inserted through the coils of the
brake spring, the brake is properly adjusted.
• Ifthe paper cannot be inserted, tighten hex lock
nut until the paper goes through the coils.
• Release parking brake and place the tractor in
neutral. Depress clutch-brake pedal and try rolling
the tractor. The tractor should not move. If the
tractor moves, repeat above steps until proper
brake adjustment is reached.
Hex Lock Nut
_ ___[_-_aper
Some units have adjustable tie rods so the toe-in can
be adjusted. To adjust the toe-in on these units, follow
these steps.
• Remove hairpin clip and washer, and drop the end
of the tie rod from the axle bracket. See Figure 25.
• Loosen the hex jam nut on tie rod.
• To increase Dimension "B," screw the tie rod into
the tie rod end. To decrease Dimension "B,"
unscrew the tie rod from the tie rod end.
• Reassemble tie rod. Check dimensions. Readjust if
necessary.
_4__ Remove
_ clip &
washer
from here
Figure 24
Wheel
The caster (forward slant of the king pin) and the
camber (tilt of the wheels out at the top) require no
adjustment. Automotive steering principles have been
used to determine the caster and camber on the tractor.
The front wheels should toe-in between 1/16-5/16 inch.
Dimension "B" should be approximately 1/16-5/16" less
than Dimension "A." See Figure 26. Adjust the tie rod
assembly for correct toe-in.
Tie Rod End
o
Figure 26
Carburetor
_ WARNING: Ifany adjustments are made to
Minor carburetor adjustments may be required to
compensate for differences in fuel, temperature,
altitude and load. Refer to the engine manual for
carburetor adjustment information.
NOTE: A dirty air cleaner will cause an engine to run
rough. Be certain air cleaner is clean and attached to
the carburetor before adjusting carburetor.
the engine while the engine is running (e.g.
carburetor), disengage all clutches and blades.
Keep clear of all moving parts. Be careful of
heated surfaces and muffler.
___ Front
(1/16" - 5/16" Less Than A)
Figure 25
J
21
Page 22
SECTION8: MAINTAININGYOURGARDENTRACTOR
CuttingBlades
,_ WARNING: Disconnect the spark plug
wire(s) and ground against the engine before
performing any adjustments, repairs or
maintenance.
,_ WARNING: Protect hands by using heavy
gloves or a rag to grasp the cutting blades.
Lubrication
SteeringGears
Lubricate teeth of steering gears with automotive multi-
purpose grease after every 25 hours of operation or
once a season. Refer to Figure 23.
SteeringShaft
Lubricate steering shaft at least once a season with
light oil.
Transaxle
The transaxle is lubricated and sealed at the factory
and does not require checking. If disassembled for any
reason, lubricate with 32 oz. of Shell Darina grease,
part number 737-0148 (10 oz. tube).
Linkage
Once a season lubricate all the pivot points on the
clutch, brake and lift linkage with SAE 30 engine oil.
Wheels
Some models have front wheels with grease fittings.
Lubricate at least once a season with automotive multi-
purpose grease.
PivotPoints
Lubricate all pivot points with light oil at least once a
season.
BallJoints
The ball joints and drag link ends are permanently
lubricated and do not need any further lubrication.
BladeSpindles
The blade spindles on the cutting deck are permanently
lubricated and do not need any further lubrication.
EngineMaintenance
Refer to engine manual for maintenance instructions. A
list of general recommendations is given below.
• Maintain engine oil as instructed in the engine
manual. Read and follow instructions carefully.
• Service air cleaner every 25 hours under normal
conditions. Clean every few hours under extremely
dusty condition. To service air cleaner, refer to the
engine manual.
• The spark plugs should be cleaned and the gap
reset once a season. Spark plug replacement is
recommended at the start of each mowing season;
check engine manual for correct plug type and gap
specifications.
The blades may be removed for sharpening or
replacement as follows:
• Remove the hex flange nut that holds the blade to
the blade spindle. See Figure 27.
Hex Flan
Figure 27
• When sharpening the blades, follow the original
angle of grind as a guide. Itis extremely important
that each cutting edge be ground equallyto prevent
an unbalanced blade. An unbalanced blade will
cause excessive vibration when rotating at high
speeds, may cause damage to the tractor and
could break, causing personal injury.
• The blade can be tested for balance by balancing it
on a round shaft screwdriver. Remove metal from
the heavy side untilit balances evenly.
• When replacing the blade, be sure to installthe
blade with the side of the blade marked "Bottom"
(or with part number) facing the ground when the
tractor is in the operating position.
TorqueSpecifications
Blade: Hex FL Nut 840 in.lb. min., 1080 in. lb. max.
Blade Spindle Screws: Ifdisassembled for any reason,
tighten the blade spindle screws to between 200 and
275 inch pounds.
BatteryCare
Type"A" Battery
Type "A" batteries are sealed and maintenance-free.
Type"B" Battery
• Check fluid level inside each cell of the battery
every two weeks and before and after charging.
Always maintain level just below the split rings.
22
Page 23
• Add only distilled water. Never add additional acid
or any other chemicals to the battery after initial
activation.
NOTE: If you have operated the tractor for a long
period, check the fluid level of the battery as it can
overheat and lose fluid.
ChargingBattery
The engine is equipped with an alternator which
charges the battery while the tractor is running. Under
normal conditions, the battery only needs to be charged
before, during and after off-season storage. Follow the
instructions under "Off-Season Storage."
• To charge the battery, follow the chart below.
Tires
• Maximum tire pressure under any circumstance is
30 p.s.i. Equal tire pressure should be maintained
on all tires. Check tire sidewalls for manufacturer's
recommendation on tire inflation.
• When installing a tire to the rim, make sure that the
rim is clean and free of rust. Lubricate both the tire
and the rim generously. Never inflate beyond
manufacturer's recommendation.
,_ WARNING: Excessive pressure (over 30
p.s.L) when seating beads may cause tire/rim
assembly to burst with force sufficient to cause
serious injury.
Battery Par_Number Charging Duration Amperes
725-1705D 1 Hour 2-3
725-1707D 1 Hour 6
725-0453G 1 Hour 6
725-1750 1 Hour 6
725-1706 1 Hour 6
Removing/ Re-InstallingBattery
_b WARNING: When removing or installing the
battery, follow these instructions to prevent the
screwdriver from shorting against the frame.
• Removing the Battery: Disconnect negative cable
first, then positive cable.
• Installing the Battery: Connect positive cable first,
then negative cable.
JumpStarting
• First, connect end of one jumper cable to the
positive terminal of the good battery, then the other
end to the positive terminal of the dead battery.
• Connect the other jumper cable to the negative
terminal of the good battery, then to the frame of
the unit with the dead battery.
WARNING: Failure to foltowthese
instructions in the correct order could cause
sparking, and the gas in either battery could
explode.
CleaningEngine& Deck
• Any fuel or oil spilled on the machine should be
wiped off promptly. Grass, leaves, and other dirt
must not be allowed to accumulate around the
cooling fins of the engine or on any part of the
machine. Clean the underside of the deck after
each mowing.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit. They may
cause damage to electric components, spindles,
pulleys, bearings or the engine. The use of water will
result in shortened life and reduce serviceability.
FuelFilter
• Your unit is equipped with a replaceable in-line fuel
filter. Replace filter whenever contamination or
discoloration is noticed. Order replacement filter
through an authorized engine service dealer.
BeltReplacement
DeckBelt
• Remove the deck from the tractor following
instructions on pages 10-12 in reverse order.
Belt
Pulley Cover\ Guard
Cleanthe Battery
Clean the battery by removing it from the unit and
washing with a baking soda and water solution. If
necessary, scrape the battery terminals with a wire
brush to remove deposits. Coat terminals and exposed
wiring with grease or petroleum jelly to prevent corrosion.
BatteryFailures
Common causes for battery failure are: initial activation
not done correctly, lack of water, adding chemicals
other than water after initial activation, undercharging,
overcharging, corroded connections, freezing. These
failures do not constitute warranty work.
Pulley Cover
Diagonal
Brace
Figure 28
23

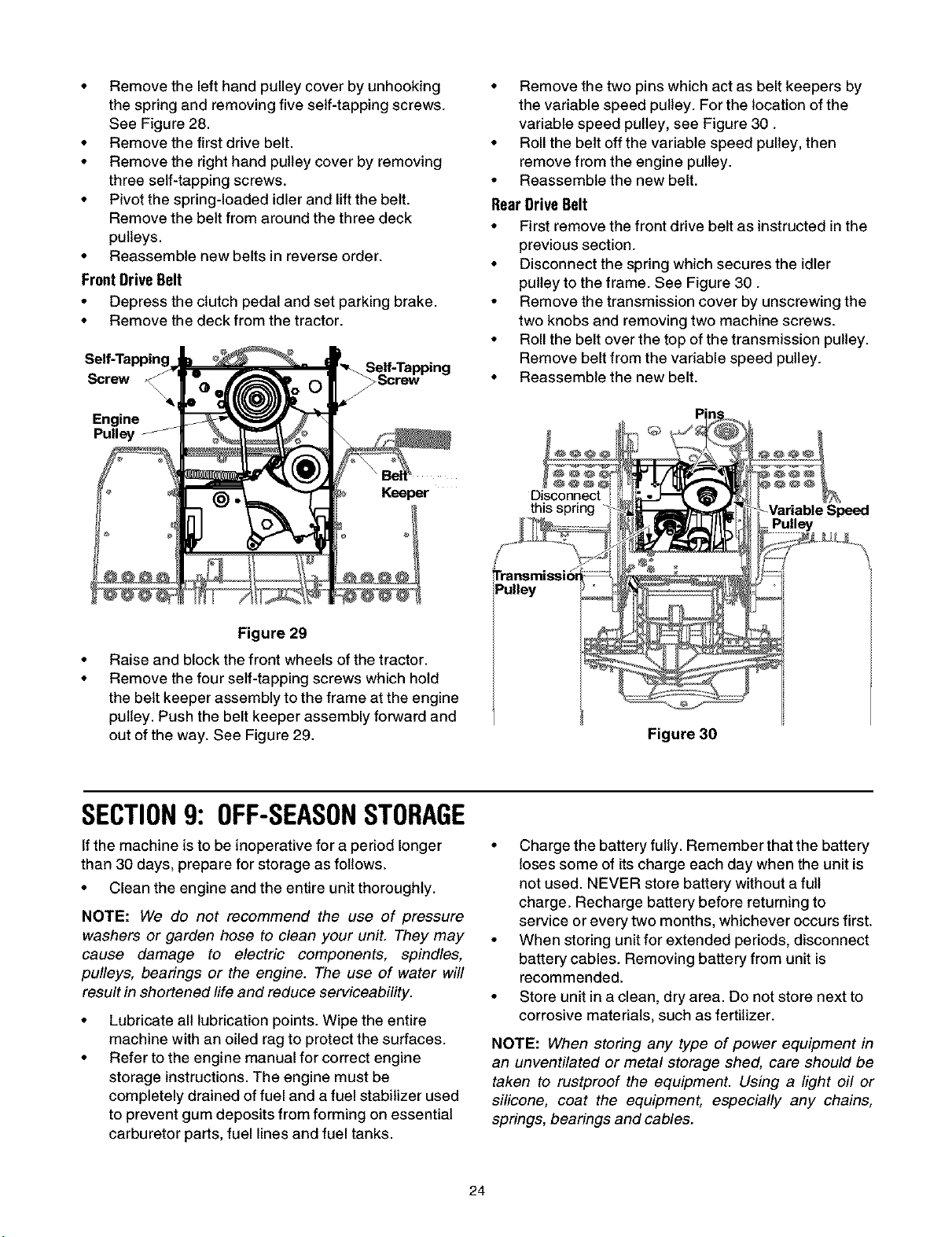

Page 24
• Remove the left hand pulley cover by unhooking
the spring and removing five self-tapping screws.
See Figure 28.
• Remove the first drive belt.
• Remove the right hand pulley cover by removing
three self-tapping screws.
• Pivot the spring-loaded idler and lift the belt.
Remove the belt from around the three deck
pulleys.
• Reassemble new belts in reverse order.
FrontDriveBelt
• Depress the clutch pedal and set parking brake.
• Remove the deck from the tractor.
Self-Ta
Screw
Engine
Pulley
• Remove the two pins which act as belt keepers by
the variable speed pulley. For the location of the
variable speed pulley, see Figure 30.
• Roll the belt off the variable speed pulley, then
remove from the engine pulley.
• Reassemble the new belt.
RearDriveBelt
• First remove the front drive belt as instructed in the
previous section.
• Disconnect the spring which secures the idler
pulley to the frame. See Figure 30.
• Remove the transmission cover by unscrewing the
two knobs and removing two machine screws.
• Roll the belt over the top of the transmission pulley.
Remove belt from the variable speed pulley.
• Reassemble the new belt.
Keeper
Figure 29
Raise and block the front wheels of the tractor.
Remove the four self-tapping screws which hold
the belt keeper assembly to the frame at the engine
pulley. Push the belt keeper assembly forward and
out of the way. See Figure 29.
SECTION9: OFF-SEASONSTORAGE
If the machine is to be inoperative for a period longer
than 30 days, prepare for storage as follows.
• Clean the engine and the entire unit thoroughly.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit. They may
cause damage to electric components, spindles,
pulleys, bearings or the engine. The use of water will
result in shortened life and reduce serviceability.
Lubricate all lubrication points. Wipe the entire
machine with an oiled rag to protect the surfaces.
Refer to the engine manual for correct engine
storage instructions. The engine must be
completely drained of fuel and a fuel stabilizer used
to prevent gum deposits from forming on essential
carburetor parts, fuel lines and fuel tanks.
Disconnect
this spring
Pulley
Pulley
Figure 30
• Charge the battery fully. Remember that the battery
loses some of its charge each day when the unit is
not used. NEVER store battery without a full
charge. Recharge battery before returning to
service or every two months, whichever occurs first.
• When storing unit for extended periods, disconnect
battery cables. Removing battery from unit is
recommended.
• Store unit in a clean, dry area. Do not store next to
corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in
an unventilated or metal storage shed, care should be
taken to rustproof the equipment. Using a light oil or
silicone, coat the equipment, especially any chains,
springs, bearings and cables.
24
Page 25
SECTION10: OPTIONALEQUIPMENT
At the time of manufacture of tractor, the following optional equipment is available.
Description Model No.
• Grass Collector For46" Deck • OEM-190-083
• Mulching Kit For46" Deck * OEM-190-118
• 45" Two Stage Snow Thrower • OEM-190-624
• 48" Dozer Blade * OEM-190-840
• 42" Rear Dozer Blade** * OEM-190-804
• Agriculutral Traction Tires * OEM-190-865
• Tire Chains--23 x 9.5 • OEM-190-964
• 100 lb. Wheel Weights • OEM-190-784
• Front Bumper Kit • OEM-190-226
• Sleeve Hitch Kit • OEM-190-929
• 28" PTO Driven Rear Mounted Tiller * OEM-190-757
• 38" 8 HP Rear Mounted Tiller • OEM-190-758
• Electric Lift Kit • OEM-190-749
• 10" Moldboard Plow** * OEM-190-978
• Single Disc Harrow** • OEM-190-980
• Row Crop Cultivator** • OEM-190-984
• Gang Reel (Set of three)* • 45-0195
• 38" Lawn Sweeper* * 45-0222
• Heavy Duty Lawn Roller* • 45-0179
• Heavy Duty Dump Cart* • 45-0171
• TineDe-Thatcher* * 45-0186
*Available through your local dealer or from Agri-Fab Inc.,
303 W. Raymond Street, Sullivan, Illinois 61951
* *Sleeve Hitch Required (OEM-190-929)
25
Page 26
SECTION11:TROUBLESHOOTING
Engine will not 1.
crank
Engine cranks 1.
but will net start
Possible Cause(s)
Safety switch button not
depressed.
2.
Battery installed incorrectly.
3.
Battery is dead or weak.
4.
Blown fuse or circuit breaker.
5.
Engine ground wire loose.
Throttle or choke not in
starting position
2.
No fuel to the carburetor
3.
Fuel line or in-line fuel filter
plugged
Corrective ActionTrouble
1. There are two switches in the starting circuit of your unit: the clutch
pedal switch and the deck lift lever switch. Make certain the actuator
is fully depressing the buttons on each switch.
2. The battery must be installed with negative terminal attached to black
ground wire. Negative terminal is identified at the post by "NEG', "N"
or "-". The positiveterminal, identified by "POS", "P" or %", must be
attached to the big red wire which goes to the solenoid. All batteries
are to be fully charged before installing. Refer to "Quick Start" battery
guide that came with the operator's manual.
3. Check fluid level in battery. If fluid is low, fill to just below split rings
with water. Charge with 6 AMP charger until the battery is fully
charged.
4. Refer to the illustrated parts list for fuse box location. Replace fuse
with automotive type fuse. Fuses seldom fail without a reason. The
problem must be corrected. Check for loose connections in the fuse
holder. Replace fuse holder if necessary. A dead short may be in the
cranking or charging circuit where the insulation may have rubbed
through and exposed the bare wire. Replace the wire or repair with
electrician's tape if the wire strands have net been damaged.
Note: Look for a wire pinched between body panels, burned by the
exhaust pipe or muffler or rubbed against a moving part.
5. Engine should have a black ground wire running from engine to frame
or mounting bolt.
1. Check operator's manual for correct position for throttle control and
choke for starting.
2. Gasoline tank empty. Fill tank.
3. Remove and clean fuel line. Replace filter if necessary.
Engine smokes 1.
Excessive 1.
vibration
Mower will not 1.
discharge grass 2.
or leaves uncut 3.
strips 4.
4.
Spark plug lead
disconnected
5.
Faulty spark plug
6.
Dirty air cleaner
Engine oil has been
overfilled.
2.
Dipstick not seated and/or
broken.
3.
Engine loses crankcase
vacuum.
Loose bolt or part.
2.
Bent or damaged blade. 2. Replace blade following instruction in this manual.
Engine speed low. 1. Throttle must be set at full throttle.
Speed selection. 2. Use lower ground speed.
Cutting height set too low. 3. Raise deck.
Blades short or dull. 4. Sharpen or replace blades (uncut strip problem only).
4. Connect lead. Hold spark plug lead away from engine block about 1/
8". Crank engine. There should be a spark. If not, have engine
repaired at authorized engine service dealer.
5. To test, remove spark plug. Attach spark plug lead to spark plug.
Ground the spark plug body against the engine block. Crank the
engine. The spark plug should fire at the electrode. Replace if it does
not.
6. Refer to the engine manual.
1. Check oil level.
2. Re-insert dipstick properly. Replace defective part if needed.
3. Engine breather defective. Replace following engine manual.
1. Stop engine immediately. Check all pulleys, blade adapters, keys and
bolts for tightness and spindle damage. Tighten or replace any
damaged parts.
26
Page 27
YOURNOTES
Date Comments
I
I
I
I
I
I
27
Page 28
MANUFACTURER'S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the
United States, its possessions and territories.
MTD LLC warrants this product against defects for a period of
two (2) years commencing on the date of original purchase
and will, at its option, repair or replace, free of charge, any
pad found to be defective in materials or workmanship. This
limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's
Manual furnished with the product, and has not been subject
to misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire,
water, or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any
accessory or attachment not approved by MTD LLC for use
with the product(s) covered by this manual will void your
warranty as to any resulting damage.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear pads or
component failures will be covered on the product for a period
of 90 days regardless of cause. After 90 days, but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in materials or workmanship of
OTHER component pads. Normal wear parts and
components include, but are not limited to: batteries, belts,
blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, shave plates, auger spiral rubber,
and tires.
ROW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer in your area, check your
Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-
330-220-4683 or log on to our Web site at
www.mtdproducts.com.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component pads thereof. These items
carry a separate manufacturer's warranty. Refer to
applicable manufacturer's warranty for terms and
condition.
b. Log splitter pumps, valves, and cylinders have a sepa
rate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
exposure.
d. MTD LLC does not extend any warranty for products
sold or expoded outside of the United States, its
possessions and territories, except those sold through
MTD LLC's authorized channels of expod distribution.
e. Parts that are not genuine MTD parts are not covered
by this warranty.
f. Service completed by someone other than an
authorized service dealer is not covered by this
warranty.
g. Transportation charges and service calls are not
covered.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind MTD LLC. During the period of the warranty,
the exclusive remedy is repair or replacement of the
product as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale. MTD
LLC shall not be liable for incidental or consequential
loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services
or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
MTDLLC, P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:1-800-800-7310,1-330-220-4683
Loading...
