OWNErS GUIDE
ASSEMBLY • OPERATION • MAINTENANCE • PARTS
16"
$1.00
Important;
in
AMERICA
ROTARY
MOWER
Model Number
111-010R000
tRftSS ÛOTiîtfEie - a/ow£
Read Safety Rules and Instructions Carefully
WARNING: This unit is equipped with an internal combustion engine and should not be used
on or near any unimproved forest-covered, brush-covered or grass-covered land unless the
engine’s exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order
by the operator.
In the State of California the above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws apply on federal lands.
A spark arrester for the muffler is available through your nearest engine authorized service
dealer or contact the service department, P.O. Box 360900, Cleveland, Ohio 44136.
PRINTED IN U.S.A.
FORM NO. 770-7734F
RULES FOR SAFE OPERATION
IMPORTANT
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTI lUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY
AND/OR PROPERTY OF YOURSELF AND OTHERS. RliAD AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE AHEMPTING
TO OPERATE YOUR LAWN MOWER. FAILURE TO COI/IPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. WHEN
'
YOU SEE THIS SYMBOL- A HEED ITS WAP NING.
A
DANGER: with any type of power eqi ipment, carelessness or error on the part of the operator can result in serious
Your lawn mower was bul t to be operated according to the rules for safe operation in this manual. As
A
TRAINING
AT
Read this owner’s guide carefully in its entirety before attempting
to assemble or operate this machine. Be compietely familiar with
the controis and the proper use of this machine befoi e operating
it. Keep this manual in a safe place for future and regul ir reference
and for ordering replacement parts.
2. Your rotary mower is a precision piece of power equ pment, not
a piaything. Therefore, exercise extreme caution at all ;imes. Your
unit has been designed to perform one job: to mov grass. Do
not use it for any other purpose.
3. Never ailow children under 14 years old to operate a po ver mower.
Children 14 years old and over should only operate mswer under
close parental supervision. Only persons well acquainte I with these
ruies of safe operation shouid be allowed to use your mower.
4. Keep the area of operation clear of all persons, partic jiarly small
children and pets. Stop engine when they are in th( vicinity of
your mower to help prevent blade contact or throw i object in
jury. Although the area of operation should be comple :ely cleared
of foreign objects, an object may have been overlooke 1 and could
be accidently thrown by the mower In any direction and cause
serious personal injury to the operator or any others allowed in
the area.
PREPARATION
Thoroughly Inspect the area where the equipment is :o be used.
Remove all stones, sticks, wire, bones and other fors ign objects
which could be picked up and thrown by the mower in any direc
tion and cause serious personal injury to the operator o any others
allowed in the area. Plan your mowing pattern to avoi I discharge
of material toward roads, sidewalks, bystanders anr the like.
2. Always wear safety glasses or eye shields during opera! ion or while
performing an adjustment or repair, to protect eyes f om foreign
objects that may be thrown from the machine in an / direction.
3. Wear sturdy, rough-soled work shoes and close-fittinj slacks and
shirts. Shirts and pants that cover the arms and leg: and steel
toed shoes are recommended. Do not wear loose fifing clothes
or jewelry. They can be caught In moving parts. Ne /er operate
a unit in bare feet, sandals, or sneakers.
4. Before working with gasoline, extinguish all cigarettes, (igars, pipes
and other sources of ignition. Check the fuei level bef )re starting
the engine. Gasoline is an extremely flammable fuel Do not fill
the gasoline tank indoors, while the engine is runni ig, or until
engine has been allowed to cool for at least two m ñutes after
running. Replace gasoline cap securely and wipe off any spilled
gasoline before starting the engine as it may caute a fire or
explosion.
5. Disengage the self-propelled mechanism or drive clul :h on units
so equipped before starting the engine.
6. The blade control handle is a safety device. Never attemi rt to bypass
its operation. Doing so makes the safety device inoperative and
may result in personal injury through contact with ihe rotating
blade. The blade control handle must operate easily in both direc
tions and automatically return to the disengaged pos tition when
released.
7. Never attempt to make a wheel or cutting height adjus ment while
the engine is running.
8. Never operate the mower in wet grass. Always be s jre of your
footing. A slip and fall can cause serious personal iijury. Keep
a firm hold on the handle and walk, never run. Mow onl r in daylight
or in good artificial light.
injury. If you violate any i i these rules, you may cause serious injury to yourself or others.
9. For your safety, use the slope gauge Included as part of this manual
to measure slopes before operating this unit on a sloped or hilly
area. If the slope is greater than 15° as shown on the slope gauge,
do not operate this unit on that area or serious injury could result.
OPERATION
1. Do not change the engine governor settings or overspeed the
engine. Excessive engine speeds are dangerous.
2. Do not put hands or feet near or under rotating parts. Keep clear
of the discharge opening at all times as the rotating blade can
cause injury.
3. Stop the blade when crossing gravel drives, walks or roads.
4. After striking a foreign object, stop the engine, remove the wire
from the spark plug, and thoroughly inspect the mower for any
damage. Repair the damage before restarting and operating the
mower.
5. If the equipment should start to vibrate abnormally, stop the engine
and check immediately for the cause. Vibration is generally a warn
ing of trouble.
6. Shut the engine off and wait until the blade comes to a complete
stop before removing the grass catcher or unclogging the chut*The cutting blade continues to rotate for a few seconds after ’
engine is shut off. Never place any part of the body in the blaL
area until you are sure the blade has stopped rotating.
7. Before cleaning, repairing or inspecting, make certain the blade
and all moving parts have stopped. Disconnect the spark plug wire,
and keep the wire away from the spark plug to prevent accidental
starting.
8. Do not run the engine indoors.
9. Never cut grass by pulling mower toward you. Mow across the
face of slopes, never up-and-down. Exercise extreme caution when
changing direction on slopes. Do not mow excessively steep slopes.
Always be sure of your footing. A slip and fall can cause serious
personal injury.
10. Never operate mower without proper guards, plates or other safety
protective devices in place.
11. Muffler and engine become hot and can cause a burn. Do not
touch.
MAINTENANCE AND STORAGE
1. Check the blade and engine mounting bolts at frequent intervals
ài
for proper tightness. Also visually inspect blade for damage (e.g.
bent, cracked). Replace with blade which meets original equip
ment specifications.
2. Keep all nuts, bolts, and screws tight to be sure the equipment
is in safe working condition.
3. Never store the mower with gasoline in the tank or gas containers
inside of a building where fumes may reach an open flame or spark
(e.g. gas hot water heater). Allow thè engine to cool before stor
ing in any enclosure.
4. To reduce fire hazard, keep the engine free of grass, leaves and
excessive oil.
5. Check the grass catcher bag frequently for wear or deteriorati^
Replace a worn or damaged bag immediately. For safety protec
tion, replace only with new bag meeting original equipment
specifications.
USÉ THIS SHEET AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
CO
-----------------
-----------------
..........................
A POWER POLE
-.-A CORNER OF A BUILDING
..
1
..............................................................
AC WARNING I
OR A FENCE POST
..
.............................................
............
<D
■o
■o
(D
(D
0>
0)
(D
(D
0»
(D
fi>
O
<D
C
c
•t
(D
<D
<D
<D
3
o
<D
c/i
m
O
m
Do not mow on inclines with a slope In excess of 15 degrees (a rise of approximately 2Vt feet every 10 feet). A
riding mower could overturn and cause serious injury, if operating a walk-behind mower on such a slope, it is
extremeiy difficuit to maintain your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes.
Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.
CONTENTS OF HARDWARE PACK
Remove this sheet from your owner’s manual and la / the hardware on the illustration for identification purposes. After assembly,
keep the Slope Gauge which is on the reverse sii Je of this sheet for future use.
(Hardware pack may conta In extra items which are not used on your unit.)
ATTACHING THE
LOWER HANDLE
3/8-16 X 3/4" Long
Flat Washers
3/8" I.D.
B
ATTACHING THE
STARTER ROPE
Curved Head Bolts-
5/16-18 X 2" Long
.!>
c
Hex Lock Nuts
3/8-16 Thread
ATTACHING THE
UPPER HANDLE
ATTACHING THE CHUTE DEFLECTOR
Carriage Bolts
1/4-20 X 3/4"-
Long
Hex Lock NutS'
1/4-20 Thread
Hex Lock Nut
V4-20 Th ead
3
(D
I I I I I i I I I I I i I I I I I f I I I I I Ì I
0 12 3
INCHES
ASSEMBLY INSTRUCTIONS
IMPORTANT: This unit is shipped WITHOUT GASOLINE
or OIL. After assembly, service engine with gasoline and
oil as instructed in the separate engine manual packed
with your unit.
NOTE: Reference to right or left hand side of the mower is
observed from the operating position.
Turn Handle Over So Desired Position Is Up
UNPACKING
1. Remove the lawn mower from the carton by opening the
top flaps and lifting the unit out. Be careful of the staples.
Make certain all parts and literature have been removed
from the carton before the carton is discarded.
2. Disconnect and ground the spark plug wire against the
engine.
3. Stretch out controi cables and piace on the floor. Be
careful not to bend or kink the cables at any time during
assembly.
4. Remove page four from this manual and lay the contents
of the hardware pack according to the illustration for iden
tification.
AHACHING THE LOWER HANDLE (Hardware A)
NOTE: Your mower handle can be raised or lowered for your
mowing comfort by assembling the lower handle in the desired
-position. See figure 1.
1. Lay upper handie on work surface behind mower and
position brake cable so it is on the outside of deck mount
ing bracket as shown.
2. Select HIGH or LOW position for the handles. HIGH posi
tion (recommended) will put the upper handle approx
imately 37 inches from the ground with the wheels
adjusted in the mid-position. LOW position is approx
imately 34 inches from the ground. Position lower han
dle in desired position by turning handle over so desired
HIGH or LOW reading is upwards.
3. Loosely attach one leg of lower handle to handle bracket
with 3/4" long hex bolt, 3/8" flat washer and hex lock
nut as shown in figure 1. Do not tighten.
NOTE: Be sure hex bolt is assembled from outside of bracket
as shown.
4. Repeat assembly for opposite side of lower handle.
5. Now tighten aii bolts and nuts securely on both sides of
lower handle.
FIGURE 2.
FIGURE 3.
J-Bolt
AHACHING THE UPPER HANDLE (Hardware B)
1. Place the upper handle in position over the lower han
dle. The blade control handle (attached to the upper han
dle) must be on top of the handle.
2. Secure the upper handle to the lower handle using the
curved head bolts, curved washers and hand knobs as
shown in figure 2. Tighten knobs securely.
3. Secure cables to lower handle with cable tie provided.
Trim excess end of cable tie.
AHACHING THE STARTER RDPE (Hardware C)
Assemble the starter rope to the cross bar of the lower han
dle using J-boit, two rope guide halves and hex nuts (may
be assembled either above or below handle, as desired). See
-figure 3. Tighten nut securely.
NOTE: if additional rope is needed, proceed as follows.
Disconnect and ground the spark plug wire, depress the blade
control handle and pull more rope out from the engine.
AHACHING THE CHUTE DEFLECTOR (Hardware D)
A
1. Place the chute deflector in position on the deck. Secure
with carriage bolts, and hex lock nuts as shown in figure
------
4.
2. Make certain all nuts and bolts are tightened securely.
CONTROLS
depressed in order to operate the unit. Release the blade con
trol handle to stop the engine and blade.
A
THROHLE CONTROL
The throttle control is located on the right side of the upper
handle or on the engine. It is used to regulate the engine
speed. The engine should be started with the engine in the
FAST or START position.
WARNING: The chute deflector provided is a
safety device. Do not operate the mower unless
the chute deflector has been properly installed.
WARNING: The blade will be rotating whenever
the engine is running.
FIGURE 5.
BLADE CONTROL HANDLE
WARNING: This control mechanism is 11 safety
device. Never attempt to bypass its operations.
The blade control handle is located on the upper handle of
A
the mower. See figure 5. The blade control handle must be
OPERATION
TO REDUCE THE RISK Of INIURV, DO NOT
OPERATE MOWER UNLESS REAR TRAILING
SHIELD AND THIS GUARD OR ENTIRE
GRASS CATCHER IS IN ITS PROPER PLACE.
DANGER
KEEP HANDS and FEET AWAY
m
FIGURE 6.
WARNING: The throttle control cannot be used
A
RECOIL STARTER
The recoil starter handle is attached to the lower handle. See
figure 5. Stand behind the unit in the operating position to
start the unit.
Keep hands and feet away from the chute area on cutting
deck. See figure 6.
The operation of any iawn mower can result In foreign
objects being thrown into the eyes, which can result in
NOTE: For shipping purposes your mower is set with the
wheeis in a low cutting height position. For best results raise
the cutting position until it is determined which height is best
for your lawn. See cutting height adjustment section.
GAS AND OIL FILL-UP
Service the engine with gasoline and oil as instructed in
the separate engine manual packed with your mower. Read
instructions carefully.
to stop the engine.
severe eye damage. Always wear safe
ty glasses or eye shields. We recom
mend wide vision safety mask for over
spectacles or standard safety glasses.
WARNING: Never fill fuel tank indoors, with
engine running or until the engine has been
A
allowed to cool for at least two minutes after
running.
TO START ENGINE AND ENGAGE BLADE
1. Attach spark plug wire securely to spark plug.
2. Move the throttle control lever to FAST or START
position.
3. Standing behind the unit, depress the blade control han
dle and hold it against the upper handle.
4. Grasp the recoil starter handle and pull back rapidly, ex
tending rope fully. Return it slowly to the rope guide.
5. After engine starts, move throttle control lever to desired
engine speed.
NOTE: If any problems are encountered, refer to the Trouble
Shooting Guide on page 12.
TO STOP ENGINE AND BLADE
1. Release the blade control handle to stop the engine and
blade.
WARNING: The blade continues to rotate for a
A
2. Disconnect the spark plug wire and ground it against the
-v is unattended.
few seconds after the engine is shut off.
engine to prevent accidental starting while equipment
ADJUSTMENTS
WARNING: Do not at any time make any adjust
ment to lawn mower without first stopping
A
CUniNG HEIGHT ADJUSTMENT
An adjusting plate and thumb lever at each wheel position
provides cutting height adjustment. Each adjusting plate has
nine height positions. Height of cut will be changed when the
thumb lever is moved from one hole to another. Simply
depress the lever towards wheel and move wheel and lever
assembly to desired position. Ali wheels must be placed in
the same relative position. See figure 7.
FIGURE 7.
engine and disconnecting spark plug wire.
USING YOUR ROTARY MOWER
Be sure that lawn is clear of stones, sticks, wire, or other ob
jects which could damage lawn mower or engine. Such ob
jects could be accidently thrown by the mower in any direction
and cause serious personal injury to the operator and others.
For best results, do not cut wet grass because it tends to stick
to the underside of the mower, preventing proper discharge
of grass clippings, and could cause you to slip and fall. New
grass or thick grass may require a narrower cut.
The best mowing pattern is one that allows the clippings to
discharge towards the uncut part of the lawn. This permits
recutting of the clippings to further pulverize them. When cut
ting high weeds, discharge towards cut portion, then recut
at right angies to first direction.
For best results, cut off one-third or less of the total length
of the grass. Lawn should be cut in the fall as long as there
is grovrth.
This mower is designed to be operated at full throttle to give
you the best cut and do the most effective job of bagging the
cut grass.
WARNING: If you strike a foreign object, stop the
engine. Remove wire from spark plug,
A
thoroughly inspect the mower for any damage,
and repair the damage before restarting and
operating the mower. Extensive vibration of the
mower during operation is an indication of
damage. The unit should be promptly inspected
and repaired.
THROmE CONTROL ADJUSTMENT
If the throttle control requires adjustment or has been re
placed, adjust the throttle control as follows.
1. Loosen (do not remove) the screw on the cable clamp
so that the cable will move freely under the clamp. See
figure 8.
2. Place the throttle control lever on the handle all the way
forward to START position.
3. Place the control lever on the engine in the full open posi
tion by pushing it as far toward the outside of the engine
as it will go. Tighten the screw on the cable clamp to
secure the cable in this position.
Cable
Control
Lever
On Engine
FIGURE 8.
CARBURETOR ADJUSTMENTS
WARNING: If any adjustments are made to the
engine while the engine is running (e.g. car
A
Minor carburetor adjustment may be required to c< >mpensate for differences in fuel, temperature, altitude an d load.
Refer to the separate engine manual packed with your mower
for carburetor adjustment information.
NOTE: A dirty air cieaner wiii cause an engine to run rough.
Be certain air cleaner is clean and attached to the car ouretor
before adjusting carburetor. Refer to the separate engine
manuai.
buretor), keep clear of all moving paits. Be
careful of heated surfaces and muffler.
TROUBLE SHOOTING
Refer to page 12 of this manual for trouble shooting infor
mation.
CUTTING BLADE
When removing the cutting blade for sharpening or replace
ment, protect hatids by using heavy gloves or a rag to grasp
the cutting blade. Remove the bolt and bell washer which
hold the blade and adapter to the engine crankshaft. Remove
the blade and adapter from the crankshaft.
If the blade or blade adapter needs replacing, remove the
two small bolts, lock washers and nuts which hold the blade
to the adapter.
WARNING: Periodically inspect the blade
adapter for cracks, especially if you strike a
A
foreign object. Replace when necessary.
LUBRICATION
WARNING: Always stop engine and disci >nnect
spark plug wire before cleaning, lubrica ting or
A
Blade Control—Lubricate the pivot points on the blai le con
trol handle and the brake cable at least once a seasi >n with
light oil. See figure 9. The blade control must operati s freely
in both directions.
Wheels—The wheels require no lubrication. Howevei, if the
wheels are removed for any reason, lubricate the sur ace of
the axle bolt and the inner surface of the wheel with li jht oil.
A 4 oz. plastic bottle of light oil lubricant is available. Order
part number 737-0170. Engine oil may also be used.
Engine—Follow engine manual for lubrication instru :tions.
Throttle—Periodically lubricate throttle control levor and
throttle wire assembly with a few drops of light oil for ease
of operation.
doing any kind of work on lawn mower.
_ ____
PiV3t
Point
MAINTENANCE
When sharpening the blade, follow the original angle of grind
as a guide. It is extremely important that each cutting edge
receives an equal amount of grinding to prevent an unbal
anced blade. An unbalanced blade will cause excessive vibra
tion when rotating at high speeds, may cause damage to the
mower and could break, causing personal injury.
It is recommended that the blade always be removed from
the adapter for the best test of balance.
The blade can be tested by balancing it on a round shaft
screwdriver. Remove metal from the heavy side until it
balances evenly.
Before reassembling the blade and the blade adapter to the
unit, lubricate the engine crankshaft and the inner surface
of the blade adapter with light oil. Lubricating the bolt holes,
bolts and inner surface of the nuts with light oil is also recom
mended. A 4 oz. plastic bottle of light oil lubricant is available.
Order part number 737-0170. Engine oil may also be used.
When replacing the blade, be sure to install the blade with
the side of the blade marked “Bottom” (or with part number)
facing the ground when the mower is in the operating position.
Blade Mounting Torque
3/8" Dia. Bolt 450 in. lb. min., 600 in. lb. max.
5/16" Dia. Bolt 200 in. lb. min., 350 in. 1b. max.
To insure safe operation of your unit, all nuts and bolts must
be checked periodically for correct tightness.
DECK
The underside of the mower deck should be cleaned after
each use to prevent a buildup of grass clippings, leaves, dirt
or other matter. If this debris is allowed to accumulate, it will
invite rust and corrosion, and may cause an uneven discharge
of grass clippings at the next cutting.
The deck may be cleaned by tilting the mower and scraping
clean with a suitable tool (make certain the spark plug wire
is disconnected).
WARNING: Be sure to disconnect and g round
the spark plug wire before performing any
A
NOTE: When tipping the unit, empty the fuel tank am i keep
engine spark piug side up.
repairs or maintenance.
ENGINE
Refer to the separate engine manual for engine main
tenance instructions.
Maintain engine oil as instructed in the separate engine
manual packed with your unit. Read and follow instructions
carefully.
Service air cleaner every 25 hours under normal conditions.
Clean every few hours under extremely dusty conditions. Poor
•s engine performance and flooding usually indicates that the
air cleaner should be serviced. To service the air cleaner,
refer to the separate engine manual packed with your unit.
The spark plug should be cleaned and the gap reset once
a season. Spark plug replacement is recommended at the
start of each mowing season; check engine manual for cor
rect plug type and gap specifications.
Clean the engine regularly with a cloth or brush. Keep the
cooling system (blower housing area) clean to permit proper
air circulation which is essential to engine performance and
life. Be certain to remove all grass, dirt and combustible debris
from muffler area.
OFF-SEASON STORAGE
The following steps should be taken to prepare lawn mower
for storage.
1. Clean and lubricate mower thoroughly as described in
the lubrication instructions.
2. Refer to engine manual for correct engine storage in
structions.
3. Coat mower’s cutting blade with chassis grease to pre
vent rusting.
4. Store mower in a dry, clean area.
NOTE: When storing any type of power equipment in an un-
ventiiated or metai storage shed, care shouid be taken to rust
proof the equipment. Using a light oil or silicone, coat the
equipment, especially cables and all moving parts.
HANDLE STORAGE

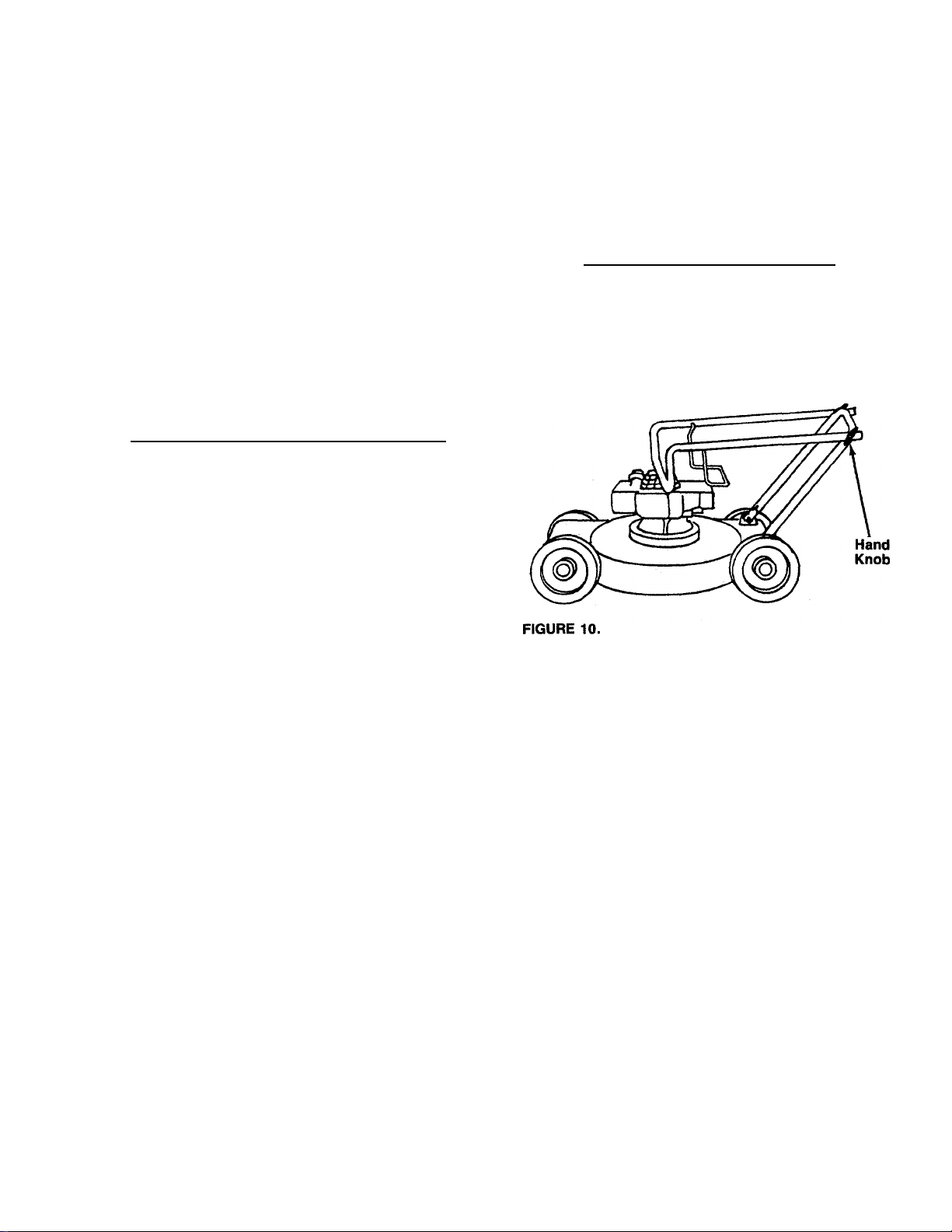

You can fold your mower handle for storage as shown in
figure 10. Loosen the hand knobs on both sides of the handle.
Fold upper handle as shown.
NOTE: When folding handle for storage or transportation, be
careful not to bend or kink the brake cable.
NOTE: The use of any accessory on this Rotary Mower other than those manufactured by the mower
manufacturer is not recommended.
WARNING: To reduce the risk of injury, do not operate mower unless rear trailing shield
A
and guard are in their proper place.
Model 01 OR
10
Model 01 OR
PARTS LIST FOR MODEL 01 OR ROTARY MOWER
REF.
NO.
12 731-1245
17
27 712-0324
28 710-0216
29 710-0289
30 736-0485
31 712-0430
32
33 710-1174
34 736-0486 Curved Washer 5/16" I.D.
35 720-0241
36 710-0134
37
38 747-0791
39 749-0875
40
41 736-0119
42 712-0267 Hex Nut 5/16-18 Thd.*
43
44
45
46
’"47 710-0429
48 751-0369
49
PART
NO.
682-0004
17098
710-0671
731-1027
749-0844 Upper Handle
782-3021 Handle Bracket—L.H.
782-3020
—
12894A Cable Clamp
CODE
N
Spacer Ring
Deck Ass’yHex L-Nut 1/4-20 Thd.
Hex Bolt 3/8-16 X .75" Lg.* 53 731-1246
Hex Bolt 1/4-20 X .5" Lg.
FI-Wash. 3/8" I.D. X .937" O.D. 55
Hex L-Nut 3/8-16 Thd. 56 710-1044
Hinge Clip
Curved Hd. Bolt 5/16-18 x 2" 58
Lg. (Used w/Hand Knob)
Curved Carr. Bolt 5/16-18 x 60
1.38" Lg. 61
Knob 63 14832 Spring Lever Ass’y. w/Knob
Carriage Bolt V4-20 x .75" Lg.
Rear Flap 65 736-0105 Bell-Wash. .40" I.D. x .88"
Control Handle 66
Lower Handle
L-Wash. 1/4" I.D.*
Handle Bracket—R.H.
Engine 73 736-0356 Bell-Wash. .39" I.D. x 1.38"
Hex B-Tap Scr. #10 x .38" 75 13773A Engine Mounting Cover
DESCRIPTION
Lg-
Cable Clamp (Gr. 5)
710-0227 Hex AB-Tap Scr. #8 x .38"
Lg.
REF.
NO.
PART
NO.
50 747-0779 J-Bolt (Rope Guide)
51 746-0592 Rope Guide Half (2 Req’d.)
52
712-0271 Hex Sems Nut V4-20 Thd.
54
742-0570
736-0452 Bell-Wash. .39" I.D.
57 710-1055
753-0484 Blade Adapter Kit
59 736-0169 L-Wash. 3/8" I.D.*
712-0241 Hex Nut 3/8-24 Thd.
15261A Height Adj. Plate
62
15262B
64 738-0507B Shid. Bolt .5" Dia. X .357"
738-0102 Axle Bolt
67 720-0258 Hub Cap
68 634-0011 6" Wheel
69 634-0012
70 710-0501 Hex Bolt 1/4-20 X 2" Lg.
71 746-0773 Control Cable
72
746-0801
74
712-0798 Hex Nut 3/8-16 Thd.*
76 710-3156 Hex Bolt 5/16-18 X 2.5" Lg.
77 736-0119
78 712-0267 Hex Nut 5/16-18 Thd.*
CODE DESCRIPTION
Chute
Blade
Hex Bolt 3/8-24 X 1.5" Lg.
Hex Bolt 3/8-24 X 1" Lg.
Pivot Bar
7" Wheel
Throttle Control
L-Wash. 5/16" I.D.*
*For faster service obtain standard nuts, bolts, and washers local
ly. If these items cannot be obtained locally, order by part number
and size as shown on parts list.
NOTE
Specifications subject to change without notice or
obligation.
HEF MSn-'RffLU
MU
NOTE: The engine is not under warranty by
the mower manufacturer...If repairs or
service is needed on the engine, please
contact your nearest author- (t————
ized engine service outlet. Find It Fast
Check the “Yellow Pages” of In The
your telephone book under YeHow Pages
“Engines—Gasoline.”
11
TROUBLE: SHOOTING GUIDE
Trouble Possible Cause(s)
Engine fails to start
Engine runs erratic
Engine overheats 1. Engine oil level low.
Occasional skip
(hesitates) at high speed
Idles poorly 1. Spark plug fouled, faulty or gap
1. Blade control h andle disengaged.
2. Spark plug wire disconnected.
3. Throttle control lever not in FAST
or START position.
4. Fuel tank emptr, or stale fuel.
5. Faulty spark pli ig.
6. Engine flooded
1. Unit running in START position.
2. Spark plug wire loose.
3. Stale fuel.
4. Vent in gas cap plugged.
5. Water or dirt in fuel system.
6. Dirty air cleanei.
7. Carburetor out of adjustment.
2. Air flow restricted.
3. Carburetor not iidjusted properly.
1. Spark plug gap too close.
2. Carburetor idle mixture adjustment
improperly set.
too wide.
2. Carburetor imprsperly adjusted.
3. Dirty air cleaner.
Corrective Action
1. Engage blade control handle.
2. Connect wire to spark plug.
3. Move throttle lever to FAST or
START position.
4. Fill tank with clean, fresh gasoline.
5. Clean, adjust gap or replace.
6. Remove spark plug, dry the plug, and
crank engine with plug removed and
throttle in off position. Replace spark
plug, connect wire and resume starting
procedures.
1. Move throttle lever to FAST position.
2. Connect and tighten spark plug wire.
3. Fill tank with clean, fresh gasoline.
4. Clear vent.
5. Drain fuel tank. Refill with fresh fuel.
6. Clean air cleaner.f
7. Adjust carburetor.t
1. Fill crankcase with proper oil.
2. Remove blower housing and clean.f
3. Adjust carburetor.t
1. Adjust gap to .030".
2. Adjust carburetor.t
1. Reset gap to .030" or replace
spark plug.
2. Adjust carburetor.t
3. Clean air cleaner.t
Excessive vibration 1. Cutting blade lease or unbalanced.
2. Bent cutting bla je.
Mower wili not
discharge grass
Uneven cut
fRefer to separate engine manual packed with yoi r unit.
1. Engine speed tc o low.
2. Wet grass.
3. Excessively high grass.
1. Wheels not posi tioned correctly.
2. Dull blade.
1. Tighten blade and adapter.
Balance blade.
2. Replace blade.
1. Set throttle between 3/4 and full throttle.
2. Do not mow when grass is wet; wait
until later to cut.
3. Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting swath (1/2 width).
1. Piace all four wheels in same height
position.
2. Sharpen or replace blade.
Note: For repairs beyond the minor adjustments lis ted above, piease contact your locai authorized service dealer.
FOR REPLACEMENT PARTS, CONTACT:
SERVICE DEPARTMENT • P.O. BOX 360900 • CLEVELAND, OHIO 44136
Loading...
