Item Part Number Description Unit Qty Location
1

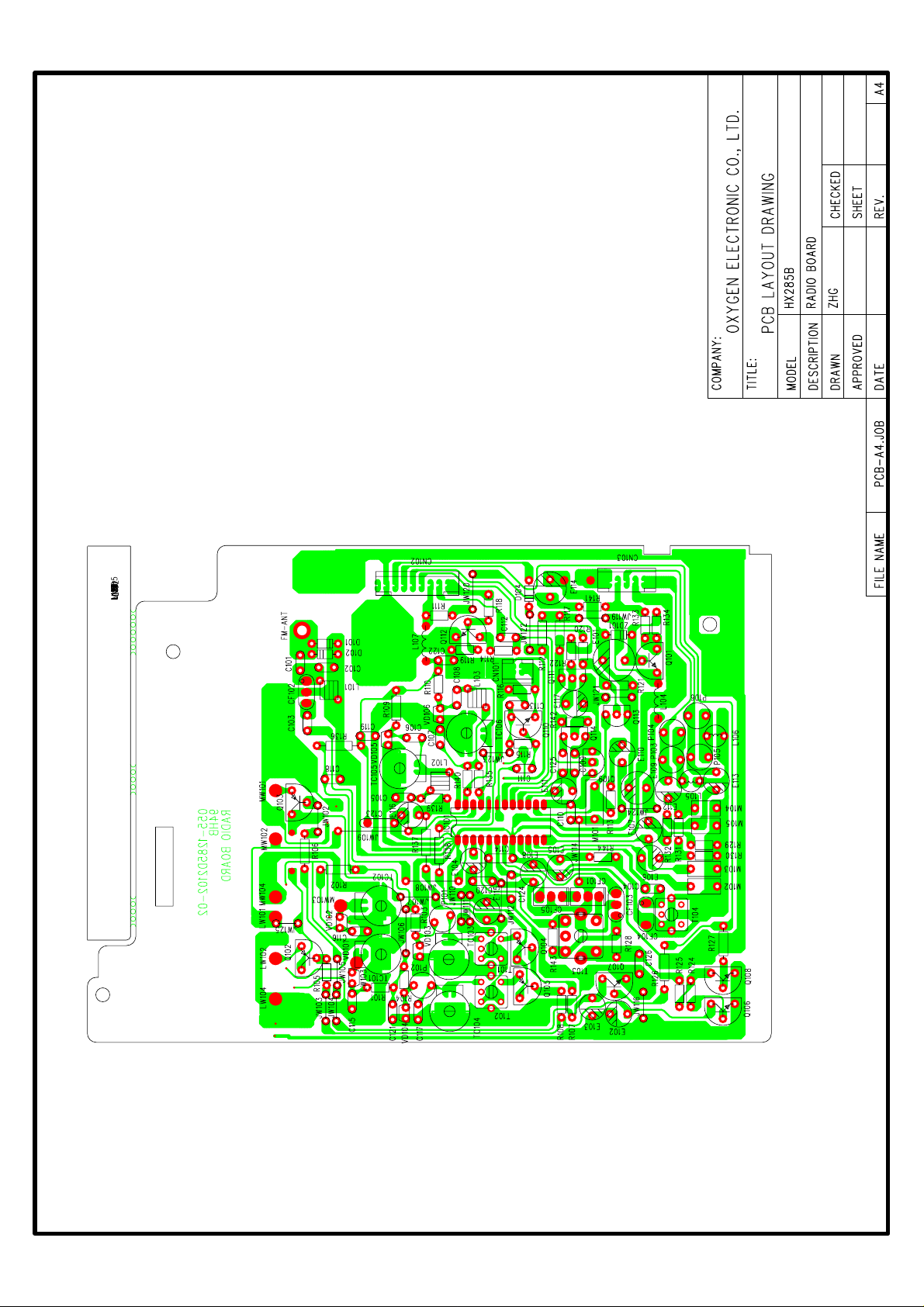

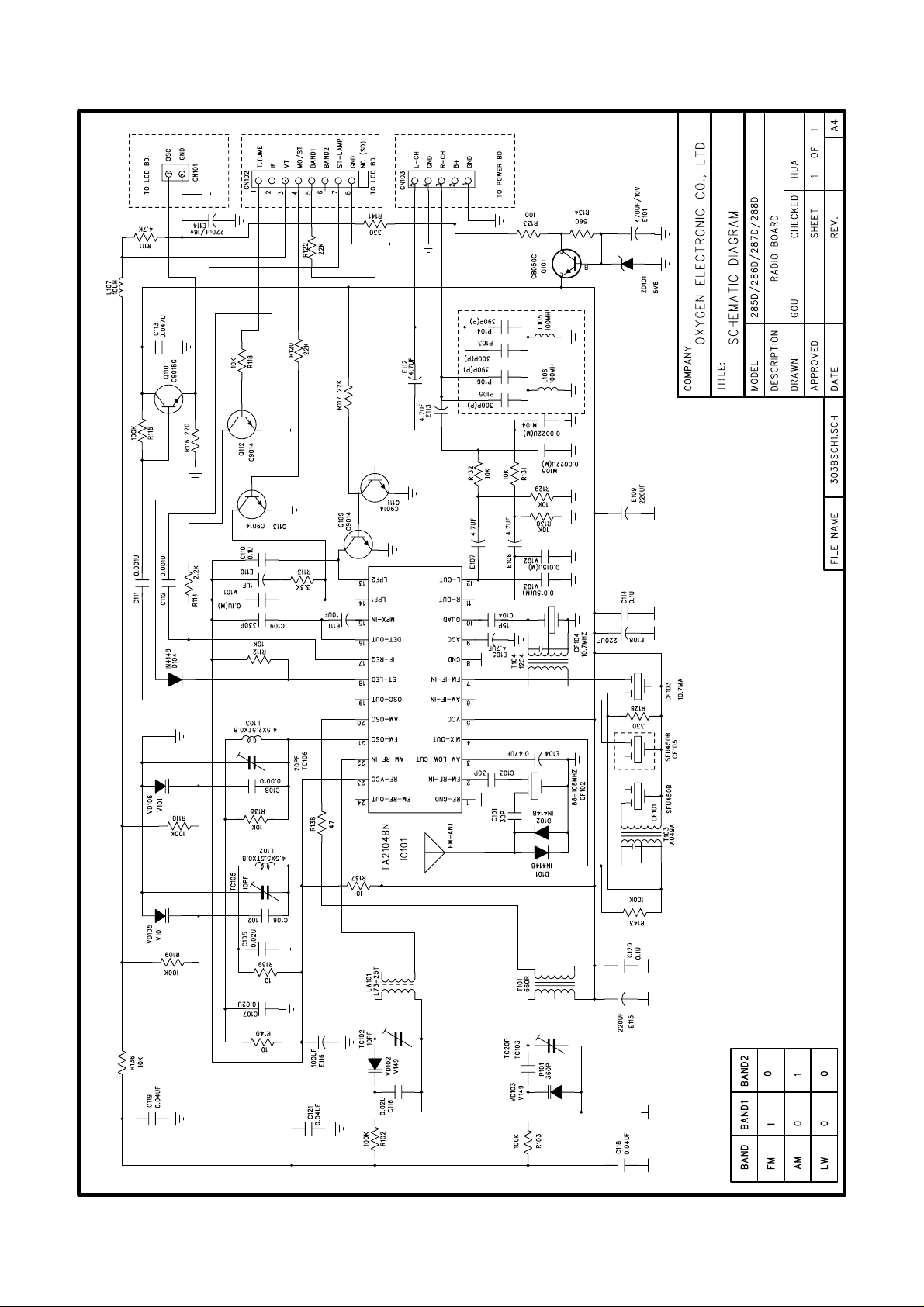

055-1285D2102-02 285D TUNER BD. 94HB PCS 1
2
001-000000062-00 ZENER DIODE 1/2W 6V2 PCS 1 ZD101
3
001-100IN4148-00 DIODE IN4148 PCS 3 D101,D102,D104
4
001-40000V101-00 DIODE VARICAP V101 PCS 2 VD105,VD106
5
001-40000V149-00 DIODE VARICAP V149 PCS 2 VD102,VD103
6
005-100080503-02 NPN TRANSISTOR SEC C8050C PCS 1 Q101
7
005-100090143-00 NPN TRANSISTOR C9014C PCS 4 Q109,Q111,Q112,Q113
8
005-100090187-00 NPN TRANSISTOR C9018G PCS 1 Q110
9
009-0TA2104BN-02IC 24-SDIP TA2104BN PCS 1 IC101
10
034-340R1266Y-00AM IFT YELLOW 10MM R1266Y PCS 1 T103
11
034-430001254-03 FM IFT ORANGE 7MM 1254 PCS 1 T104
12
035-23007A660-04 AM RED OSC 7MM 7A660 PCS 1 T101
13
039-2000U450B-01CERAMIC FILTERS 3PIN U450B PCS 1 CF101
14
039-20107MS2A-01CERAMIC FILTERS 3PIN SFE10.7MS2-A PCS 1 CF103
15
039-40GFMB3SE-00BAND PASS FILTERS GFMB3 SE (88~108MHz) PCS 1 CF102
16
038-040732077-21 L73-20-M3 MW COIL 80x4 DIA. 11mm PCS 1
17
038-250085135-00 FERRITE-BAR FLAT (FREQ:0.2-5MHZ)
5X13X85MM
PCS 1
18
164-0300TR680-00 ANTENNA BAR HOLDER #TR68 PCS 2
19
028-100410100-00 TRIMMER CAP +/-10% 8MM TC10P PCS 2 TC102,TC105
20
028-200410100-00 TRIMMER CAP +/-10% 8MM TC20P PCS 2 TC103,TC106
21
043-560233001-00 WAFER 2PX2MM CN2-2-V PCS 1 CN101
22
043-560533001-00 WAFER 5PX2MM CN5-2-V PCS 1 CN103
23
043-560933001-00 WAFER 9PX2MM CN9-2-V PCS 1 CN102
24
036-015002108-00 AIR COILS CLOCKWISE-V 5.0X2.5TX0.8mm PCS 1 L103
25
036-015003108-00 AIR COILS CLOCKWISE-V 5.0X3.5TX0.8mm PCS 1 L102
26
037-010000001-00 FIXED INDUCTANCE 10uH PCS 2 L104,L107
27
011-110030110-00 RESISTOR 1/6W +/-5% 10 ohm PCS 4 R133,R137,R139,R140
28
011-147030110-00 RESISTOR 1/6W +/-5% 47 ohm PCS 1 R138
29
011-122130110-00 RESISTOR 1/6W +/-5% 220 ohm PCS 1 R116
30
011-133130110-00 RESISTOR 1/6W +/-5% 330 ohm PCS 2 R128,R141
31
011-156130110-00 RESISTOR 1/6W +/-5% 560 ohm PCS 1 R134
32
011-122230110-00 RESISTOR 1/6W +/-5% 2K2 PCS 1 R114
33
011-133230110-00 RESISTOR 1/6W +/-5% 3K3 PCS 1 R113
34
011-147230110-00 RESISTOR 1/6W +/-5% 4K7 PCS 1 R111
35
011-110330110-00 RESISTOR 1/6W +/-5% 10K PCS 8 R112,R117,R129,R130,R
131,R132,R136,R135
36
011-122330110-00 RESISTOR 1/6W +/-5% 22K PCS 3 R118,R120,R122
37
011-110430110-00 RESISTOR 1/6W +/-5% 100K PCS 6 R102,R103,R109,R110,R
115,R143
38
011-133430110-00 RESISTOR 1/6W +/-5% 330K PCS 1 R144
39
021-150630310-00 CERAMIC CAP 50V +/-20% D5 15P-NPO PCS 1 C104
40
021-300630310-00 CERAMIC CAP 50V +/-20% D5 30P-NPO PCS 2 C101,C103
41
022-331600310-00 CERAMIC CAP. 50V +/-20% D5 330P PCS 1 C109
42
022-102700310-00 CERAMIC CAP. 50V +80/-20% D5 0.001uF PCS 4 C106,C108,C111,C112
Page 28
Item Part Number Description Unit Qty Location
43
022-203700310-00 CERAMIC CAP. 50V +80/-20% D5 0.02uF PCS 3 C105,C107,C116
44
022-473700310-00 CERAMIC CAP. 50V +80/-20% D5 0.047uF PCS 6 C113,C114,C118,C119,C
120,C122
45
022-104700330-00 CERAMIC CAP. 50V +80/-20% D8 0.1uF PCS 1 C110
46
026-474360501-00 ELECT-CAP +/-20% 5x11MM 0.47uF/50V PCS 1 E104
47
026-105360501-00 ELECT-CAP +/-20% 5x11MM 1uF/50V PCS 1 E110
48
026-475360501-00 ELECT-CAP +/-20% 5x11MM 4.7uF/50V PCS 5 E105,E106,E107,E112,E
113
49
026-106330501-00 ELECT-CAP +/-20% 5x11MM 10uF/16V PCS 1 E111
50
026-476330501-00 ELECT-CAP +/-20% 5x11MM 47uF/16V PCS 1 E116
51
026-227320701-00 ELECT-CAP +/-20% 6x12MM 220uF/10V PCS 4 E108,E109,E114,E115
52
026-477321001-00 ELECT-CAP +/-20% 8x12MM 470uF/10V PCS 1 E101
53
024-102300350-00 MYLAR CAP. 100V +/-10% 0.001uF PCS 2 M104,M105
54
024-153300350-00 MYLAR CAP. 100V +/-10% 0.015uF PCS 2 M102,M103
55
024-104300342-00 MYLAR CAP. 100V +/-10% 0.1uF PCS 1 M101
56
025-391300251-00 POLYSTYROL CAP. 25V +/-5% L12 390P PCS 1 P101
57
185-100040000-00 BARE WIRE 40MM JUMPER PCS 14
58
104-420350410-00 BRASS EYELETS-2X4MM PCS 1 FM ANT
59
166-012010101-00 SPONGE 20 x 10 x 10mm PCS 2 FOR FM COIL
60

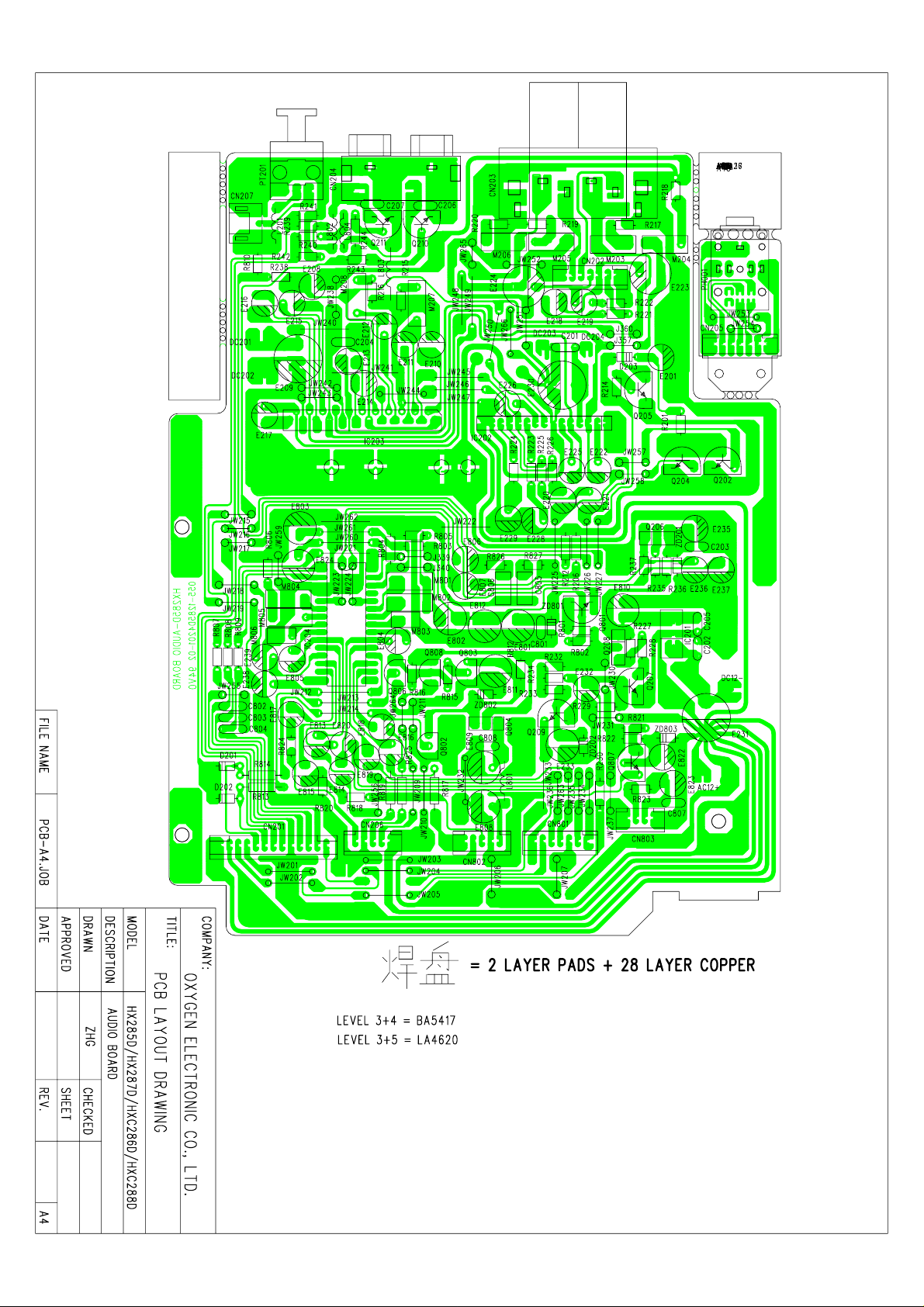

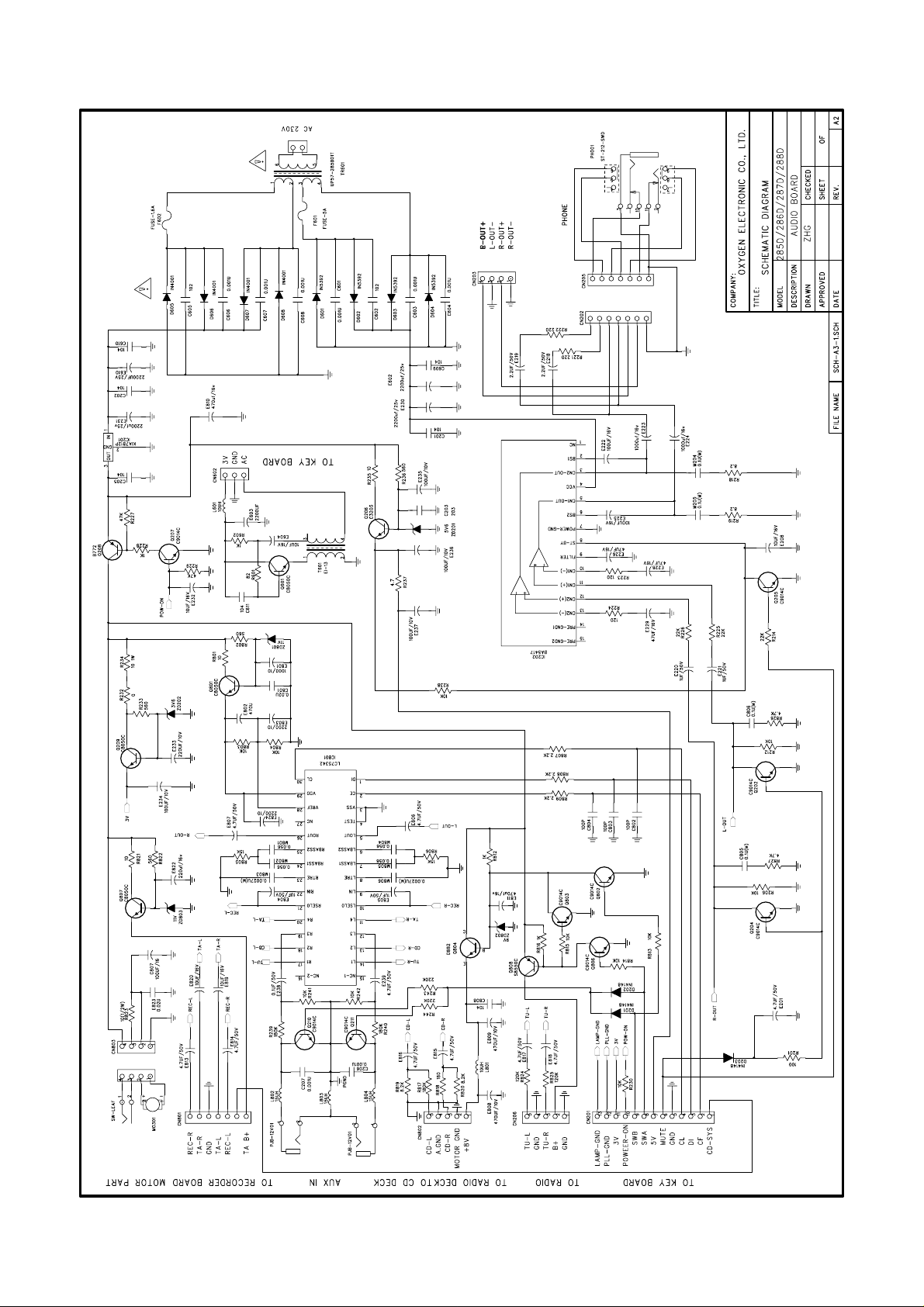

055-1285D4201-02 285D AUDIO BD. 94V0 PCS 1
61
001-000000036-00 ZENER DIODE 1/2W 3V6 PCS 1 ZD202
62
001-000000056-00 ZENER DIODE 1/2W 5V6 PCS 1 ZD201
63
001-000000091-00 ZENER DIODE 1/2W 9V1 PCS 1 ZD802
64
001-000000110-00 ZENER DIODE 1/2W 11V PCS 1 ZD801
65
001-100IN4148-00 DIODE IN4148 PCS 1 D203
66
005-100003205-02 NPN TRANSISTOR KTC 3205 PCS 1 Q206
67
005-100080503-02 NPN TRANSISTOR SEC C8050C PCS 3 Q209,Q801,Q808
68
005-100090143-00 NPN TRANSISTOR C9014C PCS 7 Q202,Q204,Q205,Q207,,
Q802,Q803,Q806
69
005-200007720-02 PNP TRANSISTOR SEC B772 PCS 1 Q208
70
005-100008822-02 NPN TRANSISTOR SEC D882P PCS 1 Q804
71
009-000BA5417-05IC 15-SIP BA5417 PCS 1 IC202
72
009-000KA7812-11IC 3-SIP KA7812 PCS 1 IC201
73
009-00LC75342-07 IC LC75342 PCS 1 IC204
74
037-010000001-00 FIXED INDUCTANCE 10uH PCS 1 L801
75
043-561333001-00 WAFER 13PX2MM CN13-2-V PCS 1 CN201
76
043-560733001-00 WAFER 7PX2MM CN7-2-V PCS 1 CN202
77
043-57022V320-01 SPEAKERTERMINAL PT-22V32 PCS 1 CN203
78
043-5312V01A0-01RCA SOCKET PJB-12V01A-W PCS 1 CN204
79
114-40285C210-00 HEAT SINK 5W-285 75x65x1.5mm PCS 1 FOR IC202
80
114-4948PL200-00 HEAT SINK #SNS-948PLL PCS 2 FOR IC201, Q804
81
100-309133008-00 SELF-TAPPING SCREW TA/BH 3.0 x 8 NICKLE PCS 2 FOR IC201, Q804
82
100-609133208-00 SELF-TAPPING SCREW TT/BH 3.2 x 8 NICKLE PCS 3 IC TO HEAT SINK x1,
HEAT SINK TO PCB x2
Page 29
Item Part Number Description Unit Qty Location
83
011-333030110-00 RESISTOR 1/2W +/-5% 33 ohm PCS 2 R232,R234
84
011-147930110-00 RESISTOR 1/6W +/-5% 4.7 ohm PCS 1 R235
85
011-182930110-00 RESISTOR 1/6W +/-5% 8.2 ohm PCS 2 R218,R219
86
011-110030110-00 RESISTOR 1/6W +/-5% 10 ohm PCS 2 R237,R801
87
011-110130110-00 RESISTOR 1/6W +/-5% 100 ohm PCS 1 R201
88
011-112130110-00 RESISTOR 1/6W +/-5% 120 ohm PCS 2 R223,R224
89
011-122130110-00 RESISTOR 1/6W +/-5% 220 ohm PCS 2 R221,R222
90
011-156130110-00 RESISTOR 1/6W +/-5% 560 ohm PCS 3 R233,R236,R802
91
011-110230110-00 RESISTOR 1/6W +/-5% 1K PCS 3 R228,R234,R816
92
011-122230110-00 RESISTOR 1/6W +/-5% 2K2 PCS 3 R807,R808,R809
93
011-147230110-00 RESISTOR 1/6W +/-5% 4K7 PCS 2 R826,R827
94
011-182230110-00 RESISTOR 1/6W +/-5% 8K2 PCS 2 R819,R820
95
011-110330110-00 RESISTOR 1/6W +/-5% 10K PCS 10 R206,R212,R230,R238,R
241,R803,R804,R813,R8
14,R815
96
011-115330110-00 RESISTOR 1/6W +/-5% 15K PCS 2 R805,R806
97
011-122330110-00 RESISTOR 1/6W +/-5% 22K PCS 3 R214,R225,R226
98
011-147330110-00 RESISTOR 1/6W +/-5% 47K PCS 2 R227,R229
99
011-118430110-00 RESISTOR 1/6W +/-5% 180K PCS 4 R239,R240,R817,R818
100
022-101600310-00 CERAMIC CAP. 50V +/-20% D5 100P PCS 3 C802,C803,C804
101
022-102700310-00 CERAMIC CAP. 50V +80/-20% D5 0.001uF PCS 2 C206,C207
102
022-203700310-00 CERAMIC CAP. 50V +80/-20% D5 0.02uF PCS 2 C203,C801
103
022-104700330-00 CERAMIC CAP. 50V +80/-20% D8 0.1uF PCS 3 C201,C202,C205
104
024-272300350-00 MYLAR CAP. 100V +/-10% 0.0027uF PCS 2 M803,M806
105
024-563300350-00 MYLAR CAP. 100V +/-10% 0.056uF PCS 4 M801,M802,M804,M805
106
024-104300342-00 MYLAR CAP. 100V +/-10% 0.1uF PCS 4 M204,M205,C805,C806
107
026-104360501-00 ELECT-CAP +/-20% 5x11MM 0.1uF/50V PCS 2 E238,E239
108
026-105360501-00 ELECT-CAP +/-20% 5x11MM 1uF/50V PCS 2 E804,E805
109
026-225360501-00 ELECT-CAP +/-20% 5x11MM 2.2uF/50V PCS 2 E218,E219
110
026-475360501-00 ELECT-CAP +/-20% 5x11MM 4.7uF/50V PCS 9 E201,E220,E221,E806,E
807,E815,E816,E817,E81
8
111
026-106320401-00 ELECT-CAP +/-20% 4x7MM 10uF/10V PCS 2 E208,E232
112
026-476330501-00 ELECT-CAP +/-20% 5x11MM 47uF/16V PCS 3 E226,E228,E229
113
026-107320501-00 ELECT-CAP +/-20% 5x11MM 100uF/10V PCS 3 E235,E236,E237
114
026-107330701-00 ELECT-CAP +/-20% 6x12MM 100uF/16V PCS 2 E222,E225
115
026-227320701-00 ELECT-CAP +/-20% 6x12MM 220uF/10V PCS 2 E233,E811
116
026-477321001-00 ELECT-CAP +/-20% 8x12MM 470uF/10V PCS 2 E808,E809
117
026-477331001-00 ELECT-CAP +/-20% 8x12MM 470uF/16V PCS 3 E802,E810,E812
118
026-108321301-00 ELECT-CAP +/-20% 8x16MM 1000uF/10V PCS 1 E801
119
026-108331201-00 ELECT-CAP +/-20% 10x17MM 1000uF/16V PCS 2 E223,E224
120
026-108341401-00 ELECT-CAP +/-20% 10x20MM 1000uF/25V PCS 1 E230
121
026-228321401-00 ELECT-CAP +/-20% 10x20MM 2200uF/10V PCS 2 E803,E824
122
026-228341501-00 ELECT-CAP +/-20% 13x26MM 2200uF/25V PCS 1 E231
123
185-100040000-00 BARE WIRE 40MM JUMPER PCS 54
Page 30
Item Part Number Description Unit Qty Location
124
185-0285B0070-02 UL1007 #28/UL2547#30 PH=2 5PIN W/HSNG
220+3 285B
PCS 1 CN206 TO RADIO BD
CN203
125
185-0285D0021-02 UL1007 #28 PH=2 5PIN W/HSNG 220+3 285D PCS 1 CN802 TO CD BD
CN703
126

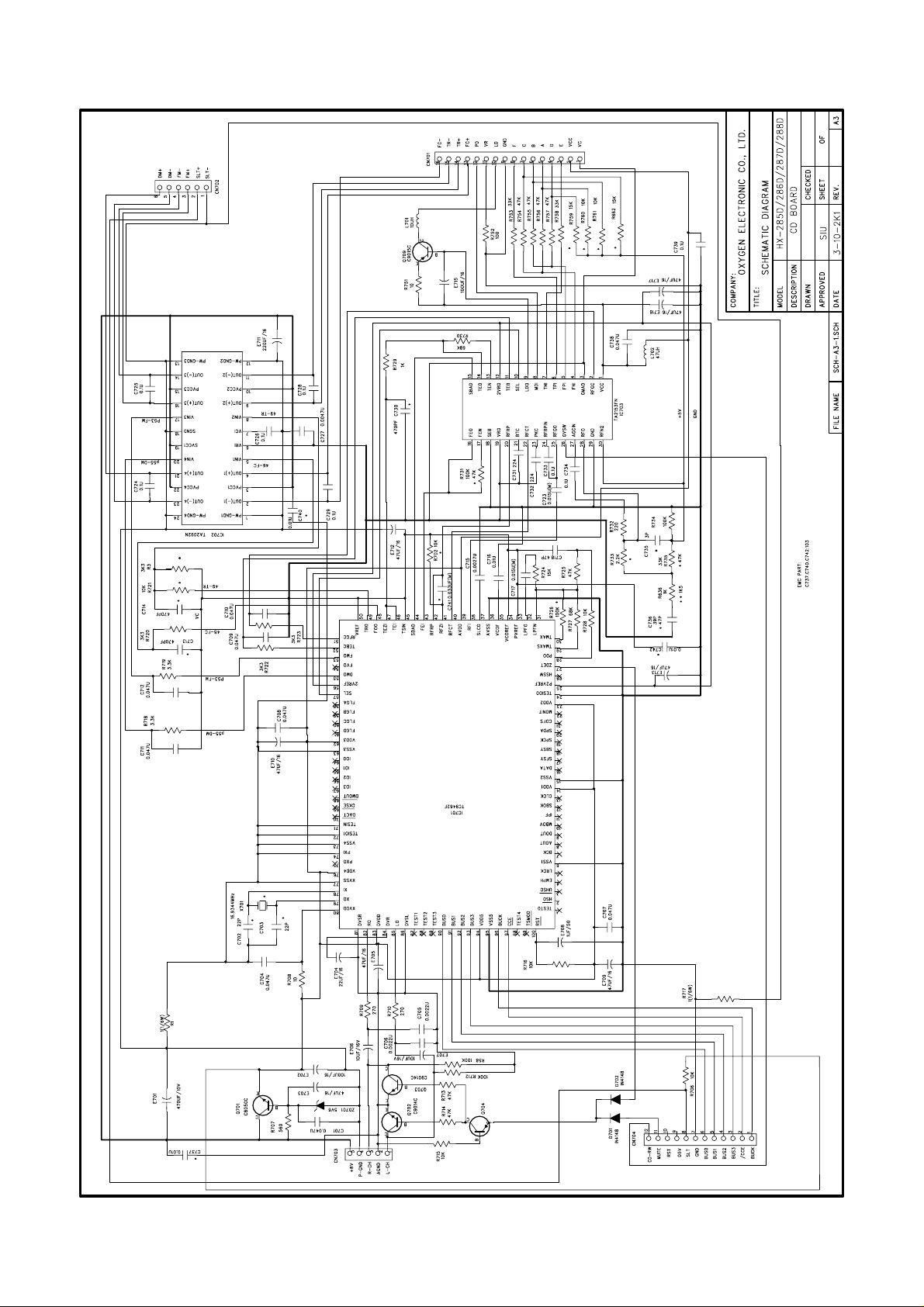

055-1285D2700-02 HX285D CD BD. 94HB PCS 1
127
009-00TC9462F-14 IC QFP TC9462F PCS 1 IC701
128
009-0TA2153FN-02IC QFP TA2153FN PCS 1 IC703
129
009-00TA2092N-02IC 24-DIP TA2092N PCS 1 IC702
130
005-100090143-00 NPN TRANSISTOR C9014C PCS 2 Q702,Q703
131
005-200090153-00 PNP TRANSISTOR C9015C PCS 2 Q704,Q709
132
005-100080503-02 NPN TRANSISTOR SEC C8050C PCS 1 Q701
133
001-100IN4148-00 DIODE IN4148 PCS 2 D701,D702
134
001-000000056-00 ZENER DIODE 1/2W 5V6 PCS 1 ZD701
135
043-561614006-00 WAFER 16PX1MM CN16-1-H PCS 1 CN701
136
043-560534003-00 WAFER 5PX2MM CN5-2-H PCS 1 CN703
137
043-560634003-00 WAFER 6PX2MM CN6-2-H PCS 1 CN702
138
043-561134003-00 WAFER 11PX2MM CN11-2-H PCS 1 CN704
139
039-5TA1693MX-05RESONATOR ZTA16.93MX 2PIN PCS 1 X701
140
037-010000001-00 FIXED INDUCTANCE 10uH PCS 1 L701
141
037-010100001-00 FIXED INDUCTANCE 100uH PCS 1 L702
142
011-110030110-00 RESISTOR 1/6W +/-5% 10 ohm PCS 2 R708,R751
143
011-110130110-00 RESISTOR 1/6W +/-5% 100 ohm PCS 1 R752
144
011-122130110-00 RESISTOR 1/6W +/-5% 220 ohm PCS 1 R732
145
011-127130110-00 RESISTOR 1/6W +/-5% 270 ohm PCS 2 R709,R710
146
011-156130110-00 RESISTOR 1/6W +/-5% 560 ohm PCS 1 R707
147
011-110230110-00 RESISTOR 1/6W +/-5% 1K PCS 1 R729
148
011-115230110-00 RESISTOR 1/6W +/-5% 1K5 PCS 1 R636
149
011-122230110-00 RESISTOR 1/6W +/-5% 2K2 PCS 1 R733
150
011-133230110-00 RESISTOR 1/6W +/-5% 3K3 PCS 6 R703,R718,R719,R720,R
722,R723
151
011-110330110-00 RESISTOR 1/6W +/-5% 10K PCS 8 R702,R706,R715,R716,R
721,R728,R760,R761
152
011-115330110-00 RESISTOR 1/6W +/-5% 15K PCS 3 R662,R724,R759
153
011-133330110-00 RESISTOR 1/6W +/-5% 33K PCS 2 R753,R758
154
011-147330110-00 RESISTOR 1/6W +/-5% 47K PCS 8 R713,R714,R725,R735,R
754,R755,R756,R757
155
011-168330110-00 RESISTOR 1/6W +/-5% 68K PCS 2 R727,R730
156
011-110430110-00 RESISTOR 1/6W +/-5% 100K PCS 5 R58,R712,R726,R731,R7
34
157
021-309630310-00 CERAMIC CAP 50V +/-20% D5 3P-NPO PCS 1 C735
158
021-220630310-00 CERAMIC CAP 50V +/-20% D5 22P-NPO PCS 2 C702,C703
159
022-390600310-00 CERAMIC CAP. 50V +/-20% D5 39P PCS 1 C736
160
022-470600310-00 CERAMIC CAP. 50V +/-20% D5 47P PCS 1 C718
161
022-471600310-00 CERAMIC CAP. 50V +/-20% D5 470P PCS 5 C709,C710,C713,C714,C
730
162
022-103700310-00 CERAMIC CAP. 50V +80/-20% D5 0.01uF PCS 1 C716
Page 31
Item Part Number Description Unit Qty Location
163
022-223700310-00 CERAMIC CAP. 50V +80/-20% D5 0.022uF PCS 2 C705,C706
164
022-333700310-00 CERAMIC CAP. 50V +80/-20% D5 0.033uF PCS 1 C741
165
022-473700310-00 CERAMIC CAP. 50V +80/-20% D5 0.047uF PCS 8 C701,C704,C707,C708,C
711,C712,C727,C738
166
022-104700310-00 CERAMIC CAP. 50V +80/-20% D5 0.1uF PCS 8 C724,C725,C726,C728,C
729,C733,C734,C739
167
024-272300350-00 MYLAR CAP. 100V +/-10% 0.0027uF PCS 1 C715
168
024-153300350-00 MYLAR CAP. 100V +/-10% 0.015uF PCS 2 C717,C723 TO JW742
169
024-224300452-00 MYLAR CAP. 100V +/-10% 0.22uF PCS 2 C731,C732
170
026-105360501-00 ELECT-CAP +/-20% 5x11MM 1uF/50V PCS 1 E708
171
026-106360501-00 ELECT-CAP +/-20% 5x11MM 10uF/50V PCS 2 E706,E707
172
026-476330501-00 ELECT-CAP +/-20% 5x11MM 47uF/16V PCS 7 E705,E709,E710,E712,E
713,E716,E717
173
026-107330701-00 ELECT-CAP +/-20% 6x12MM 100uF/16V PCS 3 E704,E715,E740
174
026-227330701-00 ELECT-CAP +/-20% 6x12MM 220uF/16V PCS 1 E711
175
026-477331001-00 ELECT-CAP +/-20% 8x12MM 470uF/16V PCS 1 E701
176
185-100040000-00 BARE WIRE 40MM JUMPER PCS 60
177
185-207046002-12 UL1007 SINGLE WIRE #28 BLACK
3+40+3=46MM
PCS 1 FOR P2 T P3
178
185-0285D0051-02 UL1007 #28 PH=2 6PIN W/D-HSNG 120mm
285D
PCS 1 MECH TO CD BD
179

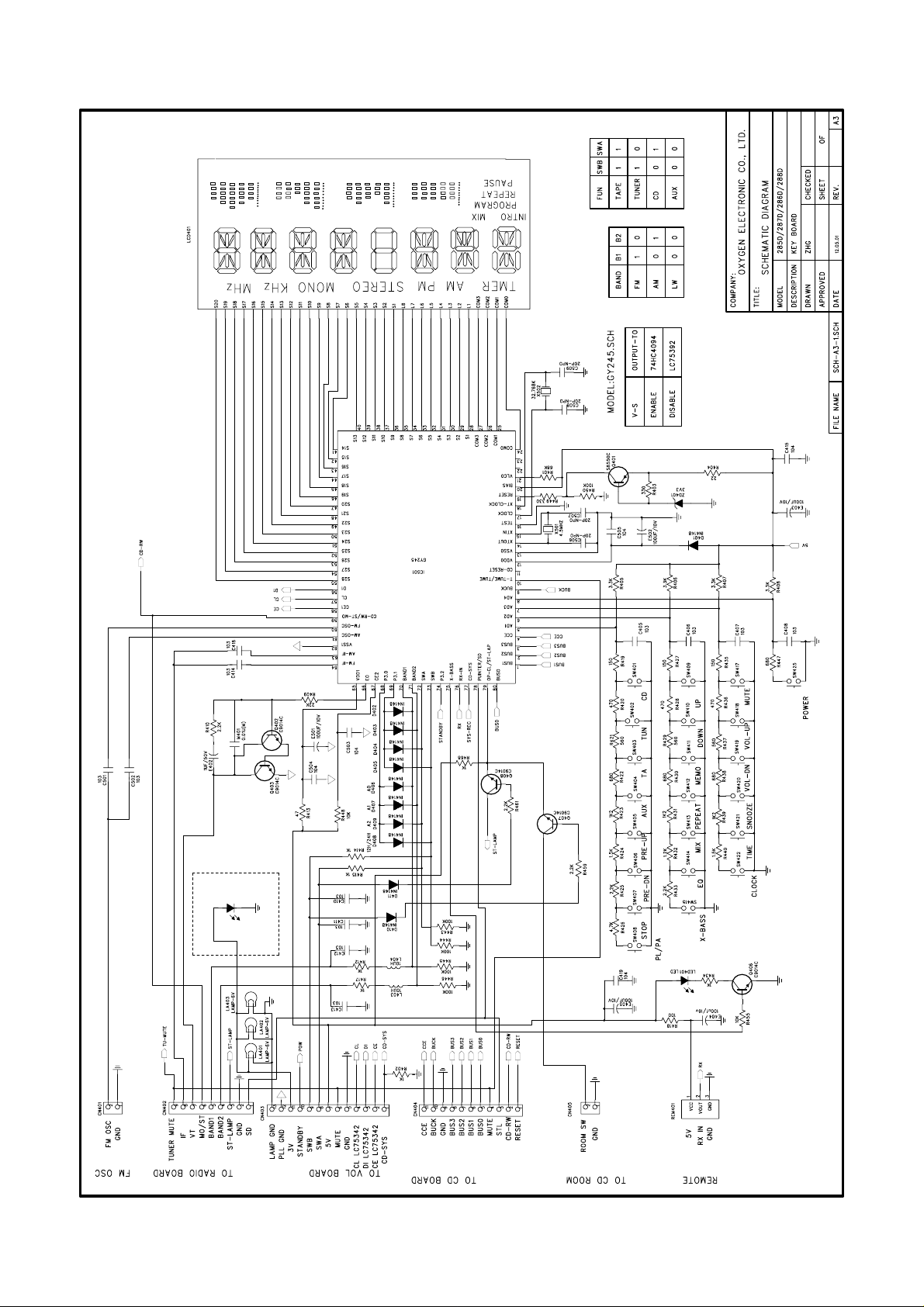

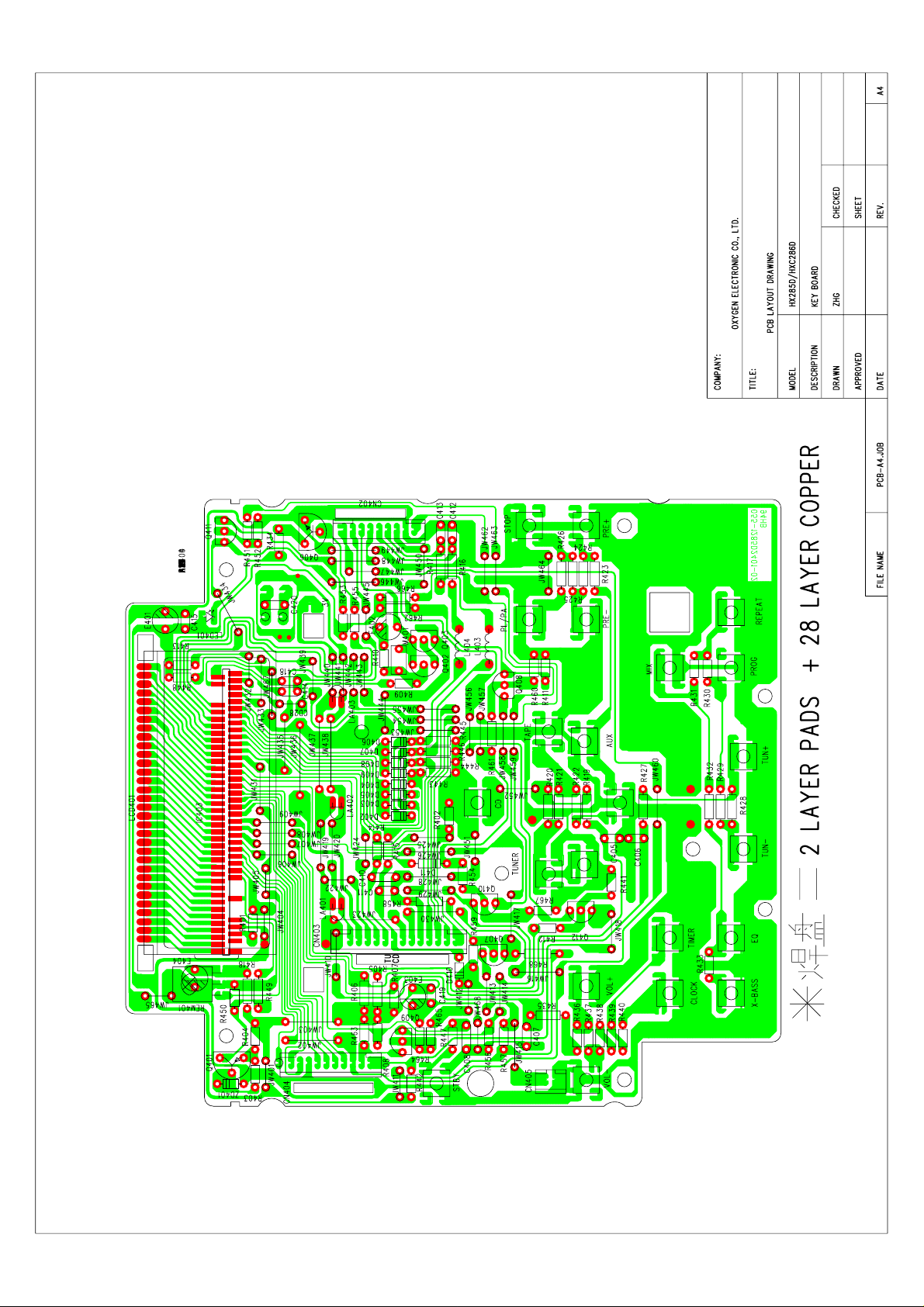

055-1285D2401-02 285D KEY(DISPLAY) BD 94HB PCS 1
180
004-32392TPIC-09 LCD DISPLAY SDTA392TPIC PCS 1 LCD401
181
004-111300020-00 RED 3MM L25MM LED-3R PCS 1 LED401
182
004-5WJE001EL-08E.L. LAMP AC85V KWJE-001-EL PCS 1
183
001-000000036-00 ZENER DIODE 1/2W 3V6 PCS 1 ZD401
184
001-100IN4148-00 DIODE IN4148 PCS 1 D406
185
005-100090143-00 NPN TRANSISTOR C9014C PCS 5 Q402,Q403,Q406,Q407,
Q408
186
005-200085503-02 PNP TRANSISTOR SEC S8550C PCS 1 Q401
187
009-026043TM2-01SENSOR 3-SIP PIC-26043TM2 PCS 1 REM401
188
041-141102A00-01 TACT SW-V IT-1102A (5mm) PCS 19
189
011-122030110-00 RESISTOR 1/6W +/-5% 22 ohm PCS 1 R404
190
011-147030110-00 RESISTOR 1/6W +/-5% 47 ohm PCS 1 R413
191
011-110130110-00 RESISTOR 1/6W +/-5% 100 ohm PCS 1 R418
192
011-115130110-00 RESISTOR 1/6W +/-5% 150 ohm PCS 3 R419,R427,R435
193
011-133130110-00 RESISTOR 1/6W +/-5% 330 ohm PCS 6 R403,R414,R415,R416,R
417,R449
194
011-147130110-00 RESISTOR 1/6W +/-5% 470 ohm PCS 3 R420,R428,R436
195
011-156130110-00 RESISTOR 1/6W +/-5% 560 ohm PCS 3 R421,R429,R437
196
011-168130110-00 RESISTOR 1/6W +/-5% 680 ohm PCS 4 R422,R430,R438,R447
197
011-110230110-00 RESISTOR 1/6W +/-5% 1K PCS 6 R402,R431,R434,R439,R
457,R462
198
011-112230110-00 RESISTOR 1/6W +/-5% 1K2 PCS 1 R423
199
011-115230110-00 RESISTOR 1/6W +/-5% 1K5 PCS 3 R424,R432,R440
200
011-122230110-00 RESISTOR 1/6W +/-5% 2K2 PCS 5 R410,R425,R433,R459,R
461
Page 32
Item Part Number Description Unit Qty Location
201
011-133230110-00 RESISTOR 1/6W +/-5% 3K3 PCS 4 R405,R406,R407,R408
202
011-147230110-00 RESISTOR 1/6W +/-5% 4K7 PCS 1 R426
203
011-110330110-00 RESISTOR 1/6W +/-5% 10K PCS 1 R448
204
011-122330110-00 RESISTOR 1/6W +/-5% 22K PCS 2 R409,R455
205
011-168330110-00 RESISTOR 1/6W +/-5% 68K PCS 1 R401
206
011-110430110-00 RESISTOR 1/6W +/-5% 100K PCS 5 R443,R444,R445,R446,R
450
207
022-103700310-00 CERAMIC CAP. 50V +80/-20% D5 0.01uF PCS 10 C405,C406,C407,C408,C
410,C411,C412,C413,C4
14,C418
208
022-104700330-00 CERAMIC CAP. 50V +80/-20% D8 0.1uF PCS 2 C415,C419
209
024-103300350-00 MYLAR CAP. 100V +/-10% 0.01uF PCS 1 M401
210
026-105360501-00 ELECT-CAP +/-20% 5x11MM 1uF/50V PCS 1 E402
211
026-107320501-00 ELECT-CAP +/-20% 5x11MM 100uF/10V PCS 3 E401,E403,E404
212
185-100040000-00 BARE WIRE 40MM JUMPER PCS 73
213
185-206150009-11 UL1007 SINGLE WIRE #26 BLACK
4+142+4=150MM
PCS 2 CD DOOR SWITCH
214
185-0285B0020-02 UL1007 #28/UL1533#30 PH=2 3PIN W/HSNG
280+3 285B
PCS 1 KEY BD TO AC
POWER BD
215
185-0285D0081-02 UL1007 #28 PH=2 9PIN W/HSNG 100+3 285D PCS 1 KEY BD TO RADIO BD
216
185-0285D0061-02 UL1007 #28 PH=2 11PIN W/HSNG 230+3 285D PCS 1 KEY BD TO CD BD
217
185-0285D0031-02 UL1007 #28 PH=2 13PIN W/HSNG 120+3 285D PCS 1 KEY BD TO AUDIO BD
218
055-1285B4600-02 285B POWER BD. 94V0 PCS 1
219
053-210131211-00 DELAY ACTION UL-APPR 5.2X20MM FUSE-
3.15A
PCS 1 F601
220
053-210116211-00 DELAY ACTION UL-APPR 5.2X20MM FUSE-
1.6A
PCS 1 F602
221
053-900HF004N-00FUSE HOLDER HF-004/N PCS 4 FOR F601,602
222
031-0010207A0-09 EI-13 3V:85V X'FORMER "010207A" 285B PCS 1 T601
223
005-100080503-02 NPN TRANSISTOR SEC C8050C PCS 1 Q601
224
002-100IN4001-00 RECTIFIER IN4001 PCS 4 D605,D606,D607,D608
225
002-100IN5392-00 RECRIFIER IN5392 PCS 4 D601,D602,D603,D604
226
037-010000001-00 FIXED INDUCTANCE 10uH PCS 1 L601
227
043-560333001-00 WAFER 3PX2MM CN3-2-V PCS 1 CN602
228
011-182030110-00 RESISTOR 1/6W +/-5% 82 ohm PCS 1 R602
229
011-110230110-00 RESISTOR 1/6W +/-5% 1K PCS 1 R601
230
022-102700310-00 CERAMIC CAP. 50V +80/-20% D5 0.001uF PCS 8 C601,C602,C603,C604,C
605,C606,C607,C608
231
022-104700310-00 CERAMIC CAP. 50V +80/-20% D5 0.1uF PCS 1 C609
232
026-106360501-00 ELECT-CAP +/-20% 5x11MM 10uF/50V PCS 1 E605
233
026-227330701-00 ELECT-CAP +/-20% 6x12MM 220uF/16V PCS 1 E604
234
026-108341401-00 ELECT-CAP +/-20% 10x20MM 1000uF/25V PCS 1 E601
235
026-228321401-00 ELECT-CAP +/-20% 10x20MM 2200uF/10V PCS 1 E603
236
026-228341501-00 ELECT-CAP +/-20% 13x26MM 2200uF/25V PCS 1 E602
237
024-184300452-00 MYLAR CAP. 100V +/-10% 0.18uF PCS 1 C611
238
104-420350410-00 BRASS EYELETS-2X4MM PCS 8
Page 33
Item Part Number Description Unit Qty Location
239
185-100040000-00 BARE WIRE 40MM JUMPER PCS 2
240
055-1285D5300-02 285D HEADPHONE BD. 94V0 PCS 1
241
043-500ST2122-01 HEAD-PHONE SOCKET ST-212-SWD PCS 1 PH001
242
185-100040000-00 BARE WIRE 40MM JUMPER PCS 2
243
185-0285B0030-02 UL1007 #28 PH=2 7PIN W/HSNG 220+3 285B PCS 1 AUDIO PCB TO
PHONE PCB
244

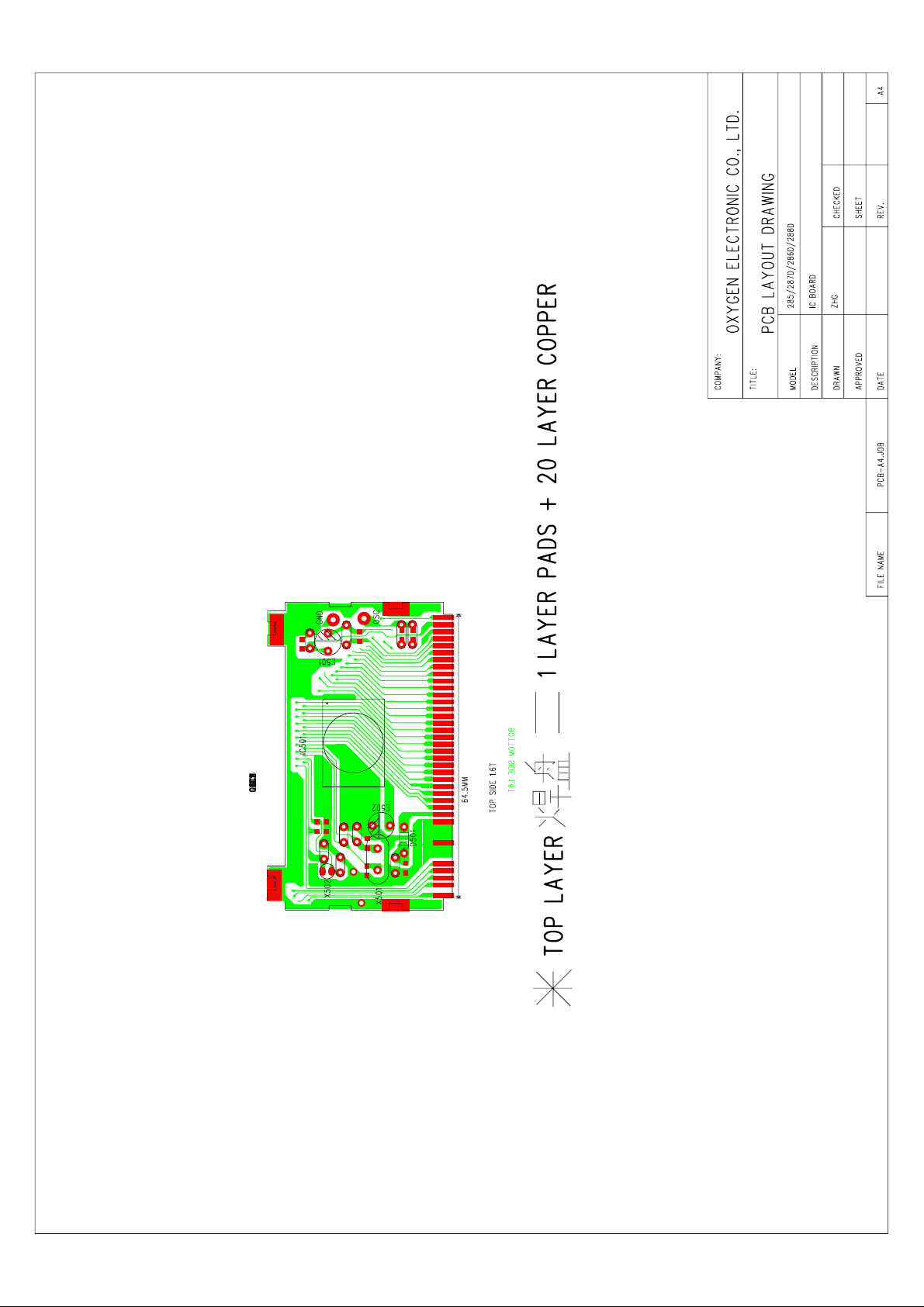

055-2285D9901-02 285D IC BOARD. FR4 1.6T PCS 1
245
009-0000GY245-33IC 80-QFP GY245 PCS 1 IC401
246
039-145DLFF49-02CRYSTAL HC-49U 4.5MHz 2PIN PCS 1 X401
247
039-132768B38-02 CRYSTAL DGB-38 32.768KHz 2PIN 32K768DGB-38PCS 1 X402
248
001-100IN4148-00 DIODE IN4148 PCS 1 D401
249
037-010000001-00 FIXED INDUCTANCE 10uH PCS 1 L401
250
021-220630310-00 CERAMIC CAP 50V +/-20% D5 22P-NPO PCS 4 C401,C402,C420,C421
251
022-103700310-00 CERAMIC CAP. 50V +80/-20% D5 0.01uF PCS 2 C416,C417
252
022-104700310-00 CERAMIC CAP. 50V +80/-20% D5 0.1uF PCS 4 C403,C404,C409,C415
253
026-107320501-00 ELECT-CAP +/-20% 5x11MM 100uF/10V PCS 1 E403
254
104-420350410-00 BRASS EYELETS-2X4MM PCS 2
255
185-0285D0041-02 UL1365#30/1C S-SHIELD PH=2 2PIN
W/HSNG120+3 285D
PCS 1 IC BD TO RADIO BD
256
047-1HF1051P0-07 SPEAKER 4" 4OHM 8W #048-HF1051P PCS 2
257
047-18HF501Z0-07SPEAKER 2" 4OHM 8W #048-HF501Z PCS 2
258
026-475360501-00 ELECT-CAP +/-20% 5x11MM 4.7uF/50V PCS 2
259
100-323133008-00 SELF-TAPPING SCREW TA/PWH 3.0 x 8
NICKLE
PCS 4 TWEETER (L/R)
260
100-323133010-00 SELF-TAPPING SCREW TA/PWH 3.0 x 10
NICKLE
PCS 8 SPEKAER (L/R)
261
150-210285A00-00 FRONT CABINET-SPEAKER BOX 285AC PCS 2 SPK BOX
262
152-100285A00-00 CLOTH FRAME 285AC/287AC PCS 2 SPK FC
263
150-250285A00-00 SPEAKER WOODEN BOX 285 PCS 2 SPK REAR
264
163-001202019-03 SPEAKER CLOTH GREY 200 x 195mm ST-001-20PCS 2
265
185-206060009-11 UL1007 SINGLE WIRE #26 BLACK
4+52+4=60MM
PCS 2
266
185-40A20512D-02SPEAKER WIRE O.D.1.8 x 3.6
10+2050+4=2064MM
PCS 2
267
170-07287B120-00 SPEAKER LABEL 048-HF1051P 40 x 15mm PCS 2
268
055-1285B2900-02 285B REMOTE BOARD 94HB PCS 1
269
005-100080503-02 NPN TRANSISTOR SEC C8050C PCS 1 Q901
270
001-100IN4148-00 DIODE IN4148 PCS 1 D901
271
011-122930110-00 RESISTOR 1/6W +/-5% 2.2 ohm PCS 1 R904
272
011-147130110-00 RESISTOR 1/6W +/-5% 470 ohm PCS 1 R902
273
011-112230110-00 RESISTOR 1/6W +/-5% 1K2 PCS 1 R901
274
011-127430110-00 RESISTOR 1/6W +/-5% 270K PCS 1 R903
275
022-101600310-00 CERAMIC CAP. 50V +/-20% D5 100P PCS 2 C901,C902
276
026-106320401-00 ELECT-CAP +/-20% 4x7MM 10uF/10V PCS 1 E901
277
009-0SAA3008P-
IC SAA3008P PCS 1 IC901
Page 34
Item Part Number Description Unit Qty Location
278
001-6000EL1L7-12 INFRARED LED EL-1L7 PCS 1 LED901
279
039-30B455EBL-01RESONATOR 2PIN CSB455EBL PCS 1 CF901
280
052-51000285A-00 BATTERY TERMINAL "+" 285 PCS 1
281
052-52000285A-00 BATTERY TERMINAL "-" 285 PCS 1
282
052-53000285A-00 BATTERY TERMINAL "+/-" 285 PCS 1
283
150-120285A00-00 TOP CABINET - REMOTE 285 PCS 1
284
150-140285A00-00 BOTTOM CABINET - REMOTE 285 PCS 1
285
152-300285A00-00 BATTERY DOOR - REMOTE 285 PCS 1
286
160-500285A00-00 LENS - REMOTE 285 PCS 1
287
166-051518100-00 CONTACT RUBBER PAD C (1KEY) -285 PCS 1 FC
288
166-054346060-00 CONTACT RUBBER PAD B (14KEY) -285 PCS 1 FC
289
166-055646130-00 CONTACT RUBBER PAD A (8KEY) -285 PCS 1 FC
290
166-41285A000-08 REMOTE KEY PVC SHEET 44 x 45 x 0.3mm PCS 1
291

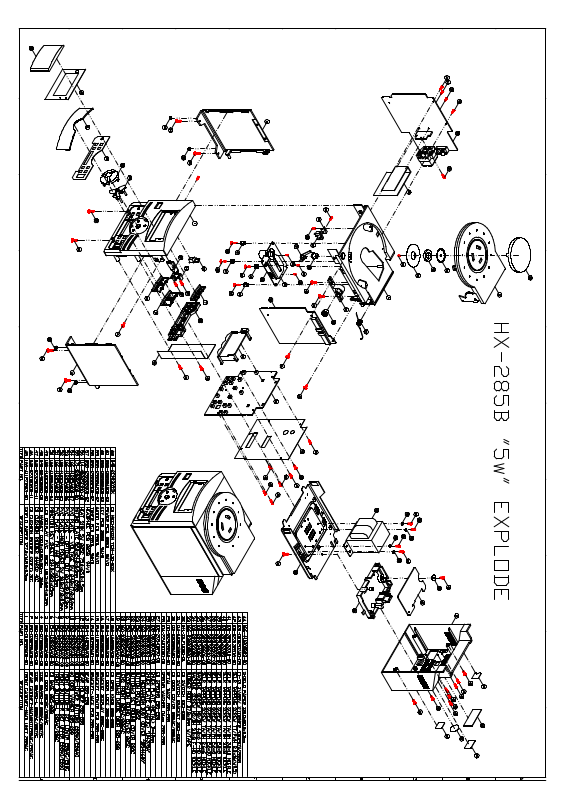

150-010285A00-00 FRONT CABINET-MAIN UNIT 285AC PCS 1 FRONT OF UNIT
292
150-030285A00-00 REAR CABINET-MAIN UNIT 285AC/287AC PCS 1 REAR OF UNIT
293
150-070285A01-00 SIDE BOARD-L 285AC/287AC PCS 1 LEFT SIDE OF UNIT
294
150-070285A02-00 SIDE BOARD-R 285AC/287AC PCS 1 RIGHT SIDE OF UNIT
295
152-600285A00-00 CD DOOR 285-286 PCS 1 CD BASE
296
154-120285A00-00 CD BASE 285-288 PCS 1 TOP OF UNIT
297
156-520285A01-00 FRONT BUTTONx2 SET-L 285AC/286C SET 1 FC
298
156-520285A02-00 FRONT BUTTONx2 R UPPER 285AC/286C SET 1 FC
299
156-520285A03-00 FRONT BUTTONx2 R LOWER 285AC/286C SET 1 FC
300
152-900285A00-00 DOOR-LOWER BUTTONS 285AC-286AC PCS 1 FC
301
156-520285A04-00 BUTTONSx11 SET INSIDE DOOR 285-288 PCS 1 FC
302
152-500285A00-00 AC CORD WASHER 285-288 PCS 1 POWER BKT
303
154-100285A01-00 BRACKET-JACK PCB 285-288 PCS 1 FC
304
154-110285A00-00 BRACKET-POWER PCB 285-288 PCS 1 METAL BASE
305
154-050285C00-00 BRACKET-DISPLAY 285C-288C PCS 1 KEY PCB
306
154-130285A00-00 CD DOOR LOCK 285-288 PCS 1 CD BASE
307
162-000285A01-00 GEAR 285AC-288AC PCS 1 GEAR HOLDER
308
154-080285A00-00 GEAR HOLDER 285-288 PCS 1 CD BASE
309
156-160285A00-00 KNOB-CD OPEN 285-288 PCS 1 CD BASE
310
160-100285A00-00 LENS-FRONT 285AC-286AC PCS 1 FC
311
152-400285C00-00 DECORATION ROUND COVER 285C PCS 1 FC
312
156-520285C00-00 BUTTONSx3 SET-ROUND COVER 285C PCS 1 FC
313
156-510285C00-00 BUTTONS - POWER 285C PCS 1 POWER SW
314
152-500028500-00 BUTTON POSITION FIXING PLATE 285 PCS 2 FC
315
154-040MS3802-00CD PCB BRACKET - A MS38 PCS 1
316
154-040MS3803-00CD PCB BRACKET - B MS38 PCS 1
317
162-020002850-00 CD MECHANISM DUST COVER "SAMSUNG"
285
PCS 1
318
152-800000000-00 CHUCK PLATE (PLASTIC) PCS 1
319
108-000000400-00 CHUCK PLATE (METAL) PCS 1
Page 35
Item Part Number Description Unit Qty Location
320
102-2094B0900-00 CD DOOR SPRING - 285-288 PCS 1 CD BASE
321
104-224010000-00 SPRING WASHER D4 PCS 4 FOR TRANSFORMER
322
110-1820285D0-00 METAL BASE - 285~288D 5W PCS 1 BOTTOM OF UNIT
323
112-020285A00-00 CD DOOR COVER 285-286 PCS 1 CD DOOR
324
114-60285A600-00 CD SWITCH BRACKET 285-288 PCS 1 CD BASE
325
166-030800020-00 RUBBER FOOT D7.8 x 2mm W/TAPE PCS 4 BOTTOM OF UNIT
326
100-209133008-00 MACHINE SCREW MS/BH 3.0 x 8 F-HD
NICKLE
PCS 6 FC TO MBASEx2, S-
BOARD TO MBASEx4
327
100-209134006-00 MACHINE SCREW MS/BH 4.0 x 6 F-HD
NICKLE
PCS 4 TX TO MBASE
328
100-309132606-00 SELF-TAPPING SCREW TA/BH 2.6 x 6 NICKLE PCS 1 CD SW TO BKT
329
100-303132610-00 SELF-TAPPING SCREW TA/PH 2.6 x 10
NICKLE
PCS 2 JACK PCB BKTx2
330
100-303132608-00 SELF-TAPPING SCREW TA/PH 2.6 x 8 NICKLE PCS 1 CD SW BKT TO CD
BASE
331
100-609132005-00 SELF-TAPPING SCREW TT/BH 2.0 x 5 NICKLE PCS 4 CD DUST TO MECH
x3, MAGNET TO
CHUCK PLATE x1
332
100-309133008-00 SELF-TAPPING SCREW TA/BH 3.0 x 8 NICKLE PCS 1 PW PCB BKT TO
MBASEx1
333
100-309133010-00 SELF-TAPPING SCREW TA/BH 3.0 x 10
NICKLE
PCS 18 RADIO PCB x2, AC
CORDx1, SIDE BD TO
CD BASEx2, AUDIO
PCB x2, CD BASE TO
FCx2 , KEY PCBx7,
GEAR HOLDER TO CD
BASEx2
334
100-309133012-00 SELF-TAPPING SCREW TA/BH 3.0 x 12
NICKLE
PCS 8 RC TO CD BASE &
SIDE BD x4, RC -SPK
SOCKETx2, AUX TO
RCx1, RC TO PW PCB
BKT x1
335
100-323132316-00 SELF-TAPPING SCREW TA/PWH 2.3 x 16
NICKLE
PCS 4 FOR CD MECHANISM
336
185-203180029-11 UL1007 SINGLE WIRE #20 RED
4+172+4=180MM
PCS 1 POWER BD TO AUDIO
BD
337
185-203180009-11 UL1007 SINGLE WIRE #20 BLACK
4+172+4=180MM
PCS 1 POWER BD TO AUDIO
BD
338
185-204220029-11 UL1007 SINGLE WIRE #22 RED
4+212+4=220MM
PCS 1 POWER BD TO AUDIO
BD
339
185-204220009-11 UL1007 SINGLE WIRE #22 BLACK
4+212+4=220MM
PCS 1 POWER BD TO AUDIO
BD
340
185-205140103-11 UL1007 SINGLE WIRE #24 BLACK
4+1396+0=1400MM
PCS 1 FM ANT
341
185-7100800G9-A3UL PH=1 16PIN FILM-CABLE"A" 4+72+4 PCS 1 CD BD (CN701) TO CD
MECH
342
040-2SB31VG6U-08CD MECHANISM CMS-B31VG6U PCS 1
343
041-11LF10100-01 MIRCO SWITCH LF-101 PCS 1 CD DOOR SWITCH
344
031-6485B01T5-01 EI-57 VDE X'FORMER (UPSWING) W/C UP57-
285B01T
PCS 1
345
040-023100600-11 CD CUSHION RUBBER 30C RED PCS 2 CD MECHANISM
346
040-023200700-11 CD CUSHION RUBBER 40C GREEN PCS 2 CD MECHANISM
347
040-024000200-00 CD MAGNET 30 x 18 x 5mm 360g PCS 1
Page 36
Item Part Number Description Unit Qty Location
348
166-41285C000-00 LCD DISPLAY PVC SHEET 285C
96.5x63.3x0.5mm
PCS 1
349
166-41285A000-01 PVC PLATE - FM ANT D21.7 x 0.3mm PCS 1 RC
350
166-41285A000-04 FUNCTION KEY PVC SHEET 134 x 38.3 x
0.5mm
PCS 1 FC
351
166-41285A000-05 PVC PLATE - MAIN POWER SW 18.8 x 17.8 x
0.3
PCS 1 RC
352
166-41285A000-06 PVC PLATE - OPTICAL OUT 20.4 x 19.0 x
0.3mm
PCS 1 RC
353
166-41285A000-07 PVC PLATE - VOLTAGE SW 24.8 x 17.8 x
0.3mm
PCS 1 RC
354
166-500030086-00 FIBER WASHER D3x8x1.6mm PCS 5 FOR KEY PCB
355
166-011002010-00 SPONGE WASHER D10 x D2 x 1mm EVA 30C PCS 1 FOR CD OPEN KNOB
356
164-520CV1000-00CABLE TIE 4" CV-100 PCS 6
357
172-40100285B-DRINSTRUCTION BOOK 285B-DR PCS 1
358
170-210000120-00 QA PASS LABEL PCS 1
359
170-200000120-00 QC PASS LABEL PCS 1
360
172-200202850-00 POLY FOAM ENDCAPT 285 SET 1
361
172-0201285B0-DRMASTER CARTON L550x W280x H221mm
285B-DR
PCS 1
362
172-915427010-00 CARTON BOARD 540 x 274mm (S-CORR) PCS 2
363
172-814042040-00 POLY BAG 420 x 400mm (EMERSON
WARNING)
PCS 1 FOR MAIN UNIT
364
172-813839040-00 POLY BAG 390 x 380mm (EMERSON
WARNING)
PCS 2 FOR SPEAKER BOX
365
172-810930020-00 POLY BAG 90 x 300mm W/RECYCLE MARK PCS 1 FOR AC CODE
366
172-810823020-00 POLY BAG 3" x 9" W/RECYCLE MARK PCS 1 FOR REMOTE UNIT
367
172-811724040-00 POLY BAG 175 x 240mm W/RECYCLE MARK PCS 1 FOR IB
368
171-120285B00-DRRATING PLATE 52 x 24 x 0.3mm 285B-DR PCS 1
369
170-040000955-00 CD CAUTION LABEL (4L) 43x28mm PCS 1
370
170-050000050-00 LASER BEAM LABEL D20mm PCS 1
371
170-110000720-00 CD PROTECT CARD D121 x 17mm (2L) PCS 1
372
170-090000120-01 SERIAL NO. LABEL(S/N)SIZE:30x8mm PCS 1
Loading...
