MSV - N2230W Day/Night Pan/Tilt IP
Camera
Hardware User Manual
-Contents-
CHAPTER 1. SAFETY INSTRUCTION ........................................................................................2
CHAPTER 2. INTRODUCTION .....................................................................................................4
CHAPTER 3. PACKAGE CONTENTS ..........................................................................................5
CHAPTER 4. PHYSICAL DESCRIPTION....................................................................................6
CHAPTER 5. BASIC CONNECTION ............................................................................................8
5.1 W
ITHOUT POE CONNECTION
................................................................................................................................. 8
5.2 W
ITH POE CONNECTION
........................................................................................................................................ 8
CHAPTER 6. APPLICATION..........................................................................................................9
2
Hardware User Manual
Chapter 1. Safety Instruction
Before you use this product
This product has been designed with safety in mind. However, the electrical products can cause
fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to
heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the
laws in your local region before using this product for surveillance purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage
or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
•
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
•
Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
•
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
•
Close to sources of strong magnetism
•
Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
•
Locations subject to strong vibration or shock
3
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
•
If the unit emits smoke or an unusual smell,
•
If water or other foreign objects enter the cabinet, or
•
If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2
Contact your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal
quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
•
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be
removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.
•
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the
surface.
4
Chapter 2. Introduction
The N2230W Day/Night Pan/Tilt IP Camera provides full overview and true day/night capabilities
to be the perfect solution for indoor applications that need to cover everything at anytime, but still
be cost-effective.
Key Features:
•
Simultaneous MPEG-4 and Motion JPEG video stream
•
Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use
•
Automatic-changeable IR-cut filter with adjustable threshold
•
Synchronized Two-way Audio with built in Microphone
•
12 pcs Infrared LEDs for night use up to 10 working distance
•
Wireless (IEEE 802.11g/b) Networks Connections
•
Optimal Synchronization of Audio and Video
•
Support Live Video Viewing on Windows Live Messenger (WLM )
•
Control panel add-in, i.e. snapshot, image setup and PT control
•
Support Mac OS Browser
•
Support iPhone through Safari Browser
•
Power over Ethernet IEEE 802.3af Class 0 suppliers power to the camera via the network
•
Digital Input / Output Port for External Alarm & Sensor
•
Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
•
Mobile Phone Live Image through 2.5 WAP
•
Multi-level Password Protection for Restricting Camera Access
•
Built-In Multi-Window Motion Detection (3 detection areas)
•
Video Buffer makes the Streaming Smoother
•
UPnP and Bonjour for Fast and Easy Installation
•
DDNS Supported
•
Bundled 16 Channel Surveillance Software
•
User-friendly & Multi-lingual UI
5
Chapter 3. Package Contents
Camera
– N2230W Day / Night Pan / Tilt IP Camera
Quick Installation Guide
- To provide brief product information and quick installation and
wireless setting
Software CD
- To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and
Language Packs
Component Pack -
Camera mount Kit & Pads (one bracket and two packs of screws)
Adaptor
- 12V DC, max 12W
Component Pack
Software CD
Quick Installation Guide
Camera
6

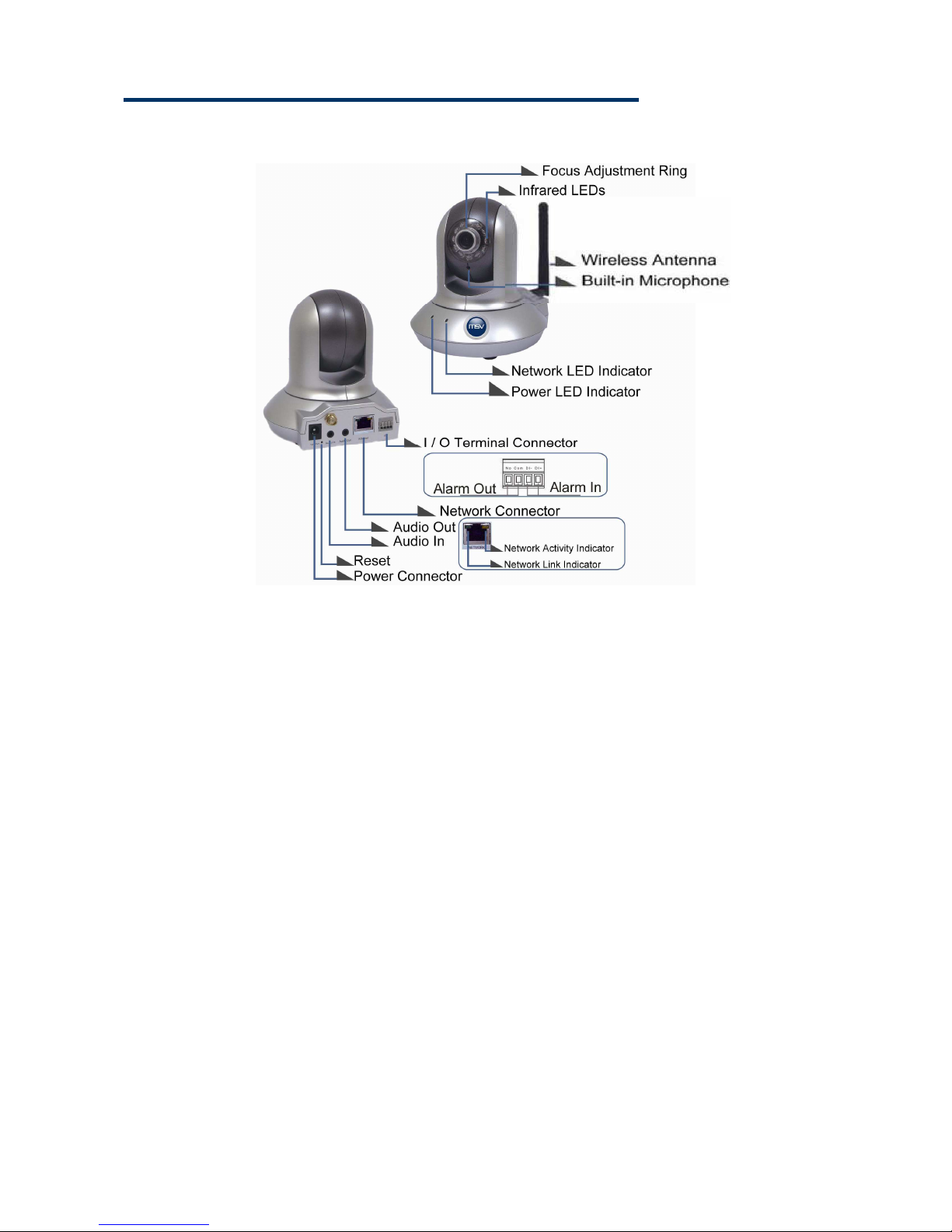

Chapter 4. Physical Description
Overview
Focus Adjustment Ring - Adjust focus manually to achieve the best image quality
Infrared LEDs
- Infrared LEDs for night use up to 10 working distance
Wireless Antenna –
For connection of IEEE 802.11g/b wireless network
Built-In Microphone - Built-In Microphone for Two-way Audio
Power LED indicator - Power LED will light up after completing the boot process
Network LED indicator - Network LED will light up after connecting with network.
Power Connector - For connection of 12V DC input.
Reset - When the device is empowered, press the Reset Button to reboot the device, or
hold the Reset Button for 10 seconds to set the device settings back to factory default
Audio In -To support audio in with Microphone for two way audio
Audio Out - To support audio out with earphones or speakers for two way audio
Network Connector - For connection to the Ethernet via RJ-45 standard with PoE
I / O Terminal Connector - 1Input / 1Output to support External Alarm and Sensor used
for motion detection, event triggering and alarm notification…etc.
7
DI / DO Terminal connector diagram
Please refer the following illustration below for connection method.
D+ D- COM NO
Ground
Ground
12V
Alarm out device
12V
Max. 30W
Switch
8
Chapter 5. Basic Connection
N2230W is for both wire and wireless connection. You can follow the procedure below to connect
the IP Camera with power and Ethernet for both wire and wireless connection.
5.1 Wired Connection
1. Connect the power adaptor to IP Camera
2. Connect IP Camera’ Ethernet port to your Hub / Switch / Rout supporting PoE
5.2 Wireless Connection
1. Connect the power adaptor to IP Camera.
2. Connect to WiFi
9
Chapter 6. Application
