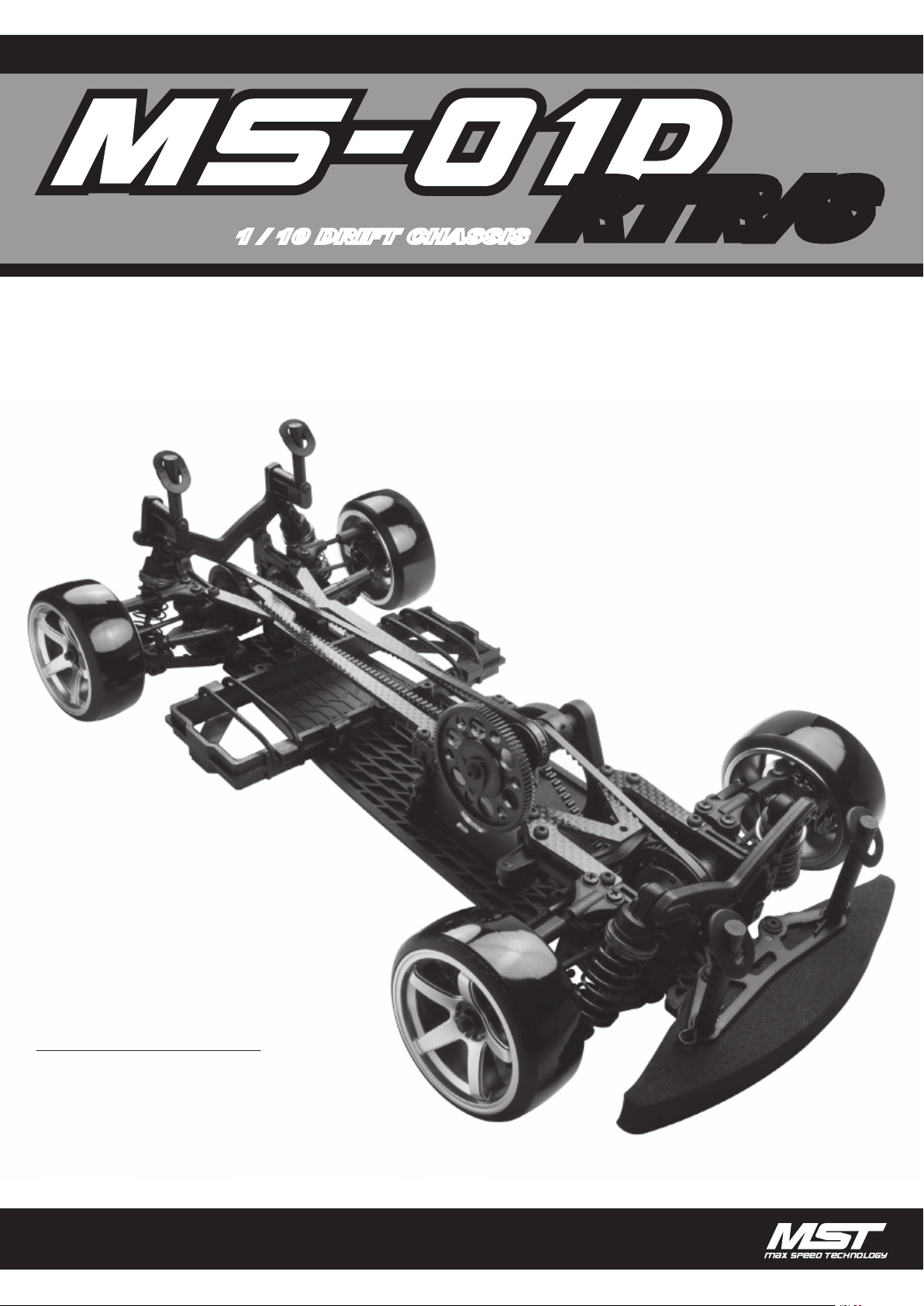

Page 1
1 / 10 S CALE RC 4 WD HIGH PERFORMAN CE DRIF T CAR
RTR/SRTR/S
1 / 10 DRIFT CHASSIS
MS-01D RTR/S
ON ROAD USE ONLY
FULL BALL BEARINGS
SPECIFICATION
Wheelbase : Standard 257mm (adjustable)
Width : Standard 186mm (adjustable)
Gear ratio : 2.0 ( 36T/18T )
CS ratio : 1.54 ( 40T/13T )
Caster : 4, 7, 10, 14 degrees variableness
Camber : 0 to -12 degrees
Front : Alum. one way
Rear : Spool unit
[ www.rc-mst.com ]
[ facebook.com/MST.tw ]
※ Specification are subject to change without notice.
Page 2
1 / 10 DRIFT CHASSIS
Appreciate for your choice of MST MS-01D RTR! You will be impressed with its performance and beauty.
Please prepare additional parts as car battery, transmitter battery, and charger.
Please follow the process for assemble and setting of parts package.
If you have doubt or need assistance, please contact the purchased shop or hobby shop for help, many thanks!
首先感謝你購入 MST MS-01D RTR 這項產品，您將擁有一部兼具性能與美型的甩尾車。
在首次操作前，有以下幾項須要另行購置的物件；車用電池、遙控器用電池、充電器。
備妥上述物件後，請進行零件包安裝與設定。
如需其他協助，請向原購買店家，或遙控模型店詢問！謝謝！
PLEASE FOLLOW BELOW
OPERATIONS BEFORE ASSEMBLING
THE PARTS PACKAGE.
Install transmitter batteries.
1
Loosen receiver antenna.
2
Connector ESC and battery.
3
Switch on the transmitter.
4
Trims the transmitter in neutral.
5
Switch on the ESC.
6
Steering wheel in neutral.
7
Attach fittings.
8
After attaching servo saver,
9
Switch off transmitter & ESC.
請於安裝零件包之前,執行以下操作
安裝遙控器電池
1
鬆開接收機天線
2
聯結車用電池與電子變速器
3
打開遙控器電源
4
調整遙控器各微調器至中立點
5
打開電子變速器電源
6
方向轉盤至中立點
7
安裝零件包
8
請在安裝伺服緩衝器之後,
9
將遙控器與電子變速器關閉
STEP 1
FACTORY ELECTRONIC SETTING
原廠電裝配線圖
540 Motor
ESC
ESC Switch
Steering servo
Receiver
2.4G / 3CH RADIO CONTROL SYSTEM2.4G / 3CH RADIO CONTROL SYSTEM
天線
方向盤
方向正逆轉
REV
TH ST
POWER
油門正逆轉
開關
電池盒
1.遙控器電池安裝
請依照箭頭方向打開電池盒蓋，安裝4顆三號 (AA) 電池於遙控器，
關上電池盒蓋，開啟電源開關，確認遙控器指示燈是否亮起，若未
亮起，請檢查電池極性是否安裝正確、電力是否充分。
2.遙控器指示燈
遙控器開機，LED指示燈恆亮，代表遙控器電源電力足夠，若LED
音聲響，代表遙控器電源電
指示燈為綠色閃爍還有持 續不斷的短
力不足夠，請更換電池。
Please refer to instruction of
※
方向盤大小動作調整
油門前進微調(+)
油門動量微調(+)
LED指示燈
TRIM/EPA
Fwd/+
方向微調(+)
方向動量微調(+)
L/- R/+
第3動
Rev/-
油門後退微調(-)
油門動量微調(-)
方向微調(L)
方向動量微調(L)
油門板機
3.使用無線頻帶
頻率是2.4GHz 頻帶，出廠預設一般模式(Gene ral mode)，亦可切
換至法國模式(France mode)。
1.開機顯示：
遙控器開機後，蜂鳴器會發出嗶!嗶! 兩聲， 同時若 遙控器指示
燈有短暫閃爍為法國模式；遙控器指示燈若 無短暫閃爍為一 般
模式。
2.切換頻帶操作方式：
① 進入切換模式：按著(ST Reverse)鍵與(TH Reve rse)鍵，開
啟遙控器電源，聽到5短音的聲響後，代表已進入切換模式。
② 切換方式：按(TH Rever
se)鍵在一般、法國模式間切換。
③ 頻帶顯示方式：若切換到一般模式，指示燈會恆亮；若切換到
法國模式，指示燈為閃爍。
④ 儲存頻帶模式：選定頻帶模式後，請等2秒 鐘，讓遙控器儲
存頻帶模式的設定值，接著請關閉遙控器 電源再開啟遙控 器
電源。
⑤ 接收器重新聯結：請與接收器重新聯結 (Binding)。
4.接收機解說
第3動伺服機阜
天線
油門伺服機阜
LED指示燈
方向伺服機阜
對頻按鈕
電源阜
transmitter & receiver performance.
遙控器&接收機功能說明請參閱詳細說明書。
CAR Brushed ESC Manual
※
Please refer to instruction of
ESC performance.
電子變速器功能說明請參閱詳細說明書。
STEP 2
4.8mm Adjust
STEERING ROD ASSEMBLY
轉向伺服拉桿組裝
3×60mm Thread shaft
Please assemble the length as showed, and notice the adjust direction.
※
請依圖標示之長度安裝,並注意拉桿頭方向。
2
46mm
Battery (not included)
電池 (
)
1:1
MS-01D RTR / S
Page 3
25T FUTABA
STEP 3
4.8×4.5mm Ball connector
/
SAVOX RTR default
球頭
RTR 預設件
SERVO SAVER ASSEMBLY
伺服緩衝組裝
23T 25T
KO / SANWA FUTABA / SAVOX
※
Match part with servo.
挑選合適的零件安裝。
90
※
Attach as shown with servo in neutral.
請於調整伺服中立點後,依圖示安裝緩衝組。
3×8×0.5 Spacer
2.6×10mm Taping screw (RTR default)
※
The assembly and conservation
method may be different by
specification of battery.
電池的安裝方式會因為廠牌規格而有些微差
異，電池的使用方式與保存方式，也會因電
池的種類而有所不同。
※
Recommened battery measurement
L140×W48×H125.4mm (not exceed)
建議安裝長40×寬48×高125.4mm尺寸以內
的電池。
自攻螺絲 (RTR 預設件)
墊片
STEP 4
STEP 5
Battery O-ring (S)
電池O環 (S)
ATTACHING STEERING ROD & SERVO HORN
伺服拉桿 & 伺服舵片安裝
ATTACHING BATTERY
電池安裝
Connect to battery!
連接電池!
※
Please play in safe place after all setting finish.
Before playing, please switch on transmitter then on the car.
Please switch off reversely.
安裝設定完成後，請於安全場所使用本產品!
使用前請先開啟遙控器電源後再開啟車體電源!
使用後請反向操作關閉!
MS-01D RTR / S
3
Page 4
110001
210010
210013
110019
110019
110025
110026
110048
310001
600002
130006
210032
210010
110016
210003
210006
210010
110002
110029
310009
210111
110002
210020
110001
148026
110006
210111
110001
110035
110002
210007
110003
210183
210014
110001
210283
210014
310010
601003
210007
310002
110001
120002
210010
120002
601001
110012
210003
210009
210009
210002
110019
210002
110002
130005
210002
210002
110005
310043
310001
210009
210014
120001
310042B
414228
110011
110001
210111
310016
110003
210003
110014
110012
210003
110003
120001
110004
210145R
210008
4
Page 5
210004-1
210007
210009
110002
120001
110008
210284
210007
210004-1
110018
414486
210007
110029
210006
110009
210016
120002
210020
110008
210007
210016
210007
210007
210002
210004-1
210161
210006
110032
210004-1
110012
210003
210009
310016
210006
110003
120001
310001
210009
210003
110014
210008
210002
110019
210003
210003
210002
210005
110012
110010
210005
130032
110012
210010
310008
210005
120002
110061
210005
110013
110003
210145R
110017
210057
210144-2
110004
310004
210043
210057
130002
310007
110002
210010
210003
130001
210005
110017
310006
110015
210006
310001
110009
120002
110017
210006
110012
210007
210043
210003
210016
110015
110024
110023
130007
210007
130003
110009
210012
210007
130006
210012
601002
110004
210001
110005
5
MS-01D RTR / S
Page 6
PARTS
不使用
Not Used
M3×14 半圓頭螺絲 ×2
Screw
110061
M3×12 半圓頭螺絲 ×3
Screw
110029
M3×10 半圓頭螺絲 ×1
Screw
110026
M3×8 半圓頭螺絲 ×18
Screw
110002
M3×6 半圓頭螺絲 ×14
Screw
110001
M3×8 沉頭螺絲 ×24
Screw
110005
M3×6 沉頭螺絲 ×2
Screw
110024
M3×25 止付螺絲 ×4
Screw
110008
M3×20 止付螺絲 ×6
Screw
110009
M2.5×14 半圓頭螺絲 ×2
Screw
110010
M2.5×6 半圓頭螺絲 ×14
Screw
110003
M2×4 半圓頭螺絲 ×6
Screw
110004
2.6×10 自攻半圓頭螺絲 ×1
Screw
110025
M3×6 CAP螺絲 ×2
Screw
110011
M3×11 扁頭螺絲 ×20
Screw
110012
M3×13 扁頭螺絲 ×8
Screw
110014
2×13.8 插銷 ×1
Shaft
110018
2×11.8 插銷 ×6
Shaft
110019
10×15 滾珠軸承 ×8
Ball bearing
120001
5×10 滾珠軸承 ×7
Ball bearing
120002
阻尼器O環 P3 (紅) ×8
Damper O-ring P3 (red)
130001
11.5×1.5 O形環 ×4
O-ring
130002
電池O環 (S) ×2
Battery O-ring (S)
130003
210002
C 部品
C parts
M3×16 止付螺絲 ×2
Screw
110023
M3×10 止付螺絲 ×2
Screw
110032
M3×5 止付螺絲 ×1
Screw
110006
M3×3 止付螺絲 ×1
Screw
110035
E2.0 E形扣 ×8
E-clip
110013
2×9.8 插銷 ×8
Shaft
110017
M4 突緣螺帽 ×4
Nut
110015
R6 R形扣 ×6
R-clip
110016
3×8×0.5mm 墊片 ×1
Spacer
110048
避震上蓋O環 ×4
Damper cap O-ring
130032
泡棉雙面膠 ×1
Double sided tape
130006
天線管 ×1
Antenna pipe
130007
防撞泡棉 (A) ×1
Bumper (A)
130005
工具包 ×1
Tools
130011
210003 ×4
D 部品
D parts
6
MS-01D RTR / S
Page 7
PARTS
210004
E 部品
E parts
210020
皮帶齒 18T/36T
18T/36T pulley
210007 ×2
H 部品
H parts
210004-1
直軸組
Spool unit
210057 ×2
避震器上下蓋組
Damper cap set
210005 ×2
F 部品
F parts
210043
碟型六角輪座組
Wheel hubs w/disc shape
210009 ×2
J 部品
J parts
210001
底盤
Lower deck
210008 ×2
I 部品
I parts
210006 ×4
G 部品
G parts
7
MS-01D RTR / S
Page 8
210010
K 部品
K parts
PARTS
210283
MS 纖維前二樓板 2mm
MS Front upper deck (FRP) 2mm
210012
N 部品
N parts
210284
MS 纖維後二樓板 2mm
MS Rear upper deck (FRP) 2mm
210014
O 部品
O parts
210145R
煞車卡鉗 (電鍍紅)
Brake calipers (red)
210032
伺服機舵片組
Servo hron set
8
(
23T/25T
)
MS-01D RTR / S
Page 9
大齒盤
Spur Gear
88
(210013)
(OP.148088)
89
(OP.148089)
90
(OP.148090)
91
(OP.148091)
92
(OP.148092)
PARTS
齒比表 Gear Ratio
馬達齒
Pinion Gear
24 7.33
25 7.04
26 6.77
27 6.52
28 6.29
23 7.74
24 7.42
25 7.12
26 6.85
27 6.59
22 8.18
23 7.83
24 7.50
25 7.20
26 6.92
21
22
23
24
25
20
21
22
23
24
齒輪比
Gear Ratio
8.67
8.27
7.91
7.58
7.28
9.20
8.76
8.36
8.00
7.67
大齒盤 48P-88T ×1
Spur gear 48P-88T
210013
避震彈簧28mm (中) ×4
Coil spring 28mm (medium)
210144-2
4.8 外六角球頭螺帽 ×2
4.8 Ball connector nut
210161
4.8×5 球頭 ×8
Ball connector
310001
轉向支柱 ×2
Steering post
210183
避震器調整環 ×4
Spring retainer
310004
3×60 拉桿 ×1
Threaded shaft
310002
馬達齒 48P-26T ×1
Pinion gear 48P-26T
148026
210016
R 部品
R parts
210111
反胎齒比組
CS pulley set
皮帶 (228) ×1
Drive belt (228)
414228
輪軸 ×4
Wheel axle
310006
CVA傳動軸 ×4
CVA swing shaft
310007
避震軸心 ×4
皮帶 (486) ×1
Drive belt (486)
414486
以實際搭載為主
Please make
the object as
the standard
Piston rod
310008
主齒軸 ×1
Direct center shaft
310009
馬達座 ×1
Motor mount
310010
310042B
鋁合金單向組 (一般型)
Alum. ony way (general)
9
MS-01D RTR / S
Page 10
_
NOTE:
SURFACE:
GRIP:
REAR
_______________
Tire:_____________
_
FRONT
Tire:____________
______________
0mm
Rear Wheel Hubs
_________
_
Wheel:
Wheel:_________
A
________________
_
________________
Offset:
_
Offset:________________
_______________
B
Rear Diff
4
Rear Damper Stay
0mm
0mm
0mm
Droop: 7 mm
0mm
Rear Rollcenter
Separating Spool
0mm
0mm
0mm
Spool
4°
4°
3
Camber:
Alum. Spool
Toe-in:
2
1
0mm
Ride Height: 5 mm
Alum. Ball Diff.
Ballast:
4
3
1 2
Rear Lower Arm
_
_
Shock Oil: 150
Rear Damper
FRP
Plastic
Carbon Fiber
Length: 63 mm
Spring: 28 mm
Piston: 1.2 mm
Piston Hole: 3
Spring Color: Gold
1.0 mm
1.2 mm
1.4 mm
Rear Antil-Roll Bar
DATE:
TRACK:
32.5mm 35.5mm
Front Lower Arm Rear Lower Arm
14°
ORINGINAL SETTING
SETUP SHEET
10°
/SRTR /S
mm
mm
mm
mm
mm
mm
Standard Servo
Low Profile Servo
1.82 2.0
1.54 1.6 6
x 2.0 = __________________
)
iber
F
FRP
Carbon
FRP
Plastic
Plastic
Carbon Fiber
88 26 6.77
A
B
10°
Front Upright Rear Upright
7°
0mm
0mm
0mm
0 mm
0 mm
1.38
540 22000rpm & B4222
Spur: _____T / Pinion: _____T
1.0
(
Motor & ESC: ___________________________ Battery: _________________
Gear Ratio:
CS Ratio:
Chassis & Upper Deck
FRP
Plastic
Carbon Fiber
Front Antil-Roll Bar
1.0 mm
1.2 mm
1.4 mm
R
RT
7°
4°
Front lower arm “A”
Front Caster
0mm
Front Wheel Hubs
4°
0°
Front lower arm “B”
1
2
3
Front Damper Stay
Steering Arm
Plastic
6°
Toe-in: +1°
Camber:
Ride Height: 6 mm
Alum. Steering Arm
Front Diff.
0 mm
Front Rollcenter
Droop: 6 mm
0 mm
Alum. One way
12
Front Lower Arm
Shock Oil: 150
Length: 63 mm
Front Damper
Spool
Piston Hole: 3
Spring Color: Gold
Spring: 28 mm
Piston: 1.2 mm
Ball Diff.
Page 11

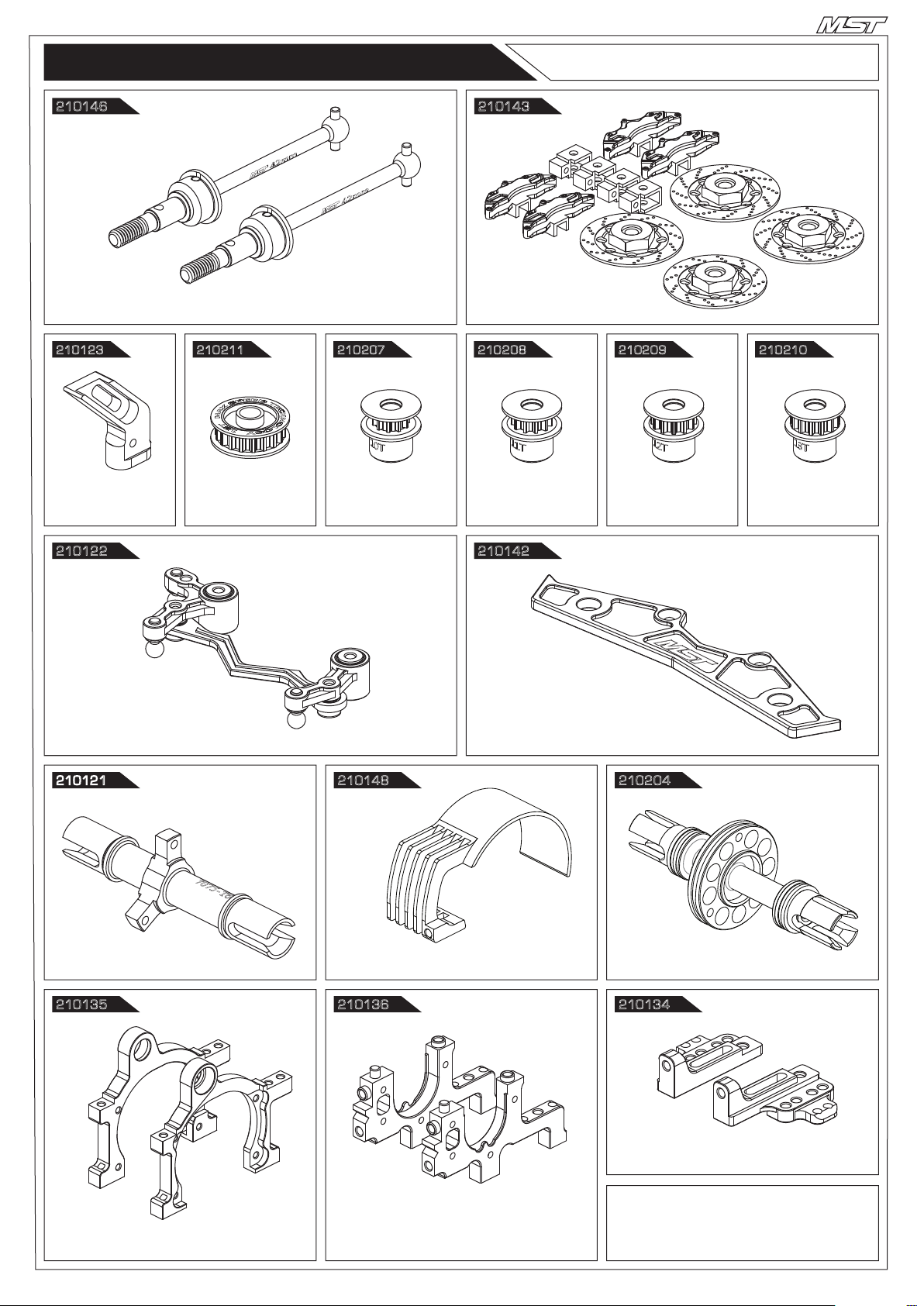

RECOMMENDED OPTION PARTS
MS-01D
for
series
210146
Steel CVD Shaft Set 42mm
鋼製
傳動軸組
CVD
42
mm
210123 210211 210210210209210208210207
Alum. Belt Stabilizer
Mount
鋁可調壓輪座
Alum. Pulley
鋁皮帶輪
18T
18T
Alum. Pulley
鋁皮帶輪
210122
10T
10T
210143
Alum. wheel hubs
(brake disk shaped)
鋁合金前剎車碟六角輪座
Alum. Pulley
鋁皮帶輪
11T
11T
210142
Alum. Pulley
鋁皮帶輪
12T
12T
Alum. Pulley
鋁皮帶輪
13T
13T
Alum. Steering Arm
鋁合金轉向雙搖臂組
Alum. Bumper Support
鋁合金防撞板上蓋
210121 210148 210204
Alum. Spool Unit
鋁合金直輪組
Alum. Motor Heatsink
鋁合金馬達散熱片
Alum. Separating Spool Unit
鋁合金分離式直軸組
210135 210136 210134
Alum. upper bulkhead R/L
鋁合金側板上蓋組
Alum. main shaft mount R/L
鋁合金主軸座組
Alum. bulkhead R/L
鋁合金側板組
11
More details,please refer to MST website.
更多詳細內容，請上官網。
[ www.rc-mst.com ]
MS-01D RTR / S
Page 12
PARTS CODE
110001 Round head screw M3×6 (10)
110002 Round head screw M3×8 (10)
110003 Round head screw M2.5×6 (6)
110004 Round head screw M2×4 (6)
110005 Flat head screw M3×8 (10)
110006 Set screw M3×5 (6)
110008 Set screw M3×25 (6)
110009 Set screw M3×20 (6)
110010 Round head screw M2.5×14 (6)
110011 Cap screw M3×6 (6)
110012 Flat head screw M3×11 (10)
110013 E-clip E2.0 (10)
110
014 Flat head screw M3×13 (10)
110015 Flange nut M4 (4)
110016 R-clip R6 (10)
110017 Shaft 2×9.8 (10)
110018 Shaft 2×13.8 (5)
110019 Shaft 2×11.8 (5)
110023 Set screw M3×16 (6)
110024
Flat head screw M3×6 (10)
110025 Taping screw 2.6×10(6)
110026 Round head screw M3×10 (10)
110029 Round head screw M3×12 (6)
110032 Set screw M3×10 (6)
110035 Set screw M3×3 (6)
110061 Round head screw M3×14 (6)
120001 Ball beari
120002 Ball bearing 5×10 (4)
130001 Damper O-ring P3 (red)(10)
130002 O-ring 11.5×1.5 (4)
130003 Battery O-ring (S)(2)
130004 Oil seal (4)
130005 Bumper (A)
130006 Double sided tape (5)
130007 Antenna pipe(2)
130011 Tools
130032 Damper cap O-ring (10)
148026 MST 48P Pinion gear 26T
210001 Chassis
210002 C PARTS
ng 10×15 (4)
210003 D PARTS
210004 E PARTS
210005 F PARTS
210006 G PARTS
210007 H PARTS
210008 I PARTS
2100
09 J PARTS
210010 K PARTS
210012 N PARTS
210013 Spur gear 88T-48P
210014 O PARTS
210016 R PARTS
210043 Wheel hubs w/disc shape
210057 Damper cap set
210111 CS pulley set (1.54/1.66/1.82)
210144-2 Coil spring set 28 (medium) (gold) (2)
210145R Brake calipers-red (4)
210161 4.8 ball connector nut (4)
210183 Alum. steering post (2)
210283 MS Front upper deck (carbon look) 2.0
210284 MS Rear upper deck (carbon loo
310001 Ball connector 4.8×4.5 (5)
310002 Threaded shaft 3×60
310004 Spring retainer (2)
310006 Wheel axle (2)
310007 CVA swing shaft (2)
310008 Piston rod (4)
310009 Direct center shaft
310010 Motor mount
310042 Alum. one way (general)
310043 One way outdrive (general)(2)
414228 Drive belt-228
414486 Drive belt-486
600002 XTR-02 2.4G Transceiver set
601001 22000RPM brushed motor
601002 RTR brushed ESC
6010
03 RTR servo
k) 2.0
OPTION PARTS CODE
414225 Drive belt-225
414225J Drive belt-225 (Japan)
414486J Drive belt-486 (Japan)
414222J Drive belt-222 (Japan)
910004-L MST T-shirt L
910004-XL MST T-shirt XL
910004-2L MST T-shi
910004-3L MST T-shirt 3L
210101 Alum. Servo mount (2)
210102 Alum. one way unit
210104 Front ball diff unit
210105 Alum. turnbuckle shaft 3×60 (1)
210108 Alum. turnbuckle shaft 3×28 (2)
210110 Stabilizer set (F/R)
210112 Main shaft mount supporting bar
210113 Rear ball diff unit
210114 Alum. motor heat sink mount
210115 Alum. damper set (4)
210116 Alum. spur gear holder cover (1)
rt 2L
部品編號
110001 六角半圓頭螺絲 M3×6 (10)
110002 六角半圓頭螺絲 M3×8 (10)
110003 六角半圓頭螺絲 M2.5×6 (6)
110004 六角半圓頭螺絲 M2×4 (6)
110005 六角沉頭螺絲 M3×8 (10)
110006 六角止付螺絲 M3×5 (6)
110008 六角止付螺絲 M3×25 (6)
110009 六角止付螺絲 M3×20 (6)
110010 六角半圓頭螺絲 M2.5×14 (6)
110011 六角有頭螺絲 M3×6 (半牙) (6)
110012 十字扁頭螺絲 M3×11 (10)
110013 E扣 2.0 (10)
110014 公制十字扁頭螺絲 M3×13 (10)
110015 凸緣螺帽 M4 (4)
110016 R銷 6 (10)
110017 插銷 2×9.8 (10)
110018 插銷 2×13.8 (5)
110019
插銷 2×11.8 (5)
110023 六角止付螺絲 M3×16 (6)
110024 六角沉頭螺絲 M3×6 (10)
210117 Alum. spur gear
210118 Alum. upright (blue) (2)
210119 Front ball diff joint
210120 Alum. high torque servo saver (F/KO)
210121 Alum. spool unit
210122 Alum. steering arm
210123 Alum. belt stabilizer mount
210124 Alum. belt pulley
210125 Carbon front upper deck
210126 Carbon rear upper deck
210127 Carbon front damper stay
210128 Carbon rear damper stay
210129 Carbon bulkhead brace
210130 Carbon lower deck
210131 Hig
210132 4.8 ball connector (5)
210133 5.8 ball connector (5)
210134 Alum. upper bulkhead R/L (blue)
210135 Alum. main shaft mount R/L
110025 自攻六角半圓頭螺絲 2.6×10 (6)
110026 六角半圓頭螺絲 M3×10 (10)
110029 六角半圓頭螺絲 M3×12 (6)
110032 六角止付螺絲 M3×10 (6)
110035 六角止付螺絲 M3×3 (6)
110061 六角半圓頭螺絲 M3×14 (6)
120001 培林 10×15 (4)
120002 培林 5×10 (4)
130001 阻尼器O環 P3 (紅) (10)
130002 O環 11.5×1.5 (4)
130003 電池O環 (S) (2)
130004 避震氣室 (4)
130005 防撞泡棉 (A)
130006 泡棉雙面膠 (5)
130007 天線管 (2)
130011 工具包
130032 避震上蓋O環 (10)
14802
210001 底盤
210002 C 部品
h torque servo saver (F/KO)
6 MST 48P 馬達齒 26T
holder (1)
210136 Alum. bulkhead R/L (blue)
210137 4mm Turnbuckle wrench
210140 Carbon battery holder set (black)
210141 Carbon ESC plate
210142 Alum. bumper support
210143
210144 Coil spring set 28 (8)
210145 Brake calip
210145B Brake calipers-blue (4)
210145GD Brake calipers-Gold (4)
210146 Steel CVD universal shaft set (2)
210147 Servo Saver Spring (hard) (black)
210148 Alum. motor heatsink
210151 Alum. damper cylinder (4)
210155 Servo Saver Spring(medium)(blue)
210157 Alum. CVD universal shaft set (2)
210159 5.8x4 ball connector (4)
210160 5.8x6 ball connector (4)
210162 Alum. small belt pulley mount
210003 D 部品
210004 E 部品
210005 F 部品
210006 G 部品
210007 H 部品
210008 I 部品
210009 J 部品
210010 K 部品
210012 N 部品
210013 大齒盤 88T-48
210014 O 部品
210016 R 部品
210043 碟型六角輪座組
210057 避震器上下蓋組
210111 反胎齒比總成 (1.54/1.66/1.82)
210144-2 避震彈簧28 (中) (金) (2)
210145R 煞車卡鉗(電鍍紅) (4)
210161 4.8 外六角球頭螺帽 (4)
210183 轉向支柱(2)
210283 MS 纖維前二樓板 2.0
Alum. Wheel Hubs (Brake Disc Shaped)(4)
ers (4)
210163 Alum.
210165 Alum. turnbuckle 3×20 (blue) (2)
210166 Steel turnbuckle 3×20 (blue) (2)
210167 Alum. turnbuckle 3×25 (blue) (2)
210168 Steel turnbuckle 3×25 (blue) (2)
210178 Front motor mount conversion kit
210190 Reinforced suspension arm set (2)
210192 MS chassis set (8 pieces)
210198 Steel turnbuckle 3×28 (blue) (2)
210204 Alum. separating spool unit
210205 DK Coil spring set 30
210206
210207 Alum. Pulley 10T
210208 Alum. Pulley 11T
210209 Alum. Pulley 12T
210210 Alum. Pulley 13T
210211 Alum. Pulley 18T
210235 Piston spacer set
210273 Damper spring set 29mm
210284 MS 纖維後二樓板 2.0
310001 內六角公球頭4.8×4.5 (5)
310002 拉桿3×60
310004
310006 萬向接杯 (2)
310007 CVA狗骨 (2)
310008 避震軸心 (4)
310009 主齒軸
310010 馬達座
310042 鋁合金單向組 (一般型)
310043 單向接杯 (一般型) (2)
414228 皮帶-228
414486 皮帶-486
600002 XTR-02 2.4G 遙控器組
601001 22000RPM 有刷 馬達
601002 電子變速器 ESC-RTR
601003 SG5010 伺服機
hex wheel hubs (4)
Alum. Antenna Pipe Mount (Generalized)
避震器調整環 (2)
改裝品編號
414225 皮帶-225
414225J 日製皮帶-225
414486J 日製皮帶-486
414222J 日製皮帶-222
910004-L MST T-shirt 衣服 L
910004-XL MST T-shirt 衣服 XL
910004-2L MST T-shirt 衣服 2L
910004-3L MST T-shirt 衣服 3L
210101 鋁合金伺服機座 (2)
210102
210104 前滾珠差速總成
210105 鋁可調拉桿 3×60
210108 鋁可調拉桿 3×28 (2)
210110 防傾桿組 (半車份/前後通用)
210112 主軸座支撐桿
210113 後金屬滾珠差速器組
210114 鋁合金馬達散熱固定座
210115 鋁合金避震器組 (4)
210116 鋁合金主齒固定板 (1)
[ www.rc-mst.com ]
[ facebok.com/MST.tw ]
鋁合金前單向組
(含前單接杯2/皮帶齒壓板1)
210117 鋁合金主齒固定座 (1)
210118 鋁合金轉向輪座 (藍) (2)
210119 前金屬滾珠差速接杯
210120 鋁合金強力伺服緩衝器 (F/KO)
210121 金屬直軸組
210122 鋁合金轉向雙搖臂組
210123 鋁合金可調後皮帶壓輪座
210124 鋁合金後皮帶壓輪
210125 碳纖維二樓板 F
210126 碳纖維二樓板 R
210127 碳纖維避震架 F
210128 碳纖維避震架 R
210129 碳纖維側板補強片
210130 碳纖維底盤
210131 強化伺服緩衝器 (F/KO)
210132 4.8金屬球頭(5)
210133 5.8金屬球頭(5)
210134 鋁合金上蓋組 R/L (藍)
210135 鋁合金主軸座 R/L
210136 鋁合金 板 R/L (藍)
210137 4mm 拉桿板手
210140 碳纖維電池座組 (黑)
210141 碳纖維電變托盤
210142 鋁合金防撞板上蓋
210143 鋁合金剎車碟六角輪座 (1車份)
210144 避震彈簧組28(4種硬度)
210145 煞車卡鉗 (無烤漆) (4)
210145B 煞車卡鉗 (電鍍藍) (4)
210145GD 煞車卡鉗 (電鍍金) (4)
210146 大角度CVD傳動軸組 (2)
210147 緩衝器簧圈/硬 (黑)
210148 鋁合金馬達散熱片 (可固定風扇)
210151 鋁合金避震筒身 (4)
210155 緩衝器簧圈/中 (藍)
210157 鋁合金CVD傳動軸組
210159 5.8x4 球頭螺絲 (4)
210160 5.8x6 球頭螺絲 (4)
210162 鋁合金小皮帶壓輪座組
(2)
210163 鋁合金六角輪座 (4)
210165 鋁可調拉桿 3×20 (藍) (2)
210166 鋼可調拉桿 3×20 (藍) (2)
210167 鋁可調拉桿 3×25 (藍) (2)
210168 鋼可調拉桿 3×25 (藍) (2)
210178 FS 前置馬達套件
210190 強化擺臂組 (2)
210192 MS 全車銀 板件組 (8件組)
210198 鋼可調拉桿 3x28 (2)
210204 鋁合金分離式直軸組
210205 DK避震彈簧組 30
210206 鋁合金天線管座(通用型)
210207 鋁合金皮帶輪10T
210208 鋁合金皮帶輪11T
210209 鋁合金皮帶輪12T
210210 鋁合金皮帶輪13T
210211 鋁合金皮帶輪18T
210235 避震器活
210273 彈簧組 29mm
塞墊片組
026003 ver.4.1
Loading...
