80-466-3
PACKAGE INCLUDES:
Frame assembly, tent body, rainfly, stakes

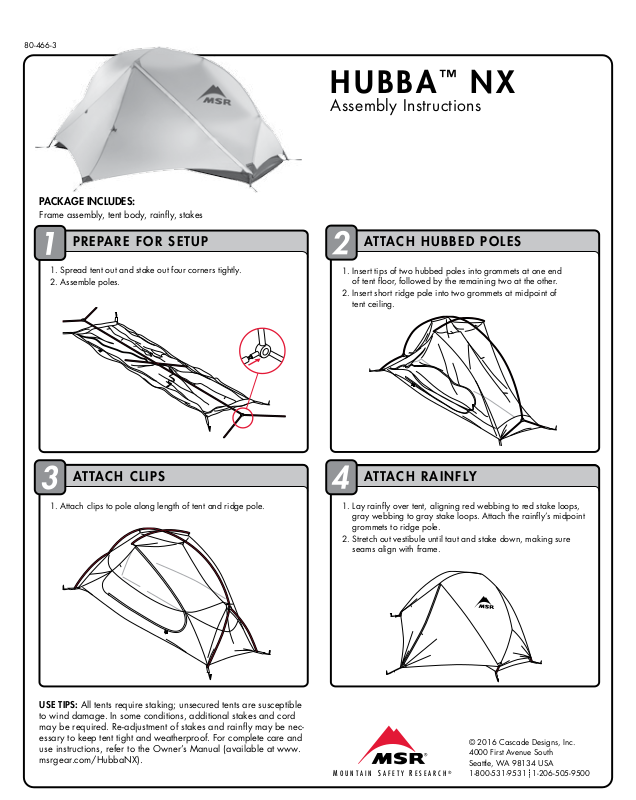

HUBBA™ NX
Assembly Instructions
PREPARE FOR SETUP
1. Spread tent out and stake out four corners tightly.
2. Assemble poles.
ATTACH CLIPS
1. Attach clips to pole along length of tent and ridge pole. 1. Lay rainfly over tent, aligning red webbing to red stake loops,
ATTACH HUBBED POLES
1. Insert tips of two hubbed poles into grommets at one end
of tent floor, followed by the remaining two at the other.
2. Insert short ridge pole into two grommets at midpoint of
tent ceiling.
ATTACH RAINFLY
gray webbing to gray stake loops. Attach the rainfly’s midpoint
grommets to ridge pole.
2. Stretch out vestibule until taut and stake down, making sure
seams align with frame.
USE TIPS: All tents require staking; unsecured tents are susceptible
to wind damage. In some conditions, additional stakes and cord
may be required. Re-adjustment of stakes and rainfly may be necessary to keep tent tight and weatherproof. For complete care and
use instructions, refer to the Owner’s Manual (available at www.
msrgear.com/HubbaNX).
M OUNTAIN S AFETY R ESEARCH
© 2016 Cascade Designs, Inc.
4000 First Avenue South
Seattle, WA 98134 USA
®
1-800-531-9531
1-206-505-9500
