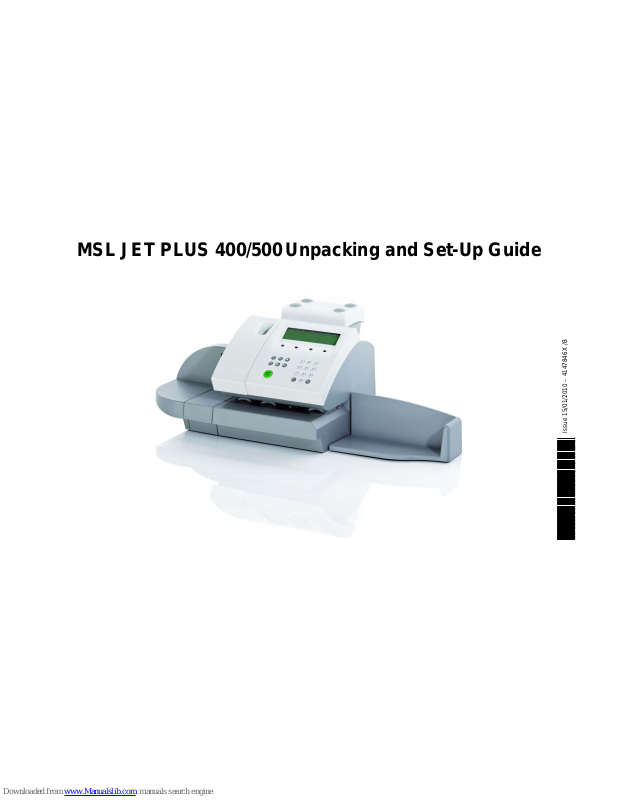

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Issue 15/01/2010 – 4147846X /B

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 1

UNBOX AND SET-UP EQUPIMENT

1 Important: This machine requires connection to a grounded power outlet and an analogue telephone outlet. Choose your set-up location with

this in mind. If you are unsure what type of phone line you have, most fax machines use an analog line.

Step 2

Open the optional JET PLUS 400/500 Feeder or WP05 weigh
platform cartons and remove the contents.

Step 1

Open the JET PLUS 400 or JET PLUS 500 carton and remove the
contents

Remove the cardboard packing insert from the mailing machine by
pulling in the direction of the arrow.

Set aside the Handfeed Platform, Catch Tray, Ink Cartridge, Labels,
Power Cord, Phone Cable, User Guide and optional WP5 Weigh
Platform.

Optional WP5

Weigh Platform

Ink Cartridge

MSL JET PLUS

400/500
Machine

Handfeed

Platform

Catch Tray

Labels

Power Cord

&

Telephone

Cable

Feeder

WP5 Weigh Platform

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 2

UNBOX AND SET-UP (CONTINUED)

Step 3

Attach Infill Unit to the Hand Feed Platform

1) Press on tab with thumb then push up.

2) Pull down slightly then connect the infill to the handfeed
platform

1)

2)

Attach the Infill Unit to the Handfeed Platform. Ensure that the Tabs
and Slots interlock as illustrated. Press infill unit and platform
together then push sealer up to lock.

Step 4

Attach Optional Autofeed Unit

If you received an optional MSL JET PLUS 400/500 Autofeed, you
must first attach the Infill Unit. Place the Infill Unit on the table then
lower the Autofeed Unit onto th e Infill Unit ensuring that the slots on
the autofeed fit tightly over the tabs on the Infill Unit as illustrated.

Feeder

Infill Unit

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 3

UNBOX AND SET-UP (CONTINUED)

Step 5

Attach JET PLUS 400 or JET PLUS 500 Base Unit to the

Autofeed or Hand Feed Platform

With the Autofeed or Handfeed Platform in the desired position on
the table, lower the MSL JET PLUS 400/500 into place so that the
slots fit over the tabs as illustrated. The position of the slots in the
MSL JET PLUS 400/500 is easily identifiable by the metal tabs
easily seen from the top when lowering the unit.

Step 6

Attach the optional WP5 Weigh Platform and Support

Sufficient cable has been provided to enable the unit to be placed
on the table adjacent to the mailing machine if this is preferred.

1. Position the weigh platform on its support. Excess cable can
be loosely coiled in the clips under the support.

2. Position the support platform on top of the MSL JET PLUS
400/500 unit so that the pins on the underside of the support fit
into the locating points on the rear cover of the MSL JET PLUS
400/500.

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 4

UNBOX AND SET-UP (CONTINUED)

Step 7

Fill the Label Dispenser

A package of postage labels is included with your MSL JET PLUS

400/500 mail machine. The label dispenser will hold up to 50 labels.

1. Open the top cover to access the BLUE label release lever.

2. Insert labels into the dispenser with the tab uppermost and the
label side to be printed facing the direction of travel.

3. Using one finger, apply pressure to the label release lever thus
allowing the labels to drop into contact with the feed

mechanism, and then release the lever.

4. Close the top cover.

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 5

UNBOX AND SET-UP (CONTINUED)
Machine Connections to Weigh Platform

1 Do not plug the power cord into the machine until all the other connections have been made

Step 8

Connect optional WP5 2Kgm Weigh Platform to MSL JET

PLUS 400/500 Base Mailing Machine – COM2 only

Note: the weigh platform must be plugged into the lower connector

Cable

Step 9

Connect optional EasyWeigh Platform to MSL JET PLUS

400/500 Base Mailing Machine – COM2 only

Note: the weigh platform must be plugged into the lower connector

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 6

UNBOX AND SET-UP (CONTINUED)
Machine Connections (continued)

1 Do not plug the power cord into the machine until all the other connections have been made

Step 11

Connect optional Mail Accounting PC MSL JET PLUS 400/500

Base Mailing Machine

Note This is only applicable for connection to a supplied PC Mail

Accounting system

Step 10

Connect optional Autofeed to MSL JET PLUS 400/500 Base

Mailing Machine

Cable

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 7

UNBOX AND SET-UP (CONTINUED)
Machine Connections (continued)

Do not plug the power cord into the machine until all the connections have been made

1 If you have a PC Mail Accounting system; 1) power on PC, 2) open the Mail Accounting Software. 3) Power on the machine

Step 12

Telephone Connection to MSL JET PLUS 400/500 Base Mailing

Machine

Note: the telephone connection is only required when adding

postage to the mailing machine

Step 13

Power Cord Connection to MSL JET PLUS 400/500 Base

Mailing Machine

1 Important

After you plug the power cord into the MSL JET PLUS 400/500, it
will beep and display “PLEASE WAIT” while it goes through a
power-up sequence. When it displays:

SUPERVIS USER

Go to Step 14 to install the Ink Cartridge

Telephone Cable

Power Cord

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 8

Step 14

Install Ink Cartridge in MSL JET PLUS 400

/

500 Mailin

g

Machine

1. Remove the Ink Cartridge from its packaging and carefully remove
the tape seals.

2. The MSL JET PLUS 400/500 mailing machine must be plugged in

and displaying

SUPERVIS USER

to install the Ink Cartridge.

3. Press the blue button under USER

4. The display is

5. Open the machine top cover

6. Place the new cartridge in its holder.

7. Lock the cartridge in position by carefully pushing down on the
depressed semi-circle on the top of the cartridge with your index
finger, and then use your thumb to push the cartridge to the rear
until you hear it ‘click’ into place.

8. Close the machine cover and press the blue button under OK

9. After a short delay the prompt to make a Test Print will be
displayed

10. To make a Test print, insert a blank envelope into the machine
and press the green START/STOP button.

11. Inspect the Test Print and enter the straightest line (for the
example above it is line 5) by pressing the appropriate numeric
key on the keypad then press the blue button under OK.

12. The machine returns to Ready Mode

MSL JET PLUS 400/500 Unpacking and Set-Up Guide

Page 9

Step 15

A

dding Postage to the Mete

r

Postage is purchased from the Royal Mail using the CREDIFON
system. You must have funds in your account to add postage to your
meter.

1 Ensure that the telephone cable from the modem socket located in

the rear of the machine is connected to an analogue telephone
outlet (as detailed on page 7 of this guide). If your analogue
telephone system requires dialing a prefix, please refer to the User
Guide for set-up instructions.

1. From Ready mode, press

on the keyboard (this is the Funds

key)

2. The ENTER AMOUNT screen is displayed

3. Use the numeric key pad to enter the four digit CREDIFONPIN and
then select the amount of postage you wish to purchase

4. For example, if you require £100-00 then

5. Press

and OK to confirm

6. You will now be asked to verify the amount before proceeding.

• If the amount displayed is correct, press OK to confirm

• If the amount is incorrect, press ESCAPE and start again from

the Enter Amount screen.

7. The postage meter will connect to the CREDIFON system and
upon completion of the Add Postage transaction, the following
screen will be displayed.

8. Press OK or ESCAPE to return to Ready Mode.

YOU ARE NOW READY TO USE YOUR MAILING MACHINE

 For more details on using MSL JET PLUS 400/500 mailing

Machine, please refer to your User Guide.
