Page 1
1
JUNGLE AROUND
KA-600
USER MANUAL
M SKY CO., LTD--5 F, NO.15 BUILDING, GAME&AMUSEMENT PART, GANGKOU,ZHONGSHAN,GUANGDONG,CHINA
Tel: 0086-0760-88487510 Fax:0086-0760-88487512
IMPORTANT!
★Read the manual before operating this machine
★Keep this manual for your reference
Page 2
2
Content
1. General Information ---------------------------------------------------------------------------3
1.1 Specification-------------------------------------------------------------------------------3
1.2 Warning-------------------------------------------------------------------------------------4
1.3 Caution--------------------------------------------------------------------------------------4
1.4 Power supply and installation---------------------------------------------------------4
1.5 Use-------------------------------------------------------------------------------------------4
1.6 Maintenance ------------------------------------------------------------------------------4
2. Parts and Functions------------------------------------------------------------------------------5
3. Game Instruction---------------------------------------------------------------------------------6
4. Background Setting Instruction---------------------------------------------------------------7
5. Wiring Diagram-----------------------------------------------------------------------------------8
6. Quick Trouble Shooting-------------------------------------------------------------------------9
7. Warranty------------------------------------------------------------------------------------------10
Page 3
3

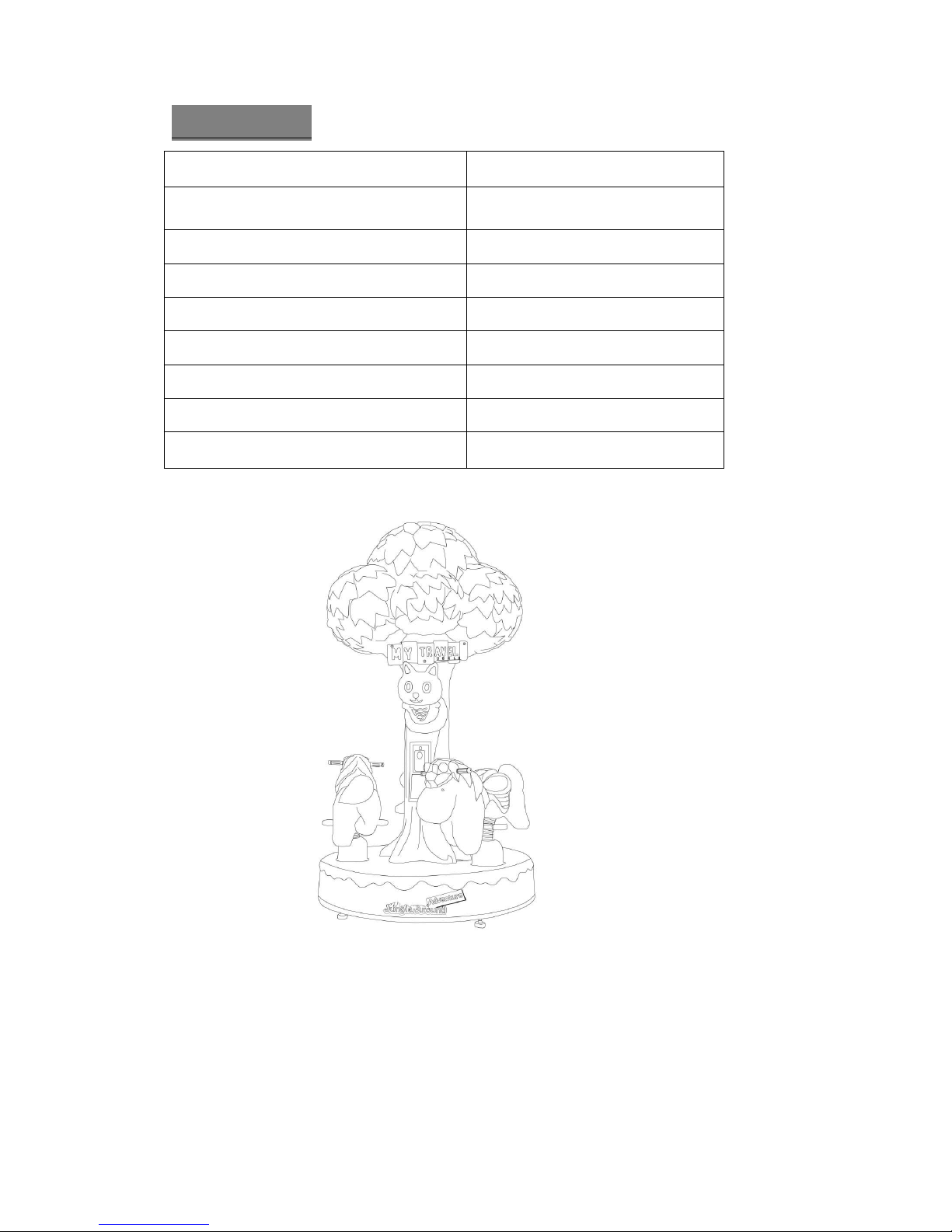

1.1 Specification
Model
Jungle Around
Reference Code
KA-600
Power at rest
95 W
Power in operation
160W
Dimensions (mm)
1250x1250x2320mm
Weight (KG)
180 KG
Feeding voltage
220V/ 110V
Seats
3
Users range of ages
2~6 years
Feel Magic Jungle World!
Scene decoration & amusement.
Touch me-interactive voice function
Three running ponies with different colors.
Slowly go up and down, ensure players’ safety.
Page 4
4
1.2 Warning
●Do not set the machine where it could block emergency exits.
●
Install the machine in a horizontal and stable surface.
●
Do not bend the power cord by force or place heavy objects on it.
●
Never plug or unplug the power cord with wet hands.
●
Before inspecting the machine, make sure the power is OFF.
●
Use always, for replacement parts, pieces authorized by M SKY.
1.3 Caution
●The machine must be connected to a plug with ground.
●
Do not put the power cord where people walk through.
●
Do not lift the machine by part, could be damaged. Must be always be lift by the base.
●
If the power cord is damaged，please power off and contact our staff for replacement.
1.4 POWER SUPPLY & INSTALLATION
● Use only a grounded outlet.
●
Check the power requirements at the installation place machine.
●
Do not touch the power plug with wet hands.
●
Use specified fuse rating.
1.5 Use
● Before introducing the coin in to the machine, be sure that the child sit correctly.
●
Do not rise or go down the child while the kiddie is in movement.
●
This machine must be operated under adult supervision.
●
Only one player on one seat.
1.6 Maintenance
●Be sure to check and maintain the game regularly.
●
Switch off the power before cleaning or replacing the parts of the game.
●
Only qualified personnel to inspect or test the electronic card.
●
Please use clean and soft cloth to clean the game.
●
Prevent damaging the surface of the game, please use gentle cleanser.
Page 5
5

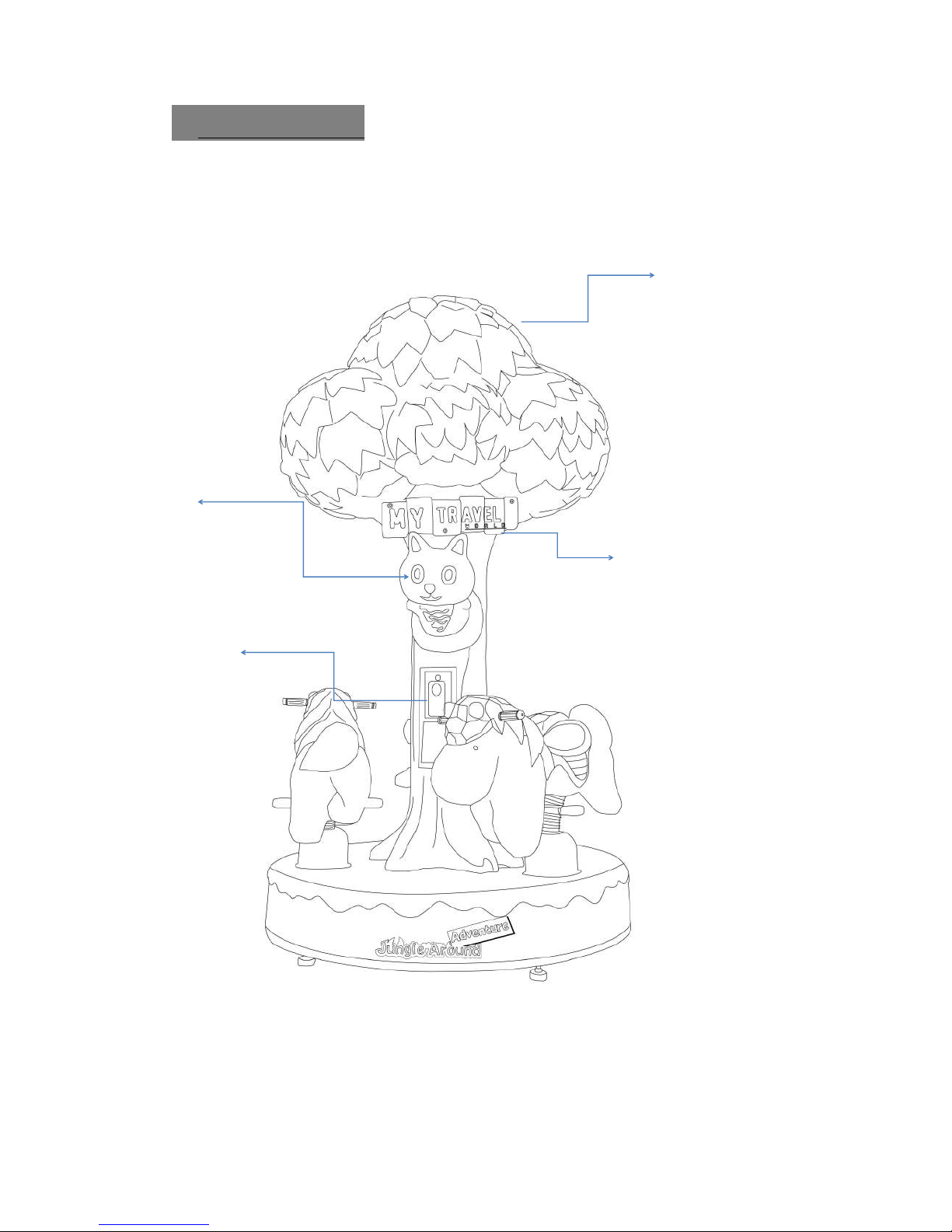

2. Parts and Functions
Open top cover
Show sky projection
Emergency Stop Button
Open for background
setting
Touch the tigers
It will say: “Don’t
Touch me.”
Page 6
6

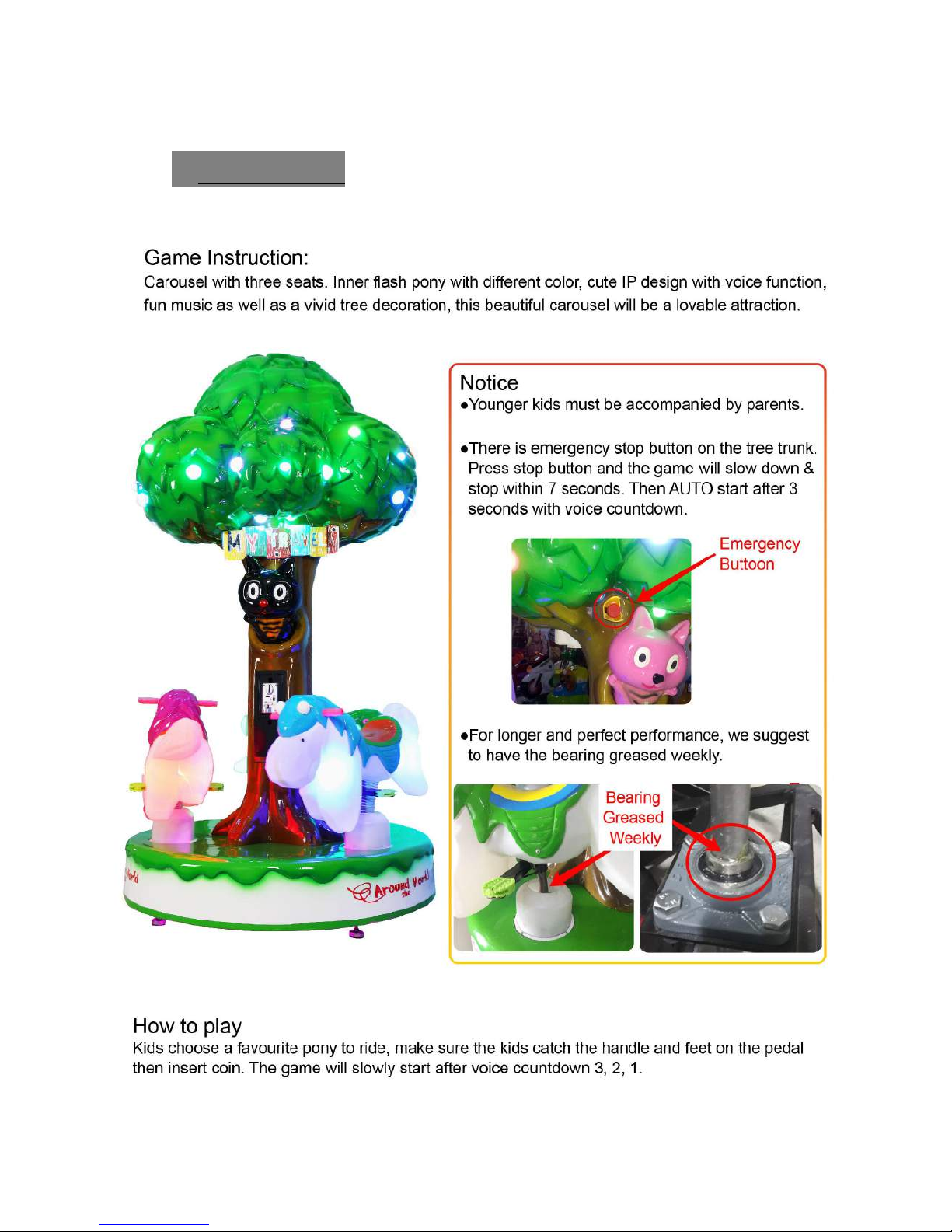

3. Game Instruction
Page 7
7

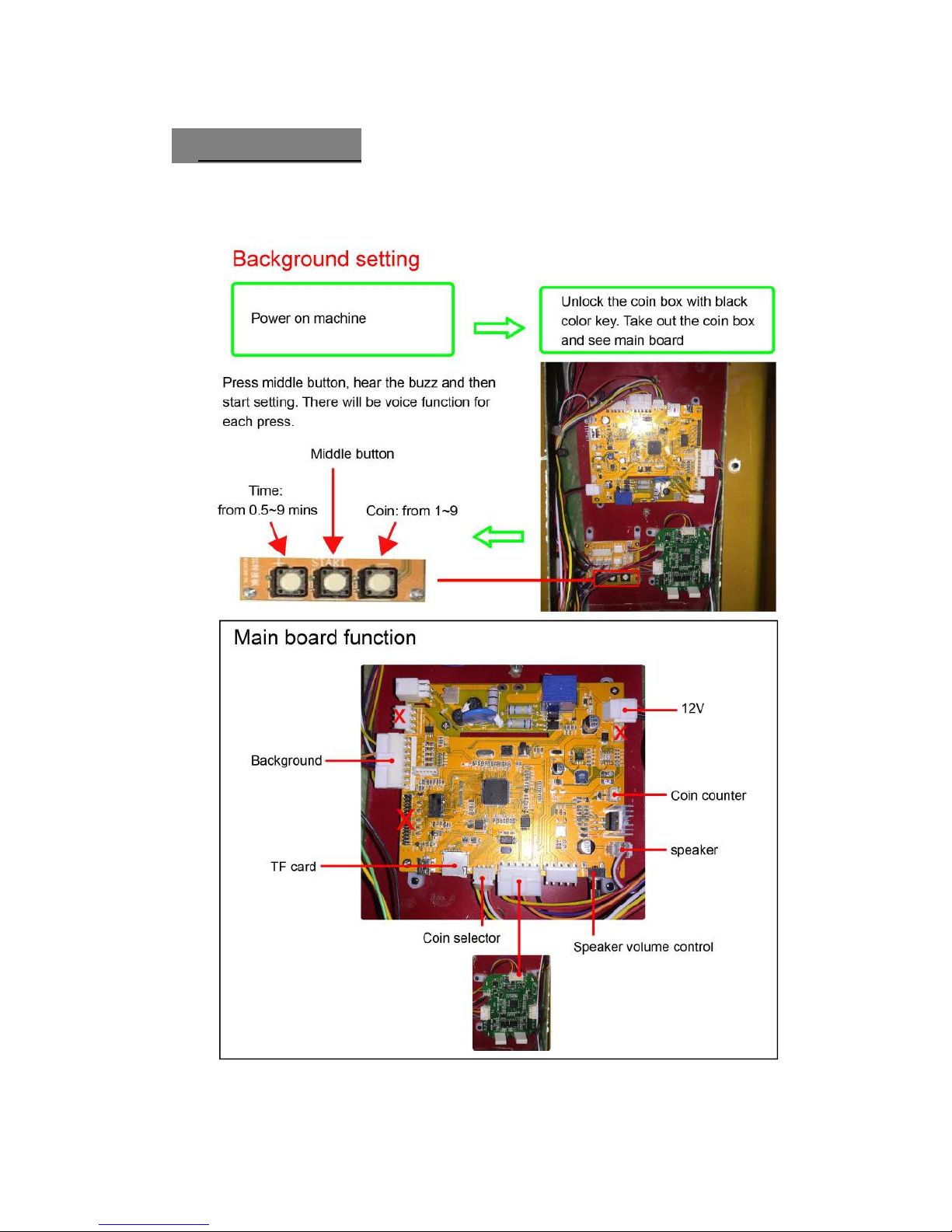

4. Background setting
Page 8
8

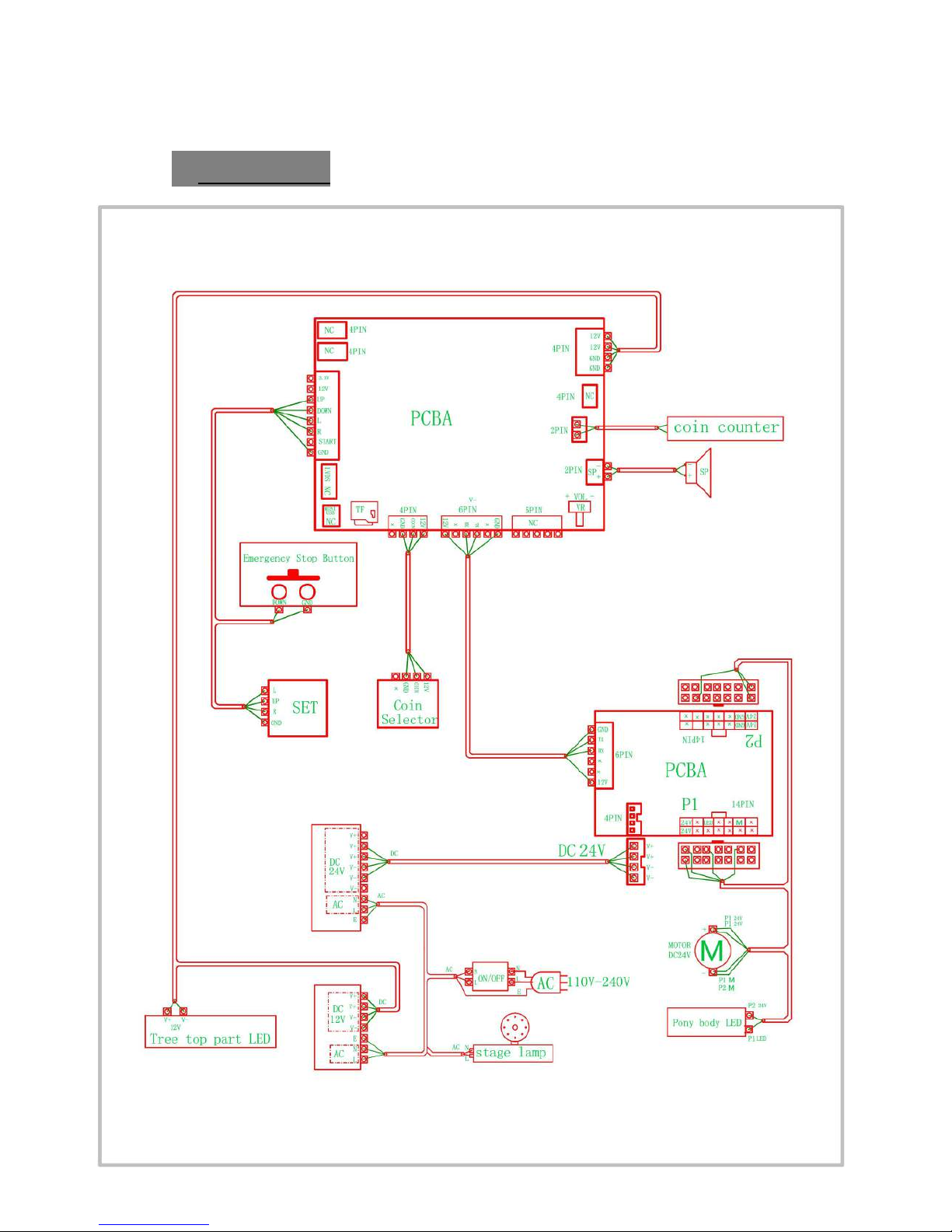

5. Wiring Diagram
Page 9
9
6. Quick trouble shooting
Black LCD, no picture
（1）
Please check whether LCD driver board cable and game box cable is connect
well
（2）
Please check whether the 18A power supply LED light is on or off.
If LED light off: The power supply broken
（3）
Please check whether can insert coin.
If no, game box has problem
（4）
Please check whether the fan on the game box is working
If no, game box has problem
Machine can’t move to Left or Right
（1）
Please check whether the cable of steering wheel LR board is connected well
（2）
Please add some lube on the ball bearing and push the machine
head move to Right and Left.
（3）
Please check whether the game can move right or left. If no, the
steering wheel broken
Game stuck during playing
（1）
Game box problem, send back to repair.
Coin accepter can’t accept coin
（1）
Please change another coin selector to try
（2）
Please check whether coin selector cable is connected well
No voice or low voice
（1） Please check whether the speaker cable connected well.
Page 10
10

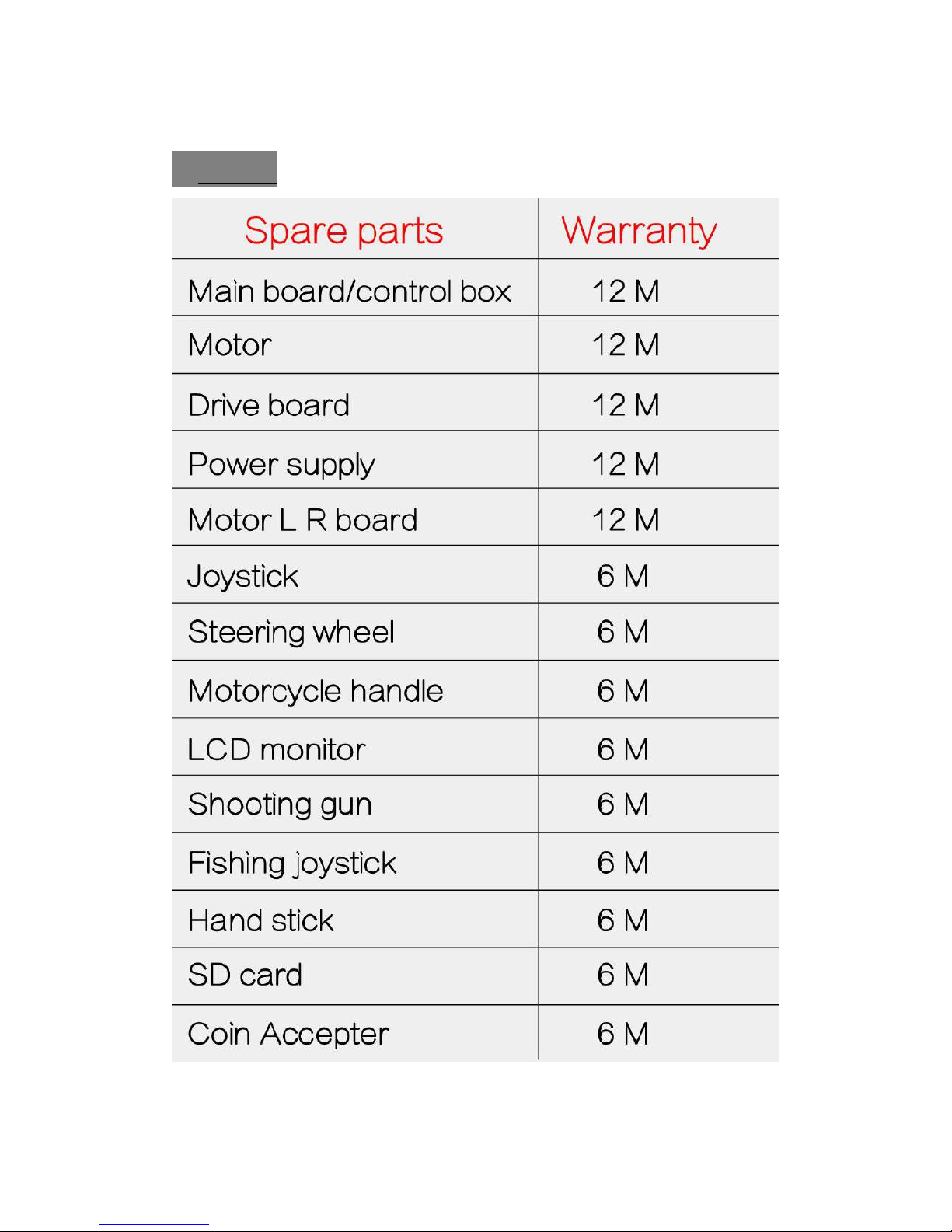

7. Warranty
