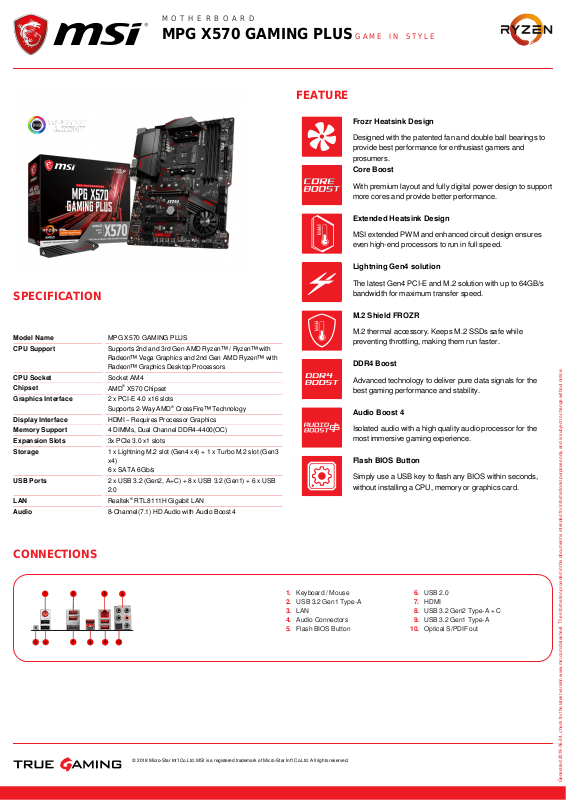

MSI X570 Gaming Plus Service Manual

SPECIFICATION

MOTHERBOARD

MOTHERBOARD

MPG X570 GAMING PLUS GAME IN STYLE

MPG X570 GAMING PLUS GAME IN STYLE

FEATURE

Frozr Heatsink Design

Designed with the patented fan and double ball bearings to
provide best performance for enthusiast gamers and
prosumers.

Core Boost

With premium layout and fully digital power design to support
more cores and provide better performance.

Extended Heatsink Design

MSI extended PWM and enhanced circuit design ensures
even high-end processors to run in full speed.

Lightning Gen4 solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.

Model Name MPG X570 GAMING PLUS

CPU Support Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with

CPU Socket Socket AM4

Chipset

Graphics Interface 2 x PCI-E 4.0 x16 slots

Display Interface HDMI – Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR4-4400(OC)

Expansion Slots 3x PCIe 3.0 x1 slots

Storage 1 x Lightning M.2 slot (Gen4 x4) + 1 x Turbo M.2 slot (Gen3

USB Ports 2 x USB 3.2 (Gen2, A+C) + 8 x USB 3.2 (Gen1) + 6 x USB

LAN

Audio 8-Channel(7.1) HD Audio with Audio Boost 4

Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with
Radeon™ Graphics Desktop Processors

AMD® X570 Chipset

Supports 2-Way AMD® CrossFire™ Technology

x4)
6 x SATA 6Gb/s

2.0

Realtek® RTL8111H Gigabit LAN

CONNECTIONS

M.2 Shield FROZR

M.2 thermal accessory. Keeps M.2 SSDs safe while
preventing throttling, making them run faster.

DDR4 Boost

Advanced technology to deliver pure data signals for the
best gaming performance and stability.

Audio Boost 4

Isolated audio with a high quality audio processor for the
most immersive gaming experience.

Flash BIOS Button

Simply use a USB key to flash any BIOS within seconds,
without installing a CPU, memory or graphics card.

Keyboard / Mouse1.
USB 3.2 Gen1 Type-A2.
LAN3.
Audio Connectors4.
Flash BIOS Button5.

© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.

© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.

USB 2.06.
HDMI7.
USB 3.2 Gen2 Type-A + C8.
USB 3.2 Gen1 Type-A9.
Optical S/PDIF out10.

Generated 2019-06-24, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
