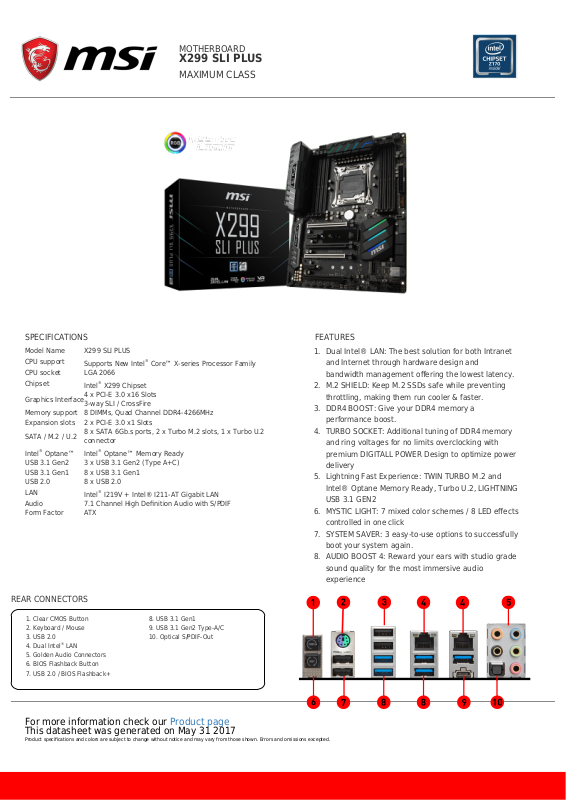

MOTHERBOARD

X299 SLI PLUS

MAXIMUM CLASS

SPECIFICATIONS

Model Name X299 SLI PLUS
CPU support
CPU socket LGA 2066
Chipset

Graphics Interface

Memory support 8 DIMMs, Quad Channel DDR4-4266MHz
Expansion slots 2 x PCI-E 3.0 x1 Slots

SATA / M.2 / U.2

Intel® Optane™ Intel® Optane™ Memory Ready
USB 3.1 Gen2 3 x USB 3.1 Gen2 (Type A+C)
USB 3.1 Gen1 8 x USB 3.1 Gen1
USB 2.0 8 x USB 2.0

LAN
Audio 7.1 Channel High Definition Audio with S/PDIF

Form Factor ATX

Supports New Intel® Core™ X-series Processor Family

Intel® X299 Chipset
4 x PCI-E 3.0 x16 Slots
3-way SLI / CrossFire

8 x SATA 6Gb.s ports, 2 x Turbo M.2 slots, 1 x Turbo U.2
connector

Intel® I219V + Intel® I211-AT Gigabit LAN

REAR CONNECTORS

FEATURES

Dual Intel® LAN: The best solution for both Intranet1.
and Internet through hardware design and
bandwidth management offering the lowest latency.
M.2 SHIELD: Keep M.2 SSDs safe while preventing2.
throttling, making them run cooler & faster.
DDR4 BOOST: Give your DDR4 memory a3.
performance boost.
TURBO SOCKET: Additional tuning of DDR4 memory4.
and ring voltages for no limits overclocking with
premium DIGITALL POWER Design to optimize power
delivery
Lightning Fast Experience: TWIN TURBO M.2 and5.
Intel® Optane Memory Ready, Turbo U.2, LIGHTNING
USB 3.1 GEN2
MYSTIC LIGHT: 7 mixed color schemes / 8 LED effects6.
controlled in one click
SYSTEM SAVER: 3 easy-to-use options to successfully7.
boot your system again.
AUDIO BOOST 4: Reward your ears with studio grade8.
sound quality for the most immersive audio
experience

1. Clear CMOS Button

2. Keyboard / Mouse

3. USB 2.0

4. Dual Intel® LAN

5. Golden Audio Connectors

6. BIOS Flashback Button

7. USB 2.0 / BIOS Flashback+

8. USB 3.1 Gen1

9. USB 3.1 Gen2 Type-A/C

10. Optical S/PDIF-Out

For more information check our Product page
This datasheet was generated on May 31 2017

Product specifications and colors are subject to change without notice and may vary from those shown. Errors and omissions excepted.
