User's Manual
NOTEBOOK
Content
Copyright and Trademarks Notice................................................................................ |
1-4 |
Revision History............................................................................................................ |
1-4 |
FCC-B Radio Frequency Interference Statement......................................................... |
1-5 |
FCC Conditions............................................................................................................. |
1-5 |
CE Conformity............................................................................................................... |
1-5 |
Battery Regulations....................................................................................................... |
1-6 |
WEEE Statement.......................................................................................................... |
1-6 |
Chemical Substances Information ............................................................................... |
1-6 |
RoHS Statement ......................................................................................................... |
1-7 |
Japan JIS C 0950 Material Declaration................................................................... |
1-7 |
India RoHS............................................................................................................... |
1-7 |
Turkey EEE regulation............................................................................................. |
1-7 |
Ukraine restriction of hazardous substances........................................................... |
1-7 |
Vietnam RoHS......................................................................................................... |
1-7 |
Upgrade and Warranty ................................................................................................ |
1-8 |
Acquisition of Replaceable Parts.................................................................................. |
1-8 |
Safety Instructions........................................................................................................ |
1-9 |
MSI Highlights ............................................................................................................ |
1-11 |
Introductions................................................................................ |
2-1 |
Unpacking..................................................................................................................... |
2-2 |
Product Overview.......................................................................................................... |
2-3 |
Top-open View......................................................................................................... |
2-3 |
Front Side View........................................................................................................ |
2-5 |
Right Side View........................................................................................................ |
2-6 |
Left Side View.......................................................................................................... |
2-7 |

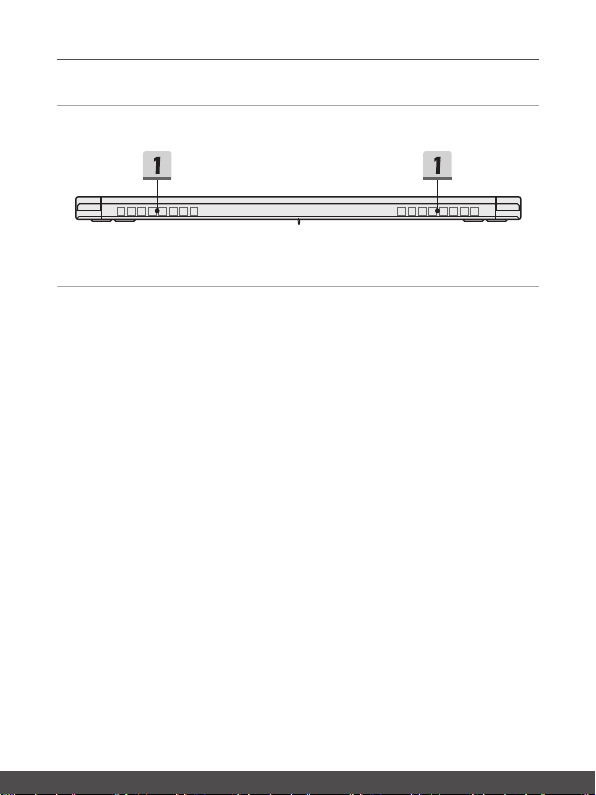

Rear Side View........................................................................................................ |
2-9 |
Bottom Side View................................................................................................... |
2-10 |
How to Use the Keyboard........................................................................................... |
2-12 |
Windows Key......................................................................................................... |
2-12 |
Quick Launch Keys................................................................................................ |
2-13 |
Disable or Enable Touchpad.................................................................................. |
2-14 |
Enter Sleep Mode.................................................................................................. |
2-14 |
Switch Display........................................................................................................ |
2-14 |
Use Multiple Monitors............................................................................................ |
2-14 |
Adjust the Brightness Level of the Display ............................................................ |
2-15 |
1-2 |
|
|
|
|
|
User's Manual
Adjust the Sound Level of the Speaker.................................................................. |
2-15 |
Adjust the Brightness Level of the Keyboard Backlight LED (optional)................. |
2-15 |
Video: How to Use [Fn] Buttons............................................................................. |
2-16 |
Specifications.............................................................................................................. |
2-17 |
How to Get Started....................................................................... |
3-1 |

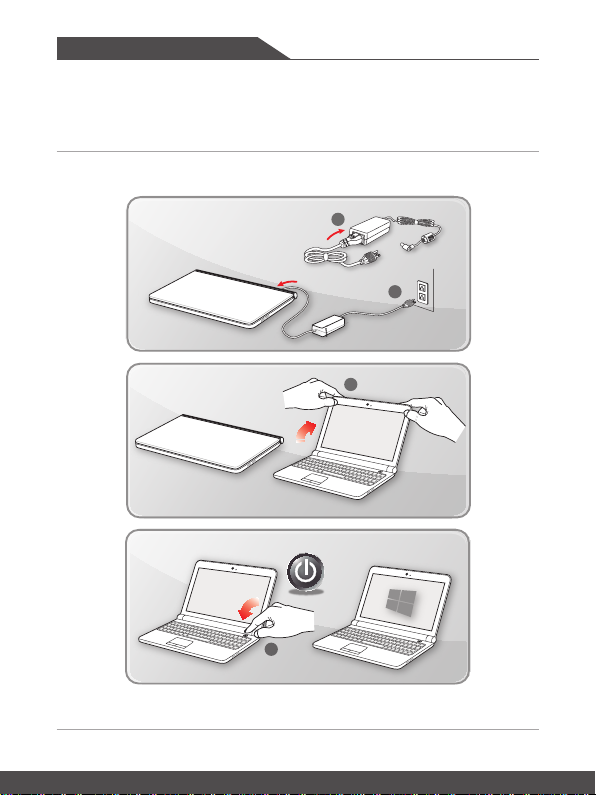

Begin to Use the Notebook........................................................................................... |
3-2 |

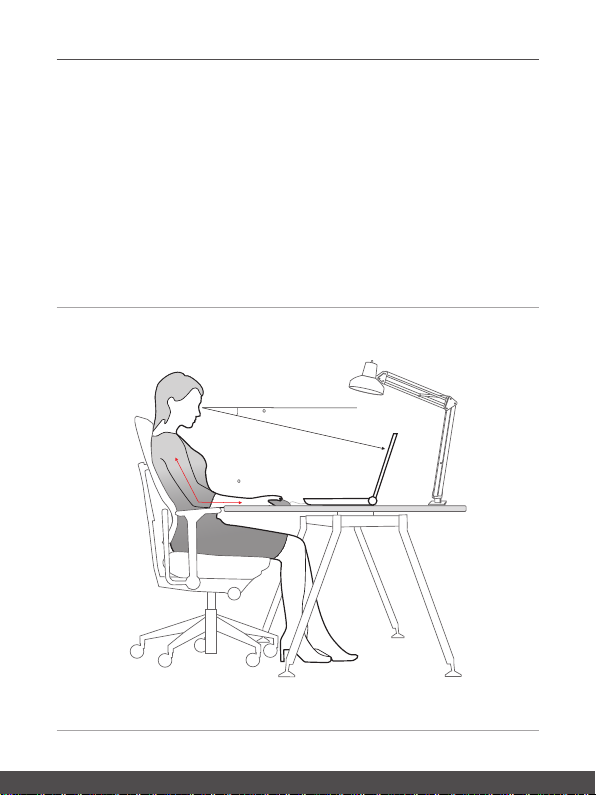

How to Use the Notebook Comfortably......................................................................... |
3-3 |
How to Manage Power Supply...................................................................................... |
3-4 |
AC/DC Adapter........................................................................................................ |
3-4 |
Battery...................................................................................................................... |
3-4 |

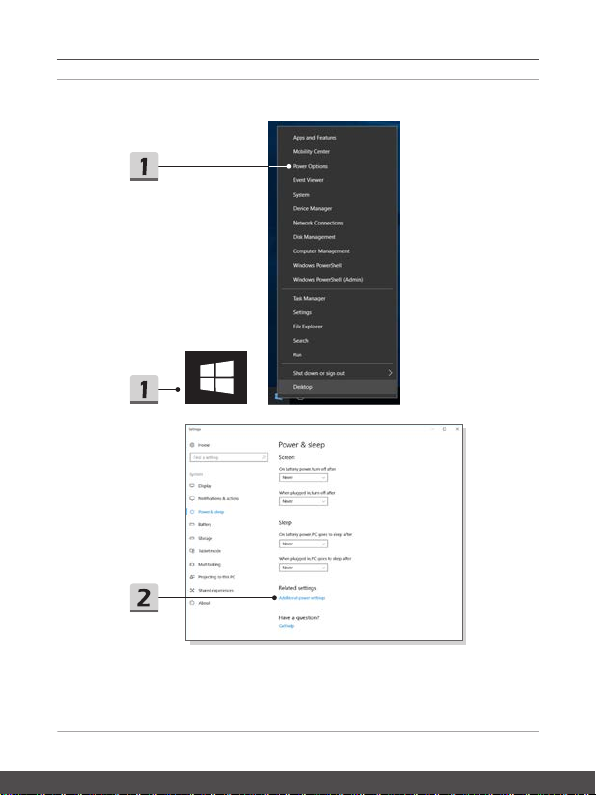

How to Set Up a Power Plan in Windows 10................................................................ |
3-6 |
Choose or Customize a Power Plan........................................................................ |
3-6 |

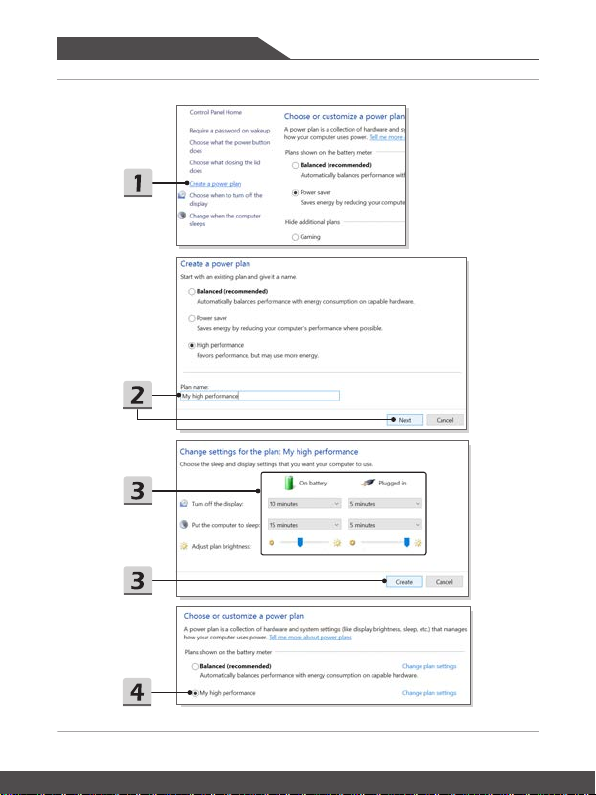

Create Your Own Power Plan.................................................................................. |
3-9 |

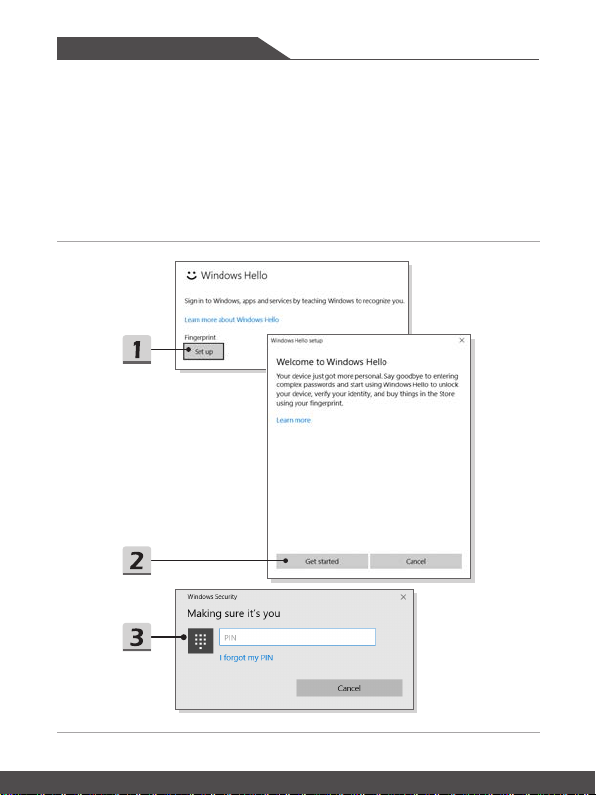

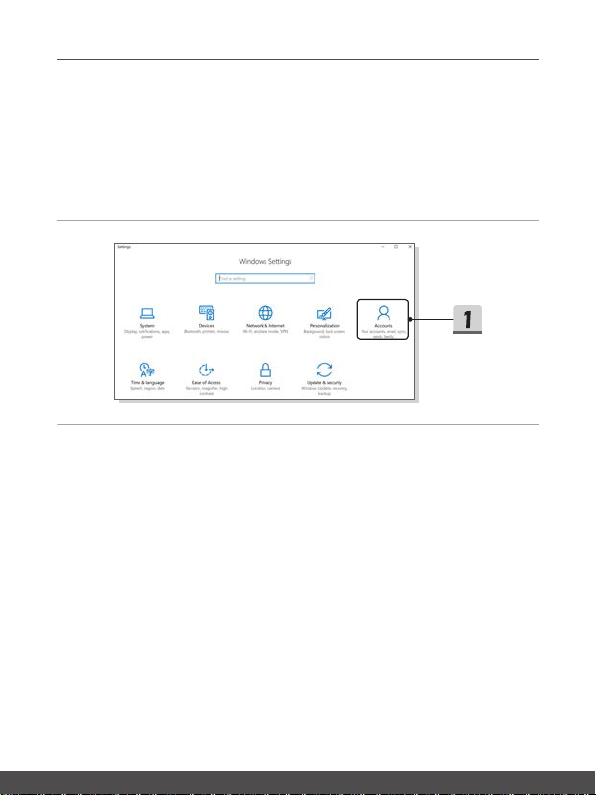

How to Set Up Windows Hello Fingerprint Login ....................................................... |
3-11 |

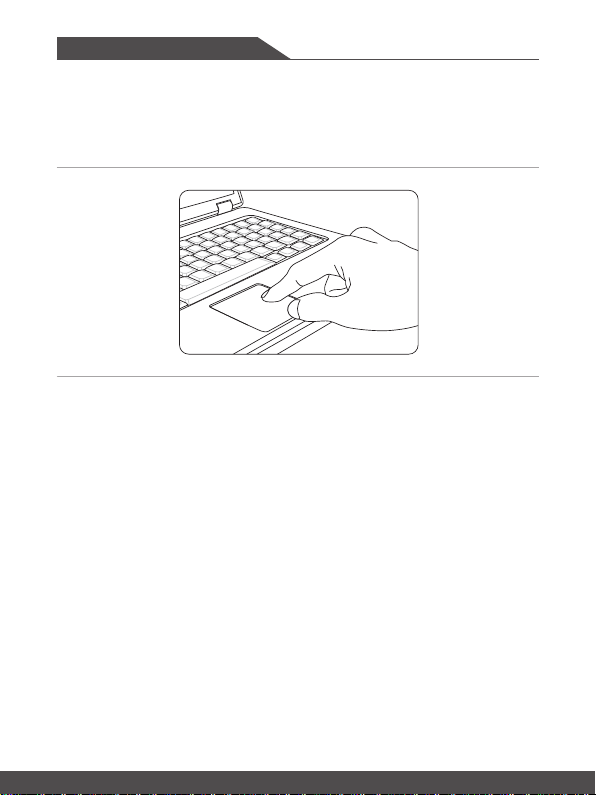

How to Use the Touchpad ......................................................................................... |
3-16 |
About HDD and SSD.................................................................................................. |
3-17 |
About M.2 SSD Slot.................................................................................................... |
3-17 |

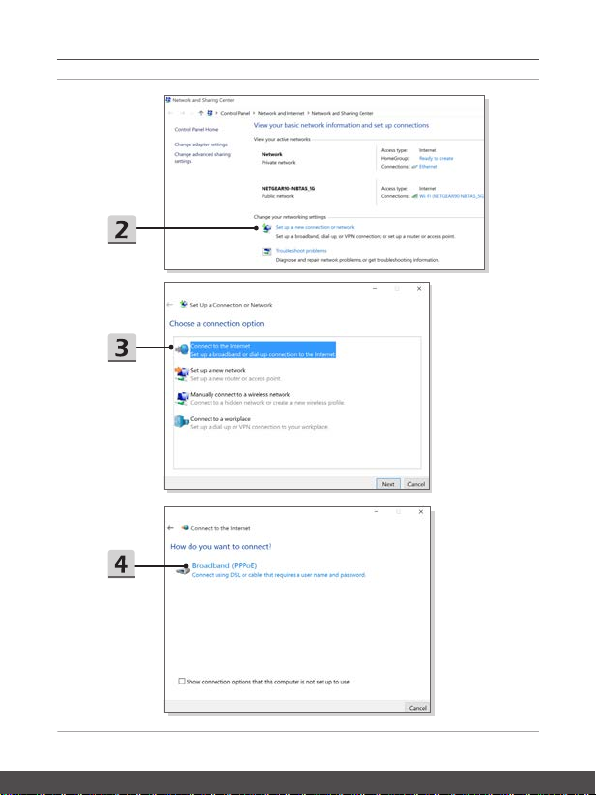

How to Connect the Internet....................................................................................... |
3-18 |

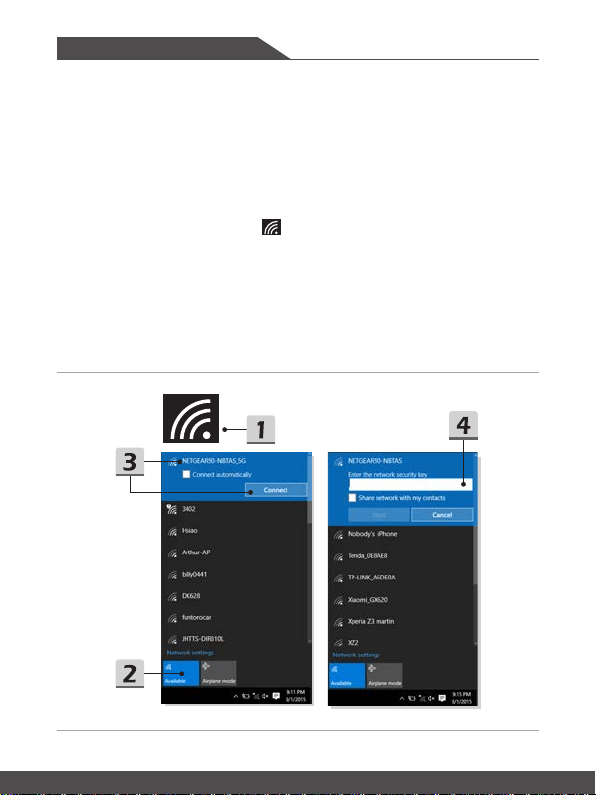

Wireless LAN......................................................................................................... |
3-18 |
Wired LAN.............................................................................................................. |
3-20 |

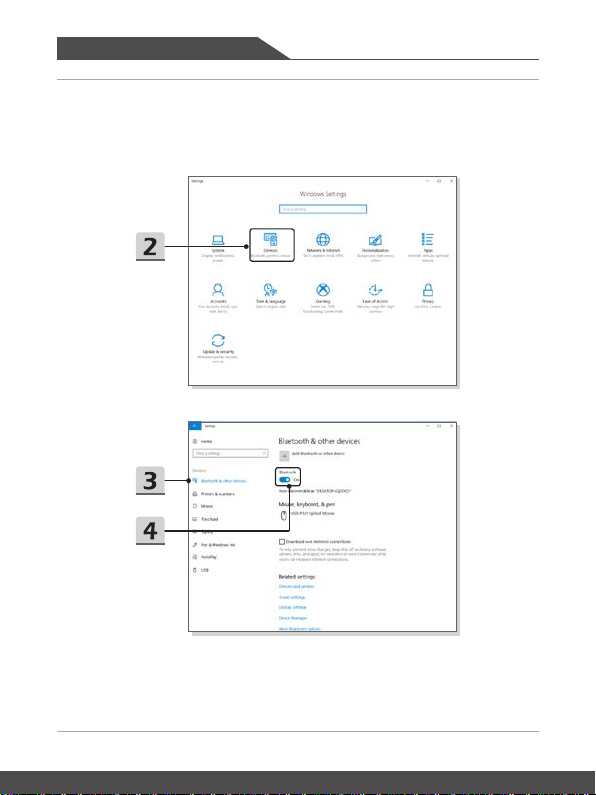

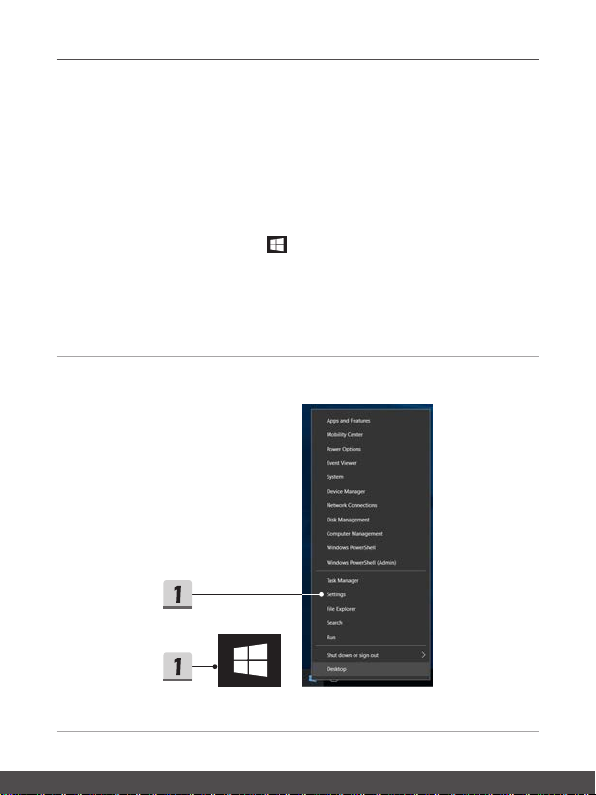

How to Set Up Bluetooth Connection......................................................................... |
3-25 |

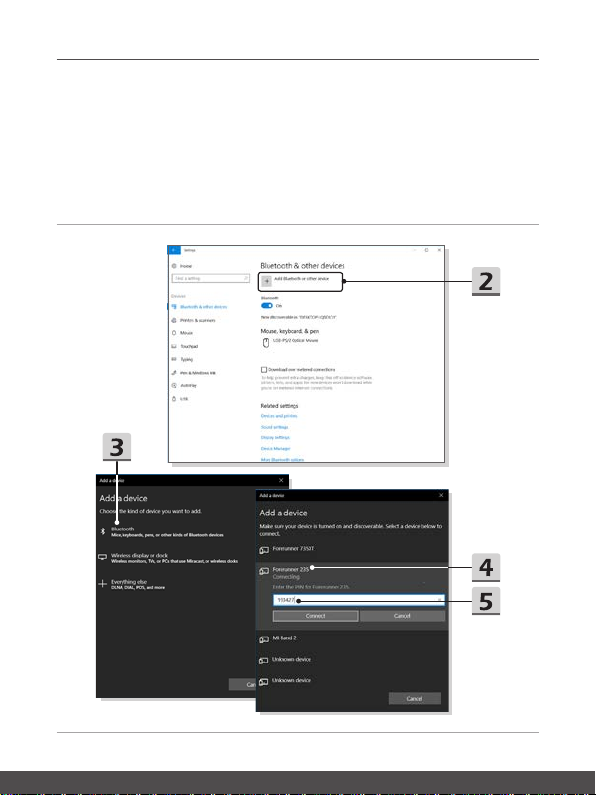

Activating Bluetooth Connection............................................................................ |
3-25 |

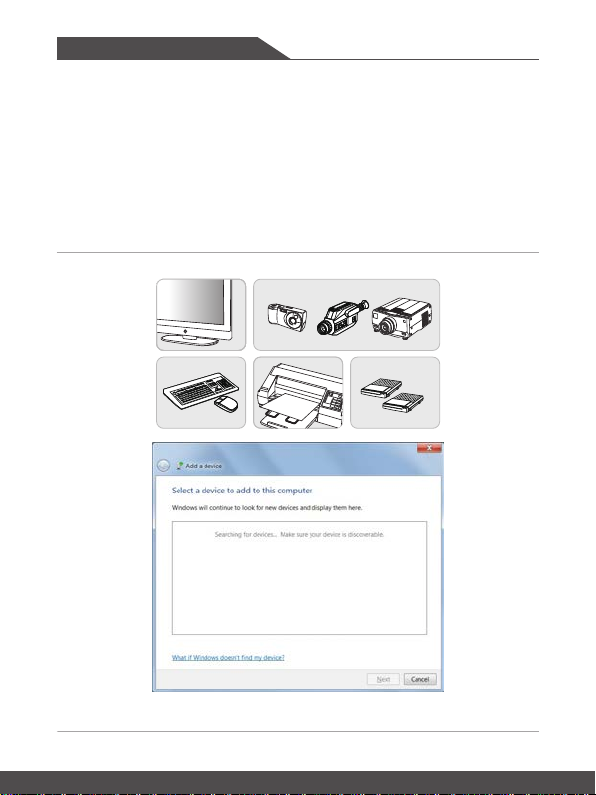

How to Connect External Devices.............................................................................. |
3-28 |
How to Select Boot Mode in BIOS.............................................................................. |
3-29 |
Video: How to Restore Windows 10 Operating System on MSI Notebooks............... |
3-30 |
Video: How to Use MSI One Touch Install ................................................................. |
3-31 |
1-3
Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.
Version: 2.0
Date: 12, 2019
1-4
User's Manual
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
NOTE
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Shield interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
This device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.
1-5
European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.
Taiwan: For better environmental protection, waste batteries should be collected separately for recycling or special disposal.
California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/ perchlorate/
Safety Guideline for Using Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer’s instructions.
European Union: Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/ EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal waste
anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.
In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html
1-6
User's Manual
A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.
http://www.msi.com/html/popup/csr/cemm_jp.html http://tw.msi.com/html/popup/csr_tw/cemm_jp.html
This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Conforms to the EEE Regulations of the Republic Of Turkey.
The equipment complies with requirements of the Technical Regulation, approved by the
Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
1-7
Please note that certain components, such as memory modules, HDD, SSD, ODD, and Bluetooth/WiFi combo card, etc., preinstalled in the product may be upgradable or replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if users do not understand the component location or how to assembly/disassembly, since it may cause the product damaged. It is recommended that user contact the authorized dealer or service center for product service.
Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfilled by the
manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time. Please contact the manufacturer via http:// www.msi.com/support/ for the detailed information about the acquisition of spare parts.
1-8
User's Manual
Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user’s manual should be noted.
Keep the notebook away from humidity and high temperature.
Lay the notebook on a stable surface before setting it up.
Do not cover the ventilators of the notebook to prevent the notebook from overheating.
•Do not leave the notebook in an unconditioned environment with a storage temperature above 60ºC (140ºF) or below 0ºC (32ºF),
which may damage the notebook.
• This notebook should be operated under maximum ambient temperature of 35ºC (95ºF).
Place the power cord in a way that people are unlikely to step on it. Do not place anything on top of the power cord.
Always keep the strong magnetic or electrical objects away from the notebook.
• Never pour liquid into the opening that could damage the equipment or cause an electrical shock.
•Never use any chemical substance to wipe the surface of this equipment, such as keyboard, touchpad, and notebook case.
1-9
If any of the following situations arises, get the equipment checked by a service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment has not worked well or you can not get it work according to User’s Manual.
•The equipment was dropped and damaged.
•The equipment has obvious signs of breakage.
Green Product Features
•Reduced energy consumption during use and stand-by
•Limited use of substances harmful to the environment and health
•Easily dismantled and recycled
•Reduced use of natural resources by encouraging recycling
•Extended product lifetime through easy upgrades
•Reduced solid waste production through take-back policy
Environmental Policy
•The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
•Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
•Visit the MSI website and locate a nearby distributor for further recycling information.
•Users may also reach us at gpcontdev@msi.com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.
1-10
User's Manual
Explore more exclusive features of MSI notebooks for all series, please visit: http://www.msi.com and https://www.youtube.com/user/MSI
How to use SteelSeries Engine 3 on MSI notebooks
MSI collaborates with SteelSeries to develop an exclusive SteelSeries Engine 3 in gaming notebooks. SteelSeries Engine 3 is the Apps to combine frequently used functions for gamers in multiple devices management.
Sound by Dynaudio on MSI Gaming Notebooks
MSI partners with Dynaudio, the Danish sound specialists, in its gaming notebooks to present you an authentic fidelity audio performance.
Color Your Life with True Color
MSI has partnered with Portrait Displays, Inc. in developing more accurate, high precision panel quality. MSI True Color Technology guarantees that each panel in a MSI notebook comes with the finest precision in color.
Tutorial: How to use Nahimic
Discover how to use Nahimic and its three features: Nahimic Audio
Effects, Microphone Effects and HD Audio recorder.
1-11
1-12
Introductions
User's Manual
NOTEBOOK
Introductions
Congratulations on becoming an user of this notebook, the finely designed notebook. You will have a delightful and professional experience in using this exquisite notebook. We are proud to tell users that this notebook is thoroughly tested and certified by our reputation for unsurpassed dependability and customer satisfaction.
Unpacking
First, unpack the shipping carton and check all items carefully. If any item contained is damaged or missing, please contact your local dealer immediately. Also, keep the box and packing materials in case you need to ship the unit in the future. The package should contain the following items:
Notebook
Quick Start Guide
AC/DC adapter and AC power cord
Optional carry bag
2-2
User's Manual
Product Overview
This section provides the description of basic aspects of the notebook. It will help you to know more about the appearance of this notebook before using it. Please be aware that the figures shown here are for reference only.
Top-open View
The figure of top-open view and description shown below will lead you to browse the main operating area of your notebook.
2-3 |
Introductions
1.Power Button
|
|
Power Button |
|
|
|
||
|
|
• |
Use this button to turn the notebook power ON and OFF. |
Power |
• |
Use this button to awake the notebook from the sleep state. |
|
|
|
|
|
2.Keyboard
The built-in keyboard provides all the functions of a notebook keyboard. Refer to How to Use the Keyboard for details.
3.Touchpad
This is the pointing device of the notebook.
4.Fingerprint Sensor (optional)
Use the fingerprint sensor to set up user’s fingerprints on the notebook, and use it to unlock the notebook. Refer to “How to Set Up Windows Hello Fingerprint Login” in chapter 3 for details.
5.Status LED
Caps Lock
Glows when the Caps Lock function is activated.
6.Webcam/ Webcam LED/ Internal Microphone
•This built-in webcam can be used for picture taking, video recording or conferencing, and so on.
•Webcam LED indicator, next to the webcam, glows when webcam function is activated; LED goes out when this function is turned off.
•A secondary webcam LED indicator, located on the F6 keycap, glows when webcam function is activated; LED goes out when this function is turned off.
•The built-in microphone and its function is the same with microphone.
2-4
User's Manual
Front Side View
2-5
Introductions
Right Side View
1.Kensington Lock
This notebook provides a Kensington lock hole, which allows users to secure the notebook in place.
2.USB 3.2 Gen 1 Port
USB 3.2 Gen 1, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.
3.Card Reader
The built-in card reader supports various types of memory cards. Check the Specifications for details.
4.USB 3.2 Gen 1 Port (Type C)
USB 3.2 Gen 1, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.
The slim and sleek USB Type C connector features reversible plug orientation and cable direction and supports 5V/1.5A portable charging power when AC power is connected.
2-6
User's Manual
Left Side View
1.HDMI Connector
HDMI (High-Definition Multimedia Interface) technology is the industry-leading interface and de-facto standard connecting high-definition (HD) and ultra highdefinition (UHD) equipment.
2.Audio Port Connector
Make high quality sound blaster with stereo system and Hi-Fi function supported.
Combo Audio Connector
• A connector for headsets with attached microphones
• The Combo Audio Connector supports 4-Pole 3.5mm headphone jack.
3.Power Connector
This connector is to connect the AC/DC adapter and supply power for the notebook.
2-7
