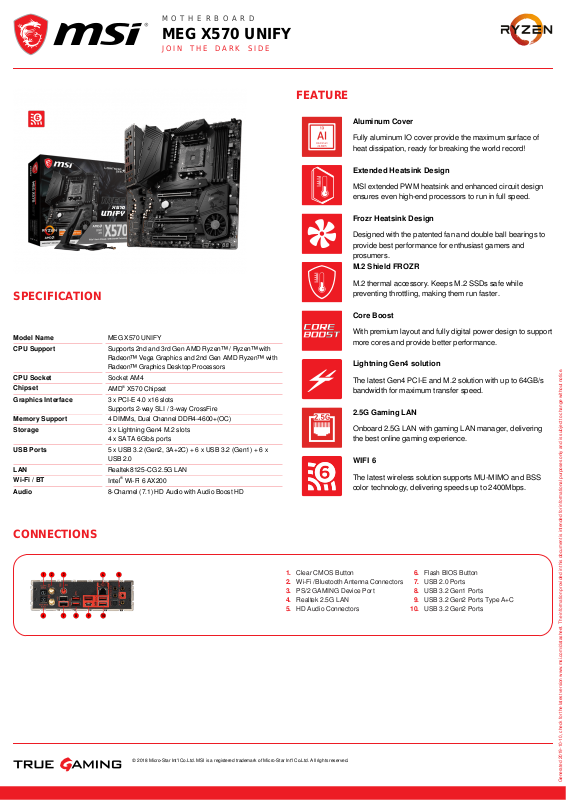

MSI MX570 Unify Service Manual

SPECIFICATION

MOTHERBOARD

MOTHERBOARD

MEG X570 UNIFY

MEG X570 UNIFY

JOIN THE DARK SIDE

JOIN THE DARK SIDE

FEATURE

Aluminum Cover

Fully aluminum IO cover provide the maximum surface of
heat dissipation, ready for breaking the world record!

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design
ensures even high-end processors to run in full speed.

Frozr Heatsink Design

Designed with the patented fan and double ball bearings to
provide best performance for enthusiast gamers and
prosumers.

M.2 Shield FROZR

M.2 thermal accessory. Keeps M.2 SSDs safe while
preventing throttling, making them run faster.

Model Name MEG X570 UNIFY

CPU Support Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with

CPU Socket Socket AM4

Chipset

Graphics Interface 3 x PCI-E 4.0 x16 slots

Memory Support 4 DIMMs, Dual Channel DDR4-4600+(OC)

Storage 3 x Lightning Gen4 M.2 slots

USB Ports 5 x USB 3.2 (Gen2, 3A+2C) + 6 x USB 3.2 (Gen1) + 6 x

LAN Realtek8125-CG 2.5G LAN

Wi-Fi / BT

Audio 8-Channel (7.1) HD Audio with Audio Boost HD

Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with
Radeon™ Graphics Desktop Processors

AMD® X570 Chipset

Supports 2-way SLI / 3-way CrossFire

4 x SATA 6Gb/s ports

USB 2.0

Intel® Wi-Fi 6 AX200

CONNECTIONS

Core Boost

With premium layout and fully digital power design to support
more cores and provide better performance.

Lightning Gen4 solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.

2.5G Gaming LAN

Onboard 2.5G LAN with gaming LAN manager, delivering
the best online gaming experience.

WIFI 6

The latest wireless solution supports MU-MIMO and BSS
color technology, delivering speeds up to 2400Mbps.

Clear CMOS Button1.
Wi-Fi /Bluetooth Antenna Connectors2.
PS/2 GAMING Device Port3.
Realtek 2.5G LAN4.
HD Audio Connectors5.

Flash BIOS Button6.
USB 2.0 Ports7.
USB 3.2 Gen1 Ports8.
USB 3.2 Gen2 Ports Type A+C9.
USB 3.2 Gen2 Ports10.
