P654 - GT200/NVIO2
P654, GT200-100, 896MB/1792MB - GDDR3 BGA136 16M/32Mx32
1
DVI-I + DVI-I/DP + HD/SD/TVout, SPDIF, Dual SLI
1
Table of Contents
Page 1: Title Page
Page 2: Block Diagram
Page 3: PCI Express / JTAG
Page 4: Framebuffer A,B: GPU Section + Calibration
Page 5: Framebuffer C,D: GPU Section
Page 6: Framebuffer E,F: GPU Section
2
Page 7: Framebuffer G,H: GPU Section
Page 8: Framebuffer A: Memory Section
Page 9: Framebuffer B: Memory Section
Page 10: Framebuffer C: Memory Section
Page 11: Framebuffer D: Memory Section
Page 12: Framebuffer E: Memory Section
Page 13: Framebuffer F: Memory Section
Page 14: Framebuffer G: Memory Section
Page 15: Framebuffer H: N/A
Page 16: Decoupling: Memory Section A-D
Page 17: Decoupling: Memory Section E-G
Page 18: Decoupling: GPU (NVVDD, FBVDDQ)
Page 19: GPU-NVIO Interconnect: GV Bus / PLL
Page 20: Display: DACA (Middle DVI-I)
Page 21: Display: DACC (South DVI-I)
3
Page 22: Display: DACB (North MiniDIN) SD/HDTV out
Page 23: Display: IFPAB for south DVI-I (with DACC)
Page 24: Display: IFPCD for middle DVI-I (with DACA)
Page 25: Display: DP - Analogix
Page 26: Connectors: SPDIF
Page 27: Connectors: DR Interface (Dual SLI)
Page 28: MISC: GPIO / XTAL / VBIOS / HDCP / I2C
Page 29: MISC: FAN / THERM
Page 30: MISC: MIO / DVI / STRAPS
Page 31: Power and GND (GPU and NVIOx)
Page 32: Power: Hybrid Power
Page 33: Power Supply: 5V + 5V Alt / SHDN LATCH / IFP_IOVDD
Page 34: Power Supply: 2V5, DP_PWR, 1V15 (PEX_VDD, GV_VDD)
Page 35: Power Supply: Combined FBVDD/Q
Page 36: Power Supply: NVVDD REGULATOR
4
Page 39: NVVDD & FBVDDQ SENSE/MSUR
Page 40: Power: Input Rail Filter and Detection Logic
Page 41: Thermal/Mechanical
VARIANT ASSEMBLY
SKU
BASE
B
SKU0000
1
2
SKU0001
SKU0051
3
<UNDEFINED>
4
<UNDEFINED>
5
<UNDEFINED>
6
<UNDEFINED>
7
<UNDEFINED>
8
<UNDEFINED>
9
<UNDEFINED>
10
<UNDEFINED>
11
<UNDEFINED>
12
<UNDEFINED>
13
<UNDEFINED>
14
<UNDEFINED>
15
MS-V180 -0A
PAGE 21:VGS SLIM
PAGE-22 remove DACB HDTV Circuit
PAGE 24:DVI change HDMI
PAGE 25:DP modify DSDA/DSCL circuit
PAGE 28:ADD I2C0_SCL/SDA and GPIO 3 circuit,remove GPIO 12
PAGE 29:remove R112,R113 and GPIO8_FAN_TACH link to U21
PAGE 33:remove R671,R572
PAGE 35:remove RT8805CQVA change UPI6205 and UPI6262 circuit
PAGE 36:remove NCP5388MNR2G change UPI6208 circuit
PAGE 37/38 :remove NCP3418B change UPI6281 circuit
PAGE 39 :Add WL83L786G circuit
NVPN
600-10654-BASE-A03
600-10654-0000-000
600-10654-0001-000
600-10654-0051-300
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
DT, GT200-100, 550/1350/1000, 896MB - 16Mx32 GDDR3, DVI-I + DVI-I + HDTV
DT, GT200-100, 550/1350/1000, 896MB - 16Mx32 GDDR3, DVI-I + DP + HDTV
DT. GT200B-103, 576/1242/1000, 896MB - 16MX32 GDDR3, DVI-I + DVI-I
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
<UNDEFINED>
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY
PAGE DETAIL
BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
Title Page
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
MS-V180
Monday, December 15, 2008
Monday, December 15, 2008
Monday, December 15, 2008
Sheet of
Sheet of
Sheet of
HFDBA
141
141
141
<RevCode>
<RevCode>
<RevCode>
5
Page 2
A B C D E F G H

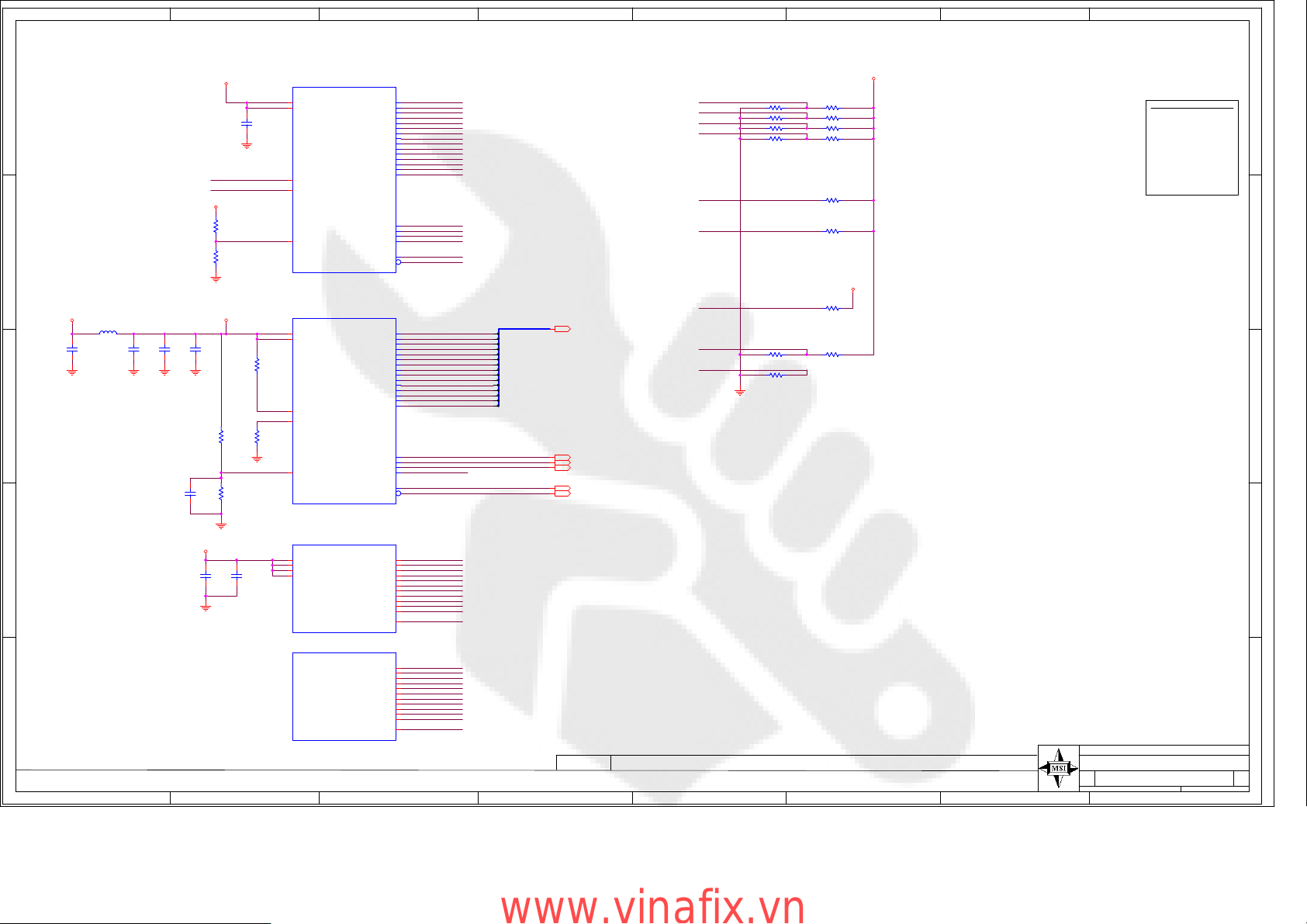

Block Diagram
1
2
HDMI
3
DVI-I/DP
4
VGA
(optional)
Dual SLI
Power Supply
2V5
NVIO2
Power Supply
1V15 (pex,gv)
1V8 (analogix)
Analogix
(optional)
Power Filter
3V3_F
MEM
MEM
G
MEM H
(N/A)
Hybrid
Power Sequence
5V - Always On
3V3 - Always On
12V_F - Always On
12V_PEX6_F1 - Always On
12V_PEX6_F2 - Always On
3V3_DP - Always On
F
3V3_F 2V5 1V15 1V8 NVVDD -
FBVDD/FBVDDQ -
MEM
GT200
Hybrid Enable
+ Input_PEX_Enable
+ Therm Shutdown Latch
E
NVVDD Enabled
MEM
1
SPDIF
2x3 Pwr
2x3 Pwr
Power Supply
D
FBVDD/FBVDDQ Combined
2
MEM
C
Power Supply
MEM
B
NVVDD-PH4
Power Supply
NVVDD-PH3
Power Supply
5V Linear
3
Power Supply
NVVDD-PH2
4
MEM
A
Power Supply
NVVDD-PH1
Power Supply
NVVDD-Controller
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Block Diagram
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Monday, December 15, 2008
Monday, December 15, 2008
Monday, December 15, 2008
Sheet of
Sheet of
Sheet of
HFDBA
241
241
241
<RevCode>
<RevCode>
<RevCode>
5
Page 3
A B C D E F G H
PCI Express / JTAG
12V
16MIL
5.5A
12V
<NV_SOURCE_POWER_NET>
C41
C41
C40
C40
C36
C36
4.7UF
4.7UF
.1UF
4.7UF
4.7UF
16V
16V
1
20%
20%
X7R
X7R
1206
1206
COMMON
COMMON
3V3
16MIL
<NV_SOURCE_POWER_NET>
C1235
C1235
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
3V3_AUX
3.3V
C1229
C1229
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
2
GND
.1UF
16V
16V
25V
25V
20%
20%
10%
10%
X7R
X7R
X7R
X7R
1206
1206
0603
0603
COMMON
COMMON
COMMON
COMMON
3A
3.3V
GND
GND
C1233
C1233
.1UF
.1UF
3V3_AUX
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
PEX_PRSNT1*
COMMON
COMMON
.5A16MIL
3
Hybrid Bypass
R877
R877
0
0
5%
G
1
BSS138
(NOT)
S
1G1D1S
1G1D1S
2
COMMON
COMMON
SOT23
SOT23
D
Q532
Q532
3
<MAX_WATTAGE>
<MAX_WATTAGE>
<MAX_CURRENT>
<MAX_CURRENT>
<R_DS_ON>
<R_DS_ON>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<MAX_VOLTAGE>
<MAX_VOLTAGE>
5%
0402
0402
COMMON
COMMON
PEX_PRSNT2*
4
PEX_REFCLK_EN
32
IN
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
GND
GND
GND
GND
CN2
CN2
CON_FINGER_PEX_164_B
CON_FINGER_PEX_164_B
CON_X16
CON_X16
COMMON
COMMON
B1
+12V
B2
+12V
A2
+12V
A3
+12V
B3
+12V/RSVD
B8
+3V3
A9
+3V3
A10
+3V3
B10
+3V3AUX
A1
PRSNT1
B17
PRSNT2
B12
RSVD
B4
GND
A4
GND
B7
GND
A12
GND
B13
GND
A15
GND
B16
GND
B18
GND
A18
GND
B31
PRSNT2
A19
RSVD
B30
RSVD
A32
RSVD
A20
GND
B21
GND
B22
GND
A23
GND
A24
GND
B25
GND
B26
GND
A27
GND
A28
GND
B29
GND
A31
GND
B32
GND
B48
PRSNT2
A33
RSVD
A34
GND
B35
GND
B36
GND
A37
GND
A38
GND
B39
GND
B40
GND
A41
GND
A42
GND
B43
GND
B44
GND
A45
GND
A46
GND
B47
GND
B49
GND
A49
GND
B81
PRSNT2
A50
RSVD
B82
RSVD
A51
GND
B52
GND
B53
GND
A54
GND
A55
GND
B56
GND
B57
GND
A58
GND
A59
GND
B60
GND
B61
GND
A62
GND
A63
GND
B64
GND
B65
GND
A66
GND
A67
GND
B68
GND
B69
GND
A70
GND
A71
GND
B72
GND
B73
GND
A74
GND
A75
GND
B76
GND
B77
GND
A78
GND
A79
GND
B80
GND
A82
GND
END OF X1
END OF X1
END OF X4
END OF X4
END OF X8
END OF X8
END OF X16
END OF X16
TRST* JTAG1
TCLK JTAG2
TDI JTAG3
TDO JTAG4
TMS JTAG5
SMCLK
SMDAT
PERST
REFCLK
REFCLK
PERP0
PERN0
PETP0
PETN0
PERP1
PERN1
PETP1
PETN1
PERP2
PERN2
PETP2
PETN2
PERP3
PERN3
PETP3
PETN3
PERP4
PERN4
PETP4
PETN4
PERP5
PERN5
PETP5
PETN5
PERP6
PERN6
PETP6
PETN6
PERP7
PERN7
PETP7
PETN7
PERP8
PERN8
PETP8
PETN8
PERP9
PERN9
PETP9
PETN9
PERP10
PERN10
PETP10
PETN10
PERP11
PERN11
PETP11
PETN11
PERP12
PERN12
PETP12
PETN12
PERP13
PERN13
PETP13
PETN13
PERP14
PERN14
PETP14
PETN14
PERP15
PERN15
PETP15
PETN15
B9
A5
A6
A7
A8
I2CS_SCL_R
B5
I2CS_SDA_R
B6
B11
WAKE
PEX_RST*
A11
PEX_REFCLK
A13
PEX_REFCLK*
A14
A16
A17
PEX_RX0
B14
PEX_RX0*
B15
A21
A22
PEX_RX1
B19
PEX_RX1*
B20
A25
A26
PEX_RX2
B23
PEX_RX2*
B24
A29
A30
PEX_RX3
B27
PEX_RX3*
B28
A35
A36
PEX_RX4
B33
PEX_RX4*
B34
A39
A40
PEX_RX5
B37
PEX_RX5*
B38
A43
A44
PEX_RX6
B41
PEX_RX6*
B42
A47
A48
PEX_RX7
B45
PEX_RX7*
B46
A52
A53
PEX_RX8
B50
PEX_RX8*
B51
A56
A57
PEX_RX9
B54
PEX_RX9*
B55
A60
A61
PEX_RX10
B58
PEX_RX10*
B59
A64
A65
PEX_RX11
B62
PEX_RX11*
B63
A68
A69
PEX_RX12
B66
PEX_RX12*
B67
A72
A73
PEX_RX13
B70
PEX_RX13*
B71
A76
A77
PEX_RX14
B74
PEX_RX14*
B75
A80
A81
PEX_RX15
B78
PEX_RX15*
B79
PEX_TX_C0
PEX_TX_C0*
PEX_TX_C1
PEX_TX_C1*
PEX_TX_C2
PEX_TX_C2*
PEX_TX_C3
PEX_TX_C3*
PEX_TX_C4
PEX_TX_C4*
PEX_TX_C5
PEX_TX_C5*
PEX_TX_C6
PEX_TX_C6*
PEX_TX_C7
PEX_TX_C7*
PEX_TX_C8
PEX_TX_C8*
PEX_TX_C9
PEX_TX_C9*
PEX_TX_C10
PEX_TX_C10*
PEX_TX_C11
PEX_TX_C11*
PEX_TX_C12
PEX_TX_C12*
PEX_TX_C13
PEX_TX_C13*
PEX_TX_C14
PEX_TX_C14*
PEX_TX_C15
PEX_TX_C15*
29,32,32
OUT
29,32,32
BI
150OHM
100DIFF 1PEX_REFCLK
100DIFF 1PEX_REFCLK
90DIFF 1
90DIFF 1
190DIFFPEX_RX0
190DIFFPEX_RX0
90DIFF 1
90DIFF 1
190DIFFPEX_RX1
190DIFFPEX_RX1
90DIFF 1
190DIFF
190DIFFPEX_RX2
190DIFFPEX_RX2
90DIFF 1
90DIFF 1
90DIFF 1PEX_RX3
90DIFF 1PEX_RX3
90DIFF 1
90DIFF 1
190DIFFPEX_RX4
190DIFFPEX_RX4
90DIFF 1
90DIFF 1
90DIFF 1PEX_RX5
190DIFFPEX_RX5
90DIFF 1
90DIFF 1
190DIFFPEX_RX6
190DIFFPEX_RX6
90DIFF 1
190DIFF
190DIFFPEX_RX7
190DIFFPEX_RX7
90DIFF 1
90DIFF 1
190DIFFPEX_RX8
190DIFFPEX_RX8
90DIFF 1
90DIFF 1
190DIFFPEX_RX9
90DIFF 1PEX_RX9
90DIFF 1
90DIFF 1
90DIFF 1PEX_RX10
190DIFFPEX_RX10
90DIFF 1
90DIFF 1
190DIFFPEX_RX11
190DIFFPEX_RX11
90DIFF 1
90DIFF 1
190DIFFPEX_RX12
190DIFFPEX_RX12
90DIFF 1
90DIFF 1
90DIFF 1PEX_RX13
90DIFF 1PEX_RX13
190DIFF
190DIFF
190DIFFPEX_RX14
190DIFFPEX_RX14
190DIFF
190DIFF
190DIFFPEX_RX15
190DIFFPEX_RX15
C GE
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
X7R
OUT
R823
R823
10K
10K
0402
0402
COMMON
COMMON
32
C1203
C1203
C1180
C1180
C1159
C1159
C1145
C1145
0402
0402
C1129 .1UF
C1129 .1UF
C1116
C1116
C1110
C1098
C1098
0402
0402
C1091
C1091
C1075
C1075
C1062
C1062
C1055
C1055
C1031
C1031
C996
C996
C944
C944
C913
C913
5%
5%
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V
6.3V
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UFC1110
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V
6.3V
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
.1UF
.1UF
6.3V0402
6.3V0402
1V151V15 3V3_F
R829
R829
10K
10K
5%
5%
0402
0402
COMMON
COMMON
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
10%
10%
COMMON
COMMON
X7R
X7R
J501
J501
FEMALE
FEMALE
1.274MM
1.274MM
0
0
CON_HDR_002X004_TH
CON_HDR_002X004_TH
COMMON
COMMON
TMS2TRST*
1
TDI4GND
3
VCC
5
TDO8TCK
7
(NOT) (NOT)
C1191
.1UF
C1191
.1UF
0402 6.3V
0402 6.3V
C1177
.1UF
C1177
.1UF
0402
6.3V
0402
6.3V
C1153
.1UF
C1153
.1UF
6.3V0402
6.3V0402
C1138
.1UF
C1138
.1UF
6.3V0402
6.3V0402
C1127
.1UF
C1127
.1UF
6.3V0402
6.3V0402
C1114
.1UF
C1114
.1UF
6.3V0402
6.3V0402
C1104
.1UF
C1104
.1UF
6.3V0402
6.3V0402
C1096 .1UF
C1096 .1UF
6.3V0402
6.3V0402
C1085
.1UF
C1085
.1UF
6.3V0402
6.3V0402
C1074
.1UF
C1074
.1UF
6.3V0402
6.3V0402
C1060
.1UF
C1060
.1UF
6.3V0402
6.3V0402
C1050
.1UF
C1050
.1UF
6.3V0402
6.3V0402
C1015
.1UF
C1015
.1UF
6.3V0402
6.3V0402
C984
.1UF
C984
.1UF
6.3V0402
6.3V0402
C936
.1UF
C936
.1UF
6.3V0402
6.3V0402
C914
.1UF
C914
.1UF
6.3V0402
6.3V0402
JTAG
R812
10K
R812
10K
COMMON
COMMON
GND
KEY
KEY
32
32
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
10%
10%
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
IN
BI
PCI Express / JTAG
PEX_TX0
PEX_TX0*
PEX_TX1
PEX_TX1*
PEX_TX2
PEX_TX2*
PEX_TX3
PEX_TX3*
PEX_TX4
PEX_TX4*
PEX_TX5
PEX_TX5*
PEX_TX6
PEX_TX6*
PEX_TX7
PEX_TX7*
PEX_TX8
PEX_TX8*
PEX_TX9
PEX_TX9*
PEX_TX10
PEX_TX10*
PEX_TX11
PEX_TX11*
PEX_TX12
PEX_TX12*
PEX_TX13
PEX_TX13*
PEX_TX14
PEX_TX14*
PEX_TX15
PEX_TX15*
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
5%
5%
JTAG_TRST*
R58
R58
0402
0402
0402
0402
5%
5%
GND
350OHM
10K
10K
GND
COMMON
COMMON
50OHM 3
350OHM
50OHM 3
50OHM 3
I2CS_SCL
I2CS_SDA
90DIFFPEX_TX0 1
PEX_TX0 90DIFF 1
90DIFF 1PEX_TX1
PEX_TX1 90DIFF 1
PEX_TX2 90DIFF 1
PEX_TX2 90DIFF 1
PEX_TX3 90DIFF 1
PEX_TX3 90DIFF 1
PEX_TX4 90DIFF 1
PEX_TX4 90DIFF 1
PEX_TX5 90DIFF 1
PEX_TX5 90DIFF 1
90DIFF 1PEX_TX6
PEX_TX6 90DIFF 1
90DIFFPEX_TX7 1
PEX_TX7 90DIFF 1
PEX_TX8 190DIFF
PEX_TX8 90DIFF 1
PEX_TX9 90DIFF 1
PEX_TX9 90DIFF 1
PEX_TX10 90DIFF 1
PEX_TX10 90DIFF 1
PEX_TX11 90DIFF 1
PEX_TX11 90DIFF 1
PEX_TX12 90DIFF 1
PEX_TX12 90DIFF 1
PEX_TX13 90DIFF 1
PEX_TX13 90DIFF 1
PEX_TX14 90DIFF 1
PEX_TX14 90DIFF 1
PEX_TX15 90DIFF 1
PEX_TX15 90DIFF 1
R828
R828
0
0
5%
5%
0402
0402
COMMON
COMMON
JTAG_TDI_GPU
JTAG_TDO_GPU
R832
R832
R836
R836
0
0
0
0
5%
5%
5%
5%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
R831
0
R831
0
0402
COMMON
0402
COMMON
(NOT)
5%
5%
G1A
G1A
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
1/21 PCIex
1/21 PCIex
BH33
I2CS_SCL
BJ33
I2CS_SDA
BM23
PEX_REFCLK
BM24
PEX_REFCLK
BL25
PEX_TX0
BM25
PEX_TX0
BN23
PEX_RX0
BP23
PEX_RX0
BM26
PEX_TX1
BM27
PEX_TX1
BR23
PEX_RX1
BR24
PEX_RX1
BL28
PEX_TX2
BM28
PEX_TX2
BN24
PEX_RX2
BN25
PEX_RX2
BM29
PEX_TX3
BM30
PEX_TX3
BR26
PEX_RX3
BR27
PEX_RX3
BL31
PEX_TX4
BM31
PEX_TX4
BN27
PEX_RX4
BN28
PEX_RX4
BN31
PEX_TX5
BN32
PEX_TX5
BR29
PEX_RX5
BR30
PEX_RX5
BM32
PEX_TX6
BM33
PEX_TX6
BP30
PEX_RX6
BN30
PEX_RX6
BL34
PEX_TX7
BM34
PEX_TX7
BR32
PEX_RX7
BR33
PEX_RX7
BN34
PEX_TX8
BN35
PEX_TX8
BP33
PEX_RX8
BN33
PEX_RX8
BM35
PEX_TX9
BM36
PEX_TX9
BR35
PEX_RX9
BR36
PEX_RX9
BL37
PEX_TX10
BM37
PEX_TX10
BP36
PEX_RX10
BN36
PEX_RX10
BN37
PEX_TX11
BN38
PEX_TX11
BR38
PEX_RX11
BR39
PEX_RX11
BM38
PEX_TX12
BM39
PEX_TX12
BP39
PEX_RX12
BN39
PEX_RX12
BL40
PEX_TX13
BM40
PEX_TX13
BR41
PEX_RX13
BR42
PEX_RX13
BN40
PEX_TX14
BN41
PEX_TX14
BP42
PEX_RX14
BN42
PEX_RX14
BM41
PEX_TX15
BM42
PEX_TX15
BR44
PEX_RX15
BR45
PEX_RX15
3
C
Q518
Q518
B
1
SOT23
SOT23
COMMON
COMMON
E
1B1C1E
1B1C1E
2
C894
C894
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
1V15
C943
C943
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
C864
C864
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
PEX_PLLVDD_OP
COMMON
COMMON
Note: Possible filter option for 10nH inductor
LB504 240R@100MHz
LB504 240R@100MHz
C861
C861
C849
C849
2.2UF
2.2UF
4.7UF
4.7UF
6.3V
6.3V
6.3V
6.3V
10%
10%
20%
20%
X5R
X5R
X5R
X5R
0603
0603
0402
0402
COMMON
COMMON
COMMON
COMMON
GND
90DIFF 1PEX_TSTCLK_OUT
3V3_F
GND
MMBT2222AMMBT2222A
C834
C834
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C902
C902
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C804
C804
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
R835
R835
3.3K
3.3K
5%
5%
0402
0402
COMMON
COMMON
JTAG_TRST_3V3*
COMMONIND_SMD_0402
COMMONIND_SMD_0402
190DIFFPEX_TSTCLK_OUT
U5A
U5A
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
17/17 JTAG
17/17 JTAG
AE19
JTAG_TRST
AD19
350OHM
JTAG_TCK
AG18
JTAG_TDI
AF19
JTAG_TDO
AC19
JTAG_TMS
1
1V15
C1054
C1054
C802
C802
C967
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
22UF
22UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C967
22UF
22UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
2
1V15
C803
C803
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
33
OUT
3
1V15
C998
C998
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
R720
04025%COMMON
04025%COMMON
200R720
200
4
G1B
G1B
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
17/21 JTAG
17/21 JTAG
BL33
JTAG_TRST
BJ29
JTAG_TCK
350OHM
BK30
BL30
BJ32
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TDI_NVIO
JTAG_TDO_NVIO
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDDQ
PEX_IO_VDD
PEX_IO_VDD
PEX_IO_VDD
PEX_IO_VDD
PEX_IO_VDD
PEX_IO_VDD
50OHM 3
R838
0
R838
0
COMMON
COMMON
0402
0402
5%
5%
PEX_PLL_VDD
PEX_TSTCLK_OUT
PEX_TSTCLK_OUT
BUF_PCI_RESET
BE30
BE33
BG29
BG32
BH26
BH30
BK26
BK29
BK32
BE36
BE37
BF33
BF35
BG35
BK33
BK35
BM43
BN43
BJ27
R815
R815
3.3K
3.3K
5%
5%
0402
0402
COMMON
COMMON
JTAG_TRST2
350OHM
350OHM
C942
C942
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C924
C924
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C866
C866
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C870
C870
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
PEX_PLLVDD
C863
C863
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
PEX_TSTCLK_OUT
PEX_TSTCLK_OUT*
GPU_BUFRST*
B
350OHM
1B1C1E
1B1C1E
C915
C915
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C895
C895
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C879
C879
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C857
C857
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
R830
R830
3.3K
3.3K
5%
5%
0402
0402
COMMON
COMMON
JTAG_TRST_3V3
50OHM 3
3
C
Q517
Q517
1
SOT23
SOT23
COMMON
COMMON
E
2
GND
LB503 240R@100MHz
LB503 240R@100MHz
IND_SMD_0402
IND_SMD_0402
16MIL 1.15V
C862
C862
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
TP508TP508
C922
C922
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C901
C901
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C899
C899
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
(NOT)
5
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
<RevCode>
<RevCode>
<RevCode>
341
341
341
www.vinafix.vn
Page 4
A B C D E F G H
Framebuffer A,B: GPU Section + Calibration
G1C
G1C
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
2/21 MEM_A
1
2
3
FBA0_CLK0
FBA0_CLK0*
4
SNN_FBA0_CLK1
SNN_FBA0_CLK1*
FBA_D0
FBA_D1
FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7
FBA_D8
FBA_D9
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_DQM0
FBA_DQM1
FBA_DQM2
FBA_DQM3
FBA_DQS_RN0
FBA_DQS_RN1
FBA_DQS_RN2
FBA_DQS_RN3
FBA_DQS_WP0
FBA_DQS_WP1
FBA_DQS_WP2
FBA_DQS_WP3
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
SNN_FBA_CMD<22>
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
SNN_FBA_CMD<29>
SNN_FBA_CMD<30>
SNN_FBA_CMD<31>
SNN_FBA_CMD<32>
FBA0_CLK0
FBA0_CLK0
FBA0_CLK1
FBA0_CLK1
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
2/21 MEM_A
BL39
FBA_D0
BK38
FBA_D1
BK39
FBA_D2
BJ39
FBA_D3
BK42
FBA_D4
BJ41
FBA_D5
BJ42
FBA_D6
BH42
FBA_D7
BN44
FBA_D8
BM45
FBA_D9
BL43
FBA_D10
BK44
FBA_D11
BK45
FBA_D12
BJ45
FBA_D13
BJ44
FBA_D14
BH45
FBA_D15
BN46
FBA_D16
BM46
FBA_D17
BM47
FBA_D18
BL48
FBA_D19
BL49
FBA_D20
BM51
FBA_D21
BL51
FBA_D22
BL52
FBA_D23
BK47
FBA_D24
BJ47
FBA_D25
BH46
FBA_D26
BG46
FBA_D27
BG47
FBA_D28
BH48
FBA_D29
BF48
FBA_D30
BE47
FBA_D31
BH39
FBA_DQM0
BM44
FBA_DQM1
BM48
FBA_DQM2
BF47
FBA_DQM3
BL42
FBA_DQS_RN0
BP45
FBA_DQS_RN1
BM50
FBA_DQS_RN2
BK48
FBA_DQS_RN3
BK41
FBA_DQS_WP0
BN45
FBA_DQS_WP1
BM49
FBA_DQS_WP2
BJ48
FBA_DQS_WP3
BR47
FBA_CMD0
BN47
FBA_CMD1
BR48
FBA_CMD2
BP48
FBA_CMD3
BN48
FBA_CMD4
BN49
FBA_CMD5
BR50
FBA_CMD6
BN50
FBA_CMD7
BR51
FBA_CMD8
BP51
FBA_CMD9
BN51
FBA_CMD10
BP53
FBA_CMD11
BN52
FBA_CMD12
BN54
FBA_CMD13
BM53
FBA_CMD14
BL55
FBA_CMD15
BL53
FBA_CMD16
BL54
FBA_CMD17
BK53
FBA_CMD18
BK55
FBA_CMD19
BJ53
FBA_CMD20
BH53
FBA_CMD21
BH54
FBA_CMD22
BH55
FBA_CMD23
BG53
FBA_CMD24
BG55
FBA_CMD25
BF53
FBA_CMD26
BE53
FBA_CMD27
BE54
FBA_CMD28
BE55
FBA_CMD29
BD53
FBA_CMD30
BD55
FBA_CMD31
BB53
FBA_CMD32
BF45
FBA0_CLK0
BF44
FBA0_CLK0
BF41
FBA0_CLK1
BF42
FBA0_CLK1
FB CAL and Vref
FBVDDQ
FBVDDQ
GND
R722
R722
549
549
1%
1%
0402
0402
COMMON
COMMON
(not)
R712
R712
1.3K
1.3K
1%
1%
0402
0402
COMMON
COMMON
(not)
R760
R760
549
549
1%
1%
0402
0402
COMMON
COMMON
(not)
R767
R767
1.3K
1.3K
1%
1%
0402
0402
COMMON
COMMON
(not)
FBAB_MPLL_AVDD
C798
C798
.1UF
.1UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
C1052
C1052
.1UF
.1UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_DQM4
FBA_DQM5
FBA_DQM6
FBA_DQM7
FBA_DQS_RN4
FBA_DQS_RN5
FBA_DQS_RN6
FBA_DQS_RN7
FBA_DQS_WP4
FBA_DQS_WP5
FBA_DQS_WP6
FBA_DQS_WP7
FBA_DEBUG
FBAB_REFCLK
FBAB_REFCLK
FBA1_CLK0
FBA1_CLK0
FBA1_CLK1
FBA1_CLK1
FBVDDQ
GND
FBA_D32
BK50
FBA_D33
BJ51
FBA_D34
BH51
FBA_D35
BH50
FBA_D36
BH49
FBA_D37
BG49
FBA_D38
BG50
FBA_D39
BG52
FBA_D40
BD49
FBA_D41
BC48
FBA_D42
BD47
FBA_D43
BC47
FBA_D44
BA47
FBA_D45
BA46
FBA_D46
AY47
FBA_D47
AY48
FBA_D48
BB52
FBA_D49
BE50
FBA_D50
BB51
FBA_D51
BE51
FBA_D52
BC52
FBA_D53
BC51
FBA_D54
BF52
FBA_D55
BE52
FBA_D56
BA52
FBA_D57
BA50
FBA_D58
BA49
FBA_D59
AW49
FBA_D60
AW50
FBA_D61
AW51
FBA_D62
AV50
FBA_D63
AV49
FBA_DQM4
BH52
FBA_DQM5
BB47
FBA_DQM6
BD50
FBA_DQM7
AW52
FBA_DQS_RN4
BK52
FBA_DQS_RN5
BB49
FBA_DQS_RN6
BC53
FBA_DQS_RN7
AY53
FBA_DQS_WP4
BJ52
FBA_DQS_WP5
BB48
FBA_DQS_WP6
BD52
FBA_DQS_WP7
AY52
FBA_DEBUG
AY43
FBAB_REFCLK
BF39
FBAB_REFCLK*
BE39
FBABCD_MPLL_AVDD
BC45
C826
C826
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND GND GND
FBA1_CLK0
BB45
FBA1_CLK0*
BB46
SNN_FBA1_CLK1
AW45
SNN_FBA1_CLK1*
AY45
R736
48.7R736
48.7
COMMON0402
COMMON0402
1%
1%
R731
40.2
R731
40.2
0402
COMMON
0402
COMMON
1%
1%
R730
40.2R730
40.2
COMMON
0402
COMMON
0402
1%
1%
VREF=FBVDDQ*Rtop/(Rtop+Rbot)
VREF=FBVDDQ*0.7
FBVDDQ
16MIL 1.15V 0.042A
LB502 10nH
LB502 10nH
C810
C810
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
FBA1_CLK0
FBA1_CLK0
FBA1_CLK1
FBA1_CLK1
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
FB_VREF0
FB_VREF1
FBB_D0
FBB_D1
FBB_D2
FBB_D3
FBB_D4
FBB_D5
FBB_D6
FBB_D7
FBB_D8
AW48
FBB_D9
FBB_D10
FBB_D11
FBB_D12
FBB_D13
FBB_D14
FBB_D15
FBB_D16
FBB_D17
FBB_D18
FBB_D19
FBB_D20
FBB_D21
FBB_D22
FBB_D23
FBB_D24
AM49
FBB_D25
FBB_D26
FBB_D27
FBB_D28
FBB_D29
FBB_D30
FBB_D31
FBB_DQM0
FBB_DQM1
FBB_DQM2
FBB_DQM3
AM46
FBB_DQS_RN0
FBB_DQS_RN1
FBB_DQS_RN2
FBB_DQS_RN3
FBB_DQS_WP0
FBB_DQS_WP1
FBB_DQS_WP2
AM50
FBB_DQS_WP3
R726
R726
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
IN
IN
C816
C816
4.7UF
4.7UF
6.3V
6.3V
20%
20%
X5R
X5R
0603
0603
COMMON
COMMON
(Not)
19
19
5
OUT
C847
C847
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
G1D
G1D
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
10/21 FBCAL
10/21 FBCAL
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
FB_VREF0
FB_VREF1
1V15
FBB0_CLK0
FBB0_CLK0*
SNN_FBB0_CLK1
SNN_FBB0_CLK1*
SNN_FBB_CMD<22>
SNN_FBB_CMD<29>
SNN_FBB_CMD<30>
SNN_FBB_CMD<31>
SNN_FBB_CMD<32>
COMMONIND_SMD_0402
COMMONIND_SMD_0402
L39
L40
L42
AG46
AH11
FBB_CMD0
FBB_CMD1
FBB_CMD2
FBB_CMD3
FBB_CMD4
FBB_CMD5
FBB_CMD6
FBB_CMD7
FBB_CMD8
FBB_CMD9
FBB_CMD10
FBB_CMD11
FBB_CMD12
FBB_CMD13
FBB_CMD14
FBB_CMD15
FBB_CMD16
FBB_CMD17
FBB_CMD18
FBB_CMD19
FBB_CMD20
FBB_CMD21
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD26
FBB_CMD27
FBB_CMD28
FBB0_CLK0
FBB0_CLK0
FBB0_CLK1
FBB0_CLK1
AM47
AW53
AW54
AW55
AM53
AM55
AG55
AG53
AW47
AW46
C GE
G1E
G1E
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
3/21 MEM_B
3/21 MEM_B
AV52
FBB_D0
AU51
FBB_D1
AT52
FBB_D2
AT50
FBB_D3
AT49
FBB_D4
AR49
FBB_D5
AR50
FBB_D6
AR52
FBB_D7
FBB_D8
AV46
FBB_D9
AU47
FBB_D10
AT47
FBB_D11
AT46
FBB_D12
AR46
FBB_D13
AP47
FBB_D14
AP48
FBB_D15
AP52
FBB_D16
AN52
FBB_D17
AN51
FBB_D18
AN50
FBB_D19
AK49
FBB_D20
AK50
FBB_D21
AK51
FBB_D22
AK52
FBB_D23
FBB_D24
AN49
FBB_D25
AN48
FBB_D26
AN47
FBB_D27
AN46
FBB_D28
AL47
FBB_D29
AK47
FBB_D30
AK48
FBB_D31
AT51
FBB_DQM0
AV47
FBB_DQM1
AL52
FBB_DQM2
FBB_DQM3
AU53
FBB_DQS_RN0
AU48
FBB_DQS_RN1
AL51
FBB_DQS_RN2
AL48
FBB_DQS_RN3
AU52
FBB_DQS_WP0
AT48
FBB_DQS_WP1
FBB_DQS_WP2
FBB_DQS_WP3
BB54
FBB_CMD0
BB55
FBB_CMD1
BA53
FBB_CMD2
BA55
FBB_CMD3
FBB_CMD4
FBB_CMD5
FBB_CMD6
AV53
FBB_CMD7
AV55
FBB_CMD8
AT53
FBB_CMD9
AT54
FBB_CMD10
AT55
FBB_CMD11
AR53
FBB_CMD12
AR55
FBB_CMD13
AP53
FBB_CMD14
AN55
FBB_CMD15
AN53
FBB_CMD16
AN54
FBB_CMD17
FBB_CMD18
FBB_CMD19
AL53
FBB_CMD20
AK53
FBB_CMD21
AK54
FBB_CMD22
AK55
FBB_CMD23
AJ53
FBB_CMD24
AJ55
FBB_CMD25
AH53
FBB_CMD26
FBB_CMD27
FBB_CMD28
AF55
FBB_CMD29
AF54
FBB_CMD30
AF53
FBB_CMD31
AD55
FBB_CMD32
FBB0_CLK0
FBB0_CLK0
AT45
FBB0_CLK1
AU45
FBB0_CLK1
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer A,B: GPU Section + Calibration
FBB_DQS_RN4
FBB_DQS_RN5
FBB_DQS_RN6
FBB_DQS_RN7
FBB_DQS_WP4
FBB_DQS_WP5
FBB_DQS_WP6
FBB_DQS_WP7
FBB_DEBUG
FBB_D32
FBB_D33
FBB_D34
FBB_D35
FBB_D36
FBB_D37
FBB_D38
FBB_D39
FBB_D40
FBB_D41
FBB_D42
FBB_D43
FBB_D44
FBB_D45
FBB_D46
FBB_D47
FBB_D48
FBB_D49
FBB_D50
FBB_D51
FBB_D52
FBB_D53
FBB_D54
FBB_D55
FBB_D56
FBB_D57
FBB_D58
FBB_D59
FBB_D60
FBB_D61
FBB_D62
FBB_D63
FBB_DQM4
FBB_DQM5
FBB_DQM6
FBB_DQM7
FBB1_CLK0
FBB1_CLK0
FBB1_CLK1
FBB1_CLK1
AJ50
AJ52
AH52
AG52
AF52
AF51
AF50
AF49
AJ46
AJ47
AH47
AG47
AF48
AE48
AE47
AD47
AE53
AE52
AE51
AD52
AC52
AC51
AB52
AB51
AD46
AC46
AC48
AB48
Y48
W48
Y46
V46
AG49
AH48
AC50
Y47
AH51
AF47
AD50
AC47
AG50
AF46
AC49
AB47
AU43
AK45
AK46
AP45
AN45
FBB_D32
FBB_D33
FBB_D34
FBB_D35
FBB_D36
FBB_D37
FBB_D38
FBB_D39
FBB_D40
FBB_D41
FBB_D42
FBB_D43
FBB_D44
FBB_D45
FBB_D46
FBB_D47
FBB_D48
FBB_D49
FBB_D50
FBB_D51
FBB_D52
FBB_D53
FBB_D54
FBB_D55
FBB_D56
FBB_D57
FBB_D58
FBB_D59
FBB_D60
FBB_D61
FBB_D62
FBB_D63
FBB_DQM4
FBB_DQM5
FBB_DQM6
FBB_DQM7
FBB_DQS_RN4
FBB_DQS_RN5
FBB_DQS_RN6
FBB_DQS_RN7
FBB_DQS_WP4
FBB_DQS_WP5
FBB_DQS_WP6
FBB_DQS_WP7
FBB_DEBUG
FBB1_CLK0
FBB1_CLK0*
SNN_FBB1_CLK1
SNN_FBB1_CLK1*
FBVDDQ
FBB1_CLK0
FBB1_CLK0
FBB1_CLK1
FBB1_CLK1
R721
R721
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
(Not)
FBA_D0
FBA_D1
FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7
FBA_D8
FBA_D9
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_DQM0
FBA_DQM1
FBA_DQM2
FBA_DQM3
FBA_DQM4
FBA_DQM5
FBA_DQM6
FBA_DQM7
FBA_DQS_RN0
FBA_DQS_RN1
FBA_DQS_RN2
FBA_DQS_RN3
FBA_DQS_RN4
FBA_DQS_RN5
FBA_DQS_RN6
FBA_DQS_RN7
FBA_DQS_WP0
FBA_DQS_WP1
FBA_DQS_WP2
FBA_DQS_WP3
FBA_DQS_WP4
FBA_DQS_WP5
FBA_DQS_WP6
FBA_DQS_WP7
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA0_CLK0
FBA0_CLK0*
FBA1_CLK0
FBA1_CLK0*
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 1
40OHM 1
40OHM 1
40OHM 2
40OHM 2
40OHM 2
8
OUT
0
240OHM
FBA_D[0..63]
1
240OHM
2
240OHM
3
240OHM
4
240OHM
5
240OHM
6
240OHM
7
240OHM
8
240OHM
9
240OHM
10
240OHM
11
240OHM
12
240OHM
13
240OHM
14
240OHM
15
240OHM
16
17
240OHM
18
240OHM
19
240OHM
20
240OHM
21
240OHM
22
240OHM
23
240OHM
24
240OHM
25
240OHM
26
240OHM
27
28
29
30
240OHM
31
240OHM
32
240OHM
33
240OHM
34
240OHM
35
240OHM
36
240OHM
37
240OHM
38
240OHM
39
240OHM
40
41
42
240OHM
43
240OHM
44
240OHM
45
240OHM
46
240OHM
47
240OHM
48
240OHM
49
240OHM
50
240OHM
51
240OHM
52
240OHM
53
54
55
240OHM
56
57
58
59
240OHM
60
240OHM
61
240OHM
62
240OHM
63
240OHM
8
240OHM
BI
8
240OHM
BI
8
240OHM
BI
8
240OHM
BI
8
240OHM
BI
8
240OHM
BI
8
240OHM
BI
8
240OHM
BI
8
140OHM
IN
8
140OHM
IN
8
IN
8
140OHM
IN
8
140OHM
IN
8
140OHM
IN
8
140OHM
IN
8
140OHM
IN
8
140OHM
OUT
8
OUT
8
OUT
8
140OHM
OUT
8
140OHM
OUT
8
140OHM
OUT
8
140OHM
OUT
8
140OHM
OUT
OUT
0
FBA_CMD[0..28]
1
2
240OHM
3
240OHM
4
240OHM
5
240OHM
6
240OHM
7
240OHM
8
240OHM
9
240OHM
10
240OHM
11
240OHM
12
240OHM
13
240OHM
14
240OHM
15
240OHM
16
240OHM
17
240OHM
18
240OHM
19
240OHM
20
240OHM
21
23
240OHM
24
240OHM
25
240OHM
26
240OHM
27
240OHM
28
240OHM
8
180DIFF
OUT
8
180DIFF
OUT
8
180DIFF
OUT
8
180DIFF
OUT
FBB_D0
FBB_D1
FBB_D2
FBB_D3
FBB_D4
FBB_D5
FBB_D6
FBB_D7
FBB_D8
FBB_D9
FBB_D10
FBB_D11
FBB_D12
FBB_D13
FBB_D14
FBB_D15
FBB_D16
FBB_D17
FBB_D18
FBB_D19
FBB_D20
FBB_D21
FBB_D22
FBB_D23
FBB_D24
FBB_D25
FBB_D26
FBB_D27
FBB_D28
FBB_D29
FBB_D30
FBB_D31
FBB_D32
FBB_D33
FBB_D34
FBB_D35
FBB_D36
FBB_D37
FBB_D38
FBB_D39
FBB_D40
FBB_D41
FBB_D42
FBB_D43
FBB_D44
FBB_D45
FBB_D46
FBB_D47
FBB_D48
FBB_D49
FBB_D50
FBB_D51
FBB_D52
FBB_D53
FBB_D54
FBB_D55
FBB_D56
FBB_D57
FBB_D58
FBB_D59
FBB_D60
FBB_D61
FBB_D62
FBB_D63
FBB_DQM0
FBB_DQM1
FBB_DQM2
FBB_DQM3
FBB_DQM4
FBB_DQM5
FBB_DQM6
FBB_DQM7
FBB_DQS_RN0
FBB_DQS_RN1
FBB_DQS_RN2
FBB_DQS_RN3
FBB_DQS_RN4
FBB_DQS_RN5
FBB_DQS_RN6
FBB_DQS_RN7
FBB_DQS_WP0
FBB_DQS_WP1
FBB_DQS_WP2
FBB_DQS_WP3
FBB_DQS_WP4
FBB_DQS_WP5
FBB_DQS_WP6
FBB_DQS_WP7
8
FBB_CMD0
FBB_CMD1
FBB_CMD2
FBB_CMD3
FBB_CMD4
FBB_CMD5
FBB_CMD6
FBB_CMD7
FBB_CMD8
FBB_CMD9
FBB_CMD10
FBB_CMD11
FBB_CMD12
FBB_CMD13
FBB_CMD14
FBB_CMD15
FBB_CMD16
FBB_CMD17
FBB_CMD18
FBB_CMD19
FBB_CMD20
FBB_CMD21
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD26
FBB_CMD27
FBB_CMD28
FBB0_CLK0
FBB0_CLK0*
FBB1_CLK0
FBB1_CLK0*
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
40OHM 2
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
40OHM 2
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
40OHM 2
40OHM 2
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
40OHM 1
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
80DIFF 1
80DIFF 1
80DIFF 1
80DIFF 1
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
0
1
2
3
4
5
6
7
8
9
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
0
1
2
3
4
5
6
7
8
9
OUT
OUT
OUT
OUT
FBB_D[0..63]
BI
BI
BI
BI
BI
BI
BI
BI
IN
IN
IN
IN
IN
IN
IN
IN
FBB_CMD[0..28]
<Doc>
<Doc>
<Doc>
9
OUT
1
2
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
OUT
3
4
9
9
9
9
Sheet of
Sheet of
Sheet of
HFDBA
5
<RevCode>
<RevCode>
<RevCode>
441
441
441
www.vinafix.vn
Page 5
A B C D E F G H
Framebuffer C,D: GPU Section
1
FBC_D0
AB53
FBC_D1
W53
FBC_D2
W52
FBC_D3
Y52
FBC_D4
AA52
FBC_D5
Y51
FBC_D6
AA50
FBC_D7
AA49
FBC_D8
V49
FBC_D9
U48
FBC_D10
U47
FBC_D11
T47
FBC_D12
U46
FBC_D13
U45
FBC_D14
T45
2
3
4
FBC0_CLK0
FBC0_CLK0*
SNN_FBC0_CLK1
SNN_FBC0_CLK1*
5
FBC_D15
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D30
FBC_D31
FBC_DQM0
FBC_DQM1
FBC_DQM2
FBC_DQM3
FBC_DQS_RN0
FBC_DQS_RN1
FBC_DQS_RN2
FBC_DQS_RN3
FBC_DQS_WP0
FBC_DQS_WP1
FBC_DQS_WP2
FBC_DQS_WP3
FBC_CMD0
FBC_CMD1
FBC_CMD2
FBC_CMD3
FBC_CMD4
FBC_CMD5
FBC_CMD6
FBC_CMD7
FBC_CMD8
FBC_CMD9
FBC_CMD10
FBC_CMD11
FBC_CMD12
FBC_CMD13
FBC_CMD14
FBC_CMD15
FBC_CMD16
FBC_CMD17
FBC_CMD18
FBC_CMD19
FBC_CMD20
FBC_CMD21
SNN_FBC_CMD<22>
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26
FBC_CMD27
FBC_CMD28
SNN_FBC_CMD<29>
SNN_FBC_CMD<30>
SNN_FBC_CMD<31>
SNN_FBC_CMD<32>
FBC0_CLK0
FBC0_CLK0
FBC0_CLK1
FBC0_CLK1
R46
U52
U51
U50
R50
P50
P51
P52
R52
P45
P46
P47
N47
P48
N48
L48
L49
W51
U49
T51
P49
Y49
R47
T52
M50
Y50
T48
T53
M49
AD53
AC55
AC54
AC53
AA55
AA53
Y55
Y54
Y53
V55
V53
U55
U54
U53
R55
R53
P53
P54
P55
M55
M53
L55
L54
L53
J55
J53
H55
H54
H53
F55
F53
E55
E54
AA47
AA46
AC45
AB45
G1F
G1F
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
4/21 MEM_C
4/21 MEM_C
FBC_D0
FBC_D1
FBC_D2
FBC_D3
FBC_D4
FBC_D5
FBC_D6
FBC_D7
FBC_D8
FBC_D9
FBC_D10
FBC_D11
FBC_D12
FBC_D13
FBC_D14
FBC_D15
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D30
FBC_D31
FBC_DQM0
FBC_DQM1
FBC_DQM2
FBC_DQM3
FBC_DQS_RN0
FBC_DQS_RN1
FBC_DQS_RN2
FBC_DQS_RN3
FBC_DQS_WP0
FBC_DQS_WP1
FBC_DQS_WP2
FBC_DQS_WP3
FBC_CMD0
FBC_CMD1
FBC_CMD2
FBC_CMD3
FBC_CMD4
FBC_CMD5
FBC_CMD6
FBC_CMD7
FBC_CMD8
FBC_CMD9
FBC_CMD10
FBC_CMD11
FBC_CMD12
FBC_CMD13
FBC_CMD14
FBC_CMD15
FBC_CMD16
FBC_CMD17
FBC_CMD18
FBC_CMD19
FBC_CMD20
FBC_CMD21
FBC_CMD22
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26
FBC_CMD27
FBC_CMD28
FBC_CMD29
FBC_CMD30
FBC_CMD31
FBC_CMD32
FBC0_CLK0
FBC0_CLK0
FBC0_CLK1
FBC0_CLK1
FBC_D32
FBC_D33
FBC_D34
FBC_D35
FBC_D36
FBC_D37
FBC_D38
FBC_D39
FBC_D40
FBC_D41
FBC_D42
FBC_D43
FBC_D44
FBC_D45
FBC_D46
FBC_D47
FBC_D48
FBC_D49
FBC_D50
FBC_D51
FBC_D52
FBC_D53
FBC_D54
FBC_D55
FBC_D56
FBC_D57
FBC_D58
FBC_D59
FBC_D60
FBC_D61
FBC_D62
FBC_D63
FBC_DQM4
FBC_DQM5
FBC_DQM6
FBC_DQM7
FBC_DQS_RN4
FBC_DQS_RN5
FBC_DQS_RN6
FBC_DQS_RN7
FBC_DQS_WP4
FBC_DQS_WP5
FBC_DQS_WP6
FBC_DQS_WP7
FBC_DEBUG
FBCD_REFCLK
FBCD_REFCLK
FBCD_MPLL_AVDD
FBC1_CLK0
FBC1_CLK0
FBC1_CLK1
FBC1_CLK1
FBC_D32
N51
FBC_D33
N52
FBC_D34
M52
FBC_D35
L50
FBC_D36
K51
FBC_D37
K52
FBC_D38
J52
FBC_D39
J50
FBC_D40
L45
FBC_D41
L46
FBC_D42
L47
FBC_D43
K48
FBC_D44
H48
FBC_D45
H46
FBC_D46
G47
FBC_D47
J49
FBC_D48
H49
FBC_D49
H50
FBC_D50
F50
FBC_D51
H51
FBC_D52
H52
FBC_D53
F52
FBC_D54
E53
FBC_D55
D53
FBC_D56
C52
FBC_D57
D51
FBC_D58
E52
FBC_D59
E51
FBC_D60
D48
FBC_D61
D47
FBC_D62
E48
FBC_D63
F47
FBC_DQM4
K53
FBC_DQM5
G48
FBC_DQM6
G51
FBC_DQM7
C49
FBC_DQS_RN4
L52
FBC_DQS_RN5
K47
FBC_DQS_RN6
G52
FBC_DQS_RN7
E49
FBC_DQS_WP4
L51
FBC_DQS_WP5
J47
FBC_DQS_WP6
G53
FBC_DQS_WP7
D49
FBC_DEBUG
P43
FBCD_REFCLK
AE45
FBCD_REFCLK*
AF45
FBABCD_MPLL_AVDD
N45
C813
C813
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND GND
FBC1_CLK0
M46
FBC1_CLK0*
M47
SNN_FBC1_CLK1
Y45
SNN_FBC1_CLK1*
W45
G1G
G1G
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
5/21 MEM_D
FBD_D0
FBD_D1
FBD_D2
FBD_D3
FBD_D4
FBD_D5
FBD_D6
FBD_D7
FBD_D8
FBD_D9
FBD_D10
FBD_D11
FBD_D12
FBD_D13
FBD_D14
FBD_D15
FBD_D16
FBD_D17
FBD_D18
FBD_D19
FBD_D20
FBD_D21
FBD_D22
FBD_D23
FBD_D24
FBD_D25
FBD_D26
FBD_D27
FBD_D28
FBD_D29
FBD_D30
FBD_D31
FBD_DQM0
FBD_DQM1
FBD_DQM2
FBD_DQM3
FBD_DQS_RN0
FBD_DQS_RN1
FBD_DQS_RN2
FBD_DQS_RN3
FBD_DQS_WP0
FBD0_CLK0
FBD0_CLK0*
SNN_FBD0_CLK1
SNN_FBD0_CLK1*
FBD_DQS_WP1
FBD_DQS_WP2
FBD_DQS_WP3
FBD_CMD0
FBD_CMD1
FBD_CMD2
FBD_CMD3
FBD_CMD4
FBD_CMD5
FBD_CMD6
FBD_CMD7
FBD_CMD8
FBD_CMD9
FBD_CMD10
FBD_CMD11
FBD_CMD12
FBD_CMD13
FBD_CMD14
FBD_CMD15
FBD_CMD16
FBD_CMD17
FBD_CMD18
FBD_CMD19
FBD_CMD20
FBD_CMD21
SNN_FBD_CMD<22>
FBD_CMD23
FBD_CMD24
FBD_CMD25
FBD_CMD26
FBD_CMD27
FBD_CMD28
SNN_FBD_CMD<29>
SNN_FBD_CMD<30>
SNN_FBD_CMD<31>
SNN_FBD_CMD<32>
FBD0_CLK0
FBD0_CLK0
FBD0_CLK1
FBD0_CLK1
FBVDDQ FBVDDQ
R729
R729
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
(not) (not)
19
IN
19
IN
4
IN
C801
C801
4.7UF
4.7UF
6.3V
6.3V
20%
20%
X5R
X5R
0603
0603
COMMON
COMMON
FBC1_CLK0
FBC1_CLK0
FBC1_CLK1
FBC1_CLK1
5/21 MEM_D
E46
FBD_D0
E45
FBD_D1
F45
FBD_D2
H45
FBD_D3
G44
FBD_D4
F44
FBD_D5
D44
FBD_D6
E43
FBD_D7
L43
FBD_D8
K42
FBD_D9
J43
FBD_D10
J42
FBD_D11
G41
FBD_D12
H40
FBD_D13
G39
FBD_D14
F39
FBD_D15
C43
FBD_D16
D43
FBD_D17
D42
FBD_D18
E42
FBD_D19
D41
FBD_D20
D40
FBD_D21
D39
FBD_D22
E39
FBD_D23
J40
FBD_D24
K41
FBD_D25
J39
FBD_D26
H39
FBD_D27
G38
FBD_D28
H37
FBD_D29
H36
FBD_D30
K36
FBD_D31
D45
FBD_DQM0
H43
FBD_DQM1
C40
FBD_DQM2
L37
FBD_DQM3
D46
FBD_DQS_RN0
G42
FBD_DQS_RN1
E40
FBD_DQS_RN2
J36
FBD_DQS_RN3
C46
FBD_DQS_WP0
H42
FBD_DQS_WP1
F41
FBD_DQS_WP2
J37
FBD_DQS_WP3
C54
FBD_CMD0
B53
FBD_CMD1
C51
FBD_CMD2
C50
FBD_CMD3
B51
FBD_CMD4
A51
FBD_CMD5
A50
FBD_CMD6
C48
FBD_CMD7
B48
FBD_CMD8
A48
FBD_CMD9
C47
FBD_CMD10
A47
FBD_CMD11
C45
FBD_CMD12
B45
FBD_CMD13
A45
FBD_CMD14
A44
FBD_CMD15
C44
FBD_CMD16
C42
FBD_CMD17
B42
FBD_CMD18
A42
FBD_CMD19
C41
FBD_CMD20
A41
FBD_CMD21
C39
FBD_CMD22
B39
FBD_CMD23
A39
FBD_CMD24
C38
FBD_CMD25
A38
FBD_CMD26
C36
FBD_CMD27
B36
FBD_CMD28
A36
FBD_CMD29
C35
FBD_CMD30
A35
FBD_CMD31
C33
FBD_CMD32
K44
FBD0_CLK0
J44
FBD0_CLK0
L34
FBD0_CLK1
L33
FBD0_CLK1
FBD_DQS_RN4
FBD_DQS_RN5
FBD_DQS_RN6
FBD_DQS_RN7
FBD_DQS_WP4
FBD_DQS_WP5
FBD_DQS_WP6
FBD_DQS_WP7
FBD_DEBUG
FBD_D32
FBD_D33
FBD_D34
FBD_D35
FBD_D36
FBD_D37
FBD_D38
FBD_D39
FBD_D40
FBD_D41
FBD_D42
FBD_D43
FBD_D44
FBD_D45
FBD_D46
FBD_D47
FBD_D48
FBD_D49
FBD_D50
FBD_D51
FBD_D52
FBD_D53
FBD_D54
FBD_D55
FBD_D56
FBD_D57
FBD_D58
FBD_D59
FBD_D60
FBD_D61
FBD_D62
FBD_D63
FBD_DQM4
FBD_DQM5
FBD_DQM6
FBD_DQM7
FBD1_CLK0
FBD1_CLK0
FBD1_CLK1
FBD1_CLK1
C37
D38
F38
E37
F36
G35
F35
D35
J34
H33
J33
K33
K32
J32
J31
H31
C31
C34
D30
D32
E34
D34
D31
D33
F29
F30
D26
D27
D28
E28
E30
E26
E36
J35
F32
C28
D36
H34
E33
D29
D37
G33
F33
C29
N42
J38
K38
L30
L31
FBD_D32
FBD_D33
FBD_D34
FBD_D35
FBD_D36
FBD_D37
FBD_D38
FBD_D39
FBD_D40
FBD_D41
FBD_D42
FBD_D43
FBD_D44
FBD_D45
FBD_D46
FBD_D47
FBD_D48
FBD_D49
FBD_D50
FBD_D51
FBD_D52
FBD_D53
FBD_D54
FBD_D55
FBD_D56
FBD_D57
FBD_D58
FBD_D59
FBD_D60
FBD_D61
FBD_D62
FBD_D63
FBD_DQM4
FBD_DQM5
FBD_DQM6
FBD_DQM7
FBD_DQS_RN4
FBD_DQS_RN5
FBD_DQS_RN6
FBD_DQS_RN7
FBD_DQS_WP4
FBD_DQS_WP5
FBD_DQS_WP6
FBD_DQS_WP7
FBD_DEBUG
FBD1_CLK0
FBD1_CLK0*
SNN_FBD1_CLK1
SNN_FBD1_CLK1*
FBD1_CLK0
FBD1_CLK0
FBD1_CLK1
FBD1_CLK1
R727
R727
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
FBC_D0
FBC_D1
FBC_D2
FBC_D3
FBC_D4
FBC_D5
FBC_D6
FBC_D7
FBC_D8
FBC_D9
FBC_D10
FBC_D11
FBC_D12
FBC_D13
FBC_D14
FBC_D15
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D30
FBC_D31
FBC_D32
FBC_D33
FBC_D34
FBC_D35
FBC_D36
FBC_D37
FBC_D38
FBC_D39
FBC_D40
FBC_D41
FBC_D42
FBC_D43
FBC_D44
FBC_D45
FBC_D46
FBC_D47
FBC_D48
FBC_D49
FBC_D50
FBC_D51
FBC_D52
FBC_D53
FBC_D54
FBC_D55
FBC_D56
FBC_D57
FBC_D58
FBC_D59
FBC_D60
FBC_D61
FBC_D62
FBC_D63
FBC_DQM0
FBC_DQM1
FBC_DQM2
FBC_DQM3
FBC_DQM4
FBC_DQM5
FBC_DQM6
FBC_DQM7
FBC_DQS_RN0
FBC_DQS_RN1
FBC_DQS_RN2
FBC_DQS_RN3
FBC_DQS_RN4
FBC_DQS_RN5
FBC_DQS_RN6
FBC_DQS_RN7
FBC_DQS_WP0
FBC_DQS_WP1
FBC_DQS_WP2
FBC_DQS_WP3
FBC_DQS_WP4
FBC_DQS_WP5
FBC_DQS_WP6
FBC_DQS_WP7
FBC_CMD0
FBC_CMD1
FBC_CMD2
FBC_CMD3
FBC_CMD4
FBC_CMD5
FBC_CMD6
FBC_CMD7
FBC_CMD8
FBC_CMD9
FBC_CMD10
FBC_CMD11
FBC_CMD12
FBC_CMD13
FBC_CMD14
FBC_CMD15
FBC_CMD16
FBC_CMD17
FBC_CMD18
FBC_CMD19
FBC_CMD20
FBC_CMD21
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26
FBC_CMD27
FBC_CMD28
FBC0_CLK0
FBC0_CLK0*
FBC1_CLK0
FBC1_CLK0*
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 1
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
10
OUT
0
FBC_D[0..63]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
BI
BI
BI
BI
BI
BI
BI
BI
10
140OHM
IN
10
140OHM
IN
10
140OHM
IN
10
140OHM
IN
10
140OHM
IN
10
140OHM
IN
10
140OHM
IN
10
140OHM
IN
10
OUT
10
140OHM
OUT
10
140OHM
OUT
10
140OHM
OUT
10
140OHM
OUT
10
140OHM
OUT
10
140OHM
OUT
10
140OHM
OUT
0
240OHM
FBC_CMD[0..28]
1
240OHM
2
240OHM
3
240OHM
4
240OHM
5
240OHM
6
240OHM
7
240OHM
8
9
240OHM
10
11
240OHM
12
240OHM
13
240OHM
14
15
240OHM
16
240OHM
17
240OHM
18
240OHM
19
240OHM
20
240OHM
21
240OHM
23
24
240OHM
25
240OHM
26
240OHM
27
240OHM
28
10
180DIFF
OUT
10
180DIFF
OUT
10
180DIFF
OUT
10
180DIFF
OUT
FBD_D0
FBD_D1
FBD_D2
FBD_D3
FBD_D4
FBD_D5
FBD_D6
FBD_D7
FBD_D8
FBD_D9
FBD_D10
FBD_D11
FBD_D12
FBD_D13
FBD_D14
FBD_D15
FBD_D16
FBD_D17
FBD_D18
FBD_D19
FBD_D20
FBD_D21
FBD_D22
FBD_D23
FBD_D24
FBD_D25
FBD_D26
FBD_D27
FBD_D28
FBD_D29
FBD_D30
FBD_D31
FBD_D32
FBD_D33
FBD_D34
FBD_D35
FBD_D36
FBD_D37
FBD_D38
FBD_D39
FBD_D40
FBD_D41
FBD_D42
FBD_D43
FBD_D44
FBD_D45
FBD_D46
FBD_D47
FBD_D48
FBD_D49
FBD_D50
FBD_D51
FBD_D52
FBD_D53
FBD_D54
FBD_D55
FBD_D56
FBD_D57
FBD_D58
FBD_D59
FBD_D60
FBD_D61
FBD_D62
FBD_D63
FBD_DQM0
10
FBD_DQM1
10
FBD_DQM2
10
FBD_DQM3
10
FBD_DQM4
10
FBD_DQM5
10
FBD_DQM6
10
FBD_DQM7
10
FBD_DQS_RN0
FBD_DQS_RN1
FBD_DQS_RN2
FBD_DQS_RN3
FBD_DQS_RN4
FBD_DQS_RN5
FBD_DQS_RN6
FBD_DQS_RN7
FBD_DQS_WP0
FBD_DQS_WP1
FBD_DQS_WP2
FBD_DQS_WP3
FBD_DQS_WP4
FBD_DQS_WP5
FBD_DQS_WP6
FBD_DQS_WP7
10
OUT
FBD_CMD0
FBD_CMD1
FBD_CMD2
FBD_CMD3
FBD_CMD4
FBD_CMD5
FBD_CMD6
FBD_CMD7
FBD_CMD8
FBD_CMD9
FBD_CMD10
FBD_CMD11
FBD_CMD12
FBD_CMD13
FBD_CMD14
FBD_CMD15
FBD_CMD16
FBD_CMD17
FBD_CMD18
FBD_CMD19
FBD_CMD20
FBD_CMD21
FBD_CMD23
FBD_CMD24
FBD_CMD25
FBD_CMD26
FBD_CMD27
FBD_CMD28
FBD0_CLK0
FBD0_CLK0*
FBD1_CLK0
FBD1_CLK0*
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
180DIFF
180DIFF
180DIFF
180DIFF
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
OUT
OUT
OUT
OUT
FBD_D[0..63]
BI
BI
BI
BI
BI
BI
BI
BI
IN
IN
IN
IN
IN
IN
IN
IN
FBD_CMD[0..28]
11
OUT
1
2
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
OUT
3
4
11
11
11
11
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Framebuffer C,D: GPU Section
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
541
541
541
<RevCode>
<RevCode>
<RevCode>
Page 6
A B C D E F G H
Framebuffer E,F: GPU Section
1
FBE_D0
G29
FBE_D1
G30
FBE_D2
H30
FBE_D3
J30
FBE_D4
K30
FBE_D5
K27
FBE_D6
J27
FBE_D7
G27
FBE_D8
H26
FBE_D9
J26
FBE_D10
K26
FBE_D11
J25
FBE_D12
J24
FBE_D13
K23
FBE_D14
J23
2
3
4
FBE0_CLK0
FBE0_CLK0*
SNN_FBE0_CLK1
SNN_FBE0_CLK1*
5
FBE_D15
FBE_D16
FBE_D17
FBE_D18
FBE_D19
FBE_D20
FBE_D21
FBE_D22
FBE_D23
FBE_D24
FBE_D25
FBE_D26
FBE_D27
FBE_D28
FBE_D29
FBE_D30
FBE_D31
FBE_DQM0
FBE_DQM1
FBE_DQM2
FBE_DQM3
FBE_DQS_RN0
FBE_DQS_RN1
FBE_DQS_RN2
FBE_DQS_RN3
FBE_DQS_WP0
FBE_DQS_WP1
FBE_DQS_WP2
FBE_DQS_WP3
FBE_CMD0
FBE_CMD1
FBE_CMD2
FBE_CMD3
FBE_CMD4
FBE_CMD5
FBE_CMD6
FBE_CMD7
FBE_CMD8
FBE_CMD9
FBE_CMD10
FBE_CMD11
FBE_CMD12
FBE_CMD13
FBE_CMD14
FBE_CMD15
FBE_CMD16
FBE_CMD17
FBE_CMD18
FBE_CMD19
FBE_CMD20
FBE_CMD21
SNN_FBE_CMD<22>
FBE_CMD23
FBE_CMD24
FBE_CMD25
FBE_CMD26
FBE_CMD27
FBE_CMD28
SNN_FBE_CMD<29>
SNN_FBE_CMD<30>
SNN_FBE_CMD<31>
SNN_FBE_CMD<32>
FBE0_CLK0
FBE0_CLK0
FBE0_CLK1
FBE0_CLK1
H23
C25
E25
F26
F24
D23
F23
D22
C22
G23
H22
G21
J21
J20
H20
G20
H19
J29
G26
E22
K21
J28
G24
D25
J19
K29
H25
D24
K20
B33
A33
C32
A32
B30
A30
C30
A29
A27
C27
A26
B26
C26
A24
C24
A23
B23
C23
A21
C21
A20
B20
C20
A18
C18
A17
B17
C17
A15
C15
A14
B14
C14
L25
L26
L22
L23
G1H
G1H
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
6/21 MEM_E
6/21 MEM_E
FBE_D0
FBE_D1
FBE_D2
FBE_D3
FBE_D4
FBE_D5
FBE_D6
FBE_D7
FBE_D8
FBE_D9
FBE_D10
FBE_D11
FBE_D12
FBE_D13
FBE_D14
FBE_D15
FBE_D16
FBE_D17
FBE_D18
FBE_D19
FBE_D20
FBE_D21
FBE_D22
FBE_D23
FBE_D24
FBE_D25
FBE_D26
FBE_D27
FBE_D28
FBE_D29
FBE_D30
FBE_D31
FBE_DQM0
FBE_DQM1
FBE_DQM2
FBE_DQM3
FBE_DQS_RN0
FBE_DQS_RN1
FBE_DQS_RN2
FBE_DQS_RN3
FBE_DQS_WP0
FBE_DQS_WP1
FBE_DQS_WP2
FBE_DQS_WP3
FBE_CMD0
FBE_CMD1
FBE_CMD2
FBE_CMD3
FBE_CMD4
FBE_CMD5
FBE_CMD6
FBE_CMD7
FBE_CMD8
FBE_CMD9
FBE_CMD10
FBE_CMD11
FBE_CMD12
FBE_CMD13
FBE_CMD14
FBE_CMD15
FBE_CMD16
FBE_CMD17
FBE_CMD18
FBE_CMD19
FBE_CMD20
FBE_CMD21
FBE_CMD22
FBE_CMD23
FBE_CMD24
FBE_CMD25
FBE_CMD26
FBE_CMD27
FBE_CMD28
FBE_CMD29
FBE_CMD30
FBE_CMD31
FBE_CMD32
FBE0_CLK0
FBE0_CLK0
FBE0_CLK1
FBE0_CLK1
FBE_D32
FBE_D33
FBE_D34
FBE_D35
FBE_D36
FBE_D37
FBE_D38
FBE_D39
FBE_D40
FBE_D41
FBE_D42
FBE_D43
FBE_D44
FBE_D45
FBE_D46
FBE_D47
FBE_D48
FBE_D49
FBE_D50
FBE_D51
FBE_D52
FBE_D53
FBE_D54
FBE_D55
FBE_D56
FBE_D57
FBE_D58
FBE_D59
FBE_D60
FBE_D61
FBE_D62
FBE_D63
FBE_DQM4
FBE_DQM5
FBE_DQM6
FBE_DQM7
FBE_DQS_RN4
FBE_DQS_RN5
FBE_DQS_RN6
FBE_DQS_RN7
FBE_DQS_WP4
FBE_DQS_WP5
FBE_DQS_WP6
FBE_DQS_WP7
FBE_DEBUG
FBEF_REFCLK
FBEF_REFCLK
FBEF_MPLL_AVDD
FBE1_CLK0
FBE1_CLK0
FBE1_CLK1
FBE1_CLK1
FBE_D32
D21
FBE_D33
D20
FBE_D34
E20
FBE_D35
F20
FBE_D36
E19
FBE_D37
F18
FBE_D38
G18
FBE_D39
D17
FBE_D40
J18
FBE_D41
K18
FBE_D42
K17
FBE_D43
J17
FBE_D44
G15
FBE_D45
G14
FBE_D46
H14
FBE_D47
J14
FBE_D48
F17
FBE_D49
E17
FBE_D50
D16
FBE_D51
D15
FBE_D52
D14
FBE_D53
E14
FBE_D54
F14
FBE_D55
D13
FBE_D56
C13
FBE_D57
D12
FBE_D58
F12
FBE_D59
F11
FBE_D60
D10
FBE_D61
D9
FBE_D62
F9
FBE_D63
G9
FBE_DQM4
D18
FBE_DQM5
H16
FBE_DQM6
C16
FBE_DQM7
C10
FBE_DQS_RN4
C19
FBE_DQS_RN5
H17
FBE_DQS_RN6
F15
FBE_DQS_RN7
E11
FBE_DQS_WP4
D19
FBE_DQS_WP5
G17
FBE_DQS_WP6
E16
FBE_DQS_WP7
D11
FBE_DEBUG
N14
FBEF_REFCLK
L19
FBEF_REFCLK*
L20
FBEFGH_MPLL_AVDD
K12
C1040
C1040
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND GND GND
FBE1_CLK0
K15
FBE1_CLK0*
J15
SNN_FBE1_CLK1
L17
SNN_FBE1_CLK1*
L16
G1I
G1I
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
7/21 MEM_F
FBF_D0
FBF_D1
FBF_D2
FBF_D3
FBF_D4
FBF_D5
FBF_D6
FBF_D7
FBF_D8
FBF_D9
FBF_D10
FBF_D11
FBF_D12
FBF_D13
FBF_D14
FBF_D15
FBF_D16
FBF_D17
FBF_D18
FBF_D19
FBF_D20
FBF_D21
FBF_D22
FBF_D23
FBF_D24
FBF_D25
FBF_D26
FBF_D27
FBF_D28
FBF_D29
FBF_D30
FBF_D31
FBF_DQM0
FBF_DQM1
FBF_DQM2
FBF_DQM3
FBF_DQS_RN0
FBF_DQS_RN1
FBF_DQS_RN2
FBF_DQS_RN3
FBF_DQS_WP0
FBF0_CLK0
FBF0_CLK0*
SNN_FBF0_CLK1
SNN_FBF0_CLK1*
FBF_DQS_WP1
FBF_DQS_WP2
FBF_DQS_WP3
FBF_CMD0
FBF_CMD1
FBF_CMD2
FBF_CMD3
FBF_CMD4
FBF_CMD5
FBF_CMD6
FBF_CMD7
FBF_CMD8
FBF_CMD9
FBF_CMD10
FBF_CMD11
FBF_CMD12
FBF_CMD13
FBF_CMD14
FBF_CMD15
FBF_CMD16
FBF_CMD17
FBF_CMD18
FBF_CMD19
FBF_CMD20
FBF_CMD21
SNN_FBF_CMD<22>
FBF_CMD23
FBF_CMD24
FBF_CMD25
FBF_CMD26
FBF_CMD27
FBF_CMD28
SNN_FBF_CMD<29>
SNN_FBF_CMD<30>
SNN_FBF_CMD<31>
SNN_FBF_CMD<32>
FBF0_CLK0
FBF0_CLK0
FBF0_CLK1
FBF0_CLK1
FBVDDQ
R757
R757
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
(not) (not)
19
IN
19
IN
7
OUT
1V15
C1018
C1018
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
C1028
C1028
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
LB506 10nH
LB506 10nH
FBE1_CLK0
FBE1_CLK0
FBE1_CLK1
FBE1_CLK1
1.15V16MIL 0.042A
IND_SMD_0402COMMON
IND_SMD_0402COMMON
C1056
C1056
4.7UF
4.7UF
6.3V
6.3V
20%
20%
X5R
X5R
0603
0603
COMMON
COMMON
7/21 MEM_F
K14
FBF_D0
H13
FBF_D1
J12
FBF_D2
G12
FBF_D3
G11
FBF_D4
H11
FBF_D5
H10
FBF_D6
J10
FBF_D7
N11
FBF_D8
P11
FBF_D9
P10
FBF_D10
N9
FBF_D11
P8
FBF_D12
P7
FBF_D13
M7
FBF_D14
M6
FBF_D15
E7
FBF_D16
F8
FBF_D17
G8
FBF_D18
H8
FBF_D19
J9
FBF_D20
K8
FBF_D21
J7
FBF_D22
J6
FBF_D23
D8
FBF_D24
C7
FBF_D25
D7
FBF_D26
D6
FBF_D27
C4
FBF_D28
D3
FBF_D29
E4
FBF_D30
F4
FBF_D31
J11
FBF_DQM0
N8
FBF_DQM1
F6
FBF_DQM2
C5
FBF_DQM3
L11
FBF_DQS_RN0
L7
FBF_DQS_RN1
H7
FBF_DQS_RN2
E5
FBF_DQS_RN3
K11
FBF_DQS_WP0
L8
FBF_DQS_WP1
H6
FBF_DQS_WP2
D5
FBF_DQS_WP3
A12
FBF_CMD0
C12
FBF_CMD1
A11
FBF_CMD2
B11
FBF_CMD3
C11
FBF_CMD4
A9
FBF_CMD5
C9
FBF_CMD6
A8
FBF_CMD7
B8
FBF_CMD8
C8
FBF_CMD9
A6
FBF_CMD10
C6
FBF_CMD11
A5
FBF_CMD12
B5
FBF_CMD13
B3
FBF_CMD14
C2
FBF_CMD15
E3
FBF_CMD16
E2
FBF_CMD17
E1
FBF_CMD18
F3
FBF_CMD19
F1
FBF_CMD20
H3
FBF_CMD21
H2
FBF_CMD22
H1
FBF_CMD23
J3
FBF_CMD24
J1
FBF_CMD25
L3
FBF_CMD26
L2
FBF_CMD27
L1
FBF_CMD28
M3
FBF_CMD29
M1
FBF_CMD30
P3
FBF_CMD31
P2
FBF_CMD32
M10
FBF0_CLK0
M9
FBF0_CLK0
W11
FBF0_CLK1
Y11
FBF0_CLK1
FBF_DQS_RN4
FBF_DQS_RN5
FBF_DQS_RN6
FBF_DQS_RN7
FBF_DQS_WP4
FBF_DQS_WP5
FBF_DQS_WP6
FBF_DQS_WP7
FBF_DEBUG
FBF_D32
FBF_D33
FBF_D34
FBF_D35
FBF_D36
FBF_D37
FBF_D38
FBF_D39
FBF_D40
FBF_D41
FBF_D42
FBF_D43
FBF_D44
FBF_D45
FBF_D46
FBF_D47
FBF_D48
FBF_D49
FBF_D50
FBF_D51
FBF_D52
FBF_D53
FBF_D54
FBF_D55
FBF_D56
FBF_D57
FBF_D58
FBF_D59
FBF_D60
FBF_D61
FBF_D62
FBF_D63
FBF_DQM4
FBF_DQM5
FBF_DQM6
FBF_DQM7
FBF1_CLK0
FBF1_CLK0
FBF1_CLK1
FBF1_CLK1
G3
G4
G5
H4
K3
K4
L4
L5
N3
M4
N4
N5
R4
T4
T3
U4
P6
R6
U6
R7
T8
U10
T11
U11
W3
V4
V6
Y7
AA7
AA6
Y5
AA4
K5
T5
T9
Y6
H5
P4
U7
Y4
J4
P5
U8
W4
P13
R9
R10
AB11
AC11
FBF_D32
FBF_D33
FBF_D34
FBF_D35
FBF_D36
FBF_D37
FBF_D38
FBF_D39
FBF_D40
FBF_D41
FBF_D42
FBF_D43
FBF_D44
FBF_D45
FBF_D46
FBF_D47
FBF_D48
FBF_D49
FBF_D50
FBF_D51
FBF_D52
FBF_D53
FBF_D54
FBF_D55
FBF_D56
FBF_D57
FBF_D58
FBF_D59
FBF_D60
FBF_D61
FBF_D62
FBF_D63
FBF_DQM4
FBF_DQM5
FBF_DQM6
FBF_DQM7
FBF_DQS_RN4
FBF_DQS_RN5
FBF_DQS_RN6
FBF_DQS_RN7
FBF_DQS_WP4
FBF_DQS_WP5
FBF_DQS_WP6
FBF_DQS_WP7
FBF_DEBUG
FBF1_CLK0
FBF1_CLK0*
SNN_FBF1_CLK1
SNN_FBF1_CLK1*
FBVDDQ
FBF1_CLK0
FBF1_CLK0
FBF1_CLK1
FBF1_CLK1
R759
R759
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
FBE_D0
FBE_D1
FBE_D2
FBE_D3
FBE_D4
FBE_D5
FBE_D6
FBE_D7
FBE_D8
FBE_D9
FBE_D10
FBE_D11
FBE_D12
FBE_D13
FBE_D14
FBE_D15
FBE_D16
FBE_D17
FBE_D18
FBE_D19
FBE_D20
FBE_D21
FBE_D22
FBE_D23
FBE_D24
FBE_D25
FBE_D26
FBE_D27
FBE_D28
FBE_D29
FBE_D30
FBE_D31
FBE_D32
FBE_D33
FBE_D34
FBE_D35
FBE_D36
FBE_D37
FBE_D38
FBE_D39
FBE_D40
FBE_D41
FBE_D42
FBE_D43
FBE_D44
FBE_D45
FBE_D46
FBE_D47
FBE_D48
FBE_D49
FBE_D50
FBE_D51
FBE_D52
FBE_D53
FBE_D54
FBE_D55
FBE_D56
FBE_D57
FBE_D58
FBE_D59
FBE_D60
FBE_D61
FBE_D62
FBE_D63
FBE_DQM0
FBE_DQM1
FBE_DQM2
FBE_DQM3
FBE_DQM4
FBE_DQM5
FBE_DQM6
FBE_DQM7
FBE_DQS_RN0
FBE_DQS_RN1
FBE_DQS_RN2
FBE_DQS_RN3
FBE_DQS_RN4
FBE_DQS_RN5
FBE_DQS_RN6
FBE_DQS_RN7
FBE_DQS_WP0
FBE_DQS_WP1
FBE_DQS_WP2
FBE_DQS_WP3
FBE_DQS_WP4
FBE_DQS_WP5
FBE_DQS_WP6
FBE_DQS_WP7
FBE_CMD0
FBE_CMD1
FBE_CMD2
FBE_CMD3
FBE_CMD4
FBE_CMD5
FBE_CMD6
FBE_CMD7
FBE_CMD8
FBE_CMD9
FBE_CMD10
FBE_CMD11
FBE_CMD12
FBE_CMD13
FBE_CMD14
FBE_CMD15
FBE_CMD16
FBE_CMD17
FBE_CMD18
FBE_CMD19
FBE_CMD20
FBE_CMD21
FBE_CMD23
FBE_CMD24
FBE_CMD25
FBE_CMD26
FBE_CMD27
FBE_CMD28
FBE0_CLK0
FBE0_CLK0*
FBE1_CLK0
FBE1_CLK0*
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
12
OUT
0
FBE_D[0..63]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
240OHM
21
240OHM
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
BI
BI
BI
BI
BI
BI
BI
BI
12
140OHM
IN
12
140OHM
IN
12
140OHM
IN
12
140OHM
IN
12
140OHM
IN
12
140OHM
IN
12
140OHM
IN
12
140OHM
IN
12
140OHM
OUT
12
140OHM
OUT
12
140OHM
OUT
12
140OHM
OUT
12
140OHM
OUT
12
140OHM
OUT
12
140OHM
OUT
12
140OHM
OUT
0
240OHM
FBE_CMD[0..28]
1
240OHM
2
240OHM
3
240OHM
4
240OHM
5
240OHM
6
240OHM
7
240OHM
8
240OHM
9
240OHM
10
240OHM
11
12
240OHM
13
240OHM
14
240OHM
15
240OHM
16
240OHM
17
240OHM
18
240OHM
19
240OHM
20
240OHM
21
240OHM
23
240OHM
24
240OHM
25
240OHM
26
240OHM
27
240OHM
28
240OHM
12
180DIFF
OUT
12
180DIFF
OUT
12
180DIFF
OUT
12
180DIFF
OUT
FBF_D0
FBF_D1
FBF_D2
FBF_D3
FBF_D4
FBF_D5
FBF_D6
FBF_D7
FBF_D8
FBF_D9
FBF_D10
FBF_D11
FBF_D12
FBF_D13
FBF_D14
FBF_D15
FBF_D16
FBF_D17
FBF_D18
FBF_D19
FBF_D20
FBF_D21
FBF_D22
FBF_D23
FBF_D24
FBF_D25
FBF_D26
FBF_D27
FBF_D28
FBF_D29
FBF_D30
FBF_D31
FBF_D32
FBF_D33
FBF_D34
FBF_D35
FBF_D36
FBF_D37
FBF_D38
FBF_D39
FBF_D40
FBF_D41
FBF_D42
FBF_D43
FBF_D44
FBF_D45
FBF_D46
FBF_D47
FBF_D48
FBF_D49
FBF_D50
FBF_D51
FBF_D52
FBF_D53
FBF_D54
FBF_D55
FBF_D56
FBF_D57
FBF_D58
FBF_D59
FBF_D60
FBF_D61
FBF_D62
FBF_D63
FBF_DQM0
12
FBF_DQM1
12
FBF_DQM2
12
FBF_DQM3
12
FBF_DQM4
12
FBF_DQM5
12
FBF_DQM6
12
FBF_DQM7
12
FBF_DQS_RN0
FBF_DQS_RN1
FBF_DQS_RN2
FBF_DQS_RN3
FBF_DQS_RN4
FBF_DQS_RN5
FBF_DQS_RN6
FBF_DQS_RN7
FBF_DQS_WP0
FBF_DQS_WP1
FBF_DQS_WP2
FBF_DQS_WP3
FBF_DQS_WP4
FBF_DQS_WP5
FBF_DQS_WP6
FBF_DQS_WP7
12
OUT
FBF_CMD0
FBF_CMD1
FBF_CMD2
FBF_CMD3
FBF_CMD4
FBF_CMD5
FBF_CMD6
FBF_CMD7
FBF_CMD8
FBF_CMD9
FBF_CMD10
FBF_CMD11
FBF_CMD12
FBF_CMD13
FBF_CMD14
FBF_CMD15
FBF_CMD16
FBF_CMD17
FBF_CMD18
FBF_CMD19
FBF_CMD20
FBF_CMD21
FBF_CMD23
FBF_CMD24
FBF_CMD25
FBF_CMD26
FBF_CMD27
FBF_CMD28
FBF0_CLK0
FBF0_CLK0*
FBF1_CLK0
FBF1_CLK0*
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
140OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
240OHM
180DIFF
180DIFF
180DIFF
180DIFF
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
0
1
2
3
4
5
6
7
8
9
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
0
1
2
3
4
5
6
7
8
9
OUT
OUT
OUT
OUT
FBF_D[0..63]
BI
BI
BI
BI
BI
BI
BI
BI
IN
IN
IN
IN
IN
IN
IN
IN
FBF_CMD[0..28]
13
OUT
1
2
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
OUT
3
4
13
13
13
13
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Framebuffer E,F: GPU Section
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
641
641
641
<RevCode>
<RevCode>
<RevCode>
Page 7
A B C D E F G H
Framebuffer G,H: GPU Section
1
FBG_D0
Y8
FBG_D1
W9
FBG_D2
Y9
FBG_D3
Y10
FBG_D4
AA9
FBG_D5
AB8
FBG_D6
AC7
FBG_D7
AC6
FBG_D8
AC8
FBG_D9
AC9
FBG_D10
AC10
FBG_D11
AD10
FBG_D12
AE9
FBG_D13
AF8
FBG_D14
AF7
2
3
4
FBG0_CLK0
FBG0_CLK0*
SNN_FBG0_CLK1
SNN_FBG0_CLK1*
5
FBG_D15
FBG_D16
FBG_D17
FBG_D18
FBG_D19
FBG_D20
FBG_D21
FBG_D22
FBG_D23
FBG_D24
FBG_D25
FBG_D26
FBG_D27
FBG_D28
FBG_D29
FBG_D30
FBG_D31
FBG_DQM0
FBG_DQM1
FBG_DQM2
FBG_DQM3
FBG_DQS_RN0
FBG_DQS_RN1
FBG_DQS_RN2
FBG_DQS_RN3
FBG_DQS_WP0
FBG_DQS_WP1
FBG_DQS_WP2
FBG_DQS_WP3
FBG_CMD0
FBG_CMD1
FBG_CMD2
FBG_CMD3
FBG_CMD4
FBG_CMD5
FBG_CMD6
FBG_CMD7
FBG_CMD8
FBG_CMD9
FBG_CMD10
FBG_CMD11
FBG_CMD12
FBG_CMD13
FBG_CMD14
FBG_CMD15
FBG_CMD16
FBG_CMD17
FBG_CMD18
FBG_CMD19
FBG_CMD20
FBG_CMD21
SNN_FBG_CMD<22>
FBG_CMD23
FBG_CMD24
FBG_CMD25
FBG_CMD26
FBG_CMD27
FBG_CMD28
SNN_FBG_CMD<29>
SNN_FBG_CMD<30>
SNN_FBG_CMD<31>
SNN_FBG_CMD<32>
FBG0_CLK0
FBG0_CLK0
FBG0_CLK1
FBG0_CLK1
AF6
AB4
AB5
AC4
AC5
AD6
AE5
AF4
AF5
AG10
AG9
AH9
AJ9
AK9
AK7
AK8
AJ6
AA10
AD9
AE4
AJ7
W8
AD7
AD4
AH8
V7
AE8
AE3
AG7
P1
R3
R1
U3
U2
U1
V3
V1
Y3
Y2
Y1
AA3
AA1
AC3
AC2
AC1
AD3
AD1
AF3
AF2
AF1
AG3
AG1
AJ1
AJ3
AK1
AK2
AK3
AM1
AM3
AN1
AN2
AN3
V10
V9
AE11
AF11
G1J
G1J
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
8/21 MEM_G
8/21 MEM_G
FBG_D0
FBG_D1
FBG_D2
FBG_D3
FBG_D4
FBG_D5
FBG_D6
FBG_D7
FBG_D8
FBG_D9
FBG_D10
FBG_D11
FBG_D12
FBG_D13
FBG_D14
FBG_D15
FBG_D16
FBG_D17
FBG_D18
FBG_D19
FBG_D20
FBG_D21
FBG_D22
FBG_D23
FBG_D24
FBG_D25
FBG_D26
FBG_D27
FBG_D28
FBG_D29
FBG_D30
FBG_D31
FBG_DQM0
FBG_DQM1
FBG_DQM2
FBG_DQM3
FBG_DQS_RN0
FBG_DQS_RN1
FBG_DQS_RN2
FBG_DQS_RN3
FBG_DQS_WP0
FBG_DQS_WP1
FBG_DQS_WP2
FBG_DQS_WP3
FBG_CMD0
FBG_CMD1
FBG_CMD2
FBG_CMD3
FBG_CMD4
FBG_CMD5
FBG_CMD6
FBG_CMD7
FBG_CMD8
FBG_CMD9
FBG_CMD10
FBG_CMD11
FBG_CMD12
FBG_CMD13
FBG_CMD14
FBG_CMD15
FBG_CMD16
FBG_CMD17
FBG_CMD18
FBG_CMD19
FBG_CMD20
FBG_CMD21
FBG_CMD22
FBG_CMD23
FBG_CMD24
FBG_CMD25
FBG_CMD26
FBG_CMD27
FBG_CMD28
FBG_CMD29
FBG_CMD30
FBG_CMD31
FBG_CMD32
FBG0_CLK0
FBG0_CLK0
FBG0_CLK1
FBG0_CLK1
FBG_D32
FBG_D33
FBG_D34
FBG_D35
FBG_D36
FBG_D37
FBG_D38
FBG_D39
FBG_D40
FBG_D41
FBG_D42
FBG_D43
FBG_D44
FBG_D45
FBG_D46
FBG_D47
FBG_D48
FBG_D49
FBG_D50
FBG_D51
FBG_D52
FBG_D53
FBG_D54
FBG_D55
FBG_D56
FBG_D57
FBG_D58
FBG_D59
FBG_D60
FBG_D61
FBG_D62
FBG_D63
FBG_DQM4
FBG_DQM5
FBG_DQM6
FBG_DQM7
FBG_DQS_RN4
FBG_DQS_RN5
FBG_DQS_RN6
FBG_DQS_RN7
FBG_DQS_WP4
FBG_DQS_WP5
FBG_DQS_WP6
FBG_DQS_WP7
FBG_DEBUG
FBGH_REFCLK
FBGH_REFCLK
FBGH_NV_H_PLL_AVDD
FBG1_CLK0
FBG1_CLK0
FBG1_CLK1
FBG1_CLK1
FBG_D32
AG4
FBG_D33
AH3
FBG_D34
AH4
FBG_D35
AJ4
FBG_D36
AL3
FBG_D37
AL4
FBG_D38
AL5
FBG_D39
AM4
FBG_D40
AL9
FBG_D41
AK10
FBG_D42
AK11
FBG_D43
AL11
FBG_D44
AM10
FBG_D45
AN9
FBG_D46
AN8
FBG_D47
AP8
FBG_D48
AM6
FBG_D49
AN6
FBG_D50
AN5
FBG_D51
AP5
FBG_D52
AR4
FBG_D53
AT4
FBG_D54
AT5
FBG_D55
AT6
FBG_D56
AN7
FBG_D57
AP9
FBG_D58
AR9
FBG_D59
AR7
FBG_D60
AT7
FBG_D61
AV7
FBG_D62
AV9
FBG_D63
AV10
FBG_DQM4
AK4
FBG_DQM5
AM9
FBG_DQM6
AP3
FBG_DQM7
AU9
FBG_DQS_RN4
AK6
FBG_DQS_RN5
AL8
FBG_DQS_RN6
AN4
FBG_DQS_RN7
AT8
FBG_DQS_WP4
AK5
FBG_DQS_WP5
AM7
FBG_DQS_WP6
AP4
FBG_DQS_WP7
AU8
FBG_DEBUG
AE13
FBGH_REFCLK
BC16
FBGH_REFCLK*
BC17
FBEFGH_MPLL_AVDD
BC11
GND
FBG1_CLK0
AF10
FBG1_CLK0*
AF9
SNN_FBG1_CLK1
AN11
SNN_FBG1_CLK1*
AP11
C1042
C1042
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBVDDQ
IN
IN
FBG1_CLK0
FBG1_CLK0
FBG1_CLK1
FBG1_CLK1
14
FBG_D0
FBG_D1
FBG_D2
FBG_D3
FBG_D4
FBG_D5
FBG_D6
FBG_D7
FBG_D8
FBG_D9
FBG_D10
FBG_D11
FBG_D12
FBG_D13
FBG_D14
FBG_D15
FBG_D16
FBG_D17
FBG_D18
FBG_D19
G1K
G1K
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
9/21 MEM_H
AW10
9/21 MEM_H
AU3
FBH_D0
AU4
FBH_D1
AV4
FBH_D2
AV6
FBH_D3
AY3
FBH_D4
AY4
FBH_D5
BA4
FBH_D6
BB6
FBH_D7
AW7
FBH_D8
AW8
FBH_D9
AW9
FBH_D10
FBH_D11
AY9
FBH_D12
AY8
FBH_D13
BA9
FBH_D14
BA10
FBH_D15
BC3
FBH_D16
BB4
FBH_D17
BB5
FBH_D18
BC5
FBH_D19
BE4
FBH_D20
BF4
FBH_D21
BE5
FBH_D22
BE6
FBH_D23
BB10
FBH_D24
BB9
FBH_D25
BC9
FBH_D26
BD7
FBH_D27
BE8
FBH_D28
BE9
FBH_D29
BF8
FBH_D30
BG7
FBH_D31
AY5
FBH_DQM0
AW6
FBH_DQM1
BD6
FBH_DQM2
BB8
FBH_DQM3
AW5
FBH_DQS_RN0
BA7
FBH_DQS_RN1
BC4
FBH_DQS_RN2
BC8
FBH_DQS_RN3
AW4
FBH_DQS_WP0
BA6
FBH_DQS_WP1
BD4
FBH_DQS_WP2
BB7
FBH_DQS_WP3
AR1
FBH_CMD0
AR3
FBH_CMD1
AT1
FBH_CMD2
AT2
FBH_CMD3
AT3
FBH_CMD4
AV1
FBH_CMD5
AV3
FBH_CMD6
AW1
FBH_CMD7
AW2
FBH_CMD8
AW3
FBH_CMD9
BA1
FBH_CMD10
BA3
FBH_CMD11
BB1
FBH_CMD12
BB2
FBH_CMD13
BB3
FBH_CMD14
BD1
FBH_CMD15
BD3
FBH_CMD16
BE1
FBH_CMD17
BE2
FBH_CMD18
BE3
FBH_CMD19
BG1
FBH_CMD20
BG3
FBH_CMD21
BH1
FBH_CMD22
BH2
FBH_CMD23
BH3
FBH_CMD24
BK1
FBH_CMD25
BK3
FBH_CMD26
BL1
FBH_CMD27
BL2
FBH_CMD28
BN2
FBH_CMD29
BP3
FBH_CMD30
BR5
FBH_CMD31
BR6
FBH_CMD32
AT10
FBH0_CLK0
AT9
FBH0_CLK0
AT11
FBH0_CLK1
AU11
FBH0_CLK1
FBH_DQS_RN4
FBH_DQS_RN5
FBH_DQS_RN6
FBH_DQS_RN7
FBH_DQS_WP4
FBH_DQS_WP5
FBH_DQS_WP6
FBH_DQS_WP7
FBH_DEBUG
FBH_D32
FBH_D33
FBH_D34
FBH_D35
FBH_D36
FBH_D37
FBH_D38
FBH_D39
FBH_D40
FBH_D41
FBH_D42
FBH_D43
FBH_D44
FBH_D45
FBH_D46
FBH_D47
FBH_D48
FBH_D49
FBH_D50
FBH_D51
FBH_D52
FBH_D53
FBH_D54
FBH_D55
FBH_D56
FBH_D57
FBH_D58
FBH_D59
FBH_D60
FBH_D61
FBH_D62
FBH_D63
FBH_DQM4
FBH_DQM5
FBH_DQM6
FBH_DQM7
FBH1_CLK0
FBH1_CLK0
FBH1_CLK1
FBH1_CLK1
BF11
BF12
BG11
BG12
BG13
BG14
BH14
BJ14
BG4
BJ4
BH7
BJ5
BK4
BF3
BG6
BJ3
BM3
BL3
BL4
BL5
BM5
BM6
BM7
BN6
BK12
BK11
BK9
BK8
BM8
BN9
BN8
BN7
BJ12
BH4
BP5
BL11
BH11
BH6
BN4
BL8
BJ11
BH5
BN5
BM9
AW13
BD10
BD9
AW11
AY11
SNN_FBH_D<32>
SNN_FBH_D<33>
SNN_FBH_D<34>
SNN_FBH_D<35>
SNN_FBH_D<36>
SNN_FBH_D<37>
SNN_FBH_D<38>
SNN_FBH_D<39>
SNN_FBH_D<40>
SNN_FBH_D<41>
SNN_FBH_D<42>
SNN_FBH_D<43>
SNN_FBH_D<44>
SNN_FBH_D<45>
SNN_FBH_D<46>
SNN_FBH_D<47>
SNN_FBH_D<48>
SNN_FBH_D<49>
SNN_FBH_D<50>
SNN_FBH_D<51>
SNN_FBH_D<52>
SNN_FBH_D<53>
SNN_FBH_D<54>
SNN_FBH_D<55>
SNN_FBH_D<56>
SNN_FBH_D<57>
SNN_FBH_D<58>
SNN_FBH_D<59>
SNN_FBH_D<60>
SNN_FBH_D<61>
SNN_FBH_D<62>
SNN_FBH_D<63>
SNN_FBH_DQM4
SNN_FBH_DQM5
SNN_FBH_DQM6
SNN_FBH_DQM7
SNN_FBH_DQS_RN4
SNN_FBH_DQS_RN5
SNN_FBH_DQS_RN6
SNN_FBH_DQS_RN7
SNN_FBH_DQS_WP4
SNN_FBH_DQS_WP5
SNN_FBH_DQS_WP6
SNN_FBH_DQS_WP7
SNN_FBH_DEBUG
SNN_FBH1_CLK0
SNN_FBH1_CLK0*
SNN_FBH1_CLK1
SNN_FBH1_CLK1*
FBH1_CLK0
FBH1_CLK0
FBH1_CLK1
FBH1_CLK1
SNN_FBH_D<0>
SNN_FBH_D<1>
SNN_FBH_D<2>
SNN_FBH_D<3>
SNN_FBH_D<4>
SNN_FBH_D<5>
SNN_FBH_D<6>
SNN_FBH_D<7>
SNN_FBH_D<8>
SNN_FBH_D<9>
SNN_FBH_D<10>
SNN_FBH_D<11>
SNN_FBH_D<12>
SNN_FBH_D<13>
SNN_FBH_D<14>
SNN_FBH_D<15>
SNN_FBH_D<16>
SNN_FBH_D<17>
SNN_FBH_D<18>
SNN_FBH_D<19>
SNN_FBH_D<20>
SNN_FBH_D<21>
SNN_FBH_D<22>
SNN_FBH_D<23>
SNN_FBH_D<24>
SNN_FBH_D<25>
SNN_FBH_D<26>
SNN_FBH_D<27>
SNN_FBH_D<28>
SNN_FBH_D<29>
SNN_FBH_D<30>
SNN_FBH_D<31>
SNN_FBH_DQM0
SNN_FBH_DQM1
SNN_FBH_DQM2
SNN_FBH_DQM3
SNN_FBH_DQS_RN0
SNN_FBH_DQS_RN1
SNN_FBH_DQS_RN2
SNN_FBH_DQS_RN3
SNN_FBH_DQS_WP0
SNN_FBH_DQS_WP1
SNN_FBH_DQS_WP2
SNN_FBH0_CLK0
SNN_FBH0_CLK0*
SNN_FBH0_CLK1
SNN_FBH0_CLK1*
SNN_FBH_DQS_WP3
SNN_FBH_CMD<0>
SNN_FBH_CMD<1>
SNN_FBH_CMD<2>
SNN_FBH_CMD<3>
SNN_FBH_CMD<4>
SNN_FBH_CMD<5>
SNN_FBH_CMD<6>
SNN_FBH_CMD<7>
SNN_FBH_CMD<8>
SNN_FBH_CMD<9>
SNN_FBH_CMD<10>
SNN_FBH_CMD<11>
SNN_FBH_CMD<12>
SNN_FBH_CMD<13>
SNN_FBH_CMD<14>
SNN_FBH_CMD<15>
SNN_FBH_CMD<16>
SNN_FBH_CMD<17>
SNN_FBH_CMD<18>
SNN_FBH_CMD<19>
SNN_FBH_CMD<20>
SNN_FBH_CMD<21>
SNN_FBH_CMD<22>
SNN_FBH_CMD<23>
SNN_FBH_CMD<24>
SNN_FBH_CMD<25>
SNN_FBH_CMD<26>
SNN_FBH_CMD<27>
SNN_FBH_CMD<28>
SNN_FBH_CMD<29>
SNN_FBH_CMD<30>
SNN_FBH_CMD<31>
SNN_FBH_CMD<32>
FBH0_CLK0
FBH0_CLK0
FBH0_CLK1
FBH0_CLK1
R761
R761
60.4
60.4
1%
1%
0402
0402
COMMON
COMMON
(not)
19
19
6
IN
C1037
C1037
4.7UF
4.7UF
6.3V
6.3V
20%
20%
X5R
X5R
0603
0603
COMMON
COMMON
GND
FBG_D20
FBG_D21
FBG_D22
FBG_D23
FBG_D24
FBG_D25
FBG_D26
FBG_D27
FBG_D28
FBG_D29
FBG_D30
FBG_D31
FBG_D32
FBG_D33
FBG_D34
FBG_D35
FBG_D36
FBG_D37
FBG_D38
FBG_D39
FBG_D40
FBG_D41
FBG_D42
FBG_D43
FBG_D44
FBG_D45
FBG_D46
FBG_D47
FBG_D48
FBG_D49
FBG_D50
FBG_D51
FBG_D52
FBG_D53
FBG_D54
FBG_D55
FBG_D56
FBG_D57
FBG_D58
FBG_D59
FBG_D60
FBG_D61
FBG_D62
FBG_D63
FBG_DQM0
FBG_DQM1
FBG_DQM2
FBG_DQM3
FBG_DQM4
FBG_DQM5
FBG_DQM6
FBG_DQM7
FBG_DQS_RN0
FBG_DQS_RN1
FBG_DQS_RN2
FBG_DQS_RN3
FBG_DQS_RN4
FBG_DQS_RN5
FBG_DQS_RN6
FBG_DQS_RN7
FBG_DQS_WP0
FBG_DQS_WP1
FBG_DQS_WP2
FBG_DQS_WP3
FBG_DQS_WP4
FBG_DQS_WP5
FBG_DQS_WP6
FBG_DQS_WP7
FBG_CMD0
FBG_CMD1
FBG_CMD2
FBG_CMD3
FBG_CMD4
FBG_CMD5
FBG_CMD6
FBG_CMD7
FBG_CMD8
FBG_CMD9
FBG_CMD10
FBG_CMD11
FBG_CMD12
FBG_CMD13
FBG_CMD14
FBG_CMD15
FBG_CMD16
FBG_CMD17
FBG_CMD18
FBG_CMD19
FBG_CMD20
FBG_CMD21
FBG_CMD23
FBG_CMD24
FBG_CMD25
FBG_CMD26
FBG_CMD27
FBG_CMD28
FBG0_CLK0
FBG0_CLK0*
FBG1_CLK0
FBG1_CLK0*
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 1
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
40OHM 2
OUT
0
240OHM
FBG_D[0..63]
1
240OHM
2
240OHM
3
240OHM
4
240OHM
5
240OHM
6
240OHM
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
240OHM
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
240OHM
62
240OHM
63
240OHM
14
240OHM
BI
14
240OHM
BI
14
BI
14
BI
14
240OHM
BI
14
BI
14
240OHM
BI
14
BI
14
140OHM
IN
14
140OHM
IN
14
140OHM
IN
14
140OHM
IN
14
140OHM
IN
14
140OHM
IN
14
140OHM
IN
14
IN
14
140OHM
OUT
14
140OHM
OUT
14
140OHM
OUT
14
140OHM
OUT
14
140OHM
OUT
14
140OHM
OUT
14
140OHM
OUT
14
140OHM
OUT
14
OUT
0
240OHM
FBG_CMD[0..28]
1
240OHM
2
240OHM
3
240OHM
4
240OHM
5
240OHM
6
240OHM
7
240OHM
8
240OHM
9
10
240OHM
11
12
13
240OHM
14
15
16
17
240OHM
18
240OHM
19
240OHM
20
240OHM
21
240OHM
23
240OHM
24
240OHM
25
26
240OHM
27
240OHM
28
240OHM
14
180DIFF
OUT
14
180DIFF
OUT
14
180DIFF
OUT
14
180DIFF
OUT
1
2
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Framebuffer G,H: GPU Section
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
741
741
741
<RevCode>
<RevCode>
<RevCode>
Page 8
A B C D E F G H
Framebuffer A: Memory Section
M14B
4
FBA_CMD[0..28]
IN
FBA_CMD0
0
FBA_CMD1
1
FBA_CMD2
2
FBA_CMD3
3
FBA_CMD4
4
1
2
3
4
4
4
4
4
4
4
4
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBA_CMD5
5
FBA_CMD6
6
FBA_CMD7
7
FBA_CMD8
8
FBA_CMD9
9
FBA_CMD10
10
FBA_CMD11
11
FBA_CMD12
12
FBA_CMD13
13
FBA_CMD14
14
FBA_CMD15
15
FBA_CMD16
16
FBA_CMD17
17
FBA_CMD18
18
FBA_CMD19
19
FBA_CMD20
20
FBA_CMD21
21
FBA_CMD23
23
FBA_CMD24
24
FBA_CMD25
25
FBA_CMD26
26
FBA_CMD27
27
FBA_CMD28
28
FBA0_CLK0
4
IN
FBA0_CLK0*
4
IN
FBA1_CLK0
4
IN
FBA1_CLK0*
4
IN
4
FBA_D[0..63]
BI
FBA_D0
0
FBA_D1
1
FBA_D2
2
FBA_D3
3
FBA_D4
4
FBA_D5
5
FBA_D6
6
FBA_D7
7
FBA_D8
8
FBA_D9
9
FBA_D10
10
FBA_D11
11
FBA_D12
12
FBA_D13
13
FBA_D14
14
FBA_D15
15
FBA_D16
16
FBA_D17
17
FBA_D18
18
FBA_D19
19
FBA_D20
20
FBA_D21
21
FBA_D22
22
FBA_D23
23
FBA_D24
24
FBA_D25
25
FBA_D26
26
FBA_D27
27
FBA_D28
28
FBA_D29
29
FBA_D30
30
FBA_D31
31
FBA_D32
32
33
34
35
36
37
38
39
FBA_D40
40
FBA_D41
41
FBA_D42
42
FBA_D43
43
FBA_D44
44
FBA_D45
45
FBA_D46
46
FBA_D47
47
FBA_D48
48
FBA_D49
49
FBA_D50
50
FBA_D51
51
FBA_D52
52
FBA_D53
53
FBA_D54
54
FBA_D55
55
FBA_D56
56
FBA_D57
57
FBA_D58
58
FBA_D59
59
FBA_D60
60
FBA_D61
61
FBA_D62
62
FBA_D63
63
FBA_DQM0
BI
FBA_DQM1
BI
FBA_DQM2
BI
FBA_DQM3
BI
FBA_DQM4
BI
FBA_DQM5
BI
FBA_DQM6
BI
FBA_DQM7
BI
FBA_DQS_RN0
4
IN
FBA_DQS_RN1
4
IN
FBA_DQS_RN2
4
IN
FBA_DQS_RN3
4
IN
FBA_DQS_RN4
4
IN
FBA_DQS_RN5
4
IN
FBA_DQS_RN6
4
IN
FBA_DQS_RN7
4
IN
FBA_DQS_WP0
4
OUT
FBA_DQS_WP1
4
OUT
FBA_DQS_WP2
4
OUT
FBA_DQS_WP3
4
OUT
FBA_DQS_WP4
4
OUT
FBA_DQS_WP5
4
OUT
FBA_DQS_WP6
4
OUT
FBA_DQS_WP7
4
OUT
FBA_CMD14 FBA_CMD14
FBA_CMD17 FBA_CMD17
FBA_CMD7 FBA_CMD7
FBA_CMD16 FBA_CMD16
FBA_CMD21 FBA_CMD21
FBA_CMD12 FBA_CMD12
FBA_CMD5
FBA_CMD4
FBA_CMD3
FBA_CMD0
FBA_CMD2
FBA_CMD1
FBA_CMD19 FBA_CMD19
FBA_CMD18 FBA_CMD18
FBA_CMD9 FBA_CMD9
FBA_CMD20 FBA_CMD20
FBA_CMD15 FBA_CMD15
FBA_CMD11 FBA_CMD11
FBA_CMD8 FBA_CMD8
FBA_CMD6 FBA_CMD6
FBA0_CLK0
FBA0_CLK0*
FBA_CMD13 FBA_CMD13
R78 0R
R78 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
FBA_CMD10 FBA_CMD10
GND
GND
FBA_D0
FBA_D1
FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7
FBA_DQM0 FBA_DQM1
FBA_DQS_RN0 FBA_DQS_RN1
FBA_DQS_WP0 FBA_DQS_WP1
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_DQM2 FBA_DQM3
FBA_DQS_RN2 FBA_DQS_RN3
FBA_DQS_WP2 FBA_DQS_WP3
FBVDDQ
FBA_CMD5
FBA_CMD4
FBA_CMD3
FBA_CMD0
FBA_CMD2
FBA_CMD1
M14B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
M14A
M14A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
E
E
M14E
M14E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
NONMIRRORED
FBA_D8
FBA_D9
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
H4
J11
J10
J2
J3
FBA_SEN1 FBA_SEN2
V4
V9
A9
FBA_ZQ1 FBA_ZQ2
A4
R617
R617
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
M11
L10
M10
N11
R11
T11
T10
R10
N10
P10
P11
E2
F3
G3
F2
C2
C3
B2
B3
E3
D3
D2
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBA_VREF1
H1
VREF
FBA_VREF2
H12
VREF
M14D
M14D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
C10
DQ0
C11
DQ1
G10
DQ2
F10
DQ3
B10
DQ4
B11
DQ5
E11
DQ6
F11
DQ7
E10
DQM
D10
RDQS
D11
WDQS
M14C
M14C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
T2
DQ0
R3
DQ1
T3
DQ2
N2
DQ3
M2
DQ4
R2
DQ5
L3
DQ6
M3
DQ7
N3
DQM
P3
RDQS
P2
WDQS
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD28
FBA_CMD26
FBA_CMD27
FBA1_CLK0
FBA1_CLK0*
R835%0R
R835%0R
0402 COMMON
0402 COMMON
1K for Qimonda
0 for others
GND
FBVDDQ
FBA_D32FBA_D33
FBA_D33FBA_D34
FBA_D34FBA_D35
FBA_D35FBA_D36
FBA_D36FBA_D37
FBA_D37FBA_D38
FBA_D38FBA_D39
FBA_D39
FBA_DQM4 FBA_DQM5
FBA_DQS_RN4 FBA_DQS_RN5
FBA_DQS_WP4 FBA_DQS_WP5
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_DQM6 FBA_DQM7
FBA_DQS_RN6 FBA_DQS_RN7
FBA_DQS_WP6 FBA_DQS_WP7
SubPartition 0 Termination Balancing A2..A7
R684
R684
R674
R674
R685
R685
R657
R657
R676
R676
R673
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
R673
121
121
1%
1%
0402
0402
COMMON
COMMON
M13B
M13B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
J10
J2
J3
V4
V9
A9
A4
R616
R616
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
M13A
M13A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B10
C10
C11
B11
F11
G10
F10
E11
E10
D10
D11
M13E
M13E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B2
F2
B3
E2
C3
C2
F3
G3
E3
D3
D2
FBVDDQ
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD28
FBA_CMD26
FBA_CMD27
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
FBA_D40
DQ0
FBA_D41
DQ1
FBA_D42
DQ2
FBA_D43
DQ3
FBA_D44
DQ4
FBA_D45
DQ5
FBA_D46
DQ6
FBA_D47
DQ7
DQM
RDQS
WDQS
FBA_D56
DQ0
FBA_D57
DQ1
FBA_D58
DQ2
FBA_D59
DQ3
FBA_D60
DQ4
FBA_D61
DQ5
FBA_D62
DQ6
FBA_D63
DQ7
DQM
RDQS
WDQS
SubPartition 1 Termination Balancing A2..A7
R687
R687
121
121
1%
1%
0402
0402
COMMON
COMMON
R678
R678
121
121
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBA_VREF3
H1
VREF
FBA_VREF4
H12
VREF
M13D
M13D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
T10
DQ0
R10
DQ1
T11
DQ2
R11
DQ3
L10
DQ4
M10
DQ5
N11
DQ6
M11
DQ7
N10
DQM
P10
RDQS
P11
WDQS
M13C
M13C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
R2
DQ0
T2
DQ1
T3
DQ2
R3
DQ3
M3
DQ4
N2
DQ5
L3
DQ6
M2
DQ7
N3
DQM
P3
RDQS
P2
WDQS
R689
R689
R663
R663
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
R681
R681
R669
R669
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer A: Memory Section
TERMINATION SELECT
FBA_CMD6
CKE RESET
R648
R648
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBA_CMD10
R660
R660
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R623
R623
511
511
1%
1%
0402
0402
COMMON
COMMON
FBA_VREF1
FBA_VREF1
C665
C665
R646
R646
1.1K
1.1K
.1UF
.1UF
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C671
C671
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBA_VREF3
C664
C664
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C670
C670
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBA0_CLK0
FBA0_CLK0*
FBA1_CLK0
FBA1_CLK0*
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
R626
R626
511
511
1%
1%
0402
0402
COMMON
COMMON
FBA_VREF2
R641
R641
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R622
R622
511
511
1%
1%
0402
0402
COMMON
COMMON
R635
R635
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R89
R89
511
511
1%
1%
0402
0402
COMMON
COMMON
FBA_VREF4
R86
R86
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBA0_CLK0_R
R632
R632
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBA1_CLK0_R
R638
R638
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
FBA_VREF2
FBVDDQ
FBA_VREF3
FBVDDQ
FBA_VREF4
R644
R644
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
R629
R629
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
GND
GND
GND
GND
Sheet of
Sheet of
Sheet of
HFDBA
C653
C653
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
C644
C644
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
841
841
841
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 9
A B C D E F G H
Framebuffer B: Memory Section
M12B
4
FBB_CMD[0..28]
IN
FBB_CMD0
0
FBB_CMD1
1
FBB_CMD2
2
FBB_CMD3
3
FBB_CMD4
4
1
2
3
4
4
4
4
4
4
4
4
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBB_CMD5
5
FBB_CMD6
6
FBB_CMD7
7
FBB_CMD8
8
FBB_CMD9
9
FBB_CMD10
10
FBB_CMD11
11
FBB_CMD12
12
FBB_CMD13
13
FBB_CMD14
14
FBB_CMD15
15
FBB_CMD16
16
FBB_CMD17
17
FBB_CMD18
18
FBB_CMD19
19
FBB_CMD20
20
FBB_CMD21
21
FBB_CMD23
23
FBB_CMD24
24
FBB_CMD25
25
FBB_CMD26
26
FBB_CMD27
27
FBB_CMD28
28
FBB0_CLK0
4
IN
FBB0_CLK0*
4
IN
FBB1_CLK0
4
IN
FBB1_CLK0*
4
IN
4
FBB_D[0..63]
BI
FBB_D0
0
FBB_D1
1
FBB_D2
2
FBB_D3
3
FBB_D4
4
FBB_D5
5
FBB_D6
6
FBB_D7
7
FBB_D8
8
FBB_D9
9
FBB_D10
10
FBB_D11
11
FBB_D12
12
FBB_D13
13
FBB_D14
14
FBB_D15
15
FBB_D16
16
FBB_D17
17
FBB_D18
18
FBB_D19
19
FBB_D20
20
FBB_D21
21
FBB_D22
22
FBB_D23
23
FBB_D24
24
FBB_D25
25
FBB_D26
26
FBB_D27
27
FBB_D28
28
FBB_D29
29
FBB_D30
30
FBB_D31
31
FBB_D32
32
33
34
35
36
37
38
39
FBB_D40
40
FBB_D41
41
FBB_D42
42
FBB_D43
43
FBB_D44
44
FBB_D45
45
FBB_D46
46
FBB_D47
47
FBB_D48
48
FBB_D49
49
FBB_D50
50
FBB_D51
51
FBB_D52
52
FBB_D53
53
FBB_D54
54
FBB_D55
55
FBB_D56
56
FBB_D57
57
FBB_D58
58
FBB_D59
59
FBB_D60
60
FBB_D61
61
FBB_D62
62
FBB_D63
63
FBB_DQM0
BI
FBB_DQM1
BI
FBB_DQM2
BI
FBB_DQM3
BI
FBB_DQM4
BI
FBB_DQM5
BI
FBB_DQM6
BI
FBB_DQM7
BI
FBB_DQS_RN0
4
IN
FBB_DQS_RN1
4
IN
FBB_DQS_RN2
4
IN
FBB_DQS_RN3
4
IN
FBB_DQS_RN4
4
IN
FBB_DQS_RN5
4
IN
FBB_DQS_RN6
4
IN
FBB_DQS_RN7
4
IN
FBB_DQS_WP0
4
OUT
FBB_DQS_WP1
4
OUT
FBB_DQS_WP2
4
OUT
FBB_DQS_WP3
4
OUT
FBB_DQS_WP4
4
OUT
FBB_DQS_WP5
4
OUT
FBB_DQS_WP6
4
OUT
FBB_DQS_WP7
4
OUT
FBB_CMD14 FBB_CMD14
FBB_CMD17 FBB_CMD17
FBB_CMD7 FBB_CMD7
FBB_CMD16 FBB_CMD16
FBB_CMD21 FBB_CMD21
FBB_CMD12 FBB_CMD12
FBB_CMD5
FBB_CMD4
FBB_CMD3
FBB_CMD0
FBB_CMD2
FBB_CMD1
FBB_CMD19 FBB_CMD19
FBB_CMD18 FBB_CMD18
FBB_CMD9 FBB_CMD9
FBB_CMD20 FBB_CMD20
FBB_CMD15 FBB_CMD15
FBB_CMD11 FBB_CMD11
FBB_CMD8 FBB_CMD8
FBB_CMD6 FBB_CMD6
FBB0_CLK0
FBB0_CLK0*
FBB_CMD13 FBB_CMD13
R82 0R
R82 0R
04025%COMMON
04025%COMMON
1K for Qimonda
FBB_CMD10 FBB_CMD10
GND
GND
FBB_D0
FBB_D1
FBB_D2
FBB_D3
FBB_D4
FBB_D5
FBB_D6
FBB_D7
FBB_DQM0 FBB_DQM1
FBB_DQS_RN0 FBB_DQS_RN1
FBB_DQS_WP0 FBB_DQS_WP1
FBB_D16
FBB_D17
FBB_D18
FBB_D19
FBB_D20
FBB_D21
FBB_D22
FBB_D23
FBB_DQM2 FBB_DQM3
FBB_DQS_RN2 FBB_DQS_RN3
FBB_DQS_WP2 FBB_DQS_WP3
FBVDDQ
FBB_CMD5
FBB_CMD4
FBB_CMD3
FBB_CMD0
FBB_CMD2
FBB_CMD1
M12B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
A
A
M12A
M12A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
E
E
M12E
M12E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
NONMIRRORED
FBB_D8
FBB_D9
FBB_D10
FBB_D11
FBB_D12
FBB_D13
FBB_D14
FBB_D15
FBB_D24
FBB_D25
FBB_D26
FBB_D27
FBB_D28
FBB_D29
FBB_D30
FBB_D31
H4
J11
J10
J2
J3
FBB_SEN1 FBB_SEN2
V4
V9
A9
FBB_ZQ1 FBB_ZQ2
A4
R615
R615
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
C11
B11
C10
F11
B10
G10
E11
F10
E10
D10
D11
B2
B3
C2
C3
E2
F2
F3
G3
E3
D3
D2
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBB_VREF1
H1
VREF
FBB_VREF2
H12
VREF
D
D
M12D
M12D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L3
DQ0
N2
DQ1
M3
DQ2
T3
DQ3
M2
DQ4
R2
DQ5
T2
DQ6
R3
DQ7
N3
DQM
P3
RDQS
P2
WDQS
C
M12C
M12C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
R11
DQ0
N11
DQ1
M10
DQ2
M11
DQ3
L10
DQ4
T10
DQ5
R10
DQ6
T11
DQ7
N10
DQM
P10
RDQS
P11
WDQS
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD28
FBB_CMD26
FBB_CMD27
FBB1_CLK0
FBB1_CLK0*
R81 0R
R81 0R
COMMON0402
COMMON0402
5%
5%
1K for Qimonda
0 for others0 for others
GND
FBVDDQ
FBB_D32FBB_D33
FBB_D33FBB_D34
FBB_D34FBB_D35
FBB_D35FBB_D36
FBB_D36FBB_D37
FBB_D37FBB_D38
FBB_D38FBB_D39
FBB_D39
FBB_DQM4 FBB_DQM5
FBB_DQS_RN4 FBB_DQS_RN5
FBB_DQS_WP4 FBB_DQS_WP5
FBB_D48
FBB_D49
FBB_D50
FBB_D51
FBB_D52
FBB_D53
FBB_D54
FBB_D55
FBB_DQM6 FBB_DQM7
FBB_DQS_RN6 FBB_DQS_RN7
FBB_DQS_WP6 FBB_DQS_WP7
SubPartition 0 Termination Balancing A2..A7 SubPartition 1 Termination Balancing A2..A7
R679
R679
R664
R664
R671
R671
R661
R675
R675
121
121
1%
1%
0402
0402
COMMON
COMMON
R672
R672
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
R661
121
121
1%
1%
0402
0402
COMMON
COMMON
M11B
M11B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
R686
R686
121
121
1%
1%
0402
0402
COMMON
COMMON
MIRRORED
FBB_D40
FBB_D41
FBB_D42
FBB_D43
FBB_D44
FBB_D45
FBB_D46
FBB_D47
FBB_D56
FBB_D57
FBB_D58
FBB_D59
FBB_D60
FBB_D61
FBB_D62
FBB_D63
R677
R677
121
121
1%
1%
0402
0402
COMMON
COMMON
J10
J2
J3
V4
V9
A9
A4
R614
R614
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
A
A
M11A
M11A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B11
B10
C10
C11
F11
G10
E11
F10
E10
D10
D11
E
E
M11E
M11E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
T2
R2
R3
T3
N2
M3
M2
L3
N3
P3
P2
FBVDDQ
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD28
FBB_CMD26
FBB_CMD27
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBB_VREF3
H1
VREF
FBB_VREF4
H12
VREF
D
D
M11D
M11D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
M11
DQ0
N11
DQ1
L10
DQ2
M10
DQ3
R11
DQ4
T11
DQ5
T10
DQ6
R10
DQ7
N10
DQM
P10
RDQS
P11
WDQS
C
C
M11C
M11C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B2
DQ0
B3
DQ1
C3
DQ2
C2
DQ3
F3
DQ4
G3
DQ5
F2
DQ6
E2
DQ7
E3
DQM
D3
RDQS
D2
WDQS
R688
R688
R662
R662
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
R680
R680
R668
R668
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer B: Memory Section
TERMINATION SELECT
FBB_CMD6
CKE RESET
R650
R650
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBB_CMD10
R659
R659
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R621
R621
511
511
1%
1%
0402
0402
COMMON
COMMON
FBB_VREF1
FBB_VREF1
C663
C663
R647
R647
1.1K
1.1K
.1UF
.1UF
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C669
C669
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBB_VREF3
C662
C662
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C668
C668
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBB0_CLK0
FBB0_CLK0*
FBB1_CLK0
FBB1_CLK0*
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
FBVDDQ
R625
R625
511
511
1%
1%
0402
0402
COMMON
COMMON
FBB_VREF2
FBB_VREF2
R640
R640
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
R620
R620
511
511
1%
1%
0402
0402
COMMON
COMMON
FBB_VREF3
R634
R634
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
R88
R88
511
511
1%
1%
0402
0402
COMMON
COMMON
FBB_VREF4
FBB_VREF4
R85
R85
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBB0_CLK0_R
R631
R631
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBB1_CLK0_R
R637
R637
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
MS-V180
GND
GND
GND
GND
R643
R643
80.6
80.6
1%
1%
0402
0402
COMMON
COMMONC
R628
R628
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
Sheet of
Sheet of
Sheet of
HFDBA
C652
C652
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
C643
C643
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
941
941
941
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 10
A B C D E F G H
Framebuffer C: Memory Section
M9B
M10B
5
FBC_CMD[0..28]
IN
FBC_CMD0
0
FBC_CMD1
1
FBC_CMD2
2
FBC_CMD3
3
FBC_CMD4
4
1
2
3
4
5
5
5
5
5
5
5
5
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBC_CMD5
5
FBC_CMD6
6
FBC_CMD7
7
FBC_CMD8
8
FBC_CMD9
9
FBC_CMD10
10
FBC_CMD11
11
FBC_CMD12
12
FBC_CMD13
13
FBC_CMD14
14
FBC_CMD15
15
FBC_CMD16
16
FBC_CMD17
17
FBC_CMD18
18
FBC_CMD19
19
FBC_CMD20
20
FBC_CMD21
21
FBC_CMD23
23
FBC_CMD24
24
FBC_CMD25
25
FBC_CMD26
26
FBC_CMD27
27
FBC_CMD28
28
FBC0_CLK0
5
IN
FBC0_CLK0*
5
IN
FBC1_CLK0
5
IN
FBC1_CLK0*
5
IN
5
FBC_D[0..63]
BI
FBC_D0
0
FBC_D1
1
FBC_D2
2
FBC_D3
3
FBC_D4
4
FBC_D5
5
FBC_D6
6
FBC_D7
7
FBC_D8
8
FBC_D9
9
FBC_D10
10
FBC_D11
11
FBC_D12
12
FBC_D13
13
FBC_D14
14
FBC_D15
15
FBC_D16
16
FBC_D17
17
FBC_D18
18
FBC_D19
19
FBC_D20
20
FBC_D21
21
FBC_D22
22
FBC_D23
23
FBC_D24
24
FBC_D25
25
FBC_D26
26
FBC_D27
27
FBC_D28
28
FBC_D29
29
FBC_D30
30
FBC_D31
31
FBC_D32
32
33
34
35
36
37
38
39
FBC_D40
40
FBC_D41
41
FBC_D42
42
FBC_D43
43
FBC_D44
44
FBC_D45
45
FBC_D46
46
FBC_D47
47
FBC_D48
48
FBC_D49
49
FBC_D50
50
FBC_D51
51
FBC_D52
52
FBC_D53
53
FBC_D54
54
FBC_D55
55
FBC_D56
56
FBC_D57
57
FBC_D58
58
FBC_D59
59
FBC_D60
60
FBC_D61
61
FBC_D62
62
FBC_D63
63
FBC_DQM0
BI
FBC_DQM1
BI
FBC_DQM2
BI
FBC_DQM3
BI
FBC_DQM4
BI
FBC_DQM5
BI
FBC_DQM6
BI
FBC_DQM7
BI
FBC_DQS_RN0
5
IN
FBC_DQS_RN1
5
IN
FBC_DQS_RN2
5
IN
FBC_DQS_RN3
5
IN
FBC_DQS_RN4
5
IN
FBC_DQS_RN5
5
IN
FBC_DQS_RN6
5
IN
FBC_DQS_RN7
5
IN
FBC_DQS_WP0
5
OUT
FBC_DQS_WP1
5
OUT
FBC_DQS_WP2
5
OUT
FBC_DQS_WP3
5
OUT
FBC_DQS_WP4
5
OUT
FBC_DQS_WP5
5
OUT
FBC_DQS_WP6
5
OUT
FBC_DQS_WP7
5
OUT
FBC_CMD14 FBC_CMD14
FBC_CMD17 FBC_CMD17
FBC_CMD7 FBC_CMD7
FBC_CMD16 FBC_CMD16
FBC_CMD21 FBC_CMD21
FBC_CMD12 FBC_CMD12
FBC_CMD5
FBC_CMD4
FBC_CMD3
FBC_CMD0
FBC_CMD2
FBC_CMD1
FBC_CMD19 FBC_CMD19
FBC_CMD18 FBC_CMD18
FBC_CMD9 FBC_CMD9
FBC_CMD20 FBC_CMD20
FBC_CMD15 FBC_CMD15
FBC_CMD11 FBC_CMD11
FBC_CMD8 FBC_CMD8
FBC_CMD6 FBC_CMD6
FBC0_CLK0
FBC0_CLK0*
FBC_CMD13 FBC_CMD13
R79 0R
R79 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
FBC_CMD10 FBC_CMD10
GND
GND
FBC_D0
FBC_D1
FBC_D2
FBC_D3
FBC_D4
FBC_D5
FBC_D6
FBC_D7
FBC_DQM0 FBC_DQM1
FBC_DQS_RN0 FBC_DQS_RN1
FBC_DQS_WP0 FBC_DQS_WP1
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_DQM2 FBC_DQM3
FBC_DQS_RN2 FBC_DQS_RN3
FBC_DQS_WP2 FBC_DQS_WP3
FBVDDQ
FBC_CMD5
FBC_CMD4
FBC_CMD3
FBC_CMD0
FBC_CMD2
FBC_CMD1
M10B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
A
A
M10A
M10A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
M10E
M10E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
NONMIRRORED
FBC_D8
FBC_D9
FBC_D10
FBC_D11
FBC_D12
FBC_D13
FBC_D14
FBC_D15
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D30
FBC_D31
H4
J11
J10
J2
J3
FBC_SEN1 FBC_SEN2
V4
V9
A9
FBC_ZQ1 FBC_ZQ2
A4
R613
R613
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
C11
E11
F10
G10
C10
F11
B11
B10
E10
D10
D11
C3
B3
B2
G3
F3
E2
F2
C2
E3
D3
D2
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBC_VREF1
H1
VREF
FBC_VREF2
H12
VREF
D
D
M10D
M10D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L10
DQ0
N11
DQ1
M10
DQ2
R11
DQ3
M11
DQ4
T10
DQ5
R10
DQ6
T11
DQ7
N10
DQM
P10
RDQS
P11
WDQS
M10C
M10C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L3
DQ0
M2
DQ1
M3
DQ2
T3
DQ3
N2
DQ4
R3
DQ5
R2
DQ6
T2
DQ7
N3
DQM
P3
RDQS
P2
WDQS
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD28
FBC_CMD26
FBC_CMD27
FBC1_CLK0
FBC1_CLK0*
R805%0R
R805%0R
0402 COMMON
0402 COMMON
1K for Qimonda
0 for others
GND
FBVDDQ
FBC_D32FBC_D33
FBC_D33FBC_D34
FBC_D34FBC_D35
FBC_D35FBC_D36
FBC_D36FBC_D37
FBC_D37FBC_D38
FBC_D38FBC_D39
FBC_D39
FBC_DQM4 FBC_DQM5
FBC_DQS_RN4 FBC_DQS_RN5
FBC_DQS_WP4 FBC_DQS_WP5
FBC_D48
FBC_D49
FBC_D50
FBC_D51
FBC_D52
FBC_D53
FBC_D54
FBC_D55
FBC_DQM6 FBC_DQM7
FBC_DQS_RN6 FBC_DQS_RN7
FBC_DQS_WP6 FBC_DQS_WP7
SubPartition 0 Termination Balancing A2..A7
R670
R670
R665
R665
R667
R667
R652
R652
R656
R656
R653
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
R653
121
121
1%
1%
0402
0402
COMMON
COMMON
M9B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
J10
J2
J3
V4
V9
A9
A4
R612
R612
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
A
A
M9A
M9A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
C10
B10
B11
C11
F10
F11
G10
E11
E10
D10
D11
E
E
M9E
M9E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L10
M11
T11
M10
N11
R11
R10
T10
N10
P10
P11
FBVDDQ
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD28
FBC_CMD26
FBC_CMD27
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
FBC_D40
DQ0
FBC_D41
DQ1
FBC_D42
DQ2
FBC_D43
DQ3
FBC_D44
DQ4
FBC_D45
DQ5
FBC_D46
DQ6
FBC_D47
DQ7
DQM
RDQS
WDQS
FBC_D56
DQ0
FBC_D57
DQ1
FBC_D58
DQ2
FBC_D59
DQ3
FBC_D60
DQ4
FBC_D61
DQ5
FBC_D62
DQ6
FBC_D63
DQ7
DQM
RDQS
WDQS
SubPartition 1 Termination Balancing A2..A7
R666
R666
121
121
1%
1%
0402
0402
COMMON
COMMON
R655
R655
121
121
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBC_VREF3
H1
VREF
FBC_VREF4
H12
VREF
D
D
M9D
M9D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
R3
DQ0
L3
DQ1
R2
DQ2
T3
DQ3
N2
DQ4
M3
DQ5
M2
DQ6
T2
DQ7
N3
DQM
P3
RDQS
P2
WDQS
M9C
M9C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B3
DQ0
C2
DQ1
B2
DQ2
C3
DQ3
G3
DQ4
E2
DQ5
F2
DQ6
F3
DQ7
E3
DQM
D3
RDQS
D2
WDQS
R683
R683
R651
R651
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
R682
R682
R654
R654
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer C: Memory Section
TERMINATION SELECT
FBC_CMD6
CKE RESET
R649
R649
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBC_CMD10
R658
R658
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R619
R619
511
511
1%
1%
0402
0402
COMMON
COMMON
FBC_VREF1
FBC_VREF1
C661
C661
R645
R645
1.1K
1.1K
.1UF
.1UF
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C667
C667
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBC_VREF3
C660
C660
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C666
C666
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBC0_CLK0
FBC0_CLK0*
FBC1_CLK0
FBC1_CLK0*
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
R624
R624
511
511
1%
1%
0402
0402
COMMON
COMMON
FBC_VREF2
R639
R639
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R618
R618
511
511
1%
1%
0402
0402
COMMON
COMMON
R633
R633
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R87
R87
511
511
1%
1%
0402
0402
COMMON
COMMON
FBC_VREF4
R84
R84
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBC0_CLK0_R
R630
R630
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBC1_CLK0_R
R636
R636
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
FBC_VREF2
FBVDDQ
FBC_VREF3
FBVDDQ
FBC_VREF4
R642
R642
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
R627
R627
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
GND
GND
GND
GND
Sheet of
Sheet of
Sheet of
HFDBA
C651
C651
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C642
C642
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
10 41
10 41
10 41
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 11
A B C D E F G H
Framebuffer D: Memory Section
M8B
5
FBD_CMD[0..28]
IN
FBD_CMD0
0
FBD_CMD1
1
FBD_CMD2
2
FBD_CMD3
3
FBD_CMD4
4
1
2
3
4
5
5
5
5
5
5
5
5
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBD_CMD5
5
FBD_CMD6
6
FBD_CMD7
7
FBD_CMD8
8
FBD_CMD9
9
FBD_CMD10
10
FBD_CMD11
11
FBD_CMD12
12
FBD_CMD13
13
FBD_CMD14
14
FBD_CMD15
15
FBD_CMD16
16
FBD_CMD17
17
FBD_CMD18
18
FBD_CMD19
19
FBD_CMD20
20
FBD_CMD21
21
FBD_CMD23
23
FBD_CMD24
24
FBD_CMD25
25
FBD_CMD26
26
FBD_CMD27
27
FBD_CMD28
28
FBD0_CLK0
5
IN
FBD0_CLK0*
5
IN
FBD1_CLK0
5
IN
FBD1_CLK0*
5
IN
5
FBD_D[0..63]
BI
FBD_D0
0
FBD_D1
1
FBD_D2
2
FBD_D3
3
FBD_D4
4
FBD_D5
5
FBD_D6
6
FBD_D7
7
FBD_D8
8
FBD_D9
9
FBD_D10
10
FBD_D11
11
FBD_D12
12
FBD_D13
13
FBD_D14
14
FBD_D15
15
FBD_D16
16
FBD_D17
17
FBD_D18
18
FBD_D19
19
FBD_D20
20
FBD_D21
21
FBD_D22
22
FBD_D23
23
FBD_D24
24
FBD_D25
25
FBD_D26
26
FBD_D27
27
FBD_D28
28
FBD_D29
29
FBD_D30
30
FBD_D31
31
FBD_D32
32
33
34
35
36
37
38
39
FBD_D40
40
FBD_D41
41
FBD_D42
42
FBD_D43
43
FBD_D44
44
FBD_D45
45
FBD_D46
46
FBD_D47
47
FBD_D48
48
FBD_D49
49
FBD_D50
50
FBD_D51
51
FBD_D52
52
FBD_D53
53
FBD_D54
54
FBD_D55
55
FBD_D56
56
FBD_D57
57
FBD_D58
58
FBD_D59
59
FBD_D60
60
FBD_D61
61
FBD_D62
62
FBD_D63
63
FBD_DQM0
BI
FBD_DQM1
BI
FBD_DQM2
BI
FBD_DQM3
BI
FBD_DQM4
BI
FBD_DQM5
BI
FBD_DQM6
BI
FBD_DQM7
BI
FBD_DQS_RN0
5
IN
FBD_DQS_RN1
5
IN
FBD_DQS_RN2
5
IN
FBD_DQS_RN3
5
IN
FBD_DQS_RN4
5
IN
FBD_DQS_RN5
5
IN
FBD_DQS_RN6
5
IN
FBD_DQS_RN7
5
IN
FBD_DQS_WP0
5
OUT
FBD_DQS_WP1
5
OUT
FBD_DQS_WP2
5
OUT
FBD_DQS_WP3
5
OUT
FBD_DQS_WP4
5
OUT
FBD_DQS_WP5
5
OUT
FBD_DQS_WP6
5
OUT
FBD_DQS_WP7
5
OUT
FBD_CMD14 FBD_CMD14
FBD_CMD17 FBD_CMD17
FBD_CMD7 FBD_CMD7
FBD_CMD16 FBD_CMD16
FBD_CMD21 FBD_CMD21
FBD_CMD12 FBD_CMD12
FBD_CMD5
FBD_CMD4
FBD_CMD3
FBD_CMD0
FBD_CMD2
FBD_CMD1
FBD_CMD19 FBD_CMD19
FBD_CMD18 FBD_CMD18
FBD_CMD9 FBD_CMD9
FBD_CMD20 FBD_CMD20
FBD_CMD15 FBD_CMD15
FBD_CMD11 FBD_CMD11
FBD_CMD8 FBD_CMD8
FBD_CMD6 FBD_CMD6
FBD0_CLK0
FBD0_CLK0*
FBD_CMD13 FBD_CMD13
R77
0R
R77
0R
0402
0402
COMMON
COMMON
5%
5%
1K for Qimonda
0 for others
FBD_CMD10 FBD_CMD10
GND
GND
FBD_D0
FBD_D1
FBD_D2
FBD_D3
FBD_D4
FBD_D5
FBD_D6
FBD_D7
FBD_DQM0 FBD_DQM1
FBD_DQS_RN0 FBD_DQS_RN1
FBD_DQS_WP0 FBD_DQS_WP1
FBD_D16
FBD_D17
FBD_D18
FBD_D19
FBD_D20
FBD_D21
FBD_D22
FBD_D23
FBD_DQM2 FBD_DQM3
FBD_DQS_RN2 FBD_DQS_RN3
FBD_DQS_WP2 FBD_DQS_WP3
FBVDDQ
FBD_CMD5
FBD_CMD4
FBD_CMD3
FBD_CMD0
FBD_CMD2
FBD_CMD1
M8B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
A
A
M8A
M8A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
E
E
M8E
M8E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
NONMIRRORED
FBD_D8
FBD_D9
FBD_D10
FBD_D11
FBD_D12
FBD_D13
FBD_D14
FBD_D15
FBD_D24
FBD_D25
FBD_D26
FBD_D27
FBD_D28
FBD_D29
FBD_D30
FBD_D31
H4
J11
J10
J2
J3
FBD_SEN1 FBD_SEN2
V4
V9
A9
FBD_ZQ1 FBD_ZQ2
A4
R697
R697
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
C10
C11
B10
B11
F11
G10
E11
F10
E10
D10
D11
B2
C3
B3
C2
G3
F2
E2
F3
E3
D3
D2
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBD_VREF1
H1
VREF
FBD_VREF2
H12
VREF
D
D
M8D
M8D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L3
DQ0
M2
DQ1
M3
DQ2
N2
DQ3
T2
DQ4
T3
DQ5
R2
DQ6
R3
DQ7
N3
DQM
P3
RDQS
P2
WDQS
C
C
M8C
M8C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L10
DQ0
M11
DQ1
M10
DQ2
N11
DQ3
R11
DQ4
T11
DQ5
T10
DQ6
R10
DQ7
N10
DQM
P10
RDQS
P11
WDQS
FBD_CMD23
FBD_CMD24
FBD_CMD25
FBD_CMD28
FBD_CMD26
FBD_CMD27
FBD1_CLK0
FBD1_CLK0*
R74
0R
R74
0R
0402
COMMON
0402
COMMON
5%
5%
1K for Qimonda
0 for others
GND
FBVDDQ
FBD_D32FBD_D33
FBD_D33FBD_D34
FBD_D34FBD_D35
FBD_D35FBD_D36
FBD_D36FBD_D37
FBD_D37FBD_D38
FBD_D38FBD_D39
FBD_D39
FBD_DQM4 FBD_DQM5
FBD_DQS_RN4 FBD_DQS_RN5
FBD_DQS_WP4 FBD_DQS_WP5
FBD_D48
FBD_D49
FBD_D50
FBD_D51
FBD_D52
FBD_D53
FBD_D54
FBD_D55
FBD_DQM6 FBD_DQM7
FBD_DQS_RN6 FBD_DQS_RN7
FBD_DQS_WP6 FBD_DQS_WP7
SubPartition 0 Termination Balancing A2..A7
R701
R701
R700
R700
R690
R690
R693
R693
R694
R694
R695
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
R695
121
121
1%
1%
0402
0402
COMMON
COMMON
M7B
M7B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
J10
J2
J3
V4
V9
A9
A4
R723
R723
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
A
A
M7A
M7A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
C11
C10
B11
B10
F11
G10
F10
E11
E10
D10
D11
E
E
M7E
M7E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
N2
T3
L3
M3
R3
R2
M2
T2
N3
P3
P2
FBVDDQ
FBD_CMD23
FBD_CMD24
FBD_CMD25
FBD_CMD28
FBD_CMD26
FBD_CMD27
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
FBD_D40
DQ0
FBD_D41
DQ1
FBD_D42
DQ2
FBD_D43
DQ3
FBD_D44
DQ4
FBD_D45
DQ5
FBD_D46
DQ6
FBD_D47
DQ7
DQM
RDQS
WDQS
FBD_D56
DQ0
FBD_D57
DQ1
FBD_D58
DQ2
FBD_D59
DQ3
FBD_D60
DQ4
FBD_D61
DQ5
FBD_D62
DQ6
FBD_D63
DQ7
DQM
RDQS
WDQS
SubPartition 1 Termination Balancing A2..A7
R719
R719
121
121
1%
1%
0402
0402
COMMON
COMMON
R718
R718
121
121
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBD_VREF3
H1
VREF
FBD_VREF4
H12
VREF
D
D
M7D
M7D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
M10
DQ0
N11
DQ1
M11
DQ2
L10
DQ3
T11
DQ4
T10
DQ5
R11
DQ6
R10
DQ7
N10
DQM
P10
RDQS
P11
WDQS
C
C
M7C
M7C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
F2
DQ0
F3
DQ1
B3
DQ2
C3
DQ3
C2
DQ4
G3
DQ5
E2
DQ6
B2
DQ7
E3
DQM
D3
RDQS
D2
WDQS
R733
R733
R734
R734
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
R732
R732
R735
R735
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer D: Memory Section
TERMINATION SELECT
FBD_CMD6
CKE RESET
R702
R702
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBD_CMD10
R696
R696
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R705
R705
511
511
1%
1%
0402
0402
COMMON
COMMON
FBD_VREF1
FBD_VREF1
C774
C774
R706
R706
.1UF
.1UF
1.1K
1.1K
1%
1%
6.3V
6.3V
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C747
C747
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBD_VREF3
C839
C839
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C786
C786
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBD0_CLK0
FBD0_CLK0*
FBD1_CLK0
FBD1_CLK0*
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
R692
R692
511
511
1%
1%
0402
0402
COMMON
COMMON
FBD_VREF2
R691
R691
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R737
R737
511
511
1%
1%
0402
0402
COMMON
COMMON
R738
R738
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R75
R75
511
511
1%
1%
0402
0402
COMMON
COMMON
FBD_VREF4
R76
R76
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBD0_CLK0_R
R698
R698
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBD1_CLK0_R
R725
R725
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
FBD_VREF2
FBVDDQ
FBD_VREF3
FBVDDQ
FBD_VREF4
R699
R699
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
R724
R724
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
GND
GND
GND
GND
Sheet of
Sheet of
Sheet of
HFDBA
C764
C764
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C814
C814
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
11 41
11 41
11 41
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 12
A B C D E F G H
Framebuffer E: Memory Section
M6B
6
FBE_CMD[0..28]
IN
FBE_CMD0
0
FBE_CMD1
1
FBE_CMD2
2
FBE_CMD3
3
FBE_CMD4
4
1
2
3
4
6
6
6
6
6
6
6
6
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBE_CMD5
5
FBE_CMD6
6
FBE_CMD7
7
FBE_CMD8
8
FBE_CMD9
9
FBE_CMD10
10
FBE_CMD11
11
FBE_CMD12
12
FBE_CMD13
13
FBE_CMD14
14
FBE_CMD15
15
FBE_CMD16
16
FBE_CMD17
17
FBE_CMD18
18
FBE_CMD19
19
FBE_CMD20
20
FBE_CMD21
21
FBE_CMD23
23
FBE_CMD24
24
FBE_CMD25
25
FBE_CMD26
26
FBE_CMD27
27
FBE_CMD28
28
FBE0_CLK0
6
IN
FBE0_CLK0*
6
IN
FBE1_CLK0
6
IN
FBE1_CLK0*
6
IN
6
FBE_D[0..63]
BI
FBE_D0
0
FBE_D1
1
FBE_D2
2
FBE_D3
3
FBE_D4
4
FBE_D5
5
FBE_D6
6
FBE_D7
7
FBE_D8
8
FBE_D9
9
FBE_D10
10
FBE_D11
11
FBE_D12
12
FBE_D13
13
FBE_D14
14
FBE_D15
15
FBE_D16
16
FBE_D17
17
FBE_D18
18
FBE_D19
19
FBE_D20
20
FBE_D21
21
FBE_D22
22
FBE_D23
23
FBE_D24
24
FBE_D25
25
FBE_D26
26
FBE_D27
27
FBE_D28
28
FBE_D29
29
FBE_D30
30
FBE_D31
31
FBE_D32
32
33
34
35
36
37
38
39
FBE_D40
40
FBE_D41
41
FBE_D42
42
FBE_D43
43
FBE_D44
44
FBE_D45
45
FBE_D46
46
FBE_D47
47
FBE_D48
48
FBE_D49
49
FBE_D50
50
FBE_D51
51
FBE_D52
52
FBE_D53
53
FBE_D54
54
FBE_D55
55
FBE_D56
56
FBE_D57
57
FBE_D58
58
FBE_D59
59
FBE_D60
60
FBE_D61
61
FBE_D62
62
FBE_D63
63
FBE_DQM0
BI
FBE_DQM1
BI
FBE_DQM2
BI
FBE_DQM3
BI
FBE_DQM4
BI
FBE_DQM5
BI
FBE_DQM6
BI
FBE_DQM7
BI
FBE_DQS_RN0
6
IN
FBE_DQS_RN1
6
IN
FBE_DQS_RN2
6
IN
FBE_DQS_RN3
6
IN
FBE_DQS_RN4
6
IN
FBE_DQS_RN5
6
IN
FBE_DQS_RN6
6
IN
FBE_DQS_RN7
6
IN
FBE_DQS_WP0
6
OUT
FBE_DQS_WP1
6
OUT
FBE_DQS_WP2
6
OUT
FBE_DQS_WP3
6
OUT
FBE_DQS_WP4
6
OUT
FBE_DQS_WP5
6
OUT
FBE_DQS_WP6
6
OUT
FBE_DQS_WP7
6
OUT
FBE_CMD14 FBE_CMD14
FBE_CMD17 FBE_CMD17
FBE_CMD7 FBE_CMD7
FBE_CMD16 FBE_CMD16
FBE_CMD21 FBE_CMD21
FBE_CMD12 FBE_CMD12
FBE_CMD5
FBE_CMD4
FBE_CMD3
FBE_CMD0
FBE_CMD2
FBE_CMD1
FBE_CMD19 FBE_CMD19
FBE_CMD18 FBE_CMD18
FBE_CMD9 FBE_CMD9
FBE_CMD20 FBE_CMD20
FBE_CMD15 FBE_CMD15
FBE_CMD11 FBE_CMD11
FBE_CMD8 FBE_CMD8
FBE_CMD6 FBE_CMD6
FBE0_CLK0
FBE0_CLK0*
FBE_CMD13 FBE_CMD13
R73 0R
R73 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
FBE_CMD10 FBE_CMD10
GND
GND
FBE_D0
FBE_D1
FBE_D2
FBE_D3
FBE_D4
FBE_D5
FBE_D6
FBE_D7
FBE_DQM0 FBE_DQM1
FBE_DQS_RN0 FBE_DQS_RN1
FBE_DQS_WP0 FBE_DQS_WP1
FBE_D16
FBE_D17
FBE_D18
FBE_D19
FBE_D20
FBE_D21
FBE_D22
FBE_D23
FBE_DQM2 FBE_DQM3
FBE_DQS_RN2 FBE_DQS_RN3
FBE_DQS_WP2 FBE_DQS_WP3
FBVDDQ
FBE_CMD5
FBE_CMD4
FBE_CMD3
FBE_CMD0
FBE_CMD2
FBE_CMD1
M6B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
A
A
M6A
M6A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
E
E
M6E
M6E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
NONMIRRORED
FBE_D8
FBE_D9
FBE_D10
FBE_D11
FBE_D12
FBE_D13
FBE_D14
FBE_D15
FBE_D24
FBE_D25
FBE_D26
FBE_D27
FBE_D28
FBE_D29
FBE_D30
FBE_D31
H4
J11
J10
J2
J3
FBE_SEN1 FBE_SEN2
V4
V9
A9
FBE_ZQ1 FBE_ZQ2
A4
R748
R748
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
F11
C11
C10
B11
B10
E11
F10
G10
E10
D10
D11
C2
B2
B3
C3
G3
E2
F2
F3
E3
D3
D2
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBE_VREF1
H1
VREF
FBE_VREF2
H12
VREF
D
D
M6D
M6D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
N11
DQ0
M10
DQ1
M11
DQ2
L10
DQ3
R11
DQ4
R10
DQ5
T10
DQ6
T11
DQ7
N10
DQM
P10
RDQS
P11
WDQS
C
M6C
M6C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
M3
DQ0
M2
DQ1
N2
DQ2
L3
DQ3
R2
DQ4
T3
DQ5
R3
DQ6
T2
DQ7
N3
DQM
P3
RDQS
P2
WDQS
FBE_CMD23
FBE_CMD24
FBE_CMD25
FBE_CMD28
FBE_CMD26
FBE_CMD27
FBE1_CLK0
FBE1_CLK0*
R70
0RR70
0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
GND
FBVDDQ
FBE_D32FBE_D33
FBE_D33FBE_D34
FBE_D34FBE_D35
FBE_D35FBE_D36
FBE_D36FBE_D37
FBE_D37FBE_D38
FBE_D38FBE_D39
FBE_D39
FBE_DQM4 FBE_DQM5
FBE_DQS_RN4 FBE_DQS_RN5
FBE_DQS_WP4 FBE_DQS_WP5
FBE_D48
FBE_D49
FBE_D50
FBE_D51
FBE_D52
FBE_D53
FBE_D54
FBE_D55
FBE_DQM6 FBE_DQM7
FBE_DQS_RN6 FBE_DQS_RN7
FBE_DQS_WP6 FBE_DQS_WP7
SubPartition 0 Termination Balancing A2..A7
R752
R752
R751
R751
R744
R744
R742
R742
R743
R743
R746
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
121
121
1%
1%
0402
0402
COMMON
COMMON
R746
121
121
1%
1%
0402
0402
COMMON
COMMON
M5B
M5B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
J10
J2
J3
V4
V9
A9
A4
R764
R764
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
A
A
M5A
M5A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B10
C10
C11
B11
F11
G10
E11
F10
E10
D10
D11
E
E
M5E
M5E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L10
M10
N11
M11
R10
T11
R11
T10
N10
P10
P11
FBVDDQ
FBE_CMD23
FBE_CMD24
FBE_CMD25
FBE_CMD28
FBE_CMD26
FBE_CMD27
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
FBE_D40
DQ0
FBE_D41
DQ1
FBE_D42
DQ2
FBE_D43
DQ3
FBE_D44
DQ4
FBE_D45
DQ5
FBE_D46
DQ6
FBE_D47
DQ7
DQM
RDQS
WDQS
FBE_D56
DQ0
FBE_D57
DQ1
FBE_D58
DQ2
FBE_D59
DQ3
FBE_D60
DQ4
FBE_D61
DQ5
FBE_D62
DQ6
FBE_D63
DQ7
DQM
RDQS
WDQS
SubPartition 1 Termination Balancing A2..A7
R763
R763
121
121
1%
1%
0402
0402
COMMON
COMMON
R762
R762
121
121
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBE_VREF3
H1
VREF
FBE_VREF4
H12
VREF
D
D
M5D
M5D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
R3
DQ0
T3
DQ1
T2
DQ2
R2
DQ3
N2
DQ4
M3
DQ5
M2
DQ6
L3
DQ7
N3
DQM
P3
RDQS
P2
WDQS
C
C
M5C
M5C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B2
DQ0
B3
DQ1
C3
DQ2
C2
DQ3
F2
DQ4
G3
DQ5
F3
DQ6
E2
DQ7
E3
DQM
D3
RDQS
D2
WDQS
R769
R769
R770
R770
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
R768
R768
R771
R771
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer E: Memory Section
TERMINATION SELECT
FBE_CMD6
CKE RESET
R753
R753
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBE_CMD10
R747
R747
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R755
R755
511
511
1%
1%
0402
0402
COMMON
COMMON
FBE_VREF1
FBE_VREF1
C980
C980
R756
R756
1.1K
1.1K
.1UF
.1UF
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C890
C890
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBE_VREF3
C1065
C1065
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1025
C1025
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBE0_CLK0
FBE0_CLK0*
FBE1_CLK0
FBE1_CLK0*
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
R745
R745
511
511
1%
1%
0402
0402
COMMON
COMMON
FBE_VREF2
R741
R741
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R772
R772
511
511
1%
1%
0402
0402
COMMON
COMMON
R773
R773
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R71
R71
511
511
1%
1%
0402
0402
COMMON
COMMON
FBE_VREF4
R72
R72
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBE0_CLK0_R
R749
R749
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBE1_CLK0_R
R766
R766
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
FBE_VREF2
FBVDDQ
FBE_VREF3
FBVDDQ
FBE_VREF4
R750
R750
80.6
80.6
1%
1%
0402
0402
COMMON
COMMONC
R765
R765
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
GND
GND
GND
GND
Sheet of
Sheet of
Sheet of
HFDBA
C940
C940
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1058
C1058
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
12 41
12 41
12 41
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 13
A B C D E F G H
Framebuffer F: Memory Section
M4B
6
FBF_CMD[0..28]
IN
FBF_CMD0
0
FBF_CMD1
1
FBF_CMD2
2
FBF_CMD3
3
FBF_CMD4
4
1
2
3
4
6
6
6
6
6
6
6
6
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBF_CMD5
5
FBF_CMD6
6
FBF_CMD7
7
FBF_CMD8
8
FBF_CMD9
9
FBF_CMD10
10
FBF_CMD11
11
FBF_CMD12
12
FBF_CMD13
13
FBF_CMD14
14
FBF_CMD15
15
FBF_CMD16
16
FBF_CMD17
17
FBF_CMD18
18
FBF_CMD19
19
FBF_CMD20
20
FBF_CMD21
21
FBF_CMD23
23
FBF_CMD24
24
FBF_CMD25
25
FBF_CMD26
26
FBF_CMD27
27
FBF_CMD28
28
FBF0_CLK0
6
IN
FBF0_CLK0*
6
IN
FBF1_CLK0
6
IN
FBF1_CLK0*
6
IN
6
FBF_D[0..63]
BI
FBF_D0
0
FBF_D1
1
FBF_D2
2
FBF_D3
3
FBF_D4
4
FBF_D5
5
FBF_D6
6
FBF_D7
7
FBF_D8
8
FBF_D9
9
FBF_D10
10
FBF_D11
11
FBF_D12
12
FBF_D13
13
FBF_D14
14
FBF_D15
15
FBF_D16
16
FBF_D17
17
FBF_D18
18
FBF_D19
19
FBF_D20
20
FBF_D21
21
FBF_D22
22
FBF_D23
23
FBF_D24
24
FBF_D25
25
FBF_D26
26
FBF_D27
27
FBF_D28
28
FBF_D29
29
FBF_D30
30
FBF_D31
31
FBF_D32
32
33
34
35
36
37
38
39
FBF_D40
40
FBF_D41
41
FBF_D42
42
FBF_D43
43
FBF_D44
44
FBF_D45
45
FBF_D46
46
FBF_D47
47
FBF_D48
48
FBF_D49
49
FBF_D50
50
FBF_D51
51
FBF_D52
52
FBF_D53
53
FBF_D54
54
FBF_D55
55
FBF_D56
56
FBF_D57
57
FBF_D58
58
FBF_D59
59
FBF_D60
60
FBF_D61
61
FBF_D62
62
FBF_D63
63
FBF_DQM0
BI
FBF_DQM1
BI
FBF_DQM2
BI
FBF_DQM3
BI
FBF_DQM4
BI
FBF_DQM5
BI
FBF_DQM6
BI
FBF_DQM7
BI
FBF_DQS_RN0
6
IN
FBF_DQS_RN1
6
IN
FBF_DQS_RN2
6
IN
FBF_DQS_RN3
6
IN
FBF_DQS_RN4
6
IN
FBF_DQS_RN5
6
IN
FBF_DQS_RN6
6
IN
FBF_DQS_RN7
6
IN
FBF_DQS_WP0
6
OUT
FBF_DQS_WP1
6
OUT
FBF_DQS_WP2
6
OUT
FBF_DQS_WP3
6
OUT
FBF_DQS_WP4
6
OUT
FBF_DQS_WP5
6
OUT
FBF_DQS_WP6
6
OUT
FBF_DQS_WP7
6
OUT
FBF_CMD14 FBF_CMD14
FBF_CMD17 FBF_CMD17
FBF_CMD7 FBF_CMD7
FBF_CMD16 FBF_CMD16
FBF_CMD21 FBF_CMD21
FBF_CMD12 FBF_CMD12
FBF_CMD5
FBF_CMD4
FBF_CMD3
FBF_CMD0
FBF_CMD2
FBF_CMD1
FBF_CMD19 FBF_CMD19
FBF_CMD18 FBF_CMD18
FBF_CMD9 FBF_CMD9
FBF_CMD20 FBF_CMD20
FBF_CMD15 FBF_CMD15
FBF_CMD11 FBF_CMD11
FBF_CMD8 FBF_CMD8
FBF_CMD6 FBF_CMD6
FBF0_CLK0
FBF0_CLK0*
FBF_CMD13 FBF_CMD13
R69 0R
R69 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
FBF_CMD10 FBF_CMD10
GND
GND
FBF_D0
FBF_D1
FBF_D2
FBF_D3
FBF_D4
FBF_D5
FBF_D6
FBF_D7
FBF_DQM0 FBF_DQM1
FBF_DQS_RN0 FBF_DQS_RN1
FBF_DQS_WP0 FBF_DQS_WP1
FBF_D16
FBF_D17
FBF_D18
FBF_D19
FBF_D20
FBF_D21
FBF_D22
FBF_D23
FBF_DQM2 FBF_DQM3
FBF_DQS_RN2 FBF_DQS_RN3
FBF_DQS_WP2 FBF_DQS_WP3
FBVDDQ
FBF_CMD5
FBF_CMD4
FBF_CMD3
FBF_CMD0
FBF_CMD2
FBF_CMD1
M4B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
A
A
M4A
M4A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
E
E
M4E
M4E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
<TMP2>
<TMP2>
R784
R784
121
121
1%
1%
0402
0402
COMMON
COMMON
NONMIRRORED
FBF_D8
FBF_D9
FBF_D10
FBF_D11
FBF_D12
FBF_D13
FBF_D14
FBF_D15
FBF_D24
FBF_D25
FBF_D26
FBF_D27
FBF_D28
FBF_D29
FBF_D30
FBF_D31
<TMP2>
<TMP2>
R775
R775
121
121
1%
1%
0402
0402
COMMON
COMMON
H4
J11
J10
J2
J3
FBF_SEN1 FBF_SEN2
V4
V9
A9
FBF_ZQ1 FBF_ZQ2
A4
R781
R781
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
B10
C11
B11
C10
G10
F11
F10
E11
E10
D10
D11
M3
N2
M2
T3
L3
T2
R2
R3
N3
P3
P2
<TMP2>
<TMP2>
R786
R786
121
121
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBF_VREF1
H1
VREF
FBF_VREF2
H12
VREF
D
D
M4D
M4D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
M10
DQ0
L10
DQ1
M11
DQ2
N11
DQ3
R11
DQ4
T11
DQ5
T10
DQ6
R10
DQ7
N10
DQM
P10
RDQS
P11
WDQS
C
M4C
M4C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
B2
DQ0
C3
DQ1
C2
DQ2
B3
DQ3
F3
DQ4
E2
DQ5
F2
DQ6
G3
DQ7
E3
DQM
D3
RDQS
D2
WDQS
<TMP2>
<TMP2>
R774
R774
121
121
1%
1%
0402
0402
COMMON
COMMON
FBF_CMD23
FBF_CMD24
FBF_CMD25
FBF_CMD28
FBF_CMD26
FBF_CMD27
FBF1_CLK0
FBF1_CLK0*
R61 0R
R61 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
GND
FBVDDQ
FBF_D32FBF_D33
FBF_D33FBF_D34
FBF_D34FBF_D35
FBF_D35FBF_D36
FBF_D36FBF_D37
FBF_D37FBF_D38
FBF_D38FBF_D39
FBF_D39
FBF_DQM4 FBF_DQM5
FBF_DQS_RN4 FBF_DQS_RN5
FBF_DQS_WP4 FBF_DQS_WP5
FBF_D48
FBF_D49
FBF_D50
FBF_D51
FBF_D52
FBF_D53
FBF_D54
FBF_D55
FBF_DQM6 FBF_DQM7
FBF_DQS_RN6 FBF_DQS_RN7
FBF_DQS_WP6 FBF_DQS_WP7
<TMP2>
<TMP2>
<TMP2>
<TMP2>
R778
R778
R777
R777
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
M3B
M3B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
MIRRORED
FBF_D40
FBF_D41
FBF_D42
FBF_D43
FBF_D44
FBF_D45
FBF_D46
FBF_D47
FBF_D56
FBF_D57
FBF_D58
FBF_D59
FBF_D60
FBF_D61
FBF_D62
FBF_D63
SubPartition 1 Termination Balancing A2..A7SubPartition 0 Termination Balancing A2..A7
<TMP2>
<TMP2>
<TMP2>
<TMP2>
R799
R799
R798
R798
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
J10
J2
J3
V4
V9
A9
A4
R805
R805
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
A
A
M3A
M3A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
C10
B11
B10
C11
G10
F11
E11
F10
E10
D10
D11
E
E
M3E
M3E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
N11
T11
R10
R11
T10
M11
M10
L10
N10
P10
P11
FBVDDQ
FBF_CMD23
FBF_CMD24
FBF_CMD25
FBF_CMD28
FBF_CMD26
FBF_CMD27
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBF_VREF3
H1
VREF
FBF_VREF4
H12
VREF
D
D
M3D
M3D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
T2
DQ0
T3
DQ1
R2
DQ2
R3
DQ3
M3
DQ4
L3
DQ5
N2
DQ6
M2
DQ7
N3
DQM
P3
RDQS
P2
WDQS
C
C
M3C
M3C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
C2
DQ0
C3
DQ1
B2
DQ2
F3
DQ3
G3
DQ4
F2
DQ5
B3
DQ6
E2
DQ7
E3
DQM
D3
RDQS
D2
WDQS
<TMP2>
<TMP2>
<TMP2>
<TMP2>
R809
R809
R810
R810
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
<TMP2>
<TMP2>
<TMP2>
<TMP2>
R808
R808
R811
R811
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer F: Memory Section
TERMINATION SELECT
FBF_CMD6
CKE RESET
R785
R785
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBF_CMD10
R780
R780
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R787
R787
511
511
1%
1%
0402
0402
COMMON
COMMON
FBF_VREF1
FBF_VREF1
R788
R788
C1106
C1106
1.1K
1.1K
.1UF
.1UF
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C1081
C1081
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBF_VREF3
C1155
C1155
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1118
C1118
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBF0_CLK0
FBF0_CLK0*
FBF1_CLK0
FBF1_CLK0*
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
R779
R779
511
511
1%
1%
0402
0402
COMMON
COMMON
FBF_VREF2
R776
R776
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R813
R813
511
511
1%
1%
0402
0402
COMMON
COMMON
R814
R814
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
R67
R67
511
511
1%
1%
0402
0402
COMMON
COMMON
FBF_VREF4
R68
R68
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBF0_CLK0_R
R782
R782
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBF1_CLK0_R
R807
R807
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
FBF_VREF2
FBVDDQ
FBF_VREF3
FBVDDQ
FBF_VREF4
R783
R783
80.6
80.6
1%
1%
0402
0402
COMMON
COMMONC
R806
R806
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
GND
GND
GND
GND
Sheet of
Sheet of
Sheet of
HFDBA
C1097
C1097
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1136
C1136
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
13 41
13 41
13 41
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 14
A B C D E F G H
Framebuffer G: Memory Section
M2B
M1B
7
FBG_CMD[0..28]
IN
FBG_CMD0
0
FBG_CMD1
1
FBG_CMD2
2
FBG_CMD3
3
FBG_CMD4
4
1
2
3
4
7
7
7
7
7
7
7
7
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
FBG_CMD5
5
FBG_CMD6
6
FBG_CMD7
7
FBG_CMD8
8
FBG_CMD9
9
FBG_CMD10
10
FBG_CMD11
11
FBG_CMD12
12
FBG_CMD13
13
FBG_CMD14
14
FBG_CMD15
15
FBG_CMD16
16
FBG_CMD17
17
FBG_CMD18
18
FBG_CMD19
19
FBG_CMD20
20
FBG_CMD21
21
FBG_CMD23
23
FBG_CMD24
24
FBG_CMD25
25
FBG_CMD26
26
FBG_CMD27
27
FBG_CMD28
28
FBG0_CLK0
7
IN
FBG0_CLK0*
7
IN
FBG1_CLK0
7
IN
FBG1_CLK0*
7
IN
7
FBG_D[0..63]
BI
FBG_D0
0
FBG_D1
1
FBG_D2
2
FBG_D3
3
FBG_D4
4
FBG_D5
5
FBG_D6
6
FBG_D7
7
FBG_D8
8
FBG_D9
9
FBG_D10
10
FBG_D11
11
FBG_D12
12
FBG_D13
13
FBG_D14
14
FBG_D15
15
FBG_D16
16
FBG_D17
17
FBG_D18
18
FBG_D19
19
FBG_D20
20
FBG_D21
21
FBG_D22
22
FBG_D23
23
FBG_D24
24
FBG_D25
25
FBG_D26
26
FBG_D27
27
FBG_D28
28
FBG_D29
29
FBG_D30
30
FBG_D31
31
FBG_D32
32
33
34
35
36
37
38
39
FBG_D40
40
FBG_D41
41
FBG_D42
42
FBG_D43
43
FBG_D44
44
FBG_D45
45
FBG_D46
46
FBG_D47
47
FBG_D48
48
FBG_D49
49
FBG_D50
50
FBG_D51
51
FBG_D52
52
FBG_D53
53
FBG_D54
54
FBG_D55
55
FBG_D56
56
FBG_D57
57
FBG_D58
58
FBG_D59
59
FBG_D60
60
FBG_D61
61
FBG_D62
62
FBG_D63
63
FBG_DQM0
BI
FBG_DQM1
BI
FBG_DQM2
BI
FBG_DQM3
BI
FBG_DQM4
BI
FBG_DQM5
BI
FBG_DQM6
BI
FBG_DQM7
BI
FBG_DQS_RN0
7
IN
FBG_DQS_RN1
7
IN
FBG_DQS_RN2
7
IN
FBG_DQS_RN3
7
IN
FBG_DQS_RN4
7
IN
FBG_DQS_RN5
7
IN
FBG_DQS_RN6
7
IN
FBG_DQS_RN7
7
IN
FBG_DQS_WP0
7
OUT
FBG_DQS_WP1
7
OUT
FBG_DQS_WP2
7
OUT
FBG_DQS_WP3
7
OUT
FBG_DQS_WP4
7
OUT
FBG_DQS_WP5
7
OUT
FBG_DQS_WP6
7
OUT
FBG_DQS_WP7
7
OUT
FBG_CMD14 FBG_CMD14
FBG_CMD17 FBG_CMD17
FBG_CMD7 FBG_CMD7
FBG_CMD16 FBG_CMD16
FBG_CMD21 FBG_CMD21
FBG_CMD12 FBG_CMD12
FBG_CMD5
FBG_CMD4
FBG_CMD3
FBG_CMD0
FBG_CMD2
FBG_CMD1
FBG_CMD19 FBG_CMD19
FBG_CMD18 FBG_CMD18
FBG_CMD9 FBG_CMD9
FBG_CMD20 FBG_CMD20
FBG_CMD15 FBG_CMD15
FBG_CMD11 FBG_CMD11
FBG_CMD8 FBG_CMD8
FBG_CMD6 FBG_CMD6
FBG0_CLK0
FBG0_CLK0*
FBG_CMD13 FBG_CMD13
R64 0R
R64 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
FBG_CMD10 FBG_CMD10
GND
GND
FBG_D0
FBG_D1
FBG_D2
FBG_D3
FBG_D4
FBG_D5
FBG_D6
FBG_D7
FBG_DQM0 FBG_DQM1
FBG_DQS_RN0 FBG_DQS_RN1
FBG_DQS_WP0 FBG_DQS_WP1
FBG_D16
FBG_D17
FBG_D18
FBG_D19
FBG_D20
FBG_D21
FBG_D22
FBG_D23
FBG_DQM2 FBG_DQM3
FBG_DQS_RN2 FBG_DQS_RN3
FBG_DQS_WP2 FBG_DQS_WP3
FBVDDQ
FBG_CMD5
FBG_CMD4
FBG_CMD3
FBG_CMD0
FBG_CMD2
FBG_CMD1
M1B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H3
RAS
F4
CAS
H9
WE
F9
CS0
K4
A0
H2
A1
K3
A2
M4
A3
K9
A4
H11
A5
K10
A6
L9
A7
K11
A8/AP
M9
A9
K2
A10
L4
A11
G4
BA0
G9
BA1
H10
BA2
NONMIRRORED
CKE
CLK
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
M1A
M1A
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
M1E
M1E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
R796
R796
121
121
1%
1%
0402
0402
COMMON
COMMON
NONMIRRORED
FBG_D8
FBG_D9
FBG_D10
FBG_D11
FBG_D12
FBG_D13
FBG_D14
FBG_D15
FBG_D24
FBG_D25
FBG_D26
FBG_D27
FBG_D28
FBG_D29
FBG_D30
FBG_D31
R793
R793
121
121
1%
1%
0402
0402
COMMON
COMMON
H4
J11
J10
J2
J3
FBG_SEN1 FBG_SEN2
V4
V9
A9
FBG_ZQ1 FBG_ZQ2
A4
R833
R833
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
GND
C11
B11
C10
B10
F11
G10
F10
E11
E10
D10
D11
F3
E2
G3
F2
C3
B3
C2
B2
E3
D3
D2
R794
R794
121
121
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBG_VREF1
H1
VREF
FBG_VREF2
H12
VREF
M1D
M1D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
M10
DQ0
M11
DQ1
L10
DQ2
N11
DQ3
R10
DQ4
T10
DQ5
T11
DQ6
R11
DQ7
N10
DQM
P10
RDQS
P11
WDQS
M1C
M1C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
M2
DQ0
N2
DQ1
L3
DQ2
M3
DQ3
R3
DQ4
R2
DQ5
T2
DQ6
T3
DQ7
N3
DQM
P3
RDQS
P2
WDQS
R800
R800
121
121
1%
1%
0402
0402
COMMON
COMMON
FBG_CMD23
FBG_CMD24
FBG_CMD25
FBG_CMD28
FBG_CMD26
FBG_CMD27
FBG1_CLK0
FBG1_CLK0*
R63 0R
R63 0R
0402 COMMON
0402 COMMON
5%
5%
1K for Qimonda
0 for others
GND
FBVDDQ
FBG_D32FBG_D33
FBG_D33FBG_D34
FBG_D34FBG_D35
FBG_D35FBG_D36
FBG_D36FBG_D37
FBG_D37FBG_D38
FBG_D38FBG_D39
FBG_D39
FBG_DQM4 FBG_DQM5
FBG_DQS_RN4 FBG_DQS_RN5
FBG_DQS_WP4 FBG_DQS_WP5
FBG_D48
FBG_D49
FBG_D50
FBG_D51
FBG_D52
FBG_D53
FBG_D54
FBG_D55
FBG_DQM6 FBG_DQM7
FBG_DQS_RN6 FBG_DQS_RN7
FBG_DQS_WP6 FBG_DQS_WP7
R802
R802
R795
R795
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
M2B
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
H10
RAS
F9
CAS
H4
WE
F4
CS0
K9
A0
H11
A1
K10
A2
M9
A3
K4
A4
H2
A5
K3
A6
L4
A7
K2
A8/AP
M4
A9
K11
A10
L9
A11
G9
BA0
G4
BA1
H3
BA2
H9
CKE
J11
CLK
MIRRORED
CLK
NC/RFU
A12 (32Mx32)
SEN (GND)
RESET
MF (GND)
ZQ
VDDA (VDD)
VDDA (VDD)
VSSA (GND)
VSSA (GND)
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
RDQS
WDQS
MIRRORED
FBG_D40
FBG_D41
FBG_D42
FBG_D43
FBG_D44
FBG_D45
FBG_D46
FBG_D47
FBG_D56
FBG_D57
FBG_D58
FBG_D59
FBG_D60
FBG_D61
FBG_D62
FBG_D63
SubPartition 1 Termination Balancing A2..A7SubPartition 0 Termination Balancing A2..A7
R790
R790
R792
R792
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
J10
J2
J3
V4
V9
A9
A4
R834
R834
243
243
1%
1%
0402
0402
COMMON
COMMON
GND
FBVDDQ
K1
K12
J1
J12
A
A
M2A
M2A
GND
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
E11
C11
F10
F11
C10
B10
G10
B11
E10
D10
D11
M2E
M2E
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
L10
M10
N11
M11
R11
T10
R10
T11
N10
P10
P11
FBVDDQ
FBG_CMD23
FBG_CMD24
FBG_CMD25
FBG_CMD28
FBG_CMD26
FBG_CMD27
FBVDDQ
F1
VDD
M1
VDD
A2
VDD
V2
VDD
A11
VDD
V11
VDD
F12
VDD
M12
FBVDDQ
VDD
A1
VDDQ
C1
VDDQ
E1
VDDQ
N1
VDDQ
R1
VDDQ
V1
VDDQ
C4
VDDQ
E4
VDDQ
J4
VDDQ
N4
VDDQ
R4
VDDQ
C9
VDDQ
E9
VDDQ
J9
VDDQ
N9
VDDQ
R9
VDDQ
A12
VDDQ
C12
VDDQ
E12
VDDQ
N12
VDDQ
R12
VDDQ
V12
VDDQ
B1
VSSQ
D1
VSSQ
P1
VSSQ
T1
VSSQ
G2
VSSQ
L2
VSSQ
B4
VSSQ
D4
VSSQ
P4
VSSQ
T4
VSSQ
B9
VSSQ
D9
VSSQ
P9
VSSQ
T9
VSSQ
G11
VSSQ
L11
VSSQ
B12
VSSQ
D12
VSSQ
P12
VSSQ
T12
VSSQ
G1
VSS
L1
VSS
GND
A3
VSS
V3
VSS
A10
VSS
V10
VSS
G12
VSS
L12
VSS
FBG_VREF3
H1
VREF
FBG_VREF4
H12
VREF
D
D
M2D
M2D
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
T2
DQ0
R2
DQ1
T3
DQ2
R3
DQ3
N2
DQ4
L3
DQ5
M2
DQ6
M3
DQ7
N3
DQM
P3
RDQS
P2
WDQS
M2C
M2C
BGA_0136_P080_140X110
BGA_0136_P080_140X110
<VERSION>
<VERSION>
COMMON
COMMON
F3
DQ0
C3
DQ1
B3
DQ2
F2
DQ3
E2
DQ4
G3
DQ5
C2
DQ6
B2
DQ7
E3
DQM
D3
RDQS
D2
WDQS
R789
R789
R801
R801
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C GE
R791
R791
R797
R797
121
121
121
121
1%
1%
1%
1%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer G: Memory Section
TERMINATION SELECT
FBG_CMD6
CKE
R816
R816
10K
10K
5%
5%
SINGLE BANK
0402
0402
COMMON
COMMON
GND GND
FBG_CMD10
R803
R803
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FBVDDQ
R826
R826
511
511
1%
1%
0402
0402
COMMON
COMMON
FBG_VREF1
FBG_VREF1
C1178
C1178
R817
R817
1.1K
1.1K
.1UF
.1UF
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C1174
C1174
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
FBVDDQ
R825
R825
511
511
1%
1%
0402
0402
COMMON
COMMON
FBG_VREF2
FBG_VREF2
R819
R819
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
GND
1
2
FBVDDQ
R827
R827
511
511
1%
1%
0402
0402
COMMON
COMMON
FBG_VREF3
FBG_VREF3
C1179
C1179
R821
R821
.1UF
.1UF
1.1K
1.1K
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
COMMON
C1175
C1175
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBG0_CLK0
FBG0_CLK0*
FBG1_CLK0
FBG1_CLK0*
RESET
R53
R53
511
511
1%
1%
0402
0402
COMMON
COMMON
FBG_VREF4
R56
R56
1.1K
1.1K
1%
1%
0402
0402
COMMON
COMMON
FBG0_CLK0_R
R822
R822
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBG1_CLK0_R
R820
R820
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
FBVDDQ
FBG_VREF4
R818
R818
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
R824
R824
80.6
80.6
1%
1%
0402
0402
COMMON
COMMON
GND
3
GND
C1183
C1183
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1186
C1186
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
4
5
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
14 41
14 41
14 41
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 15
A B C D E F G H
Framebuffer H: N/A
1
2
3
1
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Framebuffer H: N/A
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Monday, December 15, 2008
Monday, December 15, 2008
Monday, December 15, 2008
Sheet of
Sheet of
Sheet of
HFDBA
15 41
15 41
15 41
4
5
<RevCode>
<RevCode>
<RevCode>
Page 16
A B C D E F G H
Decoupling: Memory Section A-D
1
Combined Distributed Capacitance
Banks A-D FBVDD/Q
1
280 uF
Decoupling for FBVDDQ
Partition A0
FBVDDQ
C723
C723
C630
C630
1UF
1UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
C89
C89
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C709
C709
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C625
C625
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C624
C624
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C698
C698
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
COMMON
C725
C725
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C710
C710
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C721
C721
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C720
C720
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C728
C728
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBVDDQ
2
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
3
C82
C82
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C641
C641
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C699
C699
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C620
C620
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C623
C623
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C707
C707
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C635
C635
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C627
C627
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C729
C729
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C719
C719
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C639
C639
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C705
C705
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C726
C726
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C605
C605
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C711
C711
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C718
C718
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C599
C599
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C706
C706
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C724
C724
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C634
C634
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C640
C640
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C83
C83
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C86
C86
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C616
C616
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C633
C633
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C722
C722
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C619
C619
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C717
C717
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C629
C629
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C632
C632
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C618
C618
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C638
C638
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C602
C602
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C628
C628
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C631
C631
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C596
C596
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C617
C617
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C622
C622
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C88
C88
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C708
C708
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C626
C626
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C87
C87
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C704
C704
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C621
C621
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C744
C744
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C584
C584
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C587
C587
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C583
C583
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C579
C579
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C756
C756
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
GND
GND
GND
GND
GND
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
Partition C0
C615
C615
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C593
C593
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C637
C637
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
Partition D0Partition B0
C752
C752
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C746
C746
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C765
C765
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C716
C716
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C614
C614
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C703
C703
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C749
C749
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C776
C776
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C761
C761
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C712
C712
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C697
C697
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C715
C715
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C780
C780
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C773
C773
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C751
C751
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C610
C610
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C612
C612
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C727
C727
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C788
C788
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C762
C762
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C755
C755
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C714
C714
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C702
C702
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C613
C613
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C790
C790
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C778
C778
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C767
C767
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C713
C713
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C701
C701
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C611
C611
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C856
C856
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C854
C854
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C841
C841
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C636
C636
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C700
C700
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C815
C815
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C806
C806
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C84
C84
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C606
C606
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C75
C75
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C77
C77
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C85
C85
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C81
C81
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C607
C607
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C838
C838
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C793
C793
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C785
C785
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C609
C609
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C608
C608
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C590
C590
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C78
C78
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C789
C789
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C766
C766
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C582
C582
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C672
C672
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C750
C750
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1187
C1187
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C56
C56
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
GND
2
GND
GND
GND
3
GND
Decoupling for FBVDDQ
Partition A0
FBVDDQ
C738
C738
C693
C693
1UF
1UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
C604
C604
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C736
C736
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C737
C737
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
COMMON
C740
C740
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C734
C734
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C598
C598
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
FBVDDQ
4
FBVDDQ
FBVDDQ
C601
C601
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C741
C741
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C691
C691
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C689
C689
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C739
C739
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C695
C695
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C595
C595
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C735
C735
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C658
C658
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C678
C678
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C597
C597
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C692
C692
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C694
C694
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C677
C677
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C681
C681
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C657
C657
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C683
C683
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C696
C696
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C647
C647
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C594
C594
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C684
C684
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C659
C659
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C682
C682
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C676
C676
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C603
C603
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C600
C600
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C690
C690
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C675
C675
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C649
C649
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C650
C650
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C656
C656
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C648
C648
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C581
C581
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C585
C585
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C576
C576
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C577
C577
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
GND
GND
GND
5
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
Partition C0
C685
C685
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C592
C592
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
Partition D0Partition B0
C770
C770
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C797
C797
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C589
C589
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C733
C733
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C759
C759
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C827
C827
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C687
C687
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C731
C731
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C769
C769
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C829
C829
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C732
C732
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C730
C730
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C758
C758
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C800
C800
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C688
C688
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C655
C655
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C753
C753
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C754
C754
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C674
C674
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C588
C588
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C840
C840
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C842
C842
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C654
C654
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C673
C673
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C775
C775
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C855
C855
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C686
C686
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C646
C646
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C787
C787
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C748
C748
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C591
C591
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C680
C680
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C792
C792
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C791
C791
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C679
C679
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C645
C645
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C772
C772
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C779
C779
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C580
C580
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C586
C586
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1209
C1209
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1190
C1190
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
4
GND
GND
GND
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Decoupling: Memory Section A-D
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
16 41
16 41
16 41
<RevCode>
<RevCode>
<RevCode>
Page 17
A B C D E F G H
Decoupling: Memory Section E-G
1
Combined Distributed Capacitance
Banks E-G FBVDD/Q
210 uF
1
Decoupling for FBVDDQ
Partition E0
FBVDDQ
C1033
C1033
C903
C903
1UF
1UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
C945
C945
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C893
C893
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
Partition F0
C1087
C1087
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1099
C1099
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1094
C1094
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
COMMON
C889
C889
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1024
C1024
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1083
C1083
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1084
C1084
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1080
C1080
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
FBVDDQ
2
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
3
C1073
C1073
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C947
C947
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C979
C979
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1117
C1117
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1095
C1095
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1090
C1090
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C892
C892
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C982
C982
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C930
C930
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1113
C1113
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1100
C1100
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1105
C1105
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C993
C993
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C991
C991
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C946
C946
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1168
C1168
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1111
C1111
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1101
C1101
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1027
C1027
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1057
C1057
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1030
C1030
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1120
C1120
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1122
C1122
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1121
C1121
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1036
C1036
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C73
C73
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1125
C1125
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C70
C70
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C72
C72
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C74
C74
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C63
C63
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1131
C1131
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1059
C1059
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1064
C1064
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C906
C906
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C68
C68
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1154
C1154
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1137
C1137
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1071
C1071
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1067
C1067
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C929
C929
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1157
C1157
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1166
C1166
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1108
C1108
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C80
C80
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C79
C79
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C869
C869
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C742
C742
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1173
C1173
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1076
C1076
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
GND
GND
GND
GND
GND
FBVDDQ
FBVDDQ
FBVDDQ
Partition G0
C1143
C1143
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1198
C1198
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1202
C1202
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1140
C1140
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1147
C1147
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1141
C1141
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1192
C1192
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1152
C1152
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1139
C1139
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1197
C1197
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1201
C1201
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1194
C1194
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1142
C1142
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1195
C1195
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1188
C1188
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1144
C1144
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C65
C65
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C64
C64
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1199
C1199
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1196
C1196
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1200
C1200
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1149
C1149
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1150
C1150
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C66
C66
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1189
C1189
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1204
C1204
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1148
C1148
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1193
C1193
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C49
C49
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1176
C1176
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1171
C1171
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
GND
2
GND
3
Decoupling for FBVDDQ
Partition E0
FBVDDQ
C1048
C1048
C1063
C1063
C917
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C966
C966
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1092
C1092
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1146
C1146
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C917
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1047
C1047
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1093
C1093
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1102
C1102
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
FBVDDQ
C916
C916
1UF
1UF
6.3V
FBVDDQ
FBVDDQ
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
Partition F0
C1167
C1167
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1151
C1151
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
4
C965
C965
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1061
C1061
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1103
C1103
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1128
C1128
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C992
C992
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C983
C983
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1082
C1082
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1109
C1109
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1068
C1068
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1066
C1066
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1123
C1123
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1112
C1112
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1072
C1072
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1026
C1026
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1124
C1124
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1119
C1119
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1035
C1035
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1034
C1034
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1126
C1126
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1089
C1089
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C904
C904
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C981
C981
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1158
C1158
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1088
C1088
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C905
C905
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C891
C891
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1107
C1107
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1156
C1156
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C743
C743
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C868
C868
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1172
C1172
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
GND
GND
GND
5
FBVDDQ
FBVDDQ
Partition G0
C1206
C1206
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1207
C1207
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1132
C1132
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1133
C1133
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1135
C1135
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1134
C1134
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1163
C1163
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1205
C1205
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1161
C1161
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1169
C1169
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1184
C1184
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1165
C1165
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1162
C1162
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1185
C1185
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1170
C1170
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1182
C1182
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1160
C1160
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1164
C1164
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1208
C1208
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1181
C1181
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1115
C1115
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1210
C1210
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
4
GND
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Decoupling: Memory Section E-G
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
17
17
17
<RevCode>
<RevCode>
<RevCode>
41
41
41
Page 18
A B C D E F G H
Decoupling: GPU (NVVDD, FBVDDQ)
1
2
3
4
5
Decoupling for NVVDD (under GPU)
4 x 2200pF 0402
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
C932
C932
2200PF
2200PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
6 x 4700pF 0402
C896
C896
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
10 x 10nF 0402
C950
C950
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
10 x 22nF 0402
C957
C957
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
10 x 47nF 0402
C959
C959
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
17 x 0.1uF 0402
C948
C948
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C961
C961
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
5 x 0.22uF 0402
C831
C831
.22UF
.22UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
5 x 0.47uF 0402
C974
C974
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
8 x 1uF 0402
C971
C971
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
8 x 4.7uF 0603
C853
C853
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
6 x 47uF 1206
C760
C760
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C909
C909
2200PF
2200PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C918
C918
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C885
C885
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C952
C952
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1007
C1007
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C962
C962
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1002
C1002
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C888
C888
.22UF
.22UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1009
C1009
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1012
C1012
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C833
C833
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C880
C880
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C933
C933
2200PF
2200PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C939
C939
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C951
C951
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C877
C877
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C873
C873
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C898
C898
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C887
C887
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1000
C1000
.22UF
.22UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C938
C938
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C872
C872
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C848
C848
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C763
C763
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C910
C910
2200PF
2200PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C931
C931
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C908
C908
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C830
C830
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1008
C1008
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C987
C987
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C949
C949
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C975
C975
.22UF
.22UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C852
C852
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C824
C824
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1006
C1006
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C745
C745
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C927
C927
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C886
C886
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C871
C871
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C972
C972
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C874
C874
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C843
C843
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C963
C963
.22UF
.22UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1013
C1013
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1014
C1014
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1011
C1011
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1086
C1086
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C911
C911
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C926
C926
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C988
C988
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C958
C958
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C970
C970
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C973
C973
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C876
C876
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C995
C995
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C781
C781
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C934
C934
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C851
C851
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C976
C976
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C844
C844
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1001
C1001
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1017
C1017
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C828
C828
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C919
C919
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C960
C960
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C875
C875
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C884
C884
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C811
C811
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C994
C994
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
Combined Distributed Capacitance
GND
C881
C881
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C897
C897
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C850
C850
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C953
C953
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
C954
C954
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C883
C883
.022UF
.022UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C989
C989
.047UF
.047UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C937
C937
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GPU - NVVDD
GND
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
Decoupling for FBVDDQ (under GPU)
494 uF
8 x 0.1uF 0402
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
16 x 10uF 0805
NVVDD
C923
C923
C921
C921
C1004
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C836
C836
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1004
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C860
C860
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1005
C1005
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Decoupling: GPU (NVVDD, FBVDDQ)
C1003
C1003
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
10 x 1uF 0402
C955
C955
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
15 x 0.47uF 0402
C882
C882
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C986
C986
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
5 x 4.7uF 0603
C1046
C1046
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
4 x 47uF 1206
C768
C768
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
5 x 0.47uF 0402
C817
C817
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C837
C837
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C1077
C1077
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C977
C977
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C912
C912
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C865
C865
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1038
C1038
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1051
C1051
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1079
C1079
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C794
C794
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1069
C1069
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C771
C771
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C818
C818
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C820
C820
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1016
C1016
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1023
C1023
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C578
C578
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C823
C823
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C805
C805
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1044
C1044
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C782
C782
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C807
C807
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C808
C808
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1049
C1049
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1039
C1039
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C796
C796
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1078
C1078
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C1029
C1029
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
C757
C757
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
1
2
3
C822
C822
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C825
C825
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C925
C925
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C809
C809
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C795
C795
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1045
C1045
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
Combined Distributed Capacitance
C1043
C1043
C1022
C1022
.1UF
.1UF
.1UF
.1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C812
C812
C900
C900
1UF
1UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C1019
C1019
C878
C878
.47UF
.47UF
.47UF
.47UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
GND
GND
GND
C1021
C1021
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1020
C1020
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C968
C968
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C835
C835
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C941
C941
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C858
C858
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1041
C1041
.47UF
.47UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GPU - FBVDD/Q
230 uF
GND
GND
GND
GND
4
C1070
C1070
C777
C777
C907
22UF
22UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C907
22UF
22UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
5
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
18 41
18 41
18 41
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 19
A B C D E F G H
GPU-NVIO Interconnect: GV Bus / PLL
1V15
C1053
C1053
C76
C76
C978
C978
C1032
47UF
47UF
4.7UF
4.7UF
6.3V
6.3V
6.3V
1
6.3V
20%
20%
10%
10%
X5R
X5R
X5R
X5R
0805
0805
0603
0603
COMMON
COMMON
COMMON
COMMON
GND
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1032
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
1V15
C997
C997
C969
C969
.1UF
.1UF
.1UF
.1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C1010
C1010
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND GND
C964
C964
C928
C928
.1UF
.1UF
.1UF
.1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
LB505 240R@100MHz
LB505 240R@100MHz
IND_SMD_0402COMMON
IND_SMD_0402COMMON
C990
C990
4.7UF
4.7UF
6.3V
6.3V
20%
20%
X5R
X5R
0603
0603
COMMON
COMMON
C935
C935
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C999
C999
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
GND GND
C956
C956
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
12MIL 1.15V
GV_PLLAVDD
C985
C985
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C920
C920
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
BE16
BE23
BE26
BG20
BG23
BH17
BH23
BK18
G1L
G1L
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
12/21 GV Bus
12/21 GV Bus
GV_IO_VDDQ
GV_IO_VDDQ
GV_IO_VDDQ
GV_IO_VDDQ
GV_IO_VDDQ
GV_IO_VDDQ
GV_IO_VDDQ
GV_PLL_AVDD
2
1V15
R758
3
U5B
U5B
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
C1341
C1341
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1252
C1252
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
P4
H24
COMMON
2/17 CLOCK OUT
2/17 CLOCK OUT
PLL_V_VDD
PLL_SP_AVDD
GPU_CLK
GPU_CLK
FB_CLK0
FB_CLK0
FB_CLK1
FB_CLK1
FB_CLK2
FB_CLK2
FB_CLK3
FB_CLK3
PLL_SP_MON_OUT
CLK_RSET_GND
M26
L26
FBAB_REFCLK
N24
FBAB_REFCLK*
N25
FBEF_REFCLK
M23
FBEF_REFCLK*
M22
FBCD_REFCLK
M25
FBCD_REFCLK*
M24
FBGH_REFCLK
N22
FBGH_REFCLK*
N23
SNN_NVIO_PLL_SP_MON_OUT
K22
NVIO_CLK_RSET_GND
J22
GPU_CLK
GPU_CLK*
replace existing vias with labtestpoints
4
3V3_F
LB519 240R@100MHz
LB519 240R@100MHz
COMMONIND_SMD_0402
COMMONIND_SMD_0402
C1350
C1350
C1347
C1347
1UF
1UF
2.2UF
2.2UF
6.3V
6.3V
6.3V
6.3V
20%
20%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
GND
1V15
LB508 240R@100MHz
LB508 240R@100MHz
COMMONIND_SMD_0402
COMMONIND_SMD_0402
C1219
C1219
C1236
C1236
1UF
1UF
2.2UF
2.2UF
6.3V
6.3V
6.3V
6.3V
20%
20%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
5
COMMON
GND
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C1344
C1344
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1240
C1240
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
12MIL 3.3V
NVIO_PLLVDD
C1346
C1346
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
12MIL 1.15V
NVIO_SP_PLLVDD
C1245
C1245
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
R758
150
150
1%
1%
0402
0402
COMMON
COMMON
GV_RX_RSET_VDD
GV_TX_RSET_GND
R754
R754
150
150
1%
1%
0402
0402
COMMON
COMMON
GND
DIFF_PAIR
GPU_CLK 1100DIFF
FBAB_REFCLK 100DIFF 1
FBAB_REFCLK 100DIFF 1
FBEF_REFCLK 100DIFF 1
FBEF_REFCLK 1100DIFF
FBCD_REFCLK 100DIFF 1
FBCD_REFCLK 100DIFF 1
FBGH_REFCLK 100DIFF 1
FBGH_REFCLK 100DIFF 1
R889
R889
1.5K
1.5K
1%
1%
0402
0402
COMMON
COMMON
GND
NV_IMPNET_NAME
100DIFFGPU_CLK 1
C GE
BJ17
BL23
BC20
BC19
GV_RX_RSET_VDD
GV_TX_RSET_GND
NV_SS_REFCLK
NV_SS_REFCLK
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
4
4
6
6
5
5
7
7
U5C
U5C
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
1/17 GV-INTERFACE
GV_TX0
BK24
GV_TX0
BJ24
GV_TX0
BJ23
GV_TX1
BK23
GV_TX1
BL22
GV_TX2
BM22
GV_TX2
BK21
GV_TX3
BJ21
GV_TX3
BM20
GV_TX4
BM21
GV_TX4
BK20
GV_TX5
BL20
GV_TX5
BN21
GV_TX6
BN20
GV_TX6
BR20
GV_TX7
BR21
GV_TX7
BL19
GV_TX8
BM19
GV_TX8
BN19
GV_TX9
BP20
GV_TX9
BM17
GV_TX10
BM18
GV_TX10
BR17
GV_TX11
BR18
GV_TX11
BN17
GV_TX12
BN18
GV_TX12
BN16
GV_TX13
BP17
GV_TX13
BM14
GV_TX14
BM15
GV_TX14
BN13
GV_TX15
BP14
GV_TX15
BN14
GV_TX16
BN15
GV_TX16
BR11
GV_TX17
BR12
GV_TX17
BL13
GV_TX18
BM13
GV_TX18
BN10
GV_TX19
BP11
GV_TX19
BR14
GV_TXCTL
BR15
GV_TXCTL
BL16
GV_TXCLK
BM16
GV_TXCLK
BN11
GV_RX0
BN12
GV_RX0
BK15
GV_RX1
BJ15
GV_RX1
BL10
GV_RX2
BM10
GV_RX2
BK14
GV_RX3
BL14
GV_RX3
BK17
GV_RXCTL
BL17
GV_RXCTL
BM11
GV_RXCLK
BM12
GV_RXCLK
BG26
PMC_ISO_RESET
BK27
HOT_RESET
BL26
PEX_PWR_GOOD
BJ26
BUFCLK_LDT_IN
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
GV_TX0 90DIFF 1
GV_TX0*
GV_TX0 90DIFF 1
GV_TX1
GV_TX1 90DIFF 1
GV_TX1*
GV_TX1 90DIFF 1
GV_TX2
GV_TX2 90DIFF 1
GV_TX2*
GV_TX2 90DIFF 1
GV_TX3
GV_TX3 90DIFF 1
GV_TX3*
GV_TX3 90DIFF 1
GV_TX4
GV_TX4 90DIFF 1
GV_TX4*
GV_TX4 90DIFF 1
GV_TX5
GV_TX5 90DIFF 1
GV_TX5*
GV_TX5 90DIFF 1
GV_TX6
GV_TX6 90DIFF 1
GV_TX6*
GV_TX6 90DIFF 1
GV_TX7
GV_TX7 90DIFF 1
GV_TX7*
GV_TX7 90DIFF 1
GV_TX8
GV_TX8 90DIFF 1
GV_TX8*
GV_TX8 90DIFF 1
GV_TX9
GV_TX9 90DIFF 1
GV_TX9*
GV_TX9 90DIFF 1
GV_TX10
GV_TX10 90DIFF 1
GV_TX10*
GV_TX10 90DIFF 1
GV_TX11
GV_TX11 90DIFF 1
GV_TX11*
GV_TX11 90DIFF 1
GV_TX12
GV_TX12 90DIFF 1
GV_TX12*
GV_TX12 90DIFF 1
GV_TX13
GV_TX13*
GV_TX14
GV_TX14 90DIFF 1
GV_TX14*
GV_TX14 90DIFF 1
GV_TX15
GV_TX15 90DIFF 1
GV_TX15*
GV_TX15 90DIFF 1
GV_TX16
GV_TX16*
GV_TX17
GV_TX17 90DIFF 1
GV_TX17*
GV_TX17 90DIFF 1
GV_TX18
GV_TX18*
GV_TX18 190DIFF
GV_TX19
GV_TX19*
GV_TX19 90DIFF 1
GV_TXCTL
GV_TXCTL 90DIFF 1
GV_TXCTL*
GV_TXCTL 90DIFF 1
GV_TXCLK
GV_TXCLK 90DIFF 1
GV_TXCLK*
GV_TXCLK 90DIFF 1
replace existing vias with labtestpoints
GV_RX0
GV_RX0 90DIFF 1
GV_RX0*
GV_RX0 90DIFF 1
GV_RX1
GV_RX1*
GV_RX1 90DIFF 1
GV_RX2
GV_RX2 90DIFF 1
GV_RX2*
GV_RX2 90DIFF 1
GV_RX3
GV_RX3 90DIFF 1
GV_RX3*
GV_RX3 90DIFF 1
GV_RXCTL
GV_RXCTL 190DIFF
GV_RXCTL*
GV_RXCTL 190DIFF
GV_RXCLK
GV_RXCLK 190DIFF
GV_RXCLK*
GV_RXCLK 190DIFF
replace existing vias with labtestpoints
GPU_PMC_ISO_RESET*
GPU_HOT_RESET*
GPU_PEX_PWR_GOOD*
GPU_BUFCLK_LDT_IN
GPU-NVIO Interconnect: GV Bus / PLL
90DIFFGV_TX13 1
90DIFFGV_TX13 1
90DIFFGV_TX16 1
90DIFFGV_TX16 1
90DIFF 1GV_TX18
90DIFF 1GV_TX19
1GV_RX1 90DIFF
250OHM
250OHM
250OHM
50OHM 2
Only populate if XTAL input bias / Vsing sufficient
Else, use XTAL for DP sku
1/17 GV-INTERFACE
AG22
GV_RX0
AG21
GV_RX0
AG25
GV_RX1
AG24
GV_RX1
AF23
GV_RX2
AF22
GV_RX2
AD21
GV_RX3
AD20
GV_RX3
AG26
GV_RX4
AF26
GV_RX4
AE27
GV_RX5
AF27
GV_RX5
AE24
GV_RX6
AE25
GV_RX6
AD23
GV_RX7
AD22
GV_RX7
AE21
GV_RX8
AE22
GV_RX8
AD25
GV_RX9
AD24
GV_RX9
AD26
GV_RX10
AC26
GV_RX10
AA27
GV_RX11
AB27
GV_RX11
AB24
GV_RX12
AB25
GV_RX12
AA23
GV_RX13
AA22
GV_RX13
AA26
GV_RX14
Y26
GV_RX14
V27
GV_RX15
W27
GV_RX15
W24
GV_RX16
W25
GV_RX16
V23
GV_RX17
V22
GV_RX17
W22
GV_RX18
W23
GV_RX18
V25
GV_RX19
V24
GV_RX19
AA25
GV_RXCTL
AA24
GV_RXCTL
AB22
GV_RXCLK
AB23
GV_RXCLK
T24
GV_TX0
T25
GV_TX0
R23
GV_TX1
R22
GV_TX1
T22
GV_TX2
T23
GV_TX2
R25
GV_TX3
R24
GV_TX3
R27
GV_TXCTL
T27
GV_TXCTL
V26
GV_TXCLK
U26
GV_TXCLK
N27
PMC_ISO_RESET
AB19
HOT_RESET
AF20
BUFRST
K25
XTAL_OUT_BUF
R849
33
R849
33
DP_XTAL_IN
COMMON
COMMON
0402
0402
5%
5%
(Not)
LDT_VDDQ
LDT_VDDQ
LDT_VDDQ
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
GVDR_RX_RSET_GND
GVDR_TX_RSET_GND
PLL_GV_VDD
PLL_GV_AVDD
OUT
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
R19
T19
U19
J13
J15
L11
L12
L13
L14
L15
L16
L17
M11
M12
M14
M17
N17
R11
T11
T14
T16
T17
U11
U12
U13
U14
U15
U16
U17
W13
W15
J10
J18
K19
K9
V19
V9
W10
W18
P26
R26
L24
P24
25
C1265
C1265
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
GND
GND
NVIO_GVDR_RX_RSET_GND
NVIO_GVDR_TX_RSET_GND
12MIL 3.3V
NVIO_GV_PLLVDD
12MIL 1.15V
NVIO_GV_PLLAVDD
C1284
C1284
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1278
C1278
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1274
C1274
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1264
C1264
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1280
C1280
C1279
C1279
C1285
C1285
C1266
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1266
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
1
1V15
1V15
C1286
C1286
C1292
C1292
C1304
C1304
C1283
C1283
C1289
C1289
C1218
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1299
C1299
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1298
C1298
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1287
C1287
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1293
C1293
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1303
C1303
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1218
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1217
C1217
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
2
3V3_F
C1275
C1273
C1273
C1302
C1302
C1300
C1300
C1271
C1271
C1272
.1UF
.1UF
.1UF
.1UF
.1UF
.1UF
6.3V
6.3V
6.3V
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
R866
R863
R863
0402
0402
C1253
C1253
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
C1259
C1259
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
6.3V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
49.91%R866
49.9
COMMON0402
COMMON0402
1%
150
150
COMMON
COMMON
1%
1%
GND
C1248
C1248
C1237
C1237
.1UF
.1UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X7R
X7R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
C1242
C1242
C1234
C1234
.1UF
.1UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
LB510
IND_SMD_0402COMMON
IND_SMD_0402COMMON
C1243
C1243
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
LB509
LB509
IND_SMD_0402
IND_SMD_0402
C1246
C1246
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
C1272
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
240R@100MHzLB510
240R@100MHz
240R@100MHz
240R@100MHz
COMMON
COMMON
C1262
C1262
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1230
C1230
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1228
C1228
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
3V3_F
C1275
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
1V15
3
4
5
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
19 41
19 41
19 41
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 20
A B C D E F G H
Display: DACA (Middle DVI-I)
1
Desktop STEREO (option)
2
3V3_F
3
GND
4
5
C1317
C1317
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GPIO13_STEREO
21,28
IN
LB515
COMMONIND_SMD_0402
COMMONIND_SMD_0402
240R@100MHzLB515
240R@100MHz
C1330
C1330
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
R900
R900
NEAR MOSFET
NEAR MOSFET
10K
10K
5%
5%
0402
0402
COMMON
COMMON
(not)
GND
C1315
C1315
C1321
C1321
2.2UF
2.2UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
20%
20%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
12MIL
DACA_VREF
12MIL
DACA_RSET
R924
R924
124
124
1%
1%
0402
0402
COMMON
COMMON
(not)
GND GND GND
Additional resistor for RSET trim
Both values must change if used
R896
R896
DACA_VDD
5%
5%
R925
R925
124
124
1%
1%
0402
0402
COMMON
COMMON
33
33
COMMON0402
COMMON0402
(not)
3.3V12MIL
C1319
C1319
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
To support Desktop Card Stereo Out via DDC
GPIO13_STEREO_DACA
U5D
U5D
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
3/17 DAC_A
3/17 DAC_A
R9
DACA_VDD
P6
DACA_VREF
R5
DACA_RSET
P9
DACA_AGND
DDC isolation from GPU to Micro-Controller
when in Hybrid Power mode
21,32,36,40
R933
0402 COMMON
0402 COMMON
R932
R932
0402
0402
NEAR VAIO
NEAR VAIO
HYBRID_PWR_EN
IN
I2C1_SCL_QS
335%R933
33
5%
I2C1_SDA_QS
33
33
COMMON
COMMON
5%
5%
U2D
U2D
XSOP16_PI025_049X040
XSOP16_PI025_049X040
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
A10B
11
BE
12
R940
U2E
U2E
XSOP16_PI025_049X040
XSOP16_PI025_049X040
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
A13B
14
BE
15
R941
R941
0402
0402
(not)
R956
R956
2.2K
0R940
0
COMMON0402
COMMON0402
5%
5%
(not)
0
0
COMMON
COMMON
5%
5%
2.2K
5%
5%
5V
0402
0402
COMMON
COMMON
R957
R957
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
5V
U3B
U3B
1
50OHM
4
1G1D1S
1G1D1S
3
D
Q533
Q533
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
(not)
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
GND
I2C1_SCL
I2C1_SDA
DACA_HSYNC
DACA_VSYNC
DACA_RED
DACA_GREEN
DACA_BLUE
DACA_IDUMP
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
AD11
AD10
U2
T2
R1
T1
P2
T5
GND GND GND GND
I2C1_SCL
I2C1_SDA
DACA_HSYNC
DACA_VSYNC
DACA_RED
DACA_GREEN
DACA_BLUE
R948
R948
150
150
1%
1%
0402
0402
COMMON
COMMON
NEAR NVIO
NEAR NVIO
R949
R949
150
150
1%
1%
0402
0402
COMMON
COMMON
R950
R950
150
150
1%
1%
0402
0402
COMMON
COMMON
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
5
7 14
GND
5V
10
9
7 14
GND
6
SO14_I335X150
SO14_I335X150
COMMON
COMMON
DACA_HSYNC_BUF_R
U3C
U3C
1
50OHM
8
SO14_I335X150
SO14_I335X150
COMMON
COMMON
DACA_VSYNC_BUF_R
3
3
3
3V3
1 2
GND
3V3
1 2
GND
3V3
1 2
GND
R946
0402 COMMON
0402 COMMON
R947
R955
R955
0402
0402
R951
R951
0402
0402
D524
D524
SOT23
SOT23
100V
100V
100MA
100MA
COMMON
COMMON
D525
D525
SOT23
SOT23
100V
100V
100MA
100MA
COMMON
COMMON
D523
D523
SOT23
SOT23
100V
100V
100MA
100MA
COMMON
COMMON
335%R946
33
5%
33R947
33
5%
5%
(not)
33
33
5%
5%
33
33
5%
5%
(not)
COMMON0402
COMMON0402
COMMON
COMMON
COMMON
COMMON
GND
GND
GND
I2C1_SCL_R
I2C1_SDA_R
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DACA_HSYNC_BUF
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DACA_VSYNC_BUF
R967
R967
150
150
1%
1%
0402
0402
COMMON
COMMON
R968
R968
150
150
1%
1%
0402
0402
COMMON
COMMON
R966
R966
150
150
1%
1%
0402
0402
COMMON
COMMON
32
32
L505
L509
L504
Note: May be possible to remove DDC clamp diodes
5V
LB523
D526
D526
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
5V
LB524
D527
D527
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
5V
L1
D1
D1
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
5V
L4
D7
D7
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
27nHL505
27nH
COMMONIND_SMD_0603
COMMONIND_SMD_0603
GND
27nHL509
27nH
COMMONIND_SMD_0603
COMMONIND_SMD_0603
GND
27nHL504
27nH
COMMONIND_SMD_0603
COMMONIND_SMD_0603
GND
C1371
C1371
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
C1375
C1375
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
C1370
C1370
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
COMMONIND_SMD_0402
COMMONIND_SMD_0402
COMMONIND_SMD_0402
COMMONIND_SMD_0402
COMMONIND_SMD_0603
COMMONIND_SMD_0603
COMMONIND_SMD_0603
COMMONIND_SMD_0603
240R@100MHzLB523
240R@100MHz
240R@100MHzLB524
240R@100MHz
68nHL1
68nH
68nHL4
68nH
C1365
C1365
22PF
22PF
50V
50V
(Not)
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
I2C1_SDA_CON
C1366
C1366
22PF
22PF
50V
50V
(Not)
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
I2C1_SCL_CON
GND
GND
GND
C5
C5
8.2PF
8.2PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
C12
C12
8.2PF
8.2PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DACA_HSYNC_CON
DACA_VSYNC_CON
DACA_RED_CON
DACA_GREEN_CON
24
OUT
1
24
BI
24
OUT
24
OUT
2
3
24
OUT
24
OUT
4
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DACA_BLUE_CON
24
OUT
OUT
BI
C1361
C1361
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C1362
C1362
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C1360
C1360
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Display: DACA (Middle DVI-I)
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
20 41
20 41
20 41
<RevCode>
<RevCode>
<RevCode>
Page 21
A B C D E F G H
Display: DACC (South DVI-I)
1
Desktop STEREO (option)
2
20,28
3V3_F
LB513 240R@100MHz
LB513 240R@100MHz
COMMONIND_SMD_0402
COMMONIND_SMD_0402
C1324
C1324
1UF
3
4
5
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
GPIO13_STEREO
IN
C1297
C1297
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND GND GND GND
C1310
C1310
C1308
C1308
2.2UF
2.2UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
20%
20%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
12MIL
DACC_VREF
12MIL
DACC_RSET
R897
R897
124
124
1%
1%
0402
0402
COMMON
COMMON
(not)
Additional resistor for RSET trim
Both values must change if used
NEAR MOSFET
NEAR MOSFET
To support Desktop Card Stereo Out via DDC
GPIO13_STEREO_DACC
33
33
R959
R959
COMMON
COMMON
0402
0402
5%
5%
(not) (not)
U5E
U5E
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
5/17 DAC_C
R899
R899
124
124
1%
1%
0402
0402
COMMON
COMMON
C1307
C1307
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
5/17 DAC_C
AC9
DACC_VDD
AC13
DACC_VREF
AB12
DACC_RSET
AF7
DACC_AGND
12MIL 3.3V
DACC_VDD
1G1D1S
1G1D1S
G
1
DACC_HSYNC
DACC_VSYNC
DACC_GREEN
DACC_IDUMP
D
Q544
Q544
SOT23
SOT23
COMMON
COMMON
S
GND
I2C2_SCL
I2C2_SDA
DACC_RED
DACC_BLUE
3
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
BSS138
I2C2_SCL
AG10
I2C2_SDA
AF10
DACC_HSYNC
AE9
DACC_VSYNC
AD9
DACC_RED
AF8
DACC_GREEN
AG9
DACC_BLUE
AG7
AD8
GND GND GND GND
R923
R923
150
150
1%
1%
0402
0402
COMMON
COMMON
NEAR NVIO
NEAR NVIO
R915
R915
150
150
1%
1%
0402
0402
COMMON
COMMON
R919
R919
150
150
1%
1%
0402
0402
COMMON
COMMON
DDC isolation from GPU to Micro-Controller
when in Hybrid Power mode
20,32,36,40
IN
R19
33
R19
33
COMMON
COMMON
0402
0402
5%
5%
33
33
R10
R10
COMMON
COMMON
0402
0402
5%
5%
NEAR VAIO
NEAR VAIO
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
HYBRID_PWR_EN
I2C2_SCL_QS
I2C2_SDA_QS
U2B
U2B
XSOP16_PI025_049X040
XSOP16_PI025_049X040
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
A4B
3
BE
2
R11
U2C
U2C
XSOP16_PI025_049X040
XSOP16_PI025_049X040
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
A7B
6
BE
5
R9
R9
0402
0402
1
2
13
12
OUT
(not)
0R11
0
COMMON0402
COMMON0402
5V
5%
5%
(not)
0
0
COMMON
COMMON
5%
5%
R8
R8
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
R7
R7
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
I2C2_SCL_R
BI
I2C2_SDA_R
5V
U3A
U3A
1
50OHM
3
SO14_I335X150
SO14_I335X150
COMMON
COMMON
7 14
DACC_HSYNC_BUF_R
GND
5V
U3D
U3D
1
50OHM
11
SO14_I335X150
SO14_I335X150
COMMON
COMMON
7 14
DACC_VSYNC_BUF_R
GND
3V3
D521
D521
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
3V3
D522
D522
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
3V3
D520
D520
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
R938
R938
0402
0402
5%
5%
R939
5%
5%
(not)
R9525%33
R9525%33
0402 COMMON
0402 COMMON
R953
5%
5%
(not)
33
33
COMMON
COMMON
33R939
33
COMMON0402
COMMON0402
33R953
33
COMMON0402
COMMON0402
GND
GND
GND
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DACC_HSYNC_BUF
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DACC_VSYNC_BUF
R964
R964
150
150
1%
1%
0402
0402
COMMON
COMMON
R965
R965
150
150
1%
1%
0402
0402
COMMON
COMMON
R963
R963
150
150
1%
1%
0402
0402
COMMON
COMMON
C1358
C1358
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C1359
C1359
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C1357
C1357
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
32
L507
L507
IND_SMD_0603
COMMON
IND_SMD_0603
COMMON
L508 33nH
L508 33nH
COMMONIND_SMD_0603
COMMONIND_SMD_0603
L506 33nH
L506 33nH
COMMONIND_SMD_0603
COMMONIND_SMD_0603
5V
LB2
240R@100MHz
LB2
240R@100MHz
IND_SMD_0402
COMMON
IND_SMD_0402
COMMON
D4
D4
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
5V
LB1
LB1
IND_SMD_0402
COMMON
IND_SMD_0402
COMMON
D3
D3
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
5V
L3
IND_SMD_0603
COMMONL3IND_SMD_0603
COMMON
D6
D6
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
5V
L2
IND_SMD_0603
COMMONL2IND_SMD_0603
COMMON
D5
D5
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
33nH
33nH
DACC_RED_CON
C1373
C1373
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
DACC_GREEN_CON
C1374
C1374
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
DACC_BLUE_CON
C1372
C1372
6.8PF
6.8PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
68nH
68nH
68nH
68nH
240R@100MHz
240R@100MHz
C2
C2
22PF
22PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C3
C3
22PF
22PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C1
C1
8.2PF
8.2PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
C4
C4
8.2PF
8.2PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
(Not)
(Not)
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
DDC_5V
GND
DACC_HSYNC_CON
DACC_VSYNC_CON
SHIELD
16
GND-R
6
R
1
GND-G
7
G
2
GND_B
8
B
3
5V
9
ID2
4
GND
10
GND
5
SHIELD
17
I2C2_SCL_CON
I2C2_SDA_CON
J9
J9
CON_DSUB_015_TH_RA_F_HD_L068_B
CON_DSUB_015_TH_RA_F_HD_L068_B
COMMON
COMMON
1611
1611
1
2
3
ID0
11
SDA
12
HSYNC
13
VSYNC
14
SCL
15
15105
15105
4
Note: May be possible to remove DDC clamp diodes
32
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Display: DACC (South DVI-I)
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
21 41
21 41
21 41
<RevCode>
<RevCode>
<RevCode>
Page 22
A B C D E F G H
Display: DACB (North MiniDIN) SD/HDTV out
1
2
1
2
11/21 remove TV
U5F
U5F
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
4/17 DAC_B
3.3V
DACB_VDD
C1312
C1312
1K
3
4
1K
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
SNN_DACB_VREF
SNN_DACB_RSET
Additional resistor for RSET trim
Both values must change if used
4/17 DAC_B
A9
DACB_VDD
C3
DACB_HSYNC
B1
DACB_VSYNC
A2
DACB_OUT0
B2
DACB_OUT1
A3
B5
DACB_VREF
A7
DACB_RSET
B9
DACB_AGND
GND GND
DACB_OUT2
DACB_OUT3
DACB_IDUMP
A4
C7
SVID_LUM
COMPOSITE
SVID_CHROM
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Display: DACB (North MiniDIN) SD/HDTV out
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
22 41
22 41
22 41
5
<RevCode>
<RevCode>
<RevCode>
Page 23
A B C D E F G H
Display: IFPAB for South DVI-I (with DACC)
1
2
U5G
U5G
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
6/17 IFP_AB
SNN_IFPAB_VPROBE
12MIL
0402 COMMON
0402 COMMON
1%
1%
GND
C1338
C1338
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1314
C1314
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
GND
IFPAB_RSET
12MIL 3.3V
IFPAB_PLLVDD
12MIL 3.3V
IFPAB_IOVDD
C1329
C1329
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1296
C1296
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
R914 1K
R914 1K
3V3_F
LB512
240R@100MHzLB512
240R@100MHz
COMMONIND_SMD_0402
LB518
LB518
IND_SMD_0402
IND_SMD_0402
COMMONIND_SMD_0402
COMMON
COMMON
240R@100MHz
240R@100MHz
C1290
C1290
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
3
IFP_IOVDD
C1334
C1334
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
C1291
C1291
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1328
C1328
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
6/17 IFP_AB
AB11
IFPAB_VPROBE
AB7
IFPAB_RSET
AC10
IFPAB_PLL_VDD
AB10
IFPAB_PLL_GND
AA6
IFPA_IO_VDD
Y6
IFPA_IO_GND
AD7
IFPB_IO_VDD
AE7
IFPB_IO_GND
GND
IFPA_TXD0
IFPA_TXD0
IFPA_TXD1
IFPA_TXD1
IFPA_TXD2
IFPA_TXD2
IFPA_TXD3
IFPA_TXD3
IFPB_TXD4
IFPB_TXD4
IFPB_TXD5
IFPB_TXD5
IFPB_TXD6
IFPB_TXD6
IFPB_TXD7
IFPB_TXD7
NV_IMPEDANCE
100DIFF 1 IFPA_TXC
V4
IFPA_TXC
100DIFF 1 IFPA_TXC
V5
IFPA_TXC
100DIFF 1 IFPA_TXD0
W4
100DIFF 1 IFPA_TXD0
Y4
100DIFF 1 IFPA_TXD1
AA4
100DIFF 1 IFPA_TXD1
AA5
100DIFF 1 IFPA_TXD2
AB4
100DIFF 1 IFPA_TXD2
AC4
AB6
AB5
AD6
IFPB_TXC
AC6
IFPB_TXC
100DIFF 1 IFPB_TXD4
AD4
100DIFF 1 IFPB_TXD4
AD5
AG2
AG3
AG4
AF4
AF5
AG6
1 IFPB_TXD5100DIFF
1 IFPB_TXD5100DIFF
1 IFPB_TXD6100DIFF
1 IFPB_TXD6100DIFF
DIFF_PAIR NET_NAMENV_CRITICAL_NET
IFPA_TXC*
IFPA_TXC
IFPA_TXD0*
IFPA_TXD0
IFPA_TXD1*
IFPA_TXD1
IFPA_TXD2*
IFPA_TXD2
SNN_IFPA_TXD3*
SNN_IFPA_TXD3
SNN_IFPB_TXC*
SNN_IFPB_TXC
IFPB_TXD4*
IFPB_TXD4
IFPB_TXD5*
IFPB_TXD5
IFPB_TXD6*
IFPB_TXD6
SNN_IFPB_TXD7*
SNN_IFPB_TXD7
4
Note: Possibly remove TPs, replace with SNN nets if this
improves power paths/channels under the BGA
HPD circuit shared with DP
28
GPIO0_DVIAB_DP_HPD_CON
OUT
SHIELD1
25
SHIELD2
26
SHIELD3
27
SHIELD4
28
TX0-
17
TX0+
18
TX1-
9
TX1+
10
TX2-
1
TX2+
2
SHLD24
3
SHLD13
11
SHLD05
19
TX3-
12
TX3+
13
TX4-
4
TX4+
5
TX5-
20
TX5+
21
I2C1_SCL_CON
20
IN
I2C1_SDA_CON
20
IN
DDC_5V
DACA_VSYNC_CON
20
IN
DACA_RED_CON
20
IN
DACA_GREEN_CON
20
IN
DACA_BLUE_CON
20
IN
DACA_HSYNC_CON
20
IN
DDCC
6
DDCD
7
VDDC
14
GND
15
SHLDC
22
TXC-
24
TXC+
23
VSYNC
8
HPD
16
R
C1
G
C2
B
C3
AGND1
C5
AGND2
C5A
HSYNC
C4
SHIELD5
29
SHIELD6
30
SHIELD7
31
SHIELD8
32
GND
17 9
17 9
24
24
C3
C3
C5
C5
C4
C4
16 8
16 8
1
1
C1
C1
C5A
C5A
C2
C2
J3
J3
DVI_I_(SLIM_)SHLD_M
DVI_I_(SLIM_)SHLD_M
MULTI_CON_DVII_030_TH
MULTI_CON_DVII_030_TH
COMMON
COMMON
1
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Display: IFPAB for south DVI-I (with DACC)
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
23 41
23 41
23 41
5
<RevCode>
<RevCode>
<RevCode>
Page 24
A B C D E F G H
Display: IFPCD for middle DVI-I (with DACA)
I2CO_SDA_R
I2CO_SCL_R
DDC_5V
1
C1420
C1420
4700PF
4700PF
25V
25V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
GND
J4
J4
19
HP DET
18
+5V
17
GND
16
DDC DATA
15
DDC CLK
14
NC
13
CE Remote
12
CK-
11
CK Shield
10
CK+
9
D0-
8
D0 Shield
7
D0+
6
D1-
5
D1 Shield
4
D1+
3
D2-
2
D2 Shield
1
D2+
STARTAKE_19P-1
STARTAKE_19P-1
N5Y-19M0061-L06
N5Y-19M0061-L06
SHELL2
MEC1
SHELL1
21
23
GND
MEC1
22
GND
20
GND
2
3
1
U5H
U5H
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
7/17 IFP_CD
SNN_IFPCD_VPROBE
12MIL
IFPCD_RSET
R921
1KR921
1K
COMMON
0402
COMMON
0402
1%
3V3_F
LB520
240R@100MHz
LB520
240R@100MHz
COMMON
IND_SMD_0402
COMMON
IND_SMD_0402
C1349
GND
IFP_IOVDD
C1349
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
LB516
240R@100MHzLB516
240R@100MHz
COMMONIND_SMD_0402
COMMONIND_SMD_0402
C1345
C1345
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
2
1%
GND
C1348
C1348
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
C1326
C1326
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1332
C1332
2.2UF
2.2UF
6.3V
6.3V
20%
20%
X5R
X5R
0402
0402
COMMON
COMMON
GND
C1340
C1340
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
12MIL 3.3V
IFPCD_PLLVDD
C1342
C1342
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
12MIL 3.3V
IFPCD_IOVDD
C1325
C1325
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
3
7/17 IFP_CD
N4
IFPCD_VPROBE
G6
IFPCD_RSET
J6
IFPCD_PLL_VDD
H6
IFPCD_PLL_GND
A6
IFPC_IO_VDD
B8
IFPC_IO_GND
H4
IFPD_IO_VDD
G4
IFPD_IO_GND
GND
IFPC_TXC
IFPC_TXC
IFPC_TXD0
IFPC_TXD0
IFPC_TXD1
IFPC_TXD1
IFPC_TXD2
IFPC_TXD2
IFPC_TXD3
IFPC_TXD3
IFPD_TXC
IFPD_TXC
IFPD_TXD4
IFPD_TXD4
IFPD_TXD5
IFPD_TXD5
IFPD_TXD6
IFPD_TXD6
IFPD_TXD7
IFPD_TXD7
B6
100DIFF IFPC_TXC1
C6
D6
D5
D4
E4
F4
F5
E6
F6
K6
K5
J4
J5
K4
L4
M4
M5
M6
L6
25
OUT
NV_CRITICAL_NET
1100DIFF IFPC_TXC
1 IFPC_TXD0100DIFF
1 IFPC_TXD1100DIFF
1 IFPC_TXD2100DIFF
GPIO1_DVICD_DP_HPD
NET_NAMENV_IMPEDANCE DIFF_PAIR
IFPC_TXC*
IFPC_TXC
IFPC_TXD0*
IFPC_TXD0
IFPC_TXD0100DIFF 1
IFPC_TXD1*
IFPC_TXD1100DIFF 1
IFPC_TXD1
IFPC_TXD2*
IFPC_TXD2
IFPC_TXD2100DIFF 1
3V3_F
D528
D528
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
1 2
GND
Note: Possibly remove TPs, replace with SNN nets if this
improves power paths/channels under the BGA
R970 1K
R970 1K
0402 COMMON
0402 COMMON
5%
5%
R971
R971
10K
10K
5%
5%
0402
0402
COMMON
COMMON
GND GND
GPIO1_DVICD_HPD_R
LB526 240R@100MHz
LB526 240R@100MHz
C1364
C1364
220PF
220PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
32
OUT
COMMONIND_SMD_0402
COMMONIND_SMD_0402
GPIO1_DVICD_HPD_CON
28
28
I2CO_SDA_R
I2CO_SCL_R
4
SNN_GPIO3_RASTERSYNC0
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
3V3_F 12V
R133
R133
27K
27K
5%
5%
0402
0402
<New PN>
<New PN>
HDMI_CEC_R HDMI_CEC_LSNN_GPIO3_RASTERSYNC0
R134
R134
0402335%
0402335%
<New PN>
<New PN>
D503
D503
INS21137880
INS21137880
SOT23
SOT23
3
100V
100V
100MA
100MA
<New PN>
<New PN>
1 2
GND
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Display: IFPCD for middle DVI-I (with DACA)
+/-20V
0.36W@25C
0.88A
3.5R
50V
0.22A@31C
+/-20V
0.36W@25C
0.88A
3.5R
50V
0.22A@31C
1G1D1S
1G1D1S
G
1
2S3
INS21137925
INS21137925
Q20
Q20
SOT23_1G1D1S
SOT23_1G1D1S
<New PN>
<New PN>
D
BSS138
600R@100MHZ
600R@100MHZ
LB527
LB527
BEAD_0603
BEAD_0603
<New PN>
<New PN>
HDMI_CEC
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
24 41
24 41
24 41
4
5
<RevCode>
<RevCode>
<RevCode>
Page 25
A B C D E F G H
GND
(not)
ANX9805J
ANX9805J
DEV_ADR_SEL_GPIO
NC
65
GND
MIOB_VDDQ
R854
R854
1K
1K
1%
1%
0402
0402
COMMON
COMMON
R862
R862
1K
1K
1%
1%
0402
0402
COMMON
COMMON
(not)
GND
For DVI:
Stuff Rpd with 10K
No Stuff Cpd
R6
R6
0402
0402
R137
R137
4.75K
4.75K
1%
1%
0402
0402
COMMON
COMMON
HPD
DSDA
DSCL
AUXN*
AUXP
TX3N*
TX3P
TX2N*
TX2P
TX1N*
TX1P
TX0N*
TX0P
GPIO2
GPIO3
R_BIAS
RSVL
DP_RSVL
40
R872
R872
4.99K
4.99K
1%
1%
0402
0402
COMMON
COMMON
(not)
(not)
DP_VREF
Display: DP - Analogix
* ANX9805 support
pin 76 - GPIO3 to DP mode, from pin 13, grounded on ANX9802
- place GND resistor away from ANX device if needed
pin 74 - GPIO2, grounded on ANX9802
- place GND resistor away from ANX device if needed
pin 73 - CEC support via FET and pull-up, grounded on ANX9802
- place GND resistor away from ANX device if needed
1
pin 71 - SPDIF1 - tie to GND, input select 0/1 through internal register
pin 70 - SPDIF0 - support for Audio input, grounded on ANX9802
- place GND resistor away from ANX device if needed
pin 68 - NC - tie to GND
C1241
C1241
0
DP_XTAL_IN
19
IN
50OHM 1
0
0402
0402
5%
5%
(not)
2
3
3V3_F
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
LB511
LB511
C1260
C1260
220R@100MHz
220R@100MHz
4.7UF
4.7UF
IND_SMD_0603
IND_SMD_0603
6.3V
6.3V
COMMON
COMMON
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
(not)
GND GND
3V3_F
C42
C42
4.7UF
4.7UF
6.3V
6.3V
10%
10%
(not)
X5R
X5R
0603
0603
COMMON
COMMON
GND
1V8
LB507
LB507
C1213
C1213
220R@100MHz
220R@100MHz
4.7UF
4.7UF
IND_SMD_0603
IND_SMD_0603
6.3V
6.3V
COMMON
COMMON
10%
10%
(not) (not) (not) (not) (not) (not) (not)
X5R
X5R
0603
0603
COMMON
COMMON
(not)
GND
DP_AVDD33
C1257
C1257
C1256
C1256
C1255
C1261
C1261
.1UF
.1UF
4.7UF
4.7UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
(not) (not) (not) (not) (not) (not) (not)
X7R
X7R
X5R
X5R
0402
0402
0603
0603
COMMON
COMMON
COMMON
COMMON
C1225
C1225
C1211
C1211
4.7UF
4.7UF
.1UF
.1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X7R
X7R
0603
0603
0402
0402
COMMON
COMMON
COMMON
COMMON
DP_DVDD18
C1212
C1212
C1221
C1221
4.7UF
4.7UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0603
0603
0402
0402
COMMON
COMMON
COMMON
COMMON
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1231
C1231
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1216
C1216
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1255
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1220
C1220
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1239
C1239
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
COMMON
COMMON
C1250
C1250
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1227
C1227
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C1226
C1226
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
11/26 modify Gate Q8,Q9
DP_XTAL_IN_R
C1244
C1244
18PF
18PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
(not)
GND
GND
26
IN
30
IN
30
IN
30
IN
30
IN
30
IN
28,29,32
BI
28,29,32
IN
28
OUT
28
IN
3.3V
0.3A
16MIL
C1258
C1258
1000PF
1000PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
(not)(not)(not)(not)(not)
1.8V
0.05A
12MIL
C1215
C1215
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
DP_MODE_G_RC*
BSS138
SOT23
SOT23
COMMON
COMMON
1G1D1S
1G1D1S
Y501
27 MHZ
Y501
27 MHZ
XTAL_SMD_4_060X035
XTAL_SMD_4_060X035
+/-10 PPM
+/-10 PPM
COMMON
COMMON
(not) (not)
30
IN
R846
100
R846
100
0402
COMMON
0402
COMMON
5%
5%
(not)
DP_CEC
SPDIF_IN_DP
MIOB_HS
MIOB_VS
MIOB_DE
MIOB_CLKOUT
MIOB_CLKOUT*
I2C3_SDA_R
I2C3_SCL_R
GPIO16_DP_INT*
NVIO_EXTDEV_RST*
C1254
C1254
1000PF
1000PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
3
Q545
Q545
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
Hotplug Detect for DVICD or DP
12V
R1031
R1031
20K
20K
5%
5%
0402
0402
COMMON
COMMON
(not)
D
G
1
S
GND
DP_XTAL_OUT_R
COMMON 0402
COMMON 0402
C1288
C1288
18PF
18PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
MIOB_D[14..0]
DP_D_PD
U7B
U7B
QFP080Q_P050_0150_T010X010
QFP080Q_P050_0150_T010X010
COMMON
COMMON
2/2
2/2
AVDD33
41
AVDD33
45
AVDD33
49
AVDD33
53
AVDD33
57
AVDD33
61
VPP
31
DVDD33
12
DVDD33
30
DVDD33
75
RSVL
68
DVDD18
1
DVDD18
16
DVDD18
26
DVDD18
35
DVDD18
72
(not)
(not)
DP_MODE_G_RC
R9015%33
R9015%33
R31
R31
100K
100K
5%
5%
0402
0402
COMMON
COMMON
(not)
MIOB_D0
0
MIOB_D1
1
MIOB_D2
2
MIOB_D3
3
MIOB_D4
4
MIOB_D5
5
MIOB_D6
6
MIOB_D7
7
MIOB_D8
8
MIOB_D9
9
MIOB_D10
10
MIOB_D11
11
MIOB_D12
12
MIOB_D13
13
MIOB_D14
14
PWRPAD
28
OUT
DP_XTAL_OUT
R32
R32
51K
51K
5%
5%
0402
0402
COMMON
COMMON
(not)
GND
VREF
AVSS
AVSS
AVSS
AVSS
AVSS
AVSS
AVSS
ANX9805J
ANX9805J
DVSS
DVSS
DVSS
DVSS
DVSS
GPIO0_DVIAB_HPD
U7A
U7A
QFP080Q_P050_0150_T010X010
QFP080Q_P050_0150_T010X010
COMMON
COMMON
62
63
22
21
20
19
17
15
14
13
9
8
7
6
5
3
2
80
78
77
73
70
71
25
24
23
10
11
32
33
28
37
67
44
48
52
56
60
66
69
4
18
27
36
79
1/2
1/2
XTAL_OUT
XTAL_IN
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
CEC
SPDIF0
SPDIF1
HSYNC
VSYNC
DE
CLKP
CLKN*
CSDA
CSCL
INTP
RESETN*
TP
GND
C GE
For DVI:
No Stuff R_dvi
R_dvi
0
0
COMMON
COMMON
5%
5%
3V3_F
C1238
C1238
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
11/24 modify DP circuit
BSS138 BSS138
SOT23
SOT23
COMMON
COMMON
R136
R136
4.75K
4.75K
1G1D1S
1G1D1S
1%
1%
0402
0402
COMMON
COMMON
BSS138 BSS138
29
SOT23
SOT23
COMMON
COMMON
DP_AUX_C_R*
38
DP_AUX_C_R
39
DP_AUX*
58
DP_AUX
59
DP_L3*
42
DP_L3
43
DP_L2*
46
DP_L2
47
DP_L1*
50
DP_L1
51
DP_L0*
54
DP_L0
55
DP_GPIO2_MODE_DIV*
74
SNN_DP_GPIO3
76
DP_DEV_ADR_SEL_GPIO
34
DP_RBIAS
64
12MIL
R868
R868
4.75K
4.75K
1%
1%
0402
0402
COMMON
COMMON
(not)
GND
(not)
Display: DP - Analogix
3
Q8
Q8
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
3
Q4
Q4
2
1G1D1S
1G1D1S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
D
G
1
S
C27
C27
.1UF
.1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
D
G
1
S
DP_AUX_S*
C33
C33
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
(not) (not)
C23 .1UF
C23 .1UF
C24
C24
(not)
C29
C30
(not)
C25 .1UF
C25 .1UF
C26
(not)
C31
C31
C32
C32
(not)
R864
R864
1K
1K
5%
5%
0402
0402
COMMON
COMMON
(not)
GND
DP_MODE_G_RC*
D
G
1
S
D
G
1
S
DP_AUX_S
C34
C34
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
.1UF
.1UF
.1UFC29
.1UF
.1UFC30
.1UF
.1UFC26
.1UF
.1UF
.1UF
.1UF
.1UF
6.3V 0402
6.3V 0402
3
Q9
Q9
SOT23
SOT23
COMMON
COMMON
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
1G1D1S
1G1D1S
C28
C28
.1UF
.1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
(not)(not)
DP_AUX_QDP_AUX_Q*
3
Q5
Q5
SOT23
SOT23
COMMON
COMMON
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
(not)(not)
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
1G1D1S
1G1D1S
10%6.3V 0402 COMMON
X7R
10%6.3V 0402 COMMON
X7R
10% X7R COMMON
10% X7R COMMON
DP_MODE_G_RC
4.75K
4.75K
COMMON
COMMON
R29
R29
4.75K
4.75K
1%
1%
0402
0402
COMMON
COMMON
COMMON04026.3V 10% X7R
COMMON04026.3V 10% X7R
0402X7R
COMMON10%6.3V
0402X7R
COMMON10%6.3V
0402 COMMON10%6.3V X7R
0402 COMMON10%6.3V X7R
COMMON6.3V 10% X7R 0402
COMMON6.3V 10% X7R 0402
COMMON04026.3V 10% X7R
COMMON04026.3V 10% X7R
04026.3V COMMON10% X7R
04026.3V COMMON10% X7R
R27
R27
1%
1%
0402
0402
3
3V3_F
GND
R30
R30
100K
100K
5%
5%
0402
0402
COMMON
COMMON
(not)(not)
3V3_F
GND
1 2
R28
R28
4.75K
4.75K
1%
1%
0402
0402
COMMON
COMMON
(not)(not)
D2
D2
SOT23
SOT23
100V
100V
100MA
100MA
COMMON
COMMON
GPIO0_DVIAB_DP_HPD_R
C1327
C1327
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
DP_GPIO2_MODE_DIV*
High=3.00V
RC=100ns
R2
R2
10K
10K
Rpd
5%
5%
0402
0402
COMMON
COMMON
GND GND
R918
4.7K
R918
4.7K
0402
COMMON
0402
COMMON
5%
5%
(not)
(not)
COMMON
COMMON
COMMON
COMMON
DP_AUX_C*
DP_AUX_C
DP_L3_C*
DP_L3_C
DP_L2_C*
DP_L2_C
DP_L1_C*
DP_L1_C
DP_L0_C*
DP_L0_C
R1
1K
R1
1K
0402
COMMON
0402
COMMON
1%
1%
C1223
C1223
100PF
100PF
Cpd
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
(not)
GND
12V
DP_MODE*
BSS138
3
Q541
Q541
SOT23
SOT23
COMMON
COMMON
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
(not)
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
1G1D1S
1G1D1S
GND
100DIFF 1DP_L1
R3
R3
10K
10K
5%
5%
0402
0402
(not)
R5
R5
10K
10K
5%
5%
0402
0402
(not)
GND
DP_L3 100DIFF 1
DP_L2 1100DIFF
DP_L2 1100DIFF
DP_L1 1100DIFF
DP_L0 100DIFF 1
DP_L0 100DIFF 1
C9
C9
220PF
220PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
R945
R945
20K
20K
5%
5%
0402
0402
COMMON
COMMON
(not)
LB3
LB3
220R@100MHz
220R@100MHz
COMMON
COMMON
D
DP_MODE_RC
G
1
S
3
GPIO0_DVIAB_DP_HPD_R2
EMC
GPIO0_DVIAB_DP_HPD_CON
IND_SMD_0603
IND_SMD_0603
RC=100ns EMC
R958
COMMON
COMMON
R954
R954
(not)
10K
10K
5%
5%
0402
0402
GND GND
C1353
C1353
100PF
100PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
HPD
18
AUXN
17
AUXP
15
LANE_3N
12
LANE_3P
10
LANE_2N
LANE_2P
LANE_1N
LANE_1P
LANE_0N
LANE_0P
R958
9
7
6
4
3
1
1K
1K
COMMON
COMMON
J1
J1
RECEPTACLE
RECEPTACLE
CON_DP_020_SMT_RA_F
CON_DP_020_SMT_RA_F
COMMON
COMMON
(not)
3V3
D515
D515
SOT23
SOT23
100V
100V
100MA
100MA
COMMON
COMMON
(not)
1 2
GND
1100DIFFDP_AUX
1DP_AUX 100DIFF
1DP_L3 100DIFF
DP_CEC_L
3
D
Q1
Q1
3V3_F
R851
R851
27K
27K
5%
5%
0402
0402
COMMON
COMMON
(not)
BSS138
12V
(not)
G
SOT23
SOT23
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
1G1D1S
1G1D1S
32
OUT
24
IN
1
LB525
LB525
DP_MODE_R
220R@100MHz
220R@100MHz
1%
1%
COMMON
COMMON
0402
0402
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
LB522
LB522
220R@100MHz
220R@100MHz
IND_SMD_0603
IND_SMD_0603
COMMON
COMMON
(not)
IND_SMD_0603
IND_SMD_0603
(not)(not)
SHIELD6
SHIELD5
SHIELD4
PWR_RET
SHIELD3
SHIELD2
SHIELD1
C1363
C1363
220PF
220PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
(not)
GND
DP_PWR
C1379
C1379
21
4.7UF
4.7UF
23
6.3V
6.3V
25
10%
10%
X5R
X5R
0603
0603
PWR
COMMON
COMMON
20
(not)
19
GND
GND
16
CEC
DP_CEC_CON
14
MODE
DP_MODE
13
GND
11
GND
8
GND
5
GND
2
22
24
26
GND
2
R969
R969
100K
100K
1%
1%
0402
0402
COMMON
COMMON
(not)
GND
3
4
3V3
D516
D516
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
(not)
1 2
GND
NV_CRIT_NETNV_IMPEDANCE
5
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Date:
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
25 41
25 41
25 41
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 26
A B C D E F G H
Connectors: SPDIF
1
SPDIF INPUT / Level Detection
1
3V3
D508
D508
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
Black, RA, 2.0mm, SPDIF connector
2
<NV_CRITICAL_NET>
<NV_IMPEDANCE>
J5
J5
1
2
MALE
MALE
2.0MM
2.0MM
90
90
CON_WAFER232_002_TH_RA_P020
CON_WAFER232_002_TH_RA_P020
COMMON
COMMON
short circuit protection
if 3.3V connects to GND.
SPDIF_IN
SPDIF_GND
R111
R111
0
0
5%
5%
0402
0402
COMMON
COMMON
(Not)
1
56OHM
C553
.01UFC553
.01UF
SPDIF_IN_GPU
0402
0402
16V
16V
10%
16MIL
0V
12
F501
F501
200mA
200mA
1206
1206
COMMON
COMMON
POLYSWITCH
POLYSWITCH
GND
10%
X7R
X7R
COMMON
COMMON
C554
.01UF
C554
.01UF
16V
0402
16V
0402
(Not)
10%
10%
X7R
X7R
COMMON
COMMON
* STUFF ONLY IF using ANX9805
1
56OHM
SPDIF_IN_DP
1 2
GND
3V3
D510
D510
SOT23
SOT23
3
100V
100V
100MA
100MA
COMMON
COMMON
(Not)
1 2
GND
11/24 modify DP spdif circuit
3
Transistor based option
3V3_F
R596
R596
33K
33K
5%
5%
0402
0402
COMMON
COMMON
2.2KR594
2.2K
04025%COMMON
04025%COMMON
SPDIF_IN_C
R597 10K
R597 10K
SPDIF_IN_R
0402 COMMON
0402 COMMON
5%
5%
C561
C561
.1UF
.1UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
R594
4
12V_PEX6_F2
R602
R602
10K
10K
5%
5%
0402
0402
COMMON
1B1C1E
1B1C1E
COMMON
3
C
Q514
Q514
B
MMBT2222A
1
SOT23
SOT23
COMMON
COMMON
E
2
GND
C563
C563
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
SPDIF_IN_COMP2_D
1
75OHM
1G1D1S
1G1D1S
D
G
1
S
SPDIF_IN_COMP2_Q
3
Q513
Q513
BSS138
SOT23
SOT23
COMMON
COMMON
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
R606
R606
75
75
1%
1%
0805
0805
COMMON
COMMON
GND GND
R600
R600
75
75
1%
1%
0805
0805
COMMON
COMMON
(Not)
3V3
R583
R583
180K
180K
5%
5%
0402
0402
COMMON
COMMON
(Not)
R585
R585
180K
180K
5%
5%
0402
0402
COMMON
COMMON
MIOB_VDDQ
GND
28
OUT
R149
R149
20K
20K
1%
1%
0402
0402
COMMON
COMMON
(Not)
25
OUT
R150
R150
20K
20K
1%
1%
0402
0402
COMMON
COMMON
(Not)
GND
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Connectors: SPDIF
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
26 41
26 41
26 41
5
<RevCode>
<RevCode>
<RevCode>
Page 27
A B C D E F G H
Connectors: DR Interface (Dual SLI)
1
U5I
U5I
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
10/17 DR Interface
2V5
C1268
C1268
C1263
C1263
C1267
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
C1267
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
2V5
R880
R880
49.9
49.9
1%
1%
0402
0402
COMMON
COMMON
DR_CAL_PD_VDDQ
DR_CAL_PU_GND
R884
R884
49.9
49.9
1%
1%
0402
0402
COMMON
COMMON
GND
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
2
COMMON
GND
2V5
R870
R870
1K
1K
1%
1%
0402
0402
COMMON
COMMON
12MIL
DR_VREF
R871
R871
C1249
C1249
1K
1K
.1UF
.1UF
1%
1%
6.3V
6.3V
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
0402
0402
COMMON
3
COMMON
GND
10/17 DR Interface
L19
DR_VDDQ
M19
DR_VDDQ
N19
DR_VDDQ
12MIL
D22
DR_CAL_PD_VDDQ
G22
DR_CAL_PU_GND
12MIL
D23
DR_VREF
DRA_D0
DRA_D1
DRA_D2
DRA_D3
DRA_D4
DRA_D5
DRA_D6
DRA_D7
DRA_D8
DRA_D9
DRA_D10
DRA_D11
DRA_D12
DRA_D13
DRA_D14
DRA_CMD
DRA_CLK
DRB_D0
DRB_D1
DRB_D2
DRB_D3
DRB_D4
DRB_D5
DRB_D6
DRB_D7
DRB_D8
DRB_D9
DRB_D10
DRB_D11
DRB_D12
DRB_D13
DRB_D14
DRB_CMD
DRB_CLK
J26
H26
G27
F27
F26
E26
D27
C27
C26
B27
J25
J24
G25
G24
F25
F24
D25
B26
A26
C25
A25
A24
B24
B23
A22
B21
A21
E24
D24
C24
F23
E22
C22
D21
NET NV_CRITICAL_NETNV_IMPEDANCE
DRA_D0
50OHM 1
DRA_D1
DRA_D2
DRA_D3
50OHM 1
DRA_D4
50OHM 1
DRA_D5
50OHM 1
DRA_D6
50OHM 1
DRA_D7
50OHM 1
DRA_D8
50OHM 1
DRA_D9
50OHM 1
DRA_D10
50OHM 1
DRA_D11
50OHM 1
DRA_D12
DRA_D13
DRA_D14
DRA_CMD
DRA_CLK
DRB_D0
DRB_D1
DRB_D2
DRB_D3
DRB_D4
DRB_D5
DRB_D6
DRB_D7
DRB_D8
DRB_D9
DRB_D10
DRB_D11
DRB_D12
DRB_D13
DRB_D14
DRB_CMD
50OHM 1
DRB_CLK
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
150OHM
28
28
28
28
28
BI
BI
BI
BI
BI
NVIO_EXT_REFCLKA_R
GPIO15_SWAPRDY
NVIO_EXT_REFCLKB_R
GPIO11_RASTERSYNC1
GPIO14_RASTERSYNC2
R840 33
R840 33
0402 COMMON
0402 COMMON
5%
5%
R943 33
R943 33
0402 COMMON
0402 COMMON
5%
5%
CN3
CN3
CON_FINGER_MIO_026_E
CON_FINGER_MIO_026_E
COMMON
COMMON
SLI - EMI SHIELD
SLI - EMI SHIELD
A2
DR<0>
B4
DR<1>
A4
DR<2>
A5
DR<3>
B6
DR<4>
A6
DR<5>
A8
DR<6>
B9
DR<7>
B10
DR<8>
A10
DR<9>
B12
DR<10>
A12
DR<11>
A13
DR<12>
B5
DR<13>
A9
DR<14>
B13
DR_CMD
B8
DR_CLK
A1
RASTER_SYNC
B1
SWAP_RDY
B2
EXT_REFCLK
GPIO11_RASTERSYNC1_R
CN1
CN1
CON_FINGER_MIO_026_E
CON_FINGER_MIO_026_E
COMMON
COMMON
SLI - EMI SHIELD
SLI - EMI SHIELD
A2
DR<0>
B4
DR<1>
A4
DR<2>
A5
DR<3>
B6
DR<4>
A6
DR<5>
A8
DR<6>
B9
DR<7>
B10
DR<8>
A10
DR<9>
B12
DR<10>
A12
DR<11>
A13
DR<12>
B5
DR<13>
A9
DR<14>
B13
DR_CMD
B8
DR_CLK
A1
RASTER_SYNC
B1
SWAP_RDY
B2
EXT_REFCLK
GPIO14_RASTERSYNC2_R
B3
GND
B7
GND
B11
GND
A3
GND
A7
GND
A11
GND
1
GND
2
GND
3
GND
4
GND
GND
B3
GND
B7
GND
B11
GND
A3
GND
A7
GND
A11
GND
1
GND
2
GND
3
GND
4
GND
GND
1
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Connectors: DR Interface (Dual SLI)
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
27 41
27 41
27 41
4
5
<RevCode>
<RevCode>
<RevCode>
Page 28
A B C D E F G H
MISC: GPIO / XTAL / VBIOS / HDCP / I2C
1
VBIOS
2
U9
3V3_F 3V3_F
C55
C55
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
U9
SO08_I190X150
SO08_I190X150
SO8
SO8
COMMON
COMMON
8
HOLD
VCC
WP
CS
SI
SO
4
GND
SCK
3
4
3V3_F
R55
R55
10K
10K
5%
7
3
1
5
2
6
5%
0402
0402
COMMON
COMMON
29,32,33
IN
1
TP527TP527
FL_REFCLK_VAIO
<NV_IMPEDANCE>
1
R852
R852
10K
10K
5%
5%
0402
0402
COMMON
COMMON
GND
U5J
U5J
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
11/17 MISC
GPU_RST*
ROM_CS*
STRAP1
STRAP2
STRAP0
STRAP3
NVIO_TESTMODE
GND
11/17 MISC
AD18
PEX_PWR_GOOD
AD13
ROM_CS
AF13
STRAP2_ROM_SI
AE13
STRAP1_ROM_SO
AF14
STRAP0_ROM_SCK
AG13
STRAP3
AB13
TESTMODE
R881
R881
10K
10K
5%
5%
0402
0402
COMMON
COMMON
AE18
RFU must be GND!
M27
XTAL_SSIN
K27
XTAL_IN
Y1
Y1
XTAL_IN
XTAL_SMD_4_060X035+/-10 PPM
XTAL_SMD_4_060X035+/-10 PPM
C48
C48
18PF
18PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND GND
COMMON
COMMON
27 MHZ
27 MHZ
I2C0_SCL
I2C0_SDA
I2C3_SCL
I2C3_SDA
I2C4_SCL
I2C4_SDA
SPDIF
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
EXT_REFCLKA
EXT_REFCLKB
EXTDEV_RST
XTAL_OUT
FAN
XTAL_OUT
AC12
AD12
AF11
AE10
AG12
AE12
AG19
AF17
AF16
AG16
AE16
AG15
AD16
AB17
AC16
AB16
AE15
AB15
AB14
AC15
AD15
AD14
AB18
AB20
AD17
R4
A13
AC18
J27
I2C
SNN_I2C0_SCL
SNN_I2C0_SDA
I2C3_SCL
I2C3_SDA
I2C4_SCL
I2C4_SDA
SPDIF
SPDIF_IN_GPU
GPIOs
GPIO0_DVIAB_HPD
GPIO1_DVICD_DP_HPD
SNN_GPIO3_RASTERSYNC0
GPIO5_PS5_NVVDD_VID0
GPIO6_PS5_NVVDD_VID1
GPIO7_PS5_NVVDD_VID2
GPIO8_FAN_TACH
GPIO9_THERM_ALERT*
GPIO10_FB_ADJ0
GPIO11_RASTERSYNC1
GPIO13_STEREO
GPIO14_RASTERSYNC2
GPIO15_SWAPRDY
GPIO16_DP_INT*
FAN_PWM_NVIO
NVIO_EXT_REFCLKA
NVIO_EXT_REFCLKB
NVIO_EXTDEV_RST*
C43
C43
18PF
18PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
SNN_GPIO3_RASTERSYNC0
3
50OHM
3
50OHM
11/23 ADD I2C0 CRCUIT
3V3_F 3V3_F
R107 33
R107 33
04025%COMMON
04025%COMMON
R108 33
R108 33
04025%COMMON
04025%COMMON
3V3_F 3V3_F
R46
R46
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
R40 33
R40 33
04025%COMMON
04025%COMMON
R41 33
R41 33
04025%COMMON
04025%COMMON
50OHM 3
50OHM 3
R927
R927
040233COMMON
040233COMMON
5%
5%
R906 33
R906 33
COMMON
0402
COMMON
0402
5%
5%
R892
R892
10K
10K
5%
5%
0402
0402
COMMON
COMMON
GND
R109
R109
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
R135
R135
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
R47
R47
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
350OHM
50OHM
3
50OHM
3
<NV_IMPEDANCE>
<NV_CRITICAL_NET>
NVIO_EXT_REFCLKA_R
NVIO_EXT_REFCLKB_R
IN
IN
IN
OUT
OUT
BI
IN
IN
OUT
BI
OUT
BI
IN
I2CO_SCL_R
I2CO_SDA_R
I2C3_SCL_R
I2C3_SDA_R
26
23
25
36
36
36
29
29
35
27
20,21
27
25
24
24
25,29,32
OUT
25,29,32
BI
HDCP ROM
R839
R839
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
R844
R844
R843
R843
10K
10K
0402
0402
5%
5%
0402
0402
COMMON
COMMON
(Not)
GND
3V3_F
(Not)
5%
5%
R837
R837
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
0
0
COMMON
COMMON
I2C4_SDA_R
I2C ROM: 190-00007-0000-000
CRYPTO ROM: 190-00001-0001-002
U8
U8
SO08_I190X150
SO08_I190X150
COMMON
COMMON
6
SCL
SDA
5
3
SDA
2
NC
3V3_F
8
VCC
VCC
GND
GND
C57
C57
7
.1UF
.1UF
6.3V
6.3V
10%
10%
4
X7R
X7R
0402
0402
1
COMMON
COMMON
GND
3V3_F
R20
R20
10K
10K
5%
5%
0402
0402
COMMON
COMMON
BI
27
BI
27
BI
25
OUT
1G1D1S
1G1D1S
FAN_PWM_NVIO_R
3
D
Q528
Q528
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
27,28
29
OUT
1
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
www.vinafix.vn
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
MISC: GPIO / XTAL / VBIOS / HDCP / I2C
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
28 41
28 41
28 41
5
<RevCode>
<RevCode>
<RevCode>
Page 29
A B C D E F G H
MISC: FAN / THERM
1
2
3
4
5
1V15
R848
R848
10K
10K
5%
5%
0402
0402
COMMON
COMMON
(Not)
Internal GPU Thermal Sensor
Default Thermal Controller
TSENSE_AVDD is source by a filter FBVDDQ
FBVDDQ
10nH
10nH
LB501
LB501
C799
C799
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
(Not)
GND
tsense_1v5_sel =0: TS_AVDD = 1.7v ~ 2.1v (default) (wired to gnd)
tsense_1v5_sel =1: TS_AVDD = 1.45v ~ 1.7v (wired to NVVDD)
TSENSE_OVERT Level Shifter
(1.15V to 3.3V)
TSENSE_OVERT is the THERMAL ALERT pin for the internal Temp Sensor
TSENSE_OVERT_R
R845 10K
R845 10K
0402 COMMON
0402 COMMON
5%
5%
(Not) (Not)
COMMONIND_SMD_0402
COMMONIND_SMD_0402
C821
C821
C819
(Not)
TP504TP504
C819
4.7UF
4.7UF
1UF
1UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0603
0603
0402
0402
COMMON
COMMON
COMMON
COMMON
(Not) (Not) (Not)
GND
GND GND
1
C867
C867
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
(Not)
GND
3V3_F
R847
R847
10K
10K
5%
5%
0402
0402
COMMON
COMMON
(Not)
3
Q519
Q519
SOT23
SOT23
COMMON
COMMON
2
GND
MMBT2222A
GND
C845
C845
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
/1K
25,28,32
25,28,32
3,32,32
3,32,32
TSENSE_OVERT*
Option to connect I2CS (SMBus) to Thermal Chip
This is desired for Tesla
1B1C1E
1B1C1E
C
B
1
E
10MIL 2.1V
TSENSE_AVDD
C832
C832
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
TSENSE_VREF
TS_OBS
1
TP505TP505
GND
TSENSE_OVERT
G1M
G1M
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
AK34
AJ33
AK29
BE20
BE19
IN
BI
IN
BI
13/21 THERMAL
13/21 THERMAL
TSENSE_AVDD
TSENSE_VREF
TS_OBS
TSENSE_1V5_SEL
TSENSE_OVERT
I2C3_SCL_R
I2C3_SDA_R
I2CS_SCL_R
I2CS_SDA_R
1B1C1E
1B1C1E
3
C
Q520
Q520
B
MMBT2222A
1
SOT23
SOT23
COMMON
COMMON
E
(Not)
2
GND
LM99/MAX6649
THERM_DP -> D+
THERM_DN -> D-
ROUTE DIFFERENTIALLY
GUARD GND AROUND IF POSSIBLE
BR9
BR8
R860
0R860
0
COMMON
0402
COMMON
0402
5%
5%
R859
0R859
0
COMMON
0402
COMMON
0402
5%
5%
R861 0
R861 0
(Not)
04025%COMMON
04025%COMMON
R38 0
R38 0
(Not)
04025%COMMON
04025%COMMON
10MIL
THERM_DP
THERM_DN
10MIL
(Alternate Thermal Controller)
C71
C71
2200PF
2200PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
2
3
8
7
Note: POR internal thermal control
external controls will be DNI
ADT7473
(Secondary thermal controller choice)
COMMON
COMMON
I2C_SCL_THERM
I2C_SDA_THERM
U509
U509
XSOP08_P065_030X030
XSOP08_P065_030X030
COMMON
COMMON
D+
D-
SCL
SDA
C67
C67
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
GND
(Not)
3V3_F
GND
THERM_VDD
VDD
THERM
ALERT
GND
U11
U11
XSOP16_PI025_049X040
XSOP16_PI025_049X040
COMMON
COMMON
14
VCCP
1
SCL
16
SDA
13
D1+
12
D1-
11
D2+
10
D2-
2
GND
3V3_F
R804
R804
200
200
5%
5%
0402
0402
3.3V16MIL
COMMON
COMMON
(Not)
C1130
C1130
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
(Not)
1
GND
4
6
5
GND
3V3_F 3V3_F
R66
R66
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
R45
R45
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
3V3_F
C69
C69
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
3
VCC
GND
15
PWM1/XTO
6
TACH1
5
PWM2/ALERT*
9
GPIO/THERM*
7
TACH2
THERM_PWM_ADDR_EN*
8
PWM3
4
TACH3
THERM_SHDN*
GPIO9_THERM_ALERT*
3V3_F
R65
R65
10K
10K
5%
5%
0402
0402
COMMON
COMMON
GPU Driven Fan and Tach
33
OUT
FAN Connector
3V3
R115
28
OUT
28,32,33
GPU_RST*
IN
FAN Connector
3V3_F 3V3_F
D13
D13
3
BAT54C
25V
25V
200MA
200MA
SOT23
SOT23
COMMON
COMMON
1
FAN_TACH
28
FAN_PWM_NVIO_R
IN
28
GPIO8_FAN_TACH
OUT
2
R869
100
R869
100
COMMON
COMMON
0402
0402
5%
5%
R62
1005%R62
100
COMMON0402
COMMON0402
5%
R115
10K
10K
1%
1%
1G1D1S
1G1D1S
C531
C531
.1UF
.1UF
16V
16V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
3
D
Q21
Q21
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
GND
0402
0402
COMMON
COMMON
1G1D1S
1G1D1S
FAN_CUTOFF_RC_Q
3
D
Q23
Q23
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
GND
FAN Connector
C168
C168
1000PF
1000PF
16V
16V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
12/8 add fan 轉速,H/W monitor
12V_PEX6_F1
12/8 add remove R113
1
2
3
4
C1383
C1383
1000PF
1000PF
16V
16V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
32
OUT
39
FAN_TACH_R
J7
J7
MALE
MALE
2.0MM
2.0MM
N/A
N/A
BHEAD1X4_2MM_1
BHEAD1X4_2MM_1
COMMON
COMMON
3V3_F
R117
R117
R116
R116
10K
10K
10K
10K
5%
5%
5%
5%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
R1032
0402
0402
5%
5%
R118
R118
10K
10K
5%
5%
0402
0402
COMMON
COMMON
(Not)
GND
0R1032
0
COMMON
COMMON
FAN_TACH_R
C1382
C1382
1000PF
1000PF
16V
16V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
(Not) (Not)
GND GND
FAN_PWM
1
2
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
MISC: FAN / THERM
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
29 41
29 41
29 41
<RevCode>
<RevCode>
<RevCode>
Page 30
A B C D E F G H
MISC: MIO / DVI / STRAPS
U5N
U5N
BGA_0533_P080_230X230_G3_064B
C1335
C1335
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
R916
R916
49.9
49.9
1%
1%
0402
0402
COMMON
COMMON
(Not)
12MIL
12MIL
R936
R936
49.9
49.9
1%
1%
0402
0402
COMMON
COMMON
(Not)(Not)
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
8/17 MIO_A
8/17 MIO_A
T9
MIOA_VDDQ
U9
MIOA_VDDQ
T4
MIOA_CAL_PD_VDDQ
U6
MIOA_CAL_PU_GND
W5
MIOA_VREF
U5M
U5M
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
9/17 MIO_B
9/17 MIO_B
L9
MIOB_VDDQ
M9
MIOB_VDDQ
G5
MIOB_CAL_PD_VDDQ
C1
MIOB_CAL_PU_GND
B3
MIOB_VREF
U5L
U5L
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
13/16 DVIA
13/16 DVIA
D17
DVI_VDDQ
D20
DVI_VDDQ
F17
DVI_VDDQ
F20
DVI_VDDQ
U5K
U5K
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
14/17 DVIB
14/17 DVIB
MIOA_D0
MIOA_D1
MIOA_D2
MIOA_D3
MIOA_D4
MIOA_D5
MIOA_D6
MIOA_D7
MIOA_D8
MIOA_D9
MIOA_D10
MIOA_D11
MIOA_D12
MIOA_D13
MIOA_D14
MIOA_HSYNC
MIOA_VSYNC
MIOA_DE
MIOA_CTL3
MIOA_CLKOUT
MIOA_CLKOUT
MIOB_D0
MIOB_D1
MIOB_D2
MIOB_D3
MIOB_D4
MIOB_D5
MIOB_D6
MIOB_D7
MIOB_D8
MIOB_D9
MIOB_D10
MIOB_D11
MIOB_D12
MIOB_D13
MIOB_D14
MIOB_VSYNC
MIOB_HSYNC
MIOB_DE
MIOB_CTL3
MIOB_CLKOUT
MIOB_CLKOUT
DVIA_CTL0
DVIA_CTL1
DVIA_CTL2
DVIA_CLK
DVIB_CTL0
DVIB_CTL1
DVIB_CTL2
DVIB_CLK
DVIA_D0
DVIA_D1
DVIA_D2
DVIA_D3
DVIA_D4
DVIA_D5
DVIA_D6
DVIA_D7
DVIB_D0
DVIB_D1
DVIB_D2
DVIB_D3
DVIB_D4
DVIB_D5
DVIB_D6
DVIB_D7
SNN_MIOA<1>
Y2
SNN_MIOA<2>
AA1
SNN_MIOA<3>
AA3
SNN_MIOA<4>
AB1
SNN_MIOA<5>
AB2
SNN_MIOA<6>
AD1
SNN_MIOA<7>
AD3
SNN_MIOA<8>
AE1
SNN_MIOA<9>
AE2
SNN_MIOA<10>
AF1
SNN_MIOA<11>
AE3
SNN_MIOA<12>
AF2
SNN_MIOA<13>
AE4
SNN_MIOA<14>
AE6
SNN_MIOA_HSYNC
W1
SNN_MIOA_VSYNC
V3
SNN_MIOA_DE
W2
MIOA_CTL3
V1
SNN_MIOA_CLKOUT
AB3
SNN_MIOA_CLKOUT*
AC2
MIOB_D[14..0]
MIOB_D0
0
MIOB_VS
MIOB_HS
MIOB_DE
MIOB_CTL3
MIOB_CLKOUT
MIOB_CLKOUT*
DVIA_D0
DVIA_D1
DVIA_D2
DVIA_D3
SNN_DVIA_D4
SNN_DVIA_D5
SNN_DVIA_D6
DVIA_D7
SNN_DVIA_CTL0
SNN_DVIA_CTL1
SNN_DVIA_CTL2
SNN_DVIA_CLK
SNN_DVIB_D0
SNN_DVIB_D1
SNN_DVIB_D2
SNN_DVIB_D3
DVIB_D4
DVIB_D5
SNN_DVIB_D6
SNN_DVIB_D7
SNN_DVIB_CTL0
SNN_DVIB_CTL1
SNN_DVIB_CTL2
SNN_DVIB_CLK
150OHM
MIOB_D1
1
150OHM
MIOB_D2
2
150OHM
MIOB_D3
3
150OHM
MIOB_D4
4
150OHM
MIOB_D5
5
150OHM
MIOB_D6
6
150OHM
MIOB_D7
7
150OHM
MIOB_D8
8
150OHM
MIOB_D9
9
150OHM
MIOB_D10
10
150OHM
MIOB_D11
11
150OHM
MIOB_D12
12
150OHM
MIOB_D13
13
150OHM
MIOB_D14
14
150OHM
F1
F3
G1
G2
G3
H2
K1
K2
K3
L2
M1
M3
N1
N2
N3
D3
D2
E2
D1
J1
J3
C21
B20
A19
C19
A18
B18
B17
A16
C16
A15
B15
C15
F15
F16
E15
D15
E16
D16
E18
D18
F18
F19
E19
D19
OUT
150OHM
OUT
150OHM
OUT
150OHM
OUT
150OHM
OUT
150OHM
OUT
SNN_MIOA<0>
W3
C GE
3V3_F
1
GND
SNN_MIOA_CAL_PD_VDDQ
SNN_MIOA_CAL_PU_GND
3V3_F
R14
R14
1K
1K
1%
1%
(Not)
0402
0402
COMMON
COMMON
MIOA_VREF
R13
2
2V5
LB517 240R@100MHz
LB517 240R@100MHz
IND_SMD_0402COMMON
IND_SMD_0402COMMON
C1322
C1322
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
(Not) (Not) (Not)
GND
C1339
C1339
C1320
C1320
1UF
1UF
4.7UF
4.7UF
6.3V
6.3V
6.3V
6.3V
10%
10%
10%
10%
X5R
X5R
X5R
X5R
0402
0402
0603
0603
COMMON
COMMON
COMMON
COMMON
GND GND GND
3
4
R13
1K
1K
1%
1%
(Not)
0402
0402
COMMON
COMMON
GND
MIOB_VDDQ
2.5V16MIL
C1316
C1316
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
MIOB_CAL_PD_VDDQ
MIOB_CAL_PU_GND
R929
R929
1K
1K
1%
1%
0402
0402
COMMON
COMMON
12MIL
MIOB_VREF
C1337
C1337
R926
R926
.1UF
.1UF
1K
1K
6.3V
6.3V
1%
1%
0402
0402
10%
10%
COMMON
COMMON
X7R
X7R
(Not)
0402
0402
COMMON
COMMON
(Not)
GND
3V3_F
<MISC_DC_DVI>
<MISC_DC_DVI>
<MISC_DC_DVI>
<MISC_DC_DVI>
C1270
C1270
C1301
C1301
1UF
1UF
4700PF
4700PF
6.3V
6.3V
25V
25V
10%
10%
10%
10%
X5R
X5R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
GND
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
STRAPS
DVIA_D0
DVIA_D1
DVIA_D2
DVIA_D3
DVIA_D7
DVIB_D5
MIOB_CTL3
25
MIOA_CTL3
DVIB_D4
25
25
25
25
25
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
MISC: MIO / DVI / STRAPS
R8735%10K
R8735%10K
0402 COMMON
0402 COMMON
(Not)
R8785%10K
R8785%10K
0402 COMMON
0402 COMMON
R8835%10K
R8835%10K
(Not)
0402 COMMON
0402 COMMON
R8875%10K
R8875%10K
0402 COMMON
0402 COMMON
(Not)
R155%10K
R155%10K
0402 COMMON
0402 COMMON
R893
10KR893
10K
COMMON
0402
COMMON
0402
5%
5%
(Not)
GND
R8745%10K
R8745%10K
0402 COMMON
0402 COMMON
R8795%10K
R8795%10K
0402 COMMON
0402 COMMON
R8825%10K
R8825%10K
0402 COMMON
0402 COMMON
R8885%10K
R8885%10K
0402 COMMON
0402 COMMON
R8905%10K
R8905%10K
0402 COMMON
0402 COMMON
R894
R894
0402
0402
5%
5%
R935
5%
5%
(Not)
R16
5%
5%
(Not)
(Not)
10K
10K
COMMON
COMMON
(Not)
MIOB_VDDQ
10KR935
10K
COMMON0402
COMMON0402
10KR16
10K
COMMON0402
COMMON0402
STRAP BITS BOOT0 = 0x101000
NR_:_USAGE______________________COMMENT________________________
3V3_F
00 : GV_WIDTH DEFAULT=0x0 (WIDE)
01 : SUB_VENDOR DEFAULT=0x1 (FROM BIOS)
02 : RAM_CFG[0]
03 : RAM_CFG[1]
(Not)
04 : RAM_CFG[2]
05 : RAM_CFG[3]
06 : CRYSTAL DEFAULT=0x0 (27MHz)
07 : TV_MODE[0] DEFAULT=0x1 (NTSC_J)
08 : TV_MODE[1]
09 : TV_MODE[2]
10 : PCI_DEVID[0] SET BY BIOS
11 : PCI_DEVID[1]
12 : PCI_DEVID[2]
13 : PCI_DEVID[3] DEFAULT=0x0
14 : FB_SIZE[0] DEFAULT=0x2 (256MB ??)
15 : FB_SIZE[1]
16 : FB_SIZE[2]
17 : PEX_PLL_EN_TERM100 DEFAULT=0x0 (ENABLED)
18 : 3GIO_PAD_CFG_LUT_ADR[0] DEFAULT=0x3 (DESKTOP_DEFAULT)
19 : 3GIO_PAD_CFG_LUT_ADR[1]
20 : 3GIO_PAD_CFG_LUT_ADR[2]
21 : 3GIO_PAD_CFG_LUT_ADR[3]
22 : ROMTYPE[0] DEFAULT=0x1 (AT25S)
23 : ROMTYPE[1]
24 : USER[0] SET BY BIOS
25 : USER[1]
26 : USER[2]
27 : USER[3]
28 : PCI_DEVID_EXT DEFAULT=0x0
STRAP BITS BOOT3 = 0x10100C
NR_:_USAGE______________________COMMENT________________________
06 : XCLK_555 DEFAULT=0x0
16 : PCI_IOBAR DEFAULT=0x1
0=DISABLE, 1=ENABLE
CFG Config Width Vendor
0000 Reserved
0001 16Mx32 512-bit Qimonda
0010 16Mx32 512-bit Hynix*
0011 16Mx32 512-bit Samsung*
0100 Reserved
0101 32Mx32 512-bit Qimonda
0110 32Mx32 512-bit Hynix
0111 32Mx32 512-bit Samsung
1000 Reserved
1001 16Mx32 448-bit Qimonda
1010 16Mx32 448-bit Hynix
1011 16Mx32 448-bit Samsung
1100 Reserved
1101 32Mx32 448-bit Qimonda
1110 32Mx32 448-bit Hynix
1111 32Mx32 448-bit Samsung
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
30 41
30 41
30 41
1
2
3
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 31
A B C D E F G H
Power and GND (GPU and NVIOx)
GPU SECTION GND NVIOx SECTION GNDGPU SECTION MISCGPU SECTION POWER
1
G1N
2
3
4
5
GND
G1N
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
19/21 GND1
19/21 GND1
AA11
GND
AA13
GND
AA15
GND
AA16
GND
AA17
GND
AA18
GND
AA19
GND
AA2
GND
AA20
GND
AA21
GND
AA22
GND
AA23
GND
AA24
GND
AA25
GND
AA26
GND
AA27
GND
AA28
GND
AA29
GND
AA30
GND
AA31
GND
AA32
GND
AA33
GND
AA34
GND
AA35
GND
AA36
GND
AA43
GND
AA45
GND
AA48
GND
AA5
GND
AA51
GND
AA54
GND
AA8
GND
AB15
GND
AB16
GND
AB17
GND
AB18
GND
AB19
GND
AB20
GND
AB21
GND
AB22
GND
AB23
GND
AB24
GND
AB25
GND
AB26
GND
AB27
GND
AB28
GND
AB29
GND
AB30
GND
AB31
GND
AB32
GND
AB33
GND
AB34
GND
AB35
GND
AB36
GND
AD11
GND
AD13
GND
AD2
GND
AD43
GND
AD45
GND
AD48
GND
AD5
GND
AD51
GND
AD54
GND
AD8
GND
AF15
GND
AF16
GND
AF17
GND
AF18
GND
AF19
GND
AF20
GND
AF21
GND
AF22
GND
AF23
GND
AF24
GND
AF25
GND
AF26
GND
AF27
GND
AF28
GND
AF29
GND
AF30
GND
AF31
GND
AF32
GND
AF33
GND
AF34
GND
AF35
GND
AF36
GND
AG11
GND
AG13
GND
AG15
GND
AG16
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
G1O
G1O
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
20/21 GND2
20/21 GND2
AG17
AM54
GND
AG18
AM8
GND
AG19
AN15
GND
AG2
AN16
GND
AG20
AN17
GND
AG21
AN18
GND
AG22
AN19
GND
AG23
AN20
GND
AG24
AN21
GND
AG25
AN22
GND
AG26
AN23
GND
AG27
AN24
GND
AG28
AN25
GND
AG29
AN26
GND
AG30
AN27
GND
AG31
AN28
GND
AG32
AN29
GND
AG33
AN30
GND
AG34
AN31
GND
AG35
AN32
GND
AG36
AN33
GND
AG43
AN34
GND
AG45
AN35
GND
AG48
AN36
GND
AG5
AP15
GND
AG51
AP16
GND
AG54
AP17
GND
AG8
AP18
GND
AH15
AP19
GND
AH16
AP20
GND
AH17
AP21
GND
AH18
AP22
GND
AH19
AP23
GND
AH20
AP24
GND
AH21
AP25
GND
AH22
AP26
GND
AH23
AP27
GND
AH24
AP28
GND
AH25
AP29
GND
AH26
AP30
GND
AH27
AP31
GND
AH28
AP32
GND
AH29
AP33
GND
AH30
AP34
GND
AH31
AP35
GND
AH32
AP36
GND
AH33
AR11
GND
AH34
AR13
GND
AH35
AR2
GND
AH36
AR43
GND
AJ11
AR45
GND
AJ13
AR48
GND
AJ2
AR5
GND
AJ43
AR51
GND
AJ45
AR54
GND
AJ48
AR8
GND
AJ5
AT15
GND
AJ51
AT17
GND
AJ54
AT19
GND
AJ8
AT21
GND
AM11
AT23
GND
AM13
AT25
GND
AM15
AT26
GND
AM16
AT28
GND
AM17
AT30
GND
AM18
AT32
GND
AM19
AT34
GND
AM2
AT36
GND
AM20
AV11
GND
AM21
AV13
GND
AM22
AV2
GND
AM23
AV43
GND
AM24
AV45
GND
AM25
AV48
GND
AM26
AV5
GND
AM27
AV51
GND
AM28
AV54
GND
AM29
AV8
GND
AM30
B12
GND
AM31
B15
GND
AM32
B18
GND
AM33
B21
GND
AM34
B24
GND
AM35
B27
GND
AM36
B29
GND
AM43
B32
GND
AM45
B35
GND
AM48
B38
GND
AM5
B41
GND
AM51
B44
GND
GNDGND GNDGND
0V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
G1P
G1P
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
21/21 GND3
21/21 GND3
B47
BP18
GND
B50
BP21
GND
B6
BP24
GND
B9
BP27
GND
BA11
BP29
GND
BA13
BP32
GND
BA2
BP35
GND
BA43
BP38
GND
BA45
BP41
GND
BA48
BP44
GND
BA5
BP47
GND
BA51
BP50
GND
BA54
BP6
GND
BA8
BP9
GND
BC15
C3
GND
BC18
C53
GND
BC21
D4
GND
BC24
D52
GND
BC27
E12
GND
BC29
E15
GND
BC32
E18
GND
BC35
E21
GND
BC38
E24
GND
BC41
E27
GND
BD11
E29
GND
BD2
E32
GND
BD45
E35
GND
BD48
E38
GND
BD5
E41
GND
BD51
E44
GND
BD54
E47
GND
BD8
E50
GND
BE12
E6
GND
BE15
E9
GND
BE18
F2
GND
BE21
F5
GND
BE24
F51
GND
BE27
F54
GND
BE29
H12
GND
BE32
H15
GND
BE35
H18
GND
BE38
H21
GND
BE41
H24
GND
BE44
H27
GND
BG2
H29
GND
BG48
H32
GND
BG5
H35
GND
BG51
H38
GND
BG54
H41
GND
BG8
H44
GND
BH12
H47
GND
BH15
H9
GND
BH18
J2
GND
BH21
J48
GND
BH24
J5
GND
BH27
J51
GND
BH29
J54
GND
BH32
J8
GND
BH35
L12
GND
BH38
L15
GND
BH41
L18
GND
BH44
L21
GND
BH47
L24
GND
BH9
L27
GND
BK2
L29
GND
BK5
L32
GND
BK51
L35
GND
BK54
L38
GND
BL12
L41
GND
BL15
L44
GND
BL18
M11
GND
BL21
M2
GND
BL24
M45
GND
BL27
M48
GND
BL29
M5
GND
BL32
M51
GND
BL35
M54
GND
BL38
M8
GND
BL41
N15
GND
BL44
N18
GND
BL47
N21
GND
BL50
N24
GND
BL6
N27
GND
BL9
N29
GND
BM4
N32
GND
BM52
N35
GND
BN3
N38
GND
BN53
N41
GND
BP12
R11
GND
BP15
R13
GND
R16
GND
R18
GND
R2
GND
R20
GND
R22
GND
R24
GND
R27
GND
R29
GND
R31
GND
R33
GND
R35
GND
R43
GND
R45
GND
R48
GND
R5
GND
R51
GND
R54
GND
R8
GND
T15
GND
T16
GND
T17
GND
T18
GND
T19
GND
T20
GND
T21
GND
T22
GND
T23
GND
T24
GND
T25
GND
T26
GND
T27
GND
T28
GND
T29
GND
T30
GND
T31
GND
T32
GND
T33
GND
T34
GND
T35
GND
T36
GND
V11
GND
V13
GND
V2
GND
V43
GND
V45
GND
V48
GND
V5
GND
V51
GND
V54
GND
V8
GND
Y15
GND
Y16
GND
Y17
GND
Y18
GND
Y19
GND
Y20
GND
Y21
GND
Y22
GND
Y23
GND
Y24
GND
Y25
GND
Y26
GND
Y27
GND
Y28
GND
Y29
GND
Y30
GND
Y31
GND
Y32
GND
Y33
GND
Y34
GND
Y35
GND
Y36
GND
G1Q
G1Q
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
NVVDD NVVDD NVVDD NVVDD FBVDDQ
14/21 NVVDD1
14/21 NVVDD1
AC15
NVVDD
AC16
NVVDD
AC17
NVVDD
AC18
NVVDD
AC19
NVVDD
AC20
NVVDD
AC21
NVVDD
AC22
NVVDD
AC23
NVVDD
AC24
NVVDD
AC25
NVVDD
AC26
NVVDD
AC27
NVVDD
AC28
NVVDD
AC29
NVVDD
AC30
NVVDD
AC31
NVVDD
AC32
NVVDD
AC33
NVVDD
AC34
NVVDD
AC35
NVVDD
AC36
NVVDD
AD15
NVVDD
AD16
NVVDD
AD17
NVVDD
AD18
NVVDD
AD19
NVVDD
AD20
NVVDD
AD21
NVVDD
AD22
NVVDD
AD23
NVVDD
AD24
NVVDD
AD25
NVVDD
AD26
NVVDD
AD27
NVVDD
AD28
NVVDD
AD29
NVVDD
AD30
NVVDD
AD31
NVVDD
AD32
NVVDD
AD33
NVVDD
AD34
NVVDD
AD35
NVVDD
AD36
NVVDD
AE15
NVVDD
AE16
NVVDD
AE17
NVVDD
AE18
NVVDD
AE19
NVVDD
AE20
NVVDD
AE21
NVVDD
AE22
NVVDD
AE23
NVVDD
AE24
NVVDD
AE27
NVVDD
AE28
NVVDD
AE29
NVVDD
AE30
NVVDD
AE31
NVVDD
AE32
NVVDD
AE33
NVVDD
AE34
NVVDD
AE35
NVVDD
AE36
NVVDD
AJ15
NVVDD
AJ16
NVVDD
AJ17
NVVDD
AJ18
NVVDD
AJ19
NVVDD
AJ20
NVVDD
GND
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
G1S
G1R
G1R
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
15/21 NVVDD2
AJ21
AJ22
AJ23
AJ24
AJ27
AJ28
AJ29
AJ30
AJ31
AJ32
AJ34
AJ35
AJ36
AK15
AK16
AK17
AK18
AK19
AK20
AK21
AK22
AK23
AK24
AK25
AK26
AK27
AK28
AK30
AK31
AK32
AK33
AK35
AK36
AL15
AL16
AL17
AL18
AL19
AL20
AL21
AL22
AL23
AL24
AL25
AL26
AL27
AL28
AL29
AL30
AL31
AL32
AL33
AL34
AL35
AL36
AR15
AR16
AR17
AR18
AR19
AR20
AR21
AR22
AR23
AR24
AR25
AR26
AR27
AR28
AR29
15/21 NVVDD2
AR30
NVVDD
AR31
NVVDD
AR32
NVVDD
AR33
NVVDD
AR34
NVVDD
AR35
NVVDD
AR36
NVVDD
AT16
NVVDD
AT18
NVVDD
AT20
NVVDD
AT22
NVVDD
AT24
NVVDD
AT27
NVVDD
AT29
NVVDD
AT31
NVVDD
AT33
NVVDD
AT35
NVVDD
BB43
NVVDD
BC13
NVVDD
BC14
NVVDD
BC22
NVVDD
BC23
NVVDD
BC25
NVVDD
BC26
NVVDD
BC28
NVVDD
BC30
NVVDD
BC31
NVVDD
BC33
NVVDD
BC34
NVVDD
BC36
NVVDD
BC37
NVVDD
BC39
NVVDD
BC40
NVVDD
BC42
NVVDD
R15
NVVDD
R17
NVVDD
R19
NVVDD
R21
NVVDD
R23
NVVDD
R25
NVVDD
R26
NVVDD
R28
NVVDD
R30
NVVDD
R32
NVVDD
R34
NVVDD
R36
NVVDD
U15
NVVDD
U16
NVVDD
U17
NVVDD
U18
NVVDD
U19
NVVDD
U20
NVVDD
U21
NVVDD
U22
NVVDD
U23
NVVDD
U24
NVVDD
U25
NVVDD
U26
NVVDD
U27
NVVDD
U28
NVVDD
U29
NVVDD
U30
NVVDD
U31
NVVDD
U32
NVVDD
U33
NVVDD
U34
NVVDD
U35
NVVDD
U36
NVVDD
V15
NVVDD
V16
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
NVVDD
V17
V18
V19
V20
V21
V22
V23
V24
V25
V26
V27
V28
V29
V30
V31
V32
V33
V34
V35
V36
W15
W16
W17
W18
W19
W20
W21
W22
W23
W24
W25
W26
W27
W28
W29
W30
W31
W32
W33
W34
W35
W36
G1S
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
AB13
FBVDDQ
AB43
FBVDDQ
AC13
FBVDDQ
AC43
FBVDDQ
AE43
FBVDDQ
AF13
FBVDDQ
AF43
FBVDDQ
AH13
FBVDDQ
AH43
FBVDDQ
AK13
FBVDDQ
AK43
FBVDDQ
AL13
FBVDDQ
AL43
FBVDDQ
AT13
FBVDDQ
AT43
FBVDDQ
AU13
FBVDDQ
AW43
FBVDDQ
AY13
FBVDDQ
L28
FBVDDQ
N16
FBVDDQ
N17
FBVDDQ
N19
FBVDDQ
N20
FBVDDQ
N22
FBVDDQ
N23
FBVDDQ
N25
FBVDDQ
N26
FBVDDQ
N28
FBVDDQ
N30
FBVDDQ
N31
FBVDDQ
N33
FBVDDQ
N34
FBVDDQ
N36
FBVDDQ
N37
FBVDDQ
N39
FBVDDQ
N40
FBVDDQ
T13
FBVDDQ
T43
FBVDDQ
U13
FBVDDQ
U43
FBVDDQ
W13
FBVDDQ
W43
FBVDDQ
Y13
FBVDDQ
Y43
FBVDDQ
11/21 FBVDDQ/RFU
11/21 FBVDDQ/RFU
FBA_RFU0
FBA_RFU1
FBA_RFU2
FBA_RFU3
FBA_RFU4
FBA_RFU5
FBA_RFU6
FBA_RFU7
FBB_RFU0
FBB_RFU1
FBB_RFU2
FBB_RFU3
FBB_RFU4
FBB_RFU5
FBB_RFU6
FBB_RFU7
FBC_RFU0
FBC_RFU1
FBC_RFU2
FBC_RFU3
FBC_RFU4
FBC_RFU5
FBC_RFU6
FBC_RFU7
FBD_RFU0
FBD_RFU1
FBD_RFU2
FBD_RFU3
FBD_RFU4
FBD_RFU5
FBD_RFU6
FBD_RFU7
FBE_RFU0
FBE_RFU1
FBE_RFU2
FBE_RFU3
FBE_RFU4
FBE_RFU5
FBE_RFU6
FBE_RFU7
FBF_RFU0
FBF_RFU1
FBF_RFU2
FBF_RFU3
FBF_RFU4
FBF_RFU5
FBF_RFU6
FBF_RFU7
FBG_RFU0
FBG_RFU1
FBG_RFU2
FBG_RFU3
FBG_RFU4
FBG_RFU5
FBG_RFU6
FBG_RFU7
FBH_RFU0
FBH_RFU1
FBH_RFU2
FBH_RFU3
FBH_RFU4
FBH_RFU5
FBH_RFU6
FBH_RFU7
SNN_FBA_DBI0
BJ38
SNN_FBA_DBI1
BG44
SNN_FBA_DBI2
BL46
SNN_FBA_DBI3
BG45
SNN_FBA_DBI4
BF51
SNN_FBA_DBI5
BE48
SNN_FBA_DBI6
BE49
SNN_FBA_DBI7
AY51
SNN_FBB_DBI0
AP51
SNN_FBB_DBI1
AR47
SNN_FBB_DBI2
AM52
SNN_FBB_DBI3
AL45
SNN_FBB_DBI4
AJ49
SNN_FBB_DBI5
AH45
SNN_FBB_DBI6
AD49
SNN_FBB_DBI7
W47
SNN_FBC_DBI0
V52
SNN_FBC_DBI1
V47
SNN_FBC_DBI2
V50
SNN_FBC_DBI3
R49
SNN_FBC_DBI4
N53
SNN_FBC_DBI5
J46
SNN_FBC_DBI6
F48
SNN_FBC_DBI7
D50
SNN_FBD_DBI0
G45
SNN_FBD_DBI1
J41
SNN_FBD_DBI2
F42
SNN_FBD_DBI3
K39
SNN_FBD_DBI4
G36
SNN_FBD_DBI5
G32
SNN_FBD_DBI6
E31
SNN_FBD_DBI7
F27
SNN_FBE_DBI0
H28
SNN_FBE_DBI1
K24
SNN_FBE_DBI2
E23
SNN_FBE_DBI3
J22
SNN_FBE_DBI4
F21
SNN_FBE_DBI5
J16
SNN_FBE_DBI6
E13
SNN_FBE_DBI7
E10
SNN_FBF_DBI0
J13
SNN_FBF_DBI1
P9
SNN_FBF_DBI2
K9
SNN_FBF_DBI3
E8
SNN_FBF_DBI4
L6
SNN_FBF_DBI5
U5
SNN_FBF_DBI6
U9
SNN_FBF_DBI7
W5
SNN_FBG_DBI0
AB9
SNN_FBG_DBI1
AG6
SNN_FBG_DBI2
AB3
SNN_FBG_DBI3
AJ10
SNN_FBG_DBI4
AH5
SNN_FBG_DBI5
AN10
SNN_FBG_DBI6
AR6
SNN_FBG_DBI7
AR10
SNN_FBH_DBI0
AU5
SNN_FBH_DBI1
BB11
SNN_FBH_DBI2
BF5
SNN_FBH_DBI3
BE7
SNN_FBH_DBI4
BJ8
SNN_FBH_DBI5
BK6
SNN_FBH_DBI6
BL7
SNN_FBH_DBI7
BP8
SNN_SPARE_01
SNN_SPARE_02
SNN_SPARE_03
SNN_SPARE_04
SNN_SPARE_05
SNN_SPARE_06
SNN_SPARE_07
SNN_SPARE_08
SNN_SPARE_09
SNN_SPARE_10
SNN_SPARE_11
SNN_SPARE_12
SNN_SPARE_13
SNN_SPARE_14
SNN_SPARE_15
SNN_SPARE_16
SNN_SPARE_17
SNN_SPARE_18
SNN_SPARE_19
SNN_SPARE_20
SNN_SPARE_21
SNN_SPARE_22
SNN_SPARE_23
SNN_SPARE_24
SNN_SPARE_25
SNN_SPARE_26
SNN_SPARE_27
SNN_SPARE_28
SNN_SPARE_29
SNN_SPARE_30
SNN_SPARE_31
SNN_SPARE_32
SNN_SPARE_33
SNN_SPARE_34
SNN_SPARE_35
SNN_SPARE_36
SNN_SPARE_37
SNN_SPARE_38
SNN_SPARE_39
SNN_SPARE_40
SNN_SPARE_41
SNN_SPARE_42
SNN_SPARE_43
SNN_SPARE_44
SNN_SPARE_45
SNN_SPARE_46
SNN_SPARE_47
SNN_SPARE_48
SNN_SPARE_49
SNN_SPARE_50
SNN_SPARE_51
SNN_SPARE_52
SNN_SPARE_53
SNN_SPARE_54
SNN_SPARE_55
SNN_SPARE_56
SNN_SPARE_57
SNN_SPARE_58
SNN_SPARE_59
SNN_SPARE_60
SNN_SPARE_61
SNN_SPARE_62
SNN_SPARE_63
SNN_SPARE_64
SNN_SPARE_65
SNN_SPARE_66
SNN_SPARE_67
SNN_SPARE_68
SNN_SPARE_69
SNN_SPARE_70
SNN_SPARE_71
SNN_SPARE_72
SNN_SPARE_73
SNN_SPARE_74
G1T
G1T
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
18/21 SPARE/MISC
18/21 SPARE/MISC
BB50
SPARE
BD46
SPARE
BE13
SPARE
BE14
SPARE
BE17
SPARE
BE22
SPARE
BE25
SPARE
BE28
SPARE
BE31
SPARE
BE34
SPARE
BF15
SPARE
BF17
SPARE
BF18
SPARE
BF20
SPARE
BF21
SPARE
BF23
SPARE
BF24
SPARE
BF26
SPARE
BF27
SPARE
BF29
SPARE
BF30
SPARE
BF32
SPARE
BF36
SPARE
BF38
SPARE
BF9
SPARE
BG10
SPARE
BG17
SPARE
BG18
SPARE
BG19
SPARE
BG21
SPARE
BG22
SPARE
BG24
SPARE
BG25
SPARE
BG27
SPARE
BG28
SPARE
BG30
SPARE
BG31
SPARE
BG33
SPARE
BG34
SPARE
BG36
SPARE
BG37
SPARE
BG38
SPARE
BG39
SPARE
BG40
SPARE
BG43
SPARE
BG9
SPARE
BH10
SPARE
BH16
SPARE
BH19
SPARE
BH20
SPARE
BH22
SPARE
BH25
SPARE
BH28
SPARE
BH31
SPARE
BH34
SPARE
BH36
SPARE
BH37
SPARE
BH40
SPARE
BH43
SPARE
BH8
SPARE
BJ18
SPARE
BJ20
SPARE
BJ30
SPARE
BJ35
SPARE
BJ36
SPARE
BJ9
SPARE
BK36
SPARE
BL36
SPARE
BL45
SPARE
BN22
SPARE
BN26
SPARE
BN29
SPARE
L13
SPARE
L14
SPARE
TESTMODE
RFU (GND)
U5O
U5O
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
15/17 _GND
15/17 _GND
AA2
SNN_GPU_NC_1
A2
NC
SNN_GPU_NC_2
A3
NC
SNN_GPU_NC_3
A53
NC
SNN_GPU_NC_4
A54
NC
SNN_GPU_NC_5
B1
NC
SNN_GPU_NC_6
B2
NC
SNN_GPU_NC_7
B54
NC
SNN_GPU_NC_8
B55
NC
SNN_GPU_NC_9
BB13
NC
SNN_GPU_NC_10
BC43
NC
SNN_GPU_NC_11
BE10
NC
SNN_GPU_NC_12
BE11
NC
SNN_GPU_NC_13
BE42
NC
SNN_GPU_NC_14
BE43
NC
SNN_GPU_NC_15
BE45
NC
SNN_GPU_NC_16
BE46
NC
SNN_GPU_NC_17
BF14
NC
SNN_GPU_NC_18
BG15
NC
SNN_GPU_NC_19
BG16
NC
SNN_GPU_NC_20
BH13
NC
SNN_GPU_NC_21
BN1
NC
SNN_GPU_NC_22
BN55
NC
SNN_GPU_NC_23
BP1
NC
SNN_GPU_NC_24
BP2
NC
SNN_GPU_NC_25
BP54
NC
SNN_GPU_NC_26
BP55
NC
SNN_GPU_NC_27
BR2
NC
SNN_GPU_NC_28
BR3
NC
SNN_GPU_NC_29
BR53
NC
SNN_GPU_NC_30
BR54
NC
SNN_GPU_NC_31
C1
NC
SNN_GPU_NC_32
C55
NC
SNN_GPU_NC_33
J45
NC
SNN_GPU_NC_34
K35
NC
SNN_GPU_NC_35
K45
NC
SNN_GPU_NC_36
L10
NC
SNN_GPU_NC_37
L36
NC
SNN_GPU_NC_38
L9
NC
SNN_GPU_NC_39
N13
NC
SNN_GPU_NC_40
N43
NC
SNN_NVIO_NC_01
SNN_NVIO_NC_02
SNN_NVIO_NC_03
SNN_NVIO_NC_04
SNN_NVIO_NC_05
R728
R728
10K
10K
5%
5%
0402
0402
COMMON
COMMON
SNN_NVIO_NC_06
SNN_NVIO_NC_07
SNN_NVIO_NC_08
SNN_NVIO_NC_09
SNN_NVIO_NC_10
SNN_NVIO_NC_11
SNN_NVIO_NC_12
SNN_NVIO_NC_13
SNN_NVIO_NC_14
SNN_NVIO_NC_15
SNN_NVIO_NC_16
SNN_NVIO_NC_17
SNN_NVIO_NC_18
SNN_NVIO_NC_19
SNN_NVIO_NC_20
SNN_NVIO_NC_21
SNN_NVIO_NC_22
SNN_NVIO_NC_23
SNN_NVIO_NC_24
SNN_NVIO_NC_25
SNN_NVIO_NC_26
SNN_NVIO_NC_27
SNN_NVIO_NC_28
SNN_NVIO_NC_29
SNN_NVIO_NC_30
GPU_TESTMODE
BG42
BP26
GND GND
GND
AB26
GND
AC11
GND
AC14
GND
AC17
GND
AC20
GND
AC23
GND
AC5
GND
AC8
GND
AD2
GND
AE26
GND
AF12
GND
AF15
GND
AF18
GND
AF21
GND
AF24
GND
AF3
GND
AF6
GND
AF9
GND
B10
GND
B13
GND
B16
GND
B19
GND
B22
GND
B25
GND
B4
GND
B7
GND
C2
GND
D12
GND
D26
GND
D8
GND
E11
GND
E14
GND
E17
GND
E20
GND
E23
GND
E5
GND
E8
GND
E9
GND
F10
GND
F2
GND
G26
GND
H23
GND
H5
GND
J11
GND
J12
GND
J14
GND
J16
GND
J17
GND
J19
GND
J2
GND
J9
GND
K26
GND
L23
GND
L5
GND
M2
GND
N26
GND
P19
GND
P23
GND
P5
GND
GND GND
U5P
U5P
BGA_0533_P080_230X230_G3_064B
BGA_0533_P080_230X230_G3_064B
COMMON
COMMON
16/17 NC
16/17 NC
A10
NC
A12
NC
AB21
NC
AB8
NC
AB9
NC
AC21
NC
AC22
NC
AC24
NC
AC7
NC
AD27
NC
AF25
NC
B11
NC
B12
NC
B14
NC
C10
NC
C12
NC
C13
NC
C18
NC
C4
NC
C9
NC
D10
NC
D11
NC
D13
NC
D14
NC
D7
NC
D9
NC
E10
NC
E12
NC
E13
NC
E21
NC
R2
GND
T26
GND
U23
GND
U5
GND
V2
GND
W11
GND
W12
GND
W14
GND
W16
GND
W17
GND
W19
GND
W26
GND
W9
GND
Y23
GND
Y5
GND
M13
GND
M15
GND
M16
GND
N11
GND
N12
GND
N13
GND
N14
GND
N15
GND
N16
GND
P11
GND
P12
GND
P13
GND
P14
GND
P15
GND
P16
GND
P17
GND
R12
GND
R13
GND
R14
GND
R15
GND
R16
GND
R17
GND
T12
GND
T13
GND
T15
GND
SNN_NVIO_NC_31
E7
NC
SNN_NVIO_NC_32
F11
NC
SNN_NVIO_NC_33
F12
NC
SNN_NVIO_NC_34
F13
NC
SNN_NVIO_NC_35
F14
NC
SNN_NVIO_NC_36
F21
NC
SNN_NVIO_NC_37
F22
NC
SNN_NVIO_NC_38
F7
NC
SNN_NVIO_NC_39
F8
NC
SNN_NVIO_NC_40
F9
NC
SNN_NVIO_NC_41
G23
NC
SNN_NVIO_NC_42
H22
NC
SNN_NVIO_NC_43
J23
NC
SNN_NVIO_NC_44
K23
NC
SNN_NVIO_NC_45
K24
NC
SNN_NVIO_NC_46
L22
NC
SNN_NVIO_NC_47
N5
NC
SNN_NVIO_NC_48
N6
NC
SNN_NVIO_NC_49
N9
NC
SNN_NVIO_NC_50
P22
NC
SNN_NVIO_NC_51
R3
NC
SNN_NVIO_NC_52
R6
NC
SNN_NVIO_NC_53
T3
NC
SNN_NVIO_NC_54
T6
NC
SNN_NVIO_NC_55
U22
NC
SNN_NVIO_NC_56
U24
NC
SNN_NVIO_NC_57
U4
NC
SNN_NVIO_NC_58
V6
NC
SNN_NVIO_NC_59
W6
NC
SNN_NVIO_NC_60
Y22
NC
SNN_NVIO_NC_61
Y24
NC
1
2
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power and GND (GPU and NVIOx)
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
31 41
31 41
31 41
<RevCode>
<RevCode>
<RevCode>
Page 32
A B C D E F G H
Power: Hybrid Power
1
Per Datasheet:
Vf = 400mV at 10mA
Vf = 500mV at 30mA
* expected current < 2mA
HYBRID_3V3
R23
R23
68K
68K
5%
5%
(Not)
0402
2
3
Weak pull-ups needed for I2CS:
* if SMBus is isolated from the GPU
* if MB does not support SMBus
* if MB does not support 3V3AUX
3
3,29,32
3,29,32
0402
COMMON
COMMON
OUT
HYBRID_3V3
R37
R37
R35
R35
68K
68K
68K
68K
5%
5%
5%
5%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
(Not) (Not)
OUT
BI
HYBRID_3V3
R24
R24
68K
68K
5%
5%
0402
0402
COMMON
COMMON
(Not)
4
I2CS Isolation for Hybrid Power and Level Shifting(3.3V to 1.15V)
Isolates SMBus to the GPU when in Hybrid mode
GT200 I2CS lanes are 1.2V tolerant signals
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
3V3_AUX 3V3
D8
D8
1
2
25V
25V
200MA
200MA
SOT23
SOT23
COMMON
COMMON
3
BAT54C
(Not)
C20
C20
1UF
1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
25,28,29
25,28,29
3
R21
R21
0
0
5%
5%
0402
0402
COMMON
COMMON
(Not)
HYBRID_3V3
3.0V
0.01A
10MIL
C18
C18
.1UF
.1UF
6.3V
GND
PEX_REFCLK_EN
I2C3_SCL_R
I2C3_SDA_R
I2CS_SCL_R
I2CS_SDA_R
PEX_RST*
HYBRID_PRG_TP
(Not)
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
1
2
3
17
11
13
7
4
20
GND
U6
U6
XSOP20_P065_072X053
XSOP20_P065_072X053
COMMON
COMMON
(Not)
VDD
PEX_REF_CLK_ENABLE
IICC_SCL
IICC_SDA
SMB_SCL
SMB_SDA
PCI_E_RESET*
VPP
GND
PEX_RST*
(Not)
OUT
BI
IN
Stuff only to bypass the micro-controller
1V15
Note: 1V15 rail is disabled while in Hybrid Mode
R43
R43
10K
10K
5%
5%
0402
0402
COMMON
COMMON
(Not) (Not)
GND
Key property of AO3416 is low Vgs threshold (0.6V nom)
From Edge Connector
3,29,32
I2CS_SCL_R
IN
From Edge Connector
3,29,32
I2CS_SDA_R
BI
C GE
PIC16F690
PIC16F690
HOTPLUG_DETECT_C
HOTPLUG_DETECT_D
HOTPLUG_DETECT_E
HOTPLUG_DETECT_F
R26
0
R26
0
COMMON
COMMON
0402
0402
5%
5%
1
G
Q7
Q7
AO3416
SOT23
SOT23
COMMON
COMMON
S3D
2
1
G
Q6
Q6
SOT23
SOT23
COMMON
COMMON
S3D
2
GPU_RESET*
POWER_ENABLE
FAN_ENABLE
GPU_RST*
I2CS_SCL_Q
AO3416
(Not)
I2CS_SDA_Q
I2CA_SCL
I2CA_SDA
I2CB_SCL
I2CB_SDA
HYBRID_3V3
3
D
Q531
Q531
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
1G1D1S
1G1D1S
<MAX_CURRENT>
<MAX_CURRENT>
(Not) (Not)
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
HYBRID_3V3
R876
R876
R891
R891
R922
R922
R912
68K
68K
5%
5%
0402
0402
COMMON
COMMON
HYBRID_3V3
GND
R912
68K
68K
5%
5%
0402
0402
COMMON
COMMON
Stuff 10K pull-down for DP skus
28,29,33
OUT
29
OUT
R856
0402
0402
R858
0402
0402
3V3
R857
R857
10K
10K
5%
5%
0402
0402
COMMON
COMMON
0R856
0
COMMON
COMMON
5%
5%
0R858
0
COMMON
COMMON
5%
5%
15
14
8
9
12
10
19
18
6
16
5
I2C1_SCL_UC
I2C1_SDA_UC
R885
R885
0402
0402
I2C2_SCL_UC
I2C2_SDA_UC
HYBRID_HPD_DVICD_DP
HYBRID_HPD_DVIAB
HYBRID_HPD_E
HYBRID_HPD_F
GPU_RST*
HYBRID_PWR_EN
FAN_PWM
68K
68K
68K
68K
5%
5%
5%
5%
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
(Not) (Not) (Not) (Not)
10K
10K
GND
COMMON
COMMON
5%
5%
(Not)
R33
1.1M
R33
1.1M
COMMON
COMMON
0402
0402
5%
5%
(Not)
R34
1.1M
R34
1.1M
COMMON
0402
COMMON
0402
5%
5%
(Not)
R25
10K
R25
10K
COMMON
0402
COMMON
0402
5%
5%
(Not)
40
33
IN
IN
INPUT_PEX_PRSNT
THERM_SHDN_D*
1V15
R44
R44
47K
47K
5%
5%
0402
0402
COMMON
33
33
COMMON
COMMON
(Not)
33
33
COMMON
COMMON
(Not)
Power: Hybrid Power
COMMON
1V15
R48
R48
47K
47K
5%
5%
0402
0402
COMMON
COMMON
R39
R39
0402
0402
5%
5%
R42
R42
0402
0402
5%
5%
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
I2CS_SCL
I2CS_SDA
To the GPU
To the GPU
3
OUT
3
BI
I2C1_SCL_R
I2C1_SDA_R
HYBRID_3V3
3
D
Q535
Q535
BSS138BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
1G1D1S
1G1D1S
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
HYBRID_3V3 HYBRID_3V3
3
D
Q537
Q537
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
1G1D1S
1G1D1S
<MAX_CURRENT>
<MAX_CURRENT>
(Not)
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
20,21,36,40
OUT
20
OUT
20
BI
1
I2C2_SCL_R
I2C2_SDA_R
3
D
Q538
Q538
BSS138BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
(Not)
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
1G1D1S
1G1D1S
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
21
OUT
21
BI
Inverts HPD signal polarity
HYBRID_3V3
R36
R36
68K
68K
5%
5%
(Not)
0402
0402
COMMON
COMMON
GPIO1_DVICD_DP_HPD_R2_G
3
D
Q530
Q530
BSS138
SOT23
SOT23
COMMON
COMMON
S
(Not)
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
1G1D1S
1G1D1S
<MAX_CURRENT>
<MAX_CURRENT>
(Not)
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
GND
(Not)
G
R886
1K
R886
1K
1
GPIO1_DVICD_HPD_R
COMMON
COMMON
0402
0402
5%
5%
C1251
C1251
.1UF
.1UF
16V
16V
(Not)
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
23
IN
2
Inverts HPD signal polarity
HYBRID_3V3
R22
R22
68K
68K
(Not)
5%
5%
0402
0402
COMMON
COMMON
GPIO0_DVIAB_HPD_R_G
3
Q540
Q540
BSS138
SOT23
SOT23
COMMON
COMMON
(Not)
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
GND
D
(Not)
G
R4
1K
R4
1K
GND
0402
0402
C10
C10
.1UF
.1UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
5%
5%
(Not)
GPIO0_DVIAB_DP_HPD_R2
COMMON
COMMON
1
S
1G1D1S
1G1D1S
(Not)
25
IN
3
Vcc section of I2C bus switch
HYBRID_3V3
C16
C16
16
VCC
GND
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
<Doc>
<Doc>
<Doc>
.1UF
.1UF
6.3V
6.3V
10%
10%
(Not)
X7R
X7R
0402
0402
8
COMMON
COMMON
GND
32 41
32 41
32 41
Sheet of
Sheet of
Sheet of
HFDBA
4
5
<RevCode>
<RevCode>
<RevCode>
SNN_QS_NC1
SNN_QS_NC2
See DAC pages for switch sections
U2A
U2A
XSOP16_PI025_049X040
XSOP16_PI025_049X040
(Not)
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
1
NC
9
NC
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date:
Date:
Date:
www.vinafix.vn
Page 33
A B C D E F G H
Power Supply: 5V LDO / 3V3_DP / THERM SHUTDOWN LATCH / IFP_IOVDD /PEX_PLVDD
5V Linear
1
2
3
4
5
12V_PEX6_F2
R571
0
R571
0
0603
0603
COMMON
COMMON
5%
5%
C569
C569
C565
C565
4.7UF
4.7UF
4.7UF
4.7UF
16V
16V
16V
16V
20%
20%
20%
20%
X7R
X7R
X7R
X7R
1206
1206
1206
1206
COMMON
COMMON
COMMON
COMMON
GND
GND
PEX PLLVDD optional Supply
U508
U508
3V3_F
ADJ_VR=0.8V
ADJ_VR=0.8V
SOT23-5
SOT23-5
SOT23_5
SOT23_5
COMMON
COMMON
1
IN
3
EN4ADJ
GND
C859
C859
2
1UF
1UF
16V
16V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
(Not)
GND
3V3_DP SWITCHER
(Only required for DisplayPort SKU)
12V_PEX6_F1
Irms=0.23A
R50
0
R50
0
0603
0603
COMMON
COMMON
5%
5%
(Not)
GND
GND
PS2_VCC12
C53
C53
1UF
1UF
16V
16V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
(Not) (Not) (Not)
(Not)
OUT
5
GND
5V_IN
GND
C567
C567
.1UF
.1UF
25V
25V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
PEX_PLLVDD_OP_ADJ
R52 100K
R52 100K
0402
0402
C54
C54
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
U507
U507
S
VIN
Vout(TAB)
ADJ/GND
APL1117UC-TRL_TO252-3-RH
APL1117UC-TRL_TO252-3-RH
G
5V_ADJ
C566
C566
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
120mA
R739
R739
536
536
Rtop
1%
1%
0402
0402
COMMON
COMMON
(Not)
Rbot
R740
R740
1.24K
1.24K
1%
1%
0402
0402
COMMON
COMMON
(Not)
Vref=0.8V
Vo_Typ=0.8*(1+536/1240)=1.146V
GND
Vo_Min=0.8*(1+(536*99%)/(1240*101%))=1.128V
Vo_Max=0.8*(1+(536*101%)/(1240*99%))=1.164V
16MIL
PS2_3V3_EN
COMMON
COMMON
(Not)
5%
5%
PS2_3V3_SS
C58
C58
.1UF
.1UF
6.3V
6.3V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
GND
GND
D
Rt
Rb
PEX_PLLVDD_OP
C846
C846
4.7UF
4.7UF
6.3V
6.3V
20%
20%
X5R
X5R
0603
0603
COMMON
COMMON
(Not)
GND
U10
U10
0.923V
0.923V
SO08_I190X150
SO08_I190X150
COMMON
COMMON
2
IN
7
EN
8
SS
4
GND
F=340KHz
Bandwidth=80KHz
R610
R610
107
107
1%
1%
0402
0402
COMMON
COMMON
R609
R609
324
324
1%
1%
0402
0402
Vref=1.25V
COMMON
COMMON
Vo_Typ=1.25*(1+324/107)=5.035V
Vo_Min=1.225*(1+(324*99%)/(107*101%))=4.861V
Vo_Max=1.270*(1+(324*101%)/(107*99%))=5.193V
GND
3
OUT
(Not)
1
BS
3
SW
5
FB
6
COMP
5V @ 0.3A
5V
0.2A
C573
C573
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND GND GND
PS2_3V3_BOOT
PS2_3V3_PH
PS2_3V3_FB
PS2_3V3_CP
20MIL
C574
C574
10UF
10UF
16V
16V
10%
10%
X5R
X5R
0805
0805
COMMON
COMMON
16MIL20V
16MIL
10MIL
10MIL
50V
50V
10%
10%
X7R
X7R
COMMON
COMMON
5V
C575
C575
47 UF
47 UF
6.3V
6.3V
+/-20%
+/-20%
X5R
X5R
1206
1206
COMMON
COMMON
(Not)
DDC_5V
5V @ 200mA
DCR_MAX=0.4OHM
TRIP_TIME=0.1S@20C,8A
CONTINUOUS_CURRENT=0.5A@20C
5V
V_Loss_Max=0.11*0.4=0.044V
C603300PF
C603300PF
PS2_3V3_CP_RC
0402
0402
(Not) (Not)
COMMON
COMMON
F1
F1
500mA
500mA
1206
1206
COMMON
COMMON
1 2
POLYSWITCH
POLYSWITCH
16MIL
15V
PS2_3V3_BOOT_R
R54
0
R54
0
COMMON
COMMON
0603
0603
5%
5%
(Not) (Not)
R57 78.7K
R57 78.7K
10MIL
0402 COMMON
0402 COMMON
C62
.01UF
C62
.01UF
0402
25V
0402
25V
10%
10%
(Not)
X7R
X7R
THERM OVERT SHUTDOWN LATCH
1G1D1S
1G1D1S
3
D
Q521
Q521
2N7002
SOT23
SOT23
3V3
R841
R841
10K
10K
5%
5%
0402
0402
COMMON
29
THERM_SHDN*
IN
COMMON
THERM_SHDN_R*
R842
1K
R842
1K
COMMON
0402
COMMON
0402
5%
5%
3V3
1G1D1S
1G1D1S
3
D
Q523
Q523
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
THERM_LATCH
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
R853
R853
10K
10K
5%
5%
0402
0402
COMMON
COMMON
THERM_SHDN THERM_SHDN_R
IFP_IOVDD (backdrive prevention)
DDC_5V
5V
0.2A
16MIL
C6
C6
470PF
470PF
50V
50V
5%
5%
C0G
C0G
0603
0603
COMMON
COMMON
GND
C59
.01UF
C59
.01UF
25V
0603
25V
0603
10%
10%
X7R
X7R
COMMON
COMMON
C61
C61
680PF
680PF
50V
50V
(Not)
5%
GND
5%
C0G
C0G
0603
0603
COMMON
COMMON
PS2_3V3_PH_RC
16MIL
R51
R51
5.6
5.6
(Not)
5%
5%
1206
1206
COMMON
COMMON
1%
1%
GND
DCR=0.16OHM
MAX_CURRENT=1.1A
CONTINUOUS_CURRENT=1.1A
L7
10.0uH
10.0uH
COMMON
IND_NONRKO_SMD_066X045L7COMMON
IND_NONRKO_SMD_066X045
Iripple=0.72A
(Not)
28,29,32
3.3V @ 0.5A
R59
R59
27.4K
27.4K
Rt
1%
1%
(Not)
0402
0402
COMMON
COMMON
Vref=0.923V
Vo_Typ=0.923*(1+27.4/10)=3.452V
Vo_Min=0.900*(1+(27.4*99%)/(10*101%))=3.317V
Vo_Max=0.946*(1+(27.4*101%)/(10*99%))=3.590V
R60
R60
10K
10K
Rb
1%
1%
(Not)
0402
0402
COMMON
COMMON
GND
GPU_RST*
IN
R855
1KR855
1K
0402 COMMON
0402 COMMON
5%
5%
3V3_DP
3.3V
0.5A
Vout_ripple=50.4mV
16MIL
C52
C52
C51
C51
100UF
100UF
22UF
22UF
COMMON
COMMON
6.3V
6.3V
20%
20%
20%
20%
6.3V
6.3V
X5R
X5R
POSCAP
POSCAP
1206
1206
1A@45C
1A@45C
COMMON
COMMON
0.07R
0.07R
(Not)
CAP_SMD_3528
GND
CAP_SMD_3528
GND
R865 1K
R865 1K
04025%COMMON
04025%COMMON
GPU_RST_R*
(Not)
2N7002
SOT23
SOT23
3V3
3
Q524
Q524
COMMON
COMMON
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
R850
R850
10K
10K
5%
5%
0402
0402
COMMON
COMMON
1G1D1S
1G1D1S
D
G
1
S
1G1D1S
1G1D1S
C1247
C1247
1000PF
1000PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
1G1D1S
1G1D1S
C1222
C1222
100PF
100PF
50V
50V
5%
5%
C0G
C0G
0402
0402
COMMON
COMMON
GND
THERM_SHDN_D*
C1232
C1232
1000PF
1000PF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GPU_RST_R
GND
3V3
<Designator>
<Designator>
R987
R987
10K
10K
5%
5%
0402
0402
COMMON
COMMON
3
D
Q527
Q527
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GPU_RST_R_MOS
1G1D1S
1G1D1S
3
D
Q982
Q982
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
3
D
Q525
Q525
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
R928
R928
10K
10K
5%
5%
0402
0402
COMMON
COMMON
32
OUT
3V3_F
IFP_IOVDD
1G1D1S
1G1D1S
3
D
Q983
Q983
SI2305DS
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
1
2
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power Supply: 5V + 5V Alt / SHDN LATCH / IFP_IOVDD
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
33 41
33 41
33 41
<RevCode>
<RevCode>
<RevCode>
Page 34
A B C D E F G H
Power Supply: 2V5, DP_PWR, 8V5 1V15 (PEX_VDD, GV_VDD)
2V5
1
2V5 @ 1.7A
2V5
2.5V
1.7A
16MIL
C14
C14
100UF
100UF
COMMON
COMMON
20%
20%
6.3V
6.3V
POSCAP
POSCAP
0.99A
0.99A
70MR
70MR
CAP_SMD_3528
CAP_SMD_3528
GND
Vo_typ=Vref_typ=2.495
2
Vo_max=Vref_max=2.545
Vo_min=Vref_min=2.445
GND
C11
C11
100UF
100UF
COMMON
COMMON
20%
20%
6.3V
6.3V
POSCAP
POSCAP
0.99A
0.99A
70MR
70MR
(Not)
CAP_SMD_3528
CAP_SMD_3528
C17
C17
4.7UF
4.7UF
6.3V
6.3V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
GND
C15
C15
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
3V3_F
C19
C19
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
Q2
Q2
D
AOD484
DPAKSGD
DPAKSGD
1G1D1S
1G1D1S
G
D03-0D4840B-A68
D03-0D4840B-A68
S
R17
R17
0
0
5%
5%
C13
C13
Rt
0402
0402
.1UF
.1UF
COMMON
COMMON
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
R12
R12
COMMON
COMMON
1K
1K
(Not)
5%
5%
Rb
0402
0402
COMMON
COMMON
GND
1V15 (PEX_VDD AND GV_VDD/Q) and 1V8(For Analogix)
2V5
C1343
C1343
22UF
22UF
6.3V
6.3V
20%
C1313
C1313
1UF
1UF
6.3V
6.3V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
GND
R917
R917
4.7K
4.7K
5%
5%
0402
0402
COMMON
COMMON
PS1_1V15_EN_RGC*
C1318
C1318
.1UF
.1UF
6.3V
6.3V
(Not)
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
20%
X5R
X5R
0805
0805
COMMON
COMMON
(Not)
GND
Q539
Q539
SOT23
SOT23
COMMON
COMMON
R930
R930
1K
1K
Rt
1%
1%
0402
0402
COMMON
COMMON
R931
R931
806
806
Rb
1%
1%
0402
0402
COMMON
COMMON
(Not)
GND
3
2
(Not)
1G1D1S
1G1D1S
D
G
1
S
(Not)
PS1_1V8_LDO_DR_AC
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
12V_PEX6_F1
R904
R904
10K
10K
5%
5%
0402
0402
COMMON
COMMON
PS1_1V15_EN*
3
D
Q536
Q536
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
1G1D1S
1G1D1S
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
3
1V8 @ 0.032A
Vref=0.8V
Vo_Typ=0.8*(1+1/0.806)=1.793V
4
Vo_Min=0.784*(1+(1*99%)/(0.806*101%))=1.737V
Vo_Max=0.816*(1+(1*101%)/(0.806*99%))=1.849V
5
1V8
1.8V
0.05A
20MIL
C1333
C1333
22UF
22UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
(Not) (Not)
GND
3V3_F
GND
12MIL
PS6_2V5_CA
12MIL
PS6_2V5_ADJ
12V_PEX6_F1
R903
R903
R920
R920
10
10
5%
5%
0402
0402
COMMON
COMMON
C1336
C1336
0R
0R
25V
25V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
1B1C1E
1B1C1E
C
B
1
E
FREQ_SET = 47.5K FOR 600KHz
FREQ_SET = 110K FOR 300KHz
FREQ_SET = 35.7K FOR 550KHz
0402
0402
3
Q534
Q534
SOT23
SOT23
COMMON
COMMON
2
GND
1
GND
2.2
2.2
COMMON
COMMON
5%
5%
MMBT2222A
12V
R18
R18
5.1K
5.1K
5%
5%
0402
0402
COMMON
COMMON
U1
U1
23
ADJ_VR2.495
ADJ_VR2.495
SOT23
SOT23
SOT23
SOT23
COMMON
COMMON
Short if unused
16MIL 12V
PS1_VCC12
12MIL
GND
PS1_1V8_LDO_DR
12MIL
PS1_1V8_LDO_FB
10MIL
PS1_1V15_FS
R905
R905
49.9K
49.9K
1%
1%
0402
0402
COMMON
COMMON
GND
C1294
C1294
1UF
1UF
16V
16V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
GND
U4
U4
VR_SW=0.8V, VR_LD=0.8V
VR_SW=0.8V, VR_LD=0.8V
SO14_I335X150
SO14_I335X150
SO14
SO14
COMMON
COMMON
8
VCC129VCC5
5
LDO_DR
6
LDO_FB
2
FS_DIS
12
PGND
7
GND
DP Dongle Supply
3V3_DP
Power from regulator
LB4 220R@100MHz
LB4 220R@100MHz
IND_SMD_0603COMMON
IND_SMD_0603COMMON
C7
C7
C8
C8
.1UF
.1UF
.01UF
.01UF
16V
16V
16V
16V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
(Not) (Not)
GND
GND
3V3
Power from edge finger
LB521
IND_SMD_0603COMMON
IND_SMD_0603COMMON
C1351
C1351
C1352
C1352
.1UF
.1UF
.01UF
.01UF
16V
16V
16V
16V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0402
0402
COMMON
COMMON
COMMON
COMMON
(Not)(Not)
GND
GND
16MIL 5V
PS1_VCC5
16MIL 5V
PS1_PVCC5
10
PVCC5
16MIL
PS1_1V15_UG
14
UGATE
16MIL
PS1_1V15_BOOT
1
BOOT
6A12V16MIL
PS1_1V15_PH
13
PHASE
16MIL
PS1_1V15_LG
11
LGATE
10MIL
PS1_1V15_FB
4
SW_FB
10MIL
PS1_1V15_CP
3
COMP
(Not)
R898
R898
10
10
5%
5%
0603
0603
COMMON
COMMON
220R@100MHzLB521
220R@100MHz
C1277
C1277
R902 2.2
R902 2.2
0603
0603
5%
5%
C1305
C1305
0603
0603
0603
0603
COMMON
COMMON
.1UF
.1UF
25V
25V
10%
10%
X7R
X7R
COMMON
COMMON
1UF
1UF
16V
16V
10%
10%
X7R
X7R
COMMON
COMMON
C1276
C1276
1UF
1UF
16V
16V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
16MIL
PS1_1V15_BOOT_R
10MIL
PS1_1V15_CP_RC
C1323
2200PF
C1323
2200PF
0603
0603
50V
50V
5%
5%
C0G
C0G
COMMON
COMMON
3.3V @ 500mA
DCR_MAX=1OHM
TRIP_TIME=0.15S@20C,8A
CONTINUOUS_CURRENT=0.5A
3.3V 0.5A16MIL
DP_PWR_FUSE
GND
R981
R981
0603
0603
C1282
C1282
F502
F502
500mA
500mA
1206
1206
COMMON
COMMON
1 2
POLYSWITCH
POLYSWITCH
(Not)
0
0
COMMON
COMMON
5%
5%
.1UF
.1UF
25V
25V
0603
0603
10%
10%
X7R
X7R
COMMON
COMMON
R908 1.5K
R908 1.5K
1%
1%
COMMON0402
COMMON0402
3.3V
0.5A
16MIL
C1380
C1380
.1UF
.1UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
(Not) (Not)
GND GND
16MIL
PS1_1V15_UG_R
DP_PWR
C1269
C1269
C1381
C1381
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
1000PF
1000PF
16V0402
16V0402
10%
10%
X7R
X7R
COMMON
COMMON
4 5
3
2
1
Q3
Q3
NN-AO4812_SOIC8-RH
NN-AO4812_SOIC8-RH
11/21:remove 8V5 circuit
8V5
12V_PEX6_F1
C35
C35
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
6
7
8
GND
Vref=0.8V
Vo_Typ=0.8*(1+1/2.21)=1.162V
Vo_Min=0.792*(1+(1*99%)/(2.21*101%))=1.143V
Vo_Max=0.808*(1+(1*101%)/(2.21*99%))=1.181V
Input ripple Irms ~2.2A for 1.2V@6A
Stuff with 4x 10uF, X5R,1206, 16V RIPPLE ~ 2A@300..600kHZ
PLACE CLOSE TO FET
PLACE CLOSE TO FET
C37
C37
C39
C39
.1UF
.1UF
.47UF
.47UF
16V
16V
16V
16V
10%
10%
10%
10%
X7R
X7R
X7R
X7R
0402
0402
0603
0603
COMMON
COMMON
COMMON
COMMON
RIPPLE CURRENT ~2.1A
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<MAX_CURRENT>
<MAX_CURRENT>
<DC_RESISTANCE>
<DC_RESISTANCE>
L5
1.0UH
L5
1.0UH
COMMON
COMMON
IND_NONRKO_SMD_076X076
IND_NONRKO_SMD_076X076
C1281
C1281
1500PF
1500PF
50V
50V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
16MIL
PS1_1V15_PH_RC
R895
R895
5.6
5.6
5%
5%
1206
1206
COMMON
COMMON
GND
C46
C46
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
R909
R909
1K
1K
1%
1%
Rt
0402
0402
COMMON
COMMON
R913
R913
2.21K
2.21K
Rb
1%
1%
0402
0402
COMMON
COMMON
GND
C45
C45
C44
C44
10UF
10UF
10UF
10UF
16V
16V
16V
16V
20%
20%
20%
20%
X5R
X5R
X5R
X5R
1206
1206
1206
1206
COMMON
COMMON
COMMON
COMMON
GND
PEX_VDD, GV
1V15 @ 6A
R907
R907
33
33
5%
5%
0402
0402
COMMON
COMMON
10MIL
PS1_1V15_FB_RC
C1306
C1306
.015UF
.015UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
Local Capacitance at Supply
Combined Distributed Capacitance
Total 1V15 Capacitance
C38
C38
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
1.15V
6A
16MIL
C22
C22
47UF
47UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
1V15
GND
C21
C21
330UF
330UF
COMMON
COMMON
20%
20%
2.5V
2.5V
POSCAP
POSCAP
3900MA@100KHZ,45C
3900MA@100KHZ,45C
9MOHM
9MOHM
CAP_SMD_7343
CAP_SMD_7343
PEX / GV 1V15
377 uF
112 uF
489 uF
1
2
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power Supply: 2V5, DP_PWR, 1V15 (PEX_VDD, GV_VDD)
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
34 41
34 41
34 41
<RevCode>
<RevCode>
<RevCode>
Page 35
A B C D E F G H
Power Supply: Combined FBVDD/Q
1
12V Driver -->R7301:0 ohm ,R7300:NC ohm
9V Driver-->R7301:NC,R7301:0 ohm
2
0.01u/16V/0402
0.01u/16V/0402
GND
GND
GND
GND
3
FVBDDQ ENABLE
1G1D1S
1G1D1S
NVVDD_PGOOD
4
5
NVVDD_PGOOD
FBVDDQ_EN
3
D
Q543
Q543
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
2
60V
60V
0.115A
0.115A
7.5R
7.5R
0.8A
0.8A
0.2W
0.2W
20V
20V
C1311
C1311
COMP_RC
C1369
C1369
C33p50N0402
C33p50N0402
68.1K/0402/1%
68.1K/0402/1%
0.01u/16V/0402
0.01u/16V/0402
20KR1%0402
20KR1%0402
12V_PEX6_F1
GND
FBVDDQ_FB
R7312
R7312
R910
R910
10K
10K
5%
5%
0402
0402
COMMON
COMMON
1G1D1S
1G1D1S
C1355
C1355
R7309
R7309
10K/4/1
10K/4/1
R7311
R7311
G
1
11/19 modify 12V to 12V_Pex6_F1
R7300
R7300
2.2R/0603
2.2R/0603
NO STUFF
C1367
C1367
1u/16V/X5R
1u/16V/X5R
VCC_12
U513
U513
14
VCC12
8
R7310
R7310
40.2KR1%0402
40.2KR1%0402
C1354
C1354
0.01uF/16V/0402
0.01uF/16V/0402
GND
NO STUFF
FB
7
COMP
4
MODE
5
IMAX
9
SS/EN
6
RT
GND
D
Q542
Q542
BSS138
SOT23
SOT23
COMMON
COMMON
S
FBVDD_COMP
PS3_FBVDD_RT
PS3_FBVDD_SS
3
2
60V
60V
0.115A
0.115A
7.5R
7.5R
0.8A
0.8A
0.2W
0.2W
20V
20V
GNDGND
12V_PEX6_F1
FB_VCC_R
6205_BOOT1
GND
3
15
UGATE1
VCC9
PHASE1
BOOT1
LGATE1
BOOT2
UGATE2
PHASE2
LGATE2
PGND
UP6205Q_QFN16-RH
UP6205Q_QFN16-RH
17
GND
I2C3_SCL_R
R7299
R7299
0R/0603
0R/0603
R7301
R7301
0R/0603
0R/0603
C1356
C1356
1u/16V/X5R
1u/16V/X5R
2
1
16
10
11
12
13
6205_UG1
6205_PH1
6205_LG1
6205_BOOT2
6205_UG2
6205_PH2
6205_LG2
R73280RR7328
0R
6208_FB_R
6205_UG1
6205_BOOT1
6205_PH1
6205_LG1
6205_UG2
6205_BOOT2
6205_PH2
6205_LG2
3V3
R911
R911
4.7K
4.7K
5%
5%
0402
0402
COMMON
COMMON
(Not)
6262_SCL
6208_FB_R
0R/0805
0R/0805
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
R7302
R7302
2.2/0805
2.2/0805
R7303
R7303
10K/0402/1%
10K/0402/1%
C1368
C1368
0.1u/25V/0603
0.1u/25V/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
6205_UG2_R
R7313
R7313
2.2/0805
2.2/0805
R7314
R7314
10K/0402/1%
10K/0402/1%
0R/0805
0R/0805
C1331
C1331
0.1u/25V/0603
0.1u/25V/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
5V
2
5
SCL
6
OUT3
BUS_SEL
7
OUT2
VCC
1
GND
28
6205_UG1_R
R7304
R7304
R7315
R7315
R7317
R7317
10K/0402
10K/0402
R7319
R7319
10K/0402
10K/0402
U12
U12
UP6262M8_SOT23-8-RH
UP6262M8_SOT23-8-RH
8
OUT1
4
SDA
3
GND
R7318
R7318
2.2R/0402
2.2R/0402
C1295
C1295
.1UF
.1UF
16V
16V
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
IN
5
Q38
Q38
4
123
5
Q29
Q29
4
123
Q39
Q39
4
123
Q30
Q30
4
123
(Not)
6262_SDA
GND
GPIO10_FB_ADJ0
GND
GND
5
5
5V
GND
L14
L14
1.1uH, 20A, 1.7m Ohm
1.1uH, 20A, 1.7m Ohm
1 2
R7306
R7306
2.2/0805
2.2/0805
C1376
C1376
C2200p/50V/0603
C2200p/50V/0603
C158
C158
.47UF
.47UF
16V
16V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
GND
L16 1.1uH, 20A, 1.7m OhmL16 1.1uH, 20A, 1.7m Ohm
1 2
R7316
R7316
2.2/0805
2.2/0805
C1309
C1309
C2200p/50V/0603
C2200p/50V/0603
GNDGND
3V3
(Not)
R934
R934
4.7K
4.7K
5%
5%
0402
0402
COMMON
COMMON
R540
R540
0402
0402
(Not)
C222
C222
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
COMMON
12V_PEX6_F1
12V_PEX6_F1
R73290RR7329
0R
0
0
5%
5%
+
+
GND
FBVDDQ_FB
COMMON
COMMON
C159
C159
470UF_16V
470UF_16V
<P_esr>
<P_esr>
<P_mat>
<P_mat>
<Cfgdft>
<Cfgdft>
GND
I2C3_SDA_R
3V3_F
C514
C514
1000PF
1000PF
16V
16V
(Not)
10%
10%
X5R
X5R
0402
0402
COMMON
COMMON
R541
R541
10K
10K
5%
5%
(Not)
0402
0402
COMMON
COMMON
PS3_FB_ADJ0_Q
PEX Cin filtering
FBVDDQ Cin and
Input ripple Irms ~7A@15A/phase (2 shared phases)
8x 10uF, X5R, 1206, 16V. I_RIPPLE ~2A@300..600kHZ
12V_PEX6_F1
Place 2 MLCCs exactly back-to-back to eliminate audible noise.
C521
C521
C523
C523
10UF
10UF
10UF
10UF
16V
16V
16V
16V
20%
20%
20%
20%
X5R
X5R
X5R
X5R
1206
1206
1206
1206
COMMON
COMMON
COMMON
COMMON
* footprint supports multiple values and case sizes
from 7473 Poscaps, 82uF low-profile SMD_D80,
up to 180uF SMD_D80
* options providing for higher ripple current caps
1
GND
FBVDDQ = 1.9-2.0V @ 31A~35A
V_ripple:28mV
C155
C155
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C161
C161
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C153
C153
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C156
C156
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
16MIL 2.0V 31A
C154
C154
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C148
C148
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
12
+
+
C225
C225
CD560u4SO-RH
CD560u4SO-RH
FBVDDQ
12
+
+
C224
C224
CD560u4SO-RH
CD560u4SO-RH
2
GND
Local Capacitance at Supply 630 uF
Combined Distributed Capacitance
Total FBVDD/Q Capacitance
local sense feedback if GPU feedback is not there.
470R results in max. 2.25V
PS3_FBVDDQ_FB_T3
1G1D1S
1G1D1S
PS3_FB_ADJ0_PD
3
D
Q511
Q511
BSS138
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
(Not)
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
<V_BE_GS>
<V_BE_GS>
GND
R560 0R
R560 0R
5%
5%
R552
R552
0402
0402
1%
1%
C517
C517
0402
0402
R550
R550
10K
10K
1%
1%
0402
0402
COMMON
COMMON
(Not)
PS3_FBVDDQ_VSEN
(Not)
COMMON0402
COMMON0402
33.2
33.2
(Not)
COMMON
COMMON
Rt
R7305
R7305
2.55KR1%0603
2.55KR1%0603
.01UF
.01UF
(Not)
25V
25V
10%
10%
X7R
X7R
COMMON
COMMON
Rb
R7307
R7307
1.05K 1% 0603
1.05K 1% 0603
(Not)
GND
Vo_Typ=0.8*(1+1.37/1.10)=1.796V
Vo_Min=0.792*(1+(1.37*99%)/(1.10*101%))=1.759V
Vo_Max=0.808*(1+(1.37*101%)/(1.10*99%))=1.835V
Vo_Typ=0.8*(1+1.37/1.00)=1.896V
Vo_Min=0.792*(1+(1.37*99%)/(1.00*101%))=1.856V
Vo_Max=0.808*(1+(1.37*101%)/(1.00*99%))=1.937V
Vo_Typ=0.8*(1+1.37/0.909)=2.006V
Vo_Min=0.792*(1+(1.37*99%)/(0.909*101%))=1.962V
Vo_Max=0.808*(1+(1.37*101%)/(0.909*99%))=2.050V
Vo_Typ=0.8*(1+1.37/0.845)=2.097V
Vo_Min=0.792*(1+(1.37*99%)/(0.845*101%))=2.144V
Vo_Max=0.808*(1+(1.37*101%)/(0.845*99%))=2.051V
R561 0
R561 0
5%
5%
Rb
R7308
R7308
1.27K 1% 0603
1.27K 1% 0603
Stuff for either:
1. Remote differential GND sense
2. Local GND sense
FBVDDQ_SENSE
COMMON0402
COMMON0402
FBVDDQ_SENSE_GND
FBVDD/Q
490 uF
1120 uF
39
IN
FBVDDQ Power Supply
FBVDDQ =1.9-20V @ 31A~35A
39
IN
FB VOLTAGE SENSE
0.6 V X (1+ Rtop / Rbot )
2.057V = 0.6 V X (1+ 2.55K / 1.05K )
1.805V = 0.6 V X (1+ 2.55K / 1.27K )
3
4
5
ASSEMBLY
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
Power Supply: Combined FBVDD/Q
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
35 41
35 41
35 41
<RevCode>
<RevCode>
<RevCode>
Page 36
A B C D E F G H
Power Supply: NVVDD Regulator
1
GPIO[7..5]=100==>1.125V
GPIO[7..5]=001==>1.05V
GPIO[7..5]=010==>1.0625V
12/05 modify GPIO 7:5
28
IN
IN
28
(OFFSET 200mV)
(OFFSET -100mV)
(OFFSET 200mV)
(OFFSET -100mV)
(OFFSET 200mV)
(OFFSET -100mV)
(OFFSET 200mV)
(OFFSET -100mV)
GPIO5_PS5_NVVDD_VID0
GPIO7_PS5_NVVDD_VID2
28
GPIO6_PS5_NVVDD_VID1
IN
28
2
NVVDD Voltage Select
Regulator: NCP5388
Control via NV_GPIOs [1..0]
3
VID
5 4 3 2 1 0
0 1 1 0 0 1 1.23750
0 0 0 0 0 1 1.0500
0 0 0 1 1 0 0.93750
0 1 1 0 0 0 1.26250
0 0 0 0 0 1 1.06250
0 0 0 1 0 1 0.96250
1 1 0 1 0 1 1.32500
1 1 1 1 0 1 1.12500
1 0 0 0 1 0 1.02500
0 1 0 0 1 1 1.38750
0 1 1 0 1 1 1.18750 DEFAULT
4
0 0 0 0 0 0 1.08750
5
NVVDD
GPIO6_PS5_NVVDD_VID1
IN
VOLTAGE1
VOLTAGE2
VOLTAGE3
三種電壓
mode
1G1D1S
1G1D1S
3
D
Q1005
Q1005
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
50V
50V
2
?
?
3.5R
3.5R
0.88A
0.88A
?
?
+/-20V
+/-20V
GND
1G1D1S
1G1D1S
3
D
Q1006
Q1006
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
50V
50V
2
?
?
3.5R
3.5R
0.88A
0.88A
?
?
+/-20V
+/-20V
1G1D1S
1G1D1S
D
GND
1G1D1S
1G1D1S
1
G
1
S
3
D
Q1008
Q1008
2N7002
SOT23
SOT23
G
COMMON
COMMON
S
50V
50V
2
?
?
3.5R
3.5R
0.88A
0.88A
?
?
+/-20V
+/-20V
GND
11/20 remove R1013 and R1014 and Q1002 and R546
12VE2_F
R1016
R1016
3K
3K
1%
1%
0402
0402
COMMON
COMMON
NVVDD_EN_PWR_Q
R1017
R1017
1K
1K
1%
1%
0402
0402
COMMON
COMMON
GND
1
12VE2_F
5V
R104
R104
R124
R124
R103
R103
R114
R114
R131
R131
R110
R110
10k
10k
10k
10k
10k
10k
10k
10k
(Not)
(Not) (Not)
VID4
VID2
VID1
3
Q1007
Q1007
2N7002
SOT23
SOT23
COMMON
COMMON
50V
50V
2
?
?
3.5R
3.5R
0.88A
0.88A
?
?
+/-20V
+/-20V
GND
R119
R119
R132
R132
R120
R120
R130
R130
10k
10k
10k
10k
10k
10k
10k
10k
(Not) (Not) (Not) (Not)(Not)
NVVDD_SENSE
IN
NVVDD_SENSE_GND
IN
NVVDD_SENSE
R127
R127
NVVDD
39
IMON_R
R1003
R1003
2K/4
2K/4
GND
R1013
R1013
2K/4
2K/4
12V_F
R1015
R1015
10K
10K
5%
5%
0402
0402
COMMON
COMMON
1G1D1S
1G1D1S
3
D
Q1003
Q1003
SOT23
SOT23
G
1
COMMON
COMMON
S
50V
50V
2
?
?
3.5R
3.5R
0.88A
0.88A
?
?
+/-20V
C126
C126
.01UF
.01UF
COMMON
COMMON
10%
10%
16V
16V
X7R
X7R
0402
0402
(Not)
GND
+/-20V
GND
GND GND
1G1D1S
1G1D1S
2N7002
EN
3
D
Q1004
Q1004
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
50V
50V
2
?
?
3.5R
3.5R
0.88A
0.88A
?
?
+/-20V
+/-20V
GND
10k
10k
10k
10k
C1384
C1384
X_0.01u/16V/4
X_0.01u/16V/4
(Not)
GND
C1400
C1400
X_0.01u/16V/4
X_0.01u/16V/4
(Not)
R125
R125
GND
GND
GND
IMON_R
10k
10k
10k
10k
IMAX_R
R126
R126
R128
R128
10k
10k
10k
10k
R121
R121
R122
R122
10k/0603
10k/0603
10k
10k
R1006 0/4R1006 0/4
C1405 X_C0.1u16XC1405 X_C0.1u16X
0402
C1390 X_C0.1u16XC1390 X_C0.1u16X
0402
100/4/1
100/4/1
R1004
R1004
R937 100/4/1R937 100/4/1
C1391 X_C0.1u16XC1391 X_C0.1u16X
(Not)
0402
11/20 modify
(Not)
R1010 0/4R1010 0/4
(Not)
C1399 X_22nf/16V/4C1399 X_22nf/16V/4
(Not)
38
3V3
R1001
R1001
4.7K/4
4.7K/4
28,39
I2C3_SDA_R
28,39
I2C3_SCL_R
PWM_OUT12
PWM_OUT34
PWM_OUT56
PWM_OUT78
PWM_SW_1
PWM_SW_2
PWM_SW_3
PWM_SW_4
PWM_SW_5
PWM_SW_6
PWM_SW_7
PWM_SW_8
VID7
VID6
VID5
VID4
VID3
VID2
VID1
VID0
5V
1K/0402
1K/0402
值
C1406
C1406
C1500p50X0402
C1500p50X0402
GND
R1005 X_2K/4R1005 X_2K/4
(Not)
GND
6208_FB_R
R974
R974
1.5K/0402
1.5K/0402
R129
R129
330/0402
330/0402
R988
R988
X_560R1%0402-RH
X_560R1%0402-RH
R976X_2K/4R976X_2K/4
R123
R123
(Not)
R978 0/4R978 0/4
(Not)
R997
R997
15KST/4
15KST/4
C1378
C1378
C470p50X0402
C470p50X0402
R999 0/4R999 0/4
R989X_2K/4R989X_2K/4
(Not)
5V
GND
PWM_OUT12
PWM_OUT34
PWM_OUT56
PWM_OUT78
PWM_SW_1
PWM_SW_2
PWM_SW_3
PWM_SW_4
PWM_SW_5
PWM_SW_6
PWM_SW_7
PWM_SW_8
20,21,32,40
HYBRID_PWR_EN
IN
11/19 modify pull high 3.3v
R982
R982
10.5K/0402
10.5K/0402
VTT=1.5K/12K=1.5V
VTT_ENABLE
C1408
C1408
0.1uf/16V/X7R/4
0.1uf/16V/X7R/4
28
NVVDD_PGOOD
IMON_R
GND
C1396
C1396
R1021 1K/4R1021 1K/4
IMAX_R
6208_VOUT
6208_TB
C1403 22nf/16V/4C1403 22nf/16V/4 C1393
X_0.01u/16V/4
X_0.01u/16V/4
(Not)
C1409
C1409
C10p25N0402-RH-3
C10p25N0402-RH-3
C1385
C1385
6208_COMP
C6800p16X0402
C6800p16X0402
6208_FB
R1020 0/4R1020 0/4
(Not)
C1410
X_0.01u/16V/4
C1410
X_0.01u/16V/4
R980 0/4R980 0/4
RT7 X_10K/6/1/NTCRT7 X_10K/6/1/NTC
R1018 2.2KR1%0402R1018 2.2KR1%0402
Closed CHOCK
(Not)
R962 X_2K/4R962 X_2K/4
(Not)
R975 X_2K/4R975 X_2K/4
6208_PSI#
6208_SDA
R944 0/4R944 0/4
6208_SCL
R995 0/4R995 0/4
R960 1R1%/6R960 1R1%/6
R977 1R1%/6R977 1R1%/6
R961 1R1%/6R961 1R1%/6
R1002 1R1%/6R1002 1R1%/6
R984 9.1KR1%0402R984 9.1KR1%0402
R1008 9.1KR1%0402R1008 9.1KR1%0402
R942 9.1KR1%0402R942 9.1KR1%0402
R983 9.1KR1%0402R983 9.1KR1%0402
R1019 9.1KR1%0402R1019 9.1KR1%0402
R1022 9.1KR1%0402R1022 9.1KR1%0402
R972 9.1KR1%0402R972 9.1KR1%0402
R985 9.1KR1%0402R985 9.1KR1%0402
(Not)
(Not)
VTT_ENABLE
U63
U63
53
VID7
54
VID6
55
VID5
56
VID4
57
VID3
58
VID2
59
VID1
60
VID0
61
VIDSEL
1
IMON
2
IMAX2
64
VOUT
63
TB
3
FBRTN
4
SS
7
COMP
8
FB
5
DACQ
6
EAP
9
OFS
62
PSI#
46
SDA
47
SCL
up6208
up6208
R1009 1K/4R1009 1K/4
C1411
0.1uF/16V/4
C1411
0.1uF/16V/4
C1392 C1u16X-RHC1392 C1u16X-RH
3V3
R998
R998
10K/0402
10K/0402
NVVDD_PGOOD
GND
HYBRID_PWR_EN
50EN51
52
VTT
CSUMN28CSUMP29IMAX130RT
C1407
C1407
R979
R979
0.01u/16V/4
0.01u/16V/4
2K/4
2K/4
R548
R548
0
0
0402
0402
COMMON
COMMON
5%
5%
(Not)
PWRGD
31
6208_RT
R990
R990
36KR1%0402-RH-1
36KR1%0402-RH-1
Fsw=200KHz
3V3
R516
R516
4.7K
4.7K
COMMON
COMMON
0402
0402
5%
5%
R996
R996
2.2R1%/6
2.2R1%/6
EN
11/19 modify
5V
R994
R994
1K/0402
1K/0402
GND
C1395
C1395
C0.1u16X
C0.1u16X
R992
R992
1K0/0402
1K0/0402
6208_ADDR
32
48
49
VCC
GND
ADDR
值
PWM1
PWM2
PWM3
PWM4
PWM5
PWM6
PWM7
PWM8
PWM9
PWMA
PWMB
PWMC
ISN12
ISN34
ISN56
ISN78
ISN9A
ISNBC
5V
GND
ISP1
ISP2
ISP3
ISP4
ISP5
ISP6
ISP7
ISP8
ISP9
ISPA
ISPB
ISPC
GND
45
44
43
42
41
40
39
38
37
36
35
34
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
33
PWM_1
PWM_2
PWM_3
PWM_4
PWM_5
PWM_6
PWM_7
PWM_8
R1012 3KR1%0402R1012 3KR1%0402
C1397
C1397
C1u16X-RH
C1u16X-RH
C1393
C1u16X-RH
C1u16X-RH
R993 3KR1%0402R993 3KR1%0402
C1377
C1377
C1u16X-RH
C1u16X-RH
C1402
C1402
C1u16X-RH
C1u16X-RH
R986 3KR1%0402R986 3KR1%0402
C1388
C1388
C1u16X-RH
C1u16X-RH
C1387
C1387
C1u16X-RH
C1u16X-RH
R1014 3KR1%0402R1014 3KR1%0402
C1398
C1398
C1u16X-RH
C1u16X-RH
C1394
C1394
C1u16X-RH
C1u16X-RH
R1000
R1000
4.7K/4
4.7K/4
GND
PWM_1
PWM_2
PWM_3
PWM_4
PWM_5
PWM_6
PWM_7
PWM_8
C1404 C0.1u16XC1404 C0.1u16X
PWM_OUT12
R991 3KR1%0402R991 3KR1%0402
C1401 C0.1u16XC1401 C0.1u16X
PWM_OUT34
R1007 3KR1%0402R1007 3KR1%0402
C1389 C0.1u16XC1389 C0.1u16X
PWM_OUT56
R1011 3KR1%0402R1011 3KR1%0402
C1386 C0.1u16XC1386 C0.1u16X
PWM_OUT78
R973 3KR1%0402R973 3KR1%0402
5V
PWM_SW_1
GND
PWM_SW_2
PWM_SW_3
GND
PWM_SW_4
PWM_SW_5
GND
PWM_SW_6
PWM_SW_7
GND
PWM_SW_8
2
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power Supply: NVVDD REGULATOR
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
ID
Custom
Custom
Custom
Date:
Date:
Date:
<Doc>
<Doc>
<Doc>
Wednesday, December 17, 2008
Wednesday, December 17, 2008
Wednesday, December 17, 2008
HFDBA
36 41
36 41
36 41
Sheet of
Sheet of
Sheet of
<RevCode>
<RevCode>
<RevCode>
Page 37
A B C D E F G H
Power Supply: NVVDD Phase 1,2 powered from external PEX 6PIN
12V_PEX6_F2
C195
C195
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
COMMON
C194
C194
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
COMMON
+
+
C229
C229
470UF_16V
470UF_16V
<P_esr>
<P_esr>
<P_mat>
<P_mat>
<Cfgdft>
<Cfgdft>
GND
R1023
R1023
2.2R/0805
2.2R/0805
C1416
C1416
C2200p50X0603
C2200p50X0603
GND
PWM_OUT12
R1024
R1024
2.2R/0805
2.2R/0805
C1413
C1413
C2200p50X0603
C2200p50X0603
12V_PEX6_F2
R1025
R1025
2.2R/0805
2.2R/0805
C1419
C1419
C2200p50X0603
C2200p50X0603
GND
12V_PEX6_F2
PWM_OUT34
R1026
R1026
2.2R/0805
2.2R/0805
C1414
C1414
C2200p50X0603
C2200p50X0603
GND
12V_PEX6_F2
L17
L17
CH-1.1u20A1.7m-RH
CH-1.1u20A1.7m-RH
1 2
SP2
SP2
X_Short PAD
X_Short PAD
PWM_SW_1
SP4
SP4
X_Short PAD
X_Short PAD
L18
L18
CH-1.1u20A1.7m-RH
CH-1.1u20A1.7m-RH
1 2
SP6
SP6
X_Short PAD
X_Short PAD
PWM_SW_2
L21
L21
CH-1.1u20A1.7m-RH
CH-1.1u20A1.7m-RH
1 2
SP9
SP9
X_Short PAD
X_Short PAD
PWM_SW_3
SP11
SP11
X_Short PAD
X_Short PAD
L23 CH-1.1u20A1.7m-RHL23 CH-1.1u20A1.7m-RH
1 2
SP13
SP13
X_Short PAD
X_Short PAD
PWM_SW_4
C128
C128
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
6.3V
6.3V
POSCAP
POSCAP
3.1A
3.1A
0.015R
0.015R
C_D_7343
C_D_7343
GND GND
C105
C105
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C131
C131
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
6.3V
6.3V
POSCAP
POSCAP
3.1A
3.1A
0.015R
0.015R
C_D_7343
C_D_7343
C134
C134
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
6.3V
6.3V
POSCAP
POSCAP
3.1A
3.1A
0.015R
0.015R
C_D_7343
C_D_7343
C107
C107
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
1
NVVDD
C135
C135
C130
C130
330UF
330UF
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
COMMON
COMMON
6.3V
6.3V
+/-20%
+/-20%
POSCAP
POSCAP
6.3V
6.3V
3.1A
3.1A
POSCAP
POSCAP
0.015R
0.015R
3.1A
3.1A
C_D_7343
C_D_7343
0.015R
0.015R
C_D_7343
C109
C109
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C133
C133
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
6.3V
6.3V
POSCAP
POSCAP
3.1A
3.1A
0.015R
0.015R
C_D_7343
C_D_7343
C140
C140
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
C172
C172
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
6.3V
6.3V
POSCAP
POSCAP
3.1A
3.1A
0.015R
0.015R
C_D_7343
C_D_7343
C_D_7343
GNDGNDGNDGNDGND
C141
C141
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
C173
C173
330UF
330UF
COMMON
COMMON
+/-20%
+/-20%
6.3V
6.3V
POSCAP
POSCAP
3.1A
3.1A
0.015R
0.015R
C_D_7343
C_D_7343
GND
GND
PWM_SW_1
PWM_SW_2
PWM_SW_3
PWM_SW_4
PWM_OUT12
PWM_OUT34
PWM_SW_1
PWM_SW_2
PWM_SW_3
PWM_SW_4
PWM_OUT12
PWM_OUT34
2
3
4
5
C197
C197
10UF
10UF
16V
16V
10%
5
5
123
5
5
10%
X5R
X5R
1206
1206
COMMON
COMMON
GND
C196
C196
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
COMMON
GND
GND
5
GND
GND
GND
1
D17
D17
INPUT_PEX6_IN2
2
INPUT_PEX6_IN2
3
INPUT_PEX6_IN2
4
INPUT_PEX6_IN2
BAT54C/SOT
BAT54C/SOT
D14
D14
BAT54C/SOT
BAT54C/SOT
0R/0603
0R/0603
D15
D15
BAT54C/SOT
BAT54C/SOT
0R/0603
0R/0603
D16
D16
BAT54C/SOT
BAT54C/SOT
R1510R/0603 R1510R/0603
R158
R158
R155
R155
PWM_1
PWM_2
GND
PWM_3
GND
PWM_4
R1570R/0603 R1570R/0603
GND
5
PM1_BOOT1
R208 0R/0402R208 0R/0402
NC
C162NCC162
C113
C113
1uF/16V/0603
1uF/16V/0603
PM2_BOOT2
R209 0R/0402R209 0R/0402
NC
C149NCC149
GND
C124
C124
1uF/16V/0603
1uF/16V/0603
R210 0R/0402R210 0R/0402
NC
C150NCC150
GND
C123
C123
1uF/16V/0603
1uF/16V/0603
PM4_BOOT4
R211 0R/0402R211 0R/0402
NC
C160NCC160
GND
C114
C114
1uF/16V/0603
1uF/16V/0603
5V
5V
PM3_BOOT3
5V
5V
R152
R152
0R/0805
0R/0805
R153
R153
0R/0805
0R/0805
1
2
3
4
1
2
3
4
R154
R154
0R/0805
0R/0805
R156
R156
0R/0805
0R/0805
1
2
3
4
1
2
3
4
U14
U14
uP6281
uP6281
U16
U16
uP6281
uP6281
BOOT1_RC
BST
IN
OD
VCC
BST
IN
OD
VCC
U15
U15
BST
IN
OD
VCC
uP6281
uP6281
U13
U13
BST
IN
OD
VCC
uP6281
uP6281
DRVH
PGND
DRVL
GND
9
BOOT2_RC
DRVH
PGND
DRVL
GND
9
GND
BOOT3_RC
GND
9
GND
BOOT4_RC
GND
9
GND
SW
SW
DRVH
PGND
DRVL
DRVH
PGND
DRVL
C110
C110
0.1uF
0.1uF
8
7
6
PM1_LG1
5
PM1_UG1
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
R90
R90
2.2/0603
2.2/0603
PM1_PHASE1
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
PM1_UG1_R
5
Q33
Q33
4
123
Q26
Q26
4
123
GND
C121
C121
0.1uF
0.1uF
8
7
6
GND
5
PM2_PHASE2
PM2_LG2
PM2_UG2
R98
R98
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM2_UG2_R
2.2/0603
2.2/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
5
Q34
Q34
4
123
5
Q27
Q27
4
123
GND GND
C117
C117
0.1uF
0.1uF
8
7
SW
6
GND
5
C129
C129
0.1uF
0.1uF
8
7
SW
6
GND
5
PM3_UG3
PM3_PHASE3
PM3_LG3
PM4_UG4
PM4_PHASE4
PM4_LG4
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM3_UG3_R
R95
R95
2.2/0603
2.2/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM4_UG4_R
R49
R49
2.2/0603
2.2/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
Q35
Q35
4
123
Q31
Q31
4
Q36
Q36
4
123
Q32
Q32
4
123
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power Supply: NVVDD Phase 1-2 of 4
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
37 41
37 41
37 41
<RevCode>
<RevCode>
<RevCode>
Page 38
A B C D E F G H
Power Supply: NVVDD Phase 5~8 powered from internal PEX edge connector
1
R164
D20
PWM_5
BAT54C/SOT
12V
BAT54C/SOT
R1650R/0603 R1650R/0603
2
12V
3
12V
D18
D18
BAT54C/SOT
BAT54C/SOT
0R/0603
0R/0603
D19
D19
BAT54C/SOT
BAT54C/SOT
R159
R159
GND
PWM_6
GND
PWM_7
R1630R/0603 R1630R/0603
D21
D21
BAT54C/SOT
BAT54C/SOT
GND
PWM_8
4
12V
R1660R/0603 R1660R/0603
5
GND
PM5_BOOT5
R215 0R/0402R215 0R/0402
NC
C170NCC170
GND
C137
C137
1uF/16V/0603
1uF/16V/0603
PM6_BOOT6
R212 0R/0402R212 0R/0402
NC
C169NCC169
GND
C138
C138
1uF/16V/0603
1uF/16V/0603
PM7_BOOT7
R213 0R/0402R213 0R/0402
NC
C171NCC171
GND
C144
C144
1uF/16V/0603
1uF/16V/0603
PM8_BOOT8
R214 0R/0402R214 0R/0402
NC
C167NCC167
GND
C145
C145
1uF/16V/0603
1uF/16V/0603
0R/0805
0R/0805
U17
U17
1
BST
2
IN
3
5V
OD
4
VCC
uP6281
uP6281
R161
R161
0R/0805
0R/0805
U20
U20
1
BST
2
IN
3
5V
OD
4
VCC
uP6281
uP6281
R160
R160
0R/0805
0R/0805
U18
U18
1
BST
2
IN
3
5V
OD
4
VCC
uP6281
uP6281
R162
R162
0R/0805
0R/0805
U19
U19
1
BST
2
IN
3
5V
OD
4
VCC
uP6281
uP6281
D20
R164
BOOT5_RC
GND
9
GND
BOOT6_RC
GND
9
GND
BOOT7_RC
GND
BOOT8_RC
GND
DRVH
PGND
DRVL
DRVH
PGND
DRVL
9
9
C125
C125
PM5_UG5
0.1uF
0.1uF
8
7
SW
6
GND
GND
GND
GND
PM5_LG5
PM6_UG6
PM6_PHASE6
PM7_LG7
PM8_LG8
5
C122
C122
0.1uF
0.1uF
8
7
SW
6
5
C139
C139
0.1uF
0.1uF
8
DRVH
7
SW
6
PGND
5
DRVL
GND
C136
C136
0.1uF
0.1uF
8
DRVH
7
SW
6
PGND
5
DRVL
GND
R94
R94
2.2/0603
2.2/0603
PM5_PHASE5
R93
R93
PM5_LG6
PM7_UG7
PM7_PHASE7
PM8_UG8
PM8_PHASE8
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM5_UG5_R
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM6_UG6_R
2.2/0603
2.2/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM7_UG7_R
R96
R96
2.2/0603
2.2/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
N-NTMFS4841NHT1G_SO8-RH
PM8_UG8_R
R97
R97
2.2/0603
2.2/0603
N-NTMFS4837NHT1G_SO8-RH
N-NTMFS4837NHT1G_SO8-RH
11/19 modify 12V_bus
+
+
12V_F
R1027
R1027
2.2R/0805
2.2R/0805
C1417
C1417
C2200p50X0603
C2200p50X0603
GND
12V_F
R1029
R1029
2.2R/0805
2.2R/0805
C1418
C1418
C2200p50X0603
C2200p50X0603
GND
12V_F
R1030
R1030
2.2R/0805
2.2R/0805
C1412
C1412
C2200p50X00603
C2200p50X00603
GND
C230
C230
470UF_16V
470UF_16V
<P_esr>
<P_esr>
<P_mat>
<P_mat>
<Cfgdft>
<Cfgdft>
GND
R1028
R1028
2.2R/0805
2.2R/0805
C1415
C1415
C2200p50X0603
C2200p50X0603
GND
PWM_OUT56
PWM_OUT78
12V_F
L19 CH-1.1u20A1.7m-RHL19 CH-1.1u20A1.7m-RH
X_Short PAD
X_Short PAD
PWM_SW_5
L20 CH-1.1u20A1.7m-RHL20 CH-1.1u20A1.7m-RH
X_Short PAD
X_Short PAD
PWM_SW_6
L24 CH-1.1u20A1.7m-RHL24 CH-1.1u20A1.7m-RH
X_Short PAD
X_Short PAD
PWM_SW_7
L22 CH-1.1u20A1.7m-RHL22 CH-1.1u20A1.7m-RH
X_Short PAD
X_Short PAD
PWM_SW_8
SP5
SP5
SP10
SP10
1 2
SP3
SP3
X_Short PAD
X_Short PAD
1 2
SP7
SP7
1 2
SP8
SP8
X_Short PAD
X_Short PAD
1 2
SP12
SP12
C102
C102
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND GND
C111
C111
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
NVVDD
C103
C103
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
C104
C104
C146
C146
10UF
10UF
10UF
10UF
6.3V
6.3V
6.3V
6.3V
20%
20%
20%
20%
X5R
X5R
X5R
X5R
0805
0805
0805
0805
COMMON
COMMON
COMMON
COMMON
GND GND GND
PWM_SW_5
PWM_SW_6
PWM_SW_7
PWM_SW_8
PWM_OUT56
PWM_OUT78
C174
C174
10UF
10UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
PWM_SW_5
PWM_SW_6
PWM_SW_7
PWM_SW_8
PWM_OUT56
PWM_OUT78
1
2
3
4
5
C201
C201
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
5
Q37
Q37
4
COMMON
GND
123
5
Q40
Q40
4
123
GND
C200
C200
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
5
Q41
Q41
4
COMMON
GND
123
5
Q42
Q42
4
123
GND
C199
C199
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
5
Q43
Q43
4
COMMON
GND
123
5
Q44
Q44
4
123
GND
C198
C198
10UF
10UF
16V
16V
10%
10%
X5R
X5R
1206
1206
COMMON
5
Q45
Q45
4
COMMON
GND
123
5
Q46
Q46
4
123
GND
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power Supply: NVVDD Phase 3-4 of 4
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
38 41
38 41
38 41
<RevCode>
<RevCode>
<RevCode>
Page 39
A B C D E F G H
Power Supply: NVVDD power control
1
2
NVVDD & FBVDDQ SENSE/MSUR
G1U
G1U
BGA_2236_P080_P100_450X450
BGA_2236_P080_P100_450X450
COMMON
COMMON
16/21 POWER SENSE
16/21 POWER SENSE
NVVDD_SENSE
NVVDD_GND_SENSE
FBVDDQ_SENSE
FBVDDQ_GND_SENSE
FBVDDQ_GND_MSUR
FBVDDQ_MSUR
NVVDD_GND_MSUR
3
NVVDD_MSUR
THERM_LD_STEP0
THERM_LD_STEP1
AJ26
AJ25
AP43
AN43
AP13
AN13
AE25
AE26
BG41
BE40
10MIL 1.1V
NVVDD_SENSE
10MIL 0V
NVVDD_SENSE_GND
2.05V10MIL
FBVDDQ_SENSE
10MIL 0V
FBVDDQ_SENSE_GND
FBVDDQ_MSUR_GND
FBVDDQ_MSUR
NVVDD_MSUR_GND
NVVDD_MSUR
THERM_LD_STEP0
THERM_LD_STEP1
10MIL 0V
割斷software控制電壓
R148
R148
10K
10K
5%
5%
0402
0402
COMMON
COMMON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
36
Power Wattage Monitor
U21
U21
VID0/GPIO1
TEMP_FAULT#/GPIO14
VID1/GPIO2
FAN_FAULT#/GPIO13
VID2/GPIO3
VOLTAGE_FAULT#/GPIO12
VID3/GPIO4
VID4/GPIO5
SCL
SDA
PWM/DC_OUT2/GPIO9
VCC
ADDR/GPO6
FAN_SET/GPO7
FANIN1
FANIN2/GPIO8
VTIN2
VTIN1
IMON_R
PWM/DC_OUT1
GPIO11/VIN2
GPIO10/VIN1
VREF
VRam_SEN
VCore_SEN
W83L786G
W83L786G
R144
R144
0R
0R
5%
5%
0402
0402
COMMON
COMMON
GND
28
27
26
25
INT#
24
23
22
21
20
GND
19
18
17
16
D+
15
D-
I2C Slave Address select circuit
R169
R169
10K
10K
0402
0402
5%
5%
COMMON
COMMON
R170
R170
10K
10K
0402
0402
5%
5%
COMMON
COMMON
Address 0X5EH
Address 0X5CH
(Not)
ADDR
ADDR
3V3
GND
3V3
28
I2C3_SCL_R
28
12V_PEX6_F1
C1421
C1421
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
29
FAN_TACH_R
12/8 add Reconnoiter fan rotational speed to reconnoiter
I2C3_SDA_R
D22
D22
IN4148
13
R138
R138
?
?
COMMON
COMMON
27K
27K
75V
75V
SOT23
SOT23
(Not)
R91
R91
4.7K
4.7K
?
?
0402
0402
COMMON
COMMON
(Not)
FAN_TACH_R
/0R
?
?
0402
0402
COMMON
COMMON
R171
R171
10K
10K
5%
5%
0402
0402
COMMON
COMMON
GND GND
R172
R172
10K
10K
5%
5%
0402
0402
COMMON
COMMON
FANIN1
GND GND
R147
R147
10K
10K
5%
5%
0402
0402
COMMON
COMMON
ADDR
V1
R145
R145
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
36
OUT
36
OUT
35
OUT
35
OUT
1
TP517TP517
2.05V10MIL
1
TP514TP514
0V10MIL
1
TP507TP507
1.1V10MIL
1
TP506TP506
39
OUT
39
OUT
(Not)
GND
NVVDD CURRENT
GPIO改為GPIN
SP14
SP14
X_Short PAD
X_Short PAD
V1
V3
V2
R167
R167
10K
10K
5%
5%
0402
0402
COMMON
COMMON
GND GND
3V3
GPIO 要用software 設為GPIO OUT,避免耗損電流
R173
R173
3V3
4.7K
4.7K
5%
5%
0402
0402
COMMON
COMMON
R146
R146
4.7K
4.7K
5%
5%
0402
0402
COMMON
COMMON
GND
R168
R168
10K
10K
5%
5%
0402
0402
COMMON
COMMON
NVVDD
R140
R140
0R
0R
5%
5%
0402
0402
COMMON
COMMON
R141
R141
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
(Not)
GND
NVVDD Voltage
1.18V 2V
1
C142
C142
4.7UF
4.7UF
10V
10V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
GND
FBVDDQ
R142
R142
0R
0R
5%
5%
0402
0402
COMMON
V2
COMMON
V3
R143
R143
2.2K
2.2K
5%
5%
0402
0402
COMMON
COMMON
(Not)
GND
2
FBVVDQ Voltage
3
POWER CONTROL 1 CIRCUITRY
RESISTORS AND CAPS ARE ALL PLACEHOLDERS
BASED ON VALUES DETERMINED BY JLOO 11/26/07
C783
3300PF
C783
THERM_LD_STEP1_PC1_A
R710
4.99K
R710
39
THERM_LD_STEP1
IN
4.99K
COMMON
0402
COMMON
0402
1%
1%
(Not)
4
POWER CONTROL 0 CIRCUITRY
RESISTORS AND CAPS ARE ALL PLACEHOLDERS
BASED ON VALUES DETERMINED BY JLOO 11/26/07
R713
4.99K
R713
39
THERM_LD_STEP0
IN
4.99K
COMMON
0402
COMMON
0402
1%
1%
(Not)
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
GND
THERM_LD_STEP0_PC0_A
GND
R707
R707
1K
1K
5%
5%
0402
0402
COMMON
COMMON
R716
R716
1K
1K
5%
5%
0402
0402
COMMON
COMMON
(Not)
3300PF
THERM_LD_STEP1_PC1_B
0402
0402
50V
50V
10%
10%
X7R
X7R
COMMON
COMMON
(Not)
CTL1 ASSERTS HIGH WHEN THERE IS A JUMP IN CURRENT DRAW
C784
3300PFC784
3300PF
THERM_LD_STEP0_PC0_B THERM_LD_STEP0_PC0_C
0402
0402
50V
50V
10%
10%
X7R
X7R
COMMON
COMMON
(Not)
1V15
R711
R711
1.5K
1.5K
5%
5%
0402
0402
COMMON
COMMON
R708
(Not)
R709
R709
768
768
1%
1%
0402
0402
COMMON
COMMON
(Not)
1V15
R717
R717
1.5K
1.5K
5%
5%
0402
0402
COMMON
COMMON
R714
R714
(Not)
0402
0402
R715
R715
768
768
1%
1%
0402
0402
COMMON
COMMON
(Not)
CTL0 ASSERTS HIGH WHEN THERE IS A JUMP IN CURRENT DRAW
C GE
1B1C1E
1B1C1E
THERM_LD_STEP1_PC1_C
3.3KR708
3.3K
COMMON0402
COMMON0402
5%
5%
(Not) (Not)
3.3K
3.3K
COMMON
COMMON
5%
5%
(Not)
C
B
1
E
1B1C1E
1B1C1E
C
B
1
E
THERM_LD_STEP1_PC1_Q
3
Q515
Q515
MMBT2222A
SOT23
SOT23
COMMON
COMMON
2
THERM_LD_STEP0_PC0_Q
3
Q516
Q516
MMBT2222A
SOT23
SOT23
COMMON
COMMON
2
(Not)
R704
R704
45.3K
45.3K
1%
1%
0402
0402
COMMON
COMMON
(Not) (Not)
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
R703
R703
45.3K
45.3K
1%
1%
0402
0402
COMMON
COMMON
NVVDD & FBVDDQ SENSE/MSUR
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
39 41
39 41
39 41
4
5
<RevCode>
<RevCode>
<RevCode>
www.vinafix.vn
Page 40
A B C D E F G H
Power: Input Rail Filter and Detection Logic
Connector Power State Table
1
2x3 Connector
Connected
Connected
Not Connected
Not Connected
2x3 Connector
Connected
Not Connected
Connected
Not Connected
STATE
Power
Full Perf
225W
Board Off
150W
Board Off
150W
Board Off
75W
1
PEX 3V3 INPUT - 10W
PEX_12V INPUT - 66W
12V
C119
C119
C118
C118
.01UF
.01UF
.1UF
.1UF
16V
16V
25V
2
PEX6 INPUT 1 - 2x3 PCIE CON 75W
MUST BE ATTACHED AND POWERED TO START BOARD
3
PEX6 INPUT 2 - 2x3 PCIE CON 75W
MUST BE ATTACHED AND POWERED TO START BOARD
4
5
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
J8
J8
MALE
MALE
4.2MM
4.2MM
90
90
CON_PWR_002X003_TH_RA_M_PI165
CON_PWR_002X003_TH_RA_M_PI165
COMMON
COMMON
PCI_Express Power
PCI_Express Power
PRSNT*
4
6
GND
GND
GND
J6
J6
MALE
MALE
4.2MM
4.2MM
90
90
CON_PWR_002X003_TH_RA_M_PI165
CON_PWR_002X003_TH_RA_M_PI165
COMMON
COMMON
PCI_Express Power
PCI_Express Power
PRSNT*
4
6
GND
GND
GND
25V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
12V
1
12V
2
12V
3
5
12V
1
12V
2
12V
3
5
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<MAX_CURRENT>
<MAX_CURRENT>
<DC_RESISTANCE>
<DC_RESISTANCE>
L12
L12
CHK_D2_P3_5
CHK_D2_P3_5
C120
C120
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
1.2UH
1.2UH
COMMON
COMMON
<NV_SOURCE_POWER_NET>
12V16MIL 6.25A
INPUT_PEX6_IN1
10MIL
INPUT_PEX6_DT1*
3V3
D501
D501
100MA
100MA
100V
100V
SOT23
SOT23
COMMON
COMMON
1 2
GND
16MIL 6.25A
<NV_SOURCE_POWER_NET>
INPUT_PEX6_IN2
12V
10MIL
INPUT_PEX6_DT2*
D504
D504
100MA
100MA
100V
100V
SOT23
SOT23
COMMON
COMMON
3
3V3
GND
12V
6.25A
16MIL
3
1 2
3V3
R505
R505
10K
10K
5%
5%
0402
0402
COMMON
COMMON
INPUT_PEX6_IN2
3V3
R570
R570
10K
10K
5%
5%
0402
0402
COMMON
COMMON
C166
C166
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
C152
C152
.01UF
.01UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
12V_F
GND
C127
C127
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
Additional input filtering and Cin
moved to respective PS sheets
C165
C165
.1UF
.1UF
25V
25V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
C151
C151
.1UF
.1UF
25V
25V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<MAX_CURRENT>
<MAX_CURRENT>
<DC_RESISTANCE>
<DC_RESISTANCE>
C163
C163
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
C147
C147
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
CHK_D2_P3_5
CHK_D2_P3_5
L13
L13
CHK_D2_P3_5
CHK_D2_P3_5
C50
C50
22UF
22UF
6.3V
6.3V
20%
20%
X5R
X5R
0805
0805
COMMON
COMMON
3.3V
3A
16MIL
C47
C47
100UF
100UF
COMMON
COMMON
20%
20%
6.3V
6.3V
POSCAP
POSCAP
0.99A
0.99A
70MR
70MR
CAP_SMD_3528
CAP_SMD_3528
3V3_F
2
20,21,32,36
IN
HYBRID_PWR_EN
3V3
12V
R867
R867
10K
3V3
R875
R875
10K
10K
5%
5%
1G1D1S
1G1D1S
0402
0402
COMMON
COMMON
1G1D1S
1G1D1S
HYBRID_3V3_EN*
3
D
Q529
Q529
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
10K
5%
5%
0402
0402
COMMON
COMMON
HYBRID_3V3_EN
3
D
Q526
Q526
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
AO6408
SOT23_6
SOT23_6
1D2
5
6
Q522
Q522
G
3
1G4D1S
1G4D1S
C1224
C1224
.1UF
.1UF
16V
16V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
GND
COMMON
COMMON
3.3V
3A
3V3_Q
20MIL
4
<R_DS_ON>
<R_DS_ON>
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_CURRENT>
<MAX_WATTAGE>
S
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
GND GND GND
C1214
C1214
.1UF
.1UF
6.3V
6.3V
10%
10%
X7R
X7R
0402
0402
COMMON
COMMON
L6 1uH
L6 1uH
IND_NONRKO_SMD_076X076COMMON
IND_NONRKO_SMD_076X076COMMON
Summary PEX input present
3V3
R522
R522
10K
10K
5%
5%
0402
0402
COMMON
12V_PEX6_F1
12V
COMMON
COMMON
6.25A
1.2UH
1.2UH
16MIL
12V_PEX6_F2
12V
6.25A
1.2UH
1.2UH
16MIL
L15
L15
COMMON
COMMON
Additional input filtering and Cin
moved to respective PS sheets
C157
C157
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
1G1D1S
C503
C503
.1UF
.1UF
25V
25V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
1G1D1S
1G1D1S
1G1D1S
GND
Additional input filtering and Cin
moved to respective PS sheets
C143
C143
10UF
10UF
16V
16V
20%
20%
X5R
X5R
1206
1206
COMMON
COMMON
GND
R568
511R568
511
COMMON
0402
COMMON
0402
5%
5%
R507
511
R507
511
COMMON
COMMON
0402
0402
5%
5%
10MIL
INPUT_PEX6_DT2_R*
C529
C529
.1UF
.1UF
25V
25V
10%
10%
X7R
X7R
0603
0603
COMMON
COMMON
GND
10MIL
INPUT_PEX6_DT1_R*
GND
INPUT_PEX6_DT1
3
D
Q505
Q505
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
INPUT_PEX6_DT2
3
D
Q512
Q512
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
3V3
R558
R558
10K
10K
5%
5%
0402
0402
COMMON
COMMON
3V3
R537
R537
10K
10K
5%
5%
0402
0402
COMMON
COMMON
1G1D1S
1G1D1S
3
D
Q510
Q510
2N7002
SOT23
SOT23
G
1
COMMON
COMMON
S
<MAX_VOLTAGE>
<MAX_VOLTAGE>
2
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
3V3
R557
3V3
R556
R556
10K
10K
5%
5%
0402
0402
COMMON
COMMON
R557
10K
10K
5%
5%
0402
0402
COMMON
COMMON
D
Q509
Q509
SOT23
SOT23
COMMON
COMMON
S
GND
3
2N7002
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
INPUT_PEX6_DT2_PRSNT
1G1D1S
1G1D1S
G
1
1G1D1S
1G1D1S
G
1
INPUT_PEX_PRSNT*
COMMON
INPUT_PEX_PRSNT
3
D
Q508
Q508
2N7002
SOT23
SOT23
COMMON
COMMON
S
2
<MAX_VOLTAGE>
<MAX_VOLTAGE>
<CONTINUOUS_CURRENT>
<CONTINUOUS_CURRENT>
<R_DS_ON>
<R_DS_ON>
<MAX_CURRENT>
<MAX_CURRENT>
<MAX_WATTAGE>
<MAX_WATTAGE>
GND
C509
C509
1UF
1UF
16V
16V
10%
10%
X5R
X5R
0603
0603
COMMON
COMMON
GND
32
OUT
3
4
5
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
C GE
PAGE DETAIL
www.vinafix.vn
Power: Input Rail Filter and Detection Logic
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
40 41
40 41
40 41
<RevCode>
<RevCode>
<RevCode>
Page 41
A B C D E F G H
Thermal/Mechanical/ID
EMI Gnd Clips
1
2
3
Bracket and Assembly
GPU Socket
BGA SOCKET ASSY
BGA SOCKET ASSY
8 connected mounting pins
8 connected mounting pins
1234567
GND
GPU Stiffener
BOARD STIFFENER
BOARD STIFFENER
7 connected mounting pins
7 connected mounting pins
1234567
GND
MEC1
MEC1
MEC_SCREW_PH1
MEC_SCREW_PH1
COMMON
COMMON
MEC502
MEC502
MEC_SCREW_HEX_JACK
MEC_SCREW_HEX_JACK
COMMON
COMMON
MEC503
MEC503
MEC_SCREW_HEX_JACK
MEC_SCREW_HEX_JACK
COMMON
COMMON
MEC501
MEC501
MEC_SCREW_HEX_JACK
MEC_SCREW_HEX_JACK
COMMON
COMMON
MEC504
MEC504
MEC_SCREW_HEX_JACK
MEC_SCREW_HEX_JACK
COMMON
COMMON
MEC13
MEC13
SKT_BGA_POGO_450X450_P010_HS
SKT_BGA_POGO_450X450_P010_HS
COMMON
8
COMMON
MEC12
MEC12
HSN_SAV_GT200GPU_T_ST_1
HSN_SAV_GT200GPU_T_ST_1
COMMON
COMMON
GND
THERMAL/MECHANICAL HOLES
1
1
MEC5
MEC5
EMIPAD_025X041
EMIPAD_025X041
COMMON
COMMON
4.0MM
4.0MM
EMI CLIP
EMI CLIP
GND
MEC9
MEC9
EMIPAD_025X041
EMIPAD_025X041
COMMON
COMMON
4.0MM
4.0MM
EMI CLIP
EMI CLIP
GND
Top Side Clips
FM1
FM1
1
SW_FB
SW_FB
MEC16
MEC16
EMIPAD_025X041
EMIPAD_025X041
COMMON
COMMON
4.0MM
4.0MM
EMI CLIP
EMI CLIP
X_PIN1*2
X_PIN1*2
電源量測點
X_PIN1*2
X_PIN1*2
X_PIN1*2
X_PIN1*2
X_PIN1*2
X_PIN1*2
FBVDDQ
R508
R508
10
10
5%
5%
0402
0402
COMMON
COMMON
J14
J14
J15
J15
X_PIN1*2
X_PIN1*2
GND
PCB
J17
J17
J16
J16
PCB
V180-0A
V180-0A
PCB
PCB
NVVDD
R506
R506
10
10
5%
5%
0402
0402
COMMON
COMMON
GND
J12
J12
1
GND
GND
J11
J11
FM5
FM2
FM2
FM3
FM3
SW_FB
SW_FB
SW_FB
FM4
FM4
SW_FB
SW_FB
SW_FB
1
FM6
FM6
SW_FB
SW_FB
1
1
1
FM5
SW_FB
SW_FB
1
341
2
impedence
impedence
GND GND GND GND
1
2
3
GND
MEC10
MEC10
MEC_THM_HOLE_141C_B355C98P
MEC_THM_HOLE_141C_B355C98P
COMMON
COMMON
1
MEC14
MEC14
MEC_THM_HOLE_141C_B355C98P
MEC_THM_HOLE_141C_B355C98P
COMMON
COMMON
1
MEC1
MEC18
MEC18
H_NR162D120
H_NR162D120
COMMON
COMMON
MEC3
4
NVIOx Socket
GND
BGA SOCKET ASSY
BGA SOCKET ASSY
4 connected mounting pins
4 connected mounting pins
123
4
MEC6
MEC6
SKT_BGA_POGO_230X230
SKT_BGA_POGO_230X230
COMMON
COMMON
Hockey Stick Retention Mechanism
MEC2
SPECIAL MECHANIC
SPECIAL MECHANIC
No connected mounting pins
No connected mounting pins
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS OR INFORMATION (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'. THE MATERIALS MAY
CONTAIN KNOWN AND UNKNOWN VIOLATIONS OR DEVIATIONS OF INDUSTRY STANDARDS AND SPECIFICATIONS. NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS OR OTHERWISE, AND EXPRESSLY DISCLAIMS ALL
IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF DESIGN, OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, TRADE USAGE, TRADE PRACTICE, OR INDUSTRY STANDARDS.
MEC2
MECH_PEX_BREAKOFF_RETENTION_P651
MECH_PEX_BREAKOFF_RETENTION_P651
COMMON
COMMON
C GE
MEC3
MEC_THM_HOLE_141C_B355C125P_MOD
MEC_THM_HOLE_141C_B355C125P_MOD
COMMON
COMMON
1
MEC4
MEC4
MEC_THM_HOLE_141C_B355C125P_MOD
MEC_THM_HOLE_141C_B355C125P_MOD
COMMON
COMMON
1
GND
www.vinafix.vn
MEC7
MEC7
MEC_THM_HOLE_141C_B355C125P
MEC_THM_HOLE_141C_B355C125P
COMMON
COMMON
1
MEC8
MEC8
MEC_THM_HOLE_141C_B355C125P
MEC_THM_HOLE_141C_B355C125P
COMMON
COMMON
1
GND
ASSEMBLY BASE LEVEL GENERIC SCHEMATIC ONLY, COMMON & NO_STUFF ASSEMBLY NOTES AND BOM NOT FINAL
PAGE DETAIL
Thermal/Mechanical
MEC11
MEC11
MEC_THM_HOLE_141C_B355C98P
MEC_THM_HOLE_141C_B355C98P
COMMON
COMMON
1
GND GND GND
MEC15
MEC15
MEC_THM_HOLE_141C_B355C98P
MEC_THM_HOLE_141C_B355C98P
COMMON
COMMON
1
MEC1
MEC19
MEC19
H_NR162D120
H_NR162D120
COMMON
COMMON
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
Micro-Star International Co., LTD.
<Title>
<Title>
<Title>
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
<Doc>
Custom
<Doc>
Custom
<Doc>
Custom
Date:
Date:
Date:
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Tuesday, December 16, 2008
Sheet of
Sheet of
Sheet of
HFDBA
41 41
41 41
41 41
4
5
<RevCode>
<RevCode>
<RevCode>
Loading...
