MS-V080 -- G72 7300GS, 128/256 MB 64bit DDR2-84pin, DVI-I,HDMI
P381: G72, DDR2 MEMORY 16Mx16
Page 1: P381 Overview
Page 2: PCI Express Interface
Page 3: Frame Buffer Interface
Page 4: Memory 1st bank 0..31
Page 5: Memory 1st bank 32..63

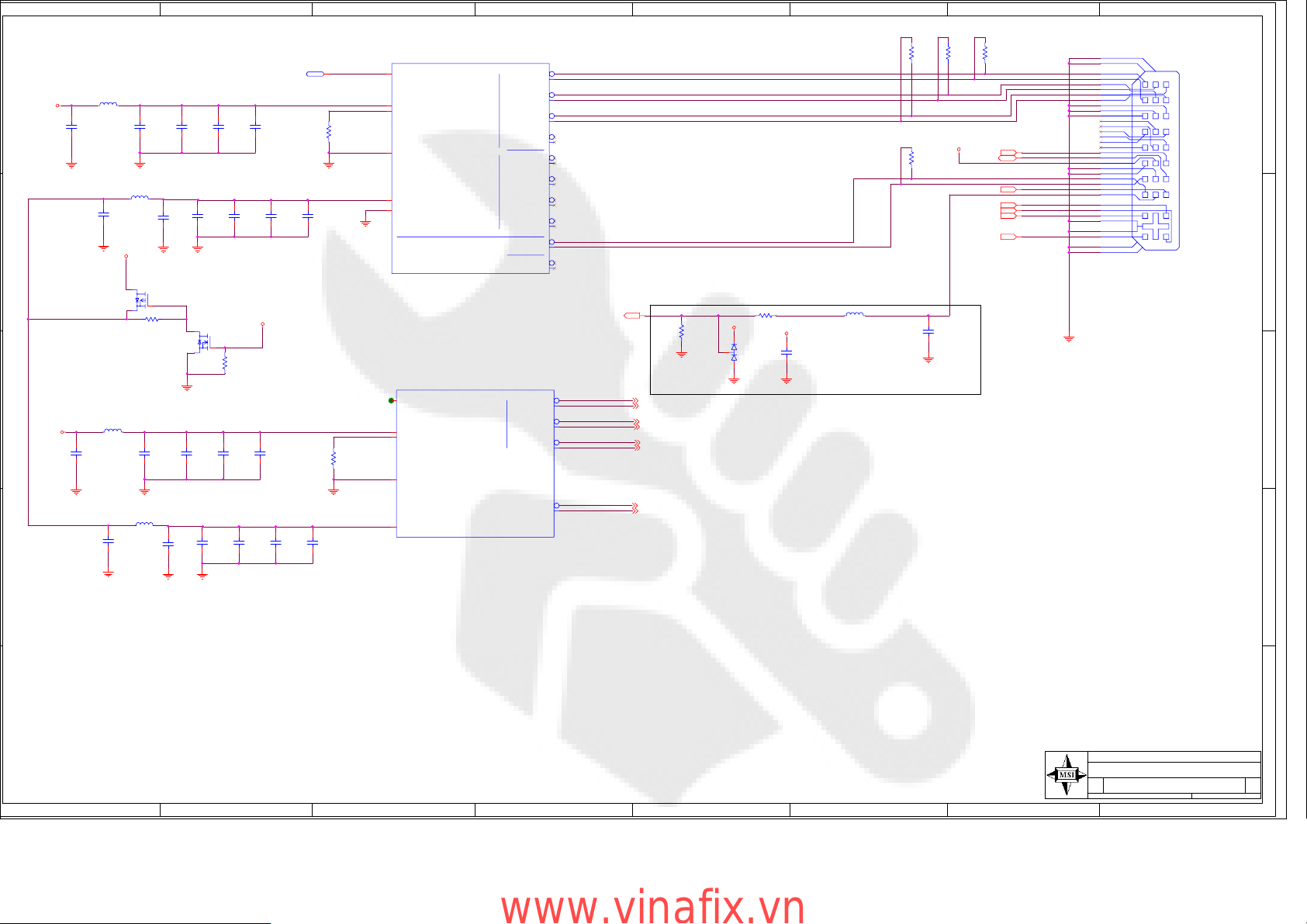

Page 6: DAC-A, DB15 Connector
Page 7: DACB
Page 8: TMDS Interface
Page 9: MIOA, MIOB Interface, LPC-ROM
Page 10: STRAPS, Mechanical Parts

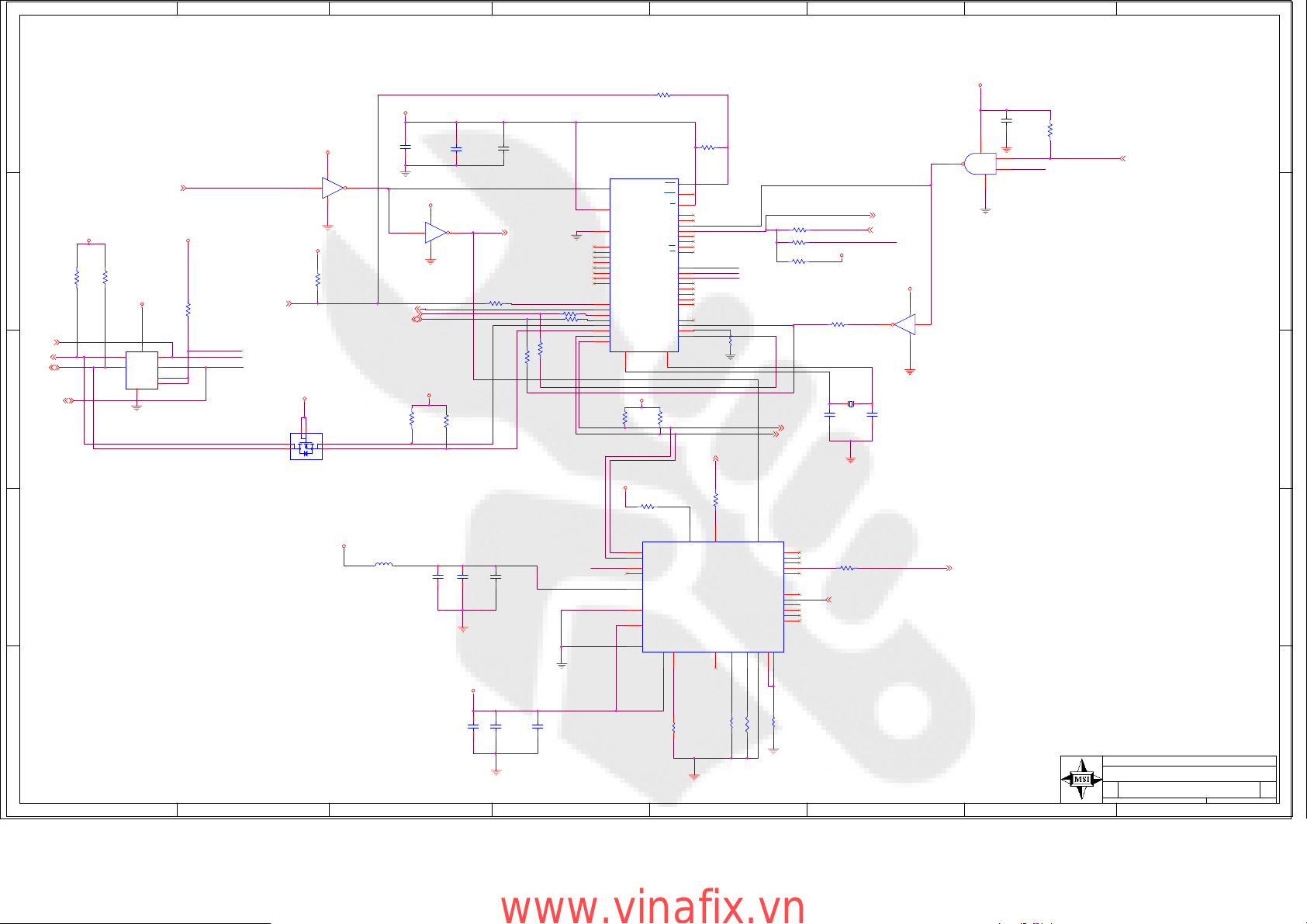

Page 11: XTAL, GPIO, BIOS, FAN, SPIDF IN

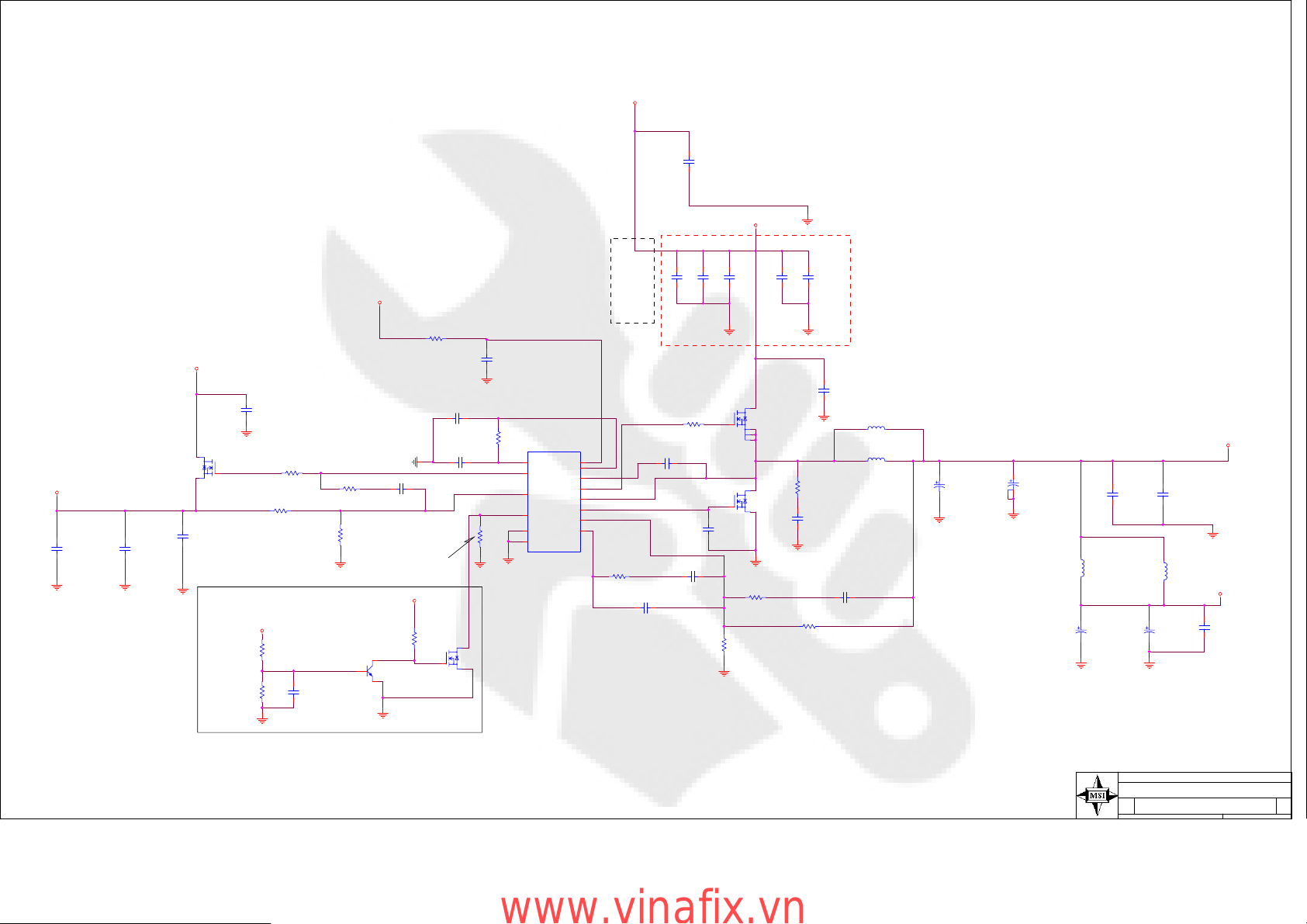

Page 12: PowerSupplyI: NVVDD, A3V3

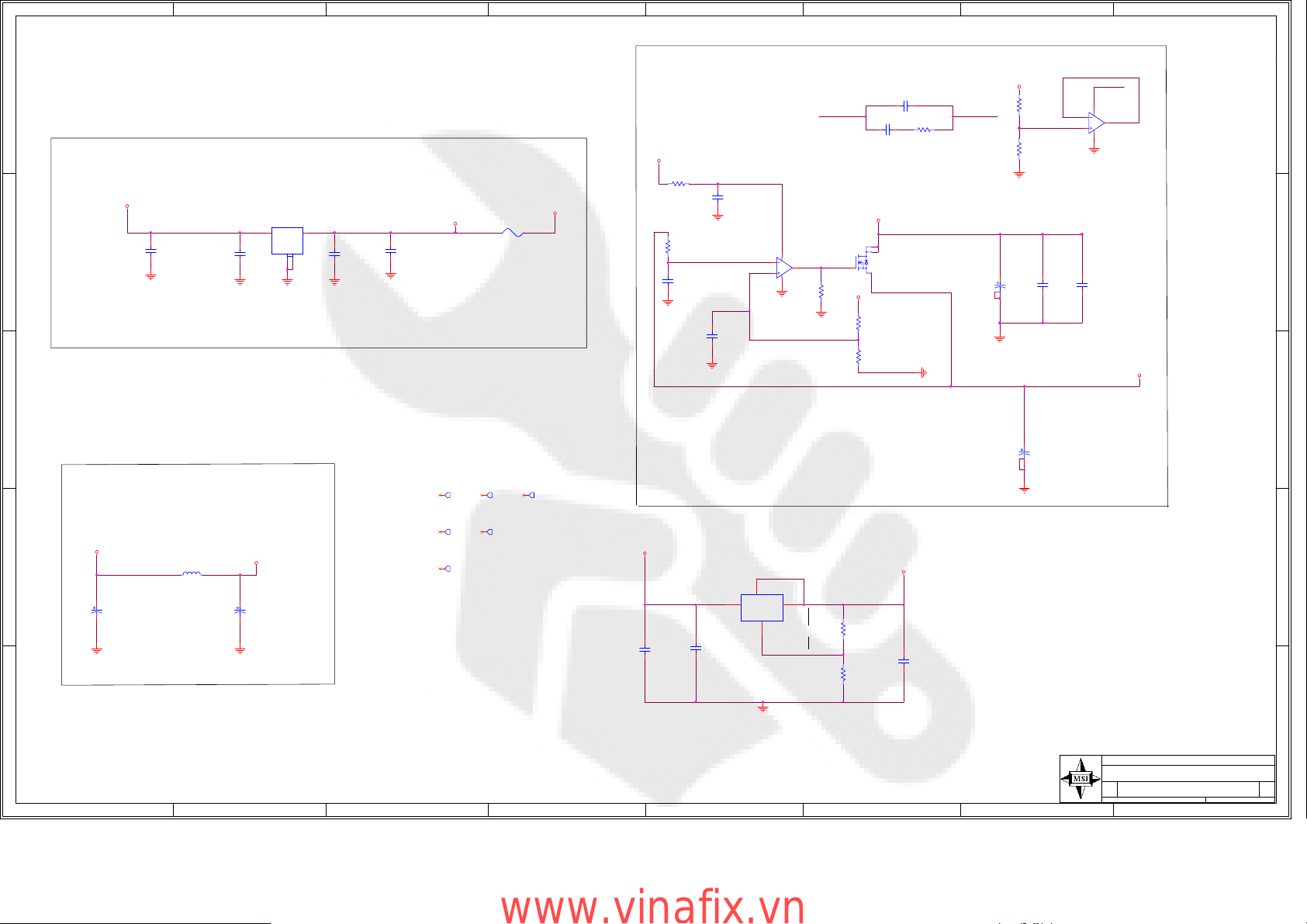

Page 13: PowerSupplyII: 5V, DDC5V, F3V3, TMDS_PLLVDD
Page 14: EXTERNAL HDMI LINK SII1930
Page 15: Micro Controller & AudioDAC
Base on P381_ A04 (V056-V3.0)modify
Page8, removed mini-din 4pin. add mini-din 7pin support HDTV
Page 13: PowerSupplyI: NVVDD, A3V3 add mlcc 10U/16V 1206 5pcs
remove L5 L6 R 7 R 8 R9 ,D9
Page 9: ADD R593,R594,R595預留 ,R596 FOR EMI
Page 14: ADD R655,R656,R657,預留 R658 FOR EMI
Page 12: Remove C8 EL Cap and change Q1 MOSFET package to T0252
www.vinafix.vn
Micro-Star International Co., LTD.
<Title>
Size Document Number Rev
Custom
Date:

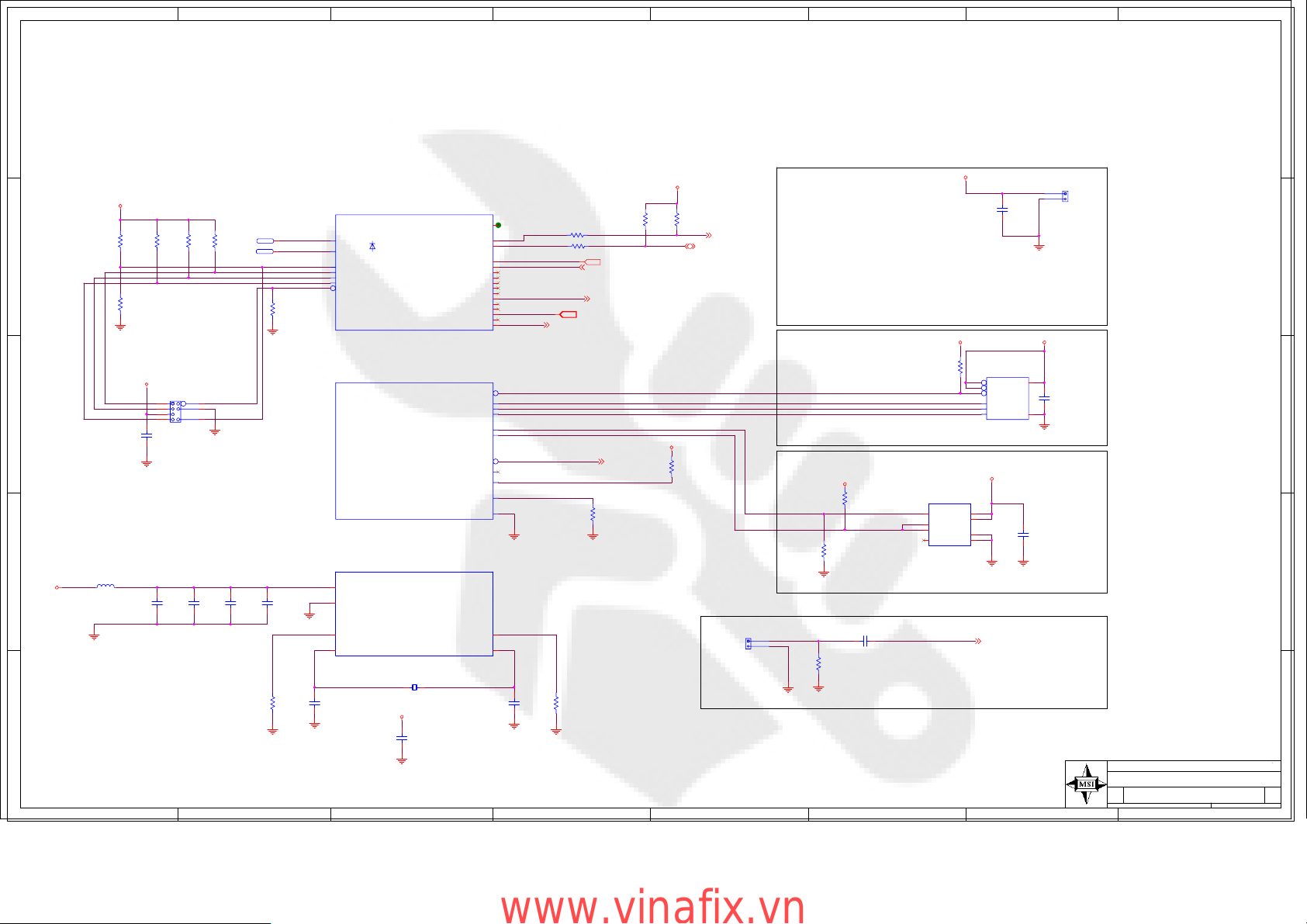

Over view
<Doc>
Tuesday, September 05, 2006
MS-V080
115
Sheet of
0A
HGFEDCBA
G1A
BGA_0533_P080_230X230_G3_064B

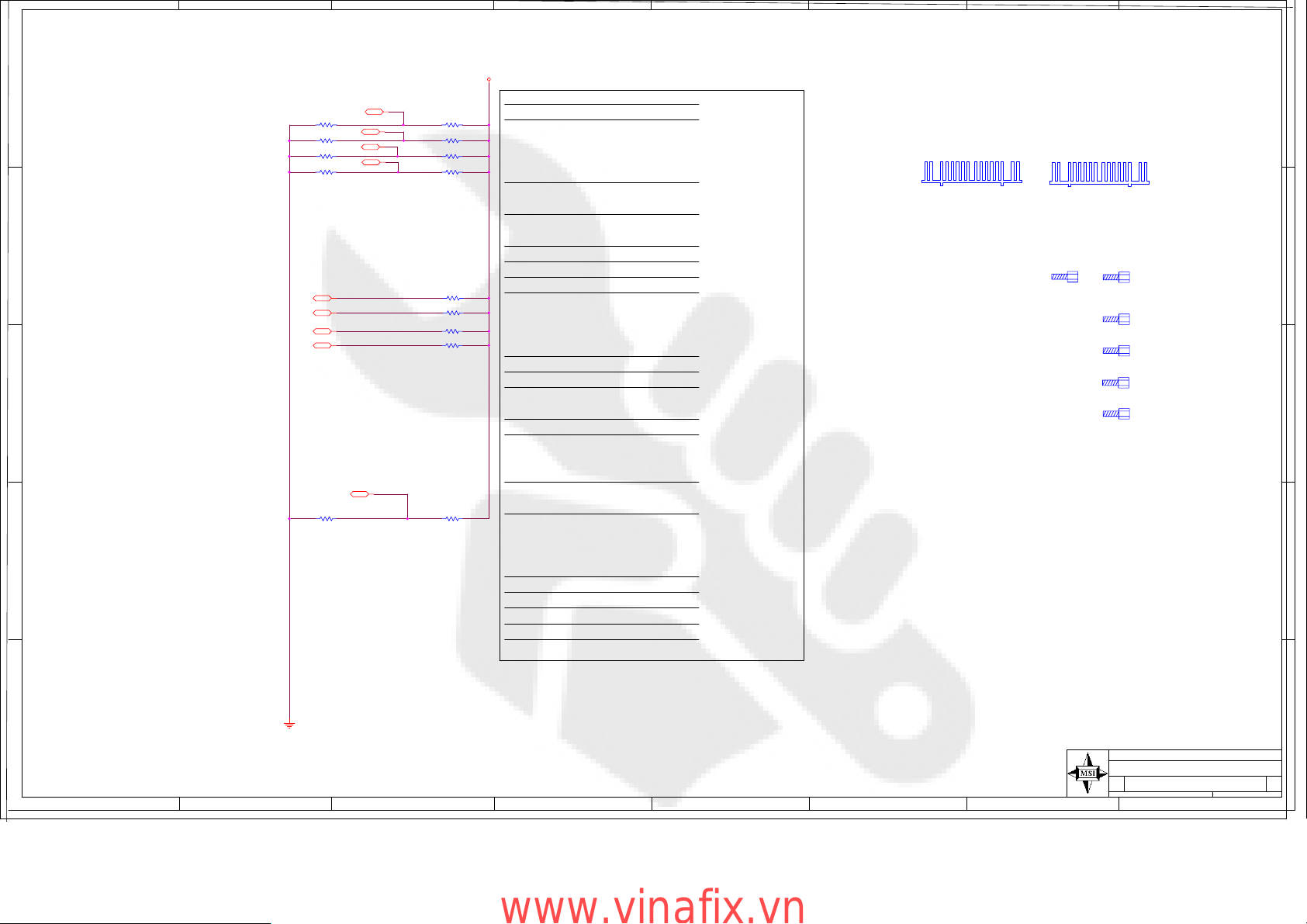

PEX-Interface
