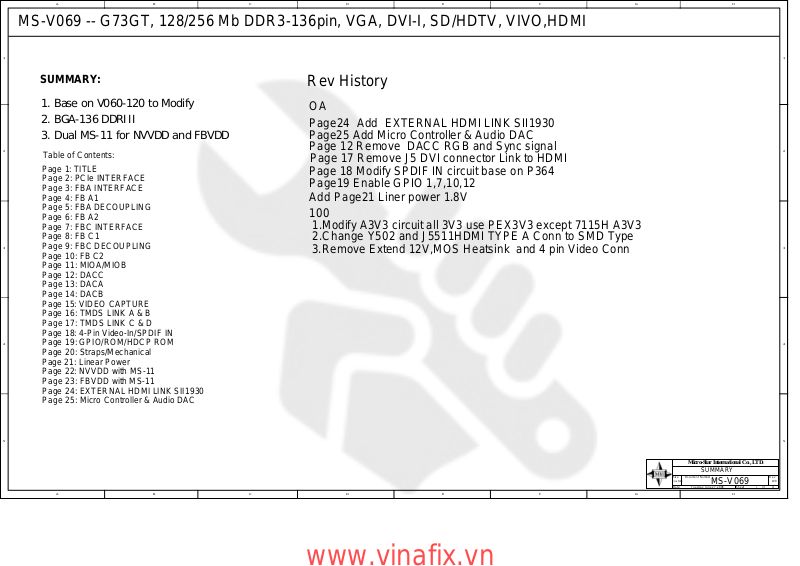

MSI MS-V069 Schematic 100

MS-V069 -- G73GT, 128/256 Mb DDR3-136pin, VGA, DVI-I, SD/HDTV, VIVO,HDMI

HGFEDCBA

1

SUMMARY:

1. Base on V060-120 to Modify

2. BGA-136 DDRIII

3. Dual MS-11 for NVVDD and FBVDD

2

3

Table of Co ntents:

Page 1: TITLE
Page 2: PCIe INTERFACE
Page 3: FBA INTERFACE
Page 4: FB A1
Page 5: FBA DECOUPLING
Page 6: FB A2
Page 7: FBC INTERFACE
Page 8: FB C1
Page 9: FBC DECOUPLING
Page 10: FB C2

Rev History

OA
Page24 Add EXTERNAL HDMI LINK SII1930

Page25 Add Micro Controller & Audio DAC
Page 12 Remove DACC RGB and Sync signal
Page 17 Remove J5 DVI connector Link to HDMI

Page 18 Modify SPDIF IN circuit base on P364
Page19 Enable GPIO 1,7,10,12
Add Page21 Liner power 1.8V

100

1.Modify A3V3 circuit all 3V3 use PEX3V3 except 7115H A3V3

2.Change Y502 and J5511HDMI TYPE A Conn to SMD Type

3.Remove Extend 12V,MOS Heatsink and 4 pin Video Conn

1

2

3

Page 11: MIOA/MIOB
Page 12: DACC
Page 13: DACA
Page 14: DACB
Page 15: VIDEO CAPTURE
Page 16: TMDS LINK A & B
Page 17: TMDS LINK C & D
Page 18: 4-Pin Video-In/SPDIF IN

4

Page 19: GPIO/ROM/HDCP ROM

4

Page 20: Straps/Mechanical
Page 21: Linear Power
Page 22: NVVDD with MS-11
Page 23: FBVDD with MS-11
Page 24: EXTERNAL HDMI LINK SII1930
Page 25: Micro Controller & Audio DAC

5

Micro-Star International Co., LTD.

SUMMARY

Size Document Number Rev
Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

Sheet of

5

100

1

25

www.vinafix.vn

HGFEDCBA

3V3

1

2

3

4

5

C949
.01UF

16V
10%
X7R
0402
COMMON

3V3AUX

GND

Place Close to fingers

C94
.100UF

25V
10%
X7R
0603
COMMON

C916
.1UF

10V
10%
X5R
0402
COMMON

3V3AUX

C95
10UF

16V
20%
X5R
1206
COMMON

CN2

CON_3GIO_164_FINGER

GND

12V

3V3

PRSNT

COMMON

B1

+12V

B2

+12V

A2

+12V

A3

+12V

B3

+12V/RSVD

B8

+3V3

A9

+3V3

A10

+3V3

B10

+3V3AUX

A1

PRSNT1

B17

PRSNT2

B12

RSVD

B4

GND

A4

GND

B7

GND

A12

GND

B13

GND

A15

GND

B16

GND

B18

GND

A18

GND

GND

B31

PRSNT2

A19

RSVD

B30

RSVD

A32

RSVD

A20

GND

B21

GND

B22

GND

A23

GND

A24

GND

B25

GND

B26

GND

A27

GND

A28

GND

B29

GND

A31

GND

B32

GND

GND

B48

PRSNT2

A33

RSVD

A34

GND

B35

GND

B36

GND

A37

GND

A38

GND

B39

GND

B40

GND

A41

GND

A42

GND

B43

GND

B44

GND

A45

GND

A46

GND

B47

GND

B49

GND

A49

GND

GND

B81

PRSNT2

A50

RSVD

B82

RSVD

A51

GND

B52

GND

B53

GND

A54

GND

A55

GND

B56

GND

B57

GND

A58

GND

A59

GND

B60

GND

B61

GND

A62

GND

A63

GND

B64

GND

B65

GND

A66

GND

A67

GND

B68

GND

B69

GND

A70

GND

A71

GND

B72

GND

B73

GND

A74

GND

A75

GND

B76

GND

B77

GND

A78

GND

A79

GND

B80

GND

A82

GND

GND

AB D F H

END OF X1

END OF X4

END OF X8

END OF X16

12V

C950
.01UF

25V
10%
X7R
0402
COMMON

TRST* JTAG1

TCLK JTAG2

TDI JTAG3
TDO JTAG4
TMS JTAG5

SMCLK
SMDAT

PERST

REFCLK
REFCLK

PERP0
PERN0

PETP0
PETN0

PERP1
PERN1

PETP1
PETN1

PERP2
PERN2

PETP2
PETN2

PERP3
PERN3

PETP3
PETN3

PERP4
PERN4

PETP4
PETN4

PERP5
PERN5

PETP5
PETN5

PERP6
PERN6

PETP6
PETN6

PERP7
PERN7

PETP7
PETN7

PERP8
PERN8

PETP8
PETN8

PERP9
PERN9

PETP9
PETN9

PERP10
PERN10

PETP10
PETN10

PERP11
PERN11

PETP11
PETN11

PERP12
PERN12

PETP12
PETN12

PERP13
PERN13

PETP13
PETN13

PERP14
PERN14

PETP14
PETN14

PERP15
PERN15

PETP15
PETN15

C915
.1UF

16V
10%
X7R
0603
COMMON

B9
A5
A6
A7
A8

this resistor stradles the TDI/TDO pair

B5
B6

B11

WAKE

A11

A13
A14

A16
A17

B14
B15

A21
A22

B19
B20

A25
A26

B23
B24

A29
A30

B27
B28

A35
A36

B33
B34

A39
A40

B37
B38

A43
A44

B41
B42

A47
A48

B45
B46

A52
A53

B50
B51

A56
A57

B54
B55

A60
A61

B58
B59

A64
A65

B62
B63

A68
A69

B66
B67

A72
A73

B70
B71

A76
A77

B74
B75

A80
A81

B78
B79

GND

JTAG_TDI_TDO

PEX_PWRGD*

PEX_REFCLK
PEX_REFCLK*

PEX_TXX0
PEX_TXX0*

PEX_RX0*

PEX_TXX1
PEX_TXX1*

PEX_RX1*

PEX_TXX2
PEX_TXX2*

PEX_RX2*

PEX_TXX3
PEX_TXX3*

PEX_RX3*

PEX_TXX4
PEX_TXX4*

PEX_RX4*

PEX_TXX5
PEX_TXX5*

PEX_RX5*

PEX_TXX6
PEX_TXX6*

PEX_RX6*

PEX_TXX7
PEX_TXX7*

PEX_RX7*

PEX_TXX8

PEX_RX8*

PEX_TXX9
PEX_TXX9*

PEX_RX9*

PEX_TXX10
PEX_TXX10*

PEX_RX10

PEX_RX10*

PEX_TXX11
PEX_TXX11*

PEX_RX11

PEX_RX11*

PEX_TXX12
PEX_TXX12*

PEX_RX12

PEX_RX12*

PEX_TXX13
PEX_TXX13*

PEX_RX13

PEX_RX13*

PEX_TXX14
PEX_TXX14*

PEX_RX14

PEX_RX14*

PEX_TXX15
PEX_TXX15*

PEX_RX15

PEX_RX15*

C93
10UF

16V
20%
X5R
1206
COMMON

PEX_RX0

PEX_RX1

PEX_RX2

PEX_RX3

PEX_RX4

PEX_RX5

PEX_RX6

PEX_RX7

PEX_TXX8*

PEX_RX8

PEX_RX9

VALUES

16X PCIe Interface

short duration contention possible

3.3V^2/100 =
108mW

R704
0

5%
0402
NS

3.5MIL

0

R7041

3.5MIL

3.5MIL

0402

0

R7042

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

3.5MIL

3.5MIL

COMMON

3.5MIL

3.5MIL

C926

C924

C930

C928

C922

C920

C918

0402

C948

0402X5R 10% 10V

C946

0402X5R 10% 10V

C944

0402X5R 10% 10V

C942

0402X5R 10% 10V

C940

0402X5R 10% 10V

C938

0402X5R 10% 10V

C936

0402X5R 10% 10V

C934

0402X5R 10% 10V

C932

0402X5R 10% 10V

0402X5R 10% 10V

0402X5R 10% 10V

0402X5R 10% 10V

0402X5R 10% 10V

0402X5R 10% 10V

0402X5R 10% 10V

0402X5R 10% 10V

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

.1UF

R83 0

0402 COMMO N

5%

BYPASS

R102

04025%COMMON

PEX_TEST_PLLCLK_OUT
PEX_TEST_PLLCLK_OUT_N

GPU_PEX_REFCLK

GPU_PEX_REFCLK*

C947

.1UF

3.5MIL

3.5MIL

0402 10% X5 R10V

C945.1UF

3.5MIL

3.5MIL

0402 10%10V X5R COMM ON

C943.1UF

3.5MIL

3.5MIL

0402 10%10V X5R COMM ON

C941

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C939

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C937

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C935

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C933

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C931

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C929

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C927

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C925

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C923

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C921

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C919

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

C917

.1UF

3.5MIL

3.5MIL

0402 X5R10%10V

PEX_TX0
PEX_TX0*

COMMON

PEX_TX1
PEX_TX1*

PEX_TX2
PEX_TX2*

PEX_TX3
PEX_TX3*

COMMON

PEX_TX4
PEX_TX4*

COMMON

PEX_TX5
PEX_TX5*

COMMON

PEX_TX6
PEX_TX6*

COMMON

PEX_TX7
PEX_TX7*

COMMON

PEX_TX8
PEX_TX8*

COMMON

PEX_TX9
PEX_TX9*

COMMON

PEX_TX10
PEX_TX10*

COMMON

PEX_TX11
PEX_TX11*

COMMON

PEX_TX12
PEX_TX12*

COMMON

PEX_TX13
PEX_TX13*

COMMON

PEX_TX14
PEX_TX14*

COMMON

PEX_TX15
PEX_TX15*

COMMON

200

AH15

PEX_PWRGD_BUF*

AG12
AH13

AM12
AM11

AH14
AJ14

AJ15
AK15

AK13
AK14

AH16
AG16

AM14
AM15

AG17
AH17

AL15
AL16

AG18
AH18

AK16
AK17

AK18
AJ18

AL17
AL18

AJ19
AH19

AM18
AM19

AG20
AH20

AK19
AK20

AG21
AH21

AL20
AL21

AK21
AJ21

AM21
AM22

AJ22
AH22

AK22
AK23

AG23
AH23

AL23
AL24

AK24
AJ24

AM24
AM25

AJ25
AH25

AK25
AK26

AH26
AG26

AL26
AL27

AK27
AJ27

AM27
AM28

AJ28
AH27

AL28
AL29

U11A

BGA820_P10_33X33MM
COMMON

1/14 PCI_EXPRESS

PEX_RST

RFU
RFU

PEX_TSTCLK_OUT
PEX_TSTCLK_OUT

PEX_REFCLK
PEX_REFCLK

PEX_TX0
PEX_TX0

PEX_RX0
PEX_RX0

PEX_TX1
PEX_TX1

PEX_RX1
PEX_RX1

PEX_TX2
PEX_TX2

PEX_RX2
PEX_RX2

PEX_TX3
PEX_TX3

PEX_RX3
PEX_RX3

PEX_TX4
PEX_TX4

PEX_RX4
PEX_RX4

PEX_TX5
PEX_TX5

PEX_RX5
PEX_RX5

PEX_TX6
PEX_TX6

PEX_RX6
PEX_RX6

PEX_TX7
PEX_TX7

PEX_RX7
PEX_RX7

PEX_TX8
PEX_TX8

PEX_RX8
PEX_RX8

PEX_TX9
PEX_TX9

PEX_RX9
PEX_RX9

PEX_TX10
PEX_TX10

PEX_RX10
PEX_RX10

PEX_TX11
PEX_TX11

PEX_RX11
PEX_RX11

PEX_TX12
PEX_TX12

PEX_RX12
PEX_RX12

PEX_TX13
PEX_TX13

PEX_RX13
PEX_RX13

PEX_TX14
PEX_TX14

PEX_RX14
PEX_RX14

PEX_TX15
PEX_TX15

PEX_RX15
PEX_RX15

PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD

PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ

VDD_SENSE
GND_SENSE

PEX_PLLAVDD
PEX_PLLDVDD

PEX_PLLGND

VDD_LP
VDD_LP
VDD_LP
VDD_LP
VDD_LP
VDD_LP

VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33

600mA

AD23
AF23
AF24
AF25
AG24
AG25

AC16
AC17
AC21
AC22
AE18
AE21
AE22
AF12
AF18
AF21
AF22

K16

VDD

K17

VDD

N13

VDD

N14

VDD

N16

VDD

N17

VDD

N19

VDD

P13

VDD

P14

VDD

P16

VDD

P17

VDD

P19

VDD

R16

VDD

R17

VDD

T13

VDD

T14

VDD

T15

VDD

T18

VDD

T19

VDD

U13

VDD

U14

VDD

U15

VDD

U18

VDD

U19

VDD

V16

VDD

V17

VDD

W13

VDD

W14

VDD

W16

VDD

W17

VDD

W19

VDD

Y13

VDD

Y14

VDD

Y16

VDD

Y17

VDD

Y19

VDD

Y20

VDD

P20
T20
T23
U20
U23
W20

NVVDD_SENSE

N20

GND_SENSE

M21

AC11
AC12
AC24
AD24
AE11
AE12
H7
J7
K7
L10
L7
L8
M10

AF15
AE15
AE16

GND

AM8

NC

AM9

NC

B32

NC

J6

NC

TBD

Place near balls

PEX_IO_VDD

C846
.022UF

16V
10%
X7R
0402
COMMON

2A

PEX_IO_VDDQ

C849
.022UF

16V
10%
X7R
0402
COMMON

C985
.1UF

10V
10%
X5R
0402
COMMON

GND

C747

0.47UF

6.3V
10%
X5R
0402
COMMON

C675
.1UF

10V
10%
X5R
0402
COMMON

C804

0.47UF

6.3V
10%
X5R
0402
COMMON

C773

0.47UF

6.3V
10%
X5R
0402
COMMON

VALUES
TBD

R6295%0

NS0402

VDD33

PEX_PLL_VDD

C845
.022UF

16V
10%
X7R
0402
COMMON

VALUES

Place near balls

TBD

C857
.022UF

16V
10%
X7R
0402
COMMON

150-220R@100MHz
150-220R@100MHz

LB535

0603 COMMO N

LB536

0603 NS

C780
.1UF

10V
10%
X5R
0402
COMMON

C781
.1UF

10V
10%
X5R
0402
COMMON

C756
.1UF

10V
10%
X5R
0402
COMMON

C796
.1UF

10V
10%
X5R
0402
COMMON

C751
.001UF

COMMON

50V
10%
X7R
0402

GND

Place near balls

C826
.1UF

10V
10%
X5R
0402
COMMON

C853
.1UF

10V
10%
X5R
0402
COMMON

Place near balls

180mA

C833
.1UF

10V 10%
X5R
0402
COMMON

Place near balls

20mA

C842
4700PF

25V

10%
X7R
0402
COMMON

E GC

C847
.01UF

16V
10%
X7R
0402
COMMON

OUT

C786

0.47UF

6.3V
10%
X5R
0402
COMMON

C801

0.47UF

6.3V
10%
X5R
0402
COMMON

C798
.1UF

10V
10%
X5R
0402
COMMON

C762
.1UF

10V
10%
X5R
0402
COMMON

C738
4700PF

25V
10%
X7R
0402
COMMON

C745
4700PF

25V
10%
X7R
0402
COMMON

C831
470PF

16V
10%
X7R
0402
COMMON

C848
.01UF

16V
10%
X7R
0402
COMMON

22.2G<2.3F> 22

C825
.01UF

16V
10%
X7R
0402
COMMON

Place Close to GPU

220R@100MHz

LB530

0805 COMMON

C883

4.7UF

6.3V

10%
X5R
0603
COMMON

Place Close to GPU

C850
.01UF

16V
10%
X7R
0402
COMMON

NVVDD

C799

C794

.1UF

0.47UF

6.3V

10V

10%

10%

X5R

X5R
0402

0402

COMMON

COMMON

C777

C758

.1UF

0.47UF

6.3V

10V

10%

10%

X5R

X5R
0402

0402

COMMON

COMMON

C746

C727

0.47UF

0.47UF

6.3V

6.3V

10%

10%

X5R

X5R

0402

0402

COMMON

COMMON

C790

C744

.1UF

0.47UF

10V

6.3V
10%

10%

X5R

X5R

0402

0402
COMMON

COMMON

C844
.022UF

16V
10%
X7R
0402
COMMON

C854
.022UF

16V
10%
X7R
0402
COMMON

Place Near
BGA

0.02R3A

220R@100MHz

3A

LB9

0805

C96

4.7UF

6.3V
X5R
0603
COMMON

Place near balls

C721
.022UF

16V
10%
X7R
0402
COMMON

C843
.022UF

16V
10%
X7R
0402
COMMON

Place Near
BGA

150-220R@100MHz

LB524

0603 COMMON

C828

4.7UF

10%6.3V
X5R
0603
COMMON

PEX1V2

C894

4.7UF

6.3V
X5R
0603
COMMON

0.02R

COMMON

10%

PEX1V2

C757
.1UF

10V
10%
X5R
0402
COMMON

C784
10UF

6.3V
20%
X5R
0805
COMMON

C742
10UF

6.3V
20%
X5R
0805
COMMON

C797

0.47UF

6.3V
10%
X5R
0402
COMMON

3V3

LB532
120R@100MHz

COMMON
0603

C734
1UF

10V
10%
X7R
0603
COMMON

GND

GND

10%

1

GND

PEX1V2

C908
10UF

20%

6.3V
X5R
0805
COMMON

GND

NVVDD

C783
10UF

6.3V
20%
X5R
0805
COMMON

C659
.1UF

10V
10%
X5R
0402
COMMON

C769
.1UF

10V
10%
X5R
0402
COMMON

GND

GND

GND

GND

2

3

4

PEX1V2

GND

C812

4.7UF

6.3V 10%
X5R
0603
COMMON

5

GND

Micro-Star International Co., LTD.

PCIe INTERFACE

Size Document Number Rev

Custom

MS-V069

Date:

Tuesday, June 27, 2006

Sheet of

2

100

25

www.vinafix.vn

FBAD[63..0]

FBAD[63..0] 4,6

FBAD0

0

FBAD1

1

FBAD2

2

FBAD3

3

FBAD4

4

FBAD5

5

FBAD6

6

FBAD7

7

FBAD8

1

2

FBADQM[7..0]

3

FBADQM[7..0] 4,6

FBADQS_WP[7..0]

FBADQS_WP[7..0] 4,6

FBADQS_RN[7..0]

FBADQS_RN[7..0] 4,6

FBVDD

4

NS

Rtop

1%

0402

R602 1K

NS0402

C660
.1UF

R607 1K

GND

1%

10V
10%
X5R
0402
COMMON

VREF = FBVDDQ * Rbot/(Rtop + Rbot)

VREF = 0.70 *
FBVDDQ

DDR3:

Rbot

8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

0
1
2
3
4
5
6
7

0
1
2
3
4
5
6
7

0
1
2
3
4
5
6
7

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

FBAD9
FBAD10
FBAD11
FBAD12
FBAD13
FBAD14
FBAD15
FBAD16
FBAD17
FBAD18
FBAD19
FBAD20
FBAD21
FBAD22
FBAD23
FBAD24
FBAD25
FBAD26
FBAD27
FBAD28
FBAD29
FBAD30
FBAD31
FBAD32
FBAD33
FBAD34
FBAD35
FBAD36
FBAD37
FBAD38
FBAD39
FBAD40
FBAD41
FBAD42
FBAD43
FBAD44
FBAD45
FBAD46
FBAD47
FBAD48
FBAD49
FBAD50
FBAD51
FBAD52
FBAD53
FBAD54
FBAD55
FBAD56
FBAD57
FBAD58
FBAD59
FBAD60
FBAD61
FBAD62
FBAD63

FBADQM0
FBADQM1
FBADQM2
FBADQM3
FBADQM4
FBADQM5
FBADQM6

FBADQM7

FBADQS_WP0
FBADQS_WP1
FBADQS_WP2
FBADQS_WP3
FBADQS_WP4
FBADQS_WP5
FBADQS_WP6
FBADQS_WP7

FBADQS_RN0
FBADQS_RN1
FBADQS_RN2
FBADQS_RN3
FBADQS_RN4
FBADQS_RN5
FBADQS_RN6
FBADQS_RN7

FBA_VREF

U11B

BGA820_P10_33X33MM
COMMON

2/14 FBA

N27

FBAD0

M27

FBAD1

N28

FBAD2

L29

FBAD3

K27

FBAD4

K28

FBAD5

J29

FBAD6

J28

FBAD7

P30

FBAD8

N31

FBAD9

N30

FBAD10

N32

FBAD11

L31

FBAD12

L30

FBAD13

J30

FBAD14

L32

FBAD15

H30

FBAD16

K30

FBAD17

H31

FBAD18

F30

FBAD19

H32

FBAD20

E31

FBAD21

D30

FBAD22

E30

FBAD23

H28

FBAD24

H29

FBAD25

E29

FBAD26

J27

FBAD27

F27

FBAD28

E27

FBAD29

E28

FBAD30

F28

FBAD31

AD29

FBAD32

AE29

FBAD33

AD28

FBAD34

AC28

FBAD35

AB29

FBAD36

AA30

FBAD37

Y28

FBAD38

AB30

FBAD39

AM30

FBAD40

AF30

FBAD41

AJ31

FBAD42

AJ30

FBAD43

AJ32

FBAD44

AK29

FBAD45

AM31

FBAD46

AL30

FBAD47

AE32

FBAD48

AE30

FBAD49

AE31

FBAD50

AD30

FBAD51

AC31

FBAD52

AC32

FBAD53

AB32

FBAD54

AB31

FBAD55

AG27

FBAD56

AF28

FBAD57

AH28

FBAD58

AG28

FBAD59

AG29

FBAD60

AD27

FBAD61

AF27

FBAD62

AE28

FBAD63

M29

FBADQM0

M30

FBADQM1

G30

FBADQM2

F29

FBADQM3

AA29

FBADQM4

AK30

FBADQM5

AC30

FBADQM6

AG30

FBADQM7

L28

FBADQS_WP0

K31

FBADQS_WP1

G32

FBADQS_WP2

G28

FBADQS_WP3

AB28

FBADQS_WP4

AL32

FBADQS_WP5

AF32

FBADQS_WP6

AH30

FBADQS_WP7

M28

FBADQS_RN0

K32

FBADQS_RN1

G31

FBADQS_RN2

G27

FBADQS_RN3

AA28

FBADQS_RN4

AL31

FBADQS_RN5

AF31

FBADQS_RN6

AH29

FBADQS_RN7

E32

FB_VREF1

5

ALL FBVDD PINS ARE NC ON
NV43 DESKTOP G3 PACKAGE

FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD
FBVDD

FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ

FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8

FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26

FBA_CLK0

FBA_CLK0

FBA_CLK1

FBA_CLK1

RFU
RFU

FBA_DEBUG

FBA_REFCLK
FBA_REFCLK

FBA_PLLVDD

FBA_PLLAVDD

FBA_PLLGND

PLACE BELOW

A12
A15
A18
A21
A24
A27
A3
A30
A6
A9
AA32
AD32
AG32
AK32
C32
F32
J32
M32
R32
V32

AA25
AA26
AB25
AB26
G11
G12
G15
G18
G21
G22
H11
H12
H15
H18
H21
H22
L25
L26
M25
M26
R25
R26
V25
V26

0
1
2
3
4
5
6

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

FBA_CMD[26..0]

OUT
OUT
OUT
OUT

FBA_CMD0

P32

FBA_CMD1

U27

FBA_CMD2

P31

FBA_CMD3

U30

FBA_CMD4

Y31

FBA_CMD5

W32

FBA_CMD6

W31

FBA_CMD7

T32

FBA_CMD8

V27

FBA_CMD9

T28

FBA_CMD10

T31

FBA_CMD11

U32

FBA_CMD12

W29

FBA_CMD13

W30
T27

FBA_CMD15

V28

FBA_CMD16

V30

FBA_CMD17

U31

FBA_CMD18

R27

FBA_CMD19

V29

FBA_CMD20

T30

FBA_CMD21

W28

FBA_CMD22

R29

FBA_CMD23

R30

FBA_CMD24

P29

FBA_CMD25

U28
Y32

FBA_CLK0

P28

FBA_CLK0*

R28

FBA_CLK1

Y27

FBA_CLK1*

AA27

TP

Y30

NOW

AC26

AC27

FBA_REFCLK

D32

FBA_REFCLK*

D31

G23

FBA_PLLAVDD

G25

G24

GND

GPU

C792
.1UF

10V
10%
X5R
0402
COMMON

4.1G< 4.1A< 4,6

OUT

R7146
0R

0402
1%

R7147

COMMON

0R

0402
1%
NS

PLACE close to
GPU

4.1G<

4.2A<

4.1G<

4.2D<

FBVDD

4,6

R596

4,6

R599
100

100

1%

1%

0402

0402

NS

NS

FBA_REFCLK*

R601

R593

100

100

1%

1%

0402

0402

NS

NS

GND

C705

0.47UF

6.3V
10%
X5R
0402
COMMON

C704
.1UF

10V
10%
X5R
0402
COMMON

OUT

OUT

C754

C708

0.47UF

0.47UF

6.3V

6.3V

10%

10%

X5R

X5R

0402

0402

COMMON

COMMON

C750

C707

0.47UF

.1UF

6.3V

10V

10%

10%

X5R

X5R

0402

0402

COMMON

COMMON

C698

C722

0.47UF

.1UF

6.3V

10V

10%

10%

X5R

X5R

0402

0402
COMMON

COMMON

14.3A< 4

14.3A< 6

PLACE close to balls

FBA_PLLVDD

C689
.01UF

16V
10%
X7R
0402
NS

C710
.01UF

16V
10%
X7R
0402
COMMON

C692
.1UF

10V
10%
X5R
0402
COMMON

C806
.1UF

10V
10%
X5R
0402
COMMON

C755
.1UF

10V
10%
X5R
0402
COMMON

C800

0.47UF

6.3V
10%
X5R
0402
COMMON

C685
.1UF

10V
10%
X5R
0402
NS

FBA_AVDD is TBD. This may not be hooked up on the Package.

FBVDD

C730

C50

.1UF

.1UF

10V

10V

10%

10%

X5R

X5R

0402

0402

COMMON

COMMON

C5

C68

.1UF

.1UF

10V
10%
X5R
0402
COMMON

C824
1UF

10V
10%
X7R
0603
COMMON

C697
1UF

10V
10%
X7R
0603
COMMON

GND

GND

GND

10V
10%
X5R
0402
COMMON

C6
.1UF

10V
10%
X5R
0402
COMMON

GND

GND

FBx_PLLVDD NOT REQUIRED FOR G73 -- UNSTUFF

150-220R@100MHz

C674
1UF

6.3V
10%
X5R
0402
NS

150-220R@100MHz

LB509

0603 NS

C672
1UF

6.3V
10%
X5R
0402
COMMON

150-220R@100MHz

LB537

0603 COMMON

LB507

0603 NS

3V3

C654

4.7UF

6.3V
10%
X5R
0603
NS

NVVDD

GND

C662

4.7UF

6.3V
10%
X5R
0603
NS

PEX1V2

GND

C986

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

FBVDD

C740

C856

10UF

10UF

6.3V

6.3V

20%

20%

X5R

X5R

0805

0805

COMMON

COMMON

PLACE MIDWAY BETWEEN GPU AND
MEMORY

C597

C594

10UF

10UF

6.3V

6.3V

20%

20%
X5R

X5R

0805

0805

COMMON

COMMON

GND

PLACE NEAR
GPU

R7240

10K

?

0402

NS

GND

CKE Stuff options for DDR3 configation for
on-die terminations at the memory

IMPORTANT FOR POWER ON INITIALIZATION OF
DDR3 MEMS

DDR3: DETERMINES THE ODT VALUE FOR ADDR AND
CONTROL PINS

CKE = 0 --> ODT = ZQ/2
CKE = 1 --> ODT = ZQ

1

2

FBVDD

R638

10K

5%

0402

FBA_CMD11FBA_CMD12

NS

R640

10K

5%

0402

NS

3

GND

4

5

HGFEDCBA

Micro-Star International Co., LTD.

FBA INTERFACE

Size Document Number Rev
Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

www.vinafix.vn

3

Sheet of

100

25

1

FrameBuffer: Partition A
16Mx32 BGA136 DDR3

2

3

4

5

6

7

8

HGFEDCBA

Low Sub-Partition

C953
.1UF

10V
10%
X5R
0402
NS

C956
.1UF

10V
10%
X5R
0402
COMMON

IN

12

GND

R7163

2.37K

0402

COMMON

R7166

5.49K

0402

COMMON

FBAD[63..0]

FBVDD

1%

1%

GND

R7165

2.37K

1%

0402

COMMON

R7168

5.49K

1%

0402

COMMON

FBVDD

U508

T3

DQ31 | DQ23

T2

DQ30 | DQ22
DQ29 | DQ21
DQ28 | DQ20
DQ27 | DQ19
DQ26 | DQ18
DQ25 | DQ17
DQ24 | DQ16
DQ23 | DQ31
DQ22 | DQ30
DQ21 | DQ29
DQ20 | DQ28
DQ19 | DQ27
DQ18 | DQ26
DQ17 | DQ25
DQ16 | DQ24
DQ15 | DQ7
DQ14 | DQ6
DQ13 | DQ5
DQ12 | DQ4
DQ11 | DQ3
DQ10 | DQ2
DQ9 | DQ1
DQ8 | DQ0
DQ7 | DQ15
DQ6 | DQ14
DQ5 | DQ13
DQ4 | DQ12
DQ3 | DQ11
DQ2 | DQ10
DQ1 | DQ9
DQ0 | DQ8

BA2 | RAS
BA1 | BA0
BA0 | BA1

A11 | A7
A10 | A8
A9 | A3
A8/AP | A10
A7 | A11
A6 | A2
A5 | A1
A4 | A0
A3 | A9
A2 | A6
A1 | A5
A0 | A4

CS | CAS

WE | CKE

RAS | BA2

CAS | CS

CKE | WE

CK
CK

RDQS3 | RDQS2
RDQS2 | RDQS3
RDQS1 | RDQS0
RDQS0 | RDQS1

WDQS3 | WDQS2
WDQS2 | WDQS3
WDQS1 | WDQS0
WDQS0 | WDQS1

DM3 | DM2
DM2 | DM3
DM1 | DM0
DM0 | DM1

RESET

ZQ

VREF

VREF#H12

VDDQ#A12

VDDQ#C12

VDDQ#E12

VDDQ#N12

VDDQ#R12

VDDQ#V12

VSSQ#B12

VSSQ#D12

VSSQ#G11

VSSQ#L11

VSSQ#P12

VSSQ#T12

VDDA#K12

R3
R2
M3
N2
L3

M2
T10
T11
R10
R11
M10
N11
L10
M11
G10
F11
F10
E11
C10
C11
B10
B11

G3

F2

F3

E2

C3

C2

B3

B2

H10

G9

G4

L4

K2

M9
K11

L9
K10
H11

K9

M4

K3

H2

K4

CS0

F9

H9

H3

F4

H4

J10
J11

P3
P10
D10

D3

P2
P11
D11

D2

N3
N10
E10

E3

U9

A4

H1

H12

136BALL-GDDR3

C955
.1UF

10V

R1

10%
X5R
0402
NS

C958
.1UF

R2

10V
10%
X5R
0402
COMMON

GND

FBAD58

63

FBAD62

62

FBAD56

61

FBAD59

60

FBAD57

59

FBAD60

58

FBAD63

57

FBAD61

56

FBAD38

55

FBAD39

54

FBAD37

53

FBAD36

52

FBAD35

51

FBAD32

50

FBAD33

49

FBAD34

48

FBAD55

47

FBAD52

46

FBAD54

45

FBAD53

44

FBAD49

43

FBAD51

42

FBAD48

41

FBAD50

40

FBAD45

39

FBAD46

38

FBAD40

37

FBAD47

36

FBAD41

35

FBAD43

34

FBAD42

33

FBAD44

32

FBA_CMD7_0

18

FBA_CMD18

10

FBA_CMD10

16

FBA_CMD16

17

FBA_CMD17
FBA_CMD20

20
19

FBA_CMD19

23

FBA_CMD23
FBA_CMD21

21
6

FBA_CMD6

5

FBA_CMD5
FBA_CMD4

4
13

FBA_CMD13

3

FBA_CMD3
FBA_CMD1

1

8

FBA_CMD8

9

FBA_CMD9

FBA_CMD15

15

25

FBA_CMD25

11

FBA_CMD11

FBA_CLK1*
FBA_CLK1

FBADQS_RN7
FBADQS_RN4
FBADQS_RN6
FBADQS_RN5

FBADQS_WP7
FBADQS_WP4
FBADQS_WP6
FBADQS_WP5

FBADQM7
FBADQM4
FBADQM6
FBADQM5

FBA_CMD12

FBA_ZQ1

R7160

10%

240

1%

FBA_VREF_DATA1

0603

GND

COMMON

FBA_VREF_ADDR1

FBA_ZQ0

R7167

0402

COMMON

R7169

0402

COMMON

U509

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18

L3

DQ25 | DQ17

M2

DQ24 | DQ16

T10

DQ23 | DQ31

T11

DQ22 | DQ30

R10

DQ21 | DQ29

R11

DQ20 | DQ28

M10

DQ19 | DQ27

N11

DQ18 | DQ26

L10

DQ17 | DQ25

M11

DQ16 | DQ24

G10

DQ15 | DQ7

F11

DQ14 | DQ6

F10

DQ13 | DQ5

E11

DQ12 | DQ4

C10

DQ11 | DQ3

C11

DQ10 | DQ2

B10

DQ9 | DQ1

B11

DQ8 | DQ0

G3

DQ7 | DQ15

F2

DQ6 | DQ14

F3

DQ5 | DQ13

E2

DQ4 | DQ12

C3

DQ3 | DQ11

C2

DQ2 | DQ10

B3

DQ1 | DQ9

B2

DQ0 | DQ8

H10

BA2 | RAS

G9

BA1 | BA0

G4

BA0 | BA1

L4

A11 | A7

K2

A10 | A8

M9

A9 | A3

K11

A8/AP | A10

L9

A7 | A11

K10

A6 | A2

H11

A5 | A1

K9

A4 | A0

M4

A3 | A9

K3

A2 | A6

H2

A1 | A5

K4

A0 | A4

CS0

F9

CS | CAS

H9

WE | CKE

H3

RAS | BA2

F4

CAS | CS

H4

CKE | WE

J10

CK

J11

CK

P3

RDQS3 | RDQS2

P10

RDQS2 | RDQS3

D10

RDQS1 | RDQS0

D3

RDQS0 | RDQS1

P2

WDQS3 | WDQS2

P11

WDQS2 | WDQS3

D11

WDQS1 | WDQS0

D2

WDQS0 | WDQS1

N3

DM3 | DM2

N10

DM2 | DM3

E10

DM1 | DM0

E3

DM0 | DM1

U9

RESET

A4

ZQ

H1

VREF

H12

VREF#H12

VDDQ#A12
VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#C12

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#E12

VDDQ#J4

VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#N12

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#R12

VDDQ#V1

VDDQ#V12

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4

VSSQ#B9

VSSQ#B12

VSSQ#D1

VSSQ#D4

VSSQ#D9

VSSQ#D12

VSSQ#G2

VSSQ#G11

VSSQ#L2

VSSQ#L11

VSSQ#P1

VSSQ#P4

VSSQ#P9

VSSQ#P12

VSSQ#T1

VSSQ#T4

VSSQ#T9

VSSQ#T12

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VDDA#K12

VSSA#J12

GND | VDD

VDDQ

VDD

VSSQ

VSS

VDDA

VSSA

RFU2

RFU1

RFU0

MF

136BALL-GDDR3

FBVDD

C957
.1UF

10V

2.37K

R1

10%

1%

X5R
0402
NS

C959

5.49K

.1UF

R2

1%

10V
10%
X5R
0402
COMMON

GND

FBAD1

31

FBAD3

30

FBAD0

29

FBAD2

28

FBAD4

27

FBAD5

26

FBAD7

25

FBAD6

24

FBAD30

23

FBAD29

22

FBAD31

21

FBAD26

20

FBAD24

19

FBAD28

18

FBAD25

17

FBAD27

16

FBAD22

15

FBAD21

14

FBAD23

13

FBAD19

12

FBAD17

11

FBAD16

10

FBAD18

9

FBAD20

8

FBAD8

7

FBAD11

6

FBAD9

5

FBAD10

4

FBAD14

3

FBAD12

2

FBAD13

1

FBAD15

0

FBA_CMD7_0

18

FBA_CMD18

10

FBA_CMD10

16

FBA_CMD16

17

FBA_CMD17

20

FBA_CMD20

19

FBA_CMD19

23

FBA_CMD23

21

FBA_CMD21

22

FBA_CMD22

24

FBA_CMD24

0

FBA_CMD0

2

FBA_CMD2

3

FBA_CMD3

1

FBA_CMD1

8

FBA_CMD8

9

FBA_CMD9

FBA_CMD15

15

25

FBA_CMD25

11

FBA_CMD11

FBA_CLK0*
FBA_CLK0

FBADQS_RN0
FBADQS_RN3
FBADQS_RN2
FBADQS_RN1

FBADQS_WP0
FBADQS_WP3
FBADQS_WP2
FBADQS_WP1

FBADQM0
FBADQM3
FBADQM2
FBADQM1

FBA_CMD12

R7161

240

FBA_VREF_DATA0

1%
0603
COMMON

FBA_VREF_ADDR0

R1

R2

FBVDD

A1
A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

FBVDD

A2
A11
F1
F12
M1
M12
U2
U11

B1
B4
B9
B12

GND

D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3
A10
G1
G12
L1
L12
U3
U10

K1
K12

J12
J1

J3

J2

U4

C1000
.047UF

25V
10%
X7R
0402
COMMON

GND

GND

LB544

0402

LB543

150-220R@100MHz

C1001
.047UF

25V
10%
X7R
0402
COMMON

150-220R@100MHz

0402

COMMON

FBVDD

COMMON

7.1G<>

3,6

7.1G<>

3,6

7.1G<>

3,6

A9

GND

FBA Partition

Termination for Sub-Partition and CLK
MUST BE PLACED as close as possible to
the BGA memory on the line BEFORE the
MEMORY pin!!

Minimize the stub length!!

FBA_CMD4

FBA_CMD6

FBA_CMD5

FBA_CMD13

FBA_CMD22

FBA_CMD24

FBA_CMD0

FBA_CMD2

6.3A>

6.3A>

6.3A>

FBADQM[7..0]

BI

FBADQS_RN[7..0]

BI

FBADQS_WP[7..0]

BI

FBVDD

R7148

120

0402

COMMON

5%

R7149

120

0402COMMON

5%

R7150

120

0402

COMMON

5%

R7151

120

0402

COMMON

5%

R7152

120

0402

COMMON

5%

R7153

120

0402COMMON

5%

R7154

120

0402

COMMON

5%

R7155

120

0402COMMON

5%

20.5G> 3,6

FBADQM0

0

FBADQM1

1

FBADQM2

2

FBADQM3

3

FBADQM4

4

FBADQM5

5

FBADQM6

6

FBADQM7

7

FBADQS_RN0

0

FBADQS_RN1

1

FBADQS_RN2

2

FBADQS_RN3

3

FBADQS_RN4

4

FBADQS_RN5

5

FBADQS_RN6

6

FBADQS_RN7

7

FBADQS_WP0

0

FBADQS_WP1

1

FBADQS_WP2

2

FBADQS_WP3

3

FBADQS_WP4

4

FBADQS_WP5

5

FBADQS_WP6

6

FBADQS_WP7

7

20.5G> 3,6

FBA_CMD[26..0]

3.2D> 4.1G< 3,6
IN

20.5G> 3
IN

FBVDD

C987
.1UF

10V
10%
X5R

Hi Sub-Partition
0402
COMMON

R7156

R7157

60.4R

60.4R

1%

1%

0402

0402

COMMON

COMMON

IN
IN

12

FBVDD

C952
.1UF

R7162

10V

2.37K

0402

COMMON

R7164

5.49K

0402

COMMON

R1

1%

R2

1%

GND

X5R
0402
NS

C954
.1UF

10V
10%
X5R
0402
COMMON

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#J4

VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#V1

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4

VSSQ#B9

VSSQ#D1

VSSQ#D4

VSSQ#D9

VSSQ#G2

VSSQ#L2

VSSQ#P1

VSSQ#P4

VSSQ#P9

VSSQ#T1

VSSQ#T4

VSSQ#T9

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VSSA#J12

GND | VDD

FBVDD

A1

VDDQ

A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

A2

VDD

A11
F1
F12
M1
M12
U2
U11

B1

VSSQ

B4
B9
B12
D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3

VSS

A10
G1
G12
L1
L12
U3
U10

K1

VDDA

K12

J12
J1

VSSA

J3

RFU2

J2

RFU1

U4

RFU0

A9

MF

C998
.047UF

25V
10%
X7R
0402
COMMON

GND

GND

GND

FBVDD

GND

C999
.047UF

25V
10%

X7R
0402
COMMON

FBVDD

150-220R@100MHz

LB541

0402

COMMON

0402

LB542

150-220R@100MHz

COMMON

1

2

3

4

5

1

A A

ZQ = 6x desired output

DDR3:

impedence of DQ drivers
Impedence = 240 / 6 = 40 ohm

BI

2

FBA_CMD[26..0]

BI

60.4R

1%

FBVDD

R7159

0402

COMMON

C988
.1UF

10V
10%
X5R
0402
COMMON

60.4R

1%

20.5G> 3

B B

3

20.5G> 3,6

20.5G> 3,6

R7158

0402

COMMON

IN
IN

C C

4

D D

5

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

AB D F H

1

2

3

4

E GC

5

6

7

Date:

FB A1

Tuesday, June 27, 2006

www.vinafix.vn

MS-V069

Sheet of

8

100

4

25

FRAME BUFFER: PARTITION A
DECOUPLING

HGFEDCBA

1

Decoupling for FBA 0..31

PLACE NEAR MEMORY

FBVDD

2

C832
1UF

10V
10%
X7R
0603
COMMON

FBVDD

3

4

C887
1UF

10V
10%
X7R
0603
COMMON

C749
1UF

10V
10%
X7R
0603
COMMON

C543

4.7UF

6.3V
10%
X5R
0603
COMMON

C641

4.7UF

6.3V
10%
X5R
0603
COMMON

C681
.1UF

10V
10%

0402
COMMON

C512
.1UF

10V
10%

0402
COMMON

C527
.1UF

10V
10%

0402
COMMON

C712
.1UF

10V
10%

0402
COMMON

FBVDD PINS

C529

4.7UF

6.3V
10%
X5R
0603
COMMON

C841
.1UF

10V
10%
X5R
0402
COMMON

C718
.01UF

25V
10%
X7R
0402
COMMON

C765
.1UF

10V
10%
X5R
0402
COMMON

C678
.01UF

25V
10%
X7R
0402
COMMON

C571
.1UF

10V
10%
X5R
0402
COMMON

C725
.01UF

25V
10%
X7R
0402
COMMON

C691
.1UF

10V
10%
X5R
0402
COMMON

C767

0.47UF

6.3V
10%
X5R
0402
COMMON

GND

GND

PLACE NEAR MEMORY
FBVDDQ PINS

C642

0.47UF

6.3V
10%

X5R

X5R
0402
COMMON

C541
.1UF

10V
10%
X5R

X5R

0402
COMMON

X5R

C48
.01UF

25V
10%

X5R

X7R
0402
COMMON

C680
.01UF

16V
10%
X7R
0402
COMMON

C683
.01UF

25V
10%
X7R
0402
COMMON

C682
.01UF

25V
10%
X7R
0402
COMMON

C706
.01UF

25V
10%
X7R
0402
COMMON

C716
.01UF

25V
10%
X7R
0402
COMMON

C719
.01UF

25V
10%
X7R
0402
COMMON

C717
.01UF

25V
10%
X7R
0402
COMMON

GND

GND

Decoupling for FBA 32..63

PLACE NEAR MEMORY

C544
.1UF

10V
10%
X5R
0402
COMMON

C875
.1UF

10V
10%
X5R
0402
COMMON

FBVDD PINS

C902

C572

.1UF

.1UF

10V

10V

10%

10%

X5R

X5R

0402

0402

COMMON

COMMON

PLACE NEAR MEMORY
FBVDDQ PINS

C528
.1UF

10V
10%
X5R
0402
COMMON

C668
.1UF

10V
10%
X5R
0402
COMMON

C876
.01UF

25V
10%
X7R
0402
COMMON

C715
.1UF

10V
10%
X5R
0402
COMMON

C859
.01UF

25V
10%
X7R
0402
COMMON

FBVDD

FBVDD

C670
1UF

10V
10%
X7R
0603
COMMON

C562
1UF

10V
10%
X7R
0603
COMMON

C658

4.7UF

6.3V
10%
X5R
0603
COMMON

C578

4.7UF

6.3V
10%
X5R
0603
COMMON

C536
1UF

10V
10%
X7R
0603
COMMON

C542

4.7UF

6.3V
10%
X5R
0603
COMMON

C858
.01UF

16V
10%
X7R
0402
COMMON

C878
.01UF

25V
10%
X7R
0402
COMMON

C726

0.47UF

6.3V
10%
X5R
0402
COMMON

GND

C866
.01UF

25V
10%
X7R
0402
COMMON

C860
.01UF

25V
10%
X7R
0402
COMMON

C877
.01UF

25V
10%
X7R
0402
COMMON

C855
.01UF

25V
10%
X7R
0402
COMMON

C871
.01UF

25V
10%
X7R
0402
COMMON

C861
.01UF

25V
10%
X7R
0402
COMMON

C882
.01UF

25V
10%
X7R
0402
COMMON

C879
.01UF

25V
10%
X7R
0402
COMMON

GND

GND

GND

1

2

3

4

5

5

Micro-Star International Co., LTD.

FBA DECOUPLING

Size Document Number Rev

Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

Sheet of

100

5

25

www.vinafix.vn

FrameBuffer: Partition A
16Mx32 BGA136 DDR3

HGFEDCBA

FBA_CMD[26..0]

FBVDD

C990
.1UF

10V
10%
X5R
0402
COMMON

R7181

60.4R

1%

0402

COMMON

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

FBAD[63..0]

Low Sub-Partition

20.5G> 3

GND

C961

R7185

.1UF

10V

0402

10%

COMMON

X5R
0402
NS

C964

R7188

.1UF

10V

0402

10%

COMMON

X5R
0402
COMMON

1

2

3

4

5

R7187

2.37K

1%

0402

COMMON

R7190

5.49K

1%

0402

COMMON

FBVDD

U510

T3

DQ31 | DQ23

T2

DQ30 | DQ22
DQ29 | DQ21
DQ28 | DQ20
DQ27 | DQ19
DQ26 | DQ18
DQ25 | DQ17
DQ24 | DQ16
DQ23 | DQ31
DQ22 | DQ30
DQ21 | DQ29
DQ20 | DQ28
DQ19 | DQ27
DQ18 | DQ26
DQ17 | DQ25
DQ16 | DQ24
DQ15 | DQ7
DQ14 | DQ6
DQ13 | DQ5
DQ12 | DQ4
DQ11 | DQ3
DQ10 | DQ2
DQ9 | DQ1
DQ8 | DQ0
DQ7 | DQ15
DQ6 | DQ14
DQ5 | DQ13
DQ4 | DQ12
DQ3 | DQ11
DQ2 | DQ10
DQ1 | DQ9
DQ0 | DQ8

BA2 | RAS
BA1 | BA0
BA0 | BA1

A11 | A7
A10 | A8
A9 | A3
A8/AP | A10
A7 | A11
A6 | A2
A5 | A1
A4 | A0
A3 | A9
A2 | A6
A1 | A5
A0 | A4

CS | CAS

WE | CKE

RAS | BA2

CAS | CS

CKE | WE

CK
CK

RDQS3 | RDQS2
RDQS2 | RDQS3
RDQS1 | RDQS0
RDQS0 | RDQS1

WDQS3 | WDQS2
WDQS2 | WDQS3
WDQS1 | WDQS0
WDQS0 | WDQS1

DM3 | DM2
DM2 | DM3
DM1 | DM0
DM0 | DM1

RESET

ZQ

VREF

VREF#H12

VDDQ#A12

VDDQ#C12

VDDQ#E12

VDDQ#N12

VDDQ#R12

VDDQ#V12

VSSQ#B12

VSSQ#D12

VSSQ#G11

VSSQ#L11

VSSQ#P12

VSSQ#T12

VDDA#K12

GND | VDD

R3
R2
M3
N2
L3

M2
T10
T11

R10
R11
M10
N11

L10

M11
G10

F11
F10

E11
C10
C11
B10
B11

G3

F2

F3

E2

C3

C2

B3

B2

H10

G9

G4

L4

K2

M9

K11

L9

K10
H11

K9

M4

K3

H2

K4

CS1

F9

H9

H3

F4

H4

J10
J11

P3

P10
D10

D3

P2

P11
D11

D2

N3

N10
E10

E3

U9

A4

H1

H12

136BALL-GDDR3

C963
.1UF

10V

R1

10%
X5R
0402
NS

C966
.1UF

R2

10V
10%
X5R
0402
COMMON

GND

FBAD38

38

FBAD39

39

FBAD37

37

FBAD36

36

FBAD35

35

FBAD32

32

FBAD33

33

FBAD34

34

FBAD58

58

FBAD62

62

FBAD56

56

FBAD59

59

FBAD57

57

FBAD60

60

FBAD63

63

FBAD61

61

FBAD45

45

FBAD46

46

FBAD40

40

FBAD47

47

FBAD41

41

FBAD43

43

FBAD42

42

FBAD44

44

FBAD55

55

FBAD52

52

FBAD54

54

FBAD53

53

FBAD49

49

FBAD51

51

FBAD48

48

FBAD50

50

18

FBA_CMD18

10

FBA_CMD10

16

FBA_CMD16

17

FBA_CMD17

20

FBA_CMD20

19

FBA_CMD19

23

FBA_CMD23

21

FBA_CMD21

6

FBA_CMD6

5

FBA_CMD5

4

FBA_CMD4

13

FBA_CMD13

3

FBA_CMD3

1

FBA_CMD1

FBA_CMD7_1

IN

9

FBA_CMD9

FBA_CMD15

15

FBA_CMD25

25

11

FBA_CMD11

FBA_CLK1*
FBA_CLK1

FBADQS_RN4
FBADQS_RN7
FBADQS_RN5
FBADQS_RN6

FBADQS_WP4
FBADQS_WP7
FBADQS_WP5
FBADQS_WP6

FBADQM4
FBADQM7
FBADQM5
FBADQM6

C960

FBA_CMD12

.1UF

10V

FBA_ZQ1_1

R7182

10%
X5R
0402

240

FBA_VREF_DATA1_1

NS

GND

1%
0603
COMMON

FBA_VREF_ADDR1_1

C962
.1UF

10V
10%
X5R
0402
COMMON

FBA_ZQ0_1

R7189

2.37K

1%

0402

COMMON

R7191

5.49K

1%

0402

COMMON

FBVDD

U511

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18

L3

DQ25 | DQ17

M2

DQ24 | DQ16

T10

DQ23 | DQ31

T11

DQ22 | DQ30

R10

DQ21 | DQ29

R11

DQ20 | DQ28

M10

DQ19 | DQ27

N11

DQ18 | DQ26

L10

DQ17 | DQ25

M11

DQ16 | DQ24

G10

DQ15 | DQ7

F11

DQ14 | DQ6

F10

DQ13 | DQ5

E11

DQ12 | DQ4

C10

DQ11 | DQ3

C11

DQ10 | DQ2

B10

DQ9 | DQ1

B11

DQ8 | DQ0

G3

DQ7 | DQ15

F2

DQ6 | DQ14

F3

DQ5 | DQ13

E2

DQ4 | DQ12

C3

DQ3 | DQ11

C2

DQ2 | DQ10

B3

DQ1 | DQ9

B2

DQ0 | DQ8

H10

BA2 | RAS

G9

BA1 | BA0

G4

BA0 | BA1

L4

A11 | A7

K2

A10 | A8

M9

A9 | A3

K11

A8/AP | A10

L9

A7 | A11

K10

A6 | A2

H11

A5 | A1

K9

A4 | A0

M4

A3 | A9

K3

A2 | A6

H2

A1 | A5

K4

A0 | A4

CS1

F9

CS | CAS

H9

WE | CKE

H3

RAS | BA2

F4

CAS | CS

H4

CKE | WE

J10

CK

J11

CK

P3

RDQS3 | RDQS2

P10

RDQS2 | RDQS3

D10

RDQS1 | RDQS0

D3

RDQS0 | RDQS1

P2

WDQS3 | WDQS2

P11

WDQS2 | WDQS3

D11

WDQS1 | WDQS0

D2

WDQS0 | WDQS1

N3

DM3 | DM2

N10

DM2 | DM3

E10

DM1 | DM0

E3

DM0 | DM1

U9

RESET

A4

ZQ

H1

VREF

H12

VREF#H12

VDDQ#A12

VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#C12

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#E12

VDDQ#J4

VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#N12

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#R12

VDDQ#V1

VDDQ#V12

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4

VSSQ#B9

VSSQ#B12

VSSQ#D1

VSSQ#D4

VSSQ#D9

VSSQ#D12

VSSQ#G2

VSSQ#G11

VSSQ#L2

VSSQ#L11

VSSQ#P1

VSSQ#P4

VSSQ#P9

VSSQ#P12

VSSQ#T1

VSSQ#T4

VSSQ#T9

VSSQ#T12

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VDDA#K12

VSSA#J12

GND | VDD

VDDQ

VDD

VSSQ

VSS

VDDA

VSSA

RFU2

RFU1

RFU0

MF

136BALL-GDDR3

C965
.1UF

10V

R1

10%
X5R
0402
NS

C967
.1UF

R2

10V
10%
X5R
0402
COMMON

GND

FBAD30

30

FBAD29

29

FBAD31

31

FBAD26

26

FBAD24

24

FBAD28

28

FBAD25

25

FBAD27

27

FBAD1

1

FBAD3

3

FBAD0

0

FBAD2

2

FBAD4

4

FBAD5

5

FBAD7

7

FBAD6

6

FBAD8

8

FBAD11

11

FBAD9

9

FBAD10

10

FBAD14

14

FBAD12

12

FBAD13

13

FBAD15

15

FBAD22

22

FBAD21

21

FBAD23

23

FBAD19

19

FBAD17

17

FBAD16

16

FBAD18

18

FBAD20

20

18

FBA_CMD18

10

FBA_CMD10

16

FBA_CMD16

17

FBA_CMD17

20

FBA_CMD20

19

FBA_CMD19

23

FBA_CMD23

21

FBA_CMD21

22

FBA_CMD22

24

FBA_CMD24

0

FBA_CMD0

2

FBA_CMD2

3

FBA_CMD3

1

FBA_CMD1

FBA_CMD7_1

IN

9

FBA_CMD9

15

FBA_CMD15

25

FBA_CMD25

FBA_CMD11

FBA_CLK0*
FBA_CLK0

FBADQS_RN3
FBADQS_RN0
FBADQS_RN1
FBADQS_RN2

FBADQS_WP3
FBADQS_WP0
FBADQS_WP1
FBADQS_WP2

FBADQM3
FBADQM0
FBADQM1

12

FBVDD

2.37K

R1

1%

5.49K

R2

1%

GND

R7183

FBADQM2

FBA_CMD12

240

1%
0603
COMMON

FBA_VREF_DATA0_1

FBA_VREF_ADDR0_1

FBVDD

A1
A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

FBVDD

A2
A11
F1
F12
M1
M12
U2
U11

B1
B4
B9
B12

GND

D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3
A10
G1
G12
L1
L12
U3
U10

K1
K12

C1004
.047UF

25V
10%
X7R
0402

J12

COMMON

J1

J3

J2

U4

150-220R@100MHz

LB547

0402

0402

LB548

150-220R@100MHz

C1005

COMMON

.047UF

25V
10%
X7R
0402
COMMON

GND

GND

FBVDD

COMMON

7.1G<>

3,4

7.1G<>

3,4

7.1G<>

3,4

A9

GND

FBA Partition

Termination for Sub-Partition and CLK
MUST BE PLACED as close as possible to
the BGA memory on the line BEFORE the
MEMORY
pin!!

Minimize the stub length!!

FBA_CMD4

FBA_CMD6

FBA_CMD5

FBA_CMD13

FBA_CMD22

FBA_CMD24

FBA_CMD0

FBA_CMD2

6.3A>

6.3A>

6.3A>

FBADQM[7..0]

BI

FBADQS_RN[7..0]

BI

FBADQS_WP[7..0]

BI

FBVDD

R7170

120

0402

COMMON

5%

R7171

120

0402COMMON

5%

R7172

120

0402

COMMON

5%

R7173

120

0402

COMMON

5%

R7174

120

0402

COMMON

5%

R7175

120

0402COMMON

5%

R7176

120

0402

COMMON

5%

R7177

120

0402COMMON

5%

20.5G> 3,4

FBADQM0

0

FBADQM1

1

FBADQM2

2

FBADQM3

3

FBADQM4

4

FBADQM5

5

FBADQM6

6

FBADQM7

7

FBADQS_RN0

0

FBADQS_RN1

1

FBADQS_RN2

2

FBADQS_RN3

3

FBADQS_RN4

4

FBADQS_RN5

5

FBADQS_RN6

6

FBADQS_RN7

7

FBADQS_WP0

0

FBADQS_WP1

1

FBADQS_WP2

2

FBADQS_WP3

3

FBADQS_WP4

4

FBADQS_WP5

5

FBADQS_WP6

6

FBADQS_WP7

7

20.5G> 3,4

FBA_CMD[26..0]

3.2D> 4.1G< 3,4
IN

FBVDD

C989
.1UF

10V
10%
X5R
0402

Hi Sub-Partition

COMMON

R7179

COMMON

IN
IN

R7178

60.4R

1%

0402

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

20.5G> 3

60.4R

1%

0402

COMMON

12

R7184

COMMON

R7186

COMMON

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

FBVDD

2.37K

R1

1%

0402

5.49K

R2

1%

0402

GND

VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#J4
VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#V1

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4
VSSQ#B9

VSSQ#D1
VSSQ#D4
VSSQ#D9

VSSQ#G2

VSSQ#L2

VSSQ#P1
VSSQ#P4
VSSQ#P9

VSSQ#T1
VSSQ#T4
VSSQ#T9

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VSSA#J12

FBVDD

A1

VDDQ

A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

A2

VDD

A11
F1
F12
M1
M12
U2
U11

B1

VSSQ

B4
B9
B12
D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3

VSS

A10
G1
G12
L1
L12
U3
U10

K1

VDDA

K12

J12
J1

VSSA

J3

RFU2

J2

RFU1

U4

RFU0

A9

MF

C1002
.047UF

25V
10%
X7R
0402
COMMON

GND

GND

GND

FBVDD

GND

C1003
.047UF

25V
10%
X7R
0402
COMMON

FBVDD

150-220R@100MHz

LB545

0402

COMMON

0402

LB546

150-220R@100MHz

COMMON

13.1G<> 3,4

1

BI

ZQ = 6x desired output

DDR3:

impedence of DQ drivers
Impedence = 240 / 6 = 40 ohm

2

3.2D> 4.1G< 3,4
IN

R7180

60.4R

3

IN
IN

1%

0402

COMMON

4

5

Micro-Star International Co., LTD.

Size Document Number Rev
Custom

AB D F H

E GC

Date:

FB A2

Tuesday, June 27, 2006

MS-V069

Sheet of

100

6

25

www.vinafix.vn

HGFEDCBA

7.1G<> 7.4B<> 8,10

1

2

7.1G<>

8,10

3

7.4B<>

7.5B<> 8,10

7.2G<>

7.1G<>

7.1G<> 7.2G<> 7.4B<> 8,10

4

5

AB D F H

FBCD[63..0]

BI

FBCD0

0

FBCD1

1

FBCD2

2

FBCD3

3

FBCD4

4

FBCD5

5

FBCD6

6

FBCD7

7

FBCD8

8

FBCD9

9

FBCD10

10

FBCD11

11

FBCD12

12

FBCD13

13

FBCD14

14

FBCD15

15

FBCD16

16

FBCD17

17

FBCD18

18

FBCD19

19

FBCD20

20

FBCD21

21

FBCD22

22

FBCD23

23

FBCD24

24

FBCD25

25

FBCD26

26

FBCD27

27

FBCD28

28

FBCD29

29

FBCD30

30

FBCD31

31

FBCD32

32

FBCD33

33

FBCD34

34

FBCD35

35

FBCD36

36

FBCD37

37

FBCD38

38

FBCD39

39

FBCD40

40

FBCD41

41

FBCD42

42

FBCD43

43

FBCD44

44

FBCD45

45

FBCD46

46

FBCD47

47

FBCD48

48

FBCD49

49

FBCD50

50

FBCD51

51

FBCD52

52

FBCD53

53

FBCD54

54

FBCD55

55

FBCD56

56

FBCD57

57

FBCD58

58

FBCD59

59

FBCD60

60

FBCD61

61

FBCD62

62

FBCD63

63

FBCDQM[7..0]

OUT

FBCDQS_WP[7..0]

BI

FBCDQS_RN[7..0]

BI

FBCDQM0

0

FBCDQM1

1

FBCDQM2

2

FBCDQM3

3

FBCDQM4

4

FBCDQM5

5
6

FBCDQM6

FBCDQM7

7

FBCDQS_WP0

0

FBCDQS_WP1

1

FBCDQS_WP2

2

FBCDQS_WP3

3

FBCDQS_WP4

4

FBCDQS_WP5

5

FBCDQS_WP6

6

FBCDQS_WP7

7

FBCDQS_RN0

0

FBCDQS_RN1

1

FBCDQS_RN2

2

FBCDQS_RN3

3

FBCDQS_RN4

4

FBCDQS_RN5

5

FBCDQS_RN6

6

FBCDQS_RN7

7

U11C

BGA820_P10_33X33MM
COMMON

3/14 FBC

B7

FBCD0

A7

FBCD1

C7

FBCD2

A2

FBCD3

B2

FBCD4

C4

FBCD5

A5

FBCD6

B5

FBCD7

F9

FBCD8

F10

FBCD9

D12

FBCD10

D9

FBCD11

E12

FBCD12

D11

FBCD13

E8

FBCD14

D8

FBCD15

E7

FBCD16

F7

FBCD17

D6

FBCD18

D5

FBCD19

D3

FBCD20

E4

FBCD21

C3

FBCD22

B4

FBCD23

C10

FBCD24

B10

FBCD25

C8

FBCD26

A10

FBCD27

C11

FBCD28

C12

FBCD29

A11

FBCD30

B11

FBCD31

B28

FBCD32

C27

FBCD33

C26

FBCD34

B26

FBCD35

C30

FBCD36

B31

FBCD37

C29

FBCD38

A31

FBCD39

D28

FBCD40

D27

FBCD41

F26

FBCD42

D24

FBCD43

E23

FBCD44

E26

FBCD45

E24

FBCD46

F23

FBCD47

B23

FBCD48

A23

FBCD49

C25

FBCD50

C23

FBCD51

A22

FBCD52

C22

FBCD53

C21

FBCD54

B22

FBCD55

E22

FBCD56

D22

FBCD57

D21

FBCD58

E21

FBCD59

E18

FBCD60

D19

FBCD61

D18

FBCD62

E19

FBCD63

A4

FBCDQM0

E11

FBCDQM1

F5

FBCDQM2

C9

FBCDQM3

C28

FBCDQM4

F24

FBCDQM5

C24

FBCDQM6

E20

FBCDQM7

C5

FBCDQS_WP0

E10

FBCDQS_WP1

E5

FBCDQS_WP2

B8

FBCDQS_WP3

A29

FBCDQS_WP4

D25

FBCDQS_WP5

B25

FBCDQS_WP6

F20

FBCDQS_WP7

C6

FBCDQS_RN0

E9

FBCDQS_RN1

E6

FBCDQS_RN2

A8

FBCDQS_RN3

B29

FBCDQS_RN4

E25

FBCDQS_RN5

A25

FBCDQS_RN6

F21

FBCDQS_RN7

A28

FB_VREF2

FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT
FBVTT

FBC_CMD0
FBC_CMD1
FBC_CMD2
FBC_CMD3
FBC_CMD4
FBC_CMD5
FBC_CMD6
FBC_CMD7
FBC_CMD8

FBC_CMD9
FBC_CMD10
FBC_CMD11
FBC_CMD12
FBC_CMD13
FBC_CMD14
FBC_CMD15
FBC_CMD16
FBC_CMD17
FBC_CMD18
FBC_CMD19
FBC_CMD20
FBC_CMD21
FBC_CMD22
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26

FBC_CLK0

FBC_CLK0

FBC_CLK1

FBC_CLK1

RFU
RFU

FBC_DEBUG

FBC_REFCLK
FBC_REFCLK

FBC_PLLVDD

FBC_PLLAVDD

FBC_PLLGND

FBCAL_PD_VDDQ

FBCAL_PU_GND

FBCAL_TERM_GND

Place near

AA23
AB23
H16
H17
J10
J23
J24
J9
K11
K12
K21
K22
K24
K9
L23
M23
T25
U25

BGA

Value
TBD

GND

C782
1UF

10V
10%
X7R
0603
COMMON

FBVDD

1

2

PLACE NEAR

7.1G<

FBC_CMD23
FBC_CMD24
FBC_CMD25

FBC_REFCLK
FBC_REFCLK*

FBC_PLLVDD

FBC_PLLAVDD

FBC_CMD[26..0]

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

OUT
OUT
OUT
OUT

R624

04021%COMMON

R621

0402

1%

R625

0402 COMMO N

5%

7.1G< 7.2A< 8,10

7.1G< 7.2A< 8,10

7.1G< 7.2D< 8,10

7.1G< 7.2D< 8,10

49.9

49.9

COMMON

40.2

FBC_CMD0

C13

FBC_CMD1

A16

FBC_CMD2

A13

FBC_CMD3

B17

FBC_CMD4

B20

FBC_CMD5

A19

FBC_CMD6

B19

FBC_CMD7

B14

FBC_CMD8

E16

FBC_CMD9

A14

FBC_CMD10

C15

FBC_CMD11

B16

FBC_CMD12

F17

FBC_CMD13

C19
D15

FBC_CMD15

C17

FBC_CMD16

A17

FBC_CMD17

C16

FBC_CMD18

D14

FBC_CMD19

F16

FBC_CMD20

C14

FBC_CMD21

C18

FBC_CMD22

E14
B13
E15
F15
A20

FBC_CLK0

E13

FBC_CLK0*

F13

FBC_CLK1

F18

FBC_CLK1*

E17

TP
NOW

C20
D1

F12

B1
C1

G8

G10

G9

GND

FBCAL_PD

K26

FBCAL_PU

H26

FBCAL_TERM

J26

FBVDD

OUT

R7194
0R

0402
1%
COMMON

GND

R7195

0R

0402
1%
COMMON

7.1A<

8,10

14.3A< 8

OUT

14.3A< 10

OUT

PLACE close to
GPU

C713
.01UF

16V
10%
X7R
0402
NS

C696
.01UF

16V

GND

10%
X7R
0402
COMMON

Place close to balls

FBVDD

R45

R44

100

100

1%

1%
0402

0402
NS

NS

R43

R46

100

100

1%

1%

0402

0402

NS

NS

GND

150-220R@100MHz

LB506

C669
1UF

6.3V
10%
X5R
0402
NS

C677
1UF

6.3V
10%
X5R
0402
COMMON

150-220R@100MHz

150-220R@100MHz

GND

0603 NS

LB508

NS0603

LB538

0603 COMMO N

C701
.1UF

10V
10%
X5R
0402
NS

C688
.1UF

10V
10%
X5R
0402
COMMON

3V3

C653

4.7UF

6.3V
10%
X5R
0603
NS

NVVDD

GND

C657

4.7UF

6.3V

FBA_AVDD Connection is TBD. This may not be tied on the Package

10%
X5R
0603
NS

PEX1V2

C991

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

E GC

GPU

FBC_CMD12

NS

R7241

FBC_CMD11

10K

?

0402

GND

CKE Stuff options for DDR3 configation for
on-die terminations at the memory

IMPORTANT FOR POWER ON INITIALIZATION OF
DDR3 MEMS

DDR3: DETERMINES THE ODT VALUE FOR ADDR AND
CONTROL PINS

CKE = 0 --> ODT = ZQ/2
CKE = 1 --> ODT = ZQ

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

Date:

Tuesday, June 27, 2006

FBVDD

R606

10K

5%

0402

NS

R608

10K

5%

0402

NS

GND

FBC INTERFACE

MS-V069

7

Sheet of

3

4

5

100

25

www.vinafix.vn

FRAMEBUFFER: PARTITION
C 16Mx32 BGA136 DDR3

13.1G<> 7,10
BI

1

ZQ = 6x desired output

DDR3:

impedence of DQ drivers
Impedence = 240 / 6 = 40 ohm

2

3.2D> 4.1G< 7,10
IN

FBVDD

R7206

60.4R

1%

0402

COMMON

3

20.5G> 7,10
IN

20.5G> 7,10
IN

4

5

COMMON

FBCD[63..0]

FBC_CMD[26..0]

20.5G> 7

C993
.1UF

10V
10%
X5R
0402

Low Sub-Partition

COMMON

R7207

60.4R

1%

0402

C969
.1UF

10V
10%
X5R
0402
NS

C972
.1UF

10V
10%
X5R
0402

COMMON

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

IN

12

GND

R7211

2.37K

0402

COMMON

R7214

5.49K

0402

COMMON

HGFEDCBA

R7213

2.37K

1%

0402

COMMON

R7216

5.49K

1%

0402

COMMON

FBVDD

U512

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18
DQ25 | DQ17
DQ24 | DQ16
DQ23 | DQ31
DQ22 | DQ30
DQ21 | DQ29
DQ20 | DQ28
DQ19 | DQ27
DQ18 | DQ26
DQ17 | DQ25
DQ16 | DQ24
DQ15 | DQ7
DQ14 | DQ6
DQ13 | DQ5
DQ12 | DQ4
DQ11 | DQ3
DQ10 | DQ2
DQ9 | DQ1
DQ8 | DQ0
DQ7 | DQ15
DQ6 | DQ14
DQ5 | DQ13
DQ4 | DQ12
DQ3 | DQ11
DQ2 | DQ10
DQ1 | DQ9
DQ0 | DQ8

BA2 | RAS
BA1 | BA0
BA0 | BA1

A11 | A7
A10 | A8
A9 | A3
A8/AP | A10
A7 | A11
A6 | A2
A5 | A1
A4 | A0
A3 | A9
A2 | A6
A1 | A5
A0 | A4

CS | CAS

WE | CKE

RAS | BA2

CAS | CS

CKE | WE

CK
CK

RDQS3 | RDQS2
RDQS2 | RDQS3
RDQS1 | RDQS0
RDQS0 | RDQS1

WDQS3 | WDQS2
WDQS2 | WDQS3
WDQS1 | WDQS0
WDQS0 | WDQS1

DM3 | DM2
DM2 | DM3
DM1 | DM0
DM0 | DM1

RESET

ZQ

VREF

VREF#H12

VDDQ#C12

VDDQ#E12

VDDQ#N12

VDDQ#R12

VDDQ#V12

VSSQ#B12

VSSQ#D12

VSSQ#G11

VSSQ#L11

VSSQ#P12

VSSQ#T12

VDDA#K12

L3

M2
T10
T11
R10
R11

M10

N11
L10

M11
G10

F11
F10
E11
C10
C11
B10
B11

G3

F2

F3

E2

C3

C2

B3

B2

H10

G9

G4

L4

K2

M9
K11

L9
K10
H11

K9

M4

K3

H2

K4

CS0

F9

H9

H3

F4

H4

J10
J11

P3
P10
D10

D3

P2
P11
D11

D2

N3
N10
E10

E3

U9

A4

H1

H12

136BALL-GDDR3

C971
.1UF

10V

R1

10%

X5R
0402
NS

C974
.1UF

R2

10V
10%

X5R
0402
COMMON

GND

FBCD42

42

FBCD45

45

FBCD40

40

FBCD41

41
44
43
46
47
61
63
62
60
57
58
59
56
54
52
55
53
50
48
51
49
37
36
39
38
35
32
34
33

18
10

16
17
20
19
23
21
6
5
4
13
3
1

8

9

15

25

11

R7208

240

1%
0603
COMMON

FBCD44
FBCD43
FBCD46
FBCD47
FBCD61
FBCD63
FBCD62
FBCD60
FBCD57
FBCD58
FBCD59
FBCD56
FBCD54
FBCD52
FBCD55
FBCD53
FBCD50
FBCD48
FBCD51
FBCD49
FBCD37
FBCD36
FBCD39
FBCD38
FBCD35
FBCD32
FBCD34
FBCD33

FBC_CMD7_0
FBC_CMD18
FBC_CMD10

FBC_CMD16
FBC_CMD17
FBC_CMD20
FBC_CMD19
FBC_CMD23
FBC_CMD21
FBC_CMD6
FBC_CMD5
FBC_CMD4
FBC_CMD13
FBC_CMD3
FBC_CMD1

FBC_CMD8

FBC_CMD9

FBC_CMD15

FBC_CMD25

FBC_CMD11

FBC_CLK1*
FBC_CLK1

FBCDQS_RN5
FBCDQS_RN7
FBCDQS_RN6
FBCDQS_RN4

FBCDQS_WP5
FBCDQS_WP7
FBCDQS_WP6
FBCDQS_WP4

FBCDQM5
FBCDQM7
FBCDQM6
FBCDQM4

FBC_CMD12

FBC_ZQ1

FBC_VREF_ADDR1

FBC_VREF_DATA1

FBC_ZQ0

R7215

2.37K

0402

COMMON

R7217

5.49K

0402

COMMON

U513

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18

L3

DQ25 | DQ17

M2

DQ24 | DQ16

T10

DQ23 | DQ31

T11

DQ22 | DQ30

R10

DQ21 | DQ29

R11

DQ20 | DQ28

M10

DQ19 | DQ27

N11

DQ18 | DQ26

L10

DQ17 | DQ25

M11

DQ16 | DQ24

G10

DQ15 | DQ7

F11

DQ14 | DQ6

F10

DQ13 | DQ5

E11

DQ12 | DQ4

C10

DQ11 | DQ3

C11

DQ10 | DQ2

B10

DQ9 | DQ1

B11

DQ8 | DQ0

G3

DQ7 | DQ15

F2

DQ6 | DQ14

F3

DQ5 | DQ13

E2

DQ4 | DQ12

C3

DQ3 | DQ11

C2

DQ2 | DQ10

B3

DQ1 | DQ9

B2

DQ0 | DQ8

H10

BA2 | RAS

G9

BA1 | BA0

G4

BA0 | BA1

L4

A11 | A7

K2

A10 | A8

M9

A9 | A3

K11

A8/AP | A10

L9

A7 | A11

K10

A6 | A2

H11

A5 | A1

K9

A4 | A0

M4

A3 | A9

K3

A2 | A6

H2

A1 | A5

K4

A0 | A4

CS0

F9

CS | CAS

H9

WE | CKE

H3

RAS | BA2

F4

CAS | CS

H4

CKE | WE

J10

CK

J11

CK

P3

RDQS3 | RDQS2

P10

RDQS2 | RDQS3

D10

RDQS1 | RDQS0

D3

RDQS0 | RDQS1

P2

WDQS3 | WDQS2

P11

WDQS2 | WDQS3

D11

WDQS1 | WDQS0

D2

WDQS0 | WDQS1

N3

DM3 | DM2

N10

DM2 | DM3

E10

DM1 | DM0

E3

DM0 | DM1

U9

RESET

A4

ZQ

H1

VREF

H12

VREF#H12

VDDQ#A12

VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#C12

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#E12

VDDQ#J4

VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#N12

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#R12

VDDQ#V1

VDDQ#V12

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4

VSSQ#B9

VSSQ#B12

VSSQ#D1

VSSQ#D4

VSSQ#D9

VSSQ#D12

VSSQ#G2

VSSQ#G11

VSSQ#L2

VSSQ#L11

VSSQ#P1

VSSQ#P4

VSSQ#P9

VSSQ#P12

VSSQ#T1

VSSQ#T4

VSSQ#T9

VSSQ#T12

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VDDA#K12

VSSA#J12

GND | VDD

VDDQ

VDD

VSSQ

VSS

VDDA

VSSA

RFU2

RFU1

RFU0

MF

136BALL-GDDR3

FBVDD

C973
.1UF

10V

R1

10%

1%

X5R
0402
NS

C975
.1UF

R2

1%

10V
10%
X5R
0402
COMMON

GND

FBCD12

12

FBCD13

13

FBCD10

10

FBCD9

9

FBCD11

11

FBCD8

8

FBCD14

14

FBCD15

15

FBCD21

21

FBCD20

20

FBCD22

22

FBCD23

23

FBCD17

17

FBCD19

19

FBCD16

16

FBCD18

18

FBCD4

4

FBCD5

5

FBCD3

3

FBCD6

6

FBCD2

2

FBCD7

7

FBCD1

1

FBCD0

0

FBCD29

29

FBCD30

30

FBCD31

31

FBCD28

28

FBCD26

26

FBCD25

25

FBCD24

24

FBCD27

27

FBC_CMD7_0

18

FBC_CMD18

10

FBC_CMD10

16

FBC_CMD16

17

FBC_CMD17

20

FBC_CMD20

19

FBC_CMD19

23

FBC_CMD23

21

FBC_CMD21

22

FBC_CMD22

24

FBC_CMD24

0

FBC_CMD0

2

FBC_CMD2

3

FBC_CMD3

1

FBC_CMD1

8

FBC_CMD8

9

FBC_CMD9

FBC_CMD15

15

FBC_CMD25

25

FBC_CMD11

11

FBC_CLK0*
FBC_CLK0

FBCDQS_RN1
FBCDQS_RN2
FBCDQS_RN0
FBCDQS_RN3

FBCDQS_WP1
FBCDQS_WP2
FBCDQS_WP0
FBCDQS_WP3

FBCDQM1
FBCDQM2
FBCDQM0
FBCDQM3

FBC_CMD12

R7209

240

FBVDD

R1

1%

R2

1%

GND

1%
0603
COMMON

FBC_VREF_DATA0

FBC_VREF_ADDR0

FBVDD

A1
A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

FBVDD

A2
A11
F1
F12
M1
M12
U2
U11

B1
B4
B9
B12

GND

D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3
A10
G1
G12
L1
L12
U3
U10

K1
K12

C1008
.047UF

25V
10%
X7R
0402

J12

COMMON

J1

J3

J2

U4

150-220R@100MHz

LB551

0402

0402

LB552

150-220R@100MHz

C1009

COMMON

.047UF

25V
10%
X7R
0402
COMMON

GND

GND

FBVDD

COMMON

7.1G<>

7,10

7.1G<>

7,10

7.1G<>

7,10

A9

GND

FBC Partition

Termination for Sub-Partition and CLK
MUST BE PLACED as close as possible to
the BGA memory on the line BEFORE the
MEMORY
pin!!

Minimize the stub length!!

FBC_CMD4

FBC_CMD6

FBC_CMD5

FBC_CMD13

FBC_CMD22

FBC_CMD24

FBC_CMD0

FBC_CMD2

6.3A>

6.3A>

6.3A>

FBCDQM[7..0]

BI

FBCDQS_RN[7..0]

BI

FBCDQS_WP[7..0]

BI

FBVDD

R7196

120

0402

COMMON

5%

R7197

120

0402COMMON

5%

R7198

120

0402

COMMON

5%

R7199

120

0402

COMMON

5%

R7200

120

0402

COMMON

5%

R7201

120

0402COMMON

5%

R7202

120

0402

COMMON

5%

R7203

120

0402COMMON

5%

20.5G> 7,10

FBCDQM0

0

FBCDQM1

1

FBCDQM2

2

FBCDQM3

3

FBCDQM4

4

FBCDQM5

5

FBCDQM6

6

FBCDQM7

7

FBCDQS_RN0

0

FBCDQS_RN1

1

FBCDQS_RN2

2

FBCDQS_RN3

3

FBCDQS_RN4

4

FBCDQS_RN5

5

FBCDQS_RN6

6

FBCDQS_RN7

7

FBCDQS_WP0

0

FBCDQS_WP1

1

FBCDQS_WP2

2

FBCDQS_WP3

3

FBCDQS_WP4

4

FBCDQS_WP5

5

FBCDQS_WP6

6

FBCDQS_WP7

7

20.5G> 7,10

FBC_CMD[26..0]

3.2D> 4.1G< 7,10
IN

20.5G> 7
IN

FBVDD

C992
.1UF

10V
10%
X5R
0402

Hi Sub-Partition

COMMON

R7204

R7205

60.4R

60.4R

1%

1%

0402

0402

COMMON

COMMON

IN
IN

12

FBVDD

GND

.1UF

C968

10V
10%
X5R
0402
NS

C970
.1UF

10V
10%
X5R
0402
COMMON

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

R7210

0402

COMMON

R7212

0402

COMMON

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

2.37K

R1

1%

5.49K

R2

1%

GND

VDDQ#A12
VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#J4

VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#V1

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4

VSSQ#B9

VSSQ#D1

VSSQ#D4

VSSQ#D9

VSSQ#G2

VSSQ#L2

VSSQ#P1

VSSQ#P4

VSSQ#P9

VSSQ#T1

VSSQ#T4

VSSQ#T9

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VSSA#J12

GND | VDD

FBVDD

A1

VDDQ

A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

A2

VDD

A11
F1
F12
M1
M12
U2
U11

B1

VSSQ

B4
B9
B12
D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3

VSS

A10
G1
G12
L1
L12
U3
U10

K1

VDDA

K12

J12
J1

VSSA

J3

RFU2

J2

RFU1

U4

RFU0

A9

MF

C1006
.047UF

25V
10%
X7R
0402

COMMON

GND

GND

GND

FBVDD

GND

C1007
.047UF

25V
10%
X7R
0402
COMMON

LB550

FBVDD

150-220R@100MHz

LB549

0402

COMMON

0402

150-220R@100MHz

COMMON

1

2

3

4

5

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

AB D F H

E GC

Date:

FB C1

MS-V069

Tuesday, June 27, 2006

www.vinafix.vn

8

Sheet of

100

25

FRAMEBUFFER: PARTITION C
DECOUPLING

1

2

3

4

Decoupling for FBC 0..31

FBVDD

C868

C771

4.7UF

4.7UF

6.3V

6.3V
10%

10%

X5R

X5R

0603

0603

COMMON

COMMON

FBVDD

C764

4.7UF

6.3V
10%
X5R
0603
COMMON

C650

4.7UF

6.3V
10%
X5R
0603
COMMON

C563
1UF

10V
10%
X7R
0603
COMMON

C733

C735

.1UF

1UF

10V

10V

10%

10%

X7R

X5R

0603

0402

COMMON

COMMON

PLACE NEAR MEMORY
FBVDD PINS

PLACE NEAR MEMORY
FBVDDQ PINS

C539
.01UF

25V
10%
X7R
0402
COMMON

C522
.01UF

25V
10%
X7R
0402
COMMON

C526
.01UF

25V
10%
X7R
0402
COMMON

C540
.01UF

25V
10%
X7R
0402
COMMON

C552
.1UF

10V
10%
X5R
0402
COMMON

C743
.01UF

16V
10%

X7R
0402
COMMON

C736
.01UF

16V
10%
X7R
0402
COMMON

GND

C551
.01UF

25V
10%
X7R
0402
COMMON

C70
.01UF

25V
10%
X7R
0402
COMMON

C1
.01UF

25V
10%
X7R
0402
COMMON

C521
.01UF

25V
10%
X7R
0402
COMMON

C2
.01UF

25V
10%
X7R
0402
COMMON

C525
.01UF

25V
10%
X7R
0402
COMMON

HGFEDCBA

U11D

BGA820_P10_33X33MM
COMMON

14/14 _GND_

AA12

GND

AA2

GND

AA21

Decoupling for FBC 32..63

PLACE NEAR MEMORY

C822

0.47UF

6.3V
10%
X5R
0402
COMMON

FBVDD PINS

C732
.1UF

10V
10%
X5R
0402
COMMON

C823

C729

0.47UF

.1UF

6.3V

10V

10%

10%

X5R

X5R

0402

0402
COMMON

COMMON

PLACE NEAR MEMORY
FBVDDQ PINS

C724
.1UF

10V
10%
X5R
0402
COMMON

C570
.01UF

25V
10%
X7R
0402
COMMON

C686
.01UF

16V
10%

X7R
0402
COMMON

C885
.01UF

16V
10%

X7R
0402
COMMON

C523
.01UF

25V
10%

X7R
0402
COMMON

C731

0.47UF

6.3V
10%
X5R
0402
COMMON

C728
.1UF

10V
10%
X5R
0402
COMMON

C519
.01UF

25V
10%
X7R
0402
COMMON

C549
.01UF

16V
10%
X7R
0402
COMMON

C560

C569

.01UF

25V
10%
X7R
0402
COMMON

.01UF

25V
10%
X7R
0402
COMMON

GND

GND

C559
.01UF

25V
10%
X7R
0402
COMMON

C538
.01UF

25V
10%
X7R
0402
COMMON

C537
.01UF

25V
10%
X7R
0402
COMMON

C558
.01UF

25V
10%
X7R
0402
COMMON

C550
.01UF

25V
10%
X7R
0402
COMMON

C520
.01UF

25V
10%
X7R
0402

COMMON

C561
.01UF

25V
10%
X7R
0402

COMMON

C567
.01UF

25V
10%

X7R
0402
COMMON

C524
.01UF

25V
10%

X7R
0402
COMMON

C568
.01UF

25V
10%

X7R
0402
COMMON

GND

GND

FBVDD

C676

C554
1UF

4.7UF

6.3V

10V

10%

10%

X5R

X7R

0603

0603

COMMON

COMMON

GND

FBVDD

C553
1UF

10V
10%
X7R
0603
COMMON

C577

4.7UF

6.3V
10%
X5R
0603
COMMON

C899

4.7UF

6.3V
10%
X5R
0603
COMMON

C545

4.7UF

GND

6.3V
10%
X5R
0603
COMMON

GND

AA31

GND

AB27

GND

AB6

GND

AC10

GND

AC23

GND

AC29

GND

AC4

GND

AD16

GND

AD17

GND

AD2

GND

AD31

GND

AE17

GND

AE27

GND

AE6

GND

AF11

GND

AF26

GND

AF29

GND

AF4

GND

AF7

GND

AG10

GND

AG11

GND

AG14

GND

AG15

GND

AG19

GND

AG2

GND

AG22

GND

AG31

GND

AG8

GND

AH24

GND

AJ10

GND

AJ13

GND

AJ16

GND

AJ17

GND

AJ20

GND

AJ23

GND

AJ26

GND

AJ29

GND

AJ4

GND

AJ7

GND

AK2

GND

AK28

GND

AK31

GND

AL11

GND

AL14

GND

AL19

GND

AL22

GND

AL25

GND

AL3

GND

AL6

GND

AL9

GND

AM13

GND

AM16

GND

AM17

GND

AM20

GND

AM23

GND

AM26

GND

AM29

GND

B12

GND

B15

GND

B18

GND

B21

GND

B24

GND

B27

GND

B3

GND

B30

GND

B6

GND

B9

GND

C2

GND

C31

GND

D10

GND

D13

GND

D16

GND

D17

GND

D20

GND

D23

GND

D26

GND

D29

GND

D4

GND

D7

GND

F11

GND

F14

GND

F19

GND

F2

GND

F22

GND

F25

GND

F31

GND

F8

GND

G26

GND

G29

GND

G4

GND

G7

GND

H27

GND

H6

GND

J16

GND

J17

GND

J2

GND

J31

GND

K10

GND

K23

GND

K29

GND

K4

GND

L27

GND

L6

GND

M12

GND

M2

GND

M31

GND

N15

GND

N18

GND

N29

GND

N4

GND

P15

GND

P18

GND

P27

GND

P6

GND

R13

GND

R14

GND

R15

GND

R18

GND

R19

GND

R2

GND

R20

GND

R31

GND

T16

GND

T17

GND

T24

GND

T29

GND

T4

GND

U16

GND

U17

GND

U24

GND

U29

GND

U8

GND

V13

GND

V14

GND

V15

GND

V18

GND

V19

GND

V2

GND

V20

GND

V31

GND

W15

GND

W18

GND

W27

GND

W6

GND

Y15

GND

Y18

GND

Y29

GND

Y4

GND

AL10

GND

AM10

GND

AG13

GND

GND

1

2

3

4

GND

5

5

Micro-Star International Co., LTD.

FBC DECOUPLING

Size Document Number Rev
Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

Sheet of

100

9

25

www.vinafix.vn

FRAMEBUFFER: PARTITION
C 8Mx32 BGA136 DDR3

HGFEDCBA

FBC_CMD[26..0]

FBVDD

C995
.1UF

10V
10%
X5R
0402
COMMON

R7229

60.4R

1%

0402

COMMON

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

FBCD[63..0]

Low Sub-Partition

20.5G> 7

GND

C977

R7233

.1UF

10V

0402

10%

COMMON

X5R
0402
NS

C980

R7236

.1UF

10V

0402

10%

COMMON

X5R
0402
COMMON

1

2

3

4

5

R7235

2.37K

1%

0402

COMMON

R7238

5.49K

1%

0402

COMMON

FBVDD

U514

T3

DQ31 | DQ23

T2

DQ30 | DQ22
DQ29 | DQ21
DQ28 | DQ20
DQ27 | DQ19
DQ26 | DQ18
DQ25 | DQ17
DQ24 | DQ16
DQ23 | DQ31
DQ22 | DQ30
DQ21 | DQ29
DQ20 | DQ28
DQ19 | DQ27
DQ18 | DQ26
DQ17 | DQ25
DQ16 | DQ24
DQ15 | DQ7
DQ14 | DQ6
DQ13 | DQ5
DQ12 | DQ4
DQ11 | DQ3
DQ10 | DQ2
DQ9 | DQ1
DQ8 | DQ0
DQ7 | DQ15
DQ6 | DQ14
DQ5 | DQ13
DQ4 | DQ12
DQ3 | DQ11
DQ2 | DQ10
DQ1 | DQ9
DQ0 | DQ8

BA2 | RAS
BA1 | BA0
BA0 | BA1

A11 | A7
A10 | A8
A9 | A3
A8/AP | A10
A7 | A11
A6 | A2
A5 | A1
A4 | A0
A3 | A9
A2 | A6
A1 | A5
A0 | A4

CS | CAS

WE | CKE

RAS | BA2

CAS | CS

CKE | WE

CK
CK

RDQS3 | RDQS2
RDQS2 | RDQS3
RDQS1 | RDQS0
RDQS0 | RDQS1

WDQS3 | WDQS2
WDQS2 | WDQS3
WDQS1 | WDQS0
WDQS0 | WDQS1

DM3 | DM2
DM2 | DM3
DM1 | DM0
DM0 | DM1

RESET

ZQ

VREF

VREF#H12

VDDQ#A12

VDDQ#C12

VDDQ#E12

VDDQ#N12

VDDQ#R12

VDDQ#V12

VSSQ#B12

VSSQ#D12

VSSQ#G11

VSSQ#L11

VSSQ#P12

VSSQ#T12

VDDA#K12

GND | VDD

R3
R2

M3

N2

L3
M2
T10
T11
R10
R11

M10
N11
L10
M11
G10
F11
F10
E11
C10
C11
B10
B11

G3

F2

F3

E2

C3

C2

B3

B2

H10

G9
G4

L4

K2
M9

K11

L9

K10
H11

K9
M4

K3

H2

K4

F9

H9

H3

CS1

F4

H4

J10
J11

P3

P10
D10

D3

P2

P11
D11

D2

N3
N10
E10

E3

U9

A4

H1

H12

136BALL-GDDR3

C979
.1UF

10V

R1

10%
X5R
0402
NS

C982
.1UF

R2

10V
10%
X5R
0402
COMMON

GND

FBCD61

61

FBCD63

63

FBCD62

62

FBCD60

60

FBCD57

57

FBCD58

58

FBCD59

59

FBCD56

56

FBCD42

42

FBCD45

45

FBCD40

40

FBCD41

41

FBCD44

44

FBCD43

43

FBCD46

46

FBCD47

47

FBCD37

37

FBCD36

36

FBCD39

39

FBCD38

38

FBCD35

35

FBCD32

32

FBCD34

34

FBCD33

33

FBCD54

54

FBCD52

52

FBCD55

55

FBCD53

53

FBCD50

50

FBCD48

48

FBCD51

51

FBCD49

49

FBC_CMD18

18

FBC_CMD10

10

FBC_CMD16

16

FBC_CMD17

17

FBC_CMD20

20

FBC_CMD19

19

FBC_CMD23

23

FBC_CMD21

21

FBC_CMD6

6

FBC_CMD5

5

FBC_CMD4

4

FBC_CMD13

13

FBC_CMD3

3

FBC_CMD1

1

FBC_CMD7_1

IN

FBC_CMD9

9

FBC_CMD15

15

FBC_CMD25

25

FBC_CMD11

11

FBC_CLK1*
FBC_CLK1

FBCDQS_RN7
FBCDQS_RN5
FBCDQS_RN4
FBCDQS_RN6

FBCDQS_WP7
FBCDQS_WP5
FBCDQS_WP4
FBCDQS_WP6

FBCDQM7
FBCDQM5
FBCDQM4
FBCDQM6

C976

FBC_CMD12

.1UF

10V

FBC_ZQ1_1

R7230

10%
X5R
0402

240

FBC_VREF_DATA1_1

NS

GND

1%
0603
COMMON

FBC_VREF_ADDR1_1

C978
.1UF

10V
10%
X5R
0402
COMMON

FBC_ZQ0_1

R7237

2.37K

1%

0402

COMMON

R7239

5.49K

1%

0402

COMMON

FBVDD

U515

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18

L3

DQ25 | DQ17

M2

DQ24 | DQ16

T10

DQ23 | DQ31

T11

DQ22 | DQ30

R10

DQ21 | DQ29

R11

DQ20 | DQ28

M10

DQ19 | DQ27

N11

DQ18 | DQ26

L10

DQ17 | DQ25

M11

DQ16 | DQ24

G10

DQ15 | DQ7

F11

DQ14 | DQ6

F10

DQ13 | DQ5

E11

DQ12 | DQ4

C10

DQ11 | DQ3

C11

DQ10 | DQ2

B10

DQ9 | DQ1

B11

DQ8 | DQ0

G3

DQ7 | DQ15

F2

DQ6 | DQ14

F3

DQ5 | DQ13

E2

DQ4 | DQ12

C3

DQ3 | DQ11

C2

DQ2 | DQ10

B3

DQ1 | DQ9

B2

DQ0 | DQ8

H10

BA2 | RAS

G9

BA1 | BA0

G4

BA0 | BA1

L4

A11 | A7

K2

A10 | A8

M9

A9 | A3

K11

A8/AP | A10

L9

A7 | A11

K10

A6 | A2

H11

A5 | A1

K9

A4 | A0

M4

A3 | A9

K3

A2 | A6

H2

A1 | A5

K4

A0 | A4

CS1

F9

CS | CAS

H9

WE | CKE

H3

RAS | BA2

F4

CAS | CS

H4

CKE | WE

J10

CK

J11

CK

P3

RDQS3 | RDQS2

P10

RDQS2 | RDQS3

D10

RDQS1 | RDQS0

D3

RDQS0 | RDQS1

P2

WDQS3 | WDQS2

P11

WDQS2 | WDQS3

D11

WDQS1 | WDQS0

D2

WDQS0 | WDQS1

N3

DM3 | DM2

N10

DM2 | DM3

E10

DM1 | DM0

E3

DM0 | DM1

U9

RESET

A4

ZQ

H1

VREF

H12

VREF#H12

VDDQ#A12

VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#C12

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#E12

VDDQ#J4
VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#N12

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#R12

VDDQ#V1

VDDQ#V12

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4
VSSQ#B9

VSSQ#B12

VSSQ#D1
VSSQ#D4
VSSQ#D9

VSSQ#D12

VSSQ#G2

VSSQ#G11

VSSQ#L2

VSSQ#L11

VSSQ#P1
VSSQ#P4
VSSQ#P9

VSSQ#P12

VSSQ#T1
VSSQ#T4
VSSQ#T9

VSSQ#T12

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VDDA#K12

VSSA#J12

GND | VDD

VDDQ

VDD

VSSQ

VSS

VDDA

VSSA

RFU2

RFU1

RFU0

MF

136BALL-GDDR3

C981
.1UF

10V

R1

10%
X5R
0402
NS

C983
.1UF

R2

10V
10%
X5R
0402
COMMON

GND

FBCD21

21

FBCD20

20

FBCD22

22

FBCD23

23

FBCD17

17

FBCD19

19

FBCD16

16

FBCD18

18

FBCD12

12

FBCD13

13

FBCD10

10

FBCD9

9

FBCD11

11

FBCD8

8

FBCD14

14

FBCD15

15

FBCD29

29

FBCD30

30

FBCD31

31

FBCD28

28

FBCD26

26

FBCD25

25

FBCD24

24

FBCD27

27

FBCD4

4

FBCD5

5

FBCD3

3

FBCD6

6

FBCD2

2

FBCD7

7

FBCD1

1

FBCD0

0

18

FBC_CMD18

10

FBC_CMD10

16

FBC_CMD16

17

FBC_CMD17

20

FBC_CMD20

19

FBC_CMD19

23

FBC_CMD23

21

FBC_CMD21

22

FBC_CMD22

24

FBC_CMD24

0

FBC_CMD0

2

FBC_CMD2

3

FBC_CMD3

1

FBC_CMD1

FBC_CMD7_1

IN

9

FBC_CMD9

FBC_CMD15

15

25

FBC_CMD25

FBC_CMD11

11

FBC_CLK0*
FBC_CLK0

FBCDQS_RN2
FBCDQS_RN1
FBCDQS_RN3
FBCDQS_RN0

FBCDQS_WP2
FBCDQS_WP1
FBCDQS_WP3
FBCDQS_WP0

FBCDQM2
FBCDQM1
FBCDQM3

12

FBVDD

2.37K

R1

1%

5.49K

R2

1%

GND

R7231

FBCDQM0

240

1%
0603
COMMON

FBC_CMD12

FBC_VREF_DATA0_1

FBC_VREF_ADDR0_1

FBVDD

A1
A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

FBVDD

A2
A11
F1
F12
M1
M12
U2
U11

B1
B4
B9
B12

GND

D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3
A10
G1
G12
L1
L12
U3
U10

K1
K12

J12
J1

J3

J2

U4

C1012
.047UF

25V
10%
X7R
0402
COMMON

GND

GND

LB555

0402

LB556

150-220R@100MHz

C1013
.047UF

25V
10%
X7R
0402
COMMON

150-220R@100MHz

0402

COMMON

FBVDD

COMMON

7.1G<>

7,8

7.1G<>

7,8

7.1G<>

7,8

A9

GND

FBC Partition

Termination for Sub-Partition and CLK
MUST BE PLACED as close as possible to

the BGA memory on the line BEFORE the

MEMORY

pin!!

Minimize the stub length!!

FBC_CMD4

FBC_CMD6

FBC_CMD5

FBC_CMD13

FBC_CMD22

FBC_CMD24

FBC_CMD0

FBC_CMD2

6.3A>

6.3A>

6.3A>

FBCDQM[7..0]

BI

FBCDQS_RN[7..0]

BI

FBCDQS_WP[7..0]

BI

FBVDD

R7218

120

0402

COMMON

5%

R7219

120

0402COMMON

5%

R7220

120

0402

COMMON

5%

R7221

120

0402

COMMON

5%

R7222

120

0402

COMMON

5%

R7223

120

0402COMMON

5%

R7224

120

0402

COMMON

5%

R7225

120

0402COMMON

5%

20.5G> 7,8

FBCDQM0

0

FBCDQM1

1

FBCDQM2

2

FBCDQM3

3

FBCDQM4

4

FBCDQM5

5

FBCDQM6

6

FBCDQM7

7

FBCDQS_RN0

0

FBCDQS_RN1

1

FBCDQS_RN2

2

FBCDQS_RN3

3

FBCDQS_RN4

4

FBCDQS_RN5

5

FBCDQS_RN6

6

FBCDQS_RN7

7

FBCDQS_WP0

0

FBCDQS_WP1

1

FBCDQS_WP2

2

FBCDQS_WP3

3

FBCDQS_WP4

4

FBCDQS_WP5

5

FBCDQS_WP6

6

FBCDQS_WP7

7

20.5G> 7,8

FBC_CMD[26..0]

3.2D> 4.1G< 7,8
IN

FBVDD

C994
.1UF

10V
10%
X5R
0402

Hi Sub-Partition

COMMON

R7226

R7227

20.5G> 7

60.4R

1%

0402

COMMON

12

COMMON

COMMON

VREF = 0.70 * FBVDDQ

1.26V = 1.8V * 2.7K/(1.15K + 2.7K)

R7232

R7234

FBVDD

2.37K

R1

1%

0402

5.49K

R2

1%

0402

GND

COMMON

IN
IN

60.4R

1%

0402

VREF = FBVDDQ * R2/(R1 + R2)

DDR3:

VDDQ#C1
VDDQ#C4
VDDQ#C9

VDDQ#E1
VDDQ#E4
VDDQ#E9

VDDQ#J4

VDDQ#J9
VDDQ#N1
VDDQ#N4
VDDQ#N9

VDDQ#R1
VDDQ#R4
VDDQ#R9

VDDQ#V1

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ#B4
VSSQ#B9

VSSQ#D1
VSSQ#D4
VSSQ#D9

VSSQ#G2

VSSQ#L2

VSSQ#P1
VSSQ#P4
VSSQ#P9

VSSQ#T1

VSSQ#T4

VSSQ#T9

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VSSA#J12

FBVDD

A1

VDDQ

A12
C1
C4
C9
C12
E1
E4
E9
E12
J4
J9
N1
N4
N9
N12
R1
R4
R9
R12
U1
U12

A2

VDD

A11
F1
F12
M1
M12
U2
U11

B1

VSSQ

B4
B9
B12
D1
D4
D9
D12
G2
G11
L2
L11
P1
P4
P9
P12
T1
T4
T9
T12
A3

VSS

A10
G1
G12
L1
L12
U3
U10

K1

VDDA

K12

J12
J1

VSSA

J3

RFU2

J2

RFU1

U4

RFU0

A9

MF

C1010
.047UF

25V
10%
X7R
0402
COMMON

GND

GND

GND

FBVDD

GND

LB553

LB554

150-220R@100MHz

C1011
.047UF

25V
10%
X7R
0402
COMMON

FBVDD

150-220R@100MHz

0402

0402

COMMON

COMMON

13.1G<> 7,8

1

BI

ZQ = 6x desired output

DDR3:

impedence of DQ drivers
Impedence = 240 / 6 = 40 ohm

2

3.2D> 4.1G< 7,8
IN

R7228

60.4R

3

20.5G> 7,8
IN

20.5G> 7,8
IN

1%

0402

COMMON

4

5

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

AB D F H

E GC

Date:

FB C2

MS-V069

Tuesday, June 27, 2006

10

Sheet of

100

25

www.vinafix.vn

HGFEDCBA

1

2

3

4

G3
VIP/MIOB

3V3

LB521
150-220R@100MHz

COMMON
0603

C809

4.7UF

6.3V
10%
X5R
0603
COMMON

G3
MIOA

MIOA_2V5

LB510
150-220R@100MHz

COMMON
0603

MIOA_VDDQ

C694

4.7UF

6.3V
10%
X5R
0603
COMMON

C807
.1UF

10V
10%
X5R
0402
COMMON

C699
.1UF

10V
10%
X5R
0402
COMMON

C687
100PF

50V
5%
C0G
0402
COMMON

MIOB_VDDQ

MIOB_VDDQ

C821
100PF

50V
5%
C0G
0402
COMMON

GND

C690
100PF

50V
5%
C0G
0402
COMMON

MIOA_VDDQ

R84

49.9

1%
0402
COMMON

R81

49.9

1%
0402
COMMON

GND

PLACE CAPS CLOSE TO GPU
PINS

C711

C793
1000PF

1000PF

16V

16V

10%

10%

X7R

X7R

0402

0402

COMMON

COMMON

R69

49.9

1%

PLACE CAPS & RES CLOSE TO GPU
PINS

0402
COMMON

R62

49.9

1%
0402
COMMON

GND

MIOBCAL_PD_VDDQ

MIOBCAL_PU_GND

MIOB_VDDQ

R85
1K

1%
0402
COMMON

R86
1K

1%
0402
COMMON

GND

MIOA_VDDQ

MIOA_VDDQ

GND

MIOB_VREF

C65
.1UF

10V
10%
X5R
0402
COMMON

C748
1000PF

16V
10%
X7R
0402
COMMON

MIOACAL_PD_VDDQ

MIOACAL_PU_GND

R72

1K

1%
0402
COMMON

R73

1K

1%
0402
COMMON

MIOA_VREF

C54
.1UF

10V
10%
X5R
0402
COMMON

U11I

BGA820_P10_33X33MM
COMMON

12/14 MIOB

AA8

MIOB_VDDQ

AB7

MIOB_VDDQ

AB8

MIOB_VDDQ

AC6

MIOB_VDDQ

AC7

MIOB_VDDQ

Y1

MIOBCAL_PD_VDDQ

Y3

MIOBCAL_PU_GND

Y2

MIOB_VREF

U11J

BGA820_P10_33X33MM
COMMON

M7

MIOA_VDDQ

M8

MIOA_VDDQ

R8

MIOA_VDDQ

T8

MIOA_VDDQ

U9

MIOA_VDDQ

L1

MIOACAL_PD_VDDQ

L3

MIOACAL_PU_GND

L2

MIOA_VREF

11/14 MIOA

MIOBD0
MIOBD1
MIOBD2
MIOBD3
MIOBD4
MIOBD5
MIOBD6
MIOBD7
MIOBD8

MIOBD9
MIOBD10
MIOBD11

MIOB_VSYNC

MIOB_HSYNC

MIOB_DE

MIOB_CTL3

MIOB_CLKOUT

MIOB_CLKOUT

MIOB_CLKIN

MIOA_HSYNC

MIOA_VSYNC

MIOA_CLKOUT
MIOA_CLKOUT

MIOA_CLKIN

RFU
RFU
RFU
RFU

RFU
RFU
RFU
RFU

MIOAD0
MIOAD1
MIOAD2
MIOAD3
MIOAD4
MIOAD5
MIOAD6
MIOAD7
MIOAD8

MIOAD9
MIOAD10
MIOAD11

MIOA_DE

MIOA_CTL3

18.2A<>

15,20

14.3A<> 13.1E<>

MIN_LINE_WIDTHNETNAME SPACING

MIOBD[7..0]

BI

3.5MIL 15MIL

RULE

1

14.3A<>

15,20

13.1E<>

BI

13.1G<>

2

IN

MIOBD[11..0]

14.4A> 13.1G<> 15

MIOBD0
MIOBD1

MIOBD2

MIOBD3
MIOBD4
MIOBD5
MIOBD6
MIOBD7
MIOBD8

MIOBD9

MIOBD10

MIOBD11

VIPPCLK

0
1
2
3
4
5
6
7
8

9
10
11

AC3
AC1
AC2
AB2
AB1
AA1
AB3
AA3
AC5
AB5
AB4
AA5
W3
V1
Y5
W1

W4
W5
V5
Y6

AE3
AF3
AD1
AD3

AD4
AD5
AE4

3

Feature

P2
N2
N1
N3
M1
M3
P5
N6
N5
M4
L4
L5

R3
R1
P1
P3

R4
P4
M5

MIOAD0
MIOAD1
MIOAD2
MIOAD3

MIOAD5
MIOAD6
MIOAD7
MIOAD8
MIOAD9
MIOAD10
MIOAD11

MIOA_HSYNC
MIOA_VSYNC
MIOA_DE

MIOA_CLKOUT

MIOA_CLKIN

Connector

CN1

CON_MIO_26_FINGER
NS

B3

0
1
2
3
4
5
6
7
8

9
10
11

MIN_LINE_WIDTH

17.5E<> 19

R626

10K

04025%COMMON

BI

3.5MIL

3.5MIL

3.5MIL

3.5MIL

3.5MIL

GND

GND

B7

GND

B11

GND

A3

GND

A7

GND

A11

GND

GND

B5

RSVD

A9

RSVD

A13

RSVD

MIOD<11>
MIOD<10>

MIOD<9>
MIOD<8>
MIOD<7>
MIOD<6>
MIOD<5>
MIOD<4>
MIOD<3>
MIOD<2>
MIOD<1>
MIOD<0>

MIOHSYNC
MIOVSYNC

MIODE

MIOCLK

SWAP_RDY

MIOAD11

A12

MIOAD10

B12

MIOAD9

A10

MIOAD8

B10

MIOAD7

B9

MIOAD6

A8

MIOAD5

A6

MIOAD4

B6

MIOAD3MIOAD4

A5

MIOAD2

A4

MIOAD1

B4

MIOAD0

A2

B2
A1
B13

B8

SWAPRDY_A

B1

11
10

9
8
7
6
5
4
3
2
1
0

MIOAD[11..0]

BI

4

13.5H<> 20

BI

5

5

Micro-Star International Co., LTD.

Custom

MIOA/MIOB

MS-V069

Tuesday, June 27, 2006

11

Sheet of

100

25

Size Document Number Rev

AB D F H

E GC

Date:

www.vinafix.vn

Secondary Display (DACC), Slim
DB15

HGFEDCBA

1

1

DACC
RGB-FILTER

R590 33

I2CB_SDA_T

R591

2.2K

5%

3V3

0402
COMMON

R578

2.2K

2

3

3V3

DACC_VDD

LB526

150-220R@100MHz

COMMON

0603

C852
470PF

50V
X7R
0402

4

COMMON

C863

4.7UF

6.3V
X5R
0603
COMMON

DACC_VDD

DACC_VREF

DACC_RSET

C869
.1UF

6.3V
10%
X5R
0402

COMMON

C840
4700PF

25V
X7R
0402
COMMON

R654
124

1%
0402
COMMON

10%

10%

10%

GND

R653

1.5K

1%
0402
NS

U11F

BGA820_P10_33X33MM
COMMON

6/14 DACC

AD7

DACC_VDD

AH4

DACC_VREF

AF5

DACC_RSET

I2CB_SCL
I2CB_SDA

DACC_HSYNC
DACC_VSYNC

DACC_RED

DACC_GREEN

DACC_BLUE

DACC_IDUMP

H4

I2CB_SCL

J4

I2CB_SDA

AG7
AG5

AF6

AG6

AE5

AG4

GND

3.5MIL

5%
0402
COMMON

COMMON0402

5%

R577

33

COMMON

0402

5%

I2CB_SDA_C 24, 25

I2CB_SCL_C 24,25

2

3

4

GND

5

5

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

AB D F H

E GC

Date:

DACC

MS-V069

Tuesday, June 27, 2006

12

Sheet of

100

25

www.vinafix.vn

Primary Display (DACA), Slim DB15

HGFEDCBA

1

1

DACA
RGB-FILTER

3.5MIL

I2CA_SDA

9.3D>
IN

2

I2CA_SCL

9.3D>
IN

3V3

LB520 150-220R@100MHz

0603 COMMON

C837

3

470PF

50V
X7R
0402
COMMON

C805

4.7UF

X5R
0603
COMMON

10%

10%6.3V

DACA_VDD

DACA_VREF

DACA_RSET

C867
.1UF

R652

6.3V

124

10%

1%

X5R

0402

0402

COMMON

COMMON

C835
4700PF

10%25V
X7R
0402
COMMON

GND

GND

R658

1.5K

1%
0402
NS

AD10

AH10

U11E

BGA820_P10_33X33MM
COMMON

4/14 DACA

DACA_VDD

DACA_VREF

AH9

DACA_RSET

Route DAC RGB with ~37.5ohm
Impedence

I2CA_SCL
I2CA_SDA

DACA_HSYNC
DACA_VSYNC

DACA_RED

DACA_GREEN

DACA_BLUE

DACA_IDUMP

I2CA_SCL

K2

I2CA_SDA

J3

AF10
AK10

AH11

AJ12

AH12

AG9

GND

DACA_HSYNC
DACA_VSYNC

9.2C<

OUT

9.2C<

OUT

3.5MIL

3.5MIL

R100

2.2K

5%
R0402
NS

4

R668

33

COMMON

0402

5%

3.5MIL

R655

33

COMMON

0402

5%

5V

13

12

7 14

5V

U507C

10

8

SO14_150MIL

9

COMMON

7 14

NO STUFF 2.2K ON RGB FOR
BRINGUP

DACA_RED

5V

R101
75

1%
0402
COMMON

D14

SOT23

3

100V
100MA
COMMON

1 2

5V

U507D

AVB

11

SO14_150MIL
COMMON

5V

PLACE NEAR SYNC
BUFFER

AHB

LB529

150-220R@100MHz

R669

2.2K

5%
0402
COMMON

R656

2.2K

5%
0402
COMMON

5V

3

1 2

5V

3

1 2

DACA_VSYNC_BUF DACA_VSYNC_C

R650

33

0402

COMMON

C892
.100UF

25V
10%
X7R
0603
COMMON

R649 33

0402 COMMO N

L15 68nH
C76

22PF

50V
5%
NPO
0402
COMMON

5%

5%

COMMON0603

5V

3

1 2

DACA_HSYNC_BUF

5V

3

1 2

DACA_R_F

C80
22PF

50V
5%
NPO
0402
COMMON

COMMON0603

D520

SOT23
100V
100MA
COMMON

LB527 150-220R@100MHz

0603 COMMO N

D519

SOT23
100V
100MA
COMMON

L512 68nH

COMMON0603

D521

SOT23
100V
100MA
COMMON

L513

68nH

COMMON0603

D523

SOT23
100V
100MA
COMMON

L16 68nH

0603 COMMON

C82
22PF

50V
5%
NPO
0402
COMMON

C889
220PF

50V
5%
NPO
0603
COMMON

C880
220PF

50V
5%
NPO
0603
COMMON

C903
47PF

50V
5%
NPO
0603
COMMON

C914
47PF

50V
5%
NPO
0603
COMMON

DACA_RED_C

OUT

OUT

OUT

OUT

9.1F> 11.3G< 16

I2CA_SDA_CI2CA_SDA_T

9.2F> 11.3G< 16

I2CA_SCL_CI2CA_SCL_T

9.3F> 11.3G< 16

9.3F> 11.3G< 16

DDC_5V

9.1A<> 11.3G< 16

OUT

9.1A<> 11.3G< 16

OUT

9.1A<> 11.3G< 16

OUT

SOUTH

J8

CON_DSUB_HD_SLIM_15_F_RA_DVIMTG
VGA_SLIM_DVIMTG
COMMON

GND-R

6

6

R

1

GND-G
G
GND_B
B
5V
ID2
GND
GND

11

7
2
8
3
9
4

10

10

5

1515

ID0

11

SDA

12

HSYNC

13

VSYNC

14

SCL

15

DACA_HSYNC_C

2

3

4

DACA_GREEN DACA_GREEN_CDACA_G_F

3

DACA_BLUE

3

5V

1 2

5V

1 2

D16

SOT23
100V
100MA
COMMON

D13

SOT23
100V
100MA
COMMON

R104

75

R103

1%

2.2K

0402

5%

COMMON

R0402
NS

R98

R97

75

2.2K

1%

5%

0402

R0402

COMMON

5

NS

L17

COMMON0603

C84
22PF

50V
5%
NPO
0402
COMMON

L13 68nH

COMMON0603

C73
22PF

50V
5%
NPO
C0402
COMMON

L18

68nH

C86
22PF

50V
5%
NPO
0402
COMMON

C74
22PF

50V
5%
NPO
0402
COMMON

68nH

0603

COMMON

L14 68nH

COMMON0603

C87
22PF

50V
5%
NPO
0402
COMMON

C75
22PF

50V
5%
NPO
0402
COMMON

FOR ESD
DIODES

5V

C815

4.7UF

6.3V
10%
X5R
0603

DACA_BLUE_CDACA_B_F

Place in output filter section!

COMMON

5

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

AB D F H

E GC

Date:

DACA

MS-V069

Tuesday, June 27, 2006

13

Sheet of

100

25

www.vinafix.vn

,

DACB .. MiniDIN VIDEO IN/OUT
CONNECTOR /STEREO GLASSES

1

2

3

3V3

LB515 150-220R@100MHz

0603 COMMO N

DACB_VDD

C766

C779

4.7UF

4700PF

6.3V

10%

25V

X5R

X7R

0603

0402

COMMON

COMMON

GND

4

IN

5

AB D F H

10%

GPIO11_TVRSET

C778
470PF

50V
X7R
0402
COMMON

10%

ADJUST FOR TVOUT
ONLY

R7250

10K

5%

0402

NC

GND GND

15.1A<> 14.1A< 15

DACB_VDD

DACB_VREF

C770
.1UF

6.3V
10%
X5R
0402
COMMON

1G1D1S

DACB_RSET

R630

R632

124

1.5K

1%

1%

0402

0402

COMMON

NS

TVRSET

3

D

Q22

SOT23

G

1

NC

S

2

50V

0.22A@31C
?

0.88A
?
?

NC for G73

OUT

R7248
357

1%
0402
NC

DACB_PB_OUT

MINIDIN_Y_CVBSIN

U11K

BGA820_P10_33X33MM
COMMON

5/14 DACB(TV)

V8

DACB_VDD

DACB_VREF

R5

DACB_VREF

R7

DACB_RSET

R7249

10.2K

1%
0402
NC

Trim

Resistor

R540
200

1%
0402
NS

HGFEDCBA

FILTER
NOTES:

SD: USE
L=1.8UH

HD: USE
L=?

C508

22PF

50V

0603

5%
NPO
COMMON

L502

R541
75

1%
0402
COMMON

R544

R543

75

200

1%

1%

0402

0402

COMMON

NS

R556 18

R557

56

5%
0402
COMMON

5V

D501

SOT23

3

100V
100MA
COMMON

1 2

5V

D502

SOT23

3

100V
100MA
COMMON

1 2

COMMON0402

5%

3V3

D508

SOT23

3

100V
100MA
COMMON

1 2

DACB_RED

DACB_GREEN

DACB_BLUE

DACB_IDUMP

R6

T5

T6

V7

C507
82PF

50V
5%
NPO
0603
COMMON

L503 68nH

C533
82PF

50V
5%
NPO
0603
COMMON

L508

C574
330PF

50V
5%
NPO
0603
COMMON

DACB_C_OUT

DACB_CVBS_OUT

DACB_PB_OUT

GND

0603 COMMON

C534

22PF

50V0603
5%
NPO
COMMON

COMMON0603

C575 22PF

50V0603
5%
NPO
COMMON

COMMON

0603

MDIN_PBOUT_C

68nH

C509
82PF

50V
5%
NPO
0603
COMMON

SCL

7

Pb out

out

9

MDIN_COUT_C

C535
82PF

50V
5%
NPO
0603
COMMON

MDIN_YIN_CMDIN_YIN_CLAMP

68nH

C576
270PF

50V
5%
NPO
0603
COMMON

C/Pr

8

MINIDIN_GND1 MINIDIN_GND2

GND

5

Y/CVBS

1

R23
0

.05R
0603
COMMON

keep stub short

DDC_5V

LB6

0603

150-220R@100MHz

MDIN_SCL_C_STEREO

DDC_5V

C23
1UF

16V
10%
X5R
0603
COMMON

J3

CON_MINIDIN_10_F_RA_SH_C
COMMON

5V+

10

SDA

4

Y/CVBS

outout

6

GND

3

C

inin

R33

0603

COMMON

2

0

.05R

111213

MDIN_YOUT_C

MDIN_SDA_C

MDIN_CIN_C

LB4

0603 COMMON

C16

220PF

50V
5%
NPO
0603
COMMON

LB5

0603

C20

220PF

50V
5%
NPO
0603
COMMON

C583

0603 50V

L509

0603

C584
82PF

50V
5%
NPO
0603
COMMON

C556 22PF

L504

C557
270PF

50V
5%
NPO
0603
COMMON

150-220R@100MHz

150-220R@100MHz

COMMON

22PF

5%
NPO
COMMON

68nH

COMMON

50V5%0603

NPO
COMMON

68nH

COMMON0603

keep stub short from the pin

NS

C21
1UF

16V

PLACE NEAR

10%
X5R

CONNECTOR

0603
NS

For STEREO GLASSES 3pin MiniDIN
only:

Stuff bead!

And replace 0 Ohm resistor with 220PF cap!

STEREO GLASSES

Place close to MiniDIN connector!

BUFFER

STEREO STEREO_5V

17.5D> 19
IN

FOR DEBUG PURPOSES ONLY .. DEFAULT IS NO
STUFF

R8NS0

0402

5%

C582
82PF

50V
5%
NPO
0603
COMMON

C555
330PF

50V
5%
NPO
0603
COMMON

5V

R3
10K

5%
0402
NS

5V

D3

SOT23

3

100V
100MA

COMMON

1 2

5V

D6

SOT23

3

100V
100MA

COMMON

1 2

5V

3

MDIN_CIN_CLAMP

3V3

D506

SOT23

3

100V
100MA

COMMON

1 2

5V

C11
.1UF

10V
10%
X5R
0402
NS

1 2

D510

SOT23
100V
100MA
COMMON

1

2

3.5MIL

R554 18

0402

5%

5V

5

3

R255%0

DACB_CVBS_OUTDACB_C_OUT

R561
75

1%
0402
COMMON

COMMON

U1

4

SC70-5
NS

COMMON0402

I2CC_SDA

R560
200

1%
0402
NS

MINIDIN_CIN

MINIDIN_CIN

R555
56

5%
0402
COMMON

STEREO_BUF

I2CC_SCL

3.5MIL

IN

16.2E<>15.1H<14.3A< 15,19,22,23

1

BI

16.2E<>15.1H<>14.3A<> 15,19,22,23,2 5

2

15.2A<> 14.2A< 15

OUT

3

4

SCL_C_STEREO

R24

33

0402

NS

5%

5

Micro-Star International Co., LTD.

Size Document Number Rev

Custom

E GC

Date:

DACB

MS-V069

Tuesday, June 27, 2006

14

Sheet of

100

25

www.vinafix.vn

1

2

3

4

PHILIPS
VIDEO
CAPTURE

15.1A<> 15.2C> 14

To 4/5/12-Pin Tuner/Video header

15.2A<> 15.2H> 14

IN

IN

MINIDIN_Y_CVBSIN

VIDINT_Y_CVBSIN

MINIDIN_CIN

VIDINT_CIN

VIDINT_CVBSIN

SEC_CVBS1

14.3A<>15.1H<>16.2E<>14,19,22,23,25

14.3A<15.1H<16.2E<>14,19,22,23,25

17.4D> 19,24,25

13.1E<>13.1G<>14.3A<> 11 ,20

13.1G<> 13.2E< 11

HGFEDCBA

1

U503

QFP100Q_P050H20
COMMON

7114H,7115HL (QFP100)

Video In

22

20
18
19

16
14
12
10
13

37
40
39
41

32
31

27
30

62
61
60
59
57
56
55
54

72
71
70
69
67
66
65
64

45
46
53
52
42
47
48
49

4
6
7

AOUT

AI11
AI12
AI1D

AI21
AI22
AI23
AI24
AI2D

AMCLK
ALRCLK
ASCLK
AMXCLK

XTOUT
XTALO
XTALI

SDA
SCL

RES (CE)
RES_OUT

I-Port

IPD0
IPD1
IPD2
IPD3
IPD4
IPD5
IPD6
IPD7

HPD0
HPD1
HPD2
HPD3
HPD4
HPD5
HPD6
HPD7

ICLK
IDQ
IGPH
IGPV
ITRDY
ITRI
IGP0
IGP1

X-Port

VDD

D-GND

C29

.047UF

16V
10%
X7R
0402
NS

COMMON

+/-30PPM

A11

A2D

7115XIN

MIOBD0

0

MIOBD1

1

MIOBD2

2

MIOBD3

3

MIOBD4

4

MIOBD5

5

MIOBD6

6

MIOBD7

7

7115_ICLK

A12
A1D

A23
A24

7115XOUT

C612
22PF

50V
5%
NPO
0402
COMMON

C603

.047UF

0402

16V
10%
X7R
COMMON

C605

.047UF

0402

16V
10%
X7R
COMMON

C607

.047UF

0402

16V
10%
X7R
NS

I2CC_SDA

BI

I2CC_SCL

IN

RESET_BUF*

IN

MIOBD[7..0]

BI

OUT

VIPPCLK

C604

.047UF

16V

0402

10%
X7R
NS

C606

.047UF

0402

16V
10%
X7R
NS

C608

.047UF

0402

16V
10%
X7R
NS

R613

0

0402 COMM ON

5%

A21

A22

A3V3

R582
10K

5%
0402
COMMON

C622
22PF

50V
5%
NPO
0402
COMMON

C30

.047UF

16V
10%
X7R
0402
NS

Y501

24.576MHZ

XTAL_2P_SMD_8X4_5

VDDA0
VDDA1
VDDA2

AGND
VSSA0
VSSA1
VSSA2

TDO
TMS
TDI

TRST

TCK

TEST0
TEST1
TEST2
TEST3
TEST4
TEST5

RTCO

RTS0

RTS1

LLC

LLC2

XPD0

XPD1

XPD2

XPD3

XPD4

XPD5

XPD6

XPD7

XCLK

XDQ

XRH

XRV
XRDY
XTRI

VDD_XTAL

VDDDE1
VDDDE2
VDDDE3
VDDDE4
VDDDI1
VDDDI2
VDDDI3
VDDDI4
VDDDI5
VDDDI6

VSS_XTAL

VSSDE1
VSSDE2
VSSDE3
VSSDE4
VSSDI1
VSSDI2
VSSDI3

23
17

VDDA

11

21
24
15
9

2
99
3
97
98

44
73
74
77
78
79

36
34
35
28
29

90
89
87
86
85
84
82
81

94
95
92
91
96
80

8
1
25
51
75
33
43
58
68
83
93

5
26
50
76
100
38
63
88

7115_TRST*

7115_TCK

7115_RTCO

C616
2200PF

50V
10%
X7R
0402
COMMON

R603
1K

5%
0402
COMMON

C621
2200PF

50V
10%
X7R
0402
COMMON

C656
2200PF

50V
10%
X7R
0402
COMMON

C693
2200PF

50V
10%
X7R
0402
COMMON

R587

0402 COMM ON

5%

R584

0402 COMM ON

5%

SAA
7115

C623
2200PF

50V
10%
X7R
0402

COMMON

1K

1K

I2C ADDRESS
0X42

C615
2200PF

50V
10%
X7R
0402

COMMON

C643
2200PF

50V
10%
X7R
0402

COMMON

C661
2200PF

50V
10%
X7R
0402

COMMON

C617
2200PF

50V
10%
X7R
0402
COMMON

JTAG
disabled

C714
2200PF

50V
10%
X7R
0402
COMMON

C627
2200PF

50V
10%
X7R
0402
COMMON

C614
.1UF

10V
10%

X5R
0402
COMMON

C646
2200PF

50V
10%

X7R
0402
COMMON

C628
2200PF

50V
10%

X7R
0402
COMMON

VDDA

C620

4.7UF

6.3V
10%
X5R
0603
COMMON

C720
2200PF

50V
10%
X7R
0402
COMMON

C695
2200PF

50V
10%
X7R
0402
COMMON

LB502

600R@100MHz

0603

COMMON

C630
.1UF

10V
10%
X5R
0402
COMMON

C629
.1UF

10V
10%
X5R
0402
COMMON

C702
.1UF

10V
10%
X5R
0402
COMMON

C703
.1UF

10V
10%
X5R
0402
COMMON

A3V3

C601

4.7UF

6.3V
10%
X5R
0603
COMMON

2

3

4

VDDX

VDDE

LB501 600R@100MHz

C595

4.7UF

6.3V
10%
X5R
0603
COMMON

LB503

0603 COMMON

C633

4.7UF

6.3V
10%
X5R
0603
COMMON

C626
.1UF

10V
10%
X5R
0402
COMMON

COMMON0603

600R@100MHz

C596

4.7UF

6.3V
10%
X5R
0603
COMMON

C618

4.7UF

6.3V
10%
X5R
0603
COMMON

A3V3

5

5

Micro-Star International Co., LTD.

VIDEO CAPTURE

Size Document Number Rev

Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

Sheet of

100

15

25

www.vinafix.vn

HGFEDCBA

INTERNAL
TMDS .. LINK A
& B

1

NOTE: GPU HAS ON DIE PUL L U PS ON T MD S L IN ES .. EX TE RNA L P UL L UPS AD DE D ( FOR CYA) IN CASE ON-DIE CURRENT
DRAW IS EXCESSIVE

2

TMDS_PLLVDD

LB522 150-220R@100MHz

C810

4.7UF

6.3V
10%
X5R
0603

COMMON

GND

TMDS_IOVDD

C897

3

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

LB528

0603

COMMON0603

G73 - UNSTUFF PU's

IFPAB_PLLVDD

C839

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

150-220R@100MHz

COMMON

C811
1000PF

16V
10%
X7R
0402
COMMON

IFPAB_PLLVDD

IFPAB_IOVDD

C870

4.7UF

6.3V
10%
X5R
0603
COMMON

C862
4700PF

25V
10%
X7R
0402
COMMON

TMDS_IOVDD

C67
.01UF

16V
10%
X7R
0402
NS

C69
.01UF

16V
10%
X7R
0402
NS

C71
.01UF

16V
10%
X7R
0402
NS

C873
.01UF

16V
10%
X7R
0402
NS

C901
.01UF

16V
10%
X7R
0402
NS

LINK A & LINK B PULLUPS ... SHOULD BE PLACED AS CLOSE AS POSSIBLE TO GPU

AM4

IFPABRSET

AL5

C814
4700PF

25V
10%
X7R
0402
COMMON

C851
470PF

50V
10%
X7R
0402
COMMON

C872
4700PF

25V
10%
X7R
0402
COMMON

C834
470PF

50V
10%
X7R
0402
COMMON

GND

IFPABRSET

C874
470PF

50V
10%
X7R
0402
COMMON

R666
1K

1%
0402
COMMON

AC9

AD9

AF9

AF8

GND

C891
.01UF

16V
10%
X7R
0402
NS

GND

C893
.01UF

16V
10%
X7R
0402
NS

GND

U11G

BGA820_P10_33X33MM
COMMON

7/14 IFPAB

IFPAB_VPROBE

IFPAB_RSET

IFPAB_PLLVDD

IFPAB_PLLGND

IFPA_IOVDD

IFPB_IOVDD

NS1%0402

49.9

NS

1%

49.9

NS

1%

NS1%0402

49.9

NS

1%

49.9

NS

1%

49.9

NS

1%

R68749.9

49.9

NS

R672

0402

49.9

NS

R680

0402

NS1%0402

R67049.9

49.9

NS

R691

0402

NS1%0402

R688

0402

49.9

NS

R678

0402

49.9

IFPA_TXC
IFPA_TXC

IFPA_TXD0
IFPA_TXD0

IFPA_TXD1
IFPA_TXD1

IFPA_TXD2
IFPA_TXD2

IFPA_TXD3
IFPA_TXD3

IFPB_TXC
IFPB_TXC

IFPB_TXD4
IFPB_TXD4

IFPB_TXD5
IFPB_TXD5

IFPB_TXD6
IFPB_TXD6

IFPB_TXD7
IFPB_TXD7

IFPA_TXD*

IFPA_TXD

R686

IFPA_TXD0*

0402

1%

IFPA_TXD0

R673

IFPA_TXD1*

0402

1%

IFPA_TXD1

R67949.9

IFPA_TXD2*

IFPA_TXD2

R676

0402

1%

IFPB_TXD4*
IFPB_TXD4

R69249.9

IFPB_TXD5*
IFPB_TXD5

R690

IFPB_TXD6*

0402

1%

IFPB_TXD6

R685

0402NS

1%

IFPA_TXD*

AJ9

IFPA_TXD

AK9

IFPA_TXD0*

AJ6

IFPA_TXD0

AH6

IFPA_TXD1*

AH7

IFPA_TXD1

AH8

IFPA_TXD2*

AK8

IFPA_TXD2

AJ8

AH5
AJ5

AL4
AK4

AM5
AM6

AL7
AM7

AK5
AK6

AL8
AK7

IFPB_TXD4*
IFPB_TXD4

IFPB_TXD5*

IFPB_TXD5

IFPB_TXD6*

IFPB_TXD6

X_90ohm_0603

L6001X_90ohm_0603

X_90ohm_0603

L6007

L6000X_90ohm_0603

L6002X_90ohm_0603

L6003X_90ohm_0603

R7116

L6005

300

R714_1

0402

300

5%

0402

COMMON

5%
COMMON

R7117

4 3

1 2

300

0402
5%

R7118

COMMON

34

21

R717_1

300

0402

L6006X_90ohm_0603

R7120

300

0402
5%
COMMON

R7121

1 2

300

0402
5%
COMMON

R7122

21

300

0402
5%
COMMON

R7123

R7124

300

0402

21

5%
COMMON

300

0402
5%
COMMON

R7126

300

0402

21

5%
COMMON

300

0402
5%
COMMON

R7128

21

300

0402
5%

300

0402

COMMON
5%
COMMON

300

0402
5%
COMMON

5%
COMMON

R7119

300

0402
5%
COMMON

34

R7125

34

4 3

34

34

R7129

R723_3

R7127

R720_1

300

0402
5%
COMMON

R723_1

300

0402
5%
COMMON

300

0402
5%
COMMON

R723_4

300

0402
5%
COMMON

300

0402
5%
COMMON

BXD4*

BTXD4

R723_5

300

0402
5%
COMMON

DDC_5V

C35
4700PF

25V
10%
X7R
0402
COMMON

GND

ATXD0*
ATXD0
ATXD1*
ATXD1
ATXD2*
ATXD2

BTXD5*
BXD5

BXD6*

ATXD*
ATXD

DVI_HPD_0_C_1

I2CA_SCL_C

10.2F> 13
IN

I2CA_SDA_C

10.1F> 13
IN

DACA_VSYNC_C

10.3F> 13
IN

DACA_RED_C

10.1A<> 10.4G> 13
IN

DACA_GREEN_C

10.1A<> 10.4G> 13
IN

DACA_BLUE_C

10.1A<> 10.4G> 13
IN

DACA_HSYNC_C

10.3F> 13
IN

TX0­TX0+

SHIELD1

TX1­TX1+
TX2­TX2+
SHLD24
SHLD13
SHLD05

DTXD4*

TX3-

DTXD4

TX3+

DTXD5*

TX4-

DTXD5

TX4+

DTXD6*

TX5-

DTXD6

TX5+
DDCC
DDCD
VDDC
GND
SHLDC
TXC­TXC+
VSYNC
HPD

R

C1

G

C2

B

C3

AGND1

C5

AGND2

C5A

HSYNC

C4

SHIELD2

25

17
18

9

10

1
2

3
11
19
12
13

4

5
20
21

6

7
14
15
22
24
23

8
16

26

17

C3

C5

19

16

824

C1

C5A

C2C4

J7

CON_DVI_I_24_6_F_RA
COMMON
N/A
?

GND

BXD6

1

2

3

4

4

Hotplug Detection

OUT

DVI_SOUTH_HPD

3.5MIL

R695

10K

5%

0402

COMMON

11.5C>19

5

AB D F H

3V3

R696

D522

SOT23

3

100V
100MA
COMMON

1 2

DVI_SOUTH_HPD_R

1K

COMMON

0402

5%

LB534

150-220R@100MHz

COMMON0603

DVI_HPD_0_C_1

GND

E GC

DVI_HPD_0_C_1

GND

C909
220PF

50V
5%
NPO
0603
COMMON

Micro-Star International Co., LTD.

TMDS LINK A & B

Size Document Number Rev

Date:

Custom

Tuesday, June 27, 2006

MS-V069

Sheet of

16

5

100

25

www.vinafix.vn

HGFEDCBA

INTERNAL TMDS
.. LINK C & D

TMDS_IOVDD

1

C886
.01UF

16V
10%
X7R
0402
NS

C884
.01UF

16V
10%
X7R
0402
NS

C881

C896

.01UF

.01UF

16V

16V

10%

10%

X7R

X7R

0402

0402
NS

NS

GND

NS1%0402

49.9

NS

1%

49.9

NS

1%

NS1%0402

R68349.9

49.9

NS

R89

0402

49.9

NS

R91

0402

NS1%0402

R9549.9

49.9

NS

LINK C & LINK D PULLUPS ... SHOULD BE PLACED AS CLOSE AS POSSIBLE TO GPU

IFPC_TXC

IFPC_TXC*

R682

IFPC_TXD0

0402

1%

IFPC_TXD0*

R87

IFPC_TXD1

0402

1%

IFPC_TXD1*

R9049.9

IFPC_TXD2

IFPC_TXD2*

R93

0402

1%

1

R659
1K

1%
0402
COMMON

U11H

BGA820_P10_33X33MM
COMMON

8/14 IFPCD

AK3

IFPCD_VPROBE

AH3

IFPCD_RSET

AA10

IFPCD_PLLVDD

AB10

IFPCD_PLLGND

AD6

IFPC_IOVDD

AE7

IFPD_IOVDD

IFPC_TXC
IFPC_TXC

IFPC_TXD0
IFPC_TXD0

IFPC_TXD1
IFPC_TXD1

IFPC_TXD2
IFPC_TXD2

IFPD_TXC
IFPD_TXC

IFPD_TXD4
IFPD_TXD4

IFPD_TXD5
IFPD_TXD5

IFPD_TXD6
IFPD_TXD6

2

IFPC_TXC*

AM3

IFPC_TXC

AM2

IFPC_TXD0*

AE1

IFPC_TXD0

AE2

IFPC_TXD1*

AF2
AF1

IFPC_TXD1

IFPC_TXD2*

AH1

IFPC_TXD2

AG1

AH2
AG3

AJ1
AK1

AL1
AL2

AJ3
AJ2

IFPC_TXC* 24
IFPC_TXC 24

IFPC_TXD0* 24
IFPC_TXD0 24

IFPC_TXD1* 24
IFPC_TXD1 24

IFPC_TXD2* 24
IFPC_TXD2 24

3

2

C802
470PF

50V
10%
X7R
0402
COMMON

GND

IFPCD_RSET

C829
470PF

50V
10%
X7R
0402
COMMON

TMDS_PLLVDD

LB519 150-220R@100MHz

COMMON0603

C789

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

TMDS_IOVDD

LB525

150-220R@100MHz

3

0603 COMMON

C865

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

IFPCD_PLLVDD

C795

C788

4700PF

4.7UF

6.3V

25V
10%

10%
X5R

X7R
0402

0603

COMMON

COMMON

GND

IFPCD_IOVDD

C830

C838

4700PF

4.7UF

6.3V

25V

10%

10%

X5R

X7R

0603

0402

COMMON

COMMON

C827

C836

4700PF

470PF

25V

50V
10%

10%
X7R

X7R
0402

0402
COMMON

COMMON

GND

4

4

5

5

Micro-Star International Co., LTD.

TMDS LINK C & D

Size Document Number Rev

Custom

AB D F H

E GC

Date:

Tuesday, June 27, 2006

MS-V069

Sheet of

100

17

25

www.vinafix.vn

HGFEDCBA

1

1

SPDIF IN

2

GND

R7376
75

1%
R0402
COMMON

C1095

.1UF

10V
10%
X5R
C0402
COMMON

SPDIF_IN

SPDIF_IN 25

G861_2MM2P

SPDIF

J11

SPDIF_IN_C

1

GND

2

?
?

?

COMMON

GND

3

TMDS_PLLVDD

LB539 150-220R@100MHz

COMMON0603

C996

4.7UF

6.3V
10%

4

TMDS_PLLVDD

LB540 150-220R@100MHz

COMMON0603

C997

4.7UF

6.3V
10%
X5R
0603
COMMON

GND

5

X5R
0603
COMMON

3V3

GND

LB513NS150-220R@100MHz

0603

C741

4.7UF

10%6.3V
X5R
0603
NS

GND

3V3

LB512 150-220R@100MHz

GND

U11L

BGA820_P10_33X33MM

R78
10K

5%
0402
COMMON

COMMON

13/14 XTAL_PLL

T9

PLLVDD

T10

VID_PLLVDD

U10

PLLGND

GND

T1

XTALSSIN

U1

XTALIN

XTALIN XTALOUT

C62
18PF

50V
5%
NPO
0402
COMMON

GND

Y1

27 MHZ

10 PPM

XTAL_4_SMT_LP_H10S

COMMON

PLLVDD

C761

4.7UF

6.3V
10%
X5R
0603
COMMON

NS0603

VID_PLLVDD

C737

4.7UF

6.3V
10%
X5R
0603
COMMON

C785
.1UF

10V 10%
X5R
0402

COMMON

C768
.1UF

10V 10%
X5R
0402
COMMON

C752
4700PF

25V
X7R
0402
COMMON

C763
4700PF

25V
X7R
0402
COMMON

40mA

VID_PLLVDD

10%

40mA

10%

GND

AB D F H

XTAL/PLLVDD

T2

XTALOUTBUFF

U2

XTALOUT

GND

XTALOUTBUFFXTALSSIN

R77
330

5%
0402
COMMON

C64
18PF

GND

50V
5%
NPO
0402

COMMON

Micro-Star International Co., LTD.

4-Pin Video-In/SPDIF IN

Size Document Number Rev

Custom

E GC

Date:

MS-V069

Tuesday, June 27, 2006

Sheet of

2

3

4

5

100

18

25

www.vinafix.vn

HGFEDCBA

C709
.1UF

10V
10%
X5R
0402
COMMON

33

COMMON

33

IN

UC_HDMI_HPD 25

OUT
OUT

TPI_INT_EN 25

UNSTUFF FOR G73

12.5C> 16

22.1F< 22

22.2F< 22

5V

R27

R31

2.2K

2.2K

5%

5%

0402

0402

COMMON

COMMON

I2CC_SCLI2CC_SCL_G

I2CC_SDA

GPIO Assignment
Table

GPIOI/O FUNCTION

0

IN

1

IN

2
3

IN

4

IN

5

OUT
OUT

Out

7

IN68

9

OUT

IN

10

IN11

12

IN

I2CC_SCL 14,15,22,23,25

I2CC_SDA 14,15,22,23,25

DVI MID HOTPLUG DET
HDMI hotplugIN
RESERVED
RESERVED
TUNER IRQ
NVVDD VOLTAGE SELECT 0
NVVDD VOLTAGE SELECT 1
TPI INTERRUPT ENABLE
RESERVED
PWM FAN
INT from Sii1930

TVRSET
uC PROGRAMMING CONTROL

3.5MIL

GPIO_SMI#

1

GPIO_SMI# 23

2

3

Place Close to GPU

3V3

Use 10MIL Guard(GND) Trace around THERMDC and
THERMDA

C85

1

GND

R699
10K

5%
0402
COMMON

3.5MIL

R694
10K

5%
0402
COMMON

JTAG_TMS

R698
10K

5%
0402
COMMON

3.5MIL

R693
10K

5%
0402
COMMON

JTAG_TMS
JTAG_TDI

JTAG_TDO

R697
10K

5%
0402
COMMON

3.5MIL

3V3

1UF

6.3V
20%

THERMDC

X5R
0603
COMMON

GND

JTAG_TCLK

JTAG_TMS
JTAG_TDI
JTAG_TDO
JTAG_TRST*

J10

?
?
?
CON_JTAG_2X4_F_PI50_ST_KEY6
NS

TMS2TRST*

1

TDI4GND

3

KEY

VCC

5

TDO8TCK

7

BI

2

U11M

BGA820_P10_33X33MM
COMMON

9/14 MISC1

J1

THERMDN

THERMDA

K1

THERMDP

AJ11

JTAG_TCK

AK11

JTAG_TMS

AK12

JTAG_TDI

AL12

JTAG_TDO

AL13

JTAG_TRST

GPIO &

GND

JTAG

NOTE: FET invert used for internal sensor mode only .. stuff FET .. unstuff bypass resistor

CLAMP

I2CC_SCL
I2CC_SDA

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8

GPIO9
GPIO10
GPIO11
GPIO12

F6

G2
G1

K3
H1
K5
G5
E2
J5
G6
K6
E1
D2
H5
F4
E3

DVI_MID_HPD

GPIO5_VSEL0
GPIO6_VSEL1

SLOWDOWN*

5V

UC_HDMI_HPD

UC_INT1*

HDMI_CEC

R80
10K

5%
0402
NO STUFF

C684
.1UF

10V
10%
X5R
0402
COMMON

I2CC_SDA_G

UC_PRGM*25

TPI_INT_EN

5V

GND

R48

0402

5%

R51

0402 COMMO N

5%

IN

HDMI_CEC 14

3

BIOS (serial)

HDCP

8
7

4
1

RESET_BUF* 15,24,25

STEREO 14

U9

SO8_150MIL

COMMON

SCL
SDA

SDA

NC

3V3

VCC
VCC

GND

U11N

BGA820_P10_33X33MM

COMMON

4

STRAP pins are only used for MAP/MEP packages

F1

STRAP

AE26

MEMSTRAPSEL0

AD26

MEMSTRAPSEL1

AH31

MEMSTRAPSEL2

AH32

MEMSTRAPSEL3

U3

RFU

V3

RFU

U6

RFU

U5

RFU

U4

RFU

V4

RFU

V6

RFU

10/14 MISC2

ROM_SCLK

I2CH_SCL
I2CH_SDA

SWAPRDY_A

TESTMEMCLK

TESTMODE

5

ROMCS

ROM_SI
ROM_SO

BUFRST

STEREO

AA4

W2
AA6
AA7

G3
H3

F3

T3

M6

A26
H2

ROMCS*

ROM_SI
ROM_SO

ROM_SCLK

I2CH_SCL
I2CH_SDA

RESET_BUF*

STEREO

SWAPRDY_A

TESTMEMCLK
TESTMODE

10K

5%

0402 CO M MON

R623

GND

GND

GND

17.4F<>

OUT

17.4F<>

OUT

17.4F<>

OUT

17.4F<>

OUT

3.5MIL

3.5MIL

10K

COMMON
5%

0402

R592

AB D F H

3V3

R614
10K

5%
0402

COMMON
0402
5%

10K
R612

COMMON

3.5MIL

17.4D>

17.4D>

17.4D>

17.4D>

SROM
MAPPING

NV4x

ROM

ROM_SO

SO
SI

ROM_SI

SCK

ROM_SCK
ROM_CS*CS*

13.4E<> 11

BI

ROMCS*

BI

BI

BI

BI

ROM_SI

ROM_SO

ROM_SCLK

3.5MIL

3.5MIL

3.5MIL

6

5
3

2

GND

3V3

COMMON
0402
5%

10K
R622

E GC

R74
10K

5%
0402
COMMON

3V3

U10

SO8_150MIL
SO8
COMMON

7

HOLD8VCC

3

WP

1

CS

5

SI

2

SO

6

GND

SCK

C52
.1UF

10V
10%
X5R

4

0402
COMMON

GND

Micro-Star International Co., LTD.

GPIO/ROM/HDCP ROM

Size Document Number Rev

Date:

Custom

MS-V069

Tuesday, June 27, 2006

19

Sheet of

4

5

100

25

www.vinafix.vn

HGFEDCBA

BIOS,
Straps,

Straps

Misc

1

13.1G<>11

13.1E<>13.1G<>14.3A<> 11,15

2

3

13.5H<>11

4

5

MIOAD[11..0]

BI

MIOBD[11..0]

BI

BI

MIOA_HSYNC

0
1
2
3
4
5
6
7
8
9
10
11

MIOAD0
MIOAD1
MIOAD2
MIOAD3
MIOAD4
MIOAD5
MIOAD6
MIOAD7
MIOAD8
MIOAD9
MIOAD10
MIOAD11

0
1
2
3
4
5
6
7
8

9
10
11

MIOBD0
MIOBD1
MIOBD2
MIOBD3
MIOBD4
MIOBD5
MIOBD6
MIOBD7
MIOBD8
MIOBD9
MIOBD10
MIOBD11

GND

STUFF

2.0K

BOND OPTION 0 =
DISCRETE

2K

R15

NS5%0402

R511

04022KNS

5%

R514

2K

0402 COMMO N

5%

R515

2K

0402 COMMO N

5%

R14

2K

0402 COMMO N

5%

R63

2K

NS0402

5%

R66

2K

0402 NS

5%

R58

2K

NS5%0402

R510

2K

NS0402

5%

R82

2K

NS

0402

5%

R55

2K

COMMON

0402

5%

R18

2K

COMMON0402

5%

R11

04022KNO STUFF

5%

R19

2K

0402 NO STU F F

5%

R9

2K

NO STUFF

0402

5%

R7254

2K

NO STUFF

0402

5%

MIOAD1
MIOBD0

MIOBD1

MIOBD8

MIOBD9

MIOBD4

MIOBD5

MIOBD3

MIOBD11

MIOBD10

R83, R80
DELETED

MIOAD2

MIOAD0

MIOAD6

MIOAD8

MIOAD9

MIOA_HSYNC

CHANGED FROM
MIOA<2,3,4,5>

NV_STRAP_0

-----------------------------------------------------------------------------------------------------------------------------------------------------­BIT FUNCTION MAP/MEP/SQUISH PIN (RTL Name) NORMAL PIN (RTL Name) REQUIED ON BOARD?

-----------------------------------------------------------------------------------------------------------------------------------------------------­0 PCI_AD `NV_PEXTDEV_BOOT_0_STRAP_PCI_AD_NORMAL `NV_PEXTDEV_BOOT_0_STRAP_PCI_AD_NORMAL PCI/AGP_ONLY
1 SUB_VENDOR MIOAD1 (Ccira_data[1]) MIOAD1 (Ccira_data[1]) YES
2 RAMCFG[0] MIOAD2 (Ccira_data[2]) MIOAD2 (Ccira_data[2]) NO
3 RAMCFG[1] MIOAD3 (Ccira_data[3]) MIOAD3 (Ccira_data[3]) NO
4 RAMCFG[2] MIOAD4 (Ccira_data[4]) MIOAD4 (Ccira_data[4]) NO
5 RAMCFG[3] MIOAD5 (Ccira_data[5]) MIOAD5 (Ccira_data[5]) NO
6 CRYSTAL0 MIOBD2 (Ccirb_data[2]) MIOBD2 (Ccirb_data[2]) NO
7 TVMODE[0] MIOAD7 (Ccira_data[7]) MIOAD7 (Ccira_data[7]) NO
8 TVMODE[1] MIOAD10 (Ccira_data[10]) MIOAD10 (Ccira_data[10]) NO
9 AGP_4X `NV_PEXTDEV_BOOT_0_STRAP_AGP_4X_DISABLED `NV_PEXTDEV_BOOT_0_STRAP_AGP_4X_DISABLED NO
10 AGP_SBA `NV_PEXTDEV_BOOT_0_STRAP_AGP_SBA_DISABLED `NV_PEXTDEV_BOOT_0_STRAP_AGP_SBA_DISABLED NO
11 AGP_FASTWR `NV_ PEXTDEV_BOOT_0_STRAP_AGP_FASTWR_DISABLED `NV_PEXTDEV_BOOT_0_STRAP_AGP_FASTWR_DISABLED NO
12 PCI_DEVID10[0] MIOBD4 (Ccirb_data[4]) MIOBD4 (Ccirb_data[4]) NO
13 PCI_DEVID10[1] MIOBD5 (Ccirb_data[5]) MIOBD5 (Ccirb_data[5]) NO
14 AGP `NV_PEXTDEV_BOOT_0_STRAP_BUS_TYPE_AGP `NV_PEXTDEV_BOOT_0_STRAP_BUS_TYPE_AGP PCI/AGP_ONLY
15 FP_IFACE `NV_PEXTDEV_BOOT_0_STRAP_FP_IFACE_12BIT `NV_PEXTDEV_BOOT_0_STRAP_FP_IFACE_12BIT NO
16 USER[0] MIOBD0 (Ccirb_data[0]) MIOBD0 (Ccirb_data[0]) NO
17 USER[1] MIOBD1 (Ccirb_data[1]) MIOBD1 (Ccirb_data[1]) NO
18 USER[2] MIOBD8 (Ccirb_data[8]) MIOBD8 (Ccirb_data[8]) NO
19 USER[3] MIOBD9 (Ccirb_data[9]) MIOBD9 (Ccirb_data[9]) NO
20 PCI_DEVID32[0] MIOBD3 (Ccirb_data[3]) MIOBD3 (Ccirb_data[3]) NO
21 PCI_DEVID32[1] MIOA_HSYNC (ccira_hsync) MIOA_HSYNC (ccira_hsync) NO
22 CRYSTAL1 MIOBD6 (Ccirb_data[6]) MIOBD6 (Ccirb_data[6]) NO
23 FB[0] 0 0 NO
24 FB[1] 1 1 NO
25 BR ROM_SI (Rom_si) ROM_SI (Rom_si) MCHIP
26 BR_128M `NV_PEXTDEV_BOOT_0_STRAP_BR_REG_128M_DISABLED `NV_PEXTDEV_BOOT_0_STRAP_BR_REG_128M_DISABLED NO
27 BR_AGP `NV_PEXTDEV_BOOT_0_STRAP_BR_AGP_DEV_DISABLED `NV_PEXTDEV_BOOT_0_STRAP_BR_AGP_DEV_DISABLED NO
28 BR_IO `NV_PEXTDEV_BOOT_0_STRAP_BR_IO_DEV_DISABLED `NV_PEXTDEV_BOOT_0_STRAP_BR_IO_DEV_DISABLED NO
29 ROMTYPE[0] MIOBD10 (Ccirb_data[10]) MIOBD10 (Ccirb_data[10]) YES
30 ROMTYPE[1] MIOBD11 (Ccirb_data[11]) MIOBD11 (Ccirb_data[11]) YES

NV_STRAP_1

-----------------------------------------------------------------------------------------------------------------------------------------------------­BIT FUNCTION MAP/MEP/SQUISH PIN (RTL Name) NORMAL PIN (RTL Name) REQUIED ON BOARD?

-----------------------------------------------------------------------------------------------------------------------------------------------------­0 1394 `NV_PEXTDEV_BOOT_3_STRAP_1_1394_DISABLED `NV_PEXTDEV_BOOT_3_STRAP_1_1394_DISABLED NO
1 1394_PHY `NV_PEXTDEV_BOOT_3_STRAP_1_1394_PHY_DISABLED `NV_PEXTDEV_BOOT_3_STRAP_1_1394_PHY_DISABLED NO
2 1394_PHY_PWRCLASS[0] 0 0 NO
3 1394_PHY_PWRCLASS[1] 0 0 NO
4 VGA_DEVICE `NV_PEXTDEV_BOOT_3_STRAP_1_VGA_DEVICE_ENABLED `NV_PEXTDEV_BOOT_3_STRAP_1_VGA_DEVICE_ENABLED NO
5 MEM_LSB_SWAP `NV_PEXTDEV_BOOT_3_STRAP_1_MEM_LSB_SWAP_DISABLED `NV_PEXTDEV_BOOT_3_STRAP_1_MEM_LSB_SWAP_DISABLED NO

MIOA_2V5

6 BR_LAST_DEV `NV_PEXTDEV_BOOT_3_STRAP_1_BR_LAST_DEV_DISABLED `NV_PEXTDEV_BOOT_3_STRAP_1_BR_LAST_DEV_DISABLED NO
7 BR_BAR1_BCASTONLY `NV_PEXTDEV_BOOT_3_STRAP_1_BR_BAR1_BCASTONLY_ENABLED
`NV_PEXTDEV_BOOT_3_STRAP_1_BR_BAR1_BCASTONLY_ENABLED NO

8 SUBSYSTEM_USER `NV_PEXTDEV_BOOT_3_STRAP_1_SUBSYSTEM_USER_DISABLED
`NV_PEXTDEV_BOOT_3_STRAP_1_SUBSYSTEM_USER_DISABLED NO
9 BOARD `NV_PEXTDEV_BOOT_3_STRAP_1_BOARD_0 `NV_PEXTDEV_BOOT_3_STRAP_1_BOARD_0 NO
10 FPB_IFACE `NV_PEXTDEV_BOOT_3_STRAP_1_FPB_IFACE_12BIT `NV_PEXTDEV_BOOT_3_STRAP_1_FPB_IFACE_12BIT NO
11 PEX_PLL_EN_TERM100 MIOAD0 (Ccira_data[0]) MIOAD0 (Ccira_data[0]) YES
12 3GIO_PADCFG_LUT_ADR[0] MIOAD6 (Ccira_data[6]) MIOAD6 (Ccira_data[6]) YES
13 3GIO_PADCFG_LUT_ADR[1] MIOAD8 (Ccira_data[8]) MIOAD8 (Ccira_data[8]) YES
14 3GIO_PADCFG_LUT_ADR[2] MIOAD9 (Ccira_data[9]) MIOAD9 (Ccira_data[9]) YES

R7366
0

5%
0402
COMMON

3V3

R73675%0

0402 COMMON

R16

2K

R512

2K

COMMON0402

5%

R513

2K

NS0402

5%

R516

2K

NS0402

5%

R13

NS2K0402

5%

R64

2K

COMMON0402

5%

R65

2K

NS0402

5%

R57

2K

04025%NS

R520

2K

04025%NS

R79

2K

NS0402

5%

R56

2K

NS

0402

5%

R17

2K

NO STUFF

0402

5%

R12

2K

NO STUFF

0402

5%

R20

2K

0402 NO STU F F

5%

R10

2K

NO STUFF

0402

5%

R7255

2K

NO STUFF

0402

5%

REG:
NV_PEXTDEV_BOOT_0

Bit Signal

00:
PCI_AD_SWAP

01:
SUB_VENDOR

NS5%0402

02:
RAM_CFG_0

03:
RAM_CFG_1

04:
RAM_CFG_2

05:
RAM_CFG_3

06:
CRYSTAL_0

22:
CRYSTAL_1

07:
TV_MODE_0

08:
TV_MODE_1

09:
AGP8xEnable

10:
AGP_SBA

11:
AGP_FASTWR

12:
PCI_DEVID_0

13:
PCI_DEVID_1

20:
PCI_DEVID_2

21:
PCI_DEVID_3

14:
BUS_TYPE

15:
FP_IFACE

23: FB_0

24: FB_1

25: BR

26:
BR_128M

27:
BR_AGP

28:
BR_IO

29:
ROM_TYPE_0

30:
ROM_TYPE_1

16:
USER_0

17:
USER_1

18:
USER_2

19:
USER_3

REG:
NV_STRAP_1

Bit Signal

PEX_PLL_EN_TERM100
12:
3GIO_PADCFG_LUT_ADR[0]
13:
3GIO_PADCFG_LUT_ADR[1]
14:
3GIO_PADCFG_LUT_ADR[2]
16: SLOT_CLK_CONFIG

VALUE_ID

PCI_AD_SWAP

SUB_VENDOR

RAM_CFG[3:0]

CRYSTAL[1:0]

TV_MODE[1:0]

AGP_30_8x

AGP_SBA[0]

AGP_FASTWR[0]

PCI_DEVID[3:0]

BUS_TYPE[0]

FP_IFACE[0]

FB[1:0]

BR[0]

BR bits are ignored if BRIDGE is disabled

ROM_TYPE[1:0]

VALUE_ID

VALUEs

0
REVERSED

1
NORMAL

0
NO_BIOS

1 read from BIOS

0000

RFU

0001

RFU

0010

RFU

0011

RFU

0100

RFU

0101
8Mx32DDR3,INFINEON/SAMSUNG

0110

RFU
0111 8Mx32DDR3,SAMSUNG
(SCREENED)

00 13.500 Mhz
01 14.31818 Mhz
10 27.000 Mhz
11

unknown
00

SECAM
01

NTSC
10

PAL
11

CRT
0 AGP8x

enabled
1 AGP8x

disabled
0 SBA enabled

1 SBA disabled
0 enabled
1 disabled
0000 0x140 ... 1111 0x014F
0000 (default 0x140)
0101 (0x145)

0 PCI
1

AGP
0 24Bit

1 12Bit
(DEFAULT)

00
64M

01
128M

10 256M
(DEFAULT)

11
512M

0 BRIDGE
disabled

1 BRIDGE
enabled

00 Parallel
01

Serial_AT25F
10

Serial_SST45VF
11

RFU
0000 (default)STRAP_USER[3:0]

VALUEs

0 (default -- internal term on)11:

Assembly:
BIOS

1000

RFU

1001

RFU

1010

RFU

1011

RFU

1100

RFU

1101

RFU

1110

RFU

1111

RFU

Mechanical
parts

MEC2

MEC_HEX_JACK_SCREW
COMMON

MEC1

MEC_HEX_JACK_SCREW
COMMON

MEC4

MEC_HEX_JACK_SCREW
COMMON

MEC3

MEC_HEX_JACK_SCREW
COMMON

FAN

HSA_GPU_TM31-2_T_AL _1
COMMON

1

NEED FANSINK SYMBOL
FOR P216

FM1

SW_FB

FM2
SW_FB

1

FM4
SW_FB

1

155-00002-0000-000 SCREW PHIL PAN HD SS MACH 4-40
3/16

BKT

BRKT_ADVIDB15S_BDVIDB15S_CDIN_2
COMMON

1

MECH. MOUNTING TOP

FM3
SW_FB

1

1

FM6
SW_FB

1

FM5
SW_FB

PCB

<PCB Footprint>
COMMON

MECH. MOUNTING TOP

1

Fiducial Point

1

2

3

4

5

Micro-Star International Co., LTD.

Straps/Mechanical

Size Document Number Rev

Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

www.vinafix.vn

20

Sheet of

100

25

Power Supply TMDS/A3V3

NVVDD_EN22,23

NVVDD_EN22,23

5V DDC_5V

12

F1
200mA

1206
COMMON

POLYSWITCH

5V_FUSED

LB40
220R@100MHZ

COMMON
0805

C443

C444

4.7UF

220PF

COMMON

COMMON

??6.3V

?

50V
?
0603

0805

3V3

C1021
10UF

6.3V
20%
X5R
C0805_67
COMMON

D

D

Q25

GND

DPAKSGD

G

COMMON

S

S

20V

3.4A
?
20A
?
?

C

23

MIOA2V5_VREF

1

A

GND

NVVDD_EN

R7262

C1023

4.7K

1UF

5%

16V

0402

10%

COMMON

X7R
C0805_67
COMMON

GND

R7265

0

5%
0402
NS

MIOA2V5_BASE

ADJ_VR2.495

Q27

NVVDD_EN*

SST2222A

NS

GND

Vref = 2.5V
Vout = 2.495(1+Rtop/Rbot) + (Iref + Rtop)
For Vout = Vref (Rtop = 0ohm, Rbot = NO STUFF)

Rmin => (VinMAX-Vout)/(IoutMIN+150mA)

1G1D1S

G

U519

SOT23
SOT23

COMMON

Rmin => (VinMAX/200mA)

3V3 A3V3

R7269
0

5%
0603
NS

?

R7273
0

5%
0603
NS

?

LB560

180R@100MHz

COMMON0603

C1033
.047UF

25V
10%
X7R
0603
COMMON

NVVDD_EN

R7268
0

5%
0603
COMMON

?

TMDSIO_BACK

Q43

S

D

COMMON

G

SOT23SGD_T

G

?
?

S

20A

D

?

3.4A
20V

1G1D1S

GND GND

AB D F H

DDC

1

5V

POWER_DDC5V

2

MIOA_VDDQ

3

4

5

TMDS IO SUPPLY WITH BACKDRIVE PROTECTION

C1017

10uF

Use for G73

TMDS_PLLVDD

R7264
0

5%
0402
COMMON

Rtop

R7266
1K

1%
0402
NS

Rbot

TMDS_IOVDD

C1034

4.7UF

6.3V
10%
X5R
0603
COMMON

HGFEDCBA

12V

C1016
1UF

25V
?

D

Q24

DPAKSGD
COMMON

S

1G1D1S

?
?
?
?
?
?

Q23

D2PAKSGD

COMMON

C1022
1000UF

COMMON
?
?
?
?
?
1500UF_10V

D

S

?
?
?
?
?
?

1G1D1S

TO-263

TO-252

L7001

BEAD_3A

?
C0805_67

COMMON

300mA only

C1020
1000UF

COMMON
?
?
?

?

?
CAPS_TH_D80P35_D100P50

3V3

3.3V/1A

5V & A3V3

A3V3

LB558

180R@100MHz

COMMON0603

5V

C1024
.047UF

25V
10%
X7R
0603
NS

GND GND

No Stuff

2.5V_REF

COMMON

R7258

R0603

R7260

R0603
COMMON

C0805_67

1K

3K

?

C1015

0.1UF

?
?
?

3

2

5

6

12V

+

-

+

-

U517A

411

LM324

U517B

411

LM324

R7259

1

R7257 1K

R0603C OMMON

7

G

1k

R0603

COMMON

?

G

12V

R7256

1K

?
R0603
COMMON

U516

LM431ACM3

C1018

C1019

1u

0.1u

MIOA_2V512V

LB557
0ohm

C1027
.47UF

C1028

+

6.3V

1000u

20%
X5R
C1206_113

COMMON

GND

MIN ESR = 50mOHMS

FOR STABILITY

TMDS_IOVDD

PEX1V2

C1026

4.7UF

6.3V
10%
X5R
0603
NS

FBVDD

L7002

2.5V_REF

2.5V_REF

R7261

1.07K

R7263
1K

BEAD_3A

COMMON

U517C
LM324

411

10

+

8

9

-

R7267
1K

NS

R7270
1K

NS

U517D

411

LM324

NS

12

+

13

-

R7272
1K

NS

TMDS AB/CD PLL Supply

1.8V 320mA

3V3

C1097
1UF

6.3V
?
?

C0402

COMMON

CSP_NVVDD

L7003

BEAD_3A

+

14

R7271
1K

NS

C1096

0.01UF

25V
?
?

C0402

COMMON

NS

Q26
P3055LD

TO-252

C1029

1000u

G

S

C1025
1U

5V

D

Q28

P3055LD

NS

TO-252

Non-use for G73

4

U4

4

VIN3VOUT

PEX1V2 = 1.2V @ 2.2A

PEX1V2

A3V3

LB559

C1030

BEAD/NC

1U

NS

NS

C1031

.047UF

2

ADJ/GND

RC1117S_SOT223

1

ADJ_1V8

GND

GND

2.5V/0.3A

?
?
?
C0402
NS

R7377

1.1K

?
R0402
COMMON

R7378

2.49K

?
R0402
COMMON

1

2

TMDS_PLLVDD

C1032

4.7UF

?
?
?
C0805_67
NS

GND

3

1V8

4

C1098

4.7UF

6.3V
10%
X5R
0603
COMMON

5

Micro-Star International Co., LTD.

Linear Power

Size Document Number Rev

Custom

E GC

Date:

Wednesday, June 28, 2006

MS-V069

Sheet of

100

21

25

www.vinafix.vn

NVVDD with MS-11

Rcsn= DCR*Icop/80uA =
1mohm*40Amp/80uA=499 ohm

I_ind= (Iocp*DCR/Rcsn )*4
= (40A*1mohm/499ohm)*4=80uA

R_ind=V_ind/I_ind= 1V/80uA=

3.3K

APL431BAC_SOT23

R7293

R7297

3V3

2

3 1

10K

?
R0603
COMMON

10K

?
R0603
COMMON

R7279

51R

1.24V

Q34

R7294

4.7k

R0603
COMMON

NVVDD_EN21,23

12V3V3

?

COMMON

R7282
0R

R7286
X_1K

NVVDD_EN

Q36
MMBT3904

VID0_FBVDDQ23

VID1_FBVDDQ23

VID2_FBVDDQ23

SENSE+

I2CC_SDA14,15,19,23,25

R7283

3.3K

C1057

1uF

Q_FET_N_ENH

1G1D1S

I2CC_SCL14,15,19,23,25

12V

12V

D525

BAT54SLT1

R7275
10R

C1041

C1042
1uF

VDD

RT

I_IND

RR

R7288
1KR

17

16

GND

C1060
X_1uF

R7289
0ohm

14

15

UG

BOOT

VCC12

GND

CSN5CSP6COMP7FB

0.1uF

13

8

C1061
33pF

5V

R7277 10R

5VVDD

C1043 1uF

C1051

X_33nF

R7280 160K

RR_NVVDDON

C1056

1uF

R7287
0ohm

G

G

D

S

D

Q35

SOT23SGD
COMMON

S

?
?

?
?
?

Iocp=40A

DCR x Iocp=R.80uA

DCR is from output R

2m x 40=1000 x 80u

1

2

3

4

CSN_NVVDD

CSP_NVVDD

L / DCR = C x R

DCR is from output choke
Function no used

GPIO30-32 have to pull to 3V3(open drain)

VID3_NVVDD

VID4_NVVDD
VID0_NVVDD
VID1_NVVDD
VID2_NVVDD

A3V3

R7298

1K

C1064

0.1U
U521

1
2
3
4
5
6
7
8

9
10
11
12
13
14

VSB3V
GPIO30
GPIO13/I2C_ADDR
GPIO16/LED
GPIO17/LED
GPIO20/LED
GPIO21/LED
GPIO22/LED
GPIO14/LED
GPIO10/LED
GPIO11/LED
GPIO12/LED
SDATA
SCLK

GPIO31
GPIO32

GPIO33
GPIO23/LED
GPIO24/LED
GPIO25/LED
GPIO26/LED
GPIO27/LED
GPIO15/LED

WDTOUT10#

R7299

1K

28

SEL

27
26
25
24
23
22
21
20
19
18

VSB3V

17

GND

16

GND

15

F75111R

RR_NVVDDON

U520
MS-11PQV

PHASE

LG

PVCC

SS

PI

NVVDD feedback

R7291
15K

C1062
4700pF

R7300

1K

VID125_NVVDD

R7276
0R

12

11

10

9

R7274
300K

C1053 1uF

C1054 0.1uF

R7284 X_4.7K

R7285 1K

C1058

X_0.1uF

R7295
0ohm

R7301

1K

DS

Q32

G

APM2512 TO-252

NV_OVT#

C1059 NC

MR1

1K

R7290
NC

Rbot

VID3_FBVDDQ 23
VID125_FBVDDQ 23

5VVDD

Rtop

G

G

NV_OVT# 23

VDA_NVVDD

A3V3

C1067

0.1U

DS

Q30

APM2512 TO-252

DS

Q33

APM2512

G

C1035

10uF

DS

Q31

APM2512 TO-252

R7281

2.2R

R0805MS

C1055

2.2nF

C1036

10uF

C1037

10uF

DCR 1.5 mohm

L7008

1U_40A

L7100

1U_30A

duallay

NVVDD REMOTE SENSE

VDA_VDDC

VID125

0

1.1875V
1

1.200V

1.2125V

0

1.225V

1

1.2375V

0
1

1.250V

1.2625V

0

1.275V

1

1.287V

0

0

1.3125V 1

1.325V

1
0

1.3375V

1.350V 1

1

1.3625V

0

1.375V

11 0
0

1.3875V

1.400V

1

1.4125V

R7292

0R

R7296

0R

C1038

10UF

VID0

0
0
1
1
010
0
11
1

0
1
1
0
0

0

C1044

1.0uF

VID1

VID2

0

11

0

1

0

1
0

0
0

0

0
0

0

1

1

1

111.300V 1 100
1
0

1
1

0
0

1

0
1

01

1

0

1

L7004
Chock 1.2u

C1039

C1040

+

+

330u16V

330u16V

C1045

C1046

10uF

1.075 V~ 1.3V

Default 1.30V

C1063
.1UF

25V
10%
X7R
0402
COMMON

VID4

VID3

1

1
1

1
1

1
1

1

1
1

1
1

1
1

0
0

1

Default

1

0
0

1
1

0
0

1
1

0

10
1

0
0

1

001100

L7005

BEAD_6A

10uF

+

1500u

R7303

1K

VID0_NVVDD

VID2_NVVDD
VID3_NVVDD
VID4_NVVDD
VID125_NVVDD

R7310

R7309

1K

1K

C1047

OUT

R7304

1K

VID1_NVVDD

CSP_NVVDD

R7278
1m ohm/ 1.5W

C1048

+

1500u

CSP_NVVDD
CSN_NVVDD

22.2G<2.3F> 2

C1049

+

10uF

1500u

NVVDD

NVVDD = 1.0-1.4V@35A

C1052

C1050

+

680u6.3V

NVVDD Voltage Selection

3V3 3V3

R7368

8.6K_1%

C1093

Q44

0.1U

2N7002

A3V3

R7308

R7305

R7307

R7306

1K

1K

1K

1K

U522

6
1

VID1

2

VID2

3

VID3

4

VID4

9

VID125

RT9401CPSP/PSOP-8

R7314

R7313

R7312

R7311

1K

1K

1K

1K

5V

R7302

10 R

C1065

0.1uF

VDD7VID0

5

GND

VID125

8

VDA

VDA_NVVDD

C1066

10nF

Default 011011 for 1.3V NVVDD

R7370

4.1K_1%

R7369
10K

R7372
100K

Q45
2N7002

R7371
10K

C1094

R7373

0.1U

100K

R7375

1K

1K

R7374

Place close t o N V V DD fe edback loop!

0603

NS ?

NS ?

GPIO6_VSEL1 19

0603

GPIO5_VSEL0 19

NVVDD_ GPIO:10~15
FBVDDQ_ GPIO:20~24

DACA_ RESET---GPIO:25~28

DACC_ RESET---GPIO:30~32

NVVDD 1.33V default 010101

www.vinafix.vn

Micro-Star International Co., LTD.

NVVDD with MS-11

Size Document Number Rev

Date:

Custom

MS-V069

Tuesday, June 27, 2006

22

Sheet of

0A

25

HGFEDCBA

FBVDD with MS-11

1

VID2
1
1
0
0
0
0

11.762V
1
1
1
0
0
0
0

1111.275V
1

1

VID2
1
1
0
0
0
0

11.975V
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1

1

0
0
0
00

VID3

1

1
1

1
1
1

1
1

1
10

1

01.175V
1
1

0

1

0
0

1

0

1

0
1

0
001

1

011

1

10

VID3
1
1
1
1
1
1
0

0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
011

0
0
0

1
1
1
1
1

1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0

1G1D1S

NVVDD_EN

VID4

1
1
1
1
1
1
1
1
1

FBVDD Default

1

For Samsung DDR3 1.8V VID

1

Table R7325 Change ro 750 Ohm

1
1
1

1

1

VID4

1
1
1
1
1
1
1
1
1

FBVDD Default

1

For Infineon DDR3 2.0V VID
Table

1
1
1
1

11.275V
1
1
1
1
1

1
1
1
1

0

11.425V

0

1

0

1
1

0

VID0_FBVDDQ22
VID1_FBVDDQ22

VID2_FBVDDQ22
VID3_FBVDDQ22

VID125_FBVDDQ22

1

2

3

4

5

FBVDD

1.100V

1.65V

1.1125V

1.668V

1.125V

1.687V

1.1375V

1.706V

1.725V

1.150V

1.1625V

1.743V

1.781V

1.1875V 0

1.8V

1.20V

1.2125V

1.818V

1.837V

1.225V

1.856V

1.2375V

1.875V

1.25V

1.2625V

1.893V

1.912V

1.931V

1.2875V

1.95V

1.968V

1.3125V

FBVDD

VDA PWR

1.100V

1.900V

1.1125V

1.9125V

1.125V

1.925V

1.1375V

1.9375V

1.950V

1.150V

1.1625V

1.9625V

1.175V

1.9875V

1.1875V 0

2.00V

1.20V

1.2125V

2.0125V

2.025V

1.225V

2.0375V

1.2375V

2.05V

1.25V

1.2625V

2.0625V

2.075V

2.0875V

1.2875V

2.100V

1.300V

2.1125V

1.3125V

2.125V

1.325V

2.1375V

1.3375V

2.150V

1.350V

2.1625V

1.3625V

2.175V

1.375V

2.1875V

1.3875V

2.200V

1.400V

2.2125V

1.4125V

2.225V

1.4375V

2.2375V

2.250V

1.450V

1.4625V

2.2625V

NVVDD_EN21,22

VID1

VID125VDA PWR

VID0

1

0

0

0
101

1
0

1

1

0
01
1

1

1

0

0

1

010
1

1

1

0
1

0

0

0
1

1
0

101.300V
0

VID1

VID125

VID0

1

0

0

0
1

1
0

1

1

0

0

01
1

1

1

0

0

1

0

0

1

1

1

0
1

0

0

0
1

1
0

1
0

1
0

0

1

1
1

0

0

1
0

0

1

1
1

0
1

01
0

0

1

1
1

0
1

0

0

0

A B D F H

G

3

D

Q39

SOT23
COMMON

S

2

50V

0.22A@31C
?

0.88A

0.36W@25C
?

GND

5V

R7318 10R

C1073 1uF

C1074

33nF

R7321 160K

R7319

0ohm

Iocp=32A

DCR x Iocp=R.80uA

DCR is from output choke

2.5m x 32=1K x 80u
33m x 16= 6 . 6K x 80u

6.8K R11-0682013-Y01

CSN_FBVDD

CSP_FBVDD

A3V3

R7341

R7338

R7340

1K

1K

1K

R7348

R7349

R7347

1K

1K

1K

12V

5V_SET

1

VDD

2

RT

3

I_IND

PR_FBVDDON

4

RR

L / DCR = C x R

DCR is from output choke

1.3u / 2.5m = 1u x520

2.2u / 33m = 1u x 66.67

R7330

0ohm

R7343

R7342

R7344

1K

1K

1K

R7350

R7351

R7353

1K

1K

1K

R7316
10R

EC1
1uF

17

16

GND

VCC12

CSN5CSP6COMP7FB

R7324
1kR

C1086
1uF

R7326

523ohm

U524

6
1

VID1

2

VID2

3

VID3

4

VID4

9

VID125

RT9401CPSP/PSOP-8

VID4 Always pull up

ED1

BAT54SLT1

15

BOOT

GND

VDD7VID0

GND

VID125

VDA

C1072

0.1uF

14

UG

13

PHASE

8

C1088
33pF

5

8

PR_FBVDDON

R7317
0R

EU1
MS-11PQV

12

LG

11

PVCC

10

SS

9

PI

R7327
15K

C1087
4700pF

5V

R7339

10 R

EC2

0.1uF

EC3

10nF

R7315
300K

C1081 1uF

C1082 0.22uF

R7322 X_4.7K

R7323 1K

C1084

X_0.1uF

G

G

C1085 NC

R7325 1K

R7328

1.5K

Rbot

DS

Q37

APM2512 TO-252

DS

Q38

APM2512 TO-252

5V_SET

Rtop

VDA_MVDDC

PWMOUT1

VDA_MVDDC

12V

L7010

L7009

Chock 1.2u

R7320

2.2R

R0805MS

C1083

2.2nF

CSP_FBVDD
CSN_FBVDD

C1068

10uF

L7013
Di1.3uH

C1069

10uF

DCR 2.5 mohm

C1070

22UF

+

C1075

1.0uF

BEAD_3A

C1071

330u16V

C1076

10uF

1.9 V~ 2.2625V
Default 2.0 V

FBVDD

FBVDD: 1.8-2.2V@10.6A

C1080

C1077

10uF

C1079

+

+

1500u

1500u

1

2

TEMPERATURE MONITOR

VREF

VREF

A3V3

U523

FANIN1
FANIN2/GPIO0
PWMOUT1/ADDR_TRAP
PWMOUT2/GPIO1
FAN_FAULT#/SMI#/GPIO2
VOLT_FAULT#/OVT#GPIO3
GP_CLK
GP_DATA

H/W MONITOR

VCC

D1+
D2+

VREF

VIN1
VIN2
VIN3
GND

F75387

16

VTIN1

15

VTIN2

14

VREF

13

V1

12

V2

11

V3

10
9

R7333

R7334

4.7K

FANIN1

PWMOUT1

R7346 X_0

NV_OVT#

GPIO_SMI#

R7345 X_0

OVT#

I2CC_SCL14,15,19,22,25

I2CC_SDA14,15,19,22,25

GPIO_SMI#19

NV_OVT#22

R7072/7073 no stuff

R7335

R7336

4.7K

4.7K

4.7K

1
2
3
4

SMI#

5
6
7
8

R7331 10K

COMMON

A3V3

R7337

33R

No A3V3 to GND Capacitor

<1ST PART FIELD>

RT1

THERMISTOR

COMMON

PWM FAN SPEED CONTROL

3V3

12

R7355

4.7K

1 2

R7361 100

2N7002-SOT23

B

R7356 4.7K

1 2

R7357 1K

1 2

Q42

E C

B

C1091
22UF

6.3V
20%
X5R
10F16VS
COMMON

EC

Q40
3906

Dual layer for
3906

JU2

1
2
3

D1x3-WH-SNO

12V

D526

12

R7358

4.7K

1N4148

1 2

R7362 27K

1
2

VFANOUT

3

C1090
47PF

1 2

FANIN1

R7363
10K

1 2

VTIN2

<1ST PART FIELD>

T

VOLTAGE SENSORING CIRCUIT

V1

V2

V3

R7329 10K

VTIN1

R7352 0

R7354 200K

R7359 100K

R7360 100K

R7364 0

R7365 10K

NVVDD

FBVDD

SENSE+

R7332 0

C1089

3300pF

THERMDA 19

3

4

5

Micro-Star International Co., LTD.

VOLTAGE SENSORING CIRCUIT

E GC

FBVDD with MS-11

Size Document Number Rev

Date:

Custom

Tuesday, June 27, 2006

MS-V069

Sheet of

23

100

25

www.vinafix.vn

HGFEDCBA

Hotplug Detection

R7381

R0402

C1125
.1UF

10V
10%
X5R
C0402
COMMON

C1131
47UF

6.3V
10%
X5R
C1206_113
COMMON

5%

1K

COMMON

LB564

0603

LB565

0603

C1126

4.7UF

6.3V
10%
X5R
C0603
COMMON

HDMI_HPD_R

600R@100MHz

COMMON

3V3

600R@100MHz

COMMON

C1121

4.7UF

6.3V
10%
X5R
C0603
COMMON

3V3

LB562

600R@100MHz

0603

COMMON

R7393

R7387

0402 NS

390

R0402
COMMON
1%

SI_AVCC

3V3

C1135
.1UF

10V
10%
X5R
C0402
COMMON

HDMI_HPD

0

5%

C1130
.1UF

10V
10%
X5R
C0402
COMMON

C1128

.1UF

10V
10%
X5R
C0402
COMMON

C1136
.1UF

10V
10%
X5R
C0402
COMMON

TMDS AC termina t i on PLACE CLOSE T O T H E SII.

C1103

COMMON

.1UF

IFPC_TXD0

IFPC_TXD1

10V

C1104

COMMON

.1UF

10V

C1105

COMMON

.1UF

10V

C1106

COMMON

.1UF

10V

C1108

C1109

.1UF

6.3V

.1UF

C1110

COMMON

C0402

C1111

6.3V

.1UF

COMMON

C0402

6.3V

.1UF

COMMON

C0402

C1113

.1UF

6.3V
COMMON

C0402

6.3V

.1UF

COMMON

C0402

C1115

.1UF

6.3V

COMMON

C0402

6.3V

.1UF

COMMON

C0402

R7390

0402 NS

R7391

0

0402 NS

5%

STXD0*

STXD0

STXD1*
STXD1

STXC*

STXD2*

STXD2

IFPC_TXC
IFPC_TXC*

STXC

IFPC_TXD0*

IFPC_TXD1*

IFPC_TXD2

IFPC_TXD2*

1

IFPC_TXD017

IFPC_TXD0*17

I2CB_SCL_C

I2CB_SDA_C

IFPC_TXD117

IFPC_TXD1*17

IFPC_TXD217

IFPC_TXD2*17

IFPC_TXC17
IFPC_TXC*17

2

I2CB_SCL_C12,25

I2CB_SDA_C12,25

3

4

RESET_BUF_1

5

C1112

C1114

MCLK25

10%

10%

10%

10%

COMMON

6.3V

L_SDA25

SPDIF25

5%

L_SCL25

X5R C0402

X5R C0402

X5R C0402

X5R C0402

C0402

0

SI_INT*25

L_SCL

I2S_WS

R7398

0402 NS

R7383

R7384

R7385

R7386

L_SDA

SPDIF

MCLK

5%

5%

5%

5%

5%

I2S_SD1

3V3

RESET_BUF_1

I2S_SD0

0

301

COMMONR0603

301

COMMONR0603

301

COMMONR0603

301

COMMONR0603

SI_INT*

R7394

R7395

R7397

0402 NS

U3A

PART 1 OF 2

57

Rx0+

58

Rx0-

54

Rx1+

55

Rx1-

51

Rx2+

52

Rx2-

60

RxC+

61

RxC-

R7389

49

EXT_REX

1K

7

SDSCL

6

SDSDA

2

LINT

35

RST/SD1

13

SDAROM

14

SCLROM

EXT_SWING

4

LSCL

3

LSDA

4.7K

NS0402

5%

5%

8

4.7K

COMMON0402

5%

A1

1

RESET

37

SCK/LA2

43

WS/SYNC

36

SDO/SD0

44

SPDIF/SDI/SD2

42

MCLK/BCLK

40

TEST

SII1930CTU

0

HTPLG

SDADDC
SCLDDC

PVCC1
PVCC2

PGND2
PGND1

SPVCC

SPGND

AVCC1
AVCC0

AGND2
AGND1
AGND0

SVCC1
SVCC0

SGND59
SGND53

OTPVCC

HDMI_HPD

39

SI_HDMI_SDA

12
11

STXC*

19

TXC-

STXC

20

TXC+

STXD0*

22

TX0-

STXD0

23

TX0+

STXD1*

25

TX1-

STXD1

26

TX1+

STXD2*

28

TX2-

STXD2

29

TX2+

47

SDI-

46

SDI+

17
32

33
16

62

63

SIIA_SWING

31

27
21

24
30
18

64

OVCC

56
50

59
53

9

VCC0

15

VCC1

38

VCC2

48

VCC3

34

5

GND0

10

GND1

41

GND2

45

GND3

C1116
100PF

50V
10%
NPO
C0402
COMMON

R7388

0402 NS

C1119
.1UF

10V
10%
X5R
C0402
COMMON

C1122
100PF

50V
10%
NPO
C0402
COMMON

C1132
.1UF

10V
10%
X5R
C0402
COMMON

5%

C1137
.1UF

10V
10%
X5R
C0402
COMMON

C0402

COMMON

0

LB570

0603

3.5MIL

C1117

0.01UF

25V
?
?

C0402

COMMON

C1123

0.01UF

25V
?
?

C1138
.1UF

10V
10%
X5R
C0402
COMMON

C1129

4.7UF

6.3V
10%
X5R
C0603
COMMON

R7382
10K

5%
R0402
COMMON

GND

600R@100MHz

COMMON

C1118
.1UF

10V
10%
X5R
C0402
COMMON

LB567

0603

C1139
.1UF

10V
10%
X5R
C0402
COMMON

C1124
.1UF

10V
10%
X5R
C0402
COMMON

3V3

C1152
.1UF

10V
10%
X5R
C0402
COMMON

600R@100MHz

COMMON

1V8

C1134

4.7UF

6.3V
10%
X5R
C0603
COMMON

C1120

4.7UF

6.3V
10%
X5R
C0603
COMMON

1V8

Capacitance of HDMI_SDA_C & HDMI_SCL_C nets to
Power/GND planes must be less than 50pF (try to make it lower)

HDMI_HPD_C

C1102
220PF

50V
5%
NPO
C0603
COMMON

GND

DDC_5V

C1107
4700PF

25V
10%
X7R
C0402
COMMON

GND

HDMI_SDA_C
HDMI_SCL_C

J5511

HP DET

19

+5V

+5V

18

GND

17
16

DDC CLK

15

NC

14
13

CK-

12
11

CK+

10

D0-

9
8

D0+

7

D1-

6
5

D1+

4

D2-

3
2

D2+

1

CONN-STAR TAKE19_black-RH

GND

HDMI_SCL

LB566

600R@100MHz

0603

COMMON

GND

HDMI_SDA

LB568

600R@100MHz

0603

COMMON

GND

ESD3

HDMI_SDA_C HDMI_SDA_C

1

1

HDMI_SCL_C HDMI_SCL_C

2

2

3

VCC

4

4

5

5

RCIamp0514M

Layout note:
Place close
to HDMI
Conn

GND

HDMI_HPD_C HDMI_HPD_C

HDMI_SCL 25

HDMI_SDA 25

1

SHELL2

20

22

DDC DATA

CE Remote

CK Shield

2

D0 Shield

D1 Shield

D2 Shield

23

SHELL1

21

3

C1127
100PF

50V
5%
C0G
C0402
NS

4

C1133
100PF

50V
5%
C0G
C0402
NS

10

10

9

9

8
7

7

6

6

GND

5

Micro-Star International Co., LTD.

HDMI LINK Sil 1930

Size Document Number Rev

Custom

AB D F H

E GC

Date:

MS-V069

Tuesday, June 27, 2006

Sheet of

100

24

25

www.vinafix.vn

HGFEDCBA

J5502

SI_INT*

3V3

R7432

5%

R0402

COMMON

11.0592MHZ18P

22PF

50V
5%
NPO
C0402
COMMON

R7420

SPDIF_IN 18

0

1 2

5%

Y502

22PF

33

COMMONR0402

1
2
3
4
5
6

H1X6_black

SI_INT* 24

AK_INT*

NC7SZ04M5

50V

5%
NPO
C0402
COMMON

UC_INT1* 19

3V3

U5509

C1145

MCLKAK_MCLK

3V3

1

C1140
.1UF

10V

R7400

10%

4.7K

X5R

5%

C0402

NS
R0402

COMMON

U2

4

AHC1G00DCK_SC70

5010

5

1

I2CC_SCL

2

3

TPI_INT_EN

TPI_INT_EN 19

2

24

3 5

3

MCLK 24

4

3V3

R7399

SST89V54RD2

X1

15

3V3

COMMON

R7419

28
29

20
17

9

10

1

2

R7416

2K

5%
R0402

5%

SCL/CCLK
SDA/CDTI

INT0
INT1

AVDD

AVSS

DVDD

DVSS

ALE/PROG

4.7K

COMMONR0402

5%

P3.0/RxD

P3.1/TxD
P3.2/INT0
P3.3/INT1

P3.4/T0
P3.5/T1

P3.6/WR

P3.7/RD

P0.7/AD7

P0.6/AD6

P0.5/AD5

P0.4/AD4

P0.3/AD3

P0.2/AD2

P0.1/AD1

P0.0/AD0

XTALB2

PI2.1/SDA

PI2.0/SCL

0

NSR0402

4.7K

COMMONR0402

5%

R7401

26

PSEN

27

29

EA

UC_RXD

5

UC_TXD

7
8
9
10
11
12
13

30
31
32
33
34
35
36
37

39
6
17

NIC*

28

X2

14

UC_P28

UC_P6

I2CB_SDA

I2CB_SCL
I2CB_CTRL

R7435

UN_INT0*

UC_INT1*

1K

R7402

R74035%0

R7404

0

COMMONR0402

5%

COMMONR0402

4.7K

COMMONR0402

5%

C1144

L_SDA

L_SCL

SPDIF 24

SPDIF

R7424
33

COMMON
R0402
5%

4

19

U5506

I2C

V/TX

AK4113VF

TVDD

XTI

3

5

DAUX

XTO

6

24

L_SDA 24

L_SCL 24

7

23

PDN

BICK

21

LRCK

22

SDTO

26

MCKO1

25

MCKO2

11

RX1

SPDIF_IN

12

RX2

13

RX3

14

RX4

15

RX5

16

RX6

CSN

CDTO

P/SN

R

8

27

30

18

1

3V3

RESET_BUF*15,19,24

5V

3V3

RESET_BUF*

2

R7428

R7429

1.8K

1.8K

5%

5%

R0402

R0402

COMMON

COMMON

5V

I2CB_SCL_C12,24

HDMI_SCL 24

HDMI_SDA24

I2CB_SDA_C12,24

3

Q1

8

3

A12B1

VCC

6

A25B2

OE1
OE2

GND

4

SN74CBTD3305C

R7409

4.7K

5%
COMMON
R0402

I2CB_CTRL
I2CB_SCL

1
7

I2CB_SDA

UC_PRGM*19

3

D

uPA672T_DUAL

3V3

245

2 4

3V3

G

Q2

U5507
NC7SZ04M5

3 5

R7405

4.7K

5%

COMMON

R0402

16

S

UC_HDMI_HPD19

I2CC_SDA14,15,19,22,23

COMMON

I2CC_SCL14,15,19,22,23

R7417

5%
R0402

3V3

2K

C1141

4.7UF

6.3V
10%
X5R
C0603
COMMON

2 4

3V3

3 5

3V3

5%

COMMON

R0402

R7418

2K

U5510
NC7SZ04M5

C1143
100PF

50V
10%
NPO
C0402
COMMON

RESET_BUF

R7408

C1142
.1UF

10V
10%
X5R
C0402
COMMON

RESET_BUF_1

0

COMMONR0402

5%

R7434
0

5%
R0402

NS

R7433
0

5%
R0402

NS

R7430

R7431

R0402

R0402

COMMON

COMMON

U5508

4

RST

38

VQFP44 Package

VCC

16

VSS

18

P2.0/A8

19

P2.1/A9

20

P2.2/A10

21

P2.3/A11

22

P2.4/A12

23

P2.5/A13

24

P2.6/A14

25

P2.7/A15

40

P1.0/T2/XTALB1

41

P1.1/T2EX/SS

0

42

P1.2/ECI

5%

0

43

5%

P1.3/CEX0

44

P1.4/CEX1

1

P1.5/CEX2/MISO

2

P1.6/CEX3/SCK

3

P1.7/CEX4/MOSI

R7415

2K

5%
R0402

COMMON

3V3

3V3

LB569

4

600R@100MHz

L0603

COMMON

C1146

4.7UF

6.3V
10%
X5R
C0603

COMMON

C1147
.1UF

10V
10%
X5R
C0402
COMMON

AK_AVDD

C1148
100PF

50V
10%
NPO
C0402
COMMON

AK_INT*

402

6.3V
X5R

402

6.3V
X5R

3V3

R7422

C1150
.1UF

10V
10%
X5R
C0402
COMMON

C1151
.1UF

10V
10%
X5R
C0402
COMMON

R7427

1K

5

C1149

4.7UF

6.3V
10%
X5R
C0603
COMMON

R7423

R7421

1K

1K

15K

5

Micro-Star International Co., LTD.

Micro controller &Audio DAC

Size Document Number Rev

Custom

AB D F H

E GC

Date:

Tuesday, June 27, 2006

MS-V069

Sheet of

100

25

25

www.vinafix.vn
