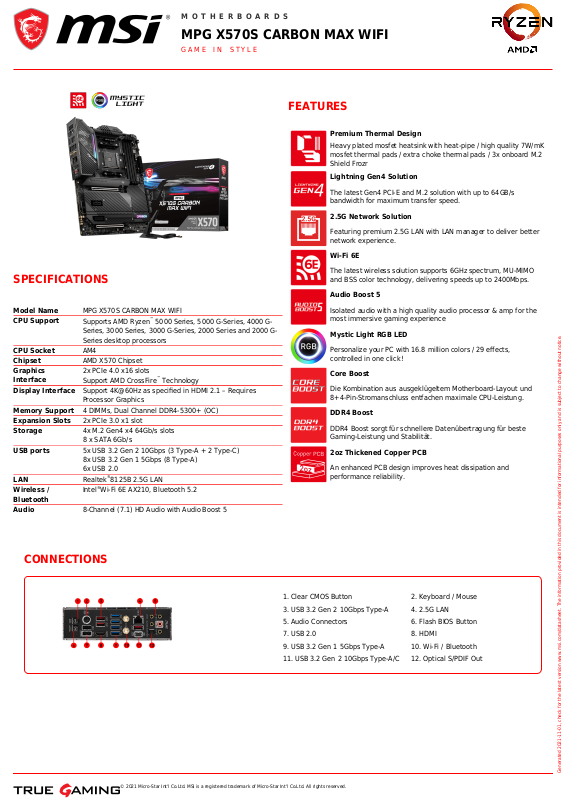

Page 1
MOTHERBOARDS
MPG X570S CARBON MAX WIFI
GAME IN STYLE
SPECIFICATIONS
Model Name MPG X570S CARBON MAX WIFI
CPU Support
CPU Socket AM4
Chipset AMD X570 Chipset
Graphics
Interface
Display Interface Support 4K@60Hz as specified in HDMI 2.1 – Requires
Memory Support 4 DIMMs, Dual Channel DDR4-5300+ (OC)
Expansion Slots 2x PCIe 3.0 x1 slot
Storage 4x M.2 Gen4 x4 64Gb/s slots
USB ports 5x USB 3.2 Gen 2 10Gbps (3 Type-A + 2 Type-C)
LAN
Wireless /
Bluetooth
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 GSeries, 3000 Series, 3000 G-Series, 2000 Series and 2000 GSeries desktop processors
2x PCIe 4.0 x16 slots
Support AMD CrossFire™ Technology
Processor Graphics
8 x SATA 6Gb/s
8x USB 3.2 Gen 1 5Gbps (8 Type-A)
6x USB 2.0
Realtek®8125B 2.5G LAN
Intel®Wi-Fi 6E AX210, Bluetooth 5.2
FEATURES
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK
mosfet thermal pads / extra choke thermal pads / 3x onboard M.2
Shield Frozr
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
Core Boost
Die Kombination aus ausgeklügeltem Motherboard-Layout und
8+4-Pin-Stromanschluss entfachen maximale CPU-Leistung.
DDR4 Boost
DDR4 Boost sorgt für schnellere Datenübertragung für beste
Gaming-Leistung und Stabilität.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability.
CONNECTIONS
1. Clear CMOS Button
3. USB 3.2 Gen 2 10Gbps Type-A
5. Audio Connectors
7. USB 2.0
9. USB 3.2 Gen 1 5Gbps Type-A
11. USB 3.2 Gen 2 10Gbps Type-A/C
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.
2. Keyboard / Mouse
4. 2.5G LAN
6. Flash BIOS Button
8. HDMI
10. Wi-Fi / Bluetooth
12. Optical S/PDIF Out
Generated 2021-11-01, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
