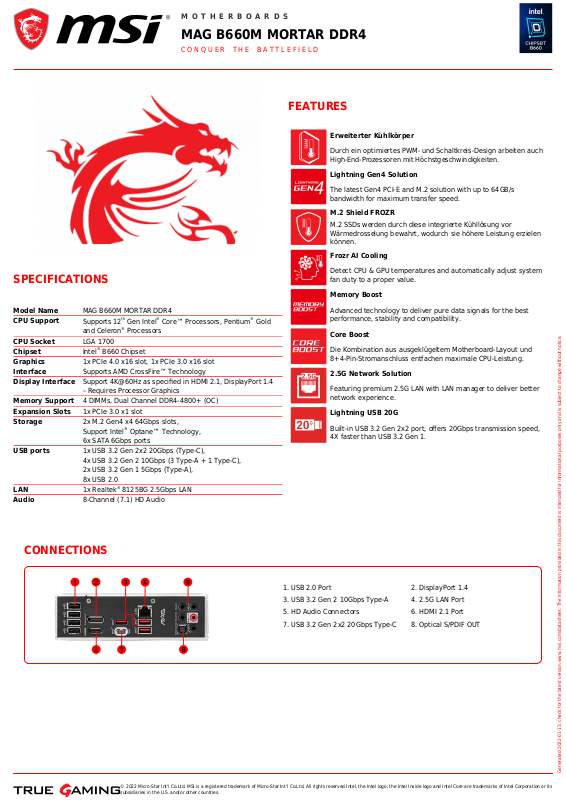

MOTHERBOARDS
MAG B660M MORTAR DDR4
CONQUER THE BATTLEFIELD
SPECIFICATIONS
Model Name MAG B660M MORTAR DDR4
CPU Support
CPU Socket LGA 1700
Chipset
Graphics
Interface
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4
Memory Support 4 DIMMs, Dual Channel DDR4-4800+ (OC)
Expansion Slots 1x PCIe 3.0 x1 slot
Storage 2x M.2 Gen4 x4 64Gbps slots,
USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
LAN
Audio 8-Channel (7.1) HD Audio
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
Intel® B660 Chipset
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot
Supports AMD CrossFire™ Technology
– Requires Processor Graphics
Support Intel® Optane™ Technology,
6x SATA 6Gbps ports
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C),
2x USB 3.2 Gen 1 5Gbps (Type-A),
8x USB 2.0
1x Realtek® 8125BG 2.5Gbps LAN
FEATURES
Erweiterter Kühlkörper
Durch ein optimiertes PWM- und Schaltkreis-Design arbeiten auch
High-End-Prozessoren mit Höchstgeschwindigkeiten.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 SSDs werden durch diese integrierte Kühllösung vor
Wärmedrosselung bewahrt, wodurch sie höhere Leistung erzielen
können.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
Die Kombination aus ausgeklügeltem Motherboard-Layout und
8+4-Pin-Stromanschluss entfachen maximale CPU-Leistung.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.

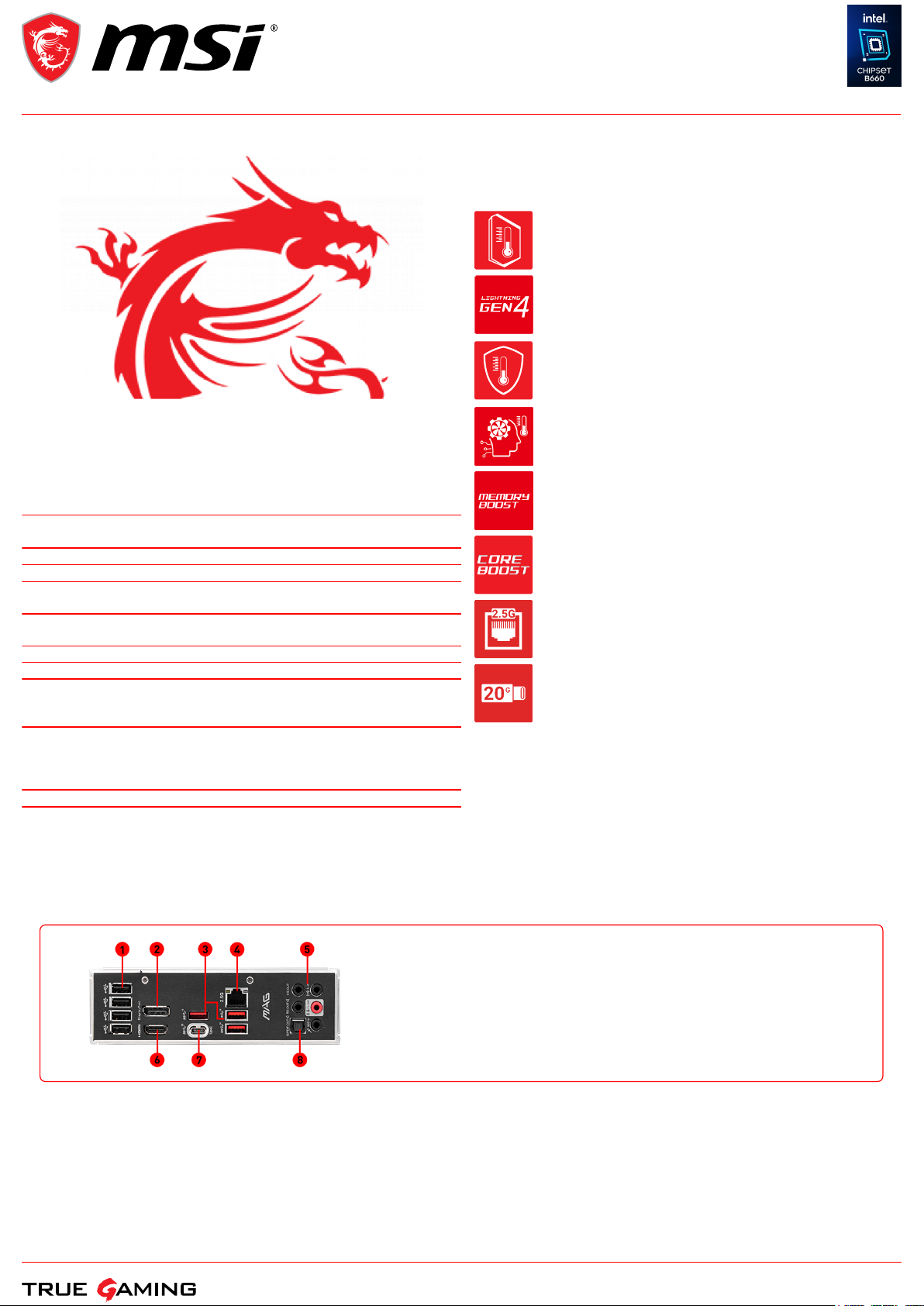

CONNECTIONS
1. USB 2.0 Port
3. USB 3.2 Gen 2 10Gbps Type-A
5. HD Audio Connectors
7. USB 3.2 Gen 2x2 20Gbps Type-C
© 2022 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
2. DisplayPort 1.4
4. 2.5G LAN Port
6. HDMI 2.1 Port
8. Optical S/PDIF OUT
Generated 2022-01-13, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
