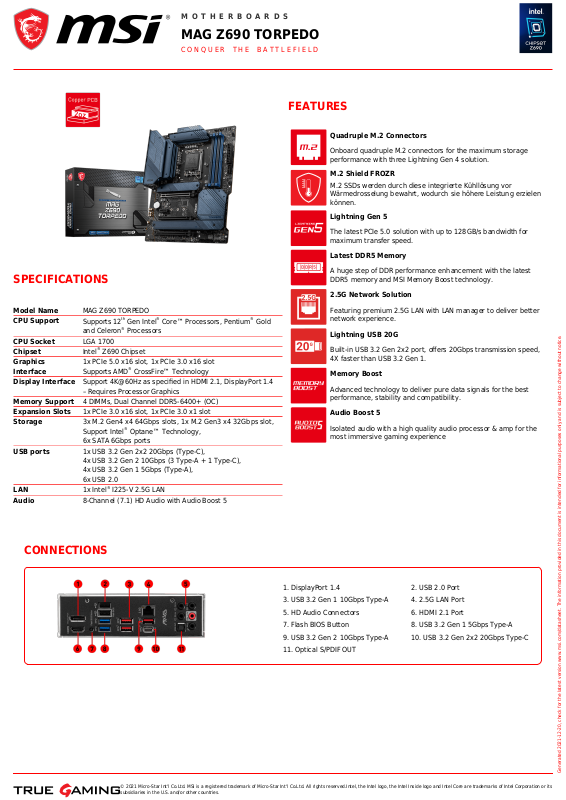

MOTHERBOARDS

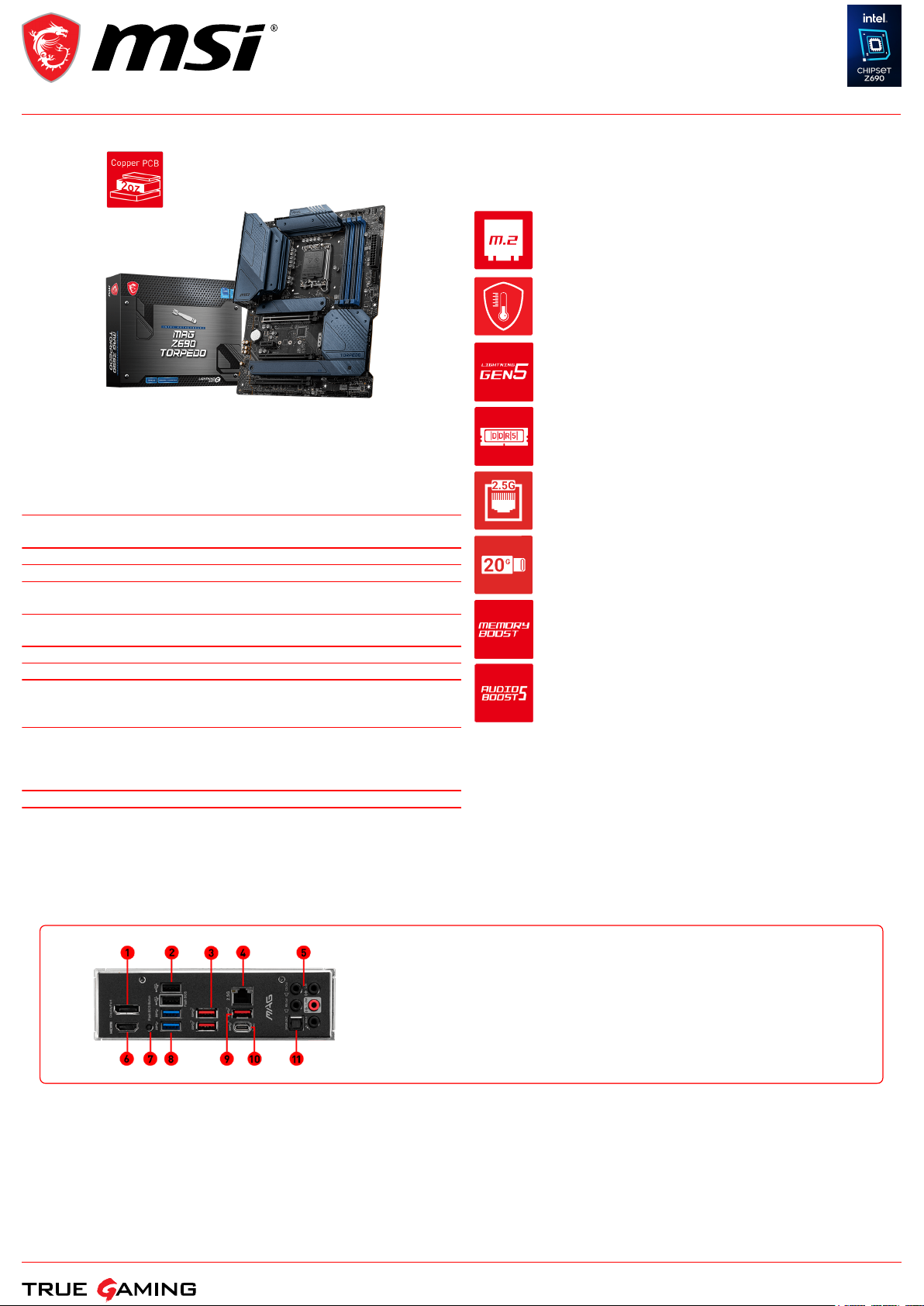

MAG Z690 TORPEDO
CONQUER THE BATTLEFIELD
SPECIFICATIONS
Model Name MAG Z690 TORPEDO
CPU Support
CPU Socket LGA 1700
Chipset
Graphics
Interface
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4
Memory Support 4 DIMMs, Dual Channel DDR5-6400+ (OC)
Expansion Slots 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot
Storage 3x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen3 x4 32Gbps slot,
USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
Intel® Z690 Chipset
1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot
Supports AMD® CrossFire™ Technology
– Requires Processor Graphics
Support Intel® Optane™ Technology,
6x SATA 6Gbps ports
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C),
4x USB 3.2 Gen 1 5Gbps (Type-A),
6x USB 2.0
1x Intel® I225-V 2.5G LAN
FEATURES
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance with three Lightning Gen 4 solution.
M.2 Shield FROZR
M.2 SSDs werden durch diese integrierte Kühllösung vor
Wärmedrosselung bewahrt, wodurch sie höhere Leistung erzielen
können.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
CONNECTIONS
1. DisplayPort 1.4
3. USB 3.2 Gen 1 10Gbps Type-A
5. HD Audio Connectors
7. Flash BIOS Button
9. USB 3.2 Gen 2 10Gbps Type-A
11. Optical S/PDIF OUT
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
2. USB 2.0 Port
4. 2.5G LAN Port
6. HDMI 2.1 Port
8. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2x2 20Gbps Type-C
