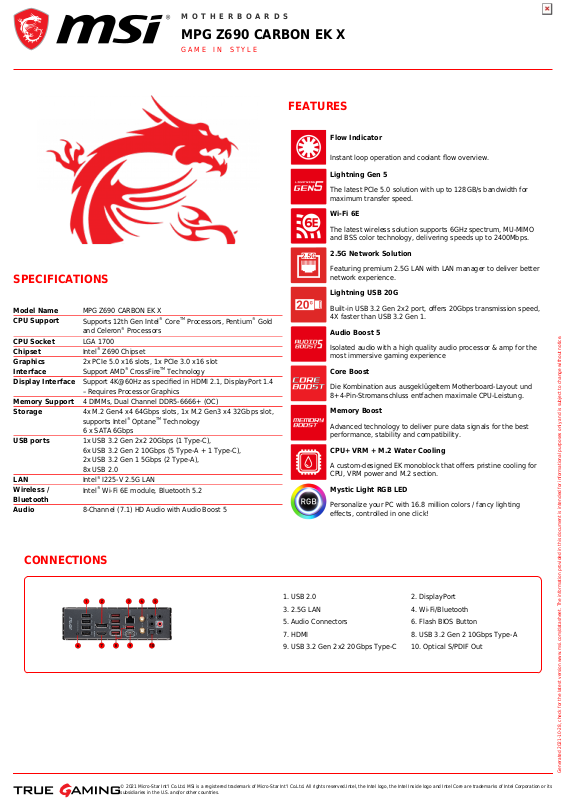

Page 1
MOTHERBOARDS
MPG Z690 CARBON EK X
GAME IN STYLE
SPECIFICATIONS
Model Name MPG Z690 CARBON EK X
CPU Support
CPU Socket LGA 1700
Chipset
Graphics
Interface
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4
Memory Support 4 DIMMs, Dual Channel DDR5-6666+ (OC)
Storage 4x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen3 x4 32Gbps slot,
USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C),
LAN
Wireless /
Bluetooth
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
Supports 12th Gen Intel® CoreTM Processors, Pentium® Gold
and Celeron® Processors
Intel® Z690 Chipset
2x PCIe 5.0 x16 slots, 1x PCIe 3.0 x16 slot
Support AMD® CrossFireTM Technology
– Requires Processor Graphics
supports Intel® OptaneTM Technology
6 x SATA 6Gbps
6x USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C),
2x USB 3.2 Gen 1 5Gbps (2 Type-A),
8x USB 2.0
Intel® I225-V 2.5G LAN
Intel® Wi-Fi 6E module, Bluetooth 5.2
FEATURES
Flow Indicator
Instant loop operation and coolant flow overview.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
Core Boost
Die Kombination aus ausgeklügeltem Motherboard-Layout und
8+4-Pin-Stromanschluss entfachen maximale CPU-Leistung.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
CPU+ VRM + M.2 Water Cooling
A custom-designed EK monoblock that offers pristine cooling for
CPU, VRM power and M.2 section.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / fancy lighting
effects, controlled in one click!

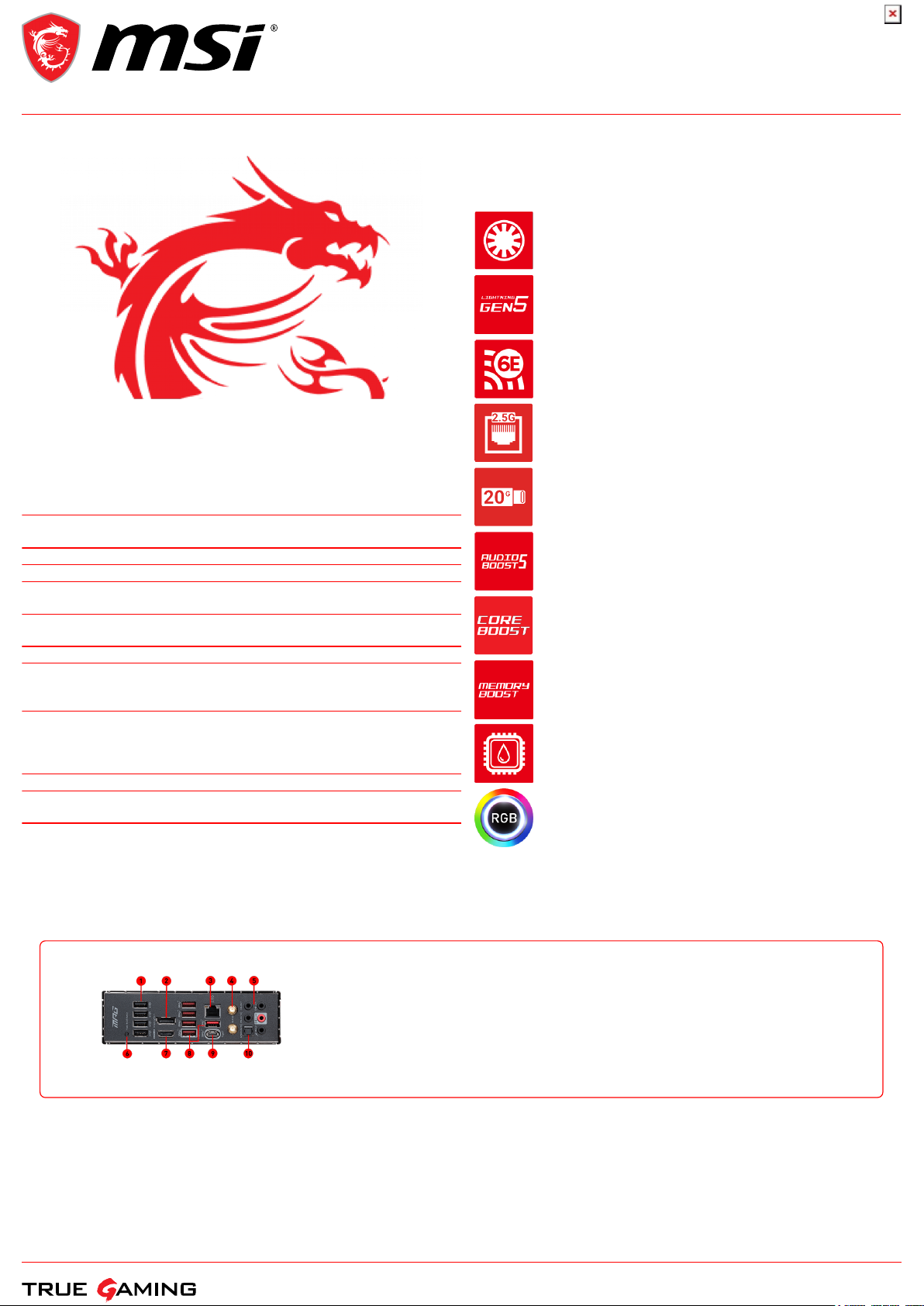

CONNECTIONS
1. USB 2.0
3. 2.5G LAN
5. Audio Connectors
7. HDMI
9. USB 3.2 Gen 2x2 20Gbps Type-C
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
2. DisplayPort
4. Wi-Fi/Bluetooth
6. Flash BIOS Button
8. USB 3.2 Gen 2 10Gbps Type-A
10. Optical S/PDIF Out
Generated 2021-10-28, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
