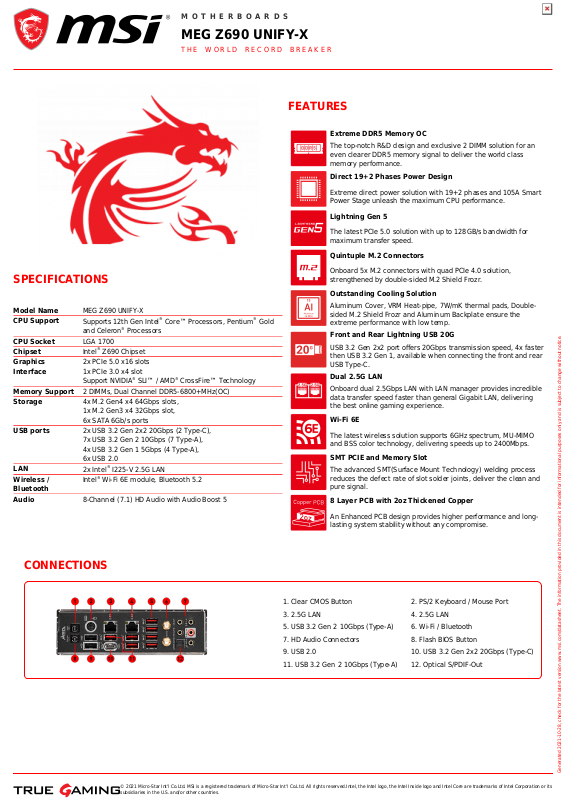

MOTHERBOARDS
MEG Z690 UNIFY-X
THE WORLD RECORD BREAKER
SPECIFICATIONS
Model Name MEG Z690 UNIFY-X
CPU Support
CPU Socket LGA 1700
Chipset
Graphics
Interface
Memory Support 2 DIMMs, Dual Channel DDR5-6800+MHz(OC)
Storage 4x M.2 Gen4 x4 64Gbps slots,
USB ports 2x USB 3.2 Gen 2x2 20Gbps (2 Type-C),
LAN
Wireless /
Bluetooth
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
Intel® Z690 Chipset
2x PCIe 5.0 x16 slots
1x PCIe 3.0 x4 slot
Support NVIDIA® SLI™ / AMD® CrossFire™ Technology
1x M.2 Gen3 x4 32Gbps slot,
6x SATA 6Gb/s ports
7x USB 3.2 Gen 2 10Gbps (7 Type-A),
4x USB 3.2 Gen 1 5Gbps (4 Type-A),
6x USB 2.0
2x Intel® I225-V 2.5G LAN
Intel® Wi-Fi 6E module, Bluetooth 5.2
FEATURES
Extreme DDR5 Memory OC
The top-notch R&D design and exclusive 2 DIMM solution for an
even clearer DDR5 memory signal to deliver the world class
memory performance.
Direct 19+2 Phases Power Design
Extreme direct power solution with 19+2 phases and 105A Smart
Power Stage unleash the maximum CPU performance.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quintuple M.2 Connectors
Onboard 5x M.2 connectors with quad PCIe 4.0 solution,
strengthened by double-sided M.2 Shield Frozr.
Outstanding Cooling Solution
Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Doublesided M.2 Shield Frozr and Aluminum Backplate ensure the
extreme performance with low temp.
Front and Rear Lightning USB 20G
USB 3.2 Gen 2x2 port offers 20Gbps transmission speed, 4x faster
then USB 3.2 Gen 1, available when connecting the front and rear
USB Type-C.
Dual 2.5G LAN
Onboard dual 2.5Gbps LAN with LAN manager provides incredible
data transfer speed faster than general Gigabit LAN, delivering
the best online gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
SMT PCIE and Memory Slot
The advanced SMT(Surface Mount Technology) welding process
reduces the defect rate of slot solder joints, deliver the clean and
pure signal.
8 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
CONNECTIONS
1. Clear CMOS Button
3. 2.5G LAN
5. USB 3.2 Gen 2 10Gbps (Type-A)
7. HD Audio Connectors
9. USB 2.0
11. USB 3.2 Gen 2 10Gbps (Type-A)
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
2. PS/2 Keyboard / Mouse Port
4. 2.5G LAN
6. Wi-Fi / Bluetooth
8. Flash BIOS Button
10. USB 3.2 Gen 2x2 20Gbps (Type-C)
12. Optical S/PDIF-Out
Generated 2021-10-28, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
