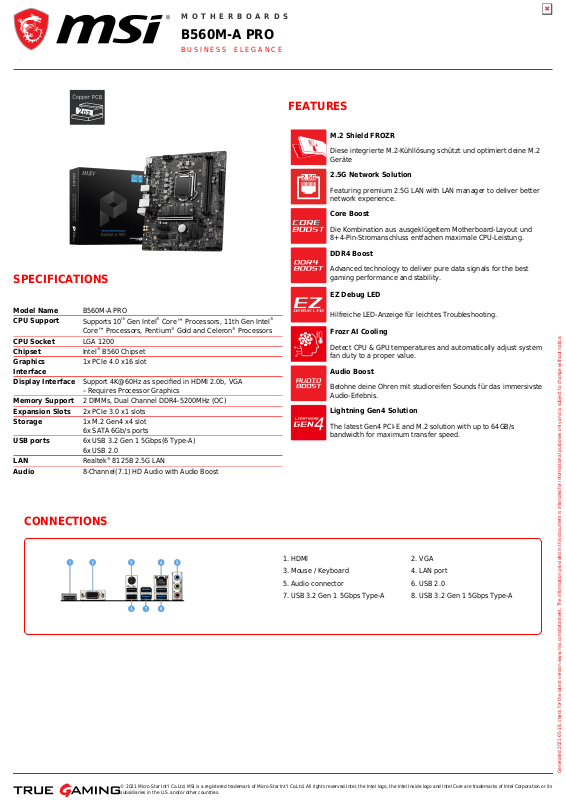

Page 1
MOTHERBOARDS
B560M-A PRO
BUSINESS ELEGANCE
SPECIFICATIONS
Model Name B560M-A PRO
CPU Support
CPU Socket LGA 1200
Chipset
Graphics
Interface
Display Interface Support 4K@60Hz as specified in HDMI 2.0b, VGA
Memory Support 2 DIMMs, Dual Channel DDR4-5200MHz (OC)
Expansion Slots 2x PCIe 3.0 x1 slots
Storage 1x M.2 Gen4 x4 slot
USB ports 6x USB 3.2 Gen 1 5Gbps(6 Type-A)
LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel
Core™ Processors, Pentium® Gold and Celeron® Processors
Intel® B560 Chipset
1x PCIe 4.0 x16 slot
– Requires Processor Graphics
6x SATA 6Gb/s ports
6x USB 2.0
Realtek® 8125B 2.5G LAN
FEATURES
®
M.2 Shield FROZR
Diese integrierte M.2-Kühllösung schützt und optimiert deine M.2
Geräte
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Core Boost
Die Kombination aus ausgeklügeltem Motherboard-Layout und
8+4-Pin-Stromanschluss entfachen maximale CPU-Leistung.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
EZ Debug LED
Hilfreiche LED-Anzeige für leichtes Troubleshooting.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Audio Boost
Belohne deine Ohren mit studioreifen Sounds für das immersivste
Audio-Erlebnis.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
CONNECTIONS
1. HDMI
3. Mouse / Keyboard
5. Audio connector
7. USB 3.2 Gen 1 5Gbps Type-A
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
2. VGA
4. LAN port
6. USB 2.0
8. USB 3.2 Gen 1 5Gbps Type-A
Generated 2021-05-18, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
