MSI MS-95O3 Schematic 10

A B C

D

REVISIONS

1

REV

X00 INITIAL PROTOTYPE RELEASE
X01

A00

ECO217414

X01 RELEASE
A00 RELEASE

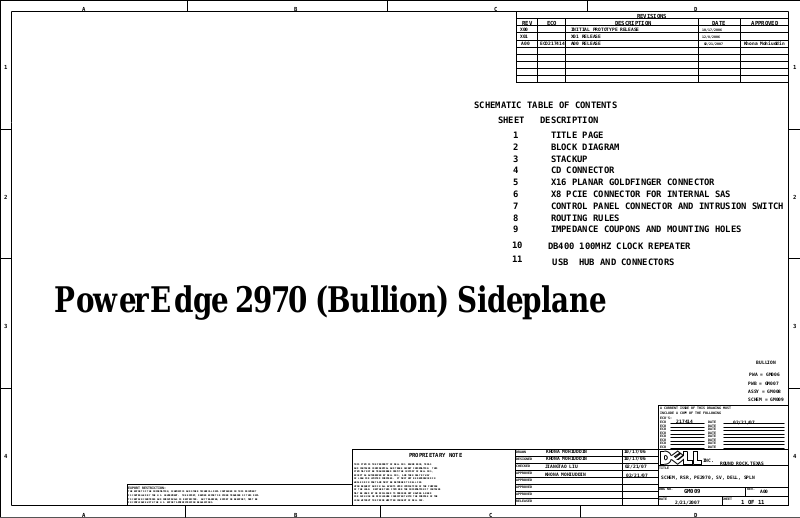

SCHEMATIC TABLE OF CONTENTS

DESCRIPTIONECO DATE

10/17/2006

12/8/2006

02/21/2007

APPROVED

Khona Mohiuddin

1

2

SHEET DESCRIPTION

1
2
3
4
5
6
7

TITLE PAGE
BLOCK DIAGRAM
STACKUP
CD CONNECTOR
X16 PLANAR GOLDFINGER CONNECTOR
X8 PCIE CONNECTOR FOR INTERNAL SAS
CONTROL PANEL CONNECTOR AND INTRUSION SWITCH

2

8
9

10

ROUTING RULES
IMPEDANCE COUPONS AND MOUNTING HOLES

DB400 100MHZ CLOCK REPEATER

11

USB HUB AND CONNECTORS

PowerEdge 2970 (Bullion) Sideplane

3

4

EXPORT RESTRICTION:

THE EXPORT OF THE INFORMATION, SCHEMATICS AND OTHER TECHNICAL DATA CONTAINED IN THIS DOCUMENT
IS CONTROLLED BY THE U.S. GOVERNMENT. THE EXPORT, DEEMED EXPORT OR OTHER TRANSFER OF THIS DATA
TO CERTAIN COUNTRIES AND INDIVIDUALS IS RESTRICTED. ANY TRANSFER, EXPORT OR REEXPORT, MUST BE
IN COMPLIANCE WITH THE U.S. EXPORT ADMINISTRATION REGULATIONS.

PROPRIETARY NOTE

THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS
AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS
ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC.,
EXCEPT AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY
OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN
WHOLE OR IN PART AND MUST BE RETURNED TO DELL INC.
UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE
OF THE LOAN. NEITHER THIS ITEM NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED
FOR SUCH USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE
LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

DRAWN

DESIGNED

CHECKED

APPROVED

APPROVED

APPROVED

APPROVED

RELEASED

KHONA MOHIUDDIN 10/17/06
KHONA MOHIUDDIN

JIANGTAO LIU
KHONA MOHIUDDIN

10/17/06

02/21/07

02/21/07

A CURRENT ISSUE OF THIS DRAWING MUST
INCLUDE A COPY OF THE FOLLOWING
ECO'S:
ECO

ECO
ECO
ECO
ECO
ECO
ECO
ECO

TITLE

SCHEM, RSR, PE2970, SV, DELL, SPLN

DWG NO.

217414

DATE
DATE
DATE
DATE
DATE
DATE
DATE
DATE

INC.

02/21/07

ROUND ROCK,TEXAS

REV.

GM009

DATE

2/21/2007

SHEET

1 OF 11

3

BULLION

PWA = GM006

PWB = GM007
ASSY = GM008
SCHEM = GM009

4

A00

DCBA

A B C

D

1

CD CONNECTOR

BLOCK DIAGRAM

1

PCI EXPRESS X16 GOLDFINGER

CONTROL PANEL CONNECTOR

Internal Storage connector

2

IDE

VIDEO

2

PCI-EXP

OTHER CONTROL SIGNALS

I2C

3

USB FRONT PORTS SIGNALS

USB HUB

3

4

USB KEY

USB FLOPPY

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

INC.

SCHEM, RSR, PE2970, SV, DELL, SPLN

ROUND ROCK,TEXAS

REV.

GM009

SHEET

2/21/2007

2 OF 11

DCBA

4

A00

A B C

D

1

STACKUP

1

2

2

3

3

4

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

INC.

ROUND ROCK,TEXAS

SCHEM, RSR, PE2970, SV, DELL, SPLN

GM009

REV.

SHEET

2/21/2007

3 OF 11

DCBA

4

A00

A B C

D

1

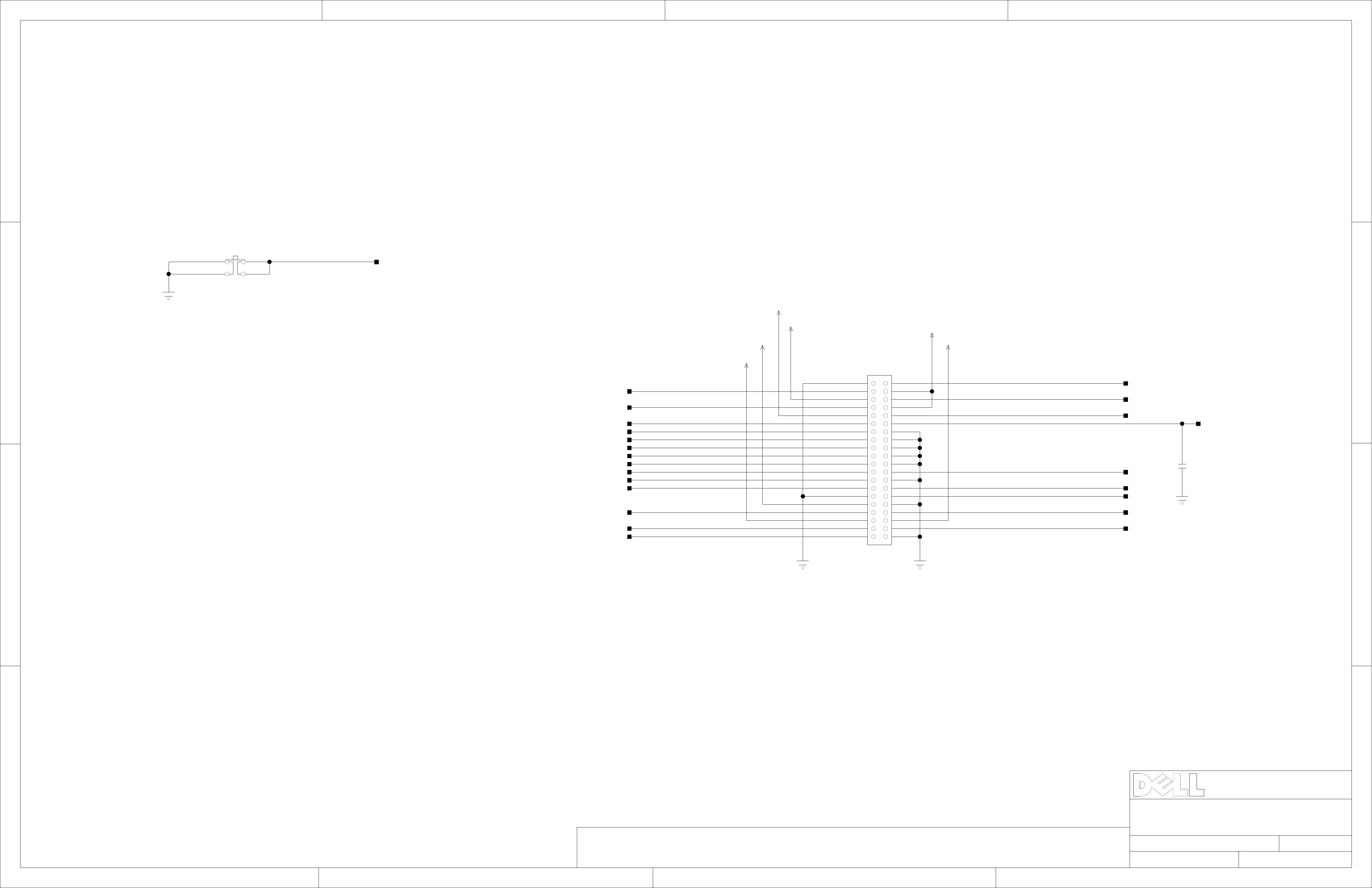

CD_CONNECTOR

CD Connector

+3.3V

NP*

X

R4753

1 2

4.7K-5%
J_IDE

1

2

CD_RST_N

5

IDE_PDD7

5

IDE_PDD6

5

IDE_PDD5

5

IDE_PDD4

5

IDE_PDD3

5

IDE_PDD2

5

IDE_PDD1

5

IDE_PDD0

5

IDE_PDDREQ

5

IDE_PDIOW_N

5

IDE_PDIOR_N

5

IDE_PDIORDY

5

IDE_PDDACK_N

5

IDE_IRQ14_N

5

IDE_PDA1

5

IDE_PDA0

5

IDE_PDCS1_N

5

NC_J_IDE_HDLED_N

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

21

21

23

23

25

25

27

27

29

29

31 32

31 32

35 36

35 36

37 38

37 38

39 40

39 40

HDR 2X20 SHR

LTCH 1PEG K20

10
12
14
16
18

K

22
24
26
28
30

3433

2

2

4

4

6

6

8

8

10
12
14
16
18

22
24
26
28
30

3433

IDE_PDD8
IDE_PDD9
IDE_PDD10
IDE_PDD11
IDE_PDD12
IDE_PDD13
IDE_PDD14
IDE_PDD15

CDROM_PRES_N

Cable Select

NC_PIO16S_N
NC_IDE_P66_DET_N
IDE_PDA2
IDE_PDCS3_N

5
5
5
5
5
5
5
5

5

5
5

2

3

3

4

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

INC.

ROUND ROCK,TEXAS

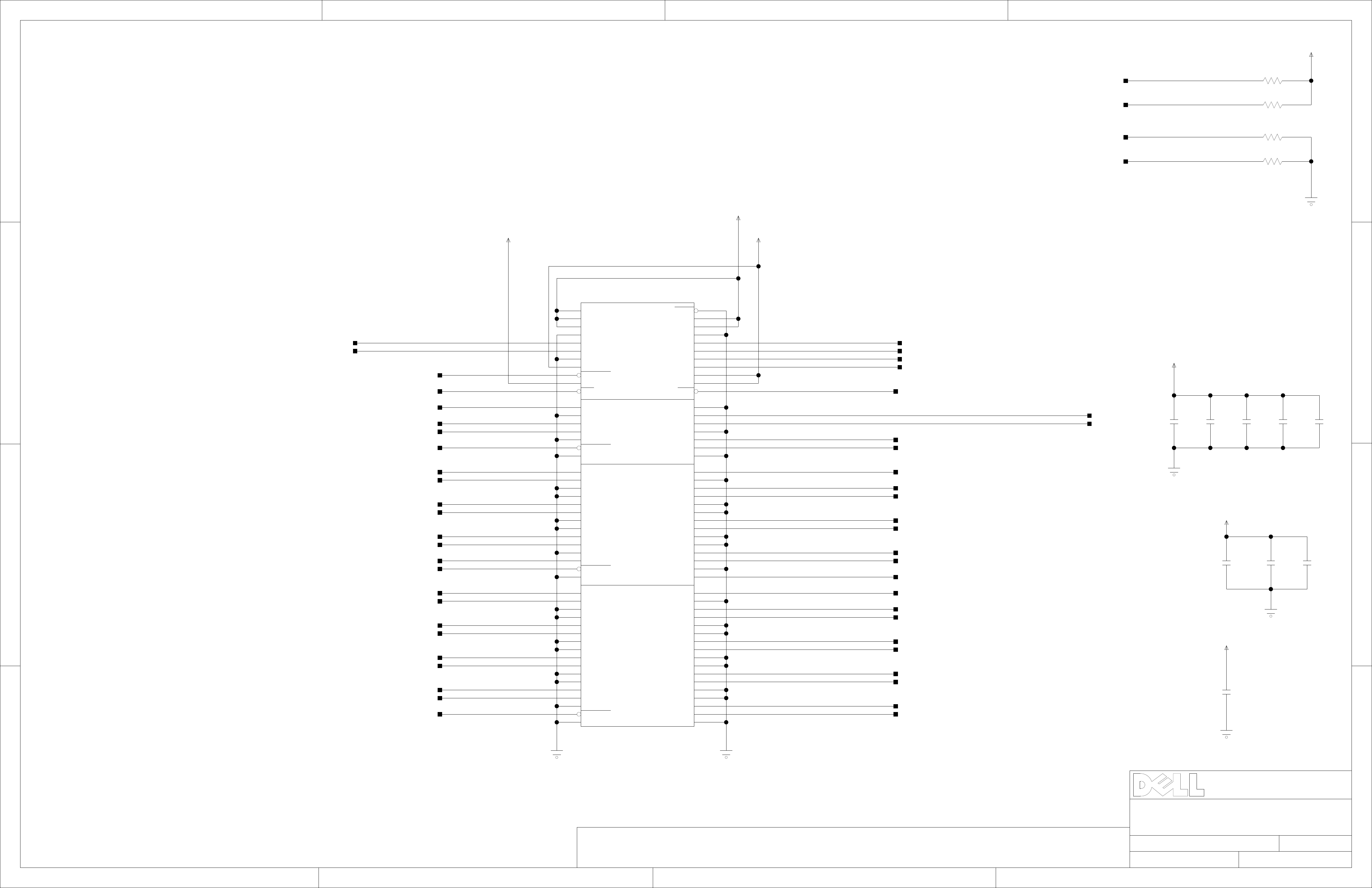

SCHEM, RSR, PE2970, SV, DELL, SPLN

REV.

GM009

SHEET

2/21/2007 4 OF 11

DCBA

4

A00

A B C

SIDEPLANE_PRES_N

21

D

1

+12V

21

C3191

.1uF

16V-10%

21

C3187

.1uF

16V-10%

+3.3V

21

C3188

.1uF

16V-10%

21

C3189

.1uF

16V-10%

21

C3190

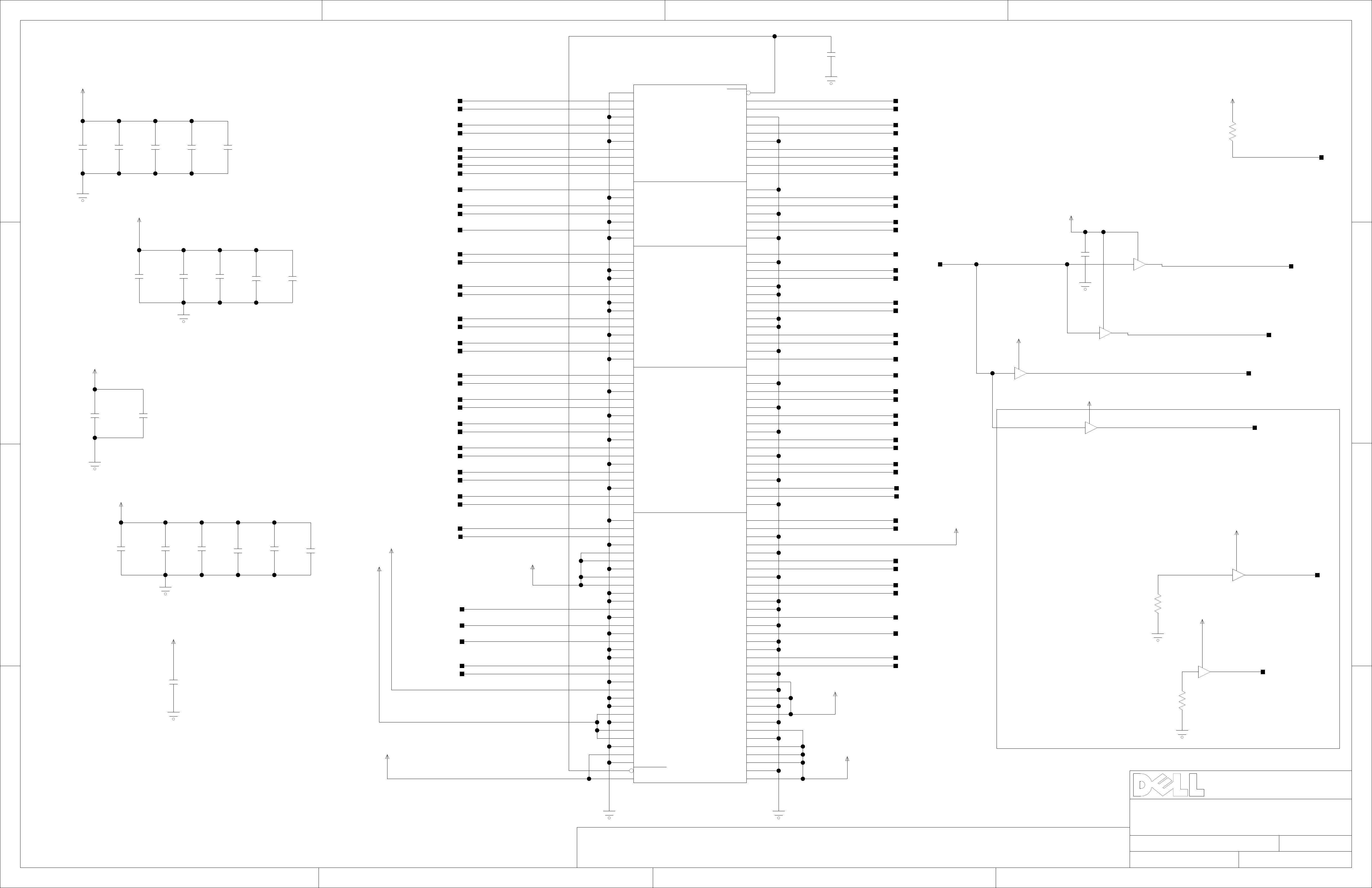

PCI EXPRESS GOLDFINGER CONNECTOR

I2C_BMC_PERC_VAUX_SCL

6

I2C_BMC_PERC_VAUX_SDA

6

11
11

.1uF

16V-10%

USB_SIDEPLANE_N
USB_SIDEPLANE_P

NC_STORAGE_PWRGOOD
FRONT_USB_DISABLE_N

5

NC_B10
BTN_NMI_N

7

PS_ENABLE_CPLD_N

7

EXP_SB_0_P

6

EXP_SB_0_N

6

INTRUSION_COVER_N

7

B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11

B12
GND_B13
PETP0
PETN0
GND_B16
B17
GND_B18

P_EDGE

PRSNT1

A2
A3
A4
A5
A6
A7
A8

A9
A10
A11

A12
A13
A14

GND_A15

PERP0
PERN0

GND_A18

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

A12
A13
A14
A15
A16
A17
A18

C3192

.1uF

16V-10%

CDROM_PRES_N

NC_ESB_USB_P6_N
NC_ESB_USB_P6_P

CTRLPNL_MUX_S0
CTRLPNL_MUX_S1

BTN_PWR_ON_N
BTN_ID_RAW_N

CK_100M_SRC_P
CK_100M_SRC_N

EXP_NB_0_P
EXP_NB_0_N

NC_A02

4

7
7
7
7

10
10

6
6

CIRCUIT FOR DISABLING FRONT USB PORT

+5V

DT_13038_KM

+3.3V

1 2

4.7K-5%

FRONT_USB_DISABLE_N

R4771

1

5

2

+3.3V_AUX

21

C3185

.1uF

16V-10%

+5V

21

C990

C3186

21

.1uF

16V-10%

.1uF

16V-10%

21

C349

.1uF

16V-10%

21

C350

.1uF

16V-10%

21

C642

.1uF

16V-10%

1 2

C3193

.1uF

16V-10%

EXP_SB_1_P

6

EXP_SB_1_N

6

EXP_SB_2_P

6

EXP_SB_2_N

6

EXP_SB_3_P

6

EXP_SB_3_N

6

CD_RST_N

4

IDE_PDDREQ

4

IDE_PDD7

4

IDE_PDD6

4

IDE_PDD5

4

IDE_PDD4

4

IDE_PDD3

4

IDE_PDD2

4

IDE_PDD1

4

IDE_PDD0

4

IDE_PDIOW_N

4

IDE_PDIOR_N

4

IDE_PDIORDY

4

IDE_PDDACK_N

4

B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32

B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

PETP1
PETN1
GND_B21
GND_B22
PETP2
PETN2
GND_B25
GND_B26
PETP3
PETN3
GND_B29
B30
B31
GND_B32

PETP4
PETN4
GND_B35
GND_B36
PETP5
PETN5
GND_B39
GND_B40
PETP6
PETN6
GND_B43
GND_B44
PETP7
PETN7
GND_B47
B48
GND_B49

A19

GND_A20

PERP1

PERN1
GND_A23
GND_A24

PERP2

PERN2
GND_A27
GND_A28

PERP3

PERN3
GND_A31

A32

A33

GND_A34

PERP4

PERN4
GND_A37
GND_A38

PERP5

PERN5
GND_A41
GND_A42

PERP6

PERN6
GND_A45
GND_A46

PERP7

PERN7
GND_A49

A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32

A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

SAS_PERST_N

EXP_NB_1_P
EXP_NB_1_N

EXP_NB_2_P
EXP_NB_2_N

EXP_NB_3_P
EXP_NB_3_N

STORAGE_ADAPTER_PRES_N

IDE_PDD8

IDE_PDD9

IDE_PDD10

IDE_PDD11
IDE_PDD12

IDE_PDD13
IDE_PDD14

IDE_PDD15

CK_PWRDN_N

IDE_PDA2

IDE_PDCS3_N

6

6
6

6
6

6
6

6

4

4
4

4
4

4
4

4
10

4
4

FRONT_USB_DISABLE_N

5

5

+5V

14

13

74LCX07

U1

12

C3218

10V-10%

.1uF

1 2

14

1 2

74LCX07

+5V

U1

14

11 10

74LCX07

14

U1

USB_FLOPPY_P

U1

3 4

74LCX07

USB_FLOPPY_N

USB_FRONTPORT_N

USB_FRONTPORT_P

SPARE GATES

7,11

7,11

2

11

11

3

4

21

C3181

.1uF

16V-10%

21

C3182

+5V_AUX

C3184

.1uF

21

21

C3183

16V-10%

.1uF

16V-10%

.1uF

16V-10%

21

C3180

.1uF

16V-10%

1 2

C3195

.1uF

16V-10%

1 2

C3194

.1uF

16V-10%

+5V_AUX

+5V

+3.3V_AUX

IDE_IRQ14_N

4

IDE_PDA1

4

VIDFRONT_VS_OUT

7

VIDFRONT_RED

7

VIDFRONT_BLUE

7

CTRLPNL_CLK

7

CTRLPNL_DATA

7

+3.3V

B50

PETP8

B51

PETN8

B52

GND_B52

B53

GND_B53

B54

PETP9

B55

PETN9

B56

GND_B56

B57

GND_B57

B58

PETP10

B59

PETN10

B60

GND_B60

B61

GND_B61

B62

PETP11

B63

PETN11

B64

GND_B64

B65

GND_B65

B66

PETP12

B67

PETN12

B68

GND_B68

B69

GND_B69

B70

PETP13

B71

PETN13

B72

GND_B72

B73

GND_B73

B74

PETP14

B75

PETN14

B76

GND_B76

B77

GND_B77

B78

PETP15

B79

PETN15

B80

GND_B80

B81

PRSNT2_X16

B82

B82

GND_A51

GND_A54
GND_A55

GND_A58
GND_A59

GND_A62
GND_A63

GND_A66
GND_A67

GND_A70
GND_A71

GND_A74
GND_A75

GND_A78
GND_A79

GND_A82

16X CARD EDGE CONNECTOR

A50

PERP8

PERN8

PERP9

PERN9

PERP10
PERN10

PERP11
PERN11

PERP12
PERN12

PERP13
PERN13

PERP14
PERN14

PERP15
PERN15

A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82

IDE_PDA0

IDE_PDCS1_N

CTRLPNL_PRES_N

FRONT_MONITOR_PRES_N

I2C_VIDFRONT_5V_SCL
I2C_VIDFRONT_5V_SDA

VIDFRONT_HS_OUT

VIDFRONT_GREEN

I2C_BMC_SEG3_VAUX_SCL
I2C_BMC_SEG3_VAUX_SDA

+5V

+12V

4
4

7
7

7
7

7

7

7
7

+3.3V

R4761

1 2

4.7K-5%
+5V

U1

14

9 8

+5V

U1

14

5 6

74LCX07

NC_U1_PIN8

3

NC_U1_PIN2

74LCX07

1 2

4.7K-5%

R4763

4

INC.

TITLE

ROUND ROCK,TEXAS

ROOM=PCIE_ROMB

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

SCHEM, RSR, PE2970, SV, DELL, SPLN

DWG NO.

GM009

DATE

2/21/2007

SHEET

DCBA

REV.

A00

5 OF 11

A B C

D

+3.3V

1

PCI EXPRESS CONNECTOR

FOR INTERNAL SAS

(PERC5/I OR SAS HBA/emb)

+12V

R4757

6

6

6

6

STORAGE_JTAG_TMS

STORAGE_JTAG_TDI

STORAGE_JTAG_TCK

STORAGE_JTAG_TRST_N

4.7K-5%
R4754

1 2

4.7K-5%

R4755

4.7K-5%
R4756

1 2

4.7K-5%

21

1

21

2

+3.3V_AUX

J_PCIE_STORAGE

B1

+12V_1

B2

+12V_2

B3

+12V_5

B4

5
5

I2C_BMC_PERC_VAUX_SCL
I2C_BMC_PERC_VAUX_SDA

STORAGE_JTAG_TRST_N

6

NC_ROMB_WAKE_N

GND_B4

B5

SMCLK

B6

SMDATA

B7

GND_B7

B8

+3.3V_1

B9

JTAG_TRST

B10

+3.3V_AUX

B11

WAKE

PRSNT1
+12V_3
+12V_4

GND_A4
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS

+3.3V_2
+3.3V_3

PERST

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

+3.3V

STORAGE_JTAG_TCK
STORAGE_JTAG_TDI
NC_STORAGE_JTAG_TDO
STORAGE_JTAG_TMS

SAS_PERST_N

6
6

+12V

6

5

2

3

NC_RSVD_B12

EXP_SB_0_P

5

EXP_SB_0_N

5

NC_PRSNT2_N_X1

EXP_SB_1_P

5

EXP_SB_1_N

5

EXP_SB_2_P

5

EXP_SB_2_N

5

EXP_SB_3_P

5

EXP_SB_3_N

5

NC_ROMB_RSVD_B30
NC_EXP_ROMB_PRSNT2_N_X4

B12

RSVD_B12

B13

GND_B13

B14

PETP0

B15

PETN0

B16

GND_B16

B17

PRSNT2_X1

B18

GND_B18

B19

PETP1

B20

PETN1

B21

GND_B21

B22

GND_B22

B23

PETP2

B24

PETN2

B25

GND_B25

B26

GND_B26

B27

PETP3

B28

PETN3

B29

GND_B29

B30

RSVD_B30

B31

PRSNT2_X4

B32

GND_B32

GND_A12
REFCLK+
REFCLK­GND_A15

PERP0
PERN0

GND_A18

RSVD_A19

GND_A20

PERP1

PERN1
GND_A23
GND_A24

PERP2

PERN2
GND_A27
GND_A28

PERP3

PERN3
GND_A31

RSVD_A32

A12
A13
A14
A15
A16
A17
A18

A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32

CK_100M_ROMB_P
CK_100M_ROMB_N

EXP_NB_0_P
EXP_NB_0_N

NC_RSVD_A19

EXP_NB_1_P
EXP_NB_1_N

EXP_NB_2_P
EXP_NB_2_N

EXP_NB_3_P
EXP_NB_3_N

NC_RSVD_A32

10
10

5
5

5
5

5
5

5
5

21

C3175

.1uF

16V-10%

21

C3176

.1uF

16V-10%

+3.3V

21

C3179

21

C3177

.1uF

16V-10%

.1uF

16V-10%

C3168

C3178

21

21

.1uF

.1uF

16V-10%

16V-10%

C3196

C3136

1 2

21

.1uF

16V-10%

3

.1uF

16V-10%

NC_B33
NC_B34

NC_B37
NC_B38

NC_B41
NC_B42

NC_B45
NC_B46

STORAGE_ADAPTER_PRES_N

5

Pulled up on planar

B33

PETP4

B34

PETN4

B35

GND_B35

B36

GND_B36

B37

PETP5

B38

PETN5

B39

GND_B39

B40

GND_B40

B41

PETP6

B42

PETN6

B43

GND_B43

B44

GND_B44

B45

PETP7

B46

PETN7

B47

GND_B47

B48

PRSNT2_X8

B49

GND_B49

RSVD_A33

GND_A34

GND_A37
GND_A38

GND_A41
GND_A42

GND_A45
GND_A46

GND_A49

PCI-E X8 CONNECTOR

PCI-E SPECIFICATION 1.1

PERP4

PERN4

PERP5

PERN5

PERP6

PERN6

PERP7

PERN7

A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

NC_RSVD_A33

NC_A35
NC_A36

NC_A39
NC_A40

NC_A43
NC_A44

NC_A47
NC_A48

+3.3V_AUX

21

C820

.1uF

16V-10%

4

ROOM=PCIE_ROMB

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

INC.

ROUND ROCK,TEXAS

SCHEM, RSR, PE2970, SV, DELL, SPLN

REV.

GM009

SHEET

A00

2/21/2007 6 OF 11

DCBA

4

A B C

D

1

INTRUSION SWITCH

INTRUSION

2

4 3

1

INTRUSION_COVER_N

1

5

CONTROL PANEL CONNECTOR

2

3

SWITCH

SPST PUSH BUTTON

When lid is closed, switch is open.

Shorted (0) = Intruded
Open (1) = Not Intruded

5,11

NEW 40 PIN CONNECTOR PINOUT

+5V_AUX

+5V

+5V

+3.3V_AUX

+3.3V

5

5

5
5
5
5
5
5
5
5

5

5
5

I2C_BMC_SEG3_VAUX_SCL

I2C_VIDFRONT_5V_SCL

PS_ENABLE_CPLD_N
VIDFRONT_HS_OUT
VIDFRONT_VS_OUT
VIDFRONT_RED
VIDFRONT_GREEN
VIDFRONT_BLUE
BTN_PWR_ON_N
BTN_NMI_N
USB_FRONTPORT_P

CTRLPNL_CLK

CTRLPNL_MUX_S0
CTRLPNL_PRES_N

SHR LATCH SLOT

2x20 2MM RA

40

30

20

10

4
2

J_CTRL

ROOM=CTRLPNL

SILKSCREEN=CTRL_PNL

39
3738
3536
3334
3132
29
2728
2526
2324
2122
19
1718
1516
1314
1112
9
78
56
3
1

+3.3V

I2C_BMC_SEG3_VAUX_SDA

I2C_VIDFRONT_5V_SDA

NC_J_CTRL_10
FRONT_MONITOR_PRES_N

BTN_ID_RAW_N

USB_FRONTPORT_N
NC_J_CTRL_30

CTRLPNL_DATA

CTRLPNL_MUX_S1

5

5

5

5,11

5

5

21

C3210

5

.1uF

16V-10%

2

3

SWAPPED THE PINOUT TO MEET THE CABLE ROUTING REQUIREMENT FOR MECHANICAL REASONS

4

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

INC.

ROUND ROCK,TEXAS

TITLE

SCHEM, RSR, PE2970, SV, DELL, SPLN

DWG NO.

GM009

DATE

2/21/2007

SHEET

DCBA

4

REV.

A00

7 OF 11

A B C

D

1

1

BULLION SIDEPLANE

GENERAL ROUTING RULES & PLACEMENT:

--> ANY NON-PCI-E AND NON-USB SIGNAL NOT MENTIONED BELOW CAN BE ROUTED WITH A 5 MIL TRACE WIDTH (OUTER LAYERS)
AND A 5 MIL SPACING TO THE NEXT SIGNAL

--> PLEASE PLACE ALL TOTEM POLE RESISTORS ON TOP OF ONE ANOTHER

--> THE FOLLOWING NETS SHOULD HAVE A TRACE WIDTH OF AT LEAST 50 MILS:
5V, 12V, 3.3V

2

--> PLEASE PLACE 470PF CAPS (C57-C60) DIRECTLY OFF OF MUX POWER PINS.

--> PLEASE PLACE 1UF and 10UF CAPS (C43,C56) AS CLOSE AS POSSIBLE TO REGULATOR (U2).

2

PCI-E AND USB CHANNEL SIGNALS' ROUTING RULES:

3

--> THERE ARE 8 TOTAL PCI-E CHANNEL SIGNALS, A PAIR (+ AND -) FOR EACH OF THE FOLLOWING NET NAMES
SB AND NB

--> PCI-E, CLOCKS AND USB DIFF PAIRS SHOULD BE ROUTED ONLY ON TOP AND BOTTOM LAYERS REFERENCING GND PLANE.

--> AVOID VIAS. ANY VIAS ON THESE SIGNALS MUST BE APPROVED BY THE BOARD DESIGNER

--> THE + AND - SIGNAL OF A DIFFERENTIAL PAIR MUST BE ROUTED PARALLEL TO ONE ANOTHER THROUGHOUT THE SIGNAL.

--> THE LENGTHS OF THE + AND - SIGNAL WITHIN A DIFFERNTIAL PAIR SHOULD NOT DIFFER BY MORE THAN 5 MIL FROM SOURCE TO DESTINATION

--> PAIR TO PAIR SPACING SHOULD BE A MINIMUM OF 30 MILS (OUTER LAYERS).

--> SEE ADDITIONAL NOTES IN ECAD ROUTING GUIDELINES DOCUMENT.
3

--> AVOID ROUTING OVER SPLITS, SLOTS OR VIA CLEARANCES.

--> KEEP ONE GROUND/RETURN PATH VIA TO LESS THAN 50 MIL (OR AS PHYSICALLY CLOSE AS POSSIBLE) TO ONE SIGNAL VIA.

4

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

GM009

2/21/2007

DCBA

4

INC.

ROUND ROCK,TEXAS

SCHEM, RSR, PE2970, SV, DELL, SPLN

REV.

A00

SHEET

8 OF 11

A B C

IMPEDANCE COUPONS AND MOUNTING HOLES

D

1

IMPEDANCE COUPONS

VOLTAGE PROPERTY ALLOCATION

+3.3V

RATSNEST_SCHEDULE=MIN_TREE
VOLTAGE=3.3

MOUNTING HOLES

MH1

2
3
4
5
6
7
8
9

.145 DRILL

.330 PAD

8 GND VIAS

1

ADD*_GM007_PWB
ADD*_GM008_ASSYDWG
ADD*_GM009_SCHEM
ADD*_42610_BAR
ADD*_42753_REV

2

Z90_BOTTOM_END

1

RX

3

RY

ZDI4PINS2R

COUPON TEST

SUB=NO_PKG

+5V

RATSNEST_SCHEDULE=MIN_TREE
VOLTAGE=5

+12V

RATSNEST_SCHEDULE=MIN_TREE
VOLTAGE=12

MH2

2
3
4
5
6
7
8
9

ADD*_CC462_BLCK1
ADD*_CC462_BLCK2
ADD*_T6977_SCRW1
ADD*_T6977_SCRW2

2

ADD*_FC441_ASM

+5V_AUX

RATSNEST_SCHEDULE=MIN_TREE

1

1

Z90_BOTTOM

2

+

4

-

IMP_BOTTOM_90_P

IMP_BOTTOM_90_N

IMPEDENCE DIFFERENTIAL

2

2

3

3

4

4

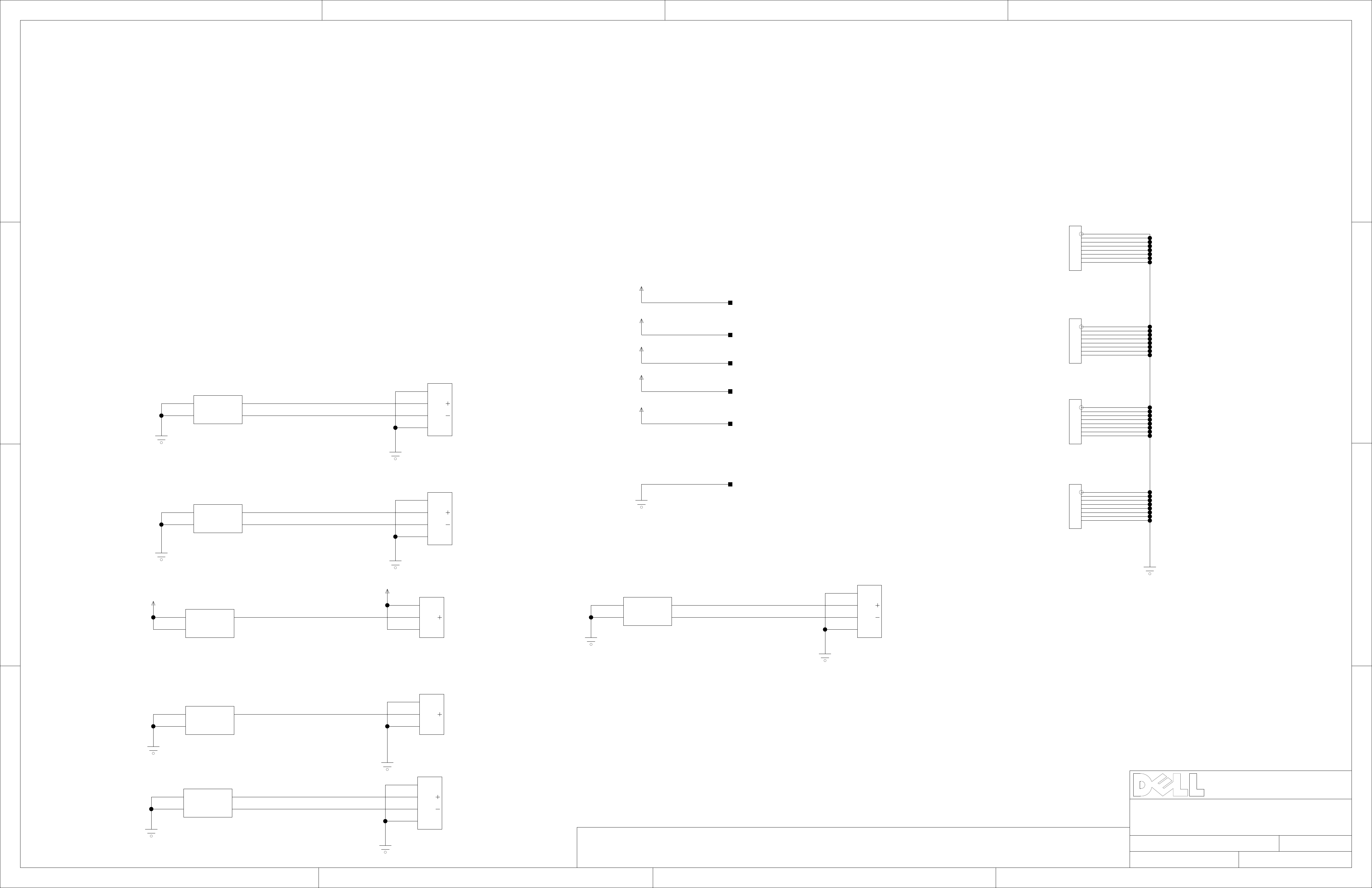

TEST POINT

SUB=NO_PKG

+3.3V_AUX

VOLTAGE=5

RATSNEST_SCHEDULE=MIN_TREE
VOLTAGE=3.3

RATSNEST_SCHEDULE=MIN_TREE
VOLTAGE=0

.145 DRILL

.330 PAD

8 GND VIAS

MH3

2
3
4
5
6
7
8
9

.145 DRILL

.330 PAD

8 GND VIAS

MH5

ADD*_RW781_INSULTR
ADD*_48480_SCRW3
ADD*_48480_SCRW5
ADD*_48480_SCRW4
ADD*_48480_SCRW6

ADD*_MR226_PLATFORM

3

+12V

Z100_BOTTOM_END

1

RX

3

RY

ZDI4PINS2R

COUPON TEST

SUB=NO_PKG

Z50_TOP_END

3

RY

ZSE3PINS2R

COUPON TEST

SUB=NO_PKG

2

1

1

2

+

4

-

21

+RX

IMP_BOTTOM_100_P

IMP_BOTTOM_100_N

IMPEDENCE DIFFERENTIAL

+12V

IMP_TOP_50

IMPEDENCE SINGLE END

Z100_BOTTOM

2

2

3

3

4

4

TEST POINT

SUB=NO_PKG

Z50_TOP

1

1

2

2

3

3

TEST POINT

SUB=NO_PKG

Z90_TOP_END

1

RX

3

RY

ZDI4PINS2R

COUPON TEST

SUB=NO_PKG

1

1

2

+

4

-

IMP_TOP_90_P

IMP_TOP_90_N

IMPEDENCE DIFFERENTIAL

Z90_TOP

2

2

3

3

4

4

TEST POINT

SUB=NO_PKG

3
4
5
6
7
8
9

.145 DRILL

.330 PAD

8 GND VIAS

3

4

Z50_BOTTOM_END

3

RY

ZSE3PINS2R

COUPON TEST

SUB=NO_PKG

Z85_BOTTOM_END

1

RX

3

RY

ZDI4PINS2R

COUPON TEST

SUB=NO_PKG

Z50_BOTTOM

1

1

21

+RX

2

+

4

-

IMP_BOTTOM_50

IMPEDENCE SINGLE END

IMP_BOTTOM_85_P

IMP_BOTTOM_85_N

IMPEDENCE DIFFERENTIAL

2

2

3

3

TEST POINT

SUB=NO_PKG

1

1

Z85_BOTTOM

2

2

3

3

4

4

TEST POINT

SUB=NO_PKG

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

SCHEM, RSR, PE2970, SV, DELL, SPLN

GM009

2/21/2007

4

INC.

ROUND ROCK,TEXAS

REV.

A00

SHEET

9 OF 11

DCBA

A B C

D

2-21-2007_11:13

1

+3.3V

21

C3201

10

.1uF

16V-10%

V_3P3_SRC

NP

BLM18BD601SN1_PB

NP

BLM18BD601SN1_PB

L2

L1

21

X

21

X

NP

C3200

X

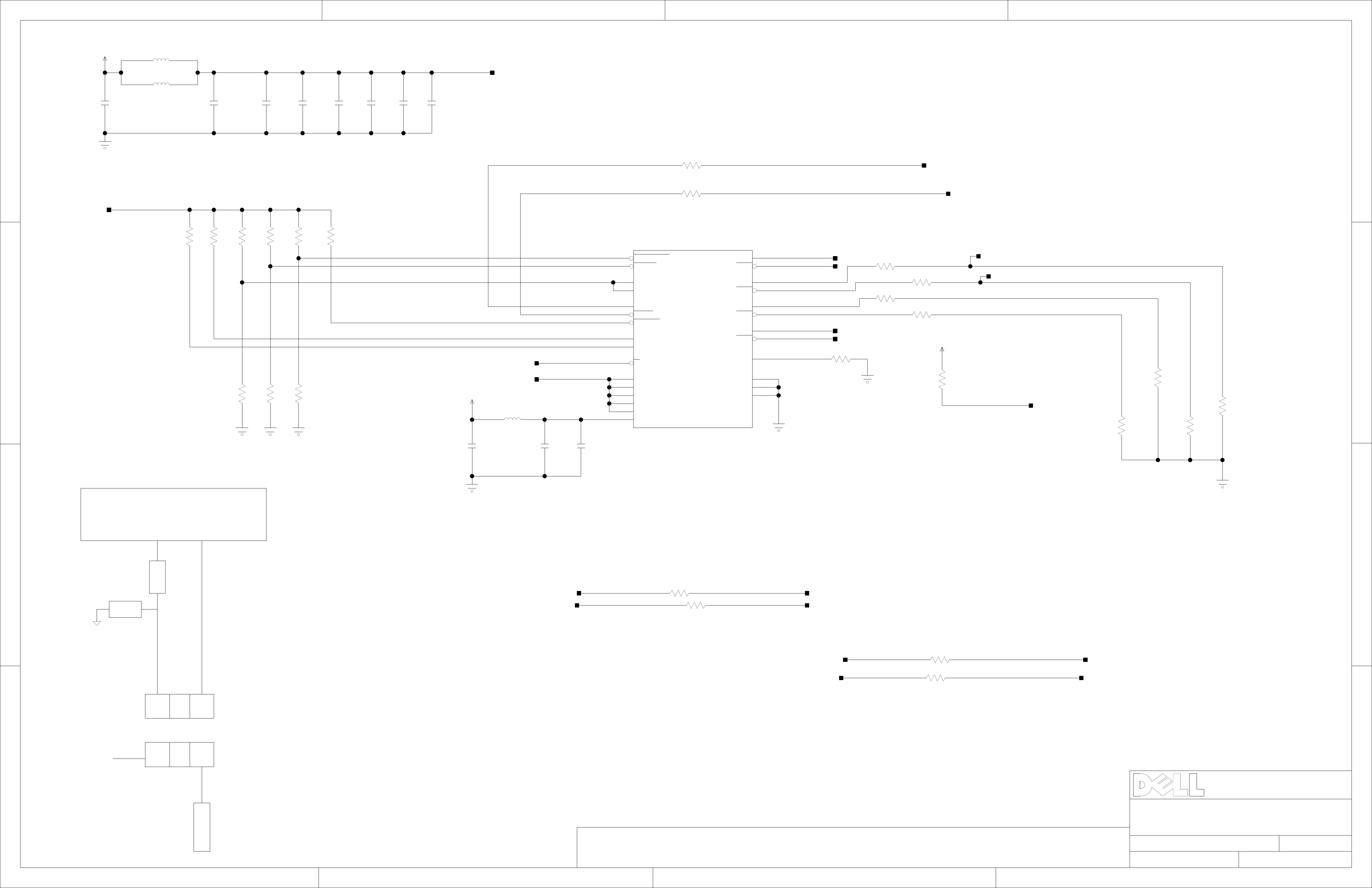

DB400 100MHZ CLOCK REPEATER

V_3P3_SRC

NP

.1uF

16V-10%

21

C3204

X

.1uF

16V-10%

NP

C3205

X

1 2

NP

21

.1uF

1 2

16V-10%

X

C3209

NP

21

C3206

X

10uF 6.3V

NP

.1uF

16V-10%

1 2

C3202

X

NP

.1uF

C3203

X

16V-10%

21

.1uF

16V-10%

10

R11

NP

1 2

0-5%

R12

NP

0-5%

X

21

X

CK_100M_SRC_P

CK_100M_SRC_N

1

5,10

5,10

2

0 = Disable output 1/6

1 = Enable Output 1/6

NP

21

R8

X

NP

21

R7

X

8.2K-5%

NP

21

R3

X

8.2K-5%

NP

R18

X

1 2

NP

21

R5

X

8.2K-5%

NP

21

R10

X

8.2K-5%

0 = High BW
1 = Low BW

NP

21

R6

X

8.2K-5%

NP

21

R9

X

8.2K-5%

NP

21

R4

X

8.2K-5%

0 = Bypass (fan-out)

1 = PLL (Zero Delay Buffer)

8.2K-5%

8.2K-5%

+3.3V

21

C3208

NP

BLM18BD601SN1_PB

.1uF

16V-10%

L3

5,10

10

21

X

NP

DB400_SRC_BYPASS_PLL
DB400_HIGH_BW_N

DB400_CK_OE

CK_100M_SRC_IN_P
CK_100M_SRC_IN_N
DB400_SRC_STOP_N

DB400_SCLK NC_CK_100M_DIF6_N
DB400_SDA

CK_PWRDN_N

V_3P3_SRC

V_3P3_VDDA_SRC

NP

C3207

X

1 2

.1uF

16V-10%

NP

C3199

X

1 2

4.7uF

6.3V-10%

12 6

BYPASS/PLL DIF_1

17

HIGH_BW

8

OE_1

21

OE_6

2

SRC_IN

3

SRC_IN

16

SRC_STOP

13

SCLK

14

SDATA

15

PD

1

VDD_1

5

VDD_5

11

VDD_11

18

X

VDD_18

24

VDD_24

28

VDDA_28

U_DB400

GNDA_27

ICS9DB104 FOUR

OUTPUT BUFFER

DB400 Buffer

DIF_1

DIF_2
DIF_2

DIF_5
DIF_5

DIF_6
DIF_6

IREF

GND_4

GND_25

7

9
10

20
19

23
22

26

4
25
27

NC_CK_100M_DIF1_P
NC_CK_100M_DIF1_N

CK_100M_DIF2_P_R
CK_100M_DIF2_N_R

CK_100M_DIF5_P_R
CK_100M_DIF5_N_R

NC_CK_100M_DIF6_P

DB400_IREF

NP

R33

475-1%

21

X

NP

NP

R27

33-5%

R26

33-5%

21

X

NP

21

X

NP

R31

33-5%

R30

33-5%

21

X

21

X

+3.3V

R4776

4.7K-5%

1 2

CK_PWRDN_N

DT_13037_KM

10

CK_100M_DIF2_P

10

CK_100M_DIF2_N

CK_100M_DIF5_P

CK_100M_DIF5_N

5,10

NP

R24

X

1 2

NP

R23

X

49.9-1%

21

49.9-1%

NP

R20

X

1 2

NP

R21

X

49.9-1%

2

21

49.9-1%

3

50 ohm

DB400

INOUT

33 ohm

R11/R12

5,10

5,10

CK_100M_SRC_P

CK_100M_SRC_N

R14

1 2

0-5%

21

R13

0-5%

CK_100M_ROMB_P

CK_100M_ROMB_N

6,10

6,10

6,10

CK_100M_ROMB_N

6,10

CK_100M_ROMB_P

NP

NP

1 2

0-5%

R4775

DT_13039_KM

R4774

0-5%

21

X

X

CK_100M_DIF2_P

CK_100M_DIF2_N

3

10

10

4

To PERC

2 1

R13/R14

12

SRC

If using DB400:

Connect R14.1 to R11.1 with 0 ohm
Connect R13.1 to R12.1 with 0 ohm
Connect R14.2 to R11.2 with 0 ohm
Connect R13.2 to R12.2 with 0 ohm

If bypassing DB400:

Populate R13 and R14 with 0 ohm

Gold finger

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

INC.

SCHEM, RSR, PE2970, SV, DELL, SPLN

GM009

ROUND ROCK,TEXAS

REV.

A00

SHEET

10 OF 112/21/2007

4

DCBA

1

2

3

A B C

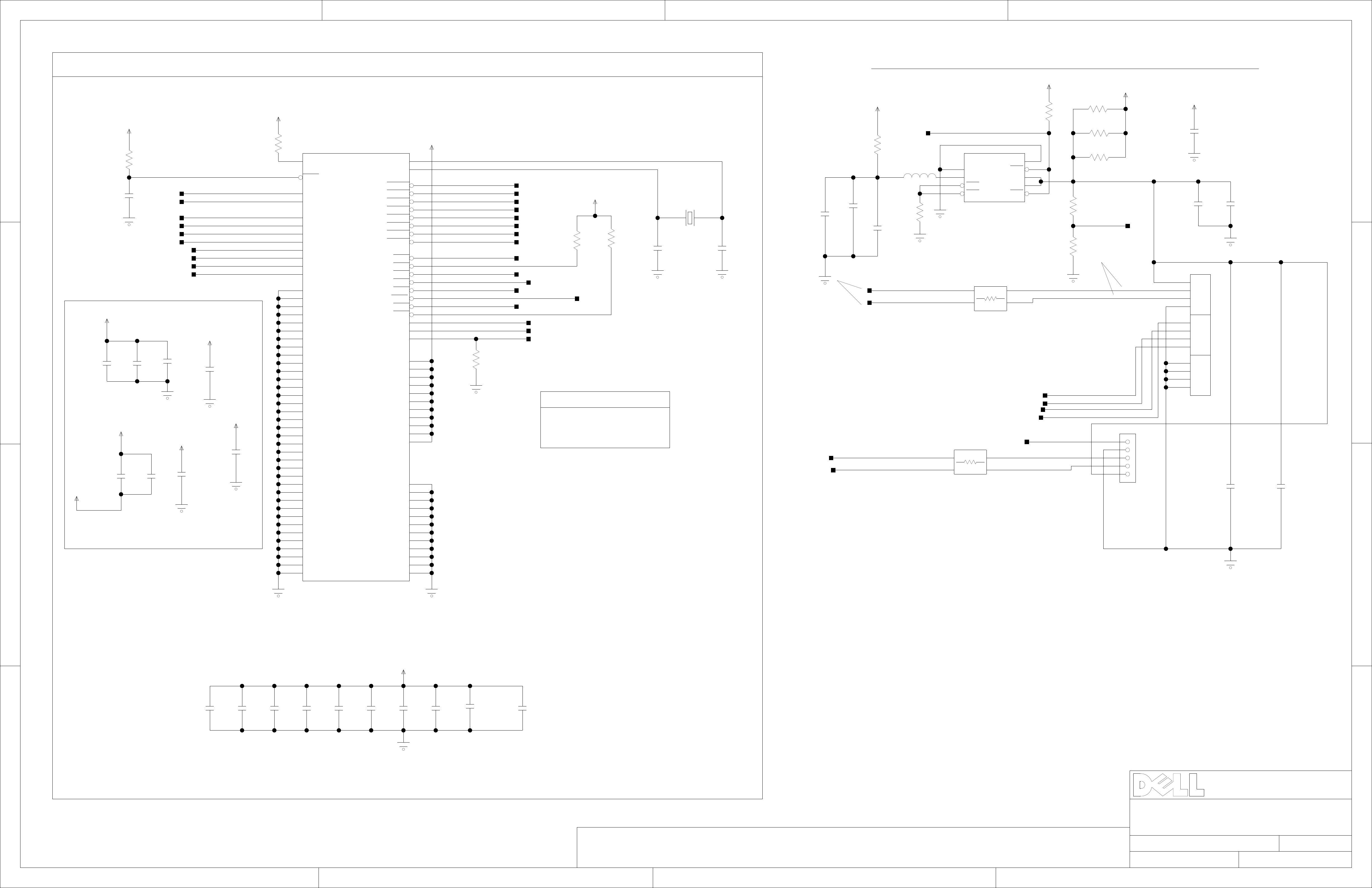

USB 2.0 HUB

+3.3V

R15

100K-5%

1 2

+5V

+3.3V

1 2

C3216

C42

ECAD NOTE:Stitching caps for USB pairs transitioning layers

.1uF

+3.3V

1 2

C3223

.1uF

1 2

1 2

C3217

10V-10%

.1uF

10V-10%

10V-10%

C3215

.1uF

10V-10%

1 2

C3222

5,7
5,7

1 2

.1uF

10V-10%

USB_SIDEPLANE_N

5

USB_SIDEPLANE_P

5

USB_FRONTPORT_N
USB_FRONTPORT_P
USB_KEY_N

11

USB_KEY_P

11

5,11
5,11

.1uF

+3.3V

1 2

C3221

USB_FLOPPY_N
USB_FLOPPY_P
NC_USB_PORT4_N
NC_USB_PORT4_P

+3.3V

10V-10%

C3225

.1uF

10V-10%

D

USB CONNECTORS

ROOM=USB_CONN

+3.3V

ROOM=USB

+5V

+3.3V

21

+3.3V

R4766

.1uF

1 2

10V-10%

+3.3V

1 2

C3224

.1uF

10V-10%

1 2

4.7K-5%
26

BUSPOWER

46

RESET

17

D-

18

D+

13

DD-1

14

DD+1

9

DD-2

10

DD+2

5

DD-3

6

DD+3

1

DD-4

2

DD+4

V1

V1

V2

V2

V3

V3

V4

V4

V5

V5

V6

V6

V7

V7

V8

V8

V9

V9

V10

V10

V11

V11

V12

V12

V13

V13

V14

V14

V15

V15

V16

V16

V17

V17

V18

V18

V19

V19

V20

V20

V21

V21

V22

V22

V23

V23

V24

V24

V25

V25

V26

V26

V27

V27

V28

V28

V29

V29

V30

V30

V31

V31

V32

V32

V33

V33

V34

V34

V35

V35

V36

V36

U_USB

XIN

XOUT

GREEN_1
AMBER_1
GREEN_2
AMBER_2
GREEN_3
AMBER_3
GREEN_4
AMBER_4

PWR_1
OVR_1
PWR_2
OVR_2
PWR_3

OVR_3

PWR_4
OVR_4

SPI_CS

SPI_SCK

SPI_SD

VCC_3

VCC_7
VCC_11
VCC_15
VCC_19
VCC_23
VCC_27
VCC_33
VCC_39
VCC_45
VCC_55

GND_4

GND_8
GND_12
GND_16
GND_20
GND_24
GND_28
GND_34
GND_40
GND_47
GND_50
GND_56

21
22

35
36
37
38
41
42
43
44

29
30
31
32
54
53
52
51
25
48
49

3
7
11
15
19
23
27
33
39
45
55

4
8
12
16
20
24
28
34
40
47
50
56

USB_XTAL_IN

USB_XTAL_OUT

NC_USB_LEDGRN1_N
NC_USB_LEDAMB1_N
NC_USB_LEDGRN2_N
NC_USB_LEDAMB2_N
NC_USB_LEDGRN3_N
NC_USB_LEDAMB3_N
NC_USB_LEDGRN4_N
NC_USB_LEDAMB4_N

NC_USB_PWR1_N

NC_USB_PWR2_N

USB_OC_N

NC_USB_PWR3_N

USB_OC_N

NC_USB_PWR4_N

NC_USB_SPI_CS_N

NC_USB_SPI_SCK

NC_USB_SPI_SD

R4770

1 2

4.7K-5%

R4769

11

Hub Properties

ECAD: Verify a ground plane is below crystal

+3.3V

X1

1 2

24 MHz,50ppm

1 2

11

R4764

4.7K-5%

1 2

4.7K-5%

C4

1 2

27pF 50V

VID: 0x04B4
PID: 0x6560
DID: 0x0007

C5

21

27pF 50V

12

C3211

5,11

5,11

R4759

0 OHM-5%

FERRITE

1812-1.5A

12

C3212

22uF 10V

ECAD: Length matched ±5mils

ECAD: Route traces/shapes symmetrically out of U_USB_PWR_SWITCH

22uF 10V

21

C3213

11

11

USB_FLOPPY_P
USB_FLOPPY_N

.1uF

USB_KEY_N

USB_KEY_P

R54

10V-10%

11

L10

21

USB_OC_N

21

100-5%

NP

1

2

U_USB_PWR_SWITCH

1

GND

2

IN

3

EN_1

4

EN_2

TPS2062DGN

ECAD: <500mils; Length matched ±5mils

0-5%

2

1

L15

L16

4

3

X

0-5%

EPAD

OC_1
OUT_1
OUT_2

OC_2

3

4

USB_FLOPPY_L_P
USB_FLOPPY_L_N

8
7
6
5

(0-ohm resistor)

21

R49

4.7K-5%

NP

X

NP

R4768

X

USB_KEY_L_N

USB_KEY_L_P

NC_PIN5_FLOPPY

R4767

1 2

1 2

NP

0 OHM-5%

NP*

1 2

NP*

4.7K-5%

8.2K-5%

NC_USB_B3

R4758

R51

0-5%

R52

0-5%

USB_OC_N

NC_USB_B1
NC_USB_B2

NC_USB_B4

+5V

21

X

X

21

X

11

J_USB_FLOPPY

NP

5

5

4

4

3

3

2

X

TH 1.25mm

SILKSCREEN=USB_FLOPPY

2

1

1

1x5 SHR

+5V

C56

J_USB_KEY
1

2
3
4

5
6
7
8

9
10
11
12

SILKSCREEN=USB_KEY

1 2

21

C43

T1
T2
T3
T4

B1
B2
B3
B4

G1
G2
G3
G4

USB

RCPT

.1uF

10V-10%

.1uF

10V-10%

C3

C44

12

1 2

22uF 10V

.1uF

10V-10%

1 2

C3214

470pF

50V-10%

1

2

3

C52

21

10uF 6.3V

C53

21

10uF 6.3V

C41

CY7C65640

ECAD NOTE:Place close to the hub

+3.3V

21

1 2

10V-10%

C40

.1uF

.1uF

10V-10%

C39

.1uF

1 2

21

C38

10V-10%

.1uF

10V-10%

C37

21

1 2

10V-10%

C32

.1uF

.1uF

21

C3219

10V-10%

.1uF

10V-10%

21

C3220

.1uF

10V-10%

4

PROPRIETARY NOTE: THIS ITEM IS THE PROPERTY OF DELL INC. ROUND ROCK, TEXAS AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS ITEM MAY NOT BE TRANSFERRED FROM THE CUSTODY OF DELL INC. EXCEPT
AS AUTHORIZED BY DELL INC., AND THEN ONLY BY WAY OF LOAN FOR LIMITED PURPOSES. IT MUST NOT BE REPRODUCED IN WHOLE
OR IN PART AND MUST BE RETURNED TO DELL INC. UPON REQUEST AND IN ALL EVENTS UPON COMPLETION OF THE PURPOSE OF THE
LOAN. NEITHER THIS ITEM OR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO PERSONS NOT HAVING A NEED FOR SUCH
USE OR DISCLOSURE CONSISTENT WITH THE PURPOSE OF THE LOAN WITHOUT THE PRIOR WRITTEN CONSENT OF DELL INC.

TITLE

DWG NO.

DATE

INC.

ROUND ROCK,TEXAS

SCHEM, RSR, PE2970, SV, DELL, SPLN

REV.

GM009

SHEET

A00

11 OF 112/21/2007

DCBA

4
