MSI MS-95J1 Schematic 0A
5
4
3
2
1
MSI
D D
MS-95J1 REV 0A

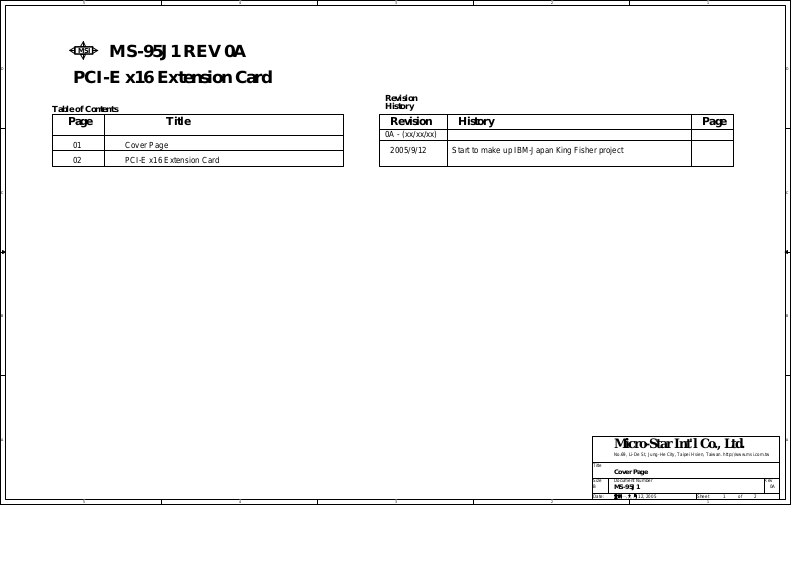

PCI-E x16 Extension Card
Revision
Table of Contents
Page
Title
01 Cover Page
02
C C
B B
PCI-E x16 Extension Card
History
0A - (xx/xx/xx)
2005/9/12
HistoryRevision
Start to make up IBM-Japan King Fisher project
Page
A A
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
Cover Page
Size Document Number Rev
MS-95J1
星期一, 九月
5
4
3
2
Date: Sheet
12, 2005
12
1
of
0AB
5
D D
4
3
2
1
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
+12V
VCC3
RST_EXP#
CK_PE_100M_16PORT
CK_PE_100M_16PORT#
EXP_A_RXP_15
EXP_A_RXN_15
EXP_A_RXP_14
EXP_A_RXN_14
EXP_A_RXP_13
EXP_A_RXN_13
EXP_A_RXP_12
EXP_A_RXN_12
EXP_A_RXP_11
EXP_A_RXN_11
EXP_A_RXP_10
EXP_A_RXN_10
EXP_A_RXP_9
EXP_A_RXN_9
EXP_A_RXP_8
EXP_A_RXN_8
EXP_A_RXP_7
EXP_A_RXN_7
EXP_A_RXP_6
EXP_A_RXN_6
EXP_A_RXP_5
EXP_A_RXN_5
EXP_A_RXP_4
EXP_A_RXN_4
EXP_A_RXP_3
EXP_A_RXN_3
EXP_A_RXP_2
EXP_A_RXN_2
EXP_A_RXP_1
EXP_A_RXN_1
EXP_A_RXP_0
EXP_A_RXN_0
SCL_X16EXP
SDA_X16EXP
WAKE#
VCC3
3VSB
EXP_A_TXP_15_C
EXP_A_TXN_15_C
EXP_A_TXP_14_C
EXP_A_TXN_14_C
EXP_A_TXP_13_C
EXP_A_TXN_13_C
EXP_A_TXP_12_C
EXP_A_TXN_12_C
EXP_A_TXP_11_C
EXP_A_TXN_11_C
EXP_A_TXP_10_C
EXP_A_TXN_10_C
EXP_A_TXP_9_C
EXP_A_TXN_9_C
EXP_A_TXP_8_C
EXP_A_TXN_8_C
EXP_A_TXP_7_C
EXP_A_TXN_7_C
EXP_A_TXP_6_C
EXP_A_TXN_6_C
EXP_A_TXP_5_C
EXP_A_TXN_5_C
EXP_A_TXP_4_C
EXP_A_TXN_4_C
EXP_A_TXP_3_C
EXP_A_TXN_3_C
EXP_A_TXP_2_C
EXP_A_TXN_2_C
EXP_A_TXP_1_C
EXP_A_TXN_1_C
EXP_A_TXP_0_C
EXP_A_TXN_0_C
+12V
MPCIE2
B1
+12V#B1
B2
+12V#B2
B3
RSVD#B3
B4
GND#B4
B5
SMCLK
B6
SMDAT
B7
GND#B7
B8
+3.3V#B8
B9
JTAG1
B10
3.3Vaux
B11
WAKE#
B12
RSVD#B12
B13
GND#B13
B14
PETp0
B15
PETn0
B16
GND#B16
B17
PRSNT2#B17
B18
GND#B18
B19
PETp1
B20
PETn1
B21
GND#B21
B22
GND#B22
B23
PETp2
B24
PETn2
B25
GND#B25
B26
GND#B26
B27
PETp3
B28
PETn3
B29
GND#B29
B30
RSVD#B30
B31
PRSNT2#B31
B32
GND#B32
B33
PETp4
B34
PETn4
B35
GND#B35
B36
GND#B36
B37
PETp5
B38
PETn5
B39
GND#B39
B40
GND#B40
B41
PETp6
B42
PETn6
B43
GND#B43
B44
GND#B44
B45
PETp7
B46
PETn7
B47
GND#B47
B48
PRSNT2#B48
B49
GND#B49
B50
PETp8
B51
PETn8
B52
GND#B52
B53
GND#B53
B54
PETp9
B55
PETn9
B56
GND#B56
B57
GND#B57
B58
PETp10
B59
PETn10
B60
GND#B60
B61
GND#B61
B62
PETp11
B63
PETn11
B64
GND#B64
B65
GND#B65
B66
PETp12
B67
PETn12
B68
GND#B68
B69
GND#B69
B70
PETp13
B71
PETn13
B72
GND#B72
B73
GND#B73
B74
PETp14
B75
PETn14
B76
GND#B76
B77
GND#B77
B78
PETp15
B79
PETn15
B80
GND#B80
B81
PRSNT2#B81
B82
RSVD#B82
10025026-10003TLF
Mechanical Key
PRSNT1#A1
+12V#A2
+12V#A3
GND#A4
JTAG2
JTAG3
JTAG4
JTAG5
+3.3V#A9
+3.3V#A10
PERST#
GND#A12
REFCLK+
REFCLKGND#A15
PERp0
PERn0
GND#A18
RSVD#A19
GND#A20
PERp1
PERn1
GND#A23
GND#A24
PERp2
PERn2
GND#A27
GND#A28
PERp3
PERn3
GND#A31
RSVD#A32
RSVD#A33
GND#A34
PERp4
PERn4
GND#A37
GND#A38
PERp5
PERn5
GND#A41
GND#A42
PERp6
PERn6
GND#A45
GND#A46
PERp7
PERn7
GND#A49
RSVD#A50
GND#A51
PERp8
PERn8
GND#A54
GND#A55
PERp9
PERn9
GND#A58
GND#A59
PERp10
PERn10
GND#A62
GND#A63
PERp11
PERn11
GND#A66
GND#A67
PERp12
PERn12
GND#A70
GND#A71
PERp13
PERn13
GND#A74
GND#A75
PERp14
PERn14
GND#A78
GND#A79
PERp15
PERn15
GND#A82
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
+12V
VCC3
RST_EXP#
CK_PE_100M_16PORT
CK_PE_100M_16PORT#
EXP_A_RXP_15
EXP_A_RXN_15
EXP_A_RXP_14
EXP_A_RXN_14
EXP_A_RXP_13
EXP_A_RXN_13
EXP_A_RXP_12
EXP_A_RXN_12
EXP_A_RXP_11
EXP_A_RXN_11
EXP_A_RXP_10
EXP_A_RXN_10
EXP_A_RXP_9
EXP_A_RXN_9
EXP_A_RXP_8
EXP_A_RXN_8
EXP_A_RXP_7
EXP_A_RXN_7
EXP_A_RXP_6
EXP_A_RXN_6
EXP_A_RXP_5
EXP_A_RXN_5
EXP_A_RXP_4
EXP_A_RXN_4
EXP_A_RXP_3
EXP_A_RXN_3
EXP_A_RXP_2
EXP_A_RXN_2
EXP_A_RXP_1
EXP_A_RXN_1
EXP_A_RXP_0
EXP_A_RXN_0
+12V
VCC3
SCL_X16EXP
SDA_X16EXP
3VSB
WAKE#
EXP_A_TXP_15_C
C C
B B
EXP_A_TXN_15_C
EXP_A_TXP_14_C
EXP_A_TXN_14_C
EXP_A_TXP_13_C
EXP_A_TXN_13_C
EXP_A_TXP_12_C
EXP_A_TXN_12_C
EXP_A_TXP_11_C
EXP_A_TXN_11_C
EXP_A_TXP_10_C
EXP_A_TXN_10_C
EXP_A_TXP_9_C
EXP_A_TXN_9_C
EXP_A_TXP_8_C
EXP_A_TXN_8_C
EXP_A_TXP_7_C
EXP_A_TXN_7_C
EXP_A_TXP_6_C
EXP_A_TXN_6_C
EXP_A_TXP_5_C
EXP_A_TXN_5_C
EXP_A_TXP_4_C
EXP_A_TXN_4_C
EXP_A_TXP_3_C
EXP_A_TXN_3_C
EXP_A_TXP_2_C
EXP_A_TXN_2_C
EXP_A_TXP_1_C
EXP_A_TXN_1_C
EXP_A_TXP_0_C
EXP_A_TXN_0_C
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
MPCIE1
+12V#B1
+12V#B2
RSVD#B3
GND#B4
SMCLK
SMDAT
GND#B7
+3.3V#B8
JTAG1
3.3Vaux
WAKE#
RSVD#B12
GND#B13
PETp0
PETn0
GND#B16
PRSNT2#B17
GND#B18
PETp1
PETn1
GND#B21
GND#B22
PETp2
PETn2
GND#B25
GND#B26
PETp3
PETn3
GND#B29
RSVD#B30
PRSNT2#B31
GND#B32
PETp4
PETn4
GND#B35
GND#B36
PETp5
PETn5
GND#B39
GND#B40
PETp6
PETn6
GND#B43
GND#B44
PETp7
PETn7
GND#B47
PRSNT2#B48
GND#B49
PETp8
PETn8
GND#B52
GND#B53
PETp9
PETn9
GND#B56
GND#B57
PETp10
PETn10
GND#B60
GND#B61
PETp11
PETn11
GND#B64
GND#B65
PETp12
PETn12
GND#B68
GND#B69
PETp13
PETn13
GND#B72
GND#B73
PETp14
PETn14
GND#B76
GND#B77
PETp15
PETn15
GND#B80
PRSNT2#B81
RSVD#B82
X_x16 PCIe
Mechanical Key
PRSNT1#A1
+12V#A2
+12V#A3
GND#A4
JTAG2
JTAG3
JTAG4
JTAG5
+3.3V#A9
+3.3V#A10
PERST#
GND#A12
REFCLK+
REFCLKGND#A15
PERp0
PERn0
GND#A18
RSVD#A19
GND#A20
PERp1
PERn1
GND#A23
GND#A24
PERp2
PERn2
GND#A27
GND#A28
PERp3
PERn3
GND#A31
RSVD#A32
RSVD#A33
GND#A34
PERp4
PERn4
GND#A37
GND#A38
PERp5
PERn5
GND#A41
GND#A42
PERp6
PERn6
GND#A45
GND#A46
PERp7
PERn7
GND#A49
RSVD#A50
GND#A51
PERp8
PERn8
GND#A54
GND#A55
PERp9
PERn9
GND#A58
GND#A59
PERp10
PERn10
GND#A62
GND#A63
PERp11
PERn11
GND#A66
GND#A67
PERp12
PERn12
GND#A70
GND#A71
PERp13
PERn13
GND#A74
GND#A75
PERp14
PERn14
GND#A78
GND#A79
PERp15
PERn15
GND#A82
A A
PCB1
PCB
P30-09162A1-C75
5
4
3
FM5FM2 FM3 FM4FM1
2
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
PCI-E x16 Extension Card
Size Document Number Rev
MS-95J1
星期一, 九月
Date: Sheet
12, 2005
1
of
22
0AC
