MSI
MS-9127 REV
5VSB
5V

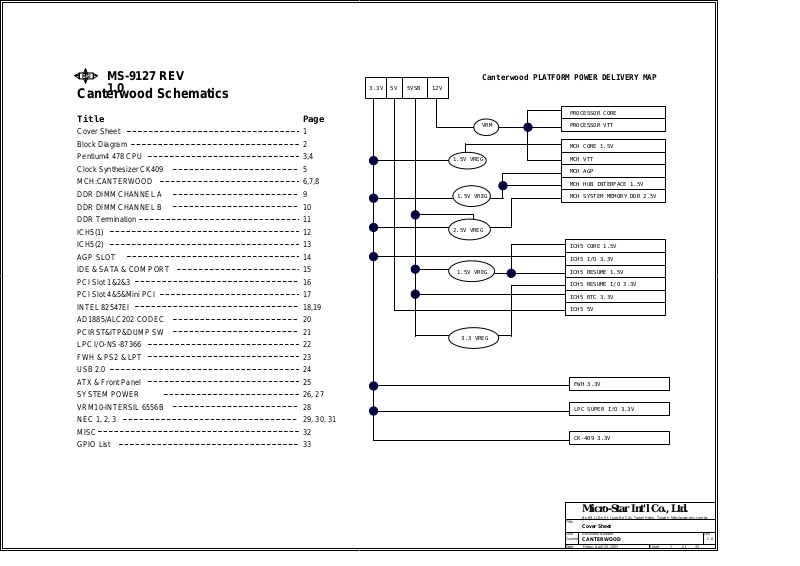

Canterwood Schematics
Title
Cover Sheet
Block Diagram
Pentium4 478 CPU
Clock Synthesizer CK409
MCH:CANTERWOOD
DDR DIMM CHANNEL A
DDR DIMM CHANNEL B
DDR Termination
ICH5(1)
ICH5(2)
AGP SLOT
A A
IDE & SATA & COM PORT
PCI Slot 1&2&3
PCI Slot 4&5&Mini PCI
INTEL 82547EI
AD1885/ALC202 CODEC
PCIRST&ITP&DUMP SW
LPC I/O-NS-87366
FWH & PS2 & LPT
1.0
Page
1
2
3,4
5
6,7,8
9
10
11
12
13
14
15
16
17
18,19
20
21
22
23
3.3V
12V
1.5V VREG
2.5V VREG
Canterwood PLATFORM POWER DELIVERY MAP
PROCESSOR CORE
VRM
1.5V VREG
1.5V VREG
3.3 VREG
PROCESSOR VTT
MCH CORE 1.5V
MCH VTT
MCH AGP
MCH HUB INTERFACE 1.5V
MCH SYSTEM MEMORY DDR 2.5V
ICH5 CORE 1.5V
ICH5 I/O 3.3V
ICH5 RESUME 1.5V
ICH5 RESUME I/O 3.3V
ICH5 RTC 3.3V
ICH5 5V
24USB 2.0
ATX & Front Panel 25
SYSTEM POWER
VRM10-INTERSIL 6556B
NEC 1, 2, 3
26, 27
28
29, 30, 31
MISC 32
GPIO List 33
FWH 3.3V
LPC SUPER I/O 3.3V
CK-409 3.3V
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
Cover Sheet
Size Document Number Rev
CANTERWOOD
1
Date: Sheet
133Friday, April 25, 2003
1.0Custom
of
Page 2
1
BLOCK
DIAGRAM
VRM 10
PAGE 27
AGP Pro 8X Connector
AGP Bus
uPGA478 Processor
PAGE 3,4
PSB
DDR Channel A
DDR Terminator
2 DDR DIMM
Modules
CK409 Clk Gen.
PAGE 14
INTEL 82547EI
CSA
A A
PAGE 18,19
Canterwood
MCH
HUB-Link
Bus
PAGE 6,7,8
DDR Channel B
2 DDR DIMM
Modules
PAGE 5
PAGE 11
PAGE 9
PAGE 10
Preliminary Spec
* Intel Canterwood / ICH5 Chipset
* Supporting Northwood/Prescott 478 CPUs
* 4 Layer ATX Form Factor(12"X9.6")
* 4 DDR unbuffered DIMMs (2 Channel)
* 8X AGP Pro / 1.5V Keyed
* USB 2.0 (Rear x2, Front x1)
* 5 PCI slots + 1 Mini PCI slot
* INTEL 82547EI LAN
* AD1981B AC97 codec
* Serial ATA (2 channel)
IDE Primary
IDE Secondary
USB Port
1/2/3/4/5/6/7/8
SATA1
PAGE 15
PAGE 15
PAGE 23
PAGE 15
HW Monitor
PAGE 22
Ultra DMA 66/100
USB 2.0
FWH
PAGE 23
Keyboard & Mouse Floppy
ICH5
NS87366
LPC IO
PAGE 22
PAGE 12,13
PAGE 22
Serial
PAGE 15PAGE 23
Front Panel
PAGE 24
AD1981B
PAGE 20
Parallel Phone Jack
PAGE 23
1
PAGE 16,17
PAGE 21,29
System Power
PAGE 25,26
PCI Connector 1
PCI Bus
Mini PCI Socket
PAGE 17
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
Block Diagram
Size Document Number Rev
CANTERWOOD
Date: Sheet
233Friday, April 25, 2003
of
1.0Custom
Page 3
1
VID[5..0] <22,28>
VID5
VID1
VID4
VID0
VID3
ITP_CLK1
D10#
AC26
B25
VID2
AE1
AE2
AE3
AE4
AE5
AD3
VID4#
VID3#
VID2#
VID1#
VID0#
VID5#
ITP_CLK0
D9#
D8#
D7#
C24
C23
B24
GTLREF3
GTLREF2
GTLREF1
GTLREF0
BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#
REQ4#
REQ3#
REQ2#
REQ1#
REQ0#
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
ITPCLK1
ITPCLK0
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI1
TESTHI0
BCLK1#
BCLK0#
RS2#
RS1#
RS0#
AP1#
AP0#
BR0#
COMP1
COMP0
DP3#
DP2#
DP1#
DP0#
ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#
LINT1/NMI
LINT0/INTR
D6#
D5#
D4#
D3#
D2#
D1#
D0#
D22
C21
A25
A23
B22
B21
AA21
AA6
F20
F6
AB4
AA5
Y6
AC4
AB5
AC6
H3
J3
J4
K5
J1
AD25
A6
Y3
W4
U6
AB22
AA20
AC23
AC24
AC20
AC21
AA2
AD24
AF23
AF22
F4
G5
F1
V5
AC1
H6
P1
L24
L25
K26
K25
J26
R5
L5
W23
P23
J23
F21
W22
R22
K22
E22
E5
D1
CPU_GTLREF
CPU_REQ#4
CPU_REQ#3
CPU_REQ#2
CPU_REQ#1
CPU_REQ#0
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
TESTHI2
TESTHI1
TESTHI0
CPU_CLK#
CPU_CLK
CPU_RS#2
CPU_RS#0
CPU_BR#0
CPU_COMP1
CPU_COMP0
CPU_ADSTB#1
CPU_ADSTB#0
CPU_DSTB3
CPU_DSTB2
CPU_DSTB1
CPU_DSTB0
CPU_DSTB#3
CPU_DSTB#2
CPU_DSTB#1
CPU_DSTB#0
NMI
CPU_INTR
CPU_GTLREF <6>
R448 62
R449 62
R458 62
CPU_CLK# <5>
CPU_CLK <5>
CPU_RS#2 <6>
CPU_RS#1 <6>
CPU_RS#0 <6>
CPU_BR#0 <6>
R461 61.9RST
R462 61.9RST
CPU_ADSTB#1 <6>
CPU_ADSTB#0 <6>
CPU_DSTB3 <6>
CPU_DSTB2 <6>
CPU_DSTB1 <6>
CPU_DSTB0 <6>
CPU_DSTB#3 <6>
CPU_DSTB#2 <6>
CPU_DSTB#1 <6>
CPU_DSTB#0 <6>
NMI <31>
CPU_INTR <13>
VCORE
TESTHI0
TESTHI10
TESTHI9
TESTHI1
TESTHI8
Trace width is 10 mils
Space is 7 mils
Closed to CPU
CPU_GTLREF
CB28
C220P50N
CPU_TDI
CPU_TDOCPU_RS#1
CPU_TMS
CPU_TRST#
CPU_TCK
CPU_AD#[31..3]
CPU_DBI#[3..0]
CPU_HD#[63..0]
CPU_REQ#[4..0]
VCC_SENSE
VSS_SENSE
CPU_THERMTRIP#
CPU_FERR#
CPU_PROCHOT#
CPU_PWRGD
CPU_BR#0
CPU_RST#
NMI
RN94
1
2
3
4
5
6
7
8
62
RN96
1
2
3
4
5
6
7
8
62
C507
C0.1U50Y
R451 150
R453 47
R455 47
R456 680
R457 47
CPU_AD#[31..3] <6>
CPU_DBI#[3..0] <6>
CPU_HD#[63..0] <6>
CPU_REQ#[4..0] <6>
VCC_SENSE <28>
VSS_SENSE <28>
R463 62
R464 62
R465 130RST
R466 300
R467 200
R468 62
R935 300
VCORE
VCORE
VCORE
R442
200RST
R447
169RST
VCORE
VCORE
VSS_SENSE
A4#
D19#
CPU_AD#3
G23
A3#
D18#
D17#
E24
AE25A5A4
DBR#
D16#
D15#
H22
D25
VCC_SENSE
AD26
VSS_SENSE
VCC_SENSE
D14#
D13#
D12#
D11#
J21
D23
C26
H21
G22
CPU_AD#26
CPU_AD#28
CPU_AD#27
CPU_AD#31
A35#
D50#
U24
A34#
D49#
U26
A33#
D48#
T23
A32#
D47#
T22
A31#
D46#
T25
CPU_AD#29
A30#
D45#
T26
A29#
D44#
R24
A28#
D43#
R25
A27#
D42#
P24
CPU1A
ZIF-SOCKET478
CPU_DBI#0
CPU_DBI#1
CPU_DBI#2
CPU_DBI#3
IERR#<31>
CPU_FERR#<13>
CPU_STPCLK#<13>
HINIT#<13,23>
CPU_DBSY#<6>
CPU_DRDY#<6>
CPU_TRDY#<6>
CPU_ADS#<6>
CPU_LOCK#<6>
CPU_BNR#<6>
CPU_HIT#<6>
CPU_HITM#<6>
CPU_BPRI#<6>
CPU_DEFER#<6>
THERMDP#<30>
THERMDN#<30>
CPU_THERMTRIP#<13>
CPU_PROCHOT#<6,27>
A A
CPU_IGNNE#<13>
CPU_SMI#<13>
CPU_A20M#<13>
CPU_SLP#<13>
VID_PWRGD<4,28>
CPU_BSEL0<5>
CPU_BSEL1<5>
CPU_PWRGD<13>
CPU_RST#<6>
IERR#
CPU_FERR#
CPU_STPCLK#
HINIT#
CPU_DBSY#
CPU_DRDY#
CPU_TRDY#
CPU_ADS#
CPU_LOCK#
CPU_BNR#
CPU_HIT#
CPU_HITM#
CPU_BPRI#
CPU_DEFER#
CPU_TDI
CPU_TDO
CPU_TMS
CPU_TRST#
CPU_TCK
THERMDP#
THERMDN#
CPU_THERMTRIP#
CPU_PROCHOT#
CPU_IGNNE#
CPU_SMI#
CPU_A20M#
CPU_SLP#
VID_PWRGD
CPU_BSEL0
CPU_BSEL1
CPU_PWRGD
CPU_RST#
CPU_HD#63
CPU_HD#62
CPU_HD#61
CPU_HD#60
CPU_HD#59
CPU_HD#58
CPU_HD#57
CPU_HD#56
CPU_HD#55
CPU_HD#54
E21
G25
P26
V21
AC3
AA3
AB2
AF26
AB26
A22
AD2
AE21
AF24
AF25
AD6
AD5
AB23
AB25
AA24
AA22
AA25
Y21
Y24
Y23
W25
Y26
W26
V24
V6
B6
Y4
W5
H5
H2
J6
G1
G4
G2
F3
E3
D2
E2
C1
D5
F7
E6
D4
B3
C4
A2
C3
B2
B5
C6
A7
DBI0#
DBI1#
DBI2#
DBI3#
IERR#
MCERR#
FERR#
STPCLK#
BINIT#
INIT#
RSP#
DBSY#
DRDY#
TRDY#
ADS#
LOCK#
BNR#
HIT#
HITM#
BPRI#
DEFER#
TDI
TDO
TMS
TRST#
TCK
THERMDA
THERMDC
THERMTRIP#
GND/SKTOCC#
PROCHOT#
IGNNE#
SMI#
A20M#
SLP#
RESERVED0
RESERVED1
VCCVID_PWRGD
RESERVED4
RESERVED5
RESERVED6
BSEL0
BSEL1
PWRGOOD
RESET#
D63#
D62#
D61#
D60#
D59#
D58#
D57#
D56#
D55#
D54#
AB1Y1W2V3U4T5W1R6V2T4U3P6U1T2R3P4P3R2T1N5N4N2M1N1M4M3L2M6L3K1L6K4K2
D53#
D52#
D51#
V22
U21
V25
U23
CPU_AD#25
A26#
D41#
R21
CPU_AD#24
A25#
D40#
N25
CPU_AD#23
A24#
D39#
N26
CPU_AD#22
A23#
D38#
M26
CPU_AD#21
A22#
D37#
N23
CPU_AD#20
A21#
D36#
M24
CPU_AD#19
A20#
D35#
P21
CPU_AD#18
A19#
D34#
A18#
D33#
N22
CPU_AD#15
CPU_AD#16
CPU_AD#17
A17#
A16#
D32#
D31#
M23
H25
K23
CPU_AD#14
A15#
D30#
J24
CPU_AD#13
A14#
D29#
L22
CPU_AD#12
A13#
D28#
M21
CPU_AD#11
A12#
D27#
H24
CPU_AD#10
A11#
D26#
G26
CPU_AD#9
A10#
D25#
L21
A9#
D24#
A8#
A7#
A6#
A5#
D23#
D22#
D21#
D20#
D26
F26
E25
F24
F23
CPU_AD#7
CPU_AD#4
CPU_AD#5
CPU_AD#8
CPU_AD#6
R463 populate close to ICH5
CPU_HD#51
CPU_HD#47
CPU_HD#49
CPU_HD#53
CPU_HD#50
CPU_HD#48
CPU_HD#52
CPU_HD#41
CPU_HD#39
CPU_HD#40
CPU_HD#45 CPU_AD#30
CPU_HD#46
CPU_HD#43
CPU_HD#44
CPU_HD#37
CPU_HD#42
CPU_HD#38
CPU_HD#31
CPU_HD#34
CPU_HD#35
CPU_HD#36
CPU_HD#28
CPU_HD#32
CPU_HD#33
CPU_HD#27
CPU_HD#26
CPU_HD#29
CPU_HD#30
CPU_HD#20
CPU_HD#24
CPU_HD#25
CPU_HD#23
CPU_HD#17
CPU_HD#21
CPU_HD#18
CPU_HD#22
CPU_HD#19
CPU_HD#11
CPU_HD#16
CPU_HD#10
CPU_HD#14
CPU_HD#15
CPU_HD#12
CPU_HD#13
CPU_HD#9
CPU_HD#6
CPU_HD#8
CPU_HD#7
1
CPU_HD#1
CPU_HD#3
CPU_HD#0
CPU_HD#5
CPU_HD#4
CPU_HD#2
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
Pentium4-478-CPU1
Size Document Number Rev
CANTERWOOD
Date: Sheet
333Friday, April 25, 2003
of
1.0Custom
Page 4
1
VCORE VCC_VID
CPU1B
A10
A12
A14
A16
A18
A20A8AA10
AA12
AA14
AA16
AA18
AA8
AB11
AB13
AB15
AB17
AB19
AB7
AB9
AC10
AC12
AC14
AC16
AC18
AC8
AD11
AD13
AD15
AD17
AD19
AD7
AD9
AE10
AE12
AE14
AE16
AE18
AE20
AE6
AE8
AF11
AF13
AF15
AF17
AF19
AF2
AF21
AF5
AF7
AF9
B11
B13
B15
B17
B19B7B9
C10
C12
C14
C16
C18
C20C8D11
D13
D15
D17
D19D7D9
E10
E12
E14
E16
E18
E20E8F11
F13
F15
F17
F19
AF4
VCC
VSS
VCC
VSS
VCC
VSS
G21G6G24
F9
VCC
VCC
VCC
VSS
VSS
VSS
G3H1H23
VCC
VSS
VCC_VID
VSS
VSS
H26H4J2
VSS
ZIF-SOCKET478
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
D10
VSS
A11
VSS
A13
VSS
A15
VSS
A17
VSS
A19
VSS
A21
VSS
A24
VSS
A26
VSS
A3
VSS
A9
VSS
AA1
VSS
AA11
VSS
AA13
VSS
AA15
VSS
AA17
VSS
AA19
VSS
AA23
VSS
AA26
VSS
AA4
VSS
AA7
VSS
AA9
VSS
AB10
VSS
AB12
VSS
AB14
VSS
AB16
VSS
AB18
VSS
AB20
VSS
AB21
VSS
AB24
VSS
AB3
VSS
AB6
VSS
AB8
VSS
AC11
VSS
AC13
VSS
AC15
VSS
AC17
A A
BOOT_SEL<26,28>
BOOT_SEL
AC19
AC22
AC25
AC2
AC5
AC7
AC9
AD1
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD10
VSS
AD12
AD14
VSS
VSS
AD16
VSS
AD18
VSS
AD21
VSS
AD23
AD4
VSS
AD8
VSS
AE11
VSS
VSS
AE13
VSS
AE15
AE17
VSS
AE19
VSS
AE22
VSS
AE24
VSS
VSS
AE26
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AE7
AE9
AF1
AF10
AF12
AF14
AF16
AF18
AF20
AF6
AF8
B10
B12
B14
B16
B18
B23
B20
B26B4B8
C11
C13
C15
C17C2C19
C22
C25C5C7C9D12
D14
D16
D18
D20
D21D3D24D6D8E1E11
E13
E15
E17
E19
E23
E7E9F10
E4
E26
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
F12
F14
F16
F18F2F22
F25F5F8
AF3
VCC_VID
VSS
VSS
J22
AE23
VCCA
VSS
VSS
J25J5K21
VCCA
VCC_IOPLL
AD20
VSSA
VCC_IOPLL
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD22
Y5
Y25
Y22
Y2
W6
W3
W24
W21
V4
V26
V23
V1
U5
U25
U22
U2
T6
T3
T24
T21
R4
R26
R23
R1
P5
P25
P22
P2
N6
N3
N24
N21
M5
M25
M22
M2
L4
L26
L23
L1
K6
K3
K24
VSSA
VCORE
VCORE
VCORE
VCORE
VCORE
C489
C22U10Y1206
C493
C22U10Y1206
+
EC74
330u-2.5V(S/S)
C517
C22U10Y1206
C515
C22U10Y1206
C491
C22U10Y1206
C501
C22U10Y1206
+
EC75
330u-2.5V(S/S)
C500
C22U10Y1206
C512
C22U10Y1206
C492
C22U10Y1206
C498
C22U10Y1206
+
EC76
330u-2.5V(S/S)
C513
C22U10Y1206
C496
C22U10Y1206
+
EC77
330u-2.5V(S/S)
C514
C22U10Y1206
VCC_IOPLL
VCCA
VSSA
L36
10U100m_0805
CB26
C1U10X
CB27
C1U10X
R432
0
R426 0
VCORE
L37
10U100m_0805
C506
C22U10Y1206
Pin AE26 will be detected on Prescott .
C535
C0.1U16X
VID GOOD
U29
1
VIN
VOUT
3
2
GNDENPOK
SN105125-150mA
VID_PWRGD<3,28>
5
R567
C536
4
2.43KST
C1U16Y0805
C537
C0.1U16X
VCC3 VCC_VID
VCORE
C657
C22U10Y1206
C658
C22U10Y1206
C660
C22U10Y1206
C662
C22U10Y1206
C518
C22U10Y1206
C664
C22U10Y1206
C665
C22U10Y1206
C666
C22U10Y1206
Please put them under Socket
VCORE
+
EC72
X_330u-2.5V(S/S)
+
EC73
X_330u-2.5V(S/S)
Solder side
1
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
Pentium4-478-CPU2
Size Document Number Rev
CANTERWOOD
Date: Sheet
of
433Friday, April 25, 2003
1.0Custom
Page 5
1

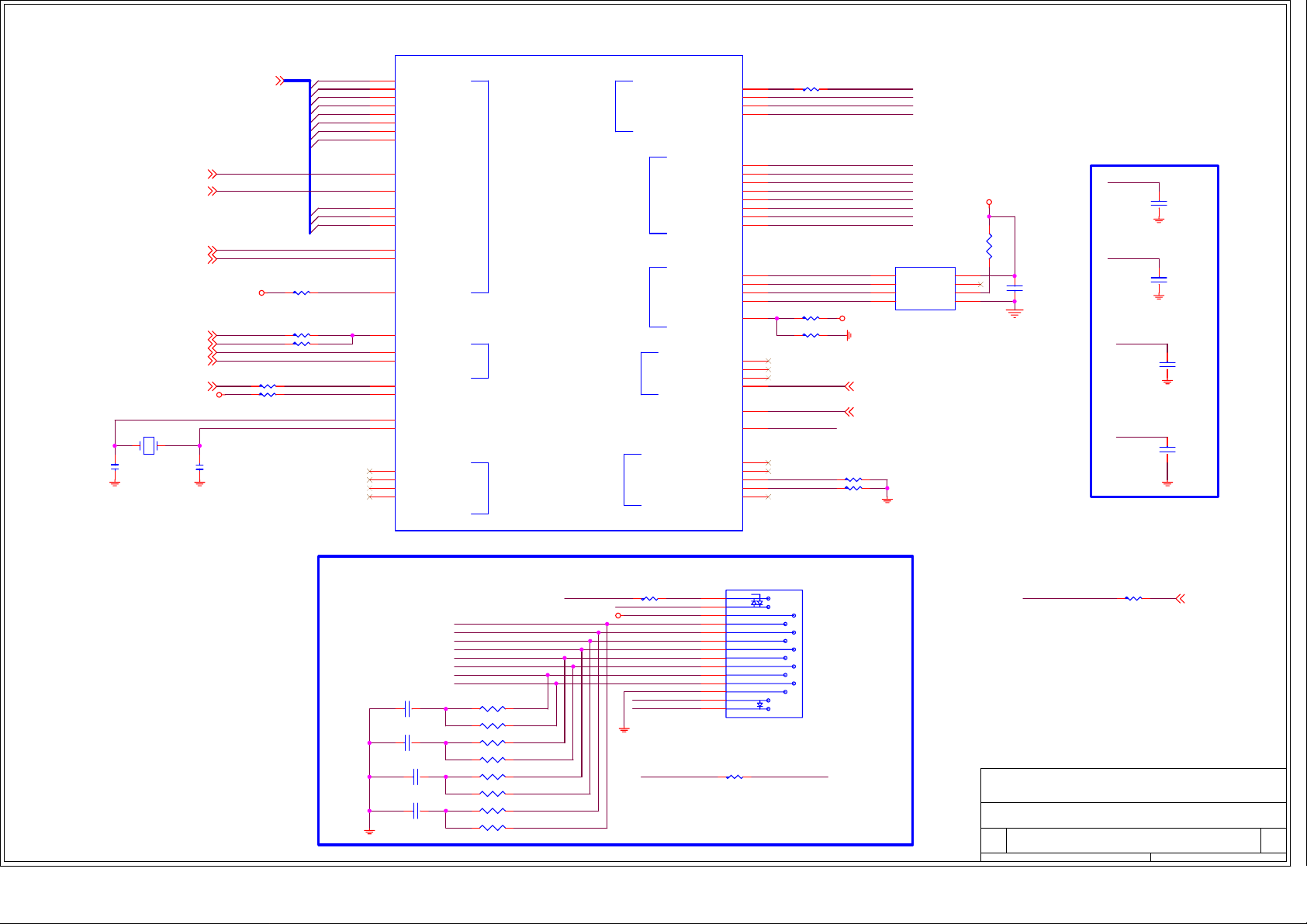

CLOCK GENERATOR STRAPPING
ICHPCLK
Clock Generator - ICS 952606
VCC3
FB1 80/0805-3A
CB29
CT1
C0.1U16X
10u/16V
A A
VCC3V
+
SMB_CLK<9,10,22,29,30>
SMB_DATA<9,10,22,29,30>
C519
C0.1U16X
C520
C0.1U16X
C521
C0.1U16X
C522
C0.1U16X
C523
C0.1U16X
C524
C0.1U16X
C525
C0.1U16X
C527
C0.1U16X
U28
40 38
CPU_VDD CPU0#
43
CPU_GND
34
SRC_VDD
37
SRC_GND
28
3V66_GND
10
PCI_VDD
11
PCI_GND
16
PCI_VDD
17
PCI_GND
24
48_VDD
23
48_GND
3
REF_VDD
6
REF_GND
48
VDD
47
GND
31
SCLK
32
SDATA
ICS 952606
<Priority>
CPU0
CPU1
CPU1#
CPU2
CPU2#
SRC
SRC#
3V66_03V66_VDD
3V66_1
MODE#/3V66_2
VCH/3V66_4
FS_C/PCI_F0
FS_D/PCI_F1
FS_E/PCI_F2
PCI0
PCI1
PCI2
PCI3
PCI4
PCI5
DOT_48M
USB_48M
FS_A/REF0
FS_B/REF1
VTT_GD#
RST#/PWR_DN#
IREF
X1
X2
MCHCLK
39
MCHCLK#
CPUCLK
42
CPUCLK#
41
45
44
SATA100
36
SATA100#
35
MCH66
AGPCLK
ICH66
CSA66
ICHPCLK
FWHPCLK
SIOPCLK
PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5
SIO48
USB48
FS_SEL0
FS_SEL1
PLL_XI
PLL_XO
VID_GD#
PWR_DN#
IREF
RN144 33
1 2
3 4
5 6
7 8
R557 33
R559 1K
R561 33
R563 1K
Y1
14M-32pf-HC49S-D
R565 1K
R566 475RST
22pC526
22pC528
3027
29
26
25
7
8
9
12
13
14
15
18
19
21
22
1
2
4
5
33
20
46
RN142 33
CPUCLK
CPUCLK#
MCHCLK
RN143 33
MCHCLK#
SATA100
SATA100#
NB_CLK66
AGP_66
ICH_66
CAS_66
SIOPCLK
RN145 33
FWHPCLK
ICHPCLK
PCICLK3
RN146 33
PCICLK2
PCICLK1
PCICLK0
USB48
RN147 33
SIO48
PCICLK5
PCICLK4
VCC3V
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
NB_CLK66 <6>
AGP_66 <14>
ICH_66 <13>
CSA_66 <18>
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
AC97_14 <20>
CPU_BSEL0 <3>
ICH_14 <13>
CPU_BSEL1 <3>
CPU_CLK
CPU_CLK#
NB_CLK
NB_CLK#
SATA_100
SATA_100#
USB_48
SIO_48
CPU_CLK <3>
CPU_CLK# <3>
NB_CLK <6>
NB_CLK# <6>
SATA_100 <13>
SATA_100# <13>
SIO_PCLK <22>
FWH_PCLK <23>
TPM_PCLK <29>
ICH_PCLK <12>
PCI_CLK3 <17>
PCI_CLK2 <16>
PCI_CLK1 <16>
PCI_CLK0 <16>
USB_48 <13>
SIO_48 <22>
PCI_CLK5 <17>
PCI_CLK4 <17>
NB_BSEL0<6>
R521 2.49KST
R524 2.49KST
NB_BSEL1<6>
R522 2K R523 1K
R525 2K

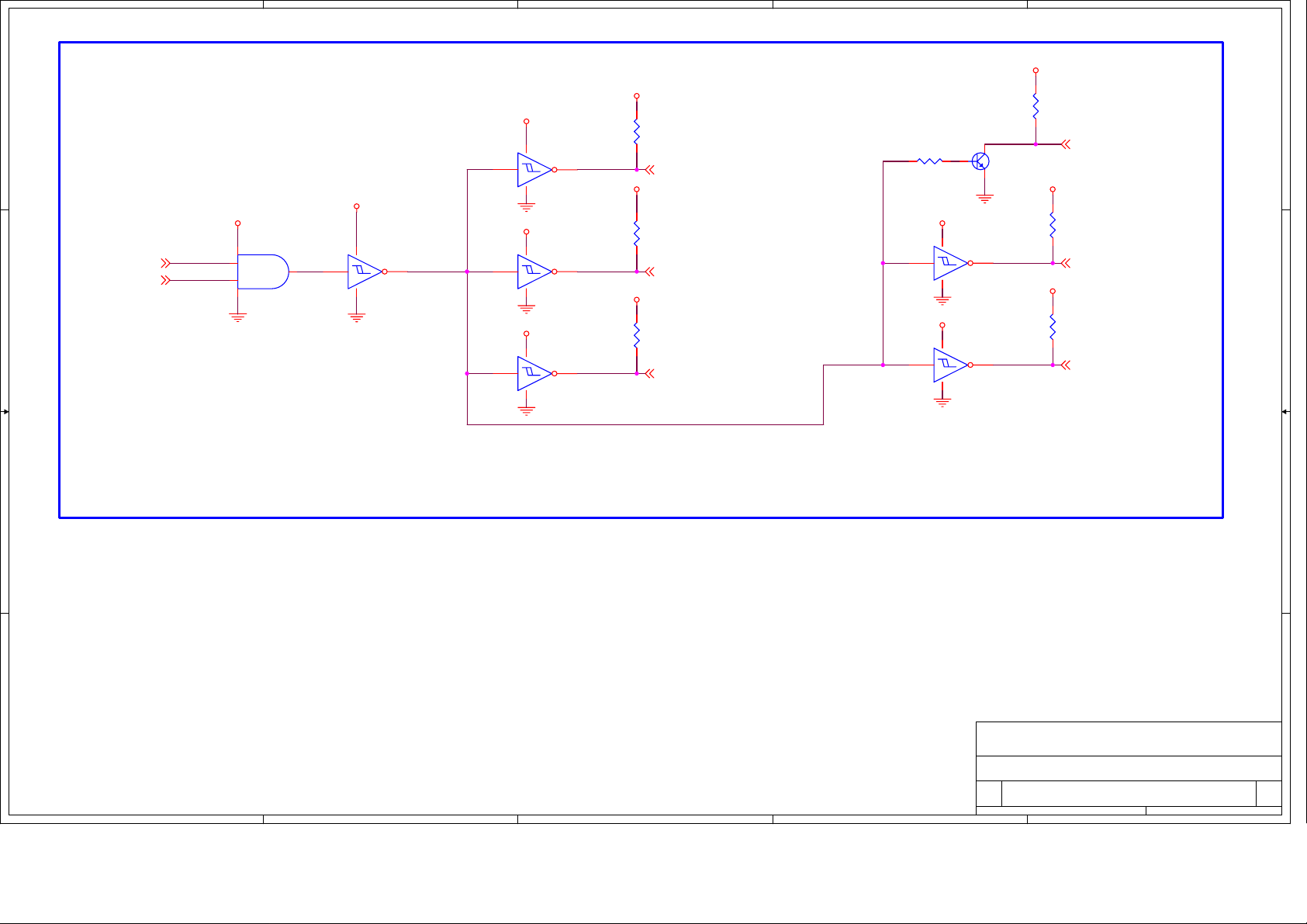

Clock Generator VTT Power Down Block
VID_GD#
Q55
2N3904S
CPU_CLK
CPU_CLK#
NB_CLK
NB_CLK#
SATA_100
SATA_100#
NB_CLK66
AGP_66
ICH_66
CSA_66
PCI_CLK3
PCI_CLK2
PCI_CLK1
PCI_CLK0
CN44
1
3
5
7
X_CN10P50N
CN46
1
3
5
7
X_CN10P50N
FS_E FS_D FS_C FS_B FS_A CPU 3V66 PCI
PCICLK1 PCICLK0 LANPCLK BSEL1 BSEL0
1 1 1 0 0 100MHz 66.7MHz 33.3MHz
EMC HF filter capacitors, located close to PLL (For EMI )
1 1 1 0 1 133MHz 66.7MHz 33.3MHz
1 1 1 1 0 200MHz 66.7MHz 33.3MHz
1 1 1 1 1 166MHz 66.7MHz 33.3MHz
1
Title
Size Document Number Rev
Date: Sheet
FWHPCLK
SIOPCLK
CPU_BSEL0
CPU_BSEL1
R535 10K
VIDGD
R538 4.7K
R552 49.9RST
R554 49.9RST
R555 49.9RST
R556 49.9RST
R562 49.9RST
R564 49.9RST
2
4
6
8
2
4
6
8
X_C10P50NC533
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
CK-SKS
CANTERWOOD
R518 4.7K
R519 4.7K
R520 4.7K
R526 1K
VCC3V
CN45
1
3
5
7
X_CN10P50N
CN47
1
3
5
7
X_CN10P50N
X_C10P50NC534
VCORE
2
4
6
8
2
4
6
8
ICH_PCLK
TPM_PCLK
FWH_PCLK
SIO_PCLK
PCI_CLK4
PCI_CLK5
SIO_48
USB_48
AC97_14ICH_14
VCC3
533Friday, April 25, 2003
1.0B
of
Page 6
1
U22A
CPU_AD#3
CPU_AD#4
CPU_AD#5
CPU_AD#6
CPU_AD#7
CPU_AD#8
CPU_AD#9
CPU_AD#10
CPU_AD#11
CPU_AD#12
CPU_AD#13
CPU_AD#14
CPU_AD#15
CPU_AD#16
CPU_AD#17
CPU_AD#18
CPU_AD#19
CPU_AD#20
CPU_AD#21
CPU_AD#22
CPU_AD#23
CPU_AD#24
CPU_AD#25
CPU_AD#26
CPU_AD#27
CPU_AD#28
CPU_AD#29
CPU_AD#30
CPU_AD#31
CPU_REQ#0
CPU_REQ#1
CPU_REQ#2
CPU_REQ#3
CPU_REQ#4
CPU_ADSTB#0<3>
CPU_ADSTB#1<3>
NB_CLK#<5>
CPU_DSTB0<3>
CPU_DSTB1<3>
CPU_DSTB2<3>
A A
CPU_DSTB3<3>
CPU_DSTB#0<3>
CPU_DSTB#1<3>
CPU_DSTB#2<3>
CPU_DSTB#3<3>
CPU_RS#0<3>
CPU_RS#1<3>
CPU_RS#2<3>
CPU_ADS#<3>
CPU_TRDY#<3>
CPU_DRDY#<3>
CPU_DEFER#<3>
CPU_HITM#<3>
CPU_HIT#<3>
CPU_LOCK#<3>
CPU_BR#0<3>
CPU_BNR#<3> CPU_RST# <3>
CPU_BPRI#<3>
CPU_DBSY#<3>
CPU_AD#[31..3]
CPU_REQ#[4..0]
CPU_DBI#[3..0]
CPU_HD#[63..0]
NB_HL[10..0]
NB_CSA[10..0]
AGP_AD[31..0]
AGP_SBA#[7..0]
CPU_ADSTB#0
CPU_ADSTB#1
NB_CLK
NB_CLK<5>
NB_CLK#
HDRCOMP
HDSWING
CPU_DSTB0
CPU_DSTB1
CPU_DSTB2
CPU_DSTB3
CPU_DSTB#0
CPU_DSTB#1
CPU_DSTB#2
CPU_DSTB#3
CPU_DBI#0
CPU_DBI#1
CPU_DBI#2
CPU_DBI#3
CPU_RS#0
CPU_RS#1
CPU_RS#2
CPU_ADS#
CPU_TRDY#
CPU_DRDY#
CPU_DEFER#
CPU_HITM#
CPU_HIT#
CPU_LOCK#
CPU_BR#0
CPU_BNR#
CPU_BPRI#
CPU_DBSY#
E13
HA3
G12
HA4
E10
HA5
H12
HA6
F11
HA7
E9
HA8
F9
HA9
J9
HA10
G8
HA11
H10
HA12
J11
HA13
J7
HA14
F7
HA15
H8
HA16
A17
HA17
C17
HA18
B17
HA19
B11
HA20
C9
HA21#
C13
HA22
A14
HA23
A13
HA24
A15
HA25
D8
HA26
C8
HA27
B15
HA28
D14
HA29
C12
HA30
C7
HA31
E11
HREQ0
F13
HREQ1
G13
HREQ2
E12
HREQ3
G14
HREQ4
G9
HADSTB0
D16
HADSTB1
E8
HCLKP
E7
HCLKN
A12
HDRCOMP
A6
HDSWING
E26
HDSTBP0
F21
HDSTBP1
D22
HDSTBP2
G19
HDSTBP3
A26
HDSTBN0
E22
HDSTBN1
B23
HDSTBN2
F19
HDSTBN3
B31
DBI_0
F25
DBI_1
C20
DBI_2
J17
DBI_3
D12
RS0
G10
RS1
G11
RS2
A9
ADS
J13
HTRDY
A11
DRDY
D10
DEFER
A8
HITM
B7
HIT
C11
HLOCK
H14
BREQ0
B13
BNR
C14
BPRI
B9
DBSY
CTWD MCH
CPU_AD#[31..3] <3>
CPU_REQ#[4..0] <3>
CPU_DBI#[3..0] <3>
CPU_HD#[63..0] <3>
NB_HL[10..0] <13>
NB_CSA[10..0] <18>
AGP_AD[31..0] <14>
AGP_SBA#[7..0] <14>
HD0
HD1
HD2
HD3
HD4
HD5
HD6
HD7
HD8
HD9
HD10
HD11
HD12
HD13
HD14
HD15
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
HD32
HD33
HD34
HD35
HD36
HD37
HD38
FSB
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63
GTLREF
HDVREF
PROCHOT#
BSEL0
BSEL1
CPURST#
PWROK#
CPU_HD#0
C29
CPU_HD#1
D28
CPU_HD#2
A28
CPU_HD#3
E27
CPU_HD#4
E28
CPU_HD#5
C27
CPU_HD#6
C28
CPU_HD#7
B29
CPU_HD#8
A29
CPU_HD#9
B27
CPU_HD#10
D26
CPU_HD#11
C26
CPU_HD#12
B25
CPU_HD#13
A27
CPU_HD#14
A25
CPU_HD#15
C25
CPU_HD#16
J21
CPU_HD#17
H23
CPU_HD#18
H20
CPU_HD#19
H24
CPU_HD#20
G26
CPU_HD#21
H22
CPU_HD#22
G23
CPU_HD#23
G25
CPU_HD#24
G21
CPU_HD#25
E24
CPU_HD#26
E25
CPU_HD#27
G24
CPU_HD#28
F23
CPU_HD#29
G22
CPU_HD#30
E23
CPU_HD#31
E21
CPU_HD#32
A23
CPU_HD#33
C23
CPU_HD#34
C24
CPU_HD#35
A21
CPU_HD#36
D24
CPU_HD#37
C22
CPU_HD#38
C21
CPU_HD#39
A22
CPU_HD#40
D20
CPU_HD#41
B21
CPU_HD#42
A19
CPU_HD#43
B19
CPU_HD#44
C18
CPU_HD#45
C19
CPU_HD#46
D18
CPU_HD#47
A18
CPU_HD#48
J19
CPU_HD#49
G20
CPU_HD#50
E20
CPU_HD#51
E18
CPU_HD#52
E19
CPU_HD#53
G18
CPU_HD#54
E17
CPU_HD#55
F17
CPU_HD#56
G16
CPU_HD#57
E16
CPU_HD#58
G15
CPU_HD#59
J15
CPU_HD#60
E14
CPU_HD#61
H16
CPU_HD#62
G17
CPU_HD#63
E15
CPU_GTLREF
F15
NB_GTLREF
A7
CPU_PROCHOT#
C10
NB_BSEL0
C15
NB_BSEL1
C16
CPU_RST#
H18
PWROK
AE9
HDRCOMP
AGP_VREF
NB_HLVREF
NB_CSAVREF
Closed to NB
NB_CSARCOMP
NB_HLRCOMP
AGP_RCOMP
VTT_NB
VCC1.5
VCC_DDR
AGP_CBE0
AGP_CBE1
AGP_CBE2
AGP_CBE3
AGP_ST0
AGP_ST1
AGP_ST2
AGP_VREF
AGP_VSWING
AGP_RCOMP
NB_CLK66
NB_HL0
NB_HL1
NB_HL2
NB_HL3
NB_HL4
NB_HL5
NB_HL6
NB_HL7
NB_HL8
NB_HL9
NB_HL10
NB_HLSTRF
NB_HLSTRS
NB_HLVREF
NB_HLSWING
NB_HLRCOMP
NB_CSA0
NB_CSA1
NB_CSA2
NB_CSA3
NB_CSA4
NB_CSA5
NB_CSA6
NB_CSA7
NB_CSA8
NB_CSA9
NB_CSA10
NB_CSASTRF
NB_CSASTRS
NB_CSAVREF
NB_CSASWING
NB_CSARCOMP
R327 10
C428
X_C10P50N
R330 1K
C431
C0.1U50Y
C435
C4.7U10Y0805
C440
C4.7U10Y0805
1
C436
C0.1U50Y
C441
C0.1U50Y
AGP_CBE0<14>
AGP_CBE1<14>
AGP_CBE2<14>
AGP_CBE3<14>
AGP_ST0<14>
AGP_ST1<14>
AGP_ST2<14>
AGP_VREF<14>
AGP_VSWING<14>
NB_CLK66<5>
NB_HLSTRF<13>
NB_HLSTRS<13>
NB_CSASTRF<18>
NB_CSASTRS<18>
MCH_LANRST#<18,21>
CPU_GTLREF <3>
CPU_PROCHOT# <3,27>
NB_BSEL0 <5>
NB_BSEL1 <5>
PWROK_MCH <13>
R332 20RST
C434 C0.1U50Y C437
C438 C0.1U50Y
C439 C0.1U50Y
R333 52.3RST
R334 52.3RST
R335 43.2RST
VCC1.5
U22D
AG4
GCBE0
AC5
GCBE1
AA3
GCBE2
V3
GCBE3
U7
GST0
U8
GST1
W8
GST2
GVREF
GVSWING
GRCOMP
GCLKIN
HI0
HI1
HI2
HUB
HI3
HI4
HI5
HI6
HI7
HI8
HI9
HI10
HISTRF
HISTRS
HI_VREF
HI_SWING
HI_RCOMP
CI0
CI1
CI2
CSA
CI3
CI4
CI5
CI6
CI7
CI8
CI9
CI10
CISTRF
CISTRS
CI_VREF
CI_SWING
CI_RCOMP
EXTTS
RSTIN
ICH_SYNC
RESERVED_1
RESERVED_2
RESERVED_3
RESERVED_4
RESERVED_5
RESERVED_6
AGP
GPAR/ADD_DETECT
CB18
C0.1U50Y
CB22
C0.1U50Y
AD2
AC1
AC3
AL4
AK5
AM4
AJ6
AN6
AL8
AM8
AN7
AL7
AN4
AM6
AK6
AL5
AF1
AD3
AD1
AG9
AK9
AL9
AH9
AF7
AF6
AG6
AH5
AH7
AE7
AH8
AK7
AJ8
AG1
AE3
AF2
AF14
AE8
AC7
AM31
AL32
AN9
AC9
AG8
G7
A5
CTWD MCH
C0.1U50Y
C442
C0.1U50Y
Closed to North Bridgr
GADSTBF0
GADSTBS0
GADSTBF1
GADSTBS1
GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31
GSBSTBF
GSBSTBS
GSBA0#
GSBA1#
GSBA2#
GSBA3#
GSBA4#
GSBA5#
GSBA6#
GSBA7#
GFRAME
GDEVSEL
GIRDY
VGA
GTRDY
GSTOP
GREQ
GGNT
GRBF
GWBF
DBI_HI
DBI_LO
CB19
C0.1U50Y
CB23
C0.1U50Y
AF3
AG3
V1
V2
AK1
AK2
AJ1
AK3
AJ3
AJ4
AH2
AH1
AF5
AE4
AE5
AD5
AD6
AD8
AC4
AC8
AA4
Y2
Y1
W1
Y3
W4
W3
U1
U3
U4
R1
T2
T3
R3
P1
R4
Y6
W5
V5
V6
Y7
W7
AA8
Y5
AA5
AA7
AB7
AB2
AB6
AB1
AB5
AB3
T5
T6
V7
U5
N1
P2
CB20
C0.1U50Y
CB24
C0.1U50Y
AGP_ADSTBF0
AGP_ADSTBS0
AGP_ADSTBF1
AGP_ADSTBS1
AGP_AD0
AGP_AD1
AGP_AD2
AGP_AD3
AGP_AD4
AGP_AD5
AGP_AD6
AGP_AD7
AGP_AD8
AGP_AD9
AGP_AD10
AGP_AD11
AGP_AD12
AGP_AD13
AGP_AD14
AGP_AD15
AGP_AD16
AGP_AD17
AGP_AD18
AGP_AD19
AGP_AD20
AGP_AD21
AGP_AD22
AGP_AD23
AGP_AD24
AGP_AD25
AGP_AD26
AGP_AD27
AGP_AD28
AGP_AD29
AGP_AD30
AGP_AD31
AGP_SBSTBF
AGP_SBSTBS
AGP_SBA#0
AGP_SBA#1
AGP_SBA#2
AGP_SBA#3
AGP_SBA#4
AGP_SBA#5
AGP_SBA#6
AGP_SBA#7
AGP_FRAME
AGP_DEVSEL
AGP_IRDY
AGP_TRDY
AGP_STOP
AGP_PAR
AGP_REQ
AGP_GNT
AGP_RBF
AGP_WBF
AGP_DBIH
AGP_DBIL
CB21
C0.1U50Y
CB25
C0.1U50Y
AGP_ADSTBF0 <14>
AGP_ADSTBS0 <14>
AGP_ADSTBF1 <14>
AGP_ADSTBS1 <14>
Trace width is 10 mils
Space is 7 mils
Closed to NB
NB_GTLREF
CB16
C220P50N
Trace width is 10 mils
Space is 7 mils
Closed to NB
HDSWING
CB17
C220P50N
AGP_SBSTBF <14>
AGP_SBSTBS <14>
Trace width is 10 mils
Space is 7 mils
Closed to NB
NB_HLSWING
C424
AGP_FRAME <14>
AGP_DEVSEL <14>
AGP_IRDY <14>
AGP_TRDY <14>
AGP_STOP <14>
AGP_PAR <14>
AGP_REQ <14>
AGP_GNT <14>
AGP_RBF <14>
AGP_WBF <14>
AGP_DBIH <14>
AGP_DBIL <14>
C0.1U25Y0805
NB_HLVREF
C426
C0.1U25Y0805
Trace width is 10 mils
Space is 7 mils
Closed to NB
NB_CSASWING
C429
C0.1U25Y0805
NB_CSAVREF
C432
C0.1U25Y0805
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
MCH:Canterwood(1)
Size Document Number Rev
CANTERWOOD
Date: Sheet
C423
C0.1U50Y
C425
C0.1U50Y
C427
C0.1U50Y
C430
C0.1U50Y
C433
C0.1U50Y
VTT_NB
R320
200RST
C422
C0.1U50Y
VTT_NB
R322
301RST
R323
102RST
VCC1.5
R324
226RST
R325
147RST
R326
113RST
VCC1.5
R328
226RST
R329
147RST
R331
113RST
1.0Custom
633Friday, April 25, 2003
of
Page 7
1
AB26
AH29
AG29
AH27
AF27
AF24
AG25
AG23
AE23
AJ22
AA25
AG22
AL20
V26
AB31
U29
R25
U28
P26
T29
T27
R27
AE21
AF21
AG20
AH19
AE29
AD29
AG18
AF18
M30
M29
AD27
AC27
AG17
AH17
M26
M27
AD31
N32
N33
AN12
AL14
AF16
AJ21
AG26
W25
R28
L29
K26
AC28
U22C
SMAA_B0
SMAA_B1
SMAA_B2
SMAA_B3
SMAA_B4
SMAA_B5
SMAA_B6
SMAA_B7
SMAA_B8
SMAA_B9
SMAA_B10
SMAA_B11
SMAA_B12
SBA_B0
SBA_B1
SWE_B
SCAS_B
SRAS_B
SCS_B0
SCS_B1
SCS_B2
SCS_B3
SCKE_B0
SCKE_B1
SCKE_B2
SCKE_B3
SCMDCLK_B0
SCMDCLK_B0#
SCMDCLK_B1
SCMDCLK_B1#
SCMDCLK_B2
SCMDCLK_B2#
SCMDCLK_B3
SCMDCLK_B3#
SCMDCLK_B4
SCMDCLK_B4#
SCMDCLK_B5
SCMDCLK_B5#
SMYRCOMP
SMYRCOMPVOH
SMYRCOMPVOL
SMVREF_B
SDQS_B0
SDQS_B1
SDQS_B2
SDQS_B3
SDQS_B4
SDQS_B5
SDQS_B6
SDQS_B7
SDQS_B8
CTWD MCH
AG14
SDQ_B0
AL13
SDQ_B1
AK14
SDQ_B2
AJ15
SDQ_B3
AJ13
SDQ_B4
AM13
SDQ_B5
AJ14
SDQ_B6
AH15
SDQ_B7
AG15
SDQ_B8
AG16
SDQ_B9
AK18
SDQ_B10
AE19
SDQ_B11
AJ16
SDQ_B12
AE17
SDQ_B13
AG19
SDQ_B14
AJ18
SDQ_B15
AG21
SDQ_B16
AH21
SDQ_B17
AH23
SDQ_B18
AG24
SDQ_B19
AJ20
SDQ_B20
AF22
SDQ_B21
AJ23
SDQ_B22
AJ24
SDQ_B23
AJ25
SDQ_B24
AJ26
SDQ_B25
AG27
SDQ_B26
AD26
SDQ_B27
SDQ_B28
SDQ_B29
SDQ_B30
SDQ_B31
SDQ_B32
SDQ_B33
SDQ_B34
SDQ_B35
SDQ_B36
SDQ_B37
SDQ_B38
SDQ_B39
SDQ_B40
SDQ_B41
SDQ_B42
SDQ_B43
SDQ_B44
SDQ_B45
SDQ_B46
SDQ_B47
SDQ_B48
SDQ_B49
SDQ_B50
SDQ_B51
SDQ_B52
SDQ_B53
SDQ_B54
SDQ_B55
SDQ_B56
SDQ_B57
SDQ_B58
SDQ_B59
SDQ_B60
SDQ_B61
SDQ_B62
SDQ_B63
SECC_B0
SECC_B1
SECC_B2
SECC_B3
SECC_B4
SECC_B5
SECC_B6
SECC_B7
AF25
AE25
AE26
AG28
Y26
AA29
W27
V27
Y27
Y29
W28
W29
U27
T26
P27
N25
V29
U25
R29
P30
N29
N27
K29
L25
P29
N28
L28
L27
K27
H29
G29
H27
J29
J28
J27
G28
AE28
AF29
AB27
AA27
AE27
AC25
AD32
AB29
DDR Channel B
DDRB_MD0
DDRB_MD1
DDRB_MD2
DDRB_MD3
DDRB_MD4
DDRB_MD5
DDRB_MD6
DDRB_MD7
DDRB_MD8
DDRB_MD9
DDRB_MD10
DDRB_MD11
DDRB_MD12
DDRB_MD13
DDRB_MD14
DDRB_MD15
DDRB_MD16
DDRB_MD17
DDRB_MD18
DDRB_MD19
DDRB_MD20
DDRB_MD21
DDRB_MD22
DDRB_MD23
DDRB_MD24
DDRB_MD25
DDRB_MD26
DDRB_MD27
DDRB_MD28
DDRB_MD29
DDRB_MD30
DDRB_MD31
DDRB_MD32
DDRB_MD33
DDRB_MD34
DDRB_MD35
DDRB_MD36
DDRB_MD37
DDRB_MD38
DDRB_MD39
DDRB_MD40
DDRB_MD41
DDRB_MD42
DDRB_MD43
DDRB_MD44
DDRB_MD45
DDRB_MD46
DDRB_MD47
DDRB_MD48
DDRB_MD49
DDRB_MD50
DDRB_MD51
DDRB_MD52
DDRB_MD53
DDRB_MD54
DDRB_MD55
DDRB_MD56
DDRB_MD57
DDRB_MD58
DDRB_MD59
DDRB_MD60
DDRB_MD61
DDRB_MD62
DDRB_MD63
DDRB_ECC0
DDRB_ECC1
DDRB_ECC2
DDRB_ECC3
DDRB_ECC4
DDRB_ECC5
DDRB_ECC6
DDRB_ECC7
C653
C2.2U10X0805
C412
C2.2U10X0805
VCC_DDR
R318
150RST
R319
150RST
R306
42.2RST
DDRB_RCOMP
R308
42.2RST
R310
10KST
DDRB_RCOMPH
R312
30.1KST
V25_CAP1 <8>
R314
30.1KST
DDRB_RCOMPL
R316
10KST
DDRB_VREF
C421
C2.2U10X0805
V25_CAP3 <8>
V25_CAP1 <8>
C418
C0.1U50Y
C654
C0.1U50Y
C414
C0.1U50Y
CB15
C0.1U50Y
U22B
DDRA_MAA0
DDRA_MAA1
DDRA_MAA2
DDRA_MAA3
DDRA_MAA4
DDRA_MAA5
DDRA_MAA6
DDRA_MAA7
DDRA_MAA8
DDRA_MAA9
DDRA_MAA10
DDRA_MAA11
DDRA_MAA12
DDRA_BANKA0<9,11>
DDRA_BANKA1<9,11>
DDRA_WE<9,11>
DDRA_CAS<9,11>
DDRA_RAS<9,11>
DDRA_CS0<9,11>
DDRA_CS1<9,11>
DDRA_CS2<9,11>
DDRA_CS3<9,11>
DDRA_CKE0<9,11>
DDRA_CKE1<9,11>
DDRA_CKE2<9,11>
DDRA_CKE3<9,11>
A A
DDRA_BANKA0
DDRA_BANKA1
DDRA_WE
DDRA_CAS
DDRA_RAS
DDRA_CS0
DDRA_CS1
DDRA_CS2
DDRA_CS3
DDRA_CKE0
DDRA_CKE1
DDRA_CKE3
DDRA_CLK0
DDRA_CLK#0
DDRA_CLK#1
DDRA_CLK2
DDRA_CLK#2
DDRA_CLK3
DDRA_CLK#3
DDRA_CLK4
DDRA_CLK#4
DDRA_CLK5
DDRA_CLK#5
DDRA_RCOMP
DDRA_RCOMPH
DDRA_RCOMPL
CB14 C0.1U50Y
C420 C2.2U10X0805
DDRA_DQS0
DDRA_DQS1
DDRA_DQS2
DDRA_DQS3
DDRA_DQS4
DDRA_DQS5
DDRA_DQS6
DDRA_DQS7
DDRA_DQS8
AC29
AH32
AG31
AJ29
AK30
AN28
AK28
AM27
AL27
AL26
AD30
AN26
AL24
W31
AB30
U31
T33
V31
T31
P32
T30
R33
AM24
AL22
AL23
AN23
AE31
AE32
AN20
AM21
J32
J33
AG32
AG33
AM19
AL19
K30
K31
AG13
AN13
AH13
C32
AN15
AJ19
AL25
AL30
AA30
R31
J31
F30
AF33
SMAA_A0
SMAA_A1
SMAA_A2
SMAA_A3
SMAA_A4
SMAA_A5
SMAA_A6
SMAA_A7
SMAA_A8
SMAA_A9
SMAA_A10
SMAA_A11
SMAA_A12
SBA_A0
SBA_A1
SWE_A
SCAS_A
SRAS_A
SCS_A0
SCS_A1
SCS_A2
SCS_A3
SCKE_A0
SCKE_A1
SCKE_A2
SCKE_A3
SCMDCLK_A0
SCMDCLK_A0#
SCMDCLK_A1
SCMDCLK_A1#
SCMDCLK_A2
SCMDCLK_A2#
SCMDCLK_A3
SCMDCLK_A3#
SCMDCLK_A4
SCMDCLK_A4#
SCMDCLK_A5
SCMDCLK_A5#
SMXRCOMP
SMXRCOMPVOH
SMXRCOMPVOL
SMVREF_A
SDQS_A0
SDQS_A1
SDQS_A2
SDQS_A3
SDQS_A4
SDQS_A5
SDQS_A6
SDQS_A7
SDQS_A8
CTWD MCH
AL15
SDQ_A0
AM15
SDQ_A1
AJ17
SDQ_A2
AM16
SDQ_A3
AN14
SDQ_A4
AK16
SDQ_A5
AL16
SDQ_A6
AN16
SDQ_A7
AL17
SDQ_A8
AN17
SDQ_A9
AL21
SDQ_A10
AM22
SDQ_A11
AL18
SDQ_A12
AN19
SDQ_A13
AK20
SDQ_A14
AN21
SDQ_A15
AK24
SDQ_A16
AN25
SDQ_A17
AK26
SDQ_A18
AM28
SDQ_A19
AN24
SDQ_A20
AM25
SDQ_A21
AN27
SDQ_A22
AL28
SDQ_A23
AN29
SDQ_A24
AL29
SDQ_A25
AJ31
SDQ_A26
AH30
SDQ_A27
AJ27
SDQ_A28
SDQ_A29
SDQ_A30
SDQ_A31
SDQ_A32
SDQ_A33
SDQ_A34
SDQ_A35
SDQ_A36
SDQ_A37
SDQ_A38
SDQ_A39
SDQ_A40
SDQ_A41
SDQ_A42
SDQ_A43
SDQ_A44
SDQ_A45
SDQ_A46
SDQ_A47
SDQ_A48
SDQ_A49
SDQ_A50
SDQ_A51
SDQ_A52
SDQ_A53
SDQ_A54
SDQ_A55
SDQ_A56
SDQ_A57
SDQ_A58
SDQ_A59
SDQ_A60
SDQ_A61
SDQ_A62
SDQ_A63
SECC_A0
SECC_A1
SECC_A2
SECC_A3
SECC_A4
SECC_A5
SECC_A6
SECC_A7
AJ28
AK31
AH31
AA28
AA33
Y33
W32
AA31
AA32
Y31
W33
V33
U32
P31
N31
V30
U33
M31
M33
L31
L32
H30
G33
L33
K33
H33
H31
F33
F31
D31
E31
G32
G31
E33
E32
AG30
AF31
AE33
AC33
AJ33
AH33
AC31
AB33
DDR Channel A
DDRA_MD0
DDRA_MD1
DDRA_MD2
DDRA_MD3
DDRA_MD4
DDRA_MD5
DDRA_MD6
DDRA_MD7
DDRA_MD8
DDRA_MD9
DDRA_MD10
DDRA_MD11
DDRA_MD12
DDRA_MD13
DDRA_MD14
DDRA_MD15
DDRA_MD16
DDRA_MD17
DDRA_MD18
DDRA_MD19
DDRA_MD20
DDRA_MD21
DDRA_MD22
DDRA_MD23
DDRA_MD24
DDRA_MD25
DDRA_MD26
DDRA_MD27
DDRA_MD28
DDRA_MD29
DDRA_MD30
DDRA_MD31
DDRA_MD32
DDRA_MD33
DDRA_MD34
DDRA_MD35
DDRA_MD36
DDRA_MD37
DDRA_MD38
DDRA_MD39
DDRA_MD40
DDRA_MD41DDRA_CLK1
DDRA_MD42
DDRA_MD43
DDRA_MD44
DDRA_MD45
DDRA_MD46
DDRA_MD47
DDRA_MD48
DDRA_MD49
DDRA_MD50
DDRA_MD51
DDRA_MD52
DDRA_MD53
DDRA_MD54
DDRA_MD55
DDRA_MD56
DDRA_MD57
DDRA_MD58
DDRA_MD59
DDRA_MD60
DDRA_MD61
DDRA_MD62
DDRA_MD63
DDRA_ECC0
DDRA_ECC1
DDRA_ECC2
DDRA_ECC3
DDRA_ECC4
DDRA_ECC5
DDRA_ECC6
DDRA_ECC7
C409
C2.2U10X0805
C413
C2.2U10X0805
C417
C2.2U10X0805
VCC_DDR
R307
42.2RST
DDRA_RCOMP
R309
42.2RST
VCC_DDR
R311
10KST
DDRA_RCOMPH
R313
30.1KST
VCC_DDR
R315
30.1KST
DDRA_RCOMPL
R317
10KST
C411
C0.1U50Y
C415
C0.1U50Y
C419
C0.1U50Y
DDRB_BANKB0<10,11>
DDRB_BANKB1<10,11>
DDRB_WE<10,11>
DDRB_CAS<10,11>
DDRB_RAS<10,11>
DDRB_CS0<10,11>
DDRB_CS1<10,11>
DDRB_CS2<10,11>
DDRB_CS3<10,11>
DDRB_CKE0<10,11>
DDRB_CKE1<10,11>
DDRB_CKE2<10,11>
DDRB_CKE3<10,11>
DDRB_MAB0
DDRB_MAB1
DDRB_MAB2
DDRB_MAB3
DDRB_MAB4
DDRB_MAB5
DDRB_MAB6
DDRB_MAB7
DDRB_MAB8
DDRB_MAB9
DDRB_MAB10
DDRB_MAB11
DDRB_MAB12
DDRB_BANKB0
DDRB_BANKB1
DDRB_WE
DDRB_CAS
DDRB_RAS
DDRB_CS0
DDRB_CS1
DDRB_CS2
DDRB_CS3
DDRB_CKE0
DDRB_CKE1
DDRB_CKE2
DDRB_CKE3
DDRB_CLK0
DDRB_CLK#0DDRA_CKE2
DDRB_CLK1
DDRB_CLK#1
DDRB_CLK2
DDRB_CLK#2
DDRB_CLK3
DDRB_CLK#3
DDRB_CLK4
DDRB_CLK#4
DDRB_CLK5
DDRB_CLK#5
DDRB_RCOMP
DDRB_RCOMPH
DDRB_RCOMPL
DDRB_VREF
DDRB_DQS0
DDRB_DQS1
DDRB_DQS2
DDRB_DQS3
DDRB_DQS4
DDRB_DQS5
DDRB_DQS6
DDRB_DQS7
DDRB_DQS8
DDRB_MAB[12..0]
DDRB_CLK[5..0]
DDRB_CLK#[5..0]
DDRB_MAB[12..0] <10,11>
DDRB_CLK[5..0] <10>
DDRB_CLK#[5..0] <10>
DDRA_MAA[12..0]
DDRA_CLK[5..0]
DDRA_CLK#[5..0]
DDRA_DQS[8..0]
DDRA_MD[63..0]
DDRA_ECC[7..0]
DDRA_MAA[12..0] <9,11>
DDRA_CLK[5..0] <9>
DDRA_CLK#[5..0] <9>
DDRA_DQS[8..0] <9,11>
DDRA_MD[63..0] <9,11>
DDRA_ECC[7..0] <9,11>
1
DDRB_DQS[8..0]
DDRB_MD[63..0]
DDRB_ECC[7..0]
DDRB_DQS[8..0] <10,11>
DDRB_MD[63..0] <10,11>
DDRB_ECC[7..0] <10,11>
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
MCH:Canterwood(2)
Size Document Number Rev
CANTERWOOD
Date: Sheet
733Friday, April 25, 2003
of
1.0Custom
Page 8
V25_CAP6
V25_CAP4
V25_CAP2
V25_CAP3
V25_CAP1
V25_CAP5
NB_AN8
VCAP4
1
VCC_DDR
V25_CAP3 <7>
VCC_DDR
V25_CAP1 <7>
VCC_DDR
VCC1.5
AM29
AM26
AM23
AM20
AM17
AM14
AM9
AM7
AM5
AM3
AL31
AK27
AK25
AK19
AK17
AK15
AK8
AK4
AJ32
AJ30
AH28
AH22
AH18
AH14
AH6
AH4
AH3
AG7
AG5
AG2
AF32
AF30
AF26
AF23
AF20
AF17
AF15
AF13
AF9
AF8
AF4
AE24
AE22
AE20
AE18
AE16
AE14
AE6
AE2
AD28
AD25
AD23
AD21
AD19
AD17
AD15
AD13
AD9
AD7
AD4
AC32
AC30
AC24
AC20
AC18
AC16
AC14
AC6
AC2
AB28
AB25
AB11
AB10
AB9
AB8
AB4
AA26
AA24
AA11
AA9
AA6
AA2
AL6
AL3
AL2
AJ9
AJ7
AJ5
AJ2
U22F
CTWD MCH
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
GND
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
Y32
Y30
Y28
Y25
Y23
Y19
Y17
Y15
Y8
Y4
W26
W24
W20
W18
W16
W14
W6
W2
V32
V28
V25
V23
V19
V17
V15
V8
V4
U26
U24
U20
U18
U16
U14
U6
U2
T28
T25
T23
T19
T17
T15
T4
R32
R30
R24
R20
R18
R16
R14
R2
P28
P25
P23
P19
P17
P15
P4
P3
N30
N24
N2
M32
M28
M25
M24
M23
M1
L26
L24
L23
L12
K32
K28
K25
K24
K23
K22
K21
K20
K19
K18
K17
K16
K15
K14
K13
K7
J30
J26
VCC1.5
VCC1.5
VTT_NB
VTT_NB
NB_A30
NB_AK33
NB_AN8
VTT_CAP4
VTT_CAP1
VTT_CAP2
VTT_CAP3
VCAP4
VCAP3
VCAP2
VCAP1
V25_CAP1
V25_CAP2
V25_CAP3
V25_CAP4
V25_CAP5
V25_CAP6
C385 C0.1U50Y
C386 C0.1U50Y
C387 C0.1U50Y
C388 C0.47U16Y
C389 C0.47U16Y
C390 C0.47U16Y
C391 C0.22U16Y
C392 C0.22U16Y
C393 C0.47U16Y
C394 C0.1U50Y
C395 C0.22U16Y
C396 C0.47U16Y
C397 C0.1U50Y
C398 C0.47U16Y
C399 C0.22U16Y
C400 C1U10X
C401 C0.47U16Y
NB_HEATSINK
L33 0.82U30m
L38 1uH/1206-1A
<Prority>
CB10
C4.7U10Y0805
C404
C4.7U10Y0805
U23
H1X3(2)_black
U24
H1X3(2)_black
C402
C0.1U50Y
CB9
C0.1U50Y
CB11
C0.1U50Y
C405
C0.1U50Y
+
CT14
100u/16V
+
CT15
100u/16V
CB12
C0.1U50Y
C406
C0.1U50Y
VFSB15
VSM15
CB13
C0.1U50Y
C407
C0.1U50Y
U22E
CTWD MCH
AE13
AM18
AH20
AH24
AB32
AK13
AH16
AH26
AF28
W30
AC26
AK32
AH25
AK23
AK21
AE30
AK29
AM30
AK22
AF19
AN31
AN3
AM32
AM2
AL33
K12
A24
A20
A16
A10
T32
E29
U30
R26
N26
K10
K11
AL1
C33
B32
A31
L22
L21
L20
L19
L18
L17
L16
L15
L14
L13
L30
H6
H5
G6
G5
G4
F5
F4
E6
E5
E4
E3
D5
D4
D3
C6
C5
C4
C3
B5
B4
B3
D6
A4
K9
K8
C1
B2
A3
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TESTLOW
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
POWER
VCCA_FSB
VCCA_FSB
VCCA_DDR
VCCA_DDR
VCCA_DDR
VCCA_DDR
VTT_NB
VTT_CAP4
VTT_CAP1
VTT_CAP2
VTT_CAP3
VTT_NB
A A
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VCC3_3
J25
J24
J23
J22
J20
J18
J16
J14
J12
J10
J8
H32
H28
H26
H25
H21
H19
H17
H15
H13
H11
H9
H7
H4
G30
G27
F32
F29
F28
F27
F26
F24
F22
F20
F18
F16
F14
F12
F10
F8
F6
F3
E30
E2
D32
D30
D29
D27
D25
D23
D21
D19
D17
D15
D13
D11
D9
D7
B6
D1
C31
C30
B30
B28
B26
B24
B22
B20
B18
B16
B14
B12
B10
B8
D2
C2
A30
AK33
AC23
AC22
AB23
NB_A30
NB_AK33
VCC3
VFSB15
VSM15
VCC1.5
VCC1.5
VCAP3
VCAP2
VCAP1
W19
W17
W15
U19
U17
U15
U11
R19
R17
R15
R11
R10
N11
N10
M11
M10
AE1
AA1
Y20
Y18
Y16
Y14
V20
V18
V16
V14
V11
T20
T18
T16
T14
T11
T10
P20
P18
P16
P14
P11
P10
L11
L10
N9
N8
N7
M9
M8
M7
M6
N4
N3
M4
M3
M2
H3
H2
H1
G3
G2
G1
P9
L9
L8
L7
L6
L5
K6
K5
J6
J5
T1
L4
L3
L2
L1
K4
K3
K2
K1
J4
J3
J2
J1
F1
F2
E1
U22G
CTWD MCH
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCCA_AGP
VCCA_AGP
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCC_DDR
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
VCCHI
AN30
AN22
AN18
AN11
AN10
AM12
AM11
AM10
AL12
AL11
AL10
AK12
AK11
AK10
AJ12
AJ11
AJ10
AH12
AH11
AH10
AG12
AG11
AG10
AF12
AF11
AF10
AE15
AE12
AE11
AE10
AD33
AD24
AD22
AD20
AD18
AD16
AD14
AD12
AD11
AD10
AC21
AC19
AC17
AC15
AC13
AC12
AC11
AC10
AB24
AA23
Y24
W23
V24
U23
T24
R23
P33
P24
N23
D33
AN8
AN5
AA10
Y11
Y10
Y9
W11
W10
W9
V10
V9
U10
U9
T9
T8
T7
R9
R8
R7
R6
R5
P8
P7
P6
P5
N6
N5
M5
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
MCH:Canterwood(3)
Size Document Number Rev
CANTERWOOD
1
Date: Sheet
833Friday, April 25, 2003
of
1.0Custom
Page 9
1
VCC_DDRVCC_DDR
VDD
GND
DIMM1
120
148
168
VDD
VDD
VDD
VDD
VDD
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
GND
GND
GND
GND
DIMM-184-BK
145
152
160
176
DDRA_MD0
2
D0
DDRA_MD1
4
D1
DDRA_MD2
6
D2
DDRA_MD3
8
D3
DDRA_MD4
94
D4
DDRA_MD5
95
D5
DDRA_MD6
98
D6
DDRA_MD7
99
D7
12
D8
DDRA_MD9
13
D9
DDRA_MD10
19
D10
DDRA_MD11
20
D11
DDRA_MD12
105
D12
DDRA_MD13
106
D13
DDRA_MD14
109
D14
DDRA_MD15
110
D15
DDRA_MD16
23
D16
DDRA_MD17
24
D17
DDRA_MD18
28
D18
DDRA_MD19
31
D19
DDRA_MD20
114
D20
DDRA_MD21
117
D21
DDRA_MD22
121
D22
DDRA_MD23
123
D23
DDRA_MD24
33
D24
DDRA_MD25
35
D25
DDRA_MD26
39
D26
DDRA_MD27
40
D27
DDRA_MD28
126
D28
DDRA_MD29
127
D29
DDRA_MD30
131
D30
DDRA_MD31
133
D31
DDRA_MD32
53
D32
DDRA_MD33
55
D33
DDRA_MD34
57
D34
DDRA_MD35
60
D35
DDRA_MD36
146
D36
DDRA_MD37
147
D37
DDRA_MD38
150
D38
DDRA_MD39
151
D39
DDRA_MD40
61
D40
DDRA_MD41
64
D41
DDRA_MD42
68
D42
DDRA_MD43
69
D43
DDRA_MD44
153
D44
DDRA_MD45
155
D45
DDRA_MD46
161
D46
DDRA_MD47
162
D47
DDRA_MD48
72
D48
DDRA_MD49
73
D49
79
D50
DDRA_MD51
80
D51
DDRA_MD52
165
D52
DDRA_MD53
166
D53
DDRA_MD54
170
D54
DDRA_MD55
171
D55
DDRA_MD56
83
D56
DDRA_MD57
84
D57
DDRA_MD58
87
D58
DDRA_MD59
88
D59
DDRA_MD60
174
D60
DDRA_MD61
175
D61
DDRA_MD62
178
D62
DDRA_MD63
179
D63
DDRA_ECC0
44
DDRA_ECC1
45
DDRA_ECC2
49
DDRA_ECC3
51
DDRA_ECC4
134
DDRA_ECC5
135
DDRA_ECC6
142
DDRA_ECC7
144
R292 4.7K
90
WP
SPD_WP#
VCC_DDR
SPD_WP# <10>
DDRA_BANKA0<7,11>
DDRA_BANKA1<7,11>
DDRA_CKE2<7,11>
DDRA_CKE3<7,11>
VREF_DIMMAVREF_DIMMA
DDRA_CS2<7,11>
DDRA_CS3<7,11>
DDRA_WE<7,11>
DDRA_CAS<7,11>
DDRA_RAS<7,11>
VCC_DDR
VCC_DDRVCC_DDR
DDRA_MAA0
DDRA_MAA1
DDRA_MAA2
DDRA_MAA3
DDRA_MAA4
DDRA_MAA5
DDRA_MAA6
DDRA_MAA7
DDRA_MAA8
DDRA_MAA9
DDRA_MAA10
DDRA_MAA11
DDRA_MAA12
DDRA_BANKA0
DDRA_BANKA1
DDRA_CS2
DDRA_CS3
DDRA_WE
DDRA_CAS
DDRA_RAS
DDRA_CKE2
DDRA_CKE3
DDRA_CLK3
DDRA_CLK#3
DDRA_CLK4
DDRA_CLK#4
DDRA_CLK5
DDRA_CLK#5
DDRA_DQS0
DDRA_DQS1
DDRA_DQS2DDRA_MD50
DDRA_DQS3
DDRA_DQS4
DDRA_DQS5
DDRA_DQS6
DDRA_DQS7
DDRA_DQS8
SMB_DATA
SMB_CLK
130
125
122
141
118
115
167
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
103
48
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
15223054627796
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0
CK0
CK1/DNU
CK1/DNU
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC
NC
NC
NC
NC/FETEN
VDDQ
VDDQ
VDDQ
104
112
128
136
143
156
164
172
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
PC2700
Pin 167: A13
Pin 103: NC
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
3111826344250586674818993
180738467085108
VDD
VDD
VDD
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
100
116
124
132
139
15223054627796
DDRA_MAA0
DDRA_MAA1
DDRA_MAA2
DDRA_MAA3
DDRA_MAA4
DDRA_MAA5
DDRA_MAA6
DDRA_MAA7
DDRA_MAA8
DDRA_MAA9
DDRA_MAA10
DDRA_MAA11
DDRA_MAA12
DDRA_BANKA0<7,11>
DDRA_BANKA1<7,11>
DDRA_CS0<7,11>
DDRA_CS1<7,11>
DDRA_WE<7,11>
DDRA_CAS<7,11>
DDRA_RAS<7,11>
DDRA_CKE0<7,11>
DDRA_CKE1<7,11>
A A
SMB_DATA<5,10,22,29,30>
SMB_CLK<5,10,22,29,30>
DDRA_BANKA0
DDRA_BANKA1
DDRA_CS0
DDRA_CS1
DDRA_WE
DDRA_CAS
DDRA_RAS
DDRA_CKE0
DDRA_CKE1
DDRA_CLK0
DDRA_CLK#0
DDRA_CLK1
DDRA_CLK#1
DDRA_CLK2
DDRA_CLK#2
DDRA_DQS0
DDRA_DQS1
DDRA_DQS2
DDRA_DQS3
DDRA_DQS4
DDRA_DQS5
DDRA_DQS6
DDRA_DQS7
DDRA_DQS8
SMB_DATA
SMB_CLK
A0 A2
130
125
122
141
118
115
167
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
103
48
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0
CK0
CK1/DNU
CK1/DNU
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC
NC
NC
NC
NC/FETEN
VDDQ
104
112
128
136
143
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
PC2700
Pin 167: A13
Pin 103: NC
GND
GND
GND
GND
GND
GND
GND
GND
3111826344250586674818993
156
VDDQ
GND
164
VDDQ
GND
172
VDDQ
GND
180738467085108
VDD
VDD
VDD
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
100
116
124
132
139
VDD
GND
DIMM2
120
148
168
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
DIMM-184-BK
145
152
160
176
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
WP
DDRA_MD0
2
D0
DDRA_MD1
4
D1
DDRA_MD2
6
D2
DDRA_MD3
8
D3
DDRA_MD4
94
D4
DDRA_MD5
95
D5
DDRA_MD6
98
D6
DDRA_MD7
99
D7
DDRA_MD8DDRA_MD8
12
D8
DDRA_MD9
13
D9
DDRA_MD10
19
DDRA_MD11
20
DDRA_MD12
105
DDRA_MD13
106
DDRA_MD14
109
DDRA_MD15
110
DDRA_MD16
23
DDRA_MD17
24
DDRA_MD18
28
DDRA_MD19
31
DDRA_MD20
114
DDRA_MD21
117
DDRA_MD22
121
DDRA_MD23
123
DDRA_MD24
33
DDRA_MD25
35
DDRA_MD26
39
DDRA_MD27
40
DDRA_MD28
126
DDRA_MD29
127
DDRA_MD30
131
DDRA_MD31
133
DDRA_MD32
53
DDRA_MD33
55
DDRA_MD34
57
DDRA_MD35
60
DDRA_MD36
146
DDRA_MD37
147
DDRA_MD38
150
DDRA_MD39
151
DDRA_MD40
61
DDRA_MD41
64
DDRA_MD42
68
DDRA_MD43
69
DDRA_MD44
153
DDRA_MD45
155
DDRA_MD46
161
DDRA_MD47
162
DDRA_MD48
72
DDRA_MD49
73
DDRA_MD50
79
DDRA_MD51
80
DDRA_MD52
165
DDRA_MD53
166
DDRA_MD54
170
DDRA_MD55
171
DDRA_MD56
83
DDRA_MD57
84
DDRA_MD58
87
DDRA_MD59
88
DDRA_MD60
174
DDRA_MD61
175
DDRA_MD62
178
DDRA_MD63
179
DDRA_ECC0
44
DDRA_ECC1
45
DDRA_ECC2
49
DDRA_ECC3
51
DDRA_ECC4
134
DDRA_ECC5
135
DDRA_ECC6
142
DDRA_ECC7
144
SPD_WP#
90
DDRA_MAA[12..0]
DDRA_CLK[5..0]
DDRA_CLK#[5..0]
DDRA_DQS[8..0]
DDRA_MD[63..0]
DDRA_ECC[7..0]
DDRA_MAA[12..0] <7,11>
DDRA_CLK[5..0] <7>
DDRA_CLK#[5..0] <7>
DDRA_DQS[8..0] <7,11>
DDRA_MD[63..0] <7,11>
DDRA_ECC[7..0] <7,11>
C361
C0.1U50Y
C362
C0.1U50Y
C363
C0.1U50Y
C364
C0.1U50Y
VCC_DDR VREF_DIMMAVCC_DDR
C365
C0.1U50Y
1
R293 75RST
R294
75RST
C366
C0.1U50Y
C367
C0.1U50Y
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
DDR DIMM 1&2
Size Document Number Rev
CANTERWOOD
Date: Sheet
933Friday, April 25, 2003
1.0Custom
of
Page 10
1
VCC_DDRVCC_DDR
VDD
GND
DIMM4
120
148
168
VDD
VDD
VDD
VDD
VDD
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
GND
GND
GND
GND
DIMM-184-BK
145
152
160
176
DDRB_MD0
2
D0
DDRB_MD1
4
D1
DDRB_MD2
6
D2
DDRB_MD3
8
D3
DDRB_MD4
94
D4
DDRB_MD5
95
D5
DDRB_MD6
98
D6
DDRB_MD7
99
D7
DDRB_MD8
12
D8
DDRB_MD9
13
D9
DDRB_MD10
19
D10
DDRB_MD11
20
D11
DDRB_MD12
105
D12
DDRB_MD13DDRB_MD13
106
D13
DDRB_MD14
109
D14
DDRB_MD15
110
D15
DDRB_MD16
23
D16
DDRB_MD17
24
D17
DDRB_MD18
28
D18
DDRB_MD19
31
D19
DDRB_MD20
114
D20
DDRB_MD21
117
D21
DDRB_MD22
121
D22
DDRB_MD23
123
D23
DDRB_MD24
33
D24
DDRB_MD25
35
D25
DDRB_MD26
39
D26
DDRB_MD27
40
D27
DDRB_MD28
126
D28
DDRB_MD29
127
D29
DDRB_MD30
131
D30
DDRB_MD31
133
D31
DDRB_MD32
53
D32
DDRB_MD33
55
D33
DDRB_MD34
57
D34
DDRB_MD35
60
D35
DDRB_MD36
146
D36
DDRB_MD37
147
D37
DDRB_MD38
150
D38
DDRB_MD39
151
D39
DDRB_MD40
61
D40
DDRB_MD41
64
D41
DDRB_MD42
68
D42
DDRB_MD43
69
D43
DDRB_MD44
153
D44
DDRB_MD45
155
D45
DDRB_MD46
161
D46
DDRB_MD47
162
D47
72
D48
DDRB_MD49
73
D49
DDRB_MD50
79
D50
DDRB_MD51
80
D51
DDRB_MD52
165
D52
DDRB_MD53
166
D53
DDRB_MD54
170
D54
DDRB_MD55
171
D55
DDRB_MD56
83
D56
DDRB_MD57
84
D57
DDRB_MD58
87
D58
DDRB_MD59
88
D59
DDRB_MD60
174
D60
DDRB_MD61
175
D61
DDRB_MD62
178
D62
DDRB_MD63
179
D63
DDRB_ECC0
44
DDRB_ECC1
45
DDRB_ECC2
49
DDRB_ECC3
51
DDRB_ECC4
134
DDRB_ECC5
135
DDRB_ECC6
142
DDRB_ECC7
144
SPD_WP#
90
WP
15223054627796
DDRB_MAB0
DDRB_MAB1
DDRB_MAB2
DDRB_MAB3
DDRB_MAB4
DDRB_MAB5
DDRB_MAB6
DDRB_MAB7
DDRB_MAB8
DDRB_MAB9
DDRB_MAB10
DDRB_MAB11
DDRB_MAB12
VCC_DDR
DDRB_BANKB0
DDRB_BANKB1
DDRB_CS0
DDRB_CS1
DDRB_WE
DDRB_CAS
DDRB_RAS
DDRB_CKE0
DDRB_CKE1
DDRB_CLK0
DDRB_CLK#0
DDRB_CLK1
DDRB_CLK#1
DDRB_CLK2
DDRB_CLK#2
DDRB_DQS0
DDRB_DQS1
DDRB_DQS2
DDRB_DQS3
DDRB_DQS4
DDRB_DQS5
DDRB_DQS6
DDRB_DQS7
DDRB_DQS8
SMB_DATA
SMB_CLK
DDRB_BANKB0<7,11>
DDRB_BANKB1<7,11>
DDRB_CS0<7,11>
DDRB_CS1<7,11>
DDRB_WE<7,11>
DDRB_CAS<7,11>
DDRB_RAS<7,11>
DDRB_CKE0<7,11>
DDRB_CKE1<7,11>
A A
SMB_DATA<5,9,22,29,30>
SMB_CLK<5,9,22,29,30>
VREF_DIMMB
VCC_DDR
130
125
122
141
118
115
167
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
103
48
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0
CK0
CK1/DNU
CK1/DNU
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC
NC
NC
NC
NC/FETEN
VDDQ
104
112
128
136
143
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
PC2700
Pin 167: A13
Pin 103: NC
GND
GND
GND
GND
GND
GND
GND
GND
3111826344250586674818993
156
VDDQ
GND
164
VDDQ
GND
172
VDDQ
GND
180738467085108
VDD
VDD
VDD
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
100
116
124
132
DIMM3
120
148
168
VDD
VDD
VDD
VDD
VDD
VDD
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
GND
GND
GND
GND
GND
DIMM-184-BK
139
145
152
160
176
DDRB_MD0
2
D0
DDRB_MD1
4
D1
DDRB_MD2
6
D2
DDRB_MD3
8
D3
DDRB_MD4
94
D4
DDRB_MD5
95
D5
DDRB_MD6
98
D6
DDRB_MD7
99
D7
DDRB_MD8
12
D8
DDRB_MD9
13
D9
DDRB_MD10
19
DDRB_MD11
20
DDRB_MD12
105
106
DDRB_MD14
109
DDRB_MD15
110
DDRB_MD16
23
DDRB_MD17
24
DDRB_MD18
28
DDRB_MD19
31
DDRB_MD20
114
DDRB_MD21
117
DDRB_MD22
121
DDRB_MD23
123
DDRB_MD24
33
DDRB_MD25
35
DDRB_MD26
39
DDRB_MD27
40
DDRB_MD28
126
DDRB_MD29
127
DDRB_MD30
131
DDRB_MD31
133
DDRB_MD32
53
DDRB_MD33
55
DDRB_MD34
57
DDRB_MD35
60
DDRB_MD36
146
DDRB_MD37
147
DDRB_MD38
150
DDRB_MD39
151
DDRB_MD40
61
DDRB_MD41
64
DDRB_MD42
68
DDRB_MD43
69
DDRB_MD44
153
DDRB_MD45
155
DDRB_MD46
161
DDRB_MD47
162
DDRB_MD48 DDRB_MD48
72
DDRB_MD49
73
DDRB_MD50
79
DDRB_MD51
80
DDRB_MD52
165
DDRB_MD53
166
DDRB_MD54
170
DDRB_MD55
171
DDRB_MD56
83
DDRB_MD57
84
DDRB_MD58
87
DDRB_MD59
88
DDRB_MD60
174
DDRB_MD61
175
DDRB_MD62
178
DDRB_MD63
179
DDRB_ECC0
44
DDRB_ECC1
45
DDRB_ECC2
49
DDRB_ECC3
51
DDRB_ECC4
134
DDRB_ECC5
135
DDRB_ECC6
142
DDRB_ECC7
144
SPD_WP#
90
WP
SPD_WP# <9>
DDRB_BANKB0<7,11>
DDRB_BANKB1<7,11>
DDRB_CS2<7,11>
DDRB_CS3<7,11>
DDRB_WE<7,11>
DDRB_CAS<7,11>
DDRB_RAS<7,11>
DDRB_CKE2<7,11>
DDRB_CKE3<7,11>
VCC_DDR
VREF_DIMMB
VCC_DDR
DDRB_MAB0
DDRB_MAB1
DDRB_MAB2
DDRB_MAB3
DDRB_MAB4
DDRB_MAB5
DDRB_MAB6
DDRB_MAB7
DDRB_MAB8
DDRB_MAB9
DDRB_MAB10
DDRB_MAB11
DDRB_MAB12
DDRB_BANKB0
DDRB_BANKB1
DDRB_CS2
DDRB_CS3
DDRB_WE
DDRB_CAS
DDRB_RAS
DDRB_CKE2
DDRB_CKE3
DDRB_CLK3
DDRB_CLK#3
DDRB_CLK4
DDRB_CLK#4
DDRB_CLK5
DDRB_CLK#5
DDRB_DQS0
DDRB_DQS1
DDRB_DQS2
DDRB_DQS3
DDRB_DQS4
DDRB_DQS5
DDRB_DQS6
DDRB_DQS7
DDRB_DQS8
SMB_DATA
SMB_CLK
A6A4
130
125
122
141
118
115
167
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
103
48
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
15223054627796
VDDQ
VDDQ
VDDQ
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0
CK0
CK1/DNU
CK1/DNU
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC
NC
NC
NC
NC/FETEN
3111826344250586674818993
VDDQ
GND
VDDQ
GND
104
112
VDDQ
VDDQ
VDDQ
VDDQ
PC2700
Pin 167: A13
Pin 103: NC
GND
GND
GND
GND
128
VDDQ
GND
136
143
VDDQ
GND
VDDQ
GND
156
164
172
180738467085108
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
VDD
VDD
VDD
GND
GND
GND
GND
100
116
124
132
139
DDRB_DQS[8..0]
DDRB_MD[63..0]
DDRB_ECC[7..0]
DDRB_MAB[12..0]
DDRB_CLK[5..0]
DDRB_CLK#[5..0]
DDRB_DQS[8..0] <7,11>
DDRB_MD[63..0] <7,11>
DDRB_ECC[7..0] <7,11>
DDRB_MAB[12..0] <7,11>
DDRB_CLK[5..0] <7>
DDRB_CLK#[5..0] <7>
C354
C0.1U50Y
C355
C0.1U50Y
C356
C0.1U50Y
1
C357
C0.1U50Y
VCC_DDR
C358
C0.1U50Y
VCC_DDR
R290 75RST
VREF_DIMMB
R291
C359
75RST
C360
C0.1U50Y
C0.1U50Y
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
DDR DIMM 3&4
Size Document Number Rev
CANTERWOOD
Date: Sheet
10 33Friday, April 25, 2003
1.0Custom
of
Page 11

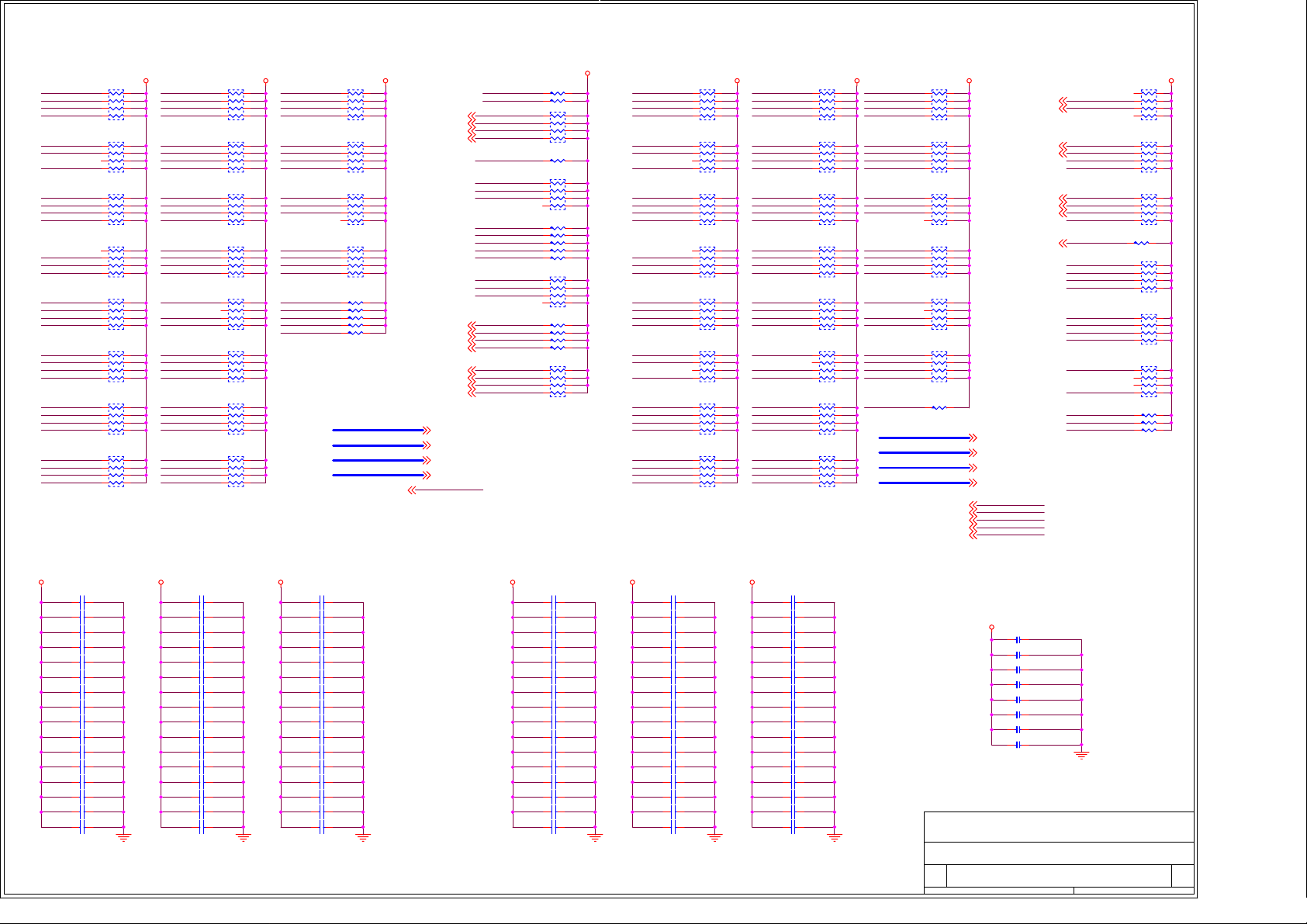

(All parts change to 0402 size, 1/17)
1
VTT_DDR
DDRA_MD1
DDRA_MD5
DDRA_MD4
DDRA_MD0
DDRA_MD6
DDRA_MD2
DDRA_DQS0
DDRA_MD9
DDRA_MD8
DDRA_MD3
DDRA_MD7
DDRA_MD13
DDRA_DQS1
DDRA_MD12
DDRA_MD11
DDRA_MD10
DDRA_MD15
DDRA_MD14
DDRA_DQS2
DDRA_MD21
DDRA_MD17
DDRA_MD16
DDRA_MD25
DDRA_MAA6
DDRA_MD24
DDRA_MD19
A A
DDRA_MAA4
DDRA_DQS3
DDRA_MD29
DDRA_MD28
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
RN39
56/0402
RN47
56/0402
RN55
56/0402
RN63
56/0402
RN69
56/0402
RN75
56/0402
RN81
56/0402
RN87
56/0402
DDRA_ECC4
2
DDRA_MAA2
4
DDRA_MD31
6
DDRA_MD27
8
DDRA_DQS8
2
DDRA_ECC1 DDRB_MD52
4
DDRA_ECC5
6
DDRA_ECC0
8
DDRA_ECC7
2
DDRA_BANKA1
4
DDRA_ECC3
6
DDRA_ECC6
8
DDRA_MD37
2
DDRA_MD33
4
DDRA_MD36
6
DDRA_MD32
8
DDRA_MD38
2
4
DDRA_MD34
6
DDRA_DQS4
8
DDRA_MD40
2
DDRA_MD44
4
DDRA_MD35
6
DDRA_MD39
8
DDRA_MD46
2
DDRA_MD43
4
DDRA_MD42
6
DDRA_DQS5
8
DDRA_MD52
2
DDRA_MD49
4
DDRA_MD48
6
DDRA_MD47
8
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
RN40
56/0402
RN48
56/0402
RN56
56/0402
RN64
56/0402
RN70
56/0402
RN76
56/0402
RN82
56/0402
RN88
56/0402
DDRA_MD55
2
DDRA_MD54
4
DDRA_DQS6
6
DDRA_MD53
8
DDRA_MD61
2
DDRA_MD60
4
DDRA_MD51
6
DDRA_MD50
8
DDRA_DQS7
2
DDRA_MD57
4
DDRA_MD56
6
8
DDRA_MD58
2
DDRA_MD59
4
DDRA_MD63
6
DDRA_MD62
8
DDRA_MD20
2
DDRA_MAA5
4
DDRA_MD18
6
DDRA_MD41
8
DDRA_MD45
2
4
6
8
2
4
6
8
2
4
6
8
RN41
1
2
3
4
5
6
7
8
56/0402
RN49
1
2
3
4
5
6
7
8
56/0402
RN57
1
2
3
4
5
6
7
8
56/0402
RN65
1
2
3
4
5
6
7
8
56/0402
R284 56/0402
R489 56/0402
R491 56/0402
R503 56/0402
R509 56/0402
DDRA_MAA[12..0]
DDRA_DQS[8..0]
DDRA_MD[63..0]
DDRA_ECC[7..0]
DDRA_BANKA1<7,9>
DDRA_CKE0<7,9>
DDRA_CKE2<7,9>
DDRA_CKE3<7,9>
DDRA_CKE1<7,9>
DDRA_BANKA0<7,9>
DDRA_CS0<7,9>
DDRA_WE<7,9>
DDRA_RAS<7,9>
DDRA_CS3<7,9>
DDRA_CS1<7,9>
DDRA_CS2<7,9>
DDRA_CAS<7,9>
DDRA_MAA[12..0] <7,9>
DDRA_DQS[8..0] <7,9>
DDRA_MD[63..0] <7,9>
DDRA_ECC[7..0] <7,9>
DDRA_BANKA1
DDRA_MAA9
DDRA_MAA11
DDRA_CKE0
DDRA_CKE2
DDRA_CKE3
DDRA_CKE1
DDRA_MAA12
DDRA_MAA8
DDRA_MAA7
DDRA_MD22
DDRA_MD23
DDRA_MAA3
DDRA_MD30
DDRA_MAA1
DDRA_MD26
DDRA_ECC2
DDRA_MAA10
DDRA_MAA0
DDRA_BANKA0
DDRA_CS0
DDRA_WE
DDRA_RAS
DDRA_CS3
DDRA_CS1
DDRA_CS2
DDRA_CAS
VTT_DDR
R511 47RST/0402
R515 47RST/0402
RN103
1
2
3
4
5
6
7
8
47/04022
R288 47RST/0402
RN105
1
2
3
4
5
6
7
8
47/04022
R505 47RST/0402
R499 47RST/0402
R501 47RST/0402
R495 47RST/0402
R497 47RST/0402
RN108
1
2
3
4
5
6
7
8
47/04022
R469 47RST/0402
R507 47RST/0402
R473 47RST/0402
R477 47RST/0402
RN110
1
2
3
4
5
6
7
8
47/04022
DDRB_MD1
DDRB_MD5
DDRB_MD4
DDRB_MD0
DDRB_MD6
DDRB_MD2
DDRB_DQS0
DDRB_MD9
DDRB_MD8
DDRB_MD3
DDRB_MD7
DDRB_MD13
DDRB_DQS1
DDRB_MD12
DDRB_CKE3
DDRB_MD10
DDRB_MD15
DDRB_MD14
DDRB_MD17
DDRB_MD16
DDRB_MD20
DDRB_MD22
DDRB_MAB7
DDRB_MD18
DDRB_MAB9
DDRB_MD24
DDRB_MAB6
DDRB_MAB5
DDRB_MD23
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
RN43
56/0402
RN51
56/0402
RN59
56/0402
RN66
56/0402
RN71
56/0402
RN77
56/0402
RN83
56/0402
RN89
56/0402
VTT_DDR
DDRB_MAB3
2
DDRB_MAB4
4
DDRB_DQS3
6
DDRB_MD29
8
DDRB_MD31
2
DDRB_MD30
4
DDRB_MD27
6
DDRB_MD26
8
DDRB_ECC0
2
DDRB_MAB1
4
DDRB_ECC4
6
DDRB_MAB2
8
DDRB_BANKB1
2
DDRB_ECC7
4
DDRB_ECC3
6
DDRB_ECC6
8
DDRB_MD37
2
DDRB_MD33
4
DDRB_MD36
6
DDRB_MD32
8
DDRB_MD38
2
4
DDRB_MD34
6
DDRB_DQS4
8
DDRB_MD40
2
DDRB_MD44
4
DDRB_MD35
6
DDRB_MD39
8
DDRB_CS1
2
DDRB_DQS5
4
DDRB_CS0
6
DDRB_CS3
8
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
RN44
56/0402
RN52
56/0402
RN60
56/0402
RN67
56/0402
RN72
56/0402
RN78
56/0402
RN84
56/0402
RN90
56/0402
DDRB_MD47
2
DDRB_MD43
4
DDRB_MD46
6
DDRB_MD42
8
DDRB_MD53
2
4
DDRB_MD49
6
DDRB_MD48
8
DDRB_MD55
2
DDRB_DQS6
4
DDRB_MD54
6
8
DDRB_MD61
2
DDRB_MD60
4
DDRB_MD51
6
DDRB_MD50
8
DDRB_DQS7
2
4
DDRB_MD57
6
DDRB_MD56
8
DDRB_MD63
2
DDRB_MD59
4
DDRB_MD58
6
DDRB_MD62
8
DDRB_MAB10
2
4
6
8
2
4
6
8
DDRB_MAB[12..0]
DDRB_DQS[8..0]
DDRB_MD[63..0]
DDRB_ECC[7..0]
VTT_DDRVTT_DDRVTT_DDR VTT_DDR VTT_DDR
RN45
1
2
3
4
5
6
7
8
56/0402
RN53
1
2
3
4
5
6
7
8
56/0402
RN61
1
2
3
4
5
6
7
8
56/0402
RN112
1
2
3
4
5
6
7
8
56/0402
RN113
1
2
3
4
5
6
7
8
56/0402
RN68
1
2
3
4
5
6
7
8
56/0402
R287 56/0402
DDRB_CS1<7,10>
DDRB_CS0<7,10>
DDRB_CS3<7,10>
DDRB_BANKB1<7,10>
DDRB_CKE3<7,10>
DDRB_WE<7,10>
DDRB_RAS<7,10>
DDRB_CS2<7,10>
DDRB_CAS<7,10>
DDRB_CKE0<7,10>
DDRB_CKE2<7,10>
DDRB_CKE1<7,10>
DDRB_BANKB0<7,10>
DDRB_MAB[12..0] <7,10>
DDRB_DQS[8..0] <7,10>
DDRB_MD[63..0] <7,10>
DDRB_ECC[7..0] <7,10>
DDRB_CS1
DDRB_CS0
DDRB_CS3
DDRB_BANKB1
DDRB_CKE3
DDRB_WE
DDRB_RAS
DDRB_CS2
DDRB_CAS
DDRB_MD41
DDRB_MD45
DDRB_CKE0
DDRB_CKE2
DDRB_CKE1
DDRB_MD11
DDRB_BANKB0
DDRB_DQS8
DDRB_MAB0
DDRB_ECC1
DDRB_ECC5
DDRB_MAB11
DDRB_MD21
DDRB_DQS2
DDRB_MAB12
DDRB_MD19
DDRB_MAB8
DDRB_MD25
DDRB_MD28
DDRB_ECC2
RN102
1
2
3
4
5
6
7
8
47/04022
RN104
1
2
3
4
5
6
7
8
47/04022
RN106
1
2
3
4
5
6
7
8
47/04022
R470 47RST/0402
RN107
1
2
3
4
5
6
7
8
47/04022
RN109
1
2
3
4
5
6
7
8
47/04022
RN111
1
2
3
4
5
6
7
8
47/04022
R500 47RST/0402
R502 47RST/0402
R514 47RST/0402
VTT_DDR
C672 C0.1U10X0402
C678 C0.1U10X0402
C684 C0.1U10X0402
C690 C0.1U10X0402
C696 C0.1U10X0402
C702 C0.1U10X0402
C708 C0.1U10X0402
C714 C0.1U10X0402
C720 C0.1U10X0402
C726 C0.1U10X0402
C732 C0.1U10X0402
C738 C0.1U10X0402
C744 C0.1U10X0402
C750 C0.1U10X0402
C756 C0.1U10X0402
C762 C0.1U10X0402
VTT_DDR VTT_DDR
C673 C0.1U10X0402
C679 C0.1U10X0402
C691 C0.1U10X0402
C697 C0.1U10X0402
C703 C0.1U10X0402
C709 C0.1U10X0402
C715 C0.1U10X0402
C721 C0.1U10X0402
C727 C0.1U10X0402
C733 C0.1U10X0402
C739 C0.1U10X0402
C745 C0.1U10X0402
C751 C0.1U10X0402
C757 C0.1U10X0402
C763 C0.1U10X0402
C674 C0.1U10X0402
C680 C0.1U10X0402
C686 C0.1U10X0402
C692 C0.1U10X0402
C698 C0.1U10X0402
C704 C0.1U10X0402
C710 C0.1U10X0402
C716 C0.1U10X0402
C722 C0.1U10X0402
C728 C0.1U10X0402
C734 C0.1U10X0402
C740 C0.1U10X0402
C746 C0.1U10X0402
C752 C0.1U10X0402
C758 C0.1U10X0402
C764 C0.1U10X0402
VTT_DDR VTT_DDR VTT_DDR
C675 C0.1U10X0402
C681 C0.1U10X0402
C687 C0.1U10X0402C685 C0.1U10X0402
C693 C0.1U10X0402
C699 C0.1U10X0402
C705 C0.1U10X0402
C711 C0.1U10X0402
C717 C0.1U10X0402
C723 C0.1U10X0402
C729 C0.1U10X0402
C735 C0.1U10X0402
C741 C0.1U10X0402
C747 C0.1U10X0402
C753 C0.1U10X0402
C759 C0.1U10X0402
C765 C0.1U10X0402
1
C676 C0.1U10X0402
C682 C0.1U10X0402
C688 C0.1U10X0402
C694 C0.1U10X0402
C700 C0.1U10X0402
C706 C0.1U10X0402
C712 C0.1U10X0402
C718 C0.1U10X0402
C724 C0.1U10X0402
C730 C0.1U10X0402
C736 C0.1U10X0402
C742 C0.1U10X0402
C748 C0.1U10X0402
C754 C0.1U10X0402
C760 C0.1U10X0402
C766 C0.1U10X0402
C677 C0.1U10X0402
C683 C0.1U10X0402
C689 C0.1U10X0402
C695 C0.1U10X0402
C701 C0.1U10X0402
C707 C0.1U10X0402
C713 C0.1U10X0402
C719 C0.1U10X0402
C725 C0.1U10X0402
C731 C0.1U10X0402
C737 C0.1U10X0402
C743 C0.1U10X0402
C749 C0.1U10X0402
C755 C0.1U10X0402
C761 C0.1U10X0402
C767 C0.1U10X0402
VTT_DDR
C251 C10U10X1206
C257 C10U10X1206
C263 C10U10X1206
C269 C10U10X1206
C275 C10U10X1206
C281 C10U10X1206
C287 C10U10X1206
C293 C10U10X1206
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
DDR Termination_A&B
Size Document Number Rev
CANTERWOOD
Date: Sheet
11 33Friday, April 25, 2003
of
1.0Custom
Page 12

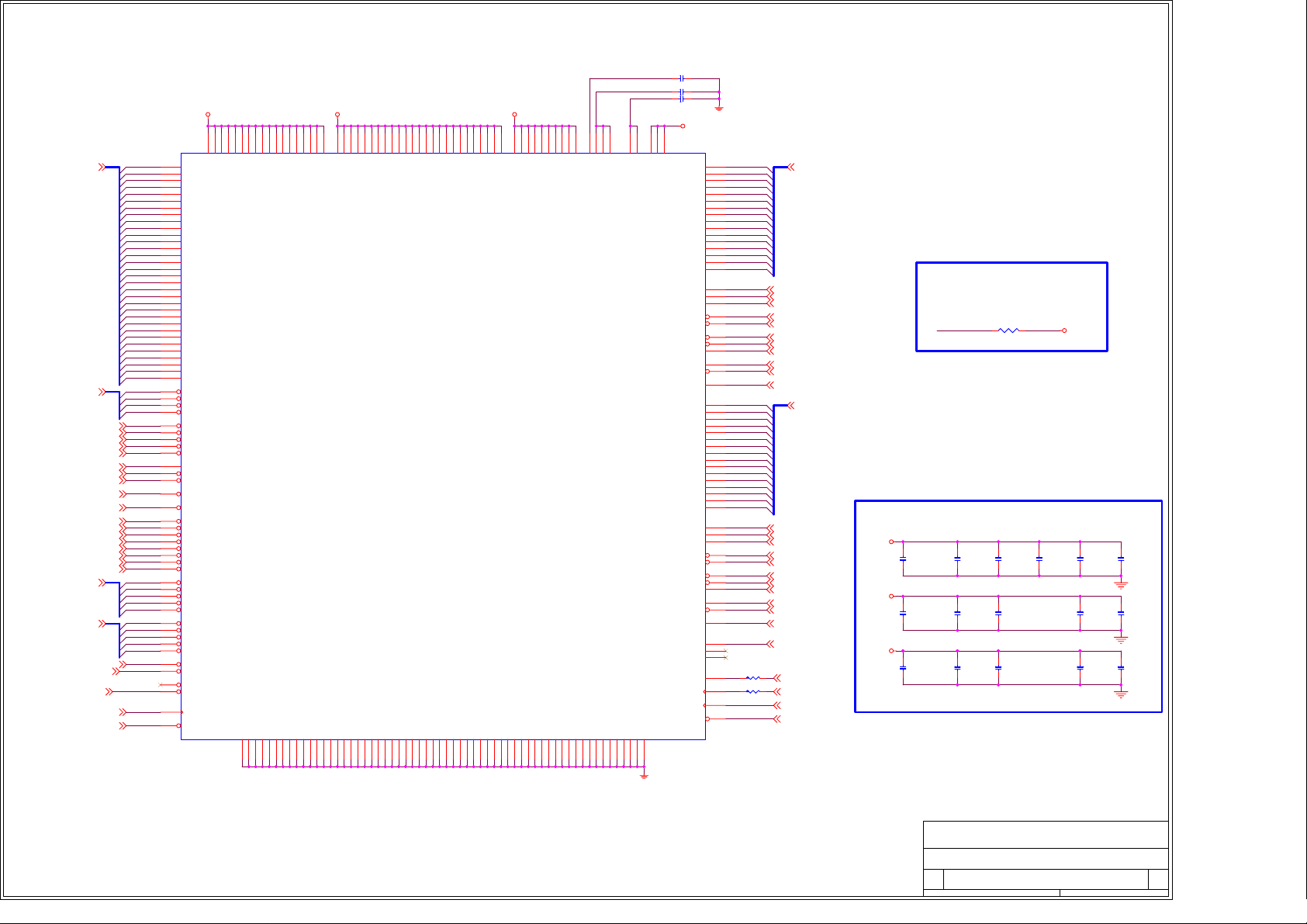

1
C538 C0.01U50X
SUS_A
SUS_B
VCC1_5S
GND
3VSB
W19
B15
E13
E14
E18
VCC1_5S
GND
B23C3C8
VCC1_5S
GND
F16
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
GND
GND
C16
C18
C20
C22D1D6
W9
W10
W11
VCC1_5S
VCC1_5S
VCC1_5S
VCC1_5S
GND
GND
GND
GND
AD12
B13
B17
B19
B21
F19Y5AA4
F17
F18
K15U6V6
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
D11
AB4F7F8
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS1_5A
VCCSUS1_5B
VCCSUS1_5B
VCCSUS1_5B
GND
GND
GND
GND
GND
GND
GND
GND
D16
D18
D20
D22
D24
E17
E19
E20
VCC1.5VCC3
B5F6G1H6K6L6M10
PCI_AD[0..31]<16,17>
PCI_CBE#[0..3]<16,17>
PCI_FRAME#<16,17>
PCI_IRDY#<16,17>
PCI_TRDY#<16,17>
A A
PCI_DEVSEL#<16,17>
PCI_STOP#<16,17>
PCI_PAR<16,17>
PCI_PERR#<16,17>
PCI_SERR#<16,17,31>
PCI_LOCK#<16,17>
PCI_PME#<13,14,16,17>
PCI_IRQ#A<16,17>
PCI_IRQ#B<16,17,18>
PCI_IRQ#C<16,17>
PCI_IRQ#D<16,17>
PCI_IRQ#E<14,16>
PCI_IRQ#F<14,16>
PCI_IRQ#G<16,17>
PCI_IRQ#H<16>
PCI_REQ#[0..4]<16,17>
PCI_GNT#[0..4]<16,17>
PCI_REQ#5<16,17>
PCI_GNT#5<17>
ICH_PCLK<5>
PCIRST_ICH5#<21>
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_CBE#0
PCI_CBE#1
PCI_CBE#2
PCI_CBE#3
PCI_PME#
PCI_REQ#0
PCI_REQ#1
PCI_REQ#2
PCI_REQ#3
PCI_REQ#4
PCI_GNT#0
PCI_GNT#1
PCI_GNT#2
PCI_GNT#3
PCI_GNT#4
GPIO0
GPIO0<31>
PCI_REQ#5
PCI_GNT#5
U15A
J4
AD0
J5
AD1
G3
AD2
K4
AD3
H5
AD4
H2
AD5
J3
AD6
J2
AD7
K5
AD8
F2
AD9
M4
AD10
H4
AD11
L5
AD12
G2
AD13
K1
AD14
G5
AD15
G4
AD16
L1
AD17
B2
AD18
P5
AD19
H3
AD20
N5
AD21
C4
AD22
N4
AD23
E6
AD24
P3
AD25
D3
AD26
N2
AD27
F5
AD28
P4
AD29
F4
AD30
P2
AD31
E3
C/BE0#
J1
C/BE1#
N3
C/BE2#
M2
C/BE3#
D2
FRAME#
M3
IRDY#
E4
TRDY#
L3
DEVSEL#
E5
STOP#
F1
PAR
K2
PERR#
L4
SERR#
L2
PLOCK#
V2
PME#
B3
PIRQA#
E1
PIRQB#
A2
PIRQC#
C2
PIRQD#
D7
PIRQE#/GPI2
A6
PIRQF#/GPI3
E2
PIRQG#/GPI4
B1
PIRQH#/GPI5
D5
REQ0#
C1
REQ1#
C5
REQ2#
B6
REQ3#
C6
REQ4#/GPI40
D4
GNT0#
A3
GNT1#
B7
GNT2#
C7
GNT3#
A4
GNT4#/GPO48
A5
REQA#/GPI0
E7
REQB#REQ5#/GPI1
E8
GNTA#/GPO16
B4
GNTB#/GNT5#/GPO17
N1
PCICLK
V4
PCIRST#
Intel ICH5
<Priority>
VCC3_3
VCC3_3
N10P6R13
V19
W15
W17
W24
AD13
G19
G21
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
GND
GND
GND
GND
GND
A1A7A10
A15
A17
A19
AD20
K10
K12
K13
L19
P19
R10R6H24
J19
K19
M15
N15
N23
E15
F15
F14
R12W6W7W8E22
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5S
VCC1_5S
VCC1_5S
VCC1_5S
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
A21
A23
AA5
AA7
AA9
AA11
AA13
AA21
AA24
AB5
AB7
AB9
AB11
AB15
AB18
AC2
AC4
AC6
AC8
GND
AC10
AC13
AC23
AD4
AD6
AD8
AD17
AD21
C539 C0.01U50X
C540 C0.01U50X
SUS_C
3VSB
E11
F10
F11
IDE_PD0
AB16
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
VCCLAN3_3/VCCSUS3_3
VCCLAN3_3/VCCSUS3_3
VCCLAN3_3/VCCSUS3_3
VCCLAN1_5/VCCSUS1_5C
GND
GND
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
PDA0
PDA1
PDA2
PDCS1#
PDCS3#
PDIOR#
PDIOW#
PIORDY
PDDREQ
PDDACK#
IRQ14
SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
SDA0
SDA1
SDA2
SDCS1#
SDCS3#
SDIOR#
SDIOW#
SIORDY
SDDREQ
SDDACK#
IRQ15
AC_SDIN0
AC_SDIN1
AC_SDIN2
AC_SDOUT
AC_SYNC
AC_BIT_CLK
AC_RST#
VCCLAN1_5/VCCSUS1_5C
GND
GND
GND
E21
E23F3F9
Y13
Y14
AC14
AA14
AC15
AD14
AB14
AD15
Y15
AD16
AA15
AC16
Y16
AA16
AB17
AA19
AD19
AC19
AB19
Y18
AD18
AA17
AA18
AC17
AC18
Y17
AA22
AB23
AD23
AD24
AB21
AC21
AB20
AC20
Y19
AD22
AC22
AA20
AB22
AC24
AB24
AA23
W22
W23
W21
V22
V20
Y23
Y22
Y21
Y20
W20
Y24
E12
D12
A13
A9
B8
D8
C12
IDE_PD1
IDE_PD2
IDE_PD3
IDE_PD4
IDE_PD5
IDE_PD6
IDE_PD7
IDE_PD8
IDE_PD9
IDE_PD10
IDE_PD11
IDE_PD12
IDE_PD13
IDE_PD14
IDE_PD15
IDE_SD0
IDE_SD1
IDE_SD2
IDE_SD3
IDE_SD4
IDE_SD5
IDE_SD6
IDE_SD7
IDE_SD8
IDE_SD9
IDE_SD10
IDE_SD11
IDE_SD12
IDE_SD13
IDE_SD14
IDE_SD15
R569 33
R570 33
IDE_PD[0..15] <15>
IDE_PDA0 <15>
IDE_PDA1 <15>
IDE_PDA2 <15>
IDE_PCS#1 <15>
IDE_PCS#3 <15>
IDE_PIOR# <15>
IDE_PIOW# <15>
IDE_PIORDY <15>
IDE_PREQ <15>
IDE_PACK# <15>
IDE_IRQ14 <15>
IDE_SD[0..15] <15>
IDE_SDA0 <15>
IDE_SDA1 <15>
IDE_SDA2 <15>
IDE_SCS#1 <15>
IDE_SCS#3 <15>
IDE_SIOR# <15>
IDE_SIOW# <15>
IDE_SIORDY <15>
IDE_SREQ <15>
IDE_SACK# <15>
IDE_IRQ15 <15>
AC_SDIN0 <20>
AC_SDOUT <20>
AC_SYNC <20>
AC_BITCLK <20>
AC_RST# <20>
VCC1.5
3VSB
VCC3
ICH5 Pull-Up / Down Resistors
R568 8.2K
GPIO0
ICH5 Decoupling Capacitors
All caps be placed less than 100mils.
C189
C188
C4.7U10Y0805
C191
C4.7U10Y0805
C194
C4.7U10Y0805
C0.1U50Y
C192
C0.1U50Y
C195
C0.1U50Y
C190
C0.1U50Y
C193
C0.1U50Y
C196
C0.1U50Y
CB1
C0.1U50Y
VCC3
CB2
C0.1U50Y
CB4
C0.1U50Y
CB6
C0.1U50Y
CB3
C0.1U50Y
CB5
C0.1U50Y
CB7
C0.1U50Y
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
ICH5(1)
Size Document Number Rev
CANTERWOOD
1
Date: Sheet
12 33Friday, April 25, 2003
1.0Custom
of

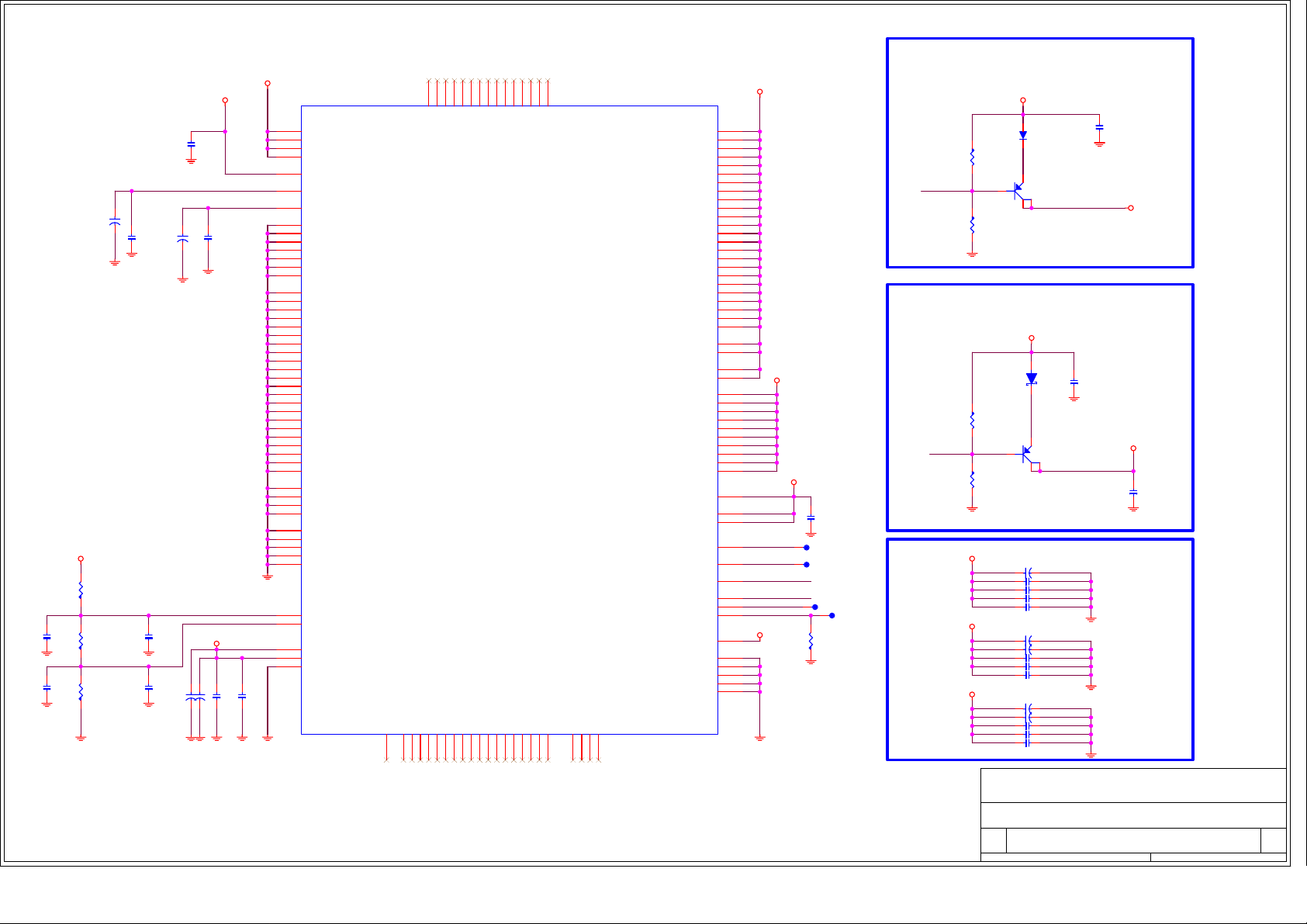

Page 13

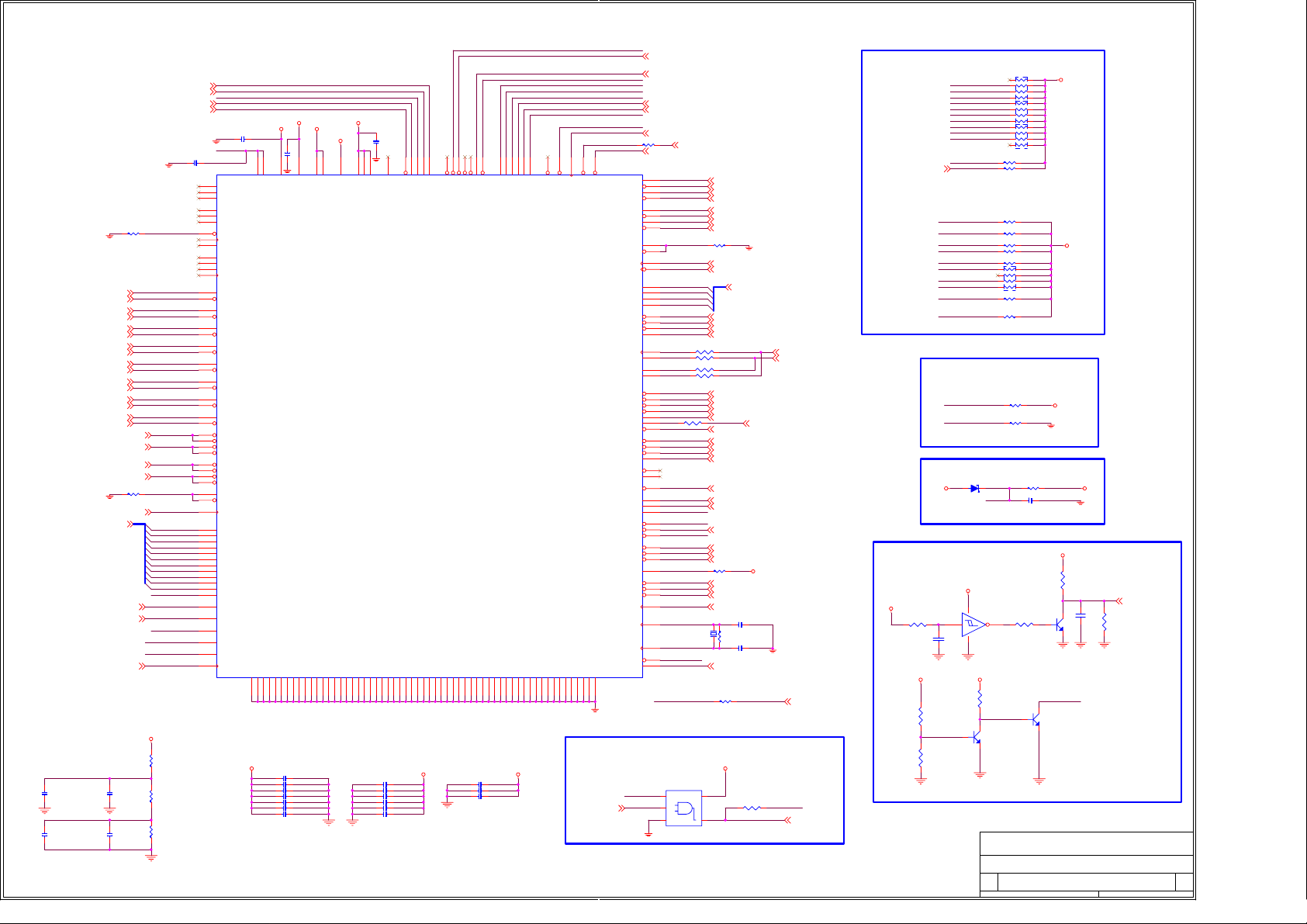

1
GPO19
BIOS_WP#
GPIO24
AB1
AB2Y1T2
BATLOW#
SUS_STAT#
GND
GND
GND
W16
W18Y3Y6Y7Y8
GND
SUSCLK
GND
GND
THRM#
GND
GPIO25
GPIO27
GPIO28
BATTLOW#
THERM_PU
T21
THRMTRIP#
CPUPWRGD/GPO49
VGATE/VRMPWRGD
SMBALERT#/GPI11
GND
GND
Y10
SLP_S3#<22,31>
1
C10
C11
B12
AA1
E10
D10
B11
B10
A12
C23
D23
A22
B22
C21
D21
A20
B20
C19
D19
A18
B18
C17
D17
A16
B16
C15
D15
D14
C14
B14
A14
D13
C13
A24
B24
F24
H20
H21
H23
M23
M21
N21
M20
L22
K21
G22
K23
N24
L20
L24
N22
C9
D9
E9
B9
J20
J22
J24
5VREF
U15B
Intel ICH5
<Priority>
EXTSMI#
SIO_PME#
GPI8
CPU_IERR#
SIO_SMI#
CB30 C0.1U16X
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
LAN_RST#
LAN_CLK
LAN_RSTSYNC
EE_DIN
EE_DOUT
EE_CS
EE_SHCLK
USBP0P
USBP0N
USBP1P
USBP1N
USBP2P
USBP2N
USBP3P
USBP3N
USBP4P
USBP4N
USBP5P
USBP5N
USBP6P
USBP6N
USBP7P
USBP7N
OC0#
OC1#
OC2#
OC3#
OC4#/GPI9
OC5#/GPI10
OC6#/GPI14
OC7#/GPI15
USBRBIAS
USBRBIAS#
CLK48
HI0
HI1
HI2
HI3
HI4
HI5
HI6
HI7
HI8
HI9
HI10
HI11
HI_STBF
HI_STBS
HIRCOMP
HI_VSWING
HIREF
CLK66
G6
VCC1.5
A8
W14
V5REF
V5REF
GND
GND
GND
G20
G24H1H19
VBAT
VCC5_SB
C785 C1U 10
E16
V5REF_SUS
GND
GND
GND
GND
GND
H22J6J21
C171 C0.1U50Y
C173 C0.1U50Y
C175 C0.1U50Y
C178 C0.1U50Y
C180 C0.1U50Y
C182 C0.1U50Y
C184 C0.1U50Y
VCC1.5
AD11
VCCRTC
GND
GND
J23K3K11
VCC1.5
AA6
AB6
VCCSATAPLL
VCCSATAPLL
GND
GND
GND
GND
K14
K20
K22
C24
VCCUSBPLL
GND
GND
K24
L10
L11
VCORE
GND
L12
R15
R19
V_CPU_IO
V_CPU_IO
GND
GND
GND
L13
L14
C788
C0.1U16X
T19
A11R5U3Y2W4W5U21
NC
GPI7
GPI8
V_CPU_IO
AGPBUSY#/GPI6
GND
GND
GND
GND
GND
GND
GND
GND
L15
C172 C0.1U50Y
C174 C0.1U50Y
C176 C0.1U50Y
C179 C0.1U50Y
C181 C0.1U50Y
C183 C0.1U50Y
GND
L21
L23M1M5
M11
M12
M13
M14
VCC3 3VSB
GPI12
GND
M22
GPI13
GND
GND
M24
N11
N12
T20
U22R1U20
SLP_S1#/GPO19
STP_PCI#/GPO18
C3_STAT#/GPO21
STP_CPU#/GPO20
GND
GND
GND
GND
GND
N13
N14
N20P1P10
C185 C0.1U50Y
C186 C0.1U50Y
C187 C0.1U50Y
F22
AC1W3V3W2T1
GPIO25
GPIO27
CLKRUN#/GPIO24
CPUPERF#/GPO22
SSMUXSEL/GPO23
GND
GND
GND
GND
GND
GND
GND
P11
P12
P13
P14
P15
P21
G23
F21
GPIO28
GPIO32
GPIO33
GPIO34
GND
GND
GND
GND
GND
GND
R11
R14
T23T3T6
U19V1V21
EXTSMI#<25>
SIO_PME#<22>
CPU_IERR#<31>
SIO_SMI#<22>
C541 C0.1U16X
Close A8 of ICH5.
LAN_RST#
R572 300
SB_USBP1<24>
SB_USBN1<24>
SB_USBP2<24>
SB_USBN2<24>
SB_USBP3<24>
SB_USBN3<24>
SB_USBP4<24>
SB_USBN4<24>
F_USBP5<24>
F_USBN5<24>
F_USBP6<24>
F_USBN6<24>
F_USBP7<24>
F_USBN7<24>
F_USBP8<24>
F_USBN8<24>
USB_OC#1<24>
NB_HL[0..10]<6>
USB_OC#2<24>
USB_OC#3<24>
USB_OC#4<24>
R242 22.6RST
USB_48<5>
NB_HLSTRF<6>
NB_HLSTRS<6>
ICH_66<5>
C546
C0.1U50Y
C545
C0.1U50Y
ICH_HLSWING
ICH_HLVREF
VCC1.5
NB_HL0
NB_HL1
NB_HL2
NB_HL3
NB_HL4
NB_HL5
NB_HL6
NB_HL7
NB_HL8
NB_HL9
NB_HL10
NB_HL11
H_COMP
R925
226RST
R926
147RST
R927
113RST
USB_BIAS
A A
Trace width is 10 mils
Space is 7 mils
Closed to ICH
ICH_HLSWING
C655
C0.1U25Y0805
ICH_HLVREF
C656
C0.1U25Y0805
SW_MASK_EN <25>
BIOS_WP# <23>
SKPR_SMI# <29>
SATA_LED# <15>
GPIO34
SUSCLK <29>
SATA0RXP
SATA0RXN
SATA1RXP
SATA1RXN
SATA0TXP
SATA0TXN
SATA1TXP
SATA1TXN
SATARBIASP
SATARBIASN
CLK100P
CLK100N
LAD0
LAD1
LAD2
LAD3
LFRAME#
LDRQ0#
LRDQ1#/GPI41
SERIRQ
SMBCLK
SMBDATA
SMLINK1
SMLINK0
A20M#
FERR#
IGNNE#
INIT#
INTR
SMI#
CPU_SLP#
STPCLK#
RCIN#
A20GATE
DPSLP#
DPRSLPVR
PWRBTN#
PWROK
SYS_RESET#
RTCRST#
RSMRST#
SLP_S3#
SLP_S4#
SLP_S5#
INTERVEN
INTRUDER#
LINKALERT#
CLK14
RTCX1
RTCX2
SPKR
R571 X_0
NMI
RI#
THERM# <30>
CPU_THERMTRIP# <3>
AC7
AD7
AC9
AD9
AA8
AB8
AA10
AB10
SATA_BIAS
Y11
Y9
AC5
AD5
LPC_AD0
T5
LPC_AD1
R4
LPC_AD2
R3
LPC_AD3
U4
T4
U5
R2
SERIRQ
F23
R889 0
AD2
R890 0
AD1
R891 0
AA2
R892 0
AD3
V23
U24
R21
R23
U23
R575 4.7K
R22
V24
P22
T24
KBRST#
P23
A20GATE
T22
R24
P20
Y4
AC12
P24
VGATE
R20
RSTBTN#
U1
AA12
RSMRST#
AB13
W1
SLP_S4#
U2
AA3
INTERVEN
AD10
INTRUDER#
Y12
LNK_ALERT#
V5
AC3
F20
AC11
32.768KHz-12.5pF-20PPM
AB12
AB3
E24
RTC_XO
ICH_RI#
Y3
SATA0_RXP <15>
SATA0_RXN <15>
SATA1_RXP <15>
SATA1_RXN <15>
SATA0_TXP <15>
SATA0_TXN <15>
SATA1_TXP <15>
SATA1_TXN <15>
R235 24.9RST
SATA_100 <5>
SATA_100# <5>
LPC_FRAME# <22,23,29>
LPC_DRQ#0 <22>
LPC_DRQ#1 <29>
SERIRQ <22,29>
CPU_A20M# <3>
CPU_FERR# <3>
CPU_IGNNE# <3>
HINIT# <3,23>
CPU_INTR <3>
CPU_SMI# <3>
CPU_SLP# <3>
CPU_STPCLK# <3>
KBRST# <22>
A20GATE <22>
PWRBTN# <22>
PWROK <18,21,25>
CPU_PWRGD <3>
RTC_RST# <29>
SLP_S3# <22,31>
SLP_S4# <31>
SLP_S5# <22>
R577 390K
INTRUDER# <25>
LNK_ALERT# <18>
CSA_PME# <18>
ICH_14 <5>
SPKR <20>
R923 0
MCH POWER SEQUENCE CIRIUIT
3VSB
U50
PWROK
1
6
A
VCC
2
B
3 4
GND Y
X_SN74LVC1G08DCKR,SC-70
LPC_AD[0..3] <22,23,29>
SMBCLK
SMBDATA
ICH5_NMI# <31>
VBAT
10pC204
<VOLTAGE>
R245
10M
10p
C205 <VOLTAGE>
RING#ICH_RI#
R963 0
ADD 2003.02.12
SMBCLK <18,29,31>
SMBDATA <18,29,31>
RING# <15,22,29>
PWROK
PWROK_MCH <6>
ICH5 PULL HIGH RESISTORS
EXTSMI#
RSTBTN#
LNK_ALERT#
GPIO24
SIO_PME#
GPIO27
GPIO28
GPIO25
BATTLOW#
GPI8
CSA_PME#
PCI_PME#
PCI_PME#<12,14,16,17>
SKPR_SMI#
SATA_LED#
SERIRQ
SIO_SMI#
THERM_PU
GPO19
KBRST#
A20GATE
GPIO34
VGATE
ICH5 STRAPPING RESISTORS
H_COMP
NB_HL11
DZ1 1N5817
Resume Reset Circuitry
Using a 22msec delay
VCC5_SB
VCC5_SB
R580 100K
R583
10KST
R584
3.3K
1 2
C544
C1U10X
147
B
12
3VSB
34
RN115
56
10K/0402
78
12
RN116
34
56
10K/0402
78
12
RN117
34
56
10K/0402
78
R920 8.2K
R921 8.2K
R969 8.2K
R922 8.2K
R899 10K
R900 10K
R902 10K
12
34
56
78
R904 10K
R974
10K
R573 52.3RST
Impedance is equal 60ohm.
R574 61.9RST
R576 1K
5VREF
C542 C1U16Y0805
U30A
74HCT14-SOIC14
R581 4.7K Q56
3VSBVCC5_SB
Turn off RSMRST# if 5VSB drop to 3.6V.
R582
1K
B
Q58
2N3904S
E C
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
ICH5(2)
Size Document Number Rev
CANTERWOOD
Date: Sheet
RN120
10K/0402
2N3904S
<VOLTAGE>
3VSB
B
RSMRST#
Q57
2N3904S
E C
VCC1.5
E C
VCC3
R578
1K
RSMRST#
VCC5VCC3
C543
C0.01U50X
RSMRST# <18,31>
R579
10K
13 33Friday, April 25, 2003
of
1.0C
Page 14

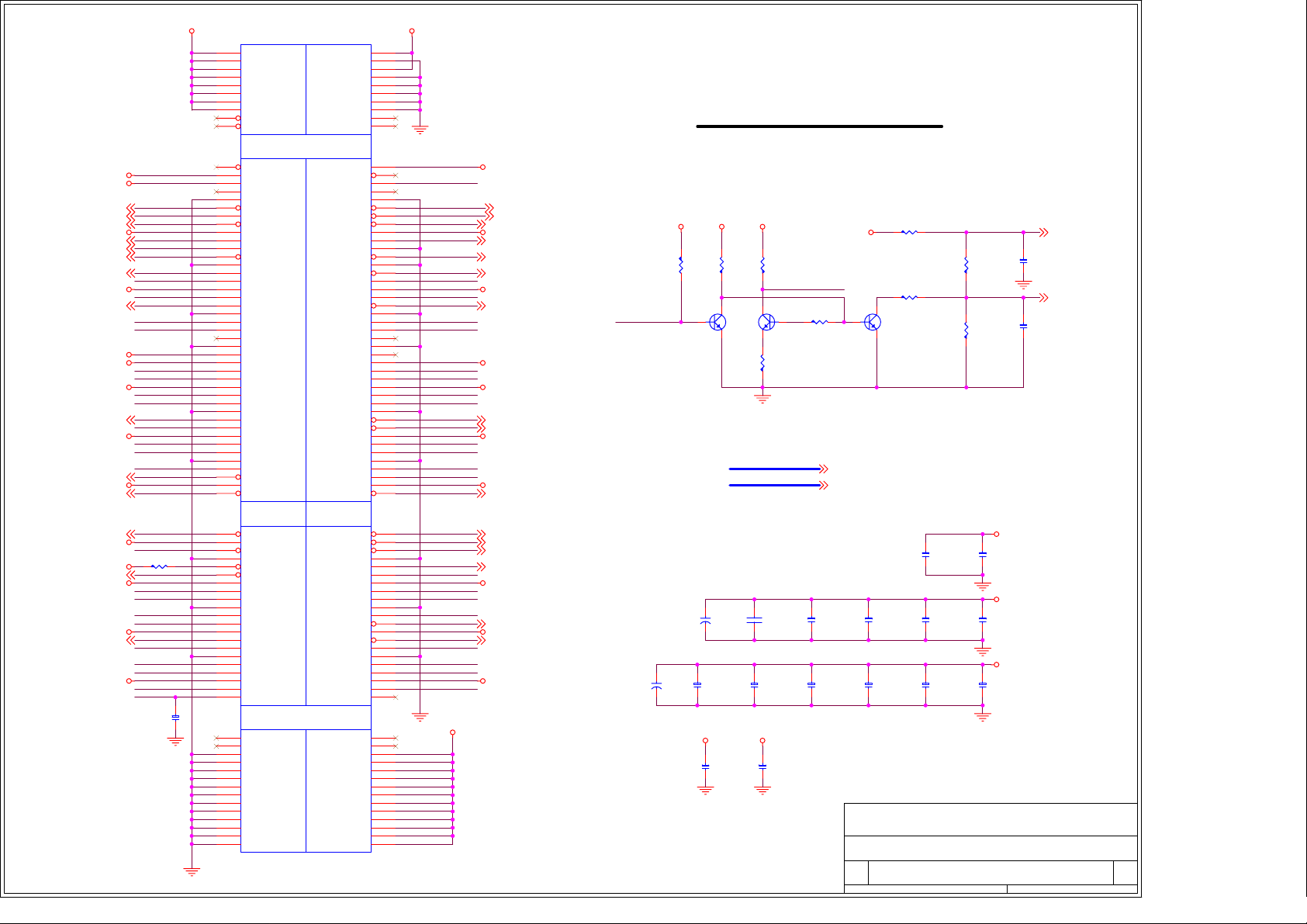

1
VCC3 VCC3
AGP1
D1
VCC3_3_J
D2
VCC3_3_K
D3
VCC3_3_L
D4
VCC3_3_M
D5
VCC3_3_N
D6
VCC3_3_O
D7
VCC3_3_P
D8
VCC3_3_Q
D9
PRSNT#2
D10
PRSNT#1
KEY
B1
AGP_OVRCNT#
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B2
B3
B4
B5
B6
B7
B8
B9
5V_A
5V_B
AGP_USB+
GND_Q
INTB#
AGPCLK_CONN
REQ#
VCC3_3_R
ST0
ST2
RBF#
GND_R
RESV_L
SBA0
VCC3_3_S
SBA2
SB_STB
GND_S
SBA4
SBA6
RESV_M
GND_T
3_3AUX_1
VCC3_3_T
GAD31
GAD29
VCC3_3_U
GAD27
GAD25
GND_U
AD_STB1
GAD23
VDDQ_F
GAD21
GAD19
GND_V
GAD17
C/BE#2
VDDQ_G
IRDY#
VCC5
VCC5
PCI_IRQ#F
AGP_66<5>
AGP_REQ<6>
AGP_ST2<6>
AGP_RBF<6>
AGP_SBSTBF<6>
3VSB
AGP_ADSTBF1<6>
A A
AGP_CBE2<6>
AGP_IRDY<6>
AGP_66
AGP_REQ
VCC3 VCC1.5
AGP_ST0
AGP_ST2
AGP_RBF
AGP_DBIL
AGP_SBA#0
VCC3
AGP_SBA#2
AGP_SBSTBF AGP_SBSTBS
AGP_SBA#4
AGP_SBA#6
VCC3
AGP_AD31
AGP_AD29
VCC3
AGP_AD27
AGP_AD25
AGP_ADSTBF1
AGP_AD23
VCC1.5
AGP_AD21
AGP_AD19
AGP_AD17
AGP_CBE2
VCC1.5
AGP_IRDY
VCC_12V_A
TYPEDET#
VCC3_3_G
VCC3_3_H
AD_STB1#
VCC3_3_A
GND_A
VCC3_3_B
GND_B
GND_C
GND_D
GND_E
GND_F
RESV_A
RESV_B
RESV_C
AGP_USB-
GND_G
INTA#
RST#
GNT#
VCC3_3_E
ST1
RESV_D
PIPE#
GND_H
WBF#
SBA1
VCC3_3_F
SBA3
SB_STB#
GND_I
SBA5
SBA7
RESV_E
GND_J
RESV_F
GAD30
GAD28
GAD26
GAD24
GND_K
C/BE#3
VDDQ_A
GAD22
GAD20
GND_L
GAD18
GAD16
VDDQ_B
FRAME#
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
GC_DET#
PCI_IRQ#E
AGP_PCIRST#
AGP_GNT
AGP_ST1
AGP_DBIH
AGP_WBF
AGP_SBA#1
AGP_SBA#3
AGP_SBA#5
AGP_SBA#7
AGP_AD30
AGP_AD28
AGP_AD26
AGP_AD24
AGP_ADSTBS1
AGP_CBE3
AGP_AD22
AGP_AD20
AGP_AD18
AGP_AD16
AGP_FRAME
+12V
PCI_IRQ#E <12,16>PCI_IRQ#F<12,16>
AGP_PCIRST# <21>
AGP_GNT <6>
VCC3
AGP_ST1 <6>AGP_ST0<6>
AGP_DBIH <6>
AGP_WBF <6>AGP_DBIL<6>
VCC3
AGP_SBSTBS <6>
VCC3
VCC3
AGP_ADSTBS1 <6>
AGP_CBE3 <6>
VCC1.5
VCC1.5
AGP_FRAME <6>
GC_DET#
AGP 1.5V 4X/8X SLOT(AGP 3.0)
VCC1.5
+12V
VCC1.5
R296
R297
8.2K
Q29
AGP_AD[31..0]
AGP_SBA#[7..0]
R298
8.2K
AGP_PERR#
Q30
2N3904S
R302
100
R970 0
AGP_AD[31..0] <6>
AGP_SBA#[7..0] <6>
8.2K
2N3904S
R295 60.4RST
R300 33.2R1%
Q31
2N3904S
AGP_VSWING
R299
39.2RST
AGP_VREF
R301
100RST
AGP_VSWING <6>
C368
C0.1U50Y
AGP_VREF <6>
C369
C0.1U50Y
VCC1.5
VCC1.5
VCC1.5
VCC1.5
VCC1.5
AGP_DEVSEL
AGP_PERR#
R305 6.8K
AGP_CBE1
AGP_AD12
AGP_AD10
AGP_AD8
AGP_ADSTBF0
AGP_AD7
AGP_AD5
AGP_VREF
C384
C0.1U50Y
AGP_DEVSEL<6>
AGP_CBE1<6>
AGP_ADSTBF0<6>
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
F10
F11
F12
F13
F14
F1
F2
F3
F4
F5
F6
F7
F8
F9
DEVSEL#
VDDQ_H
PERR#
GND_X
SERR#
C/BE#1
VDDQ_I
GAD14
GAD12
GND_Y
GAD10
GAD8
VDDQ_J
AD_STB0
GAD7
GND_Z
GAD5
GAD3
VDDQ_K
GAD1
VREFCG
RESV_O
RESV_P
GND_AA
GND_BB
GND_CC
GND_DD
GND_EE
GND_FF
GND_GG
GND_HH
GND_II
GND_JJ
GND_KK
GND_LL
KEY
TRDY#
STOP#
PME#
GND_N
PAR
GAD15
VDDQ_C
GAD13
GAD11
GND_O
GAD9
C/BE#0
VDDQ_D
AD_STB0#
GAD6
GND_P
GAD4
GAD2
VDDQ_E
GAD0
VREFGC
RESV_I
RESV_J
VCC_12V_B
VCC_12V_C
VCC_12V_D
VCC_12V_E
VCC_12V_F
VCC_12V_G
VCC_12V_H
VCC_12V_I
VCC_12V_J
VCC_12V_K
VCC_12V_L
VCC_12V_M
J_AGP_1.5V
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
AGP_TRDY
AGP_STOP
PCI_PME#
AGP_PAR
AGP_AD15
AGP_AD13AGP_AD14
AGP_AD11
AGP_AD9
AGP_CBE0
AGP_ADSTBS0
AGP_AD6
AGP_AD4
AGP_AD2AGP_AD3
AGP_AD0AGP_AD1
+12V
AGP_TRDY <6>
AGP_STOP <6>
PCI_PME# <12,13,16,17>
AGP_PAR <6>
VCC1.5
AGP_CBE0 <6>
VCC1.5
AGP_ADSTBS0 <6>
VCC1.5
1
+
CT17
1000u/6.3V
C378
C0.1U50Y
+12V
+
CT16
100u/16V
C372
C0.1U50Y
CB87
C22U10Y1206
C379
C0.1U50Y
VCC5
C373
C0.1U50Y
3VSB
C371
C0.1U50Y
VCC3
C377
C0.1U50Y
VCC1.5
C383
C0.1U50Y
C374
C0.1U50Y
C380
C0.1U50Y
C375
C0.1U50Y
C381
C0.1U50Y
C370
C0.1U50Y
C376
C0.1U50Y
C382
C0.1U50Y
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
AGP Slot
Size Document Number Rev
CANTERWOOD
Date: Sheet
14 33Friday, April 25, 2003
1.0Custom
of
Page 15

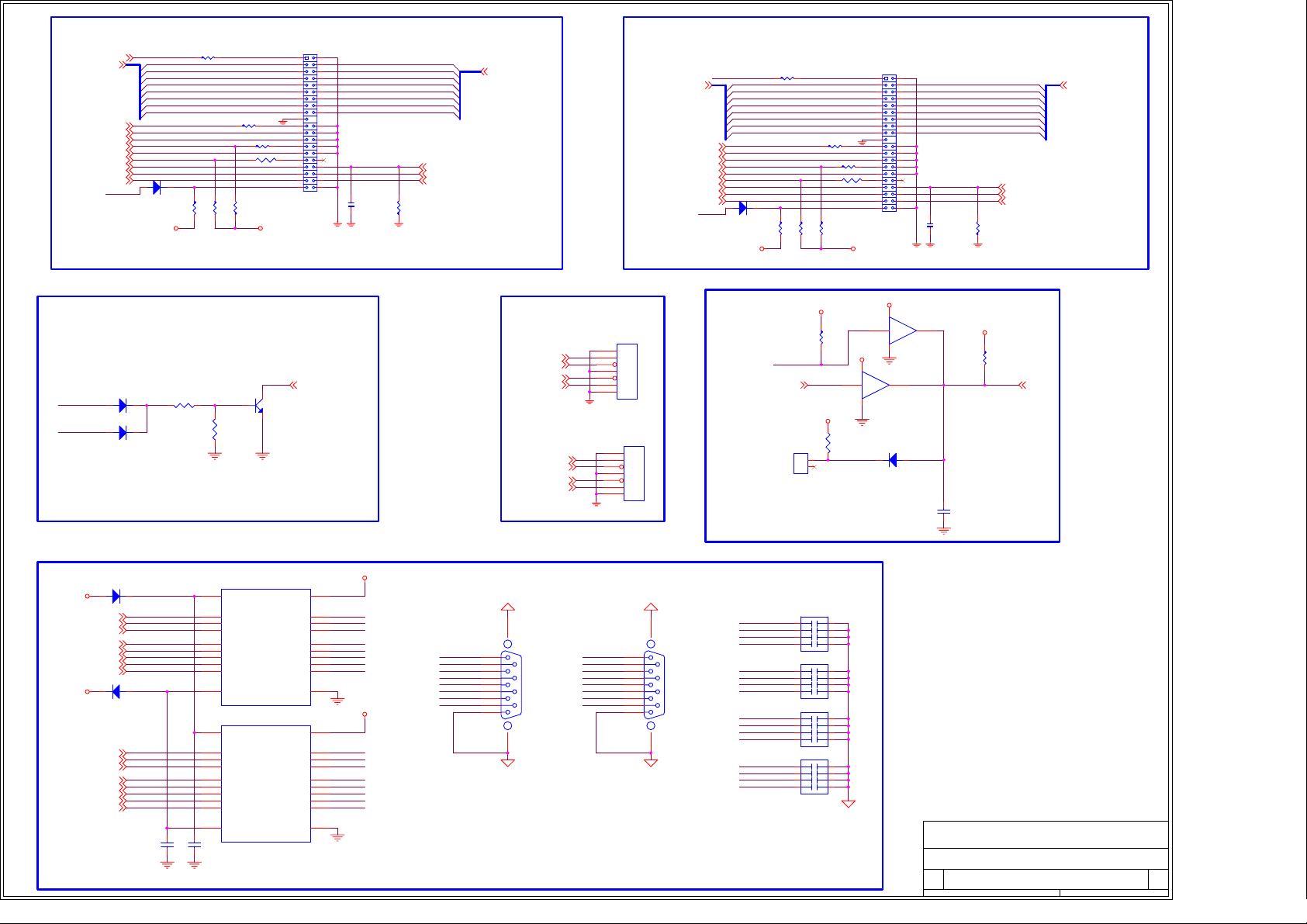

IDE_RST#<21>
IDE_PD[0..7]<12>
IDE_PREQ<12>
IDE_PIOW#<12>
IDE_PIOR#<12>
IDE_PIORDY<12>
IDE_PACK#<12>
IDE_IRQ14<12>
IDE_PDA1<12>
IDE_PDA0<12>
IDE_PCS#1<12>
IDEACT#
IDE_RST#
R585 33
IDE_PD7
IDE_PD6
IDE_PD5
IDE_PD4
IDE_PD3
IDE_PD2
IDE_PD1
IDE_PD0
D19 1N4148S
A C
R587
8.2K
R893 33
R588
8.2K
HDRST#P
R894 33
R896 0
R589
4.7K
VCC3VCC5
IDE1
IDE1
YJ220-CB-1
1
3 4
5 6
7 8
91110
13 14
17 18
19
21
23
25
27
29
31
33
35
37
1
VCC3VCC5
IDE2
IDE2
YJ220-CW-1
1
3 4
5 6
7 8
91110
13 14
17 18
19
21
23
25
27
29
31
33
35
37
2
12
1615
22
24
26
28
30
32
34
36
38
4039
IDE_SD8
IDE_SD9
IDE_SD10
IDE_SD11
IDE_SD12
IDE_SD13
IDE_SD14
IDE_SD15
C548
X_C4700P50X
ATADET1 <23>
IDE_SDA2 <12>
IDE_SCS#3 <12>
R594
10K
2
IDE_PD8
IDE_PD9
IDE_PD10
IDE_PD11
IDE_PD12
12
IDE_PD13
IDE_PD14
1615
IDE_PD15
22
24
26
28
30
32
34
36
38
4039
C547
X_C4700P50X
ATADET0 <23>
IDE_PDA2 <12>
IDE_PCS#3 <12>
R590
10K
IDE_PD[8..15] <12>
R586 33
IDE_RST# HDRST#S
A C
IDE_SD7
IDE_SD6
IDE_SD5
IDE_SD4
IDE_SD3
IDE_SD2
IDE_SD1
IDE_SD0
R591
8.2K
R592
8.2K
R895 33
R897 33
R898 0
R593
4.7K
IDE_SD[0..7]<12> IDE_SD[8..15] <12>
IDE_SREQ<12>
IDE_SIOW#<12>
IDE_SIOR#<12>
IDE_SIORDY<12>
IDE_SACK#<12>
IDE_IRQ15<12>
IDE_SDA1<12>
IDE_SDA0<12>
IDE_SCS#1<12>
D20 1N4148S
IDEACT#
3VSB
11 10
R597
8.2K
3VSB
147
1 2
147
U31E
74LVC07AD-SOIC14
D23
1N4148S
U31A
74LVC07AD-SOIC14
AC
Title
Size Document Number Rev
Date: Sheet
VCC5
R936
8.2K
HDA# <17,25>SATA_LED#<13>
C549
C470P50X
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
IDE & SATA & COM PORT
CANTERWOOD
15 33Friday, April 25, 2003
1.0Custom
of
WAKE UP ON RING
RING#
E C
Q59
2N3904S
RING# <13,22,29>
D21 1N4148S
NRIA#
A C
D22 1N4148S
NRIB#
A C
A A
R595 10K
R596
10K
B
SATA1
SATA1
1
GND
SATA0_TXP<13>
SATA0_TXN<13>
SATA0_RXN<13>
SATA0_RXP<13>
2
HT+
3
HT-
4
GND
5
HR-
6
HR+
7
GND
SATA
SATA2
SATA2
1
GND
SATA1_TXP<13>
SATA1_TXN<13>
SATA1_RXN<13>
SATA1_RXP<13>
2
HT+
3
HT-
4
GND
5
HR-
6
HR+
7
GND
SATA
SCSI Hardfile
LED Header
VCC5
R940
IDEACT#
8.2K
VCC5
JRAID1
1
2
box/header, 1*2, DIP/2, white
NEC SCSI LED HEADER
+12V
-12V
D7
A C
1N4148S
RTSA#<22>
DTRA#<22>
SOUTA<22>
RIA#<22>
CTSA#<22>
DSRA#<22>
SINA<22>
DCDA#<22>
D8
1N4148S
RTSB#<22>
DTRB#<22>
SOUTB<22>
RIB#<22>
CTSB#<22>
DSRB#<22>
SINB<22>
DCDB#<22>
RTSA#
DTRA#
SOUTA
RIA#
CTSA#
DSRA#
SINA
DCDA#
AC
RTSB#
DTRB#
RIB#
CTSB#
DSRB#
SINB
DCDB#
C550
C0.1U16X
U5
1
VDD(12V)
16
DA1
15
DA2
13
DA3
19
RY1
18
RY2
17
RY3
14
RY4
12
RY5
10
VSS(-12V)
TI-GD75232-SSOP20
U6
1
VDD(12V)
16
DA1
15
DA2
13
DA3
19
RY1
18
RY2
17
RY3
14
RY4
12
RY5
10
VSS(-12V)
C551
TI-GD75232-SSOP20
C0.1U16X
VCC(5V)
GND
VCC(5V)
GND
VCC5
20
NRTSA
5
DY1
NDTRA
6
DY2
NSOUTA
8
DY3
NRIA#
2
RA1
NCTSA#
3
RA2
NDSRA#
4
RA3
NSINA
7
RA4
NDCDA#
9
RA5
11
VCC5
20
NRTSB
5
DY1
NDTRB
6
DY2
NSOUTBSOUTB
8
DY3
NRIB#
2
RA1
NCTSB#
3
RA2
NDSRB#
4
RA3
NSINB
7
RA4
NDCDB#
9
RA5
11
NDCDA#
NDSRA#
NSINA
NRTSA
NSOUTA
NCTSA#
NDTRA
NRIA#
COM PORT
COM1
1
6
2
7
3
8
4
9
5
COM-D9-GN
10 11
1
NDCDB#
NDSRB#
NSINB
NRTSB
NSOUTB
NCTSB#
NDTRB
NRIB#
NRIA#
NCTSA#
COM2
1
6
2
7
3
8
4
9
5
COM-D9-GN
10 11
NDSRA#
NRTSA
NDTRB
NSINB
NSOUTB
NDCDB#
NRIB#
NCTSB#
NDSRB#
NRTSB
NDTRA
NSINA
NSOUTA
NDCDA#
CN5
CN180P50N
CN6
1 2
3 4
5 6
7 8
CN180P50N
CN7
1 2
3 4
5 6
7 8
CN180P50N
CN8
CN180P50N
12
34
56
78
12
34
56
78

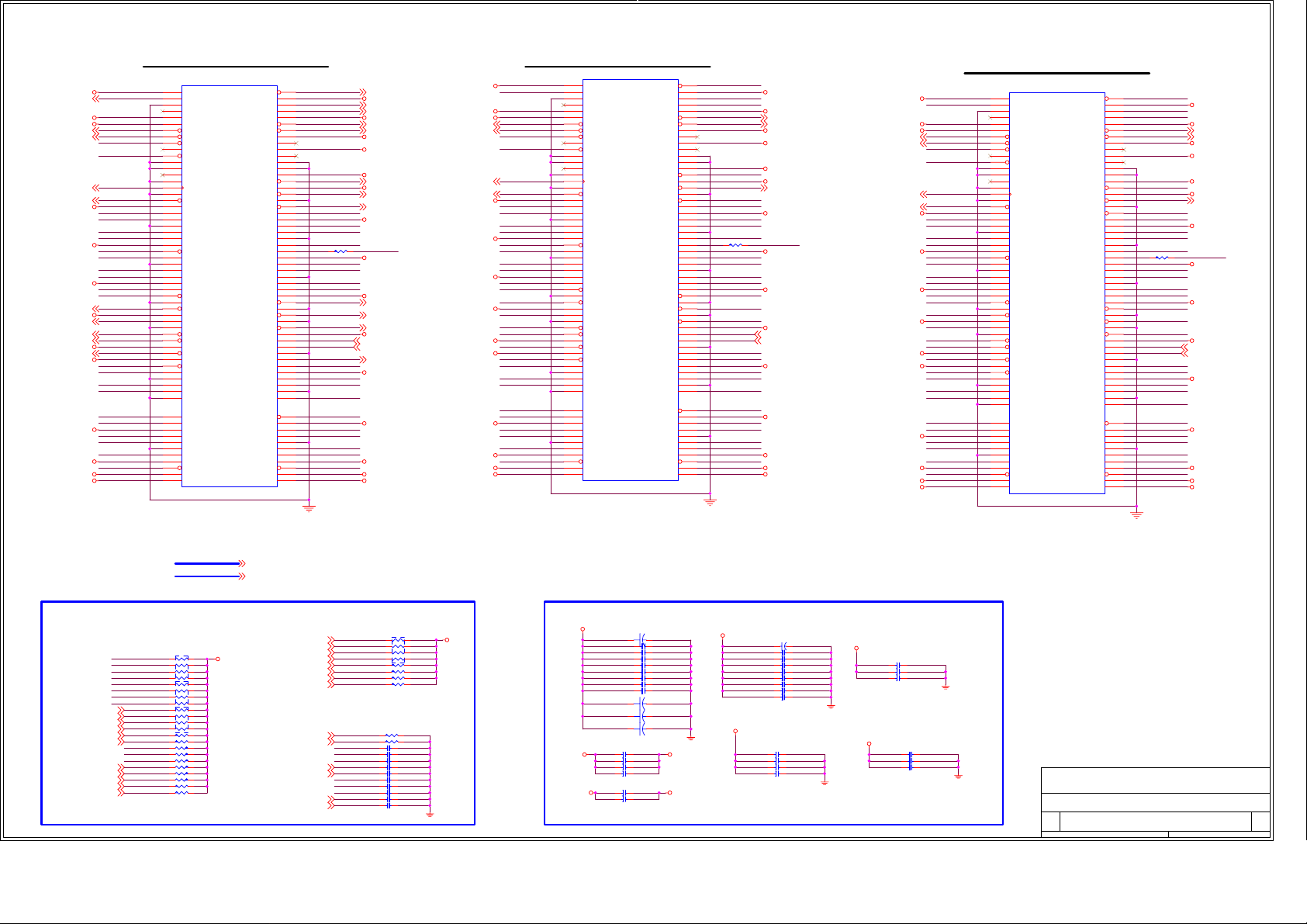

Page 16
1
PCI SLOT 2 (PCI VER: 2.2 COMPLY)PCI SLOT 1 (PCI VER: 2.2 COMPLY)
PCI1
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B1
B2
B3
B4
B5
B6
B7
B8
B9
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
TRST#
+12V
TMS
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
3.3VAUX
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SMBCLK
SMBDAT
GND
AD15
+3.3V
AD13
AD11
GND
C/BE#0
+3.3V
GND
+5V(I/O)
REQ64#
TDI
+5V
+5V
+3.3
PAR
AD9
AD6
AD4
AD2
AD0
+5V
+5V
-12V
PCI_TCK
PCI_TCK<17>
VCC5
VCC5
PCI_IRQ#B
PCI_IRQ#B<12,17,18>
PCI_IRQ#D
PCI_IRQ#D<12,17>
PRSNT1_0
PRSNT2_0
PCI_CLK0
PCI_CLK0<5>
PCI_REQ#0<12>
PCI_DEVSEL#<12,17>
PCI_LOCK#<12,17>
PCI_PERR#<12,17>
PCI_SERR#<12,17,31>
A A
PCI_REQ#0
VCC5
PCI_AD31
PCI_AD29
PCI_AD27
PCI_AD25
VCC3
PCI_CBE#3
PCI_AD23
PCI_AD21
PCI_AD19
VCC3
PCI_AD17
PCI_CBE#2
PCI_IRDY#
PCI_IRDY#<12,17>
VCC3
PCI_DEVSEL#
PCI_LOCK#
PCI_PERR#
VCC3
PCI_SERR#
VCC3
PCI_CBE#1
PCI_AD14
PCI_AD12
PCI_AD10
PCI_AD8
PCI_AD7
VCC3
PCI_AD5
PCI_AD3
PCI_AD1
VCC5
ACK#64
VCC5
VCC5
PCI_TRST#
A1
A2
PCI_TMS
A3
PCI_TDI
A4
A5
PCI_IRQ#A
A6
PCI_IRQ#C
A7
A8
A9
A10
A11
A12
A13
A14
PCIRST#1
A15
A16
PCI_GNT#0
A17
A18
PCI_PME#
A19
PCI_AD30
A20
A21
PCI_AD28
A22
PCI_AD26
A23
A24
PCI_AD24
A25
A26
A27
PCI_AD22
A28
PCI_AD20
A29
A30
PCI_AD18
A31
PCI_AD16
A32
A33
PCI_FRAME#
A34
A35
PCI_TRDY#
A36
A37
PCI_STOP#
A38
A39
SCL_SLOT1
A40
SDA_SLOT1
A41
A42
PCI_PAR
A43
PCI_AD15
A44
A45
PCI_AD13
A46
PCI_AD11
A47
A48
PCI_AD9
A49
PCI_CBE#0
A52
A53
PCI_AD6
A54
PCI_AD4
A55
A56
PCI_AD2
A57
PCI_AD0
A58
A59
REQ#64_0
A60
A61
A62
R126 100
PCI_TRST# <17>
+12V
PCI_TMS <17>
PCI_TDI <17>
VCC5
PCI_IRQ#A <12,17>
PCI_IRQ#C <12,17>
VCC5
VCC5
3VSB
PCIRST#1 <21>
VCC5
PCI_GNT#0 <12>
PCI_PME# <12,13,14,17>
VCC3
PCI_AD20
VCC3
VCC3
PCI_FRAME# <12,17>
PCI_TRDY# <12,17>
PCI_STOP# <12,17>
VCC3
SCL_SLOT1 <31>
SDA_SLOT1 <31>
PCI_PAR <12,17>
VCC3
VCC3
VCC5
VCC5
VCC5
-12V
PCI_TCK
VCC5
VCC5
PCI_IRQ#C<12,17>
PCI_IRQ#A<12,17>
PCI_CLK1<5>
PCI_REQ#1<12>
PCI_IRQ#C
PCI_IRQ#A
PRSNT1_1
PRSNT2_1 PRSNT1_2
PCI_CLK1
PCI_REQ#1
VCC5
PCI_AD31
PCI_AD29
PCI_AD27
PCI_AD25
VCC3
PCI_CBE#3
PCI_AD23
PCI_AD21
PCI_AD19
VCC3
PCI_AD17
PCI_CBE#2
PCI_IRDY#
VCC3
PCI_DEVSEL#
PCI_LOCK#
PCI_PERR#
VCC3
PCI_SERR#
VCC3
PCI_CBE#1
PCI_AD14
PCI_AD12
PCI_AD10
PCI_AD8
PCI_AD7
VCC3
PCI_AD5
PCI_AD3
PCI_AD1
VCC5
ACK#64
VCC5
VCC5
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
PCI2
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
TRST#
+12V
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
3.3VAUX
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SMBCLK
SMBDAT
GND
AD15
+3.3V
AD13
AD11
GND
C/BE#0
+3.3V
GND
+5V(I/O)
REQ64#
TMS
TDI
+5V
+5V
+3.3
PAR
AD9
AD6
AD4
AD2
AD0
+5V
+5V
PCI_TRST#
A1
A2
PCI_TMS
A3
PCI_TDI
A4
A5
PCI_IRQ#B
A6
PCI_IRQ#D
A7
A8
A9
A10
A11
A12
A13
A14
PCIRST#1
A15
A16
PCI_GNT#1
A17
A18
PCI_PME#
A19
PCI_AD30
A20
A21
PCI_AD28
A22
PCI_AD26
A23
A24
PCI_AD24
A25
R127 100
A26
A27
PCI_AD22
A28
PCI_AD20
A29
A30
PCI_AD18
A31
PCI_AD16
A32
A33
PCI_FRAME#
A34
A35
PCI_TRDY#
A36
A37
PCI_STOP#
A38
A39
SCL_SLOT2
A40
SDA_SLOT2
A41
A42
PCI_PAR
A43
PCI_AD15
A44
A45
PCI_AD13
A46
PCI_AD11
A47
A48
PCI_AD9
A49
PCI_CBE#0
A52
A53
PCI_AD6
A54
PCI_AD4
A55
A56
PCI_AD2
A57
PCI_AD0
A58
A59
REQ#64_1
A60
A61
A62
+12V
VCC5
PCI_IRQ#B <12,17,18>
PCI_IRQ#D <12,17>
VCC5
VCC5
3VSB
VCC5
PCI_GNT#1 <12>
VCC3
PCI_AD25
VCC3
VCC3
VCC3
SCL_SLOT2 <31>
SDA_SLOT2 <31>
VCC3
VCC3
VCC5
VCC5
VCC5
-12V
VCC5
VCC5
PCI_IRQ#D<12,17>
PCI_IRQ#B<12,17,18>
PCI_CLK2<5>
PCI_REQ#2<12>
VCC5
VCC3
VCC3
VCC3
VCC3
VCC3
VCC3
VCC5
VCC5
VCC5
PCI SLOT 3 (PCI VER: 2.2 COMPLY)
PCI3
B1
PCI_TCK
PCI_IRQ#D
PCI_IRQ#B
PRSNT2_2
PCI_CLK2
PCI_REQ#2
PCI_AD31
PCI_AD29
PCI_AD27
PCI_AD25
PCI_CBE#3
PCI_AD23
PCI_AD21
PCI_AD19
PCI_AD17
PCI_CBE#2
PCI_IRDY#
PCI_DEVSEL#
PCI_LOCK#
PCI_PERR#
PCI_SERR#
PCI_CBE#1
PCI_AD14
PCI_AD12
PCI_AD10
PCI_AD8
PCI_AD7
PCI_AD5
PCI_AD3
PCI_AD1
ACK#64
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
TRST#
+12V
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
3.3VAUX
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SMBCLK
SMBDAT
GND
AD15
+3.3V
AD13
AD11
GND
C/BE#0
+3.3V
GND
+5V(I/O)
REQ64#
PCI_TRST#
A1
A2
PCI_TMS
A3
TMS
TDI
+5V
+5V
+3.3
PAR
AD9
AD6
AD4
AD2
AD0
+5V
+5V
PCI_TDI
A4
A5
PCI_IRQ#C
A6
PCI_IRQ#A
A7
A8
A9
A10
A11
A12
A13
A14
PCIRST#1
A15
A16
PCI_GNT#2
A17
A18
PCI_PME#
A19
PCI_AD30
A20
A21
PCI_AD28
A22
PCI_AD26
A23
A24
PCI_AD24
A25
R124 100
A26
A27
PCI_AD22
A28
PCI_AD20
A29
A30
PCI_AD18
A31
PCI_AD16
A32
A33
PCI_FRAME#
A34
A35
PCI_TRDY#
A36
A37
PCI_STOP#
A38
A39
SCL_SLOT3
A40
SDA_SLOT3
A41
A42
PCI_PAR
A43
PCI_AD15
A44
A45
PCI_AD13
A46
PCI_AD11
A47
A48
PCI_AD9
A49
PCI_CBE#0
A52
A53
PCI_AD6
A54
PCI_AD4
A55
A56
PCI_AD2
A57
PCI_AD0
A58
A59
REQ#64_2
A60
A61
A62
+12V
VCC5
PCI_IRQ#C <12,17>
PCI_IRQ#A <12,17>
VCC5
VCC5
3VSB
VCC5
PCI_GNT#2 <12>
VCC3
PCI_AD26
VCC3
VCC3
VCC3
SCL_SLOT3 <31>
SDA_SLOT3 <31>
VCC3
VCC3
VCC5
VCC5
VCC5
IDSEL = AD25IDSEL = AD20
MASTER = PREQ#0
PIRQ#A PIRQ#B
PCI_AD[31..0]
PCI_CBE#[3..0]
PCI_AD[31..0] <12,17>
PCI_CBE#[3..0] <12,17>
MASTER = PREQ#1 IDSEL = AD26
MASTER = PREQ#2
PIRQ#C
VCC3
VCC3VCC1.5
PCI SLOT DECOUPLING CAPACITORSPCI PULL-UP / DOWN RESISTORS
VCC5
EC24 1000u/6.3V
CB33 C0.1U16X
CB35 C0.1U16X
CB37 C0.1U16X
CB40 C0.1U16X
CB43 C0.1U16X
CB46 C0.1U16X
CB48 C0.1U16X
CB49 C0.1U16X
3VSB
CB53 C0.1U16X
CB56 C0.1U16X
CB59 C0.1U16X
CB62 C0.1U16X
+
-12V
CB38 C0.1U16X
CB41 C0.1U16X
CB44 C0.1U16X
+12V
CB54 C0.1U16X
CB57 C0.1U16X
CB60 C0.1U16X
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
PCI Slot 1&2&3
Size Document Number Rev
CANTERWOOD
Date: Sheet
of
16 33Friday, April 25, 2003
1.0Custom
PCI_IRQ#B<12,17,18>
PCI_IRQ#D<12,17>
12
PCI_TRDY#
PCI_IRDY#
PCI_FRAME#
PCI_SERR#
PCI_PERR#
PCI_LOCK#
PCI_STOP#
PCI_REQ#1<12>
PCI_REQ#0<12>
PCI_REQ#2<12>
PCI_REQ#3<12,17>
PCI_REQ#4<12,17>
PCI_REQ#5<12,17>
PCI_REQ#1
PCI_REQ#0
PCI_REQ#2
R600 2.7K
R601 2.7K
REQ#64_0
R602 4.7K
REQ#64_1
R603 4.7K
REQ#64_2
R604 4.7K
REQ#64_3
REQ#64_3<17>
REQ#64_4<17>
ACK#64<17>
PCI_TMS<17>
PCI_TDI<17>
R605 4.7K C555 C0.01U50X
REQ#64_4
R606 4.7K
ACK#64
R607 4.7K
PCI_TMS
R608 2.2K
R609 2.2K
PCI_TDI
VCC5
34
RN122
56
2.7K
78
12
34
RN124
56
2.7K
78
12
34
RN126
56
2.7K
78
PCI_IRQ#A<12,17>
PCI_IRQ#C<12,17>
PCI_IRQ#F<12,14>
PCI_IRQ#G<12,17>
PCI_IRQ#E<12,14>
PCI_IRQ#H<12>
PCI_TCK<17>
PCI_TRST#<17>
PCI_IRQ#B
PCI_IRQ#D
PCI_IRQ#A
PCI_IRQ#CPCI_DEVSEL#
PCI_IRQ#F
PCI_IRQ#G
PCI_IRQ#E
PCI_IRQ#H
PCI_TCK
PCI_TRST#
PRSNT1_0
PRSNT1_1
PRSNT1_2
PRSNT1_3
PRSNT1_3<17>
PRSNT1_4
PRSNT1_4<17>
PRSNT2_0
PRSNT2_1
PRSNT2_2
PRSNT2_3
PRSNT2_3<17>
PRSNT2_4
PRSNT2_4<17>
78
56
34
12
R908 8.2K
R909 8.2K
R910 8.2K
R911 8.2K
R598 2.2K
R599 2.2K
C552 C0.01U50X
C553 C0.01U50X
C554 C0.01U50X
C556 C0.01U50X
C557 C0.01U50X
C558 C0.01U50X
C559 C0.01U50X
C560 C0.01U50X
C561 C0.01U50X
RN123
8.2K
VCC3
VCC3
VCC5
+
EC25 1000u/6.3V
CB31 C0.1U16X
CB32 C0.1U16X
CB34 C0.1U16X
CB36 C0.1U16X
CB39 C0.1U16X
CB42 C0.1U16X
CB45 C0.1U16X
CB47 C0.1U16X
+
EC59 1000u/6.3V
+
EC60 1000u/6.3V
+
EC61 1000u/6.3V
CB50 C0.1U16X
CB55 C0.1U16X
CB58 C0.1U16X
CB61 C0.1U16X
CB51 C0.1U16X
CB52 C0.1U16X
1
Page 17

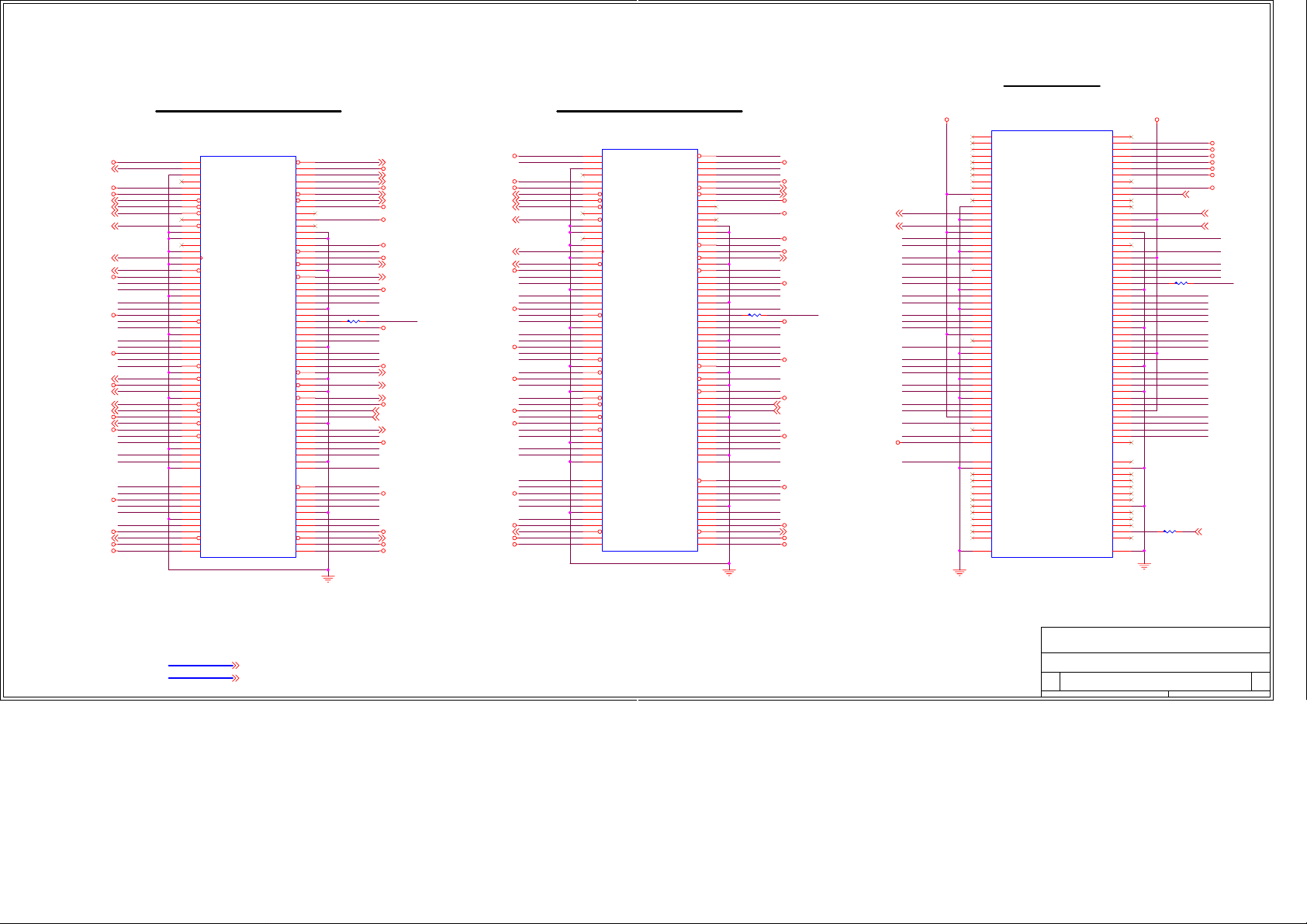

1
Mini PCI SOCKET
PCI SLOT 4 (PCI VER: 2.2 COMPLY)
PCI4
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B1
B2
B3
B4
B5
B6
B7
B8
B9
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
TRST#
+12V
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
3.3VAUX
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SMBCLK
SMBDAT
GND
AD15
+3.3V
AD13
AD11
GND
C/BE#0
+3.3V
GND
+5V(I/O)
REQ64#
TMS
TDI
+5V
+5V
+3.3
PAR
AD9
AD6
AD4
AD2
AD0
+5V
+5V
-12V
PCI_TCK
PCI_TCK<16>
VCC5
VCC5
PCI_IRQ#A
PCI_IRQ#A<12,16>
PCI_IRQ#C
PCI_IRQ#C<12,16>
PRSNT1_3
PRSNT1_3<16>
PRSNT2_3
PRSNT2_3<16>
PCI_CLK3
PCI_CLK3<5>
PCI_REQ#3
PCI_REQ#3<12,16>
VCC5
PCI_AD31
PCI_AD29
PCI_AD27
PCI_AD25
VCC3
PCI_CBE#3
PCI_AD23
PCI_AD21
A A
PCI_DEVSEL#<12,16>
PCI_AD19
VCC3
PCI_AD17
PCI_CBE#2
PCI_IRDY#
PCI_IRDY#<12,16>
VCC3
PCI_DEVSEL#
PCI_LOCK#
PCI_LOCK#<12,16>
PCI_PERR#
PCI_PERR#<12,16>
VCC3
PCI_SERR#
PCI_SERR#<12,16,31>
VCC3
PCI_CBE#1
PCI_AD14
PCI_AD12
PCI_AD10
PCI_AD8
PCI_AD7
VCC3
PCI_AD5
PCI_AD3
PCI_AD1
VCC5
ACK#64
ACK#64<16>
VCC5
VCC5
PCI_TRST#
A1
A2
PCI_TMS
A3
PCI_TDI
A4
A5
PCI_IRQ#D
A6
PCI_IRQ#B
A7
A8
A9
A10
A11
A12
A13
A14
PCIRST#2
A15
A16
A17
A18
PCI_PME#
A19
PCI_AD30
A20
A21
PCI_AD28
A22
PCI_AD26
A23
A24
PCI_AD24
A25
R888 100
A26
A27
PCI_AD22
A28
PCI_AD20
A29
A30
PCI_AD18 PCI_AD16
A31
PCI_AD16
A32
A33
PCI_FRAME#
A34
A35
PCI_TRDY#
A36
A37
PCI_STOP#
A38
A39
SCL_SLOT4
A40
SDA_SLOT4
A41
A42
PCI_PAR
A43
PCI_AD15
A44
A45
PCI_AD13
A46
PCI_AD11
A47
A48
PCI_AD9
A49
PCI_CBE#0
A52
A53
PCI_AD6
A54
PCI_AD4
A55
A56
PCI_AD2
A57
PCI_AD0
A58
A59
REQ#64_3
A60
A61
A62
PCI_TRST# <16>
+12V
PCI_TMS <16>
PCI_TDI <16>
VCC5
PCI_IRQ#D <12,16>
PCI_IRQ#B <12,16,18>
VCC5
VCC5
3VSB
VCC5
PCI_GNT#3 <12>
PCI_PME# <12,13,14,16>
VCC3
PCI_AD27
VCC3
VCC3
PCI_FRAME# <12,16>
PCI_TRDY# <12,16>
PCI_STOP# <12,16>
VCC3
SCL_SLOT4 <31>
SDA_SLOT4 <31>
PCI_PAR <12,16>
VCC3
VCC3
VCC5
REQ#64_3 <16>
VCC5
VCC5
-12V
VCC5
VCC5
PCI_IRQ#C<12,16>
PCI_IRQ#A<12,16>
PRSNT1_4<16>
PRSNT2_4<16>
PCI_CLK4<5>
PCI_REQ#4<12,16>
VCC5
VCC3
VCC3
VCC3
VCC3
VCC3
VCC3
VCC5
ACK#64<16>
VCC5
VCC5
PCI SLOT 5 (PCI VER: 2.2 COMPLY)
PCI5
B1
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B2
B3
B4
B5
B6
B7
B8
B9
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
PCI_TCK
PCI_IRQ#C
PCI_IRQ#A
PRSNT1_4
PRSNT2_4
PCI_CLK4
PCI_REQ#4PCI_GNT#3
PCI_AD31
PCI_AD29
PCI_AD27
PCI_AD25
PCI_CBE#3
PCI_AD23
PCI_AD21
PCI_AD19
PCI_AD17
PCI_CBE#2
PCI_IRDY#
PCI_DEVSEL#
PCI_LOCK#
PCI_PERR#
PCI_SERR#
PCI_CBE#1
PCI_AD14
PCI_AD12
PCI_AD10
PCI_AD8
PCI_AD7
PCI_AD5
PCI_AD3
PCI_AD1
ACK#64
TRST#
+12V
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
3.3VAUX
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SMBCLK
SMBDAT
GND
AD15
+3.3V
AD13
AD11
GND
C/BE#0
+3.3V
GND
+5V(I/O)
REQ64#
VCC3
PCI_TRST#
A1
A2
PCI_TMS
A3
TMS
TDI
+5V
+5V
+3.3
PAR
AD9
AD6
AD4
AD2
AD0
+5V
+5V
PCI_TDI
A4
A5
PCI_IRQ#B
A6
PCI_IRQ#D
A7
A8
A9
A10
A11
A12
A13
A14
PCIRST#2
A15
A16
PCI_GNT#4
A17
A18
PCI_PME#
A19
PCI_AD30
A20
A21
PCI_AD28
A22
PCI_AD26
A23
A24
PCI_AD24
A25
A26
R887
A27
PCI_AD22
A28
PCI_AD20
A29
A30
PCI_AD18
A31
A32
A33
PCI_FRAME#
A34
A35
PCI_TRDY#
A36
A37
PCI_STOP#
A38
A39
SCL_SLOT5
A40
SDA_SLOT5
A41
A42
PCI_PAR
A43
PCI_AD15
A44
A45
PCI_AD13
A46
PCI_AD11
A47
A48
PCI_AD9
A49
PCI_CBE#0
A52
A53
PCI_AD6
A54
PCI_AD4
A55
A56
PCI_AD2
A57
PCI_AD0
A58
A59
REQ#64_4
A60
A61
A62
+12V
VCC5
PCI_IRQ#B <12,16,18>
PCI_IRQ#D <12,16>
VCC5
VCC5
3VSB
VCC5
PCI_GNT#4 <12>
VCC3
PCI_AD28
100
VCC3
VCC3
VCC3
SCL_SLOT5 <31>
SDA_SLOT5 <31>
VCC3
VCC3
VCC5
REQ#64_4 <16>
VCC5
VCC5
PCI_CLK5<5>
PCI_REQ#5<12,16>
PCI_REQ#5
PCI_AD31
PCI_AD29
PCI_AD27
PCI_AD25
PCI_CBE#3
PCI_AD23
PCI_AD21
PCI_AD19
PCI_AD17
PCI_CBE#2
PCI_IRDY#
PCI_SERR# PCI_STOP#
PCI_PERR#
PCI_CBE#1
PCI_AD14
PCI_AD12
PCI_AD10
PCI_AD8
PCI_AD7
PCI_AD5
PCI_AD3
VCC5
PCI_AD1
MINIPCI1
1
TIP
3
8PMJ-3
5
8PMJ-6
7
8PMJ-7
9
8PMJ-8
11
Led1_GrnP
13
Led_GrnN
15
CHSGND
17
INTB#
19
3.3V
21
REV_1
23
GND
25
CLK
27
GND
29
REQ#
31
3.3V
33
AD31
35
AD29
37
GND
39
AD27
41
AD25
43
REV
45
C/BE3#
47
AD23
49
GND
51
AD21
53
AD19
55
GND
57
AD17
59
C/BE2#
61
IRDY#
63
3.3V
65
CLKRUN#
67
SERR#
69
GND
71
PERR#
73
C/BE1#
75
AD14
77
GND
79
AD12
81
AD10
83
GND
85
AD08
87
AD07
89
3.3V
91
AD05
93
REV
95
AD03
97
5V
99
AD01
101
GND
103
AC_SYNC
105
AC_SDATA_IN
107
AC_BIT_CLK
109
AC_CODE_ID1#
111
MOD_AUDIO_MON
113
AUDIO_GND
115
SYS_AUDIO_OUT
117
SYS_AUDIO_OGND
119
AUDIO_GND
121
REV
123
VCC5VA
127 128
GND GND
MINI_PCI
RING
8PMJ-1
8PMJ-2
8PMJ-4
8PMJ-5
LED2_YELP
LED2_YELN
INTA#
3.3VAUX
RST#
GNT#
GND
PME#
AD30
AD28
AD26
AD24
IDSEL
GND
AD22
AD20
AD18
AD16
GND
FRAME#
TRDY#
STOP#
DEVSEL#
GND
AD15
AD13
AD11
GND
AD09
C/BE0#
AD06
AD04
AD02
AD00
REV_WIP
REV_WIP
GND
M66EN
AC_SDATA_OUT
AC_CODEC_ID0#
AC_RESET#
GND
SYS_AUDIO_IN
SYS_AUDIO_IGND
AUDIO_GND
MPCIACT#
3.3VAUX
REV
REV
3.3V
REV
3.3V
PAR
3.3V
3.3V
REV
VCC3
2
4
6
8
10
12
14
16
18
5V
20
22
24
26
28
PCI_GNT#5
30
32
34
36
38
40
42
44
46
R610 100
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
R611 0
122
124
PCI_IRQ#G <12,16>
PCIRST#2
PCI_PME#
PCI_AD30
PCI_AD28
PCI_AD26
PCI_AD24
PCI_AD22
PCI_AD20
PCI_PAR
PCI_AD18
PCI_AD16
PCI_FRAME#
PCI_TRDY#
PCI_DEVSEL#
PCI_AD15
PCI_AD13
PCI_AD11
PCI_AD9
PCI_CBE#0
PCI_AD6
PCI_AD4
PCI_AD2
PCI_AD0
+12V
+12V
+12V
+12V
+12V
+12V
VCC5
PCIRST#2 <21>
PCI_GNT#5 <12>
PCI_AD18
HDA# <15,25>
IDSEL = AD27
MASTER = PREQ#3
PIRQ#D
PCI_AD[31..0]
PCI_CBE#[3..0]
PCI_AD[31..0] <12,16>
PCI_CBE#[3..0] <12,16>
IDSEL = AD28
MASTER = PREQ#4
PIRQ#B
IDSEL = AD18
MASTER = PREQ#5
PIRQ#G
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
PCI Slot 4&5&Mini PCI
Size Document Number Rev
CANTERWOOD
1
Date: Sheet
17 33Friday, April 25, 2003
1.0Custom
of
Page 18
1
U18A
XTAL1
XTAL2
NB_CSA0
NB_CSA1
NB_CSA2
NB_CSA3
NB_CSA4
NB_CSA5
NB_CSA6
NB_CSA7
NB_CSA10
NB_CSA8
NB_CSA[0..10]<6>
CSA_66<5>
MCH_LANRST#<6,21>
NB_CSASTRS<6>
NB_CSASTRF<6>
LNK_ALERT#<13>
PWROK<13,21,25>
SMBCLK<13,29,31>
SMBDATA<13,29,31>
RSMRST#<13,31>
3VSB
A A
Y4
25M-18pf-HC49S-D
C211
22p
MCH_LANRST#
NB_CSASTRS
NB_CSASTRF
VCCL1_2
C212
22p
R253 30.1RST
R254 0
R613 X_3.3K
R257 3.3K
R258 1K
J1
CI[0]-NC
J2
CI[1]-NC
J3
CI[2]-NC
K1
CI[3]-NC
L3
CI[4]-NC
M2
CI[5]-NC
M1
CI[6]-NC
N2
CI[7]-NC
G1
CI_CLK-NC
B9
PCI_RST#-NC
H1
CI[10]-NC
G2
CI[9]-NC
H3
CI[8]-NC
L1
CI_STRS-NC
L2
CI_STRF-NC
N3
CI_RCOMP-NC
B10
SMBALRT/PCI_PWR_GOOD-NC
A10
SMB_CLK-NC
C9
SMB_DAT-NC
A9
LAN_PWRGD-NC
J12
AUX_PWR-NC
K14
XTAL1-XTAL1
J14
XTAL2-XTAL2
M12
SDP[3]-LAN_RXD2
N13
SDP[2]-LAN_RXD1
P13
SDP[1]-LAN_RXD0
N14
SDP[0]-LAN_CLK
CSA PortSMBUSSDP/Jordan I/F
LED_LINK_UP_N-LILED
LED_ACTIVITY_N-ACTLED
LED_LINK_100_N-SPEEDLED
LED_LINK_1000_N-TOUT
LEDS
MDI_PLUS[0]-TDP
MDI_MINUS[0]-TDN
MDI_PLUS[1]-RDP
MDI_MINUS[1]-RDN
MDI_PLUS[2]-NC
MDI_MINUS[2]-NC
MDI_PLUS[3]-NC
Ethernet PortEEProm
MDI_MINUS[3]-NC
Serial FLASH
JTAG_TDI-LAN_RSTSYNC
JTAG_TCK-LAN_TXD2
JTAG_TRST#-LAN_TXD1
JTAG_TDO-LAN_TXD0
EE_CS-NC
EE_SK-NC
EE_DI-NC
EE_DO-NC
EE_MODE
FLSH_CE_N-NC
FLSH_SCK-NC
FLSH_SI-NC
FLSH_SO-NC
INTA#-NC
PME#-NC
JTAG_TMS-NC
A12
C11
B11
B12
C13
C14
E13
E14
F13
F14
H13
H14
P7
M10
P10
N10
C4
M9
N9
M11
P9
A2
A6
L12
M13
L14
L13
M14
R251 330
LAN_MDP0
LAN_MDN0
LAN_MDP1
LAN_MDN1
LAN_MDP2
LAN_MDN2
LAN_MDP3NB_CSA9
LAN_MDN3
EE_CS
EE_SK
EE_DI
EE_DO
R255 X_1K
R256 1K
LAN_DIS#
LAN_PME#
CSA_TCK
CSA_TRST#
LAN_LINK_UP
LAN_ACTLED
LINK_100
LINK_1000
U19
1
2
3
4
3VSB
Microwire, Stuff R256
SPI, Stuff R255
LAN_DIS# <22>
PCI_IRQ#B <12,16,17>
R263 1K
R262 1K
LAN_LINK_UP
3VSB
R612
4.7K
VCC
NC
ORG
GND
93C46
8
7
6
5
C210
C0.01U50X
CS
SK
DI
DO
C562
X_1000p
LINK_1000
C563
X_1000p
LINK_100
X_1000p
LAN_ACTLED
X_1000p
C564
C565
JTAG/LCI
82547EI
<Priority>
C233 C0.01U50X
C234 C0.01U50X
C236 C0.01U50X
LAN_MDP0
LAN_MDN0
LAN_MDP1
LAN_MDN1
LAN_MDP2
LAN_MDN2
LAN_MDP3
LAN_MDN3
49.9RST
R264
49.9RST
R265
49.9RST
R266
49.9RST
R267
R268 49.9RSTC235 C0.01U50X
R269 49.9RST
R270 49.9RST
R271 49.9RST
LINK_1000
VCCL1_8
R273 330
LINK_100
LAN_AMBER
LAN_LINK_UP
LAN_ACTLED
1
LAN_USB1B
GREEN
19
ORANGE
20
13
18
12
17
11
16
10
15
9
14
AMBER
21
22
YMD20
R277 330
POWER
TD1+
TD1ÂTD2+
TD2ÂTD3+
TD3ÂTD4+
TD4-
GND
LAN_AMBER
LEFT RIGHT
LAN_PME#
R928 0
CSA_PME# <13>
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
INTEL 82547EI(1)
Size Document Number Rev
CANTERWOOD
Date: Sheet
18 33Friday, April 25, 2003
of
1.0Custom
Page 19
1
1.8V Voltage Regulation
3VSB
R275
X_5.1K
CTRL1.8
1
R279
X_100KST
1.2V Voltage Regulation
D25
0/1206
R276
X_5.1K
CTRL1.2
3VSB
VCCL1_2
VCCL1_8
1
R280
X_100KST
EC62 X_C10U10Y1206
C216 C0.1U16X
C219 C0.01U50X
C222 C0.1U16X
C225 C0.01U50X
EC63 X_C10U10Y1206
EC64 C10U10Y1206
C214 C0.01U50X
C217 X_C0.01U50X
C220 X_C0.01U50X
EC66 X_C10U10Y1206
EC67 C10U10Y1206
C215 C0.1U16X
C218 X_C0.01U50X
C221 X_C0.01U50X
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
INTEL 82547EI(2)
Size Document Number Rev
CANTERWOOD
Date: Sheet
(5mA)
C238
D24
C0.1U16X
0/1206
32
Q27
PNP-BCP69-S-SOT223
4
1A/0.5W
3VSB
C239
C0.1U16X
32
Q28
PNP-BCP69-S-SOT223
4
1A/1.35W
+
+
+
+
+
VCCL1_8
(230 mA)
VCCL1_2
(550 mA)
C566
C0.1U16X
1.0Custom
19 33Friday, April 25, 2003
of
C209
1000p
CSA_SWING
CSA_VREF
C567
C232
1000p
1000p
VCCL1_2
U18B
G4
CSA_1.2V-NC_G4
H4
CSA_1.2V-NC_H4
J4
CSA_1.2V-NC_J4
M4
CSA_1.2V-NC_M4
J13
XTAL1.8V-NC
F12
CLKRCAP-NC_F12
H12
XTALCAP-NC_H12
B3
VSSPST-VSS_B3
B7
VSSPST-VSS_B7
C10
VSSPST-VSS_C10
E2
VSSPST-VSS_E2
M6
VSSPST-VSSA_M6
N12
VSSPST-VSSP_N12
P8
VSSPST-VSSA_P8
D5
VSS-VSS_D5
D7
VSS-VSS_D7
D8
VSS-VSS_D8
E5
VSS-VSS_E5
E6
VSS-VSS_E6
E7
VSS-VSS_E7
E8
VSS-VSS_E8
E9
VSS-VSS_E9
F4
VSS-VSSR_F4
F6
VSS-VSS_F6
F7
VSS-VSS_F7
F8
VSS-VSS_F8
F9
VSS-VSS_F9
F10
VSS-VSS_F10
G7
VSS-VSS_G7
G8
VSS-VSS_G8
G9
VSS-VSS_G9
G10
VSS-VSS_G10
G11
VSS-VSS_G11
H9
VSS-VSS_H9
H10
VSS-VSS_H10
L11
VSS-VSSP_L11
C12
ANALOG_VSS-VSSA_C12
D13
ANALOG_VSS-VSSA_D13
K12
ANALOG_VSS-VSSP_K12
G14
ANALOG_VSS-VSS_G14
F11
GNDC-VSS_F11
H2
CSA_VSS-NC_H2
M3
CSA_VSS-NC_M3
K2
CSA_VSS-VSS_K2
N1
CSA_VSS-VSS_N1
P3
CI_SWING-NC
N4
CI_VREF-NC
M5
PLL1.8V-NC
N5
PLLCAP-NC
L6
PLL_VSS-VSSA_L6
A5A8B1B2B4B5B6B8C1C2C3C6C7D3G3
RESERVED_NC-NC_A5
RESERVED_NC-NC_A8
RESERVED_NC-NC_B1
RESERVED_NC-NC_B2
RESERVED_NC-NC_B4
RESERVED_NC-NC_B5
RESERVED_NC-NC_B6
RESERVED_NC-NC_B8
RESERVED_NC-NC_C1
RESERVED_NC-NC_C2
RESERVED_NC-ADV10
RESERVED_NC-NC_A4
RESERVED_NC-NC_C5
RESERVED_NC-NC_C8
RESERVED_NC-NC_D1
RESERVED_NC-NC_D2
RESERVED_NC-NC_D9
RESERVED_NC-NC_E3
RESERVED_NC-NC_F1
RESERVED_NC-NC_F2
RESERVED_NC-NC_F3
RESERVED_NC-NC_L8
RESERVED_NC-NC_M7
RESERVED_NC-NC_M8
L7A4C5C8D1D2D9E3F1F2F3L8M7M8N7
RESERVED_NC-NC_C3
RESERVED_NC-NC_C6
RESERVED_NC-NC_C7
RESERVED_NC-NC_D3
RESERVED_NC-NC_G3
RESERVED_NC-NC_N7
RESERVED_NC-NC_N11
RESERVED_NC-NC_P4
RESERVED_NC-NC_P5
RESERVED_NC-NC_P6
N11P4P5P6A1
CORE_VDD-VCCR_G5
CORE_VDD-VCC3.3_G6
CORE_VDD-VCCR_H5
CORE_VDD-VCC3.3_H6
CORE_VDD-VCC3.3_H7
CORE_VDD-VCC3.3_H8
CORE_VDD-VCC3.3_J6
CORE_VDD-VCC3.3_J7
CORE_VDD-VCC3.3_J8
CORE_VDD-VCC3.3_J9
CORE_VDD-VCC3.3_J10
CORE_VDD-VCC3.3_J11
CORE_VDD-VCC3.3_K5
CORE_VDD-VCC3.3_K6
CORE_VDD-VCC3.3_K7
CORE_VDD-VCC3.3_K8
CORE_VDD-VCC3.3_K9
CORE_VDD-VCC3.3_K10
CORE_VDD-VCC3.3_K11
CORE_VDD-VCC3.3_L4
CORE_VDD-VCC3.3_L5
CORE_VDD-VCC3.3_L9
CORE_VDD-VCC3.3_L10
ANALOG_1.2V-VCCT_E11
ANALOG_1.2V-VCC3.3_H11
ANALOG_1.2V-VCCT_E12
ANALOG_1.2V-VCC3.3_G13
IEEE_TEST+-RBIAS10
IEEE_TEST--ISOL_TCK
RESERVED_NC-ISOL_EXEC
RESERVED_3.3V-VCC3.3
RESERVED_VSS-VSS_D6
RESERVED_VSS-VSS_E10
RESERVED_VSS-VSS_F5
RESERVED_VSS-VSS_D4
RESERVED_VSS-VSS_E4
NC-NC_A1
NC-NC_A14
NC-NC_P1
NC-NC_P14
A14P1P14
CORE_VDD-VCCR_J5
VDDPST-VCC3.3_A3
VDDPST-VCC3.3_A7
VDDPST-VCCT
VDDPST-VCC3.3_E1
VDDPST-VCC3.3_K3
VDDPST-VCCP_K13
VDDPST-VCCA_N6
VDDPST-VCCA_N8
VDDPST-VCC3.3_P2
VDDPST-VCCP_P12
CLKR1.8V-ISOL_TI
VDDR1P8-NC_D11
VDDR1P8-NC_G12
CTRL18-RBIAS100
CTRL12-NC
TEST-TESTEN
82547EI
<Priority>
1
VCCL1_8
C227
C0.01U50X
+
EC36C10U10Y1206
BACK
A A
VCCL1_2
R274
604RST
800mV
C240
C0.1U16X
C244
C0.1U16X
R278
665RST
R281
523RST
350mV
C208
1000p
+
BACK
C241
C0.01U50X
C245
C0.01U50X
EC37C10U10Y1206
VCCL1_2
EC65C10U10Y1206
EC38C10U10Y1206
+
+
G5
G6
H5
H6
H7
H8
J5
J6
J7
J8
J9
J10
J11
K5
K6
K7
K8
K9
K10
K11
L4
L5
L9
L10
E11
H11
E12
G13
A3
A7
A11
E1
K3
K13
N6
N8
P2
P12
D12
D11
G12
B14
D14
B13
P11
D10
A13
K4
D6
E10
F5
D4
E4
VCCL1_2
3VSB
3VSB
CTRL1.8
CTRL1.2
VCCL1_8
C224
C0.01U50X
TP1
TP2
TP3
R614
0
TP4

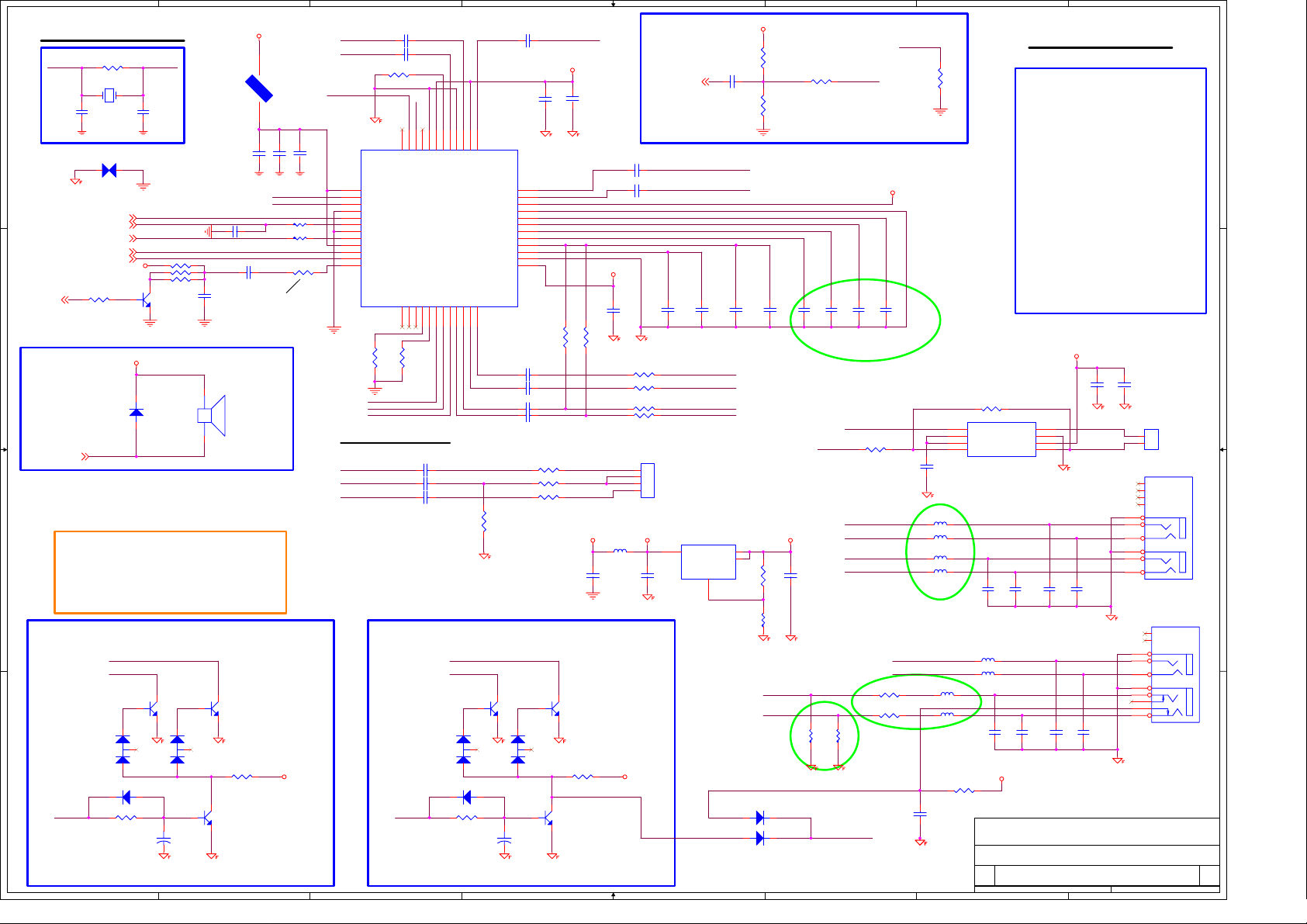

Page 20
8
AUDIO CODE CRYSTAL CIRCUIT
R621 10M
XTALOUT
1 2
Y5
24M-16pf-HC49S-D
1 2
12
C579
D D
C C
B B
22p
X_COPPER
AGND
AC_SDOUT<12>
AC_BITCLK<12>
AC_SDIN0<12>
AC_SYNC<12>
R628 2.2K
SPKR<13>
PC_BEEP
PC_BEEP<25>
D36,D37 = SHORT ---- 4.5%
D36,D37 = 1SS355 ----2.6%
XTALIN
12
C580
22p
CP1
AC_SDOUT
AC_BITCLK
AC_SDIN0
AC_SYNC
AC_RST#
AC_RST#<12>
VCC5
B
VCC5
A C
R624 330
R625 75
R627 75
Q60
2N3904S
E C
D26
1N4148S
D36,D37 = 1SS380 ----0.1~0.05%
WHQL PC2001<= 0.056%
Reduced Noise Circuit (Li ne Out )
L_OUTR
L_OUTL
Q119
2N3904S
3
D38
Mute1
1
AGND
1PS226
2
AC
EC70
+
10U/16V/S
AGND
1
1PS226
A A
EPAD
2
D40 1N4148S
R951 10K
8
7
VCC3
1 2
C578 X_22p
PC_BEEP
C581 C1U16X0805
C582
C0.1U16X
BZ1
2 1
BUZZER-SAT1205-85dB-D
THD at 1Vrms
Q120
2N3904S
AGND
3
D39
R949 4.7K
Q121
2N3904S
AGND
7
1 2
C572
C0.1U16X
AD1981B,
un-stuff
FB3
80-0805-2A
C574
C573
C10U6.3X1206
C0.1U16X
XTALIN
XTALOUT
R622 33
R623 33
R626 X_0
+5VR
6
C568 C22U10Y1206
HP_OUTL
C569 C22U10Y1206
HP_OUTR
R973 X_0
EPAD
AGND
4847464544424140394338
1
DVDD1
2
XTL_IN
3
XTL_OUT
4
DVSS1
5
SDATA_OUT
6
BIT_CLK
7
DVSS2
8
SDATA_IN
9
DVDD2
10
SYNC
11
RESET#
12
NC
1314151617181920212223
R956
4.7K
CDLX
CDGNDX
CDRX
AUDIO CODE CD
CDRX
CDGNDX
CDLX
C596 C1U10X
C597 C1U10X
C598 C1U10X
EPAD
6
5
C667 C1U10X
CB63
C0.1U16X
EXTAL
AGND
U13
37
NC
ID1#
ID0#
EPAD
SPDIF
AVSS3
PHONE
AUXL
AUXR
JS1
JS0
R957
4.7K
AVDD3
HP_OUT_R
CDLNCCDR
AVSS2
HP_OUT_L
MIC1
MIC2
CDR1
CDGND1
CDL1
AVDD2
LINL
MONO
LINR
24
MIC2
MIC1
AGND
LINR
LINL
LOUTR
LOUTL
AVDD4
AVSS4
AFILT4
AFILT3
AFILT2
AFILT1
VREFOUT
VREF
AVSS1
AVDD1
AD1981B
C592 C1U16X0805
C593 C1U16X0805
C594 C1U16X0805
R637
4.7K
33/34 for 3D enhanced.
LOUTR
36
LOUTL
35
34
33
32
31
30
29
28
27
26
25
R633 4.7K
R634 0
R635 4.7K
Reduced Noise Circuit (Head Phone)
HP_OUTR MIC_IN2
HP_OUTL
Q122
2N3904S
1
1PS226
2
D43 1N4148S
R954 10K
3
D41
Mute2
1
AGND
AC
+
AGND
1PS226
2
EC71
10U/16V/S
3
D42
5
AGND
R953 4.7K
Q124
2N3904S
AGND
MONO
+5VR
C571
C10U6.3X1206
AGND
R943
2.2K
CDR
CDGND
CDL
Q123
2N3904S
C575 10u10V/0805
C576 10u10V/0805
AFILT2
AFILT1
ACVREF
+5VR
R944
AGND
2.2K
FB10 600-0.5A
CB65
C0.1U16X
VRDA
VRAD
CB64
C0.1U16X
AGND
R629 0
R630 0
R958 0C668 C1U16X0805
R631 0
JCDIN1
4
3
2
1
CD-D1x4-BK-SBTJ
+12VR+12V
AGND
+5VR
AC97_14<5>
AVREFOUT
C583
C10U6.3X1206
3 2
C607
C1U10X
4
C570
X_C0.1U16X
L_OUTR
L_OUTL
C584
C0.1U16X
LINE_INR
LINE_INL
MIC_IN2
MIC_IN1
U34
VIN VOUT
VOUT
ADJ
LT1084S-SOT89-0.8A
1
4
VCC3
R615
X_10K
R617
R619
X_10K
C670
C671
C10U6.3X1206
C0.1U16X
+5VR
4
R648
100
R653
300RST
AGND
AGND
HP_OUTR
HP_OUTL
D44 1N4148S
A C
D45 1N4148S
A C
ALC202, stuff
AD1981B,
un-stuff
X_0
12
12
C585
27p
MONO
C608
C1U10X
R947
1K
AGND
AMP_SD
3
XTALIN
C586
27p
AMP_SD
R952 20K
R948
1K
SD
3
+5VR
12
12
C587
270p
LINE_INR
LINE_INL
L_OUTR
L_OUTL
R945 47
R946 47
C588
270p
EXTAL
C595
C0.1U16X
AGND
FB4 120/0.6A
FB5 120/0.6A
FB6 120/0.6A
FB7 120/0.6A
MIC_IN1
FB9 120/0.6A
FB11 120/0.6A
C669
C0.1U16X
AGND
2
AD1981B --> ALC202 co-lay list
R616
X_0
R632 24K
U33
1
SD
2
BYPASS
3
+IN
4
-IN
SSM2211S-SOIC8
FB23 120/0.6A
FB8 120/0.6A
R950 10K
Title
Size Document Number Rev
Date: Sheet
pin2 Mount R617
pin6 R622 change 33ohm to 10ohm
pin8 R623 change 33ohm to 0ohm
pin16 Remove R956
pin17 Remove R957
pin29 C585 change 27p to 1n
pin30 C586 change 27p to 1n
pin31 C587 change 270p to 1u
pin32 C588 change 270p to 1u
pin35 C576 change 4.7u to 22u
pin36 C575 change 4.7u to 22u
pin42 Mount R973
pin46 Mount R616
*FB4/5/6/7 change FB to 22ohm
FB9/11 Mount 0ohm
C599/600/601/602/603/604/605/606
change 100p
Mount R615,R619
Mount C570
Remove Y5
Remove R621
Remove
C579,C580
+5VR
C590
C1U10X
AGND
8
VOUT_B
7
-V
6
+V
5
VOUT_A
AGND
12
12
12
C599
1000p
12
C603
1000p
+5VR
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
C600
1000p
12
C604
1000p
C601
1000p
C605
1000p
AGND
12
C602
1000p
AGND
12
C606
1000p
AGND
AD1981B/ALC202
CANTERWOOD
2
1
C591
C10U6.3X1206
AMP 171826-2
JSPKR1
1
2
H1*2/,DIP/90D,white
JAUD1
10
9
3
2
1
8
6
4
5
7
AJ339BF-6BG
JAUD2
3
2
1
8
6
4
5
9
10
7
AJ339BF-8PO
20 33Friday, April 25, 2003
1
0BCustom
of
Page 21
5
D D
VCC3
147
U48C
PCIRST_ICH5#<12>
PWROK<13,18,25>
C C
PWROK
9
10
7408
5 6
8
VCC3
147
4
U35C
74LVC14-SOIC14
PCIRST
VCC3
U35A
74LVC14-SOIC14
147
1 2
VCC3
U35D
74LVC14-SOIC14
147
9 8
VCC3
U35F
74LVC14-SOIC14
147
13 12
3
VCC3
R655
X_330
AGP_PCIRST# <14>
VCC3
VCC3
for AGP
R658
X_330
MCH_LANRST# <6,18>
for MCH, LAN
R660
X_330
SIO_FWHRST# <22,23,29,31>
for SIO, FWH,
PCIRST
2
R656 10K Q61
VCC3
U35B
74LVC14-SOIC14
147
3 4
VCC3
U35E
74LVC14-SOIC14
147
11 10
2N3904S
VCC5
R654
330
IDE_RST# <15>
for ATA
VCC3
R657
X_330
PCIRST#1 <16>
for PCI Slot 1/2/3
VCC3
R659
X_330
PCIRST#2 <17>
for PCI Slot 4/5/MiniPCI
1
DUMP
SWITCH
PCI RESET Circuit
B B
A A
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
PCIRST & ITP
Size Document Number Rev
CANTERWOOD
5
4
3
2
Date: Sheet
21 33Friday, April 25, 2003
1
of
1.0B

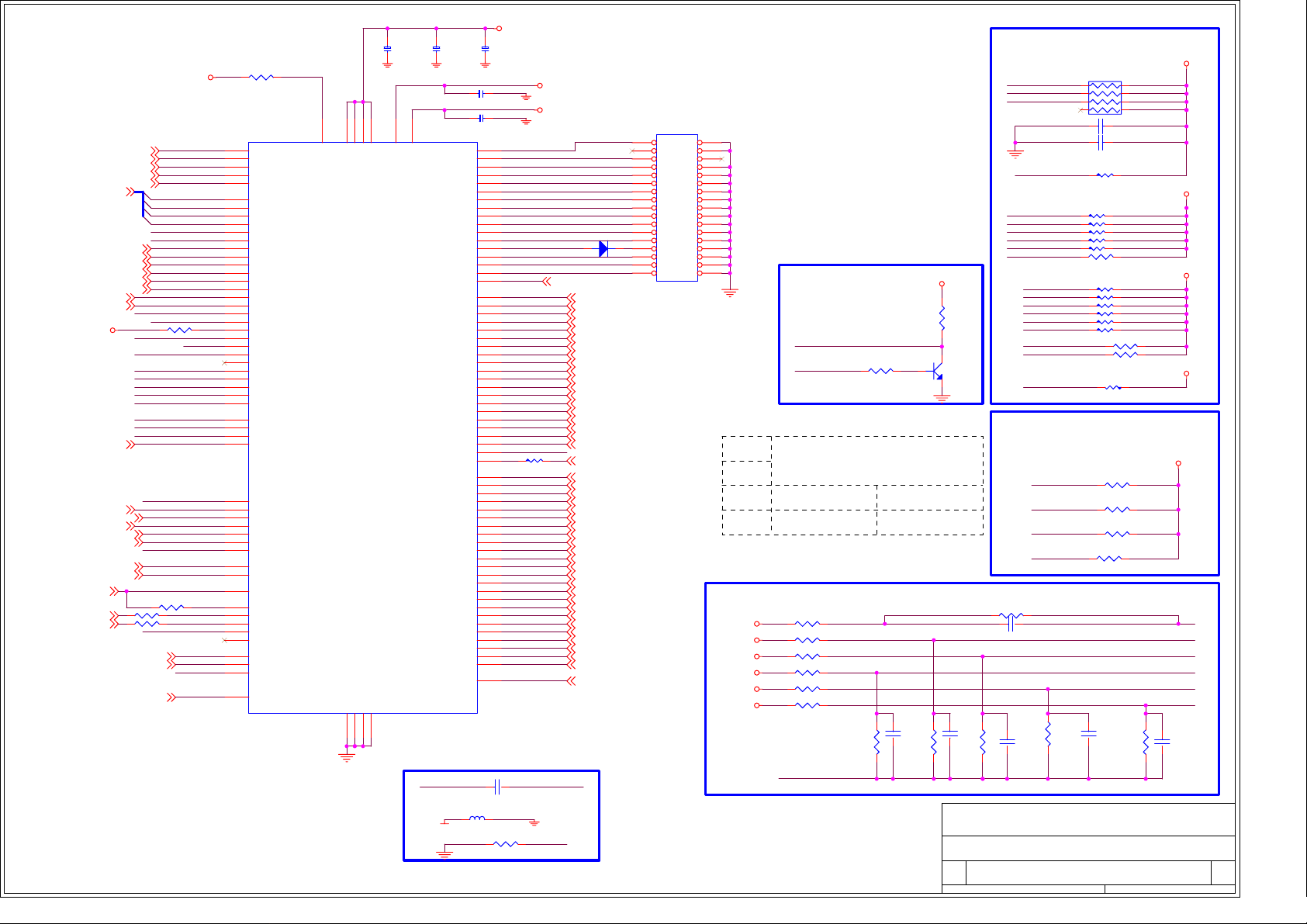

Page 22
1
VCC3
CB66
C0.1U16X
VCC3
R666 0
WDTO
10
11
12
13
14
15
16
17
18
6
7
121
122
119
120
117
118
123
124
125
126
28
29
46
49
48
47
45
38
39
40
42
43
41
5
23
3
2
1
128
4
127
24
27
21
56
55
54
53
50
35
25
26
22
SIO_FWHRST#<21,23,29,31>
SIO_PCLK<5>
SERIRQ<13,29>
LPC_DRQ#0<13>
LPC_FRAME#<13,23,29>
LPC_AD[0..3]<13,23,29>
CMOSCLR<31>
PASSWDIS<31>
3VSB
A A
FANPWM0<29>
FANPWM1<30>
FANIN1<30>
FANPWM2<29>
FANIN2<29>
FANIN0<29>
LAN_DIS#<18>
RING#<13,15,29>
SIO_SMI#<13>
SMB_DATA<5,9,10,29,30>
SMB_CLK<5,9,10,29,30>
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
GPIO4
GPIO5
VID4
VID4<3,28>
VID5
VID5<3,28>
VID2
VID2<3,28>
VID3
VID3<3,28>
VID0
VID0<3,28>
VID1
VID1<3,28>
GPIO30
FP_WP
R671 4.7K
CHASI
AVGND
AVGND
AVGND
AVI1
AVI2
AVI3
AVI5
AVI6
AVI4
FANPWM0
GPIOE0
FANPWM1
FANIN1
FANPWM2
FANIN2
FANIN0
GPIO32
LAN_DIS#
RING#
R681 X_0
R682 X_0
GPIO11
PWBTIN#<25>
SIO_48<5>
AVREF
SIO_SDA
SIO_SCL
LED2
SIOP3V
LRESET#
LCLK
SERIRQ
LDRQ#
LFRAME#
LAD0
LAD1
LAD2
LAD3
P12/GPIO04
P17/GPIO05
JOYBX/GPIO24
JOYBY/GPIO25
JOYABTN0/GPIO22
JOYABTN1/GPIO23
JOYAX/GPIO20
JOYAY/GPIO21
JOYBBTN0/GPIO26
JOYBBTN1/GPIO27
MDTX/GPIO30
MDRX/GPIO31
CHASO#/GPIOE5
CHASI
VREF
TS3/D2N
TS2/D1P
TS1/D1N
AVSS
AVI1
AVI2
AVI3
AVI5
AVI6
AVI4
FANOUT0/GPIO03
GPIOE0
FANOUT1/GPIO01
FANIN1/GPIO00
FANOUT2/GPIO34
FANIN2/GPIO33
FANIN0/GPIO02
P16/IRSL1/GPIO32
OTS1#/GPIOE1
ALARM#/RING/GPIOE4
SMI#/GPIO10
WDTO/GPIO14
SDA/GPIO13
SCL/GPIO12
GPIO11
D2P
PWBTIN#/GPIS2
LED1/OTS2#/GPIOE2
LED2
CLKIN
2019
44
VDDVSS
AVdd
SIO
52831153130
VDD
VDD
VDD
DTR1#_BOUT1/BADDR
DTR2#_BOUT2/PSONPOL
VSS
VSS
VSS
8451116
CB67
C0.1U16X
CB69 C1U16Y0805
CB70 C1U10X
U36
DENSEL
VSB
DRATE0
VBAT
INDEX#
MTR0#
DS1#/GPIO17/IRSL3
MTR1#/GPIO16/IRSL2
PWBTOUT#/GPOS0
IRRX2_IRSL0/GPIE6
DR0#
DIR#
STEP#
WDATA#
WGATE#
TRK0#
WP#
RDATA#
HDSEL#
DSKCHG#
PSON#/GPOS1
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
SLCT
BUSY_WAIT#
ACK#
SLIN#_ASTRB#
INIT#
ERR#
AFD#_DSTRB#
STB#_WRITE#
IRRX1/GPIE7
IRTX/GPIO15
PWUREQ#
DCD1#
DSR1#
SIN1
RTS1#/PSLDC0
SOUT1
CTS1#
RI1#
DCD2#
DSR2#
SIN2
RTS2#
SOUT2/PSLDC1
CTS2#
RI2#
SLPS3#/GPIS3
GA20/GPIO07
KBRST/GPIO06
KBDATA
KBCLK
MSDATA
MSCLK
SLPS5#/AVI0
NS-PC87366
AVREF
FB12 120/0.6A
CB68
C0.1U16X
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
34
92
90
88
86
85
82
81
80
76
77
PE
78
79
87
89
91
93
94
33
59
58
57
32
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
36
9
8
112
111
114
113
37
C619 C0.47U16Y
R695 0
3VSB
VBAT
FDD_DRVDEN0
FDD_DEDIN
FDD_INDX#
FDD_MOA#
FDD_DSB#
FDD_DSA#
FDD_MOB#
FDD_DIR#
FDD_STEP#
FDD_WRDATA#
FDD_WE#
FDD_TRACK#0
FDD_WP#
FDD_RDDATA#
FDD_HEAD#
FDD_DSKCHG#
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
SLCT
PE
RBUSY
RACK#
RSLIN#
RINIT#
RERR#
RAFD#
STB#
IRRX
GPIE6
R676 33
SIO_PME#
DCDA#
DSRA#
SINA
RTSA#
SOUTA
CTSA#
DTRA#
RIA#
DCDB#
DSRB#
SINB
RTSB#
SOUTB
CTSB#
DTRB#
RIB#
KBRST#
KBDATA
KBCLK
MSDATA
MSCLK
AVGND
D27
A C
1N4148S
PS_ON# <25>
PD0 <23>
PD1 <23>
PD2 <23>
PD3 <23>
PD4 <23>
PD5 <23>
PD6 <23>
PD7 <23>
SLCT <23>
PE <23>
RBUSY <23>
RACK# <23>
RSLIN# <23>
RINIT# <23>
RERR# <23>
RAFD# <23>
STB# <23>
PWRBTN# <13>
IRRX <25>
IRTX <25>
SIO_PME# <13>
DCDA# <15>
DSRA# <15>
SINA <15>
RTSA# <15>
SOUTA <15>
CTSA# <15>
DTRA# <15>
RIA# <15>
DCDB# <15>
DSRB# <15>
SINB <15>
RTSB# <15>
SOUTB <15>
CTSB# <15>
DTRB# <15>
RIB# <15>
SLP_S3# <13,31>
A20GATE <13>
KBRST# <13>
KBDATA <23>
KBCLK <23>
MSDATA <23>
MSCLK <23>SUSLED<25>
SLP_S5# <13>
AVGND
FDD1
12
34
56
78
910
1112
1314
1516
1718
1920
2122
2324
2526
2728
2930
3132
3334
YJ217-C-1
SOUT1
SOUT2
DTR1_N
DTR2_N
3VSB
VCC1.5
VCC3
+12V
VCORE
VCC5
1
Floppy Write Protiction
FDD_WP#
R674 2.7K
FP_WP
L:PIN 33-35,37 as power control function
H:PIN 33-35,37 as GPIO
H: BADDR=4EL: BADDR=2E
H:HIGH PWR-ONL:LOW PWR-ON
R685 37.4KSTR684 X_0
R686 100KST
R687 37.4KST
R688 402KST
R689 100KST
R690 110KST
AVGND
AVI6
R692
100K
C615
0.1U16V
X_680KST
VCC5
R670
1K
B
X_2N3904S
E C
C616
R693
0.1U16V
Title
Size Document Number Rev
Date: Sheet
Super IO Pull-Up Resistors
RN127 1K
1 2
3 4
5 6
7 8
C611 C0.1U16X
C612 C0.1U16X
R912 10K
R913 10K
R914 10K
R915 10K
R667 10K
R668 150K
GPIO32
WDTO
GPIO11
GPIO4
GPIO5
GPIO30
SIO_SDA
SIO_SCL
CHASI
R955 1K
R669 10K
R916 10K
R917 10K
R918 10K
R919 10K
R934 10K
R672 2.7K
R673 2.7K
R675 1M
Q62
FDD_TRACK#0
FDD_RDDATA#
FDD_DSKCHG#
FDD_INDX#
GPIOE0
RING#
GPIE6
LED2
LAN_DIS#
IRRX
SIO STRAPPING RESISTORS
VCC5
SOUTA
SOUTB
DTRA#
DTRB#
R683 100KST
C613 0.1U16V
R968
C783
0.1U16V
100KST
R679 X-10K
R680 X-10K
R691
X_330K
R677 X-10K
R678 X-10K
AVI3
C617
R694
0.1U16V
100KST
AVGND
AVI4
AVI5
AVI2
AVI1
C618
0.1U16V
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
LPC I/O - NS87366
CANTERWOOD
of
22 33Friday, April 25, 2003
VCC5
3VSB
VCC3
VBAT
1.0Custom

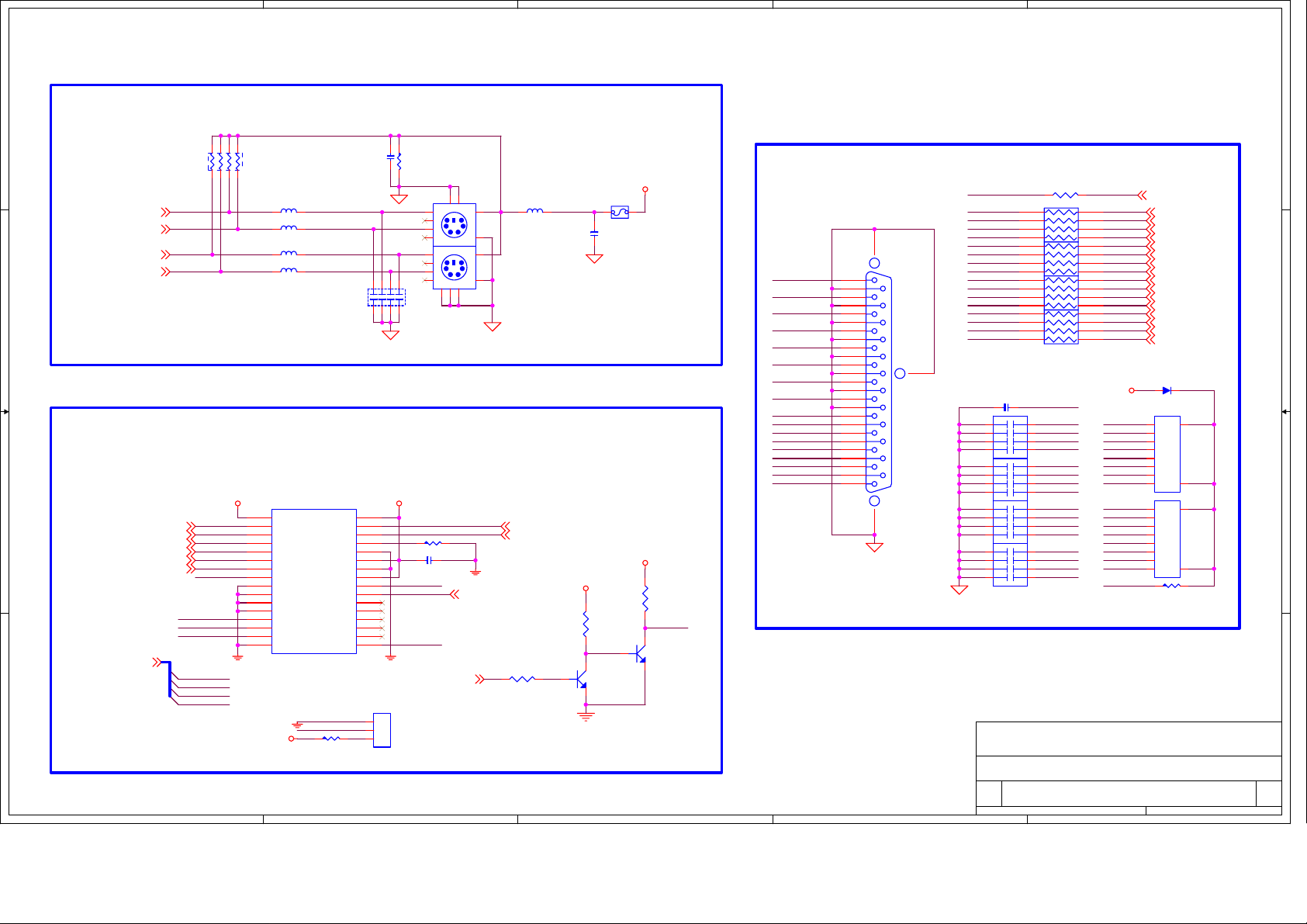

Page 23
5
4
3
2
1
D D
1 2
MSDATA<22>
MSCLK<22>
KBDATA<22>
KBCLK<22>
C C
B B
LPC_AD[0..3]<13,22,29>
A A
MSDATA
MSCLK
KBDATA
KBCLK
SIO_FWHRST#<21,22,29,31>
ISPMD2<31>
ISPMD1<31>
ATADET1<15>
ATADET0<15>
BIOS_WP#<13>
5
ISPMD2
ISPMD1
BIOS_WP#
TBL#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
PS2 KEYBOARD & MOUSE CONNECTOR
RN9
4.7K
3 4
5 6
7 8
L1 120/0.6A
L3 120/0.6A
L4 120/0.6A
L5 120/0.6A
C27
C0.1U16X
MS_DT
MS_CK
KB_DT
KB_CK
CN9
CN180P50N
135
246
R696
1K
7
8
YMD12P-1
7
8
11
12
1
2
5
6
Firmware Hub (FWH)
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
J1
YJ103
VCC3
1
2
3
4
INIT#
LPC_FRAME#
LPC_AD3
FWH_PCLK
WHQL
R698 8.2K
C768 C0.1U16X
VCC3
XU1
1
VPP
2
RST#
3
FGPI3
4
FGPI2
5
FGPI1
6
FGPI0
7
WP#
8
TBL#
9
ID3
10
ID2
11
ID1
12
ID0
13
FWH0
14
FWH1
15
FWH2
16 17
GND FWH3
X_BIOS_4Mbit
VCC3
VCC
CLK
FGPI4
IC(VIL)
GNDA
VCCA
GND
VCC
INIT#
FWH4
RFU
RFU
RFU
RFU
RFU
TBL#
R703 8.2K
KBMS1
13
14
10
9
MS
4
3
KB
151617
LPC_FRAME# <13,22,29>
R702 330
HINIT#<3,13>
L2 80/0805-3A
C28
C0.1U16X
FWH_PCLK <5>
WHQL <31>
B
VCC3
R701
2.2K
2N3904S
E C
VCC5_USB
FS1
1.1A-microSMD110
POLY SWITCH
VCC3
B
Q64
E C
3
R700
330
INIT#
Q63
2N3904S
RSLCT
RPE
BUSY
LRACK#
PRND7
PRND6
PRND5
PRND4
PRND3
LRSLIN#
PRND2
LRINIT#
PRND1
LRERR#
PRND0
LRAFD#
RSTB#
13
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
14
1
5152
LPT1
48
LPT-D25-BR-BI
2
PARALLAL PORT
R697 33
RN130 33
1 2
3 4
5 6
7 8
RN131 33
1 2
3 4
5 6
7 8
RN132 33
1 2
3 4
5 6
7 8
RN133 33
1 2
3 4
5 6
7 8
C22 180P
RSTB#
CN180P50N
PRND0
12
PRND1
34
PRND2
56
PRND3
78
CN180P50N
PRND4
12
PRND5
34
PRND6
56
PRND7
78
CN180P50N
LRACK#
12
BUSY
34
RPE
56
RSLCT
78
CN180P50N
LRSLIN#
12
LRINIT#
34
LRERR#
56
LRAFD#
78
STB#
PD3
PD2
PD1
PD0
PD7
PD6
PD5
PD4
SLCT
PE
RBUSY
RACK#
RAFD#
RERR#
RINIT#
RSLIN#
VCC5
PRND6
PRND5
PRND4
PRND3
RPE
BUSY
LRACK#
PRND7
PRND1
PRND0
RSTB#
LRAFD#
LRERR#
LRINIT#
LRSLIN#
PRND2
RSLCT
STB# <22>
PD3 <22>
PD2 <22>
PD1 <22>
PD0 <22>
PD7 <22>
PD6 <22>
PD5 <22>
PD4 <22>
SLCT <22>
PE <22>
RBUSY <22>
RACK# <22>
RAFD# <22>
RERR# <22>
RINIT# <22>
RSLIN# <22>
D6
1N4148S
1
1
2
2
3
3
4
4
6
6
7
7
8
8
9
9510
1
1
2
2
3
3
4
4
6
6
7
7
8
8
9
9510
R699 2.7K
CN1
CN2
CN3
CN4
RSTB#
PRND3
PRND2
PRND1
PRND0
PRND7
PRND6
PRND5
PRND4
RSLCT
RPE
BUSY
LRACK#
LRAFD#
LRERR#
LRINIT#
LRSLIN#
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
PS2 & LPT & FWH
Size Document Number Rev
CANTERWOOD
Date: Sheet
1
5
RN134
2.7K
10
5
RN135
2.7K
10
23 33Friday, April 25, 2003
D4
1.0B
of

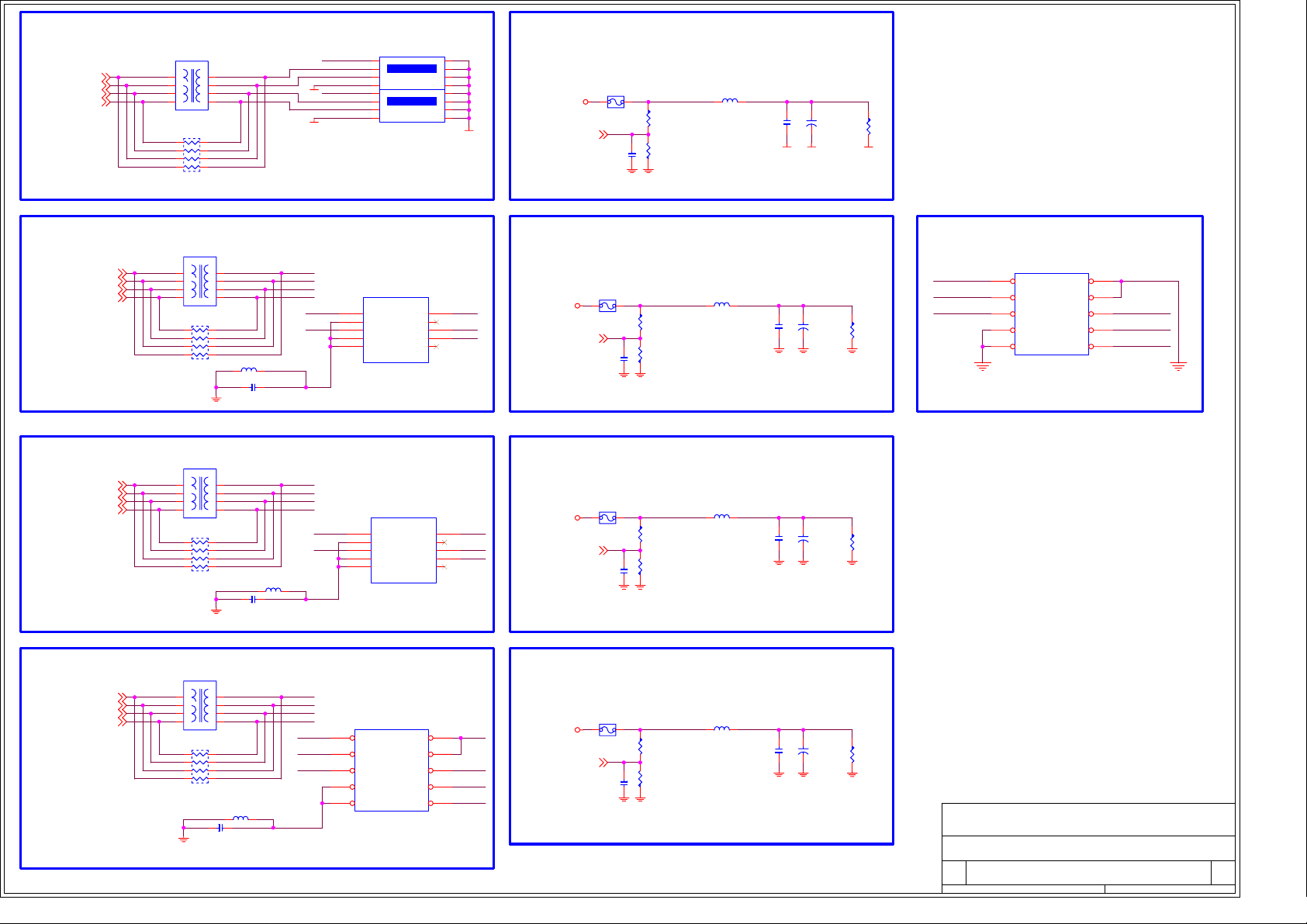

Page 24
1
REAR PANEL USB CONNECTOR FOR USB PORT 0,1
FB2
JUSBN2
SB_USBN2<13>
SB_USBP2<13>
SB_USBN1<13>
SB_USBP1<13>
8
7
6
5
X_CMC-L02-9007030-C71
REAR PANEL USB CONNECTOR FOR USB PORT 2 ,3
SB_USBN3<13>
SB_USBP3<13>
SB_USBN4<13>
SB_USBP4<13>
A A
FRONT PANEL USB CONNECTOR FOR USB PORT 4, 5
F_USBN5<13>
F_USBP5<13>
F_USBN6<13>
F_USBP6<13>
X_CMC-L02-9007030-C71
X_CMC-L02-9007030-C71
1
JUSBP2
2
JUSBN1
3
JUSBP1
4
RN32
1
2
3
4
5
6
7
8
0
FB14
1
3
5
7
FB17
1
3
5
7
RN136
0
RN137
0
1
2
3
4
2
4
6
8
FB16 120/0.6A
C624 C0.1U16X
1
2
3
4
2
4
6
8
FB19 120/0.6A
C627 C0.1U16X
8
7
6
5
8
7
6
5
SBD3ÂSBD3+
SBD4ÂSBD4+
SBD5ÂSBD5+
SBD6ÂSBD6+
SVCC1
SVCC1
SBD4+
SBD4-
SBD6+
LAN_USB1A
5
6
7
8
UP
1
2
3
4
DOWN
YMD20
JUSB2
1
USBP1
3
5
7
9
1
3
5
7
9
VCC
GND
KEY
USBN1
USBP0
GND
USBN0
GND
KEY
header2*5/2.54/90D,black
JUSB3
USBP1
GND
USBN1
USBP0
GND
USBN0
GND
header2*5/2.54/90D,black
VCC
KEY
KEY
23
24
25
26
27
28
29
30
SVCC2
2
4
SBD3+
6
SBD3-
8
10
SVCC3
2
4
SBD5+SBD6-
6
SBD5-
8
10
VCC5_USB
VCC5_USB
VCC5_USB
POWER CIRCUIT FOR USB PORT 0,1
F4
USB_OC#1<13>
2A-miniSMDC200
C621
C0.1U16X
R704
470K
R706
560K
FB13 80/0805-3A
POWER CIRCUIT FOR USB PORT 2,3
FS2
2A-miniSMDC200
USB_OC#2<13>
C0.1U16X
C623
SVCC2_FB
R707
470K
R709
560K
FB15 80/0805-3A
1000p
NEAR USB CONNECTOR
POWER CIRCUIT FOR USB PORT 4,5
FS3
2A-miniSMDC200
USB_OC#3<13>
C0.1U16X
C626
SVCC3_FB SVCC3
R710
470K
R712
560K
FB18 80/0805-3A
1000p
NEAR USB CONNECTOR
SVCC1SVCC1_FB
+
SVCC2
+
CT3
1000u-6.3V
+
CT4
150u
CT2
1000u-6.3V
C620
1000p
NEAR USB CONNECTOR
C622
C625
R708
1K
R711
1K
R705
1K
Front USB port 2,3 Connector (M SI)
SVCC2
SBD4ÂSBD4+ SBD3+
JUSB5
1
VCC1
5
USB2P
7
9
USB3P
GND1
USB3N
GND2
X_header2*5/2.54 ,black
GND3
GND4USB2N
VCC2
2
43
6
SBD3-
8
SVCC2
10
FS4
2A-miniSMDC200
USB_OC#4<13>
POWER CIRCUIT FOR USB PORT 6,7FRONT PANEL USB CONNECTOR FOR USB PORT 6, 7
C651
C0.1U16X
R905
470K
R907
560K
FB21 80/0805-3AJUSB4
C650
1000p
NEAR USB CONNECTOR
SVCC4SVCC4_FB
+
CT13
X_1000u-6.3V
R906
1K
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
USB 2.0
Size Document Number Rev
CANTERWOOD
1
Date: Sheet
of
24 33Friday, April 25, 2003
1.0Custom
FB20
F_USBP7<13>
F_USBN7<13>
F_USBP8<13>
F_USBN8<13>
8
7
6
5
X_CMC-L02-9007030-C71
1
2
3
4
RN141
1
2
3
4
5
6
7
8
0
FB22 120/0.6A
C652 C0.1U16X
SBD7+
SBD7ÂSBD8+
SBD8-
SVCC4
SBD8ÂSBD8+
1
VCC1
GND3
USB2P
GND1
GND2
GND4USB2N
USB3P
USB3N
5
7
9
X_header2*5/2.54 ,black
VCC2
UGND
2
43
SBD7+
6
SBD7-
8
SVCC4
10
VCC5_USB
Page 25
1
3VSB
U31B
74LVC07AD-SOIC14
U31D
74LVC07AD-SOIC14
R714
100K
3VSB
U31C
147
74LVC07AD-SOIC14
5 6
3VSB
R715
150
R716
10K
PWROK <13,18,21>
VCC5_SB
PS_ON#<22>
VCC3
VCC5
+12V
PS_ON#
R420 4.7K
R421 4.7K
R423
4.7K
R424 4.7K
Q47
2N3904S
C482 C0.1U50Y
C484 C0.1U50Y
C486 C0.1U50Y
EC53 1000u/6.3V
1 2
+
ATX Connector
VCC3
-12V
C479
C0.1U50Y
Q46
2N3904S
VCC-5V
VCC5
VCC5
VCC5_SB
VCC-5V
JPWR2
11
3.3V
3.3V
12
3.3V
-12V
13
GND
GND
14
5V
PSON
15
GND
GND
16
5V
GND
17
GND
GND
18
POK
-5V
19
5VSB
5V
20
12V
5V
PWR-ATX20
-12V
C483 C0.1U50Y
C485 C0.1U50Y
C487 C0.1U50Y
FOR EMI ONLY
MUST BE CLOSED TO POWER CONNECTOR
U37A
74LVC14-SOIC14
1
2
3
4
5
6
7
8
9
10
VCC3
VCC5
VCC5
VCC5_SB
+12V
VCC5
R422
8.2K
ATXPWROK
C480
C0.1U50Y
FP_RST#
C786
0.1U16
3VSB 3VSB
U37C
74LVC14-SOIC14
147
5 6
147
1 2
147
9 8
ATX_PDG# <29,31>
U37D
74LVC14-SOIC14
3VSB3VSB
3 4
R717
10K
147
MEMVRGD<26>
U37B
74LVC14-SOIC14
3VSB
147
3 4
3VSB
147
9 8
MEMVRGD
POWER OK CIRCUIT
A A
VCC5
Front Panel for MSI
VCC5
IRRX<22>
IRTX<22>
R718
330
HDD+
FP_RESET#
IRRX
IRTX
CB71
X_C0.1U16X
X_C0.1U16X
NEC FRONT PANEL
JFP1
12
34
56
78
910
11 12
13
15 16
CB72
17 18
NEC_FRONT_PANEL
PLED1
SUSLEDHDA#
PWRSW
EXTSMI#
SUSLED <22>
EXTSMI# <13>
VCC5
JGS1
1
2
X_D1x2
EXTSMI#
R719
330
SUSLED
PLED1
PWRSW
PWRSW#
R725
330
JFP2
1
2
3
4
5
6
7
8
9
X_D2x9-3
VCC3
10
11
HDA#HDD+
PC_BEEP
FP_RESET#
HDA# <15,17>
PC_BEEP <20>
12
13
14
15
16
17
18
R722
150
R724 330
FP_RST#
VCC5_STRVCC5VCC5
SUSLED
R720
330
R723 4.7K
VCC5
R721
330
PLED1
Q65
B
2N3904S
E C
Chassis Intrusion Header
VBAT
Switch Mask Circuit
SW_MASK_EN<13>
R731 4.7K
VCC5_SB VCC5_SB VCC5_SB VCC5_SB
ATXPWROK
R727
4.7K
SW_MASKB
Q66
B
E C
2N3904S
U38
1
2
3 4
SN74LVC1G08DCKR,SC-70
A
VCC
B
GND Y
6
PWRSW
1
2
3 4
VCC5_SBVCC5_SB
U39
A
VCC
B
GND Y
SN74LVC1G32DBVR
VCC5_SB
R728
5
4.7K
R730 X_0
SW_MASKC
U30B
147
74HCT14-SOIC14
3 4
1
U30C
147
74HCT14-SOIC14
5 6
R729
X_8.2K
PWBTIN#
PWBTIN# <22>
R726
1M
INTRUDER#<13>
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
ATX & Front Panel
Size Document Number Rev
CANTERWOOD
Date: Sheet
JINT1
1
2
box/header,1*2/DIP/2.54,white
25 33Friday, April 25, 2003
of
1.0Custom

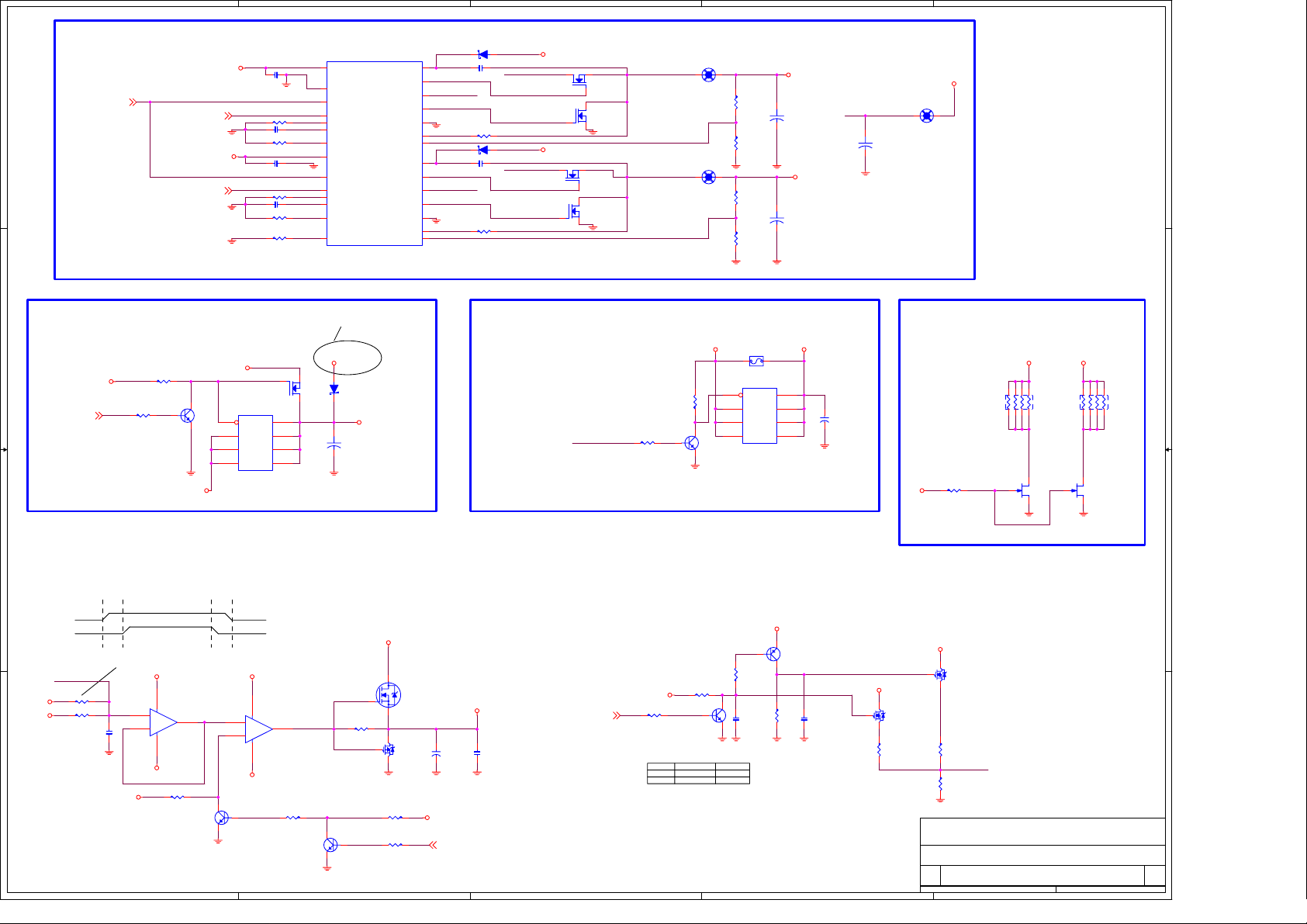

Page 26
5
VCC5_STR
CB73 C0.1U16X
MEMVRGD<25>
D D
POWCNT1<31>
POWCNT2<31>
VCC5_STR
POWCNT1
R733 56.2KST
C629 C0.01U50X
R735 1K
CB74 C0.1U16X
R737 56.2KST
C631 C0.01U50X
R740 1K
R742 1K
4
U40
28
VCC
1
AGND
15
PG1
8
EN1
11
ILIM1
12
SS1
9 10
FPWM1# VSEN1
14
VIN
16
PG2/REF2OUT
21
EN2
18
ILIM2/REF2
17
SS2
20
FPWM2#
13
DDR
FAN5236-TSSOP
BOOT1
HDRV1
SW1
LDRV1
PGND1
ISNS1
BOOT2
HDRV2
SW2
LDRV2
PGND2
ISNS2
VSEN2
BO1
6
HDRV1
5
PHASE_2V5
4
LDRV1
2
3
1SNS1
7
BO2
23
HDRV2
24
PHASE_1V5
25
LDRV2
27
26
1SNS2
22
19
DZ2 1N5817
C628 C0.01U50X
R734 2.15KST
DZ3 1N5817
C630 C0.01U50X
R741 1.69KST
VCC5_STR
VCC5STR
IPD06N03LA_TO252
VCC5_STR
VCC5STR
IPD06N03LA_TO252
D S
G
D S
G
3
PHASE_2V5
CHOCK7 3.3uH
VSENSE_2V5
PHASE_1V5
SENSE_1V5
<Priority>
CHOCK8 3.3uH
<Priority>
R732
3.4KST
R736
1.74KST
R738
2.2KST
R743
3.3KST
Q67IPD09N03LA_TO252
G
DS
Q68
Q69IPD09N03LA_TO252
G
DS
Q70
+
+
VCC_DDR
EC68
1000u/6.3V
VCC1.5
EC69
1000u/6.3V
2
VCC5_STR
CHOCK6 1.2uH
VCC5STR
CT6
+
1000u/6.3V
1
Change VCC5 to VCC5_SB
C C
5V Dual Power Switching
R744 4.7K
+12V
DUALSW<31>
B B
R746 4.7K
2N3904S
Q75
VCC5_SB
MCH VTT Generator
TBD
VCC5
FDD6030L_TO252
Q73
4 5
3
2
1
Si4435DY
TBD
GD1
S3
D2
S2
D3
S1
D4
2003.02.25
VCC5_SB
G
6
7
8
Change 5V_Dual Power Switching Ciurcuit
2003.02.22
DZ5
1N5820
Q125
D S
VCC5_STR
CT5
+
1000u/6.3V
CPU_VTT
GMCH_VTT
Reserved for GMCH VCCP volatge step up.
REF_1V25
R753 X_1K
VCC3
R755 X_0
VCORE
C632
C0.1U16X
A A
VTT_NB
5
+12V_OP
U41A
NS-LM358MX-SOIC8
<Priority>
3
+
2
-
4 8
-12V
VTT_FB
R761 1K
1
Q85
X_2N3904S
VTT_R
+12V_OP
5
+
6
-
U41B
NS-LM358MX-SOIC8
4 8
<Priority>
-12V
VTT_M2
VTT_CTL
7
R763 X_2.2K
Q86
X_2N3904S
R756 1K
VTT_M3
VTT_M1
4
VCC3
DS
G
R764 X_1.5K
R765 X_2.2K
Q80
P3056LD
<Priority>
Q84
NDS352AP
VTT_NB
+
CT7
100u/25V
VCC3
VRM_PWRGD <28,31>
CB79
C0.1U16X
KB/MS/USB S4 Power Switching
R971
4.7K
POWCNT1
BOOT_SEL<4,28>
3
R972 4.7K
VCC5_SB
R757 10K
LOW
HIGH
2N3904S
Q127
R754 1K
BOOT_B
Northwood
Prescott
VCC5_STR VCC5_USB
FS5
X_Fuse_5A/1206
Q126
4 5
GD1
3
2
1
S4 don't support MS/KB/USB Power
2003.03.05
S3
S2
S1
Si4435DY
6
D2
D3
D4
+
7
8
CT22
100u
Intel reference MCH VTT power cirucit
VCC5_SB
Q79
2N3906LT1-SOT23
Q82
2N3904S
CPUBOOT
Voltage
1.45V
1.225V
R752
1K
C633
C0.1U16X
1K
R758
CPU_PSC_HI
CPU_NW_HI
C634
C0.1U16X
2
VCC5 & VCC3 Discharge Residual Voltage
VCC5
123456
78
Q71
3VSB
Q83
FDV301N-SOT23
R759
634RST
RN138
39/0402
MMBFJ108
R739 4.7K
-12V
3VSB
Q81
FDV301N-SOT23
R760
866RST
REF_1V25
R762
499RST
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
SYSTEM POWER(1)
Size Document Number Rev
CANTERWOOD
Date: Sheet
VCC3
123456
78
RN139
39/0402
Q72
MMBFJ108
26 33Friday, April 25, 2003
1
1.0Custom
of
Page 27
1
VTT_DDR VOLTAGE SUPPLIER
VR2
VCC_DDR
A A
+
CT19
1000u
VCC_DDR VTT_DDR
C636
C0.1U16X
VTT_DDR
R964 1K
R965 1K
+
CT24
1000u
1
VDD
2
VTTFORCE
3
VTTFORCE
4 5
CT10
1000u
FAN1655
VDD VTTSENSE
+
GND
9
Change VR3 From LP2995 To FAN1655
2003.02.22
VDDQ
VREFOUT
SHDN
8
CB88 0.1u
7
R966 10K
6
R967 10/1206
VCC_DDR
+
CT11
1000u
CT20
150u
+
CT23
150u
VCC_DDR
VCC5_SB
+
CT21
470u-16V
+
CT8
150u
CB80
X_C0.1U16X
+
CB89
0.1u
+
CT12
1000u
VR THERMAL BLOCK
R777 7.5K
VCC5VCC5VCC5
R778
1KST
RT1
10KST-T
<Priority>
R779
1KST
THERMP
THERMN
R782
1KST
C637
C0.1U16X
U42A
NS-LM358MX-SOIC8
<Priority>
3
+
2
-
4 8
1
R780 130RST
R781 680
THERM_BTHERMO
VCC5
CPU_PROCHOT# <3,6>
Q93
2N7002S
3.3V Standby Power Supplier
VR1
AMS1084CM-TO252-5A
S D
VIN VOUT
CB81
C0.1U16X
NIKO
ADJ
3VSB_ADJ
G
MCH_VTT ON/OFF CIRCUIT
QON_C
R772
1.5K
R775 2.2K
VTT_B
VTT_C
R773
1.5K
R774 1K
Q91
2N3904S
C635
X_C0.1U16X
R767
CB82
200RST
C0.1U16X
R769
332RST
VTT_OP_B
2N3906LT1-SOT23
3VSB
+
CT9
C100u
+12V+12V+12V
Q90
+12V_OP
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
SYSTEM POWER(2)
Size Document Number Rev
CANTERWOOD
1
Date: Sheet
27 33Friday, April 25, 2003
of
1.0Custom

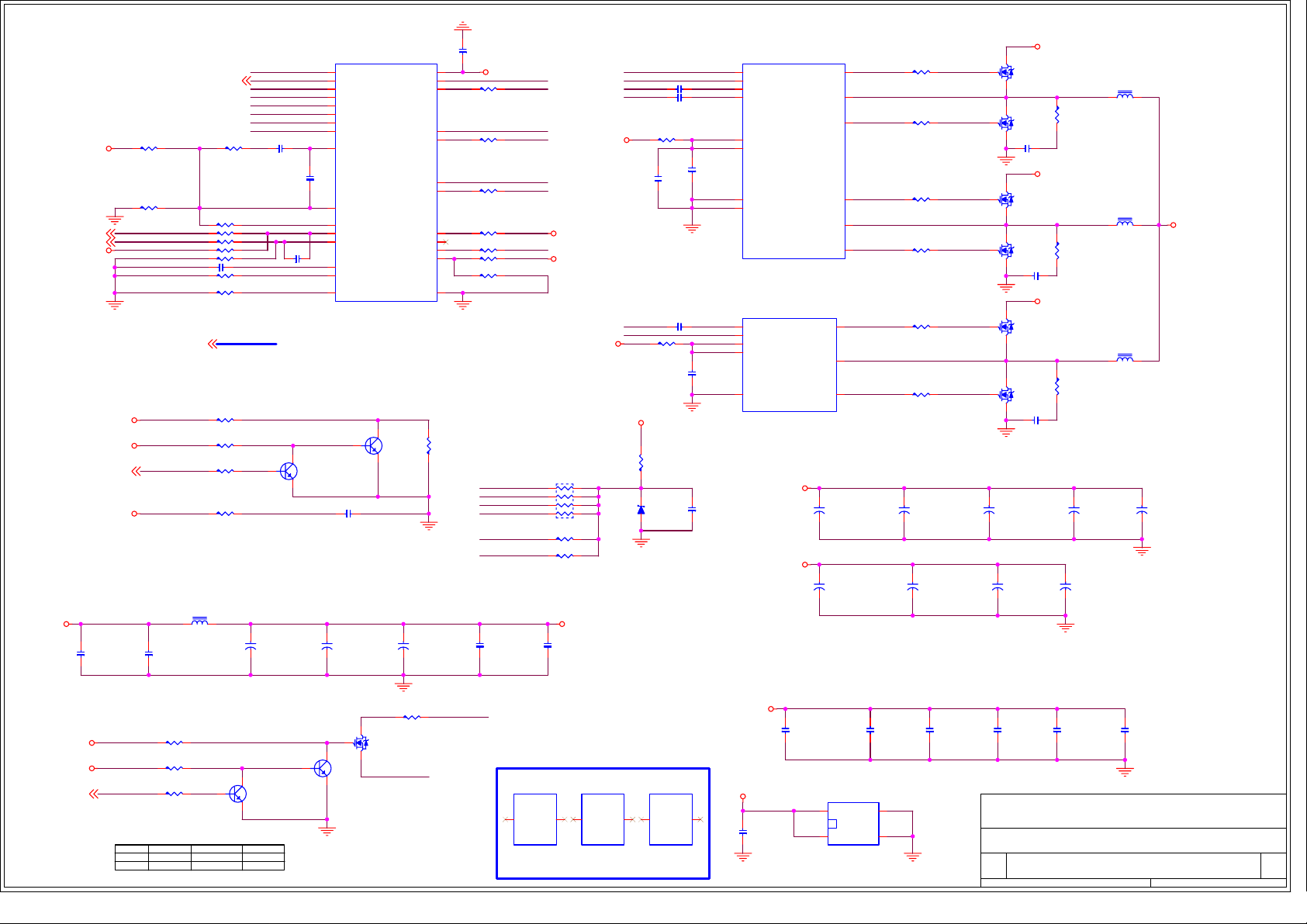

Page 28
1
C779
VRM_EN PWM1
VID[5..0]
2N3904S
12
+
VRM_PWRGD
VID4
VID3
VID2
VID1
VID0
VID5
C446
C5600P50X
C447
X_0.1u
VFB
VDIFF
VCEN
VSEN
C781
X_0.1u
Q40
VRM_PWRGD
EC39
1800U-16V
VRM_PWRGD<26,31>
3VSB
VID_PWRGD<3,4>
C457
C1U16X0805
R342 X_2KST
R344 X_100KST
VCC_SENSE
VSS_SENSE
VID[5..0]<3,22>
+12VP
VID_PWRGD
VCC3
R343
15KST
R347 2KST
R348 X_0
R350 0
R351 0
R353 100
C450 1u/0603
R355 150KST
R357 2KST
R359 5.6K
R361 1K
R363 4.7K
R365 1K
CHOCK5 CH-1.1U25A-2
C458
C0.1U50Y
VCORE
VCC_SENSE<3>
VSS_SENSE<3>
VCORE
A A
+12VP
U25
27
Enable
2
VRM_PWRGD
3
VRM_VID4
4
VRM_VID3
5
VRM_VID2
6
VRM_VID1
7
VRM_VID0
8
VRM_VID12.5
13
COMP
12
FB
14
VDIFF
15
VSENSE
16
RGND
11
REF
28
FS
10
TCOMP
ISL6556BCB_SOIC28
Q39
2N3904S
C454 C0.1U50Y
12
+
EC40
1800U-16V
VRM_EN
12
+
VCC
PWM1
ISEN1
PWM2
ISEN2
PWM3
ISEN3
PWM4
ISN4
OVP
OFS
GND
EC41
1800U-16V
1u/0805
26
22
R338
23
3.3KST
21
R340
20
3.3KST
18
R345
19
3.3KST
R980 100
25
24
R960 X_0
1
R354 330K
9
R356 X_24.9KST
17
R362
1K
VCC5
PWM1
ISEN1 ISEN1
PWM2
ISEN2
PWM3
ISEN3
VDIFF
VID4
VID3
VID2
VID1
VID0
VID5
C455
C1U16X0805
1
3
5
7
R438 1K
R439 1K
VCC5
VCC5
RN93 1K
2
4
6
8
VIN12
C456
C0.1U50Y
+12VP
+12VP
PWM2
C443 C0.1U50Y
ISEN2
C444 C0.1U50Y
R341 4.7/0805
C780
1u/0805
ISEN3
C451 C0.1U50Y
PWM3
R360 4.7/0805
+12VP
R435
330/1206
D18
RLZ3.3V
C448
0.1u
C452
0.1u
C782
0.1u
U26
1
PWM1
2
PWM2
11
BOOT1
10
BOOT2
14
VCC
5
PVCC
3
GND
6
PGND
HIP6602B_SO14
U27
2
BOOT
3
PWM
6
VCC
7
PVCC
4
GND
HIP6601B_SOIC8
VCORE
VCORE
UGATE1
PHASE1
LGATE1
UGATE2
PHASE2
LGATE2
UGATE
PHASE
LGATE
12
12
1
8
5
+
EC42
2200u-6.3V
+
EC48
2200u-6.3V
12
13
4
9
8
7
UGATE1
ISEN1
LGATE1
UGATE2
ISEN2
LGATE2
UGATE
ISEN3
LGATE
R337 0/0805
R339 0/0805
Q35
IPD06N03LA-T0252
R346 0/0805
R352 0/0805
Q37
IPD06N03LA-T0252
R358 0/0805
R364 0/0805
Q41
IPD06N03LA-T0252
+
12
EC43
2200u-6.3V
+
12
EC49
2200u-6.3V
G
G
G
G
G
G
+
12
DS
Q34
IPD06N03LA-T0252
DS
C445
1000p
DS
Q36
IPD06N03LA-T0252
DS
C449
1000p
DS
Q38
IPD06N03LA-T0252
DS
C453
1000p
EC44
2200u-6.3V
+
12
EC51
2200u-6.3V
VIN12
VIN12
VIN12
R959
2.2/0805
R961
2.2/0805
R962
2.2/0805
+
12
+
12
EC78
820u-4V
CHOCK2
1.1uH-25A
CHOCK3
1.1uH-25A
CHOCK4
1.1uH-25A
EC45
2200u-6.3V
+
12
EC46
2200u-6.3V
VCORE
+12VP
VCC5_SB
BOOT_SEL<4,26>
R366 4.7K
R367 4.7K
BOOT_SEL
R368 10K
BOOT
LOW Northwood
HIGH
CPU
Q44
2N3904S
Voltage
1.45V
1.225VPrescott
Q43
2N3904S
G
R517 20KST
DS
Q42
2N7002S
VDIFF
VFB
PH2
12
MOS_HEATSINK
PH3
12
MOS_HEATSINK
12
PH4
12
MOS_HEATSINK
1
VIN12
GND
GND
C460
C0.1U50Y
1
2
C461
C1U16X0805
C462
C0.1U50Y
C463
C1U16X0805
C464
C0.1U50Y
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
VRM10 - Intersil 6556B
Size Document Number Rev
CANTERWOOD
Date: Sheet
1.0Custom
28 33Friday, April 25, 2003
of
C459
C1U16X0805
+12VP
12
12
C465
C0.1U50Y
JPWR1
3
12V
4
12V
PWR-ATX12V

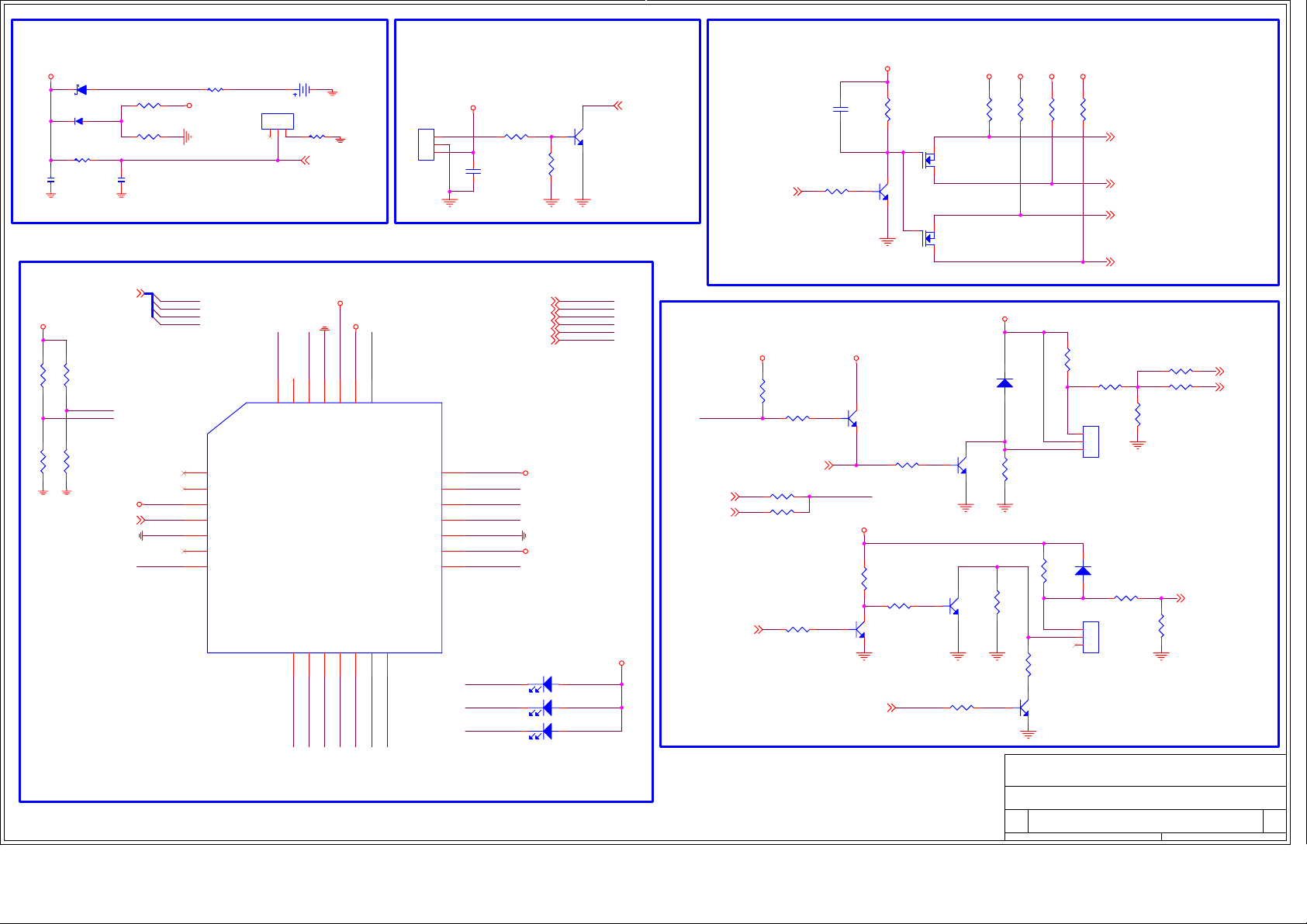

Page 29
1
BATTERY
VBAT
DZ4 1N5817
D28 1N4148S
R791 300K
C640
C1U16Y0805
Close AD11 of ICH5.
3VSB
R795
R796
X_10K
X_10K
A A
R801
R802
10K
10K
VBAT_DZ BAT1
R978 1.5K
R979 4.7K
C641
C1UF
LPC_AD[0..3]<13,22,23>
ENV1
ENV0
3VSB
SUSCLK<13>
IOPA5
R783 1K BAT1
VCC5_SB
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
5
6
7
32KX1
8
9
10
11
JBAT1
U43
TDI
TMS
VCC_1
32KX1
GND2
32KX2
IOPA5
X_PC21100-PLCC28
YJ103
231
R789 1K
RTC_RST# <13>
ENV1
ENV0
2
3
4
TCK
TDO/ENV0
TINT#/ENV1
IOPA4
SERIRQ
12131415161718
IOPA4
SERIRQ
3VSB
1
28
GND1
VCC_3
IOPA3/LDRQ#
LFRAME#
LPC_FRAME#
LPC_DRQ#1
VBAT
LPC_AD3
27
VBAT
LAD3
IOPA1
26
IOPA1
LAD2
LPC_AD2
X_YJ103pF2-BO
LRESET#
LAD1
LPC_AD1
JWL1
VCC_2
IOPA2
LCLK
GND3
VDD
LAD0
3
2
1
Wakeup On LAN Header
VCC5_SB
25
24
23
22
21
20
19
R790 1K
C639
C0.1U16X
TPM_PCLK<5>
LPC_FRAME#<13,22,23>
LPC_DRQ#1<13>
SIO_FWHRST#<21,22,23,31>
SKPR_SMI#<13>
SKPR_SMI#
SIO_FWHRST#
TPM_PCLK
LPC_AD0
IOPA1
IOPA4
IOPA5
B
R792
10K
TPM_PCLK
LPC_FRAME#
LPC_DRQ#1
SERIRQ
SERIRQ<13,22>
SIO_FWHRST#
SKPR_SMI#
3VSB
VCC3
D31 X_GNx2-S-GN
12
D32 X_GNx2-S-GN
12
D33 X_GNx2-S-GN
12
Q94
2N3904S
E C
3VSB
RING# <13,15,22>
FANPWM0<22>
PWM3<30>
1
FAN_PWM0
FANPWM2<22>
ATX_PDG#<25,31>
R797
1K
R800 2.2K
R932 X_0
R933 0
R812 8.2K
HM_PWM<30>
R793 1K
B
FAN_PWM0
B
THERMAL_ALERT#<30>
C638
C0.1U16X
B
VCC3VCC3
E C
+12V
E C
Q98
2N3904S
R806
4.7K
R809 8.2K
SMBus Isolatation
+12V
R784
4.7K
SMB_CLK
G
Q95
2N7002S
D S
SMBCLK
Q96
2N3904S
E C
R803 10
Q101
2N3904S
SMB_DATA
G
Q97
2N7002S
D S
SMBDATA
B
MMBT2222ALT1,Ic=0.6A
B
R814 10K
E C
Q100
2N3904S
E C
3VSBVCC3 3VSB
R787
R788
10K
10K
SMB_CLK <5,9,10,22,30>
SMBCLK <13,18,31>
SMB_DATA <5,9,10,22,30>
SMBDATA <13,18,31>
REAR System FA N 1
R794
10K
R798 10K
JSFAN1
3
2
1
D1x3-WH
R930 0
R931 X_0
R799
4.7K
Q99
+12V
R785
10K
VCC3
D29
1N4148S
A C
R804
X_0
R786
10K
POWER FAN (Red color)
D30
R805
4.7K
R807
20K
R813
10K
Q102
B
2N3904S
E C
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
NEC1
Size Document Number Rev
CANTERWOOD
Date: Sheet
1N4148S
A C
R808 27K
JPSU1
3
2
1
X_D1x3-WH
FANIN2 <22>
R811
10K
29 33Friday, April 25, 2003
TACH3 <30>
FANIN0 <22>
1.0Custom
of

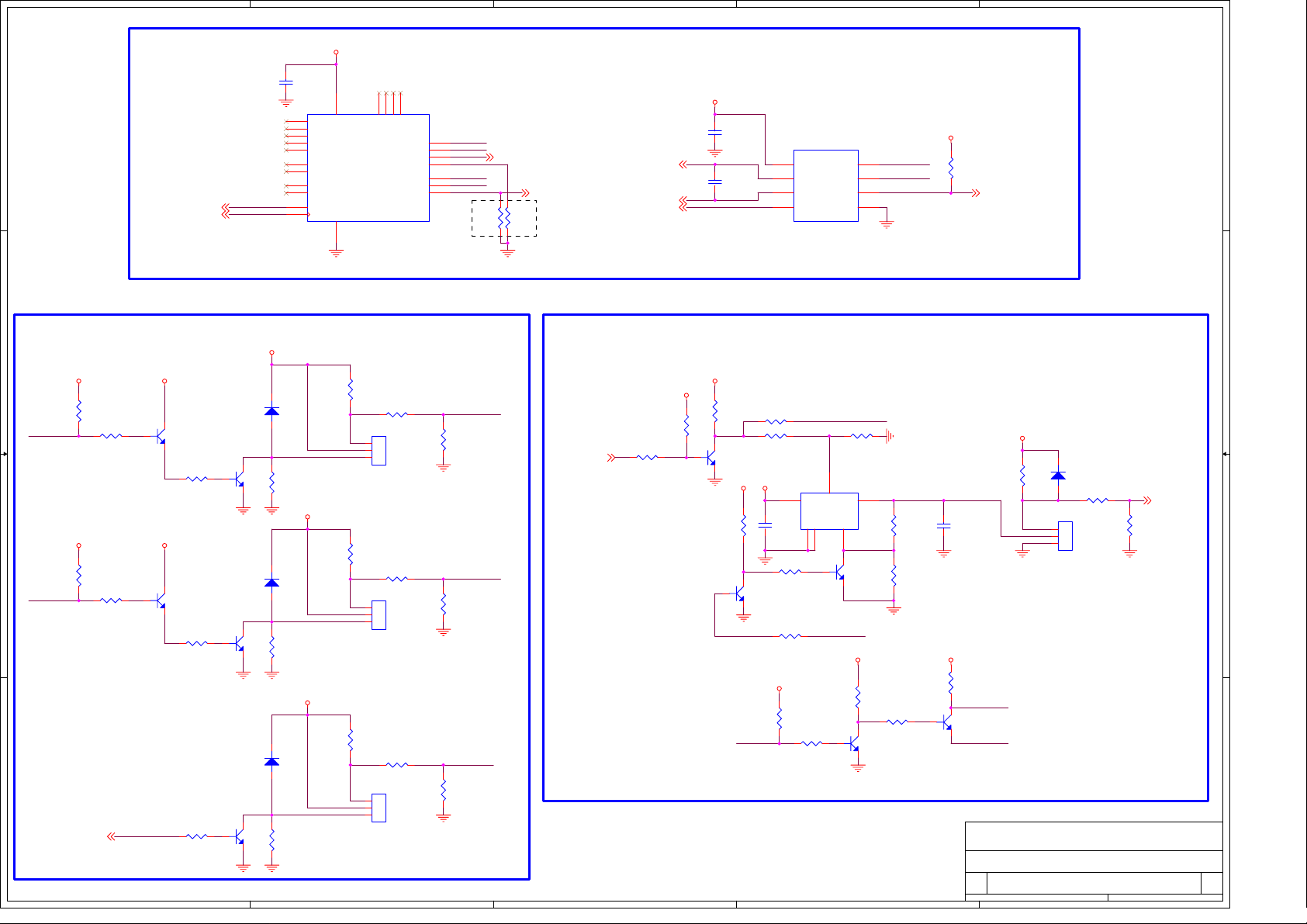

Page 30
5
C644
C0.1U16X
U44
19
18
17
16
15
5
6
7
8
1
2
VID0
VID1
VID2
VID3
VID4
Remote1+
Remote1-
Remote2+
Remote2-
SDA
SCL
D D
SMB_DATA
SMB_CLK<5,9,10,22,29>
SMB_CLK
VCC3
TACH4/Address Select
PWM3/Address Enable#
GND VCC
3 4
4
232221
20
5V
12V
2.5V
VCCP
PWM1/xTest Out
SMSC-EMC6D101
SM Bus Slave Address =
0101110b
TACH1
TACH2
TACH3
PWM2
11
12
9
14
24
10
13
TACH1
TACH2
TACH3
TACH4
PWM1
PWM2
PWM3
TACH3 <29>
R816
X_10K
PWM3 <29>
R817
X_10K
3
VCC3
C645
C0.1U16X
THERMDP#<3>
THERMDN#<3>
THERM#<13>SMB_DATA<5,9,10,22,29>
C646
X_C2200P50X
THERM#
SM Bus Slave Address =
1001100b
U45
1
VDD
2
D+
3
D-
4
THERM#
ADM1032
Remote (and Local)
System Temperature Monitor
SCLK
SDATA
ALERT#
GND
2
VCC5
SMB_CLK
8
SMB_DATA
7
6
5
R815
8.2K
THERMAL_ALERT# <29>
1
Used for WorkStation System Only
C C
VCC3
R819
1K
R823 2.2K
PWM1
B B
A A
PWM2
R836
1K
R840 2.2K
HM_PWM<29>
VCC3 VCC5
Q103
B
2N3904S
E C
R829 10
MMBT2222ALT1,Ic=0.6A
VCC3VCC3
Q108
B
2N3904S
E C
R843 10
MMBT2222ALT1,Ic=0.6A
R855 10 R856
HM_PWM
Q113
MMBT2222ALT1,Ic=0.6A
5
+12V
D34
1N4148S
A C
Q105
E C
Q109
E C
E C
R830
X_0
D36
1N4148S
A C
R844
X_0
D37
1N4148S
A C
X_0
B
B
B
Front System FAN1 (R.Angle)
R818
10K
R821 10K
JSFAN2
3
2
1
D1x3-WH-90D
+12V
Front System FAN2 (R.Angle)
R835
10K
R839 10K
JSFAN3
3
2
1
D1x3-WH-90D
+12V
REAR System FAN2
R849
10K
R852 10K
JSFAN4
3
2
1
X_D1x3-WH
4
R824
4.7K
R841
4.7K
R853
4.7K
TACH1
TACH2
TACH4
VCC5
R820
X_10K
E C
R832
10K
B
Q104
2N3904S
VCC5
R822 0
R825 X_0
+12V
R837 1K
Q107
2N3904S
E C
R842 10K
THERM#
U46
4 5
IN OUT
C647
GND
C0.1U16X
VCC5
R847
8.2K
R850 30K
GND
326
B
FAN_CTLB
FAN_CTLA
R826 0
ON/OFF
1
E C
B
Vo=1.275*(8.2+1.6)/1.6=7.81V
ADJ
VCC5
R833
8.2K
LM2941CS
R838
Q106
1.6K
2N3904S
R846
10K
R848 10K Q110
Q111
2N3904S
E C
2
B
R937
10K
R827 X_10K
FANPWM1<22>
3
B
CPU FAN
+12V
D35
R828
1N4148S
4.7K
A C
R831 27K
C648
C22U10Y1206
VCC5
R845
10K
FAN_CTLB
2N3904S
E C
FAN_CTLA
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
NEC 2
Size Document Number Rev
CANTERWOOD
Date: Sheet
JCFAN1
3
2
1
D1x3-WH
1
FANIN1 <22>
R834
10K
30 33Friday, April 25, 2003
1.0Custom
of
Page 31
5
4
3
2
1
41
3VSB
147
3 4
A
VCC
B
GND Y
VCC3
R857
4.7K
R858 75
3
6
U32B
74LVC07AD-SOIC14
3VSB
6
VCC3
9 8
SMBUS ISOLATE FOR PCI SLOT
VCC5
D D
R859
R860
2.7K
2.7K
R863
2.7K
R868
2.7K
R875
2.7K
R879
2.7K
R864
2.7K
R869
2.7K
R876
2.7K
R880
2.7K
SDA_SLOT1
SCL_SLOT1
SDA_SLOT2
SCL_SLOT2
SDA_SLOT3
SCL_SLOT3
SDA_SLOT4
SCL_SLOT4
SDA_SLOT5
SCL_SLOT5
SDA_SLOT1 <16>
SCL_SLOT1 <16>
SDA_SLOT2 <16>
SCL_SLOT2 <16>
SDA_SLOT3 <16>
SCL_SLOT3 <16>
SDA_SLOT4 <17>
SCL_SLOT4 <17>
SDA_SLOT5 <17>
SCL_SLOT5 <17>
SIO_FWHRST#<21,22,23,29>
VRM_PWRGD<26,28>
R977
10K
SLP_S3#<13,22>
SMBDATA<13,18,29>
SMBCLK<13,18,29>
SMBDATA<13,18,29>
SMBCLK<13,18,29>
C C
SMBDATA<13,18,29>
SMBCLK<13,18,29>
SMBDATA<13,18,29>
SMBCLK<13,18,29>
B B
SMBDATA<13,18,29>
SMBCLK<13,18,29>
R861 X_0
R862 X_0
VCC5
R865 X_0
R866 X_0
VCC5
R870 X_0
R871 X_0
VCC5
R877 X_0
R878 X_0
VCC5
R884 X_0
R885 X_0
SW1
2 3
PUSH BUTTON
VCC3
147
U48A
1
2
7408
VCC3
147
U48B
4
5
7408
U54
1
2
3 4
SN74LVC1G08DCKR,SC-70
1 2
C649
C0.1U16X
VCC3
U47C
147
5 6
74LVC14-SOIC14
U47D
147
74LVC14-SOIC14
3VSB
3VSB
147
13 12
VCC3
U47A
147
74LVC14-SOIC14
11 10
POWCNT
R976
10K
C787
C1U
U37F
74LVC14-SOIC14
VCC3
U47E
147
74LVC14-SOIC14
DUALSW <26>
VCC3
U47B
147
3 4
74LVC14-SOIC14
GPIO0 <12>
DUMP Switch Circuit
DUMP_NMI
U49
1
2
3 4
U53
1
A
VCC
2
B
3 4
GND Y
SN74LVC1G32DBVR
SN74LVC1G32DBVR
A
B
GND Y
3VSB
5
RSMRST#<13,18>
SLP_S4#<13>
ATX_PDG#<25,29>
5
VCC3
VCC
POWCNT1 <26>
POWCNT2 <26>
3VSB
R867
10K
R975 10K
3VSB
147
U32A
74LVC07AD-SOIC14
1 2
NMI <3>
C790
C330P
2003/4/19, NEC request circuit
U52
POWCNT
1
CLR1
2
D1
3
CK1
4
PR1
5
Q1
6
Q1
7 8
GND Q2
74VHC74MTC
VCC
CLR2
CK2
PR2
14
13
12
D2
11
10
9
Q
3VSB
(Please close to PCI Slot by itself related)
CPU IERR
VCC3VCC3
4
R883
62
R886 1K
A A
ICH5_NMI#<13>
R873
8.2K
Q115
B
2N3904S
E C
5
R872
8.2K
DUMP_NMI
Q114
B
2N3904S
E C
IERR#<3>
VCC3VCORE
R881
4.7K
CPU_IERR#
Q117
2N3904S
B
G
E C
(Please close to ICH5)
CPU_IERR# <13>
PCI_SERR# <12,16,17>
DS
2N7002S
Q118
3
CMOSCLR
PASSWDIS
ISPMD1
ISPMD2
WHQL
CMOSCLR<22>
PASSWDIS<22>
ISPMD1<23>
ISPMD2<23>
WHQL<23>
R874 4.7K
1 2
3 4
5 6
7 8
RN140 4.7K
CMOSCLR
PASSWDIS
ISPMD1
ISPMD2
WHQL
GPIO Connector
VCC3
JT1
12
34
56
78
910
1112
header, 2*6, black
2
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
NEC 3
Size Document Number Rev
CANTERWOOD
Date: Sheet
31 33Friday, April 25, 2003
1
of
1.0Custom

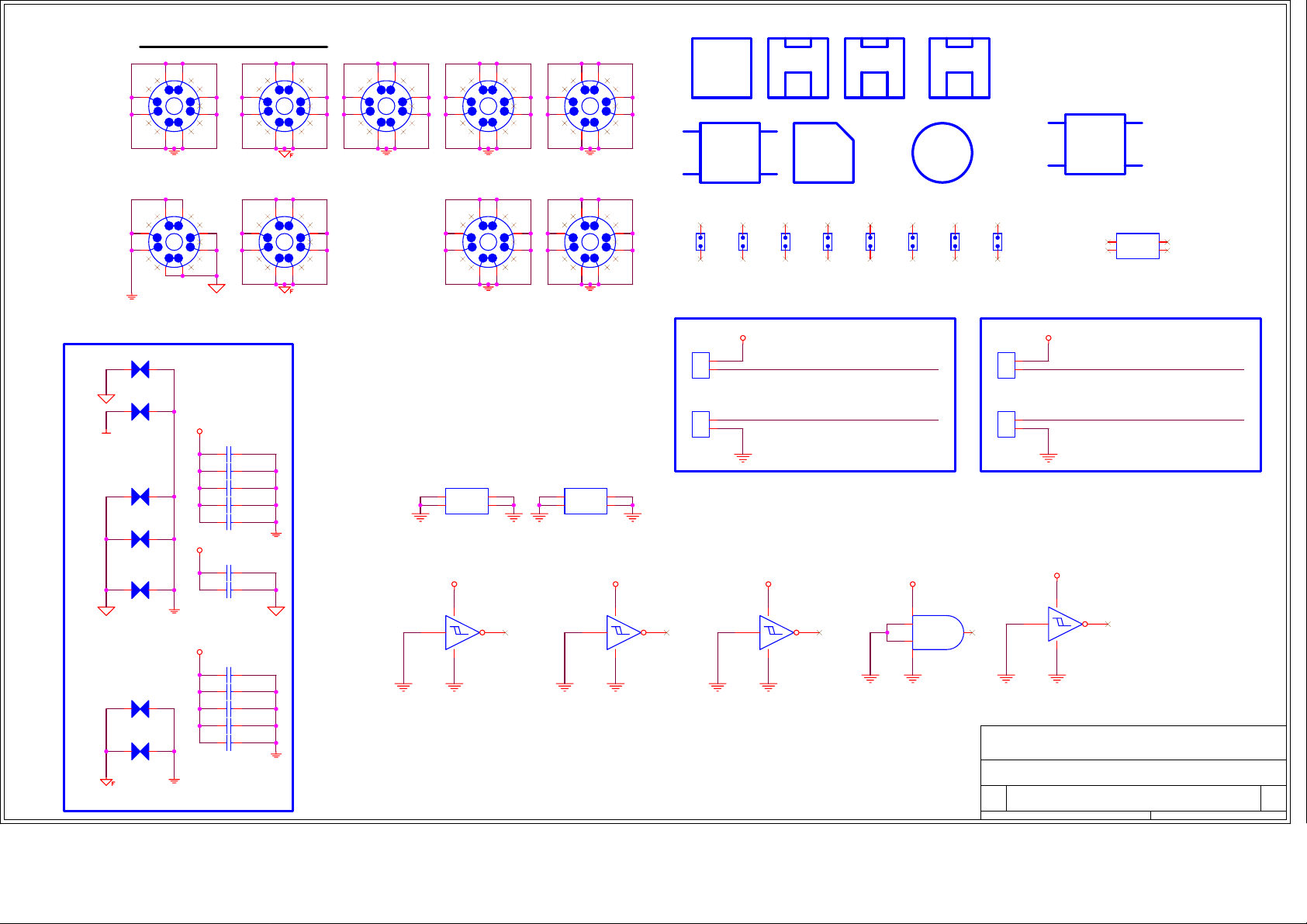

Page 32
1
PCB OTHER COMPONENT
BS2BS1 BS4BS3
BS5
PCB
PCB
P01-9127100
U22_X
MCH
JBAT1(1-2)
SHORT
JC-D2-GN
XU1_X
J1(2-3)
SHORT
JC-D2-GN
BIOS
Heatsink
MCH Heatsink
12
12
FM1
X_FM
5
2
BS9
SP2
X_YJ102
523
13 12
3
4
4
VCC5_SB
147
U30F
74HCT14-SOIC14
1
T1
1
2
X_D1x2
T2
1
2
X_D1x2
VCC5
13 12
BS6
CP2
X_COPPER
AGND
CP4
X_COPPER
CP8
X_COPPER
CP11
X_COPPER
CP12
X_COPPER
CP3
X_COPPER
CP10
X_COPPER
VCC3
C769 X_0.1u
1 2
C770 X_0.1u
1 2
C771 X_0.1u
1 2
C772 X_0.1u
1 2
C773 X_0.1u
1 2
VCC5
C791 X_0.1u
1 2
C792 X_0.1u
1 2
VCC5
C774 X_0.1u
1 2
C775 X_0.1u
1 2
C776 X_0.1u
1 2
C777 X_0.1u
1 2
C778 X_0.1u
1 2
A A
BS8BS7
SP1
5
523
2
4
X_YJ102
VCC5_SB
U30E
147
74HCT14-SOIC14
11 10
3
4
For EMI Solution
SST-512K*8-33MHz-PLCC32
12
12
FM2
X_FM
FM3
X_FM
FM4
X_FM
12
Component side 5 mil
60 ohm
Solder side 5 mil
60 ohm
147
U47F
74LVC14-SOIC14
JT1(11-12)
SHORT
JC-D2-GN
BAT1_X
+
BATTERY
-
BAT-B-CR2032-P-3V-220mAh
12
FM5
FM6
X_FM
X_FM
VCC3VCC3
147
U48D
12
13
7408
CPU1_X
CPU
Heatsink
CPU Supporter
12
FM7
X_FM
11
12
T3
1
2
X_D1x2
T4
1
2
X_D1x2
FM8
X_FM
VCC5
3VSB
11 10
Component side 5 mil
147
HS1
5
523
2
4
CPU Retention Module
60 ohm
Solder side 5 mil
60 ohm
U37E
74LVC14-SOIC14
3
4
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
MISC
Size Document Number Rev
CANTERWOOD
Date: Sheet
32 33Friday, April 25, 2003
1.0B
of
Page 33
5
4
3
2
1
LPC SIO
Power Well
Main
Main
MainGPIO02
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Main
Standby
Standby
Standby
Standby
Standby
Standby
Standby
Standby
Standby
Standby
Standby
Standby
DDR DIMM Config.
DEVICE
DIMM 1
DIMM 2
DIMM 3
DIMM 4
ADDRESS
1010000B
1010001B
1010010B
1010011B
CLOCK
MCLK_A0/MCLK_A0#
MCLK_A1/MCLK_A1#
MCLK_A2/MCLK_A2#
MCLK_A3/MCLK_A3#
MCLK_A4/MCLK_A4#
MCLK_A5/MCLK_A5#
MCLK_B0/MCLK_B0#
MCLK_B1/MCLK_B1#
MCLK_B2/MCLK_B2#
MCLK_B3/MCLK_B3#
MCLK_B4/MCLK_B4#
MCLK_B5/MCLK_B5#
PCI Config.
DEVICE
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5 AD28
MiniPCI
AGP Slot
INT Pin
PIRQ#A
PIRQ#B
PIRQ#C
PIRQ#DMAIN
PIRQ#B
PIRQ#C
PIRQ#D
PIRQ#A
PIRQ#C
PIRQ#D
PIRQ#A
PIRQ#B
PIRQ#D
PIRQ#A
PIRQ#B
PIRQ#C
PIRQ#B
PIRQ#C
PIRQ#D
PIRQ#A
PIRQ#G
PIRQ#E
PIRQ#F
REQ#/GNT#
PREQ#0
PGNT#0
PREQ#1
PGNT#1
PREQ#2
PGNT#2
PREQ#3
PGNT#3
PREQ#4
PGNT#4
PGNT#5
GREQ#
GGNT#
IDSEL
AD20
AD25
AD26
AD27
AD18 PCI_CLK5PREQ#5
CLOCK
PCI_CLK0
PCI_CLK1
PCI_CLK2
PCI_CLK3
PCI_CLK4
AGP_CLK
I
I
I
I
I
Function
FANIN1
FANPWM1
FANIN0
FANPWM0
GPIO4
GPIO5
KBRST#
A20GATE
SIO_SMI#
GPIO11
SMB_CLK
SMB_DATA
WDTO
IRTX
FDD_MOB#
FDD_DSB#
VID0
VID1
VID2
VID3
VID4
VID5
CMOSCLR
PASSWDIS
GPIO30
FP_WP
GPIO32
FANIN2
FANPWM2
GPIOE0
LAN_DIS#
SUSLED
LPC_PME#
RING#
PU (3V standby)
PU (3V standby)
IRRX
PWRBTN#
PS_ON#
PWBTIN#
SLP_S3#
GPIO Pin
ICH5
Type
GPIO Pin
D D
C C
*
B B
GPIO 0
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
GPIO 17
GPIO 18
GPIO 19
GPIO 20
GPIO 21
GPIO 22
GPIO 23
GPIO 24
GPIO 25
GPIO 27
GPIO 28
GPIO 32
GPIO 33
GPIO 34
GPIO 40
GPIO 41
GPIO 48
GPIO 49
Function
I
GPIO0
PREQ#5
I
PIRQ#E
I
I
PIRQ#F
I
PIRQ#G
PIRQ#H
I
I
SIO_SMI#
I
CPU_IERR#
PU (3Vstandby)
I
OC#3
I
OC#3
I
I
CSA_PME#
I
SIO_PME#
I
EXTSMI#
OC#4
I
I
OC#4
NC
O
PCI_GNT#5
O
NC
O
O
PU(3V)
SW_MASK_EN
O
O
NC
NC
OD
O
BIOS_WP#
GPIO24
I/O
I/O
GPIO25
I/O
GPIO27
I/O
GPIO28
I/O
SPKR_SMI#
SATA_LED#
I/O
I/O
GPIO34
PCI_REQ#4
I
LPC_DRQ#1
I
PCI_GNT#4
O
OD
CPU_PWRGD
Power well
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
RESUME
RESUME
RESUME
RESUME
RESUME
RESUME
RESUME
RESUME
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
RESUME
RESUME
RESUME
RESUME
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
GPIO00
GPIO01
GPIO03
GPIO04
GPIO05
GPIO06
GPIO07 Main
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPO15
GPIO16
GPIO17
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIOE0
GPIOE1
GPIOE2
GPIOE3
GPIOE4
GPIOE5
GPIE6
GPIE7
GPOS0
Type
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
O
GPOS1
GPIS2
GPIS3
PCI RESET DEVICE
Signals
AGP_PCIRST#
MCH_LANRST#
SIO_FWHRST# SIO, FWH, DUMP SW
IDE_RST#
PCIRST#1
A A
PCIRST#2
Target
AGP
MCH, LAN
ATA
PCI Slot 1/2/3
PCI Slot 4/5/MiniPCI
FWH
GPIO Pin
*
*
GPI 0
GPI 1
GPI 2
GPI 3
GPI 4
Type
I
I
I
I
I
Function
ATADET0
ATADET1
ISPMD1
ISPMD2
WHQL
Micro-Star Int'l Co., Ltd.
No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw
Title
GPIO
Size Document Number Rev
CANTERWOOD
5
4
3
2
Date: Sheet
33 33Friday, April 25, 2003
1
1.0Custom
of
Loading...
