A B C D E F G H

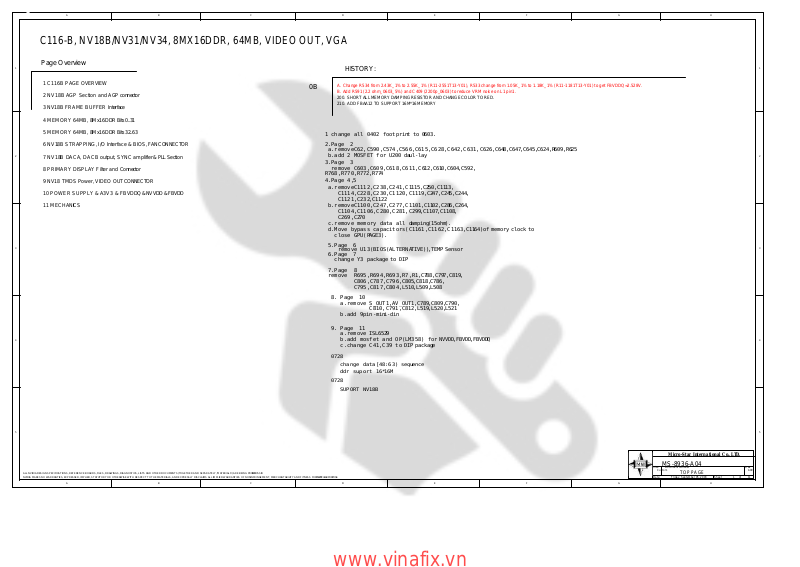

C116-B, NV18B/NV31/NV34, 8MX16DDR, 64MB, VIDEO OUT, VGA
1
Page Overview
1 C116B PAGE OVERVIEW
2 NV18B AGP Section and AGP connector
3 NV18B FRAME BUFFER Interface
0B
HISTORY:
A. Change R534 from 2.43K_1% to 2.55K_1% (R11-2551T13-Y01), R533 change from 1.05K_1% to 1.18K_1% (R11-1181T13-Y01) to get FBVDDQ=2.528V.
B. Add R591 (2.2 ohm_0603_5%) and C409 (2200p_0603) to reduce VRM noise on L1 pin1.
200. SHORT ALL MEMORY DAMPING RESISTOR AND CHANGE COLOR TO RED.
210. ADD FBAA12 TO SUPPORT 16M*16 MEMORY
1
4 MEMORY 64MB, 8Mx16DDR Bits 0..31
5 MEMORY 64MB, 8Mx16DDR Bits 32..63
6 NV18B STRAPPING, I/O Interface & BIOS, FAN CONNECTOR
2
7 NV18B DACA, DACB output, SYNC amplifier & PLL Section
8 PRIMARY DISPLAY Filter and Connector
9 NV18 TMDS Power, VIDEO OUT CONNECTOR
1 change all 0402 footprint to 0603.
2.Page 2
a.removeC62,C590,C574,C566,C615,C628,C642,C631,C626,C648,C647,C645,C624,R609,R625
b.add 2 MOSFET for U200 daul-lay
3.Page 3
remove C603,C609,C618,C611,C612,C610,C604,C592,
R768,R770,R772,R774
4.Page 4,5
2
a.removeC1112,C238,C241,C1115,C250,C1113,
10 POWER SUPPLY & A3V3 & FBVDDQ & NVVDD & FBVDD
11 MECHANICS
C1114,C228,C230,C1120,C1119,C247,C245,C244,
C1121,C232,C1122
b.removeC1100,C247,C277,C1101,C1102,C286,C264,
C1104,C1106,C280,C281,C299,C1107,C1108,
C269,C270
c.remove memory data all damping(15ohm).
d.Move bypass capacitors(C1161,C1162,C1163,C1164)of memory clock to
close GPU(PAGE3).
3
5.Page 6
remove U13(BIOS(ALTERNATIVE)),TEMP Sensor
6.Page 7
change Y3 package to DIP
3
7.Page 8
remove R695,R694,R693,R7,R1,C788,C797,C819,
C806,C787,C796,C805,C818,C786,
C795,C817,C804,L510,L509,L508
8. Page 10
a.remove S_OUT1,AV_OUT1,C789,C809,C790,
C810,C791,C812,L519,L520,L521
b.add 9pin-mini-din
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
C GE
9. Page 11
a.remove ISL6529
b.add mosfet and OP(LM358) for NVVDD,FBVDD,FBVDDQ
c.change C41,C39 to DIP package
0728
change data[48:63) sequence
ddr suport 16*16M
0728
SUPORT NV18B
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
Date:
TOP PAGE
Friday, September 05, 2003
Sheet of
HFDBA
1 11
4
5
A00
www.vinafix.vn
Page 2
NV18 AGP SECTION AND AGP CONNECTOR
12V
AGPVDDQ
12
12
R545
2.32K
1%
R0603MS
COMMON
R547
2.32K
1%
R0603MS
COMMON
GND
3V3
N-IRLML2502_SOT23
12
C75
.022UF
25V
10%
X7R
C0603MS
COMMON
GND
GND
GND
12
AGPVDDQ
GND
GND
GND
C568
.01UF
16V
10%
X7R
C0603MS
COMMON
12
5V
12
3V3
12
GND
Q1
GND
C48
.022UF
25V
10%
X7R
C0603MS
COMMON
C50
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
C55
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
12
R546
1%
R0603MS
COMMON
DS
12
C724
.047UF
16V
10%
X7R
C0603MS
COMMON
12
C53
.022UF
25V
10%
X7R
C0603MS
COMMON
12
C61
.022UF
25V
10%
X7R
C0603MS
COMMON
B16
A16
B28
A28
GND
B34
12
12
12
12
C591
.047UF
16V
10%
X7R
C0603MS
COMMON
C567
.01UF
16V
10%
X7R
C0603MS
COMMON
C62
.047UF
16V
10%
X7R
C0603MS
COMMON
C65
.01UF
16V
10%
X7R
C0603MS
COMMON
12
C64
1UF
10V
10%
X7R
C0805MS
COMMON
12
C572
1UF
10V
10%
X7R
C0805MS
COMMON
GND
A34
B40
A40
B47
B52
A52
B58
A58
B64
A64
B13
A13
B19
A19
B31
A31
B37
A37
B49
A49
B55
A55
B61
A61
GND
AGPVREFGC
A66
1.02K
3V3
GND
R543 10K
1 2
2
1B1C1E
E
5%R0603MS
C
Q_PNP
COMMON
MBDET_B
B
1
Q2
1PS226
COMMON
3
MBDET_G
G
12
R75
10K
5%
R0603MS
COMMON
AGP
CN1
A1
+12V
B2
+5V
B3
+5V
B9
+3V3
A9
+3V3
+3V3
+3V3
+3V3
+3V3
AGP2x4x AGP8x AGP2x4x
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
+VDDQ
B5
GND
A5
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
B4
USB+
A4
USB-
B1
OVRCNT*
VREFGC VREFGC
A2
TYPEDET* TYPEDET*
A3
<resvd> GCDET*
AGP2x4x
CON_AGP
Use traces
to short pads
R76 1K
1 2
R0603MS5%COMMON
AGP univ
12
C565
.022UF
25V
10%
X7R
C0603MS
COMMON
GND
AGP2x4xAGP8xAGP2x4 x
C0*/BE0 C0/BE0*
C1*/BE1 C1/BE1*
C2*/BE2 C2/BE2*
C3*/BE3 C3/BE3*
CLK CLK
RST* RST*
REQ REQ*
GNT GNT*
FRAME FRAME*
IRDY IRDY*
TRDY TRDY*
DEVSEL DEVSEL*
STOP STOP*
PAR PAR
INTA INTA*
INTB INTB*
PERR PERR*
SERR SERR*
PME PME*
RBF RBF*
WBF WBF*
DBIHI PIPE
DBILO <resvd>
ST0 ST0
ST1 ST1
ST2 ST2
ADSTBF0 ADSTB0
ADSTBS0 ADSTB0*
ADSTBF1 ADSTB1
ADSTBS1 ADSTB1*
SBSTBF SBSTB
SBSTBS SBSTB*
SBA0* SBA0
SBA1* SBA1
SBA2* SBA2
SBA3* SBA3
SBA4* SBA4
SBA5* SBA5
SBA6* SBA6
SBA7* SBA7
VREFCG VREFCG
*MBDET <resvd>
AGP2x4xAGP8x
AD<0>
AD<1>
AD<2>
AD<3>
AD<4>
AD<5>
AD<6>
AD<7>
AD<8>
AD<9>
AD<10>
AD<11>
AD<12>
AD<13>
AD<14>
AD<15>
AD<16>
AD<17>
AD<18>
AD<19>
AD<20>
AD<21>
AD<22>
AD<23>
AD<24>
AD<25>
AD<26>
AD<27>
AD<28>
AD<29>
AD<30>
AD<31>
PCICBE[3..0]
PCICLK
PCIRST*
PCIREQ
PCIGNT
PCIFRAME
PCIIRDY
PCITRDY
PCIDEVSEL
PCISTOP
PCIPAR
PCIINTA
PCIAD[31..0]
PCIAD0 PCIAD0
A65
PCIAD1 PCIAD1
B65
PCIAD2
A63
B63
PCIAD3
A62
PCIAD4
B62
PCIAD5
A60
PCIAD6
B60
PCIAD7
B57
PCIAD8
A56
PCIAD9
B56
PCIAD10
A54
PCIAD11
B54
PCIAD12
A53
PCIAD13
B53
PCIAD14
A51
PCIAD15
A39
PCIAD16
B38
PCIAD17
A38
PCIAD18
B36
PCIAD19
A36
PCIAD20
B35
PCIAD21
A35
PCIAD22
B33
PCIAD23
A30
PCIAD24
B30
PCIAD25
A29
PCIAD26
B29
PCIAD27
A27
PCIAD28
B27
PCIAD29
A26
PCIAD30
B26
PCIAD31
A57
PCICBE0
PCICBE1 PCICBE1
B51
PCICBE2 PCICBE2
B39
A33
PCICBE3
B7
A7
B8
A8
A41
B41
A46
B46
A47
A50
A6
B6
B48
B50
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
1
2
3
A48
B12
A14
A12
B14
B10
A10
B11
B59
A59
B32
A32
B18
A18
B15
A15
B17
A17
B20
A20
B21
A21
B66
A11
AGPSBA0
AGPSBA1
AGPSBA2
AGPSBA3
AGPSBA4
AGPSBA5
AGPSBA6
AGPSBA7
AGPVREFCG
12
0
1
2
3
4
5
6
7
12MI_TRACE
C85
.22UF
10V
10%
X7R
C0603MS
COMMON
AGPRBF
AGPWBF
AGPDBI_HI
AGPDBI_LO
AGPST0
AGPST1
AGPST2
AGPADSTB0F
AGPADSTB0S
AGPADSTB1F
AGPADSTB1S
AGPSBSTBF
AGPSBSTBS
AGPSBA[7..0]
12
R548
220K
5%
R0603MS
COMMON
NOT USED FOR NV31
GND
AGPMBDET
3V3
1 2
R578
10K
5%
R0603MS
COMMON
GND
R744
1K
5%
R0603MS
COMMON
1 2
U200
U200_1
1
2
3
IC_SUPERSOT-6
GND
FDC6301N
COMMON
6
5
U200_4MBDET_G
4
AGPVREFCG U200_4
N-IRLML2502_SOT23
Q3000
AGPVREFCGGPU
0
1
PCIAD2
2
PCIAD3
3
PCIAD4
4
PCIAD5
5
PCIAD6
6
PCIAD7
7
PCIAD8
8
PCIAD9
9
PCIAD10
10
PCIAD11
11
PCIAD12
12
PCIAD13
13
PCIAD14
14
PCIAD15
15
PCIAD16
16
PCIAD17
17
PCIAD18
18
PCIAD19
19
PCIAD20
20
PCIAD21
21
PCIAD22
22
PCIAD23
23
PCIAD24
24
PCIAD25
25
PCIAD26
26
PCIAD27
27
PCIAD28
28
PCIAD29
29
PCIAD30
30
PCIAD31
31
PCICBE0
0
1
2
PCICBE3
3
R0603MS
COMMON
R62
220K
5%
12
GND
AGPVREFCGGPU
12
R746
158K
1%
R0603MS
COMMON
0
1
2
3
4
5
6
7
AGPSTOP
AGPVDDQ
12
12
AGPSBA0
AGPSBA1
AGPSBA2
AGPSBA3
AGPSBA4
AGPSBA5
AGPSBA6
AGPSBA7
R551
301K
1%
R0603MS
COMMON
R552
221K
1%
R0603MS
COMMON
GND
R746 = 121K 1% for NV18B-A02 silicon
R746 = 158K 1% for NV18B-A03 and
later silicon
DS
U200_1
G
Q3001
DS
MBDET_G
G
N-IRLML2502_SOT23
GND
AJ28
AK28
AH27
AK27
AJ27
AH26
AJ26
AH25
AH23
AJ23
AH22
AJ22
AJ21
AK21
AH20
AJ20
AG26
AE24
AG25
AG24
AF24
AG23
AE22
AF22
AE21
AG20
AG19
AF19
AE19
AF18
AG18
AE18
AJ24
AH19
AF25
AG22
AG12
AF15
AF13
AE15
AK16
AG16
AJ17
AJ16
AH17
AK18
AG15
AE10
AF10
AG14
AG17
AJ18
AJ19
AG13
AE16
AE13
AK24
AJ25
AG21
AF21
AK13
AJ13
AJ11
AH11
AJ12
AH12
AJ14
AH14
AJ15
AH15
AK29
AF16
AF12
AG11
12MIL_TRACE
12
C581
.01UF
16V
10%
X7R
C0603MS
COMMON
U8F
BGA701_P10_NV31_34_18B
COMMON
1/11 PCI/AGP
PCIAD<0>
PCIAD<1>
PCIAD<2>
PCIAD<3>
PCIAD<4>
PCIAD<5>
PCIAD<6>
PCIAD<7>
PCIAD<8>
PCIAD<9>
PCIAD<10>
PCIAD<11>
PCIAD<12>
PCIAD<13>
PCIAD<14>
PCIAD<15>
PCIAD<16>
PCIAD<17>
PCIAD<18>
PCIAD<19>
PCIAD<20>
PCIAD<21>
PCIAD<22>
PCIAD<23>
PCIAD<24>
PCIAD<25>
PCIAD<26>
PCIAD<27>
PCIAD<28>
PCIAD<29>
PCIAD<30>
PCIAD<31>
PCIC0/BE0*
PCIC1/BE1*
PCIC2/BE2* C2*/BE2
PCIC3/BE3* C3*/BE3
PCICLK CLK
PCIRST* RST*
PCIREQ*
PCIGNT* GNT
PCIFRAME* FRAME
PCIIRDY*
PCITRDY* TRDY
PCIPAR
PCIINTA*
AGP 8xAGP 2x,4x
C0*/BE0
C1*/BE1
REQ
IRDY
DEVSELPCIDEVSEL*
STOPPCISTOP*
PAR
INTA
INTBPCIINTB*
FRWR_PME...
AGPRBF* RBF
AGPWBF* WBF
AGPPIPE* DBI_HI
. DBI_LO
AGPST0 ST0
AGPST1 ST1
AGPST2 ST2
AGPADSTB0
AGPADSTB0*
AGPADSTB1 ADSTBF1
AGPADSTB1* ADSTBS1
AGPSBSTB
AGPSBSTB* SBSTBS
AGPSBA<0 > SBA0*
AGPSBA<1 > SBA1*
AGPSBA<2 > SBA2*
AGPSBA<3 > SBA3*
AGPSBA<4 > SBA4*
AGPSBA<5 > SBA5*
AGPSBA<6 > SBA6*
ADSTBF0
ADSTBS0
SBSTBF
SBA7*AGPSBA<7 >
AGPVREF AGPVREF
MBDET*.
AGPBUSY*
AGPSTOP*
[..] = NOT USED ON NV18
[...] = NOT USED ON NV31/34
Can be placed on same
location.
Alternative stuffing
Dual Layout with U200
BUSY*
STOP*
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
AGPVDDQ
VD50CLAMP0
VD50CLAMP1
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
AGPCALPD_VDDQ
AGPCALPU_GND
..AGP_PLLVDD
..TESTMEMCLK
TESTMODE
AGPVDDQ
C622
.022UF
25V
10%
X7R
C0603MS
COMMON
12
C633
.1UF
10V
10%
X7R
C0603MS
COMMON
12
NVVDD
C619
4700PF
25V
10%
X7R
C0603MS
COMMON
C616
4700PF
25V
10%
X7R
C0603MS
COMMON
12
C652
1UF
10V
10%
X7R
<<place on bottom north of GPU
C0603MS
COMMON
12
C625
1UF
10V
10%
X7R
C0603MS
COMMON
GND
<<place on bottom east of GPU
12
12
GND
<<place on bottom south of GPU
12
C644
4700PF
25V
10%
X7R
C0603MS
COMMON
12
C651
1UF
10V
10%
X7R
C0603MS
COMMON
GND
<<place on bottom west of GPU
GND
12
C621
1UF
10V
10%
X7R
C0603MS
COMMON
GND
12
C667
.1UF
GND
10V
10%
X7R
C0603MS
COMMON
GND
COMMON
R0603MS
2 x 100 Ohm 0402 result in 50 Ohm 1/8W
R570 = 56.2 1% for NV18B-A02 silicon
R570 = 49.9 1% for NV18B-A03 and later silicon
AGPVDDQ
GND
LB518
1 2
L0603MS
12
C1355
1UF
10V
10%
X7R
C0603MS
COMMON
COMMON
150-220R@100MHz
AGP spacing rules
A3V3
GND
PCIAD[31..0]
PCICBE[3..0]
PCICLK
PCIRST*
PCIREQ
PCIGNT
PCIFRAME
PCIIRDY
PCITRDY
PCISTOP
PCIDEVSEL
PCIPAR
PCIINTA
AGPRBF
AGPWBF
AGPDBI_HI
AGPDBI_LO
AGPST0
AGPST1
AGPST2
AGPADSTB0F
AGPADSTB0S
AGPADSTB1F
AGPADSTB1S
AGPSBSTBF
AGPSBSTBS
AGPSBA[7..0]
AGPVREFCG
AGPVREFGC
AGPMBDET
AGPSTOP
20MIL
20MIL
20MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
20MIL
20MIL
15MIL
15MIL
15MIL
25MIL
25MIL
25MIL
25MIL
25MIL
25MIL
20MIL
12MI_TRACE
10MIL
10MIL
10MIL
3V3
12
12
C654
.022UF
25V
10%
X7R
C0603MS
COMMON
12
C641
100PF
16V
10%
X7R
C0603MS
COMMON
12
C627
100PF
16V
10%
X7R
C0603MS
COMMON
12
C634
100PF
16V
10%
X7R
C0603MS
COMMON
12
C669
.1UF
10V
10%
X7R
C0603MS
COMMON
R2256
10K
5%
R0603MS
COMMON
place closest to GPU
12
12
12
12
12
GND
12
C646
.022UF
25V
10%
X7R
C0603MS
COMMON
C638
470PF
50V
10%
X7R
C0603MS
COMMON
C639
470PF
50V
10%
X7R
C0603MS
COMMON
C649
470PF
50V
10%
X7R
C0603MS
COMMON
C657
.1UF
10V
10%
X7R
C0603MS
COMMON
12
12
12
C1353
470PF
50V
10%
X7R
C0603MS
COMMON
C632
.1UF
10V
10%
X7R
C0603MS
COMMON
C637
.022UF
25V
10%
X7R
C0603MS
COMMON
C663
4700PF
25V
10%
X7R
C0603MS
COMMON
5V
12
C615
.022UF
25V
10%
X7R
C0603MS
COMMON
GND
12
C635
1000PF
16V
10%
X7R
C0603MS
COMMON
12
C629
1000PF
16V
10%
X7R
C0603MS
COMMON
12
C650
1000PF
16V
10%
X7R
C0603MS
COMMON
<<place on bottom of GPU
12
C658
1UF
10V
10%
X7R
C0603MS
COMMON
12
C656
1UF
10V
10%
X7R
C0603MS
COMMON
12
C666
.022UF
25V
10%
X7R
C0603MS
COMMON
R5701%49.9R
1 2
R0603MS
R5691%49.9R
1 2
COMMON
NOT USED ON NV18
12
C1354
4700PF
25V
10%
X7R
C0603MS
COMMON
AD11
AE11
AD14
AE14
AD17
AE17
AD20
AE20
AD23
AE23
L11
VDD
N11
VDD
P11
VDD
U11
VDD
V11
VDD
Y11
VDD
L13
VDD
Y13
VDD
L14
VDD
Y14
VDD
L17
VDD
Y17
VDD
AA17
VDD
L18
VDD
Y18
VDD
AA18
VDD
L20
VDD
N20
VDD
P20
VDD
U20
VDD
V20
VDD
Y20
VDD
N4
AE9
H6
U6
AC6
H7
U7
AC7
AD12
G14
AD15
AD16
AD19
AD22
P24
A1
NC
AK30
NC
G6
NC
R7
NC
T7
NC
AA13
AGPCALPD
AA14
AGPCALPU
AE12
TESTMEMCLK
G24
AE5
TESTMODE
12
R581
10K
5%
R0603MS
COMMON
GND
GND
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
Date:
AGP INTERFACE
Friday, September 05, 2003
Sheet of
A00
2 11
www.vinafix.vn
Page 3
A B C D E F G H
NV18 FRAMEBUFFER INTERFACE AND DECOUPLING
FBAA12{4,5}
FBACS0*
GND
FBBA12
R1988
0R
R1990
0R
FBD[63..0]
R1989
0R
FBVREF
FBDQM0{4}
FBDQM1{4}
FBDQM2{4}
FBDQM3{4}
FBDQM4{5}
FBDQM5{5}
FBDQM6{5}
FBDQM7{5}
FBDQS0{4}
FBDQS1{4}
FBDQS2{4}
FBDQS3{4}
FBDQS4{5}
FBDQS5{5}
FBDQS6{5}
FBDQS7{5}
R1987
0R
FBABA0{4,5}
FBABA1{4,5}
FBARAS*{4,5}
FBACAS*{4,5}
FBAWE*{4,5}
FBACKE{4,5}
FBACLK0{5}
FBACLK0*{5}
FBACLK1{4}
FBACLK1*{4}
U8B
BGA701_P10_NV31_34_18B
COMMON
AJ29
AJ30
AH29
AH30
AF29
AE29
AD29
AC28
AG28
AF27
AE26
AE28
AD25
AB25
AB26
AA25
AD30
AC29
AB28
AB29
W28
W29
AC27
AB27
AA27
AA26
W25
AF28
AD27
AA30
AG30
AD26
AA29
W27
AG29
AE27
W26
N25
N27
N26
M25
K26
K27
J27
H27
N29
M29
M28
L29
J29
J28
H29
G30
K25
J26
J25
G26
F28
F26
E27
D27
H28
G29
F29
E29
C30
C29
B30
A30
Y29
V29
V26
V27
V25
L27
K29
G25
E28
Y27
M27
K30
G27
D30
M26
L28
F27
D29
Y28
V30
U28
U29
T28
T29
T27
T30
T26
T25
R27
R25
R30
U24
R26
R29
P28
P29
R28
U27
P27
N30
U21
V21
N21
P21
C28
2/11 MEM_A
FBAD<0>
FBAD<1>
FBAD<2>
FBAD<3>
FBAD<4>
FBAD<5>
FBAD<6>
FBAD<7>
FBAD<8>
FBAD<9>
FBAD<10>
FBAD<11>
FBAD<12>
FBAD<13>
FBAD<14>
FBAD<15>
FBAD<16>
FBAD<17>
FBAD<18>
FBAD<19>
FBAD<20>
FBAD<21>
FBAD<22>
FBAD<23>
FBAD<24>
FBAD<25>
FBAD<26>
FBAD<27>
FBAD<28>
FBAD<29>
FBAD<30>
FBAD<31>
FBAD<32>
FBAD<33>
FBAD<34>
FBAD<35>
FBAD<36>
FBAD<37>
FBAD<38>
FBAD<39>
FBAD<40>
FBAD<41>
FBAD<42>
FBAD<43>
FBAD<44>
FBAD<45>
FBAD<46>
FBAD<47>
FBAD<48>
FBAD<49>
FBAD<50>
FBAD<51>
FBAD<52>
FBAD<53>
FBAD<54>
FBAD<55>
FBAD<56>
FBAD<57>
FBAD<58>
FBAD<59>
FBAD<60>
FBAD<61>
FBAD<62>
FBAD<63>
FBADQM<0>
FBADQM<1>
FBADQM<2>
FBADQM<3>
FBADQM<4>
FBADQM<5>
FBADQM<6>
FBADQM<7>
FBADQS<0>
FBADQS<1>
FBADQS<2>
FBADQS<3>
FBADQS<4>
FBADQS<5>
FBADQS<6>
FBADQS<7>
FBADQS<0>...
FBADQS<1>...
FBADQS<2>...
FBADQS<3>...
FBADQS<4>...
FBADQS<5>...
FBADQS<6>...
FBADQS<7>...
FBAA<0>
FBAA<1>
FBAA<2>
FBAA<3>
FBAA<4>
FBAA<5>
FBAA<6>
FBAA<7>
FBAA<8>
FBAA<9>
FBAA<10>
FBAA<11>
FBAA<12>..
FBABA<0>
FBABA<1>
FBARAS
FBACAS
FBAWE
FBACS0
FBACS1
FBACKE
FBACLK0
FBACLK0
FBACLK1
FBACLK1
FB_VREF
[..] = NOT USED ON NV18
[...] = USED FOR DDR2 ONLY
F8
FBVDDQ
G8
FBVDDQ
F11
FBVDDQ
G11
FBVDDQ
F14
FBVDDQ
F17
FBVDDQ
F20
FBVDDQ
G20
FBVDDQ
F23
FBVDDQ
G23
FBVDDQ
H24
FBVDDQ
L24
FBVDDQ
Y24
FBVDDQ
AC24
FBVDDQ
H25
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
..FB_DLLVDD
L25
P25
U25
Y25
AC25
C27
12
12
F1
GND
J1
GND
M1
GND
T1
GND
W1
GND
AB1
GND
AE1
GND
C3
GND
G3
GND
K3
GND
N3
GND
AH3
GND
D4
GND
AG4
GND
E5
GND
K5
GND
AA5
GND
AF5
GND
A6
GND
F6
GND
AE6
GND
AK6
GND
C7
GND
J7
GND
AH7
GND
E8
GND
L8
GND
Y8
GND
AF8
GND
A9
GND
AK9
GND
C10
GND
AH10
GND
E11
GND
H11
GND
AC11
GND
AF11
GND
A12
GND
AK12
GND
C13
GND
AH13
GND
E14
GND
AF14
GND
AK15
GND
AH16
GND
E17
GND
AF17
GND
C18
GND
AH18
GND
A19
GND
AK19
GND
E20
GND
H20
GND
AC20
GND
AF20
GND
C21
GND
AH21
GND
A22
GND
AK22
GND
E23
GND
L23
GND
Y23
GND
AF23
GND
C24
GND
AH24
GND
A25
GND
F25
GND
AE25
GND
AK25
GND
H26
GND
L26
GND
P26
GND
U26
GND
Y26
GND
AC26
GND
AF26
GND
AG27
GND
D28
GND
G28
GND
K28
GND
N28
GND
V28
GND
AA28
GND
AD28
GND
AH28
GND
F30
GND
J30
GND
M30
GND
W30
GND
AB30
GND
AE30
GND
NOT USED ON NV18
FB_DLLVDD
12
C1356
470PF
50V
10%
X7R
C0603MS
NO STUFF
GND
C GE
FBD0
0
FBD1
1
FBD2
2
FBD3
3
FBD4
4
FBD5
5
FBD6
6
FBD7
7
FBD8
8
FBD9
9
FBD10
10
FBD11
11
FBD12
12
FBD13
13
FBD14
14
FBD15
15
FBD16
16
FBD17
17
FBD18
18
FBD19
19
FBD20
20
FBD21
21
FBD22
22
FBD23
23
FBD24
24
FBD25
25
FBD26
26
FBD27
27
FBD28
28
FBD29
29
FBD30
30
FBD31
31
FBD32
32
FBD33
33
FBD34
34
FBD35
35
FBD36
36
FBD37
37
FBD38
38
FBD39
39
FBD40
40
FBD41
41
FBD42
42
FBD43
43
FBD44
44
FBD45
45
FBD46
46
FBD47
47
FBD48
48
FBD49
49
FBD50
50
FBD51
51
FBD52
52
FBD53
53
FBD54
54
FBD55
55
FBD56
56
FBD57
57
FBD58
58
FBD59
59
FBD60
60
FBD61
61
FBD62
62
FBD63
63
FBDQM0
FBDQM1
FBDQM2
FBDQM3
FBDQM4
FBDQM5
FBDQM6
FBDQM7
FBDQS0
FBDQS1
FBDQS2
FBDQS3
FBDQS4
FBDQS5
FBDQS6
FBDQS7
FBAA0
FBAA0{4,5}
FBAA1
FBAA1{4,5}
FBAA2
FBAA2{4,5}
FBAA3
FBAA3{4,5}
FBAA4
FBAA4{4,5}
FBAA5
FBAA5{4,5}
FBAA6
FBAA6{4,5}
FBAA7
FBAA7{4,5}
FBAA8
FBAA8{4,5}
FBAA9
FBAA9{4,5}
FBAA10
FBAA10{4,5}
FBAA11
FBAA11{4,5}
FBABA0
FBABA1
FBARAS*
FBACAS*
FBAWE*
FBACKE
FBACLK0
FBACLK0*
FBACLK1
FBACLK1*
FBD[63..0]{4,5}
1
2
3
4
FBACLK0 FBACLK0* FBACLK1 FBACLK1*
12
C1160
10pF
C0603MS
12
C1161
10pF
C0603MS
C1162
10pF
C0603MS
12
C1163
10pF
C0603MS
12
GND GND GND GND
FBVDDQ
12
R554
1K
5%
R0603MS
COMMON
12
12
R553
5
C597
.1UF
10V
10%
X7R
C0603MS
COMMON
1K
5%
R0603MS
COMMON
R1987 AND R1988 FOR NV34
R1989 AND R1990 FOR NV18B
FBACS0*{4,5}
GND
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
C630
4700PF
25V
10%
X7R
C0603MS
COMMON
C588
1UF
10V
10%
X7R
C0603MS
COMMON
12
12
C1357
4700PF
25V
10%
X7R
C0603MS
NO STUFF
C623
.022UF
25V
10%
X7R
C0603MS
COMMON
GND
12
GND
LB519
C1358
1UF
10V
10%
X7R
C0603MS
NO STUFF
12
C617
.1UF
10V
10%
X7R
C0603MS
COMMON
GND
1 2
L0603MS
NO STUFF
FBVDDQ
12
C643
.1UF
10V
10%
X7R
C0603MS
COMMON
GND
150-220R@100MHz
GND
A3V3
F13
D13
E13
F12
E10
D10
B13
B12
C12
B11
F10
B29
A29
B28
A28
B26
B25
B24
C23
E26
D26
E25
C25
E24
F22
E22
F21
A24
B23
C22
B22
B20
C19
B19
B18
D23
D22
D21
E21
F19
E18
D18
F18
D11
B10
C26
F24
B21
D20
D12
A10
A27
D24
A21
D19
E12
C11
B27
D25
C20
E19
A18
C17
B17
C16
B16
D16
A16
E16
F16
D15
F15
A15
G17
E15
B15
C14
B14
C15
D17
D14
A13
K18
K17
K13
K14
D9
D8
B9
C9
B8
A7
E9
F9
F7
C6
E6
D5
C4
C8
B7
B6
B5
A3
B3
A2
B2
D7
C5
E7
A4
D6
B4
U8C
BGA701_P10_NV31_34_18B
COMMON
3/11 MEM_C
FBCD<0>
FBCD<1>
FBCD<2>
FBCD<3>
FBCD<4>
FBCD<5>
FBCD<6>
FBCD<7>
FBCD<8>
FBCD<9>
FBCD<10>
FBCD<11>
FBCD<12>
FBCD<13>
FBCD<14>
FBCD<15>
FBCD<16>
FBCD<17>
FBCD<18>
FBCD<19>
FBCD<20>
FBCD<21>
FBCD<22>
FBCD<23>
FBCD<24>
FBCD<25>
FBCD<26>
FBCD<27>
FBCD<28>
FBCD<29>
FBCD<30>
FBCD<31>
FBCD<32>
FBCD<33>
FBCD<34>
FBCD<35>
FBCD<36>
FBCD<37>
FBCD<38>
FBCD<39>
FBCD<40>
FBCD<41>
FBCD<42>
FBCD<43>
FBCD<44>
FBCD<45>
FBCD<46>
FBCD<47>
FBCD<48>
FBCD<49>
FBCD<50>
FBCD<51>
FBCD<52>
FBCD<53>
FBCD<54>
FBCD<55>
FBCD<56>
FBCD<57>
FBCD<58>
FBCD<59>
FBCD<60>
FBCD<61>
FBCD<62>
FBCD<63>
FBCDQM<0>
FBCDQM<1>
FBCDQM<2>
FBCDQM<3>
FBCDQM<4>
FBCDQM<5>
FBCDQM<6>
FBCDQM<7>
FBCDQS<0>
FBCDQS<1>
FBCDQS<2>
FBCDQS<3>
FBCDQS<4>
FBCDQS<5>
FBCDQS<6>
FBCDQS<7>
FBCDQS<8>...
FBCDQS<9>...
FBCDQS<10>...
FBCDQS<11>...
FBCDQS<12>...
FBCDQS<13>,,,
FBCDQS<14>,,,
FBCDQS<15>...
FBCA<0>
FBCA<1>
FBCA<2>
FBCA<3>
FBCA<4>
FBCA<5>
FBCA<6>
FBCA<7>
FBCA<8>
FBCA<9>
FBCA<10>
FBCA<11>
FBCA<12>..
FBCBA<0>
FBCBA<1>
FBCRAS
FBCCAS
FBCWE
FBCCS0
FBCCS1
FBCCKE
FBCCLK0
FBCCLK0
FBCCLK1
FBCCLK1
[..] = NOT USED ON NV18
[...] = USED FOR DDR2 ONLY
...FBCAL_PD_VDDQ
...FBCAL_PU_GND
...FBCAL_TERM_GND
...FBCAL_CLK_GND
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
GND_THERMAL
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
...VTT
G9
G12
G15
G16
G19
G22
J24
M24
R24
T24
W24
AB24
F5
E4
D3
E3
M12
N12
P12
R12
T12
U12
V12
W12
M13
N13
P13
R13
T13
U13
V13
W13
M14
N14
P14
R14
T14
U14
V14
W14
M15
N15
P15
R15
T15
U15
V15
W15
M16
N16
P16
R16
T16
U16
V16
W16
M17
N17
P17
R17
T17
U17
V17
W17
M18
N18
P18
R18
T18
U18
V18
W18
M19
N19
P19
R19
T19
U19
V19
W19
GND
PIN DESCRIPTION
FBCAL_TERM_GND
FBCAL_CLK_GND
FBCAL_PU_GND
FBCAL_PD_VDDQ
NOT USED ON NV18B
R22571%49.9R
1 2
NOT STUFF
R0603MS
R22581%49.9R
1 2
NOT STUFF
R0603MS
TARGET RESISTANCE IS 550 OHM
1.2V / 550 ohm = 2.2 mA
R2259
549
1%
R0603MS
COMMON
1 2
GND
NV18B
NOT US ED
NOT US ED
NOT US ED
TIE TO GNDNOT US ED
550 OHM 1% TO GND
50 OHM 1% TO GND
50 OHM 1% TO FBVDDQ
FBVDDQ
GND
NV31
NV34
NOT US ED
NOT US ED
50 OHM 1% TO GND
50 OHM 1% TO FBVDDQ
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
FRAME BUFFER INTERFACE
Date:
Friday, September 05, 2003
Sheet of
HFDBA
1
2
3
4
5
A00
3 11
www.vinafix.vn
Page 4
FBVDDQ
12
GND
12
GND
FBACLK1*
FBACLK1
C239
220pF
C0603MS
C227
4700pF
C0603MS
U400
61
VCCQ
VCCQ
VCCQ
VCCQ
VCCQ
DQSL
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQSU
VREF
NC
NC
NC
NC
NC
NC
A12
NC
VCCQ
VCCQ
VCCQ
VCCQ
VCCQ
DQSL
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQSU
VREF
NC
NC
NC
NC
NC
NC
A12
NC
VCC
VCC
VCC
A10/AP
A11
BA0
BA1
RAS
CAS
DML
DMU
CLK
CLK
CKE
VSS
VSS
VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VCC
VCC
VCC
A10/AP
A11
BA0
BA1
RAS
CAS
DML
DMU
CLK
CLK
CKE
VSS
VSS
VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
CS
WE
CS
WE
55
15
9
FBDQS0{3}
FBDQS1{3}
FBD[63..0]
FBVDDQ
12
R206
1K
R0603MS
FBA_MVREF0
12
R205
1K
R0603MS
GND GND
Place
component
to memory
12
C262
.1UF
<P_mat>
C0603MS
<P_volt>
FBDQS0
FBD0
FBD1
FBD2
FBD3
FBD4
FBD5
FBD6
FBD7
FBD8
FBD9
FBD10
FBD11
FBD12
FBD13
FBD14
FBD15
FBDQS1
FBA_MVREF0
FBAA12
FBVDDQ
FBDQS2{3}
FBD[63..0]{3,5}
FBD[63..0 ]
FBDQS3{3}
FBDQS2
FBD16
FBD17
FBD18
FBD19
FBD20
FBD21
FBD22
FBD23
FBD24
FBD25
FBD26
FBD27
FBD28
FBD29
FBD30
FBD31
FBDQS3
16
10
11
13
54
56
57
59
60
62
63
65
51
49
17
14
19
25
53
50
42
43
61
55
15
16
10
11
13
54
56
57
59
60
62
63
65
51
3
2
4
5
7
8
TSOP66
8MX16-4HY
U401
9
3
2
4
5
7
8
FBA_MVREF0
49
C261
12
.1UF
<P_mat><P_volt>
C0603MS
GND
FBAA12
Place
component
to memory
17
14
19
25
53
50
42
43
TSOP66
8MX16-4HY
FBVDD
1
18
33
FBAA0
29
A0
FBAA1
30
A1
FBAA2
31
A2
FBAA3
32
A3
FBAA4
35
A4
FBAA5
36
A5
FBAA6
37
A6
FBAA7
38
A7
FBAA8
39
A8
FBAA9
40
A9
FBAA10
28
FBAA11
41
FBABA0
26
FBABA1
27
FBACS0*
24
FBARAS*
23
FBACAS*
22
FBDQM0
20
FBDQM1
47
FBAWE*
21
46
45
FBACKE
44
34
48
66
6
12
52
58
64
1 2
R739
200R
R0603MS
FBVDD
1
18
33
FBAA0
29
A0
FBAA1
30
A1
FBAA2
31
A2
FBAA3
32
A3
FBAA4
35
A4
FBAA5
36
A5
FBAA6
37
A6
FBAA7
38
A7
FBAA8
39
A8
FBAA9
40
A9
FBAA10
28
FBAA11
41
FBABA0
26
FBABA1
27
FBACS0*
24
FBARAS*
23
FBACAS*
22
FBDQM2
20
FBDQM3
47
FBAWE*
21
46
45
FBACKE
44
34
48
66
6
12
52
58
64
12
R458
10K
R0603MS
1 2
R252
200R
R0603MS
12
GND GND
12
GND
12
GND
FBACLK1*
FBACLK1
12
C1118
220pF
C0603MS
GND
Memory decoupling
C240
220pF
C0603MS
C249
4700pF
C0603MS
C229
4700pF
C0603MS
GND
12
GND
12
GND
12
GND
GND
C246
220pF
C0603MS
C255
4700pF
C0603MS
12
C231
4700pF
C0603MS
12
12
C242
.1UF
C0603MS
C251
4700pF
C0603MS
C235
4.7uF
C0805MS
GND
GND
GND
12
12
12
GND
GND
C248
.1UF
C0603MS
C258
4700pF
C0603MS
C233
4700pF
C0603MS
FBVDDQ
FBVDDQ
12
C254
4.7uF
C0805MS
Memory decoupling
12
C1116
0.022uF
C0603MS
GND
GND
12
12
12
GND
C259
.1UF
C0603MS
C234
0.022uF
C0603MS
C1117
0.022uF
C0603MS
FBVDDQ
GND
GND
12
12
FBVDD
C260
4.7uF
C0805MS
C236
4.7uF
C0805MS
FBVDDQ
12
GND
C1123
0.022uF
C0603MS
FBACLK0{3,5}
FBACLK0*{3,5}
FBACLK1{3}
FBACLK1*{3}
FBD[63..0]{3,5}
FBDQM[7..0]{3,5}
FBDQS[7..0]{3,5}
Place in
memory
section
FBVDD
FBACLK0
FBACLK0*
FBACLK1
FBACLK1*
FBD[63..0]
FBDQM[7..0]
FBDQS[7..0]
Diffpair NET_SPACING_RUL ENET
FBBCLK0
FBBCLK0
FBBCLK1
FBBCLK1
Place in
memory
section
18MIL_G2G_25MIL
18MIL_G2G_25MIL
18MIL_G2G_25MIL
18MIL_G2G_25MIL
10MIL
10MIL
20MIL
GND
www.vinafix.vn
FBAA[12..0]{3,5}
FBABA[1..0]{3,5}
FBAA[12..0]
FBARAS*
FBARAS*{3,5}
FBACAS*
FBACAS*{3,5}
FBAWE*
FBAWE*{3,5}
FBACS0*
FBACS0*{3,5}
FBABA[1..0]
FBACKE
FBACKE{3,5}
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
Date:

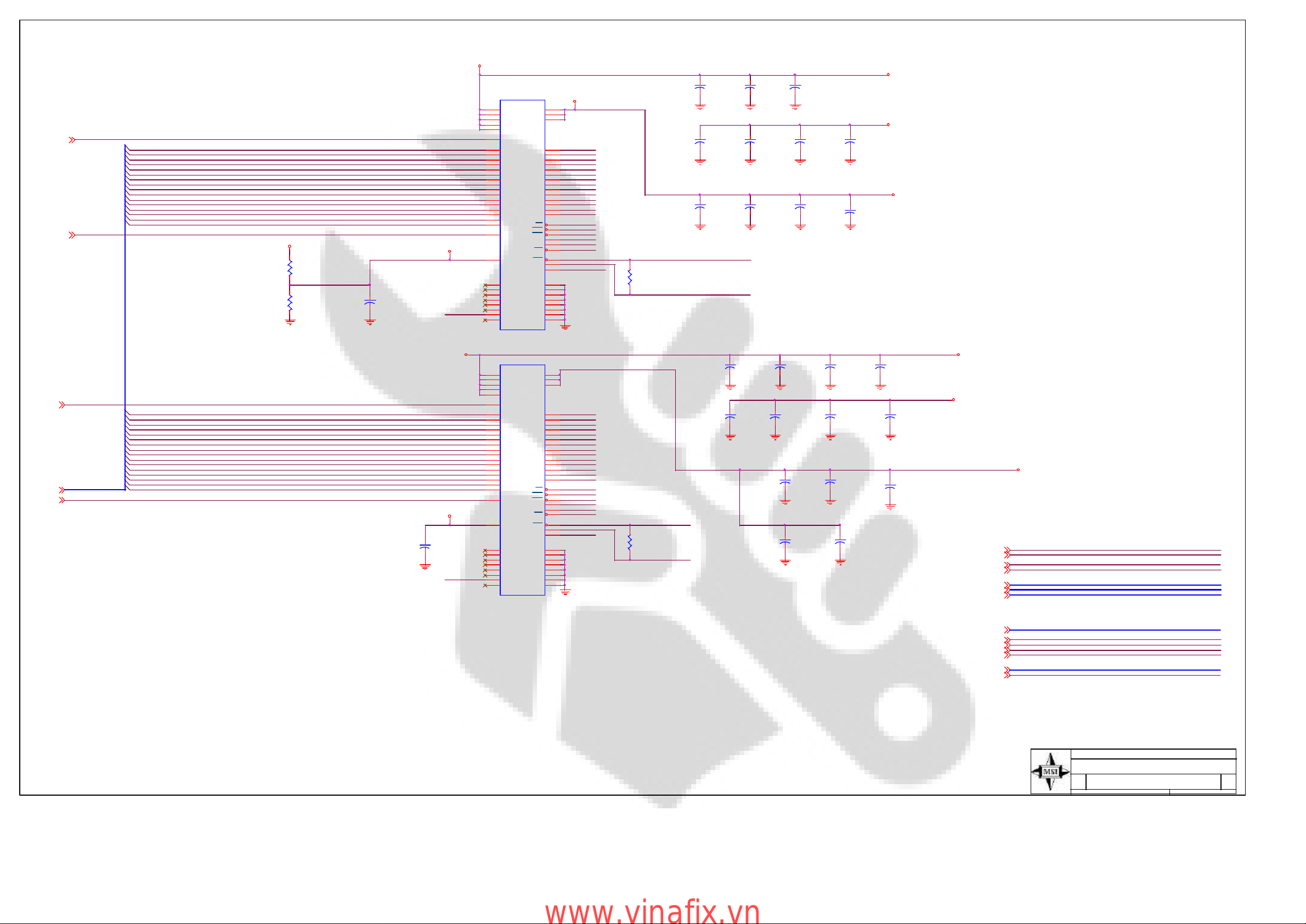

8x16 DDR 0..31 128 bit
Friday, September 05, 2003
Sheet of
A00
4 11
Page 5
FBVDDQ
C290
4.7uF
C0805MS
C271
4.7uF
C0805MS
FBVDDQ
FBVDDQ
12
C284
.1UF
<P_mat> <P_volt>
C0603MS
GND
12
GND
12
GND
FBVDD
C296
4.7uF
<P_mat><P_volt>
C0805MS
C272
4.7uF
<P_mat><P_volt>
C0805MS
FBVDDQ
Place
component in
memory
section
FBVDDQ
FBVDD
NET
FBACLK0
FBACLK0{3}
FBACLK0*
FBACLK0*{3}
FBACLK1
FBACLK1{3,4}
FBACLK1*
FBACLK1*{3,4}
FBD[63..0]{3,4}
FBDQM[7..0]{3,4}
FBDQS[7..0]{3,4}
FBAA[12..0]{3,4}
FBABA[1..0]{3,4}
FBD[63..0]
FBDQM[7..0]
FBDQS[7..0]
FBAA[12..0]
FBARAS*
FBARAS*{3,4}
FBACAS*
FBACAS*{3,4}
FBAWE*
FBAWE*{3,4}
FBACS0*
FBACS0*{3,4}
FBABA[1..0]
FBACKE
FBACKE{3,4}
Diffpair
FBBCLK0
FBBCLK0
FBBCLK1
FBBCLK1
NET_SPACING_RU LE
18MIL_G2G_25MIL
18MIL_G2G_25MIL
18MIL_G2G_25MIL
18MIL_G2G_25MIL
10MIL
10MIL
20MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
10MIL
12
C275
GND
GND
GND
220pF
C0603MS
12
C285
4700pF
C0603MS
12
C263
4700pF
C0603MS
FBACLK0*
FBACLK0
U402
61
VCCQ
VCCQ
VCCQ
VCCQ
VCCQ
DQSL
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQSU
VREF
NC
NC
NC
NC
NC
NC
A12
NC
VCCQ
VCCQ
VCCQ
VCCQ
VCCQ
DQSL
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQSU
VREF
NC
NC
NC
NC
NC
NC
A12
NC
VCC
VCC
VCC
A10/AP
A11
BA0
BA1
RAS
CAS
DML
DMU
CLK
CLK
CKE
VSS
VSS
VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VCC
VCC
VCC
A10/AP
A11
BA0
BA1
RAS
CAS
DML
DMU
CLK
CLK
CKE
VSS
VSS
VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
55
15
9
FBDQS4{3}
FBDQS5{3}
FBD[63..0]
FBVDDQ
12
12
GND
R207
1K
R0603MS
FBB_MVREF0
R208
1K
R0603MS
12
GND
Place
component
to memory
C273
<P_volt>
.1UF
<P_mat>
C0603MS
FBDQS4
FBD32
FBD33
FBD34
FBD35
FBD36
FBD37
FBD38
FBD39
FBD40
FBD41
FBD42
FBD43
FBD44
FBD45
FBD46
FBD47
FBDQS5
FBB_MVREF0
FBAA12
FBVDDQ
FBDQS6{3}
FBD[63..0]{3,4}
FBD[63..0]
FBDQS7{3}
FBDQS6
FBD48
FBD49
FBD50
FBD51
FBD52
FBD53
FBD54
FBD55
FBD62
FBD61
FBD60
FBD59
FBD63
FBD58
FBD57
FBD56
FBDQS7
16
10
11
13
54
56
57
59
60
62
63
65
51
49
17
14
19
25
53
50
42
43
61
55
15
16
10
11
13
54
56
57
59
60
62
63
65
51
3
2
4
5
7
8
TSOP66
8MX16-4HY
U403
9
3
2
4
5
7
8
FBB_MVREF0
49
12
C279
<P_volt>
GND
.1UF
<P_mat>
C0603MS
FBAA12
Place
component
to memory
17
14
19
25
53
50
42
43
TSOP66
8MX16-4HY
FBVDD
1
18
33
FBAA0
29
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
CS
WE
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
CS
WE
FBAA1
30
FBAA2
31
FBAA3
32
FBAA4
35
FBAA5
36
FBAA6
37
FBAA7
38
FBAA8
39
FBAA9
40
FBAA10
28
FBAA11
41
FBABA0
26
FBABA1
27
FBACS0*
24
FBARAS*
23
FBACAS*
22
FBDQM4
20
FBDQM5
47
FBAWE*
21
46
45
FBACKE
44
34
48
66
6
12
52
58
64
1
18
33
FBAA0
29
FBAA1
30
FBAA2
31
FBAA3
32
FBAA4
35
FBAA5
36
FBAA6
37
FBAA7
38
FBAA8
39
FBAA9
40
FBAA10
28
FBAA11
41
FBABA0
26
FBABA1
27
FBACS0*
24
FBARAS*
23
FBACAS*
22
FBDQM6
20
FBDQM7
47
FBAWE*
21
46
45
FBACKE
44
34
48
66
6
12
52
58
64
1 2
1 2
R738
200R
R0603MS
R292
200R
R0603MS
FBACLK0*
FBACLK0
12
C276
220pF
C0603MS
GND
12
C288
4700pF
C0603MS
Memory decoupling
12
C265
4700pF
C0603MS
GND
12
C281
220pF
<P_mat><P_volt>
C0603MS
GND
12
C291
4700pF
<P_mat> <P_volt>
C0603MS
GND
Memory decoupling
12
GND
12
GND
GND
12
C278
.1UF
C0603MS
GND
12
C289
.1UF
C0603MS
GNDGND
12
C266
0.022uF
C0603MS
GND
C282
220pF
<P_mat><P_volt>
C0603MS
C292
4700pF
<P_mat><P_volt>
C0603MS
12
C267
4700pF
<P_mat><P_volt>
C0603MS
12
C1110
0.022uF
<P_mat><P_volt>
C0603MS
12
C283
220pF
<P_mat><P_volt>
C0603MS
GND
12
C295
.1UF
<P_mat> <P_volt>
C0603MS
GND
12
C268
4700pF
<P_mat> <P_volt>
C0603MS
GND
12
GNDGND
Place in
memory
section
12
GND
12
GND
C1111
0.022uF
<P_mat><P_volt>
C0603MS
www.vinafix.vn
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
8x16 DDR 32..63 128 bit
Friday, September 05, 2003
Date:
5 11
Sheet of
A00

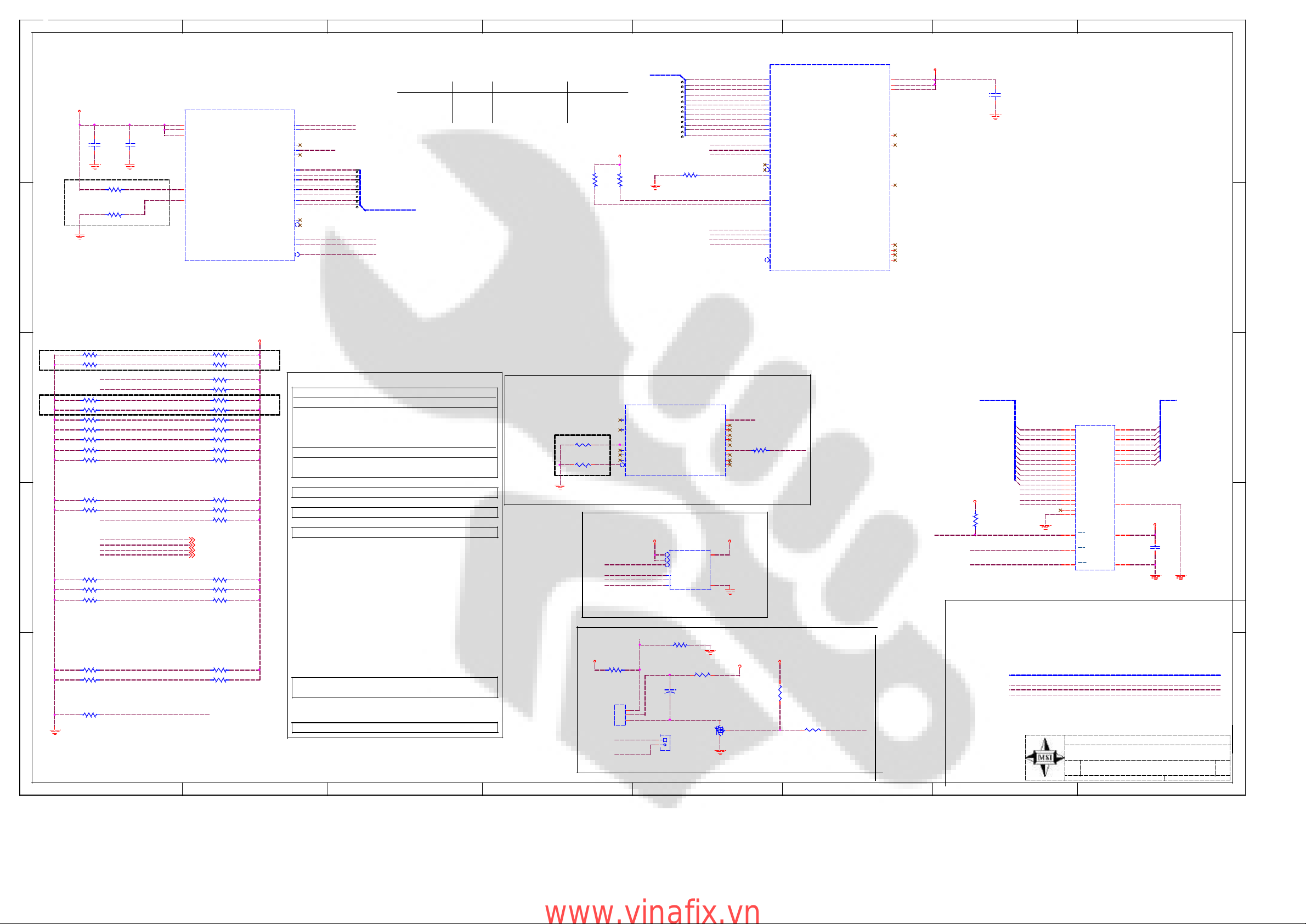

Page 6
A B C D E F G H
NV18 STRAPPING, BIOS, FAN CONNECTOR
U8E
BGA701_P10_NV31_34_18B
1
3V3
12
C662
.1UF
10V 10%
X7R
C0603MS
COMMON
GND GND
R22631%49.9R
1 2
NOT STUFF
R22641%49.9R
1 2
NOT SUFFF
NO STUFF for NV18B and NV34.
R0603MS
R0603MS
12
C676
.1UF
10V 10%
X7R
C0603MS
COMMON
GND
2
COMMON
10/11 VIP
L6
VIPVDDQ
L7
VIPVDDQ
M7
VIPVDDQ
P6
VIPCAL_PD_VDDQ..
P7
VIPCAL_PU_GND..
[..] = NOT USED FOR NV18
VIPHAD<0>
VIPHAD<1>
VIPPCLK
VIPHCTL
VIPHCLK
VIPD<0>
VIPD<1>
VIPD<2>
VIPD<3>
VIPD<4>
VIPD<5>
VIPD<6>
VIPD<7>
..FPBCLKOU T
..FPBCLKOU T
ROMA<14>
ROMA<15>
ROMCS
P3
P2
L4
M4
M5
J3
J2
K2
K1
L3
L2
N2
N1
M3
M2
R2
R1
AF2
VIPHAD0
VIPHAD1
VIPHCTL
VIPD0
VIPD1
VIPD2
VIPD3
VIPD4
VIPD5
VIPD6
VIPD7
ROMA14
ROMA15
ROMCS*
U8A
BGA701_P10_NV31_34_18B
COMMON
DVOD[11..0]
PIN DESCRIPTION
DVOCAL_PD_VDDQ NOT US ED
DVOCAL_PU_GND
VIPCAL_PD_VDDQ
VIPCAL_PU_GND
NV18B
NOT US ED
NOT US ED
NOT US ED
NOT US ED
NV31
50 OHM 1% TO GND
55 OHM 1% TO DV OVDDQ
50 OHM 1% TO GND
50 OHM 1% TO VIPVDDQ
NV34
NOT US ED
NOT US ED
NOT US ED
5V
12
0
1
2
3
4
5
6
7
VIPD[7..0]
5%
R0603MS
COMMON
10K
R686
12
5%
R0603MS
COMMON
10K
R691
GND
1 2
COMMON
R0603MS 5%
DVOD11
0
DVOD10
1
DVOD9
2
DVOD8
3
DVOD7
4
DVOD6
5
DVOD5
6
DVOD4
7
DVOD3
8
DVOD2
9
DVOD1
10
DVOD0
11
DVOHSYNC
DVOVSYNC
DVODE
R580
DVOCLKIN
10K
STRAP0
STRAP1
STRAP2
STRAP3
AH5
AJ4
AK4
AH4
AK3
AJ3
AK1
AH2
AJ1
AG3
AH1
AG2
AD5
AD6
AE4
AJ2
AK2
AG1
AG6
AG7
DVOD<11>
DVOD<10>
DVOD<9>
DVOD<8>
DVOD<7>
DVOD<6>
DVOD<5>
DVOD<4>
DVOD<3>
DVOD<2>
DVOD<1>
DVOD<0>
DVOHSYNC
DVOVSYNC
DVODE
DVOCLKOUT
DVOCLKOUT
DVOCLKIN
I2CC_SCL
I2CC_SDA
G1
STRAP<0>
G2
STRAP<1>
F2
...STRAP<2>
F3
...STRAP<3>
B1
BUFRST
9/11 DVO - MISC
DVOVDDQ
DVOVDDQ
DVOVDDQ
DVOCAL_PD_VDDQ..
DVOCAL_PU_GND..
DVO_VREF
FRWR_VAUXC...
FRWR_VAUXP...
FRWRLNKON...
FRWRLPS...
[..] = NOT USED FOR NV18
[...] = NOT USED FOR NV31/ 34
AD8
AE8
AD9
AB6
AB7
AF4
N6
M6
L5
N5
DVOVDD
3V3
Place near GPU Place 2nd row
GND
12
C723
4700PF
10%25V
X7R
C0603MS
COMMON
1
2
NOT USED ON NV18B
R2265
1 2
R0603MS
R2267
1 2
R0603MS
NOT USED ON NV31/34
R53
1 2
3
4
5
R0603MS
R56
1 2
R0603MS
R16 10K
1 2
R0603MS
R15 10K
1 2
R0603MS
R629
1 2
R0603MS
R17
1 2
R0603MS
R18 10K
1 2
R0603MS
R631
1 2
R0603MS
R632
1 2
R0603MS
R630
1 2
R0603MS
R605
1 2
R0603MS
1 2
R0603MS
R84
1 2
R0603MS
1 2
R0603MS
R585
1 2
R0603MS
GND
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
10K
5%
NO STUFF
10K
NO STUFF
5%
10K
NO STUFF
5%
10K
NO STUFF
5%
COMMON
5%
NO STUFF
5%
10K
COMMON
5%
10K
COMMON
5%
NO STUFF
5%
10K
NO STUFF
5%
10K
COMMON
5%
10K
5%
COMMON
10K
COMMON
5%
10KR633
NO STUFF
5%
10K
COMMON
5%
10KR34
COMMON
5%
10K
COMMON
5%
PLEASE DUALLAY THE PULL-UP
RESISTER AND PULL-DOWN RESISTER.
DACA_VSYNC
DACA_HSYNC
DACB_VSYNC
DACB_HSYNC
DVOD2
DVOD3
STRAP0
STRAP1
STRAP2
STRAP3
DACA_VSYNC
DACA_HSYNC
VIPD2
DACB_VSYNC
DACB_HSYNC
VIPD4
VIPD5
VIPHCTL
VIPD3
DVOHSYNC
VIPD6
ROMA14
ROMA15
DVODE
R2266 10K
1 2
R0603MS
R2268 10K
R0603MS
R579
R0603MS
R51
R0603MS
R48
R0603MS
R47 10K
R0603MS
R20
R0603MS
R19
R0603MS
R610 10K
R0603MS
R21 10K
R0603MS
R22
R0603MS
R612 10K
R0603MS
R613 10K
R0603MS
R31
R0603MS
R611
R0603MS
R608
R0603MS
R614
R0603MS
R2273
R0603MS
R2274
R0603MS
COMMON
5%
1 2
COMMON
5%
1 2
COMMON
5%
1 2
COMMON
5%
1 2
NO STUFF
5%
1 2
NO STUFF
5%
1 2
5%
NO STUFF
1 2
5%
COMMON
1 2
NO STUFF
5%
1 2
NO STUFF
5%
1 2
COMMON
5%
1 2
COMMON
5%
1 2
NO STUFF
5%
1 2
5%
COMMON
DACA_VSYNC {7}
DACA_HSYNC {7}
DACB_VSYNC {7}
DACB_HSYNC {7}
1 2
NO STUFF
5%
1 2
NO STUFF
5%
1 2
COMMON
5%
1 2
5%
NO STUFF
1 2
5%
NO STUFF
STRAPPING OPTIONS
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
Bit
00: PCI_AD_S WAP
01: SUB_VENDOR
02: RAM_CFG_0
03: RAM_CFG_1
04: RAM_CFG_2
05: RAM_CFG_3
06: CRYSTAL_0
07: TV_MODE_0
08: TV_MODE_1
09: AGP4x/ 8x
10: AGP_SBA
11: AGP_FASTWR
12: PCI_DEVID_0
13: PCI_DEVID_1
14: BUS_TYPE
15: FP_IFACE
16: USER_0
17: USER_1
18: USER_2
19: USER_3
20: PCI_DEVID_2
21: PCI_DEVID_3
22: CRYSTAL_1
23: FB_0
24: FB_1
25: BR
26: BR_128M
27: BR_AGP
28: BR_I O
29: ROM_TYPE_0
30: ROM_TYPE_1
01: 1394_EN_0
PCI_AD
SUB_VENDOR
RAMCFG[3:0]
CRYSTAL[1:0]
TVMODE[1:0]
AGP_SBA
PCI_DEVID[3:0]
BUS_TYPE[0]
ROM_TYPE[1:0]
1394[0]
VALUEsVALUE_IDSignal
0 REVERS ED
1 NORMAL
0 NO_BIOS
1 read from BIOS
0000 2Mx32 SDR
0001 4Mx16 SDR
0010 RFU
0011 RFU
0100 RFU
0101 4Mx32 SDR
0110 8Mx16 SDR
0111 2Mx32 DDR
00 13.500 Mhz
01 14.31818 Mhz
00 SECA M
01 NTSC
10 PAL
11 CRT
0 SBA enabled
1 SBA disabled
0000 0x0180 ... 1111 0x018F
0 PCI
1 AGP
00 Parallel
01 Serial_AT25F
10 Serial_SST45VF
11 RFU
0 disabled
1 enabled
C GE
1000 2Mx32 DDR
1001 2Mx32 DDR
1010 4Mx16 DDR
1011 8Mx16 DDR
1100 1Mx32 DDR
1101 4Mx32 DDR
1110 RFU
1111 4Mx32 DDR
10 27.000 Mhz
11 unknown
3V3
NV18 GPIO
R2269
1K
1 2
R0603MS
R2270
1K
1 2
R0603MS
NOT USED ON NV18B
GND
FAN
Connector
U8D
BGA701_P10_NV31_34_18B
COMMON
8/11 THERM-GPIO-JTAG
H2
H3
C2
C1
D1
EEPROM
VIPHCTL
5V
R1980
2K
R0603MS
1%
COMMON
J900
1
2
3
D1x3-WH-SNO
THERMDA
THERMDC
JTAG_TCLK...
JTAG_TMS...
JTAG_TDI...
[...] = NOT USED FOR NV18/31
[..] = NOT USED FOR NV18
3V3
ROMCS*
ROMA15
ROMA14
Fan_Status
12
FAN+
1
2
FAN-
3
FAN+
1
2
FAN-
U1001
MEM_FL_SER_128KX8
7 8
3
1
5
2
6
SO8
NO STUFF
R1982
2K
R0603MS
1%
COMMON
12
J9001
BH1X2#_white-2pitch-1
HOLD VCC
WP
CS
SI
SO
GND
SCK
12
R413 0R
C502
0.1uF
C0603MS
FAN
N-2N7002_SOT23
GPIOD<0>
GPIOD<1>
GPIOD<2>
GPIOD<3>
GPIOD<4>
GPIOD<5>
GPIOD<6>
GPIOD<7>
GPIOD<8>JTAG_TDO...
..GPIOD<9>JTAG_TRST...
GND
Q501
Place close together south-west of GPU
4
GND
VIPD0
VIPD1
VIPD2
VIPD3
VIPD4
VIPD5
VIPD6
VIPD7
3V3
VIPD[7..0]
C1000
.1UF
3
4
GNDGND
3V3
G5
F4
G4
H5
H4
J4
J5
J6
K4E2
K6D2
FAN_ON
R1981
0R
R0603MS
5%
COMMON
Fan_Status
12
U1000 AND U1001 IS DUALAY.
ROMCS*
3V3
12
R2252
10K
5%
R0603MS
COMMON
VIPHAD0
VIPHAD1
DVOD[11..0]
DVOD0
DVOD1
DVOD2
DVOD3
DVOD4
DVOD5
DVOD6
DVOD7
DVOD8
DVOD9
DVOD10
DVOD11
DVOVSYNC
DVOHSYNC
ROMA14
ROMA15
12
11
10
27
26
23
25
28
29
30
22
24
31
9
8
7
6
5
4
3
2
U1000
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
NC/A16
NC/A17
CE
OE
WE
150NS
COMMON
VDD
GND
13
O0
14
O1
15
O2
17
O3
18
O4
19
O5
20
O6
21
O7
1
NC
32
16
GND
VOLTAGE
12V
DS
G
5V
12
FAN
R1986
2.2k
R0603MS
FAN
R412
1 2
R0603MS
100
FAN_ON
DVOD[11..0]
DVODE
DVOHSYNC
DVOVSYNC
MS-8917-A00
Size Document Number Rev
Custom
Date:
NET_SPACING_RU LENET Diffpair
10MIL
10MIL
10MIL
10MIL
Micro-Star International Co., LTD.
NV18B STRAPPING, BIOS
Friday, September 05, 2003
HFDBA
6 11
Sheet of
5
A00
www.vinafix.vn

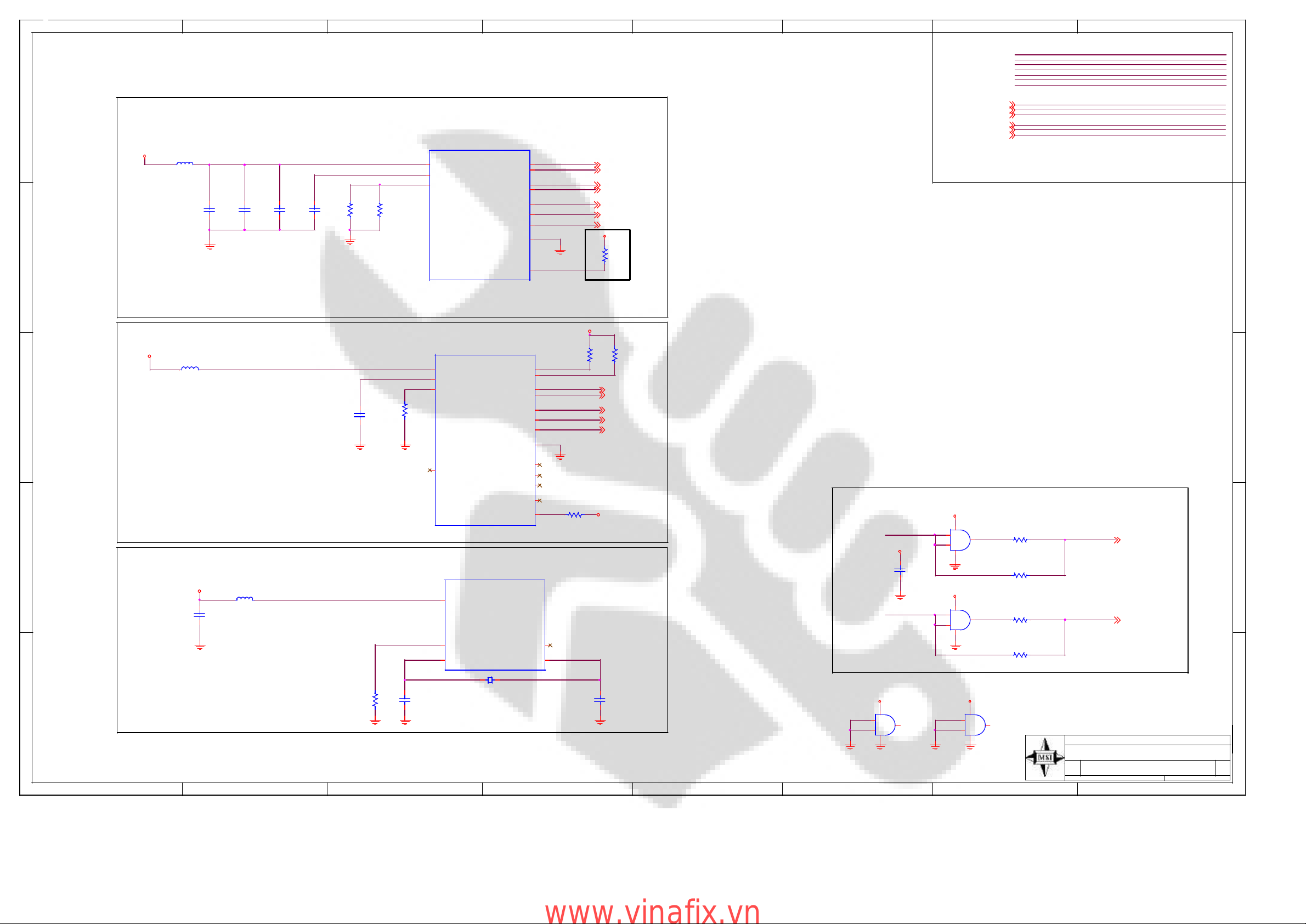

Page 7
A B C D E F G H
NV18 DAC_A, DAC_B, PLL, SYNC AMPL
1
2
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
NV18 DAC_A
A3V3
LB501
1 2
L0603MS
COMMON
150-220R@100MHz
12
C689
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
12
GND
NV18 DAC_B with RSet select
A3V3
LB507
1 2
L0603MS
COMMON
150-220R@100MHz
NV18 PLL
A3V3
LB11
1 2
COMMON
L0603MS
12
C56
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
GND
C681
4700PF
25V
10%
X7R
C0603MS
COMMON
12
C679
470PF
50V
10%
X7R
C0603MS
COMMON
150-220R@100MHz
U8I
BGA701_P10_NV31_34_18B
COMMON
4/11 DAC_A
AG9
DACA_VDD
DACA_VREF
DACA_RSET
12
12
C60
.01UF
16V
10%
X7R
C0603MS
COMMON
R576
137
1%
R0603MS
COMMON
12
R577
1.5K
5%
R0603MS
COMMON
AH8
AG8
DACA_VDD
DACA_VREF
DACA_RSET
I2CA_SCL
I2CA_SDA
DACA_HSYNC
DACA_VSYNC
DACA_RED
DACA_GREEN
DACA_BLUE
DACA_IDUMP
GND
..SWAPRDY_A
[..] = NOT USED ON NV18
U8K
BGA701_P10_NV31_34_18B
COMMON
R593
56.2
1%
R0603MS
COMMON
C736
18PF
50V
5%
NPO
C0603MS
COMMON
AB4
AB5
AD3
AC5
5/11 DAC_B
DACB_VDD
DACB_VREF
DACB_RSET
DACC_RSET...
[..] = NOT USED FOR NV18
[...] = NOT USED FOR NV18/31/ 34
NV18B-A2
U8J
BGA701_P10_NV31_34_18B
COMMON
11/11 PLL
AK7
PLLVDD
AJ7
XTALSSIN
AJ6
XTALIN
OSCF
I2CB_SCL
I2CB_SDA
DACB_HSYNC
DACB_VSYNC
DACB_RED
DACB_GREEN
DACB_BLUE
DACB_IDUMP
...DACC_RED
...DACC_GREEN
...DACC_BLUE
..STEREO
..SWAPRDY_B
Y3
27MHZ_TV
COMMON
DACB_VDD
12
GND
C717
.01UF
16V
10%
X7R
C0603MS
COMMON
12
R575
10K
5%
R0603MS
COMMON
DACB_VREF
DACB_RSET
12
GND
PLLVDD
XTALSSIN
XTALIN
12
GND GND
C GE
AG5
AF7
AH9
AJ8
AK10
AJ10
AJ9
AG10
AF9
XTALOUTBUFF
XTALOUT
I2CA_SCL
I2CA_SDA
DACA_HSYNC
DACA_VSYNC
DACA_RED
DACA_GREEN
DACA_BLUE
GND
I2CA_SCL {8}
I2CA_SDA {8}
DACA_HSYNC {6}
DACA_VSYNC {6}
DACA_RED {8}
DACA_GREEN {8}
DACA_BLUE {8}
A3V3
12
R2271
10K
5%
R0603MS
COMMON
NOT USED ON NV18B
A3V3
12
12
R2275
R2276
10K
10K
5%
5%
R0603MS
R0603MS
COMMON
AE7
AF6
AF3
AE3
AE2
AD2
AD1
I2CB_SCL
I2CB_SDA
DACB_HSYNC
DACB_VSYNC
COMMON
DACB_HSYNC {6}
DACB_VSYNC {6}
DACB_RED {9}
DACB_GREEN {9}
DACB_BLUE {9}
AC4
GND
AA6
Y7
W7
Y5
R2272
10K
R0603MS
COMMON
12
A3V3
5%
AD4
Please make sure to keep all components and nets related to pins XTALIN, XTALOUT,
XTALSSIN, and XTALOUTBUFF away from everything else (place all on TOP).
AJ5
AH6
XTALOUT
12
C743
18PF
50V
5%
NPO
C0603MS
COMMON
GND
SYNC Amplifier
DACA_HSYNC
5V
GND
DACA_VSYNC
5V 5V
U1C
10
8
9
74ACT_SO
COMMON
7 14
GND GNDGND GND
C8
12
.100UF
COMMON
X7R
C0603MS
U_AND_2IN
NET
DACA_VDD
DACA_VREF
DACA_RSET
DACB_VDD
DACB_VREF
DACB_RSET
PLLVDD
NET
DACA_RED{8}
DACA_GREEN{8}
DACA_BLUE{8}
DACB_RED{9}
DACB_GREEN{9}
DACB_BLUE{9}
5V
U1A
U_AND_2IN
1
3
2
74ACT_SO
COMMON
DACA_RED
DACA_GREEN
DACA_BLUE
DACB_RED
DACB_GREEN
DACB_BLUE
R13 33
1 2
5%
R0603MS
7 14
R87
U1B
U_AND_2IN
6
74ACT_SO
COMMON
1 2
R0603MS5%NO STUFF
DUALLAY U1A AND R87
R11
1 2
R0603MS335%
R88 33
1 2
R0603MS5%
NO STUFF
GND
10%25V
5V
4
5
7 14
GND
NET_PHYSICAL_TYP E
12MIL_TRACE 3.3V
5MIL_TRACE
5MIL_TRACE
12MIL_TRACE 3.3V
5MIL_TRACE
5MIL_TRACE
12MIL_TRACE 3.3V
IMPEDANCE
COMMON
33
COMMON
37.5 OHM
37.5 OHM
37.5 OHM
37.5 OHM
37.5 OHM
37.5 OHM
DACA_HSYNC_BUF
DACA_VSYNC_BUF
NET_SPACING_RU LE
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
DACA_HSYNC_BUF {8}
DACA_VSYNC_BUF {8}
VOLTAGE
1
2
3
4
DUALLAY U1B AND R88
U1D
13
12
U_AND_2IN
11
74ACT_SO
COMMON
7 14
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
DAC_A,DAC_B,PLL,SYNC AMPL
Friday, September 05, 2003
Date:
HFDBA
7 11
Sheet of
5
A00
www.vinafix.vn

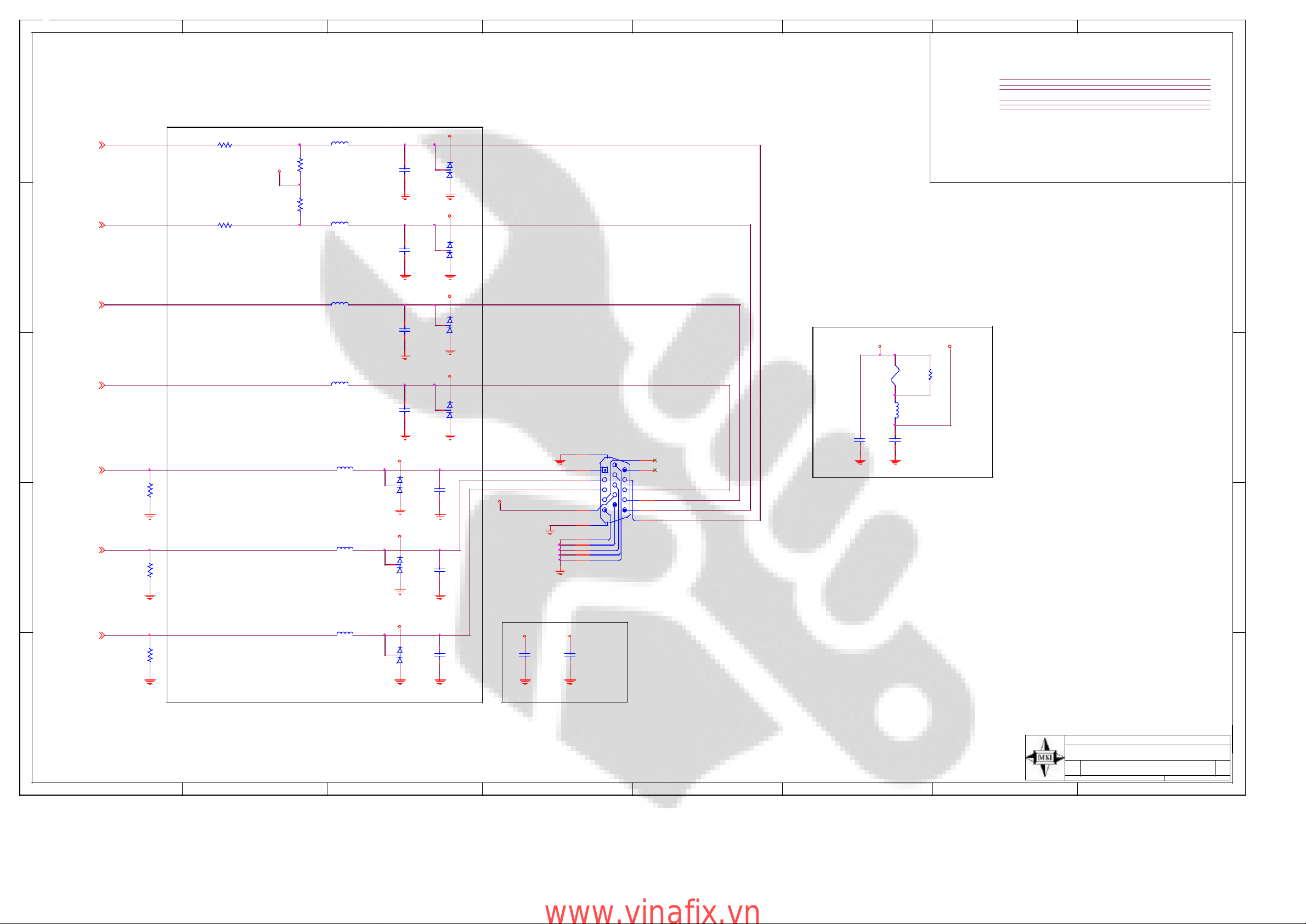

Page 8
DACB output
1
2
3
4
A B C D E F G H
ARF
AGF
ABF
DACA_RED_C
DACA_GREEN_C
DACA_BLUE_C
IMPEDANCENET
37.5 OHM
37.5 OHM
37.5 OHM
10MIL_TRACE
10MIL_TRACE
10MIL_TRACE
NET_SPACING_RU LE
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
20MIL_G2G_30MIL
1
EMI-FILTER
C2
220PF
COMMON
50V
NPO
C0603MS
C3
220PF
COMMON
50V
NPO
C0603MS
C832
47PF
COMMON
50V
NPO
C0603MS
C833
47PF
COMMON
50V 5%
NPO
C0603MS
5V
I2CA_SDA_C
D_3PIN_AC
D1
1PS226
3
100V
5%
COMMON
1 2
GND
5V
I2CA_SCL_C
D_3PIN_AC
D2
1PS226
3
100V
5%
COMMON
1 2
GND
5V
D_3PIN_AC
D526
1PS226
3
100V
5%
COMMON
1 2
GND
5V
D_3PIN_AC
D527
1PS226
3
100V
COMMON
1 2
GND
DACA_RED_C
C828
12
10PF
COMMON
5%
50V
NPO
C0603MS
DACA_GREEN_C
DACA_BLUE_C
DDC_5V
GND
12
C827
10PF
COMMON
50V
5%
NPO
C0603MS
GND
DACA_VSYNC_C
GND
SHIELD
GND
GND
R
G
B
5V
GND
GND_B
GND-G
GND-R
16
17
10
J1
1
2
3
9
5
8
7
6
CON_DSUB15HD
CON_15PF_DSUB_RA
COMMON
DDC 5V
5V DDC_5V
12
F1
R1985
1A
0R
1812
COMMON
POLYSWITCH
5V_FUSED
12
LB26
220R@100MHZ
COMMON
L0805MS
C834
12
4.7UF
COMMON
X5R
ID2
4
ID0
11
HSYNC
13
VSYNC
14
SCL
15
SDA
12
C0805MS
GND
C1
12
220PF
COMMON
NPO
C0603MS
5%50V
10%6.3V
GND
DUALLAY F1 AND
R1985
2
3
4
GND
I2CA_SDA
I2CA_SDA{7}
R8
1 2
R0603MS 5%33COMMON
I2CA_SDA_T
5V
I2CA_SCL
I2CA_SCL{7}
R9
1 2
R0603MS 5%33COMMON
I2CA_SCL_T
LB2 150-220R@100MHZ
1 2
L0603MS
LB3
1 2
L0603MS
COMMON
COMMON
12
12
R5
2.2K
5%
R0603MS
COMMON
R6
2.2K
5%
R0603MS
COMMON
12
GND
150-220R@100MHZ
12
GND
DACA_VSYNC_BUF{7}
DACA_VSYNC_BUF
LB516 68nH
1 2
COMMON
L0603MS
12
GND
DACA_HSYNC_BUF{7}
DACA_HSYNC_BUF
LB517
1 2
L0603MS
COMMON
68nH
12
GND
L518
DACA_RED{7}
12
R666
75
1%
R0603MS
COMMON
1 2
L0603MS
COMMON
GND
AGFABF ARF
L517 68nH
DACA_GREEN{7}
12
R665
75
1%
R0603MS
COMMON
1 2
L0603MS
COMMON
GND
68nH
A3V3
D_3PIN_AC
D529
1PS226
3
100V
COMMON
1 2
GND
A3V3
D_3PIN_AC
D524
1PS226
3
100V
COMMON
1 2
GND
L516
DACA_BLUE{7}
12
R664
75
1%
R0603MS
COMMON
1 2
GND
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
place nearest connector
L0603MS
COMMON
68nH
D_3PIN_AC
1PS226
3
100V
COMMON
1 2
GND
12
D528
C826
10PF
COMMON
50V
NPO
C0603MS
5%
GND
C GE
A3V3
A3V3
12
GND
C824
4.7UF
COMMON
10%
6.3V
X5R
C0805MS
Place in output filter section!
5V
GND
12
C5
4.7UF
NO STUFF
6.3V
X5R
C0805MS
10%
www.vinafix.vn
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
Date:
DAC A CONNECT
Friday, September 05, 2003
Sheet of
HFDBA
8 11
5
A00

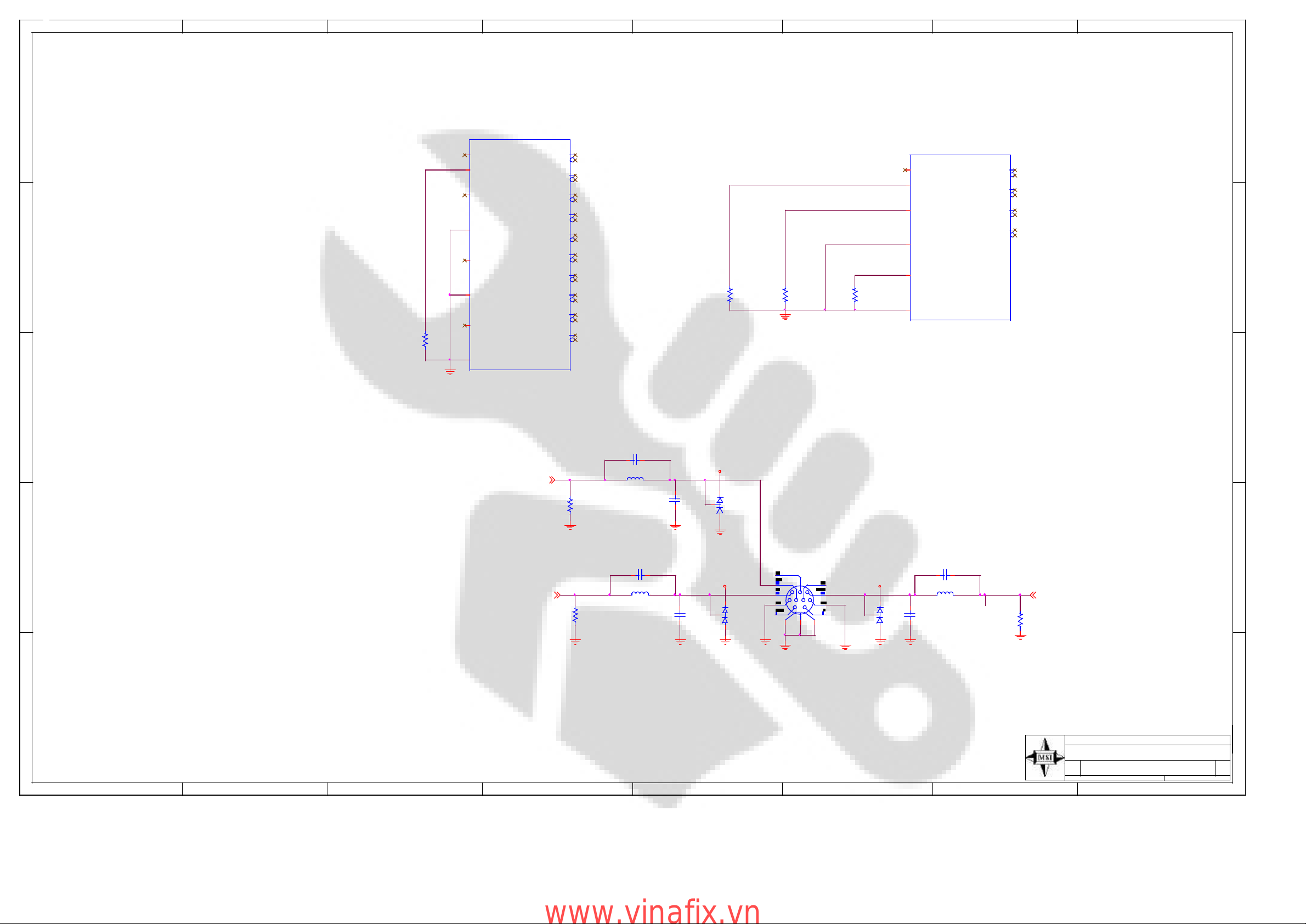

Page 9
A B C D E F G H
1
U8H
BGA701_P10_NV31_34_18B
COMMON
6/11 IFPAB
IFPABVPROBE..
12
IFPABRSET
R582
1K
1%
R0603MS
COMMON
AA4
V6
U10
V10
T5
T6
Y4
W5
GND
IFPABRSET
IFPABPLLVDD
IFPABPLLGND
IFPAIOVDD
IFPAIOGND
IFPBIOVDD
IFPBIOGND
[..] = Same as IFPABVREF for NV18
IFPATXD0
IFPATXD0
IFPATXD1
IFPATXD1
IFPATXD2
IFPATXD2
IFPATXD3
IFPATXD3
IFPBTXD4
IFPBTXD4
IFPBTXD5
IFPBTXD5
IFPBTXD6
IFPBTXD6
IFPBTXD7
IFPBTXD7
INTERNAL TMDS POWER AND DECOUPLING
2
3
IFPATXC
IFPATXC
IFPBTXC
IFPBTXC
W2
V1
U4
T4
Y2
AA1
V3
W3
U5
V4
AA2
Y3
W4
V5
AB3
AB2
Y6
W6
AC3
AC2
IFPCRSET
IFPCPLLVDD
12
R583
1K
1%
R0603MS
COMMON
12
R2277
100
5%
R0603MS
COMMON
12
IFPCIOVDD
R2278
100
5%
R0603MS
COMMON
GND
NV18B-A2
U8G
BGA701_P10_NV31_34_18B
COMMON
7/11 IFPC
IFPCVPROBE..
AA3
R4
IFPCRSET
P10
IFPCPLLVDD
N10
IFPCPLLGND
R5
IFPCIOVDD
R6
IFPCIOGND
[..] = Same as IFPCVREF for NV18
IFPCTXC
IFPCTXC
IFPCTXD0
IFPCTXD0
IFPCTXD1
IFPCTXD1
IFPCTXD2
IFPCTXD2
P5
P4
R3
T2
U2
T3
U3
V2
1
2
3
VIDEO OUT CONNECTOR
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
C GE
DACB_BLUE{7}
GND
12
GND
R674
75
1%
R0603MS
COMMON
12
R676
75
1%
R0603MS
COMMON
C1366 22PF
1 2
C0603MS 5%
L519
1 2
L0603MS
C799 22PF
1 2
C0603MS 5%
L512
1 2
L0603MS
50V
NPO
COMMON
COMMON
50V
NPO
COMMON
COMMON
1.8uH
12
GND
1.8uH
12
GND GND
C1368
270PF
50V
5%
NPO
C0603MS
COMMON
MDIN_COUT_C
C810
270PF
50V
5%
NPO
C0603MS
COMMON
A3V3
D_3PIN_AC
D530
1PS226
3
100V
?
COMMON
1 2
GND
J3
AV_POD
COMMON
CON_4Pin
A3V3
D_3PIN_AC
D516
1PS226
3
100V
?
COMMON
1 2
7
9
8
5
4
6
3
1 2
10
11
12
GND GND
GNDGND
A3V3
MDIN_YOUT_C
3
1PS226
100V
?
COMMON
D_3PIN_AC
1 2
D518
GND
12
C800
L513
C812
270PF
50V
5%
NPO
C0603MS
COMMON
1 2
C0603MS
50V 5%
NPO
COMMON
1 2
L0603MS
COMMON
22PF
1.8uH
GND
12
DACB_GREEN {7}DACB_RED{7}
R675
75
1%
R0603MS
COMMON
4
5
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
VIDEO IN/OUT CONNECT
Date:
Friday, September 05, 2003
Sheet of
HFDBA
A00
9 11
www.vinafix.vn

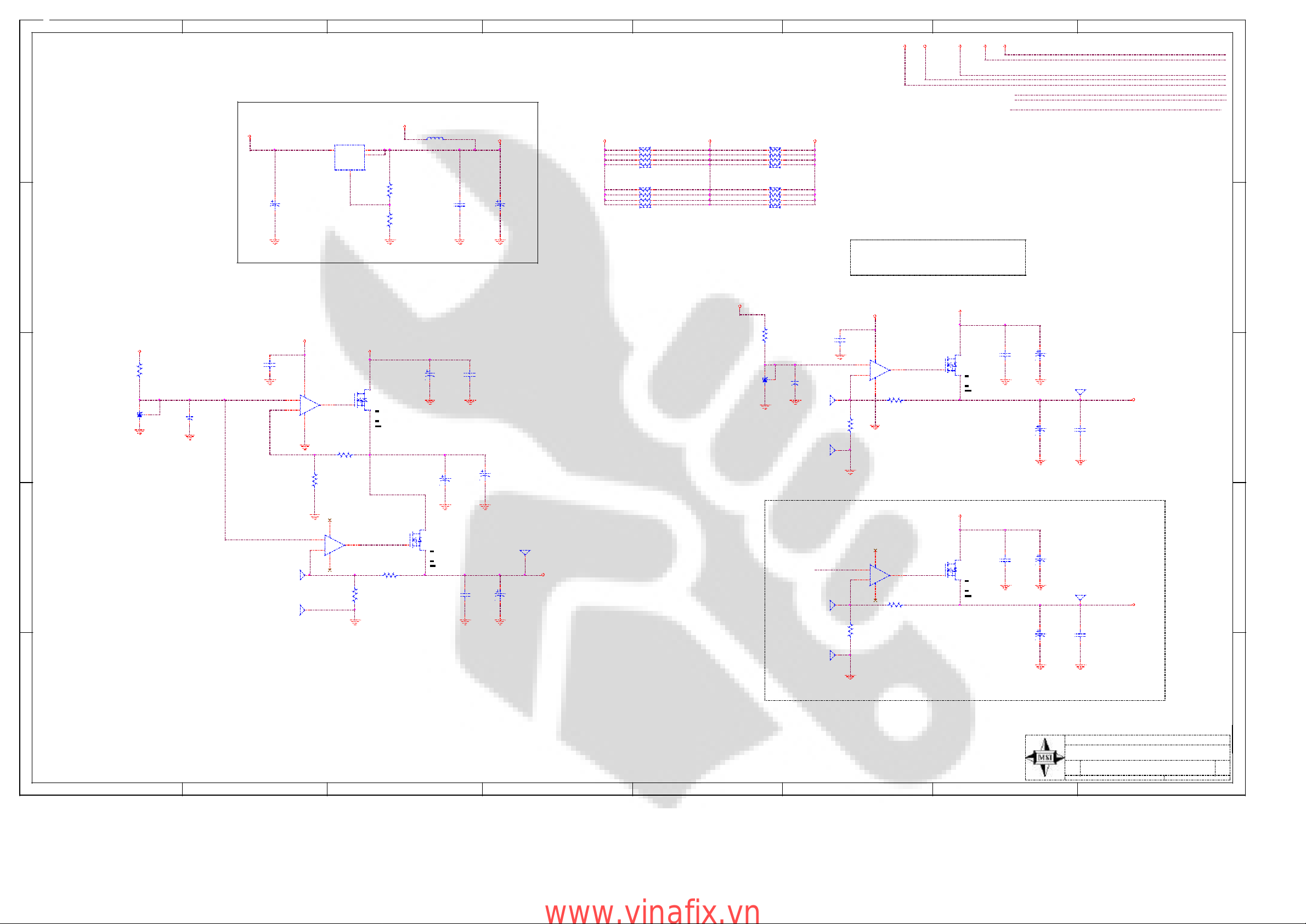

Page 10
POWER SUPPLY
1
2
A B C D E F G H
ANALOG 3V3
5V
C39
12
100UF
COMMON
16V
20%
ALE
100U_16V
GND GND
U6
ADJ_VR=1.25V
SOT_223
COMMON
OUTIN
TAB
GND/ADJ
1
12V 5V NVVDD A3V3 3V3
3V3
A3V3
NVVDD
5V
12V
A3V3_ADJ
FBVDDQ
FBVDD 3.3V
FBVDD
3V3
LB10
1 2
Rtop
12
12
Rbot
R45
100
1%
R0603MS
COMMON
R41
165
1%
R0603MS
COMMON
L0805MS
23
4
NO STUFF
220R@100MHz
12
C54
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
C54
A3V3
12
C47
100UF
COMMON
20%
16V
ALE
100U_16V
C47
3V3
1
3
5
7
1
3
5
7
RN1
8P4R-0R
RN2
8P4R-0R
2
4
6
8
FBVDD
RN3
2
4
6
8
8P4R-0R
2
4
6
8
RN4
2
4
6
8
8P4R-0R
GND GND
FBVDDQ
1
3
5
7
1
3
5
7
For SAMSUNG DDR FBVDD=FBVDDQ=2.6
NET_PHYSICAL_TYP ENET VOLTAGE
12MIL_TRACE 3.3V
12MIL_TRACE 1.65V
12MIL_TRACE 12V
10MIL_TRACE
12MIL_TRACE 2.5V
HYNIX DDR FBVDD=3V3=3.3V
FBVDDQ
3.3V12MIL_TRACE
5V12MIL_TRACE
3.3V12MIL_TRACE
1
2
5V
12V
R2007
680
U2002
1%
R0603MS
COMMON
2.5V_REF
2
3 1
FBVDD
+
12
EC3
C10U16EL
5V
R2000
U2000
3 1
680
1%
R0603MS
COMMON
2
1.24V_REF
+
12
EC2
C10U16EL
NVVDD
3
L432M3B_SOT23
C2000
0.1UF
16V
20%
X7R
C0603MS
COMMON
U2001A
84
3
+
1
2
-
LM358
NVVDD_ADJ
R2004
2K
1%
R0603MS
COMMON
84
5
+
6
4
TP11
COMMON
HOLE_48C28P
HOLE_48C28P
COMMON
-
1
TP12
1
1G1D1S
358_1P1
R2003
2K
R0603MS
1%
COMMON
R2005
G
7
2K
U2001B
LM358
3V3
1%
R0603MS
COMMON
D
Q2000
D2PAKSGD
COMMON
S
R2006
261
R0603MS
1%
COMMON
TO-263
1G1D1S
G
12
GND
D
Q2002
D2PAKSGD
COMMON
S
C2001
1000UF
COMMON
+/-20%
6.3V
ALE
220UF_16V
GND
12
C2003
1000UF
COMMON
+/-20%
6.3V
ALE
220UF_16V
GND
GND
12
12
C2002
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
GND
C2004
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
12
C2015
1000UF
COMMON
+/-20%
6.3V
ALE
220UF_16V
GND
12
C2005
1000UF
COMMON
+/-20%
6.3V
ALE
220UF_16V
TP10
HOLE_48C28P
COMMON
1
L431MB_SOT23
NVVDD
12V
NVVDD=Vref*(1+Rtop/Rbot)
1.4=1.24*(1+261/2000)
TP13
COMMON
HOLE_48C28P
HOLE_48C28P
COMMON
2.5V_REF
TP17
COMMON
HOLE_48C28P
HOLE_48C28P
COMMON
FBVDDQ_ADJ
1
R2008
1K
TP14
1
FBVDD_ADJ
1
R2010
2K
TP18
1
C2006
0.1UF
16V
20%
X7R
C0603MS
COMMON
1%
R0603MS
COMMON
1%
R0603MS
COMMON
U2003B
84
5
+
6
-
84
3
+
2
-
FBVDD=V(fb)*(1+R2011/R2010)
3.35V=2.5*(1+680/2000)
358_2P1
7
LM358
R2009
20
R0603MS
1%
COMMON
FBVDDQ=V(fb)*(1+R2009/R2008)
2.5V=2.5*(1+20/1000)
U2003A
1
LM358
R2011
680
R0603MS
1%
COMMON
1G1D1S
1G1D1S
3V3
GND
GND
12
560UF_4V
12
560UF_4V
C2008
1000UF
COMMON
+/-20%
6.3V
ALE
C2010
1000UF
COMMON
+/-20%
6.3V
ALE
TP15
GND
HOLE_48C28P
COMMON
1
C2009
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
FBVDDQ
2.5V
3
12
C2007
GND
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
D
Q2001
DPAKSGD
G
COMMON
S
TO-263
5V
GND
GND
12
560UF_4V
12
560UF_4V
C2012
1000UF
COMMON
+/-20%
6.3V
ALE
C2013
1000UF
COMMON
+/-20%
6.3V
ALE
TP16
GND
HOLE_48C28P
COMMON
1
C2014
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
4
FBVDD
3.3V
12
C2011
D
Q2003
DPAKSGD
G
COMMON
S
TO-263
4.7UF
6.3V
10%
X5R
C0805MS
COMMON
GND
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
C GE
www.vinafix.vn
NO STUFF
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
Date:
POWER SUPPLY
Friday, September 05, 2003
Sheet of
HFDBA
10 11
5
A00
Page 11
A B C D E F G H
MECHANICS
BKT1
NPTH126
COMMON
1
1
E22-0000541-C22
Mech, Card, Bracket, SPCC/3, V067, with M3x0.5 screw*1, For MS-8878
Bracket Same as MS-8847
2
BRACKET
STD
COMMON
MEC_SCREW
STD
COMMON
MEC_SCREW
GND
MECH. MOUNTING TOP
SCREW-1
SCREW-2
FM2
SW_FB
1
FM4
SW_FB
1
FM1
SW_FB
1
FM5
SW_FB
1
FM3
SW_FB
1
3V3
J901
GND
1
2
X_F ST SHR IRT
COMMON
SIP2
J902
1
2
X_F ST SHR IRT
COMMON
SIP2
P1
PCB
COMMON
3V3
5V
3V3
5V
VOLTAGENET NET_PHYSICAL_TY PE
3.3V12MIL_TRACE
5V12MIL_TRACE
1
2
3
4
5
3
4
5
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, 'MATERIALS') ARE BEING PROVIDED 'AS IS'.
NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
C GE
www.vinafix.vn
Micro-Star International Co., LTD.
MS-8936-A04
Size Document Number Rev
Custom
Date:
MECHANICS
Friday, September 05, 2003
Sheet of
HFDBA
11 11
A00
Loading...
