MSI MS-7C89 Schematics

5

4

3

2

1

PageTITLE

Cover Sheet 1

Block Diagram

CPU-CLK/Control/MISC/PEG/Memory

D D

CPU-Power/GND

DDR4 U-DIMM

PCH-LPC/SPI/SMBUS/MISC 12

PCH-Clock/Audio/DISPLAY

2

3 ~ 5

6.7

8 ~ 11

13

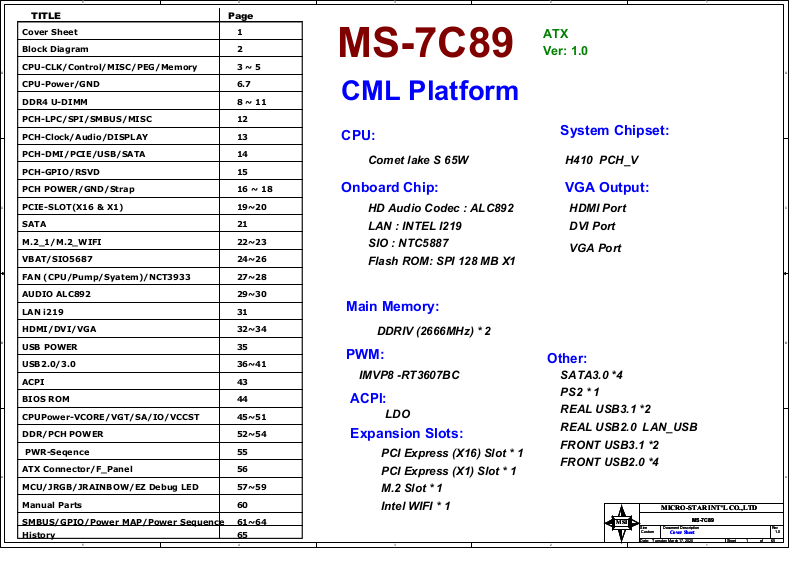

MS-7C89

CML Platform

CPU:

ATX Ver: 1.0

System Chipset:

PCH-DMI/PCIE/USB/SATA

PCH-GPIO/RSVD

PCH POWER/GND/Strap

C C

PCIE-SLOT(X16 & X1)

SATA

M.2_1/M.2_WIFI

VBAT/SIO5687

FAN (CPU/Pump/Syatem)/NCT3933

AUDIO ALC892

B B

USB POWER

USB2.0/3.0

ACPI

BIOS ROM

CPUPower-VCORE/VGT/SA/IO/VCCST

DDR/PCH POWER

PWR-Seqence

ATX Connector/F_Panel

A A

MCU/JRGB/JRAINBOW/EZ Debug LED

Manual Parts

SMBUS/GPIO/Power MAP/Power Sequence

History 65

5

14

15

16 ~ 18

19~20

21

22~23

24~26

27~28

29~30

31LAN i219

32~34HDMI/DVI/VGA

35

36~41

43

44

45~51

52~54

55

56

57~59

60

61~64

4

Comet lake S 65W

Onboard Chip:

HD Audio Codec : ALC892

LAN : INTEL I219

SIO : NTC5887

Flash ROM: SPI 128 MB X1

Main Memory:

DDRIV (2666MHz) * 2

PWM:

IMVP8 -RT3607BC

ACPI:

LDO

Expansion Slots:

PCI Express (X16) Slot * 1

PCI Express (X1) Slot * 1

M.2 Slot * 1

Intel WIFI * 1

3

H410 PCH_V

VGA Output:

HDMI Port

DVI Port

VGA Port

Other:

SATA3.0 *4

PS2 * 1

REAL USB3.1 *2

REAL USB2.0 LAN_USB

FRONT USB3.1 *2

FRONT USB2.0 *4

MICRO-STAR INT'L CO.,LTD

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

2

Tuesday, March 17, 2020

Cover Sheet

MS-7C89

1

Sheet ofDate:

1 65

1.0

5

4

3

2

1

MS-7C86 Block Diagram

D D

PCIE X16 Slot *1

HDMI(portB)

DVI(portC)

VGA (port D/DP to VGA)

PCIE Gen 3.0

Intel

Comet Lake-S

10+2

LGA1200

65W

DDR4 2666

UDIMM Channel A DDR4 DIMM1

UDIMM Channel B DDR4 DIMM2

DMI

USB2 HUB2

WIFI

USB2 Port7

LAN_USB1

GL850 HUB

USB2 HUB1

USB2 Port5

USB2 Port2

USB2 Port4

USB3.2 Port2

USB3.2 Port4

USB1

JUSB2

USB1

JUSB2

SPI ROM 128MB

USB2 Port1

USB2 Port3

USB3.2 Port1

USB3.2 Port2

Front

Rear

Front

SPI I/F

USB 2.0Rear

USB 3.2

PCH_V H410

PCIE Gen 3.0

INTEL I219 (PCIE4)

SATA III

HD AUDIO I/F

PCIE Gen 3.0

M2_1

(PCIE5~8)

SATA#1/2 SATA#3/4

HD AUDIO Realtek AL892

M2_2 INTEL3168 (PCIE 11)

PCIE X1 (PCIE 12)

PS2_USB

C C

USB2 HUB4

JUSB1

USB2 Port10

B B

USB2 Port9

USB2 HUB3

MCU

USB2 Port8

Slot :

M2_1(PCIE/SATA1) (22*80)

JSPI1 (TPM1)

LPC BUS

PCI_E1 X16 (CPU)

SIO

A A

M2_2 INTEL 3168

NCT5887

PCI_E1 X1 (PCH)

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

Block Diagram

1.0

2 65

1.0

Sheet ofDate:

1

5

4

3

2

1

VCCST_PLL

CML-S only CPU

R102 220R1%4

R117 499R1%4

CPU_ID[56]

R20 10K/4

PCH_CPU_BCLK_DP PCH_CPU_BCLK_DN

PCH_CPU_PCIE_DP PCH_CPU_PCIE_DN

PCH_CPU_NSSC_CLK_DP PCH_CPU_NSSC_CLK_DN

VR_VIDALERT#

H_PROCHOT#_R

VCCST_PWRGD

CPURST#

CPU_PECI CPU_PM_SYNC CPU_PM_DOWN_R

DDR_VTT_CTRL

CPU_SKTOCC#

CPU_CATERR_N

PCH_CPU_AUD_SDI_R

PCH_CPU_AUD_SDO

PCH_CPU_AUD_SCLK

CML-S GND RKL-S HiZ

Checklist

CPU_CATERR_N

CPU_SKTOCC#

VR_VIDSOUT ALERT#_3607 PCH_THERMTRIP





pu-up

H_PROCHOT#

PCH_CPU_BCLK_DP[13] PCH_CPU_BCLK_DN[13]

PCH_CPU_PCIE_DP[13] PCH_CPU_PCIE_DN[13]

PCH_CPU_NSSC_CLK_DP[13] PCH_CPU_NSSC_CLK_DN[13]

VR_VIDSCLK[45] VR_VIDSOUT[45] ALERT#_3607[45]

H_PROCHOT#[45]

CPU_PWRGD[12]

VCCST_PWRGD[55]

CPURST#[12]

CPU_PECI[25] CPU_PM_SYNC[12] CPU_PM_DOWN[12]

PCH_THERMTRIP[12]

DDR_VTT_CTRL[52]

PCH_CPU_AUD_SDI[13]

PCH_CPU_AUD_SDO[13]

PCH_CPU_AUD_SCLK[13]

R118 20R1%4

R120 20R1%4

3VSB

R105 100R1%4 R104 56.2R1%4

D D

VCCST_PLL

VCCSTG

C C

R141 1K/4

R101 49.9R1%4

R116 1K/4

R491 0R/4

CPU1E

U1

BCLKP

T1

BCLKN

T4

PCI_BCLKP

T3

PCI_BCLKN

U8

CLK24P

U7

CLK24N

B15

RTCCLK

C14

VIDSCK

B14

VIDSOUT

A14

VIDALERT#

A16

PROCHOT#

D14

PROCPWRGD

B13

VCCST_PWRGD

T7

SYS_RESET#

A15

PECI

C15

PM_SYNC

D13

PM_DOWN

AF3

THERMTRIP#

AC33

DDR_VTT_CNTL

AC37

SKTOCC#

D16

CATERR#

M10

PROC_AUDIO_SDO

N9

PROC_AUDIO_SDI

M9

PROC_AUDIO_CLK

AB39

CPU_ID

SOCKET1200-HF_1

CML-S

CFG[0] CFG[1] CFG[2] CFG[3] CFG[4] CFG[5] CFG[6] CFG[7] CFG[8]

CFG[9] CFG[10] CFG[11] CFG[12] CFG[13] CFG[14] CFG[15] CFG[16] CFG[17] CFG[18] CFG[19]

BPM#[0] BPM#[1] BPM#[2] BPM#[3]

PROC_TDO

PROC_TDI PROC_TMS PROC_TCK

PROC_TRST# PROC_PREQ# PROC_PRDY#

PROC_TRIGIN

PROC_TRIGOUT

IST_TRIG

ATX_5VSB

L35 K36 M35 N35 N37 P36 R36 P37 N34 L36 M37 P34 M38 N36 P38 P39 J36 J37 R34 R35

L38 L40 T32 R32

XDP_TDO

N40

XDP_TDI

N39

XDP_TMS

L39

XDP_TCK

M40

XDP_TRST

N38

CPU_PREQ

K35

CPU_PRDY

L34

E12

CPU_OUTPUT_TRIGGER_R

D12

R33

XDP_TDO [12] XDP_TDI [12] XDP_TMS [12] XDP_TCK [12]

XDP_TRST [12] CPU_PREQ [12] CPU_PRDY [12]

R119 0R/4

R3566 place near CPU

CPU_INPUT_TRIGGER [12] CPU_OUTPUT_TRIGGER [12]

XDP_TDO

PLACE R WITHIN 1.5" OF CPU

XDP_TCK

R137 51R/4

R136 51R/4

PLACE R WITHIN 1.1" OF CPU

VCCSTG

PDG



3VSB

B B

SIO_PROCHOT#[25]

3V

R157 10K/4

R151 47K/4

G2

D1

G1

Q28 2N7002D

S1

D2

S2

H_PROCHOT#

1V

CFG Strap

CFG Table

LOW

HIGH

0

No stall

NORM

DISABLE 4

Stall

REVERSE

Wait for BIOS

1 2 3

5 6

Follow RESET#

7

A A

8 9 10 11 12 13 14 15 16 17 18 19

DESCRIPTION

PCU PLL lock

RSVD

PEG_LANE_REVERSAL

RSVD

eDPENABLE PCIE Bifurcation PCIE Bifurcation PEG_TRAINING

RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD

5

CFG5 CFG6

ENABLE# X8 X4 0 0 0 1 110

SLOT SLOT SLOT

X8 X8 X8 X0 RSVD

1

X16 X0 X0

X4 X4

RSVD RSVD

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

4

3

2

Tuesday, March 17, 2020

MS-7C89

CPU-Control/MISC/CFG

1

Sheet ofDate:

3 65

1.0

5

Vinafix.com

4

3

2

1

AP19 AP20 AR20

AM20

AP21 AN21 AR22

AM21

AP22 AN23 AR18 AP23 AR24 AP15 AP17 AP16

AM18

AP25

AT25 AR26 AT26 AP26

AN17 AN15 AR16

AM15

AM17

AP14 AM16 AM14

AP18

AN19

AM23 AM22

AT23

AU23

AV22

AU22

AT21

AU21

AU20

AV20

AM19

AP24

AJ28

AK26

AL26 AM28

AK28

AL28 AM27 AM26

AC39

AB40

CPU1B

DDR1_MA[0] DDR1_MA[1] DDR1_MA[2] DDR1_MA[3] DDR1_MA[4] DDR1_MA[5] DDR1_MA[6] DDR1_MA[7] DDR1_MA[8] DDR1_MA[9] DDR1_MA[10] DDR1_MA[11] DDR1_MA[12] DDR1_MA[13] DDR1_MA[14] DDR1_MA[15] DDR1_MA[16]

DDR1_ACT#

DDR1_CKE[0] DDR1_CKE[1] DDR1_CKE[2] DDR1_CKE[3]

DDR1_CS#[0] DDR1_CS#[1] DDR1_CS#[2] DDR1_CS#[3]

DDR1_ODT[0] DDR1_ODT[1] DDR1_ODT[2] DDR1_ODT[3]

DDR1_BA[0] DDR1_BA[1]

DDR1_BG[0] DDR1_BG[1]

DDR1_CKP[0] DDR1_CKN[0] DDR1_CKP[1] DDR1_CKN[1] DDR1_CKP[2] DDR1_CKN[2] DDR1_CKP[3] DDR1_CKN[3]

DDR1_PAR DDR1_ALERT#

DDR1_ECC[0] DDR1_ECC[1] DDR1_ECC[2] DDR1_ECC[3] DDR1_ECC[4] DDR1_ECC[5] DDR1_ECC[6] DDR1_ECC[7]

DDR_VREF_CA2 DDR_VREF_CA3

SOCKET1200-HF_1

CML-S

CHANNEL B

DDR1_DQ[0] DDR1_DQ[1] DDR1_DQ[2] DDR1_DQ[3] DDR1_DQ[4] DDR1_DQ[5] DDR1_DQ[6] DDR1_DQ[7] DDR1_DQ[8]

DDR1_DQ[9] DDR1_DQ[10] DDR1_DQ[11] DDR1_DQ[12] DDR1_DQ[13] DDR1_DQ[14] DDR1_DQ[15] DDR1_DQ[16] DDR1_DQ[17] DDR1_DQ[18] DDR1_DQ[19] DDR1_DQ[20] DDR1_DQ[21] DDR1_DQ[22] DDR1_DQ[23] DDR1_DQ[24] DDR1_DQ[25] DDR1_DQ[26] DDR1_DQ[27] DDR1_DQ[28] DDR1_DQ[29] DDR1_DQ[30] DDR1_DQ[31] DDR1_DQ[32] DDR1_DQ[33] DDR1_DQ[34] DDR1_DQ[35] DDR1_DQ[36] DDR1_DQ[37] DDR1_DQ[38] DDR1_DQ[39] DDR1_DQ[40] DDR1_DQ[41] DDR1_DQ[42] DDR1_DQ[43] DDR1_DQ[44] DDR1_DQ[45] DDR1_DQ[46] DDR1_DQ[47] DDR1_DQ[48] DDR1_DQ[49] DDR1_DQ[50] DDR1_DQ[51] DDR1_DQ[52] DDR1_DQ[53] DDR1_DQ[54] DDR1_DQ[55] DDR1_DQ[56] DDR1_DQ[57] DDR1_DQ[58] DDR1_DQ[59] DDR1_DQ[60] DDR1_DQ[61] DDR1_DQ[62] DDR1_DQ[63]

DDR1_DQSN[0] DDR1_DQSN[1] DDR1_DQSN[2] DDR1_DQSN[3] DDR1_DQSN[4] DDR1_DQSN[5] DDR1_DQSN[6] DDR1_DQSN[7] DDR1_DQSN[8]

DDR1_DQSP[0] DDR1_DQSP[1] DDR1_DQSP[2] DDR1_DQSP[3] DDR1_DQSP[4] DDR1_DQSP[5] DDR1_DQSP[6] DDR1_DQSP[7] DDR1_DQSP[8]

AD34 AD35 AE36 AF36 AG35 AG34 AD36 AG36 AJ36 AJ35 AL36 AM35 AK36 AJ34 AM36 AM34 AT36 AP36 AT34 AP33 AR36 AT35 AR33 AT33 AP31 AT31 AT29 AP28 AR31 AT30 AR28 AT28 AT12 AR12 AT10 AR10 AP12 AT11 AP10 AN10 AR8 AT8 AT5 AT6 AP8 AT7 AP5 AR5 AM8 AM7 AK6 AM5 AM6 AK7 AK5 AL5 AF7 AH8 AG5 AF6 AH6 AH7 AF5 AH5

AE34 AK34 AP35 AP30 AN12 AP7 AL8 AG8 AJ26

AF34 AL34 AP34 AP29 AN11 AP6 AK8 AF8 AJ27

M_DATA_B4 M_DATA_B0

M_DATA_B1 M_DATA_B6 M_DATA_B3 M_DATA_B7 M_DATA_B5 M_DATA_B2

M_DATA_B13 M_DATA_B8 M_DATA_B14 M_DATA_B10

M_DATA_B9 M_DATA_B12 M_DATA_B15 M_DATA_B11

M_DATA_B17 M_DATA_B20 M_DATA_B23

M_DATA_B19 M_DATA_B16

M_DATA_B21

M_DATA_B22

M_DATA_B18 M_DATA_B28

M_DATA_B29

M_DATA_B30 M_DATA_B27

M_DATA_B24

M_DATA_B25

M_DATA_B31

M_DATA_B26

M_DATA_B36 M_DATA_B37

M_DATA_B39

M_DATA_B38 M_DATA_B33 M_DATA_B32

M_DATA_B34

M_DATA_B35

M_DATA_B45 M_DATA_B44

M_DATA_B46

M_DATA_B47

M_DATA_B41

M_DATA_B40

M_DATA_B43

M_DATA_B42 M_DATA_B52

M_DATA_B53

M_DATA_B54 M_DATA_B48 M_DATA_B49 M_DATA_B51 M_DATA_B50 M_DATA_B55 M_DATA_B63 M_DATA_B60 M_DATA_B62 M_DATA_B59 M_DATA_B57

M_DATA_B56

M_DATA_B58 M_DATA_B61

M_DQS_B_DN0 M_DQS_B_DN1 M_DQS_B_DN2 M_DQS_B_DN3 M_DQS_B_DN4 M_DQS_B_DN5 M_DQS_B_DN6 M_DQS_B_DN7

M_DQS_B_DP0 M_DQS_B_DP1 M_DQS_B_DP2 M_DQS_B_DP3 M_DQS_B_DP4 M_DQS_B_DP5 M_DQS_B_DP6 M_DQS_B_DP7

M_DQS_B_DN0 [9] M_DQS_B_DN1 [9] M_DQS_B_DN2 [9] M_DQS_B_DN3 [9] M_DQS_B_DN4 [9] M_DQS_B_DN5 [9] M_DQS_B_DN6 [9] M_DQS_B_DN7 [9]

M_DQS_B_DP0 [9] M_DQS_B_DP1 [9] M_DQS_B_DP2 [9] M_DQS_B_DP3 [9] M_DQS_B_DP4 [9] M_DQS_B_DP5 [9] M_DQS_B_DP6 [9] M_DQS_B_DP7 [9]

M_DATA_B[63..0] [9]

M_MAA_A[16..0][8]

M_MAA_A0

D D

M_ACT_A_N[8]

M_CKE_A0[8] M_CKE_A1[8]

M_CS#_A0[8]

C C

B B

M_CS#_A1[8]

M_ODT_A0[8] M_ODT_A1[8]

M_BA_A_0[8] M_BA_A_1[8]

M_BG_A_0[8] M_BG_A_1[8]

M_CK_A_DP0[8] M_CK_A_DN0[8] M_CK_A_DP1[8] M_CK_A_DN1[8]

M_PARITY_A[8] M_ALERT_A_N[8]

CPU_VREF_CA0_A

M_MAA_A1 M_MAA_A2 M_MAA_A3 M_MAA_A4 M_MAA_A5 M_MAA_A6 M_MAA_A7 M_MAA_A8 M_MAA_A9 M_MAA_A10 M_MAA_A11 M_MAA_A12 M_MAA_A13 M_MAA_A14 M_MAA_A15 M_MAA_A16

M_ACT_A_N

M_CKE_A0 M_CKE_A1

M_CS#_A0 M_CS#_A1

M_ODT_A0 M_ODT_A1

M_BA_A_0 M_BA_A_1

M_BG_A_0 M_BG_A_1

M_CK_A_DP0 M_CK_A_DN0 M_CK_A_DP1 M_CK_A_DN1

M_PARITY_A M_ALERT_A_N

CPU1A

AU18 AY25 AY24

AW25

AV25 AY26 AV26 AY27

AW27

AY28 AU17 AV27

AV28 AW14 AW16

AU16

AV16

AY30

AY31 AW31

AV30

AV31

AY15

AY13

AV15

AV13

AY14

AV14

AU14

AT14

AY16 AW17

AV29 AW29

AU24

AV24

AY23 AW23

AT19 AU19 AY18

AW18

AV18 AY29

AL30 AM30 AM31

AL32 AK32

AJ32 AM32 AK30

AC40 AC38

SOCKET1200-HF_1

DDR0_MA[0] DDR0_MA[1] DDR0_MA[2] DDR0_MA[3] DDR0_MA[4] DDR0_MA[5] DDR0_MA[6] DDR0_MA[7] DDR0_MA[8] DDR0_MA[9] DDR0_MA[10] DDR0_MA[11] DDR0_MA[12] DDR0_MA[13] DDR0_MA[14] DDR0_MA[15] DDR0_MA[16]

DDR0_ACT#

DDR0_CKE[0] DDR0_CKE[1] DDR0_CKE[2] DDR0_CKE[3]

DDR0_CS#[0] DDR0_CS#[1] DDR0_CS#[2] DDR0_CS#[3]

DDR0_ODT[0] DDR0_ODT[1] DDR0_ODT[2] DDR0_ODT[3]

DDR0_BA[0] DDR0_BA[1]

DDR0_BG[0] DDR0_BG[1]

DDR0_CKP[0] DDR0_CKN[0] DDR0_CKP[1] DDR0_CKN[1] DDR0_CKP[2] DDR0_CKN[2] DDR0_CKP[3] DDR0_CKN[3]

DDR0_PAR DDR0_ALERT#

DDR0_ECC[0] DDR0_ECC[1] DDR0_ECC[2] DDR0_ECC[3] DDR0_ECC[4] DDR0_ECC[5] DDR0_ECC[6] DDR0_ECC[7]

DDR_VREF_CA0 DDR_VREF_CA1

CML-S

CHANNEL A

DDR0_DQ[0] DDR0_DQ[1] DDR0_DQ[2] DDR0_DQ[3] DDR0_DQ[4] DDR0_DQ[5] DDR0_DQ[6] DDR0_DQ[7] DDR0_DQ[8]

DDR0_DQ[9] DDR0_DQ[10] DDR0_DQ[11] DDR0_DQ[12] DDR0_DQ[13] DDR0_DQ[14] DDR0_DQ[15] DDR0_DQ[16] DDR0_DQ[17] DDR0_DQ[18] DDR0_DQ[19] DDR0_DQ[20] DDR0_DQ[21] DDR0_DQ[22] DDR0_DQ[23] DDR0_DQ[24] DDR0_DQ[25] DDR0_DQ[26] DDR0_DQ[27] DDR0_DQ[28] DDR0_DQ[29] DDR0_DQ[30] DDR0_DQ[31] DDR0_DQ[32] DDR0_DQ[33] DDR0_DQ[34] DDR0_DQ[35] DDR0_DQ[36] DDR0_DQ[37] DDR0_DQ[38] DDR0_DQ[39] DDR0_DQ[40] DDR0_DQ[41] DDR0_DQ[42] DDR0_DQ[43] DDR0_DQ[44] DDR0_DQ[45] DDR0_DQ[46] DDR0_DQ[47] DDR0_DQ[48] DDR0_DQ[49] DDR0_DQ[50] DDR0_DQ[51] DDR0_DQ[52] DDR0_DQ[53] DDR0_DQ[54] DDR0_DQ[55] DDR0_DQ[56] DDR0_DQ[57] DDR0_DQ[58] DDR0_DQ[59] DDR0_DQ[60] DDR0_DQ[61] DDR0_DQ[62] DDR0_DQ[63]

DDR0_DQSN[0] DDR0_DQSN[1] DDR0_DQSN[2] DDR0_DQSN[3] DDR0_DQSN[4] DDR0_DQSN[5] DDR0_DQSN[6] DDR0_DQSN[7] DDR0_DQSN[8]

DDR0_DQSP[0] DDR0_DQSP[1] DDR0_DQSP[2] DDR0_DQSP[3] DDR0_DQSP[4] DDR0_DQSP[5] DDR0_DQSP[6] DDR0_DQSP[7] DDR0_DQSP[8]

AE39 AE38 AH39 AH38 AF40 AE40 AH40 AG40 AK39 AK40 AN39 AM40 AL40 AK38 AN40 AN38 AR39 AR40 AV39 AU40 AR38 AT40 AW38 AV38 AV36 AY36 AV33 AY34 AY35 AW36 AY33 AW33 AW11 AV11 AY7 AY8 AW9 AW10 AV7 AW7 AW5 AY5 AW2 AW3 AY4 AV5 AV1 AV2 AT1 AN1 AT3 AP1 AT2 AN3 AR1 AN2 AL2 AH1 AL3 AJ1 AH3 AL1 AH2 AK1

AF38 AL38 AT38 AV35 AV9 AV4 AR3 AK3 AJ31

AG38 AM38 AU38 AV34 AV8 AV3 AP3 AJ3 AJ30

M_DATA_A4 M_DATA_A5 M_DATA_A7 M_DATA_A3 M_DATA_A1 M_DATA_A0 M_DATA_A2

M_DATA_A6

M_DATA_A12

M_DATA_A13

M_DATA_A15 M_DATA_A14

M_DATA_A9

M_DATA_A8

M_DATA_A10 M_DATA_A11

M_DATA_A20 M_DATA_A21 M_DATA_A23 M_DATA_A22 M_DATA_A16 M_DATA_A17 M_DATA_A19 M_DATA_A18

M_DATA_A28 M_DATA_A24 M_DATA_A31 M_DATA_A30 M_DATA_A25 M_DATA_A29 M_DATA_A26 M_DATA_A27

M_DATA_A36 M_DATA_A37 M_DATA_A34 M_DATA_A38 M_DATA_A33 M_DATA_A32 M_DATA_A35 M_DATA_A39

M_DATA_A40

M_DATA_A45

M_DATA_A47

M_DATA_A46

M_DATA_A41

M_DATA_A44

M_DATA_A43

M_DATA_A42

M_DATA_A48

M_DATA_A50

M_DATA_A52

M_DATA_A54

M_DATA_A53

M_DATA_A55

M_DATA_A49

M_DATA_A51

M_DATA_A56

M_DATA_A58

M_DATA_A60

M_DATA_A62

M_DATA_A63

M_DATA_A61

M_DATA_A59

M_DATA_A57

M_DQS_A_DN0 M_DQS_A_DN1 M_DQS_A_DN2 M_DQS_A_DN3 M_DQS_A_DN4 M_DQS_A_DN5 M_DQS_A_DN6 M_DQS_A_DN7

M_DQS_A_DP0 M_DQS_A_DP1 M_DQS_A_DP2 M_DQS_A_DP3 M_DQS_A_DP4 M_DQS_A_DP5 M_DQS_A_DP6 M_DQS_A_DP7

M_DATA_A[63..0] [8]

M_DQS_A_DN0 [8] M_DQS_A_DN1 [8] M_DQS_A_DN2 [8] M_DQS_A_DN3 [8] M_DQS_A_DN4 [8] M_DQS_A_DN5 [8] M_DQS_A_DN6 [8] M_DQS_A_DN7 [8]

M_DQS_A_DP0 [8] M_DQS_A_DP1 [8] M_DQS_A_DP2 [8] M_DQS_A_DP3 [8] M_DQS_A_DP4 [8] M_DQS_A_DP5 [8] M_DQS_A_DP6 [8] M_DQS_A_DP7 [8]

M_MAA_B[16..0][9]

M_ACT_B_N[9]

M_CKE_B0[9] M_CKE_B1[9]

M_CS#_B0[9] M_CS#_B1[9]

M_ODT_B0[9] M_ODT_B1[9]

M_BA_B_0[9] M_BA_B_1[9]

M_BG_B_0[9] M_BG_B_1[9]

M_CK_B_DP0[9] M_CK_B_DN0[9] M_CK_B_DP1[9] M_CK_B_DN1[9]

M_PARITY_B[9] M_ALERT_B_N[9]

CPU_VREF_CA0_B

M_MAA_B0 M_MAA_B1 M_MAA_B2 M_MAA_B3 M_MAA_B4 M_MAA_B5 M_MAA_B6 M_MAA_B7 M_MAA_B8 M_MAA_B9 M_MAA_B10 M_MAA_B11 M_MAA_B12 M_MAA_B13 M_MAA_B14 M_MAA_B15 M_MAA_B16

M_ACT_B_N

M_CKE_B0 M_CKE_B1

M_CS#_B0 M_CS#_B1

M_ODT_B0 M_ODT_B1

M_BA_B_0 M_BA_B_1

M_BG_B_0 M_BG_B_1

M_CK_B_DP0 M_CK_B_DN0 M_CK_B_DP1 M_CK_B_DN1

M_PARITY_B M_ALERT_B_N

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

CPU-Memory

1.0

4 65

1.0

Sheet ofDate:

1

5

4

3

2

1

CPU1C

EXP_A_RXP_0[19] EXP_A_RXN_0[19] EXP_A_RXP_1[19] EXP_A_RXN_1[19] EXP_A_RXP_2[19] EXP_A_RXN_2[19] EXP_A_RXP_3[19] EXP_A_RXN_3[19] EXP_A_RXP_4[19]

D D

C C

EXP_A_RXN_4[19] EXP_A_RXP_5[19] EXP_A_RXN_5[19] EXP_A_RXP_6[19] EXP_A_RXN_6[19] EXP_A_RXP_7[19] EXP_A_RXN_7[19] EXP_A_RXP_8[19] EXP_A_RXN_8[19] EXP_A_RXP_9[19] EXP_A_RXN_9[19] EXP_A_RXP_10[19] EXP_A_RXN_10[19] EXP_A_RXP_11[19] EXP_A_RXN_11[19] EXP_A_RXP_12[19] EXP_A_RXN_12[19] EXP_A_RXP_13[19] EXP_A_RXN_13[19] EXP_A_RXP_14[19] EXP_A_RXN_14[19] EXP_A_RXP_15[19] EXP_A_RXN_15[19]

DMI_RXP0[14] DMI_RXN0[14] DMI_RXP1[14] DMI_RXN1[14] DMI_RXP2[14] DMI_RXN2[14] DMI_RXP3[14] DMI_RXN3[14]

DMI_RXP0 DMI_RXN0 DMI_RXP1 DMI_RXN1 DMI_RXP2 DMI_RXN2 DMI_RXP3 DMI_RXN3

G12

PCIE_PEG_RXP0

H12

PCIE_PEG_RXN0

F11

PCIE_PEG_RXP1

G11

PCIE_PEG_RXN1

G10

PCIE_PEG_RXP2

H10

PCIE_PEG_RXN2

F9

PCIE_PEG_RXP3

G9

PCIE_PEG_RXN3

J9

PCIE_PEG_RXP4

K9

PCIE_PEG_RXN4

E7

PCIE_PEG_RXP5

E6

PCIE_PEG_RXN5

F6

PCIE_PEG_RXP6

F5

PCIE_PEG_RXN6

G7

PCIE_PEG_RXP7

G6

PCIE_PEG_RXN7

H5

PCIE_PEG_RXP8

H6

PCIE_PEG_RXN8

J6

PCIE_PEG_RXP9

J7

PCIE_PEG_RXN9

K5

PCIE_PEG_RXP10

K6

PCIE_PEG_RXN10

L6

PCIE_PEG_RXP11

L7

PCIE_PEG_RXN11

M5

PCIE_PEG_RXP12

M6

PCIE_PEG_RXN12

N6

PCIE_PEG_RXP13

N7

PCIE_PEG_RXN13

P5

PCIE_PEG_RXP14

P6

PCIE_PEG_RXN14

R6

PCIE_PEG_RXP15

R7

PCIE_PEG_RXN15

H15

PCIE_PEG60_RXP0

J15

PCIE_PEG60_RXN0

E15

PCIE_PEG60_RXP1

F15

PCIE_PEG60_RXN1

G14

PCIE_PEG60_RXP2

H14

PCIE_PEG60_RXN2

F13

PCIE_PEG60_RXP3

G13

PCIE_PEG60_RXN3

AD4

DMI_RXP[0]

AD5

DMI_RXN[0]

AD7

DMI_RXP[1]

AD8

DMI_RXN[1]

AC5

DMI_RXP[2]

AC6

DMI_RXN[2]

AB6

DMI_RXP[3]

AB7

DMI_RXN[3]

AA7

DMI_RXP[4]

AA8

DMI_RXN[4]

Y6

DMI_RXP[5]

Y7

DMI_RXN[5]

W5

DMI_RXP[6]

W6

DMI_RXN[6]

V4

DMI_RXP[7]

V5

DMI_RXN[7]

SOCKET1200-HF_1

CML-S

PCIE_PEG_TXP0 PCIE_PEG_TXN0 PCIE_PEG_TXP1 PCIE_PEG_TXN1 PCIE_PEG_TXP2 PCIE_PEG_TXN2 PCIE_PEG_TXP3 PCIE_PEG_TXN3 PCIE_PEG_TXP4 PCIE_PEG_TXN4 PCIE_PEG_TXP5 PCIE_PEG_TXN5 PCIE_PEG_TXP6 PCIE_PEG_TXN6 PCIE_PEG_TXP7 PCIE_PEG_TXN7 PCIE_PEG_TXP8 PCIE_PEG_TXN8 PCIE_PEG_TXP9

PCIE_PEG_TXN9 PCIE_PEG_TXP10 PCIE_PEG_TXN10 PCIE_PEG_TXP11 PCIE_PEG_TXN11 PCIE_PEG_TXP12 PCIE_PEG_TXN12 PCIE_PEG_TXP13 PCIE_PEG_TXN13 PCIE_PEG_TXP14 PCIE_PEG_TXN14 PCIE_PEG_TXP15 PCIE_PEG_TXN15

PCIE_PEG60_TXP0 PCIE_PEG60_TXN0 PCIE_PEG60_TXP1 PCIE_PEG60_TXN1 PCIE_PEG60_TXP2 PCIE_PEG60_TXN2 PCIE_PEG60_TXP3 PCIE_PEG60_TXN3

DMI_TXP[0] DMI_TXN[0] DMI_TXP[1] DMI_TXN[1] DMI_TXP[2] DMI_TXN[2] DMI_TXP[3] DMI_TXN[3] DMI_TXP[4] DMI_TXN[4] DMI_TXP[5] DMI_TXN[5] DMI_TXP[6] DMI_TXN[6] DMI_TXP[7] DMI_TXN[7]

A8 B8 B7 C7 A6 A5 B5 B4 C4 C3 D3 D2 E2 E1 F3 F2 G2 G1 H3 H2 J2 J1 K3 K2 L2 L1 M3 M2 N2 N1 P3 P2

A12 B12 B11 C11 C10 D10 B9 C9

DMI_TXP0

AF1

DMI_TXN0

AF2

DMI_TXP1

AE2

DMI_TXN1

AE3

DMI_TXP2

AD1

DMI_TXN2

AD2

DMI_TXP3

AC2

DMI_TXN3

AC3 AB4 AB3 AA5 AA4 Y4 Y3 W3 W2

EXP_A_TXP_0 [19] EXP_A_TXN_0 [19] EXP_A_TXP_1 [19] EXP_A_TXN_1 [19] EXP_A_TXP_2 [19] EXP_A_TXN_2 [19] EXP_A_TXP_3 [19] EXP_A_TXN_3 [19] EXP_A_TXP_4 [19] EXP_A_TXN_4 [19] EXP_A_TXP_5 [19] EXP_A_TXN_5 [19] EXP_A_TXP_6 [19] EXP_A_TXN_6 [19] EXP_A_TXP_7 [19] EXP_A_TXN_7 [19] EXP_A_TXP_8 [19] EXP_A_TXN_8 [19] EXP_A_TXP_9 [19] EXP_A_TXN_9 [19] EXP_A_TXP_10 [19] EXP_A_TXN_10 [19] EXP_A_TXP_11 [19] EXP_A_TXN_11 [19] EXP_A_TXP_12 [19] EXP_A_TXN_12 [19] EXP_A_TXP_13 [19] EXP_A_TXN_13 [19] EXP_A_TXP_14 [19] EXP_A_TXN_14 [19] EXP_A_TXP_15 [19] EXP_A_TXN_15 [19]

DMI_TXP0 [14] DMI_TXN0 [14] DMI_TXP1 [14] DMI_TXN1 [14] DMI_TXP2 [14] DMI_TXN2 [14] DMI_TXP3 [14] DMI_TXN3 [14]

CPU1F

K16

RSVD-01

G16

RSVD-02

H8

RSVD-03

AU32

RSVD-04

AN25

RSVD-05

B39

RSVD_TP-01

P33

RSVD_TP-04

J4

RSVD_TP-02

L4

RSVD_TP-03

P8

PCIE_PEG60_TP2

M8

PCIE_PEG60_TP1

SOCKET1200-HF_1

CML-S

RSVD-06 RSVD-07 RSVD-08 RSVD-09 RSVD-10 RSVD-11

RSVD-12 RSVD-13 RSVD-14 RSVD-15

RSVD-16 RSVD-17

AH33 AH32 D8 F8 AL18 L33

M16 M33 N4 T33

E4 G4

CPU1D

M15

EDP_TXP[0]

M14

B B

A A

5

N15 N14

L14 L15 L13

K13

K12 K11

L37

MEC1 MEC2 MEC3 MEC4 MEC5 MEC6 MEC7

LGA1151

SOCKET1200-HF_1

EDP_TXN[0] EDP_TXP[1] EDP_TXN[1] EDP_TXP[2] EDP_TXN[2] EDP_TXP[3] EDP_TXN[3]

EDP_AUXP EDP_AUXN

DISP_UTILS

MEC1 MEC2 MEC3 MEC4 MEC5 MEC6 MEC7

CFL-S

HDMI_DDPB_TX2_P

F39

DDI1_TXP[0] DDI1_TXN[0] DDI1_TXP[1] DDI1_TXN[1] DDI1_TXP[2] DDI1_TXN[2] DDI1_TXP[3] DDI1_TXN[3]

DDI1_AUXP DDI1_AUXN

DDI2_TXP[0] DDI2_TXN[0] DDI2_TXP[1] DDI2_TXN[1] DDI2_TXP[2] DDI2_TXN[2] DDI2_TXP[3] DDI2_TXN[3]

DDI2_AUXP DDI2_AUXN

DDI3_TXP[0] DDI3_TXN[0] DDI3_TXP[1] DDI3_TXN[1] DDI3_TXP[2] DDI3_TXN[2] DDI3_TXP[3] DDI3_TXN[3]

DDI3_AUXP DDI3_AUXN

4

HDMI_DDPB_TX2_N

F38

HDMI_DDPB_TX1_P

G40

HDMI_DDPB_TX1_N

G39

HDMI_DDPB_TX0_P

H38

HDMI_DDPB_TX0_N

H39

HDMI_DDPB_CLK_P

J39

HDMI_DDPB_CLK_N

J40

K39 K38

DVI_DDPC_TXP2

F35

DVI_DDPC_TXN2

F36

DVI_DDPC_TXP1

E36

DVI_DDPC_TXN1

E37

DVI_DDPC_TXP0

D37

DVI_DDPC_TXN0

D38

DVI_DDPC_CLK_P

G36

DVI_DDPC_CLK_N

G37

H36

DVI max resolution is 1920x1200 @ 60 Hz

H35

DSP_DDPD_TXP0

A37

DSP_DDPD_TXN0

B37

DSP_DDPD_TXP1

C38

DSP_DDPD_TXN1

B38 D40 C40 E39 E40

DSP_DDPD_AUXP

B36

DSP_DDPD_AUXN

C36

HDMI_DDPB_TX2_P [32] HDMI_DDPB_TX2_N [32] HDMI_DDPB_TX1_P [32] HDMI_DDPB_TX1_N [32] HDMI_DDPB_TX0_P [32] HDMI_DDPB_TX0_N [32] HDMI_DDPB_CLK_P [32] HDMI_DDPB_CLK_N [32]

DVI_DDPC_TXP2 [33] DVI_DDPC_TXN2 [33] DVI_DDPC_TXP1 [33] DVI_DDPC_TXN1 [33] DVI_DDPC_TXP0 [33] DVI_DDPC_TXN0 [33] DVI_DDPC_CLK_P [33] DVI_DDPC_CLK_N [33]

DSP_DDPD_TXP0 [34] DSP_DDPD_TXN0 [34] DSP_DDPD_TXP1 [34] DSP_DDPD_TXN1 [34]

DSP_DDPD_AUXP [34] DSP_DDPD_AUXN [34]

3

DP to VGA

HDMI

DVI

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

2

Tuesday, March 17, 2020

MS-7C89

CPU-PEG/Display/RSD

1

Sheet ofDate:

5 65

1.0

5

Vinafix.com

VCORE VCORE VGTVCORE

CPU1G

AK23 AK22 AK21 AK20 AK19 AK18 AK17 AK16 AK15

D D

C C

B B

AK14 AK13 AJ24 AJ23 AJ22 AJ21 AJ20 AJ19 AJ18 AJ17 AJ16 AJ15 AJ14 AJ13 AJ12

N32 N30 N29 N28 N27 N26 N25 N24 N23 N22 N21 N20 N19 N18 N17 M32 M31 M29 M27 M25 M23 M21 M19 M17 L32 L31 L30 L29 L28 L27 L26 L25 L24 L23 L22 L21 L20 L19 L18 L17 K33 K32 K31 K29 K27 K25

TOP SIDE SOCKET CAVITY

CML-S

VCCCORE-001 VCCCORE-002 VCCCORE-003 VCCCORE-004 VCCCORE-005 VCCCORE-006 VCCCORE-007 VCCCORE-008 VCCCORE-009 VCCCORE-010 VCCCORE-011 VCCCORE-012 VCCCORE-013 VCCCORE-014 VCCCORE-015 VCCCORE-016 VCCCORE-017 VCCCORE-018 VCCCORE-019 VCCCORE-020 VCCCORE-021 VCCCORE-022 VCCCORE-023 VCCCORE-024 VCCCORE-025 VCCCORE-026 VCCCORE-027 VCCCORE-028 VCCCORE-029 VCCCORE-030 VCCCORE-031 VCCCORE-032 VCCCORE-033 VCCCORE-034 VCCCORE-035 VCCCORE-036 VCCCORE-037 VCCCORE-038 VCCCORE-039 VCCCORE-040 VCCCORE-041 VCCCORE-042 VCCCORE-043 VCCCORE-044 VCCCORE-045 VCCCORE-046 VCCCORE-047 VCCCORE-048 VCCCORE-049 VCCCORE-050 VCCCORE-051 VCCCORE-052 VCCCORE-053 VCCCORE-054 VCCCORE-055 VCCCORE-056 VCCCORE-057 VCCCORE-058 VCCCORE-059 VCCCORE-060 VCCCORE-061 VCCCORE-062 VCCCORE-063 VCCCORE-064 VCCCORE-065 VCCCORE-066 VCCCORE-067 VCCCORE-068 VCCCORE-069 VCCCORE-070

SOCKET1200-HF_1

VCCCORE-071 VCCCORE-072 VCCCORE-073 VCCCORE-074 VCCCORE-075 VCCCORE-076 VCCCORE-077 VCCCORE-078 VCCCORE-079 VCCCORE-080 VCCCORE-081 VCCCORE-082 VCCCORE-083 VCCCORE-084 VCCCORE-085 VCCCORE-086 VCCCORE-087 VCCCORE-088 VCCCORE-089 VCCCORE-090 VCCCORE-091 VCCCORE-092 VCCCORE-093 VCCCORE-094 VCCCORE-095 VCCCORE-096 VCCCORE-097 VCCCORE-098 VCCCORE-099 VCCCORE-100 VCCCORE-101 VCCCORE-102 VCCCORE-103 VCCCORE-104 VCCCORE-105 VCCCORE-106 VCCCORE-107 VCCCORE-108 VCCCORE-109 VCCCORE-110 VCCCORE-111 VCCCORE-112 VCCCORE-113 VCCCORE-114 VCCCORE-115 VCCCORE-116 VCCCORE-117 VCCCORE-118 VCCCORE-119 VCCCORE-120 VCCCORE-121 VCCCORE-122 VCCCORE-123 VCCCORE-124 VCCCORE-125 VCCCORE-126 VCCCORE-127 VCCCORE-128 VCCCORE-129 VCCCORE-130 VCCCORE-131 VCCCORE-132 VCCCORE-133 VCCCORE-134 VCCCORE-135 VCCCORE-136 VCCCORE-137 VCCCORE-138 VCCCORE-139 VCCCORE-140

K23 K21 K19 K17 J34 J33 J32 J31 J30 J29 J28 J27 J26 J25 J24 J23 J22 J21 J20 J19 J18 J17 H33 H31 H29 H27 H25 H23 H21 H19 H17 G34 G33 G32 G31 G30 G29 G28 G27 G26 G25 G24 G23 G22 G21 G20 G19 G18 G17 F33 F31 F29 F27 F25 F23 F21 F19 F17 E34 E33 E32 E31 E30 E29 E28 E27 E26 E25 E24 E23

4

CPU1H

E22 E21 E20 E19 E18 E17 D35 D34 D33 D31 D29 D27 D25 D23 D21 D19 D17 C35 C34 C33 C32 C31 C30 C29 C28 C27 C26 C25 C24 C23 C22 C21 C20 C19 C18 C17 B35 B33 B31 B29 B27 B25 B23 B18 B17 A35 A34 A33 A32 A31 A30 A29 A28 A27 A26 A25 A24 A23 A18 A17

CFL-S

VCCCORE-141 VCCCORE-142 VCCCORE-143 VCCCORE-144 VCCCORE-145 VCCCORE-146 VCCCORE-147 VCCCORE-148 VCCCORE-149 VCCCORE-150 VCCCORE-151 VCCCORE-152 VCCCORE-153 VCCCORE-154 VCCCORE-155 VCCCORE-156 VCCCORE-157 VCCCORE-158 VCCCORE-159 VCCCORE-160 VCCCORE-161 VCCCORE-162 VCCCORE-163 VCCCORE-164 VCCCORE-165 VCCCORE-166 VCCCORE-167 VCCCORE-168 VCCCORE-169 VCCCORE-170 VCCCORE-171 VCCCORE-172 VCCCORE-173 VCCCORE-174 VCCCORE-175 VCCCORE-176 VCCCORE-177 VCCCORE-178 VCCCORE-179 VCCCORE-180 VCCCORE-181 VCCCORE-182 VCCCORE-183 VCCCORE-184 VCCCORE-185 VCCCORE-186 VCCCORE-187 VCCCORE-188 VCCCORE-189 VCCCORE-190 VCCCORE-191 VCCCORE-192 VCCCORE-193 VCCCORE-194 VCCCORE-195 VCCCORE-196 VCCCORE-197 VCCCORE-198 VCCCORE-199 VCCCORE-200

SOCKET1200-HF_1

VCCGT-01 VCCGT-02 VCCGT-03 VCCGT-04 VCCGT-05 VCCGT-06 VCCGT-07 VCCGT-08 VCCGT-09 VCCGT-10 VCCGT-11 VCCGT-12 VCCGT-13 VCCGT-14 VCCGT-15 VCCGT-16 VCCGT-17 VCCGT-18 VCCGT-19 VCCGT-20 VCCGT-21 VCCGT-22 VCCGT-23 VCCGT-24 VCCGT-25 VCCGT-26 VCCGT-27 VCCGT-28 VCCGT-29 VCCGT-30 VCCGT-31 VCCGT-32 VCCGT-33 VCCGT-34 VCCGT-35 VCCGT-36 VCCGT-37 VCCGT-38 VCCGT-39 VCCGT-40 VCCGT-41 VCCGT-42 VCCGT-43 VCCGT-44 VCCGT-45 VCCGT-46

VCC_SENSE VSS_SENSE

VCCGT_SENSE VSSGT_SENSE

AG32 AF32 AE32 AD32 AC32 AB36 AB35 AB34 AB33 AB32 AA38 AA37 AA36 AA35 AA34 AA32 Y38 Y36 Y34 Y33 Y32 W38 W37 W36 W35 W34 W32 V40 V38 V36 V34 V33 V32 U40 U39 U38 U37 U36 U35 U34 U33 T40 T39 T38 T37 R40

B16 C16

AB37 AB38

3

VCORE_VCC_SENSE [26,45] VCORE_VSS_SENSE [45]

VGT_VCC_SENSE [45] VGT_VSS_SENSE [45]

VCCSA

VCCIO

2019.08.30 B460 Only CMS

AK25 AL12 AL24

AM12

AK10 AK11 AL10 AL11

B3 B6 D1 G3

H1 L11 L12

L3

M1

M11 M12 N11 N12 N13

AA3 AB8 AC1 AC7 AD6

U5

V3

V7 W1 W7 W8

AJ9

CPU1I

SOCKET1200-HF_1

CML-S

VCCSA-01 VCCSA-02 VCCSA-03 VCCSA-04 VCCSA-05 VCCSA-06 VCCSA-07 VCCSA-08 VCCSA-09 VCCSA-10 VCCSA-11 VCCSA-12 VCCSA-13 VCCSA-14

VCCIO_0-01 VCCIO_0-02 VCCIO_0-03 VCCIO_0-04 VCCIO_0-05 VCCIO_0-06 VCCIO_0-07 VCCIO_0-08 VCCIO_0-09 VCCIO_0-10 VCCIO_0-11

VCCIO_1-01 VCCIO_1-02 VCCIO_1-03 VCCIO_1-04

VCCIO_2-01 VCCIO_2-02 VCCIO_2-03 VCCIO_2-04 VCCIO_2-05

VCCIO_1_SENSE/VCCIO_2_SENSE

2

VDDQ-01 VDDQ-02 VDDQ-03 VDDQ-04 VDDQ-05 VDDQ-06 VDDQ-07 VDDQ-08 VDDQ-09 VDDQ-10 VDDQ-11 VDDQ-12 VDDQ-13 VDDQ-14

VDDQ_EDGECAP1 VDDQ_EDGECAP2

VCCST-01 VCCST-02 VCCST-03

VCCPLL

VCCPLL_OC-01 VCCPLL_OC-02

VCCSTG-01 VCCSTG-02

VCCSTG_OUT_1 VCCSTG_OUT_2 VCCSTG_OUT_3

VCCSA_SENSE

VCCIO_SENSE

VSS_SAIO_SENSE

AR14 AT24 AU15 AU25 AV17 AV19 AV23 AW13 AW15 AW24 AW26 AW28 AW30 AY17

AM24 AM13

U2 V1 V2

R1

AU13 AU27

R2 R3

R4 T5 T6

C6 D5

D6

AE4

VCC_DDR

VCC_DDR_EDCAP1 VCC_DDR_EDCAP2

VCCST_PLL

VCC_DDR

VCCSTG

VSA_SENSE [49] VCCIO_SENSE [50]

C473 22u6.3X6 C501 22u6.3X6

VCC_DDR

1

C453 22u6.3X6

C446 1u6.3X4

CLOSE AU13.AU27

TOP Side Socket Cavity

VCORE

C129 22u6.3X6 C95 22u6.3X6 C118 22u6.3X6 C126 22u6.3X6 C125 22u6.3X6 C124 22u6.3X6 C127 22u6.3X6 C99 22u6.3X6 C96 22u6.3X6 C117 22u6.3X6

VCORE

C94 22u6.3X6 C103 22u6.3X6 C128 22u6.3X6 C119 22u6.3X6 C120 22u6.3X6 C109 22u6.3X6 C106 22u6.3X6 C115 22u6.3X6 C93 22u6.3X6 C107 22u6.3X6

VCORE

C105 22u6.3X6 C114 22u6.3X6 C97 22u6.3X6 C98 22u6.3X6 C116 22u6.3X6 C104 22u6.3X6 C108 22u6.3X6

VCORE Cap:27 pcs

VGT

C88 22u6.3X6 C83 22u6.3X6 C82 22u6.3X6 C87 22u6.3X6 C85 22u6.3X6 C86 22u6.3X6 C84 22u6.3X6 C81 22u6.3X6

VGT Cap:8 pcs

VCCSTG

VCCST_PLL

VCCIO

C177 X_22u6.3X6 C179 1u6.3X4

TOP Side Socket Cavity

C505 22u6.3X6 C506 1u6.3X4

TOP Side Socket Cavity

C135 22u6.3X6 C134 22u6.3X6 C133 22u6.3X6

C176 22u6.3X6

VCCSA

C503 22u6.3X6

TOP Side Socket Cavity

C502 22u6.3X6 C178 22u6.3X6 C173 22u6.3X6

BOT Side Socket Cavity

TOP Side Socket Cavity

BOT Side Socket Cavity

A A

VCORE

C496 22u6.3X6 C486 22u6.3X6 C493 22u6.3X6 C490 22u6.3X6 C481 22u6.3X6 C487 22u6.3X6 C485 22u6.3X6 C497 22u6.3X6 C468 22u6.3X6 C489 22u6.3X6

VCORE

C465 22u6.3X6 C470 22u6.3X6 C484 22u6.3X6 C454 22u6.3X6 C498 22u6.3X6 C494 22u6.3X6 C495 22u6.3X6 C475 22u6.3X6 C476 22u6.3X6 C469 22u6.3X6 C466 22u6.3X6

VCORE VCORE

C500 22u6.3X6 C482 22u6.3X6 C464 22u6.3X6 C483 22u6.3X6 C492 22u6.3X6 C491 22u6.3X6 C452 22u6.3X6

C474 22u6.3X6 C499 22u6.3X6 C451 22u6.3X6 C472 22u6.3X6 C488 22u6.3X6 C480 22u6.3X6 C479 22u6.3X6 C478 22u6.3X6 C477 22u6.3X6 C471 22u6.3X6 C467 22u6.3X6

VGT

C460 22u6.3X6 C459 22u6.3X6 C447 22u6.3X6 C455 22u6.3X6

C450 22u6.3X6 C448 22u6.3X6 C449 22u6.3X6 C458 22u6.3X6 C457 22u6.3X6 C456 22u6.3X6 C462 22u6.3X6 C463 22u6.3X6 C461 22u6.3X6

VCORE Cap:38 pcs VGT Cap:14 pcs

5

4

3

2

C137 22u6.3X6 C136 X_22u6.3X6

BOT Side Socket Cavity

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

MICRO-STAR INT'L CO.,LTD

MS-7C89

CPU-Power

Sheet ofDate:

6 65

Sheet ofDate:

6 65

Sheet ofDate:

1

6 65

1.0

5

D D

4

3

2

1

F24

F26

F28

F30

B10

B24

B26

B28

B30

B32

B34

C12

C13

C37

C39

D11

D15

D18

D20

D22

D24

D26

D28

D30

D32

D36

D39

E10

E11

E13

E14

E16

E35

E38

F10

F12

F14

F16

AV12

AV6

AW12

AW34

AW35

AW37

AW4

AW6

AW32

AV21

AV32

CPU1J

AK9

VSS-001

AL13

VSS-002

AL14

VSS-003

AL15

VSS-004

AL16

VSS-005

AL17

VSS-006

AL19

VSS-007

AL20

VSS-008

AL21

VSS-009

AL22

VSS-010

AL23

VSS-011

AL25

VSS-012

AL27

VSS-013

AL29

VSS-014

AL31

VSS-015

AL33

VSS-016

AL35

C C

B B

AL37 AL39

AL4 AL6 AL7 AL9

AM1 AM10 AM11

AM2 AM25 AM29

AM3 AM33 AM37 AM39

AM4

AM9 AN13 AN14 AN16 AN18 AN20 AN22 AN24 AN26 AN27 AN28 AN29 AN30 AN31 AN32 AN33 AN34 AN35 AN36 AN37

AN4

AN5

AN6

AN7

AN8

AN9 AP11 AP13

AP2 AP27

VSS-017 VSS-018 VSS-019 VSS-020 VSS-021 VSS-022 VSS-023 VSS-024 VSS-025 VSS-026 VSS-027 VSS-028 VSS-029 VSS-030 VSS-031 VSS-032 VSS-033 VSS-034 VSS-035 VSS-036 VSS-037 VSS-038 VSS-039 VSS-040 VSS-041 VSS-042 VSS-043 VSS-044 VSS-045 VSS-046 VSS-047 VSS-048 VSS-049 VSS-050 VSS-051 VSS-052 VSS-053 VSS-054 VSS-055 VSS-056 VSS-057 VSS-058 VSS-059 VSS-060 VSS-061 VSS-062 VSS-063 VSS-064

AV37

VSS-268

VSS-264

VSS-267

VSS-266

VSS-265

VSS-65

VSS-70

VSS-69A7VSS-68A4VSS-67

VSS-66

A13

A38

A36

AA6

AA33

AW8

AY12

AY3

AY32

AY6

VSS-263

VSS-261

VSS-260

VSS-259

VSS-258

VSS-257

VSS-262

VSS-256

VSS-255

VSS-254

VSS-253

VSS-252

VSS-251

VSS-250

VSS-249

VSS-248

VSS-247

VSS-246

VSS-245

VSS-244

VSS-243

VSS-242C2VSS-241

VSS-240

VSS-239C5VSS-238C8VSS-237

VSS-236

VSS-235

VSS-234

VSS-233

VSS-232

VSS-231

VSS-230

VSS-229

VSS-228

VSS-227

VSS-226

VSS-225D4VSS-224D7VSS-223D9VSS-222

VSS-221

VSS-220

VSS-219

VSS-218

VSS-217E3VSS-216

VSS-215

VSS-214E5VSS-213E8VSS-212E9VSS-211F1VSS-210

CML-S

GND

VSS-71

VSS-72

VSS-73

VSS-74

VSS-75

VSS-76

VSS-77

VSS-78

VSS-79

VSS-80

VSS-81

VSS-82

VSS-83

VSS-84

VSS-85

VSS-86

VSS-87

VSS-88

VSS-89

VSS-90

VSS-91

VSS-92

VSS-93

VSS-94

VSS-95

VSS-96

VSS-97

VSS-98

VSS-99

VSS-100

VSS-101

AB5

AC4

AC8

AC34

AC35

AC36

AE1

AE5

AD3

AD33

AD37

AD38

AD39

AE6

AE33

AE35

AE37

AD40

AF4

AE7

AE8

AG1

AG2

AF33

AG3

AF35

AF37

AF39

AG33

AG37

AG39

VSS-108

VSS-109

VSS-113

VSS-112

VSS-111

VSS-102

VSS-103

AG4

AG6

VSS-110

VSS-104

VSS-105

VSS-106

VSS-107

AJ2

AH4

AG7

AH34

AH35

AJ29

AJ25

AJ11

AH36

AH37

VSS-120

VSS-119

VSS-118

VSS-117

VSS-116

VSS-115

VSS-114

AJ4

AJ5

AJ40

AJ39

AJ38

AJ37

AJ33

F18

VSS-209

VSS-208

VSS-207

VSS-127

VSS-126

VSS-125

VSS-124

VSS-123

VSS-122

VSS-121

AJ8

AJ7

AJ6

AK2

AK27

AK24

AK12

F20

VSS-206

VSS-128

AK29

F22

VSS-205

VSS-204

VSS-130

VSS-129

AK31

AK33

F32

VSS-203

VSS-202

VSS-201

VSS-200

VSS-134

VSS-133

VSS-132

VSS-131

SOCKET1200-HF_1

AK4

AK37

AK35

VSS-199

VSS-198 VSS-197 VSS-196 VSS-195 VSS-194 VSS-193 VSS-192 VSS-191 VSS-190 VSS-189 VSS-188 VSS-187 VSS-186 VSS-185 VSS-184 VSS-183 VSS-182 VSS-181 VSS-180 VSS-179 VSS-178 VSS-177 VSS-176 VSS-175 VSS-174 VSS-173 VSS-172 VSS-171 VSS-170 VSS-169 VSS-168 VSS-167 VSS-166 VSS-165 VSS-164 VSS-163 VSS-162 VSS-161 VSS-160 VSS-159 VSS-158 VSS-157 VSS-156 VSS-155 VSS-154 VSS-153 VSS-152 VSS-151 VSS-150 VSS-149 VSS-148 VSS-147 VSS-146 VSS-145 VSS-144 VSS-143 VSS-142 VSS-141 VSS-140 VSS-139 VSS-138 VSS-137 VSS-136 VSS-135

AP32 AP37 AP38 AP39 AP4 AP40 AP9 AR11 AR13 AR15 AR17 AR19 AR2 AR21 AR23 AR25 AR27 AR29 AR30 AR32 AR34 AR35 AR37 AR4 AR6 AR7 AR9 AT13 AT15 AT16 AT17 AT18 AT20 AT22 AT27 AT32 AT37 AT39 AT4 AT9 AU1 AU10 AU11 AU12 AU2 AU26 AU28 AU29 AU3 AU30 AU31 AU33 AU34 AU35 AU36 AU37 AU39 AU4 AU5 AU6 AU7 AU8 AU9 AV10

CPU1K

F34

VSS-269

F37

VSS-270

F4

VSS-271

F40

VSS-272

F7

VSS-273

G15

VSS-274

G35

VSS-275

G38

VSS-276

G5

VSS-277

G8

VSS-278

H11

VSS-279

H13

VSS-280

H16

VSS-281

H18

VSS-282

H20

VSS-283

H22

VSS-284

H24

VSS-285

H26

VSS-286

H28

VSS-287

H30

VSS-288

H32

VSS-289

H34

VSS-290

H37

VSS-291

H4

VSS-292

H40

VSS-293

H7

VSS-294

H9

VSS-295

J10

VSS-296

J12

VSS-297

J14

VSS-298

J16

VSS-299

J3

VSS-300

J35

VSS-301

J38

VSS-302

J5

VSS-303

J8

VSS-304

K1

VSS-305

K10

VSS-306

K14

VSS-307

K15

VSS-308

K18

VSS-309

K20

VSS-310

K22

VSS-311

K24

VSS-312

K26

VSS-313

K28

VSS-314

K30

VSS-315

K34

VSS-316

K37

VSS-317

K4

VSS-318

K40

VSS-319

K7

VSS-320

K8

VSS-321

L10

VSS-322

L5

VSS-324

SOCKET1200-HF_1

CML-S

GND

VSS-325 VSS-326 VSS-327 VSS-328 VSS-323 VSS-329 VSS-330 VSS-331 VSS-332 VSS-333 VSS-334 VSS-335 VSS-336 VSS-337 VSS-338 VSS-339 VSS-340 VSS-341 VSS-342 VSS-343 VSS-344 VSS-345 VSS-346 VSS-347 VSS-348 VSS-349 VSS-350 VSS-351 VSS-352 VSS-353 VSS-354 VSS-355 VSS-356 VSS-357 VSS-358 VSS-359 VSS-360 VSS-361 VSS-362 VSS-363 VSS-364 VSS-365 VSS-366 VSS-367 VSS-368 VSS-369 VSS-370 VSS-371 VSS-372 VSS-373 VSS-374 VSS-375 VSS-376 VSS-377 VSS-378

L8 L9 M13 M18 L16 M20 M22 M24 M26 M28 M30 M34 M36 M39 M4 M7 N10 N16 N3 N33 N5 N8 P1 P32 P35 P4 P40 P7 R37 R38 R39 R5 R8 T2 T34 T35 T36 T8 U3 U32 U4 U6 V35 V37 V39 V6 V8 W33 W4 Y35 Y37 Y5 Y8 J11 J13

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

CPU-GND

MS-7C89

1

Sheet ofDate:

7 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

Vinafix.com

A0 B0

D D

M_DQS_A_DP7[4] M_DQS_A_DN7[4]

M_DQS_A_DP6[4] M_DQS_A_DN6[4]

M_DQS_A_DP5[4] M_DQS_A_DN5[4]

M_DQS_A_DP4[4]

C C

B B

A A

DRAM_RESET#[9,12]

M_DQS_A_DN4[4]

M_DQS_A_DP3[4] M_DQS_A_DN3[4]

M_DQS_A_DP2[4] M_DQS_A_DN2[4]

M_DQS_A_DP1[4] M_DQS_A_DN1[4]

M_DQS_A_DP0[4] M_DQS_A_DN0[4]

M_CK_A_DP1[4] M_CK_A_DN1[4]

M_CK_A_DP0[4] M_CK_A_DN0[4]

M_CS#_A1[4] M_CS#_A0[4]

M_CKE_A1[4] M_CKE_A0[4]

M_ODT_A1[4] M_ODT_A0[4]

M_ALERT_A_N[4]

M_ACT_A_N[4]

M_PARITY_A[4]

DRAM_RESET#

5

M_DQS_A_DP7 M_DQS_A_DN7

M_DQS_A_DP6 M_DQS_A_DN6

M_DQS_A_DP5 M_DQS_A_DN5

M_DQS_A_DP4 M_DQS_A_DN4

M_DQS_A_DP3 M_DQS_A_DN3

M_DQS_A_DP2 M_DQS_A_DN2

M_DQS_A_DP1 M_DQS_A_DN1

M_DQS_A_DP0 M_DQS_A_DN0

M_CK_A_DP1 M_CK_A_DN1

M_CK_A_DP0 M_CK_A_DN0

DRAM_RESET#

DIMM1_EVENT

M_ALERT_A_N

M_ACT_A_N

M_PARITY_A

VCC_DDR

R93

470R/4

C69 X_0.1u16X4

close Pin58

VCC_DDR

DIMMA1A

51

DQS17P

52

DQS17N

132

DQS16P

133

DQS16N

121

DQS15P

122

DQS15N

110

DQS14P

111

DQS14N

99

DQS13P

100

DQS13N

40

DQS12P

41

DQS12N

29

DQS11P

30

DQS11N

18

DQS10P

19

DQS10N

7

DQS9P

8

DQS9N

197

DQS8P

196

DQS8N

278

DQS7P

277

DQS7N

267

DQS6P

266

DQS6N

256

DQS5P

255

DQS5N

245

DQS4P

244

DQS4N

186

DQS3P

185

DQS3N

175

DQS2P

174

DQS2N

164

DQS1P

163

DQS1N

153

DQS0P

152

DQS0N

218

CK1P

219

CK1N

74

CK0P

75

CK0N

235

C2

237

S3_N_C1

93

S2_N_C0

89

S1_N

84

S0_N

203

CKE1

60

CKE0

91

ODT-1

87

ODT-0

199

CB-7

54

CB-6

192

CB-5

47

CB-4

201

CB-3

56

CB-2

194

CB-1

49

CB-0

58

RESET_N

78

EVENT_N

208

ALERT_N

62

ACT_N

222

PAR

230

SAVE_N_NC

144

RFU-0

205

RFU-1

227

RFU-2

DDR4-288P_BLACK-RH-9

4

280

DQ-63

135

DQ-62

273

DQ-61

128

DQ-60

282

DQ-59

137

DQ-58

275

DQ-57

130

DQ-56

269

DQ-55

124

DQ-54

262

DQ-53

117

DQ-52

271

DQ-51

126

DQ-50

264

DQ-49

119

DQ-48

258

DQ-47

113

DQ-46

251

DQ-45

106

DQ-44

260

DQ-43

115

DQ-42

253

DQ-41

108

DQ-40

247

DQ-39

102

DQ-38

240

DQ-37

95

DQ-36

249

DQ-35

104

DQ-34

242

DQ-33

97

DQ-32

188

DQ-31

43

DQ-30

181

DQ-29

36

DQ-28

190

DQ-27

45

DQ-26

183

DQ-25

38

DQ-24

177

DQ-23

32

DQ-22

170

DQ-21

25

DQ-20

179

DQ-19

34

DQ-18

172

DQ-17

27

DQ-16

166

DQ-15

21

DQ-14

159

DQ-13

14

DQ-12

168

DQ-11

23

DQ-10

161

DQ-9

16

DQ-8

155

DQ-7

10

DQ-6

148

DQ-5

3

DQ-4

157

DQ-3

12

DQ-2

150

DQ-1

5

DQ-0

207

BG-1

63

BG-0

224

BA-1

81

BA-0

234

A17

82

A16_RAS_N

86

A15_CAS_N

228

A14_WE_N

232

A13

65

A12

210

A11

225

A10

66

A9

68

A8

211

A7

69

A6

213

A5

214

A4

71

A3

216

A2

72

A1

79

A0

141

SCL

285

SDA

238

SA-2

140

SA-1

139

SA-0

DIMM1(CHANNEL-A) ADDRESS = 0:0 [SA1:SA0]

4

M_DATA_A63 M_DATA_A62 M_DATA_A61 M_DATA_A60 M_DATA_A59 M_DATA_A58 M_DATA_A57 M_DATA_A56

M_DATA_A55

M_DATA_A54 M_DATA_A53 M_DATA_A52 M_DATA_A51 M_DATA_A50 M_DATA_A49 M_DATA_A48 M_DATA_A47

M_DATA_A46

M_DATA_A45 M_DATA_A44 M_DATA_A43 M_DATA_A42 M_DATA_A41 M_DATA_A40

M_DATA_A39 M_DATA_A38 M_DATA_A37 M_DATA_A36 M_DATA_A35 M_DATA_A34 M_DATA_A33 M_DATA_A32

M_DATA_A31

M_DATA_A30

M_DATA_A29

M_DATA_A28

M_DATA_A27

M_DATA_A26

M_DATA_A25 M_DATA_A24

M_DATA_A23

M_DATA_A22 M_DATA_A21 M_DATA_A20 M_DATA_A19 M_DATA_A18 M_DATA_A17 M_DATA_A16

M_DATA_A15

M_DATA_A14 M_DATA_A13 M_DATA_A12 M_DATA_A11

M_DATA_A10

M_DATA_A9 M_DATA_A8

M_DATA_A7

M_DATA_A6 M_DATA_A5 M_DATA_A4 M_DATA_A3 M_DATA_A2 M_DATA_A1 M_DATA_A0

M_BG_A_1 M_BG_A_0

M_BA_A_1 M_BA_A_0

M_MAA_A16 M_MAA_A15 M_MAA_A14 M_MAA_A13 M_MAA_A12 M_MAA_A11 M_MAA_A10 M_MAA_A9 M_MAA_A8 M_MAA_A7 M_MAA_A6 M_MAA_A5 M_MAA_A4 M_MAA_A3 M_MAA_A2 M_MAA_A1 M_MAA_A0

SMBCLK_VCC SMBDATA_VCC

M_BG_A_1 [4] M_BG_A_0 [4]

M_BA_A_1 [4] M_BA_A_0 [4]

M_MAA_A[16..0]

SMBCLK_VCC [9,12] SMBDATA_VCC [9,12]

3

M_DATA_A[63..0] [4]

M_MAA_A[16..0] [4]

DIMM1_EVENT

3

R99 240R1%4

VCC_DDR

2

MICRO-STAR INT'L CO.,LTD

MSI

Size Document Description Rev

Custom

2

DDR4 SLOT-DIMM1

Tuesday, March 17, 2020

1

MS-7C89

1

Sheet ofDate:

8 65

1.0

5

D D

M_DQS_B_DP7[4] M_DQS_B_DN7[4]

M_DQS_B_DP6[4] M_DQS_B_DN6[4]

M_DQS_B_DP5[4] M_DQS_B_DN5[4]

M_DQS_B_DP4[4]

C C

B B

A A

M_DQS_B_DN4[4]

M_DQS_B_DP3[4] M_DQS_B_DN3[4]

M_DQS_B_DP2[4] M_DQS_B_DN2[4]

M_DQS_B_DP1[4] M_DQS_B_DN1[4]

M_DQS_B_DP0[4] M_DQS_B_DN0[4]

M_CK_B_DP1[4] M_CK_B_DN1[4]

M_CK_B_DP0[4] M_CK_B_DN0[4]

M_CS#_B1[4] M_CS#_B0[4]

M_CKE_B1[4] M_CKE_B0[4]

M_ODT_B1[4] M_ODT_B0[4]

DRAM_RESET#[8,12]

M_ALERT_B_N[4]

M_ACT_B_N[4]

M_PARITY_B[4]

VCC_DDR

DIMMB1A

51

DQS17P

52

DQS17N

132

DQS16P

133

DQS16N

121

DQS15P

122

DQS15N

110

DQS14P

111

DQS14N

99

DQS13P

100

DQS13N

40

DQS12P

41

DQS12N

29

DQS11P

30

DQS11N

18

DQS10P

19

DQS10N

7

DQS9P

8

DQS9N

197

DQS8P

196

M_DQS_B_DP7 M_DQS_B_DN7

M_DQS_B_DP6 M_DQS_B_DN6

M_DQS_B_DP5 M_DQS_B_DN5

M_DQS_B_DP4 M_DQS_B_DN4

M_DQS_B_DP3 M_DQS_B_DN3

M_DQS_B_DP2 M_DQS_B_DN2

M_DQS_B_DP1 M_DQS_B_DN1

M_DQS_B_DP0 M_DQS_B_DN0

M_CK_B_DP1 M_CK_B_DN1

M_CK_B_DP0 M_CK_B_DN0

DRAM_RESET#

DIMM2_EVENT M_MAA_B0

M_ALERT_B_N

M_ACT_B_N

M_PARITY_B

DQS8N

278

DQS7P

277

DQS7N

267

DQS6P

266

DQS6N

256

DQS5P

255

DQS5N

245

DQS4P

244

DQS4N

186

DQS3P

185

DQS3N

175

DQS2P

174

DQS2N

164

DQS1P

163

DQS1N

153

DQS0P

152

DQS0N

218

CK1P

219

CK1N

74

CK0P

75

CK0N

235

C2

237

S3_N_C1

93

S2_N_C0

89

S1_N

84

S0_N

203

CKE1

60

CKE0

91

ODT-1

87

ODT-0

199

CB-7

54

CB-6

192

CB-5

47

CB-4

201

CB-3

56

CB-2

194

CB-1

49

CB-0

58

RESET_N

78

EVENT_N

208

ALERT_N

62

ACT_N

222

PAR

230

SAVE_N_NC

144

RFU-0

205

RFU-1

227

RFU-2

DDR4-288P_BLACK-RH-9

4

280

DQ-63

135

DQ-62

273

DQ-61

128

DQ-60

282

DQ-59

137

DQ-58

275

DQ-57

130

DQ-56

269

DQ-55

124

DQ-54

262

DQ-53

117

DQ-52

271

DQ-51

126

DQ-50

264

DQ-49

119

DQ-48

258

DQ-47

113

DQ-46

251

DQ-45

106

DQ-44

260

DQ-43

115

DQ-42

253

DQ-41

108

DQ-40

247

DQ-39

102

DQ-38

240

DQ-37

95

DQ-36

249

DQ-35

104

DQ-34

242

DQ-33

97

DQ-32

188

DQ-31

43

DQ-30

181

DQ-29

36

DQ-28

190

DQ-27

45

DQ-26

183

DQ-25

38

DQ-24

177

DQ-23

32

DQ-22

170

DQ-21

25

DQ-20

179

DQ-19

34

DQ-18

172

DQ-17

27

DQ-16

166

DQ-15

21

DQ-14

159

DQ-13

14

DQ-12

168

DQ-11

23

DQ-10

161

DQ-9

16

DQ-8

155

DQ-7

10

DQ-6

148

DQ-5

3

DQ-4

157

DQ-3

12

DQ-2

150

DQ-1

5

DQ-0

207

BG-1

63

BG-0

224

BA-1

81

BA-0

234

A17

82

A16_RAS_N

86

A15_CAS_N

228

A14_WE_N

232

A13

65

A12

210

A11

225

A10

66

A9

68

A8

211

A7

69

A6

213

A5

214

A4

71

A3

216

A2

72

A1

79

A0

141

SCL

285

SDA

238

SA-2

140

SA-1

139

SA-0

DIMM3(CHANNEL-B) ADDRESS = 1:0 [SA1:SA0]

M_DATA_B63 M_DATA_B62

M_DATA_B61

M_DATA_B60 M_DATA_B59 M_DATA_B58 M_DATA_B57

M_DATA_B56

M_DATA_B55

M_DATA_B54

M_DATA_B53

M_DATA_B52 M_DATA_B51

M_DATA_B50

M_DATA_B49

M_DATA_B48 M_DATA_B47

M_DATA_B46

M_DATA_B45 M_DATA_B44

M_DATA_B43

M_DATA_B42

M_DATA_B41

M_DATA_B40 M_DATA_B39

M_DATA_B38 M_DATA_B37 M_DATA_B36 M_DATA_B35

M_DATA_B34

M_DATA_B33 M_DATA_B32 M_DATA_B31

M_DATA_B30

M_DATA_B29

M_DATA_B28 M_DATA_B27 M_DATA_B26 M_DATA_B25

M_DATA_B24

M_DATA_B23

M_DATA_B22

M_DATA_B21 M_DATA_B20

M_DATA_B19

M_DATA_B18 M_DATA_B17

M_DATA_B16 M_DATA_B15

M_DATA_B14 M_DATA_B13

M_DATA_B12 M_DATA_B11

M_DATA_B10

M_DATA_B9

M_DATA_B8

M_DATA_B7 M_DATA_B6 M_DATA_B5

M_DATA_B4

M_DATA_B3 M_DATA_B2 M_DATA_B1

M_DATA_B0

M_BG_B_1 M_BG_B_0

M_BA_B_1 M_BA_B_0

M_MAA_B16 M_MAA_B15 M_MAA_B14 M_MAA_B13 M_MAA_B12 M_MAA_B11 M_MAA_B10 M_MAA_B9 M_MAA_B8 M_MAA_B7 M_MAA_B6 M_MAA_B5 M_MAA_B4 M_MAA_B3 M_MAA_B2 M_MAA_B1

SMBCLK_VCC SMBDATA_VCC

DDR_SPD

M_DATA_B[63..0]

M_BG_B_1 [4] M_BG_B_0 [4]

M_BA_B_1 [4] M_BA_B_0 [4]

M_MAA_B[16..0]

SMBCLK_VCC [8,12] SMBDATA_VCC [8,12]

3

M_DATA_B[63..0] [4]

M_MAA_B[16..0] [4]

DIMM2_EVENT

R100 240R1%4

VCC_DDR

2

1

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

DDR4 SLOT-DIMM2

1

Sheet ofDate:

9 65

1.0

5

Vinafix.com

DIMMA1C

1

12V3_NC_1

145

12V3_NC_145

DDR_SPD

D D

C C

B B

VPP25

VTT_DDR

DIMM0_CA_VREF_A

284

VDDSPD

142

VPP-1

143

VPP-2

286

VPP-3

287

VPP-4

288

VPP-5

77

VTT-1

221

VTT-2

146

VREFCA

X3

X2

X1

DDR4-288P_BLACK-RH-9

DIMMA1B

2

VSS-93

4

VSS-92

6

VSS-91

9

VSS-90

11

VSS-89

13

VSS-88

15

VSS-87

17

VSS-86

20

VSS-85

22

VSS-84

24

VSS-83

26

VSS-82

28

VSS-81

31

VSS-80

33

VSS-79

35

VSS-78

37

VSS-77

39

VSS-76

42

VSS-75

44

VSS-74

46

VSS-73

48

VSS-72

50

VSS-71

53

VSS-70

55

VSS-69

57

VSS-68

94

VSS-67

96

VSS-66

98

VSS-65

101

VSS-64

103

VSS-63

105

VSS-62

107

VSS-61

109

VSS-60

112

VSS-59

114

VSS-58

116

VSS-57

118

VSS-56

120

VSS-55

123

VSS-54

125

VSS-53

127

VSS-52

129

VSS-51

131

VSS-50

134

VSS-49

136

VSS-48

138

VSS-47

DDR4-288P_BLACK-RH-9

VDD-0 VDD-1 VDD-2 VDD-3 VDD-4 VDD-5 VDD-6 VDD-7 VDD-8

VDD-9 VDD-10 VDD-11 VDD-12 VDD-13 VDD-14 VDD-15 VDD-16 VDD-17 VDD-18 VDD-19 VDD-20 VDD-21 VDD-22 VDD-23 VDD-24 VDD-25

VSS-46 VSS-45 VSS-44 VSS-43 VSS-42 VSS-41 VSS-40 VSS-39 VSS-38 VSS-37 VSS-36 VSS-35 VSS-34 VSS-33 VSS-32 VSS-31 VSS-30 VSS-29 VSS-28 VSS-27 VSS-26 VSS-25 VSS-24 VSS-23 VSS-22 VSS-21 VSS-20 VSS-19 VSS-18 VSS-17 VSS-16 VSS-15 VSS-14 VSS-13 VSS-12 VSS-11 VSS-10

VSS-9 VSS-8 VSS-7 VSS-6 VSS-5 VSS-4 VSS-3 VSS-2 VSS-1 VSS-0

236 233 231 229 226 223 220 217 215 212 209 206 204 92 90 88 85 83 80 76 73 70 67 64 61 59

147 149 151 154 156 158 160 162 165 167 169 171 173 176 178 180 182 184 187 189 191 193 195 198 200 202 239 241 243 246 248 250 252 254 257 259 261 263 265 268 270 272 274 276 279 281 283

VCC_DDR

4

DIMM0_CA_VREF_A

VPP25

3

C246 0.1u16X4

C23 2.2u6.3X4 C101 22u6.3X6 C22 0.1u16X4

VCC_DDR

C102 0.22u16X4

VTT_DDR

VCC_DDR

0.1uFx1 per dimm

VTT_DDR

C110

C113

0.1u16X4

4.7u10X6

C146 22u6.3X6 C140 22u6.3X6

C122 1u6.3X4 C72 1u6.3X4

C71 0.1u16X4 C142 0.1u16X4

2

DIMM0_CA_VREF_A

C27 X_0.1u16X4

VCC_DDR

F3

VCC3 DDR_SPD

DT CRB VCC3 Server CRB VPP

DDR_SPD

CPU_VREF_CA0_A

R27 2R1%4

C10

0.022u25X4

R18

24.9R1%4

1 2

F-SPR-P260T-2.6A

C227 0.1u16X4

DIMM0_CA_VREF_A

C17

0.1u16X4

1

VCC_DDR

R46 1K1%4

R34 1K1%4

PDG

C33 X_0.1u16X4



,

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

DDR4-POWER/GND-1

1

Sheet ofDate:

10 65

1.0

5

4

3

2

1

DIMMB1C

1

12V3_NC_1

145

12V3_NC_145

DDR_SPD

D D

C C

B B

VPP25

VTT_DDR

DIMM0_CA_VREF_B

284

VDDSPD

142

VPP-1

143

VPP-2

286

VPP-3

287

VPP-4

288

VPP-5

77

VTT-1

221

VTT-2

146

VREFCA

X3

X2

X1

DDR4-288P_BLACK-RH-9

DIMMB1B

2

VSS-93

4

VSS-92

6

VSS-91

9

VSS-90

11

VSS-89

13

VSS-88

15

VSS-87

17

VSS-86

20

VSS-85

22

VSS-84

24

VSS-83

26

VSS-82

28

VSS-81

31

VSS-80

33

VSS-79

35

VSS-78

37

VSS-77

39

VSS-76

42

VSS-75

44

VSS-74

46

VSS-73

48

VSS-72

50

VSS-71

53

VSS-70

55

VSS-69

57

VSS-68

94

VSS-67

96

VSS-66

98

VSS-65

101

VSS-64

103

VSS-63

105

VSS-62

107

VSS-61

109

VSS-60

112

VSS-59

114

VSS-58

116

VSS-57

118

VSS-56

120

VSS-55

123

VSS-54

125

VSS-53

127

VSS-52

129

VSS-51

131

VSS-50

134

VSS-49

136

VSS-48

138

VSS-47

DDR4-288P_BLACK-RH-9

VDD-10 VDD-11 VDD-12 VDD-13 VDD-14 VDD-15 VDD-16 VDD-17 VDD-18 VDD-19 VDD-20 VDD-21 VDD-22 VDD-23 VDD-24 VDD-25

VSS-46 VSS-45 VSS-44 VSS-43 VSS-42 VSS-41 VSS-40 VSS-39 VSS-38 VSS-37 VSS-36 VSS-35 VSS-34 VSS-33 VSS-32 VSS-31 VSS-30 VSS-29 VSS-28 VSS-27 VSS-26 VSS-25 VSS-24 VSS-23 VSS-22 VSS-21 VSS-20 VSS-19 VSS-18 VSS-17 VSS-16 VSS-15 VSS-14 VSS-13 VSS-12 VSS-11 VSS-10

VSS-9 VSS-8 VSS-7 VSS-6 VSS-5 VSS-4 VSS-3 VSS-2 VSS-1 VSS-0

VDD-0

VDD-1

VDD-2

VDD-3

VDD-4

VDD-5

VDD-6

VDD-7

VDD-8

VDD-9

VCC_DDR

236 233 231 229 226 223 220 217 215 212 209 206 204 92 90 88 85 83 80 76 73 70 67 64 61 59

147 149 151 154 156 158 160 162 165 167 169 171 173 176 178 180 182 184 187 189 191 193 195 198 200 202 239 241 243 246 248 250 252 254 257 259 261 263 265 268 270 272 274 276 279 281 283

VPP25

DIMM0_CA_VREF_B

C241 0.1u16X4 C247 0.1u16X4

C25 2.2u6.3X4 C28 0.1u16X4

VCC_DDR

C90 0.22u16X4

0.1uFx1 per dimm

VTT_DDR

C111

0.1u16X4

VTT_DDR

C100

4.7u10X6

VCC_DDR

C57 22u6.3X6 C132 22u6.3X6 C188 22u6.3X6 C169 22u6.3X6 C145 22u6.3X6 C36 22u6.3X6

C42 1u6.3X4 C74 1u6.3X4 C160 1u6.3X4 C141 1u6.3X4 R50

C144 0.1u16X4 R41 C151 0.1u16X4

DIMM0_CA_VREF_B

VCC_DDR

C30 X_0.1u16X4

CPU_VREF_CA0_B

C24

0.022u25X4

24.9R1%4

DIMM0_CA_VREF_B

R44 2R1%4

C26

0.1u16X4

VCC_DDR

R49 1K1%4

1K1%4

PDG

C31 X_0.1u16X4



,

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

DDR4-POWER/GND-2

1

Sheet ofDate:

11 65

1.0

5

Vinafix.com

SERIRQ & PIRQA# PDG An external Pull-up is required

R518 X_10K/4

VCC3

R512 10K/4

3VSB

R519 X_10K/4

VCC3

R515 10K/4

3VSB

2020.03.04 Remove LFRAME_CS0_N RSVD pull-up PDG Output & CRD no RSVD & B365 unstuff

D D

3VSB

R429 1K/4 R418 1K/4

R355 3.9K/4 R371 3.9K/4

LANPHY USE by SPEC

R513 499R1%4 R514 499R1%4

3VSB

PCH_PSON#_SIO[25]

R516 1K/4 R430 1K/4

R398 10K/4 R395 10K/4 R348 X_10K/4

R415 X_10K/4 R412 X_10K/4 R349 10K/4

C C

B B

for S0ix

3VDSW

SERIRQ

PIRQA#

2019.12.24LPC Pull-upSIO

SMBCLK_VSB_R SMBDATA_VSB_R

SMBCLK_VSB_PCH SMBDATA_VSB_PCH

SMLINK0_CLK SMLINK0_DATA

SMLINK1_CLK SMLINK1_DATA

GPP_H18 GPP_H17 GPP_H16

R397 0R/4

R414 X_10K/4

ID

PCH_PSON#

LPC_ESPI_IO0_R[25] LPC_ESPI_IO1_R[25] LPC_ESPI_IO2_R[25] LPC_ESPI_IO3_R[25]



KBRST#[25]

LFRAME_CS0_N[25]

LDRQ#_RST_N[25]

SMBCLK_VSB_R[19,20,57] SMBDATA_VSB_R[19,20,57]

B460

4

LPC : 39R . ESPI : 33R.(default)

LPC_ESPI_IO0_R LPC_ESPI_IO1_R LPC_ESPI_IO2_R LPC_ESPI_IO3_R

SERIRQ[25]

LFRAME_CS0_N SERIRQ

PIRQA# KBRST#

ME_TLS_ON[18]

SMLINK0_CLK[31] SMLINK0_DATA[31]

LPC_ESPI_SEL[18]

PCH_SML1ALERT#[18]

PCH_GP10_DVGA[59] SATA_PCIE_DET0[22]

BIOS_SEL_PCIESATA1[22]

BIOS_DIS_SW1[22]

CPUFAN1_MODE[27]

SYSFAN1_MODE[27]

PCH_GP20_DEVICE[59] PCH_GP21_DCPU[59] PCH_GP22_DDRAM[59]

PCH_SPI_CLK[44]

PCH_SPI_IO2[18,44] PCH_SPI_IO3[18,44] PCH_SPI_MISO[18,44] PCH_SPI_MOSI[18,44]

PCH_SPI_CS0#[44]

PCH_SPI_CS2#[44]

R422 0R/4 R423 0R/4 R433 0R/4 R431 0R/4

R391 X_0R/4

R356 X_0R/4 R372 X_0R/4

GPP_H12[18]

LPC_ESPI_IO0 LPC_ESPI_IO1 LPC_ESPI_IO2 LPC_ESPI_IO3

ESPI_RST#

SMBCLK_VSB_PCH SMBDATA_VSB_PCH ME_TLS_ON

SMLINK0_CLK SMLINK0_DATA LPC_ESPI_SEL

SMLINK1_CLK SMLINK1_DATA PCH_SML1ALERT#

GPP_H12

GPP_H16 GPP_H17 GPP_H18

PCH_PSON#

PCH_SPI_CLK

PCH_SPI_IO2 PCH_SPI_IO3 PCH_SPI_MISO PCH_SPI_MOSI

PCH_SPI_CS0#

PCH_SPI_CS2#

PCH1A

AR15

GPP_A1 / LAD0 / ESPI_IO0

AY15

GPP_A2 / LAD1 / ESPI_IO1

AV17

GPP_A3 / LAD2 / ESPI_IO2

BE14

GPP_A4 / LAD3 / ESPI_IO3

BF14

GPP_A5 / LFRAME# / ESPI_CS0#

BC13

GPP_A6 / SERIRQ / ESPI_CS1#

AY13

GPP_A7 / PIRQA# / ESPI_ALERT0#

AU15

GPP_A0 / RCIN# / ESPI_ALERT1#

BF16

GPP_A14/SUS_STAT#/ESPI_RESET#

BE38

GPP_C0 / SMBCLK

BC42

GPP_C1 / SMBDATA

BE41

GPP_C2 / SMBALERT#

BE37

GPP_C3 / SML0CLK

BC33

GPP_C4 / SML0DATA

BC35

GPP_C5 / SML0ALERT#

BC43

GPP_C6 / SML1CLK

BF38

GPP_C7 / SML1DATA

BA22

GPP_B23 / SML1ALERT# / PCHHOT#

BE32

GPP_H10 / SML2CLK

AU31

GPP_H11 / SML2DATA

BF33

GPP_H12 / SML2ALERT#

BE33

GPP_H13 / SML3CLK

AV31

GPP_H14 / SML3DATA

BD33

GPP_H15 / SML3ALERT#

BD36

GPP_H16 / SML4CLK

BF32

GPP_H17 / SML4DATA

BF34

GPP_H18 / SML4ALERT#

AY45

GPP_C16 / I2C0_SDA

AY33

GPP_C17 / I2C0_SCL

AY35

GPP_C18 / I2C1_SDA

AW44

GPP_C19 / I2C1_SCL

AY31

GPP_H19 / ISH_I2C0_SDA

BE36

GPP_H20 / ISH_I2C0_SCL

BF37

GPP_H21 / ISH_I2C1_SDA

BF36

GPP_H22 / ISH_I2C1_SCL

BG34

GPP_H23 / PS_ON#

AU2

CL_CLK

AU4

CL_DATA

AW2

CL_RST#

BE29

SPI0_CLK

BF26

SPI0_IO2

BD27

SPI0_IO3

BE27

SPI0_MISO

BF27

SPI0_MOSI

BF28

SPI0_CS0#

BA27

SPI0_CS1#

AY27

SPI0_CS2#

H410

3

GPD6 / SLP_A#

GPD4 / SLP_S3#

LPC

GPP_A13 / SUSWARN# / SUSPWRDNACK

SMB

Power

GPD5 / SLP_S4#

GPD10 / SLP_S5#

GPP_B12 / SLP_S0#

GPD11 / LANPHYPC

GPD9 / SLP_WLAN#

GPP_A15 / SUSACK#

GPD8 / SUSCLK

DSW_PWROK

PCH_PWROK SYS_PWROK

PROCPWRGD

Management

DRAM_RESET#

SYS_RESET#

PLTRST_PROC#

GPP_B13 / PLTRST#

GPD3 / PWRBTN#

GPD2 / LAN_WAKE#

GPP_A11 /PME#

GPD1 / ACPRESENT

GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLDOFF#

STRAP

SPI JTAG

GPD0 / BATLOW#

GPP_A8 / CLKRUN#

INTRUDER#

GPP_B14 / SPKR

GPP_B18 / GSPI0_MOSI GPP_B22 / GSPI1_MOSI

ITP_PMODE

PCH_TRIGIN

PCH_TRIGOUT

CPU_TRST#

SLP_SUS#

SLP_LAN#

RTCRST#

SRTCRST#

RSMRST#

WAKE#

PECI

THRMTRIP#

PM_DOWN

PM_SYNC

JTAG_TCK JTAG_TMS

JTAG_TDI

JTAG_TDO

JTAGX

PREQ# PRDY#

SLP_SUS#

BF10 BE13

SLP_S3#

BA11

SLP_S4#

BF13 BB7 BE24

SLP_LAN#

AV11

LAN_DISABLE#

BC11

BA9

BF17

SUSWARN#

BD17

SUSACK# PCH_SUSCLK

AV13

BD4

DPWROK PCH_PWROK

BE4

CHIP_PWGD

AW3

CPU_PWRGD

AL2

BE8

RTCRST#

BF8

SRTCRST# SIO_RSMRST#

BG5

DRAM_RESET#

BD10

FP_RST#

AV3 AK3

CPURST#

BD24

BC5

PWRBTN#

PCH_WAKE#_R

BE9

LANPHY_WAKE#_R

BE10

SB_PME#

BF15

ME_DIS#

BD13 BF11

BATLOW#

BD15

BA15

CLKRUN#

AK4

2020/02/26 Remove PECI for no space

PCH_THERMTRIP_R

AH4 AH2

SYNC_R

AH3

BF9

INTRUDER#

AU24

NO_REBOOT

BE26 AR24

2020.03.09 Remove TP

AN1 AP4 AP2 AN3 AP3 AR2

CPU_OUTPUT_TRIGGER

AJ2

PCH_TRIGOUT

AL1

CPU_PREQ

AU3

CPU_PRDY

AR1

XDP_TRST

AV2

2

SLP_LAN# [31] LAN_DISABLE# [31]

CP4 X_COPPER

PCH_SUSCLK [23]

R451 0R/4 R442 0R/4

ME_DIS# [18]

R290 620R1%4

R288 30R/4

TP5

R297 30R/4

SLP_SUS# [25]

SLP_S3# [25,49..51,55] SLP_S4# [25,43,51..53]

SLP_S0# [25]

2019.08.28 change GPD1

for S0ix

DPWROK [55] PCH_PWROK [55] CHIP_PWGD [25,44,58] CPU_PWRGD [3]

SIO_RSMRST# [25,44,55] DRAM_RESET# [8,9] FP_RST# [56] CPURST# [3] PLTRST# [25]

PWRBTN# [25]

PCH_WAKE# [19,20,22,23,55] LANPHY_WAKE# [31,55]

PCH_THERMTRIP [3] CPU_PM_DOWN [3]

CPU_PM_SYNC [3]

SPKR [56]

XDP_TMS [3] XDP_TDI [3] XDP_TDO [3] XDP_TCK [3]

CPU_OUTPUT_TRIGGER [3]

CPU_INPUT_TRIGGER [3] CPU_PREQ [3]

CPU_PRDY [3]

XDP_TRST [3]

1

PCH LANPHY PWR

Pull Down PCH PHY into low power state. For No Use intel Lan

LAN_DISABLE#

PCH_WAKE#_R

LANPHY_WAKE#_R

BATLOW# ME_DIS#

PWRBTN#

PWRBTN# DEEP MODE: Pull up 3VSB DSW MODE:Pull up 3VDSW

R511 X_10K/4

CLKRUN# SB_PME#

internal pull-up

CPU_PM_DOWN

SUSACK# PWRBTN#

FP_RST#

R517 10K/4

R424 X_10K/4 R369 3K1%4

R329 1K/4

R289 X_1.5K1%4

R510 X_10K/4

R441 1K/4 R421 X_4.7K/4

R420 10K/4 R428 10K/4

R368 X_3K1%4

3VDSW

3VSB

VCC3

R214 X_3.9K/4 R219 X_3.9K/4

VBAT_PCH

RTC

R463 100K1%4

3VSB

R217 10K/4

G2

D1

G1

Q50 2N7002D

S1

R439 20K1%4

VBAT_PCH

A A

R438 20K1%4

SRTCRST#

C400

1u16X6

2018.05/17 Robert maill

C399 1u16X6

2018.05/17 Robert maill

5

RTCRST# [24,25,43]

CFL CRB

PCH_PWROK

4

+12V

VR93 X_0R/4

Q49

2N7002

Q52

2N7002

SMBCLK_VSB_PCH

D

R216

G

X_0R/4

S

SMBDATA_VSB_PCH

D

R220

G

X_0R/4

S

SMBCLK_VCC [8,9]

VR94 X_0R/4R459 22R/4

SMBDATA_VCC [8,9]

3

R215 10K/4

D2

S2

R266 0R/4

R265 0R/4

SMBCLK_VCC SMBDATA_VCC

SIO_MSCL0_VSB [25]

SMBCLK_VSB [28]

SIO_MSDA0_VSB [25]

SMBDATA_VSB [28]

Chassis Intrusion

VBAT_PCH

R440 1M1%4

JCI1

2

INTRUDER#

1

H1X2M_BLACK

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

2

Tuesday, March 17, 2020

MS-7C89

PCH-LPC/SPI/SMBUS/MISC

Sheet ofDate:

1

12 65

1.0

5

4

3

2

1

PCH_CLK

LPC : 39R . ESPI : 33R.(default)

Close to PCH

3VSB

C402 15p50N6

32.768KHZ12.5p_S

C401 15p50N6

R492 0R/4

24M_OUT

C518 22p50N4

R39310K/4

R417X_10K/4

Y3

R493 1M1%4

1 2

24MHZ12p

CLKREQ#5

CLKREQ#12

D D

C C

RTCX2

12

R390 10M/6

< 1 inch

RTCX1

SMD

24M_IN

XTAL_24M_PCH_OUT

XTAL_24M_PCH_IN

R494 39R/4

C519 22p50N4

PDG

Y1

34

CLK_SIO_PCI[25]

C406 X_10p25N4

PGD page87

PCH_CLK5_1P0

XCLK_BIASREF < 1000 mil

To I219

To M.2_1 To PCI_E1 x16 Slot

To WIFI

To PCI_E1 x16 Slot

VCC3

R50810K/4

CLKREQ#1

R31910K/4

CLKREQ#3

R50510K/4

CLKREQ#6

R40010K/4

CLKREQ#12

To PCI_E2 x1 Slot

>500~1000mil

R432 22R/4

R495 2.7K1%4

CLKREQ#1[31]

CLKREQ#3[22]

CLKREQ#5[23]

CLKREQ#6[19]

CLKREQ#12[20]

CLK_PCH_LPC0

RTCX1

RTCX2

XTAL_24M_PCH_IN

XTAL_24M_PCH_OUT

XCLK_BIASREF

CLKREQ#1

CLKREQ#3

CLKREQ#5

CLKREQ#6

CLKREQ#12

PCH1E

BE15

GPP_A9 / CLKOUT_LPC0 / ESPI_CLK

AY17

GPP_A10 / CLKOUT_LPC1

BC17

GPP_A16 / CLKOUT_48

BF7

RTCX1

BG7

RTCX2

E1

XTAL24_IN

A5

XTAL24_OUT

F1

XCLK_BIASREF

BE22

GPP_B5 / SRCCLKREQ0#

BA24

GPP_B6 / SRCCLKREQ1#

BA19

GPP_B7 / SRCCLKREQ2#

BE23

GPP_B8 / SRCCLKREQ3#

BD22

GPP_B9 / SRCCLKREQ4#

BF23

GPP_B10 / SRCCLKREQ5#

AR29

GPP_H0 / SRCCLKREQ6#

AU27

GPP_H1 / SRCCLKREQ7#

BG30

GPP_H2 / SRCCLKREQ8#

BF30

GPP_H3 / SRCCLKREQ9#

BD29

GPP_H4 / SRCCLKREQ10#

BE31

GPP_H5 / SRCCLKREQ11#

AY29

GPP_H6 / SRCCLKREQ12#

AV29

GPP_H7 / SRCCLKREQ13#

BD31

GPP_H8 / SRCCLKREQ14#

BF31

GPP_H9 / SRCCLKREQ15#

H410

LPC

RTC

24MHZ

CLK_REQ

CLKOUT_CPUBCLK_P CLKOUT_CPUBCLK_N

CLKOUT_CPUNSSC_P CLKOUT_CPUNSSC_N

CLKOUT_CPUPCIBCLK_P CLKOUT_CPUPCIBCLK_N

CLKOUT_ITPXDP_P CLKOUT_ITPXDP_N

CLKOUT_PCIE_P0 CLKOUT_PCIE_N0 CLKOUT_PCIE_P1 CLKOUT_PCIE_N1 CLKOUT_PCIE_P2 CLKOUT_PCIE_N2 CLKOUT_PCIE_P3 CLKOUT_PCIE_N3 CLKOUT_PCIE_P4 CLKOUT_PCIE_N4

CLKOUT_PCIE_P5 CLKOUT_PCIE_N5 CLKOUT_PCIE_P6 CLKOUT_PCIE_N6 CLKOUT_PCIE_P7 CLKOUT_PCIE_N7 CLKOUT_PCIE_P8 CLKOUT_PCIE_N8 CLKOUT_PCIE_P9

CLKOUT_PCIE_N9 CLKOUT_PCIE_P10 CLKOUT_PCIE_N10

CLKOUT_PCIE_P11 CLKOUT_PCIE_N11 CLKOUT_PCIE_P12 CLKOUT_PCIE_N12 CLKOUT_PCIE_P13 CLKOUT_PCIE_N13 CLKOUT_PCIE_P14 CLKOUT_PCIE_N14 CLKOUT_PCIE_P15 CLKOUT_PCIE_N15

PCH_CPU_BCLK_DP

H1

PCH_CPU_BCLK_DN

H2

PCH_CPU_NSSC_CLK_DP

G2

PCH_CPU_NSSC_CLK_DN

G1

PCH_CPU_PCIE_DP

J2

PCH_CPU_PCIE_DN

J3

L3 L2

P7 P5

CLK_LAN1_DP

M5

CLK_LAN1_DN

M7 G7 H7

CLK_M2_1_DP

K5

CLK_M2_1_DN

K7 E4 E3

CLK_WIFI_DP

C6

CLK_WIFI_DN

C5

CLK_PE1_DP

T7

CLK_PE1_DN

T8 V7 V5 Y11 Y10 M1 M2 P2 P3

T3 T2

CLK_PE2_DP

U2

CLK_PE2_DN

U1 AA5 Y7 R2 R3 T11 T13

PCH_CPU_BCLK_DP [3] PCH_CPU_BCLK_DN [3]

PCH_CPU_NSSC_CLK_DP [3] PCH_CPU_NSSC_CLK_DN [3]

PCH_CPU_PCIE_DP [3] PCH_CPU_PCIE_DN [3]

CLK_LAN1_DP [31] CLK_LAN1_DN [31]

CLK_M2_1_DP [22] CLK_M2_1_DN [22]

CLK_WIFI_DP [23] CLK_WIFI_DN [23] CLK_PE1_DP [19] CLK_PE1_DN [19]

CLK_PE2_DP [20] CLK_PE2_DN [20]

To LAN-I219 Chip

To M.2_1 Slot

To PCI_E1 x1 Slot

R506X_10K/4

R320X_10K/4

0326: Add Reserve R562 For 300 Series Update

0327: Add Reserve R569 For 300 Series Update

B B

CLKREQ#3

R509X_10K/4

CLKREQ#1

0326: Add Reserve R3287 For 300 Series Update

PCH_AUDIO

PCH_CPU_AUD_SCLK[3]

A A

5

CLKREQ#6

R425X_10K/4

CLKREQ#5

PCH1D

AZ_SDIN0[29]

AZ_SDOUT_R[18]

AZ_SDOUT[29]

AZ_BITCLK[29]

AZ_RST#[29]

AZ_SYNC[29]

PCH_CPU_AUD_SDO[3]

PCH_CPU_AUD_SDI[3]

AZ_SDIN0

R370 33R/4

R351 33R/4

R357 33R/4

R385 33R/4

R305 30R/4

R302 30R/4

AZ_SDOUT_R

AZ_BITCLK_R

AZ_RST#_R

AZ_SYNC_R

PCH_CPU_AUD_SCLK_R

PCH_CPU_AUD_SDO_R

4

BA2

HDA_SDI0

BB1

HDA_SDI1

BC3

HDA_SDO

BB3

HDA_BCLK

BC1

HDA_RST#

BG6

HDA_SYNC

AM2

DISPA_BCLK

AM3

DISPA_SDO

AN2

DISPA_SDI

AP36

GPP_D5 / I2S0_SFRM

AU43

GPP_D6 / I2S0_TXD

AV44

GPP_D7 / I2S0_RXD

AU42

GPP_D8 / I2S0_SCLK

AP42

GPP_D17 / DMIC_CLK1

AN43

GPP_D18 / DMIC_DATA1

AP38

GPP_D19 / DMIC_CLK0

AM43

GPP_D20 / DMIC_DATA0

H410

AUDIO

PORT B

GPP_I5 / DDPB_CTRLCLK

GPP_I6 / DDPB_CTRLDATA

GPP_I0 / DDPB_HPD0

PORT C

GPP_I7 / DDPC_CTRLCLK

GPP_I8 / DDPC_CTRLDATA

GPP_I1 / DDPC_HPD1

PORT D

GPP_I9 / DDPD_CTRLCLK

GPP_I10 / DDPD_CTRLDATA

GPP_I2 / DDPD_HPD2

eDP

GPP_F19 / eDP_VDDEN

GPP_F20 / eDP_BKLTEN

GPP_F21 / eDP_BKLTCTL

GPP_I4 / EDP_HPD

GPP_I3 / DDPE_HPD3

3

HDMI_DDPB_CTRLCLK

AW5

HDMI_DDPB_CTRLDATA

AV7

HDMI_DDPB_HPD

AP7

DVI_DDPC_CTRLCLK

AT5

DVI_DDPC_CTRLDATA

BA6

DVI_DDPC_HPD

AT8

DSP_DDPD_CTRLCLK

AY1

DSP_DDPD_CTRLDATA

AY2

DSP_DDPD_HPD

AP8

AC42

AE35

AE36

EDP_HPD_R

BA1

DDPE_HPD

AT7

HDMI_DDPB_HPD [32]

DVI_DDPC_CTRLCLK [33] DVI_DDPC_CTRLDATA [33]

DVI_DDPC_HPD [33]

DSP_DDPD_HPD [34]

R352 100K1%4

R507 10K/4

HDMI_DDPB_CTRLCLK [32] HDMI_DDPB_CTRLDATA [32]

2

2020.03.05 layout swap

DVI_DDPC_CTRLCLK DVI_DDPC_CTRLDATA HDMI_DDPB_CTRLCLK HDMI_DDPB_CTRLDATA

DSP_DDPD_CTRLCLK DSP_DDPD_CTRLDATA

DDI interfaace Disable no connect

1 3 5 7

R350 2.2K/4 R337 2.2K/4

Port B HDMI

Port C DVI,HDMI2.0 OR Others

Port D DisplayPort to VGA

MICRO-STAR INT'L CO.,LTD

MSI

Size Document Description Rev

Custom

PCH-Clock/Audio

Tuesday, March 17, 2020

RN2

2 4 6 8

8P4R-2.2K/6

MS-7C89

1

VCC3

Sheet ofDate:

13 65

1.0

5

4

3

2

1

DMI_TXP0[5]

DMI_TXN0[5]

DMI_TXP1[5]

DMI_TXN1[5]

D D

DMI_TXP2[5]

DMI_TXN2[5]

DMI_TXP3[5]

DMI_TXN3[5]

DMI_TXP0 DMI_TXN0 DMI_TXP1 DMI_TXN1 DMI_TXP2 DMI_TXN2 DMI_TXP3 DMI_TXN3

H410 Not support

PE4_LAN_RXP[31]

PE4_LAN_RXN[31]

PE5_M2_RXP_SW[22]

PE5_M2_RXN_SW[22]

PE6_M2_RXP[22]

PE6_M2_RXN[22]

PE7_M2_RXP[22]

PE7_M2_RXN[22]

PE8_M2_RXP[22]

PE8_M2_RXN[22]

PE11_WIFI_RXP[23]

PE11_WIFI_RXN[23]

PE12_X1_RX[20]

C C

B B

PE12_X1_RX#[20]

SATA_RX0[21]

SATA_RX0#[21]

SATA_RX1[21]

SATA_RX1#[21]

SATA_RX2[21]

SATA_RX2#[21]

SATA_RX3_SW[22]

SATA_RX3#_SW[22]

DEVSLP0[22]

DEVSLP0

PCH1B

N27

DMI_RXP0

L27

DMI_RXN0

G24

DMI_RXP1

E24

DMI_RXN1

E26

DMI_RXP2

G27

DMI_RXN2

K29

DMI_RXP3

L29

DMI_RXN3

E15

PCIE1_RXP / USB3_7_RXP

G15

PCIE1_RXN / USB3_7_RXN

G17

PCIE2_RXP / USB3_8_RXP

E17

PCIE2_RXN / USB3_8_RXN

K17

PCIE3_RXP / USB3_9_RXP

L17

PCIE3_RXN / USB3_9_RXN

G19

PCIE4_RXP / USB3_10_RXP

E19

PCIE4_RXN / USB3_10_RXN

L19

PCIE5_RXP

K19

PCIE5_RXN

E22

PCIE6_RXP

G22

PCIE6_RXN

K22

PCIE7_RXP

L22

PCIE7_RXN

L24

PCIE8_RXP

K24

PCIE8_RXN

H31

PCIE9_RXP / SATA0A_RXP

G31

PCIE9_RXN / SATA0A_RXN

E29

PCIE10_RXP / SATA1A_RXP

G29

PCIE10_RXN / SATA1A_RXN

K31

PCIE11_RXP

L31

PCIE11_RXN

G33

PCIE12_RXP

E33

PCIE12_RXN

E35

PCIE13_RXP / SATA0B_RXP

G35

PCIE13_RXN / SATA0B_RXN

G37

PCIE14_RXP / SATA1B_RXP

E37

PCIE14_RXN / SATA1B_RXN

C42

PCIE15_RXP / SATA2_RXP

E41

PCIE15_RXN / SATA2_RXN

E43

PCIE16_RXP / SATA3_RXP

D42

PCIE16_RXN / SATA3_RXN

K39

PCIE17_RXP / SATA4_RXP

J41

PCIE17_RXN / SATA4_RXN

M41

PCIE18_RXP / SATA5_RXP

M39

PCIE18_RXN / SATA5_RXN

P41

PCIE19_RXP / SATA6_RXP

P39

PCIE19_RXN / SATA6_RXN

P36

PCIE20_RXP / SATA7_RXP

P38

PCIE20_RXN / SATA7_RXN

T41

PCIE_21_RXP

T39

PCIE_21_RXN

V36

PCIE_22_RXP

V35

PCIE_22_RXN

V41

PCIE_23_RXP

V39

PCIE_23_RXN

Y41

PCIE_24_RXP

Y39

PCIE_24_RXN

AL44

GPP_E4 / DEVSLP0

AL45

GPP_E5 / DEVSLP1

AK44

GPP_E6 / DEVSLP2

AF44

GPP_F5 / DEVSLP3

AG41

GPP_F6 / DEVSLP4

AH39

GPP_F7 / DEVSLP5

AH36

GPP_F8 / DEVSLP6

AF45

GPP_F9 / DEVSLP7

AE43

GPP_F13 / SDATAOUT0

AE44

GPP_F12 / SDATAOUT1

AH35

GPP_F11 / SLOAD

AE30

GPP_F10 / SCLOCK

H410

DMI

PCIE1_TXP / USB3_7_TXP PCIE1_TXN / USB3_7_TXN PCIE2_TXP / USB3_8_TXP PCIE2_TXN / USB3_8_TXN PCIE3_TXP / USB3_9_TXP

PCIE3_TXN / USB3_9_TXN PCIE4_TXP / USB3_10_TXP PCIE4_TXN / USB3_10_TXN

PCIE

PCIE9_TXP / SATA0A_TXP

PCIE9_TXN / SATA0A_TXN PCIE10_TXP / SATA1A_TXP PCIE10_TXN / SATA1A_TXN

PCIE13_TXP / SATA0B_TXP PCIE13_TXN / SATA0B_TXN PCIE14_TXP / SATA1B_TXP PCIE14_TXN / SATA1B_TXN

PCIE15_TXP / SATA2_TXP PCIE15_TXN / SATA2_TXN PCIE16_TXP / SATA3_TXP PCIE16_TXN / SATA3_TXN

PCIE17_TXP / SATA4_TXP PCIE17_TXN / SATA4_TXN PCIE18_TXP / SATA5_TXP PCIE18_TXN / SATA5_TXN PCIE19_TXP / SATA6_TXP PCIE19_TXN / SATA6_TXN PCIE20_TXP / SATA7_TXP PCIE20_TXN / SATA7_TXN

GPP_E0 / SATAXPCIE0 / SATAGP0 GPP_E1 / SATAXPCIE1 / SATAGP1 GPP_E2 / SATAXPCIE2 / SATAGP2 GPP_F0 / SATAXPCIE3 / SATAGP3 GPP_F1 / SATAXPCIE4 / SATAGP4 GPP_F2 / SATAXPCIE5 / SATAGP5 GPP_F3 / SATAXPCIE6 / SATAGP6 GPP_F4 / SATAXPCIE7 / SATAGP7

DMI_TXP0 DMI_TXN0 DMI_TXP1 DMI_TXN1 DMI_TXP2 DMI_TXN2 DMI_TXP3 DMI_TXN3

PCIE5_TXP PCIE5_TXN PCIE6_TXP PCIE6_TXN PCIE7_TXP PCIE7_TXN PCIE8_TXP PCIE8_TXN

PCIE11_TXP PCIE11_TXN PCIE12_TXP PCIE12_TXN

PCIE_21_TXP PCIE_21_TXN PCIE_22_TXP PCIE_22_TXN PCIE_23_TXP PCIE_23_TXN PCIE_24_TXP PCIE_24_TXN

PCIE_RCOMPP PCIE_RCOMPN

GPP_E8 / SATALED#

DMI_RXP0

C27

DMI_RXN0

D27

DMI_RXP1

A28

DMI_RXN1

B27

DMI_RXP2

C28

DMI_RXN2

B28

DMI_RXP3

B29

DMI_RXN3

C29

B18 A18 C19 B19

H410 Not support

C20 B20 A21 B21

C22 D22 A23 B22 B23 C23 B24 C24

C31 D31 A32 B31

H410 Not supportH410 Not support

B32 C32 B33 C33

B36 C36 B37 A37 B38 C38 A39 B39

F45 E45 G44 G45 H45 H44 J44 J43

K44 K43 L44 L43 N45 N44 P44 P43

PCIECOMP_P

C10

PCIECOMP_N

B10

AM36 AM35 AM38 AK36 AK33 AK38 AH43 AE42

7C89

AJ44

R468 10K/4

R238 100R1%4



DMI_RXP0 [5] DMI_RXN0 [5] DMI_RXP1 [5] DMI_RXN1 [5] DMI_RXP2 [5] DMI_RXN2 [5] DMI_RXP3 [5] DMI_RXN3 [5]

PE4_LAN_TXP [31] PE4_LAN_TXN [31]

PE5_M2_TXP_SW [22]

PE5_M2_TXN_SW [22]

PE6_M2_TXP [22]

PE6_M2_TXN [22]

PE7_M2_TXP [22]

PE7_M2_TXN [22]

PE8_M2_TXP [22]

PE8_M2_TXN [22]

PE11_WIFI_TXP [23] PE11_WIFI_TXN [23]

PE12_X1_TX [20] PE12_X1_TX# [20]

SATA_TX0 [21]

SATA_TX0# [21]

SATA_TX1 [21]

SATA_TX1# [21]

SATA_TX2 [21]

SATA_TX2# [21]

SATA_TX3_SW [22]

SATA_TX3#_SW [22]

PGD page87



BIOS Keep GPO HIGH

PCH_SATA_LED# [56]

VCC3

To LAN-I219 Chip

To M.2_1

3VSB

To WIFI

To PCIE X1

To SATA1

To SATA2

To SATA3

To SATA4

PCIECOMP_P PCIECOMP_N

Length Match < 5mil

SATAXPCIE0-PE9 SATAXPCIE1-PE10 SATAXPCIE2-PE15 SATAXPCIE3-PE16 SATAXPCIE4-PE17 SATAXPCIE5-PE18 0--PCIE 1--SATA

MB_USB30_RX1+[38]

MB_USB30_RX1-[38]

MB_USB30_RX2+[38]

MB_USB30_RX2-[38]

MB_USB30_RX3+[37]

MB_USB30_RX3-[37]

MB_USB30_RX4+[37]

MB_USB30_RX4-[37]

R501 10K/4

R281 10K/4 R287 10K/4 R282 10K/4

H410 Not support

OC#0[38]

OC#1[37]

OC#2[39]

OC#4[36]

OC#3

OC#5 OC#6

OC#7

R502 0R/4

R499

10K/4

R500

113R1%4

USB2_COMP < 1000 mil

PGD page87

OC#0

OC#1

OC#2

OC#3

OC#4

OC#5

OC#6

OC#7

USB2_ID

U2_VBUSE

USB2_COMP

PCH1C

A7

USB3_1_RXP

B7

USB3_1_RXN

B8

USB3_2_SSIC_1_RXP

C8

USB3_2_SSIC_1_RXN

A9

USB3_3_SSIC_2_RXP

B9

USB3_3_SSIC_2_RXN

G11

USB3_4_RXP

E11

USB3_4_RXN

G13

USB3_5_RXP

E13

USB3_5_RXN

K15

USB3_6_RXP

H15

USB3_6_RXN

AJ43

GPP_E9 / USB_OC0#

AH44

GPP_E10 / USB_OC1#

AM39

GPP_E11 / USB_OC2#

AK42

GPP_E12 / USB_OC3#

AD43

GPP_F15 / USB_OC4#

AC44

GPP_F16 / USB_OC5#

AH42

GPP_F17 / USB_OC6#

AC43

GPP_F18 / USB_OC7#

AG2

USB2_ID

AE10

USB2_VBUSSENSE

AG3

USB2_COMP

H410

USB3

USB2

USB3_1_TXP

USB3_1_TXN USB3_2_SSIC_1_TXP USB3_2_SSIC_1_TXN USB3_3_SSIC_2_TXP USB3_3_SSIC_2_TXN

USB3_4_TXP

USB3_4_TXN

USB3_5_TXP

USB3_5_TXN

USB3_6_TXP

USB3_6_TXN

USB2P_1 USB2N_1 USB2P_2 USB2N_2 USB2P_3 USB2N_3 USB2P_4 USB2N_4

USB2P_5 USB2N_5 USB2P_6 USB2N_6 USB2P_7 USB2N_7 USB2P_8 USB2N_8

USB2P_9

USB2N_9 USB2P_10 USB2N_10 USB2P_11 USB2N_11 USB2P_12 USB2N_12

USB2P_13 USB2N_13 USB2P_14 USB2N_14

C13 D13 A14 B13 C14 B14 C15 B15 B16 A16 D17

H410 Not support

C17

AH7 AH5 AE7 AE5 AH10 AH8 AE3 AE2

AC3 AC2 AF1 AF2 AB1 AB2 AM7 AM8

Y2 Y3 AK7 AK8 W1 W2 AD2 AD3

V2 V3 AK13 AK11

MB_USB30_TX1+ [38] MB_USB30_TX1- [38] MB_USB30_TX2+ [38] MB_USB30_TX2- [38] MB_USB30_TX3+ [37] MB_USB30_TX3- [37] MB_USB30_TX4+ [37] MB_USB30_TX4- [37]

MB_USB_1D+ [38] MB_USB_1D- [38] MB_USB_2D+ [38] MB_USB_2D- [38] MB_USB_3D+ [37] MB_USB_3D- [37] MB_USB_4D+ [37] MB_USB_4D- [37]

MB_USB_5D+ [41] MB_USB_5D- [41]

MB_USB_7D+ [23] MB_USB_7D- [23] MB_USB_8D+ [57] MB_USB_8D- [57]

MB_USB_9D+ [36] MB_USB_9D- [36] MB_USB_10D+ [36] MB_USB_10D- [36]

H410 Not support

HUB GL850

USB1

JUSB2

USB1

JUSB2

WIFI+BT

MCU

JUSB1

LAN_USB1

PS2_USB1

0

1

2

4

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

PCH-DMI/PCIE/USB/SATA

Sheet ofDate:

1

14 65

1.0

5

Vinafix.com

4

3

2

1

GPP_G11GPP_G22GPP_G21

H410M PRO 0 0

PCH1F

BE17

GPP_A17 / ISH_GP7

PCB_ID

BD19

GPP_A18 / ISH_GP0

BE18

GPP_A19 / ISH_GP1

BF19

GPP_A20 / ISH_GP2

BF18

GPP_A21 / ISH_GP3

BG16

GPP_A22 / ISH_GP4

BE19

GPP_A23 / ISH_GP5

AY22

GPP_B0

AV19

GPP_B1

BG21

GPP_B2 / VRALERT#

BF21

GPP_B3 / CPU_GP2

BF22

GPP_B4 / CPU_GP3

AR17

GPP_B11

AV22

GPP_B15 / GSPI0_CS#

AY24

GPP_B16 / GSPI0_CLK

BG25

GPP_B17 / GSPI0_MISO

BF25

GPP_B19 / GSPI1_CS#

BF24

GPP_B20 / GSPI1_CLK

AP24

GPP_B21 / GSPI1_MISO

BA39

GPP_C8 / UART0_RXD

BG39

GPP_C9 / UART0_TXD

BF39

GPP_C10 / UART0_RTS#

BC45

GPP_C11 / UART0_CTS#

BB45

GPP_C12 / UART1_RXD / ISH_UART1_RXD

BA44

GPP_C13 / UART1_TXD / ISH_UART1_TXD

BA45

GPP_C14 / UART1_RTS# / ISH_UART1_RTS#

BA35

GPP_C15 / UART1_CTS# / ISH_UART1_CTS#

AY44

GPP_C20 / UART2_RXD

BA33

GPP_C21 / UART2_TXD

AW43

GPP_C22 / UART2_RTS#

AW42

GPP_C23 / UART2_CTS#

AV41

GPP_D0 / SPI1_CS#

AY39

GPP_D1 / SPI1_CLK

BB44

GPP_D2 / SPI1_MISO

AV43

GPP_D3 / SPI1_MOSI

AU44

GPP_D4 / ISH_I2C2_SDA / ISH_I2C3_SDA

AT45

GPP_D9 / ISH_SPI_CS#

AV39

GPP_D10 / ISH_SPI_CLK

AT38

GPP_D11 / ISH_SPI_MISO

AT41

GPP_D12 / ISH_SPI_MOSI

AP44

GPP_D13 / ISH_UART0_RXD / I2C2_SDA

AP43

GPP_D14 / ISH_UART0_TXD / I2C2_SCL

AT44

GPP_D15 / ISH_UART0_RTS#

AT39

GPP_D16 / ISH_UART0_CTS#

AM44

GPP_D21

AM42

GPP_D22

AN44

GPP_D23 / ISH_I2C2_SCL / ISH_I2C3_SCL

AP17

TP1

AU19

TP2

H410

GPIO

D D

3VSB

R394 1K/4

PCB_ID

R426 100K/4

C C

B B

3VSB

R437 X_10K/4

PCH_MCU_LED_RST#

100K/4

2020/02/26 Remove GPP_B20 ,7C89 no use for p-code disable function

G

WIFI_BTDIS#[23]

LED_RST#

D

Q72

S

2N7002R436

WIFI_BTDIS#

PCH_MCU_LED_RST#

LED_RST# [57]

PLN_EN[22]

GPP_E3 / CPU_GP0 GPP_E7 / CPU_GP1

GPP_F14 GPP_F22 GPP_F23

GPP_G0 GPP_G1 GPP_G2 GPP_G3 GPP_G4 GPP_G5 GPP_G6 GPP_G7 GPP_G8

GPP_G9 GPP_G10 GPP_G11

GPP_G12 / GSXDOUT

GPP_G13 / GSXSLOAD

GPP_G14 / GSXDIN

GPP_G15 / GSXRESET#

GPP_G16 / GSXCLK

GPP_G17 / ADR_COMPLETE

GPP_G18 / NMI# GPP_G19 / SMI#

GPP_G20 GPP_G21 GPP_G22 GPP_G23

GPD7 / RSVD

RSVD-0 RSVD-1 RSVD-2 RSVD-3 RSVD-4 RSVD-5 RSVD-6 RSVD-7 RSVD-8

RSVD-9 RSVD-10 RSVD-11 RSVD-12 RSVD-13 RSVD-14 RSVD-15 RSVD-16 RSVD-17 RSVD-18 RSVD-19 RSVD-20

GPP_E3

AP41 AK43

AD44 AB45 AE39

AA43 AB44 AC36 T44 AC33 V43 Y42 AA44 W44 Y44 AC35

GPP_G11

AC41 AC39 Y36 Y43 U44 T43 V42 U45 R43 Y35

GPP_G21

AC30

GPP_G22

R45 R44

2019.11.19 GPP_G23 for TBT RTD3

BG11

V11 V13 AC13 AF17 AG17 AH14 AH16 M33 N33 AU22 P27 T27 T33 T35 N29 P29 T24 P24 AP29 BF1 BG2

GPP_E3 [49,50]

USB_MODE [43]

For JSPI1

GPP_G9 [44]

H410M-A PRO

BIOS Select USE

R498 10K/4 R253 10K/4 R269 10K/4

USB_MODE

0

GPP_G21 GPP_G22 GPP_G11

R268 X_10K/4

R267 10K/4

0

R497 X_10K/4 R254 X_10K/4 R270 X_10K/4

3VSB

0

1

3VSB

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

PCH-GPIO/RSVD

1.0

15 65

1.0

Sheet ofDate:

1

5

4

3

2

1

3VSB VBAT_PCHVCC3

3VSB

C529

0.1u16X4

C528 1u6.3X4

C533 0.1u16X4

C534 1u6.3X4

C532 0.1u16X4

PCH_1VSB PCH_CLK5_1P0

R496 0R/6

D D

PCH_1VSB

C522 22u6.3X6

C523 22u6.3X6

CLOSE TO V21.V23.V25.V26.V28.V29

C C

R249 0R/6

PCH_1VSB PCH_1VSB

C517 X_0.1u16X4

B B

C520 0.1u16X4

C521 22u6.3X6

CLOSE TO K1.K2

C524 1u6.3X4

C525 1u6.3X4

PCH_PCIE_MPHY_PLL_1P0PCH_1VSB

C331 1u6.3X4

C332 22u6.3X6

C333 22u6.3X6

CLOSE TO C44.C45.A43.B43

PCH_1VSB

PCH_CLK5_1P0

PCH_1VSB

PCH_PCIE_MPHY_PLL_1P0

PCH_1VSB

PCH_PCIE_MPHY_PLL_1P0

VCCDSW_1P05

C527 1u6.3X4

C516 X_0.1u16X4

PCH1G

N17

VCCCLK1

T17

VCCCLK2-0

W17

VCCCLK2-1

T19

VCCCLK3

V20

VCCCLK4

K1

VCCCLK5-0

K2

VCCCLK5-1

AK25

VCCPRIM_1P0-0

AK23

VCCPRIM_1P0-1

AK21

VCCPRIM_1P0-2

AK20

VCCPRIM_1P0-3

AF26

VCCPRIM_1P0-4

AF23

VCCPRIM_1P0-5

AD28

VCCPRIM_1P0-6

AD26

VCCPRIM_1P0-7

AD23

VCCPRIM_1P0-8

AB28

VCCPRIM_1P0-9

AB26

VCCPRIM_1P0-10

AB23

VCCPRIM_1P0-11

AA25

VCCPRIM_1P0-12

AA23

VCCPRIM_1P0-13

AM22

VCCPRIM_1P0-14

AD17

VCCPRIM_1P0-15

AE16

VCCPRIM_1P0-16

V29

VCCMPHY_1P0-0

V28

VCCMPHY_1P0-1

V26

VCCMPHY_1P0-2

V25

VCCMPHY_1P0-3

V23

VCCMPHY_1P0-4

V21

VCCMPHY_1P0-5

W28

VCCAPLLEBB_1P1

B43

VCCAMPHYPLL_1P0-0

A43

VCCAMPHYPLL_1P0-1

AM5

VCCUSB2PLL_1P0-0

AK5

VCCUSB2PLL_1P0-1

AR19

VCCHDAPLL_1P0

C45

VCCPCIE3PLL_1P0-0

C44

VCCPCIE3PLL_1P0-1

BC29

DCPDSW_1P0

H410

POWER

VCCRTC

VCCDSW_3P3

VCCPDSW_3P3

VCCPRIM_3P3-0 VCCPRIM_3P3-1 VCCPRIM_3P3-2 VCCPRIM_3P3-3

VCCHDA

VCCSPI-0 VCCSPI-1 VCCSPI-2

VCCRTCPRIM_3P3

VCCATS

VCCPGPPA

VCCPGPPBCH-0 VCCPGPPBCH-1

VCCPGPPD-0 VCCPGPPD-1 VCCPGPPD-2

VCCPGPPEF-0 VCCPGPPEF-1

VCCPGPPG

DCPRTC

BC22

Y16

BC24

AP5 BG4 BG3 BF3

BC15

BG43 BG42 BG41

BC20

AE13

0.007A

BC31

BF42 BE40

BE45 BE44 BD45

AM41 AK41

AE41

BC27

0.204A

0.171A

0.075A

0.029A

0.229A

0.078A

0.114A

0.065A

0.350mA

C530 1u6.3X4

VBAT_PCH

3VDSW

3VSB

VCC3

0.082A

3VSB

DCPRTC

C526 1u6.3X4

CLOSE TO BC31

3VSB

C531 0.1u16X4

CLOSE TO BG41.BG42.BG43CLOSE TO BC20 CLOSE TO BC22CLOSE TO AE13

3VSB

C515 X_0.1u16X4

CLOSE TO AE41

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

PCH-Power

MS-7C89

1

Sheet ofDate:

16 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

Vinafix.com

4

3

2

1

K27

PCH1H

K13

VSS-250

BG9 BG44 BG40 BG37 BG32 BG28 BG23 BG18 BG14

BF45 BF44 BF43

BE2

BE1

BD7 BD39 BD34 BD30 BD25 BD21

BD2 BD16 BD11

BD1

BC9 BC40 BC38 BB40 BA42

BA4 BA37 BA31

K11

VSS-249

J4

VSS-248

H9

VSS-247

H42

VSS-246

H4

VSS-245

H38

VSS-244

H35

VSS-243

H33

VSS-242

H29

VSS-241

H27

VSS-240

H24

VSS-239

H22

VSS-238

H19

VSS-237

H17

VSS-236

H13

VSS-235

H11

VSS-234

G9

VSS-233

G42

VSS-232

G40

VSS-231

G4

VSS-230

F6

VSS-229

F43

VSS-228

F39

VSS-227

F2

VSS-226

E8

VSS-225

E6

VSS-224

E31

VSS-223

D7

VSS-222

D45

VSS-221

D44

VSS-220

D39

VSS-219

D36

VSS-218

D35

VSS-217

D33

VSS-216

D30

VSS-215

D29

VSS-214

D25

VSS-213

D24

VSS-212

D21

VSS-211

D19

VSS-210

D16

VSS-209

D15

VSS-208

D12

VSS-207

D10

VSS-206

D1

VSS-205

C9

VSS-204

C37

VSS-203

C2

VSS-202

C1

VSS-201 VSS-200 VSS-199 VSS-198 VSS-197 VSS-196 VSS-195 VSS-194 VSS-193 VSS-192

BF5

VSS-191 VSS-190 VSS-189 VSS-188

BF2

VSS-187 VSS-186 VSS-185 VSS-184 VSS-183 VSS-182 VSS-181 VSS-180 VSS-179 VSS-178 VSS-177 VSS-176 VSS-175 VSS-174 VSS-173 VSS-172 VSS-171 VSS-170 VSS-169 VSS-168 VSS-167

H410

BA29

D D

C C

B B

L13

K45

K38

K36

K35

K33

VSS-252K3VSS-251

VSS-258K8VSS-257

VSS-256

VSS-255

VSS-254

VSS-253

VSS-166

VSS-165

VSS-164

VSS-163

VSS-162

VSS-161

VSS-160B4VSS-159

B45

B44

B41

B35

BA17

BA13

M38

M36

M11

L42

L35

L15

VSS-262L4VSS-261

VSS-260

VSS-259

N13

M4

VSS-266

VSS-265

VSS-264

VSS-263

VSS-269M9VSS-268M8VSS-267

P10

N42

N31

N24

N22

N19

N15

VSS-276

VSS-275

VSS-274

VSS-273

VSS-272

VSS-271

VSS-270

P31

P22

P19

P17

P15

P13

P12

VSS-283

VSS-282

VSS-281

VSS-280

VSS-279

VSS-278

VSS-277

R32

P42

P35

P33

VSS-290R1VSS-289P8VSS-288

VSS-287P4VSS-286

VSS-285

VSS-284

T38

T36

T32

T29

T22

T14

T10

VSS-297

VSS-296

VSS-295

VSS-294

VSS-293

VSS-292

VSS-291

V14

V10

U42

T42

VSS-304

VSS-303

VSS-302U4VSS-301T5VSS-300

VSS-299T4VSS-298

V38

V33

V32

V30

V18

V17

V16

VSS-311

VSS-310

VSS-309

VSS-308

VSS-307

VSS-306

VSS-305

W29

W26

W25

W23

W21

W20

W18

VSS-320

VSS-319

VSS-318

VSS-317

VSS-316

VSS-315

VSS-314V8VSS-313V4VSS-312

VSS

VSS-158

VSS-157B3VSS-156

VSS-155B2VSS-154

VSS-153B1VSS-152

VSS-151

VSS-150

VSS-149

VSS-148

VSS-147

VSS-146

VSS-145

VSS-144

VSS-143

VSS-142

VSS-141

VSS-140

VSS-139

VSS-138

VSS-137

VSS-136

VSS-135

VSS-134

VSS-133

VSS-132

VSS-131

VSS-130

VSS-129

VSS-128

VSS-127

VSS-126

VSS-125

VSS-124

VSS-123

VSS-122

VSS-121

VSS-120

VSS-119

VSS-118

VSS-117

VSS-116

VSS-115

VSS-114

VSS-113

VSS-112

VSS-111

VSS-110

VSS-109

VSS-108

VSS-107

VSS-106

VSS-105

VSS-104

VSS-103

VSS-102

VSS-101

VSS-100

VSS-099

VSS-098

VSS-097

B30

B25

B12

AY8

AY4

AV8

AY42

AY37

AY19

AY11

AV45

AV38

AV1

AV35

AV33

AV27

AV24

AV15

AV10

AU33

AU29

AU17

AR4

AT42

AT37

AT35

AT13

AT10

AU11

AP39

AP34

AP33

AP31

AP27

AP22

AR33

AR31

AR27

AR22

AR13

AP19

AM4

AP15

AP13

AP11

AP10

AN45

AN14

AM33

AM32

AM27

AM24

AM19

AL4

AL42

AM17

AM14

AM13

AM11

AM10

Y38

Y33

Y32

Y30

Y14

Y13

W45

VSS-324

VSS-323

VSS-322W3VSS-321

VSS-096

VSS-095

VSS-094

AK39

AK35

AK32

AM29

A12

VSS-000

VSS-085

AK10

VSS-001 VSS-002 VSS-003 VSS-004 VSS-005 VSS-006 VSS-007 VSS-008 VSS-009 VSS-010 VSS-011 VSS-012 VSS-013 VSS-014 VSS-015 VSS-016 VSS-017 VSS-018 VSS-019 VSS-020 VSS-021 VSS-022 VSS-023 VSS-024 VSS-025 VSS-026 VSS-027 VSS-028 VSS-029 VSS-030 VSS-031 VSS-032 VSS-033 VSS-034 VSS-035 VSS-036 VSS-037 VSS-038 VSS-039 VSS-040 VSS-041 VSS-042 VSS-043 VSS-044 VSS-045 VSS-046 VSS-047 VSS-048 VSS-049 VSS-050 VSS-051 VSS-052 VSS-053 VSS-054 VSS-055 VSS-056 VSS-057 VSS-058 VSS-059 VSS-060 VSS-061 VSS-062 VSS-063 VSS-064 VSS-065 VSS-066 VSS-067 VSS-068 VSS-069 VSS-070 VSS-071 VSS-072 VSS-073 VSS-074 VSS-075 VSS-076 VSS-077 VSS-078 VSS-079 VSS-080 VSS-081 VSS-082 VSS-083

VSS-084

A2 A25 A3 A30 A35 A4 A40 A41 A42 A44 A6 AA17 AA18 AA20 AA21 AA26 AA28 AA29 AB17 AB18 AB20 AB21 AB25 AB29 AB4 AB42 AC10 AC11 AC14 AC16 AC32 AC38 AC4 AC5 AC7 AC8 AD1 AD18 AD20 AD21 AD25 AD29 AD45 AE11 AE14 AE32 AE33 AE38 AE4 AE8 AF18 AF20 AF21 AF25 AF28 AF29 AF4 AF42 AG18 AG20 AG21 AG23 AG25 AG26 AG28 AG29 AH11 AH13 AH30 AH32 AH33 AH38 AJ1 AJ17 AJ18 AJ20 AJ21 AJ23 AJ25 AJ26 AJ28 AJ29 AJ45

VSS-332

VSS-331Y8VSS-330Y4VSS-329

VSS-328

VSS-327

VSS-326

VSS-325

VSS-093

VSS-092

VSS-091

VSS-090

VSS-089

VSS-088

VSS-087

VSS-086

AK30

AK29

AK28

AK26

AK18

AK17

AK16

AK14

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

PCH-GND

MS-7C89

1

Sheet ofDate:

17 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

TOP Swap

GPP_B14

2020/02/26 Follow 7C82 remove

D D

0 : DISABLE (Default) 1 : ENABLE

Internal Pull-down is disabled after PCH_PWROK is high.

No Reboot

GPP_B18

2020/02/26 Follow 7C82 remove

0 : DISABLE (Default) 1 : ENABLE

Internal Pull-down is disabled after PCH_PWROK is high.

TLS confidentiality

C C

3VSB

R399 4.7K/4

R416 X_20K1%4

0 : DISABLE 1 : ENABLE (Default)

GPP_C2

ME_TLS_ON [12]

4

DCI Enable

3VSB

R503 4.7K/4

R504 X_20K1%4

Internal Pull-down is disabled after RSMRST# de-assert.

Flash Descriptor Security Override

+12V

R427

2019.08.28 400S update remove pull-up

ME_DIS#[12]

0 : ENABLE 1 : DISABLE

0 : Enable security measures defined in the Flash Descriptor. (Default) 1 : DISABLE:Flash Descritior Decurity(Override).

47K/4

3

GPP_B23

PCH_SML1ALERT# [12]

0 : DISABLE Intel DCI-OOB(Default) 1 : ENABLE intel DCI-OOB

3VSB

G2

D1

G1

Q71 2N7002D

R444

1K/4

D2

AZ_SDOUT_R

S2

S1

AZ_SDOUT_R [13]

2

CRB

Reserved



Reserved



Reserved



3VSB

R375 1K/4

R376 X_4.7K/4

Internal Pull-up

3VSB

Internal Pull-up

3VSB

R366 X_100K/4

R379 X_4.7K/4

R343 4.7K/4

1

PCH_SPI_MOSI [12,44]

PCH_SPI_MISO [12,44]

PCH_SPI_IO2 [12,44]

Internal Pull-down is disabled after PCH_PWROK is high.

Internal Pull-up

Internal Pull-down is disabled after RSMRST# de-assert.

Boot BIOS

GPP_B22

2020/02/26 Follow 7C82 remove

B B

0 : SPI (Default) 1 : LPC

Internal Pull-down is disabled after PCH_PWROK is high.

ESPI FLASH SHARING MODE

3VSB

R396 X_4.7K/4

R413 X_20K1%4

0306: Add Pull-down For Weak Internal Pull-down.

0 : MASTER ATTACHED FLASH SHARING 1 : SLAVE ATTACHED FLASH SHARING

Internal Pull-down is disabled after RSMRST# de-assert.

GPP_H12 [12]

CRB

Reserved



3VSB

R362 X_100K/4

R378 X_4.7K/4

Internal Pull-up

PCH_SPI_IO3 [12,44]

LPC eSPI Mode

3VSB

R335 X_4.7K/4

R336 20K1%4

0 : LPC (Default) 1 : eSPI

GPP_C5

LPC_ESPI_SEL [12]

2019.12.05





LPC Mode internal pull-down

Internal Pull-down is disabled after RSMRST# de-assert.

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

PCH-Strap

MS-7C89

1

Sheet ofDate:

18 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

4

3

2

1

PCH_WAKE#

12

D7 ESD-AOZ8231ADI

20190909 400 update

D D

C C

B B

A A

CLOSE TO PCI_E1

SMBDATA_VSB_R[12,19,20,57]

EXP_A_TXP_0[5] EXP_A_TXN_0[5]

EXP_A_TXP_1[5] EXP_A_TXN_1[5]

EXP_A_TXP_2[5] EXP_A_TXN_2[5]

EXP_A_TXP_3[5] EXP_A_TXN_3[5]

EXP_A_TXP_4[5] EXP_A_TXN_4[5]

EXP_A_TXP_5[5] EXP_A_TXN_5[5]

EXP_A_TXP_6[5] EXP_A_TXN_6[5]

EXP_A_TXP_7[5] EXP_A_TXN_7[5]

EXP_A_TXP_8[5] EXP_A_TXN_8[5]

EXP_A_TXP_9[5] EXP_A_TXN_9[5]

EXP_A_TXP_10[5] EXP_A_TXN_10[5]

EXP_A_TXP_11[5] EXP_A_TXN_11[5]

EXP_A_TXP_12[5] EXP_A_TXN_12[5]

EXP_A_TXP_13[5] EXP_A_TXN_13[5]

EXP_A_TXP_14[5] EXP_A_TXN_14[5]

EXP_A_TXP_15[5] EXP_A_TXN_15[5]

SMBCLK_VSB_R[12,19,20,57]

PCH_WAKE#[12,20,22,23,55]

CLKREQ#6[13]

C274 0.22u16X4 C273 0.22u16X4

C276 0.22u16X4 C275 0.22u16X4

C277 0.22u16X4 C278 0.22u16X4

C279 0.22u16X4 C280 0.22u16X4

C281 0.22u16X4 C282 0.22u16X4

C283 0.22u16X4 C284 0.22u16X4

C285 0.22u16X4 C286 0.22u16X4

C287 0.22u16X4 C288 0.22u16X4

C289 0.22u16X4 C290 0.22u16X4

C291 0.22u16X4 C292 0.22u16X4

C293 0.22u16X4 C294 0.22u16X4

C295 0.22u16X4 C296 0.22u16X4

C297 0.22u16X4 C298 0.22u16X4

C301 0.22u16X4 C302 0.22u16X4

C303 0.22u16X4 C304 0.22u16X4

C299 0.22u16X4 C300 0.22u16X4

EXP_A_TXP_0_C EXP_A_TXN_0_C

EXP_A_TXP_1_C EXP_A_TXN_1_C

EXP_A_TXP_2_C EXP_A_TXN_2_C

EXP_A_TXP_3_C EXP_A_TXN_3_C

EXP_A_TXP_4_C EXP_A_TXN_4_C

EXP_A_TXP_5_C EXP_A_TXN_5_C

EXP_A_TXP_6_C EXP_A_TXN_6_C

EXP_A_TXP_7_C EXP_A_TXN_7_C

EXP_A_TXP_8_C EXP_A_TXN_8_C

EXP_A_TXP_9_C EXP_A_TXN_9_C

EXP_A_TXP_10_C EXP_A_TXN_10_C

EXP_A_TXP_11_C EXP_A_TXN_11_C

EXP_A_TXP_12_C EXP_A_TXN_12_C

EXP_A_TXP_13_C EXP_A_TXN_13_C

EXP_A_TXP_14_C EXP_A_TXN_14_C

EXP_A_TXP_15_C EXP_A_TXN_15_C

PCI_Express X16 Slot

X6

X1

SLOT-PCI164P

VCC3

3VSB

+12V +12V

PCI_E1

B1

12V-3

B2

12V-4

B3

RSVD5

B4

GND-35

B5

SMCLK

B6

SMDAT

B7

GND-36

B8

3.3V-3

B9

JTAG1

B10

3.3VAUX

B11

WAKE#

X2

B12

CLKREQ#

B13

GND

B14

HSOP0

B15

HSON0

B16

GND-37

B17

PRSNT2#1

B18

GND-38

B19

HSOP1

B20

HSON1

B21

GND-39

B22

GND-40

B23

HSOP2

B24

HSON2

B25

GND-41

B26

GND-42

B27

HSOP3

B28

HSON3

B29

GND-43

B30

RSVD7

B31

PRSNT2#2

B32

GND-44

B33

HSOP4

B34

HSON4

B35

GND-45

B36

GND-46

B37

HSOP5

B38

HSON5

B39

GND-47

B40

GND-48

B41

HSOP6

B42

HSON6

B43

GND-49

B44

GND-50

B45

HSOP7

B46

HSON7

B47

GND-51

B48

PRSNT2#3

B49

GND-52

B50

HSOP8

B51

HSON8

B52

GND-53

B53

GND-54

B54

HSOP9

B55

HSON9

B56

GND-55

B57

GND-56

B58

HSOP10

B59

HSON10

B60

GND-57

B61

GND-58

B62

HSOP11

B63

HSON11

B64

GND-59

B65

GND-60

B66

HSOP12

B67

HSON12

B68

GND-61

B69

GND-62

B70

HSOP13

B71

HSON13

B72

GND-63

B73

GND-64

B74

HSOP14

B75

HSON14

B76

GND-65

B77

GND-66

B78

HSOP15

B79

HSON15

B80

GND-67

B81

PRSNT2#4

B82

RSVD8

X5

PRSNT1#

12V-1

12V-2 GND-1 JTAG2 JTAG3 JTAG4 JTAG5

3.3V-1

3.3V-2

PWRGD

GND-2

REFCLK+ REFCLK-

GND-3 HSIP0 HSIN0 GND-4

RSVD1

GND-5 HSIP1 HSIN1 GND-6 GND-7 HSIP2 HSIN2 GND-8 GND-9 HSIP3 HSIN3

GND-10

RSVD2

RSVD3

GND-11

HSIP4 HSIN4

GND-12 GND-13

HSIP5 HSIN5

GND-14 GND-15

HSIP6 HSIN6

GND-16 GND-17

HSIP7 HSIN7

GND-18

RSVD4

GND-19

HSIP8 HSIN8

GND-20 GND-21

HSIP9 HSIN9

GND-22 GND-23

HSIP10

HSIN10 GND-24 GND-25

HSIP11

HSIN11 GND-26 GND-27

HSIP12

HSIN12 GND-28 GND-29

HSIP13

HSIN13 GND-30 GND-31

HSIP14

HSIN14 GND-32 GND-33

HSIP15

HSIN15 GND-34

12V - 5.5A

SMBus ESD

VCC3 - 3A

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 X3

X3

A12 A13 A14 A15 A16 A17 A18

A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32

A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49

A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80 A81 A82 X4

X4

VCC3

PCIEX16_RST#

CLK_PE1_DP [13] CLK_PE1_DN [13]

EXP_A_RXP_0 [5] EXP_A_RXN_0 [5]

EXP_A_RXP_1 [5] EXP_A_RXN_1 [5]

EXP_A_RXP_2 [5] EXP_A_RXN_2 [5]

EXP_A_RXP_3 [5] EXP_A_RXN_3 [5]

EXP_A_RXP_4 [5] EXP_A_RXN_4 [5]

EXP_A_RXP_5 [5] EXP_A_RXN_5 [5]

EXP_A_RXP_6 [5] EXP_A_RXN_6 [5]

EXP_A_RXP_7 [5] EXP_A_RXN_7 [5]

EXP_A_RXP_8 [5] EXP_A_RXN_8 [5]

EXP_A_RXP_9 [5] EXP_A_RXN_9 [5]

EXP_A_RXP_10 [5] EXP_A_RXN_10 [5]

EXP_A_RXP_11 [5] EXP_A_RXN_11 [5]

EXP_A_RXP_12 [5] EXP_A_RXN_12 [5]

EXP_A_RXP_13 [5] EXP_A_RXN_13 [5]

EXP_A_RXP_14 [5] EXP_A_RXN_14 [5]

EXP_A_RXP_15 [5] EXP_A_RXN_15 [5]

3VSB- 375mA

PCIEX16_RST# [25]

3VSB

C309 0.1u16X4

Remove 3VSB 10uF because dip cap near slot

+12V

C311

+

12

EC9

0.1u16X4

270u16V

12

D11 X_ESD-AOZ8231ADI

VCC3

C305 0.1u16X4

+

12

EC12 560u6.3V

add 20190814 for +12V noise

SMBCLK_VSB_R [12,19,20,57]

12

D12 X_ESD-AOZ8231ADI

C271

C212

X_22u16X8

SMBDATA_VSB_R [12,19,20,57]



2019.08.30

5



MSI

4

3

2

MICRO-STAR INT'L CO.,LTD

MS-7C89

Size Document Description Rev

Custom

Tuesday, March 17, 2020

MS-7C89

PCIE SLOT (X16)

Sheet ofDate:

19 65

Sheet ofDate:

19 65

Sheet ofDate:

1

19 65

1.0

5

Vinafix.com

4

3

2

1

PCIE X1

+12V +12V

PCI_E2

B1

12V

D D

SMBCLK_VSB_R[12,19,57]

SMBDATA_VSB_R[12,19,57]

CLKREQ#12[13]

PE12_X1_TX[14]

PE12_X1_TX#[14]

C C

PE12_X1_TX PE12_X1_TX#

C378 0.22u16X4 C379 0.22u16X4

SMBCLK_VSB_R SMBDATA_VSB_R

VCC3

3VSB

PCH_WAKE#[12,19,22,23,55]

PE12_X1_TX_C PE12_X1_TX#_C

B2

12V

B3

12V

B4

GND

B5

SMCLK

B6

SMDATA

B7

GND

B8

3.3V

B9

JTAG1

B10

3.3VAUX

B11

WAKE_#

B12

RSVD

B13

GND

B14

HSOP0+

B15

HSOP0-

B16

GND

B17

PRSNT2_#

B18

GND

SLOT-PCIEx1_BLACK-R

PRSNT1_#

GND JTAG2 JTAG3 JTAG4 JTAG5

3.3V

PWRGD

GND

REFCLK+ REFCLK-

GND

HSIP0+

HSIP0-

GND

A1 A2

12V

A3

12V

A4 A5 A6 A7

VCC3 A8 A9 A10 A11 X1

X1

A12 A13 A14 A15 A16 A17 A18 X2

X2

PCIEX1_RST#

CLK_PE2_DP [13]

CLK_PE2_DN [13] PE12_X1_RX PE12_X1_RX#

PCIEX1_RST# [25]

PE12_X1_RX [14] PE12_X1_RX# [14]

C3 8 2 X_0.1u16X4

C3 8 1 0.1u16X4

3VSB+12V VCC3 3VSB

C4 0 4 0.1u16X4

C403 X_10u6.3X6

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

M.2-SLOT2

MS-7C89

1.0

20 65

1.0

Sheet ofDate:

1

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

SATA Connector

4

3

2

1

D D

SATA_RX0[14] SATA_RX0#[14]

SATA_TX0#[14] SATA_TX0[14]

C C

SATA_RX2[14] SATA_RX2#[14]

SATA_TX2#[14] SATA_TX2[14]

C423 0.01u50X4 C424 0.01u50X4

C425 0.01u50X4 C426 0.01u50X4

C260 0.01u50X4 C258 0.01u50X4 C259 0.01u50X4

C252 0.01u50X4 C250 0.01u50X4

ST_RX0 ST_RX#0

ST_TX#0 ST_TX0

ST_RX2 ST_RX#2

ST_TX#2 ST_TX2

SATA1

X1

7

RX+

6

RX-

5

GND-2GND-1

4

TX-

3

TX+

2

GND-3

1

X2

SATA7PM_BLACK-P-RH-20

N5N-07M2441-L06

SATA3

X1

7

RX+

6

RX-

5

GND-2GND-1

4

TX-

3

TX+

2

GND-3

1

X2

SATA7PM_BLACK-P-RH-20

SATA2

X1

7

SATA_RX1[14] SATA_RX1#[14]

SATA_TX1#[14] SATA_TX1[14]

C427 0.01u50X4 C428 0.01u50X4

C429 0.01u50X4 C430 0.01u50X4

ST_RX1 ST_RX#1

ST_TX#1 ST_TX1

RX+

6

RX-

5

GND-2GND-1

4

TX-

3

TX+

2

GND-3

1

X2

SATA7PM_BLACK-P-RH-20

N5N-07M2441-L06

SATA4

X1

7

SATA_RX3[22] SATA_RX3#[22]

SATA_TX3#[22] SATA_TX3[22]

C263 0.01u50X4

C257 0.01u50X4 C254 0.01u50X4

ST_RX3 ST_RX#3

ST_TX#3 ST_TX3

RX+

6

RX-

5

GND-2GND-1

4

TX-

3

TX+

2

GND-3

1

X2

SATA7PM_BLACK-P-RH-20

N5N-07M2441-L06 N5N-07M2441-L06

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

SATA Connector

1.0

21 65

1.0

Sheet ofDate:

1

5

Vinafix.com

M2_1

VCC3

C325 0.1u16X4

U26

19

34

9

D D

SATA_RX3_SW[14]

From PCH

SATA_PCIE_DET0 0-PCIE 1-SATA

C C

SATA_RX3#_SW[14]

SATA_TX3_SW[14]

SATA_TX3#_SW[14]

SATA_PCIE_DET0

Default LOW

To M.2_1

PE5_M2_RXP PE5_M2_RXN

PE5_M2_TXP PE5_M2_TXN

1

A0_P

2

A0_N

5

A1_P

6

A1_N

30

SEL

10

A2_P

11

A2_N

14

A3_P

15

A3_N

GND-1

18

41

VCC-2

VCC-321VCC-426VCC-739VCC-531VCC-6

VCC-1

GND

GND-220GND-425GND-529GND-635GND-738GND-840GND-942GND-10

GND-3

22

37

B0_P

36

VCC-8

B0_N

33

B1_P

32

B1_N

3

C0_P

4

C0_N

7

C1_P

8

C1_N

28

B2_P

27

B2_N

24

B3_P

23

B3_N

12

C2_P

13

C2_N

16

C3_P

17

C3_N

43

F75480BN_QFN42-HF

4

SATA_RX3_SW_U SATA_RX3#_SW_U

SATA_TX3_SW_U SATA_TX3#_SW_U

SATA_RX3_SW_U SATA_RX3#_SW_U

SATA_TX3_SW_U SATA_TX3#_SW_U

SATA_RX3 [21] SATA_RX3# [21]

SATA_TX3 [21] SATA_TX3# [21]

PE5_M2_RXP_SW [14] PE5_M2_RXN_SW [14]

PE5_M2_TXP_SW [14] PE5_M2_TXN_SW [14]

To SATA4

From PCH

3

M2_1

1

GND-1

3

GND-2

PE8_M2_RXN[14] PE8_M2_RXP[14]

PE8_M2_TXN[14] PE8_M2_TXP[14]

PE7_M2_RXN[14] PE7_M2_RXP[14]

PE7_M2_TXN[14] PE7_M2_TXP[14]

PE6_M2_RXN[14] PE6_M2_RXP[14]

PE6_M2_TXN[14] PE6_M2_TXP[14]

PE5_M2_RXP PE5_M2_RXN

PE5_M2_TXP

CLK_M2_1_DN[13] CLK_M2_1_DP[13]

C232 0.22u16X4 C238 0.22u16X4

C243 0.22u16X4 C245 0.22u16X4

C248 0.22u16X4 C249 0.22u16X4

C253 0.22u16X4 C255 0.22u16X4

M.2_DET

PE8_M2_TXN_C PE8_M2_TXP_C

PE7_M2_TXN_C PE7_M2_TXP_C

PE6_M2_TXN_C PE6_M2_TXP_C

PE5_M2_TXN_CPE5_M2_TXN PE5_M2_TXP_C

C270

0.1u16X4

5

PERn3

7

PERp3

9

GND-3

11

PETn3

13

PETp3

15

GND-4

17

PERn2

19

PERp2

21

GND-5

23

PETn2

25

PETp2

27

GND-6

29

PERn1

31

PERp1

33

GND-7

35

PETn1

37

PETp1

39

GND-8

41

PERn0/SATA-B+

43

PERp0/SATA-B-

45

GND-9

47

PETn0/SATA-A-

PETp0/SATA-A+49PERST# (O)(0/3.3V) or N/C

51

GND-10

53

REFCLKN

55

REFCLKP

57

GND-11

67

NC-1

69

PEDET (NC-PCIe/GND-SATA)

71

GND-12

73

GND-13

75

GND-14

2

X4

MEC1

X3X3X4

MEC1

CLKREQ# (IO)(0/3.3V) or N/C PEWake# (IO)(0/3.3V) or N/C

KEY M

SUSCLK(32kHz) (O)(0/3.3V)

MEC2

X1X1X2

SLOT-NGFFCARD67P_BLACK-HF-88

X2

MEC2

3.3Vaux-1

3.3Vaux-2 NC-2 NC-3

DAS/DSS# (IO)

3.3Vaux-3

3.3Vaux-4

3.3Vaux-5

3.3Vaux-6 NC-4 NC-5 NC-6 NC-7 NC-8 NC-9

NC-10 NC-11 NC-12

DEVSLP

NC-13 NC-14 NC-15 NC-16 NC-17

NC-18 NC-19

3.3Vaux-7

3.3Vaux-8

3.3Vaux-9

2 4 6

M2_1_PLN#

8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38

DEVSLP0

40 42 44 46 48

M2_1_RST#

50 52

CLKREQ#3

M2_1_PCH_WAKE#

54 56 58

68 70 72 74

VCC3

M2_1_RST# [25]

R213 X_0R/4

VCC3

C266 22u6.3X6 C268 X_1u6.3X4 C267 0.01u50X4

C223 22u6.3X6 C244 X_1u6.3X4 C230 0.01u50X4

R467 10K/4

M2_1_DAS [56]

VCC3

C240 22u6.3X6 C236 0.01u50X4

DEVSLP0 [14]

CLKREQ#3 [13] PCH_WAKE# [12,19,20,23,55]

1

VCC3

3VSB

B B

BIOS_DIS_SW1[12]

BIOS_SEL_PCIESATA1[12]

R326 10K/4

Q68

2N7002

G

S

D

R327 100K/4

M.2_DET M.2_1_DET

VCC3

R308 10K/4

G2

D1

G1

Q66 2N7002D

S1

VCC3

R314 10K/4

D2

S2

SATA_PCIE_DET0 [12]

SATA_PCIE_DET0 0-PCIE 1-SATA

PCH_PLN_DELAY_EN L >> ENABLE

BIOS_MODE

A A

0

GPI(1) GPI(0)

GPP_H13GPP_H14 GPP_H11

BIOS_SEL_PCIESATA1BIOS_DIS_SW1

1

0

Mode

M2-SATA

M2-PCIE

AUTO

5

SATA_PCIE_DET0

1

0

4

3

R272

X_10K/4

PLN_EN[15]

R285 10K/4

C348 0.1u16X4

PWRBTIN[25,56]

PCH_PLN_DELAY_SEL L >> 2 SECONDS

H3

E2B-7B05010-RH

1

Footprint: H_R240D173_BR189_PT

2

H2

SIO_3VA

E2B-7B05010-RH

1

MSI

U30

1

VDD

4

OE#

2

IN_SCHMITT_TRIG

3

DLY_SEL

R284

SLG7NT42752VTR

10K/4

H1

E2B-7B05010-RH

1

MICRO-STAR INT'L CO.,LTD

Size Document Description Rev

Custom

M.2-SLOT1

Tuesday, March 17, 2020

OD_OUT

NC-1 NC-2

GND

7

8 6

5

MS-7C89

R257 X_10K/4

M2_1_PLN#

Sheet ofDate:

22 65

Sheet ofDate:

22 65

Sheet ofDate:

1

22 65

1.0

M2_2

5

4

3

2

950mA peak 2A

3VSB

1

D D

MB_USB_7D+

MB_USB_7D-

D8

6

1

3VSB

C320 0.1u16X4

52

ESD-AOZ8906CI

MB_USB_7D+[14]

MB_USB_7D-[14]

4

3

Near Connector

C C

ATX_5VSB

R233 47K/4

WIFI_BTDIS#

R237 47K/4

ATX_5VSB

R232 47K/4

WIFI_BTDIS#

G2

D1

G1

G2

D1

G1

Q59 2N7002D

S1

Q57 2N7002D

S1

BT_DISABLE_L#

D2

S2

WIFI_DISABLE_L#

D2

S2

3VSB

WIFI_BTDIS#[15]

B B

A A

PE11_WIFI_TXP[14]

PE11_WIFI_TXN[14]

PE11_WIFI_RXP[14]

PE11_WIFI_RXN[14]

CLK_WIFI_DP[13]

CLK_WIFI_DN[13]

H4

CLKREQ#5[13]

PCH_WAKE#[12,19,20,22,55]

E2B-7911010-RH

1

C340 0.1u16X4

C341 0.1u16X4

CLKREQ#5

PE11_WIFI_TXP_C

PE11_WIFI_TXN_C

SCREW5

M2_2

1

GND-1

3

USB_D+

5

USB_D-

7

GND-11

9

SDIO CLK

11

SDIO CMD

13

SDIO DATA0

15

SDIO DATA1

17

SDIO DATA2

19

SDIO DATA3

21

SDIO WAKE#

23

SDIO RESET#

33

GND-10

35

PETp0

37

PETn0

39

GND-9

41

PERp0

43

PERn0

45

GND-8

47

REFCLKP0

49

REFCLKN0

51

GND-7

53

CLKREQ0#

55

PEWAKE0#

57

GND-6

59

RESERVED / PETp1

61

RESERVED / PETn1

63

GND-5

65

RESERVED / PERp1

67

RESERVED / PERn1

69

GND-4

71

RESERVED / REFCLKP1

73

RESERVED / REFCLKN1

75

GND-3

KEY E

MEC2

PCM_OUT / I2S SD_OUT

UIM_POWER_SNK / CLKREQ1#

UIM_POWER_SRC/GPIO1 / PEWAKE1#

MEC1

3.3V-1

3.3V-2

LED1#

PCM_CLK / I2S SCK

PCM_SYNC / I2S WS

PCM_IN / I2S SD_IN

LED2#

GND-2

UART WAKE#

UART RXD

UART TXD

UART CTS

UART RTS

VENDOR DEFINED-1

VENDOR DEFINED-2

VENDOR DEFINED-3

COEX3

COEX2

COEX1

SUSCLK

PERST0#

W_DISABLE2#

W_DISABLE1#

I2C DATA

I2C CLK

ALERT#

RESERVED

UIM_SWP / PERST1#

3.3V-3

3.3V-4

SLOT-NGFFCARD67P_BLACK

2

4

6

8

10

12

14

16

18

20

22

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

C321 10u6.3X6

C329 1u6.3X4

C328 0.01u50X4

SUS_CLK_WIFI

WIFI_RST#

BT_DISABLE_L#

WIFI_DISABLE_L#

3VSB

C380 10u6.3X6

C370 1u6.3X4

C363 0.01u50X4

R271 33R/4

WIFI_RST# [25]

R235 3.3K/4

R229 3.3K/4

PCH_SUSCLK [12]

3VSB

SCREW

MICRO-STAR INT'L CO.,LTD

E43-1305031-P65

MSI

5

4

3

2

MICRO-STAR INT'L CO.,LTD

MS-7C89

WIFI+BT

MS-7C89

1

Sheet ofDate:

23 65

Size Document Description Rev

Custom

Tuesday, March 17, 2020

1.0

5

Vinafix.com

4

3

2

1

VBAT

SIO_3VA VBAT_PCHVBATVBAT

3VDSW

D D

R147

R145

X_0R/4

0R/4

3VDSW_BAT

Y

C186

0.1u16X4

C C

JBAT1

H1X2M_BLACK

S-BAT54C_SOT23

Close to PCH

R142 X_45.3K1%4

BH1X2-1.25PITCH_WHITE-RH-3

2 1

C197

0.1u16X4

R153

Z

X

BAT1

12

R140 1K1%4

1 2

D6 ESD-AOZ8231ADI

BAT_3V

CUT_VBAT[24,25]

RTCRST# [12,25,43]

100K/4D5

D

Q30

G

2N7002

S

U23

2

VOUT

VIN

1

GND

ON

SLG59M1557V_STDFN4-HF

C207

0.1u16X4

3

4

CRB

DCPRTC

R195

5.6K/4

CUT_VBAT

B B

A A

R175 100K/4

2020.01.08 Robert mail

5

D

G

S

Q38 2N7002

PCH_TIME

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

3

2

Tuesday, March 17, 2020

MS-7C89

VBAT Circurt

1.0

24 65

1.0

Sheet ofDate:

1

4

R176 2.2K/4

C221

0.1u16X4

CUT_VBAT[24,25]

5

Vinafix.com

CPU1_FANTAC[27]

SYS1_FANTAC[27]

SIO_RSMRST#[12,44,55]

C398 X_10p25N4

SIO_DEBUG[26]

SYSTIN[26] CPUTIN[26] SKT_TIN[26]

LED_VCC[56] LED_VSB[56]

PWRBTIN[22,56] PWRBTN#[12]

SLP_S3#[12,49..51,55] SLP_S4#[12,43,51..53]

PS_ON#[50,56]

ATX_PWR_OK[43,56]

CHIP_PWGD[12,44,58]

VCC3

R401 X_4.7K/4 R389 X_4.7K/4

R407 X_4.7K/4

3VSB

D D

ATX_5VSB

SIO_3VA

C C

VCC3

3VSB

For S0ix

Colay DSW mode default CUT VBAT

SIO_DPWROK[44,55]

PLTRST# LDRQ#_RST_N

R347 2.55K1%4 R353 1.1K1%4 C386 1u6.3X4

R325 10K/4

C371 0.1u16X4

R293 X_100K/4 R264 X_1K/4 C369 R278 1K/4

CUT_VBAT[24]

5VSB_DET

1.5V

PWRBTIN

CHIP_PWGD

CUT_VBAT SIO_DPWROK

R303 X_0R/4

PLTRST#[12]

CLK_SIO_PCI[13]

LDRQ#_RST_N[12]

SERIRQ[12] LFRAME_CS0_N[12] LPC_ESPI_IO0_R[12] LPC_ESPI_IO1_R[12] LPC_ESPI_IO2_R[12] LPC_ESPI_IO3_R[12]

CLK_SIO_PCI

SLP_SUS#_SIO CUT_VBAT

12V[26] 5V[26] CPU[26]

SYSTIN CPUTIN

SKT_TIN

SIO_CPU_FAN1

SIO_SYS1_FAN

5VSB_DET

4

12V 5V CPU

U32

ESPI/LPC Interface

13

PLTRST#

4

PCICLK/ESPI_CLK

5

LDRQ#/ESPI_RESET#

6

SERIRQ/GPIO10/ESPI_ALERT#

12

LFRAME#/ESPI_CS#

10

LAD0/ESPI_IO0

9

LAD1/ESPI_IO1

8

LAD2/ESPI_IO2

7

LAD3/ESPI_IO3

DSW Interface

45

DEBUG_PORT/GPIO05(TEST_MODE)

41

GPIO93/SLP_SUS#/3VSBSW#

33

DPWROK/GPEN16

50

VIN0/V_COMP0

51

VIN1/V_COMP1

53

VIN4

57

THR0/TD0P

56

THR1/TD1P

55

THR2/TD2P

FAN Control

63

GPIO02/PWMOUT4

64

GPIO03/TACHIN4

1

GPIO81/PWMOUT6/ICLED_OUT

2

GPIO82/TACHIN6/ICLED_PD

43

GPIO90/GRN_LED

34

GPIO95/YLW_LED

58

VIN7/ATX5VSB

49

RSMRST#/GPEN17

29

PSIN#/GPEN04

28

PSOUT#/GPEN03

32

SLP_S3#/GPEN01

40

SLP_S5#/GPEN06

31

PSON#/GPEN00

38

ATXPGD/GPEN10

39

PWROK0/GPEN14

NCT5887D-M

S0_IDLE

2019.12.24 Nick mail

Hardware Monitor

LED control

ACPI

Function

R294 100K1%4

20191008 400 update

UART SIR

(MAF_SEL)SOUTA_P80/SOUTA/GPIO25

(DIS_HWACPI)DTRA#/GPIO23

(2E_4E_SEL)RTSA#/GPIO22

CIRRX/CTSA#/GPIO20

TACHIN2/MSDA0/GPIO62

SMB

PWMOUT2/MSCL0/GPIO63

(ESPI_EN)KBRST#/GPIO11

KBC

Function

S0ix(FW)

SLP_S0# PCH_PSON#

S0_IDLE#

SYS3VSB/GPIO60

GPEN11/RSTOUT0#

GPIO67/CASEOPEN0#

Power Pin

FAN_EN

FAN_EN [27]

D

Q48

G

2N7002

S

3

RIA#/GPIO27

DCDA#/GPIO26

SINA/GPIO24

DSRA#/GPIO21

MCLK MDAT KCLK KDAT

MLED/GPIO92

PECI/ADMSID

GPIO87/AMDSIC

VTT

VBAT

3VSB 3VCC

VHIF

PAD_CAP

AVSB VREF

VSS

AGND

22

RIA#

21

DCDA#

20

SOUTA

19

SINA

18

DTRA#

17

RTSA#

16

DSRA#

15

CTSA#

36 35

14 24

MSCLK

25

MSDAT

26

KBCLK

27

KBDAT

42 46 37

PECI_IO

62

SIO_PROCHOT#

60

FAST_BOOT

48

61 47

23 3 11

PAD_CAP

30

52 54

44 59

GNDHM

3VSB VCC3

2019.10.22 Robert mail

RIA# [26] DCDA# [26]

SOUTA [26]

SINA [26]

DTRA# [26] RTSA# [26]

DSRA# [26] CTSA# [26]

SIO_MSDA0_VSB [12] SIO_MSCL0_VSB [12]

KBRST#

MSCLK [40] MSDAT [40] KBCLK [40] KBDAT [40]

R382 X_1K/4 C392 X_47p50N4 R374 43R/4

R275 1M1%4 C353 100p50N4

HM_VREF

AVCC3

Closed PIN 54

GNDHM [26]

SP1 X_COPPER

default used ESIO

R296 3.9KR1%4 R295 3.9KR1%4

KBRST# [12]

HM_VREF [26]

4.7u10X6

SIO_MSCL0_VSB SIO_MSDA0_VSB

SLP_S0# [12] PCH_PSON#_SIO [12]

S0_IDLE [50,54,55]

CPU_PECI [3]

SIO_PROCHOT# [3]

VBAT

VCCST_PLL BAT_3V

SIO_3VA VCC3

3VSB

(O,2.048V)

C394

0.1u16X4

R280 X_3.9KR1%4 R279 X_3.9KR1%4

2

1

POWER ON STRAPPING PIN FOR NCT5887

NAME

17

2E_4E_SEL

DIS_HWACPI

18

20

MAF_SEL

45

Test mode

NAME

14

ESPI_EN

FW

DSW_EN default disable

SEL

VCC3

R386 1K/4

R402 1K/4

VCC3

RTSA#

Circuit NAME

RTSA#

DTRA#

SOUTA

SIO_DEBUG

Circuit NAME

KBRST#

R403 X_680R/4

KBRST#

0 1

I/O ADDRESS2EI/O ADDRESS

HW ACPI enable

MAF enable

Pull down 100K

4E

HW ACPI disable

MAF disable

-

VCC3 3VA

LPC(VCC3) ESPI(3VA)

SIO_3VA

R387 X_1K/4 R388 1K/4

SIO_DEBUG

R404 680R/4

DTRA#

R405 X_680R/4

SOUTA

R291 100K1%4

Strap Point

VCC3

3VA

NA

Strap Point

VCC3 3VA

B B

SIO_WAKE

VCC3

S3S5 S0

SIO_WAKE# FAN

R32

4.7K/4

SIO_CPU_FAN1[55]

RTCRST DET

A A

RTCRST#

RTCRST#[12,24,43]

Q4

G2

D1

G1

R443 10K/4

5

2N7002D

S1

R392 10K/4

RTCRST_R

D2

S2

Q73

G2

D1

G1

CPU_FAN1_3961 [27]

SIO_3VASIO_3VA

R445

4.7K/4

SIO_SYS1_FANRTCRST_DET#

D2

S2

2N7002D

S1

R51

4.7K/4

VCC3

S3S5 S0

RTCRST_DET# FAN

Q7

G2

D1

G1

S1

2N7002D

D2

SIO_SYS1_FAN_3961 [27]

S2

4

PLTRST#

R419

4.7K/4

VCC3

3VSB

53

U34

VCC

1

A

B

GND

NC7SZ08M5

Y

2

5887D DSW SUPPORT

Colay DSW mode default DEEP mode

SLP_SUS#[12]

4

R448 22R/4

PLTRST_BU1#_R

R252 X_22K/4

3

Close to SIO

PLTRST_BU1# WIFI_RST#

5687_VSB_ENABLE

CE

B

C334 X_0.1u16X4

R453 100R1%4

R447 100R1%4

R449 100R1%4

R452 100R1%4

R454 100R1%4

R450 100R1%4

SLP_SUS#_SIO

Q61

X_2N3904

R251 X_0R/4

R277 0R/4

R292 100K1%4

PCIEX1_RST#

PCIEX16_RST#

TPM_RST#

M2_1_RST#

LAN_RST#

SIO_3VA

VSB_ENABLE#

VSB_ENABLE#[43,44,54]

R250 X_10K/4

R263 X_100K1%4

2

PCIEX1_RST# [20]

PCIEX16_RST# [19]

TPM_RST# [44]

M2_1_RST# [22]

LAN_RST# [31]

WIFI_RST# [23]

3V Analog Power

SIO_3VA

R260 0R/4

C350 0.1u16X4 C346 10u6.3X6

C354

0.1u16X4

MSI

Size Document Description Rev

Custom

C383

0.1u16X4

MICRO-STAR INT'L CO.,LTD

SIO-NCT5687-1

Tuesday, March 17, 2020

AVCC3

MS-7C89

PAD_CAP

C387 10u6.3X6

1

C366 1u6.3X4

Closed PIN1Closed PIN99 Closed PIN46,85

VCC3BAT_3V SIO_3VA

C393

0.1u16X4

Sheet ofDate:

C395 X_10u6.3X6

25 65

1.0

5

HW Monitor - Voltage

4

Thermal

3

2

1

DEBUG PORT

SIO HM Voltage Over 2V will Not Detect

2019.12.16 follow 7C70

R262 220K1%4

+12V

D D

VCC5

C C

20K1%4

R261 12K1%4

VCORE_VCC_SENSE[6,45]

R274

VCORE

12V

5V

R273 3K1%4

R258 10K1%4

R259 X_10K1%4

C352

0.1u16X4

C351

0.1u16X4

X_49.9K1%4

R304

12V [25]

5V [25]

CPU

C358 10u6.3X6

CPU [25]

Q65

B

C E

P-MMBT3906LT1G_SOT23

To PWM MOSFET

R323 10K1%4

RT1 10KRT1%4

To SYSTEM

C367

0.1u16X4

HM_VREF

CPUTIN

GNDHM

SYSTIN

SYSTIN [25]

C361 2200p50X4

GNDHM

GNDHM [25]

HM_VREF

SKT_TIN

C362

0.1u16X4

GNDHM

HM_VREF [25]

R318 10K1%4

CPUTIN [25] SKT_TIN [25]

RT2 10KRT1%4

To CPU Socket

VCC5

SIO_DEBUG SIO_DEBUG_R

SIO_DEBUG[25]

R276 100R1%4

C342

X_0.1u16X4

JDP1

1

2

3

H2X2[4]M_BLACK-RH

C407

0.1u16X4

COM Port

C422 0.1u16X4

D17 C408 X_0.1u16X4

NSOUTA NDTRA

NRTSA NCTSA# NRIA

B B

6

5

NDSRA#

7 8 9

H2X5[10]M_BLACK

N31-2051331-H06

JCOM1

1 2

NDCDA# NSINA

3 4

VCC5

NRIA RIA# NCTSA# CTSA#

NDSRA# DSRA#

NSINA SINA

NDCDA# DCDA#

RTSA# NRTSA

RTSA#[25]

DTRA# NDTRA

DTRA#[25]

SOUTA NSOUTA

SOUTA[25]

U36

20

VCC

2

RA1

3

RA2

4

RA3

7

RA4

9

RA5

16

DA1

15

DA2

13

DA3

11

GND

GD75232DBR_SSOP20-RH

VDD

DY1 DY2 DY3 VSS

+12V_COM

1 19

RY1

18

RY2

17

RY3

14

RY4

12

RY5

5 6 8

-12V_COM

10

AC

1N4148W

RIA# [25] CTSA# [25] DSRA# [25] SINA [25] DCDA# [25]

D18

A C

1N4148W

C415 0.1u16X4

+12V

-12V

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

SIO-NCT5687-2

1.0

26 65

1.0

Sheet ofDate:

1

5

Vinafix.com

4

3

TYPE M : 4 PIN CPU FAN USE NCT3961S USE PCH GPIO CONTROL FAN MODE

2

1

1.Mode GPIO BIOS can swtich PWM/DC MODE

D D

VCC3

C3 Close to U3 PIN5

From SIO

CPU_FAN1_3961[25]

INTERNAL pull up 3.3

C C

FAN_EN[25,27]

CPUFAN1_MODE[12]

2K/4

CPUFAN1_MODE

C8 10u25X8R40

C21

1u6.3X4

Default

+12V

PWM Mode : VOUT voltage follows VIN voltage DC Mode : VOUT voltage is regulated to 3.65*DCIN voltage.

GPIO Control

U5

5

1

8

6

NCT3961S

VIN

PWMIN

FON/OFF#

MODE

PWMOUT

VOUT

Fault(OD)

FAULT#/OCSET

FM(PP)

GND

FTI

2

4

CPUFAN1_FAULT

3

7

9

C_FAN1_PWM

PCH GPIO

PWM MODE

DC MODE

AUTO MODE

HIGH

LOW

GPI(Floating)

R26 100K/4

co-lay NCT3961 PIN3 can OCSET three step 10K=3.2~3.8A

49.9K=2.2~2.8A 100K=1.2~1.8A

OC SET By PM SPEC

C_FAN1_PWM

CPUFAN_PWR >40mil

C6 close to NCT3961S

VCC3

R33 100R/4

CPU_FAN1

MEC1

BH1X4B_BLACK

CPUFAN1_PWR

C9

10u25X8

+12V

R5

4 3 2 1

4.7K/4

R11 27K/4

R14 12K/4

C14

0.1u16X4

C7 close to FAN Connector

TO SIO

CPU1_FANTAC [25]

TYPE M : 4 PIN CPU FAN USE NCT3961S USE PCH GPIO CONTROL FAN MODE

1.Mode GPIO BIOS can swtich PWM/DC MODE

S_FAN1_PWM

R39 100R/4

+12V

B B

R10

SYS_FAN1

4

MEC1

3 2

VCC3

C2052 Close to U126 PIN5

R45

From SIO

SIO_SYS1_FAN_3961[25]

INTERNAL pull up 3.3

A A

FAN_EN[25,27]

SYSFAN1_MODE[12]

2K/4

SYSFAN1_MODE

C29

1u6.3X4

C6 10u25X8

Default

5

4

+12V

PWM Mode : VOUT voltage follows VIN voltage DC Mode : VOUT voltage is regulated to 3.65*DCIN voltage.

GPIO Control

U4

5

1

8

6

NCT3961S

VIN

PWMIN

FON/OFF#

MODE

PWMOUT

VOUT

Fault(OD)

FAULT#/OCSET

FM(PP)

GND

FTI

2

4

SYSFAN1_FAULT

3

7

9

S_FAN1_PWM

PCH GPIO

PWM MODE

DC MODE

AUTO MODE

HIGH

LOW

GPI(Floating)

3

SYSFAN1_PWR >40mil

C2053 close to NCT3961S

R25 100K/4

co-lay NCT3961 PIN3 can OCSET three step 10K=3.2~3.8A

49.9K=2.2~2.8A 100K=1.2~1.8A

VCC3

OC SET By PM SPEC

2

BH1X4B_BLACK

SYSFAN1_PWR

C7 10u25X8

1

4.7K/4

R13 27K/4

C13

0.1u16X4

C2051 close to FAN Connector

MICRO-STAR INT'L CO.,LTD

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

SYS1_FANTAC [25]

R16 12K/4

CPU and PUMP FAN

TO SIO

MS-7C89

1

Sheet ofDate:

27 65

1.0

5

4

3

2

1

VOLTAGE CONSOLE

0x26:RH=18K,RL=13K

D D

R211 13K1%4

C C

5VDIMM 5VDIMM

R212 18K1%4

SMBCLK_VSB[12] SMBDATA_VSB[12]

C269 0.1u16X4

U25

1

VCC

2

ADD_SEL

5

SCL

4

SDA

3

GND

NCT3933U_SOT23-8

OUT1

OUT2

OUT3

8

7

6

DDR_OV

SA_OV

VCCIO_OV

DDR_OV [52]

SA_OV [49]

VCCIO_OV [50]

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

MS-7C89

NCT3933

1.0

28 65

1.0

Sheet ofDate:

1

5

ALC892

follow PCH power well

D D

EAPD[30]

AZ_SDOUT[13]

AZ_SDIN0[13]

AZ_SYNC[13]

AZ_RST#[13]

AZ_BITCLK[13]

C C

RA15 33R/4

Closed Pin3

CA18 10u6.3X6

SENSE_B[30]

MIC2_VREFO[30]

LDOVDD

LINE2_VREFO[30]

CA17

X_0.1u16X4

Closed Pin 27

CA13

10u6.3X6

CA16

10u6.3X6

Closed PIN9

REGREF

SENSE_A SENSE_B

MIC1_V_R

MIC1_V_L

VREF

EAPD

JDREF

RA18

20K1%4

3VSB

VCC3

CA20

10u6.3X6

Closed PIN1

SDIN0

CA15

0.1u16X4

47

48

5

8 10 11

6

2

3

13 34

32 30 28 37 29 31 27 33 40

12

3VSB

CA19

0.1u16X4

1

UA1

EAPD/SPDIFI

SPDIF-OUT

SDATA-OUT SDATA-IN SYNC RESET#

BCLK

GPIO0/DMIC-CLK/SPDIF-OUT2 REGREF

SENSE A SENSE B

MIC1-VREFO-R MIC2-VREFO MIC1-VREFO-L PIN37-VREFO LDO-IN LINE2-VREFO VREF SENSE C JDREF

BEEP

9

DVDD

DVDD-IO

GPIO1/DMIC-DATA4DVSS

7

4

CA21.CA23 closed PIN25 CA14 close to PIN38

VOUT

CA21

0.1u16X4

38

25

36

FRONT-R

35

FRONT-L

LDO-OUT2

LDO-OUT1

AVSS

42

26

SURR-R

SURR-L

CENTER

LFE

SIDE-R SIDE-L

LINE1-R

LINE1-L

LINE2-R

LINE2-L

MIC1-R MIC1-L

MIC2-R

MIC2-L

CD-R

CD-GND

CD-L

AVSS

ALC892-CG-RH

41 39

43 44

46 45

24 23

15 14

22 21

17 16

20 19 18

CA23 22u6.3X6

A_LOUT_R A_LOUT_L

A_LINE_IN_R A_LINE_IN_L

A_LINE2_R A_LINE2_L

A_MIC1_R A_MIC1_L

A_MIC2_R A_MIC2_L

CA14 10u6.3X6

C91-1011041-P01

+

ECA1 100u10EL5

1 2 1 2

+

ECA3 100u10EL5

CA12 10u6.3X6 CA11 10u6.3X6

C91-1011041-P01

+

ECA4 100u10EL5

1 2 1 2

+

ECA2 100u10EL5

CA7 10u6.3X6 CA8 10u6.3X6

CA9 10u6.3X6 CA10 10u6.3X6

ALOUT_R ALOUT_L

LINE_IN_R

LINE_IN_L

LINE2_R LINE2_L

MIC1_R MIC1_L

MIC2_R MIC2_L

ALOUT_R [30] ALOUT_L [30]

LINE2_R [30] LINE2_L [30]

MIC2_R [30] MIC2_L [30]

3

LOUT_L[30] LOUT_R[30]

LOUT_R LOUT_L

LINE_IN_R LINE_IN_L

MIC1_V_L

for rear I/O 6port: 887VD/892:1k

for rear I/O 3port: 887VD/892:75R

LOUT_L LOUT_R

RA10 75R/4 RA9 75R/4

12

DA1

ESD-MLVS0402L04

D0G-2710510-I05 D0G-2710510-I05

RA6 75R/4 RA5 75R/4

CA4 100p50N4

RA7 75R/4 RA8 75R/4

100p50N4

MIC1_LA

MIC1_RAMIC1_V_R

CA1

MIC1_R MIC1_L

RA2 2.2K/4

RA1 2.2K/4

2

LOUT_RA LOUT_LA

FRONT_JD

12

DA2 ESD-MLVS0402L04

LINE_IN_RA LINE_IN_LA

LINE1_JD

CA3 100p50N4

MIC1_RA MIC1_LA

MIC1_JD

CA2 100p50N4

LIN_OUT

AUDIO1B

6 9 7 8

JACK-AUDIOX3F_PK/LIME/LIGHT BU-RH

LIN_IN

AUDIO1A

10 13 11 12

3

JACK-AUDIOX3F_PK/LIME/LIGHT BU-RH

1 5 2 4

JACK-AUDIOX3F_PK/LIME/LIGHT BU-RH

MIC1

AUDIO1C

15

14 16

17 18

D

E

F

1

LIN_IN

LIN_OUT

MIC1

N54-13F0271-K06

129mA

LDOVDD

5VDUAL

B B

LA1 0R/8

R11-0000034-W08

CA22

1 2

ESD-MLVS0402L04

CA24

0.1u16X4

CA25

10u6.3X6

Closed Codec

SENSE_A

RA13 5.1K1%4

RA12 10K1%4

RA14 20K1%4

FRONT_JD

LINE1_JD

MIC1_JD

CA6 X_0.1u16X4 CA5 X_1000p50X/4

For EMI

CPA2 X_COPPER

CPA1 X_COPPER

LOUT_RA LOUT_LA

RA4 22K/4 RA3 22K/4

CA35,CA36 close to pin29

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

AUDIO-ALC1200-1

1

Sheet ofDate:

29 65

1.0

5

Vinafix.com

MIC2_L

MIC2_R

F_LINE2_R

F_LINE2_L

RA22 75R/4

RA24 75R/4

RA26 75R/4

RA29 75R/4

MIC2_L[29]

MIC2_R[29]

SENSE_B[29]

D D

F_MIC2_L

F_MIC2_R

F_LINE2R

RA35 47R/4

F_LINE2L

HPON

CA27 1000p50X/4

4

JAUD1

1

MIC

MICPWR3PRESENCE#

5

FLINE OUTR

7

HPON

FLINE OUTL9LINE NEXT L

H2X5[8]M

N31-2051411-H06

Close to Front panel

For HDA/AC97 front cable.

GND

LINE NEXT R

3

DA4

2

LINE2_VREFO[29]

S-BAT54A

4

MIC2_JD

6

8

LINE2_JD

10

RA37

39.2K1%/4

RA34 20K1%4

MIC2_VREFO[29]

S-BAT54A

Z

DA3

Z

Y

X

Y

X

2

F_LINE2L_R

F_LINE2R_R

F_MIC_2L

F_MIC_2R

RA28 4.7K/4

RA27 4.7K/4

RA21 4.7K/4

RA23 4.7K/4

F_MIC2_L F_MIC2_R

F_LINE2L F_LINE2R

F_LINE2L

F_LINE2R

F_MIC2_L

F_MIC2_R

RA31 22K/4 RA32 22K/4

RA36 22K/4 RA33 22K/4

F_LINE2L

DA8 ESD-MLVS0402L04

F_LINE2R

DA7 ESD-MLVS0402L04

F_MIC2_R

DA6 ESD-MLVS0402L04

F_MIC2_L

DA5 ESD-MLVS0402L04

D0G-2710510-I05 Close to Front panel

ESD protect

D0G-2710510-I05 AVL:D0G-2950500-SI0

1

12

De-POP circuit

ATX_5VSB

RA16 10K/4

QA5

C C

EAPD

EAPD[29]

EAPD DE-POP: 0 Normal: 1

B B

G2

D1

G1

S1

D2

S2

2N7002D

+12V

RA20 10K/4

RA19 X_10K/4

LA2 0R/8

AnalogDigital

ALOUT_R[29]

MUTE

CA26 10u25X8

ALOUT_L[29]

MUTE

LIN_OUT

QA2

X_2N7002

S

G

QA3

X_2N7002

S

G

D

RA11 0R/4

LOUT_R_MALOUT_R

RA17 0R/4

LOUT_L_MALOUT_L

QA1 X_2N7002

D

S

G

QA4 X_2N7002

D

S

G

LOUT_R

LOUT_L

LOUT_R [29]

LOUT_L [29]

RA25 0R/4

QA8

LINE2_R[29]

LINE2_R

X_2N7002

S

G

D

F_LINE2_R_M

QA9 X_2N7002

D

S

G

F_LINE2_R

MUTE

RA30 0R/4

QA7

LINE2_L[29]

LINE2_L

X_2N7002

S

G

D

F_LINE2_L_M

QA6 X_2N7002

D

S

G

F_LINE2_L

MUTE

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020 FL7

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

AUDIO-ALC1200-2

1.0

30 65

1.0

Sheet ofDate:

1

5

INTEL LAN - I219

D D

PE4_LAN_RXP[14] PE4_LAN_RXN[14]

PE4_LAN_TXP[14] PE4_LAN_TXN[14]

C C



GND

YL1

3 4

25MHZ18p CL6 22p50N4

MAIN D04-1006700-F07

CLKREQ#1[13]

LAN_RST#[25]

CLK_LAN1_DP[13] CLK_LAN1_DN[13]

SMLINK0_CLK[12] SMLINK0_DATA[12]

LANPHY_WAKE#[12,55] LAN_DISABLE#[12]

XTALO XTALI





12

CL5 22p50N4

CL13 0.1u16X4 CL14 0.1u16X4

CL15 0.1u16X4 CL16 0.1u16X4

RL5 1K/4

RL4 3.01K1%

LAN_RST#

CLK_LAN1_DP CLK_LAN1_DN

PE4_LAN_RXP_C PE4_LAN_RXN_C

PE4_LAN_TXP_C PE4_LAN_TXN_C

SMLINK0_CLK SMLINK0_DATA

LED0 LED1 LED2

TEST_EN

RBIAS_LAN

UL3

48

CLK_REQ_N

36

PE_RST_N

44

PE_CLKP

45

PE_CLKN

38

PETp

39

PETn

41

PERp

42

PERn

28

SMB_CLK

31

SMB_DATA

2

LANWAKE_N

3

LAN_DISABLE_N

26

LED0

27

LED1

25

LED2

32

JTAG_TDI

34

JTAG_TDO

33

JTAG_TMS

35

JTAG_TCK

9

XTAL_OUT

10

XTAL_IN

30

TEST_EN

12

RBIAS

I219-V-HF

LED

4

PCIE

SMBUS

JTAG

MDI_PLUS[0]

MDI_MINUS[0]

MDI_PLUS[1]

MDI_MINUS[1]

MDI_PLUS[2]

MDI

MDI_MINUS[2]

MDI_PLUS[3]

MDI_MINUS[3]

RSVD1_VCC3P3

VDD3P3_IN

VDD3P3-1

VDD3P3-2 VDD3P3-3 VDD3P3-4

VDD0P9-0 VDD0P9-1 VDD0P9-2 VDD0P9-3 VDD0P9-4 VDD0P9-5 VDD0P9-6 VDD0P9-7 VDD0P9-8

SVR_EN_N VSS_EPAD

CTRL1P0

13 14

17 18

20 21

23 24

1

5

4

15 19 29

20mil

7

8 11 16 22 37 40 43 46 47

6 49

MDI_C0P MDI_C0N

MDI_C1P MDI_C1N

MDI_C2P MDI_C2N

MDI_C3P MDI_C3N

RL7 4.7K/4

CLOSE TO PIN 29

CHOKEL1

CH-4.7u2A70mS-HF-2

1 2

CL11 X_10u6.3X6

CL10 22u6.3X6

CLOSE TO choke CLOSE TO pin47

3

30mil

+3.3V_LAN

CL7 1u6.3X4

+0.9V_LAN

CL12 0.1u16X4

500mA 30mil

LAN Connector

C231 1u16X6

LED1 LED2

MDI_C2P

MDI_C3P MDI_C3N

2

+3.3V_LAN

RL1 330R1%4

ACT_LINK# LED0

MDI_C0P MDI_C0N MDI_C1P MDI_C1N MDI_C2P MDI_C2N MDI_C3P MDI_C3N

RL2 330R1%4 RL3 330R1%4

UL1

1 2

4 5

3

8

LED1_1000# LED2_100#

ESD Protect

UL1 & UL2 close to connector

MDI_C2P

10

NC

MDI_C2N

9

NC

MDI_C3P

7

NC

MDI_C3N

6

NC

ESD-UT148ZAD5A-HF

19 20

VCT1

13 18 12 17 11 16 10 15

14 21 22

RJ45_USBX2_LEDX2_TX-GIGA-RH-5

MDI_C0P MDI_C0N

MDI_C1P MDI_C1N

1

LAN_USB1B

PWR TD1+ TD1TD2+ TD2TD3+ TD3TD4+

9

TD4-

GND

UL2

1 2

4 5

3

8

MDI_C0P

10

NC

MDI_C0NMDI_C2N

9

NC

MDI_C1P

7

NC

MDI_C1N

6

NC

ESD-UT148ZAD5A-HF

For EMI

ACT_LINK#

LED0

LED1_1000#

LED2_100#

CL1 0.1u16X4

CL2 0.1u16X4

CL3 0.1u16X4

CL4 0.1u16X4

B B

support WOL from Deep Sx: Power source from 3VA (DSW power) & make sure MAX current is enough to support i218/i219.

ATX_5VSB

RL6 47K/4

SLP_LAN

SLP_LAN#[12]

A A

SLP_LAN#

RL8 15K1%4

5

SLP_LAN#_R

CL9 1u6.3X4

D

Q56

G

2N7002

S

CL17 X_1u6.3X4

3VDSW

G

D S

4

QL1 P-PA002FMG_SOT23-3-HF

RL9

10K/4

+3.3V_LAN

CL18 22u6.3X6

CLOSE TO QL1 CLOSE TO PIN 4 & PIN 5

CL8

0.1u16X4

3

MICRO-STAR INT'L CO.,LTD

MS-7C89

INTEL I219

MS-7C89

1

Sheet ofDate:

31 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020FL7

Tuesday, March 17, 2020

2

Tuesday, March 17, 2020

5

Vinafix.com

4

3

2

1

HDMI 1.4b

R74

2.2K/4

HDMI_DDC_DATA_R

C60 0.1u16X4 C58 0.1u16X4 C67 0.1u16X4 C66 0.1u16X4 C62 0.1u16X4

C64 0.1u16X4 C63 0.1u16X4

VCC3HDMI_PWR_5V

Q16

G2

D1

G1

S1

HDMI_DDPB_CLK_P[5] HDMI_DDPB_CLK_N[5]

D D

C C

HDMI_DDPB_TX2_P[5] HDMI_DDPB_TX2_N[5] HDMI_DDPB_TX1_P[5] HDMI_DDPB_TX1_N[5] HDMI_DDPB_TX0_P[5] HDMI_DDPB_TX0_N[5]

HDMI_DDC_DATA_R

HDMI_DDPB_CTRLDATA[13]

HDMI, DVI : 1920x1200 at 60 Hz (16:10 WUXGA)

2N7002D

U11

6

1

HDMI_C_CLK_P HDMI_C_CLK_N HDMI_C_DATA2_P HDMI_C_DATA2_N HDMI_C_DATA1_P HDMI_C_DATA1_N HDMI_C_DATA0_P HDMI_C_DATA0_N

HDMI_PWR_5V

D2

S2

52

ESD-AOZ8906CI

R83 470R/4 R81 470R/4 R92 470R/4 R90 470R/4 R86 470R/4 R84 470R/4C61 0.1u16X4 R89 470R/4 R87 470R/4

Cost Reduce Level Shifter

R75

2.2K/4

HDMI_DDC_CLK_R

HDMI_DDPB_CTRLCLK [13]

HDMI_HOT_DETHDMI_DDC_CLK_R

4

3

HDMI_DATA_CLK

VCC3

Q20

D

G

S

2N7002

HDMI_C_DATA1_P HDMI_C_DATA1_N

HDMI_C_CLK_P HDMI_C_CLK_N

HDMI_C_DATA0_N HDMI_C_DATA0_P

HDMI_C_DATA2_N HDMI_C_DATA2_P

1 2

4 5

1 2

4 5

U12

3

U13

3

HDMI_C_DATA1_P

10

NC

HDMI_C_DATA1_N

9

NC

HDMI_C_CLK_P

7

NC

HDMI_C_CLK_N

6

NC

ESD-UT148ZAD5A-HF

8

HDMI_C_DATA0_N

10

NC

HDMI_C_DATA0_P

9

NC

HDMI_C_DATA2_N

7

NC

HDMI_C_DATA2_P

6

NC

ESD-UT148ZAD5A-HF

8

HDMI_PWR_5V

+12V

VCC5

2019.10.18 Ivy mail

HDMI_C_DATA2_P

HDMI_C_DATA2_N HDMI_C_DATA1_P

HDMI_C_DATA1_N HDMI_C_DATA0_P

HDMI_C_DATA0_N HDMI_C_CLK_P

HDMI_C_CLK_N

HDMI_DDC_CLK_R HDMI_DDC_DATA_R

HDMI_PWR_5V HDMI_HOT_DET

R72 4.7K/4

 !"#

C55

0.01u50X4

G

S

D

Q18 N-SM2408NSA

C56

0.1u16X4

10 11 12 13 14 15 16 17 18 19

HDMI_5V

HDMI_PWR_5V

HDMI1

1

TMDS Data2+

2

TMDS Data2 Shield

3

TMDS Data2-

4

TMDS Data1+

5

TMDS Data1 Shield

6

TMDS Data1-

7

TMDS Data0+

8

TMDS Data0 Shield

9

TMDS Data0TMDS Clock+ TMDS Clock Shield TMDS ClockCEC

Utility SCL SDA DDC/CEC Ground +5V Power Hot Plug Delect

HDMI19PM_BLACK-HF-3

FS1 F-SPR-P110-HF

1 2

HDMI_PWR_5V

SHELL-1

SHELL-4

SHELL-3

SHELL-2

HDMI_PWR_5V

X1

X4

MEC1

X3

X2

HDMI_PWR_5V

B B

Hot Plug

R78 10K/4

VCC5

R79 10K/4

6 1 3 4

CMKT3904_SOT363-6

Q17

2

5

R77 10K/4

HDMI_HOT_DET HDMI_C_DATA1_N

R76

100K/4

C54

0.01u50X4

4

VCC3

HDMI_DDPB_HPD[13]

C50

X_0.01u16

A A

5

For EMI

HDMI_C_CLK_N

HDMI_C_CLK_P

HDMI_C_DATA0_N

HDMI_C_DATA0_P

HDMI_C_DATA1_P

HDMI_C_DATA2_N

HDMI_C_DATA2_P

3

R82 X_180R1%4

R88 X_180R1%4

R85 X_180R1%4

R91 X_180R1%4

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020 FL7

Tuesday, March 17, 2020

2

Tuesday, March 17, 2020

MS-7C89

HDMI Connector

1.0

32 65

1.0

Sheet ofDate:

1

5

4

3

2

1

DVI

VGA_DVI1B

X3

Shell-3

16

DATA2

17

DATA2

18

SHIELD-1

19

DATA4

20

DATA4

21

DDCCLK

22

DDCDATA

23

NC

24

DATA1

25

DATA1

26

SHIELD-2

27

DATA3

28

DATA3

29

VCC5

30

GND5

31

HPDET

32

DATA0

33

DATA0

34

SHIELD-3

35

DATA5

36

DATA5

37

SHIELD-4

38

CLK

39

CLK

X4

Shell-4

VGA_DVI-RH-32

EMI

CV2

0.1u16X4

DVI_TXD2-

DVI_DDC_CLK_R DVI_DDC_DATA_R

DVI_TXD1DVI_TXD1+

DVI_HOT_DET DVI_TXD0DVI_TXD0+

DVI_TXC+ DVI_TXC-

U1001

DVI Con

X_DVI Slot

DVI_DDPC_CLK_N[5]

D D

C C

DVI_DDPC_CLK_P[5]

DVI_DDPC_TXN2[5]

DVI_DDPC_TXP2[5]

DVI_DDPC_TXN1[5]

DVI_DDPC_TXP1[5]

DVI_DDPC_TXN0[5]

DVI_DDPC_TXP0[5]

DVI_DDC_CLK_R

DVI_VGA_5V

DVI_DDPC_CTRLCLK[13]

R64

2.2K/4

VCC3

G2

D1

G1

C20 0.1u16X4 C18 0.1u16X4 C11 0.1u16X4 C15 0.1u16X4 C3 0.1u16X4 C4 0.1u16X4 C1 0.1u16X4 C2 0.1u16X4

DVI_VGA_5V

Q15

D2

S2

2N7002D

S1

DVI_TXCDVI_TXC+ DVI_TXD2DVI_TXD2+ DVI_TXD1DVI_TXD1+ DVI_TXD0DVI_TXD0+

R69

2.2K/4

DVI_DDC_DATA_R

DVI_DDPC_CTRLDATA [13]

R37 470R/4 R28 470R/4 R19 470R/4 R24 470R/4 R6 470R/4 R8 470R/4 R1 470R/4 R3 470R/4

DVI_DATA DVI_TXD2+

U3

1 2

4 5

U1

1 2

4 5

U9

6

1

NC NC

3

8

ESD-AOZ8829DI-03-HF

NC NC

3

8

ESD-AOZ8829DI-03-HF

52

4

3

ESD-AOZ8906CI

10 9

7 6

DVI_TXD0-

10

DVI_TXD0+

9

DVI_TXD1-

7

DVI_TXD1+

6

DVI_HOT_DET

DVI_TXD2-

DVI_TXD2+

DVI_TXC+ DVI_TXC-

DVI_VGA_5V

VCC3

D

G

S

2N7002

2017.10.26 Eric mail

DVI_TXD2-

DVI_TXD2+

DVI_TXC+ DVI_TXC-

Q2

DVI_TXD0DVI_TXD0+

DVI_TXD1DVI_TXD1+

DVI_DDC_CLK_R

DVI_DDC_DATA_R

Shell-5 Shell-6

Shell-7 Shell-8

G1 G2

G3 G4

HPD

R73 10K/4

VCC5

R80 10K/4

6 1 3 4

CMKT3904_SOT363-6

Q19

2

5

R65 10K/4

4

R63 100K/4

DVI_HOT_DET

C39

0.01u50X4

For EMI

DVI_TXD0-

DVI_TXD0+

DVI_TXD1-

DVI_TXD1+

DVI_TXC-

DVI_TXC+

DVI_TXD2-

DVI_TXD2+

3

R2 X_243R1%4

R7 X_243R1%4

R29 X_243R1%4

R21 X_243R1%4

EMI

DVI_HOT_DET

DVI_DDC_CLK_R

DVI_DDC_DATA_R

2

C43 X_10p50N4

C38 10p50N4

MICRO-STAR INT'L CO.,LTD

MS-7C89

Size Document Description Rev

Custom

Tuesday, March 17, 2020

MS-7C89

SYS1 FAN

1

MSI

C41 X_10p50N4

Sheet ofDate:

33 65

1.0

VCC3

B B

A A

DVI_DDPC_HPD[13]

C49

X_0.01u25X4

5

Vinafix.com

Note:

D D

VCC3 Full Screen current 165mA

VCC3

C C

If connect to eDP port,must confirm whether it support hot plug detection HPD and re-auxtraining

DSP_DDPD_TXP0[5] DSP_DDPD_TXN0[5]

DSP_DDPD_TXP1[5] DSP_DDPD_TXN1[5]

DSP_DDPD_HPD[13]

LV5 60L2.5A-32_0402-HF

L02-6008032-M09

LV4 60L2.5A-32_0402-HF

L02-6008032-M09

VDD_DAC_33

CV24

0.1u16X4

CV26 close to PIN20

AVCC33

CV16

0.1u16X4

CV7 close to PIN1

4

DSP_DDPD_TXP0 DSP_DDPD_TXN0

Differential impedance = 85 ohm

DSP_DDPD_TXP1 DSP_DDPD_TXN1

DSP_DDPD_AUXP[5] DSP_DDPD_AUXN[5]

DSP_DDPD_HPD

VCC3

CV8 close to PIN26

CV12 0.1u16X4 CV9 0.1u16X4

CV7 0.1u16X4 CV3 0.1u16X4

CV14 0.1u16X4 CV13 0.1u16X4

RV6 100K/4

VCC3

CV22 0.1u16X4

RV7 X_4.7K/4

VCC3

DP_C_TXP0 DP_C_TXN0

DP_C_TXP1 DP_C_TXN1

DP_C_AUXP DP_C_AUXN

TP2 TP1

VDD_DAC_33

AVCC33

RV12 4.7K/4

RV2 4.7K/4

U7

5

LANE0_P

6

LANE0_N

7

LANE1_P

8

LANE1_N

2

AUX_P

3

AUX_N

32

HPD

30

SMB_SCL

29

SMB_SDA

20

VDD_DAC_33

1

AVCC_33

9

POL2

10

POL1/SPI_CEB

14

VCC_33

26

PVCC_33

27

LDO_RSTB

28

EXT_CLK_IN

3

RTD2166

2

23

RED_P

GREEN_P

BLUE_P

HVSYNC_PWR

VSYNC

HSYNC

VGA_SCL

VGA_SDA

SPI_CLK/GPI1

SPI_SI/GPI2

SPI_SO/GPI3

EXT1.2V_CTRL

AVCC_12

VCCK_12

GND-1

GND-2

24

33

RTD2166-CG-RH

RED

22

GREEN

21

BLUE

17

18

VSYNC

19

HSYNC

15

VGADDCCLK

16

VGADDCSDA

11

RV13 4.7K/4

12

RV1 X_4.7K/4

13

31

Internal Analog power at 1.2V

VCCK_V12

4

VCCK_V12

25

CV24 must X5R,X7R

CV25

2.2u6.3X4

CV8

0.1u16X4

RV8 2.2K/4

RV9 2.2K/4

CV26

0.1u16X4

VCC3

VCC5

CV4

4.7u10X6

CV9,CV10 close to PIN17

VGA_5V

CV23

0.1u16X4

CV23 close to PIN4

1

CV24,CV25 close to PIN25

CV17

3.3p50N4

CV10

3.3p50N4

CV5

3.3p50N4

VGA_RED

VGA_GREEN

VGA_BLUE

CV1

0.1u16X4

EMI

VGA_DVI1A VGA_DVI-RH-32

X1X2

6 1

11 7 2

12 8 3

13 9 4

14

10

5

15

CV 1 9 X _10p50N4

CV21 X_2p50N4

DVI_VGA_5V

4

5V_HSYNC

5V_VSYNC

CV 1 8 X _10p50N4

CV20 X_2p50N4

RV11 47R/4

RV10 47R/4

3

VGADDCSDA

HSYNC

VSYNC

VGADDCCLK

52

DV3

6

4

1

2

VGADDCCLKVGADDCSDA

3

ESD-AOZ8906CI

DV1 Close to VGA connector AVL:D0G-45B0510-I14

VGA_BLUE

VGA_GREEN5V_HSYNC5V_VSYNC

MICRO-STAR INT'L CO.,LTD

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

DV2

6

1

DP Connector

52

4

VGA_RED

3

ESD-AOZ8906CI

DV2 Close to VGA connector AVL:D0G-45B0510-I14

MS-7C89

Sheet ofDate:

34 65

Sheet ofDate:

34 65

Sheet ofDate:

1

34 65

1.0

RED

B B

GREEN

BLUE

A A

RV5 75R1%4

RV4 75R1%4

RV3 75R1%4

VCC5

5

LV3 10L1A

CV15

3.3p50N4

LV2 10L1A

CV11

3.3p50N4

LV1 10L1A

CV6

3.3p50N4

DV1

VGA_5V DVI_VGA_5V

S-1N5817

Main:D08-0100800-P16 Avl:D08-0100200-B07

1 2

F-SPR-P110-HF

FSV1

5

teknisi indonesia

4

3

2

1

USB Port Power

D D

5VDIMM

C C

Total:7.1A

F1

1 2

F-SPR-P260T-2.6A

F2

1 2

F-SPR-P260T-2.6A

F5

1 2

F-SPR-P260T-2.6A

F4

1 2

F-SPR-P260T-2.6A

5V_RUSB_1

5V_RUSB_2

5V_FUSB_1

5V_FUSB_2

Total:4.3A

USB1: 1.8A

LAN_USB1+PS2_USB1 :0.5+1+1=2.5A

Total:2.8A

JUSB1 : 1A

JUSB2: 1.8A

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

USB Power

MS-7C89

1

Sheet ofDate:

35 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

4

3

2

1

Front USB2.0

2A

D D

C C

MB_USB_9D-_R MB_USB_9D+_R MB_USB_10D+_R

H2X5[9]M_BLACK-RH-3

MB_USB_9D+_R

USB2.0 Port9.10

5V_FUSB_1

1 2

MB_USB_10D-_R MB_USB_9D-_R

3 4

6

5 7 8

10

JUSB1

N31-2051BG1-H06

3VSB

C419 0.1u16X4

52

D19

6

4

1

3

ESD-AOZ8906CI

MB_USB_10D-_RMB_USB_9D-_R

MB_USB_10D+_R

5V_FUSB_1 5V_FUSB_1

C442

0.1u16X4

Close to JUSB1

C443 1u6.3X4

MB_USB_10D+[14]

MB_USB_10D-[14]

MB_USB_9D+[14]

MB_USB_9D-[14]

5V_FUSB_1

EC14 560u6.3V

+

12

5V_FUSB_1

1

2

L7 CMC-L12-9008080-HF

1

2

L6 CMC-L12-9008080-HF

R485 10K1%4

Port9.10

OC#4 [14]

R484 15K1%4

MB_USB_10D+_R

4

MB_USB_10D-_R

3

MB_USB_9D+_R

4

3

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

XXX

MS-7C89

1

Sheet ofDate:

36 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

4

3

2

1

Front USB3.1 Gen1

3VSB

C168 0.1u16X4

D D

C C

MB_USB_4D-

MB_USB_4D+

MB_USB30_TX3-_C MB_USB30_TX3+_C

MB_USB30_TX4-_C MB_USB30_TX4+_C

MB_USB30_RX3MB_USB30_RX3+

MB_USB30_RX4MB_USB30_RX4+

52

U19

6

1

ESD-AOZ8906CI

U20 ESD-UT148ZAD5A-HF

1

NC

2

NC

4 5

3

8

U22 ESD-UT148ZAD5A-HF

1

NC

2

NC

4 5

3

8

MB_USB_3D-

4

MB_USB_3D+

3

MB_USB30_TX3-_C

10

MB_USB30_TX3+_C

9

MB_USB30_TX4-_C

7

NC

MB_USB30_TX4+_C

6

NC

MB_USB30_RX3-

10

MB_USB30_RX3+

9

MB_USB30_RX4-

7

NC

MB_USB30_RX4+

6

NC

USB3.0 (ESD) D0G-06A050C-A68 (M) D0G-05A0300-I14

MB_USB30_TX4+[14]

MB_USB30_TX4-[14]

MB_USB30_RX4+[14]

MB_USB30_RX4-[14]

MB_USB30_TX3+[14]

MB_USB30_TX3-[14]

MB_USB30_RX3+[14]

MB_USB30_RX3-[14]

Port3.4

OC#1[14]

5V_FUSB_2

R177 10K1%4

R184 15K1%4

MB_USB_4D+[14]

MB_USB_4D-[14]

C183 0.1u16X4

C189 0.1u16X4

MB_USB_3D+[14]

MB_USB_3D-[14]

C193 0.1u16X4

C198 0.1u16X4

EC8 100u16V

+

12

MB_USB_4D+

MB_USB_4D-

MB_USB30_TX4+_C

MB_USB30_TX4-_C

5V_FUSB_2

MB_USB_3D+

MB_USB_3D-

MB_USB30_TX3+_C

MB_USB30_TX3-_C

5V_FUSB_2

EMI Cap near Connector.

C226 1u6.3X4

JUSB2

11

D2+

12

D2-

14

TX2+

15

TX2-

17

RX2+

18

RX2-

19

VBUS2

16

GND

13

GND

9

D1+

8

D1-

6

TX1+

5

TX1-

3

RX1+

2

RX1-

7

GND

1

VBUS1

4

GND

10

NC

2X10_CONNECTOR

BH2X10[20]-2PITCH_BLACK-RH-1

5V_FUSB_25V_FUSB_2 5V_FUSB_2

C224

0.1u16X4

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

Front USB30

MS-7C89

1

Sheet ofDate:

37 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

Vinafix.com

4

3

2

1

Rear USB3.0

1.8A

MB_USB30_TX1+[14]

D D

C C

MB_USB30_TX1-[14]

MB_USB30_RX1+[14] MB_USB30_RX1-[14]

MB_USB30_TX2+[14] MB_USB30_TX2-[14]

MB_USB30_RX2+[14] MB_USB30_RX2-[14]

U15

MB_USB30_RX2+ MB_USB30_RX2+

MB_USB30_RX1-

MB_USB30_TX1+_C MB_USB30_TX1-_C

MB_USB30_TX2+_C MB_USB30_TX2-_C

ESD-UT148ZAD5A-HF

1 2

4 5

1 2

4 5

USB3.0 Port1.2 USB2.0 Port1.2

C78 0.1u16X4 C79 0.1u16X4

C80 0.1u16X4 C89 0.1u16X4

10

NC

9

NC

7

NC

6

NC

3

8

U14 ESD-UT148ZAD5A-HF

10

NC

9

NC

7

NC

6

NC

3

8

MB_USB30_TX1+_C MB_USB30_TX1-_C

MB_USB30_RX1+ MB_USB30_RX1-

MB_USB30_TX2+_C MB_USB30_TX2-_C

MB_USB30_RX2+ MB_USB30_RX2-

MB_USB30_RX2-MB_USB30_RX2-

MB_USB30_RX1+MB_USB30_RX1+ MB_USB30_RX1-

MB_USB30_TX1+_C MB_USB30_TX1-_C

MB_USB30_TX2+_C MB_USB30_TX2-_C

MB_USB_1D-[14]

MB_USB_1D+[14]

MB_USB_2D-[14]

MB_USB_2D+[14]

MB_USB_1D-

MB_USB_1D+

D2

6

1

MB_USB_1D-

MB_USB_1D+

MB_USB_2D-

MB_USB_2D+

3VSB

C92 0.1u16X4

52

ESD-AOZ8906CI

4

3

MB_USB_2D-

MB_USB_2D+

5V_RUSB_1

5V_RUSB_1 5V_RUSB_1

MB_USB30_TX1+_C

MB_USB30_TX1-_C

MB_USB_1D-

MB_USB_1D+

MB_USB30_RX1+

MB_USB30_RX1-

MB_USB30_TX2+_C

MB_USB30_TX2-_C

MB_USB_2D-

MB_USB_2D+

MB_USB30_RX2+

MB_USB30_RX2-

9 1 8 2 4 3 6 7 5

18 10 17 11 13 12 15 16 14

USB1A

SSTX1+ VBUS-1 SSTX1D1GND-1 D1+ SSRX1+ GND_D-1 SSRX1-

USB1B

SSTX2+ VBUS-2 SSTX2D2GND-4 D2+ SSRX2+ GND_D-2 SSRX2-

19

GND-2

GND-3

USBAX2M_BLUE

20

21

GND-5

GND-6

USBAX2M_BLUE

22

5V_RUSB_1 5V_RUSB_1 5V_RUSB_1

C73 1u6.3X4

Port1.2

OC#0[14]

R96 10K1%4

R95 15K1%4

C75

0.1u16X4

EC4 560u6.3V

+

12

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

XXX

MS-7C89

1.0

38 65

1.0

Sheet ofDate:

1

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

Rear LAN USB2.0

4

3

2

1

52

4

3

ESD-AOZ8906CI

JUSB1 HUB 1 . 2

1

2

L4 CMC-L12-9008080-HF

1

2

L3 CMC-L12-9008080-HF

MB_USB_HUB_2D-_R

MB_USB_HUB_2D+_R

MB_USB_HUB_1D+_R

4

MB_USB_HUB_1D-_R

3

MB_USB_HUB_2D+_R

4

MB_USB_HUB_2D-_R

3

1A

5V_RUSB_2

MB_USB_HUB_2D-_R MB_USB_HUB_2D+_R

5V_RUSB_2

MB_USB_HUB_1D-_R MB_USB_HUB_1D+_R

5V_RUSB_2

R133 10K1%4C159 0.1u16X4

OC#2[14]

R123 15K1%4

LAN_USB1A

5

PWR

6

USB-

7

USB+

8

GND

1

PWR

2

USB-

3

USB+

DOWN

4

GND

RJ45_USBX2_LEDX2_TX-GIGA-RH-5

5V_RUSB_2

UP

C171 1u6.3X4

23

GND

24

GND

25

GND

26

GND

27

GND

28

GND

29

GND

30

GND

C172

0.1u16X4

5V_RUSB_25V_RUSB_2

EC7 560u6.3V

+

12

1A

D D

MB_USB_HUB_1D+[41]

MB_USB_HUB_1D-[41]

MB_USB_HUB_2D+[41]

MB_USB_HUB_2D-[41]

3VSB

MB_USB_HUB_1D-_R

MB_USB_HUB_1D+_R

C C

D4

6

1

Near Connector

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

Real LAN USB3.1/PS2

1

Sheet ofDate:

39 65

1.0

5

Vinafix.com

4

3

2

1

PS2 Connector

5V_RUSB_2

KBDAT[25] MSDAT[25]

KBDAT MSDAT KBCLK MSCLK

KBCLK[25] MSCLK[25]

R128 33R/4 R130 33R/4 R126 33R/4 R132 33R/4

D D

R127 4.7K/4 R129 4.7K/4 R125 4.7K/4 R131 4.7K/4

KB_DT MS_DT KB_CK MS_CK

R124 1K/4

KB_DT MS_DT KB_CK MS_CK

C1 6 5 180p50N4

C1 6 6 180p50N4

C1 6 4 180p50N4

C1 6 7 180p50N4

C163

0.1u16X4

PS2_USB1A

10

11

13

14

MINIDIN_USBX2

VCC-3

MS

GND-3

12

9

52

6

C C

1

U17

MS_CKMS_DT

4

KB_DTKB_CK

3

ESD-AOZ8906CI

Main:D0G-05A0529-A68 AVL:D0G-45B0510-I14

NEAR CONNECTOR

PS2 USB Connector

B B

MB_USB_HUB_3D-[41]

MB_USB_HUB_3D+[41]

MB_USB_HUB_4D-[41]

MB_USB_HUB_4D+[41]

A A

JUSB2 HUB 3.4

5V_RUSB_2

MB_USB_HUB_4D-_R MB_USB_HUB_4D+_R

5V_RUSB_2

MB_USB_HUB_3D-_R MB_USB_HUB_3D+_R

PS2_USB1B

4

VCC-1

3

USB2-

2

USB2+

8

VCC-2

7

USB1-

6

USB1+

MINIDIN_USBX2

1

2

L1 CMC-L12-9008080-HF

1

2

L2 CMC-L12-9008080-HF

1

GND-1

15

16

5

GND-2

17

18

MB_USB_HUB_3D-_R

4

MB_USB_HUB_3D+_R

3

MB_USB_HUB_4D-_R

4

MB_USB_HUB_4D+_R

3

5V_RUSB_2

C162 22u6.3X6

Close to PS2

MB_USB_HUB_3D-_R

MB_USB_HUB_3D+_R

5V_RUSB_2

U16

6

1

C139 1u6.3X4

3VSB

52

ESD-AOZ8906CI

C130 0.1u16X4

MB_USB_HUB_4D-_R

4

MB_USB_HUB_4D+_R

3

Near Connector

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

Rear PS2+USB

1.0

40 65

1.0

Sheet ofDate:

1

Rear USB2.0 HUB

5

4

Note: Please connect to USB Power Source.

DVDD DVDD 5VDIMM

3

DVDD DVDD DVDD

C335

0.1u16X4

C338

0.1u16X4

C337 1u6.3X4

C349

0.1u16X4

C343 1u6.3X4

2

1

C359 27p/50N4

close to PIN14close to PIN5 close to PIN9

GL850_PGANG

GL850_RESET

GL850_PSELF

R248 X_4.7K/4

C355 10u6.3X6

5

9

14

27

21

28

U29

V33

1

DM0

2

25 24 20 19

23

17

22

26

18

CRB is 680Rohm, change to 619R For Meet USB Eye Diagramt Pass.

DP0

OVCUR1# OVCUR2# OVCUR3# OVCUR4#

PGANG

RESET#

PSELF

SDA

TEST/SCL

R298

619R1%4

AVDD-1

8

GL850_RREF

DVDD

AVDD-2

AVDD-3

RREF

G1

GL850G-OHY50-RH

29

V5

3

DM1

4

DP1

6

DM2

7

DP2

12

DM3

13

DP3

15

DM4

16

DP4

10

X1

11

X2

C336

0.1u16X4

UH_12MHZ_IN

UH_12MHZ_OUT

27p/50N4

MB_USB_HUB_1D- [39] MB_USB_HUB_1D+ [39]

MB_USB_HUB_2D- [39] MB_USB_HUB_2D+ [39]

MB_USB_HUB_3D- [40] MB_USB_HUB_3D+ [40]

MB_USB_HUB_4D- [40] MB_USB_HUB_4D+ [40]

C360

Y2

12

3 4

12MHZ20p_S-HF

C339

D D

Pin23 Gang input:1 Individual input:0

5VDIMM

Pin22 Bus-Powered: 0 Self-Powered: 1

C C

5VDIMM

R244 10K/4

GL850_RESET

R256 47K/4

C344 1u6.3X4

DVDD

R245 10K/4

R247 X_100K1%4

R246 100K1%4

R243 100K1%4

0.1u16X4

MB_USB_5D-[14] MB_USB_5D+[14]

GL850_OC

Note: USB2.0 Hub no need mapping OC# to PCH, Hub can report to PCH by Self.

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

GL850

MS-7C89

1

Sheet ofDate:

41 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

D D

C C

4

3

2

1

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

XXX

MS-7C89

1

Sheet ofDate:

42 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

5VDIMM FOR DDR

4

3

2

1

5VDUAL

5.52A

5VDIMM

VCC5

P-P06P03

Q9

Q13

4 3 2 1

N-PE618BA

ATX_5VSB

G

D S

5

C34

0.1u16X4

ATX_5VSB

R30 510R/4

D D

TO:NCT6687 GP86

C C

VCC5 ATX_5VSB

ATX_PWR_OK[25,43,56]

SLP_S3#_5VDUAL[43,51,55]

USB_MODE[15]

H:SUPPORT S0/S3/S5 L:SUPPORT S0/S3

R38 10K1%4

SLP_S4#[12,25,43,51..53]

5 6

4

U6

S3# S5#

MODE

uP7501

5VDIMM_5VSB5VDIMM_5V

2

1

5VSB

5VCC

GND

3

R35 10R1%4

C19 0.1u16X4

DIMM_SBDRV

7

5VSB_DRV

DIMM_VCCDRV

8

5VCC_DRV

R53 1K1%6

+12V

5VDIMM 5VDIMM

C51

C76

0.1u16X4

Close to VGA_DVI1 & HDMI1

C35 18n16X4

C32 1u16X4

Ivy 2018.01.24 mail

ATX_PWR_OK[25,43,56]

SLP_S3#_5VDUAL[43,51,55]

SLP_S4#[12,25,43,51..53]

R242 47K/4

VCC3

3VDSW

ATX_5VSB

R488 47K/4

C445 10u6.3X6

B B

SIO_3VA

3VDSW_EN

Power Loss=(Vin-Vou)*Iout =(5-3.3)*0.204 =1.7*0.204 =0.3468W

3VDSW_EN

VSB_ENABLE#[25,43,44,54]

SIO_3VA

A A

RTCRST#[12,24,25]

1u6.3X4

R460 X_0R/4

5

C417

X_1u16X4

MAX 420mW

U38 GS7116S5-SOT23-5

VDD1VOUT

3

EN

C434 X_0.1u16X4

Q83

G2

D1

G1

S1

Power Loss=(Vin-Vou)*Iout =(5-3.3)*0.04 =1.7*0.04 =0.068W

ATX_5VSB

R464 47K/4

RTCRST#_D_SIO

C411

GND

2

2N7002D

5

ADJ

4

D2

S2

3

0.204

C437

680p50X4

3VDSW_FB

ATX_5VSB

R489 47K/4

For S5 -> G3 3VSB_EN ISSUE

U35 GS7116S5-SOT23-5

VDD1VOUT

EN

R486 10K1%4

R483

3.16K1%4

3VDSW_EN

CE

Q84

B

2N3904

5

GND

ADJ

2

4

C414

680p50X4

3VA_FB

25mA+15mA=40mA

R469 10K1%4

R476

3.16K1%4

4

C444 10u6.3X6

SIO_3VA

3VDSW

C439 0.1u16X4

C416 10u6.3X6

3VSB

5VDUAL

R227 100K/4

3VSB_EN

R236

C327

82K1%4

1u6.3X4

Power Loss=(Vin-Vou)*Iout =(5-3.3)*0.1651 =1.7*0.1651 =0.28067W

5VDUAL

SIO_3VA

R234 100K/4

3VSB_PWRGD

VSB_ENABLE#[25,43,44,54]

ATX_5VSB

For S5 -> G3 3VSB_EN ISSUE

3

R239 510R/4

VCC5

R240 10K1%4

5 6

S5_MODE PCH_VCCDRV

VSB_ENABLE#[25,43,44,54]

ATX_5VSB

C272 1u6.3X4

R221 47K/4

R222 X_10K1%4

R223 10R/4

1

EN:1.22~1.42V

C316 10u6.3X6

3VSB_EN

2

3

5

Q63

G2

D1

G1

U27

S1

D

G

S

POK

EN

VIN

NC

2N7002D

Q60 2N7002

R218 47K/4

3VSB_CNTL

D2

S2

4

G2

D1

G1

C306 1u6.3X4

4

VDD

GND8GND

9

5VSB_5V5VCC_5V

2

1

U28

S3#

5VSB_DRV

S5#

5VSB

5VCC

MODE

5VCC_DRV

GND

uP7501

3

Q51 2N7002D

D2

S2

S1

LDO+MOS

C310 1u6.3X4

6

VOUT

3VSB_FB PCH_VCCDRV

7

FB

GS7133SO

I31-7133S02-N03

ATX_5VSB

R334 47K/4

R241 10R1%4

C330 0.1u16X4

7

8

R225

1K1%6

5VCC_5V

$

%

3VSB_EN

CE

Q64

B

2N3904

2

PCH_SBDRV

+12V

C318 220p50X4

ATX_5VSB

C319

0.022u25X4

PCH_VCCDRV

R226

30.9K1%4

R230 620K1%4

R231

10.2K1%4

C307 18n16X4

ATX_5VSB

G

Q53 P-P06P03

D S

5

4 3 2 1

N-PE618BA

VCC5

VCC3

MSI

Q55

N-PE618BA

1 2 3 4

5

Size Document Description Rev

Custom

Tuesday, March 17, 2020

2.894A

5VDUAL

C308 X_0.1u16X4

Q54

0.2471A

3VSB

C317 X_0.1u16X4

C314 22u6.3X6

MICRO-STAR INT'L CO.,LTD

MS-7C89

ACPI

1

12

Sheet ofDate:

5VDUAL

+

EC10 100u16V

R224 1K/4

43 65

R228 1K/4

1.0

5

4

3

2

1

Module Stuff CHIP_PWGD, But PCH_PWROK may ramp up before CHIP_PWGD.

D D

C C

ATX_5VSB

CHIP_PWGD[12,25,58]

SIO_RSMRST#[12,25,55]

SIO_DPWROK[25,55]

VSB_ENABLE#[25,43,54]

For TL624-1. DEEP Mode : Stuff D48/R2517 DSW Mode : Stuff D48/D49/R2517

R455 10K/4

D15 X_S-LRB520S-40T1G

D14 S-LRB520S-40T1G

D13 X_S-LRB520S-40T1G

D16 S-LRB520S-40T1G

SPI_SW_SEL

PCH_SPI_CS0#[12]

PCH_SPI_CLK[12] PCH_SPI_MISO[12,18] PCH_SPI_MOSI[12,18]

PCH_SPI_IO2[12,18] PCH_SPI_IO3[12,18]

PCH_SPI_CS#

PCH_SPI_CS0# PCH_SPI_CLK PCH_SPI_MISO PCH_SPI_MOSI PCH_SPI_IO2 PCH_SPI_IO3

ESD-AOZ8131DI

R342 0R/4

R344 62R/4 R345 62R/4

R360 0R/4 R363 0R/4 R358 0R/4 R365 0R/4 R361 0R/4

D9

C410

0.1u16X4

1 2

PCH_SPI_CLK_R PCH_SPI_MISO_R PCH_SPI_MOSI_R PCH_SPI_IO2_R PCH_SPI_IO3_R

PCH_SPI_MISO_R PCH_SPI_CS0#

SPI_SW_SEL

Close to JSPI1

3VSB 3VSB

R341 X_2.2K/4

SPI1_MISOPCH_SPI_MISO_R

SPI1

1

CS

2

DO(IO1)

HOLD(IO3)

3

WP(IO2)

4

GND

W25Q128FWSIQ-HF

M31-2512893-W03 128MB SPI ROM

VCC

CLK

DI(IO0)

For EMI

R364 0R/4

R381 0R/4

8 7 6 5

3VSB

C4120.1u16X4

TPM_MISO

TPM_IO2PCH_SPI_IO2_R

H2X6[10]M-2PITCH_BLACK

C377 0.1u16X4

C372 10u6.3X6

SPI1_IO3 SPI1_CLKSPI1_IO2 SPI1_MOSI

JTPM1

1 2 3 4 5 7 8 9

R340 62R/4 R339 62R/4 R338 62R/4

TPM_SPI_CS2#

6

TPM_RST#

TPM_SPI_PIRQ#

1211

PCH_SPI_IO3_R PCH_SPI_CLK_RPCH_SPI_IO2_R PCH_SPI_MOSI_R

For SPI TPM USE

R380 0R/4 R359 0R/4 R377 0R/4

R434 0R/4

TPM_RST# [25]

PCH_SPI_MOSI_RTPM_MOSI PCH_SPI_CLK_RTPM_CLK

PCH_SPI_CS2# [12]

GPP_G9 [15]

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

BIOS ROM

MS-7C89

1

Sheet ofDate:

44 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

5

Vinafix.com

VCORE Iccmax 140A,TDC 132A, OCP182A. VGT Iccmax 30A,TDC 28A, OCP39A.

VR_VIDSOUT

VR_VIDSCLK

D D

close to CHOKEV1

IMON_3607_R3

IMON_3607_R2

VREF_3607

VR34 14.7K1%4

VR35 10K1%4

close to CHOKEGT1

VR33 13.7K1%4

VREF_3607

C C

B B

A A

VR32 10.7K1%4

IMONA_3607_R3

IMONA_3607_R2

'34.-56789:;'.<=4)>>?1*+,-.)/01

VR_HOT#

VRT3

100KRT1%4

VR38

1.74K1%4

VRT2 100KRT1%4

VR30

120R1%4

'()*+,-.)/012

J1

1 2

H1X2M-2PITCH

IMONA_3607_R1

VCORE_VCC_SENSE[6,26]

VCORE_VSS_SENSE[6]

2

ATX_5VSB 12VIN VCC5

12

Jumper insert,VCORE/VGT 0.9V.

5

VR6 100R1%4

VR5 45.3R1%4

VR7 X_301R1%4

VR37

30R1%4

IMON_3607_R1

VR29

2.8K1%4

remote sense

VCORE

remote sense

VGT_VCC_SENSE[6]

VGT

VGT_VSS_SENSE[6]

VR60 2.32K1%4

VR16 2.32K1%4

VR1

47K/4 VR2 47K/4

D1 ESD-AOZ8231ADI

4

VCCST_PLL

VC3 X_1u6.3X4

VRM_EN[55]

VRM_PGD[55]

H_PROCHOT#[3]

VR_VIDSOUT[3]

IMON_3607

IMONA_3607

VR85 100R1%4

Local sense

VR78 100R1%4

VR12 100R1%4

Local sense

VR13 100R1%4

VR72 24.3K1%4

VR61 560R1%4

VR17 24.3K1%4

VR18 560R1%4

12VIN

0LL_EN: Zero load-line function setting. Connect to 5V can enable 0LL function.

VOFS=0.4*(VOFSM-1.7)

-500mV&VOFS&590mV. Disable offset function,OFSM Pin to GND.

VQ1

G2

D1

G1

JVBOOT#

JVBOOT#[56]

4

2N7002D

S1

VR_VIDSCLK[3]

ALERT#_3607[3]

VC15

0.47u10X4

10K1%4

VR79

VC30 330p50X4

10K1%4

VR11

VC8 220p50X4

TSEN_3607_NTC TSEN_3607

VR58 2.2R1%4

VC25 0.22u16X4

VR24 2.2R1%4

VC12 0.22u16X4

D2

SET2_3607

S2

VRT4 100KRT1%4

VR73 24.3K1%4

VRT1 100KRT1%4

VR19 24.3K1%4

3

12VIN

VR26 510K1%4

VC10 X_0.1u16X4

VR31 1R1%4

IMON_3607

IMONA_3607

1.5K1%4

VR67

11K1%4

VR10

TSENA_3607TSENA_3607_NTC

TONSET_3607

TONSETA_3607

Sensor POR min 2V

PWM_DVD

VRM_EN

VR_HOT#

COMP_3607

FB_3607

COMPA_3607

FBA_3607

IBIAS_3607

VR27 200K1%4 VC13 0.1u16X4

VRM_PGD

VR_VIDSOUT VDIO_3607 VR_VIDSCLK VCLK_3607 ALERT#_3607

VR22 X_0R/4

VR21 10R/4

VR20 49.9R1%4

VREF_3607

VREF_3607_R VREF_3607

33.2K1%4

VR66

VC20 56p50N4

VC31 0.1u16X4

49.9R1%4

VR9

VC7 330p50X4

VC11 0.1u16X4

VR59 412K1%4

VR25 412K1%4

VR23 100K/4

@ABCDEFG

2020.02.14

3

VCC5 VCC5_3607

VR8

2.2R1%6

VC9

2.2u16X6

44

DVD

29

EN

2

PGOOD

25

VRHOT#

27

VDIO

28

VCLK

26

ALERT#

23

VREF

22

IMON

24

IMONA

15

VSEN

14

COMP

13

FB

16

RGND

35

VSENA

36

COMPA

37

FBA

34

RGNDA

4

TSEN

42

TSENA

3

TONSET

43

TONSETA

33

IBIAS

45

0LL_EN

30

OFSM

31

OFSA/PSYS

32

VCC

GND-PAD

61

12VIN

53

PVCC

2

VR36 1R5%6

VC16 2.2u16X6

U8

BOOT1

UGATE1

PHASE1

LGATE1

ISEN1P

ISEN1N

BOOT2

UGATE2

PHASE2

LGATE2

ISEN2P

ISEN2N

BOOT3

UGATE3

PHASE3

LGATE3

ISEN3P

ISEN3N

PWM4

ISEN4P

ISEN4N

PWMA1

ISENA1P

ISENA1N

PWMA2

ISENA2P

ISENA2N

SETA1

SETA2

2

SET1

SET2

SET3

RT3607_CORE_BOOT1

57

RT3607_CORE_UG1

56

RT3607_CORE_PH1

55

RT3607_CORE_LG1

54

ISEN1P_3607

8

ISEN1N_3607_R

7

RT3607_CORE_BOOT2

49

RT3607_CORE_UG2

50

RT3607_CORE_PH2

51

RT3607_CORE_LG2

52

ISEN2P_3607

9

ISEN2N_3607_R

10

RT3607_CORE_BOOT3

1

RT3607_CORE_UG3

60

RT3607_CORE_PH3

59

RT3607_CORE_LG3

58

ISEN3P_3607

5

ISEN3N_3607_R

6

RT3607_CORE_PWM4

48

ISEN4P_3607

12

ISEN4N_3607_R

11

RT3607_GT_PWMA1

47

ISENA1P_3607

40

ISENA1N_3607_R

41

46

39

38

SET1_3607

17

SET2_3607

18

SET3_3607

19

SET4_3607

20

SET5_3607

21

1

RT3607_CORE_BOOT1 [46] RT3607_CORE_UG1 [46] RT3607_CORE_PH1 [46] RT3607_CORE_LG1 [46]

ISEN1P_3607 [46]

VR63 680R1%4

VC27 0.1u16X4

RT3607_CORE_BOOT2 [46] RT3607_CORE_UG2 [46] RT3607_CORE_PH2 [46] RT3607_CORE_LG2 [46]

ISEN2P_3607 [46]

VR64 680R1%4

VC28 0.1u16X4

RT3607_CORE_BOOT3 [47] RT3607_CORE_UG3 [47] RT3607_CORE_PH3 [47] RT3607_CORE_LG3 [47]

ISEN3P_3607 [47]

VR62 680R1%4

VC26 0.1u16X4

RT3607_CORE_PWM4 [47]

ISEN4P_3607 [47]

VR65 680R1%4

VC29 0.1u16X4

RT3607_GT_PWMA1 [48]

ISENA1P_3607 [48]

VR15 680R1%4

VC5 0.1u16X4

VCORE

VGT

Close to PWM

VR97 10K/4

VR70 56.2K1%4 VR68 21.5K1%4 VR56 2.87K1%4 VR54 768R1%4 VR52 78.7K1%4 VR50 8.87K1%4 VR47 124K1%4

VR45 8.45K1%4

VR41 2.55K1%4 VR39 768R1%4

VCC5_3607

VR71 750R1%4 VR69 36R1%4 VR57 93.1R1%4 VR55 24R1%4

VR53 1.3K1%4

VR51 174R1%4 VR48 12.4K1%4 VR46 187R1%4

VR42 412R1%4

VR40 24R1%4

SET1:Iccmax:140A,OCP:130%*Iccmax,DVID mV

SET5:Iccmax:30A,OCP:130%*Iccmax,DVID mV

SET1 V SET2 V SET3 V SET4 V SET5 V

MICRO-STAR INT'L CO.,LTD

MS-7C89

PWM Solution

MS-7C89

1

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

Sheet ofDate:

VREF_3607

45 65

1.0

5

4

3

2

1

VCORE

VEC11 560u6.3V

VEC10 560u6.3V

VEC14 560u6.3V

+

12

D D

C C

VEC13 560u6.3V

VEC6 560u6.3V

+

12

VEC7 560u6.3V

VEC12 560u6.3V

VEC8 560u6.3V

+

12

RT3607_CORE_UG1[45]

RT3607_CORE_BOOT1[45]

RT3607_CORE_PH1[45]

RT3607_CORE_LG1[45]

RT3607_CORE_UG1 RT3607_CORE_UG1

RT3607_CORE_BOOT1 RT3607_CORE_BOOT1_R

RT3607_CORE_PH1

RT3607_CORE_LG1

VR43

2.2R1%6

VC17

0.1u25X4

5

VQ9

4 3 2 1

N-SM4503NHKPC-TRG

5

4 3 2 1

N-SM4337NSKPC

RT3607_CORE_LG1

VQ10

5

VQ12

4 3 2 1

N-SM4503NHKPC-TRG

5

4 3 2 1

N-SM4337NSKPC

VQ11

12VIN

VR90

2.2R/8

VC37 1500p50X4

VC41 22u16X8

VC40

0.1u16X4

VR87 2.55K1%4

Close to IC

ISEN1P_3607[45]

CHOKEV2

CH-0.33u42A0.71mS

1 2

ISEN1+_R

VC22 0.1u16X4

VR75 X_0R/4

VR80

2.1K1%4

VCORE

5

RT3607_CORE_UG2[45]

RT3607_CORE_BOOT2[45]

B B

A A

RT3607_CORE_PH2[45]

RT3607_CORE_LG2[45]

RT3607_CORE_UG2 RT3607_CORE_UG2

RT3607_CORE_BOOT2 RT3607_CORE_BOOT2_R

RT3607_CORE_PH2

RT3607_CORE_LG2

5

VR28

2.2R1%6

VC14

0.1u25X4

4

5

VQ13

4 3 2 1

N-SM4503NHKPC-TRG

4 3 2 1

N-SM4337NSKPC

RT3607_CORE_LG2

3

VQ14

5

VQ16

4 3 2 1

N-SM4503NHKPC-TRG

5

4 3 2 1

N-SM4337NSKPC

VQ15

VC38 22u16X8

VR91

2.2R/8

VC39 1500p50X4

2

VC42

0.1u16X4

ISEN2P_3607[45]

1 2

VR88 2.55K1%4

Close to IC

CHOKEV3

CH-0.33u42A0.71mS

ISEN2+_R

VR81

2.1K1%4

VC23 0.1u16X4

VR76 X_0R/4

MSI

Size Document Description Rev

Custom

VCORE

MICRO-STAR INT'L CO.,LTD

MS-7C89

VCORE MOS-PHASE 1~2

Tuesday, March 17, 2020

1

Sheet ofDate:

46 65

1.0

5

4

3

2

12VIN

1

VC32

0.1u16X4

VR92

2.2R/8

VC43 1500p50X4

VC4

0.1u16X4

VR89

2.2R/8

VC34 1500p50X4

ISEN4P_3607[45]

VR84 2.55K1%4

Close to IC

ISEN3P_3607[45]

1 2

VR86 2.55K1%4

Close to IC

CHOKEV1

CH-0.33u42A0.71mS

1 2

ISEN3+_R

CHOKEV4

CH-0.33u42A0.71mS

ISEN4+_R

VR82

2.1K1%4

VC24 0.1u16X4

VR77 X_0R/4

VR83

2.1K1%4

VC21 0.1u16X4

VR74 X_0R/4

VCORE

12VIN

VC1 22u16X8

VC33 22u16X8

5

RT3607_CORE_UG3[45]

D D

RT3607_CORE_BOOT3[45]

RT3607_CORE_PH3[45]

RT3607_CORE_LG3[45]

12VIN

C C

VC46 2.2u16X6

RT3607_CORE_PWM4[45]

B B

VR98

2.2R1%8

RT9624_CORE_VCC4 RT9624_CORE_BOOT4

4

1

3 2 9

VU2

VCC

PWM

NC GND GND-PAD

RT9624F

RT3607_CORE_UG3

RT3607_CORE_BOOT3 RT3607_CORE_BOOT3_R

RT3607_CORE_PH3

RT3607_CORE_LG3

8

BOOT

UGATE

PHASE

LGATE

RT9624_CORE_UG4

7

RT9624_CORE_PH4

6

RT9624_CORE_LG4

5

RT9624_CORE_UG4 RT9624_CORE_UG4

RT9624_CORE_BOOT4 RT9624_CORE_BOOT4_R

RT9624_CORE_PH4

RT9624_CORE_LG4

VR49

2.2R1%6

VR99

2.2R1%6

VC19

0.1u25X4

VC47

0.1u25X4

5

VQ7

4 3 2 1

N-SM4503NHKPC-TRG

5

VQ20

4 3 2 1

N-SM4503NHKPC-TRG

4 3 2 1

N-SM4337NSKPC

RT3607_CORE_LG3

5

VQ19

N-SM4337NSKPC

RT9624_CORE_LG4

VQ8

RT3607_CORE_UG3

5

VQ5

4 3 2 1

N-SM4503NHKPC-TRG

5

VQ18

4 3 2 1

N-SM4503NHKPC-TRG

4 3 2 1

N-SM4337NSKPC

5

4 3 2 1

N-SM4337NSKPC

VQ17

5

VQ6

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

VCORE MOS-PHASE 3~4

1

Sheet ofDate:

47 65

1.0

5

D D

4

3

2

12VIN

VGT

1

VEC3 560u6.3V

VEC2 560u6.3V

+

12

Close to high MOS.

VR44

2.2R/8

VC18 1500p50X4

ISENA1P_3607[45]

VC36

0.1u16X4

CHOKEGT1

1 2

CH-0.33u42A0.71mS

VR14 2.55K1%4

Close to IC

ISENA1+_R

VR3

2.1K1%4

VR4 X_0R/4

VGT OSCON follow 7C88

VC2

0.1u16X4

VGT

5

RT9624_GT_UGA1

RT9624_GT_BOOTA1 RT9624_GT_BOOTA1_R

RT9624_GT_PHA1

4

1

3 2 9

VU1

VCC

PWM

NC GND GND-PAD

RT9624F

RT9624_GT_LGA1

12VIN

VR95

C C

VC44 2.2u16X6

RT3607_GT_PWMA1[45]

2.2R1%8

RT9624_GT_VCC1 RT9624_GT_BOOTA1

BOOT

UGATE

PHASE

LGATE

VR96 2.2R1%6

8

RT9624_GT_UGA1

7

RT9624_GT_PHA1

6

RT9624_GT_LGA1

5

VC45

0.1u25X4

5

VQ4

4 3 2 1

N-SM4503NHKPC-TRG

4 3 2 1

N-SM4337NSKPC

RT9624_GT_LGA1

VQ2

5

VQ3

4 3 2 1

N-SM4503NHKPC-TRG

VC35 22u16X8

12VIN CONNECTOR

CPU_PWR1

B B

MEC1

1

GNDGNDGNDGND

+12V+12V+12V+12V

2 3 4

PWRCONN8P_BLACK

5 6 7 8

VC6 X_0.1u16X4

12VIN

VEC1 270u16V

VEC5 270u16V

+

12

VEC4 270u16V

VEC9 270u16V

+

12

close to connector

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

VGT MOS-PHASE 1~2

1

Sheet ofDate:

48 65

1.0

5

Vinafix.com

SA Power:1.05V,11.1A

Current limit: 13A~18A, TYP=15A

4

CH-0.24u4.4A

CHOKESA2

12

C217

C216

C218

22u16X8

0.1u16X4

22u16X8

+12V +12V_VCCSA

3

Irms1 = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin)))

= 11.1 * 0.2825 = 3.136A

2

VCCSA

C174 1u6.3X4

C138 22u6.3X6

C131 22u6.3X6

C504 22u6.3X6

1

D D

VCCSA_VCC

+12V

EN:VIH1.2~1.4V

open drain

C225 18n16X4

C209 1u6.3X4

R181

3V

300K/4

VCCSA_EN

R172 100K/4

R155 150K1%4

G2

D1

G1

Q33 2N7002D

S1

VCCSA_PG[55]

3VSB

R138

X_10K/4

D

VCCIO_EN[50]

2020.02.12

G

S

@HI

GPP_E3[15,50]

R139 10K/4

C C

B B

VCCSA_MODE

R144

R158

10K/4

27K1%4

Q26

2N7002

MODE: (10%~20%)*VCC->FCCM (Freq:500K) Default (0~10%)*VCC->Eco-mode (Freq:500K)

ATX_5VSB

R180 47K/4

C229 0.1u16X4

J

VRM_EN

3.3V(VCC3)

D2

S2

VCCSA_EN

VCCSA_PG

VCCSA_MODE

C219 X_0.1u16X4

+12V_VCCSA

VCCSA_SS

VCCSA_VCC

VCC:4.85~5.15

USA1

2

VIN-1

3

VIN-2

4

VIN-3

5

VIN-4

12

EN

9

PG

MODE15GND-1

11

SS

17

VCC

TPS56C230RJER_VQFN20

SLP_S3# assertion to VCC, VCCGT, VCCIO and VCCSA rails completely off.

SLP_S3# assertion to VR disabled max:1us

SLP_S3#[12,25,50,51,55]

BST

SW-1 SW-2 SW-3

NC-1 NC-2

GND-2 GND-3 GND-4

AGND

1

6 19 20

14

FB

10 16

7 8 18 21

13

+12V

SA_PH

SA_FB

R182 47K/4

R160 0R/6

FB:0.6V

SA_OV[28]

Q31

G2

D1

G1

S1

2N7002D

SA_BOOT_RSA_BOOT

CP2 X_COPPER

C210 0.1u25X4

SA_PH

CHOKESA1 CH-0.68u15A5mS

1 2

R156 1K1%4

C211 X_100p50N4

R161

1.33K1%4

Vout = 0.6 * (1 + 1K/1.33K)

R143 X_2.2R/8 C205 X_3300p50X4

reserve snubber

VCCSA_EN

D2

S2

VCCSA

= 1.051V

1.05V Icc:11.1A

R149 10R1%4

R146 0R/4

VSA_SENSE [6]

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

CPU PWR-VCCSA

1.0

49 65

1.0

Sheet ofDate:

1

5

4

3

2

1

C235

C233

X_10u25X8

0.1u16X4

+12V_VCCIO

VCC:4.85~5.15

+12V_VCCIO

Irms1 = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin))) = 6.4 * 0.27 = 1.728A

C234

22u16X8

UIO1

2

VIN-1

3

VIN-2

4

VIN-3

5

VIN-4

12

EN

9

PG

MODE15GND-1

11

SS

17

VCC

TPS568230RJER_VQFN20-HF

SW-1 SW-2 SW-3

GND-2 GND-3 GND-4

AGND

BST

NC-1 NC-2

VCCIO

C194

C195

0.1u16X4

22u6.3X6

VCCIO_BOOT1

1

VCCIO_PH1

6 19 20

VCCIO_FB

14

FB

10 16

7 8 18 21

13

R174 0R/6

FB:0.6V

from NCT3933

VCCIO_OV[28]

VCCIO_PH1

VCCIO_BOOT1_R

R159 X_2.2R/8

C214 0.1u25X4

CP3 X_COPPER

C213 X_3300p50X4

CHOKEIO1 CH-0.68u15A5mS

1 2

R179

1.74K1%4

R178 1K1%4

C228 X_100p50N4

Vout = Vref * (1 + R3413/R3408) = 0.6 * (1 + 1K/1.74K) = 0.6 * 1.5747 = 0.9448V

C185 22u6.3X6

VCCIO

R186 10R1%4

C187 X_22u6.3X6

R187 0R/4

VCCIO_SENSE [6]

0.95V Icc:6.4A

VCCIO Power 0.95,6.4A

+12V

0.95V Icc:6.4A

D D

VCCIO_VCC

R171

VCCIO_MODE

R170

3.6K/4

D

Q34

C C

GPP_E3[15,49]

G

S

2N7002

MODE: RM_H:75K,RM_L:51K->FCCM (Freq:800K) Default RM_H:330K,RM_L:15K->Eco-mode (Freq:800K)

75K1%4

R169 51KR%4

VCCIO_PG[55]

Tss=Css*Vref/Iss 18n*0.6/5uA=2.16ms

CH-0.24u4.4A

VCCIO_VCC

CHOKEIO2

R188 100K/4

12

EN:VIH1.2~1.4V

C239 18n16X4

C215 1u6.3X4

VCCIO_EN

open drain5V

VCCIO_PG

VCCIO_MODE

VCCIO_SS

VCCIO_VCC

reserve snubber

+12V

R154

ATX_5VSB

R152

G2

D1

G1

C203 X_0.1u16X4

Q27

2N7002D

S1

C200

0.22u16X4

5V(5VDIMM)

VCC3

Q467_D1

R148 10K/4

B B

DDR_PWRGD[52]

47K/4

D2

Q467_D1

S2

SLP_S3_CTRL[55]

VCCIO_EN_G

VCCIO_EN

C208 X_0.1u16X4

Q29

G2

D1

G1

S1

2N7002D

D2

S2

VCCIO_EN

30K/4

R150 10K/4

3V

C202 X_0.1u16X4

VCCIO_EN [49]

ATX_5VSB

R198 47K/4

Q40

G2

C256 X_0.1u16X4

D1

G1

R197 10K/4

VCC5

A A

5

R199 100K/4

S1

2N7002D

4

D2

S2

VCCIO_EN

+12V

R183 47K/4 R207 X_0R/4

Q32

G2

D1

SLP_S3#[12,25,49,51,55]

G1

S1

2N7002D

VCCIO_EN

D2

S2

3

for S0ix

PS_ON#[25,56]

S0_IDLE[25,54,55]

S0_IDLE_CTRL[51]

R208 X_0R/4

2

R200 X_0R/4

Q44

D

G

S

X_2N7002

MSI

VCCIO_EN

MICRO-STAR INT'L CO.,LTD

MS-7C89

Size Document Description Rev

Custom

Tuesday, March 17, 2020

MS-7C89

CPU PWR-VCCIO

1

Sheet ofDate:

50 65

1.0

5

4

3

2

1

VCCST_PLL VCCSTG

D D

C201 22u6.3X6

C196 22u6.3X6

3VSB

C C

1.0V; 0.45A

1.0V; 0.2A

PCH_1VSB

U21

1

VIN1-1

2

VIN1-2

6

VIN2-1

7

VCCSTG_EN VCCST_PLL_EN

SLP_S3#[12,25,49,50,55] SLP_S4#[12,25,43,52,53]

SLP_S4#

VIN2-2

3

ON1

5

ON2

4

VBIAS

TPS22976DPUR_WSON14-HF

C206

0.1u16X4

R202 0R/4

R203 X_0R/4

VOUT1-1 VOUT1-2

VOUT2-1 VOUT2-2

CT1 CT2

GND

Thermal Pad

R201 47K/4

13 14

8 9

12 10

11 15

Q41 2N7002D

G2

D1

G1

S1

Power Loss1=(I*I)*Rds(on) =(0.45*0.45)*0.022 =0.2025*0.022 =4.455mW

Power Loss2=(I*I)*Rds(on) =(0.2*0.2)*0.022 =0.04*0.022 =0.88mW

2019.08.30 B460 1V

C190

VCCSTG_EN

C265

0.1u16X4

X_22u6.3X6

C181 4700p50X4

D2

S2

C180 4700p50X4

3VSBATX_5VSB

R205

4.7K/4

VCCST_PLL

C191

X_22u6.3X6

2019.08.30 B460 1V

VCCSTG

C182 22u6.3X6

R204 47K/4

G2

D1

G1

Q45 2N7002D

S1

3VSBATX_5VSB

R206

4.7K/4

D2

S2

VCCST_PLL_EN

C264

0.1u16X4

Q47 2N7002D

C262

0.1u16X4

G2

D1

G1

S1

Q46

B B

SLP_S3#_5VDUAL

R209 4.7K/4

for S0ix

Q43

D

S0_IDLE_CTRL[50]

A A

5

G

S

X_2N7002

PSON#

VCCSTG_EN_Q

VCCSTG_EN

C261

0.1u16X4

D1

G1

2N7002D

G2

VCCSTG_EN

D2

VCCSTG_EN_Q

S2

S1

2019.08.08 nick mail

4

3

PSON#[56]

SLP_S3#_5VDUAL[43,55]

VCCSTPLL_EN_Q

R210 4.7K/4

D2

S2

2

VCCST_PLL_EN

VCCSTPLL_EN_Q

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

MS-7C89

CPU PWR-VCCST/PLL

1

Sheet ofDate:

51 65

1.0

5

DDR4 Power:1.2V,12.15A

3.7A For CPU

7.85A For 2DIMM

0.375A For DDR VTT

OCP = 12.5~16.6A; Choke Isat=32A

D D

Rlimit = Llimit * Rds * 10 /5uA

4

3

CHOKE1

1 2

CH-0.47u4.8A23mS-HF

2

5VDIMM_IN5VDIMM

5VDIMM_IN

C59

0.1u16X4

C53

C52

22u6.3X6

EC3

22u6.3X6

+

12

560u6.3V

1

= 15.8*3.9*10/5 = 123.24K

0.4V<=Rlimit *5uA<=3V

123.24*0.005=0.6162

D03-4503N0C-ST8 Current limit= 124K*5uA/10/5.1mohm)=12.16A Current limit= 124K*5uA/10/3.9mohm)=15.9A

5VDIMM

R60

C C

SLP_S4#[12,25,43,51,53]

B B

VCC_DDR

DDR_VTT_CTRL[3]

ATX_5VSB

R55

47K/4

R56 1K/4

R57 4.7K/4

DDR_PWRGD[50]

0330: Follow 300 Series Update

Q11 2N7002D

G2

D1

G1

S1

ATX_5VSB

R62 10K/4

CE

B

Q12 2N3904

47K/4

5V

DDR_PWRGD

MAX:0.375A

5VDIMM

3V

VPP_VR_PG [53]

R67 2K1%4

3V

DDR_VTT_CTRL_EN

R68 3K1%4

VPP_VR_PG

D2

S2

D

Q14

G

2N7002

S

DDR_UG

DDR_PH

DDR_LG

VTT_DDR

5VDIMM

VCC_DDR

R59

5.1R1%4

C37 1u6.3X4

R58 124K1%4

VPP_VR_PG

DDR_VTT_CTRL_EN

C46 3300p50X4

C45

C48

10u6.3X6

Rocset

DDR_PWRGD

VIH=2 ,VIL=0.8

4 3 2 1

N-SM4503NHKPC-TRG

5

11

12

13

10

19

20

4 3 2 1

Q22

8

7

5

4

2

1

N-SM4337NSKPC

U10

VID

VDD

CS

PGOOD

S5

S3

VDDQ

VTT LDO

VLDOIN

VTTREF

VTT VTTSNS

VTTGND

RT8231AGQW_WQFN20-HF

5VDIMM_IN

5

Q21

f:400KHz

9

TON

UGATE

BOOT

PHASE

LGATE

PGND

GND

PGND-1

R61 620K1%4

DDR_UG

17

18

DDR_PH

16

DDR_LG

15

DDR_FB

6

FB

14

3 21

DDR_OV[28]

Irms = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin))) = 13.5* 0.427 = 5.765A

R94

2.2R/8

C68 2200p50X4

R66 0R/6

CP1 X_COPPER

CHOKE2

1 2

CH-0.68u15A5mS

Irms = Iout * SQRT((Vout/Vin) * (1-(Vout/Vin))) =12.15* 0.427 = 5.2A

5VDIMM

DDR_BOOT_RDDR_BOOT

C40 0.1u25X4

R70 1K1%4

C44 X_0.1u16X4

R71

1.69K1%4

VCC_DDR

Vout = Vref * (1 + R215/R222) = 0.75 * (1 + 1K/1.69K) = 0.75 * 1.591 = 1.208V

1.2V Icc:9.525A

OCP:?A

EC5

EC6

+

12

C47

0.1u16X4

12

560u6.3V

FB:0.75V

VCC_DDR

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

DDR4 Power

1.0

52 65

1.0

Sheet ofDate:

1

5

VPP2.5V Power:2.5V,3A

4

Irms = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin))) = 3 * 0.5 = 1.5A

3

2

1

IC OCP:4.6

CHOKE3

12

D D

ATX_5VSB 5VDIMM

R109 47K/4

C C

C1481u6.3X4

SLP_S4#[12,25,43,51,52]

3V

R108

X_100K/4

R107 100K1%4

C143

1u6.3X4

5VDIMM

CH-0.24u4.4A

R112

Q24 2N7002D

G2

D1

G1

3V

5V

D2

S2

S1

D

Q23

G

S

2N7002

2.2K/4

R111

3.3K1%4

5VDIMM_VPP5VDIMM

VIN=4.5~18V

VPP_EN

VIH>1.5V

VPP_PG

C155

C156

X_22u6.3X6

22u6.3X6

3V

C149

0.1u16X4

VPP_EN

C157

open drain

0.1u16X4

Tss=Css*Vref/Iss 10nF*0.6/4u=1.499ms

VPP25

R114 10K/4

VPP_PG

2.5V

C152

0.1u16X4

C158

0.01u50X4

7

6

5

4

f:1MHz

U18

SY8113KAIC_TSOT23-8-HF

IN

EN

PG

SS

BS

LX

FB

GND

ATX_5VSB

1

8

3

2

R110 47K/4

G2

D1

G1

Q25 2N7002D

VPP_BOOT_RVPP_BOOT

R134

0R/6

VPP_PHASE

VPP25_FB

5VDIMM

D2

S2

S1

L=(Vout-(1-Vout/Vin))/(Fsw*Iout*0.4) =1.66uH

C175

0.1u16X4

R122 52.3K1%4

C161 22p50N4

R121

16.5K1%4

Vout=0.6*((R1/R2)+1))

0.6*((52.3/16.5)+1)=2.501

R115 2K1%4

VPP_VR_PG

R113 3K1%4

CHOKE4

1.0u5.5A-35_1210-HF

1 2

VPP_PHASE

3V

VPP_VR_PG [52]

R135 X_1R1%6

reserve snubber

VPP25

C199 22u6.3X6

C184 22u6.3X6

C170 X_2700p50N4

C192 X_22u6.3X6

C204 0.22u16X4

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

DDR PWR VPP25/VTT

1

Sheet ofDate:

53 65

1.0

5

Vinafix.com

4

3

2

1

PCH_1VSB Power:1V,9.208+0.65=9.858A

7

8

9

U31

EN_MODE

PGOOD

REFOUT

REFIN

5VDUAL

5

11

R301

10R/6

C356 1u16X6

BOOT

VCC

PHASE

UGATE

LGATE/OCSET

GND

RT8125H

5VDUAL_PCH_IN

1

3

2

4

6

FB

R283 0R/6

PCH_PHASE

PCH_UGATE

PCH_LGATE

PCH_CORE_ FB_R

C365 X_0.01u25X4

R307 1K1%4

R321

3.92K1%4

2019.08.30 B460 1V

S0_IDLE[25,50,55]

PCH_R_BOOTPCH_BOOT

C347 0.1u25X4

Rocset

R286

5.6K1%4

PCH_TYPE3

Vout = Vref * (1 + R821/R822)

= 0.8 * (1 + 1K/3.92K) = 0.8 * 1.2551 = 1.004V

R330 0R/4

R315 X_0R/4

Q69

G2

D1

G1

2N7002D

PCH_MODE PCH_1VSB_EN

PCH_1VSB_EN

VSB_ENABLE#[25,43,44]

PCH_1VSB

S1

20190909 400 update

D2

R384 2.2K1%4

S2

5

Q58

4 3 2 1

N-SM4337NSKPC

5

Q62

4 3 2 1

N-SM4503NHKPC-TRG

Default:FCCM L:FCCM H:DEM

Lmin = ((Vin - Vout)/(Fsw * k * Iout_max)) * (Vout/Vin)

OCP = 11.66~15.55A

Iocp =Rocset* Iocset /Rdson(low)

=5.6K*10uA/3.9m =14.36A

Iocp =Rocset* Iocset /Rdson(max)

D D

C C

B B

=5.6K*10uA/5.1m =10.98A

Rdson(Low Side) 5V

D03-4503N0C-ST8:3.9 ~5.1 mohm

Note: Rocset(min)=5K

EN_MODE Pin Voltage IC Operate Mode

<0.4V

2.1~2.7V

4.3~5V

ATX_5VSB

R333 10K/4

3VSB

C384

X_0.1u16X4

1000p50X/4

R367 47K/4

G2

D1

G1

C375

1000p50X/4

Q70 2N7002D

S1

C374

D2

S2

PCH_1VSB_EN

PCH_REFOUT

R322 768R1%4

PCH_REFIN

shut down

DEM

FCCM

PCH_1VSB_EN

X_0.1u16X4

C373

5VDUAL

R332

2.2K1%4

R331 20K1%4

10

Irms = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin)))

= 11 * 0.4 = 4.4A

CHOKE5

C315

0.1u16X4

C312

22u6.3X6

C313

22u6.3X6

1 2

CH-0.82u16.5A4.7mS

R255

2.2R/8

C345 3300p50X4

EC11

+

12

560u6.3V

CHOKE6

1 2

CH-0.47u4.8A23mS-HF

5VDUAL

EC13

+

12

560u6.3V

= 0.8335uH (K = 30%)

PCH_1VSB

C3 2 4 22u6.3X6

C3 2 2 10u6.3X6

C3 2 3 22u6.3X6

C3 2 6 1u6.3X4

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

PCH POWER

1.0

54 65

1.0

Sheet ofDate:

1

5

PWR-VRM-Seqence

ATX_5VSB

R166

C222

D D

VCCIO_PG[50]

R196 0R/4

47K/4

VRM_EN_C10

100p50N4

C251 100p50N4

R194 X_0R/4

Q35

G2

D1

G1

S1

D2

S2

2N7002D

2019.10.08 400 Update

VCC3

R192 X_1K/4

PR1 X_10K/4

3VSB

R190 1K/4

4

VRM_EN

VRM_EN [45]

ATX_5VSB

3

for 5VDIMM and 5VDUAL

for S0ix

S0_IDLE[25,50,54,55]

SLP_S3_CTRL[50,55]

SLP_S3#_5VDUAL

2

3VDSW

R191

Q39

G2

D1

G1

2N7002D

S1

1K/4

SLP_S3#_5VDUALS0_IDLE

D2

S2

SLP_S3#_5VDUAL [43,51]

1

ATX_5VSB

VRM_EN_C10

D

Q42

S0_IDLE[25,50,54,55]

C C

B B

G

2N7002

S

SIO_DPWROK[25,44]

SIO_RSMRST#[12,25,44]

SIO_3VA

R470 X_4.7K/4

3VSB

SLP_S3_CTRL[50,55]

SLP_S3#[12,25,49..51]

R457

4.7K/4

R167

4.7K/4

Q36

G2

D1

G1

deep mode: unstuff. DSW mode: stuff.

X_100K1%4

R458 0R/4

S1

R461

SIO_RSMRST#

2N7002D

DPWROK

R456 100K1%4

D2

S2

C413

VRM_EN

DPWROK [12]

X_10p50N4

deep mode: stuff. DSW mode: unstuff.

R168

4.7K/4

Q37

G2

D1

G1

D2

S2

2N7002D

S1

2019.10.08 400 Update

VRM_PGD

SLP_S3# SLP_S3#_5VDUAL

R193 X_0R/4

for wake

R410 X_47K/4

PCH_WAKE#[12,19,20,22,23]

LANPHY_WAKE#[12,31]

R408 0R/4

RL10 0R/4R462 X_0R/4

SIO_3VA

ATX_5VSB

R435 47K/4

SIO_3VA

R411

4.7K/4

Q75

G2

D1

G1

S1

2N7002D

D2

S2

SIO_CPU_FAN1 [25]

VCC3 3VSB

3VSB

R185 X_10K/4

VRM_PGD[45]

5

C237

3.3V

C242 X_0.1u16X4

A A

VCCSA_PG[49]

R189 0R/4

X_0.1u16X4

VRM_EN

3.3V

R164

1.8K/4

1

2

C220 0.1u16X4

53

U24

VCC

A

B

GND

NC7SZ08M5

PWROK_AND

4

Y

Main: T39-01G0820-N47 AVL: T70-7SZ0800-T07& T70-7SZ0880-O05

4

R173 249R1%4

R165 249R1%4

R163 6.04K1%4

1.01661V

PCH_PWROK [12]

VCCST_PWRGD [3]

R162

2.8K1%4

3

2020.01.30 400 Update

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

2

Tuesday, March 17, 2020

MS-7C89

POWER SEQUENCE

1

Sheet ofDate:

55 65

1.0

5

ATX POWER CONNECTOR

ATX_5VSB

R54

D D

CPU_ID[3]

CML-S GND RKL-S HiZ

ATX_5VSB

R31

Q3

47K/4

2N7002D

G2

D1

G1

JVBOOT#[45]

C C

JVBOOT#

47K/4

S1

C537 X_0.1u16X4

D2

S2

G2

D1

G1

Q10 2N7002D

S1

CPU_ID

C539 X_0.1u16X4

D2

S2

C538 X_0.1u16X4

For +12V PLANE

PS_ON#

C536 X_0.1u16X4

PSON# [51]

PS_ON# [25,50]

+12V+12V+12V +12V+12V

C535 X_0.1u16X4

4

ATX_5VSB

VCC3

R106 10K/4

0306: Follow Check List For D0G-0505

For Power RIPPLE

C153 X_0.1u16X4

-12V

C154 0.1u16X4

PSON#

12

D3 ESD-AOZ8231ADI

VCC5

C112 X_0.1u16X4

VCC5VCC3

C147 X_22u6.3X6

C121 X_22u6.3X6

JPWR1

ATX_PWR1

25

13

3.3V

25

14

3.3V

-12V

15

GND

16

5V

P_ON

17

GND

18

5V

GND

19

GND

20

POK

-5V

21

5VSB

5V

22

+12V

5V

23

+12V

5V

GND243.3V

PWRCONN24P

VCC5 ATX_5VSB

+

12

EC1 560u6.3V

1

2

3

4

5

6

7

8

C91 X_0.1u16X4

9

C77 X_0.1u16X4

10

11

C70 0.1u16X4

12

C65 X_0.1u16X4

+

12

3

C150 0.1u16X4

C123 0.1u16X4

VCC5

R98

4.7K/4

VCC5

EC2 100u16V

K1KLMNOP

QRS,%1KLTUV

supply

VCC3

VCC5

ATX_PWR_OK [25,43]

ATX_5VSB

+12V

VCC3

ATX_5VSB

R103 X_1K/4

200W(huntkey)power

ATX_5VSB

R97 1K/4

WXYZ[\]

2

FRONT PANNEL

FP_RST#[12]

R487 33R/4

C440 X_0.1u16X4

C433 X_0.1u16X4

C436 X_0.1u16X4

VCC5

R490 330R/6

HDD+

IDE_LED

FP_RST#_R

C441

0.1u16X4

D23 1N4148W

A C

RN1 150R/8P4R

2 4 6 8

JFP1

1

HDD+

3

HDD-

RESET-5PWSW+

7

RESET+

9

NC

H2X5[10]M_BLACK

1 3 5 7

CE

Q81 2N3904

PLED

SLED

PWSW-

C435 0.1u16X4

SPEAKER

B

R471 10K/4

PWR_LED

2

SUS_LED

4

PSIN#_R

6

8

VCC5

JFP2

1 2 3 4

H1X4M_BLACK

SPKR [12]

1

C432 X_0.1u16X4

R480 100R1%4

PWRBTIN [22,25]

Front Panel LED



5VDIMM

B B

R482 330R/6

SUS_LED

R481 330R/6

Low Active

A A

5

5VDIMM

Reserve pull high to 5VDIMM if PM don't want PLED light in deep mode.

Q80

652 1 3 4

CMKT3904_SOT363-6

4

LED_VSB_R

LED_VCC_RPWR_LED

R472 4.7K/4

R473 4.7K/4

3VSB

R465 1K/4

R466 1K/4

PCH_SATA_LED#[14]

LED_VSB [25]

LED_VCC [25]

3

pull-up PCH

R475 5.1K1%4



pull-up M2

M2_1_DAS[22]

R474 5.1K1%4

2

PCH_SATA_LED#_R

M2_1_DAS_R

Q79

2

5

CMKT3904_SOT363-6

Q82

2

5

CMKT3904_SOT363-6

MSI

Size Document Description Rev

VCC3

R477

5.1K1%4

6 1

IDE_LED

3 4

VCC3

R479

5.1K1%4

6 1

IDE_LED

3 4

MICRO-STAR INT'L CO.,LTD

MS-7C89

Custom

ATX Connector/F_Panel

Tuesday, March 17, 2020

1

Sheet ofDate:

56 65

1.0

5

LED MCU

LED_RST#[15]

5VDUAL

R310 33R/4 R309 33R/4

VCC5_DET# LED_TEST#

D D

MB_USB_8D-[14]

MB_USB_8D+[14]

5VDUAL

C C

If you use ADC function,need to separate VREF from AVDD and 4_09VREF stuff for VREF.

5VDUAL LED_AVDD

R311 47K/4

LED_AVDD

C390 1u6.3X4

C368 1u6.3X4

MB_USB_8D-_R MB_USB_8D+_R

R406 10K/4 C397 10u6.3X6 R313 3.9KR1%4 R312 3.9KR1%4

5VDUAL

DEMO_DET#

VDD_CAP

VDD33_CAP

LED_RST#

ICE_CLK ICE_DAT

U33

42

AVDD

43

VREF

41

VDD

10

VBAT

18

LDO_CAP

6

AVSS

17

VSS

32

USB_VBUS

36

USB_VDD33_CAP

33

USB_D-

34

USB_D+

4

nRESET

25

PE6/ICE_CLK

26

PE7/ICE_DAT

31

VDDIO

29

PE12/I2C0_SCL

30

PE13/I2C0_SDA

27

PE10/LED_DEMO

28

PE11/LED_SMI#

45

PB1/ADC1

47

PB3/ADC2

48

PB4/ADC3

49

NC

4

PC0/PWM0_CH0 PC1/PWM0_CH1 PC2/PWM0_CH2

PC3/PWM0_CH3 PC4/PWM0_CH4 PD7/PWM0_CH5

PA2/PWM1_CH3 PA1/PWM1_CH4 PA0/PWM1_CH5

PB5/SPI0_MOSI

PB2/USCI0_DAT0

PB0/USCI1_DAT0

PA3/USCI1_CLK

PB6/LED_COM1 PB7/LED_COM2 PD2/LED_COM3 PD3/LED_COM4 PF0/LED_COM5 PF1/LED_COM6 PF2/LED_COM7 PE0/LED_COM8 PF7/LED_COM9

PF3/I2C1_SCL/LED_COM10

PF4/I2C1_SDA/LED_COM11

PD0/UART0_RX/LED_COM12 PD1/UART0_TX/LED_COM13

NUC126NE4AE

19 20 21

22 23 14

38 39 40

1 46

44 37

2 3 8 9 11 12 13 24 35

15 16

5 7

SMBCLK_MCU SMBDATA_MCU

PWM1_R PWM1_G PWM1_B

LED_DATA1

JRGB1_PWRDET

R383 0R/4 R373 0R/4

2019.11.22 Robert mail

PWM1 for JRGB1

PWM1_R [58] PWM1_G [58]

RGB LED STRIPLINE USED

PWM1_B [58]

LED_DATA1 [58]

SMBCLK_VSB_R [12,19,20] SMBDATA_VSB_R [12,19,20]

3

PWM3 for Others According to demand configuration

PIN1 for JPIPE_LED1~3 and JRAINBOW1 PIN46 for JCORSAIR1

PIN44 for JRAINBOW2

COM1~8 for PWM3 According to demand configuration. Can configuration COM1~8, To achieve 8 group Non-synchronized onboard LED control.

COM9~12 for PWM2 According to demand configuration. If SPEC. don't have JRGB2, Can configuration COM9~12, To achieve 4 group Non-synchronized onboard LED control.

PS. COM1 is the first action block, next is COM2, and so on.

Pin15,16 can configure to master smbus if spec requirement.

PWM1_B PWM1_G PWM1_R

VCC5_DET# LED_TEST#

2

R328 100K/4 R346 100K/4 R354 100K/4

R300 47K/4 R299 47K/4

5VDUAL

1

Control

PCH

AUDIO Cover

Net Name

LED_DATA1

LED_GPIO_01

MOS/IO cover LED_GPIO_02

LED_GPIO_03JRAINBOW1

LED_DATA2

PWM2

JRGB1/JRGB2 PWM1

Board Side LED

PWM1/

COM 1~8

COM 9~16Board Side LED

PWM USE

No Use

No UseJCORSAIR1

No Use

5VDUAL LED_AVDD

L5 120L500mA/4

C389

1u6.3X4

C388

0.1u16X4

C702 & C2076 near AVDD Pin.

B B

IF no JPWRLED1 & JPIPE_LED spec

5VDUAL

C364

C357 10u6.3X6

C2075 & C2074 near VDD Pin. C2073 near VBAT Pin. C2070 near VDDIO & USB VBUS Pin.

0.1u16X4

C396

0.1u16X4

C385

0.1u16X4

VCC5

R324 47K/4

C376

1u6.3X4

VCC5_DET#

R317 X_100K/4

D

Q67

G

2N7002

S

JRGB1_PWRDET

+12V_LED1

R316 100K/4

R306 39KR0402

MCU can powered by 5VDUAL directly. LED_VCC5 replace with 5VDUAL.

JT1 for FW update

ICE_DAT

TPDATA1

ICE_CLK

A A

TPCLK1 TPRST1

5

LED_RST#

MICRO-STAR INT'L CO.,LTD

MS-7C89

MCU Control

MS-7C89

1

Sheet ofDate:

57 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

4

3

2

Tuesday, March 17, 2020

5

4

3

2

1

JRGB1

C431 10u25X8

D20 ESD-AOZ8831DT

D21 ESD-AOZ8831DT

D22 ESD-AOZ8831DT

>60mil>60mil

+12V_LED1+12V

R446

150K1%4

+12V

C405 X_0.1u16X4

ATX_5VSB

R409 47K/4

Q74

2N7002D

G2

D1

+12V_LED1

G_LED1 R_LED1 B_LED1

G1

JRGB1

1 2 3 4

H1X4M_BLACK-RH-6

+12V_LED1

CHIP_PWGD[12,25,44]

S1

C438

0.1u16X4

D2

S2

12V_JRGB_EN

U37

1

VCC-1

C418 1u16X6

12V_JRGB_EN

D D

R478 604R1%4

PWM1_G[57]

C C

PWM1_R[57]

PWM1_B[57]

9

EN

MODE5DV/DT

4

ILIMIT

MP5016GQH-L-Z_QFN10-HF

G_LED1

Q76

D

G

S

N-SM2408NSA

R_LED1

Q77

D

G

S

N-SM2408NSA

B_LED1

Q78

D

G

S

N-SM2408NSA

SOURCE-1

GATE

GND

6

8

C421 100p50N4

10

C420 X_100p50N4

3

G_LED1

2

1

R_LED1

2

1

B_LED1

2

1

2

1

2

1

2

1

JRAINBOW1 LED

LED_DATA1[57]

VCC5

LED_DATA1

60mil

12

ESD-AOZ8131DI

VCC5

C5 10u6.3X6

VCC5_LED1

D10

R12

4.7K/4

3 A

JRAINBOW1

1 2

4

H1X4M_BLACK-RH-6

U2

VIN5FLG

OUT

4

EN

GND

RT9742AGJ5F

3

1

2

VCC5_LED1

C16

0.1u16X4

VCC5

R15 10K/4

VCC5_LED1

C12 10u6.3X6

VCC5_LED1

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

JRGB and JRAINBOW1 LED

1

Sheet ofDate:

58 65

1.0

5

4

3

2

1

EZ Debug LED

VCC5 VCC5 VCC5VCC5

R9

D D

PCH_GP21_DCPU[12]

C C

3VSB

R4

4.7K/4

CPU_LED1

LED04-W-20mA3.9V

CPU_LED DRAM_LED_G VGA_LED_G BOOT_LED_G

D

G

Q1

S

2N7002

1K/4

3VSB 3VSB 3VSB

R23

4.7K/4

R22 47K/4

DRAM_LED1

LED04-W-20mA3.9V

Q5 2N7002D

G2

D1

G1

S1

R17 1K/4

R43

R42

4.7K/4

47K/4

LED04-W-20mA3.9V

Q6

G2

D1

G1

2N7002D

S1

DRAMCPU

D2

S2

PCH_GP10_DVGA[12] PCH_GP20_DEVICE[12]PCH_GP22_DDRAM[12]

VGA_LED1

D2

S2

R36 1K/4

R47 47K/4

VGA BOOT

R52

4.7K/4

BOOT_LED1

LED04-W-20mA3.9V

Q8

G2

D1

G1

2N7002D

S1

R48 1K/4

D2

S2

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MS-7C89

EZ Debug LED

1.0

59 65

1.0

Sheet ofDate:

1

PCB1

5

4

3

2

1

Mounting HolesSimulation

X_FM

FM5

X_FM

SIM1

X_PIN1*2

FM2

X_FM

FM7

X_FM

MH1

7

6

MH5

7

6

C391

0.1u16X4

981

2

3

X_MH001

5

4

981

2

3

X_MH001

5

4

C409

0.1u16X4FM6

MH2

MH6

981

7

6

7

6

2

3

X_MH001

5

4

981

2

3

X_MH001

5

4

MH3

MH4

981

7

6

7

6

2

3

X_MH001

5

4

981

2

3

X_MH001

5

4

D D

C C

7C89-1.0

PK0-07C8910-G37 PK0-07C8910-E48

CPU_H1

CPU

^

_

CPU_H1

BAT1_X2

BAT-CR2032

SIM2

SIM1 SIM2

X_PIN1*2

Optical Fiducial Marks-120

FM1

FM3

X_FM

FM8

FM4

X_FM

Heat Sink

HS_PCH1

MCE1

PCH

Shink

MCE2

E31-0409430-K08

B B

A A

MICRO-STAR INT'L CO.,LTD

MS-7C89

Manual Parts

MS-7C89

1

Sheet ofDate:

60 65

1.0

MSI

Size Document Description Rev

Custom

Tuesday, March 17, 2020

5

4

3

2

Tuesday, March 17, 2020

MSI MS-7C89 Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
